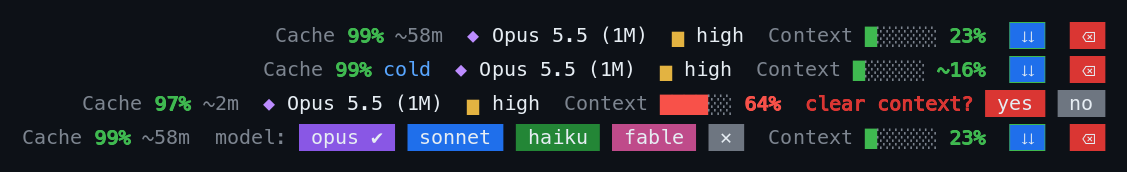

context-bar

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, Timer } from 'claude-code'
3
4import type { CacheInfo, CacheTtl, ContextAction, ContextFill, ModelInfo, Question, Setting } from '../types'
5import { COLD_TEXT, DEFAULT_TTL, formatRemaining, hitColor, hitPercent, inferTtl, isCacheTtl, remainingMs } from './cache'
6
7const BAR_MIN = 3
8const BAR_MAX = 8
9const BAR_SHARE = 0.05
10const COMPACT_BELOW = 80
11const DEFAULT_COLUMNS = 120
12const BLOCK_GAP = 2
13const EFFORT_GAP = 2
14const GREEN_BELOW = 30
15const ORANGE_BELOW = 60
16const MODEL_POLL_MS = 1000
17const FILL_POLL_MS = 1000
18const CACHE_TICK_MS = 1000
19const CACHE_TTL_KEY = 'cacheTtl'
20const RENEW_TTL_KEY = 'renewTtl'
21const COLD_COLOR = '#58a6ff'
22const CONFIRM_MS = 5000
23const CHOOSE_MS = 10000
24const ACTION_GAP = 2
25const MODEL_ICON = '◆'
26const NEUTRAL = '#8b949e'
27// One glyph each, one cell wide, drawn on a chip of the action's color: a Button takes no
28// color of its own at rest, so the color is the Box behind it
29const ACTIONS: Record<ContextAction, { icon: string; question: string; color: string }> = {
30  compact: { icon: '⇊', question: 'compact context?', color: '#1f6feb' },
31  clear: { icon: '⌫', question: 'clear context?', color: '#da3633' },
32}
33const NO_COLOR = '#6e7681'
34const CONTEXT_ACTIONS: readonly ContextAction[] = ['compact', 'clear']
35// `/effort`'s answer as the transcript keeps it: `Set effort level to high (this session only): …`
36const EFFORT_SET = /<local-command-stdout>Set effort level to ([a-z]+)\b/
37// The same answer as `$.command.run` returns it, before the transcript wraps it
38const EFFORT_ANSWER = /^Set effort level to ([a-z]+)\b/
39
40const MODEL_COLORS: Record<string, string> = {
41  opus: '#bc8cff',
42  sonnet: '#58a6ff',
43  haiku: '#7ee787',
44  fable: '#f778ba',
45}
46
47const EFFORT_STYLES: Record<string, { icon: string; color: string }> = {
48  low: { icon: '▂', color: '#8b949e' },
49  medium: { icon: '▄', color: '#39c5bb' },
50  high: { icon: '▆', color: '#e3b341' },
51  xhigh: { icon: '▇', color: '#ffa657' },
52  max: { icon: '█', color: '#ff7b72' },
53}
54
55// The aliases `/model` takes, each switching to the latest model of its family
56const MODEL_CHOICES = ['opus', 'sonnet', 'haiku', 'fable']
57// The chips' backgrounds are darker than the text colors above, so the terminal's own text
58// color, the only one a Button takes at rest, stays readable on them
59const MODEL_CHIPS: Record<string, string> = {
60  opus: '#8957e5',
61  sonnet: '#1f6feb',
62  haiku: '#238636',
63  fable: '#bf4b8a',
64}
65const EFFORT_CHIPS: Record<string, string> = {
66  low: '#6e7681',
67  medium: '#1b7c83',
68  high: '#9e6a03',
69  xhigh: '#bd561d',
70  max: '#da3633',
71}
72const CURRENT_MARK = '✔'
73const CLOSE_ICON = '✕'
74
75const fill = atom({ plugin: 'context-bar', key: 'fill' } as const, null)
76const model = atom({ plugin: 'context-bar', key: 'model' } as const, null)
77const asking = atom({ plugin: 'context-bar', key: 'asking' } as const, null)
78const cache = atom({ plugin: 'context-bar', key: 'cache' } as const, null)
79
80// The bar takes a twentieth of the terminal width, so it follows resizes
81export const barWidthFor = (columns: number): number =>
82  Math.min(BAR_MAX, Math.max(BAR_MIN, Math.round(columns * BAR_SHARE)))
83
84// The blocks stack, right-aligned, when one row cannot hold them
85export const fitsInRow = (columns: number, rightLength: number): boolean => rightLength <= columns
86
87export const colorFor = (percent: number): string => {
88  if (percent < GREEN_BELOW) return '#3fb950'
89  if (percent < ORANGE_BELOW) return '#ff9500'
90  return '#f85149'
91}
92
93const capitalize = (word: string): string => word.charAt(0).toUpperCase() + word.slice(1)
94
95// `claude-sonnet-5-5` -> `Sonnet 5.5`, `claude-haiku-4-5-20251001` -> `Haiku 4.5`,
96// `claude-3-5-sonnet-20241022` -> `Sonnet 3.5`; anything else is left as received
97export const displayModelName = (id: string): string => {
98  const isLongContext = id.endsWith('[1m]')
99  const bare = id.replace(/\[1m\]$/, '')
100  const suffix = isLongContext ? ' (1M)' : ''
101  const modern = /^claude-([a-z]+)-(\d+)(?:-(\d{1,2}))?(?:-\d{8})?$/.exec(bare)
102
103  if (modern !== null) {
104    const [, family = '', major, minor] = modern
105    return `${capitalize(family)} ${minor === undefined ? major : `${major}.${minor}`}${suffix}`
106  }
107
108  const legacy = /^claude-(\d+)(?:-(\d{1,2}))?-([a-z]+)(?:-\d{8})?$/.exec(bare)
109
110  if (legacy !== null) {
111    const [, major, minor, family = ''] = legacy
112    return `${capitalize(family)} ${minor === undefined ? major : `${major}.${minor}`}${suffix}`
113  }
114
115  return id
116}
117
118export type ModelParts = {
119  name: string
120  family: string
121  modelColor: string
122  effort: { icon: string; color: string; label: string } | null
123  length: number
124}
125
126// An effort neither the settings nor a request has told yet is shown as `…`
127export const modelParts = (info: ModelInfo): ModelParts => {
128  const name = displayModelName(info.name)
129  const family = (name.split(' ')[0] ?? '').toLowerCase()
130  const modelColor = MODEL_COLORS[family] ?? NEUTRAL
131
132  let effort: ModelParts['effort'] = null
133
134  if (!info.isEffortKnown) {
135    effort = { icon: '', color: NEUTRAL, label: '…' }
136  } else if (info.effort !== null) {
137    const style = EFFORT_STYLES[info.effort] ?? { icon: '●', color: NEUTRAL }
138    effort = { ...style, label: info.effort }
139  }
140
141  const effortLength =
142    effort === null
143      ? 0
144      : EFFORT_GAP + (effort.icon === '' ? 0 : effort.icon.length + 1) + effort.label.length
145
146  return { name, family, modelColor, effort, length: MODEL_ICON.length + 1 + name.length + effortLength }
147}
148
149const isRecord = (value: unknown): value is Record<string, unknown> =>
150  typeof value === 'object' && value !== null
151
152// What the settings ask of a model until a request reports it: the model's own
153// `modelSettings` row, else the global `effortLevel`. A level the model does not take is
154// only corrected by the next request
155export const configuredEffort = (settings: Readonly<Record<string, unknown>>, modelId: string): string | null => {
156  const rows = settings.modelSettings
157  const row = isRecord(rows) ? rows[modelId.replace(/\[1m\]$/, '')] : undefined
158  const own = isRecord(row) ? row.effortLevel : undefined
159  const level = typeof own === 'string' ? own : settings.effortLevel
160  return typeof level === 'string' && level in EFFORT_STYLES ? level : null
161}
162
163export const withEffort = (name: string, effort: string | null): ModelInfo => ({
164  name,
165  effort,
166  isEffortKnown: effort !== null,
167  isEffortPinned: false,
168})
169
170export const pinEffort = (prev: ModelInfo | null, effort: string): ModelInfo | null =>
171  prev === null ? prev : { ...prev, effort, isEffortKnown: true, isEffortPinned: true }
172
173// `/effort` sets the level for the whole session, so a model switch keeps it; otherwise the
174// new model starts at what the settings ask of it
175export const switchedModel = (prev: ModelInfo | null, name: string, configured: string | null): ModelInfo =>
176  prev !== null && prev.isEffortPinned ? { ...prev, name } : withEffort(name, configured)
177
178const knownLevel = (level: string | undefined): string | null =>
179  level !== undefined && level in EFFORT_STYLES ? level : null
180
181// The level `/effort` set, read from its answer row; null for any other row
182export const effortFromRow = (blocks: readonly { type: string }[]): string | null => {
183  for (const block of blocks) {
184    const text = 'text' in block && typeof block.text === 'string' ? block.text : ''
185    const level = knownLevel(EFFORT_SET.exec(text)?.[1])
186    if (level !== null) return level
187  }
188  return null
189}
190
191// The level `/effort` set, read from the answer `$.command.run` returns; null for a refusal
192export const effortFromAnswer = (text: string | undefined): string | null =>
193  text === undefined ? null : knownLevel(EFFORT_ANSWER.exec(text)?.[1])
194
195// /clear ends the session and the next one starts with empty state, while the engine keeps
196// the model and its effort: they are carried over from the end to the next refresh
197let carried: ModelInfo | null = null
198
199const refreshModel = async ($: EngineInterface): Promise<void> => {
200  const name = await $.session.model()
201  const prev = await read($, model)
202  if (prev !== null && prev.name === name) return
203  const kept = prev === null && carried?.name === name ? carried : null
204  carried = null
205  const effort = configuredEffort(await $.settings.read(), name)
206  await update($, model, () => kept ?? switchedModel(prev, name, effort))
207}
208
209// A turn with no response, an interrupted one, leaves the last fill as it was
210const refreshFill = async ($: EngineInterface): Promise<void> => {
211  const { context } = await $.session.usage()
212  await update($, fill, prev => toFill(context) ?? prev)
213}
214
215// The engine measures the window on each response, and a compaction or a /clear leaves its
216// last measure behind: until the next response the bar shows the engine's own estimate, the
217// one /context makes, counted locally with no request
218const estimateFill = async ($: EngineInterface): Promise<void> => {
219  const { context } = await $.session.usage({ breakdown: 'summary' })
220  const tokens = context.breakdown?.totalTokens
221  if (tokens !== undefined) await update($, fill, () => estimatedFill(tokens, context.window))
222}
223
224// A fresh session, and one `/clear` started, has no fill until its first response
225const estimateMissingFill = async ($: EngineInterface): Promise<void> => {
226  if ((await read($, fill)) === null) await estimateFill($)
227}
228
229export const isAction = (question: Question): question is ContextAction => question in ACTIONS
230
231// A click only asks: the question that replaces the icons runs the command on `yes`, and
232// drops back to the icons after CONFIRM_MS, so a stray click never clears or compacts. The
233// choices that replace the model or the effort close likewise after CHOOSE_MS
234let askTimer: Timer | null = null
235
236// The cache's countdown is drawn from the clock's last reading, and the footer drawn again
237// only when its text changes: once a minute, then once a second for the last one
238let cacheTtl: CacheTtl = DEFAULT_TTL
239// How long a fork's entry lasts, once a request after one has told; until then, a request's
240let renewTtl: CacheTtl | null = null
241let cacheNow = 0
242let shownRemaining = ''
243
244const ttlOf = (info: CacheInfo): CacheTtl => (info.isFork === true ? (renewTtl ?? cacheTtl) : cacheTtl)
245
246const tickCache = async ($: EngineInterface): Promise<void> => {
247  cacheNow = await $.clock.now()
248  const info = await read($, cache)
249  // A model switch makes no request, so the clock sees it too
250  const name = (await read($, model))?.name ?? null
251  let text = ''
252  if (info !== null) text = name !== null && name !== info.model ? COLD_TEXT : formatRemaining(remainingMs(info, ttlOf(info), cacheNow))
253  if (text === shownRemaining) return
254  shownRemaining = text
255  $.ui.invalidate('ui.render')
256}
257
258// The engine keeps its TTL to itself: a request after a long enough pause tells it, and it
259// is kept between sessions since it holds for the account
260const learnTtl = async ($: EngineInterface, ttl: CacheTtl | null): Promise<void> => {
261  if (ttl === null || ttl === cacheTtl) return
262  cacheTtl = ttl
263  await $.store.set(CACHE_TTL_KEY, ttl)
264}
265
266// A fork's entry is told apart the same way, by the first request after a long enough pause.
267// On an account that caches for five minutes it can last no less
268const learnRenewTtl = async ($: EngineInterface, ttl: CacheTtl | null): Promise<void> => {
269  if (ttl === null || ttl === renewTtl || cacheTtl !== '1h') return
270  renewTtl = ttl
271  await $.store.set(RENEW_TTL_KEY, ttl)
272}
273
274// Passes the response on as it streams, seeing each chunk on the way
275async function* tap<T, R>(stream: AsyncGenerator<T, R>, see: (chunk: T) => Promise<void>): AsyncGenerator<T, R> {
276  for (;;) {
277    const step = await stream.next()
278    if (step.done === true) return step.value
279    await see(step.value)
280    yield step.value
281  }
282}
283
284const ask = async ($: EngineInterface, question: Question): Promise<void> => {
285  askTimer?.cancel()
286  await update($, asking, () => question)
287  askTimer = $.clock.after(isAction(question) ? CONFIRM_MS : CHOOSE_MS, () => void update($, asking, () => null))
288}
289
290const settle = async ($: EngineInterface): Promise<void> => {
291  askTimer?.cancel()
292  askTimer = null
293  await update($, asking, () => null)
294}
295
296const confirm = async ($: EngineInterface, action: ContextAction): Promise<void> => {
297  await settle($)
298  await $.command.run({ command: action })
299}
300
301// `/model <alias>` and `/effort <level>` save the pick as the default, as typed. A plugin's
302// run skips its own `command.run` hooks, so the footer is updated from the answer here
303const choose = async ($: EngineInterface, setting: Setting, choice: string): Promise<void> => {
304  await settle($)
305  const { text } = await $.command.run({ command: setting, args: choice })
306
307  if (setting === 'model') {
308    await refreshModel($)
309    return
310  }
311
312  const effort = effortFromAnswer(text)
313  if (effort !== null) await update($, model, prev => pinEffort(prev, effort))
314}
315
316export const choicesFor = (setting: Setting): readonly string[] =>
317  setting === 'model' ? MODEL_CHOICES : Object.keys(EFFORT_STYLES)
318
319const choiceLabel = (choice: string, current: string | null): string =>
320  choice === current ? `${choice} ${CURRENT_MARK}` : choice
321
322// The label pads the glyph so the whole chip, not its one middle cell, takes the click
323export const chipLabel = (text: string): string => ` ${text} `
324
325export const chooserLength = (setting: Setting, current: string | null): number =>
326  `${setting}:`.length +
327  choicesFor(setting).reduce((sum, choice) => sum + 1 + chipLabel(choiceLabel(choice, current)).length, 0) +
328  1 +
329  chipLabel(CLOSE_ICON).length
330
331export const actionsLength = (pending: ContextAction | null): number =>
332  pending === null
333    ? CONTEXT_ACTIONS.reduce((sum, action) => sum + chipLabel(ACTIONS[action].icon).length, 0) +
334      ACTION_GAP * (CONTEXT_ACTIONS.length - 1)
335    : ACTIONS[pending].question.length + ` ${chipLabel('yes')} ${chipLabel('no')}`.length
336
337// `percent` is absent until the first response of a fresh or just-compacted window
338export const toFill = (context: {
339  percent?: number
340  tokens?: number
341  window: number
342}): ContextFill | null =>
343  context.percent === undefined || context.tokens === undefined
344    ? null
345    : { percent: context.percent, tokens: context.tokens, window: context.window, isEstimate: false }
346
347export const estimatedFill = (tokens: number, window: number): ContextFill => ({
348  percent: Math.min(100, Math.round((tokens / window) * 100)),
349  tokens,
350  window,
351  isEstimate: true,
352})
353
354export const register: Register = on => {
355  on('session.start', async ($, e, next) => {
356    const { context } = await $.session.usage()
357    // A reload fires session.start before any new response: keep the last known fill
358    await update($, fill, prev => toFill(context) ?? prev)
359    const name = await $.session.model()
360    const effort = configuredEffort(await $.settings.read(), name)
361    // A reload keeps what a request or `/effort` told about the same model
362    await update($, model, prev =>
363      prev !== null && prev.name === name && prev.isEffortKnown ? prev : withEffort(name, effort),
364    )
365    // `/model`, its picker and alt+p switch the model without any event or request
366    $.clock.every(MODEL_POLL_MS, () => void refreshModel($))
367    $.clock.every(FILL_POLL_MS, () => void estimateMissingFill($))
368    const stored = await $.store.get(CACHE_TTL_KEY)
369    if (isCacheTtl(stored)) cacheTtl = stored
370    const storedRenewTtl = await $.store.get(RENEW_TTL_KEY)
371    if (isCacheTtl(storedRenewTtl)) renewTtl = storedRenewTtl
372    cacheNow = await $.clock.now()
373    $.clock.every(CACHE_TICK_MS, () => void tickCache($))
374    return next(e)
375  })
376
377  on('turn.complete', async ($, e, next) => {
378    await refreshFill($)
379    await refreshModel($)
380    return next(e)
381  })
382
383  // The effort is only known on a request, after any downgrade for the selected model
384  // The cache is read on each main-thread request; the first after a message says how much
385  // of the conversation was still cached when it was sent
386  on('turn.step', async function* ($, e, next) {
387    if (e.agentId !== undefined) return yield* next(e)
388    const effort = e.effort === undefined ? null : String(e.effort)
389    const name = await $.session.model()
390    await update($, model, prev => ({ name, effort, isEffortKnown: true, isEffortPinned: prev?.isEffortPinned ?? false }))
391    const requestAt = await $.clock.now()
392    return yield* tap(next(e), async chunk => {
393      if (chunk.kind !== 'stop' || chunk.usage === null) return
394      const hit = hitPercent(chunk.usage)
395      const prev = await read($, cache)
396      if (e.index === 0 && hit !== null && prev !== null) {
397        const ttl = inferTtl(prev, name, hit, requestAt)
398        await (prev.isFork === true ? learnRenewTtl($, ttl) : learnTtl($, ttl))
399      }
400      const hitNow = e.index === 0 || prev === null ? (hit ?? prev?.hitPercent ?? 0) : prev.hitPercent
401      await update($, cache, () => ({ hitPercent: hitNow, requestAt, model: name }))
402    })
403  })
404
405  // A plugin's fork re-sends the main thread's last request with one more message after it,
406  // whichever plugin forks: it reads the conversation from the cache, or writes it there once
407  // the entry lapsed, and either way the entry starts over. Keep warm renews the cache so
408  on('model.fork', async ($, e, next) => {
409    const requestAt = await $.clock.now()
410    const result = await next(e)
411    const usage = result.value !== undefined && 'usage' in result.value ? result.value.usage : null
412    const hit = usage === null ? null : hitPercent(usage)
413    if (hit === null) return result
414    const name = await $.session.model()
415    await update($, cache, () => ({ hitPercent: hit, requestAt, model: name, isFork: true }))
416    return result
417  })
418
419  // `/effort` changes the level without a request: its answer row says to what
420  on('session.append', { door: 'command' }, async ($, e, next) => {
421    const effort = e.agentId === undefined ? effortFromRow(e.message.content) : null
422    if (effort !== null) await update($, model, prev => pinEffort(prev, effort))
423    return next(e)
424  })
425
426  // The cleared conversation is estimated once the engine has emptied it
427  on('session.end', async ($, e, next) => {
428    if (e.reason !== 'clear') return next(e)
429    carried = await read($, model)
430    const result = await next(e)
431    $.clock.after(0, () => void estimateFill($))
432    return result
433  })
434
435  // The engine takes the compacted conversation once the hooks have returned, so its estimate
436  // waits for that. A compaction computed ahead or vetoed leaves the conversation as it was,
437  // and a subagent's leaves the main one. A compacted conversation is a new prefix, which the
438  // cache has none of yet
439  on('session.compact', async ($, e, next) => {
440    const result = await next(e)
441    if (e.trigger === 'precompute' || e.agentId !== undefined || result.skip !== undefined) return result
442    $.clock.after(0, () => void estimateFill($))
443    await update($, cache, prev => (prev === null ? prev : { ...prev, requestAt: null }))
444    return result
445  })
446
447  // The footer's right-hand slot, which the engine lays out after the hint line. A tree
448  // drawn for `PromptHint` instead shares a row with the mode label the engine puts ahead
449  // of it, and any width it claims squeezes that label until its ` · ` wraps
450  on('ui.render', { component: 'SessionMode' }, async ($, e, next) => {
451    const current = await read($, fill)
452    const info = await read($, model)
453
454    if (current === null && info === null) {
455      return next(e)
456    }
457
458    const { Box, Text, Button } = $.ui.resolve(e)
459    const columns = e.viewport?.columns ?? DEFAULT_COLUMNS
460    // The labels already in the slot (`focus`, `memory paused`) keep the engine's drawing, and
461    // what other mods beneath draw there goes with them, at the right end
462    const modesText = e.props.modes.join(' & ')
463    const beneath = await next(e)
464
465    const parts = info === null ? null : modelParts(info)
466    const pending = await read($, asking)
467    const confirming = pending !== null && isAction(pending) ? pending : null
468    // An effort pick is moot once the model in use takes none
469    const choosing =
470      pending === null || isAction(pending) || parts === null || (pending === 'effort' && parts.effort === null)
471        ? null
472        : pending
473    const selected =
474      choosing === 'model' ? (parts?.family ?? null) : info !== null && info.isEffortKnown ? info.effort : null
475
476    let modelBlock = null
477    let modelLength = 0
478
479    if (parts !== null && choosing !== null) {
480      const chips = choosing === 'model' ? MODEL_CHIPS : EFFORT_CHIPS
481      modelLength = chooserLength(choosing, selected)
482      modelBlock = (
483        <Box flexShrink={0} gap={1}>
484          <Text dimColor>{`${choosing}:`}</Text>
485          {choicesFor(choosing).map(choice => (
486            <Box backgroundColor={chips[choice] ?? NO_COLOR}>
487              <Button
488                key={`${choosing}:${choice}`}
489                label={chipLabel(choiceLabel(choice, selected))}
490                plain
491                onPress={() => void (choice === selected ? settle($) : choose($, choosing, choice))}
492              />
493            </Box>
494          ))}
495          <Box backgroundColor={NO_COLOR}>
496            <Button key="close" label={chipLabel(CLOSE_ICON)} plain onPress={() => void settle($)} />
497          </Box>
498        </Box>
499      )
500    } else if (parts !== null) {
501      modelLength = parts.length
502      // A Button takes no color at rest: the icons keep the model's and the effort's
503      modelBlock = (
504        <Box flexShrink={0}>
505          <Text color={parts.modelColor}>{`${MODEL_ICON} `}</Text>
506          <Button key="model" label={parts.name} plain onPress={() => void ask($, 'model')} />
507          {parts.effort !== null && (
508            <Text color={parts.effort.color}>
509              {`${' '.repeat(EFFORT_GAP)}${parts.effort.icon === '' ? '' : `${parts.effort.icon} `}`}
510            </Text>
511          )}
512          {parts.effort !== null && (
513            <Button key="effort" label={parts.effort.label} plain onPress={() => void ask($, 'effort')} />
514          )}
515        </Box>
516      )
517    }
518
519    let bar = null
520    let barLength = 0
521
522    if (current !== null) {
523      const percent = Math.min(100, Math.max(0, current.percent))
524      const isCompact = columns < COMPACT_BELOW
525      const barWidth = barWidthFor(columns)
526      const filled = Math.round((percent / 100) * barWidth)
527      const color = colorFor(percent)
528      const label = isCompact ? '' : 'Context '
529      const percentText = ` ${current.isEstimate ? '~' : ''}${percent}%`
530      barLength = label.length + barWidth + percentText.length
531
532      bar = (
533        <Box flexShrink={0}>
534          {label !== '' && <Text dimColor>{label}</Text>}
535          <Text color={color}>{'█'.repeat(filled)}</Text>
536          <Text dimColor>{'░'.repeat(barWidth - filled)}</Text>
537          <Text color={color} bold>
538            {percentText}
539          </Text>
540        </Box>
541      )
542    }
543
544    let cacheBlock = null
545    let cacheLength = 0
546    const cached = await read($, cache)
547
548    if (cached !== null) {
549      const label = columns < COMPACT_BELOW ? '' : 'Cache '
550      const percentText = `${cached.hitPercent}%`
551      // The cache is per model: one switched to has none of the conversation yet
552      const isSameModel = info === null || info.name === cached.model
553      const remaining = isSameModel ? formatRemaining(remainingMs(cached, ttlOf(cached), cacheNow)) : COLD_TEXT
554      cacheLength = label.length + percentText.length + 1 + remaining.length
555
556      cacheBlock = (
557        <Box flexShrink={0}>
558          {label !== '' && <Text dimColor>{label}</Text>}
559          <Text color={hitColor(cached.hitPercent)} bold>
560            {percentText}
561          </Text>
562          {remaining === COLD_TEXT ? <Text color={COLD_COLOR}>{` ${remaining}`}</Text> : <Text dimColor>{` ${remaining}`}</Text>}
563        </Box>
564      )
565    }
566
567    const actions =
568      confirming === null ? (
569        <Box flexShrink={0} gap={ACTION_GAP}>
570          {CONTEXT_ACTIONS.map(action => (
571            <Box backgroundColor={ACTIONS[action].color}>
572              <Button key={action} label={chipLabel(ACTIONS[action].icon)} plain onPress={() => void ask($, action)} />
573            </Box>
574          ))}
575        </Box>
576      ) : (
577        <Box flexShrink={0} gap={1}>
578          <Text color={ACTIONS[confirming].color} bold>
579            {ACTIONS[confirming].question}
580          </Text>
581          <Box backgroundColor={ACTIONS[confirming].color}>
582            <Button key="yes" label={chipLabel('yes')} plain onPress={() => void confirm($, confirming)} />
583          </Box>
584          <Box backgroundColor={NO_COLOR}>
585            <Button key="no" label={chipLabel('no')} plain onPress={() => void settle($)} />
586          </Box>
587        </Box>
588      )
589
590    const blocks = [cacheLength, modelLength, barLength, actionsLength(confirming), modesText.length].filter(
591      n => n > 0,
592    )
593    const rightLength = blocks.reduce((sum, n) => sum + n, 0) + BLOCK_GAP * (blocks.length - 1)
594
595    if (fitsInRow(columns, rightLength)) {
596      return (
597        <Box flexShrink={0} gap={BLOCK_GAP}>
598          {cacheBlock}
599          {modelBlock}
600          {bar}
601          {actions}
602          {beneath}
603        </Box>
604      )
605    }
606
607    return (
608      <Box flexShrink={0} flexDirection="column" alignItems="flex-end">
609        {cacheBlock}
610        {modelBlock}
611        {bar}
612        {actions}
613        {beneath}
614      </Box>
615    )
616  })
617}
618

1import type { CacheInfo, CacheTtl } from '../types'
2
3const GOOD_FROM = 80
4const FAIR_FROM = 40
5const MINUTE_MS = 60_000
6const SECOND_MS = 1000
7
8export const TTL_MS: Record<CacheTtl, number> = { '5m': 5 * MINUTE_MS, '1h': 60 * MINUTE_MS }
9// What the engine picks for a main thread that may cache for an hour, which a session on a
10// Claude subscription does, until a request shows otherwise
11export const DEFAULT_TTL: CacheTtl = '1h'
12// Past a TTL by this much, a request's hit or miss is the entry's lapse and not a race
13const TTL_MARGIN_MS = 30_000
14const WARM_FROM = 50
15const COLD_BELOW = 10
16export const COLD_TEXT = 'cold'
17
18type RequestUsage = { input_tokens: number; cache_read_input_tokens: number; cache_creation_input_tokens: number }
19
20// The share of the prompt the cache served, out of all the input the request was answered
21// over: what was read, what was written, and what went uncached
22export const hitPercent = (usage: RequestUsage): number | null => {
23  const total = usage.input_tokens + usage.cache_read_input_tokens + usage.cache_creation_input_tokens
24  return total === 0 ? null : Math.round((usage.cache_read_input_tokens / total) * 100)
25}
26
27export const isCacheTtl = (value: unknown): value is CacheTtl => value === '5m' || value === '1h'
28
29// Each request that reads the cache renews its entry, so it lapses one TTL after the last.
30// The clock is read once a second, so a request just made may postdate its last reading
31export const remainingMs = (info: CacheInfo, ttl: CacheTtl, now: number): number =>
32  info.requestAt === null ? 0 : Math.min(TTL_MS[ttl], Math.max(0, info.requestAt + TTL_MS[ttl] - now))
33
34// Rounded up, so `~1m` still has the cache warm and nothing shows `~0m`
35export const formatRemaining = (ms: number): string => {
36  if (ms <= 0) return COLD_TEXT
37  if (ms < MINUTE_MS) return `~${Math.ceil(ms / SECOND_MS)}s`
38  return `~${Math.ceil(ms / MINUTE_MS)}m`
39}
40
41export const hitColor = (percent: number): string => {
42  if (percent >= GOOD_FROM) return '#3fb950'
43  if (percent >= FAIR_FROM) return '#ff9500'
44  return '#f85149'
45}
46
47// A pause longer than five minutes and shorter than an hour tells the TTL apart: a cache
48// still read means an hour, one gone means five minutes. A miss can also come from a
49// prompt that changed meanwhile (an edited CLAUDE.md, a server connected), which the
50// next long pause with a hit corrects
51export const inferTtl = (prev: CacheInfo, model: string, hit: number, requestAt: number): CacheTtl | null => {
52  if (prev.requestAt === null || prev.model !== model) return null
53  const pause = requestAt - prev.requestAt
54  if (pause < TTL_MS['5m'] + TTL_MARGIN_MS || pause > TTL_MS['1h'] - TTL_MARGIN_MS) return null
55  if (hit >= WARM_FROM) return '1h'
56  return hit < COLD_BELOW ? '5m' : null
57}
58

1// `isEstimate`: the engine's own estimate, as /context makes it, while no response has measured
2// the window yet: in a fresh or cleared session, or just after a compaction
3export type ContextFill = { percent: number; tokens: number; window: number; isEstimate: boolean }
4export type ContextAction = 'compact' | 'clear'
5export type Setting = 'model' | 'effort'
6// What the footer asks in place of its blocks: to confirm an action, or to pick a setting
7export type Question = ContextAction | Setting
8// `isEffortPinned`: `/effort` set the level, which then holds for the session across models
9export type ModelInfo = { name: string; effort: string | null; isEffortKnown: boolean; isEffortPinned: boolean }
10
11export type CacheTtl = '5m' | '1h'
12// `hitPercent`: what the cache served of the first request after the last message.
13// `requestAt`: the last main-thread request, null once a compaction changed the prefix.
14// `model`: the session's model then, the one the cache entry belongs to.
15// `isFork`: that request was a plugin's fork of the conversation (keep warm's renewal), whose
16// entry may not last as long as one a request of the conversation leaves
17export type CacheInfo = { hitPercent: number; requestAt: number | null; model: string; isFork?: boolean }
18
19declare module 'claude-code' {
20  interface PluginState {
21    'context-bar': {
22      fill: ContextFill | null
23      model: ModelInfo | null
24      asking: Question | null
25      cache: CacheInfo | null
26    }
27  }
28}
29
