Agent Party

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, RenderNode } from 'claude-code'
3
4import type { Agent, Outline, Size } from '../types'
5import { HEROES, heroOf, roleOf, THEMES } from './heroes'
6import type { Theme } from './heroes'
7import { describe, elapsed, isTestRun, loot, spoken, tokens } from './activity'
8import { frame, TICK_MS } from './art'
9import type { Mode } from './art'
10import { cellsOf, classOf, colorOf, spriteCells, spriteSvg } from './sprites'
11
12const agents = atom({ plugin: 'agent-party', key: 'agents' } as const, [] as Agent[])
13const isVoiceOn = atom({ plugin: 'agent-party', key: 'isVoiceOn' } as const, true)
14const theme = atom({ plugin: 'agent-party', key: 'theme' } as const, 'party' as Theme)
15const size = atom({ plugin: 'agent-party', key: 'size' } as const, 'auto' as Size)
16const outline = atom({ plugin: 'agent-party', key: 'outline' } as const, 'thin' as Outline)
17const cast = atom({ plugin: 'agent-party', key: 'cast' } as const, {} as Record<string, string>)
18const log = atom({ plugin: 'agent-party', key: 'log' } as const, [] as Agent[])
19
20const LOG_PANE = 'agent-log'
21const LOG_KEEP = 100 // ponytail: the session's last 100 quests; page the pane if anyone needs more
22
23const SIZES: Size[] = ['auto', 'large', 'medium', 'small', 'line']
24const OUTLINES: Outline[] = ['thin', 'dark', 'none']
25const PIXELS = { large: 16, medium: 12, small: 8 } as const
26
27const LINGER_MS = 20_000 // a finished agent stays on stage this long
28const CHATTER_MS = 45_000 // at most one spoken activity update per agent this often
29const STUCK_MS = 120_000 // no tool running and no model step for this long reads as stuck
30const LOOP_REPEATS = 3 // the same tool call with the same input this many times in a row reads as a loop
31const HURT_MS = 750 // the red flash after a failed tool call
32const MAX_HP = 5
33const BUBBLE = 30
34
35// WHY: hooks only queue lines; the session.start timer speaks them, so no tool call waits on a voice.
36const speech: string[] = []
37const spokenAt = new Map<string, number>()
38const warned = new Set<string>() // agents already announced as stuck
39let isSpeaking = false
40let useSpdSay = false
41let shownStatus: string | undefined
42
43const say = (text: string, isImportant = false) => {
44  if (!isImportant && speech.length >= 2) return
45  speech.push(text)
46  if (speech.length > 4) speech.shift()
47}
48
49const speakNext = async ($: EngineInterface) => {
50  const text = speech.shift()
51  if (!text || !(await read($, isVoiceOn))) return
52  isSpeaking = true
53  try {
54    if (!useSpdSay) await $.audio.speak(text)
55    else await $.process.run(['spd-say', '-w', text], { timeoutMs: 30_000 })
56  } catch (err) {
57    if (useSpdSay) {
58      await update($, isVoiceOn, () => false)
59      $.ui.toast(`agent-party: no voice available (${String(err).slice(0, 80)}), voice off`)
60    } else {
61      useSpdSay = true // ponytail: Linux fallback when the engine has no synthesizer; one retry, then voice off
62      speech.unshift(text)
63    }
64  } finally {
65    isSpeaking = false
66  }
67}
68
69const patch = ($: EngineInterface, id: string, fn: (agent: Agent) => Agent) =>
70  update($, agents, list => list.map(agent => (agent.id === id ? fn(agent) : agent)))
71
72const isStuck = (agent: Agent, now: number) =>
73  agent.status === 'running' && agent.inFlight === 0 && now - agent.seenAt > STUCK_MS
74
75// The status line: the party at a glance on every surface, also when the band is hidden or too narrow.
76const summary = (list: Agent[], now: number): string | undefined => {
77  if (!list.length) return undefined
78  const count = (status: Agent['status']) => list.filter(agent => agent.status === status).length
79  const stuck = list.filter(agent => isStuck(agent, now)).length
80  return [
81    `⚔ ${count('running')} running`,
82    count('done') && `✓ ${count('done')} done`,
83    count('failed') && `✗ ${count('failed')} stopped`,
84    stuck && `💦 ${stuck} stuck?`,
85  ].filter(Boolean).join(' · ')
86}
87
88// auto: the hero shrinks as the party grows or the window narrows, then goes to one line each.
89const sizeFor = (setting: Size, count: number, columns: number): Exclude<Size, 'auto'> => {
90  if (setting !== 'auto') return setting
91  if (columns < 45 || count > 6) return 'line'
92  if (count <= 2 && columns >= 60) return 'large'
93  return count <= 4 ? 'medium' : 'small'
94}
95
96// /agent-theme, /agent-size, /agent-outline: a name picks, no name steps to the next one.
97const pick = <T extends string>(args: string, current: T, options: readonly T[], key: string): { value?: T; text: string } => {
98  const asked = args.trim()
99  const value = asked ? (asked as T) : options[(options.indexOf(current) + 1) % options.length]!
100  return options.includes(value)
101    ? { value, text: `agent-party ${key}: ${value}` }
102    : { text: `Unknown ${key} "${asked}". Use ${options.join(' | ')}.` }
103}
104
105const isOneOf = <T extends string>(options: readonly T[], value: unknown): value is T => options.includes(value as T)
106
107const fresh = (now: number) => ({ errors: 0, seenAt: now, inFlight: 0, lastCall: '', repeats: 0, files: [] as string[], tests: 0 })
108
109const hearts = (agent: Agent) => {
110  const hp = Math.max(0, MAX_HP - agent.errors)
111  return '♥'.repeat(hp) + '♡'.repeat(MAX_HP - hp)
112}
113
114export const register: Register = on => {
115  on('session.start', async ($, e, next) => {
116    await $.command.register({ name: 'agent-voice', description: 'Turn the agent-party voice on or off' })
117    await $.command.register({ name: 'agent-theme', description: 'Switch the cast: party (fantasy RPG) or wizarding (wizarding school)' })
118    await $.command.register({ name: 'agent-size', description: 'Hero size: auto, large (16×16), medium (12×12), small (8×8) or line (one row each)' })
119    await $.command.register({ name: 'agent-outline', description: 'Hero outline: thin (shadow side), dark (all round) or none' })
120    await $.command.register({ name: 'agent-cast', description: 'Pick the hero for an agent type: /agent-cast my-agent=code-reviewer' })
121    await $.command.register({ name: 'agent-log', description: 'Open the Quest Log: every agent of this session, running and finished' })
122    // WHY: the look is a preference, so it lives in $.store and outlives the session
123    const [savedTheme, savedSize, savedOutline, savedCast] = await Promise.all(['theme', 'size', 'outline', 'cast'].map(key => $.store.get(key)))
124    if (isOneOf(THEMES, savedTheme)) await update($, theme, () => savedTheme)
125    if (isOneOf(SIZES, savedSize)) await update($, size, () => savedSize)
126    if (isOneOf(OUTLINES, savedOutline)) await update($, outline, () => savedOutline)
127    if (savedCast && typeof savedCast === 'object') await update($, cast, () => savedCast as Record<string, string>)
128    // WHY: agents kept in $.state across a reload may predate the newer fields
129    await update($, agents, list => list.map(agent => ({ ...fresh(agent.startedAt), ...agent })))
130
131    $.clock.every(TICK_MS, () => {
132      void (async () => {
133        const now = await $.clock.now()
134        const list = await read($, agents)
135        const kept = list.filter(agent => !agent.endedAt || now - agent.endedAt < LINGER_MS)
136        if (kept.length !== list.length) await update($, agents, () => kept)
137        for (const agent of kept) {
138          if (!isStuck(agent, now)) warned.delete(agent.id)
139          else if (!warned.has(agent.id)) {
140            warned.add(agent.id)
141            say(`${spoken(agent.type)} seems stuck`, true)
142          }
143        }
144        const status = summary(kept, now)
145        if (status !== shownStatus) $.ui.status((shownStatus = status))
146        if (kept.length) $.ui.invalidate('ui.render')
147        if (!isSpeaking && speech.length) await speakNext($)
148      })()
149    })
150    return next(e)
151  })
152
153  on('command.run', { command: 'agent-theme' }, async ($, e) => {
154    const { value, text } = pick(e.args, await read($, theme), THEMES, 'theme')
155    if (value) await Promise.all([update($, theme, () => value), $.store.set('theme', value)])
156    return { text }
157  })
158
159  on('command.run', { command: 'agent-size' }, async ($, e) => {
160    const { value, text } = pick(e.args, await read($, size), SIZES, 'size')
161    if (value) await Promise.all([update($, size, () => value), $.store.set('size', value)])
162    return { text }
163  })
164
165  on('command.run', { command: 'agent-outline' }, async ($, e) => {
166    const { value, text } = pick(e.args, await read($, outline), OUTLINES, 'outline')
167    if (value) await Promise.all([update($, outline, () => value), $.store.set('outline', value)])
168    return { text }
169  })
170
171  on('command.run', { command: 'agent-voice' }, async $ => {
172    const isOn = await update($, isVoiceOn, value => !value)
173    if (!isOn) speech.length = 0
174    return { text: `agent-party voice ${isOn ? 'on' : 'off'}` }
175  })
176
177  on('command.run', { command: 'agent-log' }, async $ => {
178    await $.ui.open({ id: LOG_PANE, title: 'Quest Log' })
179    return { text: 'agent-party: Quest Log opened' }
180  })
181
182  on('command.run', { command: 'agent-cast' }, async ($, e) => {
183    const asked = e.args.trim()
184    const roles = Object.keys(HEROES)
185    const save = async (map: Record<string, string>) => {
186      await update($, cast, () => map)
187      await $.store.set('cast', map)
188    }
189    if (asked === 'reset') {
190      await save({})
191      return { text: 'agent-party cast: every agent type plays the role its name hints at again' }
192    }
193    const pair = /^(\S+?)\s*=\s*(\S*)$/.exec(asked)
194    if (!pair) {
195      const mine = Object.entries(await read($, cast)).map(([type, role]) => `  ${type} = ${role}`)
196      return {
197        text: [
198          `Roles: ${roles.join(', ')}`,
199          mine.length ? `Your picks:\n${mine.join('\n')}` : 'No picks yet: an unknown type plays the role its name hints at.',
200          'Pick: /agent-cast my-agent=code-reviewer · undo: /agent-cast my-agent= · clear all: /agent-cast reset',
201        ].join('\n'),
202      }
203    }
204    const [, type, role] = pair as unknown as [string, string, string]
205    if (role && !roles.includes(role)) return { text: `Unknown role "${role}". Use one of: ${roles.join(', ')}` }
206    const map = { ...(await read($, cast)) }
207    if (role) map[type] = role
208    else delete map[type]
209    await save(map)
210    const shown = heroOf(role || type, await read($, theme)).class
211    return { text: `agent-party cast: ${type} plays the ${shown}${role ? '' : ` (guessed: ${roleOf(type)})`}` }
212  })
213
214  on('agent.spawn', async ($, e, next) => {
215    const started = await next(e)
216    if (!started.agentId) return started
217    const type = e.subagentType || 'general-purpose'
218    const now = await $.clock.now()
219    const agent: Agent = {
220      id: started.agentId,
221      type,
222      title: e.description,
223      activity: 'Getting started…',
224      startedAt: now,
225      context: 0,
226      calls: 0,
227      status: 'running',
228      ...fresh(now),
229      parentId: e.parentAgentId,
230    }
231    await update($, agents, list => [...list.filter(one => one.id !== agent.id), agent])
232    say(`${spoken(type)} started: ${e.description}`, true)
233    return started
234  })
235
236  on('tool.call', async ($, e, next) => {
237    const id = e.agentId
238    const agent = id ? (await read($, agents)).find(one => one.id === id && one.status === 'running') : undefined
239    if (!agent || !id) return next(e)
240
241    const input = e as unknown as Record<string, unknown>
242    const activity = describe(e.tool, input)
243    const call = `${e.tool} ${JSON.stringify({ ...input, agentId: undefined })}`.slice(0, 500)
244    const isWrite = e.tool === 'Edit' || e.tool === 'Write' || e.tool === 'NotebookEdit'
245    const file = isWrite ? String(input.file_path ?? input.notebook_path ?? '') : ''
246    const started = await $.clock.now()
247    await patch($, id, one => ({
248      ...one,
249      activity,
250      calls: one.calls + 1,
251      inFlight: one.inFlight + 1,
252      seenAt: started,
253      lastCall: call,
254      repeats: one.lastCall === call ? one.repeats + 1 : 1,
255    }))
256    if (started - (spokenAt.get(id) ?? 0) > CHATTER_MS) {
257      spokenAt.set(id, started)
258      say(`${spoken(agent.type)}: ${activity}`)
259    }
260
261    let isError = false // an abort (Esc) throws and is not the agent's fault, so it costs no heart
262    try {
263      const result = await next(e)
264      isError = 'deny' in result || result.isError === true
265      return result
266    } finally {
267      const ended = await $.clock.now()
268      await patch($, id, one => ({
269        ...one,
270        inFlight: Math.max(0, one.inFlight - 1),
271        seenAt: ended,
272        ...(isError ? { errors: one.errors + 1, hurtAt: ended } : {}),
273        ...(!isError && file && !one.files.includes(file) ? { files: [...one.files, file] } : {}),
274        ...(e.tool === 'Bash' && isTestRun(input.command) ? { tests: one.tests + 1 } : {}),
275      }))
276    }
277  })
278
279  on('turn.step', async function* ($, e, next) {
280    const step = yield* next(e)
281    const usage = step.usage
282    if (e.agentId && usage) {
283      const context = usage.input_tokens + usage.cache_read_input_tokens + (usage.cache_creation_input_tokens ?? 0)
284      const now = await $.clock.now()
285      await patch($, e.agentId, one => ({ ...one, context: context + usage.output_tokens, seenAt: now }))
286    }
287    return step
288  })
289
290  on('turn.complete', async ($, e, next) => {
291    const id = e.agentId
292    const agent = id ? (await read($, agents)).find(one => one.id === id && !one.endedAt) : undefined
293    if (agent && id) {
294      const isFailed = e.isAborted || e.reason === 'refusal'
295      const now = await $.clock.now()
296      const latest = (await read($, agents)).find(one => one.id === id) ?? agent
297      const brought = loot(latest)
298      const ended: Agent = {
299        ...latest,
300        status: isFailed ? 'failed' : 'done',
301        activity: `${isFailed ? 'Stopped ✗' : 'Done ✓'}${brought ? ` · ${brought}` : ''}`,
302        endedAt: now,
303        inFlight: 0,
304      }
305      await patch($, id, () => ended)
306      await update($, log, list => [...list, ended].slice(-LOG_KEEP))
307      say(`${spoken(agent.type)} ${isFailed ? 'stopped' : 'finished'}: ${agent.title}`, true)
308    }
309    return next(e)
310  })
311
312  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
313    const list = await read($, agents)
314    if (!list.length || e.props.hasSurvey) return next(e)
315
316    const table = $.ui.resolve(e)
317    const { Box, Text } = table
318    // Terminal: half-block Raster. Desktop, VS Code, mobile: the same pixels as an Svg.
319    // WHY e.surface: the table names every element on every surface (a missing one draws nothing),
320    // so `'Raster' in table` is true everywhere.
321    const isTerminal = e.surface === 'terminal'
322    const Raster = isTerminal && 'Raster' in table ? table.Raster : undefined
323    const Svg = !isTerminal && 'Svg' in table ? table.Svg : undefined
324    const now = await $.clock.now()
325    const tick = Math.floor(now / TICK_MS)
326    const theTheme = await read($, theme)
327    const picks = await read($, cast)
328    const look = { outline: await read($, outline) }
329
330    // An agent another agent spawned stands under it as a small familiar while its parent is on stage.
331    const onStage = new Set(list.map(agent => agent.id))
332    const leaders = list.filter(agent => !agent.parentId || !onStage.has(agent.parentId))
333    const shown = sizeFor(await read($, size), leaders.length, e.props.bodyColumns ?? 100)
334
335    const card = (agent: Agent, size: Exclude<Size, 'auto'>, isFamiliar: boolean) => {
336      const role = picks[agent.type] ?? agent.type
337      const isRunning = agent.status === 'running'
338      const tone = agent.status === 'failed' ? 'red' : agent.status === 'done' ? 'green' : colorOf(role, theTheme)
339      const heroName = (
340        <Text wrap="truncate">
341          {isFamiliar ? <Text dimColor>↳ </Text> : ''}
342          <Text bold color={colorOf(role, theTheme)}>{agent.type}</Text>
343          <Text dimColor> the {classOf(role, theTheme)} · Lv {agent.calls + 1}</Text>
344        </Text>
345      )
346      const warning =
347        isStuck(agent, now) ? `💦 Quiet for ${elapsed(now - agent.seenAt)}, stuck?`
348        : isRunning && agent.repeats >= LOOP_REPEATS ? `🔁 ${agent.activity} ×${agent.repeats}`
349        : undefined
350      const activity = (
351        <Text italic color={warning ? 'yellow' : isRunning ? undefined : tone} wrap="truncate">
352          {warning ?? agent.activity}
353        </Text>
354      )
355      const stats = (
356        <Text dimColor wrap="truncate">
357          {' '}⏱ {elapsed((agent.endedAt ?? now) - agent.startedAt)}
358          {agent.context ? ` · ↓ ${tokens(agent.context)} tokens` : ''}
359          {agent.errors ? <Text color="red"> {hearts(agent)}</Text> : ''}
360        </Text>
361      )
362
363      if (size === 'line') {
364        const mark = agent.status === 'done' ? '✓' : agent.status === 'failed' ? '✗' : '●'
365        return (
366          <Text wrap="truncate">
367            {isFamiliar ? <Text dimColor>  ↳ </Text> : ''}
368            <Text color={tone}>{mark} </Text>
369            <Text bold color={colorOf(role, theTheme)}>{agent.type}</Text>
370            <Text> {agent.title} · </Text>
371            <Text italic color={warning ? 'yellow' : undefined}>{warning ?? agent.activity}</Text>
372            <Text dimColor> · {elapsed((agent.endedAt ?? now) - agent.startedAt)}</Text>
373            {agent.errors ? <Text color="red"> {hearts(agent)}</Text> : ''}
374          </Text>
375        )
376      }
377
378      const isSmall = size === 'small' // 4 rows: no room for the bubble's border
379      const mode: Mode =
380        agent.status === 'done' ? 'done'
381        : agent.status === 'failed' ? 'failed'
382        : now - (agent.hurtAt ?? 0) < HURT_MS ? 'hurt'
383        : 'work'
384      const age = Math.floor((now - agent.startedAt) / TICK_MS)
385      const sinceEnd = agent.endedAt ? Math.floor((now - agent.endedAt) / TICK_MS) : undefined
386      const grid = frame(role, mode, tick, age, sinceEnd, theTheme, { ...look, pixels: PIXELS[size] })
387      const sprite =
388        Raster ? <Raster key={`sprite-${agent.id}`} {...cellsOf(grid)} cells={spriteCells(grid)} />
389        : Svg ? <Svg source={spriteSvg(grid)} alt={`${agent.type} the ${classOf(role, theTheme)}`} width={grid.length * 4} height={grid.length * 4} />
390        : ''
391
392      return (
393        <Box flexDirection="row" gap={1}>
394          {sprite}
395          <Box flexDirection="column" width={BUBBLE + 4}>
396            {heroName}
397            {isSmall ? (
398              <Text bold wrap="truncate">{agent.title}</Text>
399            ) : (
400              <Box flexDirection="column" borderStyle="round" borderColor={tone} paddingX={1}>
401                <Text bold wrap="truncate">{agent.title}</Text>
402                {activity}
403              </Box>
404            )}
405            {isSmall ? activity : ''}
406            {stats}
407          </Box>
408        </Box>
409      )
410    }
411
412    // A leader with its familiars beneath it, and theirs beneath them.
413    const party = (agent: Agent, depth: number): RenderNode => {
414      const familiars = depth < 3 ? list.filter(one => one.parentId === agent.id) : []
415      const size = depth === 0 ? shown : shown === 'line' ? 'line' : 'small'
416      if (!familiars.length) return card(agent, size, depth > 0)
417      return (
418        <Box flexDirection="column">
419          {card(agent, size, depth > 0)}
420          <Box flexDirection="column" paddingLeft={shown === 'line' ? 2 : 4}>
421            {familiars.map(one => party(one, depth + 1))}
422          </Box>
423        </Box>
424      )
425    }
426
427    const cards = leaders.map(agent => party(agent, 0))
428    return shown === 'line' ? (
429      <Box flexDirection="column">{cards}</Box>
430    ) : (
431      <Box flexDirection="row" flexWrap="wrap" columnGap={3}>{cards}</Box>
432    )
433  })
434
435  // The Quest Log: who is out now, then every quest that came back, newest first.
436  on('ui.render', { component: 'Pane', requestId: LOG_PANE }, async ($, e) => {
437    const { Box, Text } = $.ui.resolve(e)
438    const now = await $.clock.now()
439    const theTheme = await read($, theme)
440    const picks = await read($, cast)
441    const running = (await read($, agents)).filter(agent => agent.status === 'running')
442    const finished = await read($, log)
443    const everyone = [...running, ...finished]
444    const typeOf = (id?: string) => everyone.find(agent => agent.id === id)?.type
445    const spent = everyone.reduce((sum, agent) => sum + agent.context, 0)
446    const room = Math.max(1, Math.floor(((e.viewport?.rows ?? 24) - 3) / 2))
447
448    const row = (agent: Agent) => {
449      const role = picks[agent.type] ?? agent.type
450      const mark = agent.status === 'done' ? '✓' : agent.status === 'failed' ? '✗' : '●'
451      const tone = agent.status === 'failed' ? 'red' : agent.status === 'done' ? 'green' : colorOf(role, theTheme)
452      const parent = typeOf(agent.parentId)
453      const facts = [
454        `⏱ ${elapsed((agent.endedAt ?? now) - agent.startedAt)}`,
455        agent.context && `↓ ${tokens(agent.context)}`,
456        agent.status === 'running' ? agent.activity : loot(agent),
457        parent && `summoned by ${parent}`,
458      ].filter(Boolean).join(' · ')
459      return (
460        <Box flexDirection="column">
461          <Text wrap="truncate">
462            <Text color={tone}>{mark} </Text>
463            <Text bold color={colorOf(role, theTheme)}>{agent.type}</Text>
464            <Text dimColor> the {classOf(role, theTheme)} · </Text>
465            <Text>{agent.title}</Text>
466          </Text>
467          <Text dimColor wrap="truncate">
468            {'  '}{facts}
469            {agent.errors ? <Text color="red"> {hearts(agent)}</Text> : ''}
470          </Text>
471        </Box>
472      )
473    }
474
475    return (
476      <Box flexDirection="column">
477        <Text bold wrap="truncate">
478          ⚔ {running.length} out · {finished.length} back{spent ? ` · ↓ ${tokens(spent)} tokens` : ''}
479        </Text>
480        {everyone.length ? '' : <Text dimColor>No quests yet. Spawn an agent and it shows up here.</Text>}
481        {[...running, ...[...finished].reverse()].slice(0, room).map(row)}
482      </Box>
483    )
484  })
485}
486

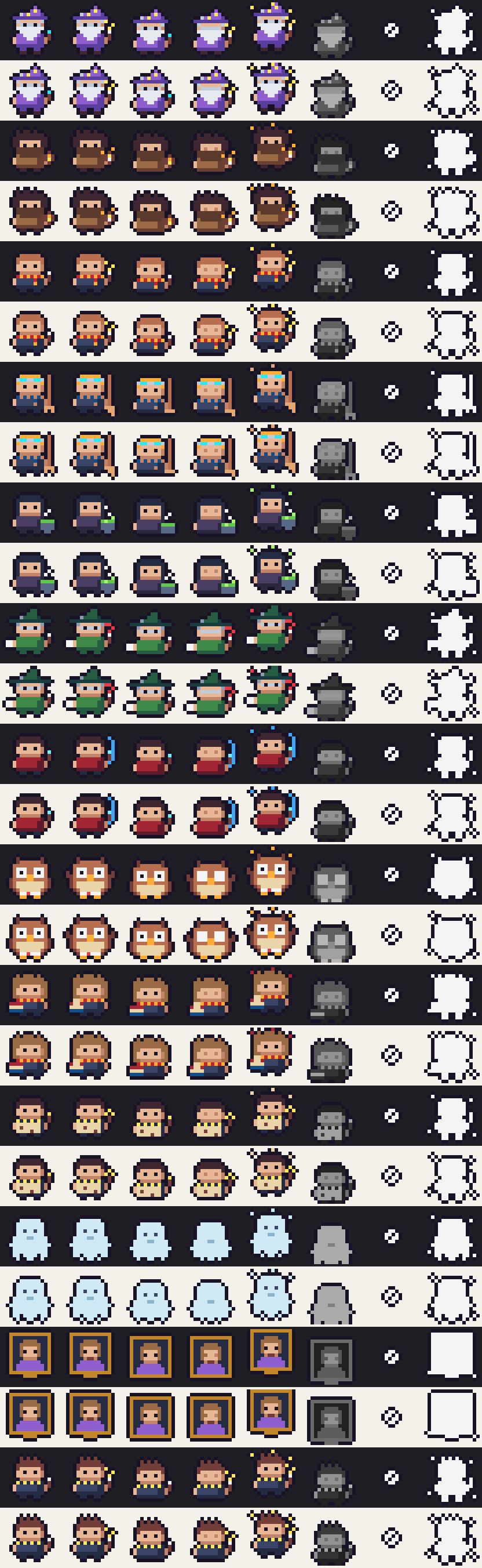

1// The party: one RPG class per agent type. Letters are palette slots (shared ones in art.ts), '.' keeps
2// what is beneath. Class colours: main C/T, shade D/U, accent A, after the Endesga 32 / Sweetie 16 ramps.
3import type { Theme } from '../types'
4import { WIZARDING } from './heroes-wizarding'
5
6export type { Theme }
7
8export type Layer = { at: [row: number, col: number]; rows: string[] }
9export type Hero = {
10  class: string
11  body?: string[] // replaces the shared chibi body (an owl, a ghost…)
12  colors: Record<string, string>
13  hat: string[] // overlay from row 0; '' leaves a row alone
14  outfit?: Layer[]
15  props: Layer[][] // the held prop, one layer list per work frame
16}
17
18const at = (row: number, col: number, ...rows: string[]): Layer => ({ at: [row, col], rows })
19const staff = at(5, 13, 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'Q')
20const blade = (top: number) => at(top, 13, 'M', 'M', 'M', 'M', 'N')
21
22export const HEROES: Record<string, Hero> = {
23  planner: {
24    class: 'Wizard',
25    colors: { H: '#d9d4e8', C: '#8f5fd0', D: '#5b3f9e', L: '#5b3f9e', F: '#3e2731', T: '#8f5fd0', U: '#5b3f9e', A: '#feae34', G: '#2ce8f5' },
26    hat: ['', '.........T......', '........TTA.....', '......TTTTTU....', '...UUUUUUUUUU...'],
27    props: [
28      [at(2, 12, '.G.', 'GWG', '.G.'), staff],
29      [at(1, 12, 'A.A', '.W.', 'WGW', '.W.'), staff],
30    ],
31  },
32  'backend-developer': {
33    class: 'Dwarf Smith',
34    colors: { H: '#733e39', B: '#be4a2f', C: '#e07a30', D: '#a24a2a', L: '#3e2731', F: '#181425', T: '#5a6988', U: '#3a4466', A: '#c0cbdc', G: '#feae34' },
35    hat: ['', '', '', '.....TTTTTT.....', '....TTTTTTTU....', '', '', '....BBssssBB....', '.....BBBBBB.....', '......BBBB......'],
36    outfit: [at(10, 5, 'QQQQQ'), at(11, 5, 'QQQQQ')],
37    props: [
38      [at(4, 12, 'AAA', 'NNN'), at(6, 13, 'P', 'P', 'P', 'P', 'Q')],
39      [at(8, 12, 'AAA', 'NNN'), at(10, 13, 'P', 'Q'), at(6, 14, 'G'), at(7, 11, 'G')],
40    ],
41  },
42  'frontend-developer': {
43    class: 'Bard',
44    colors: { H: '#feae34', C: '#e8639f', D: '#a83a82', L: '#3a4466', F: '#262b44', T: '#e8639f', U: '#a83a82', A: '#fee761', G: '#fee761' },
45    hat: ['', '..........A.....', '.........AA.....', '.....TTTTTA.....', '...UTTTTTTTTU...'],
46    props: [
47      [at(6, 14, 'Q'), at(7, 13, 'Q'), at(8, 13, 'Q'), at(9, 11, 'PPP', 'PWP', '.P.'), at(4, 12, 'G')],
48      [at(6, 14, 'Q'), at(7, 13, 'Q'), at(8, 13, 'Q'), at(9, 11, 'PPP', 'PWP', '.P.'), at(2, 13, 'G'), at(3, 11, 'G')],
49    ],
50  },
51  'fullstack-developer': {
52    class: 'Paladin',
53    colors: { H: '#733e39', C: '#f2c230', D: '#c4862a', L: '#3a4466', F: '#262b44', T: '#f2c230', U: '#c4862a', A: '#3b5dc9', G: '#f4f4f4' },
54    hat: ['', '........A.......', '......TTTT......', '.....TTTTTT.....', '....TTTTTTTU....', '....TssssssU....'],
55    outfit: [at(9, 1, '.AAA', '.AWA', '.AAA', '..A.')],
56    props: [
57      [blade(4), at(9, 12, 'UUU'), at(10, 13, 'Q')],
58      [at(3, 13, 'G'), blade(4), at(9, 12, 'UUU'), at(10, 13, 'Q'), at(2, 14, 'G')],
59    ],
60  },
61  tester: {
62    class: 'Alchemist',
63    colors: { H: '#f77622', C: '#1fb5e0', D: '#1a7ab8', L: '#3a4466', F: '#262b44', T: '#f77622', U: '#be4a2f', A: '#a7f070', G: '#a7f070' },
64    hat: ['', '', '.....H.H.H......', '', '....MWWMMWWM....'],
65    props: [
66      [at(8, 13, 'W'), at(9, 12, 'GGG', 'GWG', 'GGG'), at(6, 13, 'G')],
67      [at(8, 13, 'W'), at(9, 12, 'GGG', 'GGG', 'GWG'), at(4, 14, 'G'), at(6, 12, 'W')],
68    ],
69  },
70  'code-reviewer': {
71    class: 'Knight',
72    colors: { H: '#6a7a9a', C: '#aab6cc', D: '#6a7a9a', L: '#3a4466', F: '#262b44', T: '#aab6cc', U: '#6a7a9a', A: '#e43b44', G: '#f4f4f4' },
73    hat: ['', '........AA......', '......TTTT......', '.....TTTTTT.....', '....TTTTTTTU....', '....TUUUUUUU....', '....TUeUUeUU....', '....TTTTTTTU....', '.....UUUUUU.....'],
74    outfit: [at(9, 1, 'TAT', 'AAA', 'TAT', '.T.')],
75    props: [
76      [blade(4), at(9, 12, 'AAA'), at(10, 13, 'Q')],
77      [at(2, 13, 'G'), blade(3), at(8, 12, 'AAA'), at(9, 13, 'Q'), at(1, 14, 'G')],
78    ],
79  },
80  'security-auditor': {
81    class: 'Rogue',
82    colors: { H: '#7a2048', C: '#c8323c', D: '#7a2048', L: '#262b44', F: '#181425', T: '#c8323c', U: '#7a2048', A: '#262b44', G: '#f4f4f4', e: '#f4f4f4' },
83    hat: ['', '', '......TTT.......', '.....TTTTTT.....', '....TTTTTTTU....', '....TAAAAAAU....', '....TAeAAeAU....', '....TAAAAAAU....', '.....UUUUUU.....'],
84    props: [
85      [at(8, 14, 'M'), at(9, 13, 'M'), at(10, 12, 'Q')],
86      [at(6, 14, 'G'), at(7, 14, 'M'), at(8, 13, 'M'), at(9, 12, 'Q')],
87    ],
88  },
89  'git-manager': {
90    class: 'Courier',
91    colors: { H: '#b86f50', C: '#3b5dc9', D: '#29366f', L: '#29366f', F: '#3e2731', T: '#3b5dc9', U: '#29366f', A: '#f4f4f4', G: '#e43b44' },
92    hat: ['', '', '', '.....TTTTTT.....', '..UUTTTTTTTU....'],
93    outfit: [at(9, 5, 'P'), at(10, 6, 'P'), at(11, 7, 'P'), at(12, 8, 'PPP')],
94    props: [
95      [at(9, 12, 'AAA', 'AGA')],
96      [at(8, 12, 'AAA', 'AGA'), at(6, 14, 'A')],
97    ],
98  },
99  researcher: {
100    class: 'Sage',
101    colors: { H: '#c0cbdc', C: '#ead4aa', D: '#b89a78', L: '#b89a78', F: '#733e39', T: '#c0cbdc', U: '#8b9bb4', A: '#5a6988', G: '#feae34' },
102    hat: ['', '', '', '.....ssssss.....', '....HssssssH....', '', '....sMeMMeMS....', '....sHHHHHHS....', '.....HHHHHH.....', '......HHHH......', '.......HH.......'],
103    props: [
104      [at(10, 2, 'AWWA', 'AWWA')],
105      [at(9, 3, '.W'), at(10, 2, 'AWGA', 'AWWA')],
106    ],
107  },
108  Explore: {
109    class: 'Ranger',
110    colors: { H: '#b86f50', C: '#3e8948', D: '#265c42', L: '#733e39', F: '#3e2731', T: '#3e8948', U: '#265c42', A: '#b86f50', G: '#f4f4f4' },
111    hat: ['', '', '......TTTT......', '.....TTTTTT.....', '..UTTTTTTTTU....', '...UT......U....', '....T......U....', '....T......U....'],
112    props: [
113      [at(5, 13, 'A.', '.A', '.A', '.A', '.A', '.A', '.A', 'A.'), at(6, 13, 'G', 'G', 'G', 'G', 'G', 'G')],
114      [at(5, 13, 'A.', '.A', '.A', '.A', '.A', '.A', '.A', 'A.'), at(6, 12, 'G', 'G', 'G'), at(9, 10, 'WAAAA'), at(9, 12, 'G')],
115    ],
116  },
117  scout: {
118    class: 'Scout',
119    colors: { H: '#3e2731', C: '#2fb0a0', D: '#257179', L: '#733e39', F: '#3e2731', T: '#2fb0a0', U: '#257179', A: '#fee761', G: '#fee761' },
120    hat: ['', '', '', '', '....AAAAAAAAA...', '............A...', '.............A..'],
121    props: [
122      [at(6, 10, 'NMMMW'), at(7, 12, 'Q')],
123      [at(6, 10, 'NMMMG'), at(5, 14, 'G'), at(7, 12, 'Q')],
124    ],
125  },
126  'docs-manager': {
127    class: 'Scribe',
128    colors: { H: '#3e2731', C: '#9a6a45', D: '#6a4033', L: '#3a4466', F: '#262b44', T: '#9a6a45', U: '#6a4033', A: '#ead4aa', G: '#181425' },
129    hat: ['', '', '...........W....', '.....HHHHHW.....'],
130    outfit: [at(9, 1, 'AAA', 'AQA', 'AQA', 'AAA')],
131    props: [
132      [at(6, 14, 'W'), at(7, 13, 'W'), at(8, 13, 'W'), at(9, 12, 'G')],
133      [at(5, 14, 'W'), at(6, 13, 'W'), at(7, 13, 'W'), at(8, 12, 'G')],
134    ],
135  },
136  'general-purpose': {
137    class: 'Adventurer',
138    colors: { H: '#733e39', C: '#9bd13c', D: '#5a9a3a', L: '#733e39', F: '#3e2731', T: '#e43b44', U: '#a22633', A: '#b86f50', G: '#f4f4f4' },
139    hat: ['', '', '', '', '....TTTTTTTTU...', '............U...'],
140    outfit: [at(9, 2, 'AA', 'AA', 'AA'), at(9, 4, 'Q'), at(10, 5, 'Q')],
141    props: [
142      [blade(5), at(10, 12, 'AAA'), at(11, 13, 'Q')],
143      [at(4, 13, 'G'), blade(5), at(10, 12, 'AAA'), at(11, 13, 'Q')],
144    ],
145  },
146}
147
148export const THEMES: Theme[] = ['party', 'wizarding']
149const CASTS: Record<Theme, Record<string, Hero>> = { party: HEROES, wizarding: WIZARDING }
150
151// An agent type no cast names ("ck:api-dev", "superpowers:code-reviewer") gets the role its name hints at.
152// First match wins, so the narrow words come before the broad ones.
153const HINTS: [RegExp, string][] = [
154  [/secur|audit|pentest|vuln/i, 'security-auditor'],
155  [/review/i, 'code-reviewer'],
156  [/test|qa\b|e2e/i, 'tester'],
157  [/full.?stack/i, 'fullstack-developer'],
158  [/front|\bui\b|ux|css|react|vue|design/i, 'frontend-developer'],
159  [/back|api|server|database|\bdb\b|sql/i, 'backend-developer'],
160  [/plan|architect|brainstorm/i, 'planner'],
161  [/git|commit|release|deploy|ship/i, 'git-manager'],
162  [/research|analy/i, 'researcher'],
163  [/explor|search|find/i, 'Explore'],
164  [/scout|recon/i, 'scout'],
165  [/doc|writ/i, 'docs-manager'],
166]
167
168export const roleOf = (type: string): string =>
169  type in HEROES ? type : (HINTS.find(([hint]) => hint.test(type))?.[1] ?? 'general-purpose')
170
171export const heroOf = (type: string, theme: Theme = 'party'): Hero => {
172  const cast = CASTS[theme] ?? HEROES
173  return cast[type] ?? cast[roleOf(type)] ?? cast['general-purpose']!
174}
175

1const base = (path: unknown): string => String(path ?? '').split('/').pop() || 'a file'
2const clip = (text: unknown, n: number): string => {
3  const s = String(text ?? '').replace(/\s+/g, ' ').trim()
4  return s.length > n ? `${s.slice(0, n - 1)}…` : s
5}
6
7// What a tool call reads as in a speech bubble: "Reading product.service.ts".
8export const describe = (tool: string, input: Record<string, unknown>): string => {
9  switch (tool) {
10    case 'Read':
11      return `Reading ${base(input.file_path)}`
12    case 'Edit':
13    case 'NotebookEdit':
14      return `Editing ${base(input.file_path ?? input.notebook_path)}`
15    case 'Write':
16      return `Writing ${base(input.file_path)}`
17    case 'Bash':
18      return input.description ? clip(input.description, 60) : `Running ${clip(input.command, 40)}`
19    case 'Grep':
20      return `Searching "${clip(input.pattern, 30)}"`
21    case 'Glob':
22      return `Finding ${clip(input.pattern, 30)}`
23    case 'WebFetch':
24      return `Reading ${clip(String(input.url ?? '').replace(/^https?:\/\//, '').split('/')[0], 30)}`
25    case 'WebSearch':
26      return `Googling "${clip(input.query, 30)}"`
27    case 'Agent':
28      return `Calling in a ${input.subagent_type ?? 'helper'}`
29    case 'TodoWrite':
30      return 'Updating the todo list'
31    default: {
32      const mcp = /^mcp__(.+?)__(.+)$/.exec(tool)
33      return mcp ? `Asking ${mcp[1]}: ${mcp[2]!.replace(/_/g, ' ')}` : `Using ${tool}`
34    }
35  }
36}
37
38export const elapsed = (ms: number): string => {
39  const s = Math.max(0, Math.floor(ms / 1000))
40  return s >= 60 ? `${Math.floor(s / 60)}m ${s % 60}s` : `${s}s`
41}
42
43export const tokens = (n: number): string => (n >= 1000 ? `${(n / 1000).toFixed(1)}k` : String(n))
44
45// Spoken name: "code-reviewer" → "code reviewer".
46export const spoken = (type: string): string => type.replace(/[-_]/g, ' ')
47
48// A Bash command that runs a test suite counts as a test run, pass or fail (a failure costs a heart).
49// ponytail: a word match, so `git commit -m "add test"` counts too; parse the command if that misleads.
50const TEST_RUN = /\b(tests?|jest|vitest|pytest|mocha|playwright|rspec|phpunit)\b/i
51export const isTestRun = (command: unknown): boolean => TEST_RUN.test(String(command ?? ''))
52
53const plural = (n: number, word: string) => `${n} ${word}${n === 1 ? '' : 's'}`
54
55// What an agent brought back: "4 files · 2 test runs · 1 error", or '' for a quest with nothing to show.
56export const loot = (agent: { files: string[]; tests: number; errors: number }): string =>
57  [
58    agent.files.length && plural(agent.files.length, 'file'),
59    agent.tests && plural(agent.tests, 'test run'),
60    agent.errors && plural(agent.errors, 'error'),
61  ].filter(Boolean).join(' · ')
62

1// 16×16 sprite compositing: body + class hat/outfit/prop, then animation, then a computed outline.
2// Pure data in, pixels out, no engine imports, so the HTML demo draws the exact same frames.
3import { heroOf } from './heroes'
4import type { Outline } from '../types'
5import type { Layer, Theme } from './heroes'
6
7export const SIZE = 16
8export const TICK_MS = 250 // 4 fps: work loops step every tick, the idle bob every second tick
9
10export type Mode = 'work' | 'hurt' | 'done' | 'failed'
11export type Grid = (number | null)[][] // 0xRRGGBB per pixel, null = transparent
12export type { Outline } // thin: ink on the shadow side only (below, right) · dark: ink all round · none
13export type Pixels = 16 | 12 | 8
14export type Look = { pixels?: Pixels; outline?: Outline }
15
16// Chibi anatomy, light from the top left: hair 3–4 · face 5–7 (eyes row 6, cols 6 and 9) · chin 8
17// · torso 9–12 with 1 px hands · legs 13 · boots 14 · row 15 holds the outline.
18const BODY = [
19  '................',
20  '................',
21  '................',
22  '.....HHHHHH.....',
23  '....HHHHHHHH....',
24  '....HssssssH....',
25  '....ssessesS....',
26  '....sssssssS....',
27  '.....SSSSSS.....',
28  '....CCCCCCCD....',
29  '...sCCCCCCDDS...',
30  '...sCCCCCCDDS...',
31  '....DDDDDDDD....',
32  '.....LL..LL.....',
33  '.....FF..FF.....',
34  '................',
35]
36
37const SHARED: Record<string, string> = {
38  s: '#e8b796', S: '#c28569', e: '#181425', W: '#f4f4f4',
39  M: '#c0cbdc', N: '#8b9bb4', P: '#b86f50', Q: '#733e39', R: '#e43b44',
40}
41export const OUTLINE = 0x181425
42
43const num = (hex: string): number => parseInt(hex.slice(1), 16)
44const blank = (): (number | null)[] => Array<number | null>(SIZE).fill(null)
45
46const paint = (letters: string[][], layer: Layer) =>
47  layer.rows.forEach((line, dr) =>
48    [...line].forEach((ch, dc) => {
49      const row = letters[layer.at[0] + dr]
50      const col = layer.at[1] + dc
51      if (ch !== '.' && row && col >= 0 && col < SIZE) row[col] = ch
52    }),
53  )
54
55const scale = (rgb: number, k: number): number =>
56  (Math.round((rgb >> 16) * k) << 16) | (Math.round(((rgb >> 8) & 255) * k) << 8) | Math.round((rgb & 255) * k)
57
58const isInk = (px: number | null | undefined): boolean => px !== undefined && px !== null && px !== OUTLINE
59
60// The light comes from the top left, so `thin` inks only the edges in shadow: half the stroke of
61// `dark`, and the silhouette still reads on a light terminal.
62const outline = (grid: Grid, style: Outline): Grid =>
63  style === 'none'
64    ? grid
65    : grid.map((row, r) =>
66        row.map((px, c) => {
67          if (px !== null) return px
68          const up = isInk(grid[r - 1]?.[c])
69          const left = isInk(row[c - 1])
70          const isEdge = style === 'thin' ? up || left : up || left || isInk(grid[r + 1]?.[c]) || isInk(row[c + 1])
71          return isEdge ? OUTLINE : null
72        }),
73      )
74
75
76// 16 → 12: drop rows and columns 0, 5, 10 and 15 (the empty border, the forehead, the belt line);
77// every feature of the chibi body survives. An eye on a dropped line first moves a pixel toward the
78// middle, so a face drawn wider than the chibi one (the owl's eyes sit on cols 5 and 10) keeps both.
79const DROP = [0, 5, 10, 15]
80const shrink12 = (grid: Grid, eye: number): Grid => {
81  const moved = grid.map(row => [...row])
82  for (const [from, to] of [[5, 6], [10, 9]] as const) {
83    for (let i = 0; i < SIZE; i++) {
84      if (grid[from]![i] === eye) moved[to]![i] = eye
85      if (grid[i]![from] === eye) moved[i]![to] = eye
86    }
87  }
88  return moved.filter((_, r) => !DROP.includes(r)).map(row => row.filter((_, c) => !DROP.includes(c)))
89}
90
91// 16 → 8: each pixel stands for a 2×2 block, taken one column left so the eyes (cols 6, 9) stay a
92// pixel apart. An eye wins its block; a block less than half covered stays empty (no fringe);
93// otherwise the commonest colour, ties to the top left (the light).
94const shrink8 = (grid: Grid, eye: number): Grid =>
95  Array.from({ length: SIZE / 2 }, (_, r) =>
96    Array.from({ length: SIZE / 2 }, (_, c) => {
97      const block = [grid[2 * r]?.[2 * c - 1], grid[2 * r]?.[2 * c], grid[2 * r + 1]?.[2 * c - 1], grid[2 * r + 1]?.[2 * c]]
98        .filter((px): px is number => px !== undefined && px !== null)
99      if (block.includes(eye)) return eye
100      if (block.length < 2) return null
101      let best: number | null = null
102      let most = 0
103      for (const px of block) {
104        const n = block.filter(one => one === px).length
105        if (n > most) [best, most] = [px, n]
106      }
107      return best
108    }),
109  )
110
111// `eye` is the hero's own eye colour: the ghost's are slate blue, not ink.
112export const shrink = (grid: Grid, pixels: Pixels, eye: number): Grid =>
113  pixels === 12 ? shrink12(grid, eye) : pixels === 8 ? shrink8(grid, eye) : grid
114
115export const eyeOf = (type: string, theme: Theme = 'party'): number => num(heroOf(type, theme).colors.e ?? SHARED.e!)
116
117const hurt = (rgb: number): number => (Math.min(255, (rgb >> 16) + 90) << 16) | scale(rgb & 0xffff, 0.55)
118
119const shift = (grid: Grid, by: number): Grid =>
120  grid.map((_, r) => (grid[r - by] ? [...grid[r - by]!] : blank()))
121
122const grey = (rgb: number): number => {
123  const y = Math.round(0.3 * (rgb >> 16) + 0.59 * ((rgb >> 8) & 255) + 0.11 * (rgb & 255))
124  const v = Math.round(y * 0.75)
125  return (v << 16) | (v << 8) | v
126}
127
128const sparkle = (grid: Grid, color: number, spots: number[][]) => {
129  for (const [r, c] of spots) if (grid[r!]?.[c!] === null) grid[r!]![c!] = color
130}
131
132const compose = (type: string, theme: Theme, propFrame: number, isBlink: boolean, isKo: boolean): Grid => {
133  const hero = heroOf(type, theme)
134  const colors = { ...SHARED, ...hero.colors }
135  const letters = (hero.body ?? BODY).map(line => [...line])
136  hero.hat.forEach((line, r) => line && paint(letters, { at: [r, 0], rows: [line] }))
137  hero.outfit?.forEach(layer => paint(letters, layer))
138  hero.props[propFrame % hero.props.length]!.forEach(layer => paint(letters, layer))
139  return letters.map((row, r) =>
140    row.map((ch, c) => {
141      // closed or knocked-out eyes: the eye takes the colour of the pixel on its left
142      const shown = ch === 'e' && (isBlink || isKo) ? (row[c - 1] === 's' ? 'S' : (row[c - 1] ?? 'S')) : ch
143      return shown === '.' ? null : num(colors[shown] ?? '#ff00ff')
144    }),
145  )
146}
147
148const pose = (type: string, mode: Exclude<Mode, 'hurt'>, tick: number, age: number, sinceEnd: number, theme: Theme): Grid => {
149  const accent = num(heroOf(type, theme).colors.A ?? '#feae34')
150  const white = num(SHARED.W!)
151
152  if (age === 0) {
153    const poof = Array.from({ length: SIZE }, blank)
154    sparkle(poof, white, [[6, 7], [6, 8], [7, 6], [7, 9], [8, 6], [8, 9], [9, 7], [9, 8], [7, 7], [8, 8]])
155    return poof
156  }
157  if (age === 1) {
158    const ghost = compose(type, theme, 0, false, false).map(row => row.map(px => (px === null ? null : white)))
159    sparkle(ghost, white, [[2, 2], [3, 13], [12, 1], [13, 14]])
160    return ghost
161  }
162
163  if (mode === 'failed') {
164    return shift(compose(type, theme, 0, false, true), 2).map(row => row.map(px => (px === null ? null : grey(px))))
165  }
166
167  if (mode === 'done') {
168    let grid = compose(type, theme, 1, false, false)
169    if (sinceEnd === 0) grid = shift(grid, -1)
170    sparkle(grid, accent, sinceEnd === 0 ? [[1, 2], [0, 8], [2, 13]] : [[0, 7], [1, 3], [1, 12]])
171    return grid
172  }
173
174  const isBlink = tick % 16 === 15
175  let grid = compose(type, theme, tick, isBlink, false)
176  if (age === 2) sparkle(grid, accent, [[1, 3], [2, 12]])
177  if (Math.floor(tick / 2) % 2 === 1) {
178    // idle bob: everything above the legs sinks a pixel; the belt row covers the top of the legs
179    const sunk = shift(grid, 1)
180    grid = grid.map((row, r) => (r >= 13 ? row.map((px, c) => (r === 13 ? (sunk[r]![c] ?? px) : px)) : sunk[r]!))
181  }
182  return grid
183}
184
185/**
186 * The pixels of one frame. `tick` is the global animation clock (TICK_MS steps); `age` counts ticks
187 * since the agent spawned, `sinceEnd` ticks since it finished: they drive the one-shot effects.
188 * `look` picks the sprite size (16, 12 or 8 pixels) and the outline; the outline goes on last, at the drawn size.
189 */
190export const frame = (type: string, mode: Mode, tick: number, age = 99, sinceEnd = 99, theme: Theme = 'party', look: Look = {}): Grid => {
191  let grid = pose(type, mode === 'hurt' ? 'work' : mode, tick, age, sinceEnd, theme)
192  grid = shrink(grid, look.pixels ?? 16, eyeOf(type, theme))
193  if (mode === 'hurt') grid = grid.map(row => row.map(px => (px === null ? null : hurt(px))))
194  return outline(grid, look.outline ?? 'thin')
195}
196

1import type { Grid } from './art'
2import { heroOf } from './heroes'
3import type { Theme } from './heroes'
4
5const DEFAULT = 0x01000000 // the terminal's own colour
6
7export const colorOf = (type: string, theme?: Theme): string => heroOf(type, theme).colors.C ?? '#94a3b8'
8export const classOf = (type: string, theme?: Theme): string => heroOf(type, theme).class
9
10// One terminal cell carries two pixels with the upper half block: top pixel as the glyph's colour,
11// bottom pixel as its background. 16×16 pixels → 16 columns × 8 rows; 8×8 → 8 × 4.
12export const cellsOf = (grid: Grid) => ({ columns: grid[0]!.length, rows: Math.ceil(grid.length / 2) })
13
14// Raster cells: row-major little-endian u32 triplets [codePoint, foreground, background], base64.
15export const spriteCells = (grid: Grid): string => {
16  const { columns, rows } = cellsOf(grid)
17  const words = new Uint32Array(columns * rows * 3)
18  for (let row = 0; row < rows; row++) {
19    for (let col = 0; col < columns; col++) {
20      const top = grid[row * 2]![col] ?? null
21      const bottom = grid[row * 2 + 1]?.[col] ?? null
22      const cell =
23        top !== null ? [0x2580, top, bottom ?? DEFAULT] // ▀
24        : bottom !== null ? [0x2584, bottom, DEFAULT] // ▄
25        : [0x20, DEFAULT, DEFAULT]
26      words.set(cell, (row * columns + col) * 3)
27    }
28  }
29  let binary = ''
30  for (const byte of new Uint8Array(words.buffer)) binary += String.fromCharCode(byte)
31  return btoa(binary)
32}
33
34const hex = (rgb: number) => `#${rgb.toString(16).padStart(6, '0')}`
35
36// The same pixels for the surfaces without a terminal (desktop, VS Code, mobile): one rect per colour run.
37export const spriteSvg = (grid: Grid): string => {
38  let rects = ''
39  grid.forEach((row, y) => {
40    for (let x = 0; x < row.length; ) {
41      const px = row[x] ?? null
42      let end = x + 1
43      while (end < row.length && (row[end] ?? null) === px) end++
44      if (px !== null) rects += `<rect x="${x}" y="${y}" width="${end - x}" height="1" fill="${hex(px)}"/>`
45      x = end
46    }
47  })
48  return `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 ${grid[0]!.length} ${grid.length}" shape-rendering="crispEdges">${rects}</svg>`
49}
50

1// The wizarding-school cast: original archetypes (no named characters). Same slots as heroes.ts;
2// three of them bring their own body (an owl, a ghost, a portrait). Scarves use four house-style pairs.
3import type { Hero, Layer } from './heroes'
4
5const at = (row: number, col: number, ...rows: string[]): Layer => ({ at: [row, col], rows })
6const wand = [at(8, 13, 'G'), at(9, 13, 'Q'), at(10, 13, 'Q')]
7const wandSpell = [at(6, 14, 'A'), at(7, 13, 'A'), at(8, 13, 'W'), at(9, 13, 'Q'), at(10, 13, 'Q'), at(5, 12, 'A')]
8const scarf = at(9, 4, 'XYXYXYXY')
9const robe = { C: '#3a4466', D: '#262b44', L: '#262b44', F: '#181425' }
10
11const OWL = [
12  '................', '................', '................', '....U......U....',
13  '....UCCCCCCU....', '...CCCCCCCCCC...', '...CWWWCCWWWC...', '...CWeWCCWeWC...',
14  '...CWWWAAWWWC...', '..DCCCCAACCCCD..', '..DCBBBBBBBBCD..', '..DCBBBBBBBBCD..',
15  '...DCBBBBBBCD...', '....DDDDDDDD....', '.....AA..AA.....', '................',
16]
17const GHOST = [
18  '................', '................', '................', '.....CCCCCC.....',
19  '....CCCCCCCC....', '....CCCCCCCC....', '....CCeCCeCC....', '....CCCCCCCC....',
20  '...CCCCDDCCCC...', '...CCCCCCCCCC...', '..CCCCCCCCCCCC..', '...CCCCCCCCCC...',
21  '...CCCCCCCCCC...', '...CC.CCCC.CC...', '................', '................',
22]
23const PORTRAIT = [
24  '................', '..AAAAAAAAAAAA..', '..AXXXXXXXXXXA..', '..AXXXHHHHXXXA..',
25  '..AXXHHHHHHXXA..', '..AXXHssssHXXA..', '..AXXHesseHXXA..', '..AXXHssssHXXA..',
26  '..AXXXSSSSXXXA..', '..AXXCCCCCCXXA..', '..AXCCCCCCCCXA..', '..AXCCCCCCCCXA..',
27  '..AAAAAAAAAAAA..', '......AAAA......', '................', '................',
28]
29
30export const WIZARDING: Record<string, Hero> = {
31  planner: {
32    class: 'Headmaster',
33    colors: { H: '#c0cbdc', B: '#e6e9ef', C: '#8f5fd0', D: '#5b3f9e', L: '#5b3f9e', F: '#3e2731', T: '#8f5fd0', U: '#5b3f9e', A: '#fee761', G: '#2ce8f5' },
34    hat: ['', '.........T......', '........TAT.....', '......TATTTU....', '...UUUUUUUUUU...', '', '....sMeMMeMS....', '....BBBBBBBB....', '.....BBBBBB.....', '......BBBB......', '.......BB.......'],
35    props: [wand, wandSpell],
36  },
37  'backend-developer': {
38    class: 'Groundskeeper',
39    colors: { H: '#3e2731', B: '#5d3a2e', C: '#9a6a45', D: '#6a4033', L: '#3e2731', F: '#181425', A: '#feae34', G: '#fee761' },
40    hat: ['', '', '....H.HH.H......', '....HHHHHHHH....', '...HHHHHHHHHH...', '...HHssssssHH...', '...HHsessesHH...', '....BBBBBBBB....', '....BBBBBBBB....', '.....BBBBBB.....'],
41    props: [
42      [at(8, 13, 'Q'), at(9, 12, 'QAQ', 'QGQ', '.Q.')],
43      [at(8, 13, 'Q'), at(9, 12, 'QGQ', 'QWQ', '.Q.'), at(7, 14, 'A'), at(8, 11, 'A')],
44    ],
45  },
46  'frontend-developer': {
47    class: 'Charms Student',
48    colors: { ...robe, H: '#b86f50', X: '#c42430', Y: '#feae34', A: '#fee761', G: '#f4f4f4' },
49    hat: [],
50    outfit: [scarf, at(10, 9, 'X', 'Y')],
51    props: [wand, wandSpell],
52  },
53  'fullstack-developer': {
54    class: 'Broom Rider',
55    colors: { ...robe, H: '#feae34', X: '#124e89', Y: '#c28569', A: '#e4a672', G: '#2ce8f5' },
56    hat: ['', '', '', '', '....MGGMMGGM....'],
57    outfit: [scarf, at(10, 9, 'X', 'Y')],
58    props: [
59      [at(3, 13, 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'P'), at(12, 12, 'AAA'), at(13, 12, 'A.A')],
60      [at(3, 13, 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'P', 'P'), at(12, 12, 'AAA'), at(13, 12, '.AA'), at(14, 14, 'A')],
61    ],
62  },
63  tester: {
64    class: 'Potions Master',
65    colors: { H: '#262b44', C: '#4a3f63', D: '#2c2840', L: '#2c2840', F: '#181425', K: '#5a6988', G: '#63c74d', A: '#a7f070' },
66    hat: ['', '', '', '.....HHHHHH.....', '....HHHHHHHH....', '....HssssssH....', '....HsessesH....', '....HssssssH....', '....HSSSSSSH....'],
67    props: [
68      [at(10, 11, 'GGGG', 'KKKK', 'KKKK', '.KK.'), at(8, 12, 'W'), at(7, 13, 'W')],
69      [at(10, 11, 'GAGG', 'KKKK', 'KKKK', '.KK.'), at(8, 13, 'W'), at(6, 12, 'W'), at(9, 14, 'A')],
70    ],
71  },
72  'code-reviewer': {
73    class: 'Professor',
74    colors: { H: '#8b9bb4', C: '#3e8948', D: '#265c42', L: '#265c42', F: '#181425', T: '#265c42', U: '#193c3e', A: '#e43b44', G: '#f4f4f4' },
75    hat: ['', '........TT......', '.......TTT......', '......TTTTU.....', '..UUUUUUUUUUUU..', '', '....sMeMMeMS....'],
76    outfit: [at(10, 1, 'WW', 'WW')],
77    props: [wand, [...wandSpell.slice(1), at(6, 14, 'A'), at(5, 13, 'A')]],
78  },
79  'security-auditor': {
80    class: 'Dark Arts Defender',
81    colors: { H: '#3e2731', C: '#a22633', D: '#5d1a2a', L: '#262b44', F: '#181425', A: '#41a6f6', G: '#73eff7' },
82    hat: ['', '', '', '.....HHHHHH.....', '....HHHHHHHH....', '....HssssssH....'],
83    props: [
84      [at(7, 13, 'G'), at(8, 13, 'Q'), at(9, 13, 'Q')],
85      [at(4, 14, 'A', 'A', 'A', 'A', 'A', 'A'), at(3, 13, 'A'), at(10, 13, 'A'), at(7, 13, 'G'), at(8, 13, 'Q'), at(9, 13, 'Q')],
86    ],
87  },
88  'git-manager': {
89    class: 'Post Owl',
90    body: OWL,
91    colors: { C: '#b86f50', D: '#733e39', U: '#733e39', B: '#ead4aa', A: '#feae34', G: '#e43b44' },
92    hat: [],
93    props: [
94      [at(13, 5, 'WWGWWW')],
95      [at(13, 5, 'WWGWWW'), at(7, 1, 'D'), at(8, 1, 'DD'), at(7, 14, 'D'), at(8, 13, 'DD')],
96    ],
97  },
98  researcher: {
99    class: 'Library Prefect',
100    colors: { ...robe, H: '#9a6a45', X: '#c42430', Y: '#feae34', A: '#a22633', K: '#124e89', G: '#ead4aa' },
101    hat: ['', '', '....H.HHH.H.....', '...HHHHHHHHH....', '...HHHHHHHHHH...', '...HHssssssHH...', '...HssessesSH...', '...HsssssssSH...', '...HHSSSSSSHH...'],
102    outfit: [scarf],
103    props: [
104      [at(10, 2, 'AAAA', 'GGGG', 'KKKK')],
105      [at(9, 3, 'GG'), at(10, 2, 'AGGA', 'GGGG', 'KKKK')],
106    ],
107  },
108  Explore: {
109    class: 'Night Explorer',
110    colors: { ...robe, H: '#3e2731', X: '#fee761', Y: '#262b44', A: '#ead4aa', G: '#fee761' },
111    hat: [],
112    outfit: [scarf],
113    props: [
114      [at(10, 4, 'AAAAAAA', 'AQAAAAA', 'AAAAQAA'), at(7, 13, 'G'), at(8, 13, 'Q'), at(9, 13, 'Q')],
115      [at(10, 4, 'AAAAAAA', 'AAQAAAA', 'AAAAAQA'), at(6, 13, 'G'), at(7, 12, 'G'), at(7, 14, 'G'), at(8, 13, 'Q'), at(9, 13, 'Q')],
116    ],
117  },
118  scout: {
119    class: 'Castle Ghost',
120    body: GHOST,
121    colors: { C: '#cfe9f5', D: '#8bb5cc', A: '#cfe9f5', e: '#3a4466' },
122    hat: [],
123    props: [[at(14, 4, 'C..CC..C')], [at(14, 4, '.C.CC.C.')]],
124  },
125  'docs-manager': {
126    class: 'Talking Portrait',
127    body: PORTRAIT,
128    colors: { A: '#c4862a', X: '#262b44', H: '#9a6a45', C: '#8f5fd0' },
129    hat: [],
130    props: [[], [at(8, 7, 'QQ')]],
131  },
132  'general-purpose': {
133    class: 'First-Year',
134    colors: { ...robe, H: '#733e39', X: '#fee761', Y: '#262b44', A: '#fee761', G: '#f4f4f4' },
135    hat: ['', '', '.....H.H.H......'],
136    outfit: [scarf],
137    props: [wand, wandSpell],
138  },
139}
140WIZARDING.Plan = WIZARDING.planner!
141

1export type Theme = 'party' | 'wizarding'
2export type Size = 'auto' | 'large' | 'medium' | 'small' | 'line'
3export type Outline = 'thin' | 'dark' | 'none'
4
5export type Agent = {
6  id: string
7  type: string
8  title: string
9  activity: string
10  startedAt: number
11  endedAt?: number
12  context: number
13  calls: number
14  status: 'running' | 'done' | 'failed'
15  errors: number // tool calls that came back as errors: each one costs a heart
16  hurtAt?: number
17  seenAt: number // last sign of life: a tool call started or ended, or a model step
18  inFlight: number // tool calls still running: a long test run is busy, not stuck
19  lastCall: string // the latest tool call with its input, to spot the same call over and over
20  repeats: number
21  parentId?: string // the agent that spawned this one, when an agent did
22  files: string[] // files it edited or wrote
23  tests: number // test suites it ran
24}
25
26declare module 'claude-code' {
27  interface PluginState {
28    'agent-party': {
29      agents: Agent[]
30      isVoiceOn: boolean
31      theme: Theme
32      size: Size
33      outline: Outline
34      cast: Record<string, string> // agent type → role, set with /agent-cast
35      log: Agent[] // finished quests, newest last: what /agent-log shows after the heroes leave
36    }
37  }
38}
39
