retrovis-mod

1/* @jsx h */
2// retrovis-mod: a classic media-player visualizer above the prompt. The
3// animation runs in this module on a 33 ms clock; session events kick it.
4// No variable here is named `h`.
5import type { Register } from 'claude-code'
6import { MODES, OUTFITS, THEMES, createState, cycleLeft, cycleMode, kick, leftPicker, renderFrame, step } from './vis.ts'
7
8const MIN_COLS = 20
9const MAX_COLS = 512
10const FRAME_MS = 33
11
12type Size = { cols: number; rows: number }
13
14export const register: Register = (on, options) => {
15  const bandRows = Math.max(2, Math.min(16, Math.round(Number(options.rows) || 8)))
16
17  const vis = createState()
18  let bandId: string | undefined
19  let size: Size = { cols: 80, rows: bandRows }
20  let lastTick = Date.now()
21  let inflight = false
22
23  // fixed-width columns so the pickers never move when the text changes
24  const TRACK_W = 14
25  const LEFT_W = Math.max(...THEMES.map(t => t.name.length), ...OUTFITS.map(o => o.length))
26  const MODE_W = Math.max(...MODES.map(m => m.length))
27  const status = () => (vis.working ? '▶ ' : '❚❚') + ` ${vis.track.slice(0, TRACK_W).padEnd(TRACK_W)}  ♪ ${String(vis.hits).padEnd(4)}`
28  const centered = (n: string, w: number) => {
29    const pad = w - n.length
30    return ' '.repeat(Math.floor(pad / 2)) + n + ' '.repeat(Math.ceil(pad / 2))
31  }
32  const leftLabel = () => { const p = leftPicker(vis); return centered(p.values[p.index], LEFT_W) }
33  const modeLabel = () => centered(MODES[vis.mode], MODE_W)
34
35  on('session.start', async ($, e, next) => {
36    const [theme, outfit, mode] = await Promise.all([$.store.get('theme'), $.store.get('outfit'), $.store.get('mode')])
37    const t = THEMES.findIndex(x => x.name === theme); if (t >= 0) vis.theme = t
38    const o = OUTFITS.indexOf(outfit as (typeof OUTFITS)[number]); if (o >= 0) vis.outfit = o
39    const m = MODES.indexOf(mode as (typeof MODES)[number]); if (m >= 0) vis.mode = m
40    $.clock.every(FRAME_MS, async () => {
41      const now = Date.now()
42      const dt = Math.min(0.25, (now - lastTick) / 1000)
43      lastTick = now
44      step(vis, dt)
45      if (!bandId || inflight) return
46      inflight = true
47      try {
48        const r = await $.ui.blit({ requestId: bandId, key: 'vis', cells: renderFrame(vis, size.cols, size.rows), columns: size.cols, rows: size.rows })
49        if (r.deny && !/mount|size/i.test(r.deny)) $.ui.log(`retrovis-mod: blit denied: ${r.deny}`)
50      } catch {
51        // the site is being redrawn; the next tick will find the new mount
52      } finally {
53        inflight = false
54      }
55    })
56    return next(e)
57  })
58
59  // session events are the "music"
60  on('prompt.submit', async ($, e, next) => {
61    kick(vis, 'prompt')
62    $.ui.invalidate('ui.render')
63    return next(e)
64  })
65  on('turn.start', async ($, e, next) => {
66    kick(vis, 'turn')
67    return next(e)
68  })
69  on('tool.call', async ($, e, next) => {
70    kick(vis, 'tool', e.tool)
71    $.ui.invalidate('ui.render')
72    return next(e)
73  })
74  on('turn.complete', async ($, e, next) => {
75    kick(vis, 'done')
76    $.ui.invalidate('ui.render')
77    return next(e)
78  })
79
80  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
81    if (e.surface !== 'terminal' || e.props.hasSurvey) {
82      bandId = undefined
83      return next(e)
84    }
85    vis.working = e.props.isWorking
86    const cols = Math.max(MIN_COLS, Math.min(MAX_COLS, e.props.bodyColumns))
87    const rows = Math.max(2, Math.min(bandRows, e.props.maxRows - 3))
88    size = { cols, rows }
89    bandId = e.requestId
90    const { Box, Raster, Text, Button } = $.ui.resolve(e)
91    // two pickers, each one Button (Enter cycles forward); the choices are kept across sessions.
92    // The focus ring inverts whatever it rests on, so the name is the element: an inverted
93    // name reads as "selected", where an inverted arrow read as a glitch.
94    const save = () => {
95      $.store.set('theme', THEMES[vis.theme].name).catch(() => {})
96      $.store.set('outfit', OUTFITS[vis.outfit]).catch(() => {})
97      $.store.set('mode', MODES[vis.mode]).catch(() => {})
98      $.ui.invalidate('ui.render')
99    }
100    const left = leftPicker(vis)
101    return (
102      <Box flexDirection="column">
103        <Raster key="vis" columns={cols} rows={rows} cells={renderFrame(vis, cols, rows)} />
104        <Box flexDirection="row">
105          <Text dimColor={!vis.working} color={vis.working ? 'cyan' : undefined}>{status()}</Text>
106          <Text dimColor>{`   ${left.label}: `}</Text>
107          <Button key="left" label={leftLabel()} onPress={() => { cycleLeft(vis, 1); save() }} />
108          <Text dimColor>{'   mode: '}</Text>
109          <Button key="mode" label={modeLabel()} onPress={() => { cycleMode(vis, 1); save() }} />
110        </Box>
111        {await next(e)}
112      </Box>
113    )
114  })
115}
116

1// Pure visualizer state and frame renderer: no `$`, no DOM, so it can be
2// unit-tested outside the engine. Everything the engine sees is one base64
3// Raster (`renderFrame`); everything that drives it is `kick` and `step`.
4
5import { CAT_COLORS, HIT, MOUSE_RUN, OUTFITS, drawCats, hash2 } from './cats.ts'
6
7export const N_BANDS = 64

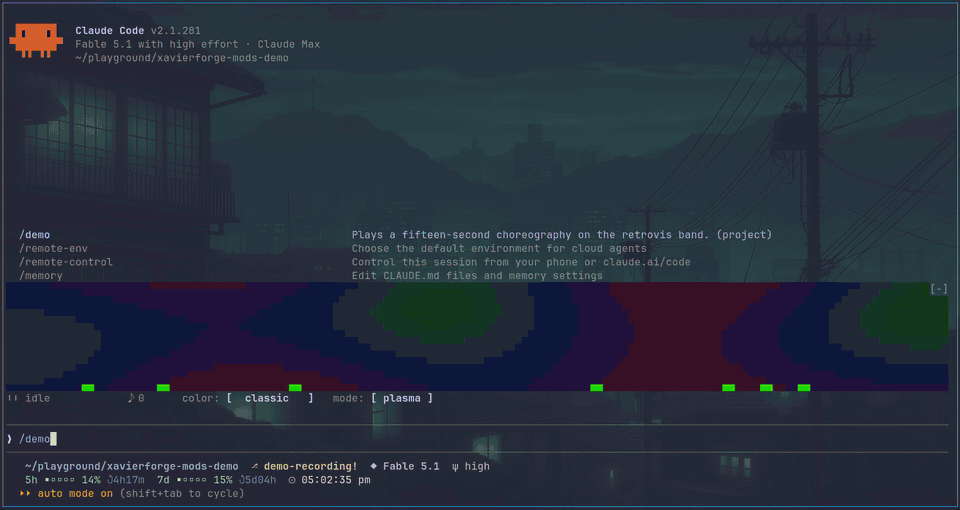

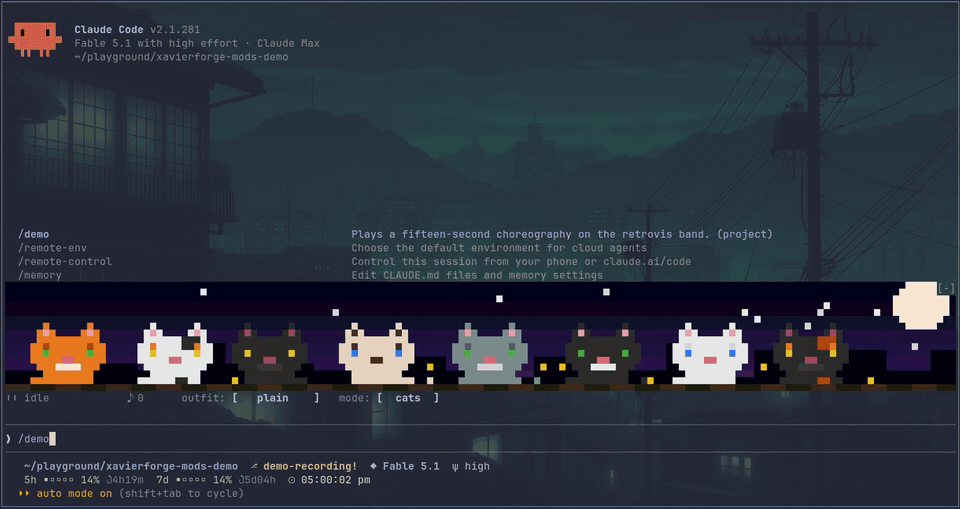

8export const MODES = ['plasma', 'cats'] as const
9export { OUTFITS }
10const HALF_BLOCK = 0x2580 // ▀: fg paints the top pixel, bg the bottom
11const PLASMA_COLORS = 24 // palette entries 0..23 cycle the hue wheel
12const BAR_COLORS = 7 // palette entries 24..30, the theme's gradient bottom -> top
13const PEAK_COLOR = 31 // white
14const PALETTE_SIZE = 32 // 32 x 32 = 1024 fg/bg pairs, the Raster's palette limit
15
16export type Kind = 'prompt' | 'tool' | 'turn' | 'done'
17
18/** Equalizer color themes: RGB stops from the bar's foot to its tip. */
19export const THEMES: ReadonlyArray<{ name: string; stops: readonly number[] }> = [
20  { name: 'classic', stops: [0x00e000, 0xf0f000, 0xff2020] },
21  { name: 'fire', stops: [0x600000, 0xff4000, 0xffc000, 0xffffa0] },
22  { name: 'ice', stops: [0x0030a0, 0x00a0ff, 0xa0f0ff, 0xffffff] },
23  { name: 'neon', stops: [0xff00a0, 0x8000ff, 0x00e0ff] },
24  { name: 'lime', stops: [0x104000, 0x40c000, 0xc0ff40] },
25  { name: 'mono', stops: [0x404040, 0xa0a0a0, 0xffffff] },
26]
27
28export type VisState = {
29  bands: Float64Array // 0..1 bar energy
30  peaks: Float64Array // 0..1 peak-hold markers
31  hold: Float64Array // seconds a band still counts as "hit" (a cat whose slice holds one does a special move)
32  phase: Float64Array // per-band phase so the "music" is not in lockstep
33  level: number // 0..1 global energy, drives speed and brightness
34  t: number // plasma time (seconds, scaled by energy)
35  hue: number // 0..1 palette rotation
36  beat: number // seconds since the last beat while working
37  beats: number // beats counted so far: the cats bounce up on even ones, squat on odd ones
38  hits: number // events seen this session
39  mouse: number // seconds since a mouse walked onto the roof, or -1 when there is none
40  idle: number // seconds since the last event: the cats sit down
41  working: boolean
42  track: string // what the status row shows as "now playing"
43  theme: number // index into THEMES (plasma mode's bar colors)
44  outfit: number // index into OUTFITS (cats mode's costume)
45  mode: number // index into MODES
46}
47
48export function createState(): VisState {
49  const phase = new Float64Array(N_BANDS)
50  for (let i = 0; i < N_BANDS; i++) phase[i] = (i * 0.618033988749895) % 1 * Math.PI * 2
51  return {
52    bands: new Float64Array(N_BANDS),
53    peaks: new Float64Array(N_BANDS),
54    hold: new Float64Array(N_BANDS),
55    phase,
56    level: 0,
57    t: 0,
58    hue: 0,
59    beat: 0,
60    beats: 0,
61    hits: 0,
62    mouse: -1,
63    idle: 0,
64    working: false,
65    track: 'idle',
66    theme: 0,
67    outfit: 0,
68    mode: 0,
69  }
70}
71
72function hashName(s: string): number {
73  let h = 2166136261
74  for (let i = 0; i < s.length; i++) h = Math.imul(h ^ s.charCodeAt(i), 16777619)
75  return h >>> 0
76}
77
78function bump(bands: Float64Array, center: number, width: number, amp: number): void {
79  for (let i = 0; i < N_BANDS; i++) {
80    const d = (i - center) / width
81    const v = amp * Math.exp(-d * d)
82    if (v > bands[i]) bands[i] = Math.min(1, v)
83  }
84}
85
86/** A session event lands: a kick to the global level and to some bands.
87 * Both prompt and tool events pick a random band, seeded deterministically by
88 * the event counter, across the whole spectrum, so every cat gets hit over time. */
89export function kick(s: VisState, kind: Kind, tool?: string): void {
90  s.idle = 0 // anything at all wakes the cats up
91  switch (kind) {
92    case 'prompt': {
93      s.hits += 1
94      s.level = Math.min(1, s.level + 0.5)
95      const at = Math.floor(hash2(s.hits, 11) * N_BANDS)   // any band, so any cat
96      bump(s.bands, at, N_BANDS * 0.18, 0.9)
97      s.hold[at] = HIT
98      s.track = 'prompt'
99      break
100    }
101    case 'tool': {
102      const name = tool ?? 'tool'
103      s.hits += 1
104      s.level = Math.min(1, s.level + 0.3)
105      const center = Math.floor(hash2(s.hits, 13) * N_BANDS)   // any band, so any cat
106      bump(s.bands, center, 4 + (hashName(name + '#') % 5), 0.95)
107      s.hold[center] = HIT
108      s.track = name
109      break
110    }
111    case 'turn':
112      s.level = Math.min(1, s.level + 0.2)
113      s.working = true
114      break
115    case 'done':
116      s.level = Math.min(1, s.level + 0.4)
117      for (let i = 0; i < N_BANDS; i++) s.bands[i] = Math.max(s.bands[i], 0.55 + 0.35 * Math.sin(i * 0.3))
118      s.hold.fill(HIT) // every cat cheers
119      if (hash2(7, s.hits) < 0.5) s.mouse = 0 // and half the time a mouse turns up
120      s.working = false
121      s.track = 'idle'
122      break
123  }
124}
125
126/** Advance the animation by `dt` seconds. */
127export function step(s: VisState, dt: number): void {
128  const baseline = s.working ? 0.32 : 0.05
129  s.level += (baseline - s.level) * (1 - Math.exp(-dt / 1.2))
130  s.t += dt * (0.35 + 1.8 * s.level)
131  s.hue = (s.hue + dt * (0.02 + 0.08 * s.level)) % 1
132
133  // a beat every half second while working, so the bars dance between events
134  let pulse = 0
135  if (s.working) {
136    s.beat += dt
137    if (s.beat >= 0.5) { s.beat -= 0.5; s.beats += 1 }
138    pulse = Math.exp(-s.beat * 9) * (0.35 + 0.4 * s.level)
139  }
140  s.idle = s.working ? 0 : s.idle + dt
141  if (s.mouse >= 0) {
142    s.mouse += dt
143    if (s.mouse > MOUSE_RUN) s.mouse = -1 // it made it off the far end
144  }
145
146  const attack = 1 - Math.exp(-dt / 0.05)
147  const release = 1 - Math.exp(-dt / 0.28)
148  for (let i = 0; i < N_BANDS; i++) {
149    const wobble = 0.5 + 0.5 * Math.sin(s.t * 2.1 + s.phase[i]) * Math.sin(s.t * 0.7 + i * 0.21)
150    const target = Math.min(1, s.level * (0.25 + 0.45 * wobble) + pulse * wobble)
151    const b = s.bands[i]
152    s.bands[i] = Math.min(1, target > b ? b + (target - b) * attack : b + (target - b) * release)
153    // peaks hold for a moment then fall
154    if (s.bands[i] >= s.peaks[i]) s.peaks[i] = s.bands[i]
155    else s.peaks[i] = Math.max(s.bands[i], s.peaks[i] - dt * 0.35)
156    s.hold[i] = Math.max(0, s.hold[i] - dt)
157  }
158}
159
160function hsv(h: number, sat: number, val: number): number {
161  const i = Math.floor(h * 6)
162  const f = h * 6 - i
163  const p = val * (1 - sat), q = val * (1 - f * sat), t = val * (1 - (1 - f) * sat)
164  let r: number, g: number, b: number
165  switch (i % 6) {
166    case 0: r = val; g = t; b = p; break
167    case 1: r = q; g = val; b = p; break
168    case 2: r = p; g = val; b = t; break
169    case 3: r = p; g = q; b = val; break
170    case 4: r = t; g = p; b = val; break
171    default: r = val; g = p; b = q
172  }
173  return ((r * 255) << 16) | ((g * 255) << 8) | (b * 255)
174}
175
176function lerpStops(stops: readonly number[], f: number): number {
177  const seg = f * (stops.length - 1)
178  const i = Math.min(stops.length - 2, Math.floor(seg))
179  const t = seg - i
180  const a = stops[i], b = stops[i + 1]
181  const ch = (shift: number) => Math.round(((a >> shift) & 0xff) * (1 - t) + ((b >> shift) & 0xff) * t)
182  return (ch(16) << 16) | (ch(8) << 8) | ch(0)
183}
184
185/** What the left picker chooses in the current mode, and every value it can take. */
186export function leftPicker(s: VisState): { label: string; values: readonly string[]; index: number } {
187  return MODES[s.mode] === 'cats'
188    ? { label: 'outfit', values: OUTFITS, index: s.outfit }
189    : { label: 'color', values: THEMES.map(t => t.name), index: s.theme }
190}
191export function cycleLeft(s: VisState, by: number): void {
192  if (MODES[s.mode] === 'cats') s.outfit = (s.outfit + by + OUTFITS.length) % OUTFITS.length
193  else s.theme = (s.theme + by + THEMES.length) % THEMES.length
194}
195export function cycleMode(s: VisState, by: number): void {
196  s.mode = (s.mode + by + MODES.length) % MODES.length
197}
198
199/** The bar color at `f` (0 foot, 1 tip) of the current theme, as `#rrggbb`. */
200export function themeColor(s: VisState, f: number): string {
201  return '#' + lerpStops(THEMES[s.theme % THEMES.length].stops, f).toString(16).padStart(6, '0')
202}
203
204/** The 32-entry palette for this frame: plasma hues dimmed by energy, bar gradient, peak white. */
205function palette(s: VisState): Uint32Array {
206  const pal = new Uint32Array(PALETTE_SIZE)
207  const val = 0.22 + 0.6 * s.level
208  for (let i = 0; i < PLASMA_COLORS; i++) pal[i] = hsv((i / PLASMA_COLORS + s.hue) % 1, 0.85, val)
209  const stops = THEMES[s.theme % THEMES.length].stops
210  for (let i = 0; i < BAR_COLORS; i++) pal[PLASMA_COLORS + i] = lerpStops(stops, i / (BAR_COLORS - 1))
211  pal[PEAK_COLOR] = 0xffffff
212  return pal
213}
214
215function toBase64(bytes: Uint8Array): string {
216  const anyBytes = bytes as unknown as { toBase64?: () => string }
217  if (typeof anyBytes.toBase64 === 'function') return anyBytes.toBase64()
218  let bin = ''
219  for (let i = 0; i < bytes.length; i++) bin += String.fromCharCode(bytes[i])
220  return btoa(bin)
221}
222
223const CATS_BG_COLORS = 8
224const CATS_PAL = { bg: 0, floorDark: CATS_BG_COLORS, floorLit: CATS_BG_COLORS + 1, cats: CATS_BG_COLORS + 2 }
225if (CATS_PAL.cats + CAT_COLORS.length > PALETTE_SIZE) throw new Error('retrovis: cats palette overflows 32 colors')
226
227/** The cats-mode palette: the skyline silhouette, a night-sky gradient, two roof tiles, then every cat color. */
228function catsPalette(s: VisState): Uint32Array {
229  const pal = new Uint32Array(PALETTE_SIZE)
230  pal[0] = 0x07060e // buildings
231  const lift = 0.25 * s.level // the sky warms a little with the energy
232  for (let i = 1; i < CATS_BG_COLORS; i++) {
233    const f = (i - 1) / (CATS_BG_COLORS - 2) // 0 top .. 1 horizon
234    pal[i] = lerpStops([0x05041a, 0x140c3a, 0x2a1450, 0x4a1e5a], Math.min(1, f + lift * 0.4))
235  }
236  const pulse = s.working ? Math.exp(-s.beat * 9) * 0.5 : 0
237  pal[CATS_PAL.floorDark] = 0x2a1a14
238  pal[CATS_PAL.floorLit] = lerpStops([0x4a2a1c, 0x8a4a2c], Math.min(1, s.level * 0.6 + pulse))
239  for (let i = 0; i < CAT_COLORS.length; i++) pal[CATS_PAL.cats + i] = CAT_COLORS[i]
240  return pal
241}
242
243/** One frame as Raster `cells`: `cols` x `rows` cells, 2 pixels per cell. */
244export function renderFrame(s: VisState, cols: number, rows: number): string {
245  const W = cols, H = rows * 2
246  const pix = new Uint8Array(W * H) // palette index per pixel
247  const pal = MODES[s.mode] === 'cats' ? catsPalette(s) : palette(s)
248  if (MODES[s.mode] === 'cats') {
249    drawCats(s, pix, W, H, CATS_PAL, CATS_BG_COLORS)
250    return pack(pix, pal, W, rows)
251  }
252
253  // plasma: four moving sines, quantized to the hue ring
254  const cx = W * (0.5 + 0.35 * Math.sin(s.t * 0.23)), cy = H * (0.5 + 0.4 * Math.cos(s.t * 0.17))
255  for (let y = 0; y < H; y++) {
256    const sy = Math.sin(y * 0.22 - s.t * 0.6)
257    for (let x = 0; x < W; x++) {
258      const dx = x - cx, dy = (y - cy) * 2
259      const v = Math.sin(x * 0.09 + s.t * 0.9) + sy + Math.sin(x * 0.06 + y * 0.13 + s.t * 0.4) + Math.sin(Math.sqrt(dx * dx + dy * dy) * 0.07 - s.t * 1.1)
260      pix[y * W + x] = Math.floor(((v + 4) / 8) * PLASMA_COLORS) % PLASMA_COLORS
261    }
262  }
263
264  // bars: width 2, gap 1, spread over the band's 64 energies
265  const nBars = Math.max(1, Math.floor((W + 1) / 3))
266  for (let b = 0; b < nBars; b++) {
267    const band = Math.floor((b * N_BANDS) / nBars)
268    const h = Math.round(s.bands[band] * H)
269    const peak = Math.round(s.peaks[band] * H)
270    const x0 = b * 3
271    for (let k = 0; k < 2 && x0 + k < W; k++) {
272      const x = x0 + k
273      for (let yUp = 0; yUp < h; yUp++) {
274        const y = H - 1 - yUp
275        pix[y * W + x] = PLASMA_COLORS + Math.min(BAR_COLORS - 1, Math.floor((yUp / H) * BAR_COLORS))
276      }
277      if (peak > 0 && peak > h) pix[(H - peak) * W + x] = PEAK_COLOR
278    }
279  }
280
281  return pack(pix, pal, W, rows)
282}
283
284/** Packs palette-indexed pixels (2 per cell, top and bottom) into Raster cells. */
285function pack(pix: Uint8Array, pal: Uint32Array, W: number, rows: number): string {
286  const words = new Uint32Array(W * rows * 3)
287  for (let r = 0; r < rows; r++) {
288    for (let c = 0; c < W; c++) {
289      const o = (r * W + c) * 3
290      words[o] = HALF_BLOCK
291      words[o + 1] = pal[pix[(2 * r) * W + c]]
292      words[o + 2] = pal[pix[(2 * r + 1) * W + c]]
293    }
294  }
295  return toBase64(new Uint8Array(words.buffer))
296}
297

1// The "cats" mode: a row of pixel cats dancing on a rooftop at night, with a
2// moon, twinkling stars and a lit skyline behind them, RealPlayer's
3// Annabel-the-Sheep style. Pure: palette indexes into `pix`, nothing else.
4import type { VisState } from './vis.ts'
5
6export const OUTFITS = ['plain', 'party hat', 'headphones', 'sunglasses', 'bow tie', 'scarf', 'crown'] as const
7
8// Sprites, 12 wide and at most 12 rows; letters are color keys, `.` is transparent:
9// B body, S stripes, P patches (a second marking color), I inner ear, E eyes, N nose, W muzzle, F feet.
10// A shorter sprite is drawn lower down, so every one of them has its bottom row on the same floor row.
11const CAT_DOWN = [
12  '..B......B..',
13  '.BIB....BIB.',
14  '.BBBBBBPPPB.',
15  'BBSBBBBPPSBB',
16  'BBEBBBBBBEBB',
17  'BBBBBNNBBBBB',
18  '.BBBWWWWBBB.',
19  '..BBBBBBBB..',
20  '.BBBBBBPPBB.',
21  '.BSBBSBPPSB.',
22  '.BBBBBBBBBB.',
23  '.FF..FF..FF.',
24]
25// the off-beat half of the bounce: the same head, the body squashed one row
26// shorter and spilling out sideways, the feet still on the floor row
27const CAT_SQUAT = [
28  '..B......B..',
29  '.BIB....BIB.',
30  '.BBBBBBPPPB.',
31  'BBSBBBBPPSBB',
32  'BBEBBBBBBEBB',
33  'BBBBBNNBBBBB',
34  '.BBBWWWWBBB.',
35  '..BBBBBBBB..',
36  'BBBBBBBPPBBB',
37  'BBSBBSBPPSBB',
38  '.FF..FF..FF.',
39]
40// the look-away: CAT_DOWN's silhouette with nothing but fur on it (the tail
41// mirrors to the other side, so the cat reads as turned and not just still)
42const CAT_BACK = [
43  '..B......B..',
44  '.BBB....BBB.',
45  '.BBBBBBPPPB.',
46  'BBSBBBBPPSBB',
47  'BBSBBBBBBSBB',
48  'BBBBBBBBBBBB',
49  '.BBBBBBBBBB.',
50  '..BBBBBBBB..',
51  '.BBBBBBPPBB.',
52  '.BSBBSBPPSB.',
53  '.BBBBBBBBBB.',
54  '.FF..FF..FF.',
55]
56// idling: the same head two rows lower, haunches spread on the floor row and
57// two front paws between them
58const CAT_SIT = [
59  '..B......B..',
60  '.BIB....BIB.',
61  '.BBBBBBPPPB.',
62  'BBSBBBBPPSBB',
63  'BBEBBBBBBEBB',
64  'BBBBBNNBBBBB',
65  '.BBBWWWWBBB.',
66  '..BBBBBBBB..',
67  '.BBBBBBPPBB.',
68  'BBBB.FF.BBBB',
69]
70export const SPRITE_W = 12
71export const SPRITE_H = 12
72export const MOUSE_RUN = 2.5 // seconds a mouse takes to cross the roof
73export const HIT = 1.5 // seconds a hit keeps a cat busy (vis.ts sets hold to this)
74const JUMP_T = 0.8 // the jump itself is over in the first part of it
75const SIT_AFTER = 10 // seconds of quiet before the cats sit down
76const TAILS: ReadonlyArray<ReadonlyArray<readonly [number, number]>> = [
77  [[12, 10], [13, 9], [13, 8]],
78  [[12, 10], [13, 10], [14, 9]],
79]
80
81// outfit overlays: [dx, dy, colorKey]; dy may be negative (above the head).
82// Color keys (see OUTFIT_COLORS): R red, G gold, K near-black, M grey, D dark grey.
83// K is nearly the night sky and nearly a black cat, so it is only ever a lens or a
84// fill that sits inside a lighter frame; anything whose shape has to read against
85// the sky or a dark breed (the headphone band and cups, the sunglasses frame) uses
86// M, D or R instead.
87type Px = readonly [number, number, string]
88const OUTFIT_PX: Record<(typeof OUTFITS)[number], readonly Px[]> = {
89  plain: [],
90  'party hat': [
91    [5, -3, 'G'], [6, -3, 'G'],
92    [4, -2, 'R'], [5, -2, 'R'], [6, -2, 'R'], [7, -2, 'R'],
93    [3, -1, 'G'], [4, -1, 'G'], [5, -1, 'G'], [6, -1, 'G'], [7, -1, 'G'], [8, -1, 'G'],
94  ],
95  headphones: [
96    ...Array.from({ length: 10 }, (_, i): Px => [i + 1, -1, 'M']), // band, grey against the sky
97    [-1, 3, 'R'], [0, 3, 'R'], [-1, 4, 'R'], [0, 4, 'R'], // ear cups, red against a dark breed
98    [11, 3, 'R'], [12, 3, 'R'], [11, 4, 'R'], [12, 4, 'R'],
99  ],
100  // lenses dark, bridge and temples in a lighter frame so they read on a black cat
101  sunglasses: [
102    [1, 4, 'D'], [2, 4, 'K'], [3, 4, 'K'], [4, 4, 'K'], [5, 4, 'D'],
103    [6, 4, 'D'], [7, 4, 'K'], [8, 4, 'K'], [9, 4, 'K'], [10, 4, 'D'],
104  ],
105  'bow tie': [[3, 7, 'R'], [4, 7, 'R'], [5, 7, 'G'], [6, 7, 'G'], [7, 7, 'R'], [8, 7, 'R']],
106  scarf: [
107    ...Array.from({ length: 10 }, (_, i): Px => [i + 1, 7, 'R']),
108    [8, 8, 'R'], [9, 8, 'R'], [9, 9, 'R'],
109  ],
110  crown: [[3, -2, 'G'], [6, -2, 'G'], [9, -2, 'G'], ...Array.from({ length: 7 }, (_, i): Px => [i + 3, -1, 'G']), [6, -1, 'R']],
111}
112
113// how far the tallest outfit reaches above the head, plus the one pixel the beat
114// bounce lifts it: the room a cat needs above SPRITE_H for every frame to fit
115const OUTFIT_OVERHANG = Math.max(0, ...Object.values(OUTFIT_PX).flatMap(px => px.map(([, dy]) => -dy)))
116const HEAD_ROOM = OUTFIT_OVERHANG + 1
117
118// breeds: color per sprite key; ordered so neighbours contrast. One cat per breed, never repeated.
119const ORANGE = 0xe8862a, DK_ORANGE = 0xb35a10, BLACK = 0x2b2b30, CHARCOAL = 0x3c3c44, WHITE = 0xf4f4f4, SNOW = 0xdcdcdc
120const GREY = 0x8e93a0, DK_GREY = 0x5f6472, CREAM = 0xeadbc8, BROWN = 0x5a3a2a, PINK = 0xf4a6c0, ROSE = 0xe07090, PLUM = 0xb05070
121const GREEN = 0x3cb44b, YELLOW = 0xf5d000, BLUE = 0x3a8dff
122const BREEDS: ReadonlyArray<Record<string, number>> = [
123  { B: ORANGE, S: DK_ORANGE, P: ORANGE, I: PINK, E: GREEN, N: ROSE, W: 0xfff1d6, F: ORANGE }, // orange tabby
124  { B: WHITE, S: ORANGE, P: BLACK, I: PINK, E: YELLOW, N: ROSE, W: WHITE, F: WHITE }, // calico: white, orange and black
125  { B: BLACK, S: BLACK, P: BLACK, I: PLUM, E: YELLOW, N: PLUM, W: CHARCOAL, F: BLACK }, // black
126  { B: CREAM, S: BROWN, P: CREAM, I: BROWN, E: BLUE, N: BROWN, W: CREAM, F: BROWN }, // siamese: dark points
127  { B: GREY, S: DK_GREY, P: GREY, I: PINK, E: GREEN, N: ROSE, W: 0xd8dae0, F: GREY }, // grey tabby
128  { B: BLACK, S: BLACK, P: BLACK, I: PINK, E: GREEN, N: ROSE, W: WHITE, F: WHITE }, // tuxedo: white muzzle and feet
129  { B: WHITE, S: SNOW, P: WHITE, I: PINK, E: BLUE, N: ROSE, W: WHITE, F: WHITE }, // white
130  { B: BLACK, S: ORANGE, P: DK_ORANGE, I: PLUM, E: YELLOW, N: PLUM, W: CHARCOAL, F: BLACK }, // tortoiseshell
131]
132const OUTFIT_COLORS: Record<string, number> = { R: 0xe03030, G: 0xffc800, K: 0x141418, M: GREY, D: DK_GREY }
133
134// one fixed palette for every cat color, so indexes are stable across frames
135export const CAT_COLORS: number[] = []
136const colorIndex = new Map<number, number>()
137function intern(c: number): number {
138  let i = colorIndex.get(c)
139  if (i === undefined) { i = CAT_COLORS.length; CAT_COLORS.push(c); colorIndex.set(c, i) }
140  return i
141}
142const BREED_IDX = BREEDS.map(b => { const m: Record<string, number> = {}; for (const k in b) m[k] = intern(b[k]); return m })
143const OUTFIT_IDX: Record<string, number> = {}
144for (const k in OUTFIT_COLORS) OUTFIT_IDX[k] = intern(OUTFIT_COLORS[k])
145
146/** The palette index of one of the cat colors (they double as star, moon and window colors). */
147export function catColor(c: number): number {
148  const i = colorIndex.get(c)
149  if (i === undefined) throw new Error('retrovis: not a cat color')
150  return i
151}
152const STAR = catColor(0xf4f4f4), STAR_DIM = catColor(0xdcdcdc), MOON = catColor(0xfff1d6), WINDOW = catColor(0xf5d000)
153const MOUSE = catColor(GREY), MOUSE_TAIL = catColor(DK_GREY)
154
155/** A stable 0..1 hash of two integers: the one source of randomness in here. */
156export function hash2(a: number, b: number): number {
157  let h = Math.imul(a * 73856093 ^ b * 19349663, 0x9e3779b1)
158  h ^= h >>> 15
159  return (h >>> 0) / 4294967296
160}
161
162export type CatsPalette = { bg: number; floorDark: number; floorLit: number; cats: number }
163
164/** Draws the rooftop, the sky and the cats into `pix` (palette indexes), given where each palette block starts. */
165export function drawCats(s: VisState, pix: Uint8Array, W: number, H: number, pal: CatsPalette, bgColors: number): void {
166  const floorY = H - 1
167  // sky: a vertical gradient, darkest at the top (bg 1..); bg 0 is the skyline's silhouette
168  const skyH = Math.max(1, floorY)
169  for (let y = 0; y < floorY; y++) {
170    const band = 1 + Math.min(bgColors - 2, Math.floor((y / skyH) * (bgColors - 1)))
171    for (let x = 0; x < W; x++) pix[y * W + x] = pal.bg + band
172  }
173  // stars: fixed positions in the upper sky, twinkling on their own clocks and brighter with the energy
174  const nStars = Math.floor((W * skyH) / 28)
175  for (let k = 0; k < nStars; k++) {
176    const x = Math.floor(hash2(k, 1) * W), y = Math.floor(hash2(k, 2) * skyH * 0.7)
177    const tw = Math.sin(s.t * (1.5 + hash2(k, 3) * 2) + hash2(k, 4) * 6.28)
178    if (tw > 0.75 - s.level) pix[y * W + x] = pal.cats + (tw > 0.9 ? STAR : STAR_DIM)
179  }
180  // moon: a disc at the right edge, in the strip the cats leave free, centred on a pixel
181  // (no half offset) so both axes are symmetric. A half-block pixel is a little taller than
182  // it is wide on most terminal fonts once line spacing is counted, so the disc is stretched
183  // sideways by MOON_ASPECT: 9 wide by 7 tall at full height, rows 5/7/9/9/9/7/5.
184  const MOON_W = 12, MOON_ASPECT = 1.2
185  const mx = W - MOON_W / 2, mr = Math.max(1.5, Math.min(3.5, skyH / 4)), my = Math.floor(mr)
186  const mrx = mr * MOON_ASPECT
187  for (let y = 0; y < skyH; y++) for (let x = Math.max(0, W - MOON_W); x < W; x++) {
188    const dx = x - mx, dy = y - my
189    if ((dx * dx) / (mrx * mrx) + (dy * dy) / (mr * mr) <= 1) pix[y * W + x] = pal.cats + MOON
190  }
191  // skyline: building silhouettes of varied height, with windows that light up with the energy
192  const maxBuild = Math.max(2, Math.floor(skyH * 0.45))
193  for (let x = 0; x < W; x++) {
194    const b = Math.floor(x / 7)
195    const h = 1 + Math.floor(hash2(b, 9) * maxBuild)
196    for (let y = floorY - h; y < floorY; y++) {
197      const wx = x % 7, wy = (floorY - 1 - y)
198      const window = wx % 3 === 1 && wy % 2 === 0 && wy < h - 1
199      const lit = window && hash2(x, y) < 0.15 + 0.7 * s.level
200      pix[y * W + x] = lit ? pal.cats + WINDOW : pal.bg
201    }
202  }
203  // one cat per breed, as many as fit; on a wide band they spread out evenly instead of repeating
204  const minSpacing = SPRITE_W + 4
205  const room = W > 2 * minSpacing + MOON_W ? W - MOON_W : W // leave the moon's strip free when there is room
206  const n = Math.max(1, Math.min(BREED_IDX.length, Math.floor(room / minSpacing)))
207  const spacing = Math.floor(room / n)
208  const margin = Math.floor((room - n * spacing) / 2) + Math.floor((spacing - SPRITE_W - 2) / 2)
209  const outfit = OUTFIT_PX[OUTFITS[s.outfit % OUTFITS.length]]
210  // the cats keep their feet on the roof while the band is tall enough for them.
211  // The groove never stops while a turn runs: the whole row bounces on every beat,
212  // lifting a pixel on one beat and squatting on the next, necks sway in a slow
213  // wave, eyes blink and tails swing. A cat whose slice was hit does one of two
214  // special moves on top of that, a jump or a look-away; left alone long enough
215  // they all sit down.
216  const bounce = s.working && s.beat < 0.16
217  const squat = bounce && s.beats % 2 === 1
218  const hop = bounce && s.beats % 2 === 0 ? 1 : 0
219  const sitting = s.idle > SIT_AFTER
220  // a mouse crosses right to left; while it is out there every head follows it
221  const mouseX = s.mouse >= 0 ? Math.round(W + 3 - (s.mouse / MOUSE_RUN) * (W + 6)) : undefined
222  const NECK = 7 // the last head row: head and neck sway, the body below them does not
223  for (let i = 0; i < n; i++) {
224    const breed = BREED_IDX[i]
225    // each cat listens to its own slice of the spectrum, so every hit lands on some cat
226    const from = Math.floor((i * s.bands.length) / n), to = Math.floor(((i + 1) * s.bands.length) / n)
227    let hold = 0
228    for (let b = from; b < to; b++) hold = Math.max(hold, s.hold[b])
229    const pj = Math.min(1, (HIT - hold) / JUMP_T) // 0..1 through the jump, done well before the hit ends
230    const jump = hold > 0 && hash2(i, s.hits) < 0.5 // the other half turn away instead
231    const turn = hold > 0 && !jump && hold < HIT - 0.1 && hold > 0.1 // back turned for about 1.3 s
232    const x0 = margin + i * spacing + 1
233    // head first: on a tall band the feet land on the roof, on a short one the cat sinks
234    // behind the parapet (the roof is drawn last) so the head and its outfit still fit
235    const y0 = Math.max(floorY - SPRITE_H, HEAD_ROOM)
236    const put = (dx: number, dy: number, idx: number) => {
237      const x = x0 + dx, y = y0 + dy
238      if (x >= 0 && x < W && y >= 0 && y < H) pix[y * W + x] = pal.cats + idx
239    }
240    // the jump is a parabola, clamped (with the beat's own pixel counted in) so a
241    // head and its hat never clip off a short band
242    const jumpMax = Math.max(0, Math.min(3, y0 - OUTFIT_OVERHANG - hop))
243    const lift = hop + (jump ? Math.round(jumpMax * 4 * pj * (1 - pj)) : 0)
244    const sprite = sitting ? CAT_SIT : turn ? CAT_BACK : squat ? CAT_SQUAT : CAT_DOWN
245    // every sprite's bottom row lands on the same floor row; a turned cat has no
246    // squat of its own, so it takes the off-beat as a one-pixel dip instead
247    const base = SPRITE_H - sprite.length + (turn && squat ? 1 : 0)
248    const sway = mouseX !== undefined ? Math.sign(mouseX - (x0 + SPRITE_W / 2))
249      : Math.round(Math.sin(s.t * 1.5 + i * 1.1))
250    const blink = (s.t + i * 0.7) % 4.3 < 0.12 // closed eyes are body-colored
251    for (let r = 0; r < sprite.length; r++) {
252      const row = sprite[r]
253      const shift = r <= NECK ? sway : 0
254      for (let c = 0; c < SPRITE_W; c++) {
255        const key = row[c]
256        if (key === '.') continue
257        put(c + shift, base + r - lift, breed[key === 'E' && blink ? 'B' : key])
258      }
259    }
260    for (const [dx, dy] of TAILS[Math.sin(s.t * 2 + i) > 0 ? 0 : 1]) put(turn ? SPRITE_W - 1 - dx : dx, base + dy - lift, breed.B)
261    // a turned cat keeps whatever sits above its head and loses what sat on its face
262    for (const [dx, dy, k] of outfit) if (!turn || dy < 0) put(dx + sway, base + dy - lift, OUTFIT_IDX[k])
263  }
264
265  // the mouse, drawn after the cats so it passes in front of their feet
266  if (mouseX !== undefined) {
267    for (let dy = 0; dy < 2; dy++) for (let dx = 0; dx < 4; dx++) {
268      const x = mouseX + dx, y = floorY - 2 + dy
269      if (x >= 0 && x < W && y >= 0) pix[y * W + x] = pal.cats + MOUSE
270    }
271    const tx = mouseX + 4 // the tail trails behind it, to the right
272    if (tx >= 0 && tx < W && floorY >= 1) pix[(floorY - 1) * W + tx] = pal.cats + MOUSE_TAIL
273  }
274
275  // roof: tiles in two shades, alternating every 4 px. Drawn last, so it hides
276  // whatever a sunk cat put on the floor row: they stand behind a parapet.
277  for (let x = 0; x < W; x++) pix[floorY * W + x] = Math.floor(x / 4) % 2 === 0 ? pal.floorLit : pal.floorDark
278}
279
