1import { atom, read, update } from 'claude-code'
2import type { EngineInterface as Engine, Register } from 'claude-code'
3
4import type {
5  Background,
6  CacheInfo,
7  Config,
8  GitInfo,
9  Kit,
10  ModelInfo,
11  Modes,
12  ServiceStatus,
13  SessionInfo,
14  SkillsInfo,
15  TokenInfo,
16  Usage,
17  VersionInfo,
18} from '../types'
19import {
20  BALL,
21  BALL_INK,
22  BALL_LEFT,
23  drawnCells,
24  KIT_HEIGHT,
25  KIT_WIDTH,
26  kitCells,
27  kitsFor,
28  kitsTick,
29  LIFT_ROOM,
30  PET_HEIGHT,
31  PET_START,
32  PET_TICK,
33  petCells,
34  petCoat,
35  petEvent,
36  petLook,
37  petSpecies,
38  petTick,
39  TRACK,
40  type PetEvent,
41  type Run,
42} from './pets'
43import { registerCommands } from './commands'
44import {
45  bar,
46  countBackground,
47  parseShortstat,
48  parseStatusV2,
49  percentText,
50  repoFromRemote,
51  shortPath,
52  usageColor,
53} from './format'
54import { C, ITEMS, view, type Seg, type Snapshot, type View } from './items'
55import {
56  chunk,
57  COLUMN_GAP,
58  columnRows,
59  drawerShows,
60  drawerWanted,
61  enabledItems,
62  inlineValue,
63  type Manual,
64  parseConfig,
65  type Placement,
66  segWidth,
67  showsAnywhere,
68} from './layout'
69import { locations } from './paths'
70import { statuslineFile } from './statusline'
71
72const PANE = 'ccdrawu'
73const PANE_OPEN = { id: PANE, title: 'Status', columns: 34 } as const
74const LABEL = 9 // key column width beside the transcript: keys of 8 characters, and a space; wider while a longer one shows
75
76const usage = atom({ plugin: 'ccdrawu', key: 'usage' } as const, null as Usage | null)
77const model = atom({ plugin: 'ccdrawu', key: 'model' } as const, null as ModelInfo | null)
78const git = atom({ plugin: 'ccdrawu', key: 'git' } as const, null as GitInfo | null)
79const path = atom({ plugin: 'ccdrawu', key: 'path' } as const, '')
80const turns = atom({ plugin: 'ccdrawu', key: 'turns' } as const, 0)
81const cache = atom({ plugin: 'ccdrawu', key: 'cache' } as const, null as CacheInfo | null)
82const tokens = atom({ plugin: 'ccdrawu', key: 'tokens' } as const, { input: 0, output: 0, cacheRead: 0, cacheWrite: 0 } as TokenInfo)
83const sessionInfo = atom({ plugin: 'ccdrawu', key: 'session' } as const, {} as SessionInfo)
84const service = atom({ plugin: 'ccdrawu', key: 'status' } as const, null as ServiceStatus | null)
85const skills = atom({ plugin: 'ccdrawu', key: 'skills' } as const, { count: 0 } as SkillsInfo)
86const compacts = atom({ plugin: 'ccdrawu', key: 'compacts' } as const, 0)
87const agents = atom({ plugin: 'ccdrawu', key: 'agents' } as const, 0)
88const background = atom({ plugin: 'ccdrawu', key: 'background' } as const, {} as Background)
89const version = atom({ plugin: 'ccdrawu', key: 'version' } as const, null as VersionInfo | null)
90const drawer = atom({ plugin: 'ccdrawu', key: 'drawer' } as const, null as string | null)
91const modes = atom({ plugin: 'ccdrawu', key: 'modes' } as const, {} as Modes)
92const now = atom({ plugin: 'ccdrawu', key: 'now' } as const, 0)
93const pet = atom({ plugin: 'ccdrawu', key: 'pet' } as const, PET_START)
94const kits = atom({ plugin: 'ccdrawu', key: 'kits' } as const, [] as Kit[])
95const config = atom({ plugin: 'ccdrawu', key: 'config' } as const, {} as Config)
96// Kept by the host, so a reload keeps what /ccdrawu set
97const manual = atom({ plugin: 'ccdrawu', key: 'manual' } as const, null as Manual)
98
99async function refreshUsage($: Engine) {
100  const u = await $.session.usage()
101  await update($, usage, () => ({
102    startedAt: u.startedAt,
103    contextPercent: u.context.percent,
104    contextTokens: u.context.tokens,
105    contextWindow: u.context.window,
106    limits: u.rateLimits.map(l => ({ kind: l.kind, percentUsed: l.percentUsed, resetsAt: l.resetsAt })),
107    costUsd: u.cost?.usd,
108  }))
109}
110
111async function tick($: Engine) {
112  const t = await $.clock.now()
113  await update($, now, () => t)
114}
115
116async function refreshTurns($: Engine) {
117  const n = await $.session.turns()
118  await update($, turns, () => n)
119}
120
121// Before a resumed session sends its first request, take the effort /model saved in settings;
122// turn.step's real value replaces it once a request goes out
123async function refreshModelName($: Engine) {
124  const name = await $.session.model()
125  const settings = (await $.settings.read()) as unknown as {
126    effortLevel?: string
127    modelSettings?: Record<string, { effortLevel?: string } | undefined>
128  }
129  const configured = settings.modelSettings?.[name]?.effortLevel ?? settings.effortLevel
130  await update($, model, m => ({ name, effort: m?.effort ?? configured }))
131}
132
133let home: string | undefined
134let dataDir: string | undefined
135let configFile: string | undefined
136
137async function locateFiles($: Engine) {
138  // Windows has USERPROFILE, and often no HOME; the TUI's os.UserHomeDir reads them in this order too
139  home = (await $.env.get('USERPROFILE')) || (await $.env.get('HOME'))
140  if (!home) return
141  const found = locations({
142    home,
143    data: await $.env.get('CCDRAWU__DATA'),
144    config: await $.env.get('CCDRAWU__CONFIG'),
145    xdgConfig: await $.env.get('XDG_CONFIG_HOME'),
146  })
147  dataDir = found.data
148  configFile = found.configFile
149}
150
151// Write `text` to <data>/<name> unless it already holds it
152async function keepFile($: Engine, name: string, text: string) {
153  if (dataDir === undefined) return
154  const target = `${dataDir}/${name}`
155  const current = await $.fs.read(target).catch(() => undefined)
156  if (current !== text) await $.fs.write(target, text)
157}
158
159// The TUI lists what this version of the mod can show from catalog.json, so it needs no update of its own
160async function installCatalog($: Engine) {
161  await keepFile($, 'catalog.json', JSON.stringify({ version: 1, items: ITEMS }, null, 2) + '\n')
162}
163
164// The TUI writes ~/.config/ccdrawu/config.json; every open session looks at it each second and takes
165// a change at once. A file not there means the catalog's defaults
166let configStamp: number | undefined
167let statusWasShown = false // whether the config read last had the Status row on
168// Where the config read last let the drawer show, before the first read
169let drawerWas: { dock: boolean; inline: boolean } | undefined
170// The command names this session has registered: /ccdrawu, and each alias the config has named
171const commands = new Set<string>()
172
173async function refreshConfig($: Engine) {
174  const file = configFile
175  if (file === undefined) return
176  const stamp = await $.fs.stat(file).then(
177    s => s.mtimeMs,
178    () => 0,
179  )
180  if (stamp === configStamp) return
181  const parsed = stamp === 0 ? {} : parseConfig(await $.fs.read(file))
182  // Half written: keep what shows and read it again next second
183  if (parsed === undefined) return
184  configStamp = stamp
185  await update($, config, () => parsed)
186  await registerCommands(spec => $.command.register(spec), commands, parsed.alias)
187  // The Status row just turned on, or on from the start: its reading now, not at the next 5 minutes
188  const shown = showsAnywhere(parsed, 'status')
189  if (shown && !statusWasShown) quietly(refreshStatus($))
190  statusWasShown = shown
191  // The drawer just turned on or off in a place: what /ccdrawu set goes, and open sessions open it, close
192  // it, or take it out of a place it is off in. The first read leaves it as session.start has it
193  const shows = { dock: drawerShows(parsed, 'dock'), inline: drawerShows(parsed, 'inline') }
194  if (drawerWas !== undefined && (shows.dock !== drawerWas.dock || shows.inline !== drawerWas.inline)) {
195    await update($, manual, () => null)
196    if (!shows.dock && !shows.inline) await closePane($)
197    else if (!(await $.ui.panes()).some(p => p.id === PANE)) void $.ui.open(PANE_OPEN)
198    else await keepPlace($)
199    if (shows.inline && !drawerWas.inline) quietly(hintInline($))
200  }
201  drawerWas = shows
202}
203
204// Turned on above the prompt in a terminal too narrow for the sidebar, the drawer stays out of sight:
205// the engine holds a pane opened unasked until the terminal is wide enough to dock it, and draws one
206// above the prompt only when the person opens it. Once the open has settled, say what to do (the README
207// says why)
208const INLINE_HINT = 'Type /ccdrawu to show the drawer above the prompt'
209
210async function hintInline($: Engine) {
211  await $.clock.sleep(1_000)
212  const pane = (await $.ui.panes()).find(p => p.id === PANE)
213  if (pane !== undefined && !pane.isPlaced) $.ui.toast(INLINE_HINT, { timeoutMs: 8_000 })
214}
215
216// Whether the terminal docks panes beside the transcript, as the pane's last drawing says
217let fullscreen = false
218
219async function closePane($: Engine) {
220  placedAs = undefined
221  await $.ui.close({ id: PANE })
222}
223
224// The drawer out of a place it does not belong in (drawerWanted). Above the prompt, in a terminal that
225// docks panes, it opens again unasked: the engine holds it undrawn until the terminal is wide enough to
226// dock it
227async function keepPlace($: Engine) {
228  const place = placedAs
229  if (place !== 'dock' && place !== 'inline') return
230  const pane = (await $.ui.panes()).find(p => p.id === PANE)
231  const conf = await read($, config)
232  const set = await read($, manual)
233  if (pane?.isPlaced !== true || drawerWanted(conf, place, set)) return
234  await closePane($)
235  if (place === 'inline' && fullscreen && drawerWanted(conf, 'dock', set)) void $.ui.open(PANE_OPEN)
236}
237
238// The pet on either side of the prompt: it has no need of a tick, or of events, when it shows nowhere
239async function petShown($: Engine) {
240  return showsAnywhere(await read($, config), 'pet')
241}
242
243// A tick of the pet and its kits: written only when what they show changed, worked out again on the
244// value there is then, so an event that came in between is kept
245async function stepPet($: Engine) {
246  if (!(await petShown($))) return
247  const t = await $.clock.now()
248  const ks = await read($, kits)
249  const movedKits = kitsTick(ks, t)
250  if (movedKits !== ks) await update($, kits, current => (current === ks ? movedKits : kitsTick(current, t)))
251  const s = await read($, pet)
252  const next = petTick(s, t)
253  if (next === s) return
254  await update($, pet, current => (current === s ? next : petTick(current, t)))
255}
256
257async function petHears($: Engine, event: PetEvent) {
258  if (!(await petShown($))) return
259  const t = await $.clock.now()
260  const species = petSpecies((await read($, config)).pet?.species)
261  await update($, pet, s => petEvent(s, event, t, species, Math.random))
262}
263
264// No API reports the permission mode; Claude Code's own hook events carry permission_mode,
265// so remember the main conversation's from them
266async function rememberMode($: Engine, e: { permission_mode?: string; agent_id?: string }) {
267  const mode = e.permission_mode
268  if (e.agent_id !== undefined || mode === undefined) return
269  // Read before each tool call too: leave the drawing alone when nothing changed
270  if ((await read($, modes)).permission === mode) return
271  await update($, modes, m => ({ ...m, permission: mode }))
272}
273
274async function refreshGit($: Engine) {
275  const cwd = await $.session.cwd()
276  await update($, path, () => shortPath(cwd, home))
277
278  const head = await $.process.run(['git', 'rev-parse', '--abbrev-ref', 'HEAD'], { timeoutMs: 3_000 })
279  if (head.exitCode !== 0) {
280    await update($, git, () => null)
281    return
282  }
283  // Before the first commit there is no HEAD: compare with the index instead
284  let diff = await $.process.run(['git', 'diff', 'HEAD', '--shortstat'], { timeoutMs: 3_000 })
285  if (diff.exitCode !== 0) diff = await $.process.run(['git', 'diff', '--shortstat'], { timeoutMs: 3_000 })
286  const branch = head.stdout.trim()
287  const status = await $.process.run(['git', 'status', '--porcelain=v2', '--branch'], { timeoutMs: 3_000 })
288  const place = await repoPlace($, cwd)
289  await update($, git, () => ({
290    branch,
291    ...parseShortstat(diff.stdout),
292    ...(status.exitCode === 0 ? parseStatusV2(status.stdout) : {}),
293    ...place,
294  }))
295}
296
297// origin's owner/repo, and the worktree's folder when the session is in a linked one; they change with the
298// working directory alone, so they are looked up again only when it moves
299let placeOf: { cwd: string; repo?: string; worktree?: string } | undefined
300
301async function repoPlace($: Engine, cwd: string): Promise<{ repo?: string; worktree?: string }> {
302  if (placeOf?.cwd !== cwd) {
303    const remote = await $.process.run(['git', 'remote', 'get-url', 'origin'], { timeoutMs: 3_000 })
304    const dirs = await $.process.run(
305      ['git', 'rev-parse', '--path-format=absolute', '--git-dir', '--git-common-dir', '--show-toplevel'],
306      { timeoutMs: 3_000 },
307    )
308    const [gitDir, commonDir, top] = dirs.stdout.trim().split('\n')
309    placeOf = {
310      cwd,
311      repo: remote.exitCode === 0 ? repoFromRemote(remote.stdout) : undefined,
312      worktree: dirs.exitCode === 0 && gitDir !== commonDir ? top?.split(/[\\/]/).pop() : undefined,
313    }
314  }
315  return { repo: placeOf.repo, worktree: placeOf.worktree }
316}
317
318// The session's id and the output style
319async function refreshSession($: Engine) {
320  const id = (await $.session.id()).replace(/\.jsonl$/, '')
321  const style = (await $.config.list()).find(r => r.key === 'outputStyle')?.value
322  await update($, sessionInfo, () => ({
323    id,
324    outputStyle: typeof style === 'string' ? style : undefined,
325  }))
326}
327
328// status.claude.com's overall status, from its public status page API
329// Claude's status, asked of status.claude.com only while the Status row shows somewhere: a request out
330// that the many who leave the row off never make
331async function refreshStatus($: Engine) {
332  if (!showsAnywhere(await read($, config), 'status')) return
333  const res = await $.http.fetch('https://status.claude.com/api/v2/status.json')
334  if (!res.ok) return
335  const s = (JSON.parse(res.text) as { status?: { indicator?: string; description?: string } }).status
336  if (s?.indicator !== undefined && s.description !== undefined) {
337    const status = { indicator: s.indicator, description: s.description }
338    await update($, service, () => status)
339  }
340}
341
342async function refreshAgents($: Engine) {
343  const list = await $.agent.list()
344  const running = list.filter(a => a.status === 'pending' || a.status === 'running' || a.status === 'waiting')
345  await update($, agents, () => running.length)
346  const ids = running.map(a => a.id)
347  const species = petSpecies((await read($, config)).pet?.species)
348  const coat = (await read($, pet)).coat
349  await update($, kits, ks => kitsFor(ks, ids, species, coat, Math.random))
350}
351
352async function refreshVersion($: Engine) {
353  const { base, version: full } = await $.session.version()
354  const current = base ?? full
355  await update($, version, v => ({ current, latest: v?.latest }))
356  const res = await $.http.fetch('https://registry.npmjs.org/@anthropic-ai/claude-code/latest')
357  if (!res.ok) return
358  const latest = (JSON.parse(res.text) as { version?: string }).version
359  await update($, version, () => ({ current, latest }))
360}
361
362// $.plugin has no version: read this plugin's own plugin.json
363async function refreshDrawer($: Engine) {
364  const manifest = JSON.parse(await $.fs.read(`${$.plugin.root}/.claude-plugin/plugin.json`)) as { version?: string }
365  await update($, drawer, () => manifest.version ?? null)
366}
367
368// Everything the items may show, as the drawer holds it now
369async function readSnapshot($: Engine): Promise<Snapshot> {
370  return {
371    usage: await read($, usage),
372    model: await read($, model),
373    git: await read($, git),
374    path: await read($, path),
375    turns: await read($, turns),
376    cache: await read($, cache),
377    tokens: await read($, tokens),
378    session: await read($, sessionInfo),
379    status: await read($, service),
380    skills: await read($, skills),
381    compacts: await read($, compacts),
382    agents: await read($, agents),
383    background: await read($, background),
384    version: await read($, version),
385    drawer: await read($, drawer),
386    modes: await read($, modes),
387    now: await read($, now),
388  }
389}
390
391// While the config has the statusline on, keep what it shows in <data>/sessions/<session id>.json for
392// `ccdrawu statusline` to lay out, written only when it changed. The id is asked each time: after /clear
393// the session goes on under a new one, and Claude Code hands the command that one
394let statuslineWritten: { file: string; text: string } | undefined
395// Where the pane was drawn last: dock, beside the transcript, or inline, above the prompt; undefined
396// once ccdrawu closes it
397let placedAs: Placement | undefined
398
399async function writeStatusline($: Engine) {
400  if (dataDir === undefined || !(await read($, config)).statusline?.on) return
401  const id = (await $.session.id()).replace(/\.jsonl$/, '')
402  const file = `${dataDir}/sessions/${id}.json`
403  // Beside the transcript only while the pane is open and drawn there: not closed, nor waiting for a
404  // wider terminal, nor above the prompt
405  const pane = (await $.ui.panes()).find(p => p.id === PANE)
406  const docked = pane?.isPlaced === true && placedAs === 'dock'
407  const text = statuslineFile(await readSnapshot($), docked)
408  if (statuslineWritten?.file === file && statuslineWritten.text === text) return
409  await $.fs.write(file, text)
410  statuslineWritten = { file, text }
411}
412
413// A failed background refresh (git timing out, offline for the version check) affects its row alone
414function quietly(work: Promise<unknown>) {
415  void work.catch(() => undefined)
416}
417
418export const register: Register = on => {
419  on('session.start', async ($, e, next) => {
420    // The alias follows once the config is read
421    await registerCommands(spec => $.command.register(spec), commands, undefined)
422
423    await tick($)
424    // The pet's coat, once a session (a reload keeps it), and it starts awake. A reload keeps the state
425    // an older module wrote too: fields it did not have yet take their defaults
426    const started = await $.clock.now()
427    await update($, pet, p => ({
428      ...PET_START,
429      ...p,
430      coat: p.coat < 0 ? Math.floor(Math.random() * 1000) : p.coat,
431      active: started,
432    }))
433    await locateFiles($).catch(() => undefined)
434    quietly(installCatalog($))
435    // Read before the drawer opens, which it does only while the config has it on
436    await refreshConfig($).catch(() => undefined)
437    quietly(refreshUsage($))
438    quietly(refreshModelName($))
439    quietly(refreshGit($))
440    quietly(refreshAgents($))
441    quietly(refreshVersion($))
442    quietly(refreshDrawer($))
443    quietly(refreshTurns($))
444    quietly(refreshSession($))
445
446    // Countdowns and uptime every 30 seconds; git, path and subagents every 5; Claude's status every 5
447    // minutes while its row shows (first when the config turns it on); the latest version every 6 hours;
448    // the config, and the statusline's file while it is on, every second
449    $.clock.every(30_000, () => quietly(tick($)))
450    $.clock.every(5_000, () => {
451      quietly(refreshGit($))
452      quietly(refreshAgents($))
453    })
454    $.clock.every(5 * 60_000, () => quietly(refreshStatus($)))
455    $.clock.every(6 * 60 * 60_000, () => quietly(refreshVersion($)))
456    $.clock.every(1_000, () => quietly(refreshConfig($)))
457    $.clock.every(1_000, () => quietly(writeStatusline($)))
458    $.clock.every(PET_TICK, () => quietly(stepPet($)))
459
460    // In a terminal too narrow for a sidebar the engine holds the pane until it widens. With the drawer
461    // off in both places the session starts without it, and /ccdrawu opens it; off in one, the pane
462    // drawn there is taken out of it (keepPlace). A reload keeps what /ccdrawu set
463    const conf = await read($, config)
464    const set = await read($, manual)
465    if (drawerWanted(conf, 'dock', set) || drawerWanted(conf, 'inline', set)) void $.ui.open(PANE_OPEN)
466
467    return next(e)
468  })
469
470  // Every slash command passes through here, so a failure must leave other commands alone
471  on('command.run', async ($, e, next) => {
472    if (!commands.has(e.command)) return next(e)
473    // /ccdrawu pat pats the pet, /ccdrawu ball throws it a ball; anything else opens or closes the drawer
474    const word = e.args.trim().toLowerCase()
475    if (word === 'pat' || word === 'ball') {
476      await petHears($, word)
477      return {}
478    }
479    // The drawer on or off for this session, wherever it sits, whatever the config has (drawerWanted). A
480    // pane waiting undrawn for a wider terminal reads as closed: opened again, asked, it is drawn
481    const isShown = (await $.ui.panes()).some(p => p.id === PANE && p.isPlaced)
482    await update($, manual, () => (isShown ? 'off' : 'on'))
483    if (isShown) await closePane($)
484    else await $.ui.open(PANE_OPEN)
485    return {}
486  }).catch(($, e, next) => (commands.has(e.command) ? {} : next(e)))
487
488  // Usage, context and cost changed (after each turn, or a rate limit moved)
489  on('session.measure', async ($, e, next) => {
490    const result = await next(e)
491    quietly(refreshUsage($))
492    return result
493  })
494
495  // Each request of the main conversation: its effort, how much the prompt cache served, the tokens it
496  // took, and its output tokens a second (the time from asking to the last token, waiting included)
497  on('turn.step', async function* ($, e, next) {
498    if (e.agentId === undefined) quietly(petHears($, 'busy'))
499    const start = await $.clock.now()
500    const result = yield* next(e)
501    if (e.agentId === undefined) {
502      const effort = e.effort === undefined ? undefined : String(e.effort)
503      await update($, model, m => ({ name: m?.name ?? e.model, effort }))
504      const u = result.usage
505      if (u) {
506        const total = u.input_tokens + u.cache_read_input_tokens + u.cache_creation_input_tokens
507        await update($, cache, () => ({ read: u.cache_read_input_tokens, total }))
508        const seconds = ((await $.clock.now()) - start) / 1000
509        await update($, tokens, t => ({
510          input: t.input + u.input_tokens,
511          output: t.output + u.output_tokens,
512          cacheRead: t.cacheRead + u.cache_read_input_tokens,
513          cacheWrite: t.cacheWrite + u.cache_creation_input_tokens,
514          speed: seconds > 0 && u.output_tokens > 0 ? u.output_tokens / seconds : t.speed,
515        }))
516      }
517    }
518    return result
519  })
520
521  on('turn.complete', async ($, e, next) => {
522    const result = await next(e)
523    if (e.agentId === undefined) {
524      quietly(petHears($, e.reason === 'answer' ? 'done' : e.reason === 'aborted' ? 'stop' : 'failed'))
525      quietly(refreshTurns($))
526      quietly(refreshModelName($))
527      // The output style may have changed in /config meanwhile
528      quietly(refreshSession($))
529    }
530    quietly(refreshAgents($))
531    return result
532  })
533
534  // The events below hold back what the engine does; if the drawer fails, .catch lets it go on
535  // (when the hook already called next, that call's result is reused)
536  on('agent.spawn', async ($, e, next) => {
537    const result = await next(e)
538    quietly(refreshAgents($))
539    return result
540  }).catch(($, e, next) => next(e))
541
542  // A skill run in this session: count it, and keep its name
543  on('skill.prompt', async ($, e, next) => {
544    const result = await next(e)
545    quietly(update($, skills, s => ({ count: s.count + 1, last: e.skill })))
546    return result
547  }).catch(($, e, next) => next(e))
548
549  on('session.compact', async ($, e, next) => {
550    const result = await next(e)
551    if (e.agentId === undefined && e.trigger !== 'precompute' && !('skip' in result && result.skip)) {
552      quietly(update($, compacts, n => n + 1))
553      quietly(petHears($, 'compact'))
554    }
555    return result
556  }).catch(($, e, next) => next(e))
557
558  // A tool of Claude's own failed, not one the user stopped: the pet jumps
559  on('classic.PostToolUseFailure', async ($, e, next) => {
560    const result = await next(e)
561    if (e.agent_id === undefined && e.is_interrupt !== true) quietly(petHears($, 'error'))
562    return result
563  }).catch(($, e, next) => next(e))
564
565  // A compaction starts the context over, and no turn ends to measure it: empty it here, as the status
566  // line's figures are, until the next response measures it. Read again, it is the fill from before:
567  // $.session.usage() still answers that here and empties a moment later (Claude Code 2.1.300)
568  on('classic.PostCompact', async ($, e, next) => {
569    const result = await next(e)
570    if (e.agent_id === undefined) {
571      quietly(update($, usage, u => (u === null ? u : { ...u, contextPercent: undefined, contextTokens: undefined })))
572    }
573    return result
574  }).catch(($, e, next) => next(e))
575
576  // Permission mode: recorded at session start, on each prompt, after each step's tool calls and
577  // when a reply ends (after shift+tab it shows once the next of these comes). classic.PreToolUse
578  // carries no permission_mode; PostToolBatch comes once a step, where PostToolUse comes per tool
579  on('classic.PostToolBatch', async ($, e, next) => {
580    const result = await next(e)
581    quietly(rememberMode($, e))
582    return result
583  }).catch(($, e, next) => next(e))
584
585  on('classic.SessionStart', async ($, e, next) => {
586    const result = await next(e)
587    quietly(rememberMode($, e))
588    return result
589  }).catch(($, e, next) => next(e))
590
591  on('classic.UserPromptSubmit', async ($, e, next) => {
592    const result = await next(e)
593    quietly(rememberMode($, e))
594    return result
595  }).catch(($, e, next) => next(e))
596
597  on('classic.Stop', async ($, e, next) => {
598    const result = await next(e)
599    quietly(rememberMode($, e))
600    if (e.agent_id === undefined) quietly(update($, background, () => countBackground(e.background_tasks ?? [])))
601    return result
602  }).catch(($, e, next) => next(e))
603
604  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
605    const { Box, Text } = $.ui.resolve(e)
606    // Leave out the paddingX on either side, or a row runs past the width and wraps
607    const inner = Math.max(22, e.props.bodyColumns - 2)
608    const placement = e.props.placement
609    fullscreen = e.viewport?.isFullscreen === true
610    // Drawn somewhere new: out of it if the drawer does not belong there
611    if (placement !== placedAs) {
612      placedAs = placement
613      quietly(keepPlace($))
614    }
615
616    const s = await readSnapshot($)
617    const conf = await read($, config)
618    const enabled = enabledItems(conf, placement)
619    // The pet is not a row: it is drawn on its own, over the rows or left of the columns
620    const shown = enabled.flatMap(item => {
621      const v = view(item.id, s)
622      return v ? [{ item, view: v }] : []
623    })
624
625    // No Fragments here: this surface lays a Fragment out as a column, so siblings go in a row Box
626    const segs = (list: readonly Seg[]) =>
627      list.map(g => (
628        <Text color={g.color} bold={g.bold === true}>
629          {g.text}
630        </Text>
631      ))
632
633    // The pet, in this session's coat of the animal the config names
634    const hasPet = enabled.some(item => item.id === 'pet')
635    const p = await read($, pet)
636    const species = petSpecies(conf.pet?.species)
637    const look = petLook(p)
638    // Columns from the left of the strip for a place along the walk, spread over the width there is
639    const along = (pos: number) => Math.round((pos / TRACK) * Math.max(0, inner - 12))
640    const ball = p.ball === undefined ? undefined : { pos: p.ballPos, lift: p.ballLift }
641    // A pet's box keeps its size, each row one high: a row of nothing but gaps (a sleeping pet's top
642    // row with no snore yet) would otherwise fold to nothing and the rows under it jump up. Beside the
643    // transcript it is taller than the pet, room for it to jump into; above the prompt there is none
644    const cellRows = (rows: Run[][]) =>
645      rows.map(row => (
646        <Box flexDirection="row" height={1} flexShrink={0}>
647          {row.map(r =>
648            'gap' in r ? (
649              <Box width={r.gap} flexShrink={0} />
650            ) : (
651              <Text color={r.fg} backgroundColor={r.bg}>
652                {r.ch}
653              </Text>
654            ),
655          )}
656        </Box>
657      ))
658    const drawPet = (pixels: number) => (
659      <Box key="pet" flexDirection="column" width={12} height={pixels / 2} flexShrink={0}>
660        {cellRows(
661          petCells(species, look.pose, petCoat(species, p.coat), p.faceLeft, look.over, pixels, pixels > PET_HEIGHT ? look.lift : 0),
662        )}
663      </Box>
664    )
665
666    // Above the prompt: text alone, in columns side by side
667    if (placement === 'inline') {
668      // The pet takes the leftmost columns, 12 and 2 to spare, and walks on the spot
669      const petWidth = hasPet ? 14 : 0
670      const cells = shown.map(({ item, view: v }) => {
671        const value = inlineValue(v)
672        return { label: item.label, value, width: segWidth(value) }
673      })
674      const rows = columnRows(
675        cells.map(c => ({ label: c.label.length, value: c.width })),
676        inner - petWidth,
677      )
678      const columns = chunk(cells, rows).map(list => ({
679        list,
680        label: Math.max(...list.map(c => c.label.length)) + 1,
681        value: Math.max(...list.map(c => c.width)),
682      }))
683      const lines = Array.from({ length: Math.min(rows, cells.length) }, (_, r) => (
684        <Box flexDirection="row">
685          {columns.flatMap((col, i) => {
686            const cell = col.list[r]
687            if (cell === undefined) return []
688            const isLast = i === columns.length - 1
689            return [
690              <Text color={C.blue}>{cell.label.padEnd(col.label)}</Text>,
691              ...segs(cell.value),
692              ...(isLast ? [] : [<Text>{' '.repeat(col.value - cell.width)}</Text>, <Text color={C.surface}>{COLUMN_GAP}</Text>]),
693            ]
694          })}
695        </Box>
696      ))
697      return (
698        <Box flexDirection="row" paddingX={1}>
699          {hasPet ? (
700            <Box flexDirection="column" flexShrink={0} marginRight={2}>
701              {drawPet(PET_HEIGHT)}
702            </Box>
703          ) : null}
704          <Box flexDirection="column">{lines}</Box>
705        </Box>
706      )
707    }

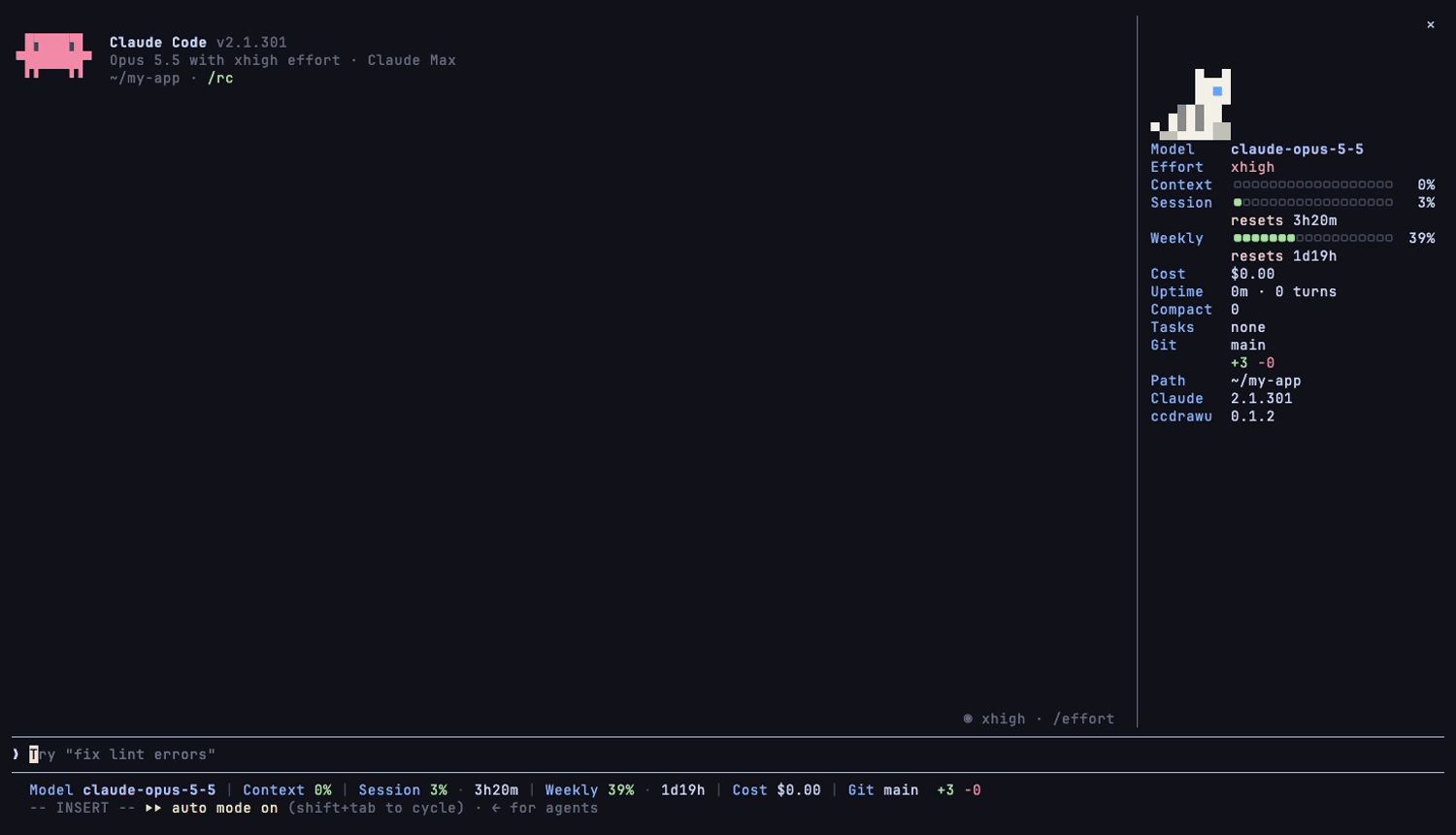

708
709    // Beside the transcript: a key column and bars for meters, one row after another
710    const keyWidth = Math.max(LABEL, ...shown.map(({ item }) => item.label.length + 1))
711    const barWidth = Math.max(4, inner - keyWidth - 5)
712    // The key keeps its width: a value too long for the row (a path) would squeeze it, and its padding
713    // would wrap to an empty second row
714    const label = (text: string) => (
715      <Box flexShrink={0}>
716        <Text color={C.blue}>{text.padEnd(keyWidth)}</Text>
717      </Box>
718    )
719    const dockRow = (key: string, v: View) => {
720      if (v.meter !== undefined) {
721        const b = bar(v.meter, barWidth, conf.bar)
722        return (
723          <Box flexDirection="row">
724            {label(key)}
725            <Text color={usageColor(v.meter)}>{b.filled}</Text>
726            <Text color={C.surface}>{b.empty}</Text>
727            <Text color={C.text}>{percentText(v.meter).padStart(5)}</Text>
728          </Box>
729        )
730      }
731      return (
732        <Box flexDirection="row">
733          {label(key)}
734          {v.cutStart ? (
735            <Text color={C.text} wrap="truncate-start">
736              {v.value.map(g => g.text).join('')}
737            </Text>
738          ) : (
739            segs(v.value)
740          )}
741        </Box>
742      )
743    }
744
745    const rows = []
746    // Read here, not above the prompt, where no kit is drawn: a kit's step redraws only the sidebar
747    const ks = hasPet ? await read($, kits) : []
748    // The pet over the rows: what it says, then the strip it walks along, its place along its walk spread
749    // over the width there is
750    if (hasPet) {
751      rows.push(
752        <Box flexDirection="row" height={1} flexShrink={0}>
753          {p.line === undefined ? null : <Text color={C.text}>{p.line.slice(0, inner)}</Text>}
754        </Box>,
755        <Box flexDirection="row" height={(PET_HEIGHT + LIFT_ROOM) / 2} flexShrink={0}>
756          {/* The kits, out of the flow and first, so the pet goes over them: on the ground, along a
757              walk as long as the pet's, spread over the width there is less their own */}
758          {ks.map(k => (
759            <Box
760              key={'kit-' + k.id}
761              position="absolute"
762              top={(PET_HEIGHT + LIFT_ROOM - KIT_HEIGHT) / 2}
763              left={Math.round((k.x / TRACK) * Math.max(0, inner - KIT_WIDTH))}
764              width={KIT_WIDTH}
765              height={KIT_HEIGHT / 2}
766              flexDirection="column"
767            >
768              {cellRows(kitCells(species, k))}
769            </Box>
770          ))}
771          <Box width={along(p.x)} flexShrink={0} />
772          {drawPet(PET_HEIGHT + LIFT_ROOM)}
773          {/* A ball over the strip, out of the flow: where a pet at its place would have its middle */}
774          {ball === undefined ? null : (
775            <Box
776              key="ball"
777              position="absolute"
778              top={0}
779              left={along(ball.pos) + BALL_LEFT}
780              width={4}
781              height={(PET_HEIGHT + LIFT_ROOM) / 2}
782              flexDirection="column"
783            >
784              {cellRows(drawnCells(BALL, BALL_INK, PET_HEIGHT + LIFT_ROOM, ball.lift))}
785            </Box>
786          )}
787        </Box>,
788      )
789    }
790    for (const { item, view: v } of shown) {
791      rows.push(dockRow(item.label, v))
792      if (v.below !== undefined) {
793        rows.push(
794          <Box flexDirection="row">
795            {label('')}
796            {segs(v.below)}
797          </Box>,
798        )
799      }
800      if (v.resets !== undefined) {
801        rows.push(
802          <Box flexDirection="row">
803            {label('')}
804            <Text color={C.flamingo}>{'resets '}</Text>
805            <Text color={C.text}>{v.resets}</Text>
806          </Box>,
807        )
808      }
809    }
810    return (
811      <Box flexDirection="column" paddingX={1}>
812        {rows}
813      </Box>
814    )
815  })
816}
817

1// The pets: five animals, 12 x 8 pixels each, drawn two pixels to a cell (▀ ▄), so 12 columns by 4 rows.
2// Each faces right, its feet on the bottom row; a pet facing left is drawn the other way about. A
3// jump is no drawing of its own: the pet as it strides, lifted off the ground (user, 2026-10-15: drawn
4// apart it looked squashed). The marks are inks a coat colors: '#' the fur, 's' the second color
5// (stripes, an ear), 'w' the light one (chest, belly), 'x' the more white a black-and-white cat
6// has, 'e' the eye, 'n' the nose, 'p' pink, 'b' a bill and feet, and 'q' the limbs: legs,
7// paws and feet together, the duck's wing and the penguin's flipper, in every pose, a color each coat
8// names apart from the fur, as such an animal's would be (white socks, cream legs), so they stand out
9// from the body and a paw a swipe raises does not run into the head (user, 2026-10-15: the limbs are
10// colored from the first, all of them). A session picks one coat of its pet at random.
11
12import type { Kit, PetBall, PetMode, PetState } from '../types'
13
14export const SPECIES = ['cat', 'dog', 'rabbit', 'duck', 'penguin'] as const
15export type Species = (typeof SPECIES)[number]
16export const POSES = ['walk1', 'walk2', 'sit', 'sleep', 'lie', 'swipe1', 'swipe2'] as const
17export type Pose = (typeof POSES)[number]
18export type Coat = Record<string, string>
19
20type Pet = { frames: Record<Pose, string[]>; coats: Coat[] }
21
22export const PETS: Record<Species, Pet> = {
23  // locku's cat; its sitting drawn lower, to fit in 8
24  cat: {
25    frames: {
26      walk1: [
27        'x.......#..#',
28        '#.......####',
29        '.s......##e#',
30        '.##s#s#s##xx',
31        '.##s#s#s#www',
32        '..#xxxxxxww.',
33        '..q.q...q.q.',
34        '..q.q...q.q.',
35      ],
36      walk2: [
37        'x.......#..#',
38        '#.......####',
39        '.s......##e#',
40        '.##s#s#s##xx',
41        '.##s#s#s#www',
42        '..#xxxxxxww.',
43        '.q..q..q..q.',
44        'q...q..q...q',
45      ],
46      sit: [
47        '.....#..#...',
48        '.....####...',
49        '.....##e#...',
50        '.....##xx...',
51        '...s#sww....',
52        '..#s#sxx....',
53        'x.#s#s#qq...',
54        '.qq####qq...',
55      ],
56      sleep: [
57        '............',
58        '............',
59        '............',
60        '.......#..#.',
61        '......####..',
62        '..#s#s##xx..',
63        '.##s#s#s##ww',
64        'x#xxxxxxx#qq',
65      ],
66      lie: [
67        '............',
68        '............',
69        '........#..#',
70        '........####',
71        '........##e#',
72        '..#s#s#s##xx',
73        '.##s#s#s#www',
74        'x#xxxxxxx.qq',
75      ],
76      swipe1: [
77        '.....#..#...',
78        '.....####...',
79        '.....##e#...',
80        '.....##xx...',
81        '...s#swwqq..',
82        '..#s#sxx....',
83        'x.#s#s#qq...',
84        '.qq####q....',
85      ],
86      swipe2: [
87        '.....#..#...',
88        '.....####.q.',
89        '.....##e#q..',
90        '.....##xxq..',
91        '...s#sww....',
92        '..#s#sxx....',
93        'x.#s#s#qq...',
94        '.qq####q....',
95      ],
96    },
97    // locku's five: an orange tabby, an amber, a white, a grey-blue, a black-and-white
98    coats: [
99      { q: '#f4f1ea', '#': '#f6b06a', s: '#a8460c', w: '#f6b06a', x: '#f6b06a', e: '#7ed957' },
100      { q: '#9a958e', '#': '#7a4a2a', s: '#e8b830', w: '#9a958e', x: '#7a4a2a', e: '#7ed957' },
101      { q: '#c4c0b8', '#': '#f4f1ea', s: '#8c8a86', w: '#f4f1ea', x: '#f4f1ea', e: '#5fa8ff' },
102      { q: '#f4f1ea', '#': '#9fb2c8', s: '#4e5d70', w: '#9fb2c8', x: '#9fb2c8', e: '#7ed957' },
103      { q: '#f4f1ea', '#': '#55504c', s: '#55504c', w: '#f4f1ea', x: '#f4f1ea', e: '#7ed957' },
104    ],
105  },
106  dog: {
107    frames: {
108      walk1: [
109        '........###.',
110        '#......s##e#',
111        '.#.....s###n',
112        '.#########w.',
113        '.########ww.',
114        '..########..',
115        '..q.q...q.q.',
116        '..q.q...q.q.',
117      ],
118      walk2: [
119        '........###.',
120        '#......s##e#',
121        '.#.....s###n',
122        '.#########w.',
123        '.########ww.',
124        '..########..',
125        '.q..q..q..q.',
126        'q...q..q...q',
127      ],
128      sit: [
129        '......###...',
130        '.....s##e#..',
131        '.....s###n..',
132        '......##w...',
133        '#....###ww..',
134        '.#..####ww..',
135        '..######w...',
136        '..q###.qq...',
137      ],
138      sleep: [
139        '............',
140        '............',
141        '............',
142        '........###.',
143        '......s####n',
144        '..######s##.',
145        '.##########.',
146        '#qq######qq.',
147      ],
148      lie: [
149        '............',
150        '............',
151        '........###.',
152        '.......s##e#',
153        '#......s###n',
154        '.#########w.',
155        '.##########.',
156        '.q########qq',
157      ],
158      swipe1: [
159        '......###...',
160        '.....s##e#..',
161        '.....s###n..',
162        '......##w...',
163        '#....###wqqq',
164        '.#..####w...',
165        '..######w...',
166        '..q###.q....',
167      ],
168      swipe2: [
169        '......###...',
170        '.....s##e#q.',
171        '.....s###nq.',
172        '......##wq..',
173        '#....###w...',
174        '.#..####w...',
175        '..######w...',
176        '..q###.q....',
177      ],
178    },
179    // a shiba, a black-and-tan, a white, a black-and-white
180    coats: [
181      { q: '#f4ead8', '#': '#d98b4a', s: '#a8602c', w: '#f4ead8', e: '#3a2a20', n: '#2b2b2b' },
182      { q: '#d9a066', '#': '#6b625a', s: '#3e3934', w: '#d9a066', e: '#f0c060', n: '#2b2b2b' },
183      { q: '#d8c8b0', '#': '#eee8dc', s: '#d8c8b0', w: '#ffffff', e: '#3a2a20', n: '#2b2b2b' },
184      { q: '#f4f1ea', '#': '#35302e', s: '#35302e', w: '#f4f1ea', e: '#e8c060', n: '#c08a7a' },
185    ],
186  },
187  rabbit: {
188    frames: {
189      walk1: [
190        '........#.#.',
191        '........p.p.',
192        '........#.#.',
193        '.......##e#.',
194        '..#########p',
195        'w#########..',
196        '.########...',
197        '..qq...qq...',
198      ],
199      walk2: [
200        '........#.#.',
201        '........p.p.',
202        '........#.#.',
203        '.......##e#.',
204        '..#########p',
205        'w#########..',
206        '.#######....',
207        '.qq.....qq..',
208      ],
209      sit: [
210        '......#.#...',
211        '......p.p...',
212        '......#.#...',
213        '.....##e#...',
214        '.....####p..',
215        '...#####....',
216        'w.######....',
217        '..qq.qq.....',
218      ],
219      sleep: [
220        '............',
221        '............',
222        '............',
223        '............',
224        '.....####...',
225        '...##pp####.',
226        'w##########p',
227        '.qq######qq.',
228      ],
229      lie: [
230        '............',
231        '........#.#.',
232        '........p.p.',
233        '........#.#.',
234        '.......##e#.',
235        '..#########p',
236        'w##########.',
237        '.qq######qq.',
238      ],
239      swipe1: [
240        '......#.#...',
241        '......p.p...',
242        '......#.#...',
243        '.....##e#...',
244        '.....####p..',
245        '...#####....',
246        'wqq.####....',
247        '.....qq.....',
248      ],
249      swipe2: [
250        '......#.#...',
251        '......p.p...',
252        '......#.#...',
253        '.....##e#...',
254        '.....####p..',
255        '...#####....',
256        'w.######....',
257        '.qqq.qq.....',
258      ],
259    },
260    // a grey, a white with red eyes, a brown, a ginger
261    coats: [
262      { q: '#f4f1ea', '#': '#b8b4ac', p: '#f2a7b5', w: '#f4f1ea', e: '#3a2a40' },
263      { q: '#c4c0b8', '#': '#f0ece4', p: '#f2a7b5', w: '#ffffff', e: '#d9534f' },
264      { q: '#f4f1ea', '#': '#9a6a44', p: '#e8a0a8', w: '#f4f1ea', e: '#2a1a10' },
265      { q: '#f4ead8', '#': '#d9894a', p: '#f2a7b5', w: '#f4ead8', e: '#2a1a10' },
266    ],
267  },
268  duck: {
269    frames: {
270      walk1: [
271        '.......###..',
272        '......##e#..',
273        '......####bb',
274        '.......##...',
275        '#.....####..',
276        '##qq######..',
277        '.########...',
278        '....b..b....',
279      ],
280      walk2: [
281        '.......###..',
282        '......##e#..',
283        '......####bb',
284        '.......##...',
285        '#.....####..',
286        '##qq######..',
287        '.########...',
288        '...b....b...',
289      ],
290      sit: [
291        '............',
292        '.......###..',
293        '......##e#..',
294        '......####bb',
295        '.......##...',
296        '#.....####..',
297        '##qq######..',
298        '.########...',
299      ],
300      sleep: [
301        '............',
302        '............',
303        '............',
304        '............',
305        '......###...',
306        '#....#####..',
307        '##qq#######.',
308        '.#########..',
309      ],
310      lie: [
311        '............',
312        '............',
313        '............',
314        '........###.',
315        '.......##e#.',
316        '#.....####bb',
317        '##qq#######.',
318        '.#########..',
319      ],
320      swipe1: [
321        '...q...###..',
322        '...qq.##e#..',
323        '....qq####bb',
324        '.......##...',
325        '#.....####..',
326        '##########..',
327        '.########...',
328        '....b..b....',
329      ],
330      swipe2: [
331        '.......###..',
332        '......##e#..',
333        '......####bb',
334        '.qq....##...',
335        '#.qqq.####..',
336        '##########..',
337        '.########...',
338        '....b..b....',
339      ],
340    },
341    // a yellow duckling, a white duck, a brown one, a grey one
342    coats: [
343      { q: '#c99a2e', '#': '#f2d24b', b: '#f08a24', e: '#2b2b2b' },
344      { q: '#c4c0b8', '#': '#f2efe8', b: '#f0a830', e: '#2b2b2b' },
345      { q: '#6a5038', '#': '#a88a64', b: '#e8c040', e: '#2b2b2b' },
346      { q: '#7a7f88', '#': '#b8bcc4', b: '#f0a830', e: '#2b2b2b' },
347    ],
348  },
349  penguin: {
350    frames: {
351      walk1: [
352        '.....####...',
353        '....###e#bb.',
354        '....####w...',
355        '...q###ww...',
356        '..qq###www..',
357        '...####www..',
358        '...####ww...',
359        '.....b..b...',
360      ],
361      walk2: [
362        '.....####...',
363        '....###e#bb.',
364        '....####w...',
365        '...q###ww...',
366        '...q####www.',
367        '...####www..',
368        '...####ww...',
369        '....b...b...',
370      ],
371      sit: [
372        '.....####...',
373        '....###e#bb.',
374        '....####w...',
375        '...q###ww...',
376        '...q###www..',
377        '...####www..',
378        '...####ww...',
379        '....bb.bb...',
380      ],
381      sleep: [
382        '............',
383        '............',
384        '............',
385        '............',
386        '........###.',
387        '..########bb',
388        '.###qq####w.',
389        '..wwwwwwww..',
390      ],
391      lie: [
392        '............',
393        '............',
394        '............',
395        '.......####.',
396        '......###e#b',
397        '.###qq####w.',
398        '.##########.',
399        '..wwwwwwww..',
400      ],
401      swipe1: [
402        '.....####...',
403        '.q..###e#bb.',
404        '..q.####w...',
405        '...#####w...',
406        '...####www..',
407        '...####www..',
408        '...####ww...',
409        '.....b..b...',
410      ],
411      swipe2: [
412        '.....####...',
413        '....###e#bb.',
414        '....####w...',
415        'qqq####ww...',
416        '...####www..',
417        '...####www..',
418        '...####ww...',
419        '.....b..b...',
420      ],
421    },
422    // a dark grey one, a little blue, a gentoo, a chinstrap
423    coats: [
424      { q: '#8a93a6', '#': '#5a6170', w: '#f4f1ea', b: '#f0a830', e: '#f4f1ea' },
425      { q: '#4a6a94', '#': '#6f8fb8', w: '#f4f1ea', b: '#3a3f4b', e: '#f4f1ea' },
426      { q: '#3a414d', '#': '#4a5260', w: '#f4f1ea', b: '#f06a30', e: '#f4f1ea' },
427      { q: '#6a7280', '#': '#8c94a2', w: '#ffffff', b: '#2b2b2b', e: '#2b2b2b' },
428    ],
429  },
430}
431
432// Kits: a small one of the pet's kind, 6 x 4 pixels, so 6 columns by 2 rows, the rabbit two pixels
433// taller for its ears, in the same inks; they only walk (see kitsFor)
434export type KitPose = 'walk1' | 'walk2'
435export const KIT_WIDTH = 6
436export const KIT_HEIGHT = 6 // the box a kit stands in, as high as the rabbit
437export const KITS: Record<Species, Record<KitPose, string[]>> = {
438  cat: {
439    walk1: ['#..#.#', '#..#e#', '.#s#sx', '.q..q.'],
440    walk2: ['#..#.#', '#..#e#', '.#s#sx', 'q.q..q'],
441  },
442  dog: {
443    walk1: ['#..##.', '.#s#e#', '.####n', '.q..q.'],
444    walk2: ['#..##.', '.#s#e#', '.####n', 'q.q..q'],
445  },
446  rabbit: {
447    walk1: ['...#.#', '...p.p', '..##ep', 'w####.', '.####.', '.qq.q.'],
448    walk2: ['...#.#', '...p.p', '..##ep', 'w####.', '.####.', 'qq..qq'],
449  },
450  duck: {
451    walk1: ['...##.', '...#eb', '#q###.', '.b..b.'],
452    walk2: ['...##.', '...#eb', '#q###.', 'b...b.'],
453  },
454  penguin: {
455    walk1: ['..##..', '.##eb.', 'q#ww..', '.b.b..'],
456    walk2: ['..##..', '.##eb.', 'q#ww..', 'b...b.'],
457  },
458}
459
460// A run of one look along a row of cells: a gap to leave, or characters in their colors
461export type Run = { gap: number } | { ch: string; fg?: string; bg?: string }
462type Cell = { ch: string; fg?: string; bg?: string; text?: boolean } | undefined
463
464// Over a pet's head, in text, not pixels, in the top row of cells at the side it faces: a sleeping
465// pet snores, z, zz, zzZ and round again, in the room every sleeping pose leaves there; a pet patted
466// sits, and a heart goes up in the corner every sitting pose leaves free. Beside the transcript the
467// box is taller than the pet, and the text goes in the room over it
468const SNORES = ['z', 'zz', 'zzZ']
469export const SNORE_COLOR = '#f9e2af'
470export const HEART = '♥'
471export const HEART_COLOR = '#f38ba8'
472export type Over = { text: string; color: string }
473export const PET_HEIGHT = 8 // a pet's pixels, high
474export const LIFT_ROOM = 2 // the pixels over it, beside the transcript, for it to jump into
475
476// The snore n steps along, from 1
477export function snore(n: number): Over {
478  return { text: SNORES[(n - 1) % SNORES.length] ?? 'z', color: SNORE_COLOR }
479}
480
481// Coat n of the animal, counting round: a session keeps its number when the config changes animal
482export function petCoat(species: Species, n: number): Coat {
483  const coats = PETS[species].coats
484  return coats[Math.max(0, n) % coats.length] ?? {}
485}
486
487// The cells of a pose, facing left drawn the other way about, over over the head; see drawnCells
488export function petCells(
489  species: Species,
490  pose: Pose,
491  coat: Coat,
492  faceLeft = false,
493  over?: Over,
494  height = PET_HEIGHT,
495  lift = 0,
496): Run[][] {
497  const drawn = PETS[species].frames[pose].map(r => (faceLeft ? [...r].reverse().join('') : r))
498  return drawnCells(drawn, coat, height, lift, over, faceLeft)
499}
500
501// The cells of a drawing, a row of runs for each two rows of pixels: ▀ in the upper pixel's color on
502// the lower one's, ▄ when only the lower one is there, a gap when neither is. height is the box's, in
503// pixels (even, at least the drawing's); the drawing stands on its bottom, lift pixels up it when it
504// jumps. over goes in the top row, at the right, or at the left when overLeft.
505export function drawnCells(drawn: string[], coat: Coat, height = PET_HEIGHT, lift = 0, over?: Over, overLeft = false): Run[][] {
506  const faceLeft = overLeft
507  const width = drawn[0]?.length ?? 0
508  const above = Math.max(0, height - drawn.length - lift)
509  const empty = '.'.repeat(width)
510  const frame = [...Array<string>(above).fill(empty), ...drawn, ...Array<string>(Math.max(0, height - above - drawn.length)).fill(empty)]
511  const at = (y: number, x: number) => coat[frame[y]?.[x] ?? '.']
512  const grid: Cell[][] = []
513  for (let y = 0; y < frame.length; y += 2) {
514    grid.push(
515      Array.from({ length: width }, (_, x) => {
516        const top = at(y, x)
517        const bottom = at(y + 1, x)
518        if (top === undefined && bottom === undefined) return undefined
519        return top === undefined ? { ch: '▄', fg: bottom } : { ch: '▀', fg: top, bg: bottom }
520      }),
521    )
522  }
523  const top = grid[0]
524  if (over !== undefined && top !== undefined) {
525    // From the right edge leftwards facing right, from the left edge facing left
526    const text = faceLeft ? [...over.text].reverse().join('') : over.text
527    const from = faceLeft ? 0 : width - text.length
528    ;[...text].forEach((ch, i) => (top[from + i] = { ch, fg: over.color, text: true }))
529  }
530  return grid.map(row => {
531    const runs: Run[] = []
532    for (const cell of row) {
533      const last = runs[runs.length - 1]
534      if (cell === undefined) {
535        if (last && 'gap' in last) last.gap++
536        else runs.push({ gap: 1 })
537      } else if (cell.text && last && 'ch' in last && last.fg === cell.fg && last.bg === undefined) {
538        last.ch += cell.ch
539      } else runs.push({ ch: cell.ch, fg: cell.fg, bg: cell.bg })
540    }
541    return runs
542  })
543}
544
545// What a pet does, beside Claude. While Claude works it wanders: it picks a place along its walk
546// and goes there, running now and then when it is far, and there it sits a while, hops, or goes
547// straight on to the next, or now and then swipes at the air (user, 2026-10-14: to and fro alone was
548// dull). It climbed the ends of its walk for a while; every way of drawing that looked odd, and it went
549// (user, 2026-10-15). When Claude is done it stops and sits; idle it winds down, sitting, lying down
550// after two minutes and asleep after ten, now and then strolling a little, looking the other way or
551// swiping, and wakes the moment anything goes on. A tool failing makes it jump; a reply done, a
552// compaction or a pat gets a line out of it; a pat sits it down a moment, a heart over its head, and
553// wakes it. A ball thrown in (/ccdrawu ball) comes from its far side, bounces and rolls to a stop;
554// it runs over, paws at it a while, and has it (user, 2026-10-15, after vscode-pets). None of it
555// touches `$`: the hooks feed it events, a tick and a random source.
556
557export const PET_TICK = 200 // ms between ticks
558export const TRACK = 20 // steps from one end of its walk to the other
559const LINE_MS = 8_000
560const HEART_MS = 3_000
561const JUMP_MS = 600
562const LIE_AFTER = 2 * 60_000
563const SLEEP_AFTER = 10 * 60_000
564const SNORE_MS = 800
565const SWIPE_MS = 1_200 // a swipe at the air
566const NEAREST = 4 // the next place is at least this far from where it is
567const IDLE_CHANCE = 1 / 150 // a tick's chance, idle, of a stroll, a look round or a swipe: about every 30 s
568const ROLL_MS = 1_200 // a ball rolls this long to a stop
569const PLAY_MS = 1_600 // the pet paws at it this long
570const BALL_MAX_MS = 20_000 // a ball not had by then goes
571export const BALL_REACH = 5 // how far from the ball the pet stands to paw at it, along its walk
572export const BALL_LEFT = 4 // the ball's columns from the left of the box a pet at its place would have
573
574// The ball, 4 x 4 pixels on the ground: red, a shine on it
575export const BALL = ['.rr.', 'rhrr', 'rrrr', '.rr.']
576export const BALL_INK: Coat = { r: '#f38ba8', h: '#fde2e7' }
577const BOUNCE = [2, 1, 0, 1, 0] // its pixels off the ground, a tick at a time, as it comes in
578
579export const PET_START: PetState = {
580  coat: -1,
581  busy: false,
582  active: 0,
583  mode: 'sit',
584  x: 0,
585  target: 0,
586  run: false,
587  stride: 0,
588  restUntil: 0,
589  lift: 0,
590  faceLeft: false,
591  snore: 0,
592  heart: false,
593  lineUntil: 0,
594  heartUntil: 0,
595  jumpFrom: 0,
596  jumpUntil: 0,
597  ballPos: 0,
598  ballLift: 0,
599  playUntil: 0,
600}
601
602// The next place to go: a few tries for one far enough, else the far end
603function nextTarget(x: number, rand: () => number): number {
604  for (let i = 0; i < 4; i++) {
605    const t = Math.round(rand() * TRACK)
606    if (Math.abs(t - x) >= NEAREST) return t
607  }
608  return x < TRACK / 2 ? TRACK : 0
609}
610
611// busy: Claude is at work; done, stop, failed: its turn ended with an answer, stopped by the user, or
612// on an error; error: a tool failed while it works on; pat, ball: the user's
613export type PetEvent = 'busy' | 'done' | 'stop' | 'failed' | 'error' | 'compact' | 'pat' | 'ball'
614
615// Lines are plain ASCII: a character two cells wide would push the row past the pane
616const LINES: Record<'done' | 'error' | 'compact', string[]> = {
617  done: ['All done!', 'Nice work.', 'Ta-da!', 'Finished!', 'That went well.'],
618  error: ['Uh oh...', 'Yikes!', 'Oops!', 'That broke.', 'Hmm...'],
619  compact: ['Tidied up!', 'Squeezed it in.', 'Packed it up.', 'Lighter now.'],
620}
621export const PAT_LINES: Record<Species, string[]> = {
622  cat: ['Purr...', 'Mrrp!', 'Meow.'],
623  dog: ['Woof!', '*wag wag*', 'Arf!'],
624  rabbit: ['*happy hop*', '*nose wiggle*', 'Eep!'],
625  duck: ['Quack!', 'Quack quack!', '*waddle*'],
626  penguin: ['*flap flap*', 'Squawk!', '*happy slide*'],
627}
628export const BALL_LINES: Record<Species, string[]> = {
629  cat: ['*pounce*', 'Got it!', 'Mine!'],
630  dog: ['Fetch!', 'Got it!', '*tail wags*'],
631  rabbit: ['*boing*', 'Got it!', 'Hop hop!'],
632  duck: ['Quack! Got it!', 'Mine!', '*waddle waddle*'],
633  penguin: ['*belly slide*', 'Got it!', 'Squawk!'],
634}
635
636// Where a ball is along the walk, and how far off the ground, as it rolls in to a stop
637export function ballAt(b: PetBall, now: number): { pos: number; lift: number } {
638  const t = Math.min(1, Math.max(0, (now - b.from) / ROLL_MS))
639  // Slowing as it goes
640  const pos = Math.round(b.start + (b.rest - b.start) * (1 - (1 - t) ** 2))
641  const lift = BOUNCE[Math.floor((now - b.from) / PET_TICK)] ?? 0
642  return { pos, lift }
643}
644
645const pick = (lines: readonly string[], rand: () => number) => lines[Math.floor(rand() * lines.length) % lines.length] ?? ''
646
647// A jump from now
648const jumps = (now: number) => ({ jumpFrom: now, jumpUntil: now + JUMP_MS })
649
650// What an event does to the pet; the tick after it shows it
651export function petEvent(s: PetState, event: PetEvent, now: number, species: Species, rand: () => number): PetState {
652  const said = (line: string) => ({ line, lineUntil: now + LINE_MS })
653  // A turn over, or a pat: it stops where it is
654  const stops = { target: s.x, restUntil: 0 }
655  switch (event) {
656    case 'busy':
657      return { ...s, busy: true, active: now }
658    case 'done':
659      return { ...s, ...stops, busy: false, active: now, ...said(pick(LINES.done, rand)) }
660    case 'stop':
661      return { ...s, ...stops, busy: false, active: now }
662    case 'failed':
663      return { ...s, ...stops, busy: false, active: now, ...jumps(now), ...said(pick(LINES.error, rand)) }
664    case 'error':
665      return { ...s, active: now, ...jumps(now), ...said(pick(LINES.error, rand)) }
666    case 'compact':
667      return { ...s, active: now, ...said(pick(LINES.compact, rand)) }
668    case 'pat':
669      return { ...s, ...stops, active: now, heartUntil: now + HEART_MS, ...said(pick(PAT_LINES[species], rand)) }
670    case 'ball': {
671      // From its far side, to a stop in the middle stretch; it will stand on the nearer side of it
672      const start = s.x < TRACK / 2 ? TRACK : 0
673      const rest = BALL_REACH + Math.floor(rand() * (TRACK - 2 * BALL_REACH + 1))
674      const sides = [rest - BALL_REACH, rest + BALL_REACH]
675      const goal = sides.reduce((a, b) => (Math.abs(b - s.x) < Math.abs(a - s.x) ? b : a))
676      const line = pick(BALL_LINES[species], rand)
677      return { ...s, ...stops, active: now, heartUntil: 0, playUntil: 0, ball: { from: now, start, rest, goal, line } }
678    }
679  }
680}
681
682// The pet a tick later. The same object back when nothing in it changed, so a pet sitting still
683// costs no redraw
684export function petTick(s: PetState, now: number, rand: () => number = Math.random): PetState {
685  const heart = now < s.heartUntil
686  const asleep = !s.busy && now - s.active >= SLEEP_AFTER
687  let { x, target, run, stride, restUntil, jumpFrom, jumpUntil, faceLeft, ball, playUntil, line, lineUntil } = s
688  let moving = false
689  // A ball: it runs to it, paws at it once it has stopped rolling, and has it; one not had in time goes
690  if (ball !== undefined && now - ball.from > BALL_MAX_MS) [ball, playUntil] = [undefined, 0]
691  if (ball !== undefined && !heart) {
692    if (playUntil > 0 && now >= playUntil) {
693      ;[line, lineUntil] = [ball.line, now + LINE_MS]
694      ;[ball, playUntil] = [undefined, 0]
695    } else if (playUntil === 0 && x === ball.goal && now >= ball.from + ROLL_MS) {
696      playUntil = now + PLAY_MS
697      faceLeft = ball.goal > ball.rest
698    } else if (playUntil === 0) {
699      ;[target, run, restUntil] = [ball.goal, true, 0]
700    }
701  }
702  const playing = now < playUntil
703  if (playing && !heart) stride++
704  if (!heart && !asleep && !playing && now >= jumpUntil && now >= restUntil) {
705    if (x !== target) {
706      // On its way: a step, two when it runs, facing where it goes
707      const step = Math.min(run ? 2 : 1, Math.abs(target - x))
708      faceLeft = target < x
709      x += faceLeft ? -step : step
710      stride++
711      moving = true
712    } else if (ball !== undefined) {
713      // At the ball's place before it has stopped: it waits for it
714    } else if (s.busy) {
715      // There: it swipes at the air, sits a while, hops, or goes straight on; the next place, and a run
716      // if it is far
717      const r = rand()
718      if (r < 0.15) playUntil = now + SWIPE_MS
719      else if (r < 0.45) restUntil = now + 1_000 + Math.floor(rand() * 2_000)
720      else if (r < 0.65) ({ jumpFrom, jumpUntil } = jumps(now))
721      target = nextTarget(x, rand)
722      run = Math.abs(target - x) > TRACK / 2 && rand() < 0.4
723    } else if (rand() < IDLE_CHANCE) {
724      // Idle: now and then a stroll, a look the other way, or a swipe
725      const r = rand()
726      if (r < 0.4) [target, run] = [nextTarget(x, rand), false]
727      else if (r < 0.7) faceLeft = !faceLeft
728      else playUntil = now + SWIPE_MS
729    }
730  }
731  // A swipe begun this tick is pawing at once
732  const pawing = playing || (!heart && now < playUntil)
733  if (pawing && !playing) stride++
734  const lying = !s.busy && now - s.active >= LIE_AFTER
735  const mode: PetMode =
736    now < jumpUntil
737      ? 'jump'
738      : heart
739        ? 'sit'
740        : pawing
741          ? 'play'
742          : asleep
743            ? 'sleep'
744            : moving
745              ? 'walk'
746              : lying
747                ? 'lie'
748                : 'sit'
749  // Off the ground in a jump: up and down a pixel a tick, 1, 2, 1
750  const lift =
751    mode === 'jump'
752      ? Math.min(LIFT_ROOM, Math.floor((now - jumpFrom) / PET_TICK) + 1, Math.ceil((jumpUntil - now) / PET_TICK))
753      : 0
754  const snoreAt = mode === 'sleep' ? (Math.floor(now / SNORE_MS) % 3) + 1 : 0
755  if (line !== undefined && now >= lineUntil) line = undefined
756  const rolled = ball === undefined ? { pos: 0, lift: 0 } : ballAt(ball, now)
757  const next: PetState = {
758    ...s,
759    mode,
760    x,
761    target,
762    run,
763    stride,
764    restUntil,
765    jumpFrom,
766    jumpUntil,
767    lift,
768    faceLeft,
769    snore: snoreAt,
770    heart,
771    line,
772    lineUntil,
773    ball,
774    ballPos: rolled.pos,
775    ballLift: rolled.lift,
776    playUntil,
777  }
778  return (Object.keys(next) as (keyof PetState)[]).every(k => next[k] === s[k]) ? s : next
779}
780
781// How to draw it: the pose (its legs take turns as it goes), what goes over its head, and how far off
782// the ground it is
783export function petLook(s: PetState): { pose: Pose; over?: Over; lift: number } {
784  switch (s.mode) {
785    case 'walk':
786      return { pose: s.stride % 2 === 0 ? 'walk1' : 'walk2', lift: 0 }
787    case 'jump':
788      // Its legs apart, as in a stride
789      return { pose: 'walk2', lift: s.lift }
790    case 'play':
791      // Pawing at the ball, or at the air, one way and the other
792      return { pose: s.stride % 2 === 0 ? 'swipe1' : 'swipe2', lift: 0 }
793    case 'lie':
794      return { pose: 'lie', lift: 0 }
795    case 'sleep':
796      return { pose: 'sleep', over: s.snore > 0 ? snore(s.snore) : undefined, lift: 0 }
797    case 'sit':
798      return { pose: 'sit', over: s.heart ? { text: HEART, color: HEART_COLOR } : undefined, lift: 0 }
799  }
800}
801
802// Kits (user, 2026-10-16): the pet sits while Claude waits on its subagents, though work goes on. For
803// each subagent running, up to three, a kit walks behind the pet beside the transcript, drawn under
804// it; the pet goes on as before. A kit is in a coat of its kind's own colors, none the pet's and none
805// another kit's, so each reads apart (user: in the pet's colors it would not; in grey, or muted, they
806// ran together and looked dead). A kit comes in at an end of the walk as its subagent starts, wanders
807// while it runs, and walks off the nearer end once it is done.
808export const KIT_MAX = 3
809
810// The kits for the subagents running now: one comes in for each new one while there are fewer than
811// KIT_MAX, in a coat neither the pet (coat petCoat of species) nor another kit has, and one whose
812// subagent is gone heads for the nearer end. The same array back when none changed
813export function kitsFor(kits: Kit[], running: readonly string[], species: Species, petCoat: number, rand: () => number): Kit[] {
814  const coats = PETS[species].coats.length
815  const worn = (n: number) => Math.max(0, n) % coats
816  let changed = false
817  const next = kits.map(k => {
818    if (k.leaving || running.includes(k.id)) return k
819    changed = true
820    return { ...k, leaving: true, target: k.x < TRACK / 2 ? 0 : TRACK, restUntil: 0 }
821  })
822  for (const id of running) {
823    if (next.length >= KIT_MAX) break
824    if (next.some(k => k.id === id)) continue
825    const x = rand() < 0.5 ? 0 : TRACK
826    const target = nextTarget(x, rand)
827    const free = Array.from({ length: coats }, (_, n) => n).filter(n => n !== worn(petCoat) && !next.some(k => worn(k.coat) === n))
828    const coat = free[Math.floor(rand() * free.length)] ?? Math.floor(rand() * coats)
829    next.push({ id, coat, x, target, stride: 0, faceLeft: target < x, restUntil: 0, leaving: false })
830    changed = true
831  }
832  return changed ? next : kits
833}
834
835// The kits a tick later: a step towards where each goes, and there a rest now and then and the next
836// place; one leaving goes once it is at the end. The same array back when none moved
837export function kitsTick(kits: Kit[], now: number, rand: () => number = Math.random): Kit[] {
838  let changed = false
839  const next: Kit[] = []
840  for (const k of kits) {
841    if (k.leaving && k.x === k.target) {
842      changed = true
843      continue
844    }
845    if (now < k.restUntil) {
846      next.push(k)
847      continue
848    }
849    if (k.x !== k.target) {
850      const faceLeft = k.target < k.x
851      next.push({ ...k, x: k.x + (faceLeft ? -1 : 1), faceLeft, stride: k.stride + 1 })
852    } else {
853      const restUntil = rand() < 0.4 ? now + 1_000 + Math.floor(rand() * 2_000) : 0
854      next.push({ ...k, target: nextTarget(k.x, rand), restUntil })
855    }
856    changed = true
857  }
858  return changed ? next : kits
859}
860
861// The cells of a kit, standing on the bottom of its box, its legs taking turns as it goes
862export function kitCells(species: Species, k: Kit): Run[][] {
863  const pose: KitPose = k.stride % 2 === 0 ? 'walk1' : 'walk2'
864  const drawn = KITS[species][pose].map(r => (k.faceLeft ? [...r].reverse().join('') : r))
865  return drawnCells(drawn, petCoat(species, k.coat), KIT_HEIGHT)
866}
867
868// The pet the config names, cat when it names none or one there is not
869export function petSpecies(name: unknown): Species {
870  return SPECIES.find(s => s === name) ?? 'cat'
871}
872

1import type { CommandSpec } from 'claude-code'
2
3import { commandNames } from './format'
4
5// Registers /ccdrawu and the alias the config names, each once, through $.command.register. The engine
6// cannot take a command back, so a name stays for the rest of the session: an alias changed or cleared
7// still works until then
8export async function registerCommands(
9  register: (spec: CommandSpec) => Promise<unknown>,
10  registered: Set<string>,
11  alias: unknown,
12) {
13  for (const name of commandNames(alias)) {
14    if (registered.has(name)) continue
15    const description =
16      name === 'ccdrawu'
17        ? 'Toggle the status drawer; pat or ball to play with the pet'
18        : 'Toggle the status drawer; pat or ball to play with the pet (alias of /ccdrawu)'
19    await register({ name, description, immediate: true })
20    registered.add(name)
21  }
22}
23

1// Pure helpers for the drawer: times, bars, paths, git stats, versions. None touches `$`, so tests can call them.
2
3const MINUTE = 60_000
4const HOUR = 60 * MINUTE
5const DAY = 24 * HOUR
6
7// Time left: 3d4h, 4h31m, 12m; under a minute (or past) reads "now"
8export function countdown(ms: number): string {
9  if (ms < MINUTE) return 'now'
10  const d = Math.floor(ms / DAY)
11  const h = Math.floor((ms % DAY) / HOUR)
12  const m = Math.floor((ms % HOUR) / MINUTE)
13  if (d > 0) return `${d}d${h}h`
14  if (h > 0) return `${h}h${String(m).padStart(2, '0')}m`
15  return `${m}m`
16}
17
18// Time elapsed, shaped like countdown; under a minute reads "0m"
19export function duration(ms: number): string {
20  return ms < MINUTE ? '0m' : countdown(ms)
21}
22
23// A bar's filled and empty parts, `width` cells in all, in the style picked in ccdrawu (the config's
24// "bar"): Nerd Font squares (nf-oct-square_fill, nf-oct-square), from the font itself rather than one
25// the terminal borrows, apart from each other and from the rows above and below; or "line", for a
26// terminal with no Nerd Font, a box-drawing line every monospace font has, its parts told apart by
27// color
28export const SQUARE_FILL = '\u{F445}'
29export const SQUARE = '\u{F51D}'
30export const LINE = '━'
31export function bar(percent: number, width: number, style?: string): { filled: string; empty: string } {
32  const [full, none] = style === 'line' ? [LINE, LINE] : [SQUARE_FILL, SQUARE]
33  const n = Math.round((Math.min(100, Math.max(0, percent)) / 100) * width)
34  return { filled: full.repeat(n), empty: none.repeat(width - n) }
35}
36
37export function percentText(percent: number): string {
38  return `${Math.round(percent)}%`
39}
40
41// Usage color (Catppuccin Mocha): green under 50%, yellow under 70%, peach under 90%, red from 90%
42export function usageColor(percent: number): string {
43  if (percent < 50) return '#a6e3a1'
44  if (percent < 70) return '#f9e2af'
45  if (percent < 90) return '#fab387'
46  return '#f38ba8'
47}
48
49// A count kept short: 950, 1.5k, 152k, 1.2M
50export function compact(n: number): string {
51  const short = (v: number) => (v < 10 ? v.toFixed(1).replace(/\.0$/, '') : String(Math.round(v)))
52  if (n < 1000) return String(Math.round(n))
53  if (n < 999_500) return short(n / 1e3) + 'k'
54  return short(n / 1e6) + 'M'
55}
56
57// What `git status --porcelain=v2 --branch` says: the commit, how far it is from its upstream (left out
58// without one), and the files staged, unstaged and untracked
59export function parseStatusV2(text: string): {
60  sha?: string
61  ahead?: number
62  behind?: number
63  staged: number
64  unstaged: number
65  untracked: number
66} {
67  const out: ReturnType<typeof parseStatusV2> = { staged: 0, unstaged: 0, untracked: 0 }
68  for (const line of text.split('\n')) {
69    if (line.startsWith('# branch.oid ')) {
70      const oid = line.slice('# branch.oid '.length).trim()
71      if (oid !== '(initial)') out.sha = oid.slice(0, 7)
72    } else if (line.startsWith('# branch.ab ')) {
73      const m = /\+(\d+) -(\d+)/.exec(line)
74      if (m) {
75        out.ahead = Number(m[1])
76        out.behind = Number(m[2])
77      }
78    } else if (/^[12u] /.test(line)) {
79      // XY: the index's change, then the working tree's; . is none
80      if (line[2] !== '.') out.staged++
81      if (line[3] !== '.') out.unstaged++
82    } else if (line.startsWith('? ')) {
83      out.untracked++
84    }
85  }
86  return out
87}
88
89// owner/repo from a remote URL: git@host:owner/repo.git, https://host/owner/repo, ssh://git@host/owner/repo
90export function repoFromRemote(url: string): string | undefined {
91  return /[:/]([^/:]+\/[^/]+?)(?:\.git)?\/?$/.exec(url.trim())?.[1]
92}
93
94// The files a working tree has, by kind: "2 staged · 3 changed · 1 new"; "clean" when there are none
95export function filesText(staged: number, unstaged: number, untracked: number): string {
96  const parts = [
97    [staged, 'staged'],
98    [unstaged, 'changed'],
99    [untracked, 'new'],
100  ] as const
101  const shown = parts.filter(([n]) => n > 0).map(([n, what]) => `${n} ${what}`)
102  return shown.length > 0 ? shown.join(' · ') : 'clean'
103}
104
105// How far a branch is from its upstream: "↑2 ↓3", "↑2", or "up to date"
106export function syncText(ahead: number, behind: number): string {
107  const parts = [...(ahead > 0 ? [`↑${ahead}`] : []), ...(behind > 0 ? [`↓${behind}`] : [])]
108  return parts.length > 0 ? parts.join(' ') : 'up to date'
109}
110
111// The background work a reply's end reports, counted by type; subagents are left to $.agent.list(),
112// which follows them live
113export function countBackground(tasks: readonly { type: string }[]): Record<string, number> {
114  const counts: Record<string, number> = {}
115  for (const t of tasks) if (t.type !== 'subagent') counts[t.type] = (counts[t.type] ?? 0) + 1
116  return counts
117}
118
119const TASK_ORDER = ['shell', 'monitor', 'workflow']
120
121// What runs in the background, a count per type: "2 agents｜1 shell"; "none" when nothing does.
122// The statusline parts its items with |, so it parts the counts with `sep` ", "
123export function tasksText(agents: number, background: Readonly<Record<string, number>>, sep = '｜'): string {
124  const rank = (type: string) => (TASK_ORDER.includes(type) ? TASK_ORDER.indexOf(type) : TASK_ORDER.length)
125  const types = Object.keys(background).sort((a, b) => rank(a) - rank(b) || a.localeCompare(b))
126  const parts = [['agent', agents] as const, ...types.map(t => [t, background[t] ?? 0] as const)]
127    .filter(([, n]) => n > 0)
128    .map(([type, n]) => `${n} ${type}${n === 1 ? '' : 's'}`)
129  return parts.length > 0 ? parts.join(sep) : 'none'
130}
131
132// Effort color (Catppuccin Mocha), low to max: green, yellow, peach, maroon, red; anything else (an
133// integer budget, a level added later) sky
134export function effortColor(effort: string): string {
135  switch (effort) {
136    case 'low':
137      return '#a6e3a1'
138    case 'medium':
139      return '#f9e2af'
140    case 'high':
141      return '#fab387'
142    case 'xhigh':
143      return '#eba0ac'
144    case 'max':
145      return '#f38ba8'
146  }
147  return '#89dceb'
148}
149
150const MODE_LABELS: Record<string, string> = {
151  default: 'default',
152  acceptEdits: 'accept edits',
153  bypassPermissions: 'bypass',
154  plan: 'plan',
155  dontAsk: "don't ask",
156  auto: 'auto',
157}
158
159// A permission mode's display name; one it does not know is shown as it is
160export function modeLabel(mode: string): string {
161  return MODE_LABELS[mode] ?? mode
162}
163
164// A path under home starts with ~; on Windows it goes on with \
165export function shortPath(path: string, home: string | undefined): string {
166  if (home && (path === home || path.startsWith(home + '/') || path.startsWith(home + '\\'))) {
167    return '~' + path.slice(home.length)
168  }
169  return path
170}
171
172// A path's last directory: ~/sideproj/ccdrawu is ccdrawu; a root, with none, is itself
173export function directoryName(path: string): string {
174  return path.split(/[\\/]/).filter(Boolean).pop() ?? path
175}
176
177// A text cut to `max` characters keeping its end: …roj/ccdrawu
178export function truncateStart(text: string, max: number): string {
179  const chars = [...text]
180  return chars.length <= max ? text : '…' + chars.slice(chars.length - max + 1).join('')
181}
182
183// `git diff --shortstat` prints " 3 files changed, 12 insertions(+), 3 deletions(-)"
184export function parseShortstat(text: string): { added: number; removed: number } {
185  const added = /(\d+) insertions?\(\+\)/.exec(text)
186  const removed = /(\d+) deletions?\(-\)/.exec(text)
187  return { added: added ? Number(added[1]) : 0, removed: removed ? Number(removed[1]) : 0 }
188}
189
190// Whether `latest` is newer than `current`, comparing numeric parts: 2.1.299 < 2.1.300
191export function isNewer(latest: string, current: string): boolean {
192  const a = latest.split('.').map(n => parseInt(n, 10) || 0)
193  const b = current.split('.').map(n => parseInt(n, 10) || 0)
194  for (let i = 0; i < Math.max(a.length, b.length); i++) {
195    const x = a[i] ?? 0
196    const y = b[i] ?? 0
197    if (x !== y) return x > y
198  }
199  return false
200}
201
202// The command is always /ccdrawu; the alias setting adds one more name (a leading slash is dropped)
203export function commandNames(alias: unknown): string[] {
204  const extra = typeof alias === 'string' ? alias.trim().replace(/^\/+/, '') : ''
205  if (extra === '' || extra === 'ccdrawu' || !/^[a-z0-9][a-z0-9-]*$/i.test(extra)) return ['ccdrawu']
206  return ['ccdrawu', extra]
207}
208

1// The drawer's items: the catalog (written to ~/.ccdrawu/catalog.json for the TUI to list)
2// and what each one shows. None touches `$`, so tests can call them.
3
4import type { Background, CacheInfo, GitInfo, Limit, ModelInfo, Modes, ServiceStatus, SessionInfo, SkillsInfo, TokenInfo, Usage, VersionInfo } from '../types'
5import { compact, countdown, directoryName, duration, effortColor, filesText, isNewer, modeLabel, percentText, syncText, tasksText, usageColor } from './format'
6
7// Catppuccin Mocha: keys in blue, values in text.
8// The pane's background is not drawn here: it is the theme's composerSidebarBackground.
9export const C = {
10  text: '#cdd6f4',
11  blue: '#89b4fa',
12  lavender: '#b4befe',
13  flamingo: '#f2cdcd',
14  surface: '#45475a',
15  green: '#a6e3a1',
16  red: '#f38ba8',
17  peach: '#fab387',
18}
19
20export type Item = {
21  id: string
22  label: string // the key column in the pane: 9 characters at most, and 8 for all but Directory
23  short: string // the label in the statusline when its format is short: 4 characters at most
24  name: string // what the TUI lists
25  group: string // the TUI lists the items under these, in catalog order
26  description: string
27  dock: boolean // on by default beside the transcript
28  inline: boolean // on by default above the prompt
29  statusline: boolean // on by default in `ccdrawu statusline`
30}
31
32// The order here is the order on screen
33export const ITEMS: readonly Item[] = [
34  // Drawn by the pane itself (pets.ts), over the rows beside the transcript and left of the columns above the prompt
35  { id: 'pet', label: 'Pet', short: 'pet', name: 'Pet', group: 'Pet', description: 'A pixel pet: it walks while Claude works, sits when Claude is done, sleeps when nothing goes on; /ccdrawu pat pats it', dock: true, inline: true, statusline: false },
36  { id: 'model', label: 'Model', short: 'mdl', name: 'Model', group: 'Model', description: 'The model answering in this session', dock: true, inline: true, statusline: true },
37  { id: 'effort', label: 'Effort', short: 'eff', name: 'Effort level', group: 'Model', description: "The last request's effort level, green for low to red for max", dock: true, inline: true, statusline: false },
38  { id: 'mode', label: 'Mode', short: 'mode', name: 'Permission mode', group: 'Model', description: 'auto, plan, accept edits, ...; after shift+tab it shows once Claude finishes the tools of a step, or with the next prompt', dock: true, inline: true, statusline: false },
39  { id: 'style', label: 'Style', short: 'sty', name: 'Output style', group: 'Model', description: 'The output style set in /config', dock: false, inline: false, statusline: false },
40  { id: 'id', label: 'ID', short: 'id', name: 'Session ID', group: 'Session', description: "The start of this session's id", dock: false, inline: false, statusline: false },
41  { id: 'context', label: 'Context', short: 'ctx', name: 'Context', group: 'Usage', description: 'How full the context window is', dock: true, inline: true, statusline: true },
42  { id: 'window', label: 'Window', short: 'win', name: 'Context size', group: 'Usage', description: 'Tokens in the context window, out of its size', dock: false, inline: false, statusline: false },
43  { id: 'session', label: 'Session', short: '5h', name: 'Session limit', group: 'Usage', description: 'The 5-hour usage limit, and when it resets', dock: true, inline: true, statusline: true },
44  { id: 'weekly', label: 'Weekly', short: '7d', name: 'Weekly limit', group: 'Usage', description: 'The 7-day usage limit, and when it resets', dock: true, inline: true, statusline: true },
45  { id: 'spend', label: 'Spend', short: 'spnd', name: 'Spend limit', group: 'Usage', description: "A gateway's spend limit, where there is one", dock: false, inline: false, statusline: false },
46  { id: 'cost', label: 'Cost', short: 'cost', name: 'Session cost', group: 'Usage', description: 'What this session has cost so far, as /cost totals it', dock: true, inline: true, statusline: true },
47  { id: 'rate', label: 'Rate', short: 'rate', name: 'Cost rate', group: 'Usage', description: 'What the session costs an hour, so far', dock: false, inline: false, statusline: false },
48  { id: 'tokens', label: 'Tokens', short: 'tok', name: 'Tokens', group: 'Usage', description: 'Input, output and cache tokens of the main conversation since the drawer loaded', dock: false, inline: false, statusline: false },
49  { id: 'speed', label: 'Speed', short: 'spd', name: 'Token speed', group: 'Usage', description: 'Output tokens a second in the last reply', dock: false, inline: false, statusline: false },
50  { id: 'uptime', label: 'Uptime', short: 'up', name: 'Uptime and turns', group: 'Activity', description: 'How long the session has run, and how many turns', dock: true, inline: true, statusline: false },
51  { id: 'cache', label: 'Cache', short: 'hit', name: 'Cache hit rate', group: 'Activity', description: 'How much of the last request the prompt cache served', dock: true, inline: true, statusline: false },
52  { id: 'compact', label: 'Compact', short: 'cmp', name: 'Compactions', group: 'Activity', description: 'How many times the context was compacted', dock: true, inline: true, statusline: false },
53  { id: 'tasks', label: 'Tasks', short: 'bg', name: 'Background tasks', group: 'Activity', description: "Subagents running now, and shells, monitors and workflows in the background as of Claude's last reply", dock: true, inline: true, statusline: false },
54  { id: 'skills', label: 'Skills', short: 'skl', name: 'Skills', group: 'Activity', description: 'Skills run in this session, and the last one', dock: false, inline: false, statusline: false },
55  { id: 'git', label: 'Git', short: 'git', name: 'Git branch and changes', group: 'Workspace', description: 'The branch, and lines added and removed since HEAD', dock: true, inline: true, statusline: true },
56  { id: 'sync', label: 'Sync', short: 'sync', name: 'Ahead and behind', group: 'Workspace', description: 'Commits ahead of and behind the upstream', dock: false, inline: false, statusline: false },
57  { id: 'files', label: 'Files', short: 'chg', name: 'Changed files', group: 'Workspace', description: 'Files staged, changed and new', dock: false, inline: false, statusline: false },
58  { id: 'commit', label: 'Commit', short: 'sha', name: 'Commit', group: 'Workspace', description: 'The short hash of HEAD', dock: false, inline: false, statusline: false },
59  { id: 'repo', label: 'Repo', short: 'repo', name: 'Repository', group: 'Workspace', description: "origin's owner/repo, and the worktree when the session is in one", dock: false, inline: false, statusline: false },
60  { id: 'path', label: 'Path', short: 'path', name: 'Working directory', group: 'Workspace', description: "The session's working directory", dock: true, inline: true, statusline: false },
61  { id: 'directory', label: 'Directory', short: 'dir', name: 'Directory name', group: 'Workspace', description: "The working directory's own name, without the path to it", dock: false, inline: false, statusline: false },
62  { id: 'version', label: 'Claude', short: 'cc', name: 'Claude Code version', group: 'About', description: 'This version, and the latest when a newer one is out', dock: true, inline: true, statusline: false },
63  { id: 'ccdrawu', label: 'ccdrawu', short: 'drw', name: 'ccdrawu version', group: 'About', description: "This drawer's own version", dock: true, inline: true, statusline: false },
64  { id: 'status', label: 'Status', short: 'stat', name: 'Claude status', group: 'About', description: 'status.claude.com: all clear in green, an incident in peach or red', dock: false, inline: false, statusline: false },
65]
66
67// Everything an item may show, as the drawer holds it
68export type Snapshot = {
69  usage: Usage | null
70  model: ModelInfo | null
71  git: GitInfo | null
72  path: string
73  turns: number
74  cache: CacheInfo | null
75  tokens: TokenInfo
76  session: SessionInfo
77  status: ServiceStatus | null
78  skills: SkillsInfo
79  compacts: number
80  agents: number
81  background: Background // by type, as of Claude's last reply
82  version: VersionInfo | null
83  drawer: string | null // ccdrawu's own version, from its plugin.json
84  modes: Modes
85  now: number
86}
87
88export type Seg = { text: string; color: string; bold?: boolean }
89
90// What an item shows. Beside the transcript a meter draws a bar, `resets` and `below` take a row of
91// their own (so a long value wraps whole) and `cutStart` keeps the end of a value too long for the row;
92// above the prompt all is text on one row
93export type View = { value: Seg[]; meter?: number; resets?: string; below?: Seg[]; cutStart?: boolean }
94
95// What an item shows before it has a value, or where it has none: its row is there all the same, so the
96// rows after it do not move when the value comes
97export const NO_VALUE = '-'
98
99// A limit's bar and countdown; its resets row is there before them too
100function limitView(limit: Limit | undefined, now: number): View {
101  if (limit === undefined) return { value: [{ text: NO_VALUE, color: C.text }], resets: NO_VALUE }
102  return {
103    value: [{ text: percentText(limit.percentUsed), color: usageColor(limit.percentUsed) }],
104    meter: limit.percentUsed,
105    resets: limit.resetsAt === undefined ? NO_VALUE : countdown(Date.parse(limit.resetsAt) - now),
106  }
107}
108
109// An item's view; undefined only for the pet, which the pane draws itself, and an id the catalog does not have
110export function view(id: string, s: Snapshot): View | undefined {
111  if (id === 'pet' || !ITEMS.some(item => item.id === id)) return undefined
112  return held(id, s) ?? { value: [{ text: NO_VALUE, color: C.text }] }
113}
114
115// What an item holds, or undefined while it holds nothing
116function held(id: string, s: Snapshot): View | undefined {
117  const text = (value: string, color: string = C.text): View => ({ value: [{ text: value, color }] })
118  const limit = (kind: string) => limitView(s.usage?.limits.find(l => l.kind === kind), s.now)
119
120  switch (id) {
121    case 'model':
122      return s.model === null ? undefined : { value: [{ text: s.model.name, color: C.lavender, bold: true }] }
123    case 'effort':
124      return s.model?.effort === undefined ? undefined : text(s.model.effort, effortColor(s.model.effort))
125    case 'mode':
126      return s.modes.permission === undefined ? undefined : text(modeLabel(s.modes.permission))
127    case 'context': {
128      const percent = s.usage?.contextPercent ?? 0
129      return { value: [{ text: percentText(percent), color: usageColor(percent) }], meter: percent }
130    }
131    case 'session':
132      return limit('five_hour')
133    case 'weekly':
134      return limit('seven_day')
135    case 'spend':
136      return limit('spend_limit')
137    case 'cost':
138      return s.usage?.costUsd === undefined ? undefined : text('$' + s.usage.costUsd.toFixed(2))
139    case 'uptime':
140      return text((s.usage ? duration(s.now - s.usage.startedAt) : NO_VALUE) + ` · ${s.turns} turns`)
141    case 'cache':
142      return s.cache && s.cache.total > 0 ? text(percentText((s.cache.read / s.cache.total) * 100)) : undefined
143    case 'compact':
144      return text(String(s.compacts))
145    case 'tasks':
146      return text(tasksText(s.agents, s.background))
147    case 'git':
148      if (!s.git) return text('not a repo')
149      return {
150        value: [{ text: s.git.branch, color: C.text }],
151        below: [
152          { text: '+' + s.git.added, color: C.green },
153          { text: ' -' + s.git.removed, color: C.red },
154        ],
155      }
156    case 'path':
157      return { ...text(s.path), cutStart: true }
158    case 'directory':
159      return text(directoryName(s.path))
160    case 'version': {
161      const v = s.version
162      if (!v) return undefined
163      const newer = v.latest !== undefined && isNewer(v.latest, v.current)
164      return { value: [{ text: v.current, color: C.text }, ...(newer ? [{ text: '  ↑ ' + v.latest, color: C.peach }] : [])] }
165    }
166    case 'ccdrawu':
167      return s.drawer ? text(s.drawer) : undefined
168    case 'style':
169      return s.session.outputStyle ? text(s.session.outputStyle) : undefined
170    case 'id':
171      return s.session.id ? text(s.session.id.slice(0, 8)) : undefined
172    case 'window': {
173      const u = s.usage
174      if (u?.contextWindow === undefined) return undefined
175      return text(`${compact(u.contextTokens ?? 0)} / ${compact(u.contextWindow)}`)
176    }
177    case 'rate': {
178      // From a minute on: before that one request makes the hourly figure jump about
179      const hours = s.usage ? (s.now - s.usage.startedAt) / 3_600_000 : 0
180      if (s.usage?.costUsd === undefined || hours < 1 / 60) return undefined
181      return text(`$${(s.usage.costUsd / hours).toFixed(2)}/h`)
182    }
183    case 'tokens': {
184      const t = s.tokens
185      if (t.input + t.output + t.cacheRead + t.cacheWrite === 0) return undefined
186      return text(`in ${compact(t.input)} · out ${compact(t.output)} · cache ${compact(t.cacheRead + t.cacheWrite)}`)
187    }
188    case 'speed':
189      return s.tokens.speed === undefined ? undefined : text(`${Math.round(s.tokens.speed)} tok/s`)
190    case 'skills':
191      return text(s.skills.count === 0 ? 'none' : `${s.skills.count}` + (s.skills.last ? ` · last ${s.skills.last}` : ''))
192    case 'sync':
193      if (!s.git) return text('not a repo')
194      return text(s.git.ahead === undefined ? 'no upstream' : syncText(s.git.ahead, s.git.behind ?? 0))
195    case 'files':
196      if (!s.git) return text('not a repo')
197      return s.git.staged === undefined ? undefined : text(filesText(s.git.staged, s.git.unstaged ?? 0, s.git.untracked ?? 0))
198    case 'commit':
199      if (!s.git) return text('not a repo')
200      return text(s.git.sha ?? 'no commits')
201    case 'repo': {
202      const g = s.git
203      if (!g) return text('not a repo')
204      if (!g.repo && !g.worktree) return text('no origin')
205      return text([g.repo, g.worktree].filter(Boolean).join(' · '))
206    }
207    case 'status': {
208      if (!s.status) return undefined
209      const color = s.status.indicator === 'none' ? C.green : s.status.indicator === 'minor' ? C.peach : C.red
210      return text(s.status.description, color)
211    }
212  }
213  return undefined
214}
215

1// Which items show where, from the config the TUI writes, and how they fall into columns above the prompt.
2// None touches `$`, so tests can call them.
3
4import type { Config } from '../types'
5import { truncateStart } from './format'
6import { C, ITEMS, NO_VALUE, type Item, type Seg, type View } from './items'
7
8export type Placement = 'dock' | 'inline'
9
10// ~/.config/ccdrawu/config.json: { "dock": [ids], "inline": [ids], "alias": name, "pet": { "species" },
11// "bar": style, "drawer": { "sidebarOff", "inlineOff" }, "statusline": { "on", ... } }. Undefined when it is not JSON, as when caught half written:
12// read it again on the next tick
13export function parseConfig(text: string): Config | undefined {
14  let raw: unknown
15  try {
16    raw = JSON.parse(text)
17  } catch {
18    return undefined
19  }
20  const config: Config = {}
21  if (typeof raw !== 'object' || raw === null) return config
22  for (const placement of ['dock', 'inline'] as const) {
23    const ids = (raw as Record<string, unknown>)[placement]
24    if (Array.isArray(ids)) config[placement] = ids.filter((id): id is string => typeof id === 'string')
25  }
26  const alias = (raw as Record<string, unknown>).alias
27  if (typeof alias === 'string') config.alias = alias
28  const style = (raw as Record<string, unknown>).bar
29  if (typeof style === 'string') config.bar = style
30  const pet = (raw as Record<string, unknown>).pet
31  if (typeof pet === 'object' && pet !== null) {
32    const { species } = pet as Record<string, unknown>
33    config.pet = typeof species === 'string' ? { species } : {}
34  }
35  const drawer = (raw as Record<string, unknown>).drawer
36  if (typeof drawer === 'object' && drawer !== null) {
37    const d = drawer as Record<string, unknown>
38    // 0.1.1's off turned the whole drawer off
39    const off = d.off === true
40    config.drawer = { sidebarOff: off || d.sidebarOff === true, inlineOff: off || d.inlineOff === true }
41  }
42  const statusline = (raw as Record<string, unknown>).statusline
43  if (typeof statusline === 'object' && statusline !== null) {
44    config.statusline = { on: (statusline as Record<string, unknown>).on === true }
45  }
46  return config
47}
48
49// In the order the config lists them (set in ccdrawu), the ones the catalog knows, each once; a placement
50// the config leaves out takes the catalog's defaults, in its order
51export function enabledItems(config: Config, placement: Placement): Item[] {
52  const ids = config[placement]
53  if (ids === undefined) return ITEMS.filter(item => item[placement])
54  return [...new Set(ids)].flatMap(id => ITEMS.find(item => item.id === id) ?? [])
55}
56
57// Whether the config lets the drawer show beside the transcript (dock) or above the prompt (inline)
58export function drawerShows(config: Config, placement: Placement): boolean {
59  return placement === 'dock' ? config.drawer?.sidebarOff !== true : config.drawer?.inlineOff !== true
60}
61
62// /ccdrawu turns the drawer on or off for the session, wherever it sits, over the config; null until it
63// does, and again once the config's Drawer changes (the last of the two wins)
64export type Manual = 'on' | 'off' | null
65
66// Whether the drawer belongs in a place: as /ccdrawu last set it for the session, else as the config has it
67export function drawerWanted(config: Config, placement: Placement, manual: Manual): boolean {
68  return manual === null ? drawerShows(config, placement) : manual === 'on'
69}
70
71// Whether an item shows beside the transcript or above the prompt
72export function showsAnywhere(config: Config, id: string): boolean {
73  return (['dock', 'inline'] as const).some(p => enabledItems(config, p).some(item => item.id === id))
74}
75
76const INLINE_PATH = 32 // above the prompt a path keeps its last 32 characters
77export const COLUMN_GAP = ' │ '
78
79// Above the prompt: no bars, what the sidebar puts below after the value, the reset countdown after
80// the percentage, but not one not known: on one row it holds no row in place
81export function inlineValue(v: View): Seg[] {
82  const cut = v.cutStart ? v.value.map(s => ({ ...s, text: truncateStart(s.text, INLINE_PATH) })) : v.value
83  const value = v.below === undefined ? cut : [...cut, { text: '  ', color: C.text }, ...v.below]
84  if (v.resets === undefined || v.resets === NO_VALUE) return value
85  return [...value, { text: ' · ', color: C.surface }, { text: v.resets, color: C.text }]
86}
87
88// Cells a text takes on the terminal: East Asian wide and fullwidth characters (CJK, the ｜ between
89// task counts) take two, the rest one
90export function cellWidth(text: string): number {
91  let n = 0
92  for (const ch of text) {
93    const c = ch.codePointAt(0) ?? 0
94    const wide =
95      (c >= 0x1100 && c <= 0x115f) ||
96      (c >= 0x2e80 && c <= 0xa4cf) ||
97      (c >= 0xac00 && c <= 0xd7a3) ||
98      (c >= 0xf900 && c <= 0xfaff) ||
99      (c >= 0xfe30 && c <= 0xfe4f) ||
100      (c >= 0xff00 && c <= 0xff60) ||
101      (c >= 0xffe0 && c <= 0xffe6) ||
102      (c >= 0x20000 && c <= 0x3fffd)
103    n += wide ? 2 : 1
104  }
105  return n
106}
107
108export function segWidth(segs: readonly Seg[]): number {
109  return segs.reduce((n, s) => n + cellWidth(s.text), 0)
110}
111
112// Above the prompt the items fill columns top to bottom, side by side: the fewest rows whose columns
113// fit in `width`, each column a key (its longest plus a space) and a value; one column when none fit
114export function columnRows(cells: readonly { label: number; value: number }[], width: number): number {
115  for (let rows = 1; rows < cells.length; rows++) {
116    let total = -COLUMN_GAP.length
117    for (let i = 0; i < cells.length; i += rows) {
118      const column = cells.slice(i, i + rows)
119      total += COLUMN_GAP.length + Math.max(...column.map(c => c.label)) + 1 + Math.max(...column.map(c => c.value))
120    }
121    if (total <= width) return rows
122  }
123  return Math.max(1, cells.length)
124}
125
126export function chunk<T>(list: readonly T[], size: number): T[][] {
127  const out: T[][] = []
128  for (let i = 0; i < list.length; i += size) out.push(list.slice(i, i + size))
129  return out
130}
131

1// Where ccdrawu keeps its files (terminu design E3), the same places the ccdrawu TUI reads and writes.
2// None touches `$`, so tests can call it.
3
4export type Env = { home: string; data?: string; config?: string; xdgConfig?: string }
5
6// data: CCDRAWU__DATA, else ~/.ccdrawu (the catalog);
7// configFile: config.json in CCDRAWU__CONFIG, else $XDG_CONFIG_HOME/ccdrawu, else ~/.config/ccdrawu.
8// A variable set but empty counts as unset
9export function locations(env: Env): { data: string; configFile: string } {
10  const data = env.data || `${env.home}/.ccdrawu`
11  const config = env.config || (env.xdgConfig ? `${env.xdgConfig}/ccdrawu` : `${env.home}/.config/ccdrawu`)
12  return { data, configFile: `${config}/config.json` }
13}
14

1// What `ccdrawu statusline` lays out: each item's value on one row, as it shows above the prompt, kept in
2// <data>/sessions/<session id>.json while the config has the statusline on. The command picks the items,
3// their order, the labels and the separator; the values and their colors are worked out here alone.
4// None touches `$`, so tests can call them.
5
6import { tasksText } from './format'
7import { C, ITEMS, view, type Seg, type Snapshot } from './items'
8import { inlineValue } from './layout'
9
10// Every item, the pet aside: it draws nothing on one row of text. Tasks part
11// their counts with ", " here, as the statusline parts its items with |
12export function statuslineItems(s: Snapshot): Record<string, Seg[]> {
13  const items: Record<string, Seg[]> = {}
14  for (const item of ITEMS) {
15    if (item.id === 'pet') continue
16    const v = item.id === 'tasks' ? { value: [{ text: tasksText(s.agents, s.background, ', '), color: C.text }] } : view(item.id, s)
17    if (v) items[item.id] = inlineValue(v)
18  }
19  return items
20}
21
22// The file's text, with no time in it, so a session whose figures stand still leaves the file alone.
23// docked: whether the drawer shows beside the transcript now, for a statusline on only when it does not
24export function statuslineFile(s: Snapshot, docked: boolean): string {
25  return JSON.stringify({ version: 1, docked, items: statuslineItems(s) }) + '\n'
26}
27

1export type Limit = { kind: string; percentUsed: number; resetsAt?: string }
2
3// contextTokens over contextWindow is contextPercent, in tokens
4export type Usage = {
5  startedAt: number
6  contextPercent?: number
7  contextTokens?: number
8  contextWindow?: number
9  limits: Limit[]
10  costUsd?: number
11}
12
13export type ModelInfo = { name: string; effort?: string }
14
15// The branch with its line counts; then, from `git status --porcelain=v2`, the commit, how far it is
16// from its upstream (none without one) and the files staged, unstaged and untracked; repo is origin's
17// owner/name, worktree the linked worktree's folder when the session is in one
18export type GitInfo = {
19  branch: string
20  added: number
21  removed: number
22  sha?: string
23  ahead?: number
24  behind?: number
25  staged?: number
26  unstaged?: number
27  untracked?: number
28  repo?: string
29  worktree?: string
30}
31
32// The main conversation's last request: tokens read from the prompt cache, and its whole input
33export type CacheInfo = { read: number; total: number }
34
35// The main conversation's tokens since the drawer loaded, and its last reply's output tokens a second
36export type TokenInfo = { input: number; output: number; cacheRead: number; cacheWrite: number; speed?: number }
37
38// This session: its id, the output style
39export type SessionInfo = { id?: string; outputStyle?: string }
40
41// status.claude.com's overall status: indicator none, minor, major or critical
42export type ServiceStatus = { indicator: string; description: string }
43
44// Skills run in this session, and the last one's name
45export type SkillsInfo = { count: number; last?: string }
46
47export type VersionInfo = { current: string; latest?: string }
48
49// permission: the permission mode (auto, plan, ...)
50export type Modes = { permission?: string }
51
52// The background work in flight as of Claude's last reply, counted by type (shell, monitor, workflow, ...);
53// subagents are counted live from $.agent.list() instead
54export type Background = Record<string, number>
55
56// The items on in each placement, as the TUI wrote them; one left out takes the catalog's defaults.
57// alias: one more name for /ccdrawu; pet: which animal; drawer: whether it shows beside the transcript
58// and above the prompt; statusline: whether `ccdrawu statusline` is Claude Code's status line (the rest
59// of its block is the TUI's and the command's)
60export type Config = {
61  dock?: string[]
62  inline?: string[]
63  alias?: string
64  pet?: { species?: string }
65  bar?: string
66  drawer?: { sidebarOff: boolean; inlineOff: boolean }
67  statusline?: { on: boolean }
68}
69
70// The pet (hooks/pets.ts): what it is doing, where along its walk, and what it says, a session's
71export type PetMode = 'walk' | 'sit' | 'lie' | 'sleep' | 'jump' | 'play'
72// A ball thrown in (/ccdrawu ball): it rolls from start to rest, from the time thrown on; the pet
73// stands at goal to play with it, and says line when it has it
74export type PetBall = { from: number; start: number; rest: number; goal: number; line: string }
75export type PetState = {
76  coat: number // which coat, picked at random once a session; -1 until then
77  busy: boolean // Claude is working
78  active: number // when Claude or the user last did something
79  mode: PetMode
80  x: number // 0 to TRACK, how far along its walk
81  target: number // where along it it is going
82  run: boolean // running there, two steps a tick
83  stride: number // its steps, for its legs to take turns
84  restUntil: number // sitting a while where it got to, before it goes on
85  lift: number // how many pixels off the ground it is, in a jump
86  faceLeft: boolean
87  snore: number // how far along its snore, while asleep
88  heart: boolean
89  line?: string
90  lineUntil: number
91  heartUntil: number
92  jumpFrom: number // in the air from then until jumpUntil
93  jumpUntil: number
94  ball?: PetBall
95  ballPos: number // where the ball is along the walk, and how far off the ground, a tick's
96  ballLift: number
97  playUntil: number // pawing at the ball until then
98}
99
100// A kit (hooks/pets.ts): a small one of the pet's kind for a subagent running, walking behind the pet
101export type Kit = {
102  id: string // the subagent's, as $.agent.list() names it
103  coat: number // of its kind's coats, neither the pet's nor another kit's
104  x: number // 0 to TRACK along the walk, as the pet's
105  target: number
106  stride: number
107  faceLeft: boolean
108  restUntil: number
109  leaving: boolean // its subagent is done: it heads for the nearer end, and goes there
110}
111
112declare module 'claude-code' {
113  interface PluginState {
114    ccdrawu: {
115      usage: Usage | null
116      model: ModelInfo | null
117      git: GitInfo | null
118      path: string
119      turns: number
120      cache: CacheInfo | null
121      tokens: TokenInfo
122      session: SessionInfo
123      status: ServiceStatus | null
124      skills: SkillsInfo
125      compacts: number
126      agents: number
127      background: Background
128      version: VersionInfo | null
129      drawer: string | null
130      modes: Modes
131      now: number
132      config: Config
133      pet: PetState
134      kits: Kit[]
135      manual: 'on' | 'off' | null
136    }
137  }
138}
139
