Cache Maxxer

1import { atom, read, update } from 'claude-code'
2import type { ElementTable, EngineInterface, PluginOptions, Register, Timer, TurnUsage } from 'claude-code'
3
4import type { CacheSettings } from '../types'
5
6import { terminalBand, type Actions } from './band'
7import { desktopBand } from './desktop'
8import { fmtApprox, fmtTokens } from './format'
9import { applyRequest, DEFAULT_SETTINGS, EMPTY_CACHE, EMPTY_PINGS, EMPTY_TOTALS, type Pending } from './model'
10import { isPriceTable, parsePricing, PRICING_URL, REFRESH_MS } from './live-prices'
11import { keptWarmUsd, requestCostUsd, setLivePrices, type PriceEntry } from './pricing'
12import { idleCapMs, leadLabel, leadMs, parseTtl, ttlInfo } from './ttl'
13import { makeView, summaryText, type View } from './view'

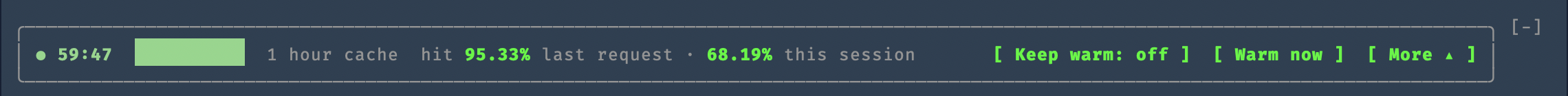

14
15// Cache Maxxer shows the conversation's prompt cache: how long it has left, how well it is hitting,
16// why it broke, and (when asked) keeps it warm with a short request before it lapses.
17
18const COMMAND = 'cache-maxxer'
19
20// Asks for one word so the reply costs next to nothing; the request is there to read the cache.
21const PING_PROMPT = 'Reply with exactly one word: ok. Do not use any tools.'
22
23const TAIL_BYTES = 262_144
24const RECHECK_MS = 10 * 60_000
25const RETRY_MS = 15_000
26
27// What the band draws. A value here survives a reload of the module; /clear, /resume
28// and /branch put every one back to its default (a /clear keeps only what the cache last held).
29const cacheAtom = atom({ plugin: 'cache-maxxer', key: 'cache' } as const, EMPTY_CACHE)
30const historyAtom = atom({ plugin: 'cache-maxxer', key: 'history' } as const, [])
31const totalsAtom = atom({ plugin: 'cache-maxxer', key: 'totals' } as const, EMPTY_TOTALS)
32const breaksAtom = atom({ plugin: 'cache-maxxer', key: 'breaks' } as const, [])
33const settingsAtom = atom({ plugin: 'cache-maxxer', key: 'settings' } as const, DEFAULT_SETTINGS)
34const pingsAtom = atom({ plugin: 'cache-maxxer', key: 'pings' } as const, EMPTY_PINGS)
35const activityAtom = atom({ plugin: 'cache-maxxer', key: 'activity' } as const, 0)
36const pausedAtom = atom({ plugin: 'cache-maxxer', key: 'paused' } as const, '')
37const pickerAtom = atom({ plugin: 'cache-maxxer', key: 'picker' } as const, '')
38const expandedAtom = atom({ plugin: 'cache-maxxer', key: 'expanded' } as const, false)
39const tickAtom = atom({ plugin: 'cache-maxxer', key: 'tick' } as const, 0)
40const pingingAtom = atom({ plugin: 'cache-maxxer', key: 'pinging' } as const, false)
41const noticeAtom = atom({ plugin: 'cache-maxxer', key: 'notice' } as const, { text: '', until: 0 })
42const hiddenAtom = atom({ plugin: 'cache-maxxer', key: 'hidden' } as const, false)
43
44// How long the Desktop band shows a notice.
45const NOTICE_MS = 8000
46
47type Cfg = { ttl: string; lead: string; idleCap: string; livePrices: boolean }
48
49const pick = (value: unknown, allowed: readonly string[], fallback: string) =>
50  typeof value === 'string' && allowed.includes(value) ? value : fallback
51
52const readCfg = (options: PluginOptions): Cfg => ({
53  ttl: pick(options.ttl, ['auto', '1h', '5m'], 'auto'),
54  lead: pick(options.lead, ['auto', '1m', '2m', '4m', '8m'], 'auto'),
55  idleCap: pick(options.idle_cap, ['1h', '3h', '8h', 'none'], '3h'),
56  livePrices: pick(options.live_prices, ['on', 'off'], 'on') === 'on',
57})
58
59// What the hooks share between events. A reload of the module starts it over.
60const rt = {
61  timer: null as Timer | null,
62  isTurnRunning: false,
63  isPinging: false,
64  // What happened to the conversation that can explain its next big cache write
65  pending: null as Pending,
66  // The cache entry (by its start time) that already got its warning
67  warnedFor: 0,
68  // The cache entry whose keep-warm ping failed, so it is not tried again every second
69  skippedFor: 0,
70  lookup: { at: 0, isRunning: false, id: '', path: '' },
71}
72
73// ---- Reading what to draw ----
74
75async function viewOf($: EngineInterface, cfg: Cfg): Promise<View> {
76  // Reading the tick subscribes the drawing to it, so the countdown redraws as it moves.
77  await read($, tickAtom)
78  const now = await $.clock.now()
79  const notice = await read($, noticeAtom)
80  return makeView({
81    now,
82    ttlSetting: cfg.ttl,
83    cache: await read($, cacheAtom),
84    history: await read($, historyAtom),
85    totals: await read($, totalsAtom),
86    breaks: await read($, breaksAtom),
87    settings: await read($, settingsAtom),
88    pings: await read($, pingsAtom),
89    paused: await read($, pausedAtom),
90    picker: await read($, pickerAtom),
91    expanded: await read($, expandedAtom),
92    isPinging: await read($, pingingAtom),
93    notice: notice.until > now ? notice.text : '',
94    hidden: await read($, hiddenAtom),
95  })
96}
97
98// ---- Telling the person ----
99
100// What Cache Maxxer has to say goes where the person is looking. The Desktop app stacks a plugin's
101// notices at its window's corner, away from this session's pane in a split, so there the band says
102// it for a few seconds instead; every other surface, the terminal included, gets the notice.
103async function notify($: EngineInterface, text: string) {
104  const surfaces = await $.session.surfaces()
105  if (surfaces.length === 0 || surfaces.some(s => s !== 'desktop')) $.ui.toast(text)
106  if (!surfaces.includes('desktop')) return
107  const until = (await $.clock.now()) + NOTICE_MS
108  await update($, noticeAtom, () => ({ text, until }))
109  // The countdown's ticks redraw the band; with no cache ticking, one more redraw takes the line away.
110  $.clock.after(NOTICE_MS, () => void update($, tickAtom, t => t + 1))
111}
112
113// ---- The cache's life ----
114
115// Folds a main-conversation request into the state, and says so when it rebuilt the cache.
116async function noteRequest($: EngineInterface, cfg: Cfg, startedAt: number, usage: TurnUsage | null) {
117  if (!usage) return
118  const cache = await read($, cacheAtom)
119  const pending = rt.pending
120  rt.pending = null
121  const { next, brk } = applyRequest(
122    {
123      cache,
124      history: await read($, historyAtom),
125      totals: await read($, totalsAtom),
126      breaks: await read($, breaksAtom),
127    },
128    { startedAt, usage, ttlMs: ttlInfo(cfg.ttl, cache.ttlMs).ms },
129    pending,
130  )
131  // The entry's length may have been learned meanwhile, so it is kept as it stands now.
132  await update($, cacheAtom, current => ({ ...next.cache, ttlMs: current.ttlMs }))
133  await update($, historyAtom, () => next.history)
134  await update($, totalsAtom, () => next.totals)
135  await update($, breaksAtom, () => next.breaks)
136  // A request that wrote may have put its split in the transcript: look again at the next tick.
137  if (usage.cache_creation_input_tokens > 0) rt.lookup.at = 0
138  startTicker($, cfg)
139  if (brk) await notify($, `Cache rebuilt · ${fmtTokens(brk.written)} tokens re-written · ${brk.cause}`)
140}
141
142// Reads how long an entry lives from the newest cache write in the session transcript. The transcript
143// may not hold the write yet when a turn ends, so the ticker asks again (at most every RETRY_MS)
144// until it has been seen.
145async function learnTtl($: EngineInterface, cfg: Cfg) {
146  if (cfg.ttl !== 'auto') return
147  const now = await $.clock.now()
148  const known = (await read($, cacheAtom)).ttlMs !== null
149  if (rt.lookup.isRunning || now - rt.lookup.at < (known ? RECHECK_MS : RETRY_MS)) return
150  rt.lookup.isRunning = true
151  rt.lookup.at = now
152  try {
153    const id = await $.session.id()
154    if (rt.lookup.id !== id || rt.lookup.path === '') {
155      const root = (await $.env.get('CLAUDE_CONFIG_DIR')) ?? `${(await $.env.get('HOME')) ?? ''}/.claude`
156      const found = await $.process.run(['/usr/bin/find', `${root}/projects`, '-maxdepth', '2', '-name', `${id}.jsonl`], { timeoutMs: 15_000 })
157      rt.lookup.path = found.stdout.split('\n').find(line => line.trim() !== '') ?? ''
158      rt.lookup.id = id
159    }
160    if (rt.lookup.path === '') return
161    // Only the end of the file is read: a long session's transcript is large.
162    const tail = await $.process.run(['/usr/bin/tail', '-c', String(TAIL_BYTES), rt.lookup.path], { timeoutMs: 15_000 })
163    const ms = tail.exitCode === 0 ? parseTtl(tail.stdout) : null
164    if (ms !== null) await update($, cacheAtom, c => (c.ttlMs === ms ? c : { ...c, ttlMs: ms }))
165  } catch {
166    // The length stays assumed until a later look succeeds
167  } finally {
168    rt.lookup.isRunning = false
169  }
170}
171
172// Seconds while an entry is warm; once it has expired (and the band has said so) the ticking stops
173// until the next request starts another.
174function startTicker($: EngineInterface, cfg: Cfg) {
175  if (rt.timer) return
176  rt.timer = $.clock.every(1000, () => void tick($, cfg))
177}
178
179function stopTicker() {
180  rt.timer?.cancel()
181  rt.timer = null
182}
183
184async function tick($: EngineInterface, cfg: Cfg) {
185  const cache = await read($, cacheAtom)
186  if (cache.startedAt === 0) return stopTicker()
187  if (cfg.ttl === 'auto' && cache.ttlMs === null) void learnTtl($, cfg)
188  const now = await $.clock.now()
189  const ttl = ttlInfo(cfg.ttl, cache.ttlMs).ms
190  const left = cache.startedAt + ttl - now
191  const second = now - (now % 1000)
192  if ((await read($, tickAtom)) !== second) await update($, tickAtom, () => second)
193  if (left <= 0) return stopTicker()
194
195  const settings = await read($, settingsAtom)
196  const lead = leadMs(settings.lead, ttl)
197  if (left > lead) return
198  if (!settings.keepWarm) {
199    if (rt.warnedFor !== cache.startedAt) {
200      rt.warnedFor = cache.startedAt
201      await notify($, `Cache expires in ${leadLabel(lead)} · Warm now to keep it`)
202    }
203    return
204  }
205  if (rt.isTurnRunning || rt.isPinging || rt.skippedFor === cache.startedAt) return
206  const cap = idleCapMs(settings.idleCap)
207  if (cap !== null && now - (await read($, activityAtom)) > cap) {
208    if ((await read($, pausedAtom)) !== settings.idleCap) await update($, pausedAtom, () => settings.idleCap)
209    return
210  }
211  const result = await ping($, cfg)
212  if (!result.ok) {
213    rt.skippedFor = cache.startedAt
214    await notify($, `Keep warm skipped: ${result.reason}`)
215  } else {
216    await notify($, pingText(result))
217  }
218}
219
220// Why a ping did not go out while Claude is replying: a turn reads the cache itself.
221const BUSY = 'Claude is working'
222
223type PingResult =
224  | { ok: true; read: number; written: number; costUsd: number | null; savedUsd: number | null; hasLapsed: boolean }
225  | { ok: false; reason: string }
226
227// One short request over the conversation. Its cache read restarts the entry's life from the
228// moment the request started. When it read less than half of what the cache last held, the entry
229// had already gone and the request rebuilt it: it is warm now, but that was a rebuild, not a ping
230// that kept it warm.
231async function ping($: EngineInterface, cfg: Cfg): Promise<PingResult> {
232  if (rt.isPinging) return { ok: false, reason: 'a ping is already running' }
233  if (rt.isTurnRunning) return { ok: false, reason: BUSY }
234  const cache = await read($, cacheAtom)
235  const startedAt = await $.clock.now()
236  const ttl = ttlInfo(cfg.ttl, cache.ttlMs).ms
237  if (cache.startedAt === 0 || cache.startedAt + ttl <= startedAt) return { ok: false, reason: 'the cache has already expired' }
238
239  rt.isPinging = true
240  await update($, pingingAtom, () => true)
241  try {
242    const r = await $.model.fork({ prompt: PING_PROMPT })
243    if (!('usage' in r)) return { ok: false, reason: 'nothing has been said in this conversation yet' }
244    const usage = r.usage
245    if (!r.isAnswered && r.reason === 'api-error') {
246      return { ok: false, reason: `the API answered ${r.status ?? 'with an error'} (${r.error.replace(/_/g, ' ')})` }
247    }
248    if (!r.isAnswered && r.reason === 'aborted') return { ok: false, reason: 'the request was cut short' }
249    if (usage.cache_read_input_tokens + usage.cache_creation_input_tokens === 0) {
250      return { ok: false, reason: 'the request did not touch the cache' }
251    }
252    const model = cache.model || (await $.session.model())
253    const costUsd = requestCostUsd(
254      model,
255      { read: usage.cache_read_input_tokens, written: usage.cache_creation_input_tokens, uncached: usage.input_tokens, output: usage.output_tokens },
256      ttl,
257    )
258    const hasLapsed = cache.cached > 0 && usage.cache_read_input_tokens < cache.cached / 2
259    await update($, cacheAtom, c => (startedAt > c.startedAt ? { ...c, startedAt } : c))
260    await update($, pingsAtom, p => ({
261      count: hasLapsed ? p.count : p.count + 1,
262      read: hasLapsed ? p.read : p.read + usage.cache_read_input_tokens,
263      rebuilds: hasLapsed ? p.rebuilds + 1 : p.rebuilds,
264      costUsd: p.costUsd + (costUsd ?? 0),
265      isPriced: p.isPriced || costUsd !== null,
266    }))
267    startTicker($, cfg)
268    const savedUsd = keptWarmUsd(model, usage.cache_read_input_tokens, ttl)
269    return { ok: true, read: usage.cache_read_input_tokens, written: usage.cache_creation_input_tokens, costUsd, savedUsd, hasLapsed }
270  } catch (error) {
271    return { ok: false, reason: error instanceof Error ? error.message : String(error) }
272  } finally {
273    rt.isPinging = false
274    await update($, pingingAtom, () => false)
275  }
276}
277
278// What the person is told about a ping, in plain words. A ping that kept the cache warm says what it
279// read and what that saved, the same as the keep-warm row: those tokens at the write price less the
280// read price. A rebuild is named as one, with what it cost.
281const pingText = (r: PingResult) => {
282  // A turn reads the cache on its own, so a press mid-turn has nothing to do, and says so lightly.
283  if (!r.ok && r.reason === BUSY) return 'Claude is working bro. No point warming cache 😎'
284  if (!r.ok) return `Could not warm the cache: ${r.reason}`
285  if (r.hasLapsed) {
286    const cost = r.costUsd === null ? '' : ` · ${fmtApprox(r.costUsd)}`
287    return `The cache had already expired, so the background request rebuilt it · ${fmtTokens(r.written)} tokens written, timer restarted${cost}`
288  }
289  return `Cache warmed · ${fmtTokens(r.read)} tokens read${r.savedUsd === null ? '' : ` · cost saved ${fmtApprox(r.savedUsd)}`}`
290}
291
292// A press while a ping is on its way does nothing: the button already says Warming….
293async function warmNow($: EngineInterface, cfg: Cfg) {
294  if (rt.isPinging) return
295  await notify($, pingText(await ping($, cfg)))
296}
297
298// The one place Keep warm changes, whichever button or command asks. A toggle flips the setting
299// where it stands now, so it never works from a stale reading; the pickers close with it.
300async function setKeepWarm($: EngineInterface, cfg: Cfg, change: boolean | 'toggle') {
301  const next = await update($, settingsAtom, s => ({ ...s, keepWarm: change === 'toggle' ? !s.keepWarm : change }))
302  await $.store.set('keepWarm', next.keepWarm)
303  await update($, pausedAtom, () => '')
304  await update($, pickerAtom, () => '')
305  rt.skippedFor = 0
306  if (next.keepWarm) {
307    const now = await $.clock.now()
308    await update($, activityAtom, () => now)
309    startTicker($, cfg)
310  }
311  return next.keepWarm
312}
313
314// The price table Anthropic publishes, read at most once a day and kept in the plugin's store, so a
315// new model or a changed price is known without a new release. The last good table is used meanwhile,
316// and a page that cannot be read or does not parse leaves it as it was. Never blocks the session.
317// The day counts from the last attempt, not the last success: the time is saved before the page is
318// asked for, so a page that keeps failing is still asked once a day, however many sessions start.
319// Sessions that start together all read the store before any of them writes it, so the store alone
320// cannot stop each of them asking: the one that may ask today is the one whose `mkdir` of today's
321// claim folder succeeds, which the file system grants to exactly one process.
322async function refreshPrices($: EngineInterface) {
323  try {
324    const stored = (await $.store.get('prices')) as { at?: unknown; entries?: unknown; triedAt?: unknown } | undefined
325    const saved = stored && typeof stored.at === 'number' && isPriceTable(stored.entries) ? stored : undefined
326    if (saved) setLivePrices(saved.entries as PriceEntry[])
327    const triedAt = typeof stored?.triedAt === 'number' ? stored.triedAt : saved?.at
328    const now = await $.clock.now()
329    if (typeof triedAt === 'number' && now - triedAt < REFRESH_MS) return
330    if (!(await claimToday($, now))) return
331    await $.store.set('prices', saved ? { at: saved.at, entries: saved.entries, triedAt: now } : { triedAt: now })
332    const res = await $.http.fetch(PRICING_URL)
333    const entries = res.ok ? parsePricing(res.text) : null
334    if (!entries) return
335    setLivePrices(entries)
336    await $.store.set('prices', { at: now, entries, triedAt: now })
337  } catch {
338    // The built-in table, or the last good one, stays in use
339  }
340}
341
342// Claims today's read of the price page for this session: true only for the one process whose `mkdir`
343// of today's empty claim folder succeeds. A day is a UTC day. Folders of earlier days are removed. Any
344// failure (the folder cannot be made, `mkdir` cannot run) means no claim, so nobody asks rather than two.
345async function claimToday($: EngineInterface, now: number): Promise<boolean> {
346  const root = (await $.env.get('CLAUDE_CONFIG_DIR')) ?? `${(await $.env.get('HOME')) ?? ''}/.claude`
347  if (!root.startsWith('/')) return false
348  const dir = `${root}/cache-maxxer`
349  const today = Math.floor(now / REFRESH_MS)
350  await $.process.run(['/bin/mkdir', '-p', dir], { timeoutMs: 5_000 })
351  const claim = await $.process.run(['/bin/mkdir', `${dir}/price-read-${today}`], { timeoutMs: 5_000 })
352  if (claim.exitCode !== 0) return false
353  for (const entry of await $.fs.list(dir).catch(() => [])) {
354    const day = /^price-read-([0-9]+)$/.exec(entry.name)
355    if (day && Number(day[1]) < today) await $.process.run(['/bin/rmdir', `${dir}/${entry.name}`], { timeoutMs: 5_000 }).catch(() => undefined)
356  }
357  return true
358}
359
360async function compact($: EngineInterface) {
361  try {
362    const r = await $.session.compact()
363    if (r.skip) await notify($, `Compact skipped: ${r.skip}`)
364  } catch (error) {
365    await notify($, error instanceof Error ? error.message : String(error))
366  }
367}
368
369// Opens the band's detail or closes it. Whether it is open persists for new sessions, as keep warm does.
370async function setExpanded($: EngineInterface, change: boolean | 'toggle') {
371  const next = await update($, expandedAtom, open => (change === 'toggle' ? !open : change))
372  await $.store.set('expanded', next)
373  return next
374}
375
376// Tucks the Desktop band away to its chip or brings it back; remembered for new sessions.
377async function setHidden($: EngineInterface, hidden: boolean) {
378  await update($, hiddenAtom, () => hidden)
379  await $.store.set('hidden', hidden)
380}
381
382// The keep-warm toggle, whether the detail is open and whether the band is tucked away persist for
383// new sessions; the rest start from the plugin's settings.
384async function seedSettings($: EngineInterface, cfg: Cfg) {
385  const saved = await $.store.get('keepWarm')
386  await update($, settingsAtom, () => ({ ...DEFAULT_SETTINGS, keepWarm: saved === true, lead: cfg.lead, idleCap: cfg.idleCap }))
387  const expanded = await $.store.get('expanded')
388  await update($, expandedAtom, () => expanded === true)
389  const hidden = await $.store.get('hidden')
390  await update($, hiddenAtom, () => hidden === true)
391  const now = await $.clock.now()
392  await update($, activityAtom, () => now)
393}
394
395// A new conversation has no cache of its own yet. The keep-warm settings stay.
396async function resetConversation($: EngineInterface) {
397  // What was cached stays, so the first request after /clear can still be told apart from a fresh session's.
398  await update($, cacheAtom, c => ({ ...EMPTY_CACHE, cached: c.cached }))
399  await update($, historyAtom, () => [])
400  await update($, totalsAtom, () => EMPTY_TOTALS)
401  await update($, breaksAtom, () => [])
402  await update($, pingsAtom, () => EMPTY_PINGS)
403  await update($, pausedAtom, () => '')
404  await update($, pickerAtom, () => '')
405  await update($, tickAtom, () => 0)
406}
407
408// ---- What the controls do ----
409
410function bandActions($: EngineInterface, cfg: Cfg): Actions {
411  // Choosing an option sets it and closes the list.
412  const choose = async (set: (s: CacheSettings) => CacheSettings) => {
413    await update($, settingsAtom, set)
414    await update($, pickerAtom, () => '')
415  }
416  return {
417    toggleKeepWarm: () => void setKeepWarm($, cfg, 'toggle'),
418    warmNow: () => void warmNow($, cfg),
419    compact: () => void compact($),
420    toggleExpanded: () => void setExpanded($, 'toggle'),
421    hide: () => void setHidden($, true),
422    show: () => void setHidden($, false),
423    togglePicker: which => void update($, pickerAtom, open => (open === which ? '' : which)),
424    setLead: value => void choose(s => ({ ...s, lead: value })),
425    setIdleCap: value => void choose(s => ({ ...s, idleCap: value })),
426  }
427}
428
429async function runCommand($: EngineInterface, cfg: Cfg, args: string): Promise<{ text: string } | Record<string, never>> {
430  const [word = '', value = '', ...extra] = args.trim().split(/\s+/)
431  const usage = { text: `Usage: /${COMMAND} (the detail), /${COMMAND} more|less, /${COMMAND} hide|show, /${COMMAND} warm, /${COMMAND} keep on|off` }
432  // A word the command does not take after an action is a mistake to say, never something to act on.
433  if (extra.length > 0 || (value !== '' && word !== 'keep')) return usage
434  if (word === '') {
435    // With nothing to draw on (a -p run) the answer is text.
436    if ((await $.session.surfaces()).length === 0) return { text: summaryText(await viewOf($, cfg)) }
437    await setHidden($, false)
438    await setExpanded($, true)
439    return {}
440  }
441  if (word === 'hide' || word === 'show') {
442    await setHidden($, word === 'hide')
443    return {}
444  }
445  if (word === 'less' || word === 'more') {
446    if (word === 'more') await setHidden($, false)
447    await setExpanded($, word === 'more')
448    return {}
449  }
450  if (word === 'warm') return { text: pingText(await ping($, cfg)) }
451  if (word === 'keep' && (value === 'on' || value === 'off')) {
452    await setKeepWarm($, cfg, value === 'on')
453    return { text: `Keep warm is ${value}.` }
454  }
455  return usage
456}
457
458export const register: Register = (on, options) => {
459  const cfg = readCfg(options)
460
461  on('session.start', async ($, e, next) => {
462    const started = await next(e)
463    await seedSettings($, cfg)
464    if (cfg.livePrices) void refreshPrices($)
465    // After a reload the entry may still be running, and a resumed session has writes to read the length from.
466    if ((await read($, cacheAtom)).startedAt > 0) startTicker($, cfg)
467    void learnTtl($, cfg)
468    try {
469      await $.command.register({
470        name: COMMAND,
471        description: 'Show the prompt cache, or keep it warm',
472        argumentHint: '[more | less | hide | show | warm | keep on|off]',
473        immediate: true,
474      })
475    } catch {
476      // The command stays unavailable if another mod took the name
477    }
478    return started
479  })
480
481  // /clear, /resume and /branch put the state back to its defaults, so what the person chose is read again.
482  on('classic.SessionStart', { source: ['clear', 'resume', 'fork'] }, async ($, e, next) => {
483    await seedSettings($, cfg)
484    if (e.source !== 'clear' && e.seconds_since_last_response !== undefined) {
485      const idleMs = e.seconds_since_last_response * 1000
486      const startedAt = (await $.clock.now()) - idleMs
487      await update($, cacheAtom, c => ({ ...c, startedAt, model: e.model ?? '', ctx: e.context_tokens ?? 0, cached: e.context_tokens ?? 0 }))
488      rt.pending = e.prompt_cache_likely_expired ? { kind: 'idle', idleMs } : null
489      startTicker($, cfg)
490      void learnTtl($, cfg)
491    }
492    return next(e)
493  })
494
495  on('session.end', async ($, e, next) => {
496    rt.pending = e.reason === 'clear' ? { kind: 'cleared' } : null
497    rt.isTurnRunning = false
498    if (e.reason === 'clear') await resetConversation($)
499    return next(e)
500  })
501
502  on('session.compact', async ($, e, next) => {
503    const result = await next(e)
504    if (!e.agentId && e.trigger !== 'precompute' && !result.skip) rt.pending = { kind: 'compacted' }
505    return result
506  })
507
508  on('classic.PostModelSwitch', async ($, e, next) => {
509    const ms = e.cache_ttl === '5m' ? 300_000 : 3_600_000
510    if (cfg.ttl === 'auto') await update($, cacheAtom, c => (c.ttlMs === ms ? c : { ...c, ttlMs: ms }))
511    return next(e)
512  })
513
514  on('turn.start', async ($, e, next) => {
515    rt.isTurnRunning = true
516    const now = await $.clock.now()
517    await update($, activityAtom, () => now)
518    await update($, pausedAtom, () => '')
519    return next(e)
520  })
521
522  on('turn.complete', async ($, e, next) => {
523    const done = await next(e)
524    if (!e.agentId) {
525      rt.isTurnRunning = false
526      void learnTtl($, cfg)
527    }
528    return done
529  })
530
531  // Each request of the main conversation: when it started and what it read and wrote. The stream
532  // passes through untouched.
533  on('turn.step', async function* ($, e, next) {
534    const startedAt = e.agentId ? 0 : await $.clock.now()
535    const result = yield* next(e)
536    if (!e.agentId) {
537      try {
538        await noteRequest($, cfg, startedAt, result.usage)
539      } catch {
540        // Keeping the numbers must never break the turn
541      }
542    }
543    return result
544  })
545
546  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
547    const v = await viewOf($, cfg)
548    // Before the first request the band draws only once asked for, to say there is no cache yet.
549    if (e.props.hasSurvey || e.props.view.agentId || (v.cache.startedAt === 0 && !v.expanded)) return next(e)
550    // What the mods after this one draw here stays, under the band.
551    const rest = await next(e)
552    const actions = bandActions($, cfg)
553    const el = $.ui.resolve(e)
554    if (e.surface === 'desktop') return desktopBand(el as ElementTable<'desktop'>, v, actions, rest)
555    return terminalBand(el as ElementTable<'terminal'>, v, e.props.bodyColumns, actions, rest)
556  })
557
558  on('command.run', { command: COMMAND }, async ($, e) => runCommand($, cfg, e.args))
559}
560

1import type { ElementTable } from 'claude-code'
2
3import type { Req } from '../types'
4import { fmtApprox, fmtClock, fmtLocalTime, fmtPct, fmtTokens } from './format'
5import { flowRows, wrapWords } from './layout'
6import { hitRate, lastRequest, pingsItems, rewriteCost, sessionHitRate, stateTone, stateWord, ttlLabel, type Tone, type View } from './view'
7
8// Everything Cache Maxxer shows lives in the band above the prompt: one line by default, at the
9// bottom by the prompt, with the session's detail above it once opened and the keep-warm choices
10// above it whenever keep warm is on. This file draws it in the terminal; desktop.tsx in the app.
11
12// The terminal draws in the person's own theme: each tone is a theme key, and plain text keeps the
13// terminal's own color.
14const THEME: Record<Tone, string | null> = {
15  fg: null,
16  muted: 'inactive',
17  warm: 'success',
18  warn: 'warning',
19  danger: 'error',
20  accent: 'claude',
21}
22
23const colorProps = (tone: Tone) => {
24  const key = THEME[tone]
25  return key === null ? {} : { color: key }
26}
27
28const fillProps = (tone: Tone) => ({ backgroundColor: THEME[tone] ?? 'text' })
29
30export type Actions = {
31  toggleKeepWarm: () => void
32  warmNow: () => void
33  compact: () => void
34  toggleExpanded: () => void
35  // Tucks the Desktop band away to a small chip, and brings it back
36  hide: () => void
37  show: () => void
38  // Opens a keep-warm choice's options, or closes them if that one is open
39  togglePicker: (which: 'lead' | 'cap') => void
40  setLead: (value: string) => void
41  setIdleCap: (value: string) => void
42}
43
44// A run with `fill` is drawn as cells of solid color, its text only spaces.
45type Run = { text: string; tone: Tone; bold?: boolean; fill?: boolean }
46
47const muted = (text: string): Run => ({ text, tone: 'muted' })
48const fig = (text: string, bold?: boolean): Run => ({ text, tone: 'fg', ...(bold ? { bold } : {}) })
49
50const runsLength = (runs: readonly Run[]) => runs.reduce((n, r) => n + r.text.length, 0)
51
52// Neighbouring runs of one tone draw as one piece of text.
53function mergeRuns(runs: readonly Run[]): Run[] {
54  const out: Run[] = []
55  for (const r of runs) {
56    const prev = out[out.length - 1]
57    if (prev && prev.tone === r.tone && prev.bold === r.bold && prev.fill === r.fill) prev.text += r.text
58    else out.push({ ...r })
59  }
60  return out
61}
62
63// ---- The controls ----
64
65export type ButtonSpec = { key: string; label: string; isPrimary: boolean; isDim?: boolean; hotkey?: string; press: () => void }
66
67// The buttons on the first line: keep warm, the action the state calls for, and the one that opens
68// or closes the detail. Each has a key that presses it while the band has the focus.
69export function mainButtons(v: View, a: Actions): ButtonSpec[] {
70  const hasCache = v.cache.startedAt > 0
71  const specs: ButtonSpec[] = [
72    { key: 'keep', label: `Keep warm: ${v.settings.keepWarm ? 'on' : 'off'}`, isPrimary: v.settings.keepWarm, hotkey: 'k', press: a.toggleKeepWarm },
73  ]
74  // A ping takes a few seconds to come back; meanwhile the button says it is on its way.
75  if (hasCache && !v.isExpired) specs.push({ key: 'warm', label: v.isPinging ? 'Warming…' : 'Warm now', isPrimary: false, isDim: v.isPinging, hotkey: 'w', press: a.warmNow })
76  if (hasCache && v.isExpired) specs.push({ key: 'compact', label: 'Compact', isPrimary: false, hotkey: 'c', press: a.compact })
77  // The detail opens above the first line, so the arrows point up to open and down to close.
78  specs.push({ key: 'more', label: v.expanded ? 'Less ▾' : 'More ▴', isPrimary: false, hotkey: 'm', press: a.toggleExpanded })
79  return specs
80}
81
82// ---- The first line: the countdown, how long the cache lives and how well it hit ----
83
84// One piece of the first line. A piece with `alts` has shorter wordings, longest first; one marked
85// `isShrunkLast` gives up room only once every wording has. No piece is ever left out: a band too
86// narrow for them all beside the buttons gives them rows of their own.
87type Item = { key: string; runs: Run[]; alts?: Run[][]; isShrunkLast?: boolean }
88
89const TRACK = 10
90const SHORT_TRACK = 6
91
92const stateDot = (tone: Tone) => (tone === 'muted' ? '○' : '●')
93
94function statusItems(v: View): Item[] {
95  const tone = stateTone(v)
96  if (v.cache.startedAt === 0) {
97    return [{ key: 'state', runs: [muted('○ '), muted('No cache yet'), muted(' · it starts with your next message')], alts: [[muted('○ No cache yet')]] }]
98  }
99  if (v.isExpired) {
100    const cost = rewriteCost(v)
101    const price = cost === null ? '' : ` (${fmtApprox(cost)})`
102    const tokens = v.cache.ctx > 0 ? fmtTokens(v.cache.ctx) : 'everything'
103    const what = v.cache.ctx > 0 ? `${tokens} tokens` : 'the whole context'
104    return [
105      { key: 'state', runs: [muted('○ '), { text: 'expired', tone: 'muted', bold: true }] },
106      {
107        key: 'rewrite',
108        runs: [muted(`next message re-writes ${what}${price}`)],
109        alts: [[muted(`next message re-writes ${tokens}${price}`)], [muted(`re-writes ${tokens}${price}`)]],
110      },
111    ]
112  }
113  const items: Item[] = [{ key: 'state', runs: [{ text: `${stateDot(tone)} `, tone }, { text: fmtClock(v.leftMs, v.ttl.ms), tone, bold: true }] }]
114  // A solid bar: the life left in the state's color over a dim track. Colored cells, not block
115  // characters, so no font draws seams between them. It shortens only to keep the line whole.
116  const bar = (cells: number): Run[] => {
117    const filled = Math.round(Math.min(1, Math.max(0, v.leftMs / v.ttl.ms)) * cells)
118    return [{ text: ' '.repeat(filled), tone, fill: true }, { text: ' '.repeat(cells - filled), tone: 'muted', fill: true }]
119  }
120  items.push({ key: 'track', runs: bar(TRACK), alts: [bar(SHORT_TRACK)], isShrunkLast: true })
121  if (tone !== 'warm') items.push({ key: 'word', runs: [{ text: stateWord(v).toLowerCase(), tone }] })
122  const isHour = v.ttl.ms >= 600_000
123  items.push({ key: 'length', runs: [muted(ttlLabel(v))], alts: [[muted(v.ttl.isKnown ? (isHour ? '1h cache' : '5m cache') : '1h, assumed')]] })
124  const last = lastRequest(v)
125  if (last) items.push({ key: 'hit', runs: hitRuns(v, last), alts: [hitRuns(v, last, true)] })
126  return items
127}
128
129// The last request's hit rate and the session's, side by side: "hit 99.94% last request · 94.12%
130// this session", or in a narrow band "request 99.94% · session 94.12%".
131function hitRuns(v: View, last: Req, isShort = false): Run[] {
132  const now = fig(fmtPct(hitRate(last)), true)
133  const session = fig(fmtPct(sessionHitRate(v)), true)
134  return isShort
135    ? [muted('request '), now, muted(' · session '), session]
136    : [muted('hit '), now, muted(' last request · '), session, muted(' this session')]
137}
138
139const ITEM_GAP = 2
140const itemsWidth = (items: readonly Item[]) => items.reduce((n, it) => n + runsLength(it.runs), 0) + ITEM_GAP * Math.max(0, items.length - 1)
141
142// The first line in `room`, every piece in the fullest wording that fits: the full wordings, else
143// pieces shortened in order, left to right, the bar last, until the line fits. Null when even the
144// shortest wordings do not fit.
145function fitItems(items: readonly Item[], room: number): Item[] | null {
146  const out = [...items]
147  const order = [...out.keys()].sort((x, y) => Number(Boolean(out[x]!.isShrunkLast)) - Number(Boolean(out[y]!.isShrunkLast)) || x - y)
148  for (const i of order) {
149    if (itemsWidth(out) <= room) break
150    const it = out[i]!
151    for (const runs of it.alts ?? []) {
152      out[i] = { ...it, runs }
153      if (itemsWidth(out) <= room) break
154    }
155  }
156  return itemsWidth(out) <= room ? out : null
157}
158
159// ---- The detail rows ----
160
161// One thing on a detail row: text, or a button.
162type Cell = { key: string; width: number; runs?: Run[]; button?: ButtonSpec }
163
164const textCell = (key: string, runs: Run[]): Cell => ({ key, width: runsLength(runs), runs })
165
166// Text wider than the room is cut at its spaces into cells of a row each.
167function textCells(key: string, runs: Run[], room: number): Cell[] {
168  if (runsLength(runs) <= room) return [textCell(key, runs)]
169  const tone = runs[0]?.tone ?? 'muted'
170  return wrapWords(runs.map(r => r.text).join(''), room).map((line, i) => textCell(`${key}-${i}`, [{ text: line, tone }]))
171}
172
173const SEP = ' · '
174// Two texts side by side are joined by a dot; a button keeps two spaces from what is beside it.
175const gapBetween = (a: Cell, b: Cell) => (a.runs && b.runs ? SEP.length : 2)
176
177function flowCells(cells: readonly Cell[], room: number): Cell[][] {
178  const rows: Cell[][] = []
179  let used = 0
180  for (const c of cells) {
181    const row = rows[rows.length - 1]
182    const gap = row ? gapBetween(row[row.length - 1]!, c) : 0
183    if (row && used + gap + c.width <= room) {
184      row.push(c)
185      used += gap + c.width
186    } else {
187      rows.push([c])
188      used = c.width
189    }
190  }
191  return rows
192}
193
194// What one surface draws differently: how wide a button is, in the columns the room is measured in.
195type Surface = { buttonWidth: (label: string) => number }
196
197// The common part of both surfaces' element tables; the rows use nothing else.
198type Common = ElementTable<'terminal'>
199
200function buttonEl(el: Common, b: ButtonSpec) {
201  const { Button } = el
202  return (
203    <Button
204      key={b.key}
205      label={b.label}
206      onPress={b.press}
207      {...(b.hotkey ? { hotkey: b.hotkey } : {})}
208      {...(b.isPrimary ? { variant: 'primary' as const } : {})}
209      {...(b.isDim ? { dimColor: true } : {})}
210    />
211  )
212}
213
214// Runs side by side, each in its own tone.
215function textEl(el: Common, runs: readonly Run[], key: string) {
216  const { Box, Text } = el
217  return (
218    <Box key={key} flexDirection="row">
219      {mergeRuns(runs).map((r, i) => (
220        <Text key={`${key}-${i}`} {...(r.fill ? fillProps(r.tone) : colorProps(r.tone))} {...(r.bold ? { bold: true } : {})}>
221          {r.text}
222        </Text>
223      ))}
224    </Box>
225  )
226}
227
228// A section's label in a column of fixed width, so the values of every section start in one place.
229type Label = { text: string; width: number }
230
231function labelEl(el: Common, label: Label, key: string) {
232  const { Box, Text } = el
233  return (
234    <Box key={key} width={label.width} flexShrink={0}>
235      <Text {...colorProps('muted')}>{label.text}</Text>
236    </Box>
237  )
238}
239
240// One drawn row: its cells left to right, texts joined by a dot, buttons two spaces from their
241// neighbours, after the section's label column (`label` null: no column).
242function cellRow(el: Common, cells: readonly Cell[], key: string, label: Label | null = null) {
243  const { Box } = el
244  const parts: JSX.Element[] = label === null ? [] : [labelEl(el, label, `${key}-label`)]
245  let text: Run[] = []
246  const flush = (k: string) => {
247    if (text.length > 0) parts.push(textEl(el, text, k))
248    text = []
249  }
250  cells.forEach((c, i) => {
251    const prev = cells[i - 1]
252    if (prev) text.push(muted(prev.runs && c.runs ? SEP : '  '))
253    if (c.button) {
254      flush(`${key}-t${i}`)
255      parts.push(buttonEl(el, c.button))
256    } else {
257      text.push(...c.runs!)
258    }
259  })
260  flush(`${key}-end`)
261  return (
262    <Box key={key} flexDirection="row" alignItems="center">
263      {parts}
264    </Box>
265  )
266}
267
268// The rows of one labelled section: the label in a column of its own where the band is wide enough,
269// else on a line above its values.
270const LABEL_COLUMN = 18
271const MIN_LABELLED = 56
272
273type Section = { key: string; label: string; cells: (room: number) => Cell[] }
274
275// Narrow, the values sit under their label, indented this much.
276const INDENT = 2
277
278function sectionRows(el: Common, s: Section, columns: number): JSX.Element[] {
279  const isBeside = columns >= MIN_LABELLED
280  const room = isBeside ? columns - LABEL_COLUMN : columns - INDENT
281  const rows = flowCells(s.cells(room), room)
282  const out: JSX.Element[] = []
283  if (!isBeside) out.push(textEl(el, [{ text: s.label, tone: 'muted', bold: true }], `${s.key}-heading`))
284  // Beside: the label on the section's first row, an empty column under it. Under: an indent.
285  const labelOf = (i: number): Label => (isBeside ? { text: i === 0 ? s.label : '', width: LABEL_COLUMN } : { text: '', width: INDENT })
286  rows.forEach((row, i) => out.push(cellRow(el, row, `${s.key}${i}`, labelOf(i))))
287  return out
288}
289
290// ---- The session's numbers ----
291
292function sessionCells(v: View): Cell[] {
293  const t = v.totals
294  if (t.requests === 0) return [textCell('none', [muted('No requests yet')])]
295  const cells = [
296    textCell('rate', [fig(fmtPct(sessionHitRate(v)), true), muted(' hit')]),
297    textCell('requests', [fig(String(t.requests)), muted(t.requests === 1 ? ' request' : ' requests')]),
298    textCell('read', [fig(fmtTokens(t.read)), muted(' read')]),
299    textCell('written', [fig(fmtTokens(t.written)), muted(' written')]),
300  ]
301  // The write cost, then what the cache saved, the session's key figure, last.
302  if (t.isPriced) cells.push(textCell('writes', [muted('write cost '), fig(fmtApprox(t.writeCostUsd))]), textCell('saved', [muted('saved '), fig(fmtApprox(t.savingsUsd))]))
303  return cells
304}
305
306// ---- The last requests: a dot each, a red mark where the cache read dropped ----
307
308const RECENT = 10
309
310function recentCells(v: View, room: number): Cell[] {
311  const shown = v.history.slice(-RECENT)
312  const marks = shown.flatMap((r, i): Run[] => [...(i > 0 ? [muted(' ')] : []), r.isBreak ? { text: '▲', tone: 'danger' } : { text: '●', tone: 'warm' }])
313  const breaks = shown.filter(r => r.isBreak).length
314  const words = breaks === 0 ? 'no cache break' : breaks === 1 ? '1 cache break' : `${breaks} cache breaks`
315  return [textCell('marks', marks), ...textCells('recent-key', [muted(words)], room)]
316}
317
318// The section's label counts the requests its dots stand for.
319const recentLabel = (v: View) => {
320  const n = Math.min(RECENT, v.history.length)
321  return n === 1 ? 'Last request' : `Last ${n} requests`
322}
323
324// ---- The latest break ----
325
326function breakCells(v: View, room: number): Cell[] {
327  const latest = v.breaks[v.breaks.length - 1]
328  if (!latest) return []
329  const more = v.breaks.length - 1
330  return [
331    textCell('at', [fig(fmtLocalTime(latest.at))]),
332    textCell('rewritten', [fig(fmtTokens(latest.written)), muted(' re-written')]),
333    ...(latest.costUsd !== null ? [textCell('cost', [fig(fmtApprox(latest.costUsd))])] : []),
334    ...textCells('cause', [muted(latest.cause)], room),
335    ...(more > 0 ? [textCell('more', [muted(`and ${more} more`)])] : []),
336  ]
337}
338

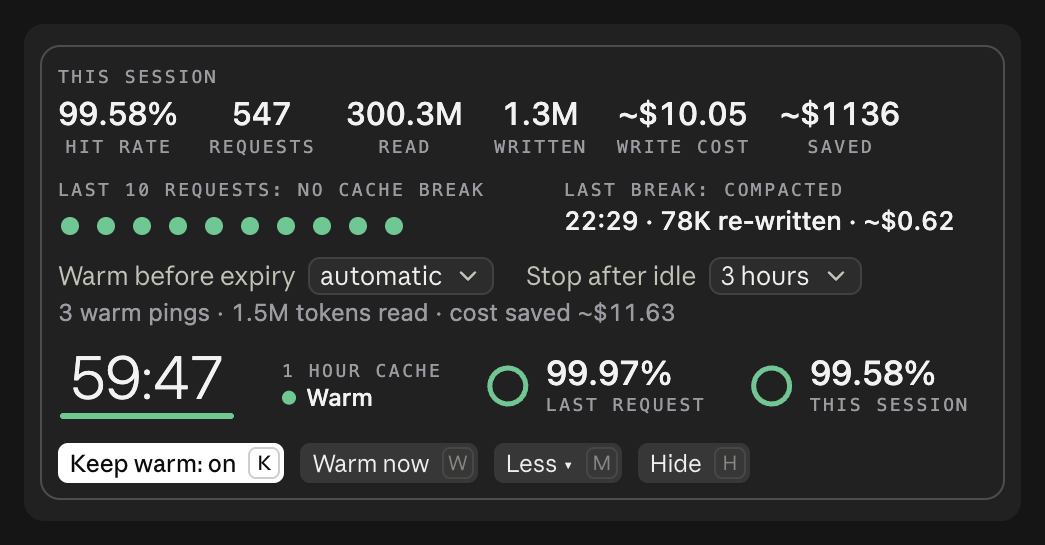

339// ---- Keep warm: its two choices and what it has done ----
340
341type Option = { value: string; label: string }
342
343export const OPTIONS: Record<'lead' | 'cap', readonly Option[]> = {
344  lead: [
345    { value: 'auto', label: 'automatic' },
346    { value: '1m', label: '1 minute' },
347    { value: '2m', label: '2 minutes' },
348    { value: '4m', label: '4 minutes' },
349    { value: '8m', label: '8 minutes' },
350  ],
351  cap: [
352    { value: '1h', label: '1 hour' },
353    { value: '3h', label: '3 hours' },
354    { value: '8h', label: '8 hours' },
355    { value: 'none', label: 'never' },
356  ],
357}
358
359// What each choice is called, in full and, for a band where the full names take a row more, short.
360type Names = Record<'lead' | 'cap', string>
361export const FULL_NAMES: Names = { lead: 'Warm before expiry', cap: 'Stop after idle' }
362const SHORT_NAMES: Names = { lead: 'Warm', cap: 'Stop' }
363const CHOICE_HINT = 'click to change'
364
365export const currentOf = (v: View, which: 'lead' | 'cap') => (which === 'lead' ? v.settings.lead : v.settings.idleCap)
366
367// The two choices as buttons that open their options, then whether keep warm has paused. Each ping
368// already gets its own notice, so the running count waits for the detail.
369function choiceCells(v: View, a: Actions, s: Surface, names: Names, room: number): Cell[] {
370  const choice = (which: 'lead' | 'cap'): Cell => {
371    const label = `${names[which]}: ${OPTIONS[which].find(o => o.value === currentOf(v, which))?.label ?? ''} ${v.picker === which ? '▾' : '▴'}`
372    return { key: which, width: s.buttonWidth(label), button: { key: which, label, isPrimary: false, press: () => a.togglePicker(which) } }
373  }
374  const items = v.expanded ? pingsItems(v) : []
375  if (v.paused !== '') items.push(names === FULL_NAMES ? `Paused: you have been idle for ${v.paused}.` : `Paused: idle for ${v.paused}.`)
376  return [choice('lead'), choice('cap'), ...items.flatMap((text, i) => textCells(`ping${i}`, [muted(text)], room))]
377}
378
379function keepWarmCells(v: View, a: Actions, s: Surface, room: number): Cell[] {
380  // The full names unless the short ones save a row.
381  const full = choiceCells(v, a, s, FULL_NAMES, room)
382  const short = choiceCells(v, a, s, SHORT_NAMES, room)
383  const cost = (cells: Cell[]) => (cells.some(c => c.width > room) ? 1000 : 0) + flowCells(cells, room).length
384  const cells = cost(short) < cost(full) ? short : full
385  // The hint rides on the last row only where it fits, so it never costs a row, and goes while a
386  // choice is open.
387  const hint = textCell('hint', [muted(CHOICE_HINT)])
388  if (v.picker !== '') return cells
389  return flowCells([...cells, hint], room).length === flowCells(cells, room).length ? [...cells, hint] : cells
390}
391
392// The keep-warm section, with an open choice's options listed one per row directly above the button
393// that opened them, starting in its column, the current one highlighted. Picking one sets it and
394// closes the list; the choice's own button closes it unchanged. It carries no label: it shows only
395// while keep warm is on, and its choices say what they are.
396function keepWarmRows(el: Common, v: View, a: Actions, s: Surface, columns: number): JSX.Element[] {
397  const { Box } = el
398  const isBeside = columns >= MIN_LABELLED
399  const room = isBeside ? columns - LABEL_COLUMN : columns - INDENT
400  const rows = flowCells(keepWarmCells(v, a, s, room), room)
401  const blank: Label = { text: '', width: isBeside ? LABEL_COLUMN : INDENT }
402  const drawn = rows.map((row, i) => cellRow(el, row, `keepwarm${i}`, blank))
403  const out: JSX.Element[] = []
404  const which = v.picker
405  const at = which === '' ? -1 : rows.findIndex(row => row.some(c => c.key === which))
406  if (at < 0) return [...out, ...drawn]
407  // Where the open choice starts in its row, in the columns its cells and their gaps take.
408  const row = rows[at]!
409  let x = 0
410  for (let i = 0; row[i]!.key !== which; i++) x += row[i]!.width + gapBetween(row[i]!, row[i + 1]!)
411  const choose = which === 'lead' ? a.setLead : a.setIdleCap
412  const options = OPTIONS[which].map(o => (
413    <Box key={`${which}-option-${o.value}`} flexDirection="row" alignItems="center">
414      {labelEl(el, blank, `${which}-option-${o.value}-label`)}
415      {x > 0 ? <Box width={x} flexShrink={0} /> : null}
416      {buttonEl(el, { key: `${which}:${o.value}`, label: o.label, isPrimary: o.value === currentOf(v, which), press: () => choose(o.value) })}
417    </Box>
418  ))
419  return [...out, ...drawn.slice(0, at), ...options, ...drawn.slice(at)]
420}
421
422// ---- The band ----
423
424type Parts = {
425  // The first line's status, fitted to a room
426  status: (room: number) => { node: JSX.Element; width: number } | null
427  // The status on rows of its own, for a band too narrow to hold it beside the buttons
428  statusRows: (room: number) => JSX.Element[]
429}
430
431const FRAME_COLUMNS = 4
432
433function bandBody(el: Common, v: View, columns: number, a: Actions, s: Surface, p: Parts, rest: JSX.Element) {
434  const { Box } = el
435  // The band sits in a rounded frame, one cell of padding inside it.
436  const room = Math.max(20, columns - FRAME_COLUMNS)
437  const buttons = mainButtons(v, a)
438  const buttonCells: Cell[] = buttons.map(b => ({ key: b.key, width: s.buttonWidth(b.label), button: b }))
439  const buttonsWidth = buttonCells.reduce((n, c) => n + c.width, 0) + 2 * Math.max(0, buttonCells.length - 1)
440
441  // The status and the buttons on one line where they fit, three columns apart; else the status on
442  // its own line or lines, and the buttons under it.
443  const beside = p.status(room - buttonsWidth - 3)
444  const buttonRow = (row: readonly Cell[], key: string) => (
445    <Box key={key} flexDirection="row" columnGap={2} alignItems="center">
446      {row.map(c => buttonEl(el, c.button!))}
447    </Box>
448  )
449  const main: JSX.Element[] = beside
450    ? [
451        <Box key="top" flexDirection="row" justifyContent="space-between" alignItems="center">
452          {beside.node}
453          {buttonRow(buttonCells, 'buttons')}
454        </Box>,
455      ]
456    : [...p.statusRows(room), ...flowRows(buttonCells, c => c.width, 2, room).map((row, i) => buttonRow(row, `buttons${i}`))]
457
458  // The first line stays at the bottom, next to the prompt: the detail, the keep-warm row and an open
459  // choice's options all open above it.
460  const lines: JSX.Element[] = []
461  if (v.expanded) {
462    lines.push(...sectionRows(el, { key: 'session', label: 'This session', cells: () => sessionCells(v) }, room))
463    if (v.history.length > 0) lines.push(...sectionRows(el, { key: 'recent', label: recentLabel(v), cells: r => recentCells(v, r) }, room))
464    if (v.breaks.length > 0) lines.push(...sectionRows(el, { key: 'break', label: 'Last break', cells: r => breakCells(v, r) }, room))
465  }
466  if (v.settings.keepWarm) lines.push(...keepWarmRows(el, v, a, s, room))
467  // A blank row keeps the solid bar of the first line clear of the row above it.
468  if (lines.length > 0) lines.push(<Box key="above-main" height={1} />)
469  lines.push(...main)

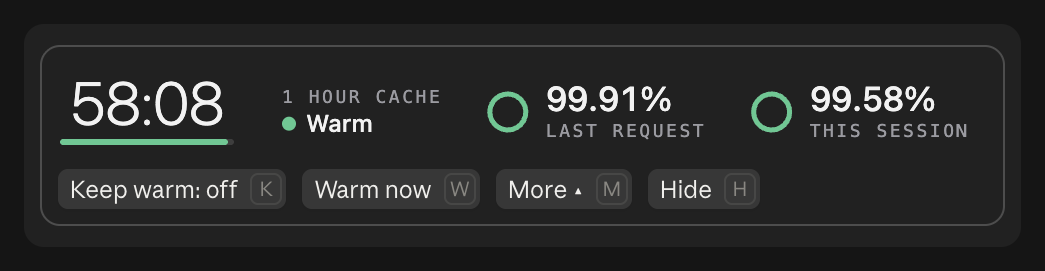

470  // The frame keeps the band apart from the conversation and from Claude's working lines over it.
471  return (
472    <Box flexDirection="column">
473      <Box flexDirection="column" borderStyle="round" borderColor={THEME.muted ?? 'inactive'} paddingX={1}>
474        {lines}
475      </Box>
476      {rest}
477    </Box>
478  )
479}
480
481// ---- Terminal ----
482
483export function terminalBand(el: ElementTable<'terminal'>, v: View, columns: number, a: Actions, rest: JSX.Element) {
484  const { Box } = el
485  const items = statusItems(v)
486  const itemsEl = (list: readonly Item[], key: string) => (
487    <Box key={key} flexDirection="row">
488      {textEl(el, list.flatMap((it, i) => (i === 0 ? it.runs : [muted(' '.repeat(ITEM_GAP)), ...it.runs])), `${key}-t`)}
489    </Box>
490  )
491  return bandBody(el, v, columns, a, { buttonWidth: label => label.length + 4 }, {
492    status: room => {
493      const fit = fitItems(items, room)
494      return fit ? { node: itemsEl(fit, 'status'), width: itemsWidth(fit) } : null
495    },
496    // Too narrow for the status beside the buttons: the pieces flow onto rows of their own, each in
497    // the fullest wording its row holds, nothing dropped.
498    statusRows: room => {
499      // One row of its own where the pieces fit it shortened; else as many rows as they need.
500      const one = fitItems(items, room)
501      if (one) return [itemsEl(one, 'status0')]
502      const fitted = items.map(it => {
503        if (runsLength(it.runs) <= room || !it.alts) return it
504        return { ...it, runs: it.alts.find(r => runsLength(r) <= room) ?? it.alts[it.alts.length - 1]! }
505      })
506      return flowRows(fitted, it => runsLength(it.runs), ITEM_GAP, room).map((row, i) => itemsEl(row, `status${i}`))
507    },
508  }, rest)
509}
510
511// ---- Shared with the Desktop band (desktop.tsx) ----
512
513// Text width in pixels, estimated by character class (measured against the system font): an SVG
514// cannot measure its own text, and a little too wide is safer than overlapping.
515export function textPx(text: string, bold = false): number {
516  let w = 0
517  for (const c of text) {
518    if (/[0-9$~]/.test(c)) w += 0.58
519    else if (c === ' ' || /[.:,'|]/.test(c)) w += 0.26
520    else if (/[ilj]/.test(c)) w += 0.24
521    else if (/[trf]/.test(c)) w += 0.32
522    else if (c === 'm') w += 0.75
523    else if (c === 'w') w += 0.62
524    else if (c === '%') w += 0.8
525    else if (c === '·') w += 0.3
526    else if (/[MW]/.test(c)) w += 0.85
527    else if (/[A-Z]/.test(c)) w += 0.62
528    else w += 0.48
529  }
530  return w * 12 * (bold ? 1.06 : 1) * 1.03
531}
532

1import type { ElementTable } from 'claude-code'
2
3import { currentOf, FULL_NAMES, mainButtons, OPTIONS, textPx, type Actions, type ButtonSpec } from './band'
4import { fmtApprox, fmtClock, fmtLocalTime, fmtPct, fmtTokens } from './format'
5import { wrapWords } from './layout'
6import { hitRate, lastRequest, pingsItems, rewriteCost, sessionHitRate, stateTone, stateWord, ttlLabel, type Tone, type View } from './view'
7
8// The Desktop app's band. The same pieces as the terminal's, drawn the way a window can: the
9// countdown as a large light numeral over a track that drains, the two hit rates beside it with a
10// ring each, the session's numbers as tiles, the last requests as a row of marks, and the keep-warm
11// choices as the app's own menus. The first line stays at the bottom, by the input box; what opens,
12// opens above it.
13
14type Desktop = ElementTable<'desktop'>
15
16// The drawings are images, so they cannot name the app's theme: they carry a light and a dark
17// palette of their own and follow the system's appearance.
18const STYLE =
19  '<style>' +
20  'svg{--fg:#1d1d1f;--muted:#6e6e73;--faint:rgba(0,0,0,.09);--warm:#2f9e6a;--warn:#c47a14;--danger:#d93f3f;--accent:#c96442}' +
21  '@media (prefers-color-scheme:dark){svg{--fg:#f2f2f2;--muted:#9b9ba1;--faint:rgba(255,255,255,.13);--warm:#4cc98f;--warn:#f0a73a;--danger:#ff6b6b;--accent:#e08a6c}}' +
22  'text{font-family:-apple-system,BlinkMacSystemFont,"SF Pro Text","Segoe UI",system-ui,sans-serif;font-variant-numeric:tabular-nums;fill:var(--fg)}' +
23  '.label{font-family:ui-monospace,"SF Mono",Menlo,Consolas,monospace;font-size:9px;letter-spacing:.14em;fill:var(--muted)}' +
24  '.muted{fill:var(--muted)}' +
25  '</style>'
26
27const TONE_VAR: Record<Tone, string> = {
28  fg: 'var(--fg)',
29  muted: 'var(--muted)',
30  warm: 'var(--warm)',
31  warn: 'var(--warn)',
32  danger: 'var(--danger)',
33  accent: 'var(--accent)',
34}
35
36const esc = (t: string) => t.replace(/&/g, '&amp;').replace(/</g, '&lt;').replace(/>/g, '&gt;').replace(/"/g, '&quot;')
37
38const svg = (width: number, height: number, body: string) =>
39  `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${height}" viewBox="0 0 ${width} ${height}">${STYLE}${body}</svg>`
40
41// Pixels a run of text takes at a size, by the same estimate the drawings are laid out with, with
42// room to spare: a drawing's text cannot reflow, so too wide is safe and too narrow cuts it off.
43const px = (text: string, size: number, bold = false) => textPx(text, bold) * (size / 12) * 1.15
44
45// The ink a spaced label actually takes: the monospace advance is 0.6 of the size, plus the spacing
46// between characters. The first line spaces its blocks by this, so it is the real width, not padded.
47const labelInk = (text: string) => text.length * 9 * 0.6 + Math.max(0, text.length - 1) * 9 * 0.14
48
49// Each character's advance in the drawings' type, measured from the font itself at every size and
50// weight the drawings use, in the order of ADVANCE_CHARS; a drawing's text cannot reflow, so its
51// width comes from these rather than an estimate.
52const ADVANCE_CHARS = "0123456789 !\"#$%&'()*+,-./:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[]_abcdefghijklmnopqrstuvwxyz~·…"
53const ADVANCES: Record<string, number[]> = {
54  '12/400': [7.56, 7.56, 7.56, 7.56, 7.56, 7.56, 7.56, 7.56, 7.56, 7.56, 3.38, 3.73, 5.73, 7.56, 7.56, 11.11, 8.48, 3.56, 4.58, 4.58, 5.66, 7.09, 3.56, 5.19, 3.56, 3.66, 3.56, 3.56, 7.2, 6.73, 7.2, 6.16, 11.02, 7.97, 7.89, 8.47, 8.59, 7.14, 6.86, 8.84, 8.91, 3.2, 6.45, 7.91, 6.81, 10.48, 8.91, 9.02, 7.62, 9.02, 7.84, 7.64, 6.2, 8.84, 7.73, 11.27, 8.14, 7.05, 7.94, 4.58, 4.58, 7, 6.62, 7.08, 6.42, 7.08, 6.33, 4.58, 7.02, 7.06, 2.97, 2.95, 6.52, 3.03, 10.44, 7, 6.5, 7.03, 7.02, 4.56, 6.05, 4.36, 7, 6.5, 9.3, 6.3, 6.52, 6.47, 7.56, 3.2, 9.66],
55  '12/500': [7.73, 7.73, 7.73, 7.73, 7.73, 7.73, 7.73, 7.73, 7.73, 7.73, 3.28, 3.92, 6.09, 7.73, 7.73, 11.55, 8.55, 3.78, 4.78, 4.78, 5.72, 7.27, 3.78, 5.25, 3.78, 3.78, 3.78, 3.78, 7.39, 6.95, 7.39, 6.33, 10.98, 8.19, 8.02, 8.58, 8.69, 7.27, 6.97, 8.91, 9.08, 3.42, 6.69, 8.08, 6.92, 10.62, 9.02, 9.09, 7.78, 9.09, 8.02, 7.81, 6.55, 8.89, 7.97, 11.47, 8.36, 7.2, 8, 4.78, 4.78, 7.19, 6.75, 7.22, 6.48, 7.22, 6.42, 4.77, 7.16, 7.25, 3.12, 3.12, 6.75, 3.22, 10.69, 7.19, 6.59, 7.17, 7.16, 4.8, 6.17, 4.56, 7.19, 6.67, 9.59, 6.52, 6.73, 6.59, 7.73, 3.36, 10.27],
56  '13/500': [8.3, 8.3, 8.3, 8.3, 8.3, 8.3, 8.3, 8.3, 8.3, 8.3, 3.48, 4.17, 6.53, 8.3, 8.3, 12.44, 9.17, 4.02, 5.09, 5.09, 6.11, 7.78, 4.02, 5.61, 4.02, 4.02, 4.02, 4.02, 7.92, 7.45, 7.92, 6.78, 11.81, 8.8, 8.61, 9.22, 9.33, 7.78, 7.47, 9.56, 9.75, 3.62, 7.16, 8.67, 7.42, 11.42, 9.69, 9.77, 8.34, 9.77, 8.59, 8.38, 7.02, 9.55, 8.55, 12.34, 8.97, 7.72, 8.59, 5.09, 5.09, 7.7, 7.23, 7.73, 6.94, 7.73, 6.88, 5.08, 7.67, 7.77, 3.31, 3.31, 7.23, 3.41, 11.5, 7.7, 7.06, 7.69, 7.67, 5.11, 6.59, 4.86, 7.7, 7.16, 10.31, 6.98, 7.22, 7.06, 8.3, 3.56, 11.03],
57  '16/500': [9.98, 9.98, 9.98, 9.98, 9.98, 9.98, 9.98, 9.98, 9.98, 9.98, 4.06, 4.91, 7.81, 9.98, 9.98, 15.08, 11.08, 4.72, 6.05, 6.05, 7.31, 9.36, 4.72, 6.69, 4.72, 4.72, 4.72, 4.72, 9.53, 8.95, 9.53, 8.12, 14.33, 10.61, 10.38, 11.12, 11.27, 9.36, 8.98, 11.55, 11.78, 4.25, 8.59, 10.45, 8.92, 13.84, 11.7, 11.8, 10.06, 11.8, 10.36, 10.09, 8.42, 11.53, 10.31, 14.98, 10.83, 9.28, 10.36, 6.05, 6.05, 9.27, 8.69, 9.3, 8.33, 9.3, 8.25, 6.03, 9.22, 9.34, 3.86, 3.86, 8.69, 3.97, 13.94, 9.27, 8.47, 9.23, 9.23, 6.08, 7.91, 5.77, 9.27, 8.58, 12.47, 8.38, 8.67, 8.47, 9.98, 4.17, 13.36],
58  '17/500': [10.5, 10.5, 10.5, 10.5, 10.5, 10.5, 10.5, 10.5, 10.5, 10.5, 4.22, 5.11, 8.2, 10.5, 10.5, 15.92, 11.66, 4.91, 6.33, 6.33, 7.66, 9.84, 4.91, 7, 4.91, 4.91, 4.91, 4.91, 10.02, 9.39, 10.02, 8.53, 15.11, 11.16, 10.92, 11.7, 11.86, 9.84, 9.44, 12.17, 12.41, 4.41, 9.03, 11, 9.38, 14.61, 12.33, 12.44, 10.58, 12.44, 10.91, 10.61, 8.83, 12.14, 10.84, 15.81, 11.39, 9.75, 10.89, 6.33, 6.33, 9.73, 9.12, 9.77, 8.73, 9.77, 8.66, 6.3, 9.69, 9.81, 3.98, 3.98, 9.12, 4.11, 14.7, 9.73, 8.89, 9.7, 9.7, 6.34, 8.28, 6.02, 9.73, 9.02, 13.14, 8.8, 9.11, 8.89, 10.5, 4.33, 14.09],
59}
60
61// What a run of text takes at a size and weight the table holds; a character it lacks, or a size it
62// lacks, falls back to the padded estimate.
63const textInk = (text: string, size: number, weight: 400 | 500) => {
64  const row = ADVANCES[`${size}/${weight}`]
65  if (!row) return px(text, size, weight === 500)
66  return [...text].reduce((w, c) => {
67    const i = ADVANCE_CHARS.indexOf(c)
68    return w + (i >= 0 ? row[i]! : px(c, size, weight === 500))
69  }, 0)
70}
71
72// The Last break heading, which names the cause, wraps at this many characters, about 300 pixels.
73const BREAK_CHARS = 44
74
75// ---- The first line ----
76
77// The ink gap between neighbouring blocks on the first line, between the session's tiles, and between
78// the last requests and the latest break.
79const GAP = 24
80const TILE_GAP = 16
81const REQUESTS_GAP = 40
82
83// A drawn row before it is placed: its markup, its own size and what it says in words.
84type Piece = { body: string; width: number; height: number; alt: string }
85
86// The first line is 44 high. The label with its state word, and each figure's ring, value and label,
87// have the centroid of their filled pixels on one line; the numeral with its track is placed by its
88// box instead, the numeral's top to the track's bottom half a pixel below the first ring's centre,
89// which reads level, with the track on a whole pixel so it stays sharp. Measured in the app itself.
90const GRID = { numeral: 31, track: 38, sideLabel: 19.85, sideWord: 34.35, value: 24, valueLabel: 37, middle: 24.5 }
91
92// The countdown: one large light numeral for the one number that matters, a track under it that
93// drains with the entry's life, and beside it what kind of cache this is and how it stands.
94function instrument(v: View) {
95  const tone = stateTone(v)
96  const hasCache = v.cache.startedAt > 0
97  const live = hasCache && !v.isExpired
98  const big = !hasCache ? 'No cache yet' : v.isExpired ? 'Expired' : fmtClock(v.leftMs, v.ttl.ms)
99  const size = live ? 30 : 22
100  const bigW = Math.ceil(px(big, size) * 0.96)
101  const label = hasCache ? ttlLabel(v).toUpperCase() : 'STARTS WITH YOUR NEXT MESSAGE'
102  const word = live ? stateWord(v) : hasCache ? 'Your next message re-writes it' : ''
103  // The track ends at bigW - 1, so the label and dot start one gap after it.
104  const sideX = bigW - 1 + GAP
105  const inkEnd = sideX + Math.max(labelInk(label), word ? (live ? 12 : 0) + textInk(word, 12, 500) : 0)
106  const width = Math.ceil(inkEnd) + 1
107  const height = 44
108  const numeralFill = live && tone !== 'warm' ? TONE_VAR[tone] : live ? 'var(--fg)' : 'var(--muted)'
109  const frac = live ? Math.min(1, Math.max(0, v.leftMs / v.ttl.ms)) : 0
110  const track = live
111    ? `<rect x="1" y="${GRID.track}" width="${bigW - 2}" height="3" rx="1.5" fill="var(--faint)"/>` +
112      `<rect x="1" y="${GRID.track}" width="${Math.max(0, Math.round((bigW - 2) * frac))}" height="3" rx="1.5" fill="${TONE_VAR[tone]}"/>`
113    : ''
114  const dot = live ? `<circle cx="${sideX + 3.5}" cy="${GRID.sideWord - 4}" r="3.5" fill="${TONE_VAR[tone]}"/>` : ''
115  const body =
116    `<text x="${bigW / 2}" y="${GRID.numeral}" text-anchor="middle" font-size="${size}" font-weight="250" letter-spacing="-.5" fill="${numeralFill}">${esc(big)}</text>` +
117    track +
118    `<text class="label" x="${sideX}" y="${GRID.sideLabel}">${esc(label)}</text>` +
119    dot +
120    (word ? `<text x="${sideX + (live ? 12 : 0)}" y="${GRID.sideWord}" font-size="12" font-weight="500" fill="${live ? TONE_VAR[tone] : 'var(--muted)'}">${esc(word)}</text>` : '')
121  const alt = [live ? `${big} left` : big, live ? stateWord(v) : '', hasCache ? ttlLabel(v) : ''].filter(Boolean).join(', ')
122  return { body, width, height, alt, inkEnd }
123}
124
125// A ring that fills with a share, drawn around (cx, cy).
126function ring(cx: number, cy: number, r: number, share: number, color: string) {
127  const c = 2 * Math.PI * r
128  const on = Math.max(0, Math.min(1, share)) * c
129  return (
130    `<circle cx="${cx}" cy="${cy}" r="${r}" fill="none" stroke="var(--faint)" stroke-width="2.5"/>` +
131    `<circle cx="${cx}" cy="${cy}" r="${r}" fill="none" stroke="${color}" stroke-width="2.5" stroke-linecap="round" ` +
132    `stroke-dasharray="${on.toFixed(2)} ${c.toFixed(2)}" transform="rotate(-90 ${cx} ${cy})"/>`
133  )
134}
135
136// Two figures with their labels under them, side by side: the hit rates, or once the entry has lapsed
137// what the next message re-writes and roughly what that costs. `lead` is where the first figure's ink
138// starts, so the gap before it matches the others.
139function figures(v: View, lead: number): Piece | null {
140  // Before the first request there is nothing to re-write and no rate yet.
141  if (v.cache.startedAt === 0) return null
142  const last = lastRequest(v)
143  let blocks: { value: string; label: string; share?: number }[] = []
144  let alt = ''
145  if (v.isExpired) {
146    const cost = rewriteCost(v)
147    const tokens = v.cache.ctx > 0 ? fmtTokens(v.cache.ctx) : 'all'
148    blocks = [{ value: tokens, label: 'TOKENS TO RE-WRITE' }, ...(cost === null ? [] : [{ value: fmtApprox(cost), label: 'NEXT MESSAGE COSTS' }])]
149    alt = `next message re-writes ${v.cache.ctx > 0 ? `${tokens} tokens` : 'the whole context'}${cost === null ? '' : ` (${fmtApprox(cost)})`}`
150  } else if (last) {
151    const now = hitRate(last)
152    const session = sessionHitRate(v)
153    blocks = [
154      { value: fmtPct(now), label: 'LAST REQUEST', share: now / 100 },
155      { value: fmtPct(session), label: 'THIS SESSION', share: session / 100 },
156    ]
157    alt = `hit ${fmtPct(now)} last request · ${fmtPct(session)} this session`
158  }
159  if (blocks.length === 0) return null
160  const height = 44
161  // A ring's stroke starts 0.75 inside its drawn box; each block's ink starts one gap after the last
162  // one's ends.
163  const parts: string[] = []
164  let inkStart = lead
165  let end = 0
166  blocks.forEach(b => {
167    const x = b.share === undefined ? inkStart : inkStart - 0.75
168    const textX = b.share === undefined ? x : x + 30
169    if (b.share !== undefined) parts.push(ring(x + 11, GRID.middle, 9, b.share, 'var(--warm)'))
170    parts.push(`<text x="${textX}" y="${GRID.value}" font-size="17" font-weight="500">${esc(b.value)}</text>`)
171    parts.push(`<text class="label" x="${textX}" y="${GRID.valueLabel}">${esc(b.label)}</text>`)
172    end = textX + Math.max(labelInk(b.label), textInk(b.value, 17, 500))
173    inkStart = end + GAP
174  })
175  const width = Math.ceil(end) + 1
176  return { body: parts.join(''), width, height, alt }
177}
178
179// ---- The detail ----
180
181// The session's numbers as tiles in one row under one heading.
182function sessionTiles(v: View): Piece {
183  const t = v.totals
184  const tiles: [string, string][] =
185    t.requests === 0
186      ? []
187      : [
188          [fmtPct(sessionHitRate(v)), 'HIT RATE'],
189          [String(t.requests), t.requests === 1 ? 'REQUEST' : 'REQUESTS'],
190          [fmtTokens(t.read), 'READ'],
191          [fmtTokens(t.written), 'WRITTEN'],
192          ...(t.isPriced ? ([[fmtApprox(t.writeCostUsd), 'WRITE COST'], [fmtApprox(t.savingsUsd), 'SAVED']] as [string, string][]) : []),
193        ]
194  const head = '<text class="label" x="0" y="10">THIS SESSION</text>'
195  if (tiles.length === 0)
196    return { body: head + '<text class="muted" x="0" y="30" font-size="13">No requests yet</text>', width: 160, height: 36, alt: 'This session: No requests yet' }
197  // Each tile is as wide as its wider line, with the figure and its label centred on one another, and
198  // one tile gap from the next. A spaced label's advance ends in one letter space past its ink, so its
199  // centre sits half that to the right.
200  let x = 0
201  const parts = [head]
202  tiles.forEach(([value, label], i) => {
203    if (i > 0) x += TILE_GAP
204    const inner = Math.max(textInk(value, 16, 500), labelInk(label))
205    const mid = x + inner / 2
206    parts.push(
207      `<text x="${mid}" y="31" text-anchor="middle" font-size="16" font-weight="500">${esc(value)}</text>`,
208      `<text class="label" x="${mid + 0.63}" y="45" text-anchor="middle">${esc(label)}</text>`,
209    )
210    x += inner
211  })
212  const alt = `This session: ${tiles.map(([value, label]) => `${value} ${label.toLowerCase()}`).join(', ')}`
213  return { body: parts.join(''), width: Math.max(x, labelInk('THIS SESSION')), height: 47, alt }
214}
215
216const RECENT = 10
217
218// The last ten requests as ten places, filled from the left as requests arrive: a mark each, red
219// where the cache read dropped, under a heading that counts the breaks. An image like the other
220// drawings, so it follows the appearance.
221function recentStrip(v: View): Piece {
222  const shown = v.history.slice(-RECENT)
223  const breaks = shown.filter(r => r.isBreak).length
224  const words = `${breaks === 0 ? 'No cache break' : breaks === 1 ? '1 cache break' : `${breaks} cache breaks`} in the last ${shown.length}`
225  const heading = `${shown.length === 1 ? 'LAST REQUEST' : `LAST ${shown.length} REQUESTS`}: ${breaks === 0 ? 'NO CACHE BREAK' : breaks === 1 ? '1 CACHE BREAK' : `${breaks} CACHE BREAKS`}`
226  const STEP = 18
227  const parts = [`<text class="label" x="0" y="10">${esc(heading)}</text>`]
228  for (let i = 0; i < RECENT; i++) {
229    const cx = 6 + i * STEP
230    const r = shown[i]
231    if (!r) parts.push(`<circle cx="${cx}" cy="25" r="4.5" fill="none" stroke="var(--faint)" stroke-width="1.5"/>`)
232    else if (r.isBreak) parts.push(`<path d="M${cx} 19.5 L${cx + 6} 30 L${cx - 6} 30 Z" fill="var(--danger)"/>`)
233    else parts.push(`<circle cx="${cx}" cy="25" r="4.5" fill="var(--warm)"/>`)
234  }
235  const width = Math.ceil(Math.max(6 + (RECENT - 1) * STEP + 6, labelInk(heading)) + 1)
236  const height = 31
237  const alt = `Last ${shown.length} requests: ${shown.map(r => (r.isBreak ? '▲' : '●')).join(' ')}, ${words.charAt(0).toLowerCase()}${words.slice(1)}`
238  return { body: parts.join(''), width, height, alt }
239}
240
241// The latest break: when, how much it re-wrote and what that cost, and why, in words.
242function lastBreak(v: View): Piece | null {
243  const latest = v.breaks[v.breaks.length - 1]
244  if (!latest) return null
245  const more = v.breaks.length - 1
246  const facts = [fmtLocalTime(latest.at), `${fmtTokens(latest.written)} re-written`, ...(latest.costUsd !== null ? [fmtApprox(latest.costUsd)] : [])].join('  ·  ')
247  // The heading names the cause, and a drawing cannot reflow, so it wraps at a width that fits a
248  // narrow band; the time, what was re-written and its cost sit under it.
249  const lines = wrapWords(`LAST BREAK: ${latest.cause.toUpperCase()}` + (more > 0 ? ` (AND ${more} MORE BEFORE IT)` : ''), BREAK_CHARS)
250  const factsY = 10 + (lines.length - 1) * 12 + 17
251  const height = factsY + 3
252  const width = Math.ceil(Math.max(textInk(facts, 13, 500), ...lines.map(labelInk)) + 1)
253  const parts = [
254    ...lines.map((l, i) => `<text class="label" x="0" y="${10 + i * 12}">${esc(l)}</text>`),
255    `<text x="0" y="${factsY}" font-size="13" font-weight="500">${esc(facts)}</text>`,
256  ]
257  const alt = `Last break: ${latest.cause}, ${fmtLocalTime(latest.at)}, ${fmtTokens(latest.written)} re-written${latest.costUsd !== null ? `, ${fmtApprox(latest.costUsd)}` : ''}${more > 0 ? `, and ${more} more` : ''}`
258  return { body: parts.join(''), width, height, alt }
259}
260
261// ---- Keep warm: the app's own menus ----
262
263function keepWarmRow(el: Desktop, v: View, a: Actions, notes: JSX.Element | null) {
264  const { Box, Select } = el
265  const choice = (which: 'lead' | 'cap') => (
266    <Select
267      key={which}
268      label={FULL_NAMES[which]}
269      options={OPTIONS[which].map(o => ({ value: o.value, label: o.label }))}
270      value={currentOf(v, which)}
271      onSelect={value => (which === 'lead' ? a.setLead : a.setIdleCap)(value)}
272    />
273  )
274  return (
275    <Box key="keepwarm" flexDirection="column">
276      <Box key="choices" flexDirection="row" alignItems="center" columnGap={2} flexWrap="wrap">
277        {choice('lead')}
278        {choice('cap')}
279      </Box>
280      {notes}
281    </Box>
282  )
283}
284
285// What the pings have done and why keep warm paused, a drawing like the other rows so it shrinks
286// with them; the choices above it are the app's own menus.
287function keepWarmNotes(v: View): Piece | null {
288  const notes = v.expanded ? pingsItems(v) : []
289  if (v.paused !== '') notes.push(`Paused: you have been idle for ${v.paused}.`)
290  if (notes.length === 0) return null
291  const text = notes.join('  ·  ')
292  return { body: `<text class="muted" x="0" y="13" font-size="12">${esc(text)}</text>`, width: Math.ceil(textInk(text, 12, 400)) + 1, height: 21, alt: text }
293}
294
295// A notice, drawn like the rows so it shrinks with them, its words wrapped to the rows' width so a
296// long one never widens the band.
297function noticePiece(text: string, width: number): Piece {
298  const lines: string[] = []
299  for (const word of text.split(' ')) {
300    const last = lines[lines.length - 1]
301    if (last !== undefined && textInk(`${last} ${word}`, 12, 400) <= width) lines[lines.length - 1] = `${last} ${word}`
302    else lines.push(word)
303  }
304  const STEP = 16
305  const body = lines.map((l, i) => `<text class="muted" x="0" y="${13 + i * STEP}" font-size="12">${esc(l)}</text>`).join('')
306  return { body, width: Math.ceil(Math.max(...lines.map(l => textInk(l, 12, 400)))) + 1, height: 18 + (lines.length - 1) * STEP, alt: text }
307}
308
309// ---- The band ----
310
311function button(el: Desktop, b: ButtonSpec) {
312  const { Button } = el
313  return (
314    <Button
315      key={b.key}
316      label={b.label}
317      onPress={b.press}
318      {...(b.hotkey ? { hotkey: b.hotkey } : {})}
319      {...(b.isPrimary ? { variant: 'primary' as const } : {})}
320      {...(b.isDim ? { dimColor: true } : {})}
321    />
322  )
323}
324
325// Tucked away, the band is one small chip: a dot in the countdown's color, the time left and a
326// button to bring the band back. The dot is a drawing in the band's own palette, so it is the same
327// green as the expanded band's; the words are the app's own text, so they read in whatever font the
328// app uses. Every piece, the separator dot included, is its own element with the same layout gap on
329// each side, and the app centres them all on one line.
330const CHIP_DOT = 10
331// How wide a notice under the chip may run before its words wrap.
332const CHIP_NOTICE_WIDTH = 360
333
334function chip(el: Desktop, v: View, a: Actions, rest: JSX.Element) {
335  const { Box, Button, Svg, Text } = el
336  const hasCache = v.cache.startedAt > 0
337  const live = hasCache && !v.isExpired
338  const lead = !hasCache ? 'Cache Maxxer' : !live ? 'Cache expired' : stateWord(v) === 'Warm' ? 'Cache warm' : 'Cache expiring'
339  const tail = !hasCache ? ['no cache yet'] : live ? [fmtClock(v.leftMs, v.ttl.ms), 'left'] : []
340  const color = live ? TONE_VAR[stateTone(v)] : 'var(--muted)'
341  // A notice still says itself while the band is tucked away, under the chip, as it would in the band.
342  const notice = v.notice !== '' ? noticePiece(v.notice, CHIP_NOTICE_WIDTH) : null
343  const dot = `<circle cx="${CHIP_DOT / 2}" cy="${CHIP_DOT / 2}" r="${CHIP_DOT / 2 - 0.5}" fill="${color}"/>`
344  return (
345    <Box flexDirection="column">
346      <Box key="chip" flexDirection="row" alignItems="center" columnGap={1}>
347        <Svg key="chip-dot" source={svg(CHIP_DOT, CHIP_DOT, dot)} alt={live ? stateWord(v) : lead} width={CHIP_DOT} height={CHIP_DOT} />
348        <Text key="chip-lead" color="inactive">
349          {lead}
350        </Text>
351        {tail.length > 0 ? (
352          <Text key="chip-sep" color="inactive">
353            ·
354          </Text>
355        ) : null}
356        {tail.map((word, i) => (
357          <Text key={`chip-${i}`} color="inactive">
358            {word}
359          </Text>
360        ))}
361        <Button key="show" label="Show" hotkey="h" onPress={a.show} />
362      </Box>
363      {notice ? <Svg key="chip-notice" source={svg(notice.width, notice.height, notice.body)} alt={notice.alt} width={notice.width} /> : null}
364      {rest}
365    </Box>
366  )
367}
368
369// Two pieces side by side, the second `gap` after the first.
370function beside(a: Piece, b: Piece | null, gap: number): Piece {
371  if (!b) return a
372  return {
373    body: a.body + `<g transform="translate(${a.width + gap} 0)">${b.body}</g>`,
374    width: a.width + gap + b.width,
375    height: Math.max(a.height, b.height),
376    alt: `${a.alt}; ${b.alt}`,
377  }
378}
379
380// Each drawn row is one drawing, and every row is given one width: the widest row's. The app draws a
381// drawing at its width and shrinks it to fit a narrower band, with no height given so its height
382// follows, so every row shrinks by the same factor, text and marks together. A drawing given no width
383// at all is stretched to fill the band instead. The buttons and the keep-warm menus are the app's own
384// and sit beside or under the drawings where there is room.
385export function desktopBand(el: Desktop, v: View, a: Actions, rest: JSX.Element) {
386  const { Box, Svg } = el
387  if (v.hidden) return chip(el, v, a, rest)
388  const clock = instrument(v)
389  const line = beside(clock, figures(v, GAP - (clock.width - clock.inkEnd)), 0)
390  const recent = v.expanded && v.history.length > 0 ? recentStrip(v) : null
391  const brk = v.expanded ? lastBreak(v) : null
392  const requests = recent ? beside(recent, brk, REQUESTS_GAP) : brk
393  const notes = v.settings.keepWarm ? keepWarmNotes(v) : null
394  const rows = [line, ...(v.expanded ? [sessionTiles(v)] : []), ...(requests ? [requests] : []), ...(notes ? [notes] : [])]
395  const W = Math.ceil(Math.max(...rows.map(r => r.width)))
396  const draw = (key: string, p: Piece) => <Svg key={key} source={svg(W, p.height, p.body)} alt={p.alt} width={W} />
397  const notice = v.notice !== '' ? noticePiece(v.notice, W) : null
398  // Hide sits with the band's own buttons, after More.
399  const buttons: ButtonSpec[] = [...mainButtons(v, a), { key: 'hide', label: 'Hide', isPrimary: false, hotkey: 'h', press: a.hide }]
400  const main = (
401    <Box key="main" flexDirection="row" flexWrap="wrap" justifyContent="space-between" alignItems="center" columnGap={4} rowGap={1}>
402      {draw('status', line)}
403      <Box key="buttons" flexDirection="row" flexWrap="wrap" alignItems="center" columnGap={1} rowGap={1}>
404        {buttons.map(b => button(el, b))}
405      </Box>
406    </Box>
407  )
408
409  const above: JSX.Element[] = []
410  if (v.expanded) {
411    above.push(draw('session', rows[1]!))
412    if (requests) above.push(draw('requests', requests))
413  }
414  // The pings line sits close under the choices and the first line close under it: each drawing
415  // brings a few pixels of its own room, so neither takes the band's full row gap.
416  const warm = v.settings.keepWarm ? keepWarmRow(el, v, a, notes ? draw('notes', notes) : null) : null
417  const bottom = warm && notes ? (
418    <Box key="warm-and-main" flexDirection="column">
419      {warm}
420      {main}
421    </Box>
422  ) : null
423  if (warm && !bottom) above.push(warm)
424  // The frame takes the input box's own border color, so the band sits in the app like the box under it.
425  return (
426    <Box flexDirection="column">
427      <Box flexDirection="column" borderStyle="round" borderColor="promptBorder" paddingX={1} rowGap={1}>
428        {above}
429        {bottom ?? main}
430        {notice ? draw('notice', notice) : null}
431      </Box>
432      {rest}
433    </Box>
434  )
435}
436

1const trimmed = (n: number) => n.toFixed(1).replace(/\.0$/, '')
2
3// 950, 1.2K, 182K, 3.1M
4export function fmtTokens(n: number): string {
5  if (n >= 1_000_000 || Math.round(n / 1000) >= 1000) return `${trimmed(n / 1e6)}M`
6  if (n >= 10_000) return `${Math.round(n / 1000)}K`
7  if (n >= 1000) return `${trimmed(n / 1000)}K`
8  return String(Math.round(n))
9}
10
11export function fmtUsd(n: number): string {
12  if (n < 0) return `-${fmtUsd(-n)}`
13  if (n >= 100) return `$${Math.round(n)}`
14  if (n > 0 && n < 0.01) return '< $0.01'
15  return `$${n.toFixed(2)}`
16}
17
18// A dollar figure that is an estimate: ~$0.31, < $0.01 for a smaller cost, a loss as -$0.06,
19// and a loss too small to show in cents as ~$0.00.
20export function fmtApprox(n: number): string {
21  if (n < 0) return n > -0.005 ? '~$0.00' : `-$${-n >= 100 ? Math.round(-n) : (-n).toFixed(2)}`
22  if (n > 0 && n < 0.01) return '< $0.01'
23  return `~${fmtUsd(n)}`
24}
25
26// mm:ss, with two-digit minutes for an hour-long entry so the band keeps its width.
27export function fmtClock(ms: number, ttlMs: number): string {
28  const seconds = Math.max(0, Math.ceil(ms / 1000))
29  const minutes = String(Math.floor(seconds / 60))
30  return `${ttlMs >= 600_000 ? minutes.padStart(2, '0') : minutes}:${String(seconds % 60).padStart(2, '0')}`
31}
32
33// 63m, 2h 5m
34export function fmtIdle(ms: number): string {
35  const minutes = Math.max(1, Math.round(ms / 60_000))
36  if (minutes < 120) return `${minutes}m`
37  const h = Math.floor(minutes / 60)
38  const m = minutes % 60
39  return m === 0 ? `${h}h` : `${h}h ${m}m`
40}
41
42export function fmtLocalTime(ms: number): string {
43  const d = new Date(ms)
44  return `${String(d.getHours()).padStart(2, '0')}:${String(d.getMinutes()).padStart(2, '0')}`
45}
46
47export const pct = (part: number, whole: number): number => (whole > 0 ? (part / whole) * 100 : 0)
48
49// A share to two decimals, cut rather than rounded, so a rate short of 100% never reads 100.00%.
50export const fmtPct = (n: number): string => `${(Math.floor(n * 100 + 1e-9) / 100).toFixed(2)}%`
51

1import type { TurnUsage } from 'claude-code'
2
3import type { BreakInfo, CacheSettings, CacheState, Pings, Req, Totals } from '../types'
4import { fmtIdle } from './format'
5import { savingsUsd, writeCostUsd } from './pricing'
6
7export const EMPTY_CACHE: CacheState = { startedAt: 0, ttlMs: null, model: '', ctx: 0, cached: 0 }
8export const EMPTY_TOTALS: Totals = {
9  requests: 0,
10  read: 0,
11  written: 0,
12  uncached: 0,
13  savingsUsd: 0,
14  writeCostUsd: 0,
15  isPriced: false,
16}
17
18export const EMPTY_PINGS: Pings = { count: 0, read: 0, rebuilds: 0, costUsd: 0, isPriced: false }
19export const DEFAULT_SETTINGS: CacheSettings = { keepWarm: false, lead: 'auto', idleCap: '3h' }
20
21export const HISTORY_LIMIT = 48
22export const BREAKS_KEPT = 20
23const BREAK_MIN_WRITE = 20_000
24
25// What happened to the conversation since its last request that can explain a rebuild.
26export type Pending = { kind: 'cleared' } | { kind: 'compacted' } | { kind: 'idle'; idleMs: number } | null
27
28// The cached prefix is lost when a request writes a lot and reads less than half of what the
29// previous request cached. Nothing was lost when that total is 0 (no earlier request), or when a big
30// new message is written on top of a prefix that was read.
31export const isBreak = (written: number, read: number, previouslyCached: number): boolean =>
32  written > BREAK_MIN_WRITE && read < previouslyCached / 2
33
34export function inferCause(a: {
35  gapMs: number | null
36  ttlMs: number
37  prevModel: string
38  model: string
39  pending: Pending
40}): string {
41  if (a.gapMs !== null && a.gapMs > a.ttlMs) return `expired after ${fmtIdle(a.gapMs)} idle`
42  if (a.pending?.kind === 'idle') return `expired after ${fmtIdle(a.pending.idleMs)} idle`
43  if (a.prevModel && a.model && a.prevModel !== a.model) return 'model switched'
44  if (a.pending?.kind === 'compacted') return 'compacted'
45  if (a.pending?.kind === 'cleared') return 'cleared'
46  return 'prefix changed (system prompt, tools or MCP servers)'
47}
48
49export type Snapshot = {
50  cache: CacheState
51  history: readonly Req[]
52  totals: Totals
53  breaks: readonly BreakInfo[]
54}
55
56// Folds one main-conversation request into what the band reads. The request's own start
57// restarts the entry's life when it read or wrote the cache.
58export function applyRequest(
59  s: Snapshot,
60  r: { startedAt: number; usage: TurnUsage; ttlMs: number },
61  pending: Pending,
62): { next: Snapshot; brk: BreakInfo | null } {
63  const { usage } = r
64  const tokens = {
65    read: usage.cache_read_input_tokens,
66    written: usage.cache_creation_input_tokens,
67    uncached: usage.input_tokens,
68    output: usage.output_tokens,
69  }
70  const totalInput = tokens.read + tokens.written + tokens.uncached
71
72  let brk: BreakInfo | null = null
73  if (isBreak(tokens.written, tokens.read, s.cache.cached)) {
74    brk = {
75      at: r.startedAt,
76      written: tokens.written,
77      costUsd: writeCostUsd(usage.model, tokens.written, r.ttlMs, totalInput),
78      cause: inferCause({
79        gapMs: s.cache.startedAt > 0 ? r.startedAt - s.cache.startedAt : null,
80        ttlMs: r.ttlMs,
81        prevModel: s.cache.model,
82        model: usage.model,
83        pending,
84      }),
85    }
86  }
87
88  const touched = tokens.read > 0 || tokens.written > 0
89  const cache: CacheState = {
90    startedAt: touched && r.startedAt > s.cache.startedAt ? r.startedAt : s.cache.startedAt,
91    ttlMs: s.cache.ttlMs,
92    model: usage.model,
93    ctx: totalInput + tokens.output,
94    cached: tokens.read + tokens.written,
95  }
96  const saved = savingsUsd(usage.model, tokens, r.ttlMs)
97  const cost = writeCostUsd(usage.model, tokens.written, r.ttlMs, totalInput)
98  const t = s.totals
99  const totals: Totals = {
100    requests: t.requests + 1,
101    read: t.read + tokens.read,
102    written: t.written + tokens.written,
103    uncached: t.uncached + tokens.uncached,
104    savingsUsd: t.savingsUsd + (saved ?? 0),
105    writeCostUsd: t.writeCostUsd + (cost ?? 0),
106    isPriced: t.isPriced || saved !== null,
107  }
108  const req: Req = { read: tokens.read, written: tokens.written, uncached: tokens.uncached, isBreak: brk !== null }
109  return {
110    next: {
111      cache,
112      history: [...s.history, req].slice(-HISTORY_LIMIT),
113      totals,
114      breaks: brk ? [...s.breaks, brk].slice(-BREAKS_KEPT) : s.breaks,
115    },
116    brk,
117  }
118}
119

1// The price table from Anthropic's own pricing page, read when Claude Code starts and at most once a
2// day, so a new model or a changed price shows up without a new release of this plugin. What it
3// returns replaces the built-in table in pricing.ts; when the page cannot be read or does not parse,
4// the last good copy (or the built-in table) stays.
5
6import type { Price, PriceEntry } from './pricing'
7
8export const PRICING_URL = 'https://platform.claude.com/docs/en/about-claude/pricing.md'
9export const REFRESH_MS = 24 * 60 * 60_000
10
11// The money in a cell such as "$0.20 / MTok<sup>2</sup>".
12const dollars = (cell: string): number | null => {
13  const m = /\$\s*([0-9]+(?:\.[0-9]+)?)\s*\/\s*MTok/i.exec(cell)
14  return m ? Number(m[1]) : null
15}
16
17// "Claude Opus 5.5" is `claude-opus-5-5`; a model older than 4 puts its version first, as
18// "Claude Haiku 3.5" is `claude-3-5-haiku`. A note after the name is not part of it, including one
19// holding a link, as in "Claude Opus 4 ([retired](https://...))": the link goes first, whole.
20export const idOf = (name: string): string | null => {
21  const plain = name.replace(/\[[^\]]*\]\([^)]*\)/g, ' ').replace(/\([^)]*\)/g, ' ').replace(/\[[^\]]*\]/g, ' ').trim()
22  const m = /^Claude\s+([A-Za-z]+)\s+([0-9]+(?:\.[0-9]+)?)$/.exec(plain.replace(/\s+/g, ' '))
23  if (!m) return null
24  const family = m[1].toLowerCase()
25  const version = m[2].replace('.', '-')
26  return Number(m[2].split('.')[0]) < 4 ? `claude-${version}-${family}` : `claude-${family}-${version}`
27}
28
29// The tier a row names, for a model priced by prompt length: "(for prompts up to 100,000 tokens)"
30// or "(for prompts over 100,000 tokens)".
31const tierOf = (name: string): { kind: 'upTo' | 'over'; tokens: number } | null => {
32  const m = /for prompts (up to|over) ([0-9][0-9,]*) tokens/i.exec(name)
33  return m ? { kind: m[1].toLowerCase() === 'over' ? 'over' : 'upTo', tokens: Number(m[2].replace(/,/g, '')) } : null
34}
35
36const isPrice = (p: unknown): p is Price =>
37  typeof p === 'object' && p !== null &&
38  (['input', 'write5m', 'write1h', 'read', 'output'] as const).every(k => {
39    const v = (p as Record<string, unknown>)[k]
40    return typeof v === 'number' && Number.isFinite(v) && v >= 0
41  })
42
43// A table kept from an earlier read is used only if it has the shape parsePricing makes, so one saved
44// by another version, or damaged, can never break pricing.
45export const isPriceTable = (entries: unknown): entries is PriceEntry[] =>
46  Array.isArray(entries) && entries.length > 0 &&
47  entries.every(e => {
48    if (!Array.isArray(e) || e.length !== 2 || typeof e[0] !== 'string') return false
49    const p = e[1] as Record<string, unknown> | null
50    if (typeof p === 'object' && p !== null && 'upTo' in p) {
51      return typeof p.upTo === 'number' && p.upTo > 0 && isPrice(p.small) && isPrice(p.large)
52    }
53    return isPrice(p)
54  })
55
56// Reads the "Model pricing" table: one row per model with base input, 5 minute write, 1 hour write,
57// cache read and output. Null unless every row it keeps is whole and the table holds at least three
58// models, so a page that changed its shape never replaces a good table with a broken one.
59export function parsePricing(markdown: string): PriceEntry[] | null {
60  const start = markdown.search(/^##\s+Model pricing\s*$/m)
61  if (start < 0) return null
62  const section = markdown.slice(start).split(/^##\s/m)[1] ?? ''
63  const rows = section.split('\n').filter(line => line.trim().startsWith('|'))
64  const header = rows[0]?.split('|').map(c => c.trim().toLowerCase()) ?? []
65  const wanted = ['base input', '5m cache write', '1h cache write', 'cache hit', 'output']
66  const columns = wanted.map(w => header.findIndex(h => h.startsWith(w)))
67  if (columns.some(c => c < 0)) return null
68
69  const flat = new Map<string, Price>()
70  const tiers = new Map<string, { upTo?: { tokens: number; price: Price }; over?: Price }>()
71  for (const row of rows.slice(2)) {
72    const cells = row.split('|').map(c => c.trim())
73    const name = cells[1] ?? ''
74    const id = idOf(name)
75    // A model row this cannot name would drop that model's price without a word, so it doubts the page.
76    if (!id) {
77      if (/^claude\b/i.test(name)) return null
78      continue
79    }
80    const [input, write5m, write1h, read, output] = columns.map(c => dollars(cells[c] ?? ''))
81    if ([input, write5m, write1h, read, output].some(v => v === null || !Number.isFinite(v) || v < 0)) return null
82    const price: Price = { input: input!, write5m: write5m!, write1h: write1h!, read: read!, output: output! }
83    if (price.read > price.input) return null
84    const tier = tierOf(name)
85    if (!tier) {
86      if (!flat.has(id)) flat.set(id, price)
87      continue
88    }
89    const t = tiers.get(id) ?? {}
90    if (tier.kind === 'upTo') t.upTo = { tokens: tier.tokens, price }
91    else t.over = price
92    tiers.set(id, t)
93  }
94
95  const entries: PriceEntry[] = [...flat.entries()]
96  for (const [id, t] of tiers) {
97    if (!t.upTo || !t.over) return null
98    entries.push([id, { upTo: t.upTo.tokens, small: t.upTo.price, large: t.over }])
99  }
100  if (entries.length < 3) return null
101  // A longer id stands before any id it begins with, so `claude-opus-4-5` is matched before `claude-opus-4`.
102  return entries.sort((a, b) => b[0].length - a[0].length)
103}
104

1// Dollars per million tokens. The table Anthropic publishes is read when Claude Code starts
2// (live-prices.ts), so a new model or a changed price needs no new release of this plugin; until that
3// has worked, the table below stands in, copied from the same page
4// (https://platform.claude.com/docs/en/about-claude/pricing). A model in neither
5// has no price, and nothing here guesses one.
6export type Price = { input: number; write5m: number; write1h: number; read: number; output: number }
7
8// A model priced by prompt length (Claude Haiku 5.5): a prompt of more than `upTo` tokens, cache reads
9// and writes included, pays the second price for every token of that request.
10export type Tiered = { upTo: number; small: Price; large: Price }
11
12export type PriceEntry = readonly [string, Price | Tiered]
13
14const flat = (input: number, read: number, output: number): Price =>
15  ({ input, write5m: input * 1.25, write1h: input * 2, read, output })
16
17// First match wins, so a longer id stands before any id it begins with (`claude-opus-4-5` before
18// `claude-opus-4`).
19const BUILT_IN: readonly PriceEntry[] = [
20  ['claude-fable-5-1', flat(10, 0.25, 50)],
21  ['claude-mythos-5-1', flat(10, 0.25, 50)],
22  ['claude-fable-5', flat(10, 1, 50)],
23  ['claude-mythos-5', flat(10, 1, 50)],
24  ['claude-opus-5-5', flat(4, 0.2, 20)],
25  ['claude-opus-5', flat(5, 0.5, 25)],
26  ['claude-opus-4-8', flat(5, 0.5, 25)],
27  ['claude-opus-4-7', flat(5, 0.5, 25)],
28  ['claude-opus-4-6', flat(5, 0.5, 25)],
29  ['claude-opus-4-5', flat(5, 0.5, 25)],
30  ['claude-opus-4-1', flat(15, 1.5, 75)],
31  ['claude-opus-4', flat(15, 1.5, 75)],
32  ['claude-sonnet-5-5', flat(2, 0.1, 10)],
33  ['claude-sonnet-5', flat(2, 0.2, 10)],
34  ['claude-sonnet-4-6', flat(3, 0.3, 15)],
35  ['claude-sonnet-4-5', flat(3, 0.3, 15)],
36  ['claude-sonnet-4', flat(3, 0.3, 15)],
37  ['claude-haiku-5-5', { upTo: 100_000, small: flat(0.1, 0.01, 0.5), large: flat(0.5, 0.05, 2.5) }],
38  ['claude-haiku-4-5', flat(1, 0.1, 5)],
39  ['claude-3-5-haiku', flat(0.8, 0.08, 4)],
40]
41
42// The table read from Anthropic's page, once one has been; null until then.
43let live: readonly PriceEntry[] | null = null
44
45export const setLivePrices = (entries: readonly PriceEntry[] | null) => {
46  live = entries
47}
48
49// An id matches the model's name when it is the name, or the name begins with it followed by a dash,
50// a dot or a bracket, which covers dated ids and suffixes such as `[1m]`.
51const matches = (model: string, id: string) =>
52  model === id || (model.startsWith(id) && '-.['.includes(model[id.length]))
53
54const find = (table: readonly PriceEntry[] | null, model: string) =>
55  table?.find(([id]) => matches(model, id))?.[1] ?? null
56
57// The price one request pays, given how many tokens its prompt held. The page's table is asked first;
58// a model it does not list (or before it has been read) falls back to the built-in table.
59const priceOf = (model: string, promptTokens: number): Price | null => {
60  const entry = find(live, model) ?? find(BUILT_IN, model)
61  if (!entry) return null
62  return 'upTo' in entry ? (promptTokens > entry.upTo ? entry.large : entry.small) : entry
63}
64
65export const isPriced = (model: string) => priceOf(model, 0) !== null
66
67export type Tokens = {
68  read: number
69  written: number
70  uncached: number
71  output: number
72}
73
74const promptOf = (t: Tokens) => t.read + t.written + t.uncached
75
76const writePrice = (p: Price, ttlMs: number) => (ttlMs <= 600_000 ? p.write5m : p.write1h)
77
78// What a cache write costs, for a cache entry living ttlMs, in a request whose prompt held
79// promptTokens (a re-write of the whole context is its own prompt, so that is the default).
80export const writeCostUsd = (model: string, written: number, ttlMs: number, promptTokens = written): number | null => {
81  const p = priceOf(model, promptTokens)
82  return p ? (written * writePrice(p, ttlMs)) / 1e6 : null
83}
84
85// What reading tokens from a warm cache saved over re-writing them: each paid the read price instead
86// of the write price, in requests whose prompt held promptTokens.
87export const keptWarmUsd = (model: string, read: number, ttlMs: number, promptTokens = read): number | null => {
88  const p = priceOf(model, promptTokens)
89  return p ? (read * (writePrice(p, ttlMs) - p.read)) / 1e6 : null
90}
91
92// What one request cost in all, or null when the model has no price.
93export const requestCostUsd = (model: string, t: Tokens, ttlMs: number): number | null => {
94  const p = priceOf(model, promptOf(t))
95  if (!p) return null
96  return (t.uncached * p.input + t.read * p.read + t.written * writePrice(p, ttlMs) + t.output * p.output) / 1e6
97}
98
99// What the cache saved on one request: the reads at the plain input price, less what they cost as
100// reads, less the premium the writes paid over plain input.
101export const savingsUsd = (model: string, t: Tokens, ttlMs: number): number | null => {
102  const p = priceOf(model, promptOf(t))
103  if (!p) return null
104  return (t.read * (p.input - p.read) - t.written * (writePrice(p, ttlMs) - p.input)) / 1e6
105}
106

1const HOUR_MS = 3_600_000
2const FIVE_MIN_MS = 300_000
3
4// How long a cache entry lives, and whether that is known or assumed.
5export type TtlInfo = { ms: number; isKnown: boolean }
6
7// The setting wins; on auto, what the transcript showed; until then an hour is assumed.
8export function ttlInfo(setting: string, learnedMs: number | null): TtlInfo {
9  if (setting === '1h') return { ms: HOUR_MS, isKnown: true }
10  if (setting === '5m') return { ms: FIVE_MIN_MS, isKnown: true }
11  return learnedMs === null ? { ms: HOUR_MS, isKnown: false } : { ms: learnedMs, isKnown: true }
12}
13
14type Split = { ephemeral_1h_input_tokens?: unknown; ephemeral_5m_input_tokens?: unknown }
15
16const count = (n: unknown) => (typeof n === 'number' && n > 0 ? n : 0)
17
18// Reads the newest cache write's split out of the tail of a session transcript: the entry lives as
19// long as the larger part of what the request wrote. Null when no line shows a write.
20export function parseTtl(tail: string): number | null {
21  const lines = tail.split('\n')
22  for (let i = lines.length - 1; i >= 0; i--) {
23    const line = lines[i]
24    if (!line || !line.includes('cache_creation')) continue
25    try {
26      const entry = JSON.parse(line) as { message?: { usage?: { cache_creation?: Split } }; usage?: { cache_creation?: Split } }
27      const split = entry.message?.usage?.cache_creation ?? entry.usage?.cache_creation
28      if (!split) continue
29      const h = count(split.ephemeral_1h_input_tokens)
30      const m = count(split.ephemeral_5m_input_tokens)
31      if (h + m === 0) continue
32      return m > h ? FIVE_MIN_MS : HOUR_MS
33    } catch {
34      // A line cut by the start of the tail, or one that is not a request
35    }
36  }
37  return null
38}
39
40const LEADS: Record<string, number> = { '1m': 60_000, '2m': 120_000, '4m': 240_000, '8m': 480_000 }
41
42// How long before expiry keep warm acts (and the warning shows): 4 minutes of an hour, 40 seconds
43// of five minutes, and never more than half the entry's life.
44export function leadMs(setting: string, ttlMs: number): number {
45  const auto = ttlMs >= 600_000 ? 240_000 : 40_000
46  return Math.min(LEADS[setting] ?? auto, ttlMs / 2)
47}
48
49export const leadLabel = (ms: number): string => (ms >= 60_000 ? `${Math.round(ms / 60_000)}m` : `${Math.round(ms / 1000)}s`)
50
51const CAPS: Record<string, number> = { '1h': 3_600_000, '3h': 10_800_000, '8h': 28_800_000 }
52
53// How long the person may be idle before keep warm stops; null is no cap.
54export const idleCapMs = (setting: string): number | null => CAPS[setting] ?? null
55

1import type { BreakInfo, CacheSettings, CacheState, Pings, Req, Totals } from '../types'
2import { fmtApprox, fmtClock, fmtTokens, pct, fmtPct } from './format'
3import { keptWarmUsd, writeCostUsd } from './pricing'
4import { ttlInfo, type TtlInfo } from './ttl'
5
6// Everything the band draws, read once per redraw.
7export type View = {
8  cache: CacheState
9  ttl: TtlInfo
10  leftMs: number
11  isExpired: boolean
12  history: readonly Req[]
13  totals: Totals
14  breaks: readonly BreakInfo[]
15  settings: CacheSettings
16  pings: Pings
17  paused: string
18  // Which keep-warm picker is open ('lead' or 'cap'), else empty; always empty while keep warm is off
19  picker: Picker
20  // Whether the band shows the session's detail above its first line
21  expanded: boolean
22  // A ping is on its way, so Warm now says so and does nothing more until it is back
23  isPinging: boolean
24  // What the last Warm now did, for a few seconds after it came back; else empty
25  notice: string
26  // Whether the Desktop band is tucked away to its chip
27  hidden: boolean
28}
29
30export type Picker = '' | 'lead' | 'cap'
31
32export type Tone = 'fg' | 'muted' | 'warm' | 'warn' | 'danger' | 'accent'
33
34export function makeView(a: {
35  now: number
36  ttlSetting: string
37  cache: CacheState
38  history: readonly Req[]
39  totals: Totals
40  breaks: readonly BreakInfo[]
41  settings: CacheSettings
42  pings: Pings
43  paused: string
44  picker: string
45  expanded: boolean
46  isPinging: boolean
47  notice: string
48  hidden: boolean
49}): View {
50  const ttl = ttlInfo(a.ttlSetting, a.cache.ttlMs)
51  const { now, picker, ...rest } = a
52  const leftMs = a.cache.startedAt + ttl.ms - now
53  const isPickerOpen = a.settings.keepWarm && (picker === 'lead' || picker === 'cap')
54  return { ...rest, ttl, leftMs, isExpired: leftMs <= 0, picker: isPickerOpen ? (picker as Picker) : '' }
55}
56
57// Green while warm, amber in the last sixth of the entry's life, red in the last thirtieth, grey once expired.
58export function stateTone(v: View): Tone {
59  if (v.isExpired) return 'muted'
60  if (v.leftMs <= v.ttl.ms / 30) return 'danger'
61  if (v.leftMs <= v.ttl.ms / 6) return 'warn'
62  return 'warm'
63}
64
65export const stateWord = (v: View): string =>
66  v.isExpired ? 'Expired' : v.leftMs <= v.ttl.ms / 6 ? 'Expiring soon' : 'Warm'
67
68export const hitRate = (r: { read: number; written: number; uncached: number }): number =>
69  pct(r.read, r.read + r.written + r.uncached)
70
71export const lastRequest = (v: View): Req | null => v.history[v.history.length - 1] ?? null
72
73export const sessionHitRate = (v: View): number => hitRate(v.totals)
74
75// What the next message re-writes once the entry has expired, and what that write costs.
76export function rewriteCost(v: View): number | null {
77  return v.cache.ctx > 0 ? writeCostUsd(v.cache.model, v.cache.ctx, v.ttl.ms) : null
78}
79
80// What the person sees of how long an entry lives: the length, or the assumed hour.
81export const ttlLabel = (v: View): string =>
82  v.ttl.ms >= 600_000 ? (v.ttl.isKnown ? '1 hour cache' : '1 hour cache, assumed') : '5 minute cache'
83
84// The pings so far, in the band's keep-warm row, piece by piece. A ping is a background request that
85// reads the cache and so keeps it warm; one that rebuilt a lapsed cache is told apart from one that
86// kept it warm. What they saved is the tokens they read times the write price less the read price:
87// each read cost a read instead of a re-write, priced at the size of one ping's context.
88export function pingsItems(v: View): string[] {
89  const p = v.pings
90  if (p.count === 0 && p.rebuilds === 0) return ['No pings yet.']
91  const parts = [p.count > 0 ? `${p.count} warm ping${p.count === 1 ? '' : 's'}` : 'No ping has kept it warm yet']
92  if (p.count > 0) parts.push(`${fmtTokens(p.read)} tokens read`)
93  if (p.rebuilds > 0) parts.push(`${p.rebuilds} rebuilt a lapsed cache`)
94  const saved = p.count > 0 && p.isPriced ? keptWarmUsd(v.cache.model, p.read, v.ttl.ms, p.read / p.count) : null
95  if (saved !== null) parts.push(`cost saved ${fmtApprox(saved)}`)
96  // With nothing kept warm there is no saving to weigh a rebuild against, so its cost stands alone.
97  else if (p.count === 0 && p.isPriced) parts.push(`cost ${fmtApprox(p.costUsd)}`)
98  return parts
99}
100
101// What /cache-maxxer says where nothing draws (a -p run).
102export function summaryText(v: View): string {
103  const keep = `Keep warm is ${v.settings.keepWarm ? 'on' : 'off'}.`
104  if (v.cache.startedAt === 0) return `Cache Maxxer: no cache yet. ${keep}`
105  const state = v.isExpired ? 'expired' : `${stateWord(v).toLowerCase()}, ${fmtClock(v.leftMs, v.ttl.ms)} left`
106  const hit = v.totals.requests > 0 ? ` ${fmtPct(sessionHitRate(v))} hit rate over ${v.totals.requests} requests.` : ''
107  return `Cache Maxxer: ${ttlLabel(v)}, ${state}.${hit} ${keep}`
108}
109

1// Items placed left to right with `gap` columns between them, onto a new row when the next one would
2// pass `room`. An item wider than a row takes a row of its own.
3export function flowRows<T>(items: readonly T[], widthOf: (item: T) => number, gap: number, room: number): T[][] {
4  const rows: T[][] = []
5  let used = 0
6  for (const item of items) {
7    const w = widthOf(item)
8    const row = rows[rows.length - 1]
9    if (row && used + gap + w <= room) {
10      row.push(item)
11      used += gap + w
12    } else {
13      rows.push([item])
14      used = w
15    }
16  }
17  return rows
18}
19
20// Text cut at spaces into lines of at most `room` columns (a word longer than a line takes its own).
21export function wrapWords(text: string, room: number): string[] {
22  const lines: string[] = []
23  for (const word of text.split(' ')) {
24    const last = lines[lines.length - 1]
25    if (last !== undefined && last.length + 1 + word.length <= room) lines[lines.length - 1] = `${last} ${word}`
26    else lines.push(word)
27  }
28  return lines
29}
30

1// What the band draws from. Every value is plain JSON, so it survives a reload of the module.
2
3// One request of the main conversation.
4export type Req = {
5  // Tokens read from the cache, written to it, and sent uncached
6  read: number
7  written: number
8  uncached: number
9  isBreak: boolean
10}
11
12// The conversation's cache: when the last request that read or wrote it started (0 before one),
13// how long an entry lives (null until the transcript has shown a write), the model that wrote it,
14// the size of the context its next request sends, and what the last main request read plus wrote
15// (0 before one), which is what a later request is compared with to tell whether the prefix was lost.
16export type CacheState = {
17  startedAt: number
18  ttlMs: number | null
19  model: string
20  ctx: number
21  cached: number
22}
23
24// Session totals. The dollar figures count only requests whose model has a known price.
25export type Totals = {
26  requests: number
27  read: number
28  written: number
29  uncached: number
30  savingsUsd: number
31  writeCostUsd: number
32  isPriced: boolean
33}
34
35export type BreakInfo = {
36  at: number
37  written: number
38  costUsd: number | null
39  cause: string
40}
41
42// What the person can change while the session runs. The toggle persists as the default for new sessions.
43export type CacheSettings = {
44  keepWarm: boolean
45  lead: string
46  idleCap: string
47}
48
49// Keep-warm pings made so far this session. A ping that found the cache already gone and rebuilt it
50// is counted in `rebuilds`, not in `count` or `read`; its cost is in `costUsd` with the rest.
51export type Pings = {
52  count: number
53  read: number
54  rebuilds: number
55  costUsd: number
56  isPriced: boolean
57}
58
59declare module 'claude-code' {
60  interface PluginState {
61    'cache-maxxer': {
62      cache: CacheState
63      history: readonly Req[]
64      totals: Totals
65      breaks: readonly BreakInfo[]
66      settings: CacheSettings
67      pings: Pings
68      // When the person last sent something (ms since the epoch), for the idle cap
69      activity: number
70      // The idle cap's label once keep warm has stopped for lack of activity, else empty
71      paused: string
72      // Which keep-warm choice has its options open in the band ('lead' or 'cap'), else empty
73      picker: string
74      // Whether the band shows the session's detail above its first line
75      expanded: boolean
76      // The second the countdown last moved, written each second so the band redraws
77      tick: number
78      // Whether a ping is on its way, so Warm now says Warming… until it is back
79      pinging: boolean
80      // What the last Warm now did, and until when (ms since the epoch) the Desktop band says so
81      notice: { text: string; until: number }
82      // Whether the Desktop band is tucked away to its chip
83      hidden: boolean
84    }
85  }
86}
87
