agent-warehouse

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { Agent, Ping, Strip } from '../types'
5import { backgroundSvg, robotSvg, tagsSvg } from './art'
6import { H, W, asDrawn, enter, freeColor, freeSlot, goTo, goneAt, leave, posAt, reanchor, stationX } from './plan'
7import { verdictOf } from './verdict'
8
9const PANE = 'agents'
10// The strip stays a while after the last agent finishes, then makes room again.
11const LINGER_MS = 30_000
12const TICK_MS = 2_500
13// Robots change station at most this often, all together: one redraw, however busy the agents.
14const MOVE_FLUSH_MS = 4_000
15const MAX_AGENTS = 40
16const MAX_PINGS = 12
17const MIN_COLUMNS = 36
18// About how long a redrawn picture takes to load and start; moving robots are drawn this far ahead.
19const LOAD_LEAD_MS = 150
20const GLYPHS = { running: '●', done: '✓', failed: '✗', stopped: '■' } as const
21
22const agents = atom({ plugin: 'agent-warehouse', key: 'agents' } as const, [])
23const pings = atom({ plugin: 'agent-warehouse', key: 'pings' } as const, [])
24const strip = atom({ plugin: 'agent-warehouse', key: 'strip' } as const, null)
25const selected = atom({ plugin: 'agent-warehouse', key: 'selected' } as const, null)
26
27let counter = 0
28let hasOpened = false
29// What each agent is doing is kept here, not in shared state: a tool call must never redraw the pane.
30const activity = new Map<string, { tool: string; doing: string }>()
31// Where each robot stands, mirrored so a tool call never has to read state.
32const seats = new Map<string, Agent['station']>()
33const wanted = new Map<string, Agent['station']>()
34let isFlushQueued = false
35// Agents whose answer is still being judged: the engine's own list must not settle them first.
36const judging = new Set<string>()
37// Spawns and moves are applied one after another, so each sees the one before it.
38let chain: Promise<unknown> = Promise.resolve()
39const serial = <T,>(work: () => Promise<T>) => {
40  const next = chain.then(work, work)
41  chain = next.catch(() => undefined)
42
43  return next
44}
45
46const clip = (text: string, size: number) => (text.length > size ? `${text.slice(0, size - 1)}…` : text)
47const labelOf = (list: Agent[], id: string) =>
48  id === 'main' ? 'Main' : clip(list.find(agent => agent.id === id)?.label ?? id, 22)
49const elapsed = (ms: number) => {
50  const seconds = Math.max(0, Math.round(ms / 1000))
51
52  return seconds < 60 ? `${seconds}s` : `${Math.floor(seconds / 60)}m ${String(seconds % 60).padStart(2, '0')}s`
53}
54

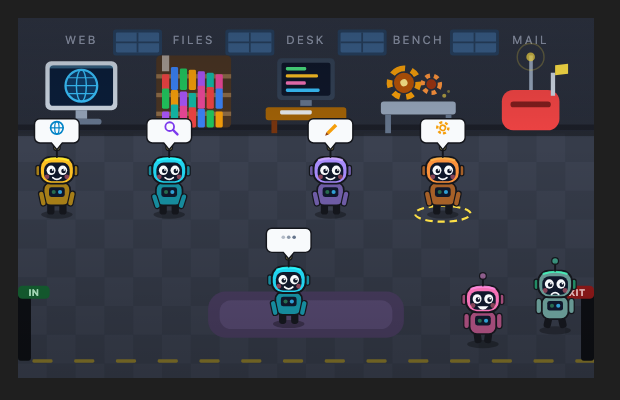

55// Where a tool is done in the warehouse.
56const stationOf = (tool: string): Agent['station'] => {
57  if (/^(WebFetch|WebSearch)$/.test(tool) || tool.startsWith('mcp__')) {
58    return 'web'
59  }
60  if (/^(Read|Grep|Glob|LS|NotebookRead)$/.test(tool)) {
61    return 'files'
62  }
63  if (/^(Edit|MultiEdit|Write|NotebookEdit)$/.test(tool)) {
64    return 'desk'
65  }
66  if (/^(Bash|BashOutput|KillShell)$/.test(tool)) {
67    return 'bench'
68  }
69  if (/^(SendMessage|Agent|Task)$/.test(tool)) {
70    return 'mail'
71  }
72
73  return 'lounge'
74}
75
76const text = (value: unknown) => (typeof value === 'string' ? value : '')
77const nameOfPath = (path: string) => path.split('/').filter(Boolean).at(-1) ?? path
78const hostOf = (url: string) => {
79  try {
80    return new URL(url).hostname
81  } catch {
82    return clip(url, 30)
83  }
84}
85
86// A short plain-words line for what a tool call is doing.
87const doingOf = (tool: string, input: Record<string, unknown>) => {
88  switch (tool) {
89    case 'Read':
90      return `Reading ${nameOfPath(text(input.file_path))}`
91    case 'Grep':
92      return `Searching for “${clip(text(input.pattern), 30)}”`
93    case 'Glob':
94      return `Finding files: ${clip(text(input.pattern), 30)}`
95    case 'Bash':
96      return `Running ${clip(text(input.command), 44)}`
97    case 'Edit':
98    case 'MultiEdit':
99    case 'Write':
100      return `Editing ${nameOfPath(text(input.file_path))}`
101    case 'WebFetch':
102      return `Fetching ${hostOf(text(input.url))}`
103    case 'WebSearch':
104      return `Searching the web: ${clip(text(input.query), 36)}`
105    case 'SendMessage':
106      return `Messaging ${clip(text(input.to), 20)}`
107    case 'Agent':
108      return `Starting an agent: ${clip(text(input.description), 30)}`
109    default:
110      return tool.startsWith('mcp__') ? `Using ${tool.split('__').slice(1).join(' · ')}` : `Using ${tool}`
111  }
112}
113
114// Who a message is for: an agent by id or by the name it was given. A reply
115// from an agent to anyone else this map does not know goes to the session.
116const addressee = (list: Agent[], to: string, from: string) => {
117  const found = list.find(agent => agent.id === to || agent.name === to)
118  if (found) {
119    return found.id
120  }
121
122  return from === 'main' ? null : 'main'
123}
124
125// The strip speaks only when its words change, so it never redraws for nothing.
126const syncStrip = async ($: EngineInterface) => {
127  const list = await read($, agents)
128  const now = await $.clock.now()
129  const running = list.filter(agent => agent.status === 'running').length
130  const isRecent = list.some(agent => agent.endedAt !== undefined && now - agent.endedAt < LINGER_MS)
131  const plural = (count: number) => `${count} agent${count === 1 ? '' : 's'}`
132  const next: Strip =
133    running > 0 ? { title: `${plural(running)} working` } : isRecent ? { title: `${plural(list.length)} finished` } : null
134  if (JSON.stringify(await read($, strip)) !== JSON.stringify(next)) {
135    await update($, strip, () => next)
136  }
137}
138
139// An agent is done: it cheers (or sulks) where it stands, then walks out.
140const settle = (agent: Agent, status: Agent['status'], now: number): Agent => {
141  const { tool: _tool, ...rest } = leave(agent, status, now)
142  seats.delete(agent.id)
143  activity.delete(agent.id)
144
145  return { ...rest, status, endedAt: now, doing: status === 'done' ? 'Finished' : status === 'failed' ? 'Failed' : 'Stopped' }
146}
147
148// An agent that ended without its own turn.complete (stopped, or failed) is
149// settled from the engine's own list.
150const reconcile = async ($: EngineInterface) => {
151  const before = await read($, agents)
152  if (!before.some(agent => agent.status === 'running')) {
153    return
154  }
155  const live = await $.agent.list()
156  const now = await $.clock.now()
157  const gone = before.filter(agent => {
158    const info = agent.status === 'running' && !judging.has(agent.id) ? live.find(one => one.id === agent.id) : undefined
159
160    return info !== undefined && info.status !== 'running'
161  })
162  if (gone.length > 0) {
163    await update($, agents, list =>
164      list.map(agent => {
165        const info = gone.some(one => one.id === agent.id) ? live.find(one => one.id === agent.id) : undefined
166
167        return info
168          ? settle(agent, info.status === 'completed' ? 'done' : info.status === 'failed' ? 'failed' : 'stopped', now)
169          : agent
170      }),
171    )
172  }
173  await syncStrip($)
174}
175
176const finish = async ($: EngineInterface, id: string, status: Agent['status']) => {
177  const now = await $.clock.now()
178  await serial(() =>
179    update($, agents, list =>
180      list.map(agent => (agent.id === id && agent.status === 'running' ? settle(agent, status, now) : agent)),
181    ),
182  )
183  await syncStrip($)
184  $.clock.after(LINGER_MS + 200, () => void syncStrip($))
185}
186
187// All the stations robots asked for since the last flush, applied together.
188const flush = async ($: EngineInterface) => {
189  isFlushQueued = false
190  const asked = [...wanted]
191  wanted.clear()
192  if (asked.length === 0) {
193    return
194  }
195  const now = await $.clock.now()
196  await serial(() =>
197    update($, agents, list => {
198      // Each robot is seated against the list as the robots before it left it.
199      const next = [...list]
200      for (const [id, st] of asked) {
201        const at = next.findIndex(agent => agent.id === id)
202        const agent = next[at]
203        if (!agent || agent.status !== 'running' || agent.station === st) {
204          continue
205        }
206        seats.set(id, st)
207        next[at] = goTo(agent, st, freeSlot(next, st, id), now)
208      }
209
210      return next
211    }),
212  )
213}
214
215// Picks a robot (or lets go of it): one write, so one redraw.
216const select = async ($: EngineInterface, id: string) => {
217  const before = await read($, selected)
218  await update($, selected, () => (before === id ? null : id))
219}
220
221const openPane = ($: EngineInterface, focus: boolean) =>
222  $.ui.open({ id: PANE, title: 'Agent Warehouse', closeOnEscape: true, ...(focus ? { focus: true as const } : {}) })
223
224export const register: Register = on => {
225  on('session.start', async ($, e, next) => {
226    await $.command.register({
227      name: 'warehouse',
228      description: 'Open the live warehouse of this session’s agents',
229    })
230    $.clock.every(TICK_MS, () => void reconcile($))
231
232    return next(e)
233  })
234
235  on('command.run', { command: 'warehouse' }, async $ => {
236    await openPane($, true)
237
238    return { text: 'Agent warehouse opened.' }
239  })
240
241  on('agent.spawn', async ($, e, next) => {
242    const spawned = await next(e)
243    if (spawned.agentId) {
244      const now = await $.clock.now()
245      const id = spawned.agentId
246      await serial(() =>
247        update($, agents, list => {
248          const slot = freeSlot(list, 'lounge', id)
249          seats.set(id, 'lounge')
250          const born = enter(
251            {
252              id,
253              label: e.description || e.subagentType,
254              type: e.subagentType,
255              parent: e.parentAgentId ?? 'main',
256              ...(e.name ? { name: e.name } : {}),
257              status: 'running',
258              bornAt: now,
259              station: 'lounge',
260              doing: 'Getting started',
261              task: clip(e.prompt.replace(/\s+/g, ' ').trim(), 220),
262              slot,
263              planAt: now,
264              phases: [],
265              color: freeColor(list, now),
266            },
267            now,
268          )
269
270          return [...list, born].slice(-MAX_AGENTS)
271        }),
272      )
273      await syncStrip($)
274      // The first agent of a session opens the warehouse by itself, without taking focus.
275      if (!hasOpened) {
276        hasOpened = true
277        void openPane($, false)
278      }
279    }
280
281    return spawned
282  })
283
284  // A tool call only notes what the agent is up to. It never touches shared
285  // state: that would redraw the pane on every call.
286  on('tool.call', ($, e, next) => {
287    const id = e.agentId
288    if (id) {
289      activity.set(id, { tool: e.tool, doing: doingOf(e.tool, e as unknown as Record<string, unknown>) })
290      const station = stationOf(e.tool)
291      if (seats.has(id) && seats.get(id) !== station) {
292        wanted.set(id, station)
293        if (!isFlushQueued) {
294          isFlushQueued = true
295          $.clock.after(MOVE_FLUSH_MS, () => void flush($))
296        }
297      } else {
298        wanted.delete(id)
299      }
300    }
301
302    return next(e)
303  })
304
305  on('turn.complete', async ($, e, next) => {
306    const id = e.agentId
307    if (id && e.reason === 'answer') {
308      // An answer can still say the task failed. It is judged off the hook's
309      // path, so the model call never holds up the turn.
310      judging.add(id)
311      const task = (await read($, agents)).find(agent => agent.id === id)?.task ?? ''
312      void verdictOf(e.answer, task, (text, labels) => $.model.classify(text, labels))
313        .then(status => finish($, id, status))
314        .catch(() => undefined)
315        .finally(() => judging.delete(id))
316    } else if (id) {
317      await finish($, id, e.reason === 'aborted' ? 'stopped' : 'failed')
318    }
319
320    return next(e)
321  })
322
323  on('session.send', async ($, e, next) => {
324    const list = await read($, agents)
325    const from = e.agentId ?? 'main'
326    const to = addressee(list, e.to, from)
327    if (to) {
328      const now = await $.clock.now()
329      const entry: Ping = { id: (counter += 1), from, to, text: clip(e.text, 140), at: now }
330      void update($, pings, all => [...all, entry].slice(-MAX_PINGS))
331      // The letter flies in the sender's layer, or the receiver's when the session writes.
332      const spot = (id: string) => {
333        const found = list.find(agent => agent.id === id)
334        const at = found ? posAt(found.phases, now) : { x: stationX('mail'), y: 128 }
335
336        return { x: at.x, y: at.y - 34 }
337      }
338      const a = spot(from)
339      const b = spot(to)
340      const owner = from === 'main' ? to : from
341      void serial(() =>
342        update($, agents, all =>
343          all.map(agent =>
344            agent.id === owner && agent.status === 'running'
345              ? { ...reanchor(agent, now), letter: { x0: a.x, y0: a.y, x1: b.x, y1: b.y, at: now } }
346              : agent,
347          ),
348        ),
349      )
350    }
351
352    return next(e)
353  })
354
355  // The strip: a quiet line while agents work, and a way into the warehouse.
356  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
357    const below = await next(e)
358    const line = await read($, strip)
359    if (e.props.hasSurvey || !line) {
360      return below
361    }
362
363    const { Box, Button, Text } = $.ui.resolve(e)
364    const bar = (
365      <Box key="strip" borderStyle="round" borderDimColor paddingX={1} gap={2} alignItems="center" flexWrap="wrap">
366        <Text color="#22d3ee">●</Text>
367        <Box flexGrow={1}>
368          <Text bold>{line.title}</Text>
369        </Box>
370        <Button key="open" label="Open warehouse" onPress={() => openPane($, true)} />
371      </Box>
372    )
373
374    return below.type === 'engine' ? (
375      bar
376    ) : (
377      <Box flexDirection="column">
378        {bar}
379        {below}
380      </Box>
381    )
382  })
383
384  // The warehouse: a still floor, one transparent layer per robot, then who is who.
385  // A robot at rest is a pose that never changes, so redraws leave it alone.
386  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
387    const ui = $.ui.resolve(e)
388    const { Box, Button, Text } = ui
389    const list = await read($, agents)
390    const recent = await read($, pings)
391    const chosen = await read($, selected)
392    const now = await $.clock.now()
393    const columns = e.props.bodyColumns
394    const floor = list.filter(agent => {
395      const out = goneAt(agent)
396
397      return out === null || now < out + 800
398    })
399    const working = list.filter(agent => agent.status === 'running').length
400    const done = list.filter(agent => agent.status === 'done').length
401    const failed = list.filter(agent => agent.status === 'failed').length
402    const counts = `${working} working · ${done} done${failed ? ` · ${failed} failed` : ''}`
403    const talk = recent.slice(-2)
404    const pick = floor.find(agent => agent.id === chosen)
405    const doingNow = pick ? (activity.get(pick.id)?.doing ?? pick.doing) : ''
406
407    const notes = (
408      <Box flexDirection="column">
409        {pick ? (
410          <Box flexDirection="column">
411            <Box gap={1}>
412              <Text color={pick.color}>●</Text>
413              <Text bold>{clip(pick.label, 40)}</Text>
414              <Text dimColor>
415                {pick.type} · {pick.status} · {elapsed((pick.endedAt ?? now) - pick.bornAt)}
416              </Text>
417            </Box>
418            <Text dimColor>Doing</Text>
419            <Text>{clip(doingNow, 160)}</Text>
420            <Text dimColor>Task</Text>
421            <Text>{clip(pick.task || 'No task text.', 220)}</Text>
422          </Box>
423        ) : (
424          <Box flexDirection="column">
425            <Text bold>Agent warehouse</Text>
426            <Text dimColor>{counts}</Text>
427            {working > 0 && <Text dimColor>Point at or click a robot, or click its name, to see what it is doing.</Text>}
428            {list.length === 0 && <Text dimColor>No agents yet. They appear here when Claude starts subagents.</Text>}
429          </Box>
430        )}
431        {talk.map(ping => (
432          <Text key={`ping-${ping.id}`} dimColor>
433            {labelOf(list, ping.from)} → {labelOf(list, ping.to)}: {clip(ping.text, 60)}
434          </Text>
435        ))}
436      </Box>
437    )
438
439    if (!('Svg' in ui) || columns < MIN_COLUMNS) {
440      // A surface without pictures, or too narrow for them: a plain list.
441      return (
442        <Box flexDirection="column" gap={1}>
443          {list
444            .slice(-10)
445            .reverse()
446            .map(agent => (
447              <Box key={`row-${agent.id}`} gap={1}>
448                <Text color={agent.color}>{GLYPHS[agent.status]}</Text>
449                <Text bold>{clip(agent.label, 28)}</Text>
450                <Text dimColor>{clip(activity.get(agent.id)?.doing ?? agent.doing, 40)}</Text>
451              </Box>
452            ))}
453          {notes}
454        </Box>
455      )
456    }
457
458    const width = Math.min(640, Math.max(300, Math.round(columns * 9)))
459    const height = Math.round((width * H) / W)
460    const drawn = floor.map(agent => asDrawn(agent, now + LOAD_LEAD_MS))
461
462    return (
463      <Box flexDirection="column" gap={1}>
464        <Box position="relative">
465          <Box key="floor">
466            <ui.Svg source={backgroundSvg(width, height)} alt="The warehouse floor" width={width} height={height} isInteractive />
467          </Box>
468          {drawn.map(agent => (
469            <Box key={`bot-${agent.id}`} position="absolute" top={0} left={0}>
470              <ui.Svg
471                source={robotSvg(agent, { width, height, selected: agent.id === chosen })}
472                alt={`${agent.label}: ${activity.get(agent.id)?.doing ?? agent.doing}`}
473                width={width}
474                height={height}
475                isInteractive
476              />
477            </Box>
478          ))}
479          {drawn.length > 0 && (
480            <Box key="tags" position="absolute" top={0} left={0}>
481              <ui.Svg
482                source={tagsSvg(
483                  drawn.map(agent => ({ agent, doing: activity.get(agent.id)?.doing ?? agent.doing })),
484                  { width, height },
485                )}
486                alt="Point at or click a robot to see what it is doing"
487                width={width}
488                height={height}
489                isInteractive
490              />
491            </Box>
492          )}
493        </Box>
494        <Box gap={1} flexWrap="wrap">
495          {floor
496            .filter(agent => agent.status === 'running')
497            .map(agent => (
498              <Button
499                key={`pick-${agent.id}`}
500                variant={agent.id === chosen ? 'primary' : 'secondary'}
501                label={`${GLYPHS.running} ${clip(agent.label, 16)}`}
502                onPress={() => select($, agent.id)}
503              />
504            ))}
505        </Box>
506        {notes}
507      </Box>
508    )
509  })
510}
511

1import type { Agent, Phase } from '../types'
2import { H, LANE, STATIONS, W, WALL, stationX } from './plan'
3
4// Vector art for the warehouse: one still background, and one transparent layer
5// per robot. A robot's layer only changes when that robot's own plan does, so
6// the others keep walking undisturbed.
7const INK = '#14161c'
8const FONT = 'system-ui,-apple-system,Segoe UI,sans-serif'
9// Without a color scheme, Desktop's sandboxed frame paints an opaque white square.
10const SCHEME = '<style>:root{color-scheme:light dark}</style>'
11
12const part = (c: string, at: number) => parseInt(c.slice(at, at + 2), 16)
13const two = (n: number) => Math.round(Math.min(255, Math.max(0, n))).toString(16).padStart(2, '0')
14const shade = (c: string, k: number) => `#${two(part(c, 1) * k)}${two(part(c, 3) * k)}${two(part(c, 5) * k)}`
15const mix = (a: string, b: string, k: number) =>
16  `#${two(part(a, 1) * (1 - k) + part(b, 1) * k)}${two(part(a, 3) * (1 - k) + part(b, 3) * k)}${two(part(a, 5) * (1 - k) + part(b, 5) * k)}`
17const n = (v: number) => Math.round(v * 100) / 100
18const sec = (ms: number) => `${n(Math.max(0, ms) / 1000)}s`
19const esc = (s: string) => s.replace(/[&<>"]/g, c => ({ '&': '&amp;', '<': '&lt;', '>': '&gt;', '"': '&quot;' })[c] ?? c)
20
21const open = (w: number, h: number) =>
22  `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 ${W} ${H}" width="${w}" height="${h}">${SCHEME}`
23
24// ---- the room -------------------------------------------------------------
25
26const station = (id: (typeof STATIONS)[number]) => {
27  const x = stationX(id) - 28
28  const y = 24
29  let art = ''
30  if (id === 'web') {
31    art =
32      '<rect x="3" y="6" width="50" height="34" rx="4" fill="#cbd5e1"/><rect x="6" y="9" width="44" height="28" rx="2.5" fill="#0b1e3a"/>' +
33      '<circle cx="28" cy="23" r="11" fill="#0e3a66" stroke="#38bdf8" stroke-width="1.6"/>' +
34      '<ellipse cx="28" cy="23" rx="4.5" ry="11" fill="none" stroke="#38bdf8" stroke-width="1"><animate attributeName="rx" values="4.5;0.6;4.5" dur="3s" repeatCount="indefinite"/></ellipse>' +
35      '<path d="M17 23h22M19 17.5h18M19 28.5h18" stroke="#38bdf8" stroke-width="0.8" fill="none"/>' +
36      '<rect x="6" y="9" width="44" height="2" fill="#7dd3fc" fill-opacity="0.35"><animate attributeName="y" values="9;35;9" dur="3.4s" repeatCount="indefinite"/></rect>' +
37      '<rect x="24" y="40" width="8" height="6" fill="#94a3b8"/><rect x="14" y="46" width="28" height="4" rx="2" fill="#64748b"/>'
38  } else if (id === 'files') {
39    const hues = ['#ef4444', '#3b82f6', '#22c55e', '#f59e0b', '#a855f7', '#14b8a6', '#ec4899']
40    const books = [0, 1, 2].map(row =>
41      Array.from({ length: 7 }, (_, i) => {
42        const tall = 11 + ((i * 5 + row * 3) % 6)
43
44        return `<rect x="${6 + i * 6.2}" y="${15 + row * 13 - tall + 11}" width="5" height="${tall}" rx="1" fill="${hues[(i + row * 2) % hues.length]}"/>`
45      }).join(''),
46    ).join('')
47    art =
48      '<rect x="2" y="2" width="52" height="50" rx="3" fill="#4a3524"/>' +
49      [0, 1, 2].map(row => `<rect x="2" y="${15 + row * 13}" width="52" height="3" fill="#8b6a47"/>`).join('') +
50      books +
51      '<rect x="6" y="2" width="5" height="11" fill="#fff" fill-opacity="0"><animate attributeName="fill-opacity" values="0;0;0.7;0" dur="4.5s" repeatCount="indefinite"/></rect>'
52  } else if (id === 'desk') {
53    art =
54      '<rect x="8" y="4" width="40" height="29" rx="3" fill="#334155"/><rect x="11" y="7" width="34" height="23" rx="1.5" fill="#0f172a"/>' +
55      [['#4ade80', 10], ['#fbbf24', 18], ['#f472b6', 13], ['#38bdf8', 22]]
56        .map(([c, w], i) => `<rect x="14" y="${10 + i * 5}" width="${w}" height="2.4" rx="1" fill="${c}"><animate attributeName="width" values="${w};${Number(w) + 7};${w}" dur="${2 + i * 0.6}s" repeatCount="indefinite"/></rect>`)
57        .join('') +
58      '<rect x="24" y="33" width="8" height="4" fill="#64748b"/><rect x="0" y="38" width="56" height="9" rx="2" fill="#a16207"/><rect x="10" y="40" width="22" height="3" rx="1" fill="#e5e7eb"/>' +
59      '<rect x="4" y="47" width="4" height="9" fill="#78350f"/><rect x="48" y="47" width="4" height="9" fill="#78350f"/>'
60  } else if (id === 'bench') {
61    art =
62      '<rect x="2" y="34" width="52" height="9" rx="2" fill="#94a3b8"/><rect x="5" y="43" width="4" height="13" fill="#64748b"/><rect x="47" y="43" width="4" height="13" fill="#64748b"/>' +
63      '<g transform="translate(18 21)"><g><circle r="10" fill="none" stroke="#f59e0b" stroke-width="4" stroke-dasharray="5.2 4.4"/><circle r="7" fill="#b45309"/><circle r="2.5" fill="#fde68a"/>' +
64      '<animateTransform attributeName="transform" type="rotate" from="0" to="360" dur="5s" repeatCount="indefinite"/></g></g>' +
65      '<g transform="translate(37 22)"><g><circle r="6" fill="none" stroke="#fb923c" stroke-width="3" stroke-dasharray="3.2 2.8"/><circle r="3.4" fill="#9a3412"/>' +
66      '<animateTransform attributeName="transform" type="rotate" from="360" to="0" dur="3.4s" repeatCount="indefinite"/></g></g>' +
67      '<g fill="#fde047"><circle cx="46" cy="30" r="1.4"><animate attributeName="opacity" values="1;0;1" dur="0.5s" repeatCount="indefinite"/></circle>' +
68      '<circle cx="49" cy="27" r="1"><animate attributeName="opacity" values="0;1;0" dur="0.5s" repeatCount="indefinite"/></circle></g>'
69  } else {
70    art =
71      '<rect x="27" y="2" width="2.5" height="24" fill="#94a3b8"/><circle cx="28" cy="3" r="3" fill="#fde047"><animate attributeName="fill-opacity" values="1;0.2;1" dur="1.2s" repeatCount="indefinite"/></circle>' +
72      '<circle cx="28" cy="3" r="3" fill="none" stroke="#fde047" stroke-width="1"><animate attributeName="r" values="3;12" dur="2s" repeatCount="indefinite"/><animate attributeName="stroke-opacity" values="0.8;0" dur="2s" repeatCount="indefinite"/></circle>' +
73      '<rect x="8" y="26" width="40" height="28" rx="8" fill="#ef4444"/><rect x="14" y="34" width="28" height="4" rx="2" fill="#7f1d1d"/>' +
74      '<rect x="42" y="14" width="3" height="16" fill="#cbd5e1"/><path d="M45 14h9v7h-9z" fill="#fde047"><animateTransform attributeName="transform" type="skewY" values="0;-8;0" dur="2.4s" repeatCount="indefinite"/></path>'
75  }
76  const label = `<text x="28" y="-6" text-anchor="middle" font-family="${FONT}" font-size="8" letter-spacing="1.4" fill="#8b93a7">${id.toUpperCase()}</text>`
77
78  return `<g transform="translate(${x} ${y})">${label}${art}</g>`
79}
80
81export const backgroundSvg = (w: number, h: number) => {
82  const tiles = Array.from({ length: Math.ceil((H - WALL) / 20) }, (_, row) =>
83    Array.from({ length: Math.ceil(W / 20) }, (_, col) =>
84      (row + col) % 2 === 0 ? `<rect x="${col * 20}" y="${WALL + row * 20}" width="20" height="20" fill="#3b4150"/>` : '',
85    ).join(''),
86  ).join('')
87  const dashes = Array.from({ length: 14 }, (_, i) => `<rect x="${10 + i * 29}" y="${LANE + 11}" width="14" height="2.4" rx="1" fill="#8a7a2c"/>`).join('')
88  const windows = [83, 161, 239, 317]
89    .map(x => `<rect x="${x - 17}" y="8" width="34" height="18" rx="2" fill="#27405f"/><rect x="${x - 15}" y="10" width="30" height="14" rx="1" fill="#4a79ad" fill-opacity="0.55"/><path d="M${x} 10v14M${x - 15} 17h30" stroke="#27405f" stroke-width="1.2"/>`)
90    .join('')
91
92  return (
93    open(w, h) +
94    `<defs><linearGradient id="wall" x1="0" y1="0" x2="0" y2="1"><stop offset="0" stop-color="#2f3544"/><stop offset="1" stop-color="#262b37"/></linearGradient>` +
95    `<linearGradient id="shade" x1="0" y1="0" x2="0" y2="1"><stop offset="0" stop-color="#000" stop-opacity="0.18"/><stop offset="0.35" stop-color="#000" stop-opacity="0"/><stop offset="1" stop-color="#000" stop-opacity="0.22"/></linearGradient></defs>` +
96    `<rect width="${W}" height="${H}" fill="#363c4a"/>${tiles}` +
97    `<rect y="${WALL - 2}" width="${W}" height="4" fill="#14161c" fill-opacity="0.55"/>` +
98    `<rect width="${W}" height="${WALL - 2}" fill="url(#wall)"/>${windows}` +
99    `<rect x="0" y="${WALL - 6}" width="${W}" height="4" fill="#1b1e27"/>` +
100    `<text x="${W / 2}" y="${WALL - 11}" text-anchor="middle" font-family="${FONT}" font-size="0" fill="#000">.</text>` +
101    `<rect x="132" y="190" width="136" height="32" rx="12" fill="#4b3f63"/><rect x="140" y="196" width="120" height="20" rx="8" fill="#5b4d77"/>` +
102    dashes +
103    `<rect x="0" y="${LANE - 34}" width="9" height="46" rx="2" fill="#0e1015"/><rect x="0" y="${LANE - 40}" width="22" height="9" rx="3" fill="#166534"/><text x="11" y="${LANE - 33}" text-anchor="middle" font-family="${FONT}" font-size="6.5" font-weight="700" fill="#bbf7d0">IN</text>` +
104    `<rect x="${W - 9}" y="${LANE - 34}" width="9" height="46" rx="2" fill="#0e1015"/><rect x="${W - 28}" y="${LANE - 40}" width="28" height="9" rx="3" fill="#991b1b"/><text x="${W - 14}" y="${LANE - 33}" text-anchor="middle" font-family="${FONT}" font-size="6.5" font-weight="700" fill="#fecaca">EXIT</text>` +
105    STATIONS.map(station).join('') +
106    `<rect width="${W}" height="${H}" fill="url(#shade)"/></svg>`
107  )
108}
109
110// ---- a robot --------------------------------------------------------------
111
112const ICONS: Record<Agent['station'], string> = {
113  web:
114    '<circle r="5.2" fill="none" stroke="#0284c7" stroke-width="1.4"/><ellipse rx="2.2" ry="5.2" fill="none" stroke="#0284c7" stroke-width="1"><animate attributeName="rx" values="2.2;0.4;2.2" dur="1.8s" repeatCount="indefinite"/></ellipse><path d="M-5.2 0h10.4" stroke="#0284c7" stroke-width="1"/>',
115  files:
116    '<g><circle cx="-1" cy="-1" r="3.6" fill="none" stroke="#7c3aed" stroke-width="1.5"/><path d="M1.8 1.8 5.4 5.4" stroke="#7c3aed" stroke-width="2" stroke-linecap="round"/><animateTransform attributeName="transform" type="translate" values="-2,0;2,0;-2,0" dur="1.4s" repeatCount="indefinite"/></g>',
117  desk:
118    '<g><path d="M-4 4 3 -3 5 -1 -2 6z" fill="#f59e0b"/><path d="M-4 4-5 7-2 6z" fill="#92400e"/><animateTransform attributeName="transform" type="translate" values="0,0;1.5,-1;0,0" dur="0.5s" repeatCount="indefinite"/></g>',
119  bench:
120    '<g><circle r="4.6" fill="none" stroke="#f59e0b" stroke-width="2" stroke-dasharray="2.4 2.4"/><circle r="2.2" fill="none" stroke="#f59e0b" stroke-width="1.4"/><animateTransform attributeName="transform" type="rotate" from="0" to="360" dur="2.6s" repeatCount="indefinite"/></g>',
121  mail:
122    '<rect x="-5.5" y="-3.6" width="11" height="7.2" rx="1" fill="#fff" stroke="#ef4444" stroke-width="1.2"/><path d="M-5.5 -3.6 0 1 5.5 -3.6" fill="none" stroke="#ef4444" stroke-width="1.2"/>',
123  lounge:
124    '<circle cx="-4.5" r="1.5" fill="#64748b"><animate attributeName="opacity" values="0.2;1;0.2" dur="1.2s" repeatCount="indefinite"/></circle><circle r="1.5" fill="#64748b"><animate attributeName="opacity" values="0.2;1;0.2" dur="1.2s" begin="0.2s" repeatCount="indefinite"/></circle><circle cx="4.5" r="1.5" fill="#64748b"><animate attributeName="opacity" values="0.2;1;0.2" dur="1.2s" begin="0.4s" repeatCount="indefinite"/></circle>',
125}
126
127type Timeline = { start: Pt; moves: { dur: number; values: string; keyTimes: string } | null; walks: [number, number][]; work: number | null; cheer: [number, number] | null; sulk: [number, number] | null }
128type Pt = { x: number; y: number }
129
130// Reads a plan as seconds from its own anchor, so the same plan always gives the same drawing.
131const timeline = (phases: Phase[], anchor: number): Timeline => {
132  const rel = (t: number) => Math.max(0, (t - anchor) / 1000)
133  const first = phases[0]
134  const start = first ? first.from : { x: 0, y: 0 }
135  const pts: { t: number; p: Pt }[] = [{ t: 0, p: start }]
136  const walks: [number, number][] = []
137  let work: number | null = null
138  let cheer: [number, number] | null = null
139  let sulk: [number, number] | null = null
140  for (const ph of phases) {
141    const end = ph.t1 === null ? ph.t0 : ph.t1
142    if (rel(ph.t0) > (pts.at(-1)?.t ?? 0)) {
143      pts.push({ t: rel(ph.t0), p: pts.at(-1)?.p ?? start })
144    }
145    pts.push({ t: rel(end), p: ph.to })
146    if (ph.kind === 'walk') {
147      walks.push([rel(ph.t0), rel(end)])
148    } else if (ph.kind === 'work') {
149      work = rel(ph.t0)
150    } else if (ph.kind === 'cheer') {
151      cheer = [rel(ph.t0), rel(end)]
152    } else {
153      sulk = [rel(ph.t0), rel(end)]
154    }
155  }
156  const total = pts.at(-1)?.t ?? 0
157  if (total <= 0) {
158    return { start, moves: null, walks, work, cheer, sulk }
159  }
160  const kept = pts.filter((pt, i) => i === pts.length - 1 || (pts[i + 1]?.t ?? 0) > pt.t)
161  const values = kept.map(pt => `${n(pt.p.x)},${n(pt.p.y)}`).join(';')
162  const keyTimes = kept.map(pt => n(pt.t / total)).join(';')
163
164  return { start, moves: { dur: total, values, keyTimes }, walks, work, cheer, sulk }
165}
166
167// The walk a robot's layer and its target on the top layer both follow.
168const motion = (tl: Timeline) =>
169  tl.moves
170    ? `<animateTransform attributeName="transform" type="translate" values="${tl.moves.values}" keyTimes="${tl.moves.keyTimes}" dur="${n(tl.moves.dur)}s" begin="0s" fill="freeze"/>`
171    : ''
172
173const SAD_GREY = '#7b8190'
174const SCALE = 0.84
175
176export const robotSvg = (
177  a: Agent,
178  o: { width: number; height: number; selected: boolean },
179) => {
180  const tl = timeline(a.phases, a.planAt)
181  const body = a.color
182  const dark = shade(body, 0.66)
183  const light = shade(body, 1.25)
184  const ms = (t: number) => sec(t * 1000)
185  const window = (w: [number, number]) => `begin="${ms(w[0])}" dur="${ms(w[1] - w[0])}"`
186  const show = (w: [number, number] | number) =>
187    typeof w === 'number'
188      ? `<set attributeName="opacity" to="1" begin="${ms(w)}" fill="freeze"/>`
189      : `<set attributeName="opacity" to="1" ${window(w)}/>`
190  const hide = (w: [number, number] | null) => (w ? `<set attributeName="opacity" to="0" ${window(w)}/>` : '')
191  const cycle = (type: string, w: [number, number], period: string, values: string) =>
192    `<animateTransform attributeName="transform" type="${type}" values="${values}" dur="${period}" begin="${ms(w[0])}" repeatDur="${ms(w[1] - w[0])}"/>`
193  const swing = (side: 1 | -1) =>
194    tl.work === null
195      ? ''
196      : `<animateTransform attributeName="transform" type="rotate" values="${side * -26} ${side * 11} -22;${side * 22} ${side * 11} -22;${side * -26} ${side * 11} -22" dur="0.7s" begin="${ms(tl.work)}" repeatCount="indefinite"/>`
197
198  // A failed robot is sad from its sulk (or at once, redrawn after it) until it is out of sight.
199  const sad = tl.sulk ? tl.sulk[0] : a.status === 'failed' ? 0 : null
200  const bob =
201    tl.walks.map(w => cycle('translate', w, '0.42s', '0,0;0,-2.4;0,0')).join('') +
202    (tl.cheer ? cycle('translate', tl.cheer, '0.5s', '0,0;0,-16;0,0') : '') +
203    (tl.sulk ? cycle('translate', tl.sulk, '0.34s', '0,0;0,1.4;0,0') : '')
204  const legL = tl.walks.map(w => cycle('rotate', w, '0.42s', '-24 -5 -9;24 -5 -9;-24 -5 -9')).join('')
205  const legR = tl.walks.map(w => cycle('rotate', w, '0.42s', '24 5 -9;-24 5 -9;24 5 -9')).join('')
206  const tint = sad === null ? '' : `<animate attributeName="fill" to="${mix(body, SAD_GREY, 0.72)}" begin="${ms(sad)}" dur="0.4s" fill="freeze"/>`
207  const move = motion(tl)
208
209  const eye = (cx: number) =>
210    `<ellipse cx="${cx}" cy="-36" rx="3.7" ry="3.9" fill="#f8fafc"><animate attributeName="ry" values="3.9;3.9;0.5;3.9" keyTimes="0;0.93;0.965;1" dur="4.2s" begin="${cx > 0 ? 0.35 : 0}s" repeatCount="indefinite"/></ellipse>` +
211    `<circle cx="${cx + 0.7}" cy="-35.4" r="1.9" fill="#0f172a"/><circle cx="${cx + 1.3}" cy="-36.3" r="0.7" fill="#fff"/>`
212  const sadEye = (cx: number) =>
213    `<path d="M${cx - 3.4} -37q3.4 -3 6.8 0" fill="none" stroke="#f8fafc" stroke-width="1.6" stroke-linecap="round"/><circle cx="${cx}" cy="-32.6" r="1.2" fill="#93c5fd"/>`
214  const mouth = sad !== null
215    ? `<path d="M-3 -27.4q3 -2.8 6 0" fill="none" stroke="#f8fafc" stroke-width="1.4" stroke-linecap="round"/>`
216    : tl.cheer
217      ? `<path d="M-4.6 -30q4.6 6 9.2 0z" fill="#f8fafc"/>`
218      : `<path d="M-3.4 -30q3.4 3 6.8 0" fill="none" stroke="#f8fafc" stroke-width="1.4" stroke-linecap="round"/>`
219
220  const bubble =
221    tl.work === null
222      ? ''
223      : `<g opacity="0" transform="translate(0 -68)">${show(tl.work)}<g><animateTransform attributeName="transform" type="translate" values="0,0;0,-2.4;0,0" dur="1.6s" repeatCount="indefinite"/>` +
224        '<path d="M-14 -10h28a4.5 4.5 0 0 1 4.5 4.5v11a4.5 4.5 0 0 1-4.5 4.5h-9.5l-4.5 5.5-4.5-5.5h-9.5a4.5 4.5 0 0 1-4.5-4.5v-11a4.5 4.5 0 0 1 4.5-4.5z" fill="#f8fafc" stroke="#14161c" stroke-width="1.2"/>' +
225        `<g transform="translate(0 -2.5)">${ICONS[a.station]}</g></g></g>`
226  const stars = tl.cheer
227    ? `<g opacity="0">${show(tl.cheer)}` +
228      ([[-19, -52], [19, -50], [-13, -66], [15, -64]] as const)
229        .map(([x, y], i) => `<path d="M${x} ${y - 4}l1.3 2.7 3 .4-2.2 2 .6 3-2.7-1.5-2.7 1.5.6-3-2.2-2 3-.4z" fill="#fde047"><animate attributeName="opacity" values="1;0.2;1" dur="${n(0.5 + i * 0.1)}s" repeatCount="indefinite"/></path>`)
230        .join('') +
231      '</g>'
232    : ''
233  // Tears well at the outer corner of each eye and roll off the cheek, two at a time.
234  const tear = (cx: number, side: 1 | -1, delay: number) =>
235    `<path class="tear" d="M${n(cx + side * 2.6)} -35.2q2.1 2.9 1.7 4.2a1.7 1.7 0 0 1-3.4 0q-.4-1.3 1.7-4.2z" fill="#60a5fa" stroke="#e0f2fe" stroke-width="0.5">` +
236    `<animateTransform attributeName="transform" type="translate" values="0,0;${side * 1.6},6;${side * 4},17" keyTimes="0;0.35;1" dur="0.9s" begin="${ms((sad ?? 0) + delay)}" repeatCount="indefinite"/>` +
237    `<animate attributeName="opacity" values="1;1;0" keyTimes="0;0.6;1" dur="0.9s" begin="${ms((sad ?? 0) + delay)}" repeatCount="indefinite"/></path>`
238  const tears =
239    sad === null ? '' : `<g opacity="0">${show(sad)}${tear(-4.8, -1, 0)}${tear(-4.8, -1, 0.45)}${tear(4.8, 1, 0.2)}${tear(4.8, 1, 0.65)}</g>`
240  const cloud = sad !== null
241    ? `<g opacity="0" transform="translate(0 -64)">${show(sad)}<ellipse cx="-6" cy="0" rx="9" ry="5.5" fill="#64748b"/><ellipse cx="5" cy="-2" rx="10" ry="6.5" fill="#64748b"/><ellipse cx="0" cy="2" rx="14" ry="4.5" fill="#64748b"/>` +
242      [-6, 0, 6]
243        .map((x, i) => `<path d="M${x} 7v4" stroke="#60a5fa" stroke-width="1.6" stroke-linecap="round"><animateTransform attributeName="transform" type="translate" values="0,0;0,10" dur="0.7s" begin="${n(i * 0.2)}s" repeatCount="indefinite"/><animate attributeName="opacity" values="1;0" dur="0.7s" begin="${n(i * 0.2)}s" repeatCount="indefinite"/></path>`)
244        .join('') +
245      '</g>'
246    : ''
247  const ring = o.selected
248    ? '<ellipse cx="0" cy="0" rx="23" ry="6.5" fill="none" stroke="#fde047" stroke-width="1.8" stroke-dasharray="6 4"><animate attributeName="stroke-dashoffset" from="0" to="20" dur="1.2s" repeatCount="indefinite"/></ellipse>'
249    : ''
250  const letter = a.letter
251    ? (() => {
252        const { x0, y0, x1, y1 } = a.letter
253        const path = `M${n(x0)} ${n(y0)}Q${n((x0 + x1) / 2)} ${n(Math.min(y0, y1) - 46)} ${n(x1)} ${n(y1)}`
254
255        return (
256          `<g opacity="0"><set attributeName="opacity" to="1" begin="0s" dur="1.15s"/><animateMotion dur="1.1s" path="${path}" fill="freeze"/>` +
257          '<rect x="-7" y="-5" width="14" height="10" rx="1.6" fill="#f8fafc" stroke="#ef4444" stroke-width="1.2"/><path d="M-7 -5 0 1 7 -5" fill="none" stroke="#ef4444" stroke-width="1.2"/></g>'
258        )
259      })()
260    : ''
261
262  const art =
263    `<ellipse cx="0" cy="0.6" rx="13" ry="3.4" fill="#000" fill-opacity="0.3"/>${ring}` +
264    `<g>${bob}` +
265    `<g><rect x="-8" y="-9" width="6" height="9.6" rx="2.6" fill="${INK}"/>${legL}</g><g><rect x="2" y="-9" width="6" height="9.6" rx="2.6" fill="${INK}"/>${legR}</g>` +
266    `<rect x="-11" y="-26" width="22" height="19" rx="6" fill="${dark}" stroke="${INK}" stroke-width="1.4">${tint}</rect>` +
267    '<rect x="-6.5" y="-22" width="13" height="8" rx="2" fill="#0f172a"/>' +
268    '<circle cx="-2.6" cy="-18" r="1.7" fill="#4ade80"><animate attributeName="opacity" values="1;0.25;1" dur="1.3s" repeatCount="indefinite"/></circle><circle cx="2.6" cy="-18" r="1.7" fill="#38bdf8"><animate attributeName="opacity" values="0.25;1;0.25" dur="1.3s" repeatCount="indefinite"/></circle>' +
269    `<g>${hide(tl.cheer)}<g><rect x="-15.8" y="-24" width="4.6" height="12.5" rx="2.3" fill="${dark}" stroke="${INK}" stroke-width="1">${tint}</rect>${swing(1)}</g><g><rect x="11.2" y="-24" width="4.6" height="12.5" rx="2.3" fill="${dark}" stroke="${INK}" stroke-width="1">${tint}</rect>${swing(-1)}</g></g>` +
270    (tl.cheer
271      ? `<g opacity="0">${show(tl.cheer)}<rect x="-19" y="-38" width="4.6" height="13" rx="2.3" fill="${dark}" stroke="${INK}" stroke-width="1" transform="rotate(-22 -15 -25)"/><rect x="14.4" y="-38" width="4.6" height="13" rx="2.3" fill="${dark}" stroke="${INK}" stroke-width="1" transform="rotate(22 15 -25)"/></g>`
272      : '') +
273    `<rect x="-17.4" y="-40" width="3.6" height="8.6" rx="1.8" fill="${dark}" stroke="${INK}" stroke-width="1"/><rect x="13.8" y="-40" width="3.6" height="8.6" rx="1.8" fill="${dark}" stroke="${INK}" stroke-width="1"/>` +
274    `<rect x="-14" y="-47" width="28" height="22" rx="9" fill="${body}" stroke="${INK}" stroke-width="1.6">${tint}</rect>` +
275    `<path d="M-9.5 -44.4q9.5 -3.4 19 0" fill="none" stroke="${light}" stroke-width="1.8" stroke-linecap="round" stroke-opacity="0.8"/>` +
276    '<rect x="-10.6" y="-42.4" width="21.2" height="15.4" rx="6" fill="#0f172a"/>' +
277    '<circle cx="-8.2" cy="-30.6" r="2" fill="#fb7185" fill-opacity="0.5"/><circle cx="8.2" cy="-30.6" r="2" fill="#fb7185" fill-opacity="0.5"/>' +
278    `<g>${sad === null ? hide(tl.sulk) : `<set attributeName="opacity" to="0" begin="${ms(sad)}" fill="freeze"/>`}${eye(-4.8)}${eye(4.8)}</g>` +
279    (sad !== null ? `<g opacity="0">${show(sad)}${sadEye(-4.8)}${sadEye(4.8)}</g>${tears}` : '') +
280    mouth +
281    `<path d="M0 -47v-6" stroke="${INK}" stroke-width="1.6" stroke-linecap="round"/><circle cx="0" cy="-55" r="2.8" fill="${tl.work !== null ? '#fde047' : light}" stroke="${INK}" stroke-width="1"><animate attributeName="fill-opacity" values="1;0.35;1" dur="1.4s" repeatCount="indefinite"/></circle>` +
282    `${stars}${cloud}${bubble}</g>`
283
284  return (
285    open(o.width, o.height) +
286    `<g transform="translate(${n(tl.start.x)} ${n(tl.start.y)})">${move}<g transform="scale(${SCALE})">${art}</g></g>${letter}</svg>`
287  )
288}
289
290// ---- who is who -------------------------------------------------------------
291
292// Each robot is its own frame and only the top frame hears the pointer, so this
293// last layer carries an invisible target that walks with each robot and the card
294// pointing at it or clicking it shows. All of it is CSS inside the frame: no
295// message to the plugin, so no redraw.
296export type Tag = { agent: Agent; doing: string }
297
298// Up to `lines` lines of at most `size` characters, an ellipsis where it was cut.
299const wrap = (text: string, size: number, lines: number) => {
300  const out: string[] = []
301  let line = ''
302  for (const word of text.split(/\s+/).filter(Boolean)) {
303    const piece = word.length > size ? `${word.slice(0, size - 1)}…` : word
304    if (!line || `${line} ${piece}`.length <= size) {
305      line = line ? `${line} ${piece}` : piece
306      continue
307    }
308    out.push(line)
309    line = piece
310    if (out.length === lines) {
311      const last = out[lines - 1] ?? ''
312      out[lines - 1] = `${last.length < size ? last : last.slice(0, size - 1)}…`
313
314      return out
315    }
316  }
317
318  return line ? [...out, line] : out
319}
320
321export const tagsSvg = (tags: Tag[], o: { width: number; height: number }) => {
322  // Sized in screen pixels, whatever width the scene is drawn at.
323  const k = W / o.width
324  const body = n(12 * k)
325  const head = n(13 * k)
326  const gap = n(16 * k)
327  const pad = n(9 * k)
328  const left = 8
329  const wide = W - 2 * left
330  const size = Math.max(20, Math.floor((wide - 2 * pad - 10 * k) / (body * 0.56)))
331
332  const style =
333    '<style>:root{color-scheme:light dark}.h{cursor:pointer;outline:none}.r,.c{opacity:0;pointer-events:none}' +
334    '.h:hover .r,.h:focus .r{opacity:1}' +
335    tags.map((_, i) => `#h${i}:hover~#c${i}{opacity:1}`).join('') +
336    tags.map((_, i) => `svg:not(:has(.h:hover)) #h${i}:focus~#c${i}{opacity:1}`).join('') +
337    '</style>'
338
339  const targets = tags
340    .map(({ agent }, i) => {
341      const tl = timeline(agent.phases, agent.planAt)
342
343      return (
344        `<g id="h${i}" class="h" tabindex="0" transform="translate(${n(tl.start.x)} ${n(tl.start.y)})">${motion(tl)}` +
345        '<ellipse class="r" cx="0" cy="0.6" rx="21" ry="6" fill="none" stroke="#fde047" stroke-width="1.6" stroke-dasharray="5 3.5"/>' +
346        '<rect x="-18" y="-52" width="36" height="56" fill="#000" fill-opacity="0"/></g>'
347      )
348    })
349    .join('')
350
351  const cards = tags
352    .map(({ agent, doing }, i) => {
353      const meta = `${agent.type} · ${agent.status}`
354      const rows: { text: string; size: number; fill: string; weight?: string }[] = [
355        { text: wrap(agent.label, size - 4, 1)[0] ?? '', size: head, fill: '#f8fafc', weight: '700' },
356        { text: meta, size: body, fill: '#9aa3b5' },
357        { text: wrap(`Doing: ${doing || 'Thinking'}`, size, 1)[0] ?? '', size: body, fill: '#e2e8f0' },
358        ...wrap(`Task: ${agent.task || 'No task text.'}`, size, 2).map(text => ({ text, size: body, fill: '#cbd5e1' })),
359      ]
360      const tall = n(2 * pad + rows.length * gap - (gap - head) / 2)
361      const text = rows
362        .map(
363          (row, r) =>
364            `<text x="${n(left + pad + (r === 0 ? 10 * k : 0))}" y="${n(6 + pad + head * 0.8 + r * gap)}" font-family="${FONT}" font-size="${row.size}"${row.weight ? ` font-weight="${row.weight}"` : ''} fill="${row.fill}">${esc(row.text)}</text>`,
365        )
366        .join('')
367
368      return (
369        `<g id="c${i}" class="c"><rect x="${left}" y="6" width="${wide}" height="${tall}" rx="${n(7 * k)}" fill="#0f1117" fill-opacity="0.94" stroke="${agent.color}" stroke-width="${n(1.4 * k)}"/>` +
370        `<circle cx="${n(left + pad + 3.5 * k)}" cy="${n(6 + pad + head * 0.45)}" r="${n(3.5 * k)}" fill="${agent.color}"/>${text}</g>`
371      )
372    })
373    .join('')
374
375  return `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 ${W} ${H}" width="${o.width}" height="${o.height}">${style}${targets}${cards}</svg>`
376}
377

1import type { Agent, Phase } from '../types'
2
3// The warehouse floor, in the units of the scene's viewBox. A robot's day is a
4// list of timed phases; nothing here depends on a clock but the times it is given.
5export const W = 400
6export const H = 250
7export const WALL = 80
8export const LANE = 226
9const SPEED = 80
10export const CHEER_MS = 1500
11export const SULK_MS = 4000
12// How long a letter is drawn after it is sent.
13export const LETTER_MS = 1_500
14
15export type Pt = { x: number; y: number }
16export type StationId = Agent['station']
17
18export const STATIONS = ['web', 'files', 'desk', 'bench', 'mail'] as const
19export const stationX = (id: (typeof STATIONS)[number]) => 44 + 78 * STATIONS.indexOf(id)
20const FRONT: [number, number][] = [[-17, 136], [17, 136], [-17, 170], [17, 170], [0, 202]]
21
22export const DOOR_IN: Pt = { x: -26, y: LANE }
23export const DOOR_OUT: Pt = { x: W + 26, y: LANE }
24
25export const slotPoint = (station: StationId, slot: number): Pt => {
26  if (station === 'lounge') {
27    return { x: 132 + (slot % 5) * 34, y: 212 }
28  }
29  const [dx, y] = FRONT[slot % FRONT.length] ?? [0, 136]
30
31  return { x: stationX(station) + dx, y }
32}
33
34export const freeSlot = (agents: Agent[], station: StationId, except: string) => {
35  const taken = new Set(
36    agents.filter(a => a.station === station && a.id !== except && a.status === 'running').map(a => a.slot),
37  )
38  let slot = 0
39  while (taken.has(slot)) {
40    slot += 1
41  }
42
43  return slot
44}
45
46// Bright enough for the dark floor, far enough apart to tell robots apart.
47export const PALETTE = ['#22d3ee', '#fbbf24', '#a78bfa', '#34d399', '#f472b6', '#60a5fa', '#fb923c', '#a3e635', '#f87171', '#e879f9']
48
49// The first color no robot on the floor is wearing, one walking out included.
50export const freeColor = (agents: Agent[], now: number) => {
51  const worn = new Set(
52    agents
53      .filter(a => {
54        const out = goneAt(a)
55
56        return out === null || now < out
57      })
58      .map(a => a.color),
59  )
60
61  return PALETTE.find(c => !worn.has(c)) ?? PALETTE[agents.length % PALETTE.length] ?? '#9ca3af'
62}
63
64const dist = (a: Pt, b: Pt) => Math.hypot(a.x - b.x, a.y - b.y)
65
66// Down to the lane, along it, then up to the place: a warehouse aisle.
67const aisle = (from: Pt, to: Pt): Pt[] => {
68  if (Math.abs(from.y - to.y) < 4) {
69    return [to]
70  }
71  const pts: Pt[] = []
72  if (from.y !== LANE) {
73    pts.push({ x: from.x, y: LANE })
74  }
75  if (to.x !== from.x) {
76    pts.push({ x: to.x, y: LANE })
77  }
78  pts.push(to)
79
80  return pts
81}
82
83const walk = (from: Pt, to: Pt, t0: number): Phase[] => {
84  const out: Phase[] = []
85  let at = from
86  let t = t0
87  for (const next of aisle(from, to)) {
88    const ms = Math.max(1, Math.round((dist(at, next) / SPEED) * 1000))
89    out.push({ kind: 'walk', t0: t, t1: t + ms, from: at, to: next })
90    at = next
91    t += ms
92  }
93
94  return out
95}
96
97const endOf = (phases: Phase[], fallback: number) => phases.at(-1)?.t1 ?? fallback
98
99export const posAt = (phases: Phase[], now: number): Pt => {
100  const first = phases[0]
101  if (!first || now < first.t0) {
102    return first?.from ?? DOOR_IN
103  }
104  for (const p of phases) {
105    if (p.t1 === null || now < p.t1) {
106      if (p.kind !== 'walk') {
107        return p.to
108      }
109      const k = (now - p.t0) / Math.max(1, p.t1 === null ? 1 : p.t1 - p.t0)
110
111      return { x: p.from.x + (p.to.x - p.from.x) * k, y: p.from.y + (p.to.y - p.from.y) * k }
112    }
113  }
114
115  return phases.at(-1)?.to ?? first.from
116}
117
118// Anchors the plan at `now`: what is past is dropped and the phase underway
119// starts from where the robot actually is.
120export const reanchor = (a: Agent, now: number): Agent => {
121  const { letter: _sent, ...kept } = a
122  const here = posAt(a.phases, now)
123  const rest = a.phases
124    .filter(p => p.t1 === null || p.t1 > now)
125    .map(p => (p.t0 < now ? { ...p, t0: now, from: p.kind === 'walk' ? here : p.from } : p))
126
127  return { ...kept, planAt: now, phases: rest.length > 0 ? rest : [{ kind: 'work', t0: now, t1: null, from: here, to: here }] }
128}
129
130export const enter = (a: Agent, now: number): Agent => {
131  const to = slotPoint(a.station, a.slot)
132
133  return {
134    ...a,
135    planAt: now,
136    phases: [...walk(DOOR_IN, to, now), { kind: 'work', t0: endOf(walk(DOOR_IN, to, now), now), t1: null, from: to, to }],
137  }
138}
139
140export const goTo = (a: Agent, station: StationId, slot: number, now: number): Agent => {
141  const { letter: _sent, ...kept } = a
142  const here = posAt(a.phases, now)
143  const to = slotPoint(station, slot)
144  const steps = walk(here, to, now)
145
146  return { ...kept, station, slot, planAt: now, phases: [...steps, { kind: 'work', t0: endOf(steps, now), t1: null, from: to, to }] }
147}
148
149// Cheer or sulk where it stands, then out through the exit door.
150export const leave = (a: Agent, status: Agent['status'], now: number): Agent => {
151  const { letter: _sent, ...kept } = a
152  const here = posAt(a.phases, now)
153  const hold = status === 'done' ? CHEER_MS : status === 'failed' ? SULK_MS : 0
154  const phases: Phase[] = []
155  if (hold > 0) {
156    phases.push({ kind: status === 'done' ? 'cheer' : 'sulk', t0: now, t1: now + hold, from: here, to: here })
157  }
158  phases.push(...walk(here, DOOR_OUT, now + hold))
159
160  return { ...kept, planAt: now, phases }
161}
162
163// When a robot has walked out of sight.
164export const goneAt = (a: Agent) => (a.status === 'running' ? null : endOf(a.phases, a.planAt))
165
166// The robot as it should be drawn at `now`. One that has stopped moving is a
167// still pose that never changes, so its drawing never needs redrawing; one on
168// the move is drawn from where it is right now, so a redrawn frame picks up
169// where it was instead of starting the walk again.
170export const asDrawn = (a: Agent, now: number): Agent => {
171  const isResting = a.status === 'running' && a.phases.every(p => p.t1 === null || p.t1 <= now)
172  const letter = a.letter && now - a.letter.at < LETTER_MS ? a.letter : undefined
173  const pose = posAt(a.phases, now)
174  const drawn: Agent = isResting
175    ? { ...reanchor(a, now), planAt: 0, phases: [{ kind: 'work', t0: 0, t1: null, from: pose, to: pose }] }
176    : reanchor(a, now)
177
178  return letter ? { ...drawn, letter } : drawn
179}
180

1// Whether an agent that answered actually did its task. The engine calls any
2// agent that answered "completed", even when its answer says it could not.
3export type Classify = (text: string, labels: readonly string[]) => Promise<string | undefined>
4
5// An answer that leads with it needs no model to read it.
6const SAYS_FAILED = /^\W*failed\b/i
7
8export const verdictOf = async (answer: string, task: string, classify: Classify): Promise<'done' | 'failed'> => {
9  const report = answer.trim()
10  if (!report) {
11    return 'done'
12  }
13  if (SAYS_FAILED.test(report)) {
14    return 'failed'
15  }
16  try {
17    const label = await classify(
18      `An AI agent was given this task:\n${task}\n\nIts final report:\n${report.slice(0, 2000)}\n\n` +
19        'Did the agent accomplish the task (succeeded), or report that it could not (failed)?',
20      ['succeeded', 'failed'],
21    )
22
23    return label === 'failed' ? 'failed' : 'done'
24  } catch {
25    // No verdict (no network, rate limited): what the engine says, as before.
26    return 'done'
27  }
28}
29

1// A step of a robot's day. Times are epoch milliseconds; `t1: null` runs on until the next event.
2export type Phase = {
3  kind: 'walk' | 'work' | 'cheer' | 'sulk'
4  t0: number
5  t1: number | null
6  from: { x: number; y: number }
7  to: { x: number; y: number }
8}
9// A letter in flight from one point of the scene to another, sent at `at`.
10export type Letter = { x0: number; y0: number; x1: number; y1: number; at: number }
11
12// `id` is the engine's agent id.
13export type Agent = {
14  id: string
15  label: string
16  type: string
17  parent: string
18  name?: string
19  status: 'running' | 'done' | 'failed' | 'stopped'
20  bornAt: number
21  endedAt?: number
22  // Where it works, what it is doing now, and what it was asked to do.
23  station: 'web' | 'files' | 'desk' | 'bench' | 'mail' | 'lounge'
24  tool?: string
25  doing: string
26  task: string
27  // Its route through the warehouse, planned from `planAt` (the moment of its last change).
28  slot: number
29  planAt: number
30  phases: Phase[]
31  color: string
32  letter?: Letter
33}
34// One message between two agents (from and to are agent ids, or 'main').
35export type Ping = { id: number; from: string; to: string; text: string; at: number }
36// What the strip above the prompt says, or null when it has nothing to say.
37export type Strip = { title: string } | null
38
39declare module 'claude-code' {
40  interface PluginState {
41    'agent-warehouse': { agents: Agent[]; pings: Ping[]; strip: Strip; selected: string | null }
42  }
43}
44
