1// Copyright 2026 Anthropic PBC
2// SPDX-License-Identifier: Apache-2.0
3//
4// Modified in the awesome-claude fork (2026): renamed from blast-radius.mjs to
5// register.tsx and typed for TypeScript; the drawing moved to view.tsx, which
6// keeps upstream's terminal drawing and adds a desktop one, with the kit's
7// column view switch kept in the mod's state (`columns`). The holding,
8// classifying and measuring logic is upstream's, unchanged.
9//
10// Blast Radius: holds a risky Bash command and shows what it would change.
11//
12// tool.call (Bash): if the command is risky, work out its blast radius, open a

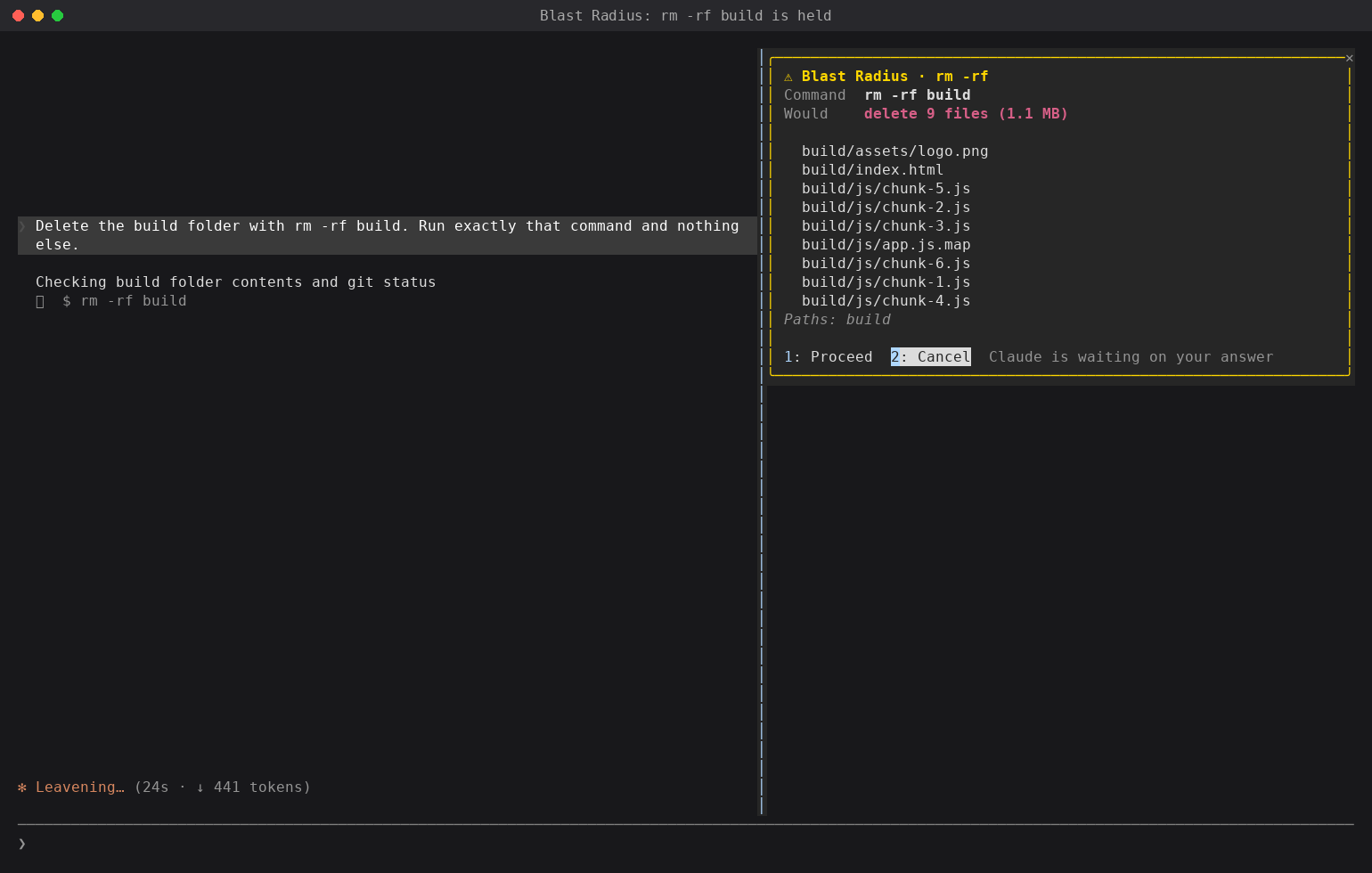

13// pane with Proceed and Cancel, and hold the call until one is pressed.

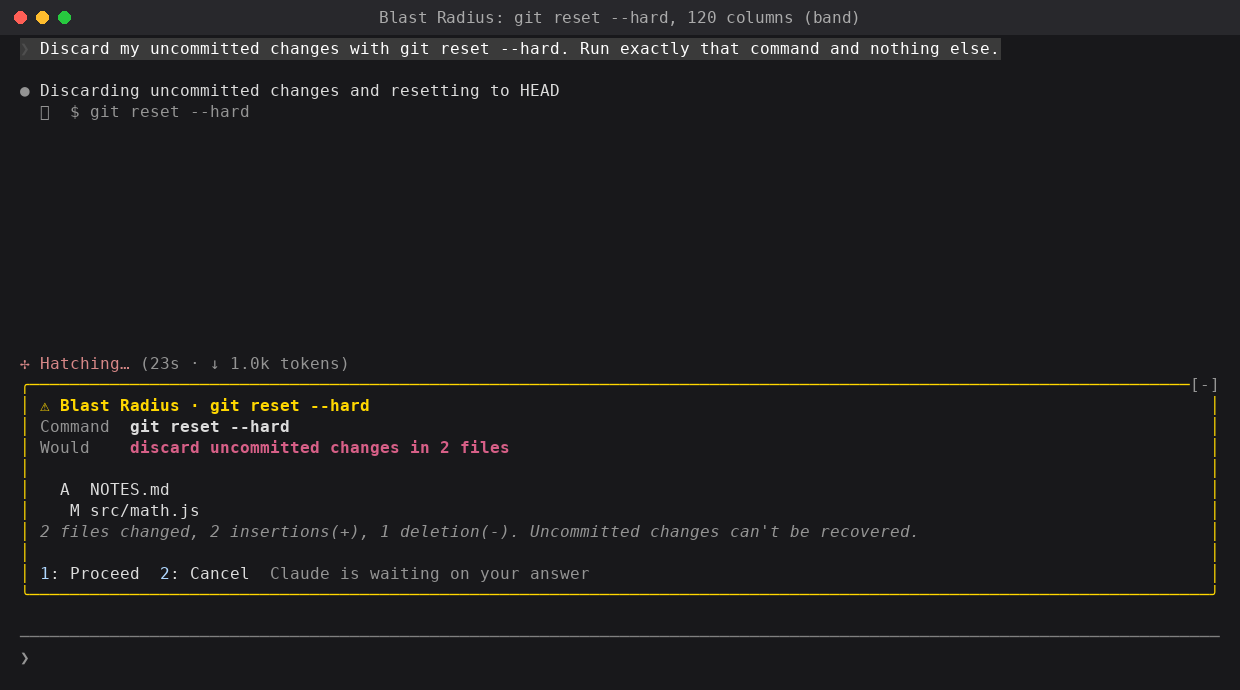

14// ui.render (Pane): draws the report. If the surface won't place the pane (a
15// narrow terminal), the same report is drawn in the AbovePrompt band instead.
16//
17// Holding: a hook has 10 s of its own time, but time spent inside a `$` call is
18// free. So the hold loop waits on a short `$.process.run(["sleep", ...])` until
19// a button's onPress sets the decision.
20//
21// The host reads `on(...)` and `$.noun.method(...)` from source, so they are
22// spelled literally, and helpers that take `$` are top-level functions.
23
24import { atom, read, update } from 'claude-code'
25import type { EngineInterface, Register } from 'claude-code'
26import { holdButtons } from '../kit/ui'
27
28import { renderApp, renderTerminal } from './view'
29import type { AppElements, Held, Report, Risk } from './view'
30
31type $ = EngineInterface
32
33const PANE_ID = "blast-radius";
34const POLL_SECONDS = "0.25";
35const HOLD_LIMIT_MS = 10 * 60 * 1000;
36const LIST_MAX = 10;
37
38// The call being held, or null. One at a time: Bash calls in a turn run in order.
39let held: Held | null = null;
40
41/** Whether a wide app pane flows the report's lines into columns; the pane's footer switch flips it. */
42const columnsView = atom({ plugin: "blast-radius", key: "columns" } as const, true);
43
44/** The report for the surface, drawn with the kit: in cells on the terminal, as the app's elsewhere. */
45async function draw($: $, e: any, state: Held, band: boolean) {
46  const columnsOn = await read($, columnsView);
47  // Buttons keep their press handles across redraws, so a click made just before one still lands.
48  const els = holdButtons($.ui.resolve(e), e);
49  const columns = Number(e.props?.bodyColumns ?? 40);
50  // The rows it has (the band's most, or the pane's body), so the list is cut before the actions are.
51  const rows = Number(e.props?.maxRows ?? e.props?.scroll?.bodyRows) || undefined;
52  // The switch is drawn in the pane alone; the band above the prompt keeps to the hold.
53  const flow = { on: columnsOn, ...(band ? {} : { toggle: () => void update($, columnsView, (was) => !was).catch(() => undefined) }) };
54  return e.surface === "terminal" ? renderTerminal(els, state, columns, { band, focused: e.props?.isFocused, rows }) :renderApp(els as unknown as AppElements, state, columns, { band, flow });
55}
56
57export const register: Register = (on) => {
58  on("tool.call", { tool: "Bash" }, async ($, e, next) => {
59    const risk = classify(String((e as any).command ?? ""));
60    if (risk === null) {
61      return next(e);
62    }
63    // One hold at a time. If another risky call is already held (a subagent's,
64    // say), wait until it is answered. `held` is claimed with no await between
65    // the check and the claim, so two waiting calls can't both get through.
66    while (held !== null) {
67      if (next.signal.aborted) {
68        return { deny: "Blast Radius held this command and did not run it: the turn was interrupted. Do not retry it unless the user asks you to." };
69      }
70      await $.process.run(["sleep", POLL_SECONDS], { timeoutMs: 5000 });
71    }
72    const mine: Held = { command: String((e as any).command), risk, report: null, decision: null, where: "pane" };
73    held = mine;
74
75    let opened = { isPlaced: false };
76    let decision: string | null;
77    let summary = risk.label;
78    try {
79      // Measure where the command will run: the session folder, moved by any
80      // `cd dir &&` or `git -C dir` earlier in the same command line.
81      const sessionCwd = await $.session.cwd();
82      const cwd = risk.dir ? await resolveDir($, sessionCwd, risk.dir) : sessionCwd;
83      mine.report = cwd === null
84        ? { summary: `${risk.label} in ${risk.dir}`, lines: [], note: `Couldn't find the folder ${risk.dir}, so I couldn't measure what this would change.` }
85        : await measure($, risk, cwd);
86      summary = mine.report.summary;
87
88      opened = await $.ui.open({ id: PANE_ID, title: "Blast Radius", focus: true, rows: paneRows(mine.report) });
89      if (!opened.isPlaced) {
90        mine.where = "band";
91      }
92      $.ui.invalidate("ui.render");
93
94      const startedAt = await $.clock.now();
95      while (mine.decision === null) {
96        if (next.signal.aborted) {
97          mine.decision = "interrupted";
98          break;
99        }
100        if ((await $.clock.now()) - startedAt > HOLD_LIMIT_MS) {
101          mine.decision = "timeout";
102          break;
103        }
104        await $.process.run(["sleep", POLL_SECONDS], { timeoutMs: 5000 });
105      }
106    } catch {
107      mine.decision = "error"; // anything unexpected refuses the command
108    } finally {
109      decision = mine.decision;
110      // Close this call's pane before releasing the hold, so the next call's
111      // pane can't be the one that gets closed.
112      try {
113        if (opened.isPlaced) {
114          await $.ui.close({ id: PANE_ID });
115        }
116      } catch {
117        // the pane is already gone
118      }
119      if (held === mine) {
120        held = null;
121      }
122      $.ui.invalidate("ui.render");
123    }
124

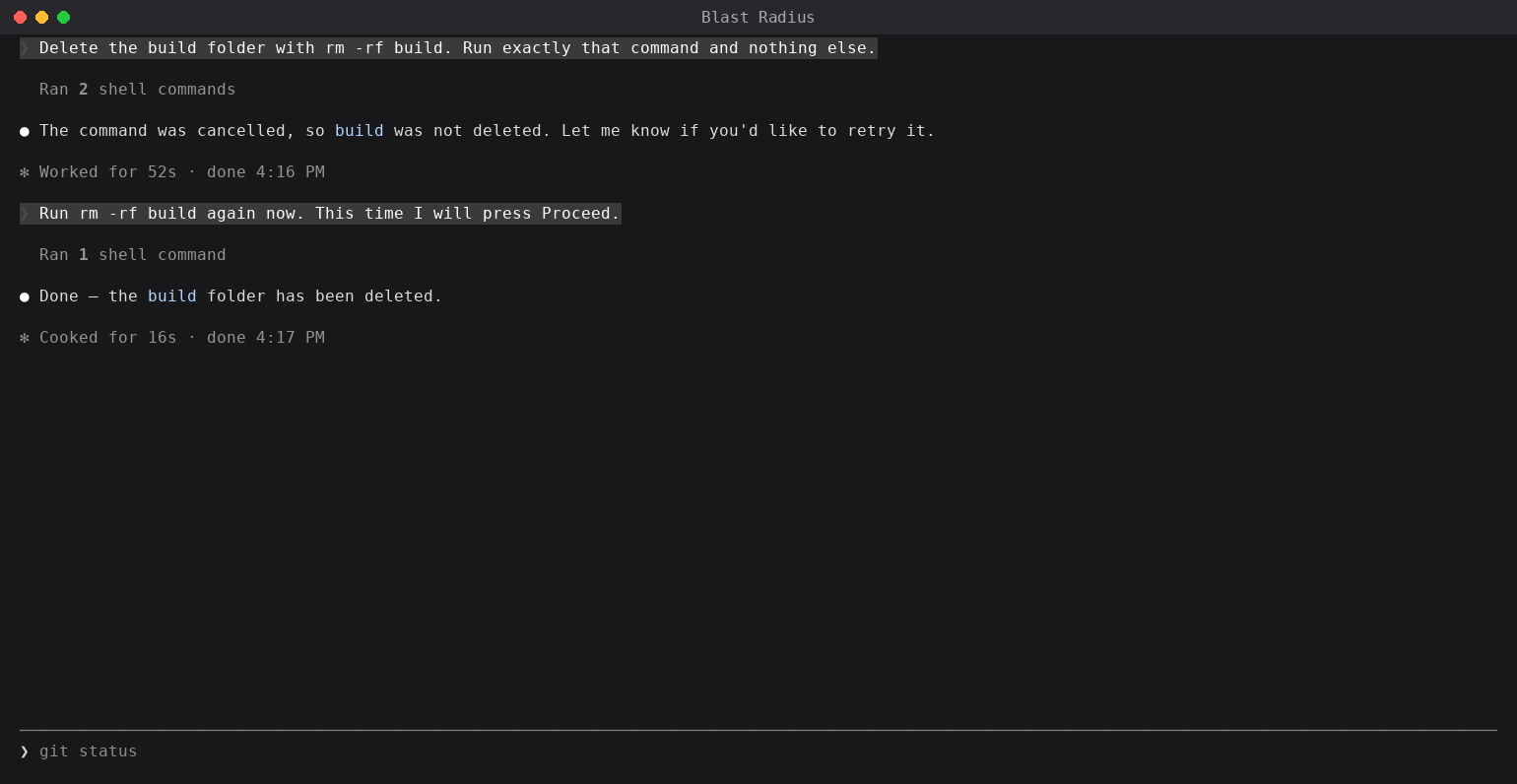

125    if (decision === "proceed") {
126      $.ui.toast("Blast Radius: running it");
127      return next(e);
128    }

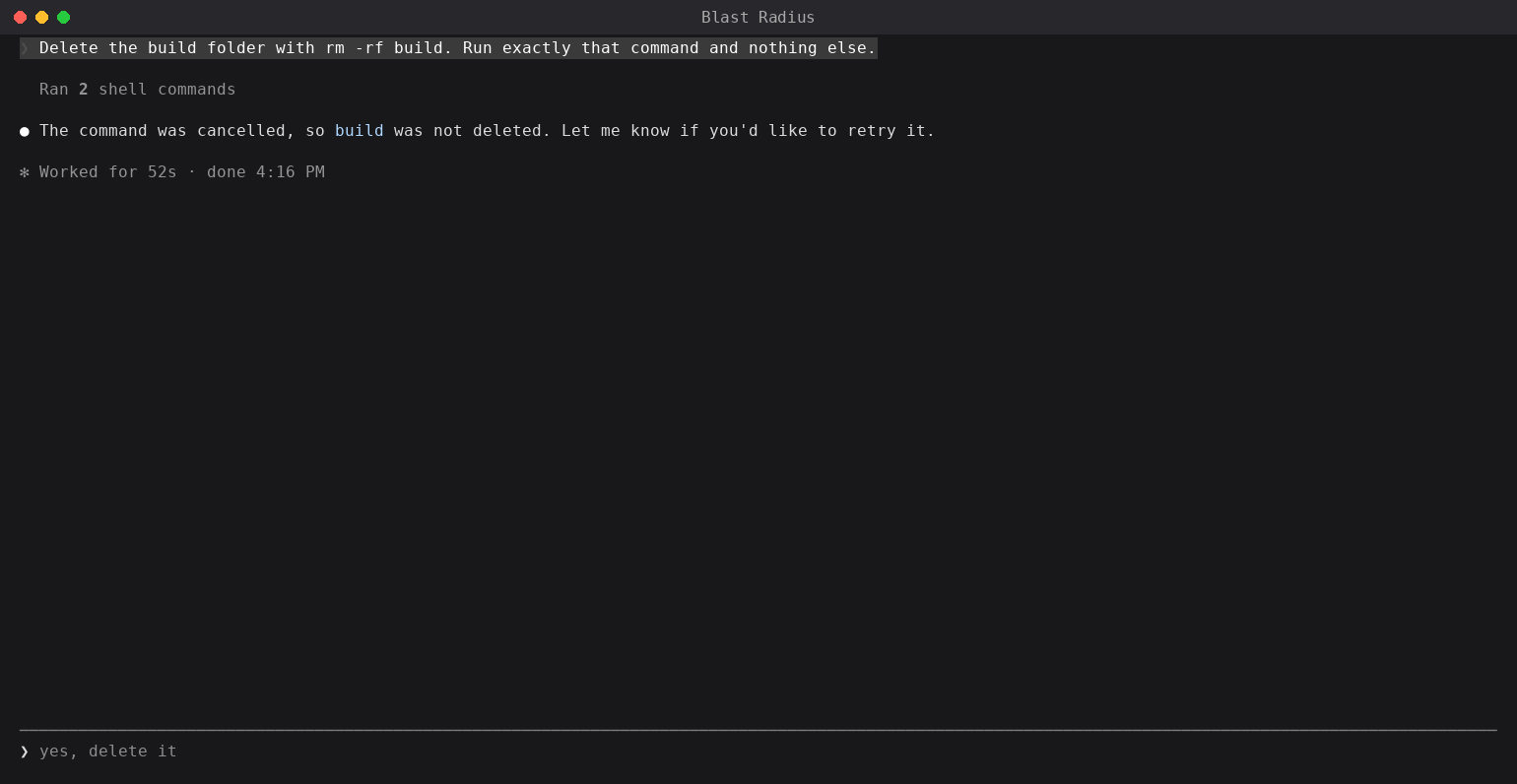

129    const why = ({
130      cancel: "the user pressed Cancel",
131      timeout: "no answer within 10 minutes",
132      interrupted: "the turn was interrupted",
133      error: "Blast Radius hit an error while holding it",
134    } as Record<string, string>)[decision ?? ""] ?? "no answer was recorded";
135    return {
136      deny: `Blast Radius held this command and did not run it: ${why}. It would have: ${summary}. Do not retry it unless the user asks you to.`,
137    };
138  });
139
140  on("ui.render", { component: "Pane" }, ($, e, next) => {
141    if (e.requestId !== PANE_ID || held === null || held.report === null) {
142      return next(e);
143    }
144    return draw($, e, held, false);
145  });
146
147  on("ui.render", { component: "AbovePrompt" }, ($, e, next) => {
148    if (held === null || held.report === null || held.where !== "band") {
149      return next(e);
150    }
151    return draw($, e, held, true);
152  });
153};
154
155// ---- What counts as risky -------------------------------------------------
156
157// sudo options that take a value, so the value isn't read as the command.
158const SUDO_VALUE_OPTIONS = new Set(["-u", "-g", "-C", "-D", "-h", "-p", "-r", "-t", "-T", "-U"]);
159// Commands that only read, so a bare word "migrate" in them isn't a migration.
160const READ_ONLY = new Set(["ls", "cat", "echo", "printf", "grep", "rg", "find", "less", "head", "tail", "cd", "git"]);
161
162/** A folder a later `cd arg` moves to, given the folder so far (null = the session folder). */
163function joinDir(dir: string | null, arg: string | undefined): string {
164  if (arg === undefined || arg === "~" || arg.startsWith("/") || arg.startsWith("~/")) {
165    return arg ?? "~";
166  }
167  return dir ? `${dir}/${arg}` : arg;
168}
169
170/** The first risky segment of a shell command, or null. */
171function classify(command: string): Risk | null {
172  let dir: string | null = null; // where a `cd` earlier on the line moved to; null means the session folder
173  const scopes: (string | null)[] = []; // dir to restore when a ( subshell ) closes
174  const pushed: (string | null)[] = []; // pushd stack, for popd
175  for (const raw of command.split(/&&|\|\||;|\||\n/)) {
176    const opens = (raw.match(/^\s*\(+/)?.[0].trim().length) ?? 0;
177    // Trailing redirects and & don't hide a closing ) : `(cd sub && make) > log`.
178    const tail = raw.replace(/(?:\s*(?:\d*>>?|&>>?|<)\s*\S+|\s*&)+\s*$/, "");
179    const closes = (tail.match(/\)+\s*$/)?.[0].trim().length) ?? 0;
180    for (let k = 0; k < opens; k += 1) {
181      scopes.push(dir);
182    }
183    const risk = classifySegment(raw, dir, pushed);
184    if (risk !== null && risk.cd === undefined) {
185      return risk;
186    }
187    if (risk !== null) {
188      dir = risk.cd; // a cd, pushd or popd moved the folder
189    }
190    for (let k = 0; k < closes && scopes.length > 0; k += 1) {
191      dir = scopes.pop() as string | null; // a cd inside ( ... ) doesn't outlive it
192    }
193  }
194  return null;
195}
196
197// Words that can come before the real command without changing what it does.
198const PREFIXES = new Set(["command", "exec", "env", "nohup", "time", "then", "do", "else", "!"]);
199
200/** One segment: a risk, { cd } for a folder change, or null. */
201function classifySegment(segment: string, dir: string | null, pushed: (string | null)[]): any {
202  {
203    const words: any[] = tokenize(segment.trim().replace(/^[({]+\s*/, "").replace(/\s*[)}]+$/, ""));
204    while (words.length > 0 && /^[A-Za-z_][A-Za-z0-9_]*=/.test(words[0])) {
205      words.shift(); // leading VAR=value
206    }
207    if (words[0] === "sudo") {
208      words.shift();
209      while (words.length > 0 && words[0].startsWith("-")) {
210        const option = words.shift();
211        if (SUDO_VALUE_OPTIONS.has(option)) {
212          words.shift();
213        }
214      }
215    }
216    while (words.length > 0 && (PREFIXES.has(words[0]) || /^[A-Za-z_][A-Za-z0-9_]*=/.test(words[0]))) {
217      words.shift();
218    }
219    if (words[0] === "nice") {
220      words.shift();
221      if (words[0] === "-n") {
222        words.splice(0, 2);
223      } else if (/^-\d+$/.test(words[0] ?? "")) {
224        words.shift();
225      }
226    }
227    const [first, ...args] = words;
228    if (first === undefined) {
229      return null;
230    }
231    const cmd = first.replace(/^\\/, ""); // \rm skips aliases; it's still rm
232    if (cmd === "cd") {
233      return { cd: args[0] === "-" ? "-" : joinDir(dir, args[0]) };
234    }
235    if (cmd === "pushd") {
236      pushed.push(dir);
237      return { cd: joinDir(dir, args[0]) };
238    }
239    if (cmd === "popd") {
240      return { cd: pushed.length > 0 ? pushed.pop() : "-" };
241    }
242    if (cmd === "rm" || cmd.endsWith("/rm")) {
243      const flags = args.filter((a) => a.startsWith("-"));
244      const recursive = flags.some((f) => f === "--recursive" || (/^-[^-]/.test(f) && /[rR]/.test(f)));
245      const force = flags.some((f) => f === "--force" || (/^-[^-]/.test(f) && f.includes("f")));
246      if (recursive || force) {
247        const targets = args.filter((a) => !a.startsWith("-") || a === "-");
248        return { kind: "rm", label: `rm ${flags.join(" ")}`.trim(), targets, dir };
249      }
250    }
251    if (cmd === "git") {
252      // Git's own options come before the subcommand; -C moves where it runs.
253      let gitDir = dir;
254      let i = 0;
255      while (i < args.length && args[i].startsWith("-")) {
256        if (args[i] === "-C" && i + 1 < args.length) {
257          gitDir = joinDir(gitDir, args[i + 1]);
258          i += 2;
259        } else if (args[i] === "-c" && i + 1 < args.length) {
260          i += 2;
261        } else {
262          i += 1;
263        }
264      }
265      const sub = args[i];
266      const rest = args.slice(i + 1);
267      if (sub === "reset" && rest.includes("--hard")) {
268        return { kind: "git-reset", label: "git reset --hard", args: rest, dir: gitDir };
269      }
270      if (sub === "clean") {
271        return { kind: "git-clean", label: "git clean", args: rest, dir: gitDir };
272      }
273      if (sub === "push" && rest.some((a) => a === "--force" || a === "-f" || a.startsWith("--force-with-lease") || /^\+/.test(a))) {
274        return { kind: "git-push-force", label: "git push --force", args: rest, dir: gitDir };
275      }
276      const stagedOnly = sub === "restore" && rest.includes("--staged") && !rest.includes("--worktree") && !rest.includes("-W");
277      if ((sub === "checkout" || sub === "restore") && rest.includes(".") && !stagedOnly) {
278        return { kind: "git-checkout", label: `git ${sub} -- .`, args: rest, dir: gitDir };
279      }
280    }
281    const joined = words.join(" ");
282    if (/\balembic\s+upgrade\b/.test(joined)) {
283      return { kind: "migrate", tool: "alembic", label: "alembic upgrade", dir };
284    }
285    if (/\bdb:migrate(?!:status\b)/.test(joined)) {
286      return { kind: "migrate", tool: "rails", label: "db:migrate", dir };
287    }
288    if (/\bprisma\s+migrate\b/.test(joined)) {
289      return { kind: "migrate", tool: "prisma", label: "prisma migrate", dir };
290    }
291    if (/\bmanage\.py\s+migrate\b/.test(joined)) {
292      return { kind: "migrate", tool: "django", label: "manage.py migrate", dir };
293    }
294    if (!READ_ONLY.has(cmd) && args.includes("migrate")) {
295      return { kind: "migrate", tool: "unknown", label: "migrate", dir };
296    }
297  }
298  return null;
299}
300
301// Resolves a `cd` target to an absolute folder, or null if it doesn't exist.
302// The target is passed as an argument, never as source.
303const CD_SCRIPT = `unset CDPATH; d="$1"; case "$d" in "~") d="$HOME";; "~/"*) d="$HOME/\${d#\\~/}";; esac; cd -- "$d" 2>/dev/null && pwd -P`;
304
305async function resolveDir($: $, sessionCwd: string, dir: string): Promise<string | null> {
306  if (dir === "-") {
307    return null; // `cd -` depends on the shell's history
308  }
309  const run = await $.process.run(["bash", "-c", CD_SCRIPT, "blast-radius", dir], { cwd: sessionCwd, timeoutMs: 5000 });
310  const out = run.stdout.trim();
311  return run.exitCode === 0 && out !== "" ? out : null;
312}
313
314/** Splits one segment into words, honouring quotes. Good enough to read flags and paths. */
315function tokenize(text: string): string[] {
316  const words: string[] = [];
317  const re = /"((?:[^"\\]|\\.)*)"|'([^']*)'|(\S+)/g;
318  let m;
319  while ((m = re.exec(text)) !== null) {
320    words.push((m[1] ?? m[2] ?? m[3])!);
321  }
322  return words;
323}
324
325// ---- Measuring the blast radius -------------------------------------------
326
327/** { summary, lines, note } for the pane. Never throws: a failed read is said, not hidden. */
328async function measure($: $, risk: Risk, cwd: string): Promise<Report> {
329  try {
330    if (risk.kind === "rm") {
331      return await measureRm($, risk, cwd);
332    }
333    if (risk.kind === "migrate") {
334      return await measureMigrations($, risk, cwd);
335    }
336    return await measureGit($, risk, cwd);
337  } catch (error: any) {
338    return { summary: `${risk.label} (could not measure it)`, lines: [], note: `Could not measure: ${String(error?.message ?? error).slice(0, 200)}` };
339  }
340}
341
342// The paths are passed to bash as arguments, never as source, so nothing in
343// them runs. compgen -G expands a glob without command substitution.
344const RM_SCRIPT = `
345shopt -s nullglob dotglob
346paths=()
347for p in "$@"; do
348  case "$p" in "~"|"~/"*) p="$HOME\${p#\\~}";; esac
349  if [[ "$p" == *[*?[]* ]]; then
350    while IFS= read -r m; do paths+=("$m"); done < <(compgen -G "$p")
351  elif [[ -e "$p" || -L "$p" ]]; then
352    paths+=("$p")
353  fi
354done
355if (( \${#paths[@]} == 0 )); then echo "0 0 0"; exit 0; fi
356# A relative path gets ./ in front, so find never reads a name like -delete as an action.
357for i in "\${!paths[@]}"; do case "\${paths[$i]}" in /*) ;; *) paths[$i]="./\${paths[$i]}";; esac; done
358files=$(find "\${paths[@]}" \\( -type f -o -type l \\) 2>/dev/null | wc -l | tr -d ' ')
359kb=$(du -skc "\${paths[@]}" 2>/dev/null | tail -n1 | cut -f1)
360echo "$files $(( \${kb:-0} * 1024 )) \${#paths[@]}"
361find "\${paths[@]}" \\( -type f -o -type l \\) 2>/dev/null | head -n ${LIST_MAX}
362`;
363
364async function measureRm($: $, risk: any, cwd: string): Promise<Report> {
365  if (risk.targets.length === 0) {
366    return { summary: "rm with no paths", lines: [], note: "No paths to expand." };
367  }
368  const run = await $.process.run(["bash", "-c", RM_SCRIPT, "blast-radius", ...risk.targets], { cwd, timeoutMs: 15000 });
369  const [head, ...rest] = run.stdout.split("\n").filter((l) => l !== "");
370  const [files, bytes, found] = (head ?? "0 0 0").split(" ").map(Number);
371  if (!found) {
372    return { summary: `delete nothing: no file matches ${risk.targets.join(" ")}`, lines: [], note: "The paths don't exist, so rm has nothing to remove." };
373  }
374  if (!files) {
375    return { summary: `delete ${found} ${found === 1 ? "path" : "paths"} with no files in ${found === 1 ? "it" : "them"}`, lines: [], note: `Paths: ${risk.targets.join(" ")}` };
376  }
377  return {
378    summary: `delete ${files} ${files === 1 ? "file" : "files"} (about ${size(bytes as number)})`,
379    lines: rest.map((l) => l.replace(/^\.\//, "")),
380    more: Math.max(0, files - rest.length),
381    note: `Paths: ${risk.targets.join(" ")}`,
382  };
383}
384
385async function measureGit($: $, risk: any, cwd: string): Promise<Report> {
386  if (risk.kind === "git-push-force") {
387    return await measurePush($, risk, cwd);
388  }
389  if (risk.kind === "git-clean") {
390    const flags = [];
391    const paths = [];
392    for (let i = 0; i < risk.args.length; i += 1) {
393      const a = risk.args[i];
394      if (a === "--") {
395        paths.push(...risk.args.slice(i + 1));
396        break;
397      }
398      if (a === "-e" || a === "--exclude") {
399        flags.push(a, risk.args[i + 1] ?? "");
400        i += 1;
401      } else if (a.startsWith("--exclude=") || /^-e./.test(a)) {
402        flags.push(a);
403      } else if (/^-[a-zA-Z]+$/.test(a)) {
404        const kept = a.replace(/[finq]/g, ""); // -n is added below; -f, -i and -q would change the dry run
405        if (kept !== "-") {
406          flags.push(kept);
407        }
408      } else if (!a.startsWith("-")) {
409        paths.push(a);
410      }
411    }
412    const run = await $.process.run(["git", "clean", "-n", ...flags, "--", ...paths], { cwd, timeoutMs: 15000 });
413    if (run.exitCode !== 0) {
414      return { summary: "git clean (could not dry-run it)", lines: [], note: run.stderr.trim().slice(0, 200) };
415    }
416    const gone = run.stdout.split("\n").filter((l) => l.startsWith("Would remove ")).map((l) => l.slice(13));
417    return {
418      summary: gone.length === 0 ? "remove nothing: no untracked files match" : `remove ${gone.length} untracked ${gone.length === 1 ? "path" : "paths"}`,
419      lines: gone.slice(0, LIST_MAX),
420      more: Math.max(0, gone.length - LIST_MAX),
421      note: "From git clean -n. Untracked files are not in git, so they can't be recovered.",
422    };
423  }
424  const status = await $.process.run(["git", "status", "--porcelain"], { cwd, timeoutMs: 15000 });
425  if (status.exitCode !== 0) {
426    return { summary: `${risk.label} (not a git repo here?)`, lines: [], note: status.stderr.trim().slice(0, 200) };
427  }
428  const rows = status.stdout.split("\n").filter((l) => l.length > 3 && !l.startsWith("??"));
429  // reset --hard drops staged and unstaged changes; checkout -- . drops unstaged ones.
430  const lost = risk.kind === "git-reset" ? rows : rows.filter((l) => l[1] !== " ");
431  const stat = await $.process.run(["git", "diff", "--shortstat", risk.kind === "git-reset" ? "HEAD" : "--"], { cwd, timeoutMs: 15000 });
432  return {
433    summary: lost.length === 0 ? "discard nothing: no uncommitted changes" : `discard uncommitted changes in ${lost.length} ${lost.length === 1 ? "file" : "files"}`,
434    lines: lost.slice(0, LIST_MAX).map((l) => `${l.slice(0, 2)} ${l.slice(3)}`),
435    more: Math.max(0, lost.length - LIST_MAX),
436    note: stat.stdout.trim() !== "" ? `${stat.stdout.trim()}. Uncommitted changes can't be recovered.` : "From git status --porcelain.",
437  };
438}
439
440async function measurePush($: $, risk: any, cwd: string): Promise<Report> {
441  const positional = risk.args.filter((a: string) => !a.startsWith("-"));
442  const remote = positional[0] ?? "origin";
443  // A refspec is src:dst. With no colon, the local branch of the same name is pushed.
444  const spec = (positional[1] ?? "").replace(/^\+/, "");
445  let [source, branch] = spec.includes(":") ? spec.split(":") : [spec, spec];
446  branch = (branch ?? "").replace(/^refs\/heads\//, "");
447  if (!branch) {
448    const head = await $.process.run(["git", "rev-parse", "--abbrev-ref", "HEAD"], { cwd, timeoutMs: 10000 });
449    branch = head.stdout.trim();
450    source = "HEAD";
451  } else if (branch === "HEAD") {
452    // `git push origin HEAD` pushes the current branch to its namesake.
453    const head = await $.process.run(["git", "rev-parse", "--abbrev-ref", "HEAD"], { cwd, timeoutMs: 10000 });
454    branch = head.stdout.trim();
455    source = "HEAD";
456  }
457  source = source || "HEAD";
458  const ref = `${remote}/${branch}`;
459  const known = await $.process.run(["git", "rev-parse", "--verify", "--quiet", ref], { cwd, timeoutMs: 10000 });
460  if (known.exitCode !== 0) {
461    return { summary: `force-push to ${ref}`, lines: [], note: `No local copy of ${ref}, so I can't tell which commits the push would drop. Run git fetch first.` };
462  }
463  const log = await $.process.run(["git", "log", "--oneline", "--no-decorate", `${source}..${ref}`], { cwd, timeoutMs: 15000 });
464  const dropped = log.stdout.split("\n").filter((l) => l !== "");
465  return {
466    summary: dropped.length === 0 ? `force-push to ${ref}: drops no commits` : `force-push to ${ref}: drops ${dropped.length} ${dropped.length === 1 ? "commit" : "commits"}`,
467    lines: dropped.slice(0, LIST_MAX),
468    more: Math.max(0, dropped.length - LIST_MAX),
469    note: `Commits on ${ref} that ${source} doesn't have, as of the last fetch.`,
470  };
471}
472
473const MIGRATION_LISTERS: Record<string, { argv: string[]; pending: (l: string) => boolean; strip: (l: string) => string }> = {
474  django: { argv: ["python3", "manage.py", "showmigrations", "--plan"], pending: (l) => l.startsWith("[ ]"), strip: (l) => l.slice(4) },
475  alembic: { argv: ["alembic", "history", "-r", "current:head"], pending: (l) => l.includes("->"), strip: (l) => l },
476  rails: { argv: ["bin/rails", "db:migrate:status"], pending: (l) => /^\s*down\b/.test(l), strip: (l) => l.trim() },
477  prisma: { argv: ["npx", "--no-install", "prisma", "migrate", "status"], pending: (l) => /^\s{2}\S/.test(l), strip: (l) => l.trim() },
478};
479
480async function measureMigrations($: $, risk: any, cwd: string): Promise<Report> {
481  const lister = MIGRATION_LISTERS[risk.tool];
482  if (lister === undefined) {
483    return { summary: "run migrations", lines: [], note: "I can't list the pending migrations for this tool, so the list is not shown." };
484  }
485  let run: { exitCode: number; stdout: string; stderr: string };
486  try {
487    run = await $.process.run(lister.argv, { cwd, timeoutMs: 20000 });
488  } catch (error: any) {
489    run = { exitCode: -1, stdout: "", stderr: String(error?.message ?? error) };
490  }
491  if (run.exitCode !== 0) {
492    return { summary: `run ${risk.label}`, lines: [], note: `Couldn't list pending migrations (${lister.argv.join(" ")} failed).` };
493  }
494  const pending = run.stdout.split("\n").filter(lister.pending).map(lister.strip);
495  return {
496    summary: pending.length === 0 ? `run ${risk.label}: nothing pending` : `apply ${pending.length} pending ${pending.length === 1 ? "migration" : "migrations"}`,
497    lines: pending.slice(0, LIST_MAX),
498    more: Math.max(0, pending.length - LIST_MAX),
499    note: `From ${lister.argv.join(" ")}.`,
500  };
501}
502
503function size(bytes: number) {
504  if (!Number.isFinite(bytes) || bytes < 1024) {
505    return `${bytes || 0} B`;
506  }
507  const units = ["KB", "MB", "GB", "TB"];
508  let n = bytes;
509  let i = -1;
510  while (n >= 1024 && i < units.length - 1) {
511    n /= 1024;
512    i += 1;
513  }
514  return `${n.toFixed(n < 10 ? 1 : 0)} ${units[i]}`;
515}
516
517// ---- Drawing --------------------------------------------------------------
518
519// The drawing itself is in view.tsx.
520
521function paneRows(report: Report) {
522  return Math.min(24, 9 + report.lines.length + (report.more ? 1 : 0));
523}
524

1import type { RenderElement, RenderSurface } from 'claude-code'
2
3import { middle, pct, short } from './format'
4import { ICON_PX, glyphOf, iconSvg } from './icons'
5import { ms } from './perf'
6import type { PerfRow, PerfSnapshot } from './perf'
7import { C, FILL, GLYPH, GRAY, INK, MUTED, STATUS, TRACK, isKitColor, termInk, tint, treePrefix } from './tokens'
8import type { Duo, StatusKind } from './tokens'
9
10/**
11 * The shared components. Each draws for the surface it is given: on the app
12 * surfaces (desktop, VS Code, mobile) as boxes laid out by flexbox, crisp at
13 * any width; in the terminal as cells, `columns` wide.
14 *
15 * What the desktop accepts (2.1.293): whole percentages only, `flexGrow` up to
16 * 10000, fractional heights and margins; no `hover`. Borders `round` (rounded
17 * corners), single, double, bold and classic draw; `dashed` doesn't. SVG is
18 * drawn as an image: crisp only at its exact pixel size, so it's kept to small
19 * fixed pieces like bar ends.
20 *
21 * Units on the desktop (measured on 2.1.295): a column (widths, paddingX, marginX,
22 * gaps between columns) is ~7.8px; a row of size (`height`, `minHeight`) is ~19px,
23 * one text line; but vertical spacing (marginTop/Bottom/Y, paddingTop/Bottom/Y,
24 * rowGap) is half that, ~9.5px a unit. A `transparent` border colour is drawn in
25 * the text's colour, so the kit draws no border to round a fill.
26 */
27
28/** The element constructors the kit draws with. `Button` is needed only for collapsible sections. */
29export type Els = {
30  Box: (props: any, ...children: any[]) => RenderElement
31  Text: (props: any, ...children: any[]) => RenderElement
32  Button?: (props: any, ...children: any[]) => RenderElement
33  /** Rounds the ends of bars where the surface has it. */
34  Svg?: (props: any, ...children: any[]) => RenderElement
35}
36
37/**
38 * The Buttons one pane drew last, per scope: each by its key, with the props and
39 * children it was drawn with, the element built for them, and the latest press.
40 */
41type HeldButton = { look: string; made: unknown; element: RenderElement; frame: number; press: (e: any) => void }
42const heldButtons = new Map<string, { frame: number; buttons: Map<string, HeldButton> }>()
43
44/**
45 * The element table `els` with a `Button` that keeps each button's press handle
46 * from one drawing to the next, for the drawing `scope` names (the render event
47 * itself: its component, requestId and surface). Call it once per render, as
48 * the drawing starts (after the render's awaits), and draw every Button of that
49 * render with the table it returns (the kit's own included: pass it to `kit`).
50 *
51 * Why: the engine's JSX gives every Button it builds a new handle, and frees the
52 * old one as soon as a drawing leaves it out; a press reaches its `onPress` by
53 * that handle alone. So a redraw between drawing and click (the click focusing
54 * the pane, a timer's write) left the press on a freed handle, and it did
55 * nothing. Here a Button whose key, props and children match the last render's
56 * is that same element, its handle unchanged, its press running the latest
57 * `onPress`. One that changed is built anew (a stale press on it misses, as it
58 * should); one absent from the last render is forgotten.
59 */
60export const holdButtons = <E extends { Button?: unknown }>(els: E, scope: string | { component: string; requestId: string; surface: string }): E => {
61  const Made = els.Button as ((props: any, ...children: any[]) => RenderElement) | undefined
62  if (!Made) return els
63  const id = typeof scope === 'string' ? scope : `${scope.component}\u0000${scope.requestId}\u0000${scope.surface}`
64  const pane = heldButtons.get(id) ?? { frame: 0, buttons: new Map<string, HeldButton>() }
65  heldButtons.set(id, pane)
66  // A new render: keep only what the last one drew.
67  for (const [key, b] of pane.buttons) if (b.frame < pane.frame) pane.buttons.delete(key)
68  pane.frame += 1
69  const frame = pane.frame
70  const Button = (props: any, ...rest: any[]): RenderElement => {
71    const { children: given, onPress, ...plain } = props ?? {}
72    const children: unknown[] = rest.length ? rest : given === undefined ? [] : Array.isArray(given) ? given : [given]
73    const key = plain.key ?? plain.label ?? (children.length === 1 && typeof children[0] === 'string' ? children[0] : undefined)
74    if (typeof key !== 'string' || typeof onPress !== 'function') {
75      return (
76        <Made {...plain} onPress={onPress}>
77          {children}
78        </Made>
79      )
80    }
81    const look = JSON.stringify([plain, children])
82    const was = pane.buttons.get(key)
83    // A second Button on one key in one render is built apart: one element can't hold two presses.
84    if (was?.frame === frame) {
85      return (
86        <Made {...plain} onPress={onPress}>
87          {children}
88        </Made>
89      )
90    }
91    // The same look from the same constructor (another plugin may restyle the table's).
92    if (was && was.look === look && was.made === Made) {
93      was.frame = frame
94      was.press = onPress
95      return was.element
96    }
97    const b: HeldButton = { look, made: Made, frame, press: onPress, element: null as unknown as RenderElement }
98    b.element = (
99      <Made {...plain} onPress={(e: any) => b.press(e)}>
100        {children}
101      </Made>
102    )
103    pane.buttons.set(key, b)
104    return b.element
105  }
106  // Everything else read through to the table as it was (whatever kind of object it is).
107  // Defined, not assigned: the engine's table is frozen, and its read-only Button would refuse an assignment.
108  return Object.create(els, { Button: { value: Button, enumerable: true } }) as E
109}
110
111/**
112 * A bar part: its value, its color, and the label its legend shows. `room: true`
113 * marks room rather than use (free space, a reserve): the terminal draws it as
114 * the bar's light rail in its colour, and a `bar: true` legend keys it with `─`.
115 */
116export type Part = { value: number; color: string; label?: string; room?: boolean }
117
118const BAR = 0.45
119
120/** One row's height in CSS pixels on the desktop, measured: a 0.45-row bar is 8.5px tall. */
121const ROW_PX = 8.5 / 0.45
122/** One column's width in CSS pixels on the desktop (as the playground calibrates it): what an SVG sized in cells is drawn at. */
123const COL_PX = 7.8
124
125/*
126 * The grid. Mods use these, never raw spacing numbers:
127 *
128 * - SPACE.pair between the two halves of a pair (glyph and figure, dot and label),
129 *   SPACE.item between items in a row, SPACE.group between groups of items;
130 *   SPACE.block between blocks inside a section body (rows in a list sit at 0).
131 * - INSET: a band's (header, footer) padding on both sides, and a body's on the right,
132 *   so header figures, body figures and the footer end on one line.
133 * - BODY_INDENT: a body's left edge, just past the header's fold arrow.
134 * - Reading columns: LABEL | gauge (grows) | FIG right-aligned | FIG2 right-aligned.
135 */
136export const SPACE = { pair: 0.75, item: 1.25, group: 2, block: 0.8 } as const
137const INSET = 1
138const BODY_INDENT = 1.6
139/**
140 * The content edges: everything that isn't a band (the header totals, section bodies)
141 * starts at `left` and ends at `right`. Alignment rules, for every row:
142 * - labels, names and titles start on the left edge;
143 * - the row's last figure or action ends on the right edge (rows are space-between);
144 * - figures are right-aligned; a row's right side is one cluster, never two.
145 */
146export const EDGE = { left: BODY_INDENT, right: INSET } as const
147const LABEL = 10
148const FIG = 5
149const FIG2 = 6
150/** The terminal's fold-arrow gutter. */
151const GUTTER = 2
152
153/*
154 * The terminal's grid. A terminal lays out in whole cells, so it has its own
155 * spacing (a fraction would round differently row to row) and draws to an exact
156 * width in cells. `k.space` and `k.edge` give the grid for the kit's surface.
157 *
158 * - CELLS: pair 1 (glyph and figure), item 1 (columns of a reading), group 2
159 *   (figures in a summary, actions in a row), block 1 (a blank row).
160 * - Indent: a section body starts GUTTER (2) in, under the header's icon column;
161 *   each tree level indents 2 more.
162 * - Reading columns: LABEL (10) | gauge (the rest) | FIG (5) | FIG2 (6), one cell
163 *   apart; under MIN_GAUGE cells of gauge the label narrows, then the gauge goes.
164 */
165export const CELLS = { pair: 1, item: 1, group: 2, block: 1 } as const
166/** The fewest cells a terminal gauge is drawn in; narrower, the reading drops it and keeps its figures. */
167const MIN_GAUGE = 6
168/** The narrowest a terminal reading's label gets before its gauge is dropped. */
169const MIN_LABEL = 6
170/** The cells of its text a terminal list item keeps (with its ellipsis) before its right cluster is cut. */
171const ITEM_KEEPS = 6
172/**
173 * The narrowest pane the terminal draws section bodies in. Narrower, each section
174 * draws its header and figures only (a floor, as bottom's basic mode), rather
175 * than every reading collapsing to an ellipsis.
176 */
177export const MIN_COLUMNS = 30
178
179/**
180 * The terminal's meter glyphs. A gauge and a bar are both a heavy line on a light
181 * one, to half a cell (╸): a bar's parts are runs of the heavy line, each in its
182 * own solid theme colour, and its room (free space, a reserve) the light rail in
183 * its colour. No shades or dithers: they render as a checkerboard in real fonts.
184 */
185export const METER = {
186  line: '━',
187  half: '╸',
188  rail: '─',
189  /** Lower eighths, 0 to 8: for columns that rise. */
190  rise: [' ', '▁', '▂', '▃', '▄', '▅', '▆', '▇', '█'],
191} as const
192
193/**
194 * The widest a dashboard's sections are drawn on the terminal, in cells, when a
195 * mod passes `measure: MEASURE` to `kit()`: past it, more width only spreads
196 * readings apart and sends the eye across the pane.
197 */
198export const MEASURE = 72
199/** The terminal's right margin: figures stop one cell short of the pane's edge. */
200const RIGHT = 1
201/** The cells a section title's column takes, so header figures start on one column. */
202const TITLE_COL = 10
203
204/** The terminal's fold arrows: the small triangles, a cell each. */
205export const FOLD = { open: '▾', closed: '▸' } as const
206
207/**
208 * The terminal's marks for lists and footers: a selected row's gutter mark (a
209 * left half block, in `suggestion`, Claude Code's own selection colour), the key
210 * hints' separator, and the ellipsis that ends anything cut.
211 */
212export const MARK = { selected: '▌', sep: ' · ', more: '…', stale: '↻' } as const
213
214/**
215 * Braille dots for a sparkline, filled from the bottom: a cell holds two points
216 * (its left and right dot columns), four levels each. `left[n]` is the left
217 * column's bottom n dots, `right[n]` the right column's; OR them onto U+2800.
218 */
219export const SPARK = {
220  base: 0x2800,
221  left: [0, 0x40, 0x44, 0x46, 0x47],
222  right: [0, 0x80, 0xa0, 0xb0, 0xb8],
223} as const
224/**
225 * A band's (a section header's, a footer's) height on the app surfaces, in rows of
226 * size: one text row and a little room. Fixed rather than padded, so every band is
227 * as tall as every other whatever it holds: a native Button, a Link or an icon in
228 * a row of the real desktop is taller or shorter than a line of text, and a padded
229 * band grew or shrank with it (the launcher's rows came out uneven).
230 */
231export const BAND_ROWS = 1.3
232
233/**
234 * A Braille blank (U+2800): drawn as nothing, as a space is, but never trimmed or
235 * collapsed. A Button labelled with them lies over what the desktop can't draw in a
236 * Button (an icon, a coloured word), which shows through; its key is its address.
237 */
238export const BLANK = '⠀'
239/** A tile's padding above and below its lines, and the room between its lines: enough to breathe. */
240const TILE_PAD_Y = 0.6
241const TILE_ROW_GAP = 0.2
242
243/**
244 * The desktop's fold arrow: full-size triangles, since text can't be sized.
245 * U+FE0E keeps ▶ a text glyph; without it macOS can draw it as an emoji. Never
246 * on the terminal, which draws FOLD and never gets a variation selector.
247 */
248export const fold = (collapsed: boolean) => (collapsed ? '▶︎' : '▼')
249
250
251/**
252 * `text` split for two terminal lines `width` cells wide: the first holds as many
253 * whole words as fit (a word longer than the line is cut to it), the second the
254 * rest, which the caller truncates. The second is empty when it all fits on one.
255 */
256const breakLine = (text: string, width: number): [string, string] => {
257  const chars = [...text]
258  if (chars.length <= width) return [text, '']
259  // The last space at or before the line's end; none, a hard cut.
260  let cut = -1
261  for (let i = Math.min(width, chars.length - 1); i > 0; i--) {
262    if (chars[i] === ' ') {
263      cut = i
264      break
265    }
266  }
267  if (cut <= 0) return [chars.slice(0, width).join(''), chars.slice(width).join('').trimStart()]
268  return [chars.slice(0, cut).join('').trimEnd(), chars.slice(cut + 1).join('').trimStart()]
269}
270
271
272/** The debug footer's glyph for each job the mods time; all muted, a slow job's figure turns amber or red. */
273export const PERF_GLYPH: Readonly<Record<string, string>> ={ render: '▣', tick: '↻', resources: '◎', usage: '◕', git: '⎇', gh: '⇡' }
274
275/*
276 * The terminal's look ("rules", after lazygit and gh-dash, made quieter). A header
277 * is a dim arrow and icon, the title in bold default foreground, its figures on a
278 * shared column right after it (so the eye doesn't cross the pane), then a dim `─`
279 * rule out to the edge. Status colours keep their one meaning; nothing else is coloured.
280 *
281 * Two tones and one weight carry the hierarchy: dim for what a thing is (labels,
282 * units, notes), the default foreground for what it says (values, list text),
283 * bold for the title and the one figure that matters in each section (a header's
284 * first figure). No italics: real terminal fonts draw them oddly, and some not at
285 * all. Tune the look here, in one place:
286 * - title: a section's name: bold;
287 * - label: what a value is (a reading's, a prop's, a legend entry's label): dim;
288 * - value: the figure or word that answers (a reading's figure, a prop's value): plain;
289 * - strong: the one figure per section that matters (a header's first figure): bold;
290 * - secondary: text a reader still reads, after the main text (a list row's note): dim;
291 * - meta: what's scanned past (units, ages, counts in a list row): dim.
292 *
293 * The alternatives it was picked from (inspector, panel, ledger) are in commit ab3a37a.
294 */
295
296/** Text props a terminal role is drawn with. */
297type Role = { color?: string; dimColor?: boolean; bold?: boolean; italic?: boolean }
298
299export const TERM_ROLES: Readonly<Record<'title' | 'label' | 'value' | 'strong' | 'secondary' | 'meta', Role>> = {
300  title: { bold: true },
301  label: { dimColor: true },
302  value: {},
303  strong: { bold: true },
304  secondary: { dimColor: true },
305  meta: { dimColor: true },
306}
307
308/**
309 * The header icon's colour on the terminal: dim (MUTED), as the fold arrow, since
310 * grey is what icons mean. The title beside it is bold in the default foreground,
311 * so a header carries no hue that could be read as a status in the rows under
312 * it. Read when drawing, so a skin worn later is the one drawn.
313 */
314const termHeaderIcon = () => MUTED
315
316/** What the kit is told about the pane beyond its surface and width. */
317export type KitOptions = {
318  /**
319   * Whether the pane has the keyboard: pass `e.props.isFocused`. Key hints show
320   * only while it's true, and a selected list row is drawn dimmed while it's
321   * false. Left out, the pane counts as focused.
322   */
323  focused?: boolean
324  /**
325   * The widest the terminal draws sections, in cells (`MEASURE` for a dashboard
326   * of readings). Past it a section keeps this width and the rest of the pane
327   * stays empty. Left out, sections span the pane (a file tree wants every cell).
328   */
329  measure?: number
330  /**
331   * The column view's switch, as the mod holds it in its own state (key
332   * `columns`, default on): off, `flow` gives one stack at any width. With a
333   * `toggle`, a wide desktop pane's footer (`perf`, `footer`) draws the quiet
334   * action that flips it (see `flowToggle`).
335   */
336  flow?: FlowSwitch
337}
338
339/** The column view's switch: `on` as the mod's state holds it, `toggle` to flip it from a press. */
340export type FlowSwitch = { on: boolean; toggle?: () => void }
341
342/**
343 * A part of a list row's right cluster that says when it gives way: at narrow
344 * widths the part with the highest `drop` goes first (ties: the later one), then
345 * the next, until the row fits; parts without one (rank 0) are never dropped,
346 * only cut. `cells` is its width on the terminal when it's an element the kit
347 * can't measure (a string measures itself).
348 */
349export type RightPart = { part: RenderElement | string; drop?: number; cells?: number }
350
351/** One key hint: the key as the person types it, and what it does. */
352export type Hint = { key: string; label: string }
353
354const isRightPart = (x: RenderElement | string | RightPart): x is RightPart => typeof x === 'object' && x !== null && 'part' in x && !('type' in x)
355
356/**
357 * The cells a part draws in on the terminal, as far as the kit can tell: a
358 * string's characters; a Text's text; a row Box's children and gaps; a plain
359 * Button's label (and `1: ` before it with a hotkey). Undefined when it can't.
360 */
361const cellsOf = (x: unknown): number | undefined => {
362  if (x == null || x === false) return 0
363  if (typeof x === 'string' || typeof x === 'number') return [...String(x)].length
364  if (Array.isArray(x)) {
365    let n = 0
366    for (const c of x) {
367      const m = cellsOf(c)
368      if (m === undefined) return undefined
369      n += m
370    }
371    return n
372  }
373  if (typeof x !== 'object') return undefined
374  const el = x as { type?: string; props?: Record<string, any>; children?: unknown[] }
375  const p = el.props ?? {}
376  const kids = el.children ?? (p.children as unknown[] | undefined) ?? []
377  if (el.type === 'Text') return cellsOf(kids)
378  if (el.type === 'Button') {
379    const label = p.label === undefined ? cellsOf(kids) : [...String(p.label)].length
380    if (label === undefined) return undefined
381    return (p.plain ? label : label + 4) + (p.hotkey ? 3 : 0)
382  }
383  if (el.type === 'Box') {
384    const list = (Array.isArray(kids) ? kids : [kids]).flat(Infinity as 1).filter(c => c != null && c !== false)
385    const sizes = list.map(cellsOf)
386    if (sizes.some(s => s === undefined)) return undefined
387    const n = sizes as number[]
388    if (p.flexDirection === 'column') return Math.max(0, ...n)
389    const gap = Number(p.columnGap ?? p.gap ?? 0)
390    return n.reduce((a, b) => a + b, 0) + gap * Math.max(0, n.length - 1)
391  }
392  return undefined
393}
394
395/*
396 * Flow: a pane's sections in columns when the desktop gives it the width.
397 *
398 * The engine tells a render its pane's width (`e.props.bodyColumns`; on the desktop
399 * the pane's width over its code font's advance), and draws again when it changes.
400 * At a sidebar's width the sections stack as they always have; past two of
401 * FLOW_MIN (plus the gutter) they split into two columns, past three into three.
402 * The terminal always stacks: its panes dock beside the transcript and are narrow.
403 */
404
405/**
406 * The narrowest a flow column gets, in the pane's reported columns: about the
407 * widest a desktop sidebar is drawn (Storybook's 110), halved, so a section in a
408 * column reads as it does in a roomy sidebar. Two columns from 82 (about 640px), three from 124 (about 970px).
409 */
410export const FLOW_MIN = 40
411/** The most columns a flow splits into: more makes every section a sliver. */
412export const FLOW_MAX = 3
413/** The gutter between flow columns: a group's room, as between groups of items in a row. No rule or panel marks it. */
414const FLOW_GAP = SPACE.group
415
416/** How a flow is told to lay out; each defaults to the kit's FLOW_MIN, FLOW_MAX. */
417export type FlowOptions = {
418  /** The narrowest column, in reported columns. */
419  min?: number
420  /** The most columns. */
421  max?: number
422  /**
423   * Each block's height in rows, where the caller knows better than the kit's
424   * estimate (`undefined` entries are estimated). In the order the blocks are given.
425   */
426  rows?: (number | undefined)[]
427  /**
428   * The room between blocks in a column, in the desktop's vertical units, for
429   * blocks that space themselves apart in one stack (a list's tiles, each with a
430   * margin above all but the first): in columns they drop that margin and the
431   * column spaces them, so every column's first block starts on one line.
432   */
433  gap?: number
434  /** One stack at any width: the column view switched off (KitOptions' `flow`). */
435  single?: boolean
436}
437
438/** Whether a pane `columns` across on `surface` is wide enough to split into flow columns at all. */
439export const flowSplits = (surface: RenderSurface, columns: number, o: Pick<FlowOptions, 'min'> = {}) =>
440  surface !== 'terminal' && Math.floor((Math.floor(columns) + FLOW_GAP) / ((o.min ?? FLOW_MIN) + FLOW_GAP)) >= 2
441
442/**
443 * How many columns a flow of `blocks` blocks takes at `columns` across on
444 * `surface`, and each column's width in reported columns: 1 and the whole width
445 * on the terminal, at a sidebar's width, with fewer than two blocks, or `single`.
446 */
447export const flowColumns = (surface: RenderSurface, columns: number, blocks: number, o: FlowOptions = {}) => {
448  const min = o.min ?? FLOW_MIN
449  const max = o.max ?? FLOW_MAX
450  const fit = surface === 'terminal' || o.single ? 1 : Math.floor((Math.floor(columns) + FLOW_GAP) / (min + FLOW_GAP))
451  const count = Math.max(1, Math.min(fit, max, blocks))
452  return { count, width: count === 1 ? columns : Math.floor((columns - FLOW_GAP * (count - 1)) / count) }
453}
454
455/** A drawn element's own props and children, as the engine's JSX and Storybook's both build them. */
456const partsOf = (x: any): { type?: string; p: Record<string, any>; kids: unknown[] } => {
457  const p = (x?.props ?? {}) as Record<string, any>
458  const given = x?.children ?? p.children ?? []
459  return { type: x?.type, p, kids: (Array.isArray(given) ? given : [given]).flat(Infinity as 1).filter(c => c != null && c !== false) }
460}
461
462/**
463 * About how many rows tall an element draws on the desktop: a Text or a Button a
464 * row, a column Box its children stacked, a row Box its tallest child, a `height`
465 * as given; vertical margins, padding and gaps at half a row a unit, as the
466 * desktop draws them. Only good enough to balance columns, never to size them.
467 */
468export const rowsOf = (x: unknown): number => {
469  if (x == null || x === false) return 0
470  if (typeof x === 'string' || typeof x === 'number') return 1
471  if (Array.isArray(x)) return x.reduce((n: number, c) => n + rowsOf(c), 0)
472  if (typeof x !== 'object') return 0
473  const { type, p, kids } = partsOf(x)
474  if (p.display === 'none' || p.position === 'absolute') return 0
475  const num = (v: unknown) => (typeof v === 'number' && Number.isFinite(v) ? v : 0)
476  // Vertical spacing in half rows (the desktop's unit for it), as rows.
477  const around =
478    (num(p.marginTop) + num(p.marginBottom) + 2 * num(p.marginY) + 2 * num(p.margin) + num(p.paddingTop) + num(p.paddingBottom) + 2 * num(p.paddingY) + 2 * num(p.padding)) / 2
479  let own: number
480  if (typeof p.height === 'number') own = p.height
481  else if (type === 'Box') {
482    const sizes = kids.map(rowsOf)
483    if (p.flexDirection === 'column') own = sizes.reduce((a, b) => a + b, 0) + (num(p.rowGap ?? p.gap) * Math.max(0, sizes.length - 1)) / 2
484    else own = Math.max(0, ...sizes)
485  } else own = 1
486  return Math.max(own, num(p.minHeight)) + around
487}
488
489/**
490 * Splits `heights` into `n` runs in order, so the tallest run is as short as it
491 * can be: blocks read top to bottom, then left to right, and the columns end
492 * about even. Returns each run's first index.
493 */
494const balance = (heights: number[], n: number): number[] => {
495  const m = heights.length
496  const sum = [0]
497  for (const h of heights) sum.push(sum[sum.length - 1]! + h)
498  // best[j][i]: the tallest column laying the first i blocks in j columns; cut[j][i] where the last column starts.
499  const best = Array.from({ length: n + 1 }, () => new Array<number>(m + 1).fill(Infinity))
500  const cut = Array.from({ length: n + 1 }, () => new Array<number>(m + 1).fill(0))
501  best[0]![0] = 0
502  for (let j = 1; j <= n; j++) {
503    for (let i = j; i <= m; i++) {
504      // Every column holds at least one block.
505      for (let s = j - 1; s < i; s++) {
506        const tall = Math.max(best[j - 1]![s]!, sum[i]! - sum[s]!)
507        // Ties go to the later cut, so earlier columns take more and the last isn't the tall one.
508        if (tall <= best[j]![i]!) {
509          best[j]![i] = tall
510          cut[j]![i] = s
511        }
512      }
513    }
514  }
515  const starts: number[] = []
516  let i = m
517  for (let j = n; j >= 1; j--) {
518    starts.unshift(cut[j]![i]!)
519    i = cut[j]![i]!
520  }
521  return starts
522}
523
524/**
525 * Lays `blocks` (a pane's sections, a list's tiles) out in columns when the pane
526 * is wide enough (see `flowColumns`); otherwise gives them back as they were, so
527 * a narrow pane draws exactly what it drew before. Spread the result where the
528 * blocks went: `{flow(Box, e.surface, columns, 'sections', [a, b, c])}`.
529 *
530 * A block is never split across columns. They read top to bottom, then left to
531 * right, cut where the columns come out most even by `rowsOf`'s estimate (or the
532 * `rows` given). Each column is a plain column Box (key `<key>-col-<n>`), each
533 * block in it spanning the column's width; the gutter between is FLOW_GAP, with
534 * no rule, panel or outline.
535 */
536export const flow = (
537  Box: Els['Box'],
538  surface: RenderSurface,
539  columns: number,
540  key: string,
541  blocks: (RenderElement | null | false | undefined)[],
542  o: FlowOptions = {},
543): (RenderElement | null)[] => {
544  const shown = blocks.map((b, i) => ({ b, rows: o.rows?.[i] })).filter((x): x is { b: RenderElement; rows: number | undefined } => x.b != null && x.b !== false)
545  const { count } = flowColumns(surface, columns, shown.length, o)
546  if (count < 2) return blocks.map(b => b || null)
547  const starts = balance(
548    shown.map(x => x.rows ?? rowsOf(x.b)),
549    count,
550  )
551  const runs = starts.map((s, c) => shown.slice(s, starts[c + 1] ?? shown.length))
552  return [
553    <Box key={key} flexDirection="row" width="100%" columnGap={FLOW_GAP} alignItems="flex-start">
554      {runs.map((run, c) => (
555        // Columns share the row equally, growing from no width, as a legend's do (the desktop doesn't stretch a nested box).
556        <Box key={`${key}-col-${c}`} flexDirection="column" flexGrow={1} flexShrink={1} width={0} minWidth={0} {...(o.gap ? { rowGap: o.gap } : {})}>
557          {run.map((x, i) => (
558            <Box key={`${key}-${c}-${i}`} flexDirection="column" width="100%" minWidth={0}>
559              {x.b}
560            </Box>
561          ))}
562        </Box>
563      ))}
564    </Box>,
565  ]
566}
567
568export const kit = (els: Els, surface: RenderSurface, columns = 40, opts: KitOptions = {}) => {
569  const { Box, Text, Button, Svg } = els
570  const terminal = surface === 'terminal'
571  /** Whether the pane has the keyboard; unknown counts as yes. */
572  const paneFocused = opts.focused !== false
573  /** A flow's options with the column view's switch applied: off, one stack. */
574  const flowOpts = (o: FlowOptions = {}): FlowOptions => (opts.flow?.on === false ? { ...o, single: true } : o)
575  /** Under MIN_COLUMNS the terminal draws section headers only. */
576  const floor = terminal && Math.floor(columns) < MIN_COLUMNS
577  /** A text role's props on the terminal (see TERM_ROLES). */
578  const R = TERM_ROLES
579  /** Text a step below the main text: one of the three greys on the app surfaces; plain dim in the terminal, whose greys are its own. */
580  const tone = (level: keyof typeof GRAY) => (terminal ? { dimColor: true } : { color: GRAY[level] })
581  /** A token colour as Text props for this surface: on the terminal a status's theme key, a grey as dim. */
582  const ink = (color?: string): { color?: string; dimColor?: boolean } => (terminal ? termInk(color) : color ? { color } : {})
583  /** The grid for this surface: CELLS on the terminal, SPACE elsewhere. */
584  const space = terminal ? CELLS : SPACE
585  const edge = terminal ? { left: GUTTER, right: RIGHT } : EDGE
586  /** A section's width in terminal cells: the pane's, up to the measure. */
587  const span = Math.max(1, Math.min(Math.floor(columns), opts.measure ?? Infinity))
588  /** A section body's width in terminal cells: the section's less the gutter and the right margin. */
589  const body = Math.max(1, span - GUTTER - RIGHT)
590  const clamp01 = (x: number) => (Number.isFinite(x) ? Math.max(0, Math.min(1, x)) : 0)
591
592  /** A run of one glyph in one colour, as one Text. */
593  const run = (key: string, glyph: string, n: number, props: Record<string, unknown>) =>
594    n > 0 ? <Text key={key} {...props}>{glyph.repeat(n)}</Text> : null
595
596  /**
597   * A terminal gauge `width` cells wide: a heavy line to the half cell over a
598   * dim light rail. Anything above zero shows at least half a cell.
599   */
600  const lineMeter = (fraction: number, color: string, width: number): RenderElement => {
601    const w = Math.max(1, Math.floor(width))
602    let halves = Math.round(clamp01(fraction) * w * 2)
603    if (fraction > 0 && halves === 0) halves = 1
604    const full = Math.floor(halves / 2)
605    const half = halves % 2
606    return (
607      <Text>
608        {run('fill', METER.line, full, ink(color))}
609        {half ? <Text key="half" {...ink(color)}>{METER.half}</Text> : null}
610        {run('rail', METER.rail, w - full - half, { dimColor: true })}
611      </Text>
612    )
613  }
614
615  /**
616   * A terminal bar `width` cells wide, one row: each part a run of the heavy line
617   * (`━`) in its own solid colour, to the half cell; a `room` part the light rail
618   * (`─`) in its colour; what's left the dim rail. Anything above zero shows at
619   * least half a cell. A cell shared by two parts takes the first one's colour.
620   */
621  const lineBar = (parts: Part[], total: number, width: number): RenderElement => {
622    const w = Math.max(1, Math.floor(width))
623    const halves = w * 2
624    const ends: { end: number; color: string; room: boolean }[] = []
625    let at = 0
626    for (const p of parts) {
627      if (!(p.value > 0) || at >= halves) continue
628      at = Math.min(halves, at + Math.max(1, Math.round((p.value / total) * halves)))
629      ends.push({ end: at, color: p.color, room: Boolean(p.room) })
630    }
631    const partAt = (h: number) => ends.find(x => h < x.end)
632    const rail = { glyph: METER.rail, props: { dimColor: true } as Record<string, unknown> }
633    const cells: { glyph: string; props: Record<string, unknown> }[] = []
634    for (let c = 0; c < w; c++) {
635      const left = partAt(2 * c)
636      const right = partAt(2 * c + 1)
637      if (!left) cells.push(rail)
638      else if (left.room) cells.push({ glyph: METER.rail, props: ink(left.color) })
639      // A used part ending at the half: the half line, then nothing (a room part, or the rail, starts next cell).
640      else if (!right || right.room) cells.push({ glyph: METER.half, props: ink(left.color) })
641      else cells.push({ glyph: METER.line, props: ink(left.color) })
642    }
643    // Runs of the same glyph and colour, as one Text each.
644    const runs: RenderElement[] = []
645    let i = 0
646    while (i < cells.length) {
647      let j = i + 1
648      while (j < cells.length && cells[j]!.glyph === cells[i]!.glyph && JSON.stringify(cells[j]!.props) === JSON.stringify(cells[i]!.props)) j++
649      runs.push(<Text key={`r${i}`} {...cells[i]!.props}>{cells[i]!.glyph.repeat(j - i)}</Text>)
650      i = j
651    }
652    return <Text>{runs}</Text>
653  }
654
655  /*
656   * Rounding on the desktop. Boxes have no corner radius; what rounds is:
657   *
658   * - `capped`: anything thin (bars, gauges). SVG end caps drawn at an exact pixel
659   *   size, so they stay crisp; the middle takes no height and stretches to the caps.
660   * - Nothing else: `rounded` boxes (bands, tiles) are square-cornered fills.
661   *
662   * What doesn't work, so nobody tries again: a `round` border in `transparent` to
663   * round a fill (the desktop doesn't know `transparent` as a border colour and draws
664   * the border in the text's colour: every band and tile became an outlined bubble),
665   * a border in a see-through fill's own colour (paints twice and draws a ring),
666   * borders on thin bars (empty, or blobs),
667   * glyph ends (◖━◗, ╺━╸ don't draw), SVG slivers a few pixels wide (don't draw), an
668   * SVG stretched to fit (blurs), a circle drawn over a rect in one SVG (a translucent
669   * colour doubles where they overlap).
670   */
671
672  /**
673   * An icon at the kit's one size (ICON_PX square): the SVG drawing where the
674   * surface has SVG and the kit has one for `key`, else its glyph as text
675   * (`glyphOf`: the terminal glyph for a named icon, never the name itself).
676   *
677   * `color` may be a file type's `Duo` (`FILE_TYPE`): light and dark values on the
678   * app surfaces, dim on the terminal, which draws file types monochrome.
679   * `alt` names the drawing for a reader that can't see it (the desktop's
680   * accessible name); `tooltip` also shows it under the pointer, drawing the SVG
681   * interactive (a sandboxed frame), so keep it to an icon that says something
682   * on its own (a branch's upstream), never one under a Button.
683   */
684  const icon = (key: string, color: string | Duo, px = ICON_PX, opts: { alt?: string; tooltip?: string } = {}): RenderElement => {
685    const source = Svg && !terminal ? iconSvg(key, color, px, opts.tooltip) : null
686    if (!Svg || !source) return <Text {...ink(typeof color === 'string' ? color : MUTED)}>{glyphOf(key)}</Text>
687    const alt = opts.alt ?? opts.tooltip ?? 'icon'
688    return opts.tooltip ? <Svg source={source} alt={alt} width={px} height={px} isInteractive /> : <Svg source={source} alt={alt} width={px} height={px} />
689  }
690
691  /**
692   * One rounded end:a square `px` tall, a half circle on the outside and a filled
693   * strip on the inside, as one shape.
694   */
695  const cap = (px: number, color: string, side: 'left' | 'right'): RenderElement | null => {
696    if (!Svg) return null
697    const r = px / 2
698    const d = side === 'left' ? `M${r} 0H${px}V${px}H${r}A${r} ${r} 0 0 1 ${r} 0Z` : `M0 0H${r}A${r} ${r} 0 0 1 ${r} ${px}H0Z`
699    // Over the track, as the bar's middle paints its parts: a see-through part's end
700    // then comes out the same shade as the rest of it.
701    const under = color === TRACK ? '' : `<path d="${d}" fill="${TRACK}"/>`
702    const source =
703      `<svg xmlns="http://www.w3.org/2000/svg" width="${px}" height="${px}" viewBox="0 0 ${px} ${px}">` +
704      `${under}<path d="${d}" fill="${color}"/></svg>`
705    return (
706      <Box flexShrink={0}>
707        <Svg source={source} alt="rounded end" width={px} height={px} />
708      </Box>
709    )
710  }
711
712  /**
713   * Rounds the ends of something thin: `middle` between a `left` and a `right` cap,
714   * `height` rows tall. Give `middle` no height of its own; it stretches to the caps,
715   * whose pixel size it can't drift from. Where the surface has no SVG, `middle` alone
716   * at `height`.
717   */
718  const capped = (height: number, left: string, right: string, middle: (height: number | undefined) => RenderElement): RenderElement => {
719    if (terminal || !Svg) return middle(height)
720    const px = Math.max(4, Math.round(height * ROW_PX))
721    return (
722      <Box flexDirection="row" flexGrow={1} alignItems="stretch">
723        {cap(px, left, 'left')}
724        {middle(undefined)}
725        {cap(px, right, 'right')}
726      </Box>
727    )
728  }
729
730  /**
731   * A filled box, a row or more tall: a band or a tile. Square-cornered and with no
732   * border on the app surfaces, as the design has no outlines and the desktop has no
733   * transparent border to round a fill with (see "Rounding on the desktop" above).
734   * In the terminal, the box without fill.
735   */
736  const rounded = (color: string, props: Record<string, unknown>, children: RenderElement | (RenderElement | null)[] | null) =>
737    terminal ? (
738      <Box {...props}>{children}</Box>
739    ) : (
740      <Box {...props} backgroundColor={color}>
741        {children}
742      </Box>
743    )
744
745  /**
746   * A tile: one item of a list that has several lines (a branch and its PR), in its
747   * own rounded fill a step lighter than the pane, so items read as units. A
748   * `selected` tile takes a blue-tinted fill: picked, without an outline; half
749   * as tinted while the pane isn't `focused` (the kit's `focused` by default).
750   * On the terminal, a blank row above and no fill, selected or not: a terminal
751   * list that selects draws its rows with `item`, which has a selection mark.
752   */
753  const tile = (key: string, children: (RenderElement | null)[], opts: { selected?: boolean; focused?: boolean } = {}) =>
754    terminal ? (
755      <Box key={key} flexDirection="column" marginTop={1}>
756        {children}
757      </Box>
758    ) : (
759      rounded(
760        opts.selected ? ((opts.focused ?? paneFocused) ? FILL.selected : FILL.selectedBlurred) : FILL.tile,
761        { key, flexDirection: 'column', paddingX: SPACE.item, paddingY: TILE_PAD_Y, rowGap: TILE_ROW_GAP, width: '100%' },
762        children,
763      )
764    )
765
766  /**
767   * A thin bar: parts left to right out of `max`, the rest as track. On the
768   * terminal one row `width` cells wide (a section body's width by default): the
769   * gauge's heavy line, each part in its own colour, `room` parts and the rest
770   * as the light rail (see `lineBar`).
771   */
772  const bar = (parts: Part[], max: number, opts: { height?: number; width?: number } = {}): RenderElement => {
773    const total = Math.max(max, parts.reduce((n, p) => n + Math.max(0, p.value), 0), 1)
774    if (terminal) {
775      const w = opts.width ?? body
776      return lineBar(parts, total, w)
777    }
778    // Grow factors out of 1000 (the desktop caps them at 10000): finer than a pixel at any width.
779    // Rounded by SVG end caps around a flat middle. Borders can't round it: on the desktop a
780    // border takes room inside the box, so a thin bordered track draws empty and bordered fills
781    // draw as blobs; glyph bars (◖━◗, ╺━╸) don't draw at all.
782    const height = opts.height ?? BAR
783    const shown = parts.filter(p => p.value > 0).map(p => ({ ...p, grow: (p.value / total) * 1000 }))
784    const rest = Math.max(0, 1000 - shown.reduce((n, p) => n + p.grow, 0))
785    // Not `h`: that's the JSX factory.
786    const flat = (rows: number | undefined) => (
787      <Box flexDirection="row" flexGrow={1} height={rows} backgroundColor={TRACK} overflow="hidden">
788        {/* An explicit full height: the desktop doesn't stretch a child to its parent's height. */}
789        {shown.map(p => (
790          <Box flexGrow={p.grow} flexShrink={0} width={0} height="100%" backgroundColor={p.color} />
791        ))}
792        {rest > 0 ? <Box flexGrow={rest} width={0} /> : null}
793      </Box>
794    )
795    // The caps sit inside the bar's width, so a scale under it still lines up with its ends.
796    const first = shown[0]?.color ?? TRACK
797    const last = rest > 0 ? TRACK : (shown[shown.length - 1]?.color ?? TRACK)
798    return capped(height, first, last, flat)
799  }
800
801  /**
802   * A label as GitHub draws one: a rounded chip filled with the label's colour,
803   * faint and see-through (FILL.pill), and its name in the theme's foreground, which
804   * reads on the light desktop theme and the dark one whatever the label's colour
805   * (a label without a hex colour gets the track's grey). On the
806   * terminal, a `■` swatch and the name in the default foreground: a label's
807   * colour is data (GitHub's hex) that may not read on the person's theme, so it
808   * only ever tints the one-cell swatch, never the text. A status colour (a kit
809   * token) draws as its theme key, as everywhere.
810   */
811  const pill = (key: string, text: string, color: string) => {
812    if (terminal) {
813      return (
814        <Text key={key}>
815          <Text {...(isKitColor(color) ? ink(color) : { color })}>■</Text>
816          {` ${text}`}
817        </Text>
818      )
819    }
820    return rounded(tint(color, FILL.pill) ?? TRACK, { key, flexDirection: 'row', paddingX: 0.6, flexShrink: 0 }, [<Text key="t">{text}</Text>])
821  }
822
823  /**
824   * A small mark of colour, a legend's key: a dot on the app surfaces, a square
825   * `■` on the terminal. `line: true` keys a line bar's part (`k.bar`) on the
826   * terminal with its own glyph: `━` for a part, `─` for a `room` one.
827   */
828  const swatch = (color: string, o: { line?: boolean; room?: boolean } = {}) => (
829    <Text {...ink(color)}>{terminal ? (o.line ? (o.room ? METER.rail : METER.line) : '■') : '●'}</Text>
830  )
831
832  /**
833   * A legend: each entry a key, a dim label and its figure. `note` is an optional
834   * coloured figure after it (a failure count). With `bar: true` (a legend that
835   * keys a `bar`, its items in the bar's order, `room` ones included) the
836   * terminal's keys are the bar's own glyphs, `━` and `─`.
837   *
838   * On the terminal it's a compact grid, filled row by row in the items' order:
839   * as many columns as fit with labels up to 10 cells (`maxCols`, 3 at most),
840   * 3 cells apart; then each column takes its share of the row, up to what its
841   * longest label, figure and note need, so labels widen into spare room and are
842   * cut with … only when it runs out, and a label stays close to its figure. The app surfaces
843   * share the row out in up to three columns.
844   */
845  const legend = (
846    key: string,
847    items: { label: string; color: string; figure: string; note?: string; noteColor?: string; room?: boolean }[],
848    maxCols?: number,
849    opts: { bar?: boolean } = {},
850  ) => {
851    if (terminal) {
852      const len = (s: string) => [...s].length
853      const longest = Math.max(1, ...items.map(t => len(t.label)))
854      const figW = Math.max(1, ...items.map(t => len(t.figure)))
855      const noteW = Math.max(0, ...items.map(t => (t.note ? len(t.note) + 1 : 0)))
856      const fixed = 2 + 1 + figW + noteW
857      const gap = 3
858      // How many columns fit is decided at the compact width (labels up to LABEL cells)...
859      const compact = fixed + Math.min(LABEL, longest)
860      const fit = Math.max(1, Math.floor((body + gap) / (compact + gap)))
861      const cols = Math.max(1, Math.min(maxCols ?? 3, fit, items.length))
862      const rows = Array.from({ length: Math.ceil(items.length / cols) }, (_, r) => items.slice(r * cols, r * cols + cols))
863      // ...then each column takes its share of the row, up to what its longest label needs,
864      // and the label has what's left after the key, figure and note.
865      const share = Math.floor((body - gap * (cols - 1)) / cols)
866      const width = Math.max(1, Math.min(fixed + longest, share))
867      const labelRoom = Math.max(1, width - fixed)
868      const fitLabel = (s: string) => (len(s) <= labelRoom ? s : [...s].slice(0, Math.max(0, labelRoom - 1)).join('') + MARK.more)
869      return (
870        <Box key={key} flexDirection="column">
871          {rows.map((row, r) => (
872            <Box key={`${key}-row-${r}`} flexDirection="row" gap={gap}>
873              {row.map(t => (
874                <Box key={`${key}-${t.label}`} flexDirection="row" width={width} flexShrink={0}>
875                  <Box width={2} flexShrink={0}>
876                    {swatch(t.color, { line: opts.bar, room: t.room })}
877                  </Box>
878                  <Box flexGrow={1} flexShrink={1} minWidth={0}>
879                    <Text {...R.label} wrap="truncate">
880                      {fitLabel(t.label)}
881                    </Text>
882                  </Box>
883                  <Box width={figW + 1} flexShrink={0} flexDirection="row" justifyContent="flex-end">
884                    <Text {...R.value}>{t.figure}</Text>
885                  </Box>
886                  {noteW ? (
887                    <Box width={noteW} flexShrink={0} flexDirection="row" justifyContent="flex-end">
888                      {t.note ? <Text {...ink(t.noteColor)}>{t.note}</Text> : null}
889                    </Box>
890                  ) : null}
891                </Box>
892              ))}
893            </Box>
894          ))}
895        </Box>
896      )
897    }
898    // Few rows: two columns for up to four entries, three beyond. (The pane's reported
899    // width in columns runs smaller than what the desktop draws, so it can't decide this.)
900    const cols = Math.min(maxCols ?? 3, items.length <= 4 ? 2 : 3, Math.max(1, items.length))
901    const per = Math.ceil(items.length / cols)
902    const groups = Array.from({ length: cols }, (_, c) => items.slice(c * per, c * per + per))
903    return (
904      // The legend spans the body (the desktop doesn't stretch a nested box), and its
905      // columns share that width equally, as a bar's parts do: grow from zero width.
906      <Box key={key} flexDirection="row" width="100%" gap={space.group}>
907        {groups.map((col, c) => (
908          <Box key={`${key}-col-${c}`} flexGrow={1} width={0} flexDirection="column">
909            {col.map(t => (
910              // The full column's width (the desktop doesn't stretch it); the label gives way first.
911              <Box key={`${key}-${t.label}`} flexDirection="row" alignItems="center" gap={space.pair} width="100%">
912                {swatch(t.color)}
913                <Box flexGrow={1} flexShrink={1} minWidth={0}>
914                  <Text {...tone('light')} wrap="truncate">
915                    {t.label}
916                  </Text>
917                </Box>
918                {t.note ? <Text {...ink(t.noteColor)}>{t.note}</Text> : null}
919                <Text>{t.figure}</Text>
920              </Box>
921            ))}
922          </Box>
923        ))}
924      </Box>
925    )
926  }
927
928  /** A caption: dim uppercase, for a chart's or a column's heading. The only uppercase besides a state word. */
929  const caption = (text: string) => <Text {...(terminal ? R.meta : tone('mid'))}>{text.toUpperCase()}</Text>
930
931  /**
932   * A header's figures, one form for every section: figures, each followed by
933   * a dim lowercase unit, SPACE.group apart. A figure is coloured only when the
934   * colour is a status. On the terminal the first figure is bold (the one that
935   * matters; put it first) and the rest plain.
936   *
937   * Its state, before the figures, so a cut never takes it:
938   * - `loading`: no figures yet (the first read): the pending mark `◌` holds
939   *   their place, so a folded section still says it's coming;
940   * - `age`: how old the figures are when they're last-good figures kept through
941   *   a refresh, as a dim `↻ 2m`;
942   * - `failed`: the last refresh failed and these are the last-good figures: an
943   *   amber `▲` (with the age after it, dim, when given). Keep the figures; don't
944   *   swap the body for an error.
945   */
946  const summary = (items: ([string, string?, string?] | null | false)[], state: { loading?: boolean; age?: string; failed?: boolean } = {}) => {
947    const shown = items.filter((x): x is [string, string?, string?] => Boolean(x))
948    const pending = state.loading && !shown.length
949    if (terminal) {
950      // One line of text, the figures CELLS.group apart: too wide for its room, it's
951      // cut wherever that falls and ends in an ellipsis, never mid-figure without one.
952      const mark = state.failed ? (
953        <Text key="state">
954          <Text {...ink(STATUS.warn.color)}>{STATUS.warn.glyph}</Text>
955          {state.age ? <Text {...R.secondary}>{` ${state.age}`}</Text> : null}
956          {shown.length ? ' '.repeat(CELLS.group) : null}
957        </Text>
958      ) : state.age ? (
959        <Text key="state" {...R.secondary}>
960          {`${MARK.stale} ${state.age}`}
961          {shown.length ? ' '.repeat(CELLS.group) : null}
962        </Text>
963      ) : null
964      return (
965        <Box flexDirection="row" minWidth={0} flexShrink={1}>
966          <Text wrap="truncate">
967            {pending ? <Text key="pending" {...ink(STATUS.pending.color)}>{STATUS.pending.glyph}</Text> : null}
968            {mark}
969            {shown.map(([figure, unit, color], i) => (
970              <Text key={`${figure}-${unit ?? ''}`}>
971                {i ? ' '.repeat(CELLS.group) : null}
972                {/* The first figure is the one that matters: bold; the rest plain. */}
973                <Text {...(i ? R.value : R.strong)} {...ink(color)}>{figure}</Text>
974                {unit ? <Text {...R.meta}>{` ${unit}`}</Text> : null}
975              </Text>
976            ))}
977          </Text>
978        </Box>
979      )
980    }
981    // Too wide for the band, the last item ends in an ellipsis and what's past it is cut.
982    return (
983      <Box flexDirection="row" gap={space.group} minWidth={0} flexShrink={1} overflow="hidden">
984        {pending ? <Text key="pending" color={STATUS.pending.color}>{STATUS.pending.glyph}</Text> : null}
985        {state.failed ? (
986          <Text key="state">
987            <Text color={STATUS.warn.color}>{STATUS.warn.glyph}</Text>
988            {state.age ? <Text {...tone('mid')}>{` ${state.age}`}</Text> : null}
989          </Text>
990        ) : state.age ? (
991          <Text key="state" {...tone('mid')}>{`${MARK.stale} ${state.age}`}</Text>
992        ) : null}
993        {shown.map(([figure, unit, color], i) => (
994          <Text key={`${figure}-${unit ?? ''}`} wrap={i === shown.length - 1 ? 'truncate' : undefined}>
995            <Text {...ink(color)}>{figure}</Text>
996            {unit ? <Text {...tone('mid')}>{` ${unit}`}</Text> : null}
997          </Text>
998        ))}
999      </Box>
1000    )
1001  }
1002
1003  /**
1004   * Labels under a chart, each centred under its place: `at` from 0 to 1 across
1005   * the chart's width (the first and last flush with its ends). On the terminal
1006   * one dim line `width` cells wide (a section body's by default; pass the
1007   * chart's): a label that would touch the one before it is left out.
1008   */
1009  const axis = (key: string, labels: { at: number; text: string }[], width?: number) => {
1010    const row: RenderElement[] = []
1011    const sorted = [...labels].sort((a, b) => a.at - b.at)
1012    if (terminal) {
1013      const w = Math.max(1, Math.floor(width ?? body))
1014      const line = Array.from({ length: w }, () => ' ')
1015      let free = 0
1016      for (const l of sorted) {
1017        const text = [...l.text]
1018        const start = Math.max(0, Math.min(w - text.length, Math.round(clamp01(l.at) * w - text.length / 2)))
1019        if (start < free || start + text.length > w) continue
1020        text.forEach((ch, i) => (line[start + i] = ch))
1021        free = start + text.length + 1
1022      }
1023      return (
1024        <Text key={key} dimColor>
1025          {line.join('').trimEnd()}
1026        </Text>
1027      )
1028    }
1029    sorted.forEach((l, i) => {
1030      // Each label owns the span halfway to its neighbours; the ends own up to the edge.
1031      const from = i === 0 ? 0 : (sorted[i - 1]!.at + l.at) / 2
1032      const to = i === sorted.length - 1 ? 1 : (l.at + sorted[i + 1]!.at) / 2
1033      const align = i === 0 && l.at === 0 ? 'flex-start' : i === sorted.length - 1 && l.at === 1 ? 'flex-end' : 'center'
1034      row.push(
1035        <Box key={`${key}-${i}`} flexGrow={Math.max(1, Math.round((to - from) * 1000))} width={0} flexDirection="row" justifyContent={align}>
1036          <Text {...tone('dark')}>{l.text}</Text>
1037        </Box>,
1038      )
1039    })
1040    return (
1041      <Box key={key} flexDirection="row">
1042        {row}
1043      </Box>
1044    )
1045  }
1046
1047  /**
1048   * An instrument's scale under a bar: ticks at 0, 25, 50, 75 and 100%, and a
1049   * marker where `mark` falls (a fraction of the scale), in `markColor`. On the
1050   * terminal a row `width` cells wide (a section body's by default, as `bar`):
1051   * dim ticks (╵) and the marker as ▴.
1052   */
1053  const scale = (mark?: number, markColor: string = C.warn, width?: number) => {
1054    if (terminal) {
1055      const w = Math.max(2, Math.floor(width ?? body))
1056      const row = Array.from({ length: w }, () => ' ')
1057      for (const at of [0, 0.25, 0.5, 0.75, 1]) row[Math.round(at * (w - 1))] = '╵'
1058      const m = mark === undefined ? -1 : Math.round(clamp01(mark) * (w - 1))
1059      if (m < 0) return <Text dimColor>{row.join('')}</Text>
1060      return (
1061        <Text>
1062          <Text dimColor>{row.slice(0, m).join('')}</Text>
1063          <Text {...ink(markColor)}>▴</Text>
1064          <Text dimColor>{row.slice(m + 1).join('')}</Text>
1065        </Text>
1066      )
1067    }
1068    // Every tick at its place on the scale, the marker among them, gaps between sized by flex-grow.
1069    const marks: Array<{ at: number; color: string; height: number }> = [0, 0.25, 0.5, 0.75, 1].map(at => ({ at, color: TRACK, height: 0.3 }))
1070    if (mark !== undefined) marks.push({ at: Math.max(0, Math.min(1, mark)), color: markColor, height: 0.45 })
1071    marks.sort((a, b) => a.at - b.at)
1072    const row: RenderElement[] = []
1073    marks.forEach((m, i) => {
1074      if (i > 0) row.push(<Box key={`g${i}`} flexGrow={Math.max(0, (m.at - marks[i - 1]!.at) * 1000)} width={0} />)
1075      row.push(<Box key={`m${i}`} width={0.12} height={m.height} backgroundColor={m.color} flexShrink={0} />)
1076    })
1077    return (
1078      <Box flexDirection="row" alignItems="flex-start" height={0.45}>
1079        {row}
1080      </Box>
1081    )
1082  }
1083
1084  /**
1085   * A section as a properties inspector draws one (Premiere's Effect Controls):
1086   * a collapsible header row (icon, title, figures, then the fold arrow last at
1087   * the right end) and its properties indented under it, the terminal's under the
1088   * title. The arrow (a Button, key `toggle-<id>`) folds it. No panel, outline or tint: rows and indentation do
1089   * the grouping. Collapsible when given `onToggle` (the mod keeps which are
1090   * folded in its state); folded, only the header row shows.
1091   */
1092  const section = (s: {
1093    id: string
1094    title: string
1095    /** An icon before the title (a GLYPH, drawn as the kit's SVG icon), always muted. */
1096    icon?: string
1097    right?: RenderElement | null
1098    collapsed?: boolean
1099    onToggle?: () => void
1100    /**
1101     * On the terminal, the right side (figures, buttons) keeps its natural width
1102     * and only the title is cut, with an ellipsis: for a header whose right side
1103     * is controls that must all show. Size the right side to fit the row yourself.
1104     * Without it, the title keeps up to 12 cells and then it and the figures give
1105     * way together. The desktop draws the same either way.
1106     */
1107    keepRight?: boolean
1108    /** No figures yet: with no `right`, the figure slot shows the pending mark (`summary([], { loading: true })`). */
1109    loading?: boolean
1110    /**
1111     * The figures restate what the body shows (the fullest of the readings under
1112     * it): the terminal draws them only while the body is hidden, folded or under
1113     * the narrow floor, so an open section doesn't say it twice.
1114     */
1115    restated?: boolean
1116    children: RenderElement | (RenderElement | null)[] | null
1117  }) => {
1118    if (s.loading && !s.right) s = { ...s, right: summary([], { loading: true }) }
1119    if (terminal) {
1120      // ◔ Title       figures ─────────────── ▾
1121      //   body, two cells in, under the title
1122      // A dim icon, the title bold, the figures on a shared column right after it
1123      // (TITLE_COL), a dim rule, then the dim fold arrow last, flush right. The icon
1124      // takes the GUTTER the body is indented by, so a title lines up with the
1125      // readings under it. No band or box. Every section leaves one blank row under
1126      // it, open or folded.
1127      const arrow = s.collapsed ? FOLD.closed : FOLD.open
1128      const toggle =
1129        s.onToggle && Button ? (
1130          <Button key={`toggle-${s.id}`} plain dimColor label={arrow} onPress={() => s.onToggle?.()} />
1131        ) : (
1132          <Text dimColor>{arrow}</Text>
1133        )
1134      // The arrow keeps its cell whatever else gives way; `gap` is its room when the row has no gap of its own.
1135      const arrowBox = (gap: number) => (
1136        <Box key="fold" flexShrink={0} marginLeft={gap}>
1137          {toggle}
1138        </Box>
1139      )
1140      const lead = s.icon ? GUTTER : 0
1141      const titleCells = [...s.title].length
1142      const keeps = Math.min(titleCells, 12)
1143      // Under MIN_COLUMNS, the header and its figures only: the body is left out.
1144      const open = !s.collapsed && !floor
1145      const right = s.restated && open ? null : s.right
1146      const head = [
1147        s.icon ? (
1148          <Box key="icon" width={GUTTER} flexShrink={0}>
1149            {icon(s.icon, termHeaderIcon())}
1150          </Box>
1151        ) : null,
1152        <Box key="name" flexShrink={1} minWidth={0}>
1153          <Text wrap="truncate" {...R.title}>
1154            {s.title}
1155          </Text>
1156        </Box>,
1157      ]
1158      // The rule takes only the room left: from no width, cut at its box's edge.
1159      const rule = (
1160        <Box key="rule" flexGrow={1} flexShrink={1} width={0} minWidth={0} height={1} overflow="hidden">
1161          <Text dimColor>{METER.rail.repeat(Math.max(1, Math.floor(columns)))}</Text>
1162        </Box>
1163      )
1164      const row = s.keepRight ? (
1165        // Controls on the right edge: they keep their width and only the title is cut.
1166        <Box flexDirection="row" gap={CELLS.item}>
1167          <Box key="title" flexDirection="row" flexShrink={1} minWidth={lead + 1}>
1168            {head}
1169          </Box>
1170          {rule}
1171          {right ? (
1172            <Box key="right" flexDirection="row" minWidth={0} flexShrink={0} overflow="hidden">
1173              {right}
1174            </Box>
1175          ) : null}
1176          {arrowBox(0)}
1177        </Box>
1178      ) : (
1179        // The title's column gives way first (down to 12 cells of title), then the figures; the rule
1180        // only ever takes what's left.
1181        <Box flexDirection="row">
1182          <Box
1183            key="title"
1184            flexDirection="row"
1185            // Without figures the rule follows the title; with them, they start on the shared column.
1186            width={lead + (right ? Math.max(TITLE_COL, titleCells) + CELLS.group : titleCells + CELLS.item)}
1187            flexShrink={1000}
1188            minWidth={lead + keeps + (right ? CELLS.group : CELLS.item)}
1189          >
1190            {head}
1191          </Box>
1192          {right ? (
1193            <Box key="right" flexDirection="row" minWidth={0} flexShrink={1} overflow="hidden" marginRight={CELLS.item}>
1194              {right}
1195            </Box>
1196          ) : null}
1197          {rule}
1198          {arrowBox(CELLS.item)}
1199        </Box>
1200      )

1// Copyright 2026 Anthropic PBC
2// SPDX-License-Identifier: Apache-2.0
3//
4// Modified in the awesome-claude fork (2026): this file is new. It holds
5// `renderTerminal`, upstream's `draw()` from blast-radius.mjs redrawn with the
6// kit's terminal components (same border, report and buttons), and
7// `renderApp`, a desktop drawing of the same report built with the kit.
8
9import type { Elements, RenderElement } from 'claude-code'
10
11import { C, GRAY } from '../kit/tokens'
12import { EDGE, SPACE, TERM_ROLES, kit } from '../kit/ui'
13import type { FlowSwitch } from '../kit/ui'
14
15/** What a risky command is, from the classifier. */
16export type Risk = {
17  kind: 'rm' | 'git-reset' | 'git-clean' | 'git-push-force' | 'git-checkout' | 'migrate'
18  label: string
19  dir: string | null
20  targets?: string[]
21  args?: string[]
22  tool?: string
23}
24
25/** What the command would change, as measured: { summary, lines, more, note }. */
26export type Report = { summary: string; lines: string[]; more?: number; note?: string }
27
28/** The call being held, which the buttons answer. */
29export type Held = {
30  command: string
31  risk: Risk
32  report: Report | null
33  decision: string | null
34  where: 'pane' | 'band'
35}
36
37export type AppElements = Pick<Elements['desktop'], 'Box' | 'Text' | 'Button' | 'Svg'> & Partial<Pick<Elements['desktop'], 'Code'>>
38
39/** The buttons answer the call this drawing was made for, never whichever one is held now. */
40const decider = (state: Held) => (choice: string) => () => {
41  if (state.decision === null) {
42    state.decision = choice
43  }
44}
45
46/** The line beside the buttons, drawn on the terminal only where it fits whole. */
47const HINT = 'Claude is waiting on your answer'
48/** Who's asking, in the band. */
49const WHO = 'Blast Radius'
50
51/**
52 * The terminal, in the pane or the band: the desktop's report in cells, inside
53 * the one round border in the warning colour (the band that has to stop the person).
54 * The command is the one bold thing; what it would do and the list under it are
55 * quiet; each fact is said once (no label that restates the command, no key hints
56 * that restate the buttons' hotkeys, no "Paths:" note that restates its paths):
57 *
58 *   ╭──────────────────────────────────────────────╮
59 *   │ ▲ rm -rf build                  Blast Radius │   (bold command; who, in the band only)
60 *   │                                              │
61 *   │ Would delete 1284 files (about 46 MB)        │   (Would dim)
62 *   │                                              │
63 *   │ □ build/index.html                           │   (dim)
64 *   │   + 1274 more                                │
65 *   │                                              │
66 *   │ Claude is waiting on…  1: Proceed  2: Cancel │   (Proceed red; Cancel focused)
67 *   ╰──────────────────────────────────────────────╯
68 *
69 * `rows` is how many rows the band or pane has: the list is cut to fit it, so
70 * the actions always show.
71 */
72export function renderTerminal(t: any, state: Held, columns = 40, opts: { band?: boolean; focused?: boolean; rows?: number } = {}): RenderElement {
73  const { Box, Text } = t
74  // Inside the border and its one-cell padding: four cells fewer than the pane's body.
75  const inner = Math.max(1, Math.floor(columns) - 4)
76  // The kit takes the pane's columns and leaves its 2-cell gutter off them, so `k.width` is the inside.
77  // The band has no focus prop; left out, it counts as focused.
78  const k = kit({ Box, Text, Button: t.Button }, 'terminal', inner + 2, { focused: opts.focused })
79  const report = state.report!
80  const { kind } = state.risk
81  const decide = decider(state)
82
83  // A note that only lists the command's own paths says nothing the head doesn't.
84  const note = report.note && !restates(report.note, state.command) ? report.note : null
85  const noteRows = note ? ([...note].length > inner ? 2 : 1) : 0
86
87  // Border 2, head 1, blank 1, Would 1, blank 1 above the list, blank 1 and the actions 1: 8 rows besides the list and note.
88  const room = opts.rows ? Math.max(0, Math.floor(opts.rows) - 8 - noteRows) : Infinity
89  let shown = report.lines.length
90  let more = report.more ?? 0
91  if (shown + (more ? 1 : 0) > room) {
92    // One row goes to `+ N more`.
93    shown = Math.max(0, Math.min(shown, room - 1))
94    more += report.lines.length - shown
95  }
96  const lines = report.lines.slice(0, shown).map((line, i) => {
97    const it = item(kind, line)
98    const right = [it.before, it.after].filter((x): x is string => Boolean(x))
99    // Files and folders are paths: cut in the middle, so the name at the end stays.
100    return k.item(`l${i}`, { lead: it.icon, text: it.text, right, dim: true, path: it.icon === 'file' || it.icon === 'folder' })
101  })
102  if (more && room > 0) lines.push(k.item('more', { text: `+ ${more} more`, dim: true, indent: 2 }))
103
104  // Proceed runs the command: red, as on the desktop. Cancel holds the focus, so Enter refuses, as upstream.
105  const buttons = k.actions('actions', [
106    { key: 'proceed', label: 'Proceed', hotkey: '1', tone: 'danger', onPress: decide('proceed') },
107    { key: 'cancel', label: 'Cancel', hotkey: '2', autoFocus: true, onPress: decide('cancel') },
108  ])
109  // `1: Proceed  2: Cancel` is 21 cells; the hint shows only when it fits beside them whole.
110  const hint = inner >= 21 + k.space.group + HINT.length
111  // The band names the mod (the pane's title does that), right of the command when the whole command fits beside it: lead 2, the command, 1, the name.
112  const who = opts.band && 2 + [...state.command].length + k.space.item + WHO.length <= inner
113
114  return (
115    <Box flexDirection="column" width="100%" minWidth={0} borderStyle="round" borderColor={k.ink(C.warn).color} paddingX={1}>
116      {/* The command is the head: the one strong thing. Who's asking shows only beside the whole command. */}
117      {k.item('head', { lead: 'alert', leadColor: C.warn, text: state.command, bold: true, right: who ? [WHO] : [] })}
118      {/* One sentence, `Would delete 8 files`, rather than a label column: it keeps 6 more cells for the summary at 40 columns. */}
119      <Box key="sum" flexDirection="row" gap={k.space.pair} minWidth={0} marginTop={k.space.block}>
120        <Box flexShrink={0}>
121          <Text {...TERM_ROLES.label}>Would</Text>
122        </Box>
123        <Box minWidth={0} flexShrink={1}>
124          <Text wrap="truncate">{report.summary}</Text>
125        </Box>
126      </Box>
127      {lines.length || note ? (
128        <Box key="list" flexDirection="column" minWidth={0} marginTop={k.space.block}>
129          {lines}
130          {/* A long note (why it couldn't measure) gets two lines before it's cut. */}
131          {note ? k.note('note', note, 'empty', { lines: 2 }) : null}
132        </Box>
133      ) : null}
134      <Box key="buttons" flexDirection="row" justifyContent={hint ? 'space-between' : 'flex-end'} gap={k.space.group} minWidth={0} marginTop={k.space.block}>
135        {hint ? (
136          <Box key="hint" flexShrink={1} minWidth={0}>
137            <Text dimColor wrap="truncate">
138              {HINT}
139            </Text>
140          </Box>
141        ) : null}
142        {buttons}
143      </Box>
144    </Box>
145  )
146}
147
148/** Whether a note only lists paths the command already shows (`Paths: build`). */
149const restates = (note: string, command: string) => {
150  const paths = /^Paths: (.+)$/.exec(note)?.[1]
151  return paths !== undefined && paths.split(' ').every(p => command.includes(p))
152}
153
154/** The icon beside the summary: what kind of loss it is. */
155const SUMMARY_ICON: Record<Risk['kind'], string> = {
156  rm: 'trash',
157  'git-clean': 'trash',
158  'git-reset': 'trash',
159  'git-checkout': 'trash',
160  'git-push-force': 'repo-push',
161  migrate: 'arrow-up',
162}
163
164/** A summary that says nothing would be lost isn't drawn in red. */
165export const harmless = (summary: string) => /\bnothing\b|drops no commits/.test(summary)
166
167/** One listed line, split for the desktop: its icon, a grey mark before the text, the text, a grey mark after. */
168const item = (kind: Risk['kind'], line: string): { icon: string; before?: string; text: string; after?: string } => {
169  if (kind === 'git-push-force') {
170    const space = line.indexOf(' ')
171    return space > 0 ? { icon: 'git-commit', before: line.slice(0, space), text: line.slice(space + 1) } : { icon: 'git-commit', text: line }
172  }
173  if (kind === 'git-reset' || kind === 'git-checkout') {
174    // `XY path`, as the terminal shows it: the status letters go to the right.
175    return { icon: 'file', text: line.slice(3), after: line.slice(0, 2).trim() }
176  }
177  if (kind === 'migrate') return { icon: 'arrow-up', text: line }
178  return { icon: line.endsWith('/') ? 'folder' : 'file', text: line }
179}
180
181/**
182 * The app surfaces (desktop, VS Code, mobile), in the band or a pane:
183 *
184 *   [alert] rm -rf                                  (Blast Radius, in the band)
185 *   rm -rf build                                    (the command, as code)
186 *   [trash] delete 1284 files (about 46 MB)         (red)
187 *   [file]  build/index.html
188 *           + 1274 more
189 *   Paths: build                                    (grey)
190 *   [Proceed] [Cancel]  Claude is waiting on your answer
191 */
192export const renderApp = (els: AppElements, state: Held, columns: number, opts: { band?: boolean; flow?: FlowSwitch } = {}): RenderElement => {
193  const { Box, Text, Button, Code } = els
194  const k = kit(els, 'desktop', columns, { flow: opts.flow })
195  const report = state.report!
196  const { kind } = state.risk
197  const decide = decider(state)
198
199  // Every line starts with the same icon column, so text starts at one x.
200  const lead = (icon: RenderElement | null) => (
201    <Box key="lead" width={2} flexShrink={0} flexDirection="row" alignItems="center">
202      {icon}
203    </Box>
204  )
205  const row = (key: string, l: (RenderElement | null)[], r: (RenderElement | null)[] = [], marginTop = 0) => (
206    <Box key={key} flexDirection="row" justifyContent="space-between" gap={SPACE.item} width="100%" minWidth={0} marginTop={marginTop}>
207      <Box flexDirection="row" alignItems="center" flexShrink={1} minWidth={0} overflow="hidden">
208        {l}
209      </Box>
210      {r.length ? (
211        <Box flexDirection="row" alignItems="center" gap={SPACE.item} flexShrink={0}>
212          {r}
213        </Box>
214      ) : null}
215    </Box>
216  )
217
218  const loss = harmless(report.summary) ? undefined : C.bad
219  const lines = report.lines.map((line, i) => {
220    const it = item(kind, line)
221    return row(
222      `l${i}`,
223      [
224        lead(k.icon(it.icon, GRAY.dark)),
225        it.before ? (
226          <Box key="b" flexShrink={0} marginRight={SPACE.pair}>
227            <Text color={GRAY.mid}>{it.before}</Text>
228          </Box>
229        ) : null,
230        <Text key="t" wrap="truncate">
231          {it.text}
232        </Text>,
233      ],
234      it.after ? [<Text key="a" color={GRAY.mid}>{it.after}</Text>] : [],
235    )
236  })
237
238  // The column view's switch, on a pane wide enough for columns: a footer band across the pane, under the body's edges.
239  const footer = k.footer()
240  const page = (
241    <Box key="page" flexDirection="column" width="100%" minWidth={0} paddingLeft={EDGE.left} paddingRight={EDGE.right} marginTop={1}>
242      {row(
243        'head',
244        [
245          lead(k.icon('alert', C.warn)),
246          <Text key="t" bold wrap="truncate">
247            {state.risk.label}
248          </Text>,
249        ],
250        opts.band ? [<Text key="who" color={GRAY.dark}>Blast Radius</Text>] : [],
251      )}
252      <Box key="cmd" width="100%" minWidth={0} marginTop={SPACE.block}>
253        {Code ? (
254          <Code source={state.command} language="bash" wrap="truncate-end" />
255        ) : (
256          <Text wrap="truncate">{state.command}</Text>
257        )}
258      </Box>
259      {row(
260        'sum',
261        [
262          lead(k.icon(SUMMARY_ICON[kind], loss ?? GRAY.dark)),
263          <Text key="t" color={loss} wrap="truncate">
264            {report.summary}
265          </Text>,
266        ],
267        [],
268        SPACE.block,
269      )}
270      {lines.length || report.more ? (
271        <Box key="list" flexDirection="column" width="100%" minWidth={0} marginTop={SPACE.block / 2}>
272          {/* In columns when the pane is wide (each line whole, read down then across); one stack otherwise. */}
273          {k.flow('lines', lines)}
274          {report.more
275            ? row('more', [
276                lead(null),
277                <Text key="t" color={GRAY.mid} wrap="truncate">
278                  {`+ ${report.more} more`}
279                </Text>,
280              ])
281            : null}
282        </Box>
283      ) : null}
284      {report.note ? (
285        <Box key="note" width="100%" minWidth={0} marginTop={SPACE.block}>
286          <Text color={GRAY.mid} wrap="wrap">
287            {report.note}
288          </Text>
289        </Box>
290      ) : null}
291      <Box key="buttons" flexDirection="row" alignItems="center" gap={SPACE.item} width="100%" minWidth={0} marginTop={SPACE.block * 1.5}>
292        {/* Proceed runs the command: its label in red, the colour of what it would destroy.
293            The kit's danger action, as the desktop draws no coloured Text inside a Button. */}
294        {k.action({ key: 'proceed', label: 'Proceed', hotkey: '1', tone: 'danger', onPress: decide('proceed') })}
295        {/* Cancel is the main button and holds the focus, so Enter refuses. */}
296        <Button key="cancel" label="Cancel" hotkey="2" variant="primary" autoFocus onPress={decide('cancel')} />
297        <Box key="hint" flexShrink={1} minWidth={0}>
298          <Text color={GRAY.mid} wrap="truncate">
299            Claude is waiting on your answer
300          </Text>
301        </Box>
302      </Box>
303    </Box>
304  )
305  return footer ? (
306    <Box flexDirection="column" width="100%" minWidth={0}>
307      {page}
308      {footer}
309    </Box>
310  ) : (
311    page
312  )
313}
314

1const trim = (n: number) => (n >= 100 ? String(Math.round(n)) : n.toFixed(1).replace(/\.0$/, ''))
2
3/** Token counts: 950, 1.2k, 84k, 1M. */
4export const tokens = (n: number): string => {
5  if (n >= 999_500) return `${trim(n / 1_000_000)}M`
6  if (n >= 1_000) return `${trim(n / 1_000)}k`
7  return String(Math.round(n))
8}
9
10/** A duration to the second: 12s, 3m 05s, 2h 05m. */
11export const duration = (ms: number): string => {
12  const s = Math.max(0, Math.floor(ms / 1_000))
13  if (s < 60) return `${s}s`
14  const m = Math.floor(s / 60)
15  if (m < 60) return `${m}m ${String(s % 60).padStart(2, '0')}s`
16  return `${Math.floor(m / 60)}h ${String(m % 60).padStart(2, '0')}m`
17}
18
19/** A duration at a glance: 47m, 2h05, 3d4h. */
20export const short = (ms: number): string => {
21  const m = Math.max(0, Math.floor(ms / 60_000))
22  if (m < 60) return `${m}m`
23  const h = Math.floor(m / 60)
24  if (h < 24) return `${h}h${String(m % 60).padStart(2, '0')}`
25  return `${Math.floor(h / 24)}d${h % 24}h`
26}
27
28/** How long ago, coarsely, as GitHub lists things: 5m, 3h, 2d, 3w, 4mo, 2y. */
29export const ago = (ms: number): string => {
30  const m = Math.max(0, Math.floor(ms / 60_000))
31  if (m < 60) return `${m}m`
32  const h = Math.floor(m / 60)
33  if (h < 24) return `${h}h`
34  const d = Math.floor(h / 24)
35  if (d < 14) return `${d}d`
36  if (d < 60) return `${Math.floor(d / 7)}w`
37  if (d < 365) return `${Math.floor(d / 30)}mo`
38  return `${Math.floor(d / 365)}y`
39}
40
41/** US dollars: $1.50, $123. */
42/** Bytes, short: 812, 41K, 3.2M, 16G. */
43export const bytes = (n: number): string => {
44  const units = ['', 'k', 'M', 'G', 'T']
45  let i = 0
46  while (n >= 1024 && i < units.length - 1) {
47    n /= 1024
48    i++
49  }
50  return `${n >= 10 || i === 0 ? Math.round(n) : n.toFixed(1)}${units[i]}`
51}
52
53export const money =(usd: number) => (usd >= 100 ? `$${Math.round(usd)}` : `$${usd.toFixed(2)}`)
54
55/** `value` as a whole percent of `max`, clamped: the desktop takes whole percentages only. */
56export const pct = (value: number, max: number) => `${Math.round(Math.max(0, Math.min(100, (value / Math.max(max, 1)) * 100)))}%`
57
58/**
59 * `text` cut in the middle to at most `cells` characters, the end kept: a path
60 * keeps its first segment and as many whole segments from its end as fit
61 * (`src/…/hooks/view.tsx`), then `…/view.tsx`, then the end of its name; other
62 * text keeps its start and end around `…`. Text that fits comes back as is.
63 */
64export const middle = (text: string, cells: number): string => {
65  const chars = [...text]
66  const n = Math.max(0, Math.floor(cells))
67  if (chars.length <= n) return text
68  if (n <= 1) return n === 1 ? '…' : ''
69  const parts = text.split('/')
70  if (parts.length >= 2) {
71    const len = (s: string) => [...s].length
72    const head = parts[0]!
73    const tail: string[] = [parts[parts.length - 1]!]
74    // As many whole segments from the end as fit after `head/…/`.
75    for (let i = parts.length - 2; i > 0; i--) {
76      const next = [parts[i]!, ...tail].join('/')
77      if (len(`${head}/…/${next}`) > n) break
78      tail.unshift(parts[i]!)
79    }
80    const kept = tail.join('/')
81    if (len(`${head}/…/${kept}`) <= n) return `${head}/…/${kept}`
82    if (len(`…/${kept}`) <= n) return `…/${kept}`
83    // Not even the name fits: the end of the name.
84    const name = [...kept]
85    return `…${name.slice(name.length - (n - 1)).join('')}`
86  }
87  // Plain text: a little more of the start than the end.
88  const front = Math.ceil((n - 1) / 2)
89  const back = n - 1 - front
90  return `${chars.slice(0, front).join('')}…${back ? chars.slice(chars.length - back).join('') : ''}`
91}
92
93/** The last path segment. */
94export const basename = (path: string) => path.split(/[\\/]/).filter(Boolean).pop() ?? path
95

1import { GLYPH } from './tokens'
2import type { Duo } from './tokens'
3
4/*
5 * The kit's icons: stroked drawings on a 16×16 grid, drawn as SVG at one exact
6 * pixel size so every icon is the same height and width and stays crisp (an SVG
7 * the page has to scale blurs). Keyed by the glyph each one stands in for, so a
8 * component given a GLYPH draws the icon where the surface has SVG, the glyph
9 * where it doesn't (the terminal).
10 */
11
12/** The icons' drawn size in CSS pixels. */
13export const ICON_PX = 13
14
15const PATHS: Record<string, string> = {
16  // A pie a quarter cut: how full.
17  [GLYPH.context]: '<circle cx="8" cy="8" r="6"/><path d="M8 2v6h6"/>',
18  [GLYPH.time]: '<circle cx="8" cy="8" r="6"/><path d="M8 4.5V8l2.5 1.5"/>',
19  [GLYPH.turns]: '<path d="M13 8a5 5 0 1 1-1.6-3.7"/><path d="M13 2.5v3.2H9.8"/>',
20  [GLYPH.tools]: '<path d="M10.5 2.5a3 3 0 0 0-3.3 4.1L2.6 11.2l2.2 2.2 4.6-4.6a3 3 0 0 0 4.1-3.3l-1.9 1.9-1.9-.4-.4-1.9z"/>',
21  [GLYPH.files]: '<path d="M3 13l.9-3.4L10.8 2.7l2.5 2.5-6.9 6.9z"/>',
22  [GLYPH.agents]: '<path d="M8 2l1.4 4.6L14 8l-4.6 1.4L8 14l-1.4-4.6L2 8l4.6-1.4z"/>',
23  // A gauge: a dial three-quarters round, open at the bottom, centred like the
24  // other icons (a half dial sat low in its square and read as cut off), and a needle.
25  [GLYPH.limits]: '<path d="M3.76 12.24a6 6 0 1 1 8.48 0"/><path d="M8 8l2.6-2.6"/>',
26  [GLYPH.cost]: '<circle cx="8" cy="8" r="6"/><path d="M10 6.2c-.4-.8-1.2-1.2-2-1.2-1.1 0-2 .6-2 1.5S6.9 7.8 8 8s2 .6 2 1.5-.9 1.5-2 1.5c-.8 0-1.6-.4-2-1.2M8 4v1M8 11v1"/>',
27  // Events: a bolt.
28  events: '<path d="M9 1.5L3.5 9H8l-1 5.5L12.5 7H8z"/>',
29}
30
31/**
32 * GitHub's own icons for branches and pull requests: Octicons (`@primer/octicons`
33 * 19.15.0, `*-16.svg`, MIT, © GitHub Inc.), copied unchanged. Filled shapes, not
34 * strokes, so they're drawn filled in the icon's colour.
35 */
36const FILLED: Record<string, string> = {
37  [GLYPH.branch]:
38    'M9.5 3.25a2.25 2.25 0 1 1 3 2.122V6A2.5 2.5 0 0 1 10 8.5H6a1 1 0 0 0-1 1v1.128a2.251 2.251 0 1 1-1.5 0V5.372a2.25 2.25 0 1 1 1.5 0v1.836A2.493 2.493 0 0 1 6 7h4a1 1 0 0 0 1-1v-.628A2.25 2.25 0 0 1 9.5 3.25Zm-6 0a.75.75 0 1 0 1.5 0 .75.75 0 0 0-1.5 0Zm8.25-.75a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5ZM4.25 12a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5Z',
39  'pr-open':
40    'M1.5 3.25a2.25 2.25 0 1 1 3 2.122v5.256a2.251 2.251 0 1 1-1.5 0V5.372A2.25 2.25 0 0 1 1.5 3.25Zm5.677-.177L9.573.677A.25.25 0 0 1 10 .854V2.5h1A2.5 2.5 0 0 1 13.5 5v5.628a2.251 2.251 0 1 1-1.5 0V5a1 1 0 0 0-1-1h-1v1.646a.25.25 0 0 1-.427.177L7.177 3.427a.25.25 0 0 1 0-.354ZM3.75 2.5a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5Zm0 9.5a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5Zm8.25.75a.75.75 0 1 0 1.5 0 .75.75 0 0 0-1.5 0Z',
41  'pr-merged':
42    'M5.45 5.154A4.25 4.25 0 0 0 9.25 7.5h1.378a2.251 2.251 0 1 1 0 1.5H9.25A5.734 5.734 0 0 1 5 7.123v3.505a2.25 2.25 0 1 1-1.5 0V5.372a2.25 2.25 0 1 1 1.95-.218ZM4.25 13.5a.75.75 0 1 0 0-1.5.75.75 0 0 0 0 1.5Zm8.5-4.5a.75.75 0 1 0 0-1.5.75.75 0 0 0 0 1.5ZM5 3.25a.75.75 0 1 0 0 .005V3.25Z',
43  'pr-closed':
44    'M3.25 1A2.25 2.25 0 0 1 4 5.372v5.256a2.251 2.251 0 1 1-1.5 0V5.372A2.251 2.251 0 0 1 3.25 1Zm9.5 5.5a.75.75 0 0 1 .75.75v3.378a2.251 2.251 0 1 1-1.5 0V7.25a.75.75 0 0 1 .75-.75Zm-2.03-5.273a.75.75 0 0 1 1.06 0l.97.97.97-.97a.748.748 0 0 1 1.265.332.75.75 0 0 1-.205.729l-.97.97.97.97a.751.751 0 0 1-.018 1.042.751.751 0 0 1-1.042.018l-.97-.97-.97.97a.749.749 0 0 1-1.275-.326.749.749 0 0 1 .215-.734l.97-.97-.97-.97a.75.75 0 0 1 0-1.06ZM2.5 3.25a.75.75 0 1 0 1.5 0 .75.75 0 0 0-1.5 0ZM3.25 12a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5Zm9.5 0a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5Z',
45  'issue-opened': 'M8 9.5a1.5 1.5 0 1 0 0-3 1.5 1.5 0 0 0 0 3ZM8 0a8 8 0 1 1 0 16A8 8 0 0 1 8 0ZM1.5 8a6.5 6.5 0 1 0 13 0 6.5 6.5 0 0 0-13 0Z',
46  comment:
47    'M1 2.75C1 1.784 1.784 1 2.75 1h10.5c.966 0 1.75.784 1.75 1.75v7.5A1.75 1.75 0 0 1 13.25 12H9.06l-2.573 2.573A1.458 1.458 0 0 1 4 13.543V12H2.75A1.75 1.75 0 0 1 1 10.25Zm1.75-.25a.25.25 0 0 0-.25.25v7.5c0 .138.112.25.25.25h2a.75.75 0 0 1 .75.75v2.19l2.72-2.72a.749.749 0 0 1 .53-.22h4.5a.25.25 0 0 0 .25-.25v-7.5a.25.25 0 0 0-.25-.25Z',
48  'pr-draft':
49    'M3.25 1A2.25 2.25 0 0 1 4 5.372v5.256a2.251 2.251 0 1 1-1.5 0V5.372A2.251 2.251 0 0 1 3.25 1Zm9.5 14a2.25 2.25 0 1 1 0-4.5 2.25 2.25 0 0 1 0 4.5ZM2.5 3.25a.75.75 0 1 0 1.5 0 .75.75 0 0 0-1.5 0ZM3.25 12a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5Zm9.5 0a.75.75 0 1 0 0 1.5.75.75 0 0 0 0-1.5ZM14 7.5a1.25 1.25 0 1 1-2.5 0 1.25 1.25 0 0 1 2.5 0Zm0-4.25a1.25 1.25 0 1 1-2.5 0 1.25 1.25 0 0 1 2.5 0Z',
50  // Files and folders, for trees of them.
51  file: 'M2 1.75C2 .784 2.784 0 3.75 0h6.586c.464 0 .909.184 1.237.513l2.914 2.914c.329.328.513.773.513 1.237v9.586A1.75 1.75 0 0 1 13.25 16h-9.5A1.75 1.75 0 0 1 2 14.25Zm1.75-.25a.25.25 0 0 0-.25.25v12.5c0 .138.112.25.25.25h9.5a.25.25 0 0 0 .25-.25V6h-2.75A1.75 1.75 0 0 1 9 4.25V1.5Zm6.75.062V4.25c0 .138.112.25.25.25h2.688l-.011-.013-2.914-2.914-.013-.011Z',
52  'file-code':
53    'M4 1.75C4 .784 4.784 0 5.75 0h5.586c.464 0 .909.184 1.237.513l2.914 2.914c.329.328.513.773.513 1.237v8.586A1.75 1.75 0 0 1 14.25 15h-9a.75.75 0 0 1 0-1.5h9a.25.25 0 0 0 .25-.25V6h-2.75A1.75 1.75 0 0 1 10 4.25V1.5H5.75a.25.25 0 0 0-.25.25v2.5a.75.75 0 0 1-1.5 0Zm1.72 4.97a.75.75 0 0 1 1.06 0l2 2a.75.75 0 0 1 0 1.06l-2 2a.749.749 0 0 1-1.275-.326.749.749 0 0 1 .215-.734l1.47-1.47-1.47-1.47a.75.75 0 0 1 0-1.06ZM3.28 7.78 1.81 9.25l1.47 1.47a.751.751 0 0 1-.018 1.042.751.751 0 0 1-1.042.018l-2-2a.75.75 0 0 1 0-1.06l2-2a.751.751 0 0 1 1.042.018.751.751 0 0 1 .018 1.042Zm8.22-6.218V4.25c0 .138.112.25.25.25h2.688l-.011-.013-2.914-2.914-.013-.011Z',
54  folder: 'M1.75 1A1.75 1.75 0 0 0 0 2.75v10.5C0 14.216.784 15 1.75 15h12.5A1.75 1.75 0 0 0 16 13.25v-8.5A1.75 1.75 0 0 0 14.25 3H7.5a.25.25 0 0 1-.2-.1l-.9-1.2C6.07 1.26 5.55 1 5 1H1.75Z',
55  'folder-open':
56    'M.513 1.513A1.75 1.75 0 0 1 1.75 1h3.5c.55 0 1.07.26 1.4.7l.9 1.2a.25.25 0 0 0 .2.1H13a1 1 0 0 1 1 1v.5H2.75a.75.75 0 0 0 0 1.5h11.978a1 1 0 0 1 .994 1.117L15 13.25A1.75 1.75 0 0 1 13.25 15H1.75A1.75 1.75 0 0 1 0 13.25V2.75c0-.464.184-.91.513-1.237Z',
57  // Git and the actions on a tree or a command.
58  'git-commit': 'M11.93 8.5a4.002 4.002 0 0 1-7.86 0H.75a.75.75 0 0 1 0-1.5h3.32a4.002 4.002 0 0 1 7.86 0h3.32a.75.75 0 0 1 0 1.5Zm-1.43-.75a2.5 2.5 0 1 0-5 0 2.5 2.5 0 0 0 5 0Z',
59  'repo-push':
60    'M2 2.5A2.5 2.5 0 0 1 4.5 0h8.75a.75.75 0 0 1 .75.75v3.5a.75.75 0 0 1-1.5 0V1.5h-8a1 1 0 0 0-1 1v6.708A2.493 2.493 0 0 1 4.5 9h2.25a.75.75 0 0 1 0 1.5H4.5a1 1 0 0 0 0 2h4.75a.75.75 0 0 1 0 1.5H4.5A2.5 2.5 0 0 1 2 11.5Zm12.23 7.79h-.001l-1.224-1.224v6.184a.75.75 0 0 1-1.5 0V9.066L10.28 10.29a.75.75 0 0 1-1.06-1.061l2.505-2.504a.75.75 0 0 1 1.06 0L15.29 9.23a.751.751 0 0 1-.018 1.042.751.751 0 0 1-1.042.018Z',
61  alert:
62    'M6.457 1.047c.659-1.234 2.427-1.234 3.086 0l6.082 11.378A1.75 1.75 0 0 1 14.082 15H1.918a1.75 1.75 0 0 1-1.543-2.575Zm1.763.707a.25.25 0 0 0-.44 0L1.698 13.132a.25.25 0 0 0 .22.368h12.164a.25.25 0 0 0 .22-.368Zm.53 3.996v2.5a.75.75 0 0 1-1.5 0v-2.5a.75.75 0 0 1 1.5 0ZM9 11a1 1 0 1 1-2 0 1 1 0 0 1 2 0Z',
63  trash:
64    'M11 1.75V3h2.25a.75.75 0 0 1 0 1.5H2.75a.75.75 0 0 1 0-1.5H5V1.75C5 .784 5.784 0 6.75 0h2.5C10.216 0 11 .784 11 1.75ZM4.496 6.675l.66 6.6a.25.25 0 0 0 .249.225h5.19a.25.25 0 0 0 .249-.225l.66-6.6a.75.75 0 0 1 1.492.149l-.66 6.6A1.748 1.748 0 0 1 10.595 15h-5.19a1.75 1.75 0 0 1-1.741-1.575l-.66-6.6a.75.75 0 1 1 1.492-.15ZM6.5 1.75V3h3V1.75a.25.25 0 0 0-.25-.25h-2.5a.25.25 0 0 0-.25.25Z',
65  search:
66    'M10.68 11.74a6 6 0 0 1-7.922-8.982 6 6 0 0 1 8.982 7.922l3.04 3.04a.749.749 0 0 1-.326 1.275.749.749 0 0 1-.734-.215ZM11.5 7a4.499 4.499 0 1 0-8.997 0A4.499 4.499 0 0 0 11.5 7Z',
67  sync: 'M1.705 8.005a.75.75 0 0 1 .834.656 5.5 5.5 0 0 0 9.592 2.97l-1.204-1.204a.25.25 0 0 1 .177-.427h3.646a.25.25 0 0 1 .25.25v3.646a.25.25 0 0 1-.427.177l-1.38-1.38A7.002 7.002 0 0 1 1.05 8.84a.75.75 0 0 1 .656-.834ZM8 2.5a5.487 5.487 0 0 0-4.131 1.869l1.204 1.204A.25.25 0 0 1 4.896 6H1.25A.25.25 0 0 1 1 5.75V2.104a.25.25 0 0 1 .427-.177l1.38 1.38A7.002 7.002 0 0 1 14.95 7.16a.75.75 0 0 1-1.49.178A5.5 5.5 0 0 0 8 2.5Z',
68  'arrow-up':
69    'M3.47 7.78a.75.75 0 0 1 0-1.06l4.25-4.25a.75.75 0 0 1 1.06 0l4.25 4.25a.751.751 0 0 1-.018 1.042.751.751 0 0 1-1.042.018L9 4.81v7.44a.75.75 0 0 1-1.5 0V4.81L4.53 7.78a.75.75 0 0 1-1.06 0Z',
70  home: 'M6.906.664a1.749 1.749 0 0 1 2.187 0l5.25 4.2c.415.332.657.835.657 1.367v7.019A1.75 1.75 0 0 1 13.25 15h-3.5a.75.75 0 0 1-.75-.75V9H7v5.25a.75.75 0 0 1-.75.75h-3.5A1.75 1.75 0 0 1 1 13.25V6.23c0-.531.242-1.034.657-1.366l5.25-4.2Zm1.25 1.171a.25.25 0 0 0-.312 0l-5.25 4.2a.25.25 0 0 0-.094.196v7.019c0 .138.112.25.25.25H5.5V8.25a.75.75 0 0 1 .75-.75h3.5a.75.75 0 0 1 .75.75v5.25h2.75a.25.25 0 0 0 .25-.25V6.23a.25.25 0 0 0-.094-.195Z',
71  eye: 'M8 2c1.981 0 3.671.992 4.933 2.078 1.27 1.091 2.187 2.345 2.637 3.023a1.62 1.62 0 0 1 0 1.798c-.45.678-1.367 1.932-2.637 3.023C11.67 13.008 9.981 14 8 14c-1.981 0-3.671-.992-4.933-2.078C1.797 10.83.88 9.576.43 8.898a1.62 1.62 0 0 1 0-1.798c.45-.677 1.367-1.931 2.637-3.022C4.33 2.992 6.019 2 8 2ZM1.679 7.932a.12.12 0 0 0 0 .136c.411.622 1.241 1.75 2.366 2.717C5.176 11.758 6.527 12.5 8 12.5c1.473 0 2.825-.742 3.955-1.715 1.124-.967 1.954-2.096 2.366-2.717a.12.12 0 0 0 0-.136c-.412-.621-1.242-1.75-2.366-2.717C10.824 4.242 9.473 3.5 8 3.5c-1.473 0-2.825.742-3.955 1.715-1.124.967-1.954 2.096-2.366 2.717ZM8 10a2 2 0 1 1-.001-3.999A2 2 0 0 1 8 10Z',
72  // What an agent's tool call is doing: a command, an edit, the web, an MCP server, anything else.
73  terminal:
74    'M0 2.75C0 1.784.784 1 1.75 1h12.5c.966 0 1.75.784 1.75 1.75v10.5A1.75 1.75 0 0 1 14.25 15H1.75A1.75 1.75 0 0 1 0 13.25Zm1.75-.25a.25.25 0 0 0-.25.25v10.5c0 .138.112.25.25.25h12.5a.25.25 0 0 0 .25-.25V2.75a.25.25 0 0 0-.25-.25ZM7.25 8a.749.749 0 0 1-.22.53l-2.25 2.25a.749.749 0 0 1-1.275-.326.749.749 0 0 1 .215-.734L5.44 8 3.72 6.28a.749.749 0 0 1 .326-1.275.749.749 0 0 1 .734.215l2.25 2.25c.141.14.22.331.22.53Zm1.5 1.5h3a.75.75 0 0 1 0 1.5h-3a.75.75 0 0 1 0-1.5Z',
75  pencil:
76    'M11.013 1.427a1.75 1.75 0 0 1 2.474 0l1.086 1.086a1.75 1.75 0 0 1 0 2.474l-8.61 8.61c-.21.21-.47.364-.756.445l-3.251.93a.75.75 0 0 1-.927-.928l.929-3.25c.081-.286.235-.547.445-.758l8.61-8.61Zm.176 4.823L9.75 4.81l-6.286 6.287a.253.253 0 0 0-.064.108l-.558 1.953 1.953-.558a.253.253 0 0 0 .108-.064Zm1.238-3.763a.25.25 0 0 0-.354 0L10.811 3.75l1.439 1.44 1.263-1.263a.25.25 0 0 0 0-.354Z',
77  globe:
78    'M8 0a8 8 0 1 1 0 16A8 8 0 0 1 8 0ZM5.78 8.75a9.64 9.64 0 0 0 1.363 4.177c.255.426.542.832.857 1.215.245-.296.551-.705.857-1.215A9.64 9.64 0 0 0 10.22 8.75Zm4.44-1.5a9.64 9.64 0 0 0-1.363-4.177c-.307-.51-.612-.919-.857-1.215a9.927 9.927 0 0 0-.857 1.215A9.64 9.64 0 0 0 5.78 7.25Zm-5.944 1.5H1.543a6.507 6.507 0 0 0 4.666 5.5c-.123-.181-.24-.365-.352-.552-.715-1.192-1.437-2.874-1.581-4.948Zm-2.733-1.5h2.733c.144-2.074.866-3.756 1.58-4.948.12-.197.237-.381.353-.552a6.507 6.507 0 0 0-4.666 5.5Zm10.181 1.5c-.144 2.074-.866 3.756-1.58 4.948-.12.197-.237.381-.353.552a6.507 6.507 0 0 0 4.666-5.5Zm2.733-1.5a6.507 6.507 0 0 0-4.666-5.5c.123.181.24.365.353.552.714 1.192 1.436 2.874 1.58 4.948Z',
79  plug: 'M4 8H2.5a1 1 0 0 0-1 1v5.25a.75.75 0 0 1-1.5 0V9a2.5 2.5 0 0 1 2.5-2.5H4V5.133a1.75 1.75 0 0 1 1.533-1.737l2.831-.353.76-.913c.332-.4.825-.63 1.344-.63h.782c.966 0 1.75.784 1.75 1.75V4h2.25a.75.75 0 0 1 0 1.5H13v4h2.25a.75.75 0 0 1 0 1.5H13v.75a1.75 1.75 0 0 1-1.75 1.75h-.782c-.519 0-1.012-.23-1.344-.63l-.761-.912-2.83-.354A1.75 1.75 0 0 1 4 9.867Zm6.276-4.91-.95 1.14a.753.753 0 0 1-.483.265l-3.124.39a.25.25 0 0 0-.219.248v4.734c0 .126.094.233.219.249l3.124.39a.752.752 0 0 1 .483.264l.95 1.14a.25.25 0 0 0 .192.09h.782a.25.25 0 0 0 .25-.25v-8.5a.25.25 0 0 0-.25-.25h-.782a.25.25 0 0 0-.192.09Z',
80  'dot-fill': 'M8 4a4 4 0 1 1 0 8 4 4 0 0 1 0-8Z',
81  // Kinds of agent: one that writes code, a worker, a quick fix, a reviewer, an explorer,
82  // a planner, a general one, a guide.
83  code: 'm11.28 3.22 4.25 4.25a.75.75 0 0 1 0 1.06l-4.25 4.25a.749.749 0 0 1-1.275-.326.749.749 0 0 1 .215-.734L13.94 8l-3.72-3.72a.749.749 0 0 1 .326-1.275.749.749 0 0 1 .734.215Zm-6.56 0a.751.751 0 0 1 1.042.018.751.751 0 0 1 .018 1.042L2.06 8l3.72 3.72a.749.749 0 0 1-.326 1.275.749.749 0 0 1-.734-.215L.47 8.53a.75.75 0 0 1 0-1.06Z',
84  tools:
85    'M5.433 2.304A4.492 4.492 0 0 0 3.5 6c0 1.598.832 3.002 2.09 3.802.518.328.929.923.902 1.64v.008l-.164 3.337a.75.75 0 1 1-1.498-.073l.163-3.33c.002-.085-.05-.216-.207-.316A5.996 5.996 0 0 1 2 6a5.993 5.993 0 0 1 2.567-4.92 1.482 1.482 0 0 1 1.673-.04c.462.296.76.827.76 1.423v2.82c0 .082.041.16.11.206l.75.51a.25.25 0 0 0 .28 0l.75-.51A.249.249 0 0 0 9 5.282V2.463c0-.596.298-1.127.76-1.423a1.482 1.482 0 0 1 1.673.04A5.993 5.993 0 0 1 14 6a5.996 5.996 0 0 1-2.786 5.068c-.157.1-.209.23-.207.315l.163 3.33a.752.752 0 0 1-1.094.714.75.75 0 0 1-.404-.64l-.164-3.345c-.027-.717.384-1.312.902-1.64A4.495 4.495 0 0 0 12.5 6a4.492 4.492 0 0 0-1.933-3.696c-.024.017-.067.067-.067.16v2.818a1.75 1.75 0 0 1-.767 1.448l-.75.51a1.75 1.75 0 0 1-1.966 0l-.75-.51A1.75 1.75 0 0 1 5.5 5.282V2.463c0-.092-.043-.142-.067-.159Z',
86  zap: 'M9.504.43a1.516 1.516 0 0 1 2.437 1.713L10.415 5.5h2.123c1.57 0 2.346 1.909 1.22 3.004l-7.34 7.142a1.249 1.249 0 0 1-.871.354h-.302a1.25 1.25 0 0 1-1.157-1.723L5.633 10.5H3.462c-1.57 0-2.346-1.909-1.22-3.004L9.503.429Zm1.047 1.074L3.286 8.571A.25.25 0 0 0 3.462 9H6.75a.75.75 0 0 1 .694 1.034l-1.713 4.188 6.982-6.793A.25.25 0 0 0 12.538 7H9.25a.75.75 0 0 1-.683-1.06l2.008-4.418.003-.006a.036.036 0 0 0-.004-.009l-.006-.006-.008-.001c-.003 0-.006.002-.009.004Z',
87  checklist:
88    'M2.5 1.75v11.5c0 .138.112.25.25.25h3.17a.75.75 0 0 1 0 1.5H2.75A1.75 1.75 0 0 1 1 13.25V1.75C1 .784 1.784 0 2.75 0h8.5C12.216 0 13 .784 13 1.75v7.736a.75.75 0 0 1-1.5 0V1.75a.25.25 0 0 0-.25-.25h-8.5a.25.25 0 0 0-.25.25Zm13.274 9.537v-.001l-4.557 4.45a.75.75 0 0 1-1.055-.008l-1.943-1.95a.75.75 0 0 1 1.062-1.058l1.419 1.425 4.026-3.932a.75.75 0 1 1 1.048 1.074ZM4.75 4h4.5a.75.75 0 0 1 0 1.5h-4.5a.75.75 0 0 1 0-1.5ZM4 7.75A.75.75 0 0 1 4.75 7h2a.75.75 0 0 1 0 1.5h-2A.75.75 0 0 1 4 7.75Z',
89  telescope:
90    'M14.184 1.143v-.001l1.422 2.464a1.75 1.75 0 0 1-.757 2.451L3.104 11.713a1.75 1.75 0 0 1-2.275-.702l-.447-.775a1.75 1.75 0 0 1 .53-2.32L11.682.573a1.748 1.748 0 0 1 2.502.57Zm-4.709 9.32h-.001l2.644 3.863a.75.75 0 1 1-1.238.848l-1.881-2.75v2.826a.75.75 0 0 1-1.5 0v-2.826l-1.881 2.75a.75.75 0 1 1-1.238-.848l2.049-2.992a.746.746 0 0 1 .293-.253l1.809-.87a.749.749 0 0 1 .944.252ZM9.436 3.92h-.001l-4.97 3.39.942 1.63 5.42-2.61Zm3.091-2.108h.001l-1.85 1.26 1.505 2.605 2.016-.97a.247.247 0 0 0 .13-.151.247.247 0 0 0-.022-.199l-1.422-2.464a.253.253 0 0 0-.161-.119.254.254 0 0 0-.197.038ZM1.756 9.157a.25.25 0 0 0-.075.33l.447.775a.25.25 0 0 0 .325.1l1.598-.769-.83-1.436-1.465 1Z',
91  tasklist:
92    'M2 2h4a1 1 0 0 1 1 1v4a1 1 0 0 1-1 1H2a1 1 0 0 1-1-1V3a1 1 0 0 1 1-1Zm4.655 8.595a.75.75 0 0 1 0 1.06L4.03 14.28a.75.75 0 0 1-1.06 0l-1.5-1.5a.749.749 0 0 1 .326-1.275.749.749 0 0 1 .734.215l.97.97 2.095-2.095a.75.75 0 0 1 1.06 0ZM9.75 2.5h5.5a.75.75 0 0 1 0 1.5h-5.5a.75.75 0 0 1 0-1.5Zm0 5h5.5a.75.75 0 0 1 0 1.5h-5.5a.75.75 0 0 1 0-1.5Zm0 5h5.5a.75.75 0 0 1 0 1.5h-5.5a.75.75 0 0 1 0-1.5Zm-7.25-9v3h3v-3Z',
93  hubot:
94    'M0 8a8 8 0 0 1 16 0v5.25a.75.75 0 0 1-1.5 0V8a6.5 6.5 0 1 0-13 0v5.25a.75.75 0 0 1-1.5 0Zm3-1.25C3 5.784 3.784 5 4.75 5h6.5c.966 0 1.75.784 1.75 1.75v1.5A1.75 1.75 0 0 1 11.25 10h-6.5A1.75 1.75 0 0 1 3 8.25Zm1.47-.53a.75.75 0 0 0 0 1.06l1.5 1.5a.75.75 0 0 0 1.06 0L8 7.81l.97.97a.75.75 0 0 0 1.06 0l1.5-1.5a.749.749 0 0 0-.326-1.275.749.749 0 0 0-.734.215l-.97.97-.97-.97a.75.75 0 0 0-1.06 0l-.97.97-.97-.97a.75.75 0 0 0-1.06 0Zm1.03 6.03a.75.75 0 0 1 .75-.75h3.5a.75.75 0 0 1 0 1.5h-3.5a.75.75 0 0 1-.75-.75Z',
95  book: 'M0 1.75A.75.75 0 0 1 .75 1h4.253c1.227 0 2.317.59 3 1.501A3.743 3.743 0 0 1 11.006 1h4.245a.75.75 0 0 1 .75.75v10.5a.75.75 0 0 1-.75.75h-4.507a2.25 2.25 0 0 0-1.591.659l-.622.621a.75.75 0 0 1-1.06 0l-.622-.621A2.25 2.25 0 0 0 5.258 13H.75a.75.75 0 0 1-.75-.75Zm7.251 10.324.004-5.073-.002-2.253A2.25 2.25 0 0 0 5.003 2.5H1.5v9h3.757a3.75 3.75 0 0 1 1.994.574ZM8.755 4.75l-.004 7.322a3.752 3.752 0 0 1 1.992-.572H14.5v-9h-3.495a2.25 2.25 0 0 0-2.25 2.25Z',
96  fold: 'M10.896 2H8.75V.75a.75.75 0 0 0-1.5 0V2H5.104a.25.25 0 0 0-.177.427l2.896 2.896a.25.25 0 0 0 .354 0l2.896-2.896A.25.25 0 0 0 10.896 2ZM8.75 15.25a.75.75 0 0 1-1.5 0V14H5.104a.25.25 0 0 1-.177-.427l2.896-2.896a.25.25 0 0 1 .354 0l2.896 2.896a.25.25 0 0 1-.177.427H8.75v1.25Zm-6.5-6.5a.75.75 0 0 0 0-1.5h-.5a.75.75 0 0 0 0 1.5h.5ZM6 8a.75.75 0 0 1-.75.75h-.5a.75.75 0 0 1 0-1.5h.5A.75.75 0 0 1 6 8Zm2.25.75a.75.75 0 0 0 0-1.5h-.5a.75.75 0 0 0 0 1.5h.5ZM12 8a.75.75 0 0 1-.75.75h-.5a.75.75 0 0 1 0-1.5h.5A.75.75 0 0 1 12 8Zm2.25.75a.75.75 0 0 0 0-1.5h-.5a.75.75 0 0 0 0 1.5h.5Z',
97}
98
99/**
100 * Where a branch's upstream lives, by the remote's host: GitHub's mark and a
101 * generic remote (a cloud) are Octicons (`@primer/octicons`, `mark-github-16.svg`
102 * and `cloud-16.svg`, MIT, © GitHub Inc.); GitLab's and Forgejo's marks are from
103 * Simple Icons (`icons/gitlab.svg`, `icons/forgejo.svg`, CC0 1.0), on their
104 * 24×24 grid. All copied unchanged, drawn filled in the icon's colour.
105 */
106const HOSTS: Record<string, { d: string; grid: number }> = {
107  'mark-github': {
108    grid: 16,
109    d: 'M6.766 11.328c-2.063-.25-3.516-1.734-3.516-3.656 0-.781.281-1.625.75-2.188-.203-.515-.172-1.609.063-2.062.625-.078 1.468.25 1.968.703.594-.187 1.219-.281 1.985-.281.765 0 1.39.094 1.953.265.484-.437 1.344-.765 1.969-.687.218.422.25 1.515.046 2.047.5.593.766 1.39.766 2.203 0 1.922-1.453 3.375-3.547 3.64.531.344.89 1.094.89 1.954v1.625c0 .468.391.734.86.547C13.781 14.359 16 11.53 16 8.03 16 3.61 12.406 0 7.984 0 3.563 0 0 3.61 0 8.031a7.88 7.88 0 0 0 5.172 7.422c.422.156.828-.125.828-.547v-1.25c-.219.094-.5.156-.75.156-1.031 0-1.64-.562-2.078-1.609-.172-.422-.36-.672-.719-.719-.187-.015-.25-.093-.25-.187 0-.188.313-.328.625-.328.453 0 .844.281 1.25.86.313.452.64.655 1.031.655s.641-.14 1-.5c.266-.265.47-.5.657-.656',
110  },
111  cloud: {
112    grid: 16,
113    d: 'M2 7.25A5.225 5.225 0 0 1 7.25 2a5.222 5.222 0 0 1 4.767 3.029A4.472 4.472 0 0 1 16 9.5c0 2.505-1.995 4.5-4.5 4.5h-8A3.474 3.474 0 0 1 0 10.5c0-1.41.809-2.614 2.001-3.17Zm1.54.482a.75.75 0 0 1-.556.832c-.86.22-1.484.987-1.484 1.936 0 1.124.876 2 2 2h8c1.676 0 3-1.324 3-3s-1.324-3-3-3a.75.75 0 0 1-.709-.504A3.72 3.72 0 0 0 7.25 3.5C5.16 3.5 3.5 5.16 3.5 7.25c.002.146.014.292.035.436l.004.036.001.008Z',
114  },
115  gitlab: {
116    grid: 24,
117    d: 'm23.6004 9.5927-.0337-.0862L20.3.9814a.851.851 0 0 0-.3362-.405.8748.8748 0 0 0-.9997.0539.8748.8748 0 0 0-.29.4399l-2.2055 6.748H7.5375l-2.2057-6.748a.8573.8573 0 0 0-.29-.4412.8748.8748 0 0 0-.9997-.0537.8585.8585 0 0 0-.3362.4049L.4332 9.5015l-.0325.0862a6.0657 6.0657 0 0 0 2.0119 7.0105l.0113.0087.03.0213 4.976 3.7264 2.462 1.8633 1.4995 1.1321a1.0085 1.0085 0 0 0 1.2197 0l1.4995-1.1321 2.4619-1.8633 5.006-3.7489.0125-.01a6.0682 6.0682 0 0 0 2.0094-7.003z',
118  },
119  forgejo: {
120    grid: 24,
121    d: 'M16.7773 0c1.6018 0 2.9004 1.2986 2.9004 2.9005s-1.2986 2.9004-2.9004 2.9004c-1.0854 0-2.0315-.596-2.5288-1.4787H12.91c-2.3322 0-4.2272 1.8718-4.2649 4.195l-.0007 2.1175a7.0759 7.0759 0 0 1 4.148-1.4205l.1176-.001 1.3385.0002c.4973-.8827 1.4434-1.4788 2.5288-1.4788 1.6018 0 2.9004 1.2986 2.9004 2.9005s-1.2986 2.9004-2.9004 2.9004c-1.0854 0-2.0315-.596-2.5288-1.4787H12.91c-2.3322 0-4.2272 1.8718-4.2649 4.195l-.0007 2.319c.8827.4973 1.4788 1.4434 1.4788 2.5287 0 1.602-1.2986 2.9005-2.9005 2.9005-1.6018 0-2.9004-1.2986-2.9004-2.9005 0-1.0853.596-2.0314 1.4788-2.5287l-.0002-9.9831c0-3.887 3.1195-7.0453 6.9915-7.108l.1176-.001h1.3385C14.7458.5962 15.692 0 16.7773 0ZM7.2227 19.9052c-.6596 0-1.1943.5347-1.1943 1.1943s.5347 1.1943 1.1943 1.1943 1.1944-.5347 1.1944-1.1943-.5348-1.1943-1.1944-1.1943Zm9.5546-10.4644c-.6596 0-1.1944.5347-1.1944 1.1943s.5348 1.1943 1.1944 1.1943c.6596 0 1.1943-.5347 1.1943-1.1943s-.5347-1.1943-1.1943-1.1943Zm0-7.7346c-.6596 0-1.1944.5347-1.1944 1.1943s.5348 1.1943 1.1944 1.1943c.6596 0 1.1943-.5347 1.1943-1.1943s-.5347-1.1943-1.1943-1.1943Z',
122  },
123}
124
125/**
126 * Each named icon's glyph on the terminal: one cell wide, from Unicode blocks
127 * monospace fonts carry (geometric shapes, arrows, box drawing, a few dingbats),
128 * never one with an emoji presentation (⚠ ⚡ ◼ draw as emoji in some terminals).
129 * A GLYPH key is its own glyph.
130 */
131export const TERM_GLYPH: Readonly<Record<string, string>> = {
132  events: '↯',
133  'issue-opened': '◉',
134  comment: '≡',
135  'pr-open': GLYPH.pr,
136  'pr-merged': '◆',
137  'pr-closed': GLYPH.failed,
138  'pr-draft': GLYPH.pending,
139  file: '□',
140  'file-code': '□',
141  // A tree shows a folder by its fold: closed points right, open points down.
142  folder: '▸',
143  'folder-open': '▾',
144  'git-commit': '○',
145  'repo-push': GLYPH.up,
146  alert: '▲',
147  trash: '⌫',
148  search: '⌕',
149  sync: GLYPH.turns,
150  'arrow-up': GLYPH.up,
151  home: '⌂',
152  eye: '◎',
153  // ⇕, not ↕: ↕ has an emoji presentation.
154  fold: '⇕',
155  terminal: '$',
156  pencil: '✎',
157  globe: '◎',
158  plug: '⏚',
159  'dot-fill': '·',
160  code: '◆',
161  tools: '◇',
162  // ↯, not ⚡: ⚡ has an emoji presentation; ✓, not ✔, for the same reason.
163  zap: '↯',
164  checklist: '✓',
165  telescope: '⌕',
166  tasklist: '≡',
167  hubot: '○',
168  book: '?',
169}
170
171/**
172 * The glyph an icon draws as where there's no SVG: its terminal glyph, a
173 * one-character key as itself, else a dot (never the icon's name as text).
174 */
175export const glyphOf = (key: string): string => TERM_GLYPH[key] ?? ([...key].length === 1 ? key : '•')
176
177/** An XML text node's escapes, for a tooltip's `<title>`. */
178const xml = (text: string) => text.replace(/&/g, '&amp;').replace(/</g, '&lt;').replace(/>/g, '&gt;')
179
180/**
181 * The SVG for an icon (a GLYPH or a name), drawn in `color`; null when the kit has none.
182 *
183 * A `Duo` colour (a file type's, `FILE_TYPE` in kit/tokens.ts) draws the dark value
184 * and switches to the light one by the page's colour scheme, in a style inside the
185 * SVG: the engine tells a render hook no desktop theme. `title` is a tooltip,
186 * shown where the SVG is drawn interactive.
187 */
188export const iconSvg = (key: string, color: string | Duo, px = ICON_PX, title?: string): string | null => {
189  const host = HOSTS[key]
190  const filled = host?.d ?? FILLED[key]
191  const body = PATHS[key]
192  if (!filled && !body) return null
193  const grid = host?.grid ?? 16
194  const base = typeof color === 'string' ? color : color.dark
195  const paint = filled ? 'fill' : 'stroke'
196  const scheme = typeof color === 'string' ? '' : `<style>@media (prefers-color-scheme: light){svg{${paint}:${color.light}}}</style>`
197  const tip = title ? `<title>${xml(title)}</title>` : ''
198  const open = `<svg xmlns="http://www.w3.org/2000/svg" width="${px}" height="${px}" viewBox="0 0 ${grid} ${grid}" `
199  if (filled) return `${open}fill="${base}">${scheme}${tip}<path d="${filled}"/></svg>`
200  return `${open}fill="none" stroke="${base}" stroke-width="1.6" stroke-linecap="round" stroke-linejoin="round">${scheme}${tip}${body}</svg>`
201}
202

1/**
2 * What a mod costs: how often each named thing ran, how long it took, and how
3 * much of the last minute it spent. Each compiled mod gets its own copy of the
4 * kit, so these are that mod's numbers. Recording never redraws: the footer
5 * shows them as of the pane's latest draw, so measuring adds no load.
6 *
7 *   const done = perf.start('render'); …; done()
8 *   await perf.time('git', () => run(...))
9 *   perf.count('state write')
10 */
11
12const now = (): number => (globalThis as { performance?: { now(): number } }).performance?.now() ?? Date.now()
13
14const WINDOW = 60_000
15
16type Entry = { n: number; total: number; last: number; max: number; recent: Array<[at: number, ms: number]> }
17
18export type PerfRow = {
19  name: string
20  /** Runs since the mod loaded. */
21  n: number
22  /** Runs in the last minute. */
23  perMin: number
24  /** Milliseconds per run, on average; 0 for counts. */
25  avgMs: number
26  lastMs: number
27  maxMs: number
28  /** Milliseconds spent in the last minute. */
29  busyMs: number
30}
31
32export type PerfSnapshot = { sinceMs: number; rows: PerfRow[] }
33
34export const createPerf = () => {
35  const entries = new Map<string, Entry>()
36  const loadedAt = Date.now()
37
38  const record = (name: string, ms: number) => {
39    const e = entries.get(name) ?? { n: 0, total: 0, last: 0, max: 0, recent: [] }
40    const at = Date.now()
41    e.n++
42    e.total += ms
43    e.last = ms
44    e.max = Math.max(e.max, ms)
45    e.recent.push([at, ms])
46    // Keep only the window, so a long session doesn't grow this.
47    while (e.recent.length && at - e.recent[0]![0] > WINDOW) e.recent.shift()
48    entries.set(name, e)
49  }
50
51  /** Starts timing `name`; call what it returns when it's done. */
52  const start = (name: string) => {
53    const t0 = now()
54    return () => record(name, now() - t0)
55  }
56
57  /** Times `fn`, sync or async, under `name`. */
58  const time = <T>(name: string, fn: () => T): T => {
59    const done = start(name)
60    let out: T
61    try {
62      out = fn()
63    } catch (err) {
64      done()
65      throw err
66    }
67    if (out instanceof Promise) return out.finally(done) as T
68    done()
69    return out
70  }
71
72  /** Counts one occurrence of `name`, with no time. */
73  const count = (name: string) => record(name, 0)
74
75  const snapshot = (): PerfSnapshot => {
76    const at = Date.now()
77    const rows = [...entries].map(([name, e]) => {
78      const recent = e.recent.filter(([t]) => at - t <= WINDOW)
79      return {
80        name,
81        n: e.n,
82        perMin: recent.length,
83        avgMs: e.n ? e.total / e.n : 0,
84        lastMs: e.last,
85        maxMs: e.max,
86        busyMs: recent.reduce((s, [, ms]) => s + ms, 0),
87      }
88    })
89    // What cost the most in the last minute first, then what ran most.
90    rows.sort((a, b) => b.busyMs - a.busyMs || b.perMin - a.perMin)
91    return { sinceMs: at - loadedAt, rows }
92  }
93
94  return { start, time, count, snapshot }
95}
96
97export type Perf = ReturnType<typeof createPerf>
98
99/** Milliseconds, short: 0.4ms, 12ms, 1.2s. */
100export const ms = (v: number): string => (v >= 1_000 ? `${(v / 1_000).toFixed(1)}s` : v >= 10 ? `${Math.round(v)}ms` : `${v.toFixed(1)}ms`)
101

1import type { Skin } from './skin'
2import { DEFAULT_SKIN, SKINS } from './skins'
3import type { SkinId } from './skins'
4
5/**
6 * The instrument's colours. Each hue means one thing, everywhere:
7 *
8 * - grey (MUTED): labels, icons, git marks, ordinary values
9 * - slate (INK): "how much" — bars and gauges that only measure
10 * - blue: live or in progress — running, pending, the activity series
11 * - amber: getting close to a limit — 75% and up, the compaction mark
12 * - red: failed, conflicted, 90% and up
13 * - green: finished well — checks passed, an agent done
14 * - purple: merged
15 *
16 * Cyan and orchid aren't statuses: they only tint parts within one chart.
17 *
18 * The values come from the skin the kit wears (kit/skin.ts): a zen theme pack's
19 * palette, mapped to what the app surfaces draw. The kit starts in the
20 * `claude-code` skin; `wear()` puts on another. Read them when drawing, never
21 * into a module-level constant, so a skin worn later reaches every drawing.
22 */
23export const C = {
24  ok: '',
25  warn: '',
26  bad: '',
27  blue: '',
28  purple: '',
29  cyan: '',
30  slate: '',
31  orchid: '',
32}
33
34/** Quantity ink: what a bar or gauge is drawn in when it only says how much. */
35export let INK = ''
36
37/** Shades within one chart: parts of one thing, told apart without new meanings. */
38export const RAMP = {
39  blue: ['', '', '', ''] as [string, string, string, string],
40  slate: ['', '', '', ''] as [string, string, string, string],
41}
42
43/** A bar's empty part and other quiet fills: a grey that reads on light and dark. */
44export const TRACK = 'rgba(128,128,128,0.18)'
45
46/**
47 * `color` (#rgb or #rrggbb) at `alpha` (0 to 1), as rgba(): a tint that lets the
48 * pane show through, so it reads on the light desktop theme and the dark one.
49 * Undefined for anything that isn't a hex colour.
50 */
51export const tint = (color: string, alpha: number): string | undefined => {
52  const hex = color.replace(/^#/, '')
53  const full = hex.length === 3 ? [...hex].map(x => x + x).join('') : hex
54  if (!/^[0-9a-f]{6}$/i.test(full)) return undefined
55  const [r, g, b] = [0, 2, 4].map(i => parseInt(full.slice(i, i + 2), 16))
56  return `rgba(${r},${g},${b},${alpha})`
57}
58
59/**
60 * The app surfaces' fills, behind text. The engine gives render hooks no desktop
61 * theme to read and no theme key for a fill, so each is a see-through tint over
62 * the pane: a neutral grey darkens the light pane and lightens the dark one by
63 * about the same step, and the text over it keeps the theme's own foreground.
64 * Never on the terminal, which draws no fills.
65 *
66 * - head: a section header's band, the step that marks where a section starts;
67 * - tile: one item of a list of several-line items, a step quieter than a band;
68 * - selected: the picked tile or row, tinted towards the blue that means live;
69 * - selectedBlurred: the same while the pane doesn't have the keyboard, half as strong;
70 * - pill: how strongly a label's own colour fills its chip.
71 */
72export const FILL = {
73  head: 'rgba(128,128,128,0.09)',
74  tile: 'rgba(128,128,128,0.05)',
75  selected: '',
76  selectedBlurred: '',
77  pill: 0.22,
78}
79
80/** Text, icons and marks that should recede. */
81export let MUTED = ''
82
83/**
84 * Three greys for text below the main text, each a step quieter, so a row can say
85 * what matters most without colour (tuned for the desktop's dark pane; mid and
86 * dark also read on the light one):
87 * - light: secondary text a reader still reads (a linked PR's title, a byline);
88 * - mid: metadata scanned past (ages, counts, secondary actions);
89 * - dark: the quietest marks (an icon beside a count, a heading over a list).
90 */
91export const GRAY = { light: '', mid: '', dark: '' }
92
93/** A colour with one value for the light desktop theme and one for the dark. */
94export type Duo = { readonly light: string; readonly dark: string }
95
96/**
97 * File-type icon colours. One meaning: this file's type. Only a file tree's icons
98 * take them, never text, a header or a control (those stay grey), and only on the
99 * app surfaces: the terminal draws file icons monochrome (dim), as a file type is
100 * no state a theme key means.
101 *
102 * The values are IntelliJ's New UI ("expui") icon colours, each from the fill or
103 * stroke of the icon named beside it: intellij-community
104 * `platform/icons/src/expui/fileTypes/<name>.svg` (light) and `<name>_dark.svg`
105 * (dark), and `platform/icons/src/expui/nodes/` for the folders. Apache 2.0,
106 * © JetBrains s.r.o. and contributors (each SVG's header).
107 *
108 * An icon drawn in a Duo carries both values and picks one by the page's colour
109 * scheme (`iconSvg` in kit/icons.ts); where that can't be read it takes the dark.
110 */
111export const FILE_TYPE = {
112  /** typeScript.svg */
113  typescript: { light: '#3574F0', dark: '#548AF7' },
114  /** javaScript.svg */
115  javascript: { light: '#FFAF0F', dark: '#F2C55C' },
116  /** json.svg */
117  json: { light: '#834DF0', dark: '#B589EC' },
118  /** markdown.svg */
119  markdown: { light: '#3574F0', dark: '#548AF7' },
120  /** config.svg (its accent), toml.svg, docker.svg */
121  config: { light: '#3574F0', dark: '#548AF7' },
122  /** yaml.svg */
123  yaml: { light: '#DB3B4B', dark: '#DB5C5C' },
124  /** css.svg */
125  style: { light: '#4682FA', dark: '#548AF7' },
126  /** html.svg */
127  html: { light: '#369650', dark: '#57965C' },
128  /** xml.svg */
129  xml: { light: '#E66D17', dark: '#C77D55' },
130  /** csv.svg */
131  data: { light: '#208A3C', dark: '#57965C' },
132  /** sql.svg */
133  sql: { light: '#834DF0', dark: '#B589EC' },
134  /** image.svg */
135  image: { light: '#3574F0', dark: '#548AF7' },
136  /** archive.svg */
137  archive: { light: '#3574F0', dark: '#548AF7' },
138  /** text.svg, shell.svg, unknown.svg, font.svg: any other file, lockfiles included */
139  text: { light: '#6C707E', dark: '#CED0D6' },
140  /** nodes/folder.svg, nodes/folderGithub.svg */
141  folder: { light: '#6C707E', dark: '#CED0D6' },
142  /** nodes/excludeRoot.svg: a folder git ignores (node_modules, build output) */
143  excluded: { light: '#F28C35', dark: '#C77D55' },
144} as const satisfies Record<string, Duo>
145
146export type FileType = keyof typeof FILE_TYPE
147
148/** Slate under 75%, amber from 75%, red from 90%: colour only once it matters. */
149export const levelColor = (percent: number): string => (percent >= 90 ? C.bad : percent >= 75 ? C.warn : INK)
150
151/*
152 * The terminal's colours. The terminal draws each status in the engine theme key
153 * that means the same thing, so it follows the person's terminal theme (dark,
154 * light, colour-blind, ANSI-only) instead of a fixed hex that may not read on it:
155 *
156 * - green  C.ok     → 'success'
157 * - red    C.bad    → 'error'
158 * - amber  C.warn   → 'warning'
159 * - blue   C.blue   → 'suggestion'
160 * - purple C.purple → 'merged'
161 * - the greys (MUTED, GRAY, TRACK) → the terminal's own dim, never a grey hex
162 * - quantity (INK, slate) → the terminal's default foreground
163 * - the shades within one chart (RAMP, cyan, orchid) → plain and dim in turn
164 *   (TERM_TINT), the blue ramp as `suggestion` and dimmed `suggestion`
165 * - any other hex → the default foreground: no fixed hex reaches the terminal,
166 *   where it can vanish on a light, an ANSI-only or a colour-blind theme.
167 */
168const themeKey: Record<string, string> = {}
169export const THEME_KEY: Readonly<Record<string, string>> = themeKey
170
171const QUIET = new Set<string>()
172
173/** Text props on the terminal: a theme key, the terminal's dim, or neither (the default foreground). */
174export type TermInk = { color?: string; dimColor?: boolean }
175
176/**
177 * The chart shades on the terminal, which has no colours to spare for them: the
178 * slate ramp (quantity) is the default foreground and dim in turn, the blue ramp
179 * `suggestion` and dimmed `suggestion` in turn, cyan plain and orchid dim. A
180 * bar's parts are all runs of the same heavy line (METER), told apart by these
181 * inks alone: no shade or dither glyphs, which render as a checkerboard.
182 */
183const termTint: Record<string, TermInk> = {}
184export const TERM_TINT: Readonly<Record<string, TermInk>> = termTint
185
186/** Whether `color` is one of the kit's tokens (a status, a grey, a chart shade), not data such as a GitHub label's hex. */
187export const isKitColor = (color: string): boolean => QUIET.has(color) || color in THEME_KEY || color in TERM_TINT
188
189/** A raw colour (hex, rgb(), hsl()) rather than a theme key's name. */
190const RAW = /^(#|rgba?\(|hsla?\()/i
191
192/**
193 * A colour's Text props on the terminal: a status as its theme key, a grey as
194 * `dimColor`, a chart shade as TERM_TINT says, a theme key's name as itself, and
195 * any other raw colour as nothing (the default foreground). Nothing for no colour.
196 */
197export const termInk = (color?: string): TermInk => {
198  if (!color) return {}
199  if (QUIET.has(color)) return { dimColor: true }
200  const key = THEME_KEY[color]
201  if (key) return { color: key }
202  const tint = TERM_TINT[color]
203  if (tint) return { ...tint }
204  return RAW.test(color) ? {} : { color }
205}
206
207/**
208 * One glyph per idea, shared so mods read alike (the SVG icons are keyed by these).
209 * Each is what the terminal draws: one cell, and never a character with an emoji
210 * presentation (Unicode's Emoji property: ⚒ ⚠ ⚡ ⏱ ↕ ◼ draw as emoji in some
211 * terminals and take two cells).
212 */
213export const GLYPH = {
214  context: '◕',
215  cost: '$',
216  time: '◷',
217  turns: '↻',
218  // The place-of-interest sign, as on a Command key: what the tools are called with.
219  tools: '⌘',
220  files: '✎',
221  agents: '✦',
222  limits: '◔',
223  layers: '▤',
224  branch: '⎇',
225  pr: '⇡',
226  running: '◐',
227  done: '✓',
228  failed: '✕',
229  stopped: '■',
230  pending: '◌',
231  up: '↑',
232  down: '↓',
233} as const
234
235/**
236 * A status's mark: one glyph and the colour that means it, the same on every
237 * surface. Draw it with `k.status(kind)`, never by hand, so a running task, a
238 * running server and a pending check all read alike.
239 */
240export const STATUS = {
241  running: { glyph: GLYPH.running, color: '' },
242  pending: { glyph: GLYPH.pending, color: '' },
243  done: { glyph: GLYPH.done, color: '' },
244  failed: { glyph: GLYPH.failed, color: '' },
245  warn: { glyph: '▲', color: '' },
246  merged: { glyph: '◆', color: '' },
247  stopped: { glyph: GLYPH.stopped, color: '' },
248  idle: { glyph: '○', color: '' },
249}
250
251export type StatusKind = keyof typeof STATUS
252
253/** The skin the kit wears now: a key of SKINS, or `custom` for a skin passed in whole. */
254export let SKIN: SkinId | 'custom' = DEFAULT_SKIN
255
256/**
257 * Puts on a skin: a zen theme pack's (a key of SKINS, kit/skins.ts) or one made
258 * in full. Every colour above takes the skin's value, and the terminal's mapping
259 * follows, so each meaning keeps its theme key. Wear one before the first
260 * drawing (at the top of the hooks module); the kit starts in DEFAULT_SKIN.
261 */
262export const wear = (skin: SkinId | Skin): void => {
263  const s = typeof skin === 'string' ? SKINS[skin] : skin
264  if (!s) throw new Error(`no skin '${String(skin)}'`)
265  SKIN = typeof skin === 'string' ? skin : 'custom'
266  Object.assign(C, { ok: s.ok, warn: s.warn, bad: s.bad, blue: s.blue, purple: s.purple, cyan: s.cyan, slate: s.slate, orchid: s.orchid })
267  INK = s.slate
268  RAMP.blue.splice(0, 4, ...s.ramp.blue)
269  RAMP.slate.splice(0, 4, ...s.ramp.slate)
270  FILL.selected = tint(s.blue, 0.13)!
271  FILL.selectedBlurred = tint(s.blue, 0.065)!
272  MUTED = s.muted
273  Object.assign(GRAY, s.gray)
274  const status: Record<StatusKind, string> = {
275    running: s.blue,
276    pending: s.blue,
277    done: s.ok,
278    failed: s.bad,
279    warn: s.warn,
280    merged: s.purple,
281    stopped: s.muted,
282    idle: s.muted,
283  }
284  for (const kind of Object.keys(status) as StatusKind[]) STATUS[kind].color = status[kind]
285  for (const key of Object.keys(themeKey)) delete themeKey[key]
286  Object.assign(themeKey, { [s.ok]: 'success', [s.bad]: 'error', [s.warn]: 'warning', [s.blue]: 'suggestion', [s.purple]: 'merged' })
287  QUIET.clear()
288  for (const grey of [s.muted, s.gray.light, s.gray.mid, s.gray.dark, TRACK]) QUIET.add(grey)
289  for (const key of Object.keys(termTint)) delete termTint[key]
290  Object.assign(termTint, {
291    [s.ramp.slate[0]]: {},
292    [s.ramp.slate[1]]: { dimColor: true },
293    [s.ramp.slate[2]]: {},
294    [s.ramp.slate[3]]: { dimColor: true },
295    [s.ramp.blue[1]]: { color: 'suggestion', dimColor: true },
296    [s.ramp.blue[2]]: { color: 'suggestion' },
297    [s.ramp.blue[3]]: { color: 'suggestion', dimColor: true },
298    [s.cyan]: {},
299    [s.orchid]: { dimColor: true },
300  })
301}
302
303wear(DEFAULT_SKIN)
304
305/**
306 * Tree connectors for nested rows (agents under the agent that spawned them,
307 * files under folders), each two cells wide so levels indent on the grid.
308 */
309export const TREE = { tee: '├─', last: '└─', pipe: '│ ', blank: '  ' } as const
310
311/**
312 * A nested row's connector: for each level above it, a pipe where that level has
313 * more rows below, else blank; then a tee, or an elbow for the last child.
314 * Empty at the top level.
315 */
316export const treePrefix = (guides: boolean[], last: boolean, depth = guides.length + 1): string =>
317  depth === 0 ? '' : `${guides.map(g => (g ? TREE.pipe : TREE.blank)).join('')}${last ? TREE.last : TREE.tee}`
318

1/**
2 * A skin: the colours the kit draws with on the app surfaces (desktop, VS Code, mobile), one per
3 * meaning (see kit/tokens.ts). Each zen theme pack gives one (kit/skins.ts, made from the pack's
4 * palette by zen's `src/harness/claude-code/skins.ts`); a mod wears one with `wear()`.
5 *
6 * The terminal never draws these values: it draws each meaning in the terminal theme key that
7 * means the same thing (THEME_KEY, TERM_TINT in kit/tokens.ts), whatever the skin, so a mod
8 * follows the person's terminal theme.
9 *
10 * Every value is #rrggbb, and every value is its meaning's own: no two meanings share a value,
11 * as the terminal finds a meaning by its value. Greys may share one another's.
12 */
13export type Skin = {
14  /** The pack's name, as zen's toolbar shows it. */
15  readonly label: string
16  /** Finished well: checks passed, an agent done. */
17  readonly ok: string
18  /** Getting close to a limit: 75% and up, the compaction mark. */
19  readonly warn: string
20  /** Failed, conflicted, 90% and up. */
21  readonly bad: string
22  /** Live or in progress: running, pending, the activity series. */
23  readonly blue: string
24  /** Merged. */
25  readonly purple: string
26  /** A tint for parts within one chart, never a status. */
27  readonly cyan: string
28  /** Quantity ink: what a bar or gauge is drawn in when it only says how much. */
29  readonly slate: string
30  /** A tint for parts within one chart, never a status. */
31  readonly orchid: string
32  /** Shades within one chart: the live colour and the quantity ink, each base first, then darker, lighter, darkest. */
33  readonly ramp: { readonly blue: readonly [string, string, string, string]; readonly slate: readonly [string, string, string, string] }
34  /** Text, icons and marks that should recede. */
35  readonly muted: string
36  /** Text below the main text, each a step quieter. */
37  readonly gray: { readonly light: string; readonly mid: string; readonly dark: string }
38}
39

1// Every zen theme pack's skin for the Claude Code kit, by pack id: made from the pack's palette by
2// zen's src/harness/claude-code/skins.ts. Generated; don't edit it, run `npx tsx scripts/harness-skins.ts` in zen.
3import type { Skin } from './skin'
4
5export const SKINS = {
6  "yahaha-elektron": {
7    label: "yahaha × Elektron",
8    ok: "#5fdc4a",
9    warn: "#ffd60a",
10    bad: "#e5534b",
11    blue: "#3b8eff",
12    purple: "#a58cff",
13    cyan: "#3ff4ff",
14    slate: "#afc4e0",
15    orchid: "#f57aff",
16    ramp: {
17      blue: [
18        "#3b8eff",
19        "#2c6bbf",
20        "#80b6ff",
21        "#204e8c"
22      ],
23      slate: [
24        "#afc4e0",
25        "#8393a8",
26        "#cbd9eb",
27        "#606c7b"
28      ]
29    },
30    muted: "#8c8c8c",
31    gray: {
32      light: "#d6d6d6",
33      mid: "#8c8c8c",
34      dark: "#4d4d4d"
35    }
36  },
37  "yahaha-classic": {
38    label: "yahaha classic",
39    ok: "#02c31e",
40    warn: "#ffeb44",
41    bad: "#fe4e66",
42    blue: "#4cc2ff",
43    purple: "#b98cff",
44    cyan: "#08b7aa",
45    slate: "#87aac2",
46    orchid: "#ff6bd0",
47    ramp: {
48      blue: [
49        "#4cc2ff",
50        "#3992bf",
51        "#8bd7ff",
52        "#2a6b8c"
53      ],
54      slate: [
55        "#87aac2",
56        "#658092",
57        "#b1c8d7",
58        "#4a5e6b"
59      ]
60    },
61    muted: "#8a929d",
62    gray: {
63      light: "#9aa2ad",
64      mid: "#8a929d",
65      dark: "#555c66"
66    }
67  },
68  "yahaha-push": {
69    label: "yahaha Push (as designed)",
70    ok: "#5fdc4a",
71    warn: "#ffd60a",
72    bad: "#e5534b",
73    blue: "#3b8eff",
74    purple: "#a58cff",
75    cyan: "#3ff4ff",
76    slate: "#afc4e0",
77    orchid: "#f57aff",
78    ramp: {
79      blue: [
80        "#3b8eff",
81        "#2c6bbf",
82        "#80b6ff",
83        "#204e8c"
84      ],
85      slate: [
86        "#afc4e0",
87        "#8393a8",
88        "#cbd9eb",
89        "#606c7b"
90      ]
91    },
92    muted: "#8c8c8c",
93    gray: {
94      light: "#d6d6d6",
95      mid: "#8c8c8c",
96      dark: "#4d4d4d"
97    }
98  },
99  visuals: {
100    label: "visual[flow] (glass)",
101    ok: "#51cd85",
102    warn: "#f0b23c",
103    bad: "#e0483f",
104    blue: "#7c86ff",
105    purple: "#c86ef0",
106    cyan: "#3ff4ff",
107    slate: "#a8abce",
108    orchid: "#f2659f",
109    ramp: {
110      blue: [
111        "#7c86ff",
112        "#5d65bf",
113        "#aab0ff",
114        "#444a8c"
115      ],
116      slate: [
117        "#a8abce",
118        "#7e809b",
119        "#c6c8df",
120        "#5c5e71"
121      ]
122    },
123    muted: "#a4a4ac",
124    gray: {
125      light: "#b7b7be",
126      mid: "#a4a4ac",
127      dark: "#5e5e66"
128    }
129  },
130  elektron: {
131    label: "Elektron",
132    ok: "#3ddc84",
133    warn: "#ff8c1a",
134    bad: "#ff4d4d",
135    blue: "#3d6bff",
136    purple: "#b48cff",
137    cyan: "#00d1ff",
138    slate: "#c2cdf5",
139    orchid: "#ff3dbb",
140    ramp: {
141      blue: [
142        "#3d6bff",
143        "#2e50bf",
144        "#819fff",
145        "#223b8c"
146      ],
147      slate: [
148        "#c2cdf5",
149        "#929ab8",
150        "#d7dff9",
151        "#6b7187"
152      ]
153    },
154    muted: "#b4b4b8",
155    gray: {
156      light: "#eeeef2",
157      mid: "#b4b4b8",
158      dark: "#6a6a6a"
159    }
160  },
161  ableton: {
162    label: "Ableton",
163    ok: "#36b958",
164    warn: "#ffe630",
165    bad: "#ff3254",
166    blue: "#4d4dff",
167    purple: "#8a8aff",
168    cyan: "#018fd2",
169    slate: "#d3d3ff",
170    orchid: "#db77ff",
171    ramp: {
172      blue: [
173        "#4d4dff",
174        "#3a3abf",
175        "#8b8bff",
176        "#2a2a8c"
177      ],
178      slate: [
179        "#d3d3ff",
180        "#9e9ebf",
181        "#e2e2ff",
182        "#74748c"
183      ]
184    },
185    muted: "#aaaaaa",
186    gray: {
187      light: "#ffffff",
188      mid: "#aaaaaa",
189      dark: "#666666"
190    }
191  },
192  linear: {
193    label: "Linear",
194    ok: "#86e08a",
195    warn: "#f4c430",
196    bad: "#eb5757",
197    blue: "#5e6ad2",
198    purple: "#bb87fc",
199    cyan: "#02b8cc",
200    slate: "#b4bbdd",
201    orchid: "#ff7ad9",
202    ramp: {
203      blue: [
204        "#5e6ad2",
205        "#47509e",
206        "#969ee2",
207        "#343a74"
208      ],
209      slate: [
210        "#b4bbdd",
211        "#878ca6",
212        "#ced3e9",
213        "#63677a"
214      ]
215    },
216    muted: "#8a8f98",
217    gray: {
218      light: "#d0d6e0",
219      mid: "#8a8f98",
220      dark: "#62666d"
221    }
222  },
223  "claude-code": {
224    label: "Claude Code",
225    ok: "#5bc08a",
226    warn: "#e3a33b",
227    bad: "#e5636f",
228    blue: "#6c8ef5",
229    purple: "#9d85e8",
230    cyan: "#4fb3c8",
231    slate: "#8c9bb5",
232    orchid: "#c58ad6",
233    ramp: {
234      blue: [
235        "#6c8ef5",
236        "#4c68c9",
237        "#a9bbf9",
238        "#38509e"
239      ],
240      slate: [
241        "#8c9bb5",
242        "#6f7c93",
243        "#a7b2c6",
244        "#5b667a"
245      ]
246    },
247    muted: "#8e8e93",
248    gray: {
249      light: "#b9b9b6",
250      mid: "#8a8a87",
251      dark: "#62625f"
252    }
253  }
254} as const satisfies Record<string, Skin>
255
256/** A pack's id: the skins a mod can wear. */
257export type SkinId = keyof typeof SKINS
258
259/** The skin the kit starts in: awesome-claude's look. */
260export const DEFAULT_SKIN: SkinId = 'claude-code'
261

1// The state contract: what blast-radius keeps in `$.state`. The held call itself
2// lives in the hooks module; only the person's view setting is state.
3
4/** Whether a wide app pane flows the report's lines into columns (the footer's switch); on until flipped. */
5export type ColumnsView = boolean
6
7declare module 'claude-code' {
8  interface PluginState {
9    'blast-radius': {
10      columns: ColumnsView
11    }
12  }
13}
14
