doc-preview

1import { atom, read, update } from 'claude-code'
2import type {
3  ElementTable,
4  EngineInterface,
5  Register,
6  RenderChildren,
7  RenderElement,
8  RenderSurface,
9  SelectOption,
10  Timer,
11} from 'claude-code'
12
13import type { DiagramRender, DocView, GeneratedDoc, PaneSize, Renderers, ReplyDiagram } from '../types'
14import {
15  MAX_SVG,
16  PANE,
17  asciiSource,
18  baseName,
19  countOf,
20  diagramKind,
21  diagramTitle,
22  displayPath,
23  errorText,
24  expandPath,
25  firstLine,
26  formatFor,
27  formatSize,
28  hashText,
29  imageBox,
30  isMermaidFile,
31  isPreviewable,
32  isTextChart,
33  mermaidSources,
34  newestFirst,
35  parentDir,
36  pngSize,
37  previewHtml,
38  renderKey,
39  rendererError,
40  splitDoc,
41  stripAnsi,
42  tableAsList,
43  tableLines,
44  textChart,
45} from './docs'
46import type { InlineFormat, Run, TableLine } from './docs'
47
48type Engine = EngineInterface
49/** What the pane can show a document for: a file or a reply's diagram. */
50type DocTarget = Exclude<DocView, { kind: 'picker' }>
51/** A loaded doc, or why not; `mtimeMs` is the file's time as read, which the poll compares with. */
52type Loaded =
53  | { title: string; source: string; isMermaid: boolean; path?: string; size?: number; mtimeMs?: number }
54  | { error: string; mtimeMs?: number }
55type Shown = Exclude<Loaded, { error: string }>
56/** A block of the shown doc, prepared once per doc, width, surface and format. */
57type DrawnBlock =
58  | { kind: 'prose'; text: string }
59  | { kind: 'table'; lines: TableLine[] | null; list: string }
60  | { kind: 'mermaid'; source: string; title: string; type: string; isText: boolean; chart: string | null; key: string | null }
61type Listing = { entries: SelectOption[]; total: number } | { error: string }
62type RenderJob = { format: InlineFormat; source: string }
63/** What both pane views draw with: the surface's elements, the room, and the state they read. */
64type PaneContext = {
65  el: ElementTable
66  surface: RenderSurface
67  columns: number
68  offset: number
69  cwd: string
70  home: string | undefined
71  recent: SelectOption[]
72  asked: PaneSize
73  found: Renderers | null
74  done: Record<string, DiagramRender>
75  problem: string | null
76}
77
78const view = atom({ plugin: 'doc-preview', key: 'view' } as const, null)
79const generated = atom({ plugin: 'doc-preview', key: 'generated' } as const, [])
80const diagrams = atom({ plugin: 'doc-preview', key: 'diagrams' } as const, [])
81const seenAt = atom({ plugin: 'doc-preview', key: 'seenAt' } as const, 0)
82const renders = atom({ plugin: 'doc-preview', key: 'renders' } as const, {})
83const renderers = atom({ plugin: 'doc-preview', key: 'renderers' } as const, null)
84const notice = atom({ plugin: 'doc-preview', key: 'notice' } as const, null)
85const sizing = atom({ plugin: 'doc-preview', key: 'size' } as const, { columns: null, isFull: false })
86
87const PLUGIN = 'doc-preview'
88/** The command xorio ships (`commands/preview.md`); this mod answers it. */
89const COMMAND = 'xorio:preview'
90/** Registered only when xorio's command is missing, so the mod still has an entry point. */
91const FALLBACK_COMMAND = 'preview'
92const MAX_RECENT = 20
93const MAX_RENDERS = 40
94const MAX_ENTRIES = 300
95/** Renders running at once across all passes: each mmdc run starts a headless browser. */
96const RENDER_CONCURRENCY = 3
97const POLL_MS = 2000
98/** `w` and `n` move the pane's width by this many columns, between these bounds. */
99const WIDTH_STEP = 20
100const MIN_WIDTH = 40
101/** Widening stops short of the screen's edge by this many columns; full screen asks for all of it. */
102const MIN_TRANSCRIPT = 30
103const FULL_FALLBACK = 1000
104/** Theme colors for inline code and link text in drawn tables. */
105const CODE_COLOR = 'permission'
106const LINK_COLOR = 'suggestion'
107const BROWSER_HINT = 'press b to see it drawn in the browser.'
108const PICK: SelectOption = { value: '', label: 'choose…' }
109const SKIPPED_DIRS = new Set(['.git', 'node_modules'])
110
111/** Diagrams waiting to render, the keys being rendered, and the workers draining the queue. */
112const queue: RenderJob[] = []
113const rendering = new Set<string>()
114let workers = 0
115/** The render keys the shown doc needs: never pruned from `renders` while it is shown. */
116let needed = new Set<string>()
117/** The terminal's size and the pane's body width as the pane last drew; what resizing starts from. */
118let screen: { columns: number; rows: number } | undefined
119let paneColumns: number | undefined
120/** Checks the shown file for outside edits; runs only while a file is shown. */
121let poll: Timer | null = null
122/** The shown doc's load, shared by every caller (even ones arriving mid-load); the key changes with `rev`. */
123let loaded: { key: string; doc: Promise<Loaded> } | null = null
124/** The shown doc laid out for one width, surface and format: all a scroll's redraw has to reuse. */
125let layout: { key: string; blocks: DrawnBlock[]; diagramCount: number } | null = null
126/** SVG markup by file, for the svg renders `renders` still holds. */
127const svgs = new Map<string, string>()
128/** The picker's folder listing, kept across redraws until the picker opens again. */
129let listing: { dir: string; result: Listing } | null = null
130
131// ── showing things ──────────────────────────────────────────────────────────
132
133const markSeen = ($: Engine) => update($, seenAt, () => Date.now())
134
135const docKey = (v: DocTarget): string => (v.kind === 'file' ? `file:${v.path}:${v.rev}` : `diagram:${v.id}`)
136
137const titleOf = (v: DocView | null): string =>
138  v === null || v.kind === 'picker'
139    ? 'Preview · pick a file'
140    : v.kind === 'file'
141      ? `Preview · ${baseName(v.path)}`
142      : 'Preview · diagram'
143
144/**
145 * Opens or retitles the pane at the size asked for: the whole screen, a
146 * width (`rows` matters only inline above the prompt, `columns` only docked),
147 * or, with neither, the engine's default share.
148 */
149async function openPane($: Engine, shown: DocView | null): Promise<void> {
150  const asked = await read($, sizing)
151  // Right after a reload the screen is unknown until the pane draws: full then asks for
152  // more than any screen has, which the engine clamps to what it can spare.
153  const request = asked.isFull
154    ? { columns: screen?.columns ?? FULL_FALLBACK, rows: screen?.rows ?? FULL_FALLBACK }
155    : asked.columns !== null
156      ? { columns: asked.columns }
157      : {}
158  await $.ui.open({ id: PANE, title: titleOf(shown), focus: true, ...request })
159}
160
161/** `w` (+1) and `n` (-1): one step wider or narrower than the pane is now; leaves full screen. */
162async function resize($: Engine, direction: 1 | -1): Promise<void> {
163  const widest = screen === undefined ? Number.MAX_SAFE_INTEGER : Math.max(MIN_WIDTH, screen.columns - MIN_TRANSCRIPT)
164  await update($, sizing, asked => {
165    const from = asked.columns ?? paneColumns ?? MIN_WIDTH
166    return { columns: Math.min(widest, Math.max(MIN_WIDTH, from + direction * WIDTH_STEP)), isFull: false }
167  })
168  await openPane($, await read($, view))
169}
170
171/** `z`: the whole screen, and back to the width before. */
172async function toggleFull($: Engine): Promise<void> {
173  await update($, sizing, asked => ({ ...asked, isFull: !asked.isFull }))
174  await openPane($, await read($, view))
175}
176
177async function showTarget($: Engine, target: DocTarget): Promise<void> {
178  const current = await read($, view)
179  const next: DocTarget =
180    target.kind === 'file' && current?.kind === 'file' && current.path === target.path
181      ? { ...target, rev: current.rev + 1 }
182      : target
183  await Promise.all([update($, view, () => next), update($, notice, () => null), markSeen($)])
184  await openPane($, next)
185  if (next.kind === 'file') ensurePolling($)
186  ensureRenders($)
187}

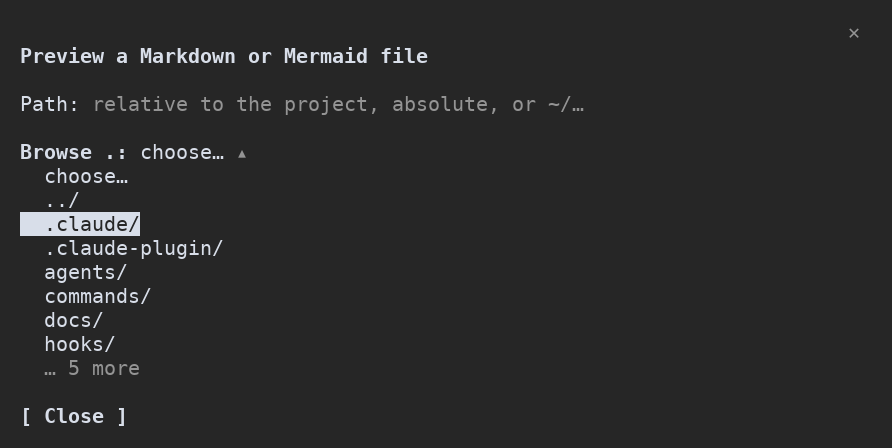

188
189async function showPicker($: Engine, dir?: string): Promise<void> {
190  listing = null
191  loaded = null
192  layout = null
193  const next: DocView = { kind: 'picker', dir: dir ?? '' }
194  await Promise.all([update($, view, () => next), update($, notice, () => null)])
195  await openPane($, next)
196}
197
198/** A picked value: `dir:<path>`, `file:<path>` or `diagram:<id>`. */
199async function showItem($: Engine, value: string): Promise<void> {
200  const [kind, rest] = [value.slice(0, value.indexOf(':')), value.slice(value.indexOf(':') + 1)]
201  if (kind === 'dir') await showPicker($, rest)
202  else if (kind === 'file') await showTarget($, { kind: 'file', path: rest, rev: 0 })
203  else if (kind === 'diagram') await showTarget($, { kind: 'diagram', id: rest })
204}
205
206/** Shows the file again from disk: a new `rev` makes the pane load it afresh. */
207async function refresh($: Engine): Promise<void> {
208  await update($, view, current => (current?.kind === 'file' ? { ...current, rev: current.rev + 1 } : current))
209  ensureRenders($)
210}

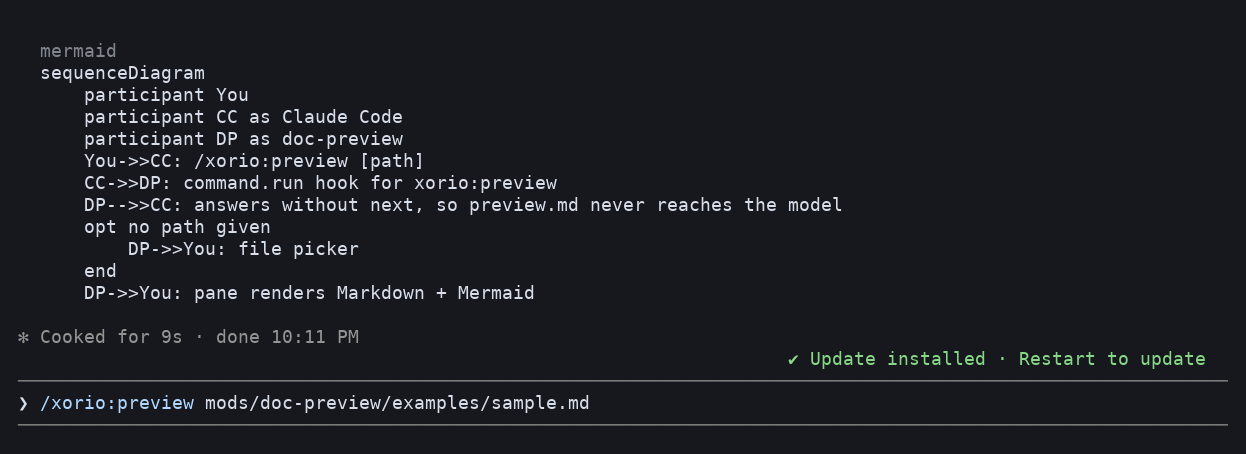

211
212/** `/xorio:preview [path]`: the picker without a path, else the doc, or why not. */
213async function runPreview($: Engine, args: string): Promise<{ text?: string }> {
214  const arg = args.trim()
215  if (arg === '') {
216    await showPicker($)
217    return {}
218  }
219  const problem = await openPath($, arg)
220
221  return problem === undefined ? {} : { text: problem }
222}
223
224/** What a typed path or `/xorio:preview <path>` names: a doc, a folder to browse, or why not. */
225async function openPath($: Engine, input: string): Promise<string | undefined> {
226  const [cwd, home] = await Promise.all([$.session.cwd(), $.env.get('HOME')])
227  const path = expandPath(input, cwd, home)
228  const stat = await $.fs.stat(path).catch(() => undefined)
229  if (stat === undefined) return `Not found: ${input}`
230  if (stat.kind === 'dir') {
231    await showPicker($, path)
232    return undefined
233  }
234  if (!isPreviewable(path)) {
235    return `Not a Markdown or Mermaid file (.md .markdown .mdx .mmd .mermaid): ${input}`
236  }
237  await showTarget($, { kind: 'file', path, rev: 0 })
238
239  return undefined
240}
241
242// ── loading and rendering ───────────────────────────────────────────────────
243
244async function load($: Engine, v: DocTarget): Promise<Loaded> {
245  if (v.kind === 'diagram') {
246    const diagram = (await read($, diagrams)).find(d => d.id === v.id)
247    return diagram === undefined
248      ? { error: 'That diagram is no longer in the recent list.' }
249      : { title: diagram.title, source: diagram.source, isMermaid: true }
250  }
251  // The time is taken before the read: an edit landing in between shows as a change on the next poll.
252  let mtimeMs: number | undefined
253  try {
254    const stat = await $.fs.stat(v.path)
255    mtimeMs = stat.mtimeMs
256    const source = await $.fs.read(v.path)
257    return { title: baseName(v.path), source, isMermaid: isMermaidFile(v.path), path: v.path, size: stat.size, mtimeMs }
258  } catch (err) {
259    return { error: `Can't read ${v.path}: ${errorText(err)}`, mtimeMs }
260  }
261}
262
263function loadShown($: Engine, v: DocTarget): { key: string; doc: Promise<Loaded> } {
264  const key = docKey(v)
265  if (loaded?.key !== key) loaded = { key, doc: load($, v) }
266
267  return loaded
268}
269
270/** The shown doc's blocks for one width, surface and format, made once and reused by every scroll's redraw. */
271function layoutOf(key: string, doc: Shown, columns: number, surface: RenderSurface, format: InlineFormat | null) {
272  const layoutKey = `${key}|${columns}|${surface}|${format}`

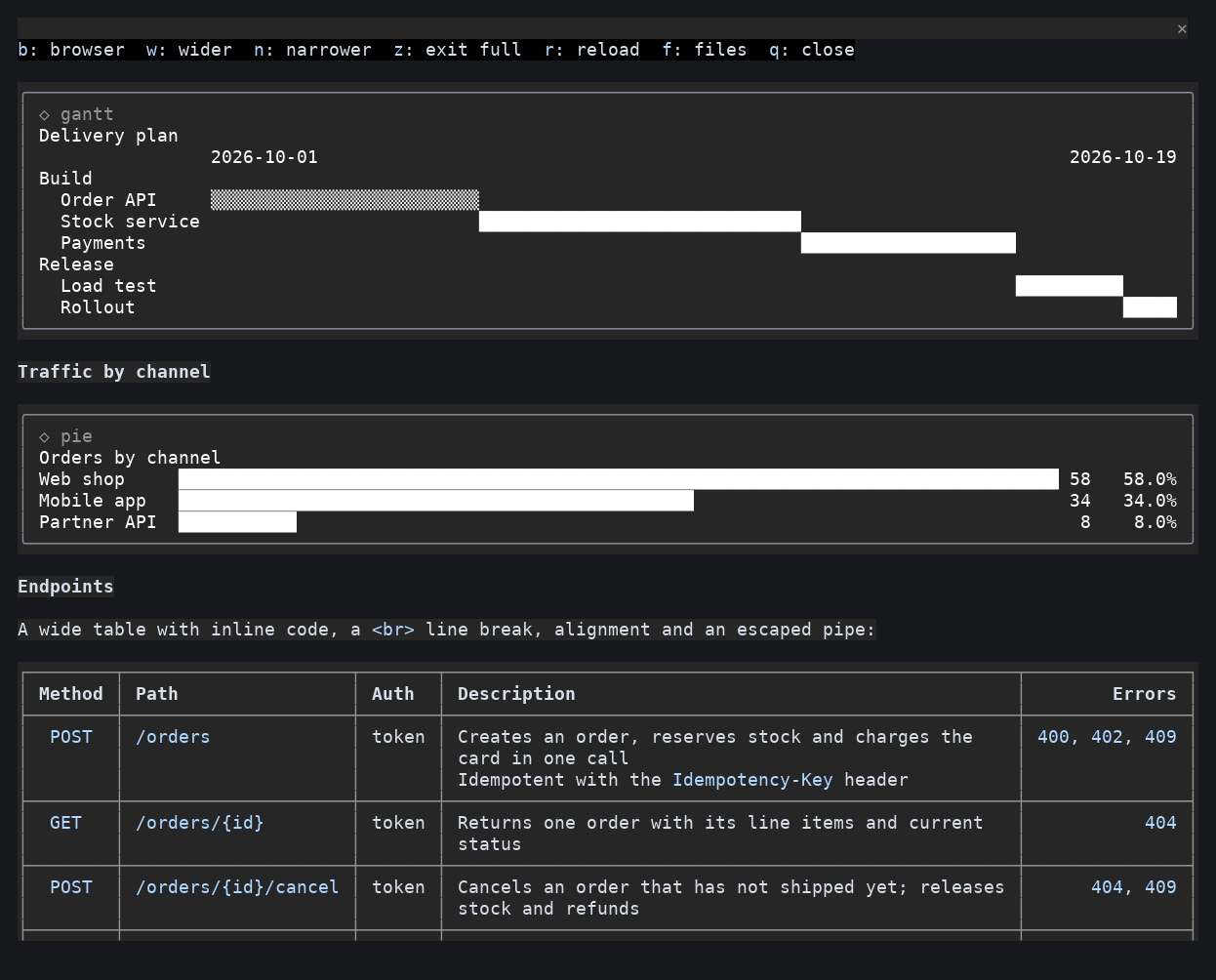

273  if (layout?.key === layoutKey) return layout
274  // The terminal's Markdown draws a table at its full width and the terminal wraps the
275  // overflow, breaking its borders: there tables are drawn here, fitted to the pane.
276  const blocks = splitDoc(doc.source, doc.isMermaid).map((block): DrawnBlock => {
277    if (block.kind === 'prose') return block
278    if (block.kind === 'table') {
279      if (surface !== 'terminal') return { kind: 'prose', text: block.source }
280      const lines = tableLines(block.table, columns)
281      return { kind: 'table', lines, list: lines === null ? tableAsList(block.table) : '' }
282    }
283    const { source } = block
284    return {
285      kind: 'mermaid',
286      source,
287      title: diagramTitle(source),
288      type: diagramKind(source),
289      isText: isTextChart(source),
290      chart: textChart(source, columns - 4),
291      key: format === null ? null : renderKey(source, format),
292    }
293  })
294  layout = { key: layoutKey, blocks, diagramCount: blocks.filter(b => b.kind === 'mermaid').length }
295
296  return layout
297}
298
299/** Reads the shown doc's SVG files once each, and forgets the ones `renders` no longer holds. */
300async function loadSvgs($: Engine, files: string[], live: Set<string>): Promise<void> {
301  for (const file of svgs.keys()) if (!live.has(file)) svgs.delete(file)
302  const missing = [...new Set(files)].filter(file => !svgs.has(file))
303  if (missing.length === 0) return
304  const texts = await Promise.all(missing.map(file => $.fs.read(file).catch(() => '')))
305  missing.forEach((file, i) => svgs.set(file, texts[i] ?? ''))
306}
307
308async function cacheDir($: Engine): Promise<string> {
309  const [xdg, local, home] = await Promise.all([
310    $.env.get('XDG_CACHE_HOME'),
311    $.env.get('LOCALAPPDATA'),
312    $.env.get('HOME'),
313  ])
314
315  // `||`, not `??`: a variable set but empty names no folder.
316  return `${xdg || local || `${home || '/tmp'}/.cache`}/claude-doc-preview`
317}
318
319const failed = (tool: string, ran: { exitCode: number; stdout: string; stderr: string }): DiagramRender => ({
320  format: 'error',
321  message: firstLine(ran.stderr || ran.stdout) || `${tool} exited ${ran.exitCode}`,
322})
323
324async function renderDiagram($: Engine, source: string, format: InlineFormat): Promise<DiagramRender> {
325  try {
326    if (format === 'ascii') {
327      const ran = await $.process.run(['mermaid-ascii'], { stdin: asciiSource(source), timeoutMs: 20_000 })
328      return ran.exitCode === 0 ? { format: 'ascii', text: stripAnsi(ran.stdout).trimEnd() } : failed('mermaid-ascii', ran)
329    }
330    const dir = await cacheDir($)
331    const id = hashText(source)
332    const output = `${dir}/${id}.${format}`
333    // Named by content, so an output an earlier session made is reused rather than drawn again.
334    if (!(await $.fs.exists(output))) {
335      const input = `${dir}/${id}.${format}.mmd`
336      await $.fs.write(input, source)
337      const scale = format === 'png' ? ['-s', '2'] : []
338      const ran = await $.process.run(
339        ['mmdc', '-q', '-i', input, '-o', output, '-b', 'white', ...scale],
340        { timeoutMs: 90_000 },
341      )
342      if (ran.exitCode !== 0) return failed('mmdc', ran)
343    }
344    if (format === 'svg') {
345      const stat = await $.fs.stat(output)
346      return stat.size > MAX_SVG
347        ? { format: 'error', message: `Too large to draw inline: ${BROWSER_HINT}` }
348        : { format: 'svg', file: output }
349    }
350    const { base64 } = await $.fs.read(output, { as: 'bytes' })
351    const size = pngSize(base64)
352
353    return size === null
354      ? { format: 'error', message: 'mmdc wrote no PNG.' }
355      : { format: 'png', file: output, ...size }
356  } catch (err) {
357    return { format: 'error', message: errorText(err) }
358  }
359}
360
361/** Runs work nobody awaits, so a failure lands in the debug log and nowhere else. */
362function inBackground($: Engine, work: Promise<void>): void {
363  work.catch((err: unknown) => $.ui.log(`doc-preview: ${errorText(err)}`, { to: 'debug' }))
364}
365
366const ensureRenders = ($: Engine): void => inBackground($, renderShown($))
367
368/**
369 * Queues the shown doc's diagrams that have no render yet, in the format of
370 * each surface the session draws on; the pane redraws as each lands. Pie and
371 * gantt charts are drawn as text instead, never by mermaid-ascii.
372 */
373async function renderShown($: Engine): Promise<void> {
374  const [v, found, surfaces, done] = await Promise.all([
375    read($, view),
376    read($, renderers),
377    $.session.surfaces(),
378    read($, renders),
379  ])
380  if (v === null || v.kind === 'picker') return
381  const formats = new Set(surfaces.map(surface => formatFor(surface, found)).filter(f => f !== null))
382  if (formats.size === 0) return
383  const doc = await loadShown($, v).doc
384  if ('error' in doc) return
385
386  const sources = mermaidSources(doc.source, doc.isMermaid)
387  const jobs = [...formats].flatMap(format =>
388    sources.filter(source => !(format === 'ascii' && isTextChart(source))).map(source => ({ format, source })),
389  )
390  needed = new Set(jobs.map(job => renderKey(job.source, job.format)))
391  // The queue holds only the shown doc's jobs: a doc no longer shown doesn't keep the
392  // workers busy, and a job is queued once however often the doc reloads.
393  queue.splice(0, queue.length, ...jobs.filter(job => done[renderKey(job.source, job.format)] === undefined))
394  while (workers < RENDER_CONCURRENCY && queue.length > 0) {
395    workers += 1
396    inBackground(
397      $,
398      drainQueue($).finally(() => {
399        workers -= 1
400      }),
401    )
402  }
403}
404
405async function drainQueue($: Engine): Promise<void> {
406  for (let job = queue.shift(); job !== undefined; job = queue.shift()) await renderJob($, job)
407}
408
409/**
410 * Renders one diagram unless another worker is on it or has finished it: the
411 * key is claimed before the current renders are read, so it is drawn once.
412 */
413async function renderJob($: Engine, { format, source }: RenderJob): Promise<void> {
414  const key = renderKey(source, format)
415  if (rendering.has(key)) return
416  rendering.add(key)
417  try {
418    if ((await read($, renders))[key] !== undefined) return
419    const result = await renderDiagram($, source, format)
420    await update($, renders, all => pruneRenders({ ...withoutKey(all, key), [key]: result }))
421  } finally {
422    rendering.delete(key)
423  }
424}
425
426const withoutKey = <T,>(all: Record<string, T>, key: string): Record<string, T> =>
427  Object.fromEntries(Object.entries(all).filter(([k]) => k !== key))
428
429/** Every render the shown doc needs, then the newest others, up to the cap. */
430function pruneRenders(all: Record<string, DiagramRender>): Record<string, DiagramRender> {
431  const entries = Object.entries(all)
432  let spare = entries.length - Math.max(MAX_RENDERS, needed.size)
433  if (spare <= 0) return all
434
435  return Object.fromEntries(entries.filter(([key]) => needed.has(key) || spare-- <= 0))
436}
437
438async function canRun($: Engine, argv: string[]): Promise<boolean> {
439  try {
440    return (await $.process.run(argv, { timeoutMs: 30_000 })).exitCode === 0
441  } catch {
442    return false
443  }
444}
445
446async function detectRenderers($: Engine): Promise<void> {
447  const [ascii, mmdc, term, program, kittyWindow, ghostty] = await Promise.all([
448    canRun($, ['mermaid-ascii', '--help']),
449    canRun($, ['mmdc', '--version']),
450    $.env.get('TERM'),
451    $.env.get('TERM_PROGRAM'),
452    $.env.get('KITTY_WINDOW_ID'),
453    $.env.get('GHOSTTY_RESOURCES_DIR'),
454  ])
455  const isKitty =
456    /kitty|ghostty/i.test(term ?? '') ||
457    /kitty|ghostty/i.test(program ?? '') ||
458    kittyWindow !== undefined ||
459    ghostty !== undefined
460  const found: Renderers = { ascii, mmdc, isKitty }
461  await update($, renderers, () => found)
462  ensureRenders($)
463}
464
465/** Registers `/preview` when neither xorio's `/xorio:preview` nor another `/preview` is installed. */
466async function registerFallback($: Engine): Promise<void> {
467  const commands = await $.command.list()
468  if (commands.some(command => command.name === COMMAND || command.name === FALLBACK_COMMAND)) return
469  await $.command.register({
470    name: FALLBACK_COMMAND,
471    description: 'Preview a Markdown or Mermaid file; no path opens a file picker',
472    argumentHint: '[path]',
473    immediate: true,
474  })
475}
476
477/** Whether `/preview` is this mod's fallback, not the person's own command or another plugin's. */
478async function ownsFallback($: Engine): Promise<boolean> {
479  const commands = await $.command.list()
480  return commands.some(
481    command => command.name === FALLBACK_COMMAND && command.source === 'plugin' && (command.plugin ?? PLUGIN) === PLUGIN,
482  )
483}
484
485function ensurePolling($: Engine): void {
486  if (poll === null) poll = $.clock.every(POLL_MS, () => inBackground($, pollShownFile($)))
487}
488
489/**
490 * Picks up edits made outside Claude Code while the pane shows a file, by
491 * comparing the file's time with the time it was read at; stops once no
492 * file is shown.
493 */
494async function pollShownFile($: Engine): Promise<void> {
495  const [v, panes] = await Promise.all([read($, view), $.ui.panes()])
496  if (v?.kind !== 'file' || !panes.some(pane => pane.id === PANE)) {
497    poll?.cancel()
498    poll = null
499    return
500  }
501  const shown = loaded
502  if (shown?.key !== docKey(v)) return // a reload is under way
503  const [doc, stat] = await Promise.all([shown.doc, $.fs.stat(v.path).catch(() => undefined)])
504  if (stat !== undefined && stat.mtimeMs !== doc.mtimeMs) await refresh($)
505}
506
507// ── the browser ─────────────────────────────────────────────────────────────
508
509async function openExternal($: Engine, file: string): Promise<boolean> {
510  const isWindows = (await $.env.get('OS')) === 'Windows_NT'
511  const isMac = !isWindows && (await $.fs.exists('/System/Library/CoreServices'))
512  const argv = isWindows
513    ? ['explorer', file]
514    : isMac
515      ? ['open', file]
516      : // Backgrounded so the browser can't hold the call; a missing xdg-open still fails it.
517        ['sh', '-c', 'command -v xdg-open >/dev/null || exit 1; xdg-open "$1" >/dev/null 2>&1 &', 'sh', file]
518  try {
519    const ran = await $.process.run(argv, { timeoutMs: 15_000 })
520    return isWindows || ran.exitCode === 0
521  } catch {
522    return false
523  }
524}
525

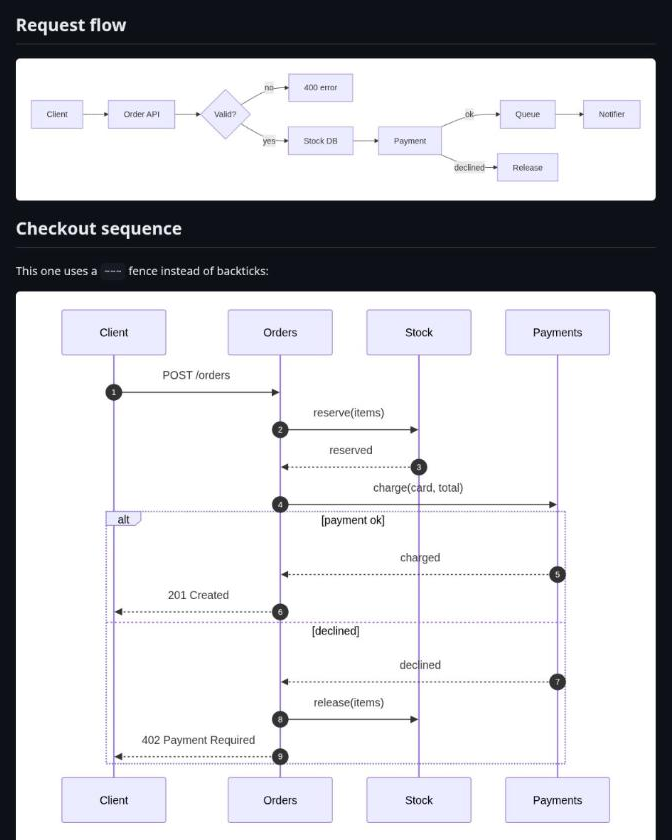

526async function openInBrowser($: Engine, v: DocTarget): Promise<void> {
527  const doc = await load($, v)
528  if ('error' in doc) {
529    $.ui.toast(doc.error)
530    return
531  }
532  const html = previewHtml({
533    title: doc.path ?? doc.title,
534    source: doc.source,
535    isMermaid: doc.isMermaid,
536    baseDir: doc.path === undefined ? undefined : parentDir(doc.path),
537  })
538  const slug = doc.title.replace(/[^\w.-]+/g, '-').slice(0, 40)
539  const file = `${await cacheDir($)}/${slug}-${hashText(doc.source)}.html`
540  await $.fs.write(file, html)
541  const isOpened = await openExternal($, file)
542  $.ui.toast(isOpened ? `Opened ${doc.title} in the browser` : `Couldn't start a browser; the page is at ${file}`)
543}
544
545// ── what Claude generates ───────────────────────────────────────────────────
546
547async function recordGenerated($: Engine, path: string): Promise<void> {
548  const [, v] = await Promise.all([
549    update($, generated, list => newestFirst([{ path, at: Date.now() }], list, d => d.path, MAX_RECENT)),
550    read($, view),
551  ])
552  if (v?.kind === 'file' && v.path === path) await refresh($)
553}
554
555async function recordDiagrams($: Engine, sources: string[]): Promise<void> {
556  const at = Date.now()
557  const found = sources.map((source): ReplyDiagram => ({ id: hashText(source), source, title: diagramTitle(source), at }))
558  await update($, diagrams, list => newestFirst(found, list, d => d.id, MAX_RECENT))
559}
560
561const textBlocks = (content: unknown): string[] => {
562  if (typeof content === 'string') return [content]
563  if (!Array.isArray(content)) return []
564  return content.flatMap(block => {
565    const b = block as { type?: unknown; text?: unknown }
566    return b.type === 'text' && typeof b.text === 'string' ? [b.text] : []
567  })
568}
569
570/** The docs and diagrams from this session, newest first, as Select options. */
571function recentOptions(
572  docs: readonly GeneratedDoc[],
573  replies: readonly ReplyDiagram[],
574  cwd: string,
575  home: string | undefined,
576): SelectOption[] {
577  const items = [
578    ...docs.map(d => ({ at: d.at, value: `file:${d.path}`, label: displayPath(d.path, cwd, home) })),
579    ...replies.map(d => ({ at: d.at, value: `diagram:${d.id}`, label: `◇ ${d.title} (reply, ${clock(d.at)})` })),
580  ]
581
582  return items.sort((a, b) => b.at - a.at).map(({ value, label }) => ({ value, label }))
583}
584
585const clock = (at: number): string => {
586  const date = new Date(at)
587  return `${String(date.getHours()).padStart(2, '0')}:${String(date.getMinutes()).padStart(2, '0')}`
588}
589
590async function freshItems($: Engine): Promise<{ docs: GeneratedDoc[]; replies: ReplyDiagram[] }> {
591  const [seen, docs, replies] = await Promise.all([read($, seenAt), read($, generated), read($, diagrams)])
592  return { docs: docs.filter(d => d.at > seen), replies: replies.filter(d => d.at > seen) }
593}
594

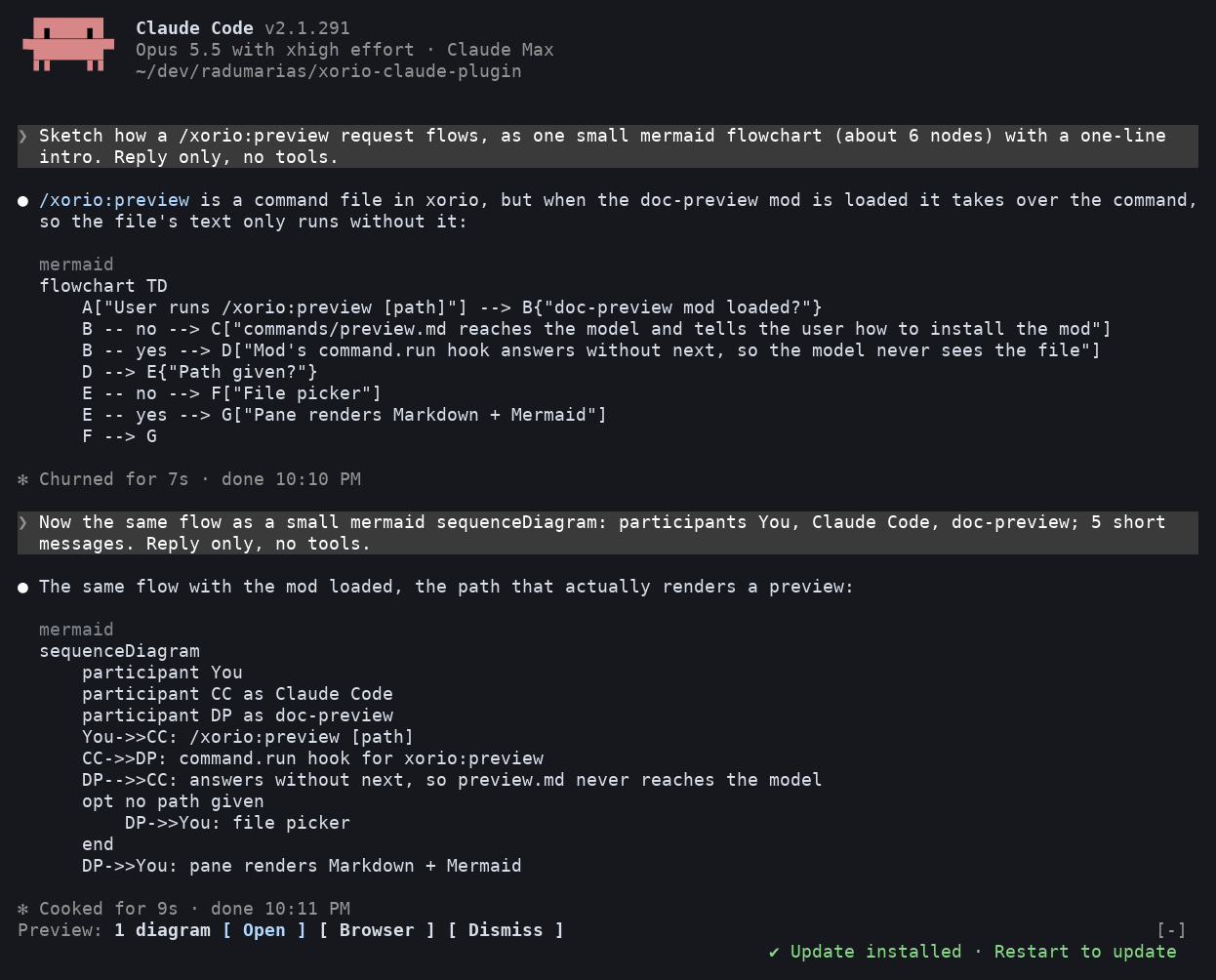

595/** The newest doc or diagram Claude produced since the person last looked. */
596async function newestFresh($: Engine): Promise<DocTarget | null> {
597  const { docs, replies } = await freshItems($)
598  const doc = docs[0]
599  const reply = replies[0]
600  if (doc !== undefined && (reply === undefined || doc.at >= reply.at)) {
601    return { kind: 'file', path: doc.path, rev: 0 }
602  }
603  return reply === undefined ? null : { kind: 'diagram', id: reply.id }
604}
605
606// ── the pane ────────────────────────────────────────────────────────────────
607
608/** The folder's subfolders and previewable files as picker options, listed once per opening. */
609async function listFolder($: Engine, dir: string): Promise<Listing> {
610  if (listing?.dir === dir) return listing.result
611  const result = await $.fs.list(dir).then(
612    async entries => {
613      // A link is listed as `other`: follow it to tell a folder from a file.
614      const kinds = await Promise.all(
615        entries.map(async entry => {
616          const path = `${dir === '/' ? '' : dir}/${entry.name}`
617          const kind = entry.isLink ? ((await $.fs.stat(path).catch(() => undefined))?.kind ?? 'other') : entry.kind
618          return { name: entry.name, path, kind }
619        }),
620      )
621      const sorted = kinds.sort((a, b) => a.name.localeCompare(b.name))
622      const options: SelectOption[] = [
623        { value: `dir:${parentDir(dir)}`, label: '../' },
624        ...sorted
625          .filter(entry => entry.kind === 'dir' && !SKIPPED_DIRS.has(entry.name))
626          .map(entry => ({ value: `dir:${entry.path}`, label: `${entry.name}/` })),
627        ...sorted
628          .filter(entry => entry.kind === 'file' && isPreviewable(entry.name))
629          .map(entry => ({ value: `file:${entry.path}`, label: entry.name })),
630      ]
631      return { entries: options.slice(0, MAX_ENTRIES), total: options.length }
632    },
633    (err: unknown) => ({ error: errorText(err) }),
634  )
635  listing = { dir, result }
636
637  return result
638}
639
640async function renderPicker($: Engine, ctx: PaneContext, dir: string): Promise<RenderElement> {
641  const { el, cwd, home, recent, problem } = ctx
642  const { Box, Button, Text } = el
643  const Select = 'Select' in el ? el.Select : undefined
644  const Input = 'Input' in el ? el.Input : undefined
645  const folder = await listFolder($, dir)
646
647  return (
648    <Box flexDirection="column" rowGap={1}>
649      <Text bold>Preview a Markdown or Mermaid file</Text>
650      {problem !== null && <Text color="yellow">{problem}</Text>}
651      {Input !== undefined ? (
652        <Input
653          key="path"
654          label="Path"
655          placeholder="relative to the project, absolute, or ~/…"
656          submitLabel="open"
657          autoFocus
658          onSubmit={async value => {
659            const why = await openPath($, value)
660            await update($, notice, () => why ?? null)
661          }}
662        />
663      ) : (
664        <Text dimColor>{'Type /xorio:preview <path> to open a file.'}</Text>
665      )}
666      {Select !== undefined && recent.length > 0 && (
667        <Select key="recent" label="Recent" options={[PICK, ...recent]} value="" onSelect={value => showItem($, value)} />
668      )}
669      {Select !== undefined && 'entries' in folder && (
670        <Select
671          key="browse"
672          label={`Browse ${displayPath(dir, cwd, home)}`}
673          options={[PICK, ...folder.entries]}
674          value=""
675          onSelect={value => showItem($, value)}
676        />
677      )}
678      {'error' in folder && <Text color="red">{`Can't list ${dir}: ${folder.error}`}</Text>}
679      {'total' in folder && folder.total > MAX_ENTRIES && <Text dimColor>{`Showing the first ${MAX_ENTRIES} entries.`}</Text>}
680      <Box>
681        <Button key="close" label="Close" role="dismiss" onPress={() => $.ui.close({ id: PANE })} />
682      </Box>
683    </Box>
684  )
685}
686

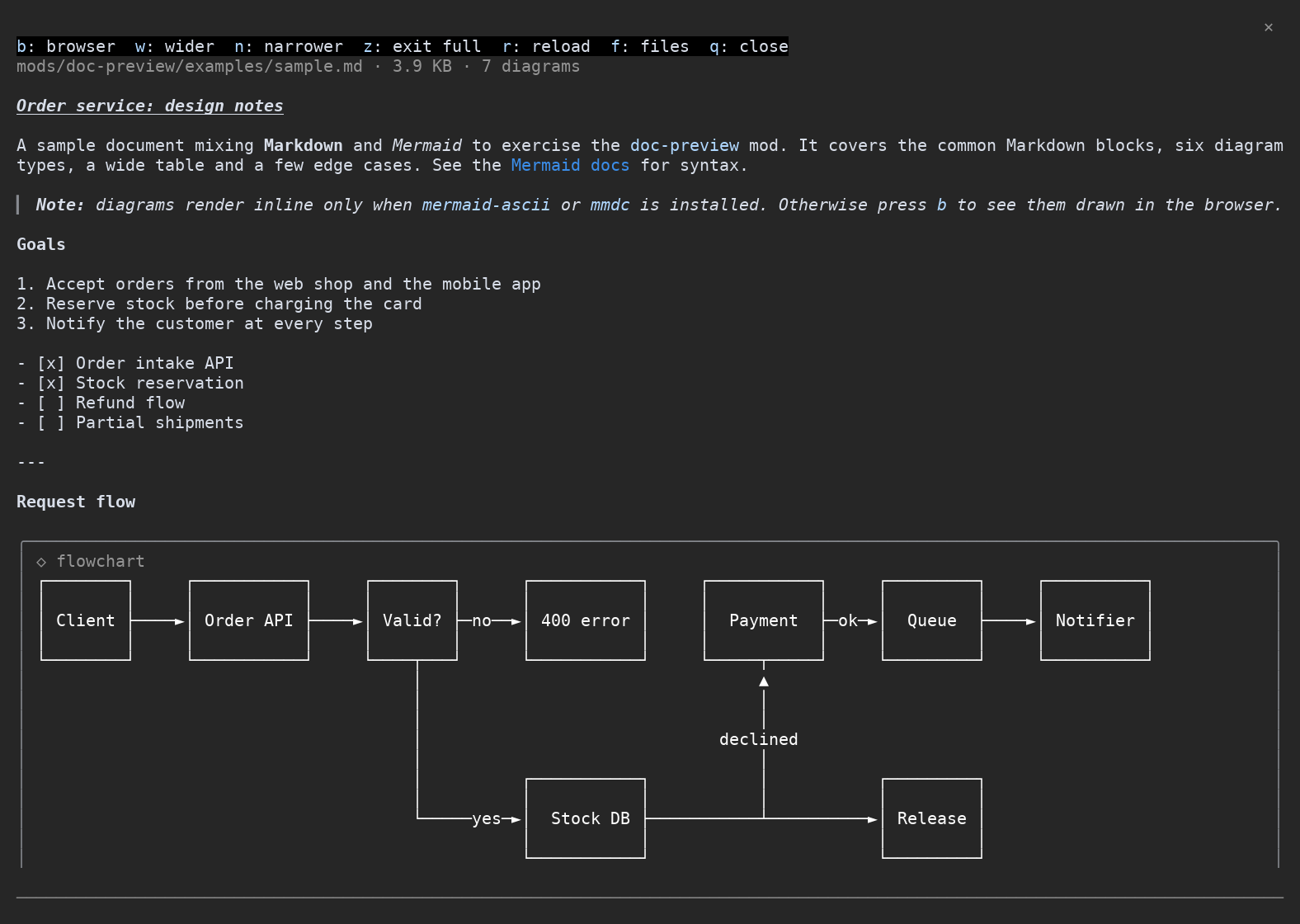

687async function renderDoc($: Engine, ctx: PaneContext, v: DocTarget): Promise<RenderElement> {
688  const { el, surface, columns, cwd, home, recent, asked, found, done } = ctx
689  const { Box, Button, Code, Markdown, Text } = el
690  const Select = 'Select' in el ? el.Select : undefined
691  const shown = loadShown($, v)
692  const doc = await shown.doc
693  const current = v.kind === 'file' ? `file:${v.path}` : `diagram:${v.id}`
694  const options = recent.some(o => o.value === current)
695    ? recent
696    : [{ value: current, label: 'path' in doc && doc.path ? displayPath(doc.path, cwd, home) : 'this diagram' }, ...recent]
697  const actions = [
698    { key: 'browser', hotkey: 'b', label: 'browser', press: () => openInBrowser($, v) },
699    { key: 'wider', hotkey: 'w', label: 'wider', press: () => resize($, 1) },
700    { key: 'narrower', hotkey: 'n', label: 'narrower', press: () => resize($, -1) },
701    { key: 'full', hotkey: 'z', label: asked.isFull ? 'exit full' : 'full', press: () => toggleFull($) },
702    ...(v.kind === 'file' ? [{ key: 'reload', hotkey: 'r', label: 'reload', press: () => refresh($) }] : []),
703    {
704      key: 'pick',
705      hotkey: 'f',
706      label: 'files',
707      press: () => showPicker($, v.kind === 'file' ? parentDir(v.path) : undefined),
708    },
709    { key: 'close', hotkey: 'q', label: 'close', press: () => $.ui.close({ id: PANE }) },
710  ]
711  // A plain Button draws `k: label`, two columns apart; the bar wraps onto as many rows as that takes.
712  let barRows = 1
713  let used = 0
714  for (const a of actions) {
715    const width = a.hotkey.length + 2 + a.label.length
716    if (used > 0 && used + 2 + width > columns) {
717      barRows += 1
718      used = width
719    } else {
720      used += (used > 0 ? 2 : 0) + width
721    }
722  }
723  // On the terminal the bar is pinned to the window's top rows: each scroll redraws
724  // with the new offset, and an absolute Box paints over the rows beneath it.
725  const isPinned = surface === 'terminal'
726  const pin = isPinned
727    ? ({ position: 'absolute', top: ctx.offset, left: 0, backgroundColor: 'inverseText' } as const)
728    : {}
729  const toolbar = (
730    <Box key="toolbar" flexDirection="row" flexWrap="wrap" columnGap={2} width={columns} height={barRows} overflow="hidden" {...pin}>
731      {actions.map(a => (
732        <Button
733          key={a.key}
734          label={a.label}
735          hotkey={a.hotkey}
736          plain
737          {...(a.key === 'close' ? { role: 'dismiss' as const } : {})}
738          onPress={a.press}
739        />
740      ))}
741    </Box>
742  )
743  /** The page under the bar: pinned, the bar overlays the first rows, so the page starts below them. */
744  const page = (...children: RenderChildren[]) => (
745    <Box flexDirection="column">
746      <Box flexDirection="column" rowGap={1} marginTop={isPinned ? barRows : 0}>
747        {!isPinned && toolbar}
748        {Select !== undefined && options.length > 1 && (
749          <Select key="recent" label="Doc" options={options} value={current} onSelect={value => showItem($, value)} />
750        )}
751        {children}
752      </Box>
753      {isPinned && toolbar}
754    </Box>
755  )
756  if ('error' in doc) return page(<Text color="red">{doc.error}</Text>)
757
758  const format = formatFor(surface, found)
759  const { blocks, diagramCount } = layoutOf(shown.key, doc, columns, surface, format)
760  const renderOf = (key: string | null) => (key === null ? undefined : done[key])
761  await loadSvgs(
762    $,
763    blocks.flatMap(b => {
764      const r = b.kind === 'mermaid' ? renderOf(b.key) : undefined
765      return r?.format === 'svg' ? [r.file] : []
766    }),
767    new Set(Object.values(done).flatMap(r => (r.format === 'svg' ? [r.file] : []))),
768  )
769  const where = doc.path === undefined ? 'from a reply' : displayPath(doc.path, cwd, home)
770  const meta = [where, doc.size === undefined ? '' : formatSize(doc.size), diagramCount > 0 ? countOf(diagramCount, 'diagram') : '']
771    .filter(Boolean)
772    .join(' · ')
773
774  // An image beats a text chart, which beats mermaid-ascii's drawing, which beats the source.
775  const diagram = (d: Extract<DrawnBlock, { kind: 'mermaid' }>) => {
776    const r = renderOf(d.key)
777    const svg = r?.format === 'svg' ? (svgs.get(r.file) ?? '') : ''
778    // A render is on its way only in a format this diagram goes to: never mermaid-ascii for a text chart.
779    const isRendered = format !== null && !(format === 'ascii' && d.isText)
780    let body: RenderElement = <Code source={d.source} language="mermaid" />
781    let note: RenderElement | null = null
782    if (r?.format === 'png' && 'Image' in el) {
783      const box = imageBox(r, columns - 4)
784      body = <el.Image source={{ file: r.file, format: 'png' }} columns={box.columns} rows={box.rows} alt="Mermaid diagram" />
785    } else if (svg !== '' && 'Svg' in el) {
786      body = <el.Svg source={svg} alt="Mermaid diagram" />
787    } else if (d.chart !== null) {
788      body = <Code source={d.chart} language="text" wrap="truncate-end" />
789    } else if (r?.format === 'ascii') {
790      body = <Code source={r.text} language="text" wrap="truncate-end" />
791    } else if (r?.format === 'error') {
792      note = <Text color="yellow" wrap="wrap">{`${rendererError(r.message, d.type)}; ${BROWSER_HINT}`}</Text>
793    } else if (isRendered && r === undefined) {
794      note = <Text dimColor>Drawing…</Text>
795    } else if (d.isText) {
796      note = <Text color="yellow" wrap="wrap">{`Couldn't read this ${d.type} chart; ${BROWSER_HINT}`}</Text>
797    }
798
799    return (
800      <Box flexDirection="column" borderStyle="round" borderDimColor paddingX={1} width={columns}>
801        <Text dimColor>{`◇ ${d.title}`}</Text>
802        {body}
803        {note}
804      </Box>
805    )
806  }
807
808  return page(
809    <Text dimColor wrap="truncate-start">{meta}</Text>,
810    diagramCount > 0 && format === null && (
811      <Text dimColor>
812        {'Diagrams show as source here. Press b for the browser, or install mermaid-ascii (terminal) or mmdc to draw them inline.'}
813      </Text>
814    ),
815    blocks.map(block => {
816      if (block.kind === 'prose') return <Markdown text={block.text} />
817      if (block.kind === 'mermaid') return diagram(block)
818      if (block.lines === null) return <Markdown text={block.list} />
819      return (
820        <Box flexDirection="column">
821          {block.lines.map(line => (
822            <Text wrap="truncate-end">
823              {line.map(run => (
824                <Text {...runStyle(run)}>{run.text}</Text>
825              ))}
826            </Text>
827          ))}
828        </Box>
829      )
830    }),
831  )
832}
833
834/** The Text props a drawn table's run carries: only the styles it sets. */
835const runStyle = (run: Run) => ({
836  ...(run.bold ? { bold: true } : {}),
837  ...(run.italic ? { italic: true } : {}),
838  ...(run.dim ? { dimColor: true } : {}),
839  ...(run.code ? { color: CODE_COLOR } : {}),
840  ...(run.link ? { color: LINK_COLOR, underline: true } : {}),
841})
842
843// ── the module ──────────────────────────────────────────────────────────────
844
845export const register: Register = on => {
846  on('session.start', async ($, e, next) => {
847    const started = await next(e)
848    inBackground($, registerFallback($))
849    if (e.isInteractive) {
850      inBackground($, detectRenderers($))
851      // After a reload a file may still be shown; the poll stops on its first tick if not.
852      ensurePolling($)
853    }
854
855    return started
856  })
857
858  // Answered here without `next`, so xorio's command file never reaches the model.
859  // A `/preview` this mod didn't register (the person's own, say) runs untouched.
860  on('command.run', { command: [COMMAND, FALLBACK_COMMAND] }, async ($, e, next) =>
861    e.command === FALLBACK_COMMAND && !(await ownsFallback($)) ? next(e) : runPreview($, e.args),
862  )
863
864  // Bookkeeping runs beside the tool's result, never in front of it.
865  on('tool.call', { tool: ['Write', 'Edit'] }, async ($, e, next) => {
866    const ran = await next(e)
867    if (ran.deny === undefined && ran.isError !== true && isPreviewable(e.file_path)) {
868      inBackground($, recordGenerated($, e.file_path))
869    }
870    return ran
871  }).catch(($, e, next) => next(e))
872
873  // A response row is always stored, so the diagrams are recorded before passing it on.
874  on('session.append', { door: 'response' }, async ($, e, next) => {
875    if (e.agentId === undefined && e.message.type === 'assistant') {
876      const texts = textBlocks(e.message.content).filter(text => text.includes('mermaid'))
877      const sources = texts.flatMap(text => mermaidSources(text, false))
878      if (sources.length > 0) await recordDiagrams($, sources)
879    }
880    return next(e)
881  }).catch(($, e, next) => next(e))
882
883  // The band above the prompt: what Claude just wrote, one key from a preview.
884  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
885    if (e.props.hasSurvey) return next(e)
886    const { docs, replies } = await freshItems($)
887    if (docs.length === 0 && replies.length === 0) return next(e)
888
889    const { Box, Button, Text } = $.ui.resolve(e)
890    const [cwd, home] = await Promise.all([$.session.cwd(), $.env.get('HOME')])
891    const names = docs.slice(0, 2).map(d => displayPath(d.path, cwd, home))
892    const more = docs.length > 2 ? [`+${docs.length - 2} more`] : []
893    const drawn = replies.length > 0 ? [countOf(replies.length, 'diagram')] : []
894    const summary = [...names, ...more, ...drawn].join(', ')
895    const press = (act: (target: DocTarget) => Promise<void>) => async () => {
896      const target = await newestFresh($)
897      if (target !== null) await act(target)
898    }
899
900    return (
901      <Box flexDirection="row" columnGap={1}>
902        <Text dimColor>Preview:</Text>
903        <Box flexShrink={1}>
904          <Text bold wrap="truncate-end">{summary}</Text>
905        </Box>
906        <Button key="preview" label="Open" hotkey="p" variant="primary" onPress={press(target => showTarget($, target))} />
907        <Button
908          key="browser"
909          label="Browser"
910          hotkey="b"
911          onPress={press(async target => {
912            await markSeen($)
913            await openInBrowser($, target)
914          })}
915        />
916        <Button key="dismiss" label="Dismiss" hotkey="x" role="dismiss" onPress={() => markSeen($)} />
917      </Box>
918    )
919  })
920
921  // The pane: a doc (Markdown, tables and diagrams) or the file picker. Everything it
922  // reads is read in one round trip: it redraws on every scroll step.
923  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
924    if (e.viewport !== undefined) screen = { columns: e.viewport.columns, rows: e.viewport.rows }
925    paneColumns = e.props.bodyColumns
926    const [v, cwd, home, docs, replies, asked, found, done, problem] = await Promise.all([
927      read($, view),
928      $.session.cwd(),
929      $.env.get('HOME'),
930      read($, generated),
931      read($, diagrams),
932      read($, sizing),
933      read($, renderers),
934      read($, renders),
935      read($, notice),
936    ])
937    const ctx: PaneContext = {
938      el: $.ui.resolve(e),
939      surface: e.surface,
940      columns: e.props.bodyColumns,
941      offset: e.props.scroll.offset,
942      cwd,
943      home,
944      recent: recentOptions(docs, replies, cwd, home),
945      asked,
946      found,
947      done,
948      problem,
949    }
950
951    return v === null || v.kind === 'picker' ? renderPicker($, ctx, v?.dir || cwd) : renderDoc($, ctx, v)
952  })
953}
954

1// Pure helpers: no `$`, so the tests exercise them directly.
2
3import type { Renderers } from '../types'
4
5export const PANE = 'doc-preview'
6/** `Svg` takes at most 131072 characters. */
7export const MAX_SVG = 131072
8
9const MARKDOWN_FILE = /\.(md|markdown|mdx)$/i
10const MERMAID_FILE = /\.(mmd|mermaid)$/i
11const FENCE_OPEN = /^ {0,3}(`{3,}|~{3,})\s*([^`\s]*)/
12const FENCE_CLOSE = /^ {0,3}(`{3,}|~{3,})\s*$/
13const ESCAPED_PIPE = /\\\|/g
14const LINE_BREAK = /<br\s*\/?>/i
15
16export const isMermaidFile = (path: string): boolean => MERMAID_FILE.test(path)
17export const isPreviewable = (path: string): boolean =>
18  MARKDOWN_FILE.test(path) || MERMAID_FILE.test(path)
19
20export type InlineFormat = 'ascii' | 'svg' | 'png'
21type Align = 'left' | 'center' | 'right'
22export type Table = { header: string[]; align: Align[]; rows: string[][] }
23/** A document in drawing order. A table keeps its Markdown (`source`) for surfaces that draw tables themselves. */
24type Block =
25  | { kind: 'prose'; text: string }
26  | { kind: 'table'; table: Table; source: string }
27  | { kind: 'mermaid'; source: string }
28
29export const errorText = (err: unknown): string => (err instanceof Error ? err.message : String(err))
30
31/** Windows (`\r\n`) and old Mac (`\r`) line endings as `\n`. */
32const toLf = (text: string): string => text.replace(/\r\n?/g, '\n')
33
34/** `1 diagram`, `2 diagrams`. */
35export const countOf = (n: number, noun: string): string => `${n} ${noun}${n === 1 ? '' : 's'}`
36
37/** `fresh` then `old`, each id once (its first, so newest, entry), at most `max`. */
38export function newestFirst<T>(fresh: readonly T[], old: readonly T[], idOf: (item: T) => string, max: number): T[] {
39  const byId = new Map<string, T>()
40  for (const item of [...fresh, ...old]) if (!byId.has(idOf(item))) byId.set(idOf(item), item)
41
42  return [...byId.values()].slice(0, max)
43}
44
45const closes = (line: string, marker: string): boolean => {
46  const fence = FENCE_CLOSE.exec(line)?.[1]
47  return fence !== undefined && fence[0] === marker[0] && fence.length >= marker.length
48}
49
50/**
51 * Splits a document into prose, GFM tables and ```mermaid blocks, in order,
52 * in one pass. Fenced code stays prose (tables and mermaid inside it too); an
53 * unclosed mermaid fence is shown as written.
54 */
55export function splitDoc(text: string, isMermaid: boolean): Block[] {
56  const lf = toLf(text)
57  if (isMermaid) return lf.trim() === '' ? [] : [{ kind: 'mermaid', source: lf.trim() }]
58  const lines = lf.split('\n')
59  const blocks: Block[] = []
60  let prose: string[] = []
61  const flush = () => {
62    if (prose.join('').trim() !== '') blocks.push({ kind: 'prose', text: prose.join('\n') })
63    prose = []
64  }
65  for (let i = 0; i < lines.length; i++) {
66    const line = lines[i] ?? ''
67    const open = FENCE_OPEN.exec(line)
68    if (open) {
69      const marker = open[1] ?? '```'
70      let end = i + 1
71      while (end < lines.length && !closes(lines[end] ?? '', marker)) end++
72      if (end < lines.length && (open[2] ?? '').toLowerCase() === 'mermaid') {
73        flush()
74        blocks.push({ kind: 'mermaid', source: lines.slice(i + 1, end).join('\n') })
75      } else {
76        prose.push(...lines.slice(i, end + 1))
77      }
78      i = end
79      continue
80    }
81    const table = tableAt(lines, i)
82    if (table === null) {
83      prose.push(line)
84      continue
85    }
86    flush()
87    blocks.push(table.block)
88    i = table.end - 1
89  }
90  flush()
91
92  return blocks
93}
94
95export const mermaidSources = (text: string, isMermaid: boolean): string[] =>
96  splitDoc(text, isMermaid).flatMap(b => (b.kind === 'mermaid' ? [b.source] : []))
97
98const TABLE_DELIMITER = /^\s*\|?\s*:?-+:?\s*(\|\s*:?-+:?\s*)*\|?\s*$/
99
100const splitRow = (line: string): string[] => {
101  let row = line.trim()
102  if (row.startsWith('|')) row = row.slice(1)
103  if (row.endsWith('|') && !row.endsWith('\\|')) row = row.slice(0, -1)
104  return row.split(/(?<!\\)\|/).map(cell => cell.trim())
105}
106
107const alignOf = (cell: string): Align => {
108  const c = cell.trim()
109  if (c.startsWith(':') && c.endsWith(':')) return 'center'
110  return c.endsWith(':') ? 'right' : 'left'
111}
112
113/** The GFM table starting at `lines[i]` (a header row, then a delimiter row), and the line after it. */
114function tableAt(lines: string[], i: number): { block: Block; end: number } | null {
115  const line = lines[i] ?? ''
116  const delimiter = lines[i + 1] ?? ''
117  if (!line.includes('|') || !delimiter.includes('|') || !TABLE_DELIMITER.test(delimiter)) return null
118  const header = splitRow(line)
119  const align = splitRow(delimiter).map(alignOf)
120  if (align.length !== header.length) return null
121  let end = i + 2
122  while (end < lines.length && (lines[end] ?? '').includes('|') && (lines[end] ?? '').trim() !== '') end++
123  const rows = lines
124    .slice(i + 2, end)
125    .map(splitRow)
126    .map(row => header.map((_, c) => row[c] ?? ''))
127
128  return { block: { kind: 'table', table: { header, align, rows }, source: lines.slice(i, end).join('\n') }, end }
129}
130
131/** A table as nested list items: the first cell names the item, the rest are `header: cell`. */
132export function tableAsList(table: Table): string {
133  const unescape = (cell: string) => cell.replace(ESCAPED_PIPE, '|').replace(new RegExp(LINE_BREAK, 'gi'), ' ')
134  return table.rows
135    .flatMap(row => {
136      const [first = '', ...rest] = row
137      const fields = rest.flatMap((cell, c) => {
138        const name = table.header[c + 1] ?? ''
139        return cell === '' ? [] : [`  - ${name === '' ? '' : `${unescape(name)}: `}${unescape(cell)}`]
140      })
141      return [`- **${unescape(first) || '—'}**`, ...fields]
142    })
143    .join('\n')
144}
145
146/** A styled stretch of text in a drawn table: a cell's inline Markdown, or a border. */
147export type Run = { text: string; code?: true; bold?: true; italic?: true; link?: true; dim?: true }
148export type TableLine = Run[]
149
150const INLINE =
151  /`([^`]+)`|\*\*(.+?)\*\*|__(.+?)__|(?<![\w*])\*(?!\s)(.+?)\*(?!\w)|(?<![\w_])_(?!\s)(.+?)_(?!\w)|!?\[([^\]]*)\]\([^)]*\)/g
152
153/** A cell's inline Markdown as runs: code, bold, italic and link text, the rest plain. */
154export function inlineRuns(text: string, base: Omit<Run, 'text'> = {}): Run[] {
155  const runs: Run[] = []
156  let at = 0
157  for (const m of text.matchAll(INLINE)) {
158    if (m.index > at) runs.push({ ...base, text: text.slice(at, m.index) })
159    const [, code, bold1, bold2, italic1, italic2, link] = m
160    if (code !== undefined) runs.push({ ...base, text: code, code: true })
161    else if (bold1 !== undefined || bold2 !== undefined) runs.push({ ...base, text: bold1 ?? bold2 ?? '', bold: true })
162    else if (italic1 !== undefined || italic2 !== undefined) runs.push({ ...base, text: italic1 ?? italic2 ?? '', italic: true })
163    else runs.push({ ...base, text: link ?? '', link: true })
164    at = m.index + m[0].length
165  }
166  if (at < text.length) runs.push({ ...base, text: text.slice(at) })
167
168  return runs.filter(run => run.text !== '')
169}
170
171const widthOf = (text: string): number => [...text].length
172const runsWidth = (runs: readonly Run[]): number => runs.reduce((sum, run) => sum + widthOf(run.text), 0)
173const sameStyle = (a: Run, b: Run) =>
174  a.code === b.code && a.bold === b.bold && a.italic === b.italic && a.link === b.link && a.dim === b.dim
175
176/** A cell's lines (`<br>` breaks, `\|` unescaped), each as runs. */
177const cellLines = (cell: string, base: Omit<Run, 'text'>): Run[][] =>
178  cell
179    .replace(ESCAPED_PIPE, '|')
180    .split(LINE_BREAK)
181    .map(line => inlineRuns(line.trim(), base))
182
183/** Word-wraps runs to `width`, breaking a word only when it is wider than a line. */
184export function wrapRuns(runs: readonly Run[], width: number): Run[][] {
185  const lines: Run[][] = [[]]
186  let used = 0
187  const newLine = () => {
188    lines.push([])
189    used = 0
190  }
191  const put = (run: Run) => {
192    const line = lines[lines.length - 1] ?? []
193    const last = line[line.length - 1]
194    if (last !== undefined && sameStyle(last, run)) last.text += run.text
195    else line.push({ ...run })
196    used += widthOf(run.text)
197  }
198  for (const run of runs) {
199    for (const token of run.text.split(/(\s+)/)) {
200      if (token === '') continue
201      if (/^\s+$/.test(token)) {
202        if (used > 0 && used < width) put({ ...run, text: ' ' })
203        continue
204      }
205      let chars = [...token]
206      while (chars.length > 0) {
207        if (chars.length <= width - used) {
208          put({ ...run, text: chars.join('') })
209          break
210        }
211        if (used > 0) {
212          newLine()
213          continue
214        }
215        put({ ...run, text: chars.slice(0, width).join('') })
216        chars = chars.slice(width)
217        if (chars.length > 0) newLine()
218      }
219    }
220  }
221  for (const line of lines) {
222    const last = line[line.length - 1]
223    if (last !== undefined) last.text = last.text.trimEnd()
224  }
225
226  return lines.map(line => line.filter(run => run.text !== ''))
227}
228
229/**
230 * Column widths that fit `available` cells: columns at their natural width
231 * when they all fit, else the widest ones capped at one level (they wrap) so
232 * the narrow ones keep theirs. Null when even the minimums don't fit.
233 */
234export function layoutColumns(natural: number[], minimum: number[], available: number): number[] | null {
235  const sum = (widths: number[]) => widths.reduce((total, w) => total + w, 0)
236  if (sum(natural) <= available) return natural
237  if (sum(minimum) > available) return null
238  const capped = (level: number) => natural.map((w, c) => Math.max(minimum[c] ?? 1, Math.min(w, level)))
239  let level = 1
240  while (sum(capped(level + 1)) <= available) level++
241  const widths = capped(level)
242  // Hand the cells left over to the capped columns, one each, left to right.
243  for (let c = 0; c < widths.length && sum(widths) < available; c++) {
244    if ((natural[c] ?? 0) > (widths[c] ?? 0)) widths[c] = (widths[c] ?? 0) + 1
245  }
246
247  return widths
248}
249
250const pad = (runs: Run[], width: number, align: Align): Run[] => {
251  const room = Math.max(0, width - runsWidth(runs))
252  const left = align === 'right' ? room : align === 'center' ? Math.floor(room / 2) : 0
253  const space = (n: number): Run[] => (n > 0 ? [{ text: ' '.repeat(n) }] : [])
254
255  return [...space(left), ...runs, ...space(room - left)]
256}
257
258/** The narrowest a column may wrap to: its longest word (up to a cap), or less when that won't fit. */
259const MIN_COLUMN = 6
260const WORD_CAP = 24
261
262/**
263 * A table drawn as boxed text lines that fit `columns` cells: cells wrap
264 * inside their column, `<br>` breaks a line, the header is bold, and a rule
265 * separates the rows once any of them wraps. Null when it cannot fit.
266 */
267export function tableLines(table: Table, columns: number): TableLine[] | null {
268  const count = table.header.length
269  const cells = [table.header, ...table.rows].map((row, r) =>
270    row.map(cell => cellLines(cell, r === 0 ? { bold: true } : {})),
271  )
272  const natural = table.header.map((_, c) =>
273    Math.max(1, ...cells.map(row => Math.max(0, ...(row[c] ?? []).map(runsWidth)))),
274  )
275  const longestWord = table.header.map((_, c) =>
276    Math.max(
277      1,
278      ...cells.flatMap(row => (row[c] ?? []).flatMap(line => line.flatMap(run => run.text.split(/\s+/).map(widthOf)))),
279    ),
280  )
281  const available = columns - (3 * count + 1)
282  const widths =
283    layoutColumns(natural, natural.map((w, c) => Math.min(w, Math.max(MIN_COLUMN, Math.min(longestWord[c] ?? 1, WORD_CAP)))), available) ??
284    layoutColumns(natural, natural.map(w => Math.min(w, MIN_COLUMN)), available)
285  if (widths === null) return null
286
287  const border = (left: string, joint: string, right: string): TableLine => [
288    { text: `${left}${widths.map(w => '─'.repeat(w + 2)).join(joint)}${right}`, dim: true },
289  ]
290  const bar: Run = { text: '│', dim: true }
291  const drawRow = (row: Run[][][]): TableLine[] => {
292    const wrapped = row.map((lines, c) => lines.flatMap(line => wrapRuns(line, widths[c] ?? 1)))
293    const height = Math.max(1, ...wrapped.map(lines => lines.length))
294    return Array.from({ length: height }, (_, l) => [
295      bar,
296      ...wrapped.flatMap((lines, c) => [
297        { text: ' ' },
298        ...pad(lines[l] ?? [], widths[c] ?? 1, table.align[c] ?? 'left'),
299        { text: ' ' },
300        bar,
301      ]),
302    ])
303  }
304  const [header = [], ...body] = cells
305  const drawnBody = body.map(drawRow)
306  const hasWrapped = drawnBody.some(lines => lines.length > 1)
307
308  return [
309    border('┌', '┬', '┐'),
310    ...drawRow(header),
311    border('├', '┼', '┤'),
312    ...drawnBody.flatMap((lines, r) => (hasWrapped && r > 0 ? [border('├', '┼', '┤'), ...lines] : lines)),
313    border('└', '┴', '┘'),
314  ]
315}
316
317/** Resolves what the person typed: quotes, `file://`, `~`, relative to `cwd`, `.` and `..`. */
318export function expandPath(input: string, cwd: string, home: string | undefined): string {
319  let path = input.trim().replace(/^(['"])(.*)\1$/, '$2')
320  if (path.startsWith('file://')) path = decodeURIComponent(path.slice('file://'.length))
321  if (home !== undefined && (path === '~' || path.startsWith('~/'))) path = home + path.slice(1)
322  if (/^[A-Za-z]:[\\/]/.test(path)) return path
323
324  return normalize(path.startsWith('/') ? path : `${cwd}/${path}`)
325}
326
327function normalize(path: string): string {
328  const isAbsolute = path.startsWith('/')
329  const parts: string[] = []
330  for (const part of path.split('/')) {
331    if (part === '' || part === '.') continue
332    if (part !== '..') parts.push(part)
333    else if (parts.length > 0 && parts[parts.length - 1] !== '..') parts.pop()
334    else if (!isAbsolute) parts.push('..')
335  }
336
337  return (isAbsolute ? '/' : '') + parts.join('/')
338}
339
340export const parentDir = (path: string): string => normalize(`${path}/..`)
341export const baseName = (path: string): string => path.split('/').pop() || path
342
343/** Short form for display: relative under `cwd`, `~/` under `home`, else as is. */
344export function displayPath(path: string, cwd: string, home: string | undefined): string {
345  if (path === cwd) return '.'
346  if (path.startsWith(`${cwd}/`)) return path.slice(cwd.length + 1)
347  if (home !== undefined && path.startsWith(`${home}/`)) return `~${path.slice(home.length)}`
348
349  return path
350}
351
352export function formatSize(bytes: number): string {
353  if (bytes < 1024) return `${bytes} B`
354  if (bytes < 1024 * 1024) return `${(bytes / 1024).toFixed(1)} KB`
355
356  return `${(bytes / 1024 / 1024).toFixed(1)} MB`
357}
358
359/** A short, stable hash (cyrb53) for cache keys and file names. */
360export function hashText(text: string): string {
361  let h1 = 0xdeadbeef
362  let h2 = 0x41c6ce57
363  for (let i = 0; i < text.length; i++) {
364    const c = text.charCodeAt(i)
365    h1 = Math.imul(h1 ^ c, 2654435761)
366    h2 = Math.imul(h2 ^ c, 1597334677)
367  }
368  h1 = Math.imul(h1 ^ (h1 >>> 16), 2246822507) ^ Math.imul(h2 ^ (h2 >>> 13), 3266489909)
369  h2 = Math.imul(h2 ^ (h2 >>> 16), 2246822507) ^ Math.imul(h1 ^ (h1 >>> 13), 3266489909)
370
371  return (4294967296 * (2097151 & h2) + (h1 >>> 0)).toString(36)
372}
373
374/** A diagram's frontmatter title, its kind, and its lines trimmed, with blanks and `%%` comments dropped. */
375function diagramParts(raw: string): { title: string | undefined; kind: string; lines: string[] } {
376  const source = toLf(raw)
377  const frontmatter = /^\s*---\n([\s\S]*?)\n---\s*\n/.exec(source)
378  const title = /^\s*title:\s*(.+)$/m.exec(frontmatter?.[1] ?? '')?.[1]?.trim()
379  const body = frontmatter ? source.slice(frontmatter[0].length) : source
380  const lines = body
381    .split('\n')
382    .map(line => line.trim())
383    .filter(line => line !== '' && !line.startsWith('%%'))
384
385  return { title, kind: lines[0]?.split(/\s+/)[0] ?? 'diagram', lines }
386}
387
388/** The diagram type: the first word of its first line (`flowchart`, `pie`, `stateDiagram-v2`). */
389export const diagramKind = (source: string): string => diagramParts(source).kind
390
391/** `flowchart`, `sequenceDiagram: Login`, ...: the diagram type plus its title, if any. */
392export function diagramTitle(source: string): string {
393  const { title, kind } = diagramParts(source)
394  const label = title ? `${kind}: ${title}` : kind
395
396  return label.length > 48 ? `${label.slice(0, 47)}…` : label
397}
398
399/** Text padded, or cut with an ellipsis, to exactly `width` cells. */
400const fit = (text: string, width: number): string => {
401  const chars = [...text]
402  return chars.length > width
403    ? `${chars.slice(0, Math.max(0, width - 1)).join('')}…`
404    : text + ' '.repeat(width - chars.length)
405}
406
407/**
408 * How the terminal draws the kinds mermaid-ascii can't take as written
409 * (it draws flowcharts, sequence and ER diagrams): as plain text here, which
410 * needs no renderer, or rewritten as a flowchart first. Every other kind goes
411 * to mermaid-ascii as is.
412 */
413const TEXT_CHARTS: Record<string, (source: string, width: number) => string | null> = {
414  pie: pieChart,
415  gantt: ganttChart,
416}
417const AS_FLOWCHART: Record<string, (source: string) => string | null> = {
418  stateDiagram: stateToFlowchart,
419  'stateDiagram-v2': stateToFlowchart,
420  classDiagram: classToFlowchart,
421  'classDiagram-v2': classToFlowchart,
422}
423
424/** Whether the kind is drawn as text here (pie, gantt), never by mermaid-ascii. */
425export const isTextChart = (source: string): boolean => diagramKind(source) in TEXT_CHARTS
426
427/** A pie or gantt chart as text; null for other kinds and for syntax the parsers don't follow. */
428export const textChart = (source: string, width: number): string | null =>
429  TEXT_CHARTS[diagramKind(source)]?.(source, width) ?? null
430
431/** What mermaid-ascii is given: the source, or a state or class diagram rewritten as a flowchart. */
432export const asciiSource = (source: string): string => AS_FLOWCHART[diagramKind(source)]?.(source) ?? source
433
434/** A pie chart as labelled bars scaled to the largest slice, each with its value and share. */
435export function pieChart(source: string, width: number): string | null {
436  const parts = diagramParts(source)
437  let title = parts.title
438  const slices: { label: string; value: number }[] = []
439  for (const line of parts.lines) {
440    const head = /^pie\b(?:\s+showData)?(?:\s+title\s+(.+))?$/.exec(line)
441    const named = /^title\s+(.+)$/.exec(line)
442    const slice = /^"([^"]*)"\s*:\s*(\d*\.?\d+)$/.exec(line)
443    if (head) title = head[1]?.trim() ?? title
444    else if (named) title = named[1]?.trim() ?? title
445    else if (slice) slices.push({ label: slice[1] ?? '', value: Number(slice[2]) })
446    else if (line !== 'showData') return null
447  }
448  const total = slices.reduce((sum, s) => sum + s.value, 0)
449  const largest = Math.max(0, ...slices.map(s => s.value))
450  if (slices.length === 0 || largest <= 0) return null
451
452  const labelWidth = Math.min(Math.max(...slices.map(s => widthOf(s.label))), Math.max(8, Math.floor(width / 3)))
453  const values = slices.map(s => String(s.value))
454  const valueWidth = Math.max(...values.map(v => v.length))
455  // label, 2 spaces, bar, 1 space, value, 2 spaces, a share like "100.0%"
456  const barWidth = Math.max(4, width - labelWidth - valueWidth - 11)
457  const rows = slices.map((s, i) => {
458    const length = Math.max(s.value > 0 ? 1 : 0, Math.round((s.value / largest) * barWidth))
459    const share = `${((s.value / total) * 100).toFixed(1)}%`
460    return `${fit(s.label, labelWidth)}  ${'█'.repeat(length).padEnd(barWidth)} ${(values[i] ?? '').padStart(valueWidth)}  ${share.padStart(6)}`
461  })
462
463  return [...(title ? [title, ''] : []), ...rows].join('\n')
464}
465
466const DAY_MS = 86_400_000
467const GANTT_TAGS = new Set(['done', 'active', 'crit', 'milestone'])
468const GANTT_SETTINGS =
469  /^(title|dateFormat|axisFormat|tickInterval|excludes|includes|todayMarker|weekday|inclusiveEndDates|topAxis)\b\s*(.*)$/
470
471const parseDay = (text: string): number | null => {
472  const m = /^(\d{4})-(\d{2})-(\d{2})$/.exec(text.trim())
473  return m ? Date.UTC(Number(m[1]), Number(m[2]) - 1, Number(m[3])) / DAY_MS : null
474}
475const formatDay = (day: number): string => new Date(day * DAY_MS).toISOString().slice(0, 10)
476const parseLength = (text: string): number | null => {
477  const m = /^(\d*\.?\d+)\s*([dwh])$/.exec(text.trim())
478  if (!m) return null
479  const n = Number(m[1])
480  return m[2] === 'w' ? n * 7 : m[2] === 'h' ? n / 24 : n
481}
482const startOf = (text: string, ends: Map<string, number>): number | null => {
483  const after = /^after\s+(.+)$/.exec(text)
484  if (!after) return parseDay(text)
485  const days = (after[1] ?? '').split(/\s+/).map(id => ends.get(id))
486  return days.every(day => day !== undefined) ? Math.max(...(days as number[])) : null
487}
488
489/**
490 * A gantt chart as a day-scale timeline: tasks under their sections, a bar
491 * each (`▒` done, `◆` milestone). Dates must be `YYYY-MM-DD`; a task's
492 * `:[tags,][id,][start,]end` follows Mermaid's forms (start a date or
493 * `after id`, end a date or a length in d, w or h).
494 */
495export function ganttChart(source: string, width: number): string | null {
496  const parts = diagramParts(source)
497  let title = parts.title
498  let section: string | undefined
499  const tasks: { section: string | undefined; name: string; start: number; end: number; tags: Set<string> }[] = []
500  const ends = new Map<string, number>()
501  for (const line of parts.lines.slice(1)) {
502    const setting = GANTT_SETTINGS.exec(line)
503    if (setting) {
504      if (setting[1] === 'title') title = setting[2]?.trim() || title
505      if (setting[1] === 'dateFormat' && setting[2]?.trim() !== 'YYYY-MM-DD') return null
506      continue
507    }
508    const header = /^section\s+(.+)$/.exec(line)
509    if (header) {
510      section = header[1]?.trim()
511      continue
512    }
513    const task = /^(.+?)\s*:\s*(.+)$/.exec(line)
514    if (!task) return null
515    const items = (task[2] ?? '').split(',').map(item => item.trim()).filter(item => item !== '')
516    const tags = new Set<string>()
517    while (items.length > 0 && GANTT_TAGS.has(items[0] ?? '')) tags.add(items.shift() ?? '')
518    if (items.length === 0 || items.length > 3) return null
519    const [id, startText, endText] =
520      items.length === 3 ? items : items.length === 2 ? [undefined, ...items] : [undefined, undefined, ...items]
521    const start = startText === undefined ? tasks[tasks.length - 1]?.end : startOf(startText, ends)
522    if (start === undefined || start === null || endText === undefined) return null
523    const length = parseLength(endText)
524    const end = parseDay(endText) ?? (length === null ? null : start + length)
525    if (end === null || end < start) return null
526    tasks.push({ section, name: task[1]?.trim() ?? '', start, end, tags })
527    if (id !== undefined) ends.set(id, end)
528  }
529  if (tasks.length === 0) return null
530
531  const first = Math.min(...tasks.map(t => t.start))
532  const last = Math.max(...tasks.map(t => t.end))
533  const nameWidth = Math.min(Math.max(...tasks.map(t => widthOf(t.name))) + 2, Math.max(10, Math.floor(width / 3)))
534  const chartWidth = Math.max(10, width - nameWidth - 1)
535  const scale = chartWidth / Math.max(1, last - first)
536  const [from, to] = [formatDay(first), formatDay(last)]
537  const axis = ' '.repeat(nameWidth + 1) + (chartWidth >= from.length + to.length + 1 ? from + to.padStart(chartWidth - from.length) : from)
538  const out = [...(title ? [title, ''] : []), axis]
539  let shown: string | undefined | null = null
540  for (const t of tasks) {
541    if (t.section !== shown) {
542      if (t.section !== undefined) out.push(t.section)
543      shown = t.section
544    }
545    const left = Math.min(chartWidth - 1, Math.floor((t.start - first) * scale))
546    const right = Math.max(left + 1, Math.min(chartWidth, Math.round((t.end - first) * scale)))
547    const bar = t.tags.has('milestone') || t.end === t.start ? '◆' : (t.tags.has('done') ? '▒' : '█').repeat(right - left)
548    out.push(`${fit(`  ${t.name}`, nameWidth)} ${' '.repeat(left)}${bar}`)
549  }
550
551  return out.join('\n')
552}
553
554/** Text safe inside a flowchart node or edge label: no brackets, braces, pipes or quotes. */
555const flowText = (text: string): string =>
556  text
557    .replace(/[[\]{}()|"<>]/g, ' ')
558    .replace(/\s+/g, ' ')
559    .trim()
560const flowId = (name: string): string => name.replace(/~[^~]*~/g, '').replace(/\W/g, '_')
561/** A `direction` line's flowchart direction (mermaid-ascii draws LR and TD), or null for another line. */
562const flowDirection = (line: string): 'LR' | 'TD' | null => {
563  const turn = /^direction\s+(LR|RL|TB|TD|BT)$/.exec(line)?.[1]
564  if (turn === undefined) return null
565  return turn === 'LR' || turn === 'RL' ? 'LR' : 'TD'
566}
567const flowEdge = (from: string, to: string, label: string): string =>
568  label === '' ? `  ${from} --> ${to}` : `  ${from} -->|${label}| ${to}`
569const flowchart = (direction: string, labels: Map<string, string>, edges: string[]): string =>
570  [`flowchart ${direction}`, ...[...labels].map(([id, label]) => `  ${id}[${flowText(label) || id}]`), ...edges].join('\n')
571
572/**
573 * A state diagram as a flowchart: states become boxes (`[*]` a start or end
574 * box), transitions become edges with their labels. Null for composite
575 * states, forks, choices and concurrency, which a flat flowchart can't hold.
576 */
577export function stateToFlowchart(source: string): string | null {
578  const labels = new Map<string, string>()
579  const edges: string[] = []
580  let direction = 'LR'
581  let inNote = false
582  const state = (name: string, side: 'from' | 'to'): string => {
583    if (name === '[*]') {
584      const id = side === 'from' ? 'START' : 'END'
585      labels.set(id, side === 'from' ? 'start' : 'end')
586      return id
587    }
588    const id = flowId(name)
589    if (!labels.has(id)) labels.set(id, name)
590    return id
591  }
592  for (const line of diagramParts(source).lines.slice(1)) {
593    if (inNote) {
594      if (/^end note$/i.test(line)) inNote = false
595      continue
596    }
597    if (/^note\b/i.test(line)) {
598      inNote = !line.includes(':')
599      continue
600    }
601    const turn = flowDirection(line)
602    if (turn !== null) {
603      direction = turn
604      continue
605    }
606    if (/[{}]|<<|^--$/.test(line)) return null
607    const named = /^state\s+"([^"]+)"\s+as\s+([\w.-]+)$/.exec(line)
608    const edge = /^(\[\*\]|[\w.-]+)\s*-->\s*(\[\*\]|[\w.-]+)\s*(?::\s*(.+))?$/.exec(line)
609    const described = /^([\w.-]+)\s*:\s*(.+)$/.exec(line)
610    if (named) labels.set(flowId(named[2] ?? ''), named[1] ?? '')
611    else if (edge) edges.push(flowEdge(state(edge[1] ?? '', 'from'), state(edge[2] ?? '', 'to'), flowText(edge[3] ?? '')))
612    else if (described) labels.set(flowId(described[1] ?? ''), described[2] ?? '')
613    else if (/^[\w.-]+$/.test(line)) state(line, 'from')
614    else return null
615  }
616
617  return edges.length === 0 ? null : flowchart(direction, labels, edges)
618}
619
620/** Class relationship arrows: whether the edge points from right to left, and its label when the line has none. */
621const RELATIONS: Record<string, { isReversed: boolean; label: string }> = {
622  '<|--': { isReversed: true, label: 'extends' },
623  '--|>': { isReversed: false, label: 'extends' },
624  '<|..': { isReversed: true, label: 'implements' },
625  '..|>': { isReversed: false, label: 'implements' },
626  '*--': { isReversed: false, label: 'has' },
627  '--*': { isReversed: true, label: 'has' },
628  'o--': { isReversed: false, label: 'has' },
629  '--o': { isReversed: true, label: 'has' },
630  '<--': { isReversed: true, label: '' },
631  '-->': { isReversed: false, label: '' },
632  '<..': { isReversed: true, label: '' },
633  '..>': { isReversed: false, label: '' },
634  '--': { isReversed: false, label: '' },
635  '..': { isReversed: false, label: '' },
636}
637const RELATION =
638  /^([\w~]+)\s*(?:"[^"]*"\s*)?(<\|--|--\|>|<\|\.\.|\.\.\|>|\*--|--\*|o--|--o|<--|-->|<\.\.|\.\.>|--|\.\.)\s*(?:"[^"]*"\s*)?([\w~]+)\s*(?::\s*(.+))?$/
639const CLASS_IGNORED = /^(note|cssClass|style|classDef|click|link|callback|<<|namespace\b|}$)/
640
641/**
642 * A class diagram as a flowchart: classes become boxes and relationships
643 * edges (inheritance as `extends`, composition and aggregation as `has`
644 * unless labelled). Members are dropped: a flowchart box holds one line.
645 */
646export function classToFlowchart(source: string): string | null {
647  const labels = new Map<string, string>()
648  const edges: string[] = []
649  let direction = 'LR'
650  let inBody = false
651  const klass = (name: string): string => {
652    const id = flowId(name)
653    if (!labels.has(id)) labels.set(id, name.replace(/~[^~]*~/g, ''))
654    return id
655  }
656  for (const line of diagramParts(source).lines.slice(1)) {
657    if (inBody) {
658      if (line.startsWith('}')) inBody = false
659      continue
660    }
661    const turn = flowDirection(line)
662    const declared = /^class\s+([\w~]+)(?:\s*\[[^\]]*\])?\s*(\{)?\s*$/.exec(line)
663    const relation = RELATION.exec(line)
664    const member = /^([\w~]+)\s*:\s*.+$/.exec(line)
665    if (turn !== null) direction = turn
666    else if (declared) {
667      klass(declared[1] ?? '')
668      inBody = declared[2] !== undefined
669    } else if (relation) {
670      const [left, right] = [klass(relation[1] ?? ''), klass(relation[3] ?? '')]
671      const kind = RELATIONS[relation[2] ?? ''] ?? { isReversed: false, label: '' }
672      const [from, to] = kind.isReversed ? [right, left] : [left, right]
673      edges.push(flowEdge(from, to, flowText(relation[4] ?? '') || kind.label))
674    } else if (member) klass(member[1] ?? '')
675    else if (!CLASS_IGNORED.test(line)) return null
676  }
677
678  return labels.size === 0 ? null : flowchart(direction, labels, edges)
679}
680
681/** Drops ANSI escapes and every control character but tab and newline. */
682export const stripAnsi = (text: string): string =>
683  text
684    .replace(/\x1b\[[0-?]*[ -/]*[@-~]/g, '')
685    .replace(/\x1b\][^\x07\x1b]*(\x07|\x1b\\)/g, '')
686    .replace(/[\x00-\x08\x0b-\x1f\x7f]/g, '')
687
688/** A tool's output as its first non-blank line, ANSI stripped. */
689export const firstLine = (text: string): string =>
690  stripAnsi(text).split('\n').map(line => line.trim()).find(line => line !== '') ?? ''
691
692/**
693 * A renderer's failure as one readable line: a logrus `msg="…"` unwrapped,
694 * and mermaid-ascii's "unsupported graph type" said as which kind it can't draw.
695 */
696export function rendererError(output: string, kind: string): string {
697  const line = firstLine(output)
698  const message = /msg="((?:[^"\\]|\\.)*)"/.exec(line)?.[1]?.replace(/\\"/g, '"') ?? line
699
700  return /unsupported graph type/i.test(message) ? `mermaid-ascii can't draw ${kind} diagrams` : message
701}
702
703/** Width and height from a base64 PNG's IHDR chunk; null when it is no PNG. */
704export function pngSize(base64: string): { width: number; height: number } | null {
705  let bytes: number[]
706  try {
707    bytes = [...atob(base64.slice(0, 32))].map(c => c.charCodeAt(0))
708  } catch {
709    return null
710  }
711  const at = (i: number) => bytes[i] ?? 0
712  const isPng = at(0) === 137 && at(1) === 80 && at(2) === 78 && at(3) === 71
713  if (!isPng || bytes.length < 24) return null
714  const u32 = (i: number) => ((at(i) << 24) | (at(i + 1) << 16) | (at(i + 2) << 8) | at(i + 3)) >>> 0
715
716  return { width: u32(16), height: u32(20) }
717}
718
719/** Terminal cells for a picture: about 16 px a column at mmdc's scale 2, cells twice as tall as wide. */
720export function imageBox(
721  size: { width: number; height: number },
722  maxColumns: number,
723): { columns: number; rows: number } {
724  const columns = Math.max(8, Math.min(maxColumns, 255, Math.round(size.width / 16)))
725  const rows = Math.round((columns * size.height) / Math.max(1, size.width) / 2)
726
727  return { columns, rows: Math.max(2, Math.min(255, rows)) }
728}
729
730/** Which inline format a surface gets, or null to show the diagram's source. */
731export function formatFor(surface: string, renderers: Renderers | null): InlineFormat | null {
732  if (renderers === null) return null
733  if (surface === 'terminal') {
734    if (renderers.isKitty && renderers.mmdc) return 'png'
735
736    return renderers.ascii ? 'ascii' : null
737  }
738  if (renderers.mmdc) return 'svg'
739
740  return renderers.ascii ? 'ascii' : null
741}
742
743/**
744 * A render's cache key: a hash of what the renderer is given (for ASCII the
745 * flowchart a state or class diagram becomes), so a converter change makes
746 * new keys by itself.
747 */
748export const renderKey = (source: string, format: InlineFormat): string =>
749  `${hashText(format === 'ascii' ? asciiSource(source) : source)}.${format}`
750
751const escapeHtml = (text: string): string =>
752  text.replace(/[&<>"']/g, c => `&#${c.charCodeAt(0)};`)
753
754/** JSON safe to embed in a <script>: no `</script>`, no line separators. */
755const scriptJson = (value: unknown): string =>
756  JSON.stringify(value)
757    .replace(/</g, '\\u003c')
758    .replace(/\u2028/g, '\\u2028')
759    .replace(/\u2029/g, '\\u2029')
760
761/**
762 * A standalone page that renders the document in the browser: Markdown through
763 * marked + DOMPurify, ```mermaid blocks and .mmd files through mermaid.js, all
764 * from jsDelivr. A strict CSP and Mermaid's strict security level keep the
765 * document's own HTML from running script.
766 */
767export function previewHtml(doc: {
768  title: string
769  source: string
770  isMermaid: boolean
771  baseDir?: string
772}): string {
773  const base =
774    doc.baseDir === undefined
775      ? ''
776      : `<base href="${escapeHtml(`file://${encodeURI(`${doc.baseDir}/`)}`)}">`
777
778  return `<!doctype html>
779<html lang="en">
780<head>
781<meta charset="utf-8">
782<meta name="viewport" content="width=device-width, initial-scale=1">
783<meta http-equiv="Content-Security-Policy" content="default-src 'none'; script-src 'unsafe-inline' https://cdn.jsdelivr.net; style-src 'unsafe-inline'; img-src * data: file:; font-src data:">
784${base}
785<title>${escapeHtml(doc.title)}</title>
786<style>
787  :root { color-scheme: light dark; --fg: #1f2328; --muted: #59636e; --bg: #ffffff; --code: #f6f8fa; --line: #d1d9e0; --link: #0969da; }
788  @media (prefers-color-scheme: dark) {
789    :root { --fg: #e6edf3; --muted: #9198a1; --bg: #0d1117; --code: #151b23; --line: #3d444d; --link: #4493f8; }
790  }
791  body { margin: 0; background: var(--bg); color: var(--fg); font: 16px/1.6 -apple-system, BlinkMacSystemFont, "Segoe UI", system-ui, sans-serif; }
792  main { max-width: 900px; margin: 0 auto; padding: 32px 16px 64px; }
793  header { color: var(--muted); font-size: 13px; border-bottom: 1px solid var(--line); padding-bottom: 8px; margin-bottom: 24px; }
794  a { color: var(--link); }
795  h1, h2 { border-bottom: 1px solid var(--line); padding-bottom: .3em; }
796  code, pre { font-family: ui-monospace, SFMono-Regular, Menlo, Consolas, monospace; font-size: 85%; }
797  code { background: var(--code); padding: .2em .4em; border-radius: 6px; }
798  pre { background: var(--code); padding: 16px; border-radius: 6px; overflow: auto; }
799  pre code { background: none; padding: 0; font-size: 100%; }
800  pre.mermaid { background: #ffffff; text-align: center; }
801  table { border-collapse: collapse; display: block; overflow: auto; }
802  th, td { border: 1px solid var(--line); padding: 6px 13px; }
803  blockquote { margin: 0; padding: 0 1em; color: var(--muted); border-left: .25em solid var(--line); }
804  img { max-width: 100%; }
805</style>
806<script src="https://cdn.jsdelivr.net/npm/marked@15.0.12/marked.min.js" integrity="sha384-948ahk4ZmxYVYOc+rxN1H2gM1EJ2Duhp7uHtZ4WSLkV4Vtx5MUqnV+l7u9B+jFv+" crossorigin="anonymous"></script>
807<script src="https://cdn.jsdelivr.net/npm/dompurify@3.4.16/dist/purify.min.js" integrity="sha384-a7SzOxErzJ3ZpQz0zJ32d67dSitNzPcbfybc/ykU9KJhMgZkwqfSxlhhdJRS+XGL" crossorigin="anonymous"></script>
808<script src="https://cdn.jsdelivr.net/npm/mermaid@11.17.2/dist/mermaid.min.js" integrity="sha384-EOXBFmc3gx5mb+vn0vPvvGqACToJD24hhacX5Yx+8NUUQrHIle/Qi5Bg9o3zKwW2" crossorigin="anonymous"></script>
809</head>
810<body>
811<main>
812<header>${escapeHtml(doc.title)}</header>
813<article id="doc"></article>
814</main>
815<script>
816(async () => {
817  const source = ${scriptJson(doc.source)};
818  const isMermaid = ${doc.isMermaid ? 'true' : 'false'};
819  const article = document.getElementById('doc');
820  const raw = () => {
821    const pre = document.createElement('pre');
822    pre.textContent = source;
823    article.replaceChildren(pre);
824  };
825  if (isMermaid) {
826    const pre = document.createElement('pre');
827    pre.className = 'mermaid';
828    pre.textContent = source;
829    article.replaceChildren(pre);
830  } else if (window.marked && window.DOMPurify) {
831    const escape = text => text.replace(/[&<>]/g, c => ({ '&': '&amp;', '<': '&lt;', '>': '&gt;' })[c]);
832    marked.use({
833      gfm: true,
834      renderer: {
835        code(token) {
836          const lang = (token.lang || '').trim().split(/\\s+/)[0].toLowerCase();
837          return lang === 'mermaid' ? '<pre class="mermaid">' + escape(token.text) + '</pre>' : false;
838        },
839      },
840    });
841    article.innerHTML = DOMPurify.sanitize(marked.parse(source));
842  } else {
843    raw();
844    return;
845  }
846  if (!window.mermaid) return;
847  try {
848    mermaid.initialize({ startOnLoad: false, securityLevel: 'strict', theme: 'default' });
849    await mermaid.run({ querySelector: 'pre.mermaid' });
850  } catch (err) {
851    console.error(err);
852  }
853})();
854</script>
855</body>
856</html>
857`
858}
859

1/** What the preview pane shows. `rev` bumps when the file changes, so the pane re-reads it. */
2export type DocView =
3  | { kind: 'file'; path: string; rev: number }
4  | { kind: 'diagram'; id: string }
5  | { kind: 'picker'; dir: string }
6
7/** A Markdown or Mermaid file Claude wrote or edited this session (absolute path). */
8export type GeneratedDoc = { path: string; at: number }
9
10/** A ```mermaid block from one of Claude's replies, keyed by a hash of its source. */
11export type ReplyDiagram = { id: string; source: string; title: string; at: number }
12
13/** One diagram drawn for inline display; svg and png stay on disk, named by path. */
14export type DiagramRender =
15  | { format: 'ascii'; text: string }
16  | { format: 'svg'; file: string }
17  | { format: 'png'; file: string; width: number; height: number }
18  | { format: 'error'; message: string }
19
20/** The pane size asked for: body columns (null, the engine's default) or the whole screen. */
21export type PaneSize = { columns: number | null; isFull: boolean }
22
23/** Which inline renderers this machine has, and whether the terminal draws pixels. */
24export type Renderers = { ascii: boolean; mmdc: boolean; isKitty: boolean }
25
26declare module 'claude-code' {
27  interface PluginState {
28    'doc-preview': {
29      view: DocView | null
30      generated: GeneratedDoc[]
31      diagrams: ReplyDiagram[]
32      seenAt: number
33      renders: Record<string, DiagramRender>
34      renderers: Renderers | null
35      notice: string | null
36      size: PaneSize
37    }
38  }
39}
40
