leo-mods

1import { atom, read } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { Limit, Mood, Percent, Usd } from '../types'
5import { activeLabel, agentsLabel, registerActivity } from './features/activity'
6import { registerMascot } from './features/mascot'
7import { cacheMeter, costColor, costLabel, registerUsage, usageMeters } from './features/usage'
8import { MASCOT_HEIGHT, MASCOT_WIDTH, MOOD_LABEL, svgMascot } from './mascot'
9import { type Meter, meterAlt, meterSize, meterText, PLACEHOLDER_METERS, type Summary, summarySize, summaryText, svgMeter, svgSummary, textMeter } from './meters'
10
11// The line reads each feature's value through its own atom on the same
12// state key: the engine only follows $ and state reads within one file.
13const contextPercent = atom({ plugin: 'leo-mods', key: 'contextPercent' } as const, null as Percent)
14const limits = atom({ plugin: 'leo-mods', key: 'limits' } as const, [] as Limit[])
15const costUsd = atom({ plugin: 'leo-mods', key: 'costUsd' } as const, null as Usd)
16const runningAgents = atom({ plugin: 'leo-mods', key: 'runningAgents' } as const, 0)
17const activeMs = atom({ plugin: 'leo-mods', key: 'activeMs' } as const, 0)
18const cacheLeftMs = atom({ plugin: 'leo-mods', key: 'cacheLeftMs' } as const, null as number | null)
19const cacheTtlMs = atom({ plugin: 'leo-mods', key: 'cacheTtlMs' } as const, null as number | null)
20const mascotMood = atom({ plugin: 'leo-mods', key: 'mascotMood' } as const, 'idle' as Mood)
21const mascotFrame = atom({ plugin: 'leo-mods', key: 'mascotFrame' } as const, 0)
22const nowMs = atom({ plugin: 'leo-mods', key: 'nowMs' } as const, 0)
23
24// What the line shows: the summary (cost, active time, agents) and
25// the meters (cache, context, 5h, week).
26async function readLine($: EngineInterface): Promise<{ summary: Summary; meters: Meter[] }> {
27  const active = await read($, activeMs)
28  const cache = cacheMeter(await read($, cacheLeftMs), await read($, cacheTtlMs))
29  const shown = [...(cache === null ? [] : [cache]), ...usageMeters(await read($, contextPercent), await read($, limits), await read($, nowMs))]
30  // Until the first response some meters have no reading yet (the cache, the
31  // context, the rate limits): each keeps its placeholder, so none pops in
32  // later and the line holds its shape.
33  const meters = cache === null ? PLACEHOLDER_METERS.map(placeholder => shown.find(m => m.name === placeholder.name) ?? placeholder) : shown
34  const cost = await read($, costUsd)
35  const summary = {
36    cost: cost === null ? '' : costLabel(cost),
37    costColor: costColor(cost ?? 0),
38    active: activeLabel(active),
39    agents: agentsLabel(await read($, runningAgents)),
40  }
41
42  // Before the first response there's no context reading and the cost is $0
43  // (never absent in the CLI).
44  if ((await read($, contextPercent)) === null && (cost ?? 0) === 0 && active === 0) {
45    return { summary: { ...summary, cost: costLabel(0) }, meters: PLACEHOLDER_METERS }
46  }
47
48  return { summary, meters }
49}
50
51// To add a feature: write hooks/features/<name>.ts exporting register<Name>(on)
52// and a formatter; declare its atom here and add its meter or label in readLine.
53export const register: Register = on => {
54  registerUsage(on)
55  registerActivity(on)
56  registerMascot(on)
57
58  // The terminal draws a mod's footer labels, so there the line is one label:
59  // "active 12m · 2 agents · context ▰▰▱▱▱ 42% · 5h ▰▱▱▱▱ 23% · $0.13".
60  on('ui.render', { component: 'SessionMode' }, async ($, e, next) => {
61    const line = await readLine($)
62
63    if (e.surface !== 'terminal') {
64      return next(e)
65    }
66
67    const { summary } = line
68    const text = [
69      summary.active,
70      summary.agents,
71      ...line.meters.map(m => [m.name, textMeter(m.percent), meterText(m), m.detail].filter(Boolean).join(' ')),
72      summary.cost,
73    ].filter(Boolean).join(' · ')
74
75    return next({ ...e, props: { ...e.props, modes: [...e.props.modes, text] } })
76  })
77

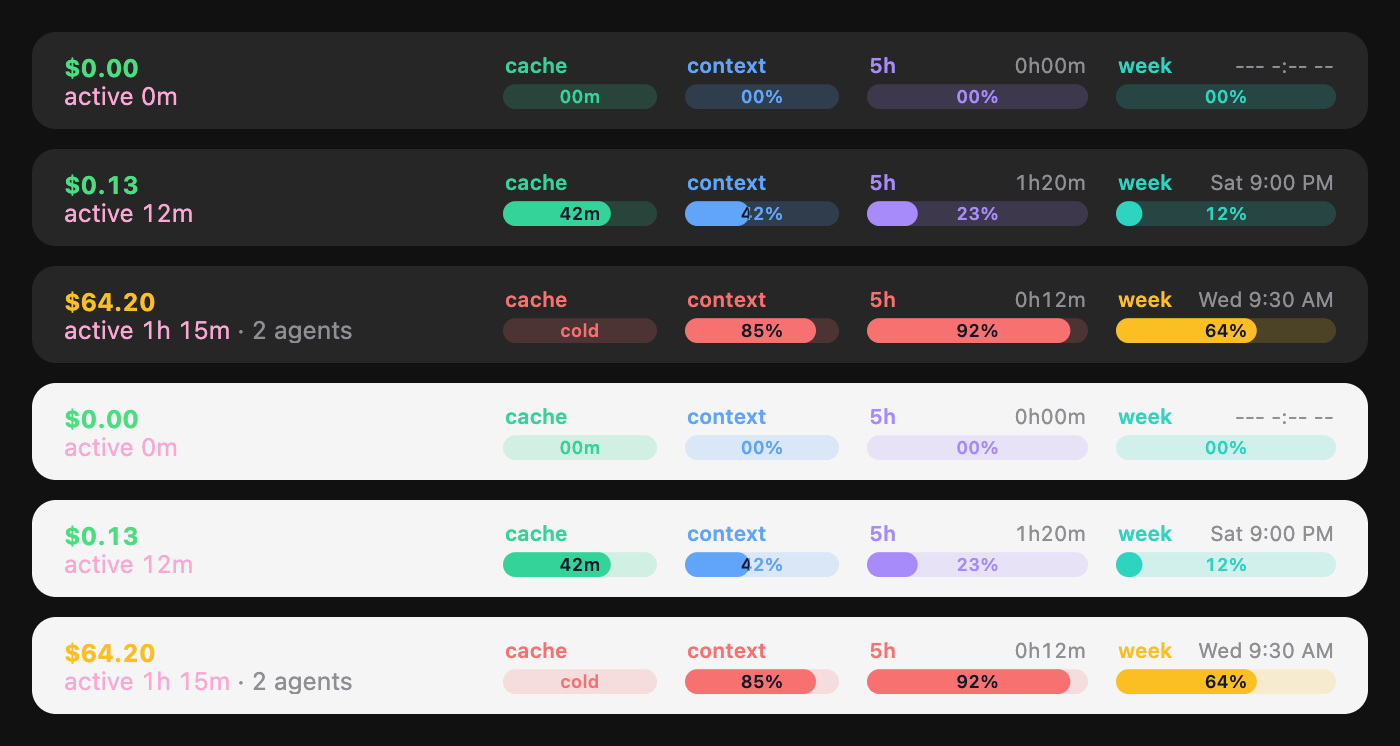

78  // The desktop app asks for footer labels but doesn't draw them, so there
79  // the line goes above the prompt, all SVG (see meters.ts): the dog, then the cost
80  // over the active time and agents, at the left, the meters at the right.
81  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
82    const line = await readLine($)
83
84    if (e.surface !== 'desktop' || e.props.hasSurvey) {
85      return next(e)
86    }
87
88    const { Box, Svg } = $.ui.resolve(e)
89    const { summary } = line
90    const mood = await read($, mascotMood)
91    const frame = await read($, mascotFrame)
92    const size = summarySize(summary)
93
94    return (
95      <Box justifyContent="space-between" alignItems="center" gap={3}>
96        <Box alignItems="center" gap={2}>
97          <Svg source={svgMascot(mood, frame)} alt={`Mascot, ${MOOD_LABEL[mood]}`} width={MASCOT_WIDTH} height={MASCOT_HEIGHT} />
98          <Svg source={svgSummary(summary)} alt={summaryText(summary)} width={size.width} height={size.height} />
99        </Box>
100        <Box alignItems="center" gap={2} flexShrink={0}>
101          {line.meters.map(m => (
102            <Svg key={m.name} source={svgMeter(m)} alt={meterAlt(m)} {...meterSize(m)} />
103          ))}
104        </Box>
105      </Box>
106    )
107  })
108}
109

1import { atom, update } from 'claude-code'
2import type { EngineInterface, On, Timer } from 'claude-code'
3
4import { noteTurnEnd } from './mascot'
5
6// What the session is doing: active time (the main loop's turn durations,
7// summed) and how many subagents are running. One feature, because both
8// need turn.complete and the engine takes one hook per event per plugin.
9const activeMs = atom({ plugin: 'leo-mods', key: 'activeMs' } as const, 0)
10const runningAgents = atom({ plugin: 'leo-mods', key: 'runningAgents' } as const, 0)
11
12const POLL_MS = 2000
13
14let poller: Timer | null = null
15
16// "active 0m", "active 12m", "active 1h 05m".
17export function activeLabel(ms: number) {
18  const minutes = Math.floor(ms / 60_000)
19
20  return minutes < 60 ? `active ${minutes}m` : `active ${Math.floor(minutes / 60)}h ${String(minutes % 60).padStart(2, '0')}m`
21}
22
23// "2 agents", or null when none are running.
24export function agentsLabel(running: number) {
25  if (running === 0) {
26    return null
27  }
28
29  return running === 1 ? '1 agent' : `${running} agents`
30}
31
32// Counts running subagents, and polls while any are, since a subagent can
33// finish between turns.
34async function refreshAgents($: EngineInterface) {
35  const agents = await $.agent.list()
36  const running = agents.filter(a => a.status === 'running').length
37  await update($, runningAgents, () => running)
38
39  if (running > 0 && poller === null) {
40    poller = $.clock.every(POLL_MS, () => void refreshAgents($))
41  } else if (running === 0 && poller !== null) {
42    poller.cancel()
43    poller = null
44  }
45}
46
47export function registerActivity(on: On) {
48  on('agent.spawn', async ($, e, next) => {
49    const result = await next(e)
50    await refreshAgents($)
51
52    return result
53  })
54
55  on('turn.complete', async ($, e, next) => {
56    const result = await next(e)
57
58    if (e.agentId === undefined) {
59      const ms = e.durationMs
60      await update($, activeMs, total => total + ms)
61    }
62
63    noteTurnEnd(await $.clock.now(), e)
64    await refreshAgents($)
65
66    return result
67  })
68}
69

1import { atom, update } from 'claude-code'
2import type { EngineInterface, On, Timer } from 'claude-code'
3
4import type { Mood } from '../../types'
5import { FRAME_TICKS, FRAMES } from '../mascot'
6
7// What the dog at the desktop line's left is doing, from what the session is
8// doing. The mood and the frame within it are two atoms the line reads; the
9// facts behind them (a turn running, when the last key and the last answer
10// were) stay here, and a timer lets the short moods run out and steps the
11// animation.
12const mascotMood = atom({ plugin: 'leo-mods', key: 'mascotMood' } as const, 'idle' as Mood)
13const mascotFrame = atom({ plugin: 'leo-mods', key: 'mascotFrame' } as const, 0)
14
15// The timer ticks often, to read the draft and the mood, so a stop in typing
16// shows fast; each mood steps its picture every FRAME_TICKS of them.
17const TICK_MS = 200
18const TYPING_MS = 500
19const DONE_MS = 2000
20
21type Facts = { isWorking: boolean; keyAt: number; doneAt: number }
22
23// The mood the facts add up to. She listens while you type, even mid-turn;
24// then works while a turn runs, cheers for a moment when it ends with an
25// answer, else dozes.
26export function moodAt(facts: Facts, now: number): Mood {
27  if (now - facts.keyAt < TYPING_MS) {
28    return 'typing'
29  }
30
31  if (facts.isWorking) {
32    return 'working'
33  }
34
35  return now - facts.doneAt < DONE_MS ? 'done' : 'idle'
36}
37
38const NEVER = -Infinity
39const facts: Facts = { isWorking: false, keyAt: NEVER, doneAt: NEVER }
40let current: Mood = 'idle'
41let frame = 0
42let ticks = 0
43let timer: Timer | null = null
44
45// The draft as of the last tick. The desktop reports an edit late (prompt.edit
46// fires well after the keys), so each tick also reads the draft, and a change
47// to it is typing. Only the timer reads it: from inside a hook (an edit, a tool
48// check) the read can wait on that very hook.
49let draft = ''
50
51async function pollDraft($: EngineInterface) {
52  const { text } = await $.prompt.read()
53
54  if (text !== draft && text !== '') {
55    facts.keyAt = await $.clock.now()
56  }
57
58  draft = text
59}
60
61// One timer tick: recomputes the mood, steps the animation, and writes either
62// only when it changed, so the line (a plain image, swapped per frame) redraws
63// only when the picture does.
64async function settle($: EngineInterface) {
65  const now = await $.clock.now()
66  const next = moodAt(facts, now)
67
68  if (next !== current) {
69    current = next
70    ticks = 0
71    await update($, mascotMood, () => next)
72  } else {
73    ticks += 1
74  }
75
76  const nextFrame = Math.floor(ticks / FRAME_TICKS[next]) % FRAMES[next].length
77
78  if (nextFrame !== frame) {
79    frame = nextFrame
80    await update($, mascotFrame, () => nextFrame)
81  }
82}
83
84// Starts the timer the first time one of her own hooks runs.
85function ensureTimer($: EngineInterface) {
86  timer ??= $.clock.every(TICK_MS, () => {
87    void pollDraft($).catch(() => undefined)
88    void settle($)
89  })
90}
91
92// The events another feature already hooks (the engine takes one hook per
93// event per plugin, and `$` can't cross a file) record the fact here, plain,
94// and the timer above turns it into a mood.
95export function noteTurnStart() {
96  facts.isWorking = true
97}
98
99// Only the main conversation's turns count: a subagent's end isn't hers.
100export function noteTurnEnd(now: number, e: { agentId?: string; reason: string }) {
101  if (e.agentId === undefined) {
102    facts.isWorking = false
103
104    if (e.reason === 'answer') {
105      facts.doneAt = now
106    }
107  }
108}
109
110export function registerMascot(on: On) {
111  on('session.end', async ($, e, next) => {
112    timer?.cancel()
113    timer = null
114
115    return next(e)
116  })
117
118  // Typing is an edit that puts text in or takes some out; moving the cursor
119  // isn't.
120  on('prompt.edit', async ($, e, next) => {
121    if (e.inputText !== '' || e.end > e.start) {
122      facts.keyAt = await $.clock.now()
123      ensureTimer($)
124    }
125
126    return next(e)
127  })
128
129  // Every row the conversation keeps (a prompt, a reply, a tool result) is a
130  // sign of life: it starts the timer.
131  on('session.append', async ($, e, next) => {
132    ensureTimer($)
133
134    return next(e)
135  })
136
137  on('prompt.submit', async ($, e, next) => {
138    facts.keyAt = NEVER
139    ensureTimer($)
140
141    return next(e)
142  })
143}
144

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, On, SessionUsage, Timer } from 'claude-code'
3
4import type { Limit, Percent, Usd } from '../../types'
5import type { Meter } from '../meters'
6import { noteTurnStart } from './mascot'
7
8// Everything $.session.usage() reports (context fill, rate-limit windows,
9// cost) and the prompt cache's countdown, which runs off the same measurements.
10// One feature, because the engine takes one hook per event per plugin.
11const contextPercent = atom({ plugin: 'leo-mods', key: 'contextPercent' } as const, null as Percent)
12const limits = atom({ plugin: 'leo-mods', key: 'limits' } as const, [] as Limit[])
13const costUsd = atom({ plugin: 'leo-mods', key: 'costUsd' } as const, null as Usd)
14const cacheAt = atom({ plugin: 'leo-mods', key: 'cacheAt' } as const, null as number | null)
15const cacheTtlMs = atom({ plugin: 'leo-mods', key: 'cacheTtlMs' } as const, null as number | null)
16const cacheLeftMs = atom({ plugin: 'leo-mods', key: 'cacheLeftMs' } as const, null as number | null)
17const nowMs = atom({ plugin: 'leo-mods', key: 'nowMs' } as const, 0)
18
19// The cache timestamp also goes to $.store, per session, so a restarted or
20// resumed session still knows when its cache was last refreshed.
21const CACHE_STORE_KEY = 'cacheBySession'
22const CACHE_STORE_MAX = 50
23
24const CACHE_TICK_MS = 15_000
25const MINUTE = 60_000
26const DAY = 86_400_000
27const HOUR = 3_600_000
28const FIVE_MINUTES = 300_000
29
30const SHORT: Record<string, string> = { five_hour: '5h', seven_day: 'week', spend_limit: 'spend' }
31const WEEKDAYS = ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat']
32
33let cacheTimer: Timer | null = null
34let clockTimer: Timer | null = null
35let isTurnRunning = false
36
37// Time until a window resets, in a fixed width: "1h20m" under a day, "3d04h"
38// from a day; "0h00m" once it passed.
39export function resetLabel(ms: number) {
40  if (ms >= DAY) {
41    return `${Math.floor(ms / DAY)}d${String(Math.floor((ms % DAY) / HOUR)).padStart(2, '0')}h`
42  }
43
44  const left = Math.max(0, ms)
45
46  return `${Math.floor(left / HOUR)}h${String(Math.floor((left % HOUR) / MINUTE)).padStart(2, '0')}m`
47}
48
49// When a window resets, in local time: "Sat 9:00 PM".
50export function resetTimeLabel(at: number) {
51  const date = new Date(at)
52  const hours = date.getHours()
53
54  return `${WEEKDAYS[date.getDay()]} ${hours % 12 || 12}:${String(date.getMinutes()).padStart(2, '0')} ${hours < 12 ? 'AM' : 'PM'}`
55}
56
57// The percentages to draw as meters: context fill, then each rate-limit
58// window (only on a subscription) with when it resets: the time left for the
59// 5-hour window, the day and time for the weekly one. Each is left out until
60// it has a reading.
61export function usageMeters(context: Percent, windows: Limit[], now: number): Meter[] {
62  const meters: Meter[] = context === null ? [] : [{ name: 'context', percent: context }]
63
64  return [
65    ...meters,
66    ...windows.map(w => {
67      const resetsAt = w.resetsAt === undefined ? NaN : Date.parse(w.resetsAt)
68      const detail = Number.isNaN(resetsAt) ? undefined : w.kind === 'seven_day' ? resetTimeLabel(resetsAt) : resetLabel(resetsAt - now)
69
70      return { name: SHORT[w.kind] ?? w.kind, percent: w.percentUsed, detail }
71    }),
72  ]
73}
74
75// Keeps nowMs current to the minute, so reset countdowns tick between turns.
76async function tickClock($: EngineInterface) {
77  const now = await $.clock.now()
78  await update($, nowMs, () => now)
79
80  if (clockTimer === null) {
81    clockTimer = $.clock.every(MINUTE, () => void tickClock($))
82  }
83}
84
85// The prompt cache as a draining meter: "42m" (or "07m") left, or a red "cold"
86// once it lapsed.
87// Null before the first response, or with prompt caching off.
88export function cacheMeter(leftMs: number | null, ttlMs: number | null): Meter | null {
89  if (leftMs === null || ttlMs === null) {
90    return null
91  }
92
93  if (leftMs === 0) {
94    return { name: 'cache', percent: 0, text: 'cold', color: '#f87171' }
95  }
96
97  const fraction = leftMs / ttlMs
98  const minutes = Math.ceil(leftMs / 60_000)
99  const color = fraction > 0.4 ? '#34d399' : fraction > 0.15 ? '#fbbf24' : '#f87171'
100
101  return { name: 'cache', percent: fraction * 100, text: `${String(minutes).padStart(2, '0')}m`, color }
102}
103
104// The cost's color: green under $50, amber under $100, red from $100.
105export function costColor(total: number) {
106  if (total >= 100) {
107    return '#f87171'
108  }
109
110  return total >= 50 ? '#fbbf24' : '#4ade80'
111}
112
113// "$0.00", "$1.09": always cents, so the line doesn't shift.
114export function costLabel(total: number) {
115  return `$${total.toFixed(2)}`
116}
117
118// The main conversation's cache TTL, decided the way Claude Code decides it:
119// the env var, then the promptCacheTtl setting, then 1 hour on a subscription
120// within its limits and 5 minutes otherwise. Null with caching off.
121async function cacheTtl($: EngineInterface, windows: Limit[]) {
122  const fromEnv = await $.env.get('CLAUDE_CODE_PROMPT_CACHE_TTL')
123
124  if (fromEnv === '1h' || fromEnv === '5m') {
125    return fromEnv === '1h' ? HOUR : FIVE_MINUTES
126  }
127
128  if (await $.env.get('DISABLE_PROMPT_CACHING')) {
129    return null
130  }
131
132  const settings = (await $.settings.read()) as { promptCacheTtl?: string }
133
134  if (settings.promptCacheTtl === '1h' || settings.promptCacheTtl === '5m') {
135    return settings.promptCacheTtl === '1h' ? HOUR : FIVE_MINUTES
136  }
137
138  if (await $.env.get('FORCE_PROMPT_CACHING_5M')) {
139    return FIVE_MINUTES
140  }
141
142  const isSubscription = windows.length > 0 && windows.every(w => w.percentUsed < 100)
143
144  return isSubscription ? HOUR : FIVE_MINUTES
145}
146
147// Recomputes the time left, and keeps a timer running while it's warm.
148async function tickCache($: EngineInterface) {
149  const at = await read($, cacheAt)
150  const ttl = await read($, cacheTtlMs)
151
152  if (at === null || ttl === null) {
153    return
154  }
155
156  const left = isTurnRunning ? ttl : Math.max(0, at + ttl - (await $.clock.now()))
157  await update($, cacheLeftMs, () => left)
158
159  if (left > 0 && cacheTimer === null) {
160    cacheTimer = $.clock.every(CACHE_TICK_MS, () => void tickCache($))
161  } else if (left === 0) {
162    cacheTimer?.cancel()
163    cacheTimer = null
164  }
165}
166
167type CacheRecord = { at: number; ttl: number | null }
168
169async function saveCache($: EngineInterface, record: CacheRecord) {
170  const id = await $.session.id()
171  const saved = ((await $.store.get(CACHE_STORE_KEY)) ?? {}) as Record<string, CacheRecord>
172  const kept = Object.entries(saved).filter(([key]) => key !== id).slice(-(CACHE_STORE_MAX - 1))
173  await $.store.set(CACHE_STORE_KEY, Object.fromEntries([...kept, [id, record]]))
174}
175
176// After a restart or resume, picks the cache timestamp back up from $.store.
177async function loadCache($: EngineInterface) {
178  if ((await read($, cacheAt)) !== null) {
179    return
180  }
181
182  const saved = ((await $.store.get(CACHE_STORE_KEY)) ?? {}) as Record<string, CacheRecord>
183  const record = saved[await $.session.id()]
184
185  if (record !== undefined) {
186    await update($, cacheAt, () => record.at)
187    await update($, cacheTtlMs, () => record.ttl)
188  }
189}
190
191async function store($: EngineInterface, usage: Omit<SessionUsage, 'startedAt'>) {
192  const percent = usage.context.percent ?? null
193  const windows: Limit[] = usage.rateLimits.map(w => ({ ...w }))
194  const total = usage.cost?.usd ?? null
195
196  await update($, contextPercent, () => percent)
197  await update($, limits, () => windows)
198  await update($, costUsd, () => total)
199}
200
201export function registerUsage(on: On) {
202  on('session.start', async ($, e, next) => {
203    const result = await next(e)
204    await store($, await $.session.usage())
205    await tickClock($)
206    await loadCache($)
207    await tickCache($)
208
209    return result
210  })
211
212  on('turn.start', async ($, e, next) => {
213    isTurnRunning = true
214    noteTurnStart()
215    await tickCache($)
216
217    return next(e)
218  })
219
220  // Fires after each main-thread turn: a context change means the main
221  // conversation got a response, which restarts the cache's TTL.
222  on('session.measure', async ($, e, next) => {
223    isTurnRunning = false
224    await store($, e)
225    await tickClock($)
226
227    if (e.changed.includes('context')) {
228      const now = await $.clock.now()
229      const ttl = await cacheTtl($, e.rateLimits.map(w => ({ ...w })))
230      await update($, cacheAt, () => now)
231      await update($, cacheTtlMs, () => ttl)
232      await saveCache($, { at: now, ttl })
233      await tickCache($)
234    }
235
236    return next(e)
237  })
238}
239

1// The pixel dog at the desktop line's left. The desktop draws pictures as SVG
2// only, and a plain image is transparent but doesn't play SMIL, so she's a
3// pixel sprite of colored squares and the animation is a few frames swapped on
4// a timer (features/mascot.ts). The head is drawn in code (ears, face, muzzle,
5// eyes, brows, nose, mouth) with an automatic outline; a frame is a look, a
6// pair of ears, a shift and a few loose pixels (a "?", hearts, zzz).
7
8import type { Mood } from '../types'
9
10export const MOOD_LABEL: Record<Mood, string> = {
11  idle: 'dozing',
12  typing: 'listening to you type',
13  working: 'working',
14  done: 'cheering, the turn is done',
15}
16
17// The head is drawn into a 34×26 grid, set into a 40×30 board: three cells
18// each side for the ears' room and the loose pixels, two above and below.
19const HEAD_COLS = 34
20const HEAD_ROWS = 26
21const MARGIN_X = 3
22const MARGIN_Y = 2
23const COLS = HEAD_COLS + 2 * MARGIN_X
24const ROWS = HEAD_ROWS + 2 * MARGIN_Y
25const PIXEL = 1.3
26export const MASCOT_WIDTH = Math.round(COLS * PIXEL)
27export const MASCOT_HEIGHT = Math.round(ROWS * PIXEL)
28
29const COLORS: Record<string, string> = {
30  o: '#3b2a1e', // outline
31  P: '#e9b57d', // fur
32  L: '#f6d3a8', // fur shine
33  Q: '#b9783f', // eye patch
34  V: '#9a5f35', // ears
35  U: '#c98a5a', // inner ears
36  C: '#fff1de', // muzzle, blaze
37  b: '#ffb3a7', // blush
38  E: '#2a1f2d', // pupils, nose, lashes
39  I: '#7a4d2a', // iris
40  B: '#4a2e1a', // brows
41  w: '#ffffff', // shine
42  M: '#a8344f', // open mouth
43  T: '#ff8fa3', // tongue
44  y: '#f6b94d', // sparkles, the "?"
45  r: '#fb7185', // hearts
46  c: '#7dd3fc', // sweat
47  z: '#9b72e0', // zzz and dots
48  d: '#6b6f85', // dim dots
49}
50
51type Grid = string[][]
52const blank = (cols: number, rows: number): Grid => Array.from({ length: rows }, () => Array.from({ length: cols }, () => '.'))
53const put = (grid: Grid, x: number, y: number, ch: string) => {
54  if (grid[y]?.[x] !== undefined) {
55    grid[y]![x] = ch
56  }
57}
58
59// A rounded square: |dx/a|^n + |dy/b|^n <= 1, for the face and the ears.
60const inside = (x: number, y: number, cx: number, cy: number, a: number, b: number, n = 2) =>
61  Math.abs((x - cx) / a) ** n + Math.abs((y - cy) / b) ** n <= 1
62
63type Eyes = 'open' | 'wide' | 'narrow' | 'blink' | 'happy' | 'sleep'
64type Brows = 'none' | 'raised' | 'worried' | 'focus' | 'think'
65type Mouth = 'smile' | 'grin' | 'tongue' | 'yawn' | 'o' | 'pantA' | 'pantB' | 'sad' | 'flat' | 'tiny'
66type Dot = [x: number, y: number, color: string]
67type Frame = { eyes: Eyes; wink?: boolean; look?: [number, number]; brows?: Brows; mouth: Mouth; ears?: number | [left: number, right: number]; dx?: number; dy?: number; dots?: Dot[] }
68
69const CX = 17 // the face's center column
70const EYE_Y = 12
71const EYE_X = [11, 23]
72
73// An eye around (cx, EYE_Y): brown iris, dark pupil that follows `look`, and
74// a shine; or a stroke when it is shut.
75function drawEye(grid: Grid, cx: number, eyes: Eyes, look: [number, number]) {
76  const arch = (dx: number, height: number) => Math.round(height * (1 - (dx / 3.4) ** 2))
77
78  if (eyes === 'blink') {
79    for (let dx = -3; dx <= 3; dx++) {
80      put(grid, cx + dx, EYE_Y + 2, 'E')
81    }
82
83    return
84  }
85
86  if (eyes === 'happy' || eyes === 'sleep') {
87    for (let dx = -3; dx <= 3; dx++) {
88      const y = eyes === 'happy' ? EYE_Y + 1 - arch(dx, 2) : EYE_Y + arch(dx, 2)
89      put(grid, cx + dx, y, 'E')
90      put(grid, cx + dx, y + 1, 'E')
91    }
92
93    return
94  }
95
96  const isNarrow = eyes === 'narrow'
97  const isWide = eyes === 'wide'
98  const [lx, ly] = look
99  const [ry, py] = isNarrow ? [2.5, 1] : isWide ? [4.5, 0] : [3.7, 0]
100  const [pry, pcy] = isNarrow ? [1.7, 1] : isWide ? [3.5, 0] : [2.9, 0]
101
102  for (let dy = -5; dy <= 5; dy++) {
103    for (let dx = -4; dx <= 4; dx++) {
104      if (inside(dx, dy, 0, py, 3.2, ry)) {
105        put(grid, cx + dx, EYE_Y + dy, 'I')
106      }
107
108      if (inside(dx, dy, lx, pcy + ly * (isNarrow ? 0 : 1), 2.3, pry)) {
109        put(grid, cx + dx, EYE_Y + dy, 'E')
110      }
111    }
112  }
113
114  if (isNarrow) {
115    for (let dx = -3; dx <= 3; dx++) {
116      put(grid, cx + dx, EYE_Y - 1, 'E')
117    }
118  }
119
120  const [sx, sy] = [cx + lx, EYE_Y + (isNarrow ? 1 : ly)]
121  const shine: [number, number][] = isNarrow ? [[-1, 0], [0, 0]] : isWide ? [[-1, -3], [0, -3], [-1, -2], [0, -2], [-1, -1], [1, 2], [1, 1]] : [[-1, -2], [0, -2], [-1, -1], [0, -1], [1, 2]]
122
123  for (const [dx, dy] of shine) {
124    put(grid, sx + dx, sy + dy, 'w')
125  }
126}
127
128// The left eye's brow as offsets from the eye; the inner end is at +dx, and
129// the right eye mirrors it.
130const BROWS: Record<Exclude<Brows, 'none' | 'think'>, [number, number][]> = {
131  raised: [[-2, -6], [-1, -7], [0, -7], [1, -7], [2, -6]],
132  worried: [[-2, -5], [-1, -6], [0, -6], [1, -7], [2, -8]],
133  focus: [[-2, -8], [-1, -7], [0, -7], [1, -6], [2, -5]],
134}
135
136function drawBrows(grid: Grid, brows: Brows) {
137  if (brows === 'none') {
138    return
139  }
140
141  EYE_X.forEach((cx, side) => {
142    const shape = brows === 'think' ? (side === 0 ? BROWS.raised : [[-2, -5], [-1, -5], [0, -5], [1, -5], [2, -5]] as [number, number][]) : BROWS[brows]
143
144    for (const [dx, dy] of shape) {
145      put(grid, cx + (side === 0 ? dx : -dx), EYE_Y + dy, 'B')
146    }
147  })
148}
149
150// The mouth hangs from the nose: a stem, then a line or an open mouth, as
151// [offset from the center column, row, color].
152const MOUTHS: Record<Mouth, [number, number, string][]> = {
153  smile: [[0, 21, 'E'], [0, 22, 'E'], [-2, 23, 'E'], [-1, 23, 'E'], [1, 23, 'E'], [2, 23, 'E']],
154  tongue: [[0, 21, 'E'], [-2, 22, 'E'], [-1, 22, 'E'], [0, 22, 'T'], [1, 22, 'E'], [2, 22, 'E'], ...[-1, 0, 1].map((x): [number, number, string] => [x, 23, 'T'])],
155  yawn: [[0, 21, 'E'], ...[-2, -1, 0, 1, 2].map((x): [number, number, string] => [x, 22, 'M']), ...[-3, -2, -1, 0, 1, 2, 3].map((x): [number, number, string] => [x, 23, 'M']), ...[-2, -1, 0, 1, 2].map((x): [number, number, string] => [x, 24, Math.abs(x) <= 1 ? 'T' : 'M'])],
156  grin: [[0, 21, 'E'], ...[-2, -1, 0, 1, 2].flatMap((x): [number, number, string][] => [[x, 22, 'M'], [x, 23, 'M']]), ...[-1, 0, 1].map((x): [number, number, string] => [x, 24, 'T']), [0, 25, 'T']],
157  o: [[0, 21, 'E'], ...[-1, 0, 1].flatMap((x): [number, number, string][] => [[x, 22, 'M'], [x, 23, 'M']])],
158  pantA: [[0, 21, 'E'], ...[-2, -1, 0, 1, 2].map((x): [number, number, string] => [x, 22, 'M']), ...[-1, 0, 1].flatMap((x): [number, number, string][] => [[x, 23, 'T'], [x, 24, 'T']])],
159  pantB: [[0, 21, 'E'], ...[-2, -1, 0, 1, 2].map((x): [number, number, string] => [x, 22, 'M']), ...[-1, 0, 1].flatMap((x): [number, number, string][] => [[x, 23, 'T'], [x, 24, 'T'], [x, 25, 'T']])],
160  sad: [[0, 21, 'E'], [-1, 22, 'E'], [1, 22, 'E'], [-2, 23, 'E'], [2, 23, 'E'], [-3, 24, 'E'], [3, 24, 'E']],
161  flat: [[0, 21, 'E'], [-2, 22, 'E'], [-1, 22, 'E'], [0, 22, 'E'], [1, 22, 'E'], [2, 22, 'E']],
162  tiny: [[0, 21, 'E'], [-1, 22, 'E'], [0, 22, 'E'], [1, 22, 'E']],
163}
164
165// The whole head: floppy ears behind (`earDy` lifts or drops them), the face,
166// an eye patch, a blaze and a muzzle, then eyes, brows, nose, blush and mouth,
167// and the outline around it all.
168function drawHead(frame: Frame): Grid {
169  const grid = blank(HEAD_COLS, HEAD_ROWS)
170  const [earLeft, earRight] = Array.isArray(frame.ears) ? frame.ears : [frame.ears ?? 0, frame.ears ?? 0]
171
172  for (let y = 0; y < HEAD_ROWS; y++) {
173    for (let x = 0; x < HEAD_COLS; x++) {
174      const [px, py] = [x + 0.5, y + 0.5]
175
176      if (inside(px, py, 5, 13.5 + earLeft, 4.3, 9.3) || inside(px, py, 29, 13.5 + earRight, 4.3, 9.3)) {
177        grid[y]![x] = inside(px, py, 3, 14.5 + earLeft, 1.7, 6.3) || inside(px, py, 31, 14.5 + earRight, 1.7, 6.3) ? 'U' : 'V'
178      }
179
180      if (inside(px, py, CX, 14, 12.2, 11.4, 2.6)) {
181        const isShine = ((px - 12) / 3.5) ** 2 + ((py - 5) / 1.2) ** 2 <= 1
182        const isPatch = inside(px, py, 23, 12, 5, 5, 2)
183        const isBlaze = Math.abs(px - CX) <= 1 + (py - 2) * 0.12 && py < 14
184        grid[y]![x] = isBlaze ? 'C' : isPatch ? 'Q' : isShine ? 'L' : 'P'
185      }
186
187      if (inside(px, py, CX, 20, 7.6, 5.4, 2.2) && grid[y]![x] !== '.' && grid[y]![x] !== 'V' && grid[y]![x] !== 'U') {
188        grid[y]![x] = 'C'
189      }
190    }
191  }
192
193  for (const cx of [7, 27]) {
194    for (let dx = -2; dx <= 2; dx++) {
195      if (grid[17]?.[cx + dx] === 'P') {
196        grid[17]![cx + dx] = 'b'
197      }
198    }
199  }
200
201  EYE_X.forEach((cx, side) => drawEye(grid, cx, frame.wink === true && side === 1 ? 'happy' : frame.eyes, frame.look ?? [0, 0]))
202
203  drawBrows(grid, frame.brows ?? 'none')
204
205  for (const [dx, dy] of [[-2, 0], [-1, 0], [0, 0], [1, 0], [2, 0], [-1, 1], [0, 1], [1, 1], [0, 2]] as const) {
206    put(grid, CX + dx, 17 + dy, 'E')
207  }
208
209  put(grid, CX - 1, 17, 'w')
210
211  for (const [dx, y, ch] of MOUTHS[frame.mouth]) {
212    put(grid, CX + dx, y, ch)
213  }
214
215  const filled = grid.map(row => [...row])
216
217  for (let y = 0; y < HEAD_ROWS; y++) {
218    for (let x = 0; x < HEAD_COLS; x++) {
219      const isEmpty = filled[y]![x] === '.'
220      const hasNeighbor = [[1, 0], [-1, 0], [0, 1], [0, -1]].some(([dx, dy]) => (filled[y + dy!]?.[x + dx!] ?? '.') !== '.')
221
222      if (isEmpty && hasNeighbor) {
223        grid[y]![x] = 'o'
224      }
225    }
226  }
227
228  return grid
229}
230
231// Loose pixels live in the board's right margin (cells 37-39) and its corners.
232const shape = (rows: string[], x: number, y: number, color: string): Dot[] =>
233  rows.flatMap((row, dy) => [...row].flatMap((ch, dx): Dot[] => (ch === '#' ? [[x + dx, y + dy, color]] : [])))
234
235const HEART = ['#.#', '###', '.#.']
236const Z = ['###', '.#.', '###']
237const DROP = ['.#.', '###', '###', '.#.']
238const PLUS = ['.#.', '###', '.#.']
239const BUBBLE = ['.##.', '#..#', '#..#', '.##.']
240
241const hearts = (step: number) => [...shape(HEART, 37, 14 - 3 * (step % 4), 'r'), ...shape(HEART, 0, 8 - 2 * ((step + 2) % 4), 'r')]
242const sparkle = (step: number) => (step % 2 === 0 ? [...shape(PLUS, 0, 3, 'y'), ...shape(PLUS, 37, 10, 'y')] : [...shape(PLUS, 1, 1, 'y'), ...shape(PLUS, 36, 12, 'y')])
243const drop = (fall: number) => shape(DROP, 37, 5 + fall * 3, 'c')
244const thought = (lit: number) => [[38, 9, 1], [37, 5, 2], [37, 0, 3]].flatMap(([x, y, size], i) => shape(Array.from({ length: size! }, () => '#'.repeat(size!)), x!, y!, i === lit ? 'z' : 'd'))
245const typingDots = (n: number) => Array.from({ length: n }, (_, i) => shape(['##', '##'], 37, 8 - i * 3, 'z')).flat()
246const bubble = (step: number) => (step === 1 ? shape(['##', '##'], 24, 21, 'c') : step === 2 ? shape(BUBBLE, 24, 20, 'c') : [])
247const zees = (step: number) => [...shape(Z, 37, 9 - (step % 2), 'z'), ...(step >= 2 ? shape(Z, 36, 3, 'z') : [])]
248
249// Each mood's loop, one frame per FRAME_TICKS of the timer (features/mascot.ts).
250
251export const FRAMES: Record<Mood, Frame[]> = {
252  // Dozing: eyes shut, slow breathing, zzz and a snot bubble.
253  idle: [0, 1, 2, 3, 4, 5].map((i): Frame => ({ eyes: 'sleep', mouth: i % 3 === 2 ? 'flat' : 'tiny', ears: 3, dy: i < 3 ? 0 : 1, dots: [...zees(i % 4), ...bubble(i % 3)] })),
254  // Listening: one ear straight up to hear, eyes up and thoughtful.
255  typing: [0, 1, 2, 3, 4, 5, 6, 7].map((i): Frame => ({
256    eyes: i === 6 ? 'blink' : 'open',
257    look: i < 4 ? [-1, -1] : [1, -1],
258    brows: 'think',
259    mouth: i % 4 === 3 ? 'tiny' : 'flat',
260    dx: i < 4 ? 0 : 1,
261    ears: [-4, 0],
262    dots: thought(i % 4),
263  })),
264  working: [0, 1, 2, 3, 4, 5].map((i): Frame => ({ eyes: 'narrow', look: [[-1, 0, 1, 0, -1, 1][i]!, 0], brows: 'focus', mouth: i % 2 === 0 ? 'pantA' : 'pantB', dy: i % 2, ears: i % 2 === 0 ? 0 : 2, dots: [...sparkle(i), ...(i % 3 === 2 ? drop(i % 2) : [])] })),
265  done: [0, 1, 2, 3, 4, 5, 6, 7].map((i): Frame => ({ eyes: 'happy', mouth: i % 4 < 2 ? 'grin' : 'tongue', ears: i % 2 === 0 ? -1 : 3, dy: [0, -3, -5, -3, 0, -3, -5, -3][i]!, dx: i % 4 === 1 ? -1 : i % 4 === 3 ? 1 : 0, dots: [...hearts(i), ...sparkle(i)] })),
266}
267
268// Ticks (features/mascot.ts) each frame of a mood stays: the lively moods step
269// fast, a sleeping dog breathes slowly.
270export const FRAME_TICKS: Record<Mood, number> = {
271  idle: 3,
272  typing: 2,
273  working: 1,
274  done: 1,
275}
276
277// The frame on the board as rows of cell codes.
278function rowsOf(frame: Frame) {
279  const board = blank(COLS, ROWS)
280
281  drawHead(frame).forEach((row, y) => row.forEach((ch, x) => ch !== '.' && put(board, x + MARGIN_X + (frame.dx ?? 0), y + MARGIN_Y + (frame.dy ?? 0), ch)))
282
283  for (const [x, y, key] of frame.dots ?? []) {
284    put(board, x, y, key)
285  }
286
287  return board
288}
289
290// One frame as an SVG: runs of one color in a row are one rect; transparent
291// where there is no pixel.
292export function svgMascot(mood: Mood, index: number) {
293  const frames = FRAMES[mood]
294  const rects: string[] = []
295
296  rowsOf(frames[index % frames.length]!).forEach((row, y) => {
297    for (let x = 0; x < row.length; ) {
298      const ch = row[x]!
299      let end = x
300
301      while (row[end + 1] === ch) {
302        end += 1
303      }
304
305      if (COLORS[ch] !== undefined) {
306        rects.push(`<rect x="${+(x * PIXEL).toFixed(2)}" y="${+(y * PIXEL).toFixed(2)}" width="${+((end - x + 1) * PIXEL).toFixed(2)}" height="${+PIXEL.toFixed(2)}" fill="${COLORS[ch]}"/>`)
307      }
308
309      x = end + 1
310    }
311  })
312
313  return (
314    `<svg xmlns="http://www.w3.org/2000/svg" width="${MASCOT_WIDTH}" height="${MASCOT_HEIGHT}" viewBox="0 0 ${+(COLS * PIXEL).toFixed(2)} ${+(ROWS * PIXEL).toFixed(2)}" shape-rendering="crispEdges">` +
315    rects.join('') +
316    `</svg>`
317  )
318}
319

1// How the line is drawn on the desktop: SVG throughout, so every size is ours
2// (the app's Text has one font size). The summary (cost over active time and
3// agents) at the left; one SVG per meter, its name (left, in the bar's color)
4// and reset time (right) over a rounded bar with the number inside. In the
5// terminal a meter is a row of blocks. Each meter has its own color until it
6// gets high, then amber, then red.
7
8// `text` replaces the drawn percentage and `color` the level color, for a
9// meter that isn't a usage percentage (the cache countdown). `detail` is drawn
10// dim at the label's right end (when a rate-limit window resets).
11export type Meter = { name: string; percent: number; text?: string; color?: string; detail?: string }
12
13// Every size below is a base size times SCALE: change SCALE to grow or shrink
14// the whole line at once.
15const SCALE = 0.95
16const px = (base: number) => Math.round(base * SCALE * 10) / 10
17
18// A desktop meter keeps its size, placeholder or not, so the line never moves:
19// wide enough for "week Sat 12:00 PM" over the bar; cache and context, with
20// no reset time, narrower.
21const WIDTH = px(116)
22const NARROW: Record<string, number> = { cache: px(81), context: px(81) }
23const LABEL_PX = px(11)
24const LABEL_HEIGHT = px(14)
25const GAP = px(3)
26const BAR_HEIGHT = px(13)
27const NUMBER_PX = px(9.5)
28const HEIGHT = LABEL_HEIGHT + GAP + BAR_HEIGHT
29// The summary's two rows, as tall as a meter so the line's edges align.
30const SUMMARY_PX = px(13)
31const SUMMARY_CHAR_PX = px(7.4)
32const CELLS = 5
33const FONT = '-apple-system, BlinkMacSystemFont, system-ui, sans-serif'
34// The reset time's gray, secondary on dark and light backgrounds alike: the
35// SVG can't follow the app's theme.
36const LABEL_COLOR = '#8e8e93'
37const NUMBER_ON_FILL = '#111827'
38
39// Soft 400-weight hues that read on both dark and light backgrounds.
40const COLORS: Record<string, string> = {
41  context: '#60a5fa',
42  '5h': '#a78bfa',
43  week: '#2dd4bf',
44}
45
46// Active time's color: a soft pink, apart from every meter's hue.
47export const ACTIVE_COLOR = '#f9a8d4'
48
49const WARN = '#fbbf24'
50const DANGER = '#f87171'
51
52function meterColor(name: string, percent: number) {
53  if (percent >= 80) {
54    return DANGER
55  }
56
57  return percent >= 50 ? WARN : (COLORS[name] ?? '#9ca3af')
58}
59
60// Two digits ("05%"), so the line doesn't shift as the numbers change.
61export function meterText(meter: Meter) {
62  return meter.text ?? `${String(Math.round(meter.percent)).padStart(2, '0')}%`
63}
64
65function escapeXml(text: string) {
66  return text.replace(/&/g, '&amp;').replace(/</g, '&lt;').replace(/>/g, '&gt;')
67}
68
69function svgText(text: string, attributes: string) {
70  return `<text font-family="${FONT}" style="font-variant-numeric: tabular-nums" ${attributes}>${escapeXml(text)}</text>`
71}
72
73// The meter as one drawing: the label row (the name in the bar's color), then the bar with its number
74// centered inside, in the bar's color over the empty track and near-black
75// over the fill (clipped to it), so it reads on both.
76export function svgMeter(meter: Meter) {
77  const { width: WIDTH } = meterSize(meter)
78  const p = Math.min(100, Math.max(0, meter.percent))
79  const fill = p === 0 ? 0 : Math.max(BAR_HEIGHT, (WIDTH * p) / 100)
80  const r = BAR_HEIGHT / 2
81  const top = LABEL_HEIGHT + GAP
82  const color = meter.color ?? meterColor(meter.name, p)
83  const id = `fill-${meter.name.replace(/[^a-z0-9]/gi, '')}`
84  const label = (fillColor: string) => `font-size="${LABEL_PX}" y="${LABEL_HEIGHT - px(3)}" fill="${fillColor}"`
85  const number = (fillColor: string) =>
86    svgText(meterText(meter), `x="${WIDTH / 2}" y="${top + r}" dy="0.35em" text-anchor="middle" font-size="${NUMBER_PX}" font-weight="600" fill="${fillColor}"`)
87
88  return (
89    `<svg xmlns="http://www.w3.org/2000/svg" width="${WIDTH}" height="${HEIGHT}" viewBox="0 0 ${WIDTH} ${HEIGHT}">` +
90    `<defs><clipPath id="${id}"><rect y="${top}" width="${fill.toFixed(1)}" height="${BAR_HEIGHT}" rx="${r}"/></clipPath></defs>` +
91    svgText(meter.name, `x="1" font-weight="600" ${label(color)}`) +
92    (meter.detail === undefined ? '' : svgText(meter.detail, `x="${WIDTH - 1}" text-anchor="end" ${label(LABEL_COLOR)}`)) +
93    `<rect y="${top}" width="${WIDTH}" height="${BAR_HEIGHT}" rx="${r}" fill="${color}" fill-opacity="0.18"/>` +
94    number(color) +
95    `<g clip-path="url(#${id})"><rect y="${top}" width="${WIDTH}" height="${BAR_HEIGHT}" fill="${color}"/>${number(NUMBER_ON_FILL)}</g>` +
96    `</svg>`
97  )
98}
99
100// The summary at the line's left: the cost (bold, in its color) over the
101// active time (pink) and running agents (gray). Its width follows its longer
102// row; text runs from the left edge, so a generous width costs nothing.
103export type Summary = { cost: string; costColor: string; active: string; agents: string | null }
104
105export function summaryText(summary: Summary) {
106  return [summary.cost, summary.active, summary.agents].filter(Boolean).join(' · ')
107}
108
109export function summarySize(summary: Summary) {
110  const first = summary.cost.length
111  const second = summary.active.length + (summary.agents === null ? 0 : summary.agents.length + 3)
112
113  return { width: Math.ceil(Math.max(first, second) * SUMMARY_CHAR_PX) + 2, height: HEIGHT }
114}
115
116export function svgSummary(summary: Summary) {
117  const { width } = summarySize(summary)
118  const row = `font-size="${SUMMARY_PX}" x="0"`
119  const agents = summary.agents === null ? '' : `<tspan fill="${LABEL_COLOR}"> · ${escapeXml(summary.agents)}</tspan>`
120
121  return (
122    `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${HEIGHT}" viewBox="0 0 ${width} ${HEIGHT}">` +
123    `<text font-family="${FONT}" style="font-variant-numeric: tabular-nums" ${row} y="${HEIGHT / 2 - 2}">` +
124    `<tspan font-weight="700" fill="${summary.costColor}">${escapeXml(summary.cost)}</tspan></text>` +
125    `<text font-family="${FONT}" style="font-variant-numeric: tabular-nums" ${row} y="${HEIGHT - 2}" fill="${ACTIVE_COLOR}">${escapeXml(summary.active)}${agents}</text>` +
126    `</svg>`
127  )
128}
129
130// What the drawing says, for a reader that can't see it.
131export function meterAlt(meter: Meter) {
132  return [meter.name, meterText(meter), meter.detail].filter(Boolean).join(' ')
133}
134
135export function textMeter(percent: number) {
136  const filled = Math.round((Math.min(100, Math.max(0, percent)) / 100) * CELLS)
137
138  return '▰'.repeat(filled) + '▱'.repeat(CELLS - filled)
139}
140
141export function meterSize(meter: Meter) {
142  return { width: NARROW[meter.name] ?? WIDTH, height: HEIGHT }
143}
144
145// Until the first response (a new session, before its first turn) the line
146// keeps its shape: the same meters at the same size, with empty bars, zeroed
147// numbers and a $0.00 cost.
148export const PLACEHOLDER_METERS: Meter[] = [
149  { name: 'cache', percent: 0, text: '00m', color: '#34d399' },
150  { name: 'context', percent: 0 },
151  { name: '5h', percent: 0, detail: '0h00m' },
152  { name: 'week', percent: 0, detail: '--- -:-- --' },
153]
154
155

1export type Mood = 'idle' | 'typing' | 'working' | 'done'
2
3export type Usd = number | null
4
5export type Percent = number | null
6
7export type Limit = { kind: string; percentUsed: number; resetsAt?: string }
8
9declare module 'claude-code' {
10  interface PluginState {
11    'leo-mods': {
12      costUsd: Usd
13      contextPercent: Percent
14      limits: Limit[]
15      runningAgents: number
16      activeMs: number
17      cacheAt: number | null
18      cacheTtlMs: number | null
19      cacheLeftMs: number | null
20      nowMs: number
21      mascotMood: Mood
22      mascotFrame: number
23    }
24  }
25}
26
