usage-bar

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { Limit, Show, Snapshot } from '../types'
5import { barCells, currentLimits, elapsedShare, labelOf, levelColor, modelName, orderLimits, parseGitStatus, resetLabel } from './meter'
6
7const GIT_EVERY_MS = 60_000
8const CLOCK_EVERY_MS = 60_000
9const BAR_CELLS = 10
10
11const limits = atom({ plugin: 'usage-bar', key: 'limits' } as const, [] as Limit[])
12const snapshot = atom({ plugin: 'usage-bar', key: 'snapshot' } as const, null as Snapshot | null)
13const git = atom({ plugin: 'usage-bar', key: 'git' } as const, null as Snapshot['git'])
14const now = atom({ plugin: 'usage-bar', key: 'now' } as const, 0)
15const folder = atom({ plugin: 'usage-bar', key: 'folder' } as const, '')
16const show = atom({ plugin: 'usage-bar', key: 'show' } as const, 'used' as Show)
17const SHOW_KEY = 'show'
18
19async function readGit($: EngineInterface) {
20  const cwd = await $.session.cwd()
21  await update($, folder, () => cwd.split('/').pop() || cwd)
22  const place = await $.process.run(
23    ['git', 'rev-parse', '--path-format=absolute', '--git-dir', '--git-common-dir', '--show-toplevel'],
24    { cwd, timeoutMs: 5_000 },
25  )
26  if (place.exitCode !== 0) {
27    await update($, git, () => null)
28    return
29  }
30  const status = await $.process.run(['git', 'status', '--porcelain=v2', '--branch'], { cwd, timeoutMs: 5_000 })
31  const parsed = parseGitStatus(place.stdout, status.exitCode === 0 ? status.stdout : '')
32  await update($, git, () => parsed)
33}
34
35async function readUsage($: EngineInterface) {
36  const usage = await $.session.usage()
37  const model = await $.session.model()
38  const clock = await $.clock.now()
39  await update($, limits, () => usage.rateLimits.map(({ kind, percentUsed, resetsAt }) => ({ kind, percentUsed, resetsAt })))
40  await update($, snapshot, previous => ({
41    model,
42    contextPercent: usage.context.percent ?? null,
43    costUsd: usage.cost?.usd ?? null,
44    git: previous?.git ?? null,
45  }))
46  await update($, now, () => clock)
47}
48
49async function tick($: EngineInterface) {
50  const clock = await $.clock.now()
51  await update($, now, () => clock)
52}
53
54export const register: Register = on => {
55  on('session.start', async ($, e, next) => {
56    // Not awaited: registering makes Claude Code re-describe every command (~0.7 s), which would hold startup.
57    // Typed as /usage-bar in the terminal; the command file is what the desktop app lists in its menu.
58    void $.command.register({
59      name: 'usage-bar',
60      description: "Show plan limits as used or remaining",
61      argumentHint: '[used|remaining|debug]',
62    }).catch(() => undefined)
63    const stored = await $.store.get(SHOW_KEY)
64    if (stored === 'used' || stored === 'remaining') await update($, show, () => stored)
65    void readUsage($)
66    void readGit($)
67    $.clock.every(GIT_EVERY_MS, () => void readGit($))
68    $.clock.every(CLOCK_EVERY_MS, () => void tick($))
69
70    return next(e)
71  })
72
73  // `/usage-bar` flips between used and remaining; `/usage-bar used|remaining` picks one. The choice is kept.
74  on('command.run', { command: ['usage-bar', 'usage-bar:usage-bar'] }, async ($, e) => {
75    const asked = e.args.trim()
76    // The figures exactly as the engine reports them, to compare with /usage.
77    if (asked === 'debug') {
78      const usage = await $.session.usage()
79      return { text: JSON.stringify({ now: new Date(await $.clock.now()).toISOString(), rateLimits: usage.rateLimits }, null, 2) }
80    }
81    const current = await read($, show)
82    const next: Show = asked === 'used' || asked === 'remaining' ? asked : current === 'used' ? 'remaining' : 'used'
83    await update($, show, () => next)
84    await $.store.set(SHOW_KEY, next)
85
86    return { text: next === 'used' ? 'Limits now show what you have used.' : 'Limits now show what you have left.' }
87  })
88
89  // The engine pushes a measurement after each turn and whenever a limit moves a whole point.
90  on('session.measure', async ($, e, next) => {
91    await readUsage($)
92
93    return next(e)
94  })
95
96  // A turn can switch branches or enter a worktree: read git again as soon as it ends.
97  on('turn.complete', async ($, e, next) => {
98    void readGit($)
99
100    return next(e)
101  })
102

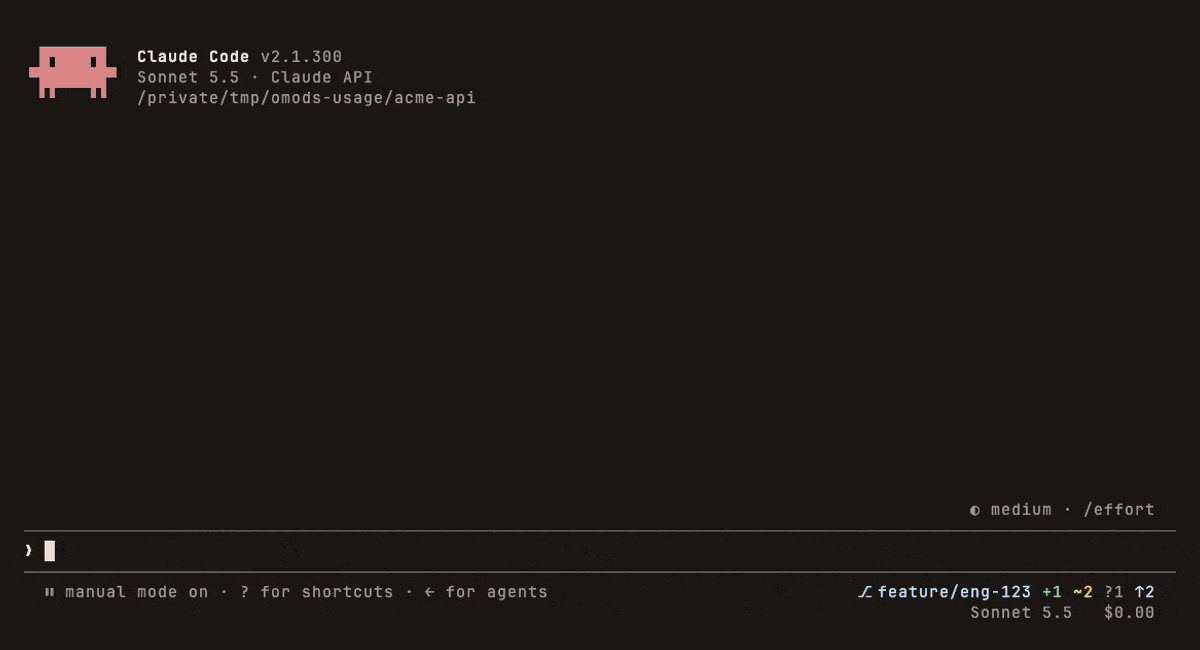

103  on('ui.render', { component: 'SessionMode' }, async ($, e, next) => {
104    const { Box, Text } = $.ui.resolve(e)
105    // The mode labels as the rest of the chain and the engine draw them: labels other mods add (the heat mod's
106    // tier, persona's role) show whichever order the mods were installed in.
107    const labels = await next(e)
108    const mode = await read($, show)
109    const info = await read($, snapshot)
110    const place = await read($, git)
111    const where = await read($, folder)
112    const clock = (await read($, now)) || Date.now()
113    const windows = orderLimits(currentLimits(await read($, limits), clock))
114
115    const changes = place
116      ? [
117          place.staged > 0 && { text: `+${place.staged}`, color: 'success' },
118          place.modified > 0 && { text: `~${place.modified}`, color: 'warning' },
119          place.untracked > 0 && { text: `?${place.untracked}`, color: 'inactive' },
120          place.ahead > 0 && { text: `↑${place.ahead}`, color: 'suggestion' },
121          place.behind > 0 && { text: `↓${place.behind}`, color: 'suggestion' },
122        ].filter((part): part is { text: string; color: string } => Boolean(part))
123      : []
124
125    const limitRow = (
126      <Box flexDirection="row" columnGap={3}>
127        {windows.map(window => {
128          const color = levelColor(window.percentUsed)
129          const elapsed = elapsedShare(window.kind, window.resetsAt, clock)
130          // Remaining: the bar drains as you use it, in one color for how close you are, and the tick marks
131          // how much of the window's time is left, so a bar shorter than the tick is running out early.
132          const cells =
133            mode === 'remaining'
134              ? barCells(Math.max(0, 100 - window.percentUsed), BAR_CELLS, elapsed === null ? null : 1 - elapsed, color)
135              : barCells(window.percentUsed, BAR_CELLS, elapsed)
136          const reset = resetLabel(window.resetsAt, clock)
137
138          return (
139            <Box key={`limit:${window.kind}`} flexDirection="row" columnGap={1}>
140              <Text dimColor>{labelOf(window.kind)}</Text>
141              <Box flexDirection="row">
142                {cells.map(cell => (
143                  <Text color={cell.color} backgroundColor={cell.background}>
144                    {cell.glyph}
145                  </Text>
146                ))}
147              </Box>
148              <Text color={color} bold>
149                {mode === 'remaining'
150                  ? `${Math.max(0, Math.round(100 - window.percentUsed))}% left`
151                  : `${Math.round(window.percentUsed)}%`}
152              </Text>
153              {reset !== null && <Text dimColor>{`↻ ${reset}`}</Text>}
154            </Box>
155          )
156        })}
157      </Box>
158    )
159
160    const gitPart =
161      place === null ? (
162        where !== '' && <Text dimColor>{`▸ ${where}`}</Text>
163      ) : (
164        <Box flexDirection="row" columnGap={1}>
165          <Text color={place.worktree ? 'permission' : 'suggestion'}>
166            {place.worktree ? `⌂ ${place.worktree}` : '⎇'}
167          </Text>
168          <Text color={place.worktree ? 'permission' : 'suggestion'}>{place.branch}</Text>
169          {changes.map(part => (
170            <Text color={part.color}>{part.text}</Text>
171          ))}
172        </Box>
173      )
174
175    return (
176      <Box flexDirection="column" alignItems="flex-end">
177        <Box flexDirection="row" columnGap={3}>
178          {gitPart}
179          {windows.length > 0 && limitRow}
180        </Box>
181        <Box flexDirection="row" columnGap={3}>
182          {labels}
183          {info !== null && <Text dimColor>{modelName(info.model)}</Text>}
184          {info?.contextPercent !== null && info?.contextPercent !== undefined && (
185            <Text color={levelColor(info.contextPercent)} dimColor={info.contextPercent < 70}>
186              {`ctx ${Math.round(info.contextPercent)}%`}
187            </Text>
188          )}
189          {info?.costUsd !== null && info?.costUsd !== undefined && (
190            <Text dimColor>{`$${info.costUsd.toFixed(2)}`}</Text>
191          )}
192        </Box>
193      </Box>
194    )
195  })
196}
197

1import type { GitPlace, Limit } from '../types'
2
3const LABELS: Record<string, string> = { five_hour: '5h', seven_day: '7d' }
4const ORDER: Record<string, number> = { five_hour: 0, seven_day: 1 }
5const WINDOW_MS: Record<string, number> = { five_hour: 5 * 3_600_000, seven_day: 7 * 86_400_000 }
6const DAYS = ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat']
7
8/** Cell colors from an empty bar to a full one: green, through amber, to red. */
9const GRADIENT = ['#3FB950', '#56C24A', '#8CC63F', '#C9C33A', '#E3B341', '#F0883E', '#F06A3E', '#F85149']
10
11/**
12 * A window whose reset time has passed starts over at 0%, though the engine only reports the fresh figure
13 * after the next turn: the bar shows the reset as it happens instead of the old window's usage.
14 */
15export function currentLimits(limits: readonly Limit[], now: number): Limit[] {
16  return limits.map(limit => {
17    const at = limit.resetsAt ? Date.parse(limit.resetsAt) : Number.NaN
18    return !Number.isNaN(at) && at <= now ? { kind: limit.kind, percentUsed: 0 } : limit
19  })
20}
21
22/** The 5-hour window first, then the weekly one, then anything else the account reports. */
23export function orderLimits(limits: readonly Limit[]): Limit[] {
24  return [...limits].sort((a, b) => (ORDER[a.kind] ?? 9) - (ORDER[b.kind] ?? 9))
25}
26
27export function labelOf(kind: string): string {
28  return LABELS[kind] ?? kind.replace(/_/g, ' ')
29}
30
31/** Color for a figure by how close it is to its limit. */
32export function levelColor(percent: number): string {
33  if (percent >= 90) return '#F85149'
34  if (percent >= 70) return '#E3B341'
35  return '#3FB950'
36}
37
38/** Background of a cell the fill has not reached. */
39export const TRACK = '#30363D'
40/** The pace tick, drawn over whatever cell it falls in. */
41const TICK = '#E6EDF3'
42
43export type Cell = { glyph: string; color: string; background: string; isFilled: boolean }
44
45/**
46 * The bar's cells, drawn as solid blocks: filled cells take the gradient color of their position, the rest
47 * the track color. The cell where the window's elapsed time falls carries a pace tick, so a fill that runs
48 * past the tick is burning faster than the window.
49 */
50export function barCells(percent: number, cells: number, elapsed: number | null, solid?: string): Cell[] {
51  const share = Math.round((percent / 100) * cells)
52  // Any use at all lights the first cell, so 2% never reads as an empty bar.
53  const full = Math.max(percent > 0 ? 1 : 0, Math.min(cells, share))
54  const pace = elapsed === null ? -1 : Math.min(cells - 1, Math.max(0, Math.floor(elapsed * cells)))
55
56  return Array.from({ length: cells }, (_, index) => {
57    const isFilled = index < full
58    const background = isFilled
59      ? solid ?? GRADIENT[Math.min(GRADIENT.length - 1, Math.floor((index / cells) * GRADIENT.length))]!
60      : TRACK
61    return { glyph: index === pace ? '▏' : ' ', color: TICK, background, isFilled }
62  })
63}
64
65/** How far through its window the clock is, 0 to 1; null when the window's length or reset is unknown. */
66export function elapsedShare(kind: string, resetsAt: string | undefined, now: number): number | null {
67  const length = WINDOW_MS[kind]
68  if (!length || !resetsAt) return null
69  const at = Date.parse(resetsAt)
70  if (Number.isNaN(at)) return null
71  return Math.min(1, Math.max(0, 1 - (at - now) / length))
72}
73
74/**
75 * When a window resets, short: "47m" or "2h13m" within a day, otherwise the weekday and hour ("Thu 14:00").
76 * Times are local to the machine.
77 */
78export function resetLabel(resetsAt: string | undefined, now: number): string | null {
79  if (!resetsAt) return null
80  const at = Date.parse(resetsAt)
81  if (Number.isNaN(at)) return null
82  const minutes = Math.max(0, Math.round((at - now) / 60_000))
83  if (minutes < 60) return `${minutes}m`
84  if (minutes < 24 * 60) return `${Math.floor(minutes / 60)}h${String(minutes % 60).padStart(2, '0')}m`
85  const date = new Date(at)
86  return `${DAYS[date.getDay()]} ${String(date.getHours()).padStart(2, '0')}:${String(date.getMinutes()).padStart(2, '0')}`
87}
88
89/** "claude-opus-5-5" -> "Opus 5.5"; "claude-sonnet-5-5[1m]" -> "Sonnet 5.5 1M"; other names unchanged. */
90export function modelName(model: string): string {
91  const match = /^claude-([a-z]+)-(\d+)(?:-(\d+))?(?:-\d{8})?(\[1m\])?$/i.exec(model)
92  if (!match) return model
93  const [, family, major, minor, wide] = match
94  const name = `${family![0]!.toUpperCase()}${family!.slice(1)} ${major}${minor ? `.${minor}` : ''}`
95  return wide ? `${name} 1M` : name
96}
97
98/**
99 * Reads `git rev-parse --path-format=absolute --git-dir --git-common-dir --show-toplevel` and
100 * `git status --porcelain=v2 --branch`. A linked worktree has its own git dir, apart from the common one.
101 */
102export function parseGitStatus(revParse: string, status: string): GitPlace | null {
103  const [gitDir, commonDir, top] = revParse.trim().split('\n')
104  if (!gitDir || !commonDir || !top) return null
105
106  let head = 'HEAD'
107  let oid = ''
108  let ahead = 0
109  let behind = 0
110  let staged = 0
111  let modified = 0
112  let untracked = 0
113  for (const line of status.split('\n')) {
114    if (line.startsWith('# branch.head ')) head = line.slice('# branch.head '.length)
115    else if (line.startsWith('# branch.oid ')) oid = line.slice('# branch.oid '.length)
116    else if (line.startsWith('# branch.ab ')) {
117      const [a, b] = line.slice('# branch.ab '.length).split(' ')
118      ahead = Math.abs(Number(a) || 0)
119      behind = Math.abs(Number(b) || 0)
120    } else if (line.startsWith('? ')) untracked += 1
121    else if (/^[12u] /.test(line)) {
122      const xy = line.split(' ')[1] ?? '..'
123      if (xy[0] !== '.') staged += 1
124      if (xy[1] !== '.') modified += 1
125    }
126  }
127  const branch = head === '(detached)' ? `detached ${oid.slice(0, 7)}` : head
128  const place: GitPlace = { branch, staged, modified, untracked, ahead, behind }
129  if (gitDir !== commonDir) place.worktree = top.split('/').pop() ?? top
130
131  return place
132}
133

1export type Limit = {
2  kind: string
3  percentUsed: number
4  resetsAt?: string
5}
6
7export type GitPlace = {
8  branch: string
9  /** The worktree's folder name when the session is in a linked worktree; absent in the main checkout. */
10  worktree?: string
11  staged: number
12  modified: number
13  untracked: number
14  ahead: number
15  behind: number
16}
17
18/** Whether the limit bars show what you've used or what's left. */
19export type Show = 'used' | 'remaining'
20
21export type Snapshot = {
22  model: string
23  contextPercent: number | null
24  costUsd: number | null
25  git: GitPlace | null
26}
27
28declare module 'claude-code' {
29  interface PluginState {
30    'usage-bar': {
31      limits: Limit[]
32      snapshot: Snapshot | null
33      git: GitPlace | null
34      folder: string
35      now: number
36      show: Show
37    }
38  }
39}
40
