1// Lightbox: every image the session reads, receives or creates, in a small strip above the prompt, with a pane
2// for a larger look on request. Images come from Read results, image blocks in tool results (screenshots), image
3// files a tool call just wrote, images pasted into a prompt, the `show` tool Claude calls to send one, and
4// `/lightbox <path>`.
5//

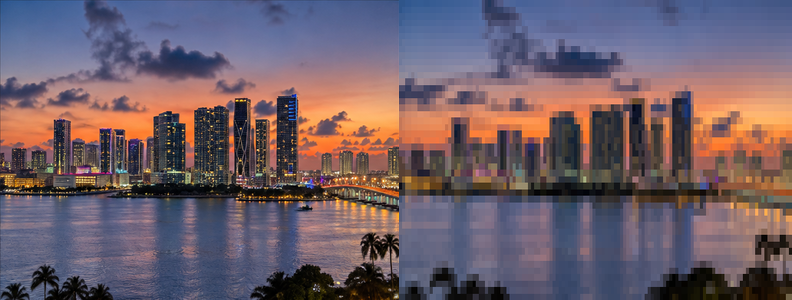

6// Pictures draw as real pixels (the Image element, kitty graphics) where Claude Code can, and otherwise as
7// Unicode quadrant blocks in colored cells (the Raster element), which work in any terminal and over SSH.
8
9import { atom, read, update } from "claude-code";
10import type { ElementConstructor, EngineInterface, ImageProps, RasterProps, Register, RenderChildren } from "claude-code";
11import type { LightboxShot } from "../types";
12import { decodeBase64, quadrantCells, readBmp } from "./cells.ts";
13import { absolutePath, ago, basename, CELL_ASPECT, decodedSize, fit, formatLabel, imageBlocks, imagePathsIn, imagesAfterText, isPng, quotedImagePaths, mimeForPath, pastedImagePaths, pngSize, toolLabel } from "./images.ts";
14
15type Api = EngineInterface;
16type Call = { readonly tool: string; readonly [field: string]: unknown };
17type Bytes = { base64: string; mime: string };
18type NewShot = { title: string; origin: string; mime: string; path?: string; caption?: string; originalWidth?: number; originalHeight?: number };
19type Size = "strip" | "full";
20type Row = { readonly message: { readonly type: string; readonly name?: string; readonly content: readonly unknown[] }; readonly origin: { readonly kind: string }; readonly agentId?: string };
21
22const PANE = "lightbox";
23const SHOW_TOOL = "mcp__lightbox__show";
24const shots = atom({ plugin: "lightbox", key: "shots" } as const, [] as LightboxShot[]);
25const current = atom({ plugin: "lightbox", key: "current" } as const, 0);
26const hidden = atom({ plugin: "lightbox", key: "hidden" } as const, false);
27const folded = atom({ plugin: "lightbox", key: "folded" } as const, false);
28
29const REEL_SIZE = 24;
30const PIXELS_KEPT = 12;
31const CELLS_KEPT = 64;
32// The Image element takes at most 2 MiB of PNG.
33const PNG_LIMIT = 2 * 1024 * 1024 - 4096;
34// And at most this many pixels on a side.
35const PNG_SIDE_LIMIT = 4096;
36// The strip's picture: a few rows tall, so a small PNG. Every redraw carries it, so it must stay small.
37const STRIP_SIDE = 480;
38// Rows of picture inside the strip's frame; the frame adds one above and one below.
39const STRIP_ROWS = 4;
40const STRIP_MAX_COLUMNS = 40;
41// The pane's picture, prepared only once the pane asks for it.
42const FULL_SIDE = 1280;
43const SMALLER_SIDE = 800;
44const THUMB_COLUMNS = 12;
45const THUMB_ROWS = 4;
46const FORMATS = "PNG, JPEG, GIF, WebP, HEIC/HEIF, AVIF, TIFF, BMP and SVG";
47// Who an image came from, at a glance: the person's in the accent color, Claude's in Claude's own orange.
48const YOURS = "cyan";
49const CLAUDES = "#D97757";
50// Up to this many images the strip shows one dot each; past it, a count.
51const DOTS = 12;
52// Images from one sender this close together arrived together: several pasted at once, or sent at once.
53const BATCH_MS = 3000;
54// The most images one paste or one tool result puts on the reel.
55const CAPTURE_MAX = 12;
56// The most pictures of one batch the strip shows side by side.
57const BATCH_SHOWN = 4;
58
59// Prints, as base64, a PNG of the first frame of an image, no longer than $2 pixels on its longest side, and
60// writes the original size to stderr as "dims W H". $1 is a file path, or "-" to read base64 from stdin; $3 is
61// its MIME type. The image is decoded once: the size comes from the header. sips (macOS ImageIO) goes first for
62// HEIC, which it decodes several times faster than ImageMagick; ImageMagick goes first for the rest (SVG among
63// them), and JPEGs decode at reduced scale.
64const CONVERT = [
65  'umask 077; in="$1"; side="$2"; mime="$3"; tmp="$(mktemp "${TMPDIR:-/tmp}/lightbox.XXXXXX")" || exit 1',
66  'trap \'rm -f "$tmp" "$tmp.in" "$tmp.png"\' EXIT',
67  'if [ "$in" = "-" ]; then base64 -d > "$tmp.in" || exit 1; in="$tmp.in"; fi',
68  'with_sips() {',
69  '  command -v sips >/dev/null 2>&1 || return 1',
70  '  sips -s format png -Z "$side" "$in" --out "$tmp.png" >/dev/null 2>&1; [ -s "$tmp.png" ] || return 1',
71  '  dims="$(sips -g pixelWidth -g pixelHeight "$in" 2>/dev/null | awk \'/pixelWidth/{w=$2}/pixelHeight/{h=$2}END{if(w)print w, h}\')"',
72  // sips keeps an EXIF orientation as a tag rather than turning the pixels, which the terminal draws as they lie.
73  '  if command -v magick >/dev/null 2>&1; then',
74  '    case "$(magick identify -format "%[orientation]" "$tmp.png" 2>/dev/null)" in LeftTop|RightTop|RightBottom|LeftBottom) dims="$(echo "$dims" | awk \'{print $2, $1}\')" ;; esac',
75  '    magick "$tmp.png" -auto-orient "$tmp.png" 2>/dev/null',
76  '  fi',
77  '  if [ -n "$dims" ]; then echo "dims $dims" >&2; fi',
78  '}',
79  'with_magick() {',
80  '  if command -v magick >/dev/null 2>&1; then id="magick identify"; cv=magick; elif command -v convert >/dev/null 2>&1; then id=identify; cv=convert; else return 1; fi',
81  '  $id -ping -format "dims %w %h\\n" "$in[0]" >&2 2>/dev/null',
82  '  $cv -define jpeg:size=$((side * 2))x$((side * 2)) "$in[0]" -auto-orient -resize "${side}x${side}>" -depth 8 "png:$tmp.png" 2>/dev/null; [ -s "$tmp.png" ]',
83  '}',
84  'case "$mime" in image/heic|image/heif) with_sips || with_magick ;; *) with_magick || with_sips ;; esac',
85  'if [ ! -s "$tmp.png" ]; then echo "no converter here could read this image (ImageMagick, or sips on macOS)" >&2; exit 1; fi',
86  'base64 < "$tmp.png" | tr -d "\\n"'
87].join("\n");
88
89// Prints, as base64, an uncompressed BMP of a PNG (read from stdin as base64) resized to exactly $1 by $2 pixels:
90// the pixels a Raster's quadrant cells are fitted to.
91const TO_BMP = [
92  'umask 077; w="$1"; h="$2"; tmp="$(mktemp "${TMPDIR:-/tmp}/lightbox.XXXXXX")" || exit 1',
93  'trap \'rm -f "$tmp" "$tmp.png" "$tmp.bmp"\' EXIT',
94  'base64 -d > "$tmp.png" || exit 1',
95  'if command -v magick >/dev/null 2>&1; then magick "$tmp.png[0]" -background black -alpha remove -alpha off -resize "${w}x${h}!" bmp3:-',
96  'elif command -v convert >/dev/null 2>&1; then convert "$tmp.png[0]" -background black -alpha remove -alpha off -resize "${w}x${h}!" bmp3:-',
97  'elif command -v sips >/dev/null 2>&1; then sips -s format bmp -z "$h" "$w" "$tmp.png" --out "$tmp.bmp" >/dev/null && cat "$tmp.bmp"',
98  'else echo "no image converter found: install ImageMagick" >&2; exit 127',
99  'fi | base64 | tr -d "\\n"'
100].join("\n");
101
102// Pictures ready to draw, by shot id: the module's own memory, so a reload prepares them again.
103const pixels = new Map<string, { strip?: string; full?: string }>();
104// Image bytes that arrived with no file behind them, kept while the shot is among the recent few.
105const inline = new Map<string, Bytes>();
106const preparing = new Set<string>();
107// Quadrant cells by shot and size; and the jobs computing them.
108const cellCache = new Map<string, string>();
109const cellJobs = new Set<string>();
110let autoOpen = true;
111let canOpen = false;
112let rendererOption = "auto";
113let drawsPixels = false;
114let cellAspect = CELL_ASPECT;
115// Drawing cells only because this shell lacks CLAUDE_CODE_FORCE_TERMINAL_IMAGES, inside a multiplexer within a
116// terminal that draws pixels: said once, at the first image, since a fresh shell fixes it.
117let pixelsHint = "";
118// Where images that came with no file behind them get a private copy, so they can be drawn again after the mod
119// reloads (an option changed) and opened in another app; set at session start.
120let cacheDir = "";
121const EXTENSION_BY_MIME: Record<string, string> = { "image/jpeg": "jpg", "image/svg+xml": "svg" };
122
123/** Writes image bytes to a file only this user can read, and returns its path, or undefined when it cannot. */
124async function keepCopy($: Api, id: string, bytes: Bytes): Promise<string | undefined> {
125  if (!cacheDir) return undefined;
126  const name = `${id}.${EXTENSION_BY_MIME[bytes.mime] ?? bytes.mime.replace(/^image\//, "").replace(/[^a-z0-9]/gi, "")}`;
127  const run = await $.process.run(["sh", "-c", 'umask 077 && mkdir -p "$1" && base64 -d > "$1/$2"', "lightbox", cacheDir, name], { stdin: bytes.base64 }).catch(() => null);
128  return run?.exitCode === 0 ? `${cacheDir}/${name}` : undefined;
129}
130
131// True until the first session start after this module loaded: its memory of pictures and bytes starts empty.
132let freshModule = true;
133
134const message = (err: unknown) => (err instanceof Error ? err.message : String(err)).split("\n")[0]?.slice(0, 160) ?? "";
135const newId = () => (globalThis.crypto?.randomUUID?.() ?? `${Date.now().toString(36)}${Math.random().toString(36).slice(2)}`);
136
137async function convert($: Api, input: string, stdin: string, side: number, mime: string): Promise<{ png: string; dims: { width: number; height: number } | null }> {
138  const run = await $.process.run(["sh", "-c", CONVERT, "lightbox", input, String(side), mime], { stdin, timeoutMs: 30_000 });
139  // Too large to come back whole: the caller tries a smaller size.
140  if (run.isStdoutTruncated) return { png: "", dims: null };
141  const png = run.stdout.replace(/\s+/g, "");
142  if (!isPng(png)) throw new Error(run.stderr.trim().split("\n").filter((l) => !l.startsWith("dims ")).pop() || `the converter exited with ${run.exitCode}`);
143  const m = run.stderr.match(/dims (\d+) (\d+)/);
144  return { png, dims: m ? { width: Number(m[1]), height: Number(m[2]) } : null };
145}
146
147/**
148 * Turns a shot's bytes or file into a PNG it can draw at one size, notes its original size, then marks it ready.
149 * The strip's picture comes first; the pane's larger one only when the pane is opened.
150 */
151async function prepare($: Api, id: string, which: Size): Promise<void> {
152  const job = `${id}:${which}`;
153  if (pixels.get(id)?.[which] || preparing.has(job)) return;
154  const shot = (await read($, shots)).find((s) => s.id === id);
155  if (!shot) return;
156  preparing.add(job);
157  try {
158    const bytes = inline.get(id);
159    const input = bytes ? "-" : (shot.path ?? shot.copy);
160    if (!input) throw new Error("its bytes are no longer in memory");
161    const stdin = bytes?.base64 ?? "";
162    const side = which === "strip" ? STRIP_SIDE : FULL_SIDE;
163    let picture = "";
164    let original = shot.originalWidth && shot.originalHeight ? { width: shot.originalWidth, height: shot.originalHeight } : null;
165    if (bytes && isPng(bytes.base64)) {
166      const size = pngSize(bytes.base64);
167      original = original ?? size;
168      // A PNG small enough for this size is drawn as it is.
169      if (size && decodedSize(bytes.base64) <= PNG_LIMIT && Math.max(size.width, size.height) <= (which === "full" ? PNG_SIDE_LIMIT : side)) picture = bytes.base64;
170    }
171    if (!picture && !bytes && which === "full" && shot.mime === "image/png") {
172      const file = await $.fs.read(input, { as: "bytes" }).catch(() => null);
173      const size = file ? pngSize(file.base64) : null;
174      if (file && size && decodedSize(file.base64) <= PNG_LIMIT && Math.max(size.width, size.height) <= PNG_SIDE_LIMIT) picture = file.base64;
175    }
176    if (!picture) {
177      const converted = await convert($, input, stdin, side, shot.mime);
178      picture = converted.png;
179      original = original ?? converted.dims;
180    }
181    if (!picture || decodedSize(picture) > PNG_LIMIT) picture = (await convert($, input, stdin, SMALLER_SIDE, shot.mime)).png;
182    if (!picture || decodedSize(picture) > PNG_LIMIT) throw new Error("the picture is too large to draw, even made smaller");
183    const drawn = pngSize(picture);
184    pixels.set(id, { ...pixels.get(id), [which]: picture });
185    await update($, shots, (list) =>
186      list.map((s) =>
187        s.id === id
188          ? { ...s, status: "ready" as const, ...(drawn ?? {}), ...(original ? { originalWidth: original.width, originalHeight: original.height } : {}) }
189          : s
190      )
191    );
192  } catch (err) {
193    // Without the strip's picture there is nothing to show; without the pane's, the strip's stands in.
194    if (which === "strip") await update($, shots, (list) => list.map((s) => (s.id === id ? { ...s, status: "failed" as const, note: message(err) } : s)));
195    else $.ui.log(`lightbox: larger picture for ${shot.title}: ${message(err)}`, { to: "debug" });
196  } finally {
197    preparing.delete(job);
198  }
199}
200
201/** Fits quadrant cells to a shot's strip picture at one size, then asks for a redraw. */
202async function renderCells($: Api, id: string, columns: number, rows: number): Promise<void> {
203  const key = `${id}:${columns}x${rows}`;
204  if (cellCache.has(key) || cellJobs.has(key)) return;
205  const picture = pixels.get(id)?.strip;
206  if (!picture) return;
207  cellJobs.add(key);
208  try {
209    const run = await $.process.run(["sh", "-c", TO_BMP, "lightbox", String(columns * 2), String(rows * 2)], { stdin: picture, timeoutMs: 15_000 });
210    const bmp = readBmp(decodeBase64(run.stdout));
211    if (!bmp) throw new Error(run.stderr.trim().split("\n").pop() || "could not read the picture's pixels");
212    cellCache.set(key, quadrantCells(bmp, columns, rows));
213    while (cellCache.size > CELLS_KEPT) cellCache.delete(cellCache.keys().next().value as string);
214    $.ui.invalidate("ui.render");
215  } catch (err) {
216    $.ui.log(`lightbox: cells for ${id}: ${message(err)}`, { to: "debug" });
217  } finally {
218    cellJobs.delete(key);
219  }
220}
221
222// Shots being put on the reel: their bytes are held before the reel lists them, so eviction leaves them be.
223const adding = new Set<string>();
224// The shot whose capture wrote the reel last, and its place there: the one the selection follows.
225let newest = "";
226let newestIndex = 0;
227
228/**
229 * About how many rows a tree takes: a Text or a string is one, a column adds its children, a row takes its tallest,
230 * borders and vertical padding add theirs. Wrapped text is not counted, so it can come out short.
231 */
232function rowsOf(node: unknown): number {
233  if (node === null || node === undefined || typeof node === "boolean") return 0;
234  if (typeof node === "string" || typeof node === "number") return 1;
235  if (Array.isArray(node)) return node.reduce((sum: number, child) => sum + rowsOf(child), 0);
236  const el = node as { type?: string; props?: Record<string, unknown>; children?: unknown[] };
237  if (el.type !== "Box") return 1;
238  const props = el.props ?? {};
239  if (props.display === "none") return 0;
240  if (typeof props.height === "number") return props.height;
241  const children = (el.children ?? []).map(rowsOf);
242  const inner = props.flexDirection === "column" ? children.reduce((a, b) => a + b, 0) : Math.max(0, ...children);
243  const padding = (n: unknown) => (typeof n === "number" ? n : 0);
244  const vertical = padding(props.paddingTop ?? props.paddingY ?? props.padding) + padding(props.paddingBottom ?? props.paddingY ?? props.padding);
245  return inner + vertical + (props.borderStyle ? 2 : 0);
246}
247
248type Tone = "primary" | "neutral" | "danger";
249const TONE_COLOR: Record<Tone, string> = { primary: "suggestion", neutral: "inactive", danger: "error" };
250
251/**
252 * A button that looks like one: the label with a space either side, inside a rounded outline in its tone that turns
253 * to the text color under the pointer. The whole row inside the outline is the label, so it is easy to hit.
254 */
255function outlined(
256  Box: ElementConstructor<any>,
257  Button: ElementConstructor<any>,
258  id: string,
259  label: string,
260  onPress: () => void,
261  tone: Tone = "neutral"
262) {
263  return (
264    <Box key={`b-${id}`} borderStyle="round" borderColor={TONE_COLOR[tone]} hover={{ borderColor: "text" }} flexShrink={0}>
265      <Button key={id} plain label={` ${label} `} onPress={onPress} />
266    </Box>
267  );
268}
269
270/**
271 * Drops what shots that left the reel held. Every shot on it keeps its small strip picture, so it can still be
272 * shown; past the recent few it lets go of its larger picture, and of its original bytes once the strip's is made.
273 */
274function evict(list: readonly LightboxShot[]): void {
275  const onReel = new Set(list.map((s) => s.id));
276  const recent = new Set(list.slice(-PIXELS_KEPT).map((s) => s.id));
277  for (const [id, picture] of pixels) {
278    if (adding.has(id)) continue;
279    if (!onReel.has(id)) pixels.delete(id);
280    else if (!recent.has(id) && picture.full) pixels.set(id, picture.strip ? { strip: picture.strip } : {});
281  }
282  for (const id of inline.keys()) {
283    if (adding.has(id) || recent.has(id) || (onReel.has(id) && !pixels.get(id)?.strip)) continue;
284    inline.delete(id);
285  }
286  for (const key of cellCache.keys()) if (!onReel.has(key.split(":")[0] ?? "")) cellCache.delete(key);
287  for (const [id, path] of copies) {
288    if (adding.has(id) || onReel.has(id)) continue;
289    copies.delete(id);
290    gone.push(path);
291  }
292}
293
294// The private copies of shots on the reel, by id; and copies whose shots left it, to delete.
295const copies = new Map<string, string>();
296let gone: string[] = [];
297
298/** Deletes the private copies whose shots left the reel: only files in this session's own copy folder. */
299async function sweep($: Api): Promise<void> {
300  const paths = gone.filter((path) => cacheDir && path.startsWith(`${cacheDir}/`));
301  gone = [];
302  if (paths.length) await $.process.run(["rm", "-f", "--", ...paths]).catch(() => null);
303}
304
305/** A new image shows the strip again, unfolded; with autoOpen off, a hidden strip stays hidden and a toast says so. */
306async function announce($: Api, title: string): Promise<void> {
307  await update($, folded, () => false);
308  if (autoOpen) {
309    await update($, hidden, () => false);
310    return;
311  }
312  if (await read($, hidden)) $.ui.toast(`New image: ${title} · /lightbox to view`);
313}
314
315/** Puts an image on the reel, makes it the current one, and prepares it in the background. */
316async function addShot($: Api, shot: NewShot, bytes?: Bytes, quiet = false): Promise<void> {
317  const id = newId();
318  adding.add(id);
319  if (bytes) inline.set(id, bytes);
320  const copy = bytes && !shot.path ? await keepCopy($, id, bytes) : undefined;
321  if (copy) copies.set(id, copy);
322  const entry: LightboxShot = {
323    id,
324    title: shot.title,
325    origin: shot.origin,
326    mime: shot.mime,
327    at: Date.now(),
328    status: "pending",
329    ...(shot.path ? { path: shot.path } : {}),
330    ...(copy ? { copy } : {}),
331    ...(shot.caption ? { caption: shot.caption } : {}),
332    ...(shot.originalWidth && shot.originalHeight ? { originalWidth: shot.originalWidth, originalHeight: shot.originalHeight } : {})
333  };
334  await update($, shots, (list) => {
335    newest = id;
336    // The same file again replaces its earlier shot, so an edited SVG or a retaken screenshot shows fresh.
337    const rest = shot.path ? list.filter((s) => s.path !== shot.path) : list;
338    const before = rest[rest.length - 1];
339    if (before && before.origin === entry.origin && entry.at - before.at <= BATCH_MS) entry.batch = before.batch ?? before.id;
340    const reel = [...rest, entry].slice(-REEL_SIZE);
341    newestIndex = reel.length - 1;
342    return reel;
343  });
344  // Evicts right on the read, with nothing awaited between, and only then stops protecting this shot: a capture
345  // running beside this one may be about to evict from an older reel that does not list it yet.
346  const list = await read($, shots);
347  evict(list);
348  adding.delete(id);
349  await sweep($);
350  // Only while it is still the newest, checked as the selection is written: a capture that finished later has
351  // already moved it on.
352  await update($, current, (i) => (newest === id ? newestIndex : (i ?? 0)));
353  $.clock.after(0, () => { void prepare($, id, "strip"); });
354  if (pixelsHint) {
355    $.ui.toast(pixelsHint);
356    pixelsHint = "";
357  }
358  if (!quiet) await announce($, shot.title);
359}
360
361/** Puts an image file on the reel, or says why it cannot. */
362async function showFile($: Api, raw: string, origin: string, caption?: string, quiet = false): Promise<string> {
363  const path = absolutePath(raw.trim(), await $.session.cwd(), (await $.env.get("HOME")) ?? "");
364  const mime = mimeForPath(path);
365  if (!mime) return `${basename(path)} is not an image the Lightbox shows (${FORMATS}).`;
366  const stat = await $.fs.stat(path).catch(() => null);
367  if (!stat || stat.kind !== "file") return `No image file at ${path}.`;
368  await addShot($, { title: basename(path), origin, path, mime, ...(caption ? { caption } : {}) }, undefined, quiet);
369  return `Showing ${basename(path)} in the Lightbox.`;
370}
371
372// Words that run another program, or only set up for one: never the program that wrote an image.
373const WRAPPERS = new Set(["cd", "pushd", "env", "sudo", "timeout", "nice", "nohup", "time", "command", "exec", "xargs"]);
374
375/** Who wrote an image file: for a shell command, the program in the part of it that names the file. */
376function originOf(call: Call, path: string): string {
377  if (call.tool === "Write" || call.tool === "Edit") return "written by Claude";
378  if (call.tool !== "Bash") return `from ${toolLabel(call.tool)}`;
379  const parts = String(call.command ?? "").split(/&&|\|\||[;|\n]/).map((part) => part.trim()).filter(Boolean);
380  const part = parts.find((p) => p.includes(basename(path))) ?? parts.find((p) => !/^(cd|pushd)\s/.test(p)) ?? "";
381  const words = part.split(/\s+/);
382  let i = 0;
383  // Skip variable assignments, wrappers and their flags and durations (`timeout 60`, `nice -n 5`).
384  while (i < words.length && (/^\w+=/.test(words[i]!) || WRAPPERS.has(words[i]!) || /^-/.test(words[i]!) || /^\d+[smhd]?$/.test(words[i]!))) i += 1;
385  const program = words[i]?.replace(/^.*\//, "");
386  return `from ${program || "a command"}`;
387}
388
389/** The directories a shell command changes into, in order: `cd dir` and `pushd dir`, quotes taken off. */
390function cdTargets(command: string): string[] {
391  return [...command.matchAll(/(?:^|[;&|(\n]\s*)(?:cd|pushd)\s+("[^"]+"|'[^']+'|[^\s;&|)]+)/g)].map((m) => m[1]!.replace(/^["']|["']$/g, "")).filter((dir) => dir !== "-");
392}
393
394// Claude Code's scratch folder for a session: what Claude writes there is its own working material.
395const SCRATCH = /\/claude-\d+\/[^/]+\/[^/]+\/scratchpad\//;
396
397/** Finds the images a finished tool call read, returned or wrote, and puts them on the reel. */
398async function capture($: Api, call: Call, result: unknown, started: number): Promise<void> {
399  const r = (result ?? {}) as { deny?: unknown; isError?: unknown; result?: unknown; text?: unknown };
400  if (r.deny !== undefined || r.isError) return;
401
402  if (call.tool === "Read") {
403    const path = String(call.file_path ?? "");
404    const value = r.result as { type?: string; file?: { base64?: string; type?: string; dimensions?: { originalWidth?: number; originalHeight?: number } } } | undefined;
405    if (value?.type === "image" && value.file?.base64) {
406      const mime = value.file.type ?? "image/png";
407      const d = value.file.dimensions;
408      await addShot(
409        $,
410        { title: basename(path), origin: "read by Claude", mime, ...(path ? { path } : {}), ...(d?.originalWidth && d.originalHeight ? { originalWidth: d.originalWidth, originalHeight: d.originalHeight } : {}) },
411        { base64: value.file.base64, mime }
412      );
413    } else if (path && mimeForPath(path)) {
414      // Formats Read does not decode itself, such as HEIC, go through the file.
415      await showFile($, path, "read by Claude");
416    }
417    return;
418  }
419
420  const blocks = imageBlocks(r.result).slice(0, CAPTURE_MAX);
421  for (const block of blocks) await addShot($, { title: toolLabel(call.tool), origin: `from ${toolLabel(call.tool)}`, mime: block.mime }, block);
422  if (blocks.length) return;
423
424  // Image files the call just wrote: named in its input or output, and modified while it ran. A call that ran
425  // read-only (`ls`, `file`) wrote none, whatever it names.
426  if ((result as { isReadOnly?: true } | undefined)?.isReadOnly) return;
427  // A field that is one path is taken whole, spaces and all, and so is a quoted path in a command; the rest of the
428  // text is searched for paths.
429  const texts = [...Object.values(call).filter((v): v is string => typeof v === "string"), typeof r.text === "string" ? r.text : ""];
430  const fields = texts.filter((v) => !v.includes("\n") && Boolean(mimeForPath(v)));
431  const candidates = [...new Set([...fields, ...texts.flatMap(quotedImagePaths), ...imagePathsIn(`${JSON.stringify(call)}\n${texts.at(-1)}`)])].slice(0, 8);
432  if (!candidates.length) return;
433  const cwd = await $.session.cwd();
434  const home = (await $.env.get("HOME")) ?? "";
435  // A relative path in a command that changed directory first may be relative to where it went: the latest one
436  // that holds the file wins.
437  const bases = [cwd, ...(call.tool === "Bash" ? cdTargets(String(call.command ?? "")).map((dir) => absolutePath(dir, cwd, home)) : [])];
438  for (const candidate of candidates) {
439    let path = "";
440    let stat = null;
441    for (const base of candidate.startsWith("/") || candidate.startsWith("~/") ? [cwd] : [...bases].reverse()) {
442      path = absolutePath(candidate, base, home);
443      stat = await $.fs.stat(path).catch(() => null);
444      if (stat) break;
445    }
446    if (!stat || stat.kind !== "file" || stat.size === 0 || stat.mtimeMs < started - 2000) continue;
447    // A scratch file Claude wrote is not meant for the person; one it reads or sends still shows.
448    if (SCRATCH.test(path)) continue;
449    await addShot($, { title: basename(path), origin: originOf(call, path), path, mime: mimeForPath(path) });
450  }
451}
452
453/**
454 * A prompt queued while Claude worked keeps only its text in its own row; its images are in the conversation the
455 * next request is built from, right after that text. The row is stored before the conversation shows it, so a
456 * miss looks again a little later.
457 */
458async function queuedImages($: Api, text: string, labeled: boolean): Promise<Bytes[]> {
459  // A prompt that names an image is looked up until it shows; one that names none, once.
460  for (const wait of labeled ? [0, 250, 1000] : [0]) {
461    if (wait) await new Promise<void>((resolve) => { $.clock.after(wait, () => resolve()); });
462    const found = imagesAfterText(await $.session.messages({ as: "api" }), text);
463    if (found.length) return found;
464  }
465  if (!labeled) return [];
466  $.ui.log("lightbox: a queued prompt named an image the conversation does not hold", { to: "debug" });
467  return [];
468}
469
470/**
471 * Images the person put in a prompt: its row carries each as an image block, whether pasted from the clipboard
472 * or dragged in as a file (which Claude Code also notes as `[Image: source: /path]`, naming it). A prompt typed
473 * while Claude works arrives as a `queued_command` row instead, delivered into the running turn.
474 */
475async function capturePasted($: Api, row: Row): Promise<void> {
476  const queued = row.message.type === "attachment" && row.message.name === "queued_command";
477  if (row.agentId || (row.message.type !== "user" && !queued) || (row.origin.kind !== "composer" && row.origin.kind !== "bridge")) return;
478  const texts = row.message.content.flatMap((b) => ((b as { type?: string }).type === "text" ? [String((b as { text?: unknown }).text ?? "")] : []));
479  const text = texts.join("\n");
480  // A queued prompt names its pasted images `[Image #N]` when they came from the clipboard; one from Remote Control
481  // or with a dragged-in file may carry its images with no label, so then its text is looked up whole.
482  const labeled = texts.find((t) => /\[Image #\d+\]/.test(t));
483  const marked = labeled ?? texts.findLast((t) => t.trim());
484  const blocks = (queued ? (marked ? await queuedImages($, marked, Boolean(labeled)) : []) : imageBlocks(row.message.content)).slice(0, CAPTURE_MAX);
485  const paths = pastedImagePaths(text);
486  // A message with no image means the person has moved on: the strip folds to one line until the next image.
487  if (!blocks.length && !paths.length) {
488    await update($, folded, () => true);
489    return;
490  }
491  // The transcript shows each pasted image as `[Image #N]`; the strip names it the same, so the two match.
492  const labels = [...text.matchAll(/\[Image #(\d+)\]/g)].map((m) => `Image #${m[1]}`);
493  const cwd = await $.session.cwd();
494  const home = (await $.env.get("HOME")) ?? "";
495  for (const [i, block] of blocks.entries()) {
496    const path = paths[i] ? absolutePath(paths[i], cwd, home) : undefined;
497    const title = labels[i] ?? (path ? basename(path) : blocks.length > 1 ? `Pasted image ${i + 1}` : "Pasted image");
498    await addShot($, { title, origin: "pasted by you", mime: block.mime, ...(path ? { path } : {}) }, block);
499  }
500  // A file the model could not take as an image block (a HEIC, say) still shows, from the file.
501  for (const path of paths.slice(blocks.length, CAPTURE_MAX)) await showFile($, path, "pasted by you");
502}
503
504async function removeShot($: Api, id: string): Promise<void> {
505  let length = 0;
506  await update($, shots, (list) => {
507    const rest = list.filter((s) => s.id !== id);
508    length = rest.length;
509    return rest;
510  });
511  await update($, current, (i) => Math.max(0, Math.min(i ?? 0, length - 1)));
512  pixels.delete(id);
513  inline.delete(id);
514  const copy = copies.get(id);
515  if (copy) {
516    copies.delete(id);
517    gone.push(copy);
518    await sweep($);
519  }
520}
521
522async function openShot($: Api, shot: LightboxShot): Promise<void> {
523  const file = shot.path ?? shot.copy;
524  if (file) await $.process.run(["open", file]);
525}
526
527/**
528 * Whether Claude Code draws real pixels here, unless the option says otherwise. Claude Code asks the terminal
529 * and draws only for kitty or ghostty by name, so inside a multiplexer that renders kitty graphics (herdr names
530 * itself libghostty) it needs CLAUDE_CODE_FORCE_TERMINAL_IMAGES; without it, a multiplexer means cells.
531 */
532async function choosePixels($: Api): Promise<boolean> {
533  if (rendererOption === "pixels") return true;
534  if (rendererOption === "cells") return false;
535  // Claude Code reads the variable as on only for these values; 0, false or off leave pixels off.
536  if (/^(1|true|yes|on)$/i.test(((await $.env.get("CLAUDE_CODE_FORCE_TERMINAL_IMAGES")) ?? "").trim())) return true;
537  const term = (await $.env.get("TERM")) ?? "";
538  const program = (await $.env.get("TERM_PROGRAM")) ?? "";
539  const kitty = Boolean(await $.env.get("KITTY_WINDOW_ID"));
540  const multiplexed = Boolean((await $.env.get("HERDR_ENV")) || (await $.env.get("TMUX")) || (await $.env.get("ZELLIJ")) || (await $.env.get("STY")));
541  return !multiplexed && (/kitty|ghostty/i.test(term) || kitty || /^(ghostty|kitty)$/i.test(program));
542}
543
544const clampIndex = (i: number | undefined, length: number) => Math.max(0, Math.min(i ?? 0, length - 1));
545
546/** When it arrived, its original size and its format. */
547function details(shot: LightboxShot): string {
548  const sizeLabel = shot.originalWidth && shot.originalHeight ? `${shot.originalWidth}×${shot.originalHeight}` : shot.width ? `${shot.width}×${shot.height}` : "";
549  return [ago(Date.now() - shot.at), sizeLabel, formatLabel(shot.mime)].filter(Boolean).join(" · ");
550}
551
552const metaLine = (shot: LightboxShot) => `${shot.origin} · ${details(shot)}`;
553
554function originColor(origin: string): string | undefined {
555  if (/\byou$/.test(origin)) return YOURS;
556  if (/\bClaude$/.test(origin)) return CLAUDES;
557  return undefined;
558}
559
560export const register: Register = (on, options) => {
561  autoOpen = options.autoOpen !== false;
562  rendererOption = String(options.renderer ?? "auto");
563  const aspect = Number(options.cellAspect);
564  cellAspect = aspect >= 1 && aspect <= 4 ? aspect : CELL_ASPECT;
565  // An explicit choice holds from the start; "auto" is settled at session start, from the terminal's environment.
566  drawsPixels = rendererOption === "pixels";
567
568  on("session.start", async ($, e, next) => {
569    const result = await next(e);
570    const system = await $.process.run(["uname", "-s"]).catch(() => null);
571    const remote = (await $.env.get("SSH_CONNECTION")) || (await $.env.get("SSH_TTY"));
572    // Opening a file in Preview or Finder only means something on the Mac the person is looking at.
573    canOpen = system?.stdout.trim() === "Darwin" && !remote;
574    drawsPixels = await choosePixels($);
575    cacheDir = `${((await $.env.get("TMPDIR")) ?? "/tmp").replace(/\/$/, "")}/lightbox/${await $.session.id()}`;
576    // After a reload the module holds no bytes: an image with neither a file nor a private copy cannot be drawn
577    // again, so it leaves the reel.
578    if (freshModule) {
579      freshModule = false;
580      const kept = await update($, shots, (list) => list.filter((s) => s.path || s.copy));
581      for (const s of kept) if (s.copy) copies.set(s.id, s.copy);
582      await update($, current, (i) => clampIndex(i, kept.length));
583    }
584    if (!drawsPixels && rendererOption === "auto" && (await $.env.get("HERDR_ENV")) && ((await $.env.get("GHOSTTY_RESOURCES_DIR")) || (await $.env.get("KITTY_WINDOW_ID")))) {
585      pixelsHint = "Lightbox draws blocks here: this shell has no CLAUDE_CODE_FORCE_TERMINAL_IMAGES=1. Set it, or open a new pane, and restart Claude for real pixels.";
586      $.ui.log(`lightbox: ${pixelsHint}`, { to: "debug" });
587    }
588    // Keeps "2 min ago" true while the strip sits there.
589    $.clock.every(60_000, () => $.ui.invalidate("ui.render"));
590    if (!autoOpen && !(await read($, shots)).length) await update($, hidden, () => true);
591    await $.tool.register({
592      name: "show",
593      description: `Show the user an image file in the Lightbox, the strip above their prompt. Use it whenever you want the user to see an image: a screenshot you took, an image you generated or edited, a diagram you rendered, or an image file you found. Accepts ${FORMATS}. Images you open with the Read tool, and images tools return, appear there by themselves.`,
594      inputSchema: {
595        type: "object",
596        properties: {
597          path: { type: "string", description: "The image file: an absolute path, ~/..., or a path relative to the working directory" },
598          caption: { type: "string", description: "One short line shown beside the image" }
599        },
600        required: ["path"]
601      }
602    });
603    try {
604      await $.command.register({ name: "lightbox", description: "Show or hide the Lightbox strip above the prompt: the images you pasted and Claude read, received or created", argumentHint: "[image path | view | clear]", immediate: true });
605    } catch (err) {
606      $.ui.log(`lightbox: /lightbox not registered: ${message(err)}`, { to: "debug" });
607    }
608    return result;
609  });
610
611  // Images pasted into a prompt, typed at an idle prompt (door `prompt`) or queued while Claude works and
612  // delivered into the running turn (door `delivery`). Captured once the row is stored, off the append's path,
613  // so the prompt is not held up.
614  for (const door of ["prompt", "delivery"] as const) {
615    on("session.append", { door }, async ($, e, next) => {
616      const result = await next(e);
617      $.clock.after(0, () => {
618        void capturePasted($, e as unknown as Row).catch((err) => $.ui.log(`lightbox: ${message(err)}`, { to: "debug" }));
619      });
620      return result;
621    });
622  }
623
624  on("tool.call", async ($, e, next) => {
625    const call = e as unknown as Call;
626    if (call.tool === SHOW_TOOL) {
627      // One line: the strip gives a caption one row.
628      const caption = typeof call.caption === "string" ? call.caption.replace(/\s+/g, " ").trim().slice(0, 200) || undefined : undefined;
629      return { result: await showFile($, String(call.path ?? ""), "sent by Claude", caption) };
630    }
631    const started = Date.now();
632    const result = await next(e);
633    try {
634      await capture($, call, result, started);
635    } catch (err) {
636      $.ui.log(`lightbox: ${message(err)}`, { to: "debug" });
637    }
638    return result;
639  });
640
641  on("command.run", { command: "lightbox" }, async ($, e) => {
642    const arg = String(e.args ?? "").trim();
643    if (arg === "clear") {
644      await update($, shots, () => []);
645      await update($, current, () => 0);
646      pixels.clear();
647      inline.clear();
648      cellCache.clear();
649      gone.push(...copies.values());
650      copies.clear();
651      await sweep($);
652      return { text: "Lightbox cleared." };
653    }
654    if (arg === "view") {
655      await $.ui.open({ id: PANE, title: "Lightbox", focus: true });
656      return {};
657    }
658    if (arg) {
659      const said = await showFile($, arg, "opened by you", undefined, true);
660      if (!said.startsWith("Showing")) return { text: said };
661      await update($, hidden, () => false);
662      await update($, folded, () => false);
663      return {};
664    }
665    if (!(await read($, shots)).length) return { text: `No images yet. Pasted images, images Claude reads or sends, and /lightbox <path> (${FORMATS}) appear above the prompt.` };
666    const open = !(await read($, hidden)) && !(await read($, folded));
667    await update($, hidden, () => open);
668    await update($, folded, () => false);
669    return {};
670  });
671
672  on("ui.close", { id: PANE }, async ($, e, next) => {
673    const result = await next(e);
674    $.ui.invalidate("ui.render");
675    return result;
676  });
677
678  // The strip above the prompt: the current image and the others that arrived with it, small, side by side,
679  // with the current one's name, where it came from, and the keys.
680  on("ui.render", { component: "AbovePrompt" }, async ($, e, next) => {
681    if (e.props.hasSurvey || (await read($, hidden))) return next(e);
682    const list = await read($, shots);
683    if (!list.length) return next(e);
684    // While the larger pane shows, the strip would only repeat it.
685    if ((await $.ui.panes()).some((pane) => pane.id === PANE && pane.isShown)) return next(e);
686    const { Box, Text, Button } = $.ui.resolve(e);
687    // What the mods after this one draw in the band (statusline-hud's rows) goes under the strip, so it stays
688    // closest to the prompt whichever mod runs first; the strip fits in the rows it leaves.
689    const rest = await next(e);
690    const withRest = (strip: RenderChildren) => (
691      <Box flexDirection="column">
692        {strip}
693        {rest}
694      </Box>
695    );
696    const elements = $.ui.resolve(e) as unknown as { Image?: ElementConstructor<ImageProps>; Raster?: ElementConstructor<RasterProps> };
697    const Image = e.surface === "terminal" && drawsPixels ? elements.Image : undefined;
698    const Raster = e.surface === "terminal" && !drawsPixels ? elements.Raster : undefined;
699
700    const index = clampIndex(await read($, current), list.length);
701    const shot = list[index]!;
702
703    // The batch the current image arrived in, and the window of it that fits.
704    const batchOf = (s: LightboxShot) => s.batch ?? s.id;
705    let first = index;
706    let last = index;
707    while (first > 0 && batchOf(list[first - 1]!) === batchOf(shot)) first -= 1;
708    while (last < list.length - 1 && batchOf(list[last + 1]!) === batchOf(shot)) last += 1;
709    const from = Math.max(first, Math.min(index - Math.floor(BATCH_SHOWN / 2), last - BATCH_SHOWN + 1));
710    const shown = list.slice(from, Math.min(last + 1, from + BATCH_SHOWN));
711    const before = from - first;
712    const after = last + 1 - (from + shown.length);
713
714    // The band gets the rows the bottom slot has left above the prompt, fewer while a list of running agents
715    // sits there too, and scrolls whatever is taller. The strip always fits them whole instead: smaller pictures
716    // first, then fewer words and keys, then a single line.
717    const rows = Math.max(1, e.props.maxRows - rowsOf(rest));
718    const maxRows = Math.max(1, Math.min(STRIP_ROWS, rows - 2));
719    // The pictures share about three fifths of the width, each in its frame; the words take the rest.
720    const budget = Math.floor(e.props.bodyColumns * 0.6) - (shown.length - 1);
721    const each = Math.max(6, Math.min(STRIP_MAX_COLUMNS, Math.floor(budget / shown.length) - 2));
722    const boxOf = (s: LightboxShot) => (s.width && s.height ? fit(s.width, s.height, each, maxRows, cellAspect) : { columns: Math.min(each, Math.round(3 * cellAspect)), rows: Math.min(3, maxRows) });
723    const counter = (n: number) => (n > 0 ? String(n).length + 2 : 0);
724    const picturesWidth = shown.reduce((sum, s) => sum + boxOf(s).columns + 2, 0) + (shown.length - 1) + counter(before) + counter(after);
725    // The words' column: the band less its padding, the pictures, the gap and the room kept for the collapse mark.
726    const wordsWidth = e.props.bodyColumns - 2 - picturesWidth - 2 - 4;
727    const cramped = rows < 4 || wordsWidth < 16;
728
729    const frame = (s: LightboxShot) => {
730      const strip = pixels.get(s.id)?.strip;
731      if (!strip && s.status !== "failed") $.clock.after(0, () => { void prepare($, s.id, "strip"); });
732      const box = boxOf(s);
733      let view;
734      if (s.status === "failed") view = <Text color="red">✕</Text>;
735      else if (strip && Image) view = <Image key={`s-${s.id}`} source={{ png: strip }} columns={box.columns} rows={box.rows} alt={`${s.title} (image)`} />;
736      else if (strip && Raster) {
737        const cells = cellCache.get(`${s.id}:${box.columns}x${box.rows}`);
738        if (!cells) $.clock.after(0, () => { void renderCells($, s.id, box.columns, box.rows); });
739        view = cells ? <Raster key={`s-${s.id}`} columns={box.columns} rows={box.rows} cells={cells} /> : <Text dimColor>…</Text>;
740      } else view = <Text dimColor>…</Text>;
741      // The frame keeps a dark picture from melting into a dark terminal, in the color of who sent it; in a batch,
742      // only the current one's frame is lit.
743      const lit = s.id === shot.id && shown.length > 1;
744      const color = s.id === shot.id ? (originColor(s.origin) ?? "gray") : "gray";
745      return (
746        <Box key={`f-${s.id}`} borderStyle="round" borderColor={color} borderDimColor={!lit} width={box.columns + 2} height={box.rows + 2} flexShrink={0}>
747          {view}
748        </Box>
749      );
750    };
751
752    const step = (delta: number) => () => { void update($, current, (i) => ((((i ?? 0) + delta) % list.length) + list.length) % list.length); };
753    const openPane = () => { void $.ui.open({ id: PANE, title: "Lightbox", focus: true }).then(() => $.ui.invalidate("ui.render")); };
754    const tint = originColor(shot.origin);
755    const count = last + 1 - first;
756
757    // Folded: one line, its pictures a row tall, until the next image or the person opens it. Also where the band
758    // has no room for more, and then the larger pane is the way to see it.
759    const isFolded = await read($, folded);
760    if (isFolded || cramped) {
761      const tiny = (s: LightboxShot) => {
762        const strip = pixels.get(s.id)?.strip;
763        if (!strip && s.status !== "failed") $.clock.after(0, () => { void prepare($, s.id, "strip"); });
764        if (!strip || !s.width || !s.height) return null;
765        const size = fit(s.width, s.height, 8, 1, cellAspect);
766        if (Image) return <Image key={`t-${s.id}`} source={{ png: strip }} columns={size.columns} rows={1} alt={s.title} />;
767        if (!Raster) return null;
768        const cells = cellCache.get(`${s.id}:${size.columns}x1`);
769        if (!cells) $.clock.after(0, () => { void renderCells($, s.id, size.columns, 1); });
770        return cells ? <Raster key={`t-${s.id}`} columns={size.columns} rows={1} cells={cells} /> : null;
771      };
772      // The keys and a dozen cells of name come first; tiny pictures fill what is left, none on a narrow band. Each key
773      // is a framed `[ label ]`, four cells wider than its label, unless the band is too narrow for frames: then the
774      // labels alone, as before.
775      const isFramed = e.props.bodyColumns >= 2 + 4 + "larger".length + 4 + 1 + "hide".length + 4 + 1 + 12 + 5;
776      const frameWidth = isFramed ? 4 : 0;
777      const keysWidth = (isFolded ? "expand".length : "larger".length) + frameWidth + 1 + "hide".length + frameWidth;
778      let room = e.props.bodyColumns - 2 - 4 - keysWidth - 1 - 12;
779      const fitting = shown.filter((s) => {
780        const width = s.width && s.height ? fit(s.width, s.height, 8, 1, cellAspect).columns + 1 : 0;
781        if (width > room) { room = 0; return false; }
782        room -= width;
783        return true;
784      });
785      return withRest(
786        <Box flexDirection="row" paddingX={1} paddingRight={4} columnGap={1}>
787          {fitting.map(tiny)}
788          <Text bold wrap="truncate-middle">{shot.title}</Text>
789          {count > 1 ? <Text dimColor wrap="truncate-end">+{count - 1}</Text> : null}
790          {tint ? <Text color={tint} wrap="truncate-end">{shot.origin}</Text> : <Text dimColor wrap="truncate-end">{shot.origin}</Text>}
791          <Text dimColor wrap="truncate-end">· {ago(Date.now() - shot.at)}</Text>
792          <Box flexGrow={1} />
793          {isFolded ? (isFramed ? <Button key="expand" variant="primary" label="expand" onPress={() => { void update($, folded, () => false); }} /> : <Button key="expand" plain dimColor label="expand" onPress={() => { void update($, folded, () => false); }} />) : null}
794          {isFolded ? null : isFramed ? <Button key="view" variant="primary" label="larger" onPress={openPane} /> : <Button key="view" plain dimColor label="larger" onPress={openPane} />}
795          {isFramed ? <Button key="hide" variant="secondary" label="hide" onPress={() => { void update($, hidden, () => true); }} /> : <Button key="hide" plain dimColor label="hide" onPress={() => { void update($, hidden, () => true); }} />}
796        </Box>
797      );
798    }
799
800    // The reel at a glance: a dot per image in its sender's color, the current one filled, batches apart.
801    const reel =
802      list.length > DOTS ? (
803        <Text dimColor>{index + 1}/{list.length}</Text>
804      ) : list.length > 1 ? (
805        <Box flexDirection="row">
806          {list.map((s, i) => {
807            const color = originColor(s.origin);
808            const dot = `${i > 0 && batchOf(list[i - 1]!) !== batchOf(s) ? " " : ""}${i === index ? "●" : "○"}`;
809            return color ? <Text key={`d-${s.id}`} color={color} dimColor={i !== index}>{dot}</Text> : <Text key={`d-${s.id}`} dimColor>{dot}</Text>;
810          })}
811        </Box>
812      ) : null;
813
814    // The words' rows: a row above them, level with the picture's top, only when the band has rows to spare; then
815    // the name and the details, a note when there is room, and the keys in what is left, the least needed dropped
816    // first so they fit without wrapping past it.
817    const lead = rows >= 6 ? 1 : 0;
818    const spare = rows - lead - 2;
819    const noteText = shot.status === "failed" ? `Can't show it: ${shot.note ?? "unknown error"}` : shot.caption;
820    const note = noteText && spare >= 2 ? noteText : undefined;
821    const keyRows = spare - (note ? 1 : 0);
822    type Key = { id: string; width: number; node: RenderChildren };
823    // Buttons that look like buttons: a rounded outline in the key's tone, brighter under the pointer, when there are
824    // three rows for a line of them; otherwise one row of framed `[ label ]` keys. Both are four cells wider than the
825    // label.
826    const isOutlined = keyRows >= 3;
827    const keyLines = isOutlined ? Math.floor(keyRows / 3) : keyRows;
828    const button = (id: string, label: string, onPress: () => void, tone: Tone = "neutral"): Key => ({
829      id,
830      width: label.length + 4,
831      node: isOutlined
832        ? outlined(Box, Button, id, label, onPress, tone)
833        : <Button key={id} variant={tone === "primary" ? "primary" : "secondary"} label={label} onPress={onPress} />
834    });
835    let keys: Key[] = [
836      ...(list.length > 1 ? [button("prev", "‹ prev", step(-1)), button("next", "next ›", step(1))] : []),
837      button("view", "larger", openPane, "primary"),
838      ...(canOpen && (shot.path || shot.copy) ? [button("open", "open", () => { void openShot($, shot); })] : []),
839      button("fold", "fold", () => { void update($, folded, () => true); }),
840      button("hide", "hide", () => { void update($, hidden, () => true); })
841    ];
842    const rowsFor = (items: Key[]) => {
843      let lines = 1;
844      let used = -1;
845      for (const item of items) {
846        if (used + 1 + item.width > wordsWidth && used >= 0) { lines += 1; used = -1; }
847        used += 1 + item.width;
848      }
849      return lines;
850    };
851    for (const drop of ["fold", "open", "prev", "next", "view"]) {
852      if (rowsFor(keys) <= keyLines) break;
853      keys = keys.filter((k) => k.id !== drop);
854    }
855
856    return withRest(
857      <Box flexDirection="row" paddingX={1} columnGap={2}>
858        <Box flexDirection="row" columnGap={1} flexShrink={0}>
859          {before > 0 ? <Box paddingTop={1}><Text dimColor>+{before}</Text></Box> : null}
860          {shown.map(frame)}
861          {after > 0 ? <Box paddingTop={1}><Text dimColor>+{after}</Text></Box> : null}
862        </Box>
863        {/* Level with the picture's top, and clear of the collapse mark in the band's top right corner. */}
864        <Box flexDirection="column" flexGrow={1} flexShrink={1} paddingTop={lead} paddingRight={4}>
865          <Box flexDirection="row" columnGap={2} height={1}>
866            <Text bold wrap="truncate-middle">{shot.title}</Text>
867            {reel}
868          </Box>
869          <Box flexDirection="row" height={1}>
870            <Text wrap="truncate-end">
871              {tint ? <Text color={tint}>{shot.origin}</Text> : <Text dimColor>{shot.origin}</Text>}
872              <Text dimColor> · {details(shot)}</Text>
873            </Text>
874          </Box>
875          {note ? (shot.status === "failed" ? <Text color="red" wrap="truncate-end">{note}</Text> : <Text italic wrap="truncate-end">{note}</Text>) : null}
876          <Box flexDirection="row" columnGap={1} flexWrap="wrap">
877            {keys.map((k) => k.node)}
878          </Box>
879        </Box>
880      </Box>
881    );
882  });
883
884  // The pane, opened from the strip or `/lightbox view`: the current image as large as the pane allows.
885  on("ui.render", { component: "Pane", requestId: PANE }, async ($, e) => {
886    const { Box, Text, Button } = $.ui.resolve(e);
887    const elements = $.ui.resolve(e) as unknown as { Image?: ElementConstructor<ImageProps>; Raster?: ElementConstructor<RasterProps> };
888    const Image = e.surface === "terminal" && drawsPixels ? elements.Image : undefined;
889    const Raster = e.surface === "terminal" && !drawsPixels ? elements.Raster : undefined;
890    const list = await read($, shots);
891    const width = Math.max(10, e.props.bodyColumns - 2);
892
893    if (!list.length) {
894      return (
895        <Box flexDirection="column" paddingX={1} paddingY={1} gap={1}>
896          <Text bold>Lightbox</Text>
897          <Text dimColor>Images from this session appear here: whatever Claude reads, captures, generates or sends you, and what you paste.</Text>
898          <Text dimColor>/lightbox ~/Pictures/photo.heic opens any {FORMATS} file.</Text>
899        </Box>
900      );
901    }
902
903    const index = clampIndex(await read($, current), list.length);
904    const shot = list[index]!;
905    const picture = pixels.get(shot.id);
906    if (!picture?.strip && shot.status !== "failed") $.clock.after(0, () => { void prepare($, shot.id, "strip"); });
907    // Real pixels want the larger picture; until it is ready the strip's stands in. Cells need no more than the strip's.
908    if (Image && picture?.strip && !picture.full) $.clock.after(0, () => { void prepare($, shot.id, "full"); });
909
910    const viewportRows = e.viewport?.rows ?? 40;
911    // A docked pane is shorter than the screen (the prompt and status sit below it): size to its body.
912    const bodyRows = e.props.scroll?.bodyRows ?? 0;
913    const hasStrip = list.length > 1;
914    // The footer: a rule, then the outlined keys, three rows for each line they wrap onto at this width.
915    const footerKeys = [
916      ...(hasStrip ? ["‹ prev", "next ›"] : []),
917      ...(canOpen && (shot.path || shot.copy) ? ["open"] : []),
918      ...(canOpen && shot.path ? ["show in Finder"] : []),
919      ...(shot.path ? ["copy path"] : []),
920      "remove"
921    ];
922    let footerLines = 1;
923    let used = -1;
924    for (const label of footerKeys) {
925      if (used + 1 + label.length + 4 > width && used >= 0) { footerLines += 1; used = -1; }
926      used += 1 + label.length + 4;
927    }
928    const chrome = 2 + 2 + (shot.caption ? 2 : 0) + (hasStrip ? THUMB_ROWS + 3 : 0) + 2 + 3 * footerLines;
929    const maxRows =
930      e.props.placement === "dock"
931        ? Math.max(6, (bodyRows > 0 ? bodyRows : viewportRows - 4) - chrome)
932        : Math.max(6, Math.min(20, Math.floor(viewportRows * 0.5)));
933    const box = shot.width && shot.height ? fit(shot.width, shot.height, width, maxRows, cellAspect) : null;
934
935    let view;
936    const source = picture?.full ?? picture?.strip;
937    if (shot.status === "failed") {
938      view = <Text color="red">Can't show this image: {shot.note ?? "unknown error"}</Text>;
939    } else if (source && box && Image) {
940      view = <Image key="main" source={{ png: source }} columns={box.columns} rows={box.rows} alt={`${shot.title} (image)`} />;
941    } else if (source && box && Raster) {
942      const cells = cellCache.get(`${shot.id}:${box.columns}x${box.rows}`);
943      if (!cells) $.clock.after(0, () => { void renderCells($, shot.id, box.columns, box.rows); });
944      view = cells ? <Raster key="main" columns={box.columns} rows={box.rows} cells={cells} /> : <Text dimColor>Drawing {shot.title}…</Text>;
945    } else if (source && !Image && !Raster) {
946      view = <Text dimColor>This surface does not draw images. Open it instead.</Text>;
947    } else {
948      view = <Text dimColor>Preparing {shot.title}…</Text>;
949    }
950
951    const slots = Math.max(1, Math.min(5, Math.floor((width + 1) / (THUMB_COLUMNS + 3))));
952    const first = Math.max(0, Math.min(index - Math.floor(slots / 2), list.length - slots));
953    const strip = list.slice(first, first + slots);
954    const step = (delta: number) => () => { void update($, current, (i) => ((((i ?? 0) + delta) % list.length) + list.length) % list.length); };
955
956    const thumbnail = (s: LightboxShot) => {
957      const thumb = pixels.get(s.id)?.strip;
958      if (!thumb && s.status !== "failed") $.clock.after(0, () => { void prepare($, s.id, "strip"); });
959      if (!thumb || !s.width || !s.height) return <Text dimColor>…</Text>;
960      const size = fit(s.width, s.height, THUMB_COLUMNS, THUMB_ROWS, cellAspect);
961      if (Image) return <Image key={`i-${s.id}`} source={{ png: thumb }} columns={size.columns} rows={size.rows} alt={s.title} />;
962      if (!Raster) return <Text dimColor wrap="truncate-end">{s.title}</Text>;
963      const cells = cellCache.get(`${s.id}:${size.columns}x${size.rows}`);
964      if (!cells) $.clock.after(0, () => { void renderCells($, s.id, size.columns, size.rows); });
965      return cells ? <Raster key={`r-${s.id}`} columns={size.columns} rows={size.rows} cells={cells} /> : <Text dimColor>…</Text>;
966    };
967
968    return (
969      <Box flexDirection="column" paddingX={1}>
970        {/* Clear of the close mark Claude Code draws in the pane's top right corner. */}
971        <Box flexDirection="row" justifyContent="space-between" paddingRight={2}>
972          <Text bold wrap="truncate-middle">{shot.title}</Text>
973          <Text dimColor>{index + 1} of {list.length}</Text>
974        </Box>
975        <Text dimColor wrap="truncate-end">{metaLine(shot)}</Text>
976        <Box flexDirection="row" justifyContent="center" marginTop={1}>
977          {view}
978        </Box>
979        {shot.caption ? <Box marginTop={1}><Text italic>{shot.caption}</Text></Box> : null}
980        {hasStrip ? (
981          <Box flexDirection="row" justifyContent="center" gap={1} marginTop={1}>
982            {strip.map((s) => (
983              <Box
984                key={`t-${s.id}`}
985                borderStyle="single"
986                borderColor={s.id === shot.id ? "cyan" : "gray"}
987                borderDimColor={s.id !== shot.id}
988                width={THUMB_COLUMNS + 2}
989                height={THUMB_ROWS + 2}
990                justifyContent="center"
991                alignItems="center"
992              >
993                {thumbnail(s)}
994              </Box>
995            ))}
996          </Box>
997        ) : null}
998        <Box marginTop={1}>
999          <Text dimColor>{"─".repeat(width)}</Text>
1000        </Box>
1001        <Box flexDirection="row" columnGap={1} flexWrap="wrap">
1002          {list.length > 1 ? outlined(Box, Button, "prev", "‹ prev", step(-1)) : null}
1003          {list.length > 1 ? outlined(Box, Button, "next", "next ›", step(1)) : null}
1004          {canOpen && (shot.path || shot.copy) ? outlined(Box, Button, "open", "open", () => { void openShot($, shot); }, "primary") : null}
1005          {canOpen && shot.path ? outlined(Box, Button, "reveal", "show in Finder", () => { void $.process.run(["open", "-R", shot.path!]); }) : null}
1006          {shot.path ? outlined(Box, Button, "copy", "copy path", () => { void $.ui.copy({ text: shot.path!, surface: e.surface }); }) : null}
1007          {outlined(Box, Button, "remove", "remove", () => { void removeShot($, shot.id); }, "danger")}
1008        </Box>
1009      </Box>
1010    );
1011  });
1012};
1013

1// Draws a picture with text: each terminal cell shows a Unicode quadrant block and two colors, covering 2×2
2// pixels. It works in any terminal and over SSH, where the kitty graphics protocol does not reach.
3
4const ALPHABET = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/";
5const LOOKUP = (() => {
6  const table = new Int16Array(128).fill(-1);
7  for (let i = 0; i < ALPHABET.length; i += 1) table[ALPHABET.charCodeAt(i)] = i;
8  return table;
9})();
10
11export function decodeBase64(text: string): Uint8Array {
12  const out = new Uint8Array(Math.floor((text.length * 3) / 4) + 3);
13  let buffer = 0;
14  let bits = 0;
15  let o = 0;
16  for (let i = 0; i < text.length; i += 1) {
17    const code = text.charCodeAt(i);
18    const value = code < 128 ? (LOOKUP[code] ?? -1) : -1;
19    if (value < 0) continue;
20    buffer = ((buffer << 6) | value) & 0xffffff;
21    bits += 6;
22    if (bits >= 8) {
23      bits -= 8;
24      out[o++] = (buffer >> bits) & 0xff;
25    }
26  }
27  return out.subarray(0, o);
28}
29
30export function encodeBase64(bytes: Uint8Array): string {
31  const parts: string[] = [];
32  for (let i = 0; i < bytes.length; i += 3) {
33    const a = bytes[i] ?? 0;
34    const b = bytes[i + 1];
35    const c = bytes[i + 2];
36    const n = (a << 16) | ((b ?? 0) << 8) | (c ?? 0);
37    parts.push(
38      (ALPHABET[(n >> 18) & 63] ?? "") +
39        (ALPHABET[(n >> 12) & 63] ?? "") +
40        (b === undefined ? "=" : (ALPHABET[(n >> 6) & 63] ?? "")) +
41        (c === undefined ? "=" : (ALPHABET[n & 63] ?? ""))
42    );
43  }
44  return parts.join("");
45}
46
47/** A picture as colors `0xRRGGBB`, read by pixel. */
48export type Pixels = { width: number; height: number; at: (x: number, y: number) => number };
49
50/** Reads an uncompressed 24- or 32-bit BMP, as ImageMagick (`bmp3:`) and sips write them. */
51export function readBmp(bytes: Uint8Array): Pixels | null {
52  if (bytes.length < 54 || bytes[0] !== 0x42 || bytes[1] !== 0x4d) return null;
53  const view = new DataView(bytes.buffer, bytes.byteOffset, bytes.byteLength);
54  const offset = view.getUint32(10, true);
55  const width = view.getInt32(18, true);
56  const rawHeight = view.getInt32(22, true);
57  const bpp = view.getUint16(28, true);
58  if (width <= 0 || rawHeight === 0 || (bpp !== 24 && bpp !== 32)) return null;
59  const height = Math.abs(rawHeight);
60  const stride = Math.floor((bpp * width + 31) / 32) * 4;
61  const step = bpp / 8;
62  const at = (x: number, y: number) => {
63    const cx = Math.min(width - 1, Math.max(0, x));
64    const cy = Math.min(height - 1, Math.max(0, y));
65    const row = rawHeight < 0 ? cy : height - 1 - cy;
66    const i = offset + row * stride + cx * step;
67    return ((bytes[i + 2] ?? 0) << 16) | ((bytes[i + 1] ?? 0) << 8) | (bytes[i] ?? 0);
68  };
69  return { width, height, at };
70}
71
72// The quadrant block for each set of lit quarters: bit 0 top left, 1 top right, 2 bottom left, 3 bottom right.
73const QUADRANTS = [0x20, 0x2598, 0x259d, 0x2580, 0x2596, 0x258c, 0x259e, 0x259b, 0x2597, 0x259a, 0x2590, 0x259c, 0x2584, 0x2599, 0x259f, 0x2588];
74
75const red = (c: number) => (c >> 16) & 0xff;
76const green = (c: number) => (c >> 8) & 0xff;
77const blue = (c: number) => c & 0xff;
78
79/**
80 * The cells of a `Raster` `columns` wide and `rows` tall, from a picture of `columns * 2` by `rows * 2`
81 * pixels: each cell takes the quadrant pattern and the two colors closest to its four pixels.
82 */
83export function quadrantCells(picture: Pixels, columns: number, rows: number): string {
84  const out = new Uint8Array(columns * rows * 12);
85  const view = new DataView(out.buffer);
86  const quad = [0, 0, 0, 0];
87  for (let row = 0; row < rows; row += 1) {
88    for (let col = 0; col < columns; col += 1) {
89      quad[0] = picture.at(col * 2, row * 2);
90      quad[1] = picture.at(col * 2 + 1, row * 2);
91      quad[2] = picture.at(col * 2, row * 2 + 1);
92      quad[3] = picture.at(col * 2 + 1, row * 2 + 1);
93      let bestMask = 15;
94      let bestFg = 0;
95      let bestBg = 0;
96      let bestError = Infinity;
97      for (let mask = 1; mask <= 15; mask += 1) {
98        let litR = 0, litG = 0, litB = 0, darkR = 0, darkG = 0, darkB = 0, lit = 0;
99        for (let q = 0; q < 4; q += 1) {
100          const c = quad[q] ?? 0;
101          if ((mask >> q) & 1) {
102            litR += red(c); litG += green(c); litB += blue(c); lit += 1;
103          } else {
104            darkR += red(c); darkG += green(c); darkB += blue(c);
105          }
106        }
107        const dark = 4 - lit;
108        const fg = [Math.round(litR / lit), Math.round(litG / lit), Math.round(litB / lit)];
109        const bg = dark ? [Math.round(darkR / dark), Math.round(darkG / dark), Math.round(darkB / dark)] : fg;
110        let error = 0;
111        for (let q = 0; q < 4; q += 1) {
112          const c = quad[q] ?? 0;
113          const target = (mask >> q) & 1 ? fg : bg;
114          error += (red(c) - (target[0] ?? 0)) ** 2 + (green(c) - (target[1] ?? 0)) ** 2 + (blue(c) - (target[2] ?? 0)) ** 2;
115        }
116        if (error < bestError) {
117          bestError = error;
118          bestMask = mask;
119          bestFg = ((fg[0] ?? 0) << 16) | ((fg[1] ?? 0) << 8) | (fg[2] ?? 0);
120          bestBg = ((bg[0] ?? 0) << 16) | ((bg[1] ?? 0) << 8) | (bg[2] ?? 0);
121        }
122      }
123      const i = (row * columns + col) * 12;
124      view.setUint32(i, QUADRANTS[bestMask] ?? 0x2588, true);
125      view.setUint32(i + 4, bestFg, true);
126      view.setUint32(i + 8, bestBg, true);
127    }
128  }
129  return encodeBase64(out);
130}
131

1// Image facts the Lightbox needs, with no access to anything outside: formats, sizes, paths, layout.
2
3/** File extensions the Lightbox shows, and the MIME type each one arrives as. */
4const MIME_BY_EXTENSION: Record<string, string> = {
5  png: "image/png",
6  jpg: "image/jpeg",
7  jpeg: "image/jpeg",
8  gif: "image/gif",
9  webp: "image/webp",
10  heic: "image/heic",
11  heif: "image/heif",
12  avif: "image/avif",
13  tif: "image/tiff",
14  tiff: "image/tiff",
15  bmp: "image/bmp",
16  svg: "image/svg+xml"
17};
18
19const EXTENSIONS = Object.keys(MIME_BY_EXTENSION).join("|");
20
21// An image path inside free text: absolute, ~/..., ./... or a bare relative name, ending in a known extension.
22const IMAGE_PATH_RE = new RegExp(`(?:^|[\\s'"=(\`:,\\[])((?:~|\\.{1,2})?/?[^\\s'"=()\`:;,|&<>\\[\\]]*\\.(?:${EXTENSIONS}))(?=$|[\\s'"),;:\`\\]])`, "gim");
23
24/** The MIME type for a path's extension, or "" when the Lightbox does not show that kind of file. */
25export function mimeForPath(path: string): string {
26  const ext = path.toLowerCase().match(/\.([a-z0-9]+)$/)?.[1] ?? "";
27  return MIME_BY_EXTENSION[ext] ?? "";
28}
29
30/** Image file paths mentioned in a piece of text, each once, in the order they appear. */
31export function imagePathsIn(text: string): string[] {
32  const out = new Set<string>();
33  const re = new RegExp(IMAGE_PATH_RE.source, "gim");
34  let m: RegExpExecArray | null;
35  while ((m = re.exec(String(text || "")))) if (m[1]) out.add(m[1]);
36  return [...out];
37}
38
39/** Image file paths in quotes inside a piece of text, such as a shell command's `"my diagram.png"`: spaces kept. */
40export function quotedImagePaths(text: string): string[] {
41  const re = new RegExp(`(["'])([^"'\\n]+\\.(?:${EXTENSIONS}))\\1`, "gi");
42  return [...String(text || "").matchAll(re)].map((m) => m[2]!);
43}
44
45/** A path made absolute: `~/x` against home, a relative one against the working directory. */
46export function absolutePath(path: string, cwd: string, home: string): string {
47  if (path.startsWith("~/")) return `${home.replace(/\/$/, "")}/${path.slice(2)}`;
48  if (path.startsWith("/")) return path;
49  const parts = `${cwd.replace(/\/$/, "")}/${path}`.split("/");
50  const out: string[] = [];
51  for (const part of parts) {
52    if (!part || part === ".") continue;
53    if (part === "..") out.pop();
54    else out.push(part);
55  }
56  return `/${out.join("/")}`;
57}
58
59export function basename(path: string): string {
60  return path.replace(/\/+$/, "").split("/").pop() || path;
61}
62
63/** Inline image bytes in a tool's result: MCP `{ type: "image", data, mimeType }` and Messages API `source` blocks, a few levels deep. */
64export function imageBlocks(value: unknown): { base64: string; mime: string }[] {
65  const out: { base64: string; mime: string }[] = [];
66  const visit = (v: unknown, depth: number) => {
67    if (depth > 4 || !v || typeof v !== "object") return;
68    if (Array.isArray(v)) { for (const item of v) visit(item, depth + 1); return; }
69    const block = v as Record<string, unknown>;
70    if (block.type === "image") {
71      if (typeof block.data === "string") out.push({ base64: block.data, mime: String(block.mimeType ?? "image/png") });
72      const source = block.source as Record<string, unknown> | undefined;
73      if (source?.type === "base64" && typeof source.data === "string") out.push({ base64: source.data, mime: String(source.media_type ?? "image/png") });
74      return;
75    }
76    if ("content" in block) visit(block.content, depth + 1);
77  };
78  visit(value, 0);
79  return out;
80}
81
82/** True when base64 bytes are a PNG file. */
83export function isPng(base64: string): boolean {
84  return base64.startsWith("iVBORw0KGgo");
85}
86
87/** How many bytes base64 text decodes to. */
88export function decodedSize(base64: string): number {
89  const padding = base64.endsWith("==") ? 2 : base64.endsWith("=") ? 1 : 0;
90  return Math.floor((base64.length * 3) / 4) - padding;
91}
92
93const BASE64_ALPHABET = "ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/";
94
95/** The bytes of a short run of unpadded base64: enough to read a file header. */
96function headerBytes(base64: string): number[] {
97  const bytes: number[] = [];
98  let buffer = 0;
99  let bits = 0;
100  for (const ch of base64) {
101    const value = BASE64_ALPHABET.indexOf(ch);
102    if (value < 0) break;
103    buffer = (buffer << 6) | value;
104    bits += 6;
105    if (bits >= 8) {
106      bits -= 8;
107      bytes.push((buffer >> bits) & 0xff);
108    }
109  }
110  return bytes;
111}
112
113/** A PNG's pixel size from its header, or null when the bytes are not a PNG. */
114export function pngSize(base64: string): { width: number; height: number } | null {
115  if (!isPng(base64)) return null;
116  const head = headerBytes(base64.slice(0, 32));
117  const at = (i: number) => (((head[i] ?? 0) << 24) | ((head[i + 1] ?? 0) << 16) | ((head[i + 2] ?? 0) << 8) | (head[i + 3] ?? 0)) >>> 0;
118  const width = at(16);
119  const height = at(20);
120  return width > 0 && height > 0 ? { width, height } : null;
121}
122
123// A terminal cell is about twice as tall as it is wide; fonts and line spacing move it.
124export const CELL_ASPECT = 2.1;
125
126/**
127 * The largest box of cells within the limits that keeps the picture's proportions, for cells `aspect` times
128 * taller than wide. The terminal stretches a picture to fill its box, so a wrong aspect distorts it.
129 */
130export function fit(width: number, height: number, maxColumns: number, maxRows: number, aspect = CELL_ASPECT): { columns: number; rows: number } {
131  const clamp = (n: number, hi: number) => Math.max(1, Math.min(hi, Math.round(n)));
132  let columns = Math.min(maxColumns, 255);
133  let rows = (columns * height) / width / aspect;
134  if (rows > maxRows) {
135    rows = maxRows;
136    columns = (rows * aspect * width) / height;
137  }
138  return { columns: clamp(columns, Math.min(maxColumns, 255)), rows: clamp(rows, Math.min(maxRows, 255)) };
139}
140
141/** A tool name for people: `mcp__plugin_chrome-devtools-mcp_chrome-devtools__take_screenshot` → `chrome-devtools take_screenshot`. */
142export function toolLabel(tool: string): string {
143  const m = tool.match(/^mcp__(?:plugin_[^_]+_)?(.+?)__(.+)$/);
144  return m ? `${m[1]} ${m[2]}` : tool;
145}
146
147export function ago(ms: number): string {
148  const s = Math.max(0, Math.round(ms / 1000));
149  if (s < 60) return "just now";
150  if (s < 3600) return `${Math.round(s / 60)} min ago`;
151  return `${Math.round(s / 3600)} h ago`;
152}
153
154const FORMAT_LABELS: Record<string, string> = {
155  "image/png": "PNG",
156  "image/jpeg": "JPEG",
157  "image/gif": "GIF",
158  "image/webp": "WebP",
159  "image/heic": "HEIC",
160  "image/heif": "HEIF",
161  "image/avif": "AVIF",
162  "image/tiff": "TIFF",
163  "image/bmp": "BMP",
164  "image/svg+xml": "SVG"
165};
166
167/** A MIME type as people name the format: `image/heic` → HEIC. */
168export function formatLabel(mime: string): string {
169  return FORMAT_LABELS[mime] ?? mime.replace(/^image\//, "").toUpperCase();
170}
171
172/**
173 * The images right after a piece of text in the newest user message that holds it: where the conversation keeps a
174 * prompt the person queued while Claude worked, whose own row carries its text alone.
175 */
176export function imagesAfterText(messages: readonly { role: string; content: readonly unknown[] }[], text: string): { base64: string; mime: string }[] {
177  if (!text) return [];
178  for (let m = messages.length - 1; m >= 0; m -= 1) {
179    const message = messages[m]!;
180    if (message.role !== "user") continue;
181    const blocks = message.content as readonly { type?: string; text?: unknown }[];
182    // The last match: the same text queued twice in one message names the later delivery.
183    const at = blocks.findLastIndex((b) => b.type === "text" && typeof b.text === "string" && b.text.includes(text));
184    if (at < 0) continue;
185    let end = at + 1;
186    while (end < blocks.length && blocks[end]!.type === "image") end += 1;
187    return imageBlocks(blocks.slice(at + 1, end));
188  }
189  return [];
190}
191
192/** Files pasted into a prompt, which Claude Code notes as `[Image: source: /path]`; the path may hold spaces. */
193export function pastedImagePaths(text: string): string[] {
194  const out: string[] = [];
195  const re = /\[Image: source: ([^\]\n]+)\]/g;
196  let m: RegExpExecArray | null;
197  while ((m = re.exec(String(text || "")))) if (m[1]) out.push(m[1].trim());
198  return out;
199}
200

1/** One image on the reel: where it came from, and whether its pixels are ready to draw. */
2export type LightboxShot = {
3  id: string;
4  /** The file name, or the tool that produced an image with no file. */
5  title: string;
6  /** Who put it on the reel, in words: "read by Claude", "sent by Claude", "from peekaboo". */
7  origin: string;
8  /** The absolute path when the image is a file on this machine. */
9  path?: string;
10  /** A private copy of an image that came with no file behind it, so it can be drawn again after a reload. */
11  copy?: string;
12  /** The MIME type it arrived as. */
13  mime: string;
14  /** When it arrived, in milliseconds. */
15  at: number;
16  /** Shared by images that arrived together (the first one's id); the strip shows them side by side. */
17  batch?: string;
18  /** A line Claude attached when sending it. */
19  caption?: string;
20  /** Size of the prepared picture, in pixels. */
21  width?: number;
22  height?: number;
23  /** Size of the original image, in pixels. */
24  originalWidth?: number;
25  originalHeight?: number;
26  status: "pending" | "ready" | "failed";
27  /** Why it could not be shown. */
28  note?: string;
29};
30
31declare module "claude-code" {
32  interface PluginState {
33    lightbox: {
34      shots: LightboxShot[];
35      current: number;
36      /** The person hid the strip above the prompt; a new image shows it again. */
37      hidden: boolean;
38      /** The strip is folded to one line: the person sent a message with no image since these arrived. */
39      folded: boolean;
40    };
41  }
42}
43
