1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, PluginOptions, Register, SessionRateLimit } from 'claude-code'
3
4import type { Model, Pose, Usage, Window } from '../types'
5import { ALT, CLAUDE_ORANGE, FRAMES, framesFor, PIXEL_HEIGHT, PIXEL_WIDTH } from './sprite'
6import type { Rgb } from './sprite'
7
8const poseAtom = atom({ plugin: 'clawd-band', key: 'pose' } as const, 'idle')
9const usageAtom = atom({ plugin: 'clawd-band', key: 'usage' } as const, null)
10const modelAtom = atom({ plugin: 'clawd-band', key: 'model' } as const, { name: null, effort: null })
11
12const SPRITE_COLUMNS = 12
13const SPRITE_ROWS = 3
14const FRAME_MS = 400 // stop-motion: a few frames, each held
15const LABEL = 3 // "7d "
16const PERCENT = 5 // " 100%"
17const RESET = 10 // " ↻ 4:59:59" or " ↻  6d 23h"
18const DOCS_PREFIX = 'mcp__claude_ai_Claude_Docs__'
19
20const READING = ['Read', 'Grep', 'Glob', 'LS', 'NotebookRead', 'ToolSearch']
21const WRITING = ['Edit', 'Write', 'MultiEdit', 'NotebookEdit']
22const RUNNING = ['Bash', 'BashOutput', 'KillShell', 'TaskStop']
23const SEARCHING = ['WebFetch', 'WebSearch']
24const DELEGATING = ['Agent', 'Task', 'SendMessage', 'Workflow', 'Skill']
25const DOCS_READING = ['read', 'query', 'guide']
26
27export const poseFor = (tool: string): Pose => {
28  if (tool === 'AskUserQuestion') return 'questioning'
29  if (tool.startsWith(DOCS_PREFIX)) return DOCS_READING.includes(tool.slice(DOCS_PREFIX.length)) ? 'reading' : 'writing'
30  if (READING.includes(tool)) return 'reading'
31  if (WRITING.includes(tool)) return 'writing'
32  if (RUNNING.includes(tool)) return 'running'
33  if (SEARCHING.includes(tool)) return 'searching'
34  if (DELEGATING.includes(tool)) return 'delegating'
35  return 'working'
36}
37
38const toWindow = (limits: readonly SessionRateLimit[], kind: string): Window | null => {
39  const found = limits.find(l => l.kind === kind)
40  return found ? { percentUsed: found.percentUsed, resetsAt: found.resetsAt ?? null } : null
41}
42
43export const toUsage = (limits: readonly SessionRateLimit[]): Usage | null =>
44  limits.length === 0 ? null : { fiveHour: toWindow(limits, 'five_hour'), sevenDay: toWindow(limits, 'seven_day') }
45
46export const countdown = (resetsAt: string | null | undefined, now: number): string => {
47  if (!resetsAt) return '-:--:--'
48  const total = Math.max(0, Math.floor((Date.parse(resetsAt) - now) / 1000))
49  const days = Math.floor(total / 86400)
50  if (days > 0) return `${days}d ${Math.floor((total % 86400) / 3600)}h`
51  // Not `h`: in a .tsx file that name is the JSX factory.
52  const hours = Math.floor(total / 3600)
53  const minutes = Math.floor((total % 3600) / 60)
54  const seconds = total % 60
55  return `${hours}:${String(minutes).padStart(2, '0')}:${String(seconds).padStart(2, '0')}`
56}
57
58// "claude-opus-5-5" -> "Opus 5.5"; a name already shown as words is kept.
59export const shortModel = (model: string): string => {
60  const m = /^claude-([a-z]+)-(\d+)(?:-(\d+))?/.exec(model)
61  if (!m) return model
62  return `${m[1].charAt(0).toUpperCase()}${m[1].slice(1)} ${m[2]}${m[3] ? `.${m[3]}` : ''}`
63}
64
65async function setModel($: EngineInterface, next: Partial<Model>) {
66  let changed: Model | null = null
67  await update($, modelAtom, (current: Model | undefined) => {
68    const base = current ?? { name: null, effort: null }
69    const merged = { name: next.name ?? base.name, effort: next.effort ?? base.effort }
70    if (merged.name === base.name && merged.effort === base.effort) return base
71    changed = merged
72    return merged
73  })
74  if (changed) await $.store.set('model', changed)
75}
76
77// A window whose reset has passed is empty: 0% until the next request starts a
78// new one and a response reports its reset.
79export const resetExpired = (usage: Usage | null, now: number): Usage | null => {
80  if (!usage) return null
81  const live = (w: Window | null) =>
82    w?.resetsAt && Date.parse(w.resetsAt) <= now ? { percentUsed: 0, resetsAt: null } : w
83  return { fiveHour: live(usage.fiveHour), sevenDay: live(usage.sevenDay) }
84}
85
86// A reading names only the windows it has; one it leaves out keeps its last value.
87export const mergeUsage = (current: Usage | null | undefined, limits: readonly SessionRateLimit[]): Usage | null => {
88  const fresh = toUsage(limits)
89  if (!fresh) return current ?? null
90  return { fiveHour: fresh.fiveHour ?? current?.fiveHour ?? null, sevenDay: fresh.sevenDay ?? current?.sevenDay ?? null }
91}
92
93async function setUsage($: EngineInterface, limits: readonly SessionRateLimit[]) {
94  if (limits.length === 0) return
95  let merged: Usage | null = null
96  await update($, usageAtom, (current: Usage | null | undefined) => (merged = mergeUsage(current, limits)))
97  if (merged) await $.store.set('usage', merged)
98}
99
100// The person's userConfig values (plugin.json), checked: a colour that is not
101// a theme key, a colour name or hex falls back to its default.
102export type Settings = {
103  showModel: boolean
104  spriteColor: string
105  spriteRgb: Rgb
106  low: string
107  mid: string
108  high: string
109  empty: string
110}
111
112const HEX = /^#?([0-9a-f]{3}|[0-9a-f]{6})$/i
113const COLOR = /^([a-z]+|#[0-9a-f]{3}|#[0-9a-f]{6})$/i // a theme key, a colour name, or hex
114
115const toRgb = (hex: string): Rgb | null => {
116  const m = HEX.exec(hex.trim())
117  if (!m) return null
118  const digits = m[1].length === 3 ? [...m[1]].map(d => d + d).join('') : m[1]
119  return [0, 2, 4].map(i => parseInt(digits.slice(i, i + 2), 16)) as Rgb
120}
121
122const textColor = (value: unknown, fallback: string): string =>
123  typeof value === 'string' && COLOR.test(value.trim()) ? value.trim() : fallback
124
125export const settings = (options: PluginOptions): Settings => {
126  const parsed = typeof options.sprite_color === 'string' ? toRgb(options.sprite_color) : null
127  const custom = parsed && parsed.join() !== CLAUDE_ORANGE.join() ? parsed : null
128  const spriteRgb = custom ?? CLAUDE_ORANGE
129  return {
130    showModel: options.show_model !== false,
131    // The text logo shown while a question is open: the theme's own Claude
132    // colour unless the sprite has one of its own.
133    spriteColor: custom ? `#${custom.map(c => c.toString(16).padStart(2, '0')).join('')}` : 'claude',
134    spriteRgb,
135    low: textColor(options.bar_color_low, 'success'),
136    mid: textColor(options.bar_color_mid, 'warning'),
137    high: textColor(options.bar_color_high, 'error'),
138    empty: textColor(options.bar_color_empty, 'inactive'),
139  }
140}
141
142// Set by register from the person's options; a change there reloads the module.
143let config = settings({})
144let frames = FRAMES
145
146export const barColor = (percent: number, colors: Settings = config) =>
147  percent >= 85 ? colors.high : percent >= 60 ? colors.mid : colors.low
148
149// The timer reads these between draws; a reload starts them over.
150const live: {
151  pose: Pose
152  isWorking: boolean
153  frame: number
154  bandId: string | null
155  isStarted: boolean
156  isAsking: boolean
157  sessionId: string | null
158} = {
159  pose: 'idle',
160  isWorking: false,
161  frame: 0,
162  bandId: null,
163  isStarted: false,
164  isAsking: false,
165  sessionId: null,
166}
167
168const shown = (): Pose => (live.isWorking ? live.pose : 'idle')
169
170async function setPose($: EngineInterface, next: Pose) {
171  if (next === live.pose) return
172  live.pose = next
173  live.frame = 0
174  await update($, poseAtom, () => next)
175}
176
177async function tick($: EngineInterface) {
178  live.frame += 1
179  // Frozen while a question dialog is open: frame swaps kept it from showing as a menu.
180  if (!live.bandId || live.isAsking) return
181  const poseFrames = frames[shown()]
182  const source = { rgba: poseFrames[live.frame % poseFrames.length], width: PIXEL_WIDTH, height: PIXEL_HEIGHT }
183  try {
184    await $.ui.blit({ requestId: live.bandId, key: 'clawd', source })
185  } catch {
186    // The band was taken down between draws; the next render places it again.
187  }
188}
189
190const USAGE_WINDOWS = ['five_hour', 'seven_day']
191
192// The account usage endpoint (what /usage reads): `{ five_hour: { utilization,
193// resets_at }, seven_day: { ... } }`, utilization in percent, a window null
194// while none is open.
195export const parseAccountUsage = (text: string): SessionRateLimit[] => {
196  let body: Record<string, { utilization?: unknown; resets_at?: unknown } | null>
197  try {
198    body = JSON.parse(text)
199  } catch {
200    return []
201  }
202  if (!body || typeof body !== 'object') return []
203  return USAGE_WINDOWS.flatMap(kind => {
204    const w = body[kind]
205    if (!w || typeof w.utilization !== 'number') return []
206    const reset = typeof w.resets_at === 'string' && !Number.isNaN(Date.parse(w.resets_at)) ? w.resets_at : undefined
207    return [{ kind, percentUsed: Math.round(w.utilization * 10) / 10, resetsAt: reset }]
208  })
209}
210
211async function fetchAccountUsage($: EngineInterface): Promise<SessionRateLimit[]> {
212  const auth = await $.session.authorize()
213  if (auth?.kind !== 'bearer') return []
214  // The one request the mod makes: GET, to this address only, with the
215  // person's own sign-in; it sends nothing from the conversation.
216  const res = await $.http.fetch('https://api.anthropic.com/api/oauth/usage', {
217    auth: auth.handle,
218    headers: { 'anthropic-beta': 'oauth-2025-04-20' },
219  })
220  return res.ok ? parseAccountUsage(res.text) : []
221}
222
223// Rate limits come from response headers and effort from the turn, so a fresh
224// session has neither until its first reply: start from the last ones seen,
225// then ask the account for both windows as they stand now.
226async function loadUsage($: EngineInterface) {
227  const stored = await $.store.get('usage')
228  const now = await $.clock.now()
229  const cached = resetExpired((stored as Usage | undefined) ?? null, now)
230  if (cached) await update($, usageAtom, (current: Usage | null | undefined) => current ?? cached)
231  const { rateLimits } = await $.session.usage()
232  if (rateLimits.length > 0) return setUsage($, rateLimits)
233  await setUsage($, await fetchAccountUsage($).catch(() => []))
234}
235
236async function loadModel($: EngineInterface) {
237  const name = await $.session.model()
238  const stored = await $.store.get('model')
239  const cached = stored as Model | undefined
240  // The stored effort belongs to the stored model; another model may differ.
241  const effort = cached && cached.name === name ? cached.effort : null
242  await setModel($, { name, effort: effort ?? undefined })
243}
244
245// A /clear goes on in the same process under a new session id, with empty
246// $.state and no session.start: a changed id loads usage and model again.
247async function loadSession($: EngineInterface) {
248  let id = ''
249  try {
250    id = await $.session.id()
251  } catch {
252    // An id that cannot be read still loads once.
253  }
254  if (id === live.sessionId) return
255  live.sessionId = id
256  await Promise.all([loadUsage($).catch(() => undefined), loadModel($).catch(() => undefined)])
257}
258
259// Started by whichever hook runs first: a resumed session can load the module
260// without raising session.start, which left the band undrawn until a reload.
261function ensureStarted($: EngineInterface) {
262  if (live.isStarted) return
263  live.isStarted = true
264  $.clock.every(FRAME_MS, () => tick($))
265  $.clock.every(1000, () => {
266    loadSession($).catch(() => undefined)
267    if (!live.isAsking) $.ui.invalidate('ui.render')
268  })
269  $.clock.after(0, () => {
270    loadSession($).catch(() => undefined)
271  })
272  $.ui.invalidate('ui.render')
273}
274
275export const register: Register = (on, options) => {
276  config = settings(options)
277  frames = config.spriteRgb === CLAUDE_ORANGE ? FRAMES : framesFor(config.spriteRgb)
278
279  on('session.start', async ($, e, next) => {
280    const result = await next(e)
281    ensureStarted($)
282    return result
283  })
284
285  on('session.measure', async ($, e, next) => {
286    ensureStarted($)
287    if (e.changed.includes('rateLimits')) await setUsage($, e.rateLimits)
288    return next(e)
289  })
290
291  on('turn.start', async ($, e, next) => {
292    ensureStarted($)
293    await setPose($, 'working')
294    return next(e)
295  })
296
297  // The main thread's stream says when the model is thinking, writing, or
298  // starting a tool call; subagents' streams are passed through untouched.
299  on('turn.step', async function* ($, e, next) {
300    const stream = next(e)
301    if (e.agentId) return yield* stream
302    await setModel($, { name: e.model, effort: e.effort === undefined ? undefined : String(e.effort) })
303    for await (const chunk of stream) {
304      if (chunk.kind === 'thinking') await setPose($, 'thinking')
305      else if (chunk.kind === 'text') await setPose($, 'working')
306      else if (chunk.kind === 'tool') await setPose($, poseFor(chunk.name))
307      yield chunk
308    }
309    return stream.result
310  })
311
312  // Hold the pose while the tool runs (an AskUserQuestion waits on the person).
313  on('tool.call', async ($, e, next) => {
314    const tool = String(e.tool)
315    await setPose($, poseFor(tool))
316    // The band holds still while the question dialog is open (one redraw for
317    // the pose, then no frame swaps or countdown ticks until it closes).
318    const isQuestion = tool === 'AskUserQuestion'
319    if (isQuestion) {
320      live.isAsking = true
321      $.ui.invalidate('ui.render')
322    }
323    try {
324      return await next(e)
325    } finally {
326      if (isQuestion) {
327        live.isAsking = false
328        $.ui.invalidate('ui.render')
329      }
330      await setPose($, 'working')
331    }
332  }).catch(($, e, next) => next(e))
333
334  on('turn.complete', async ($, e, next) => {
335    await setPose($, 'idle')
336    return next(e)
337  })
338
339  // The sprite is the only thing moving: the native spinner draws empty.
340  on('ui.render', { component: 'Spinner' }, ($, e, next) => {
341    ensureStarted($)
342    if (e.surface !== 'terminal') return next(e)
343    const { Box } = $.ui.resolve(e)
344    return <Box />
345  })
346
347  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
348    ensureStarted($)
349    if (e.surface !== 'terminal' || e.props.hasSurvey) {
350      live.bandId = null
351      return next(e)
352    }
353
354    live.bandId = e.requestId
355    live.isWorking = e.props.isWorking
356    live.pose = await read($, poseAtom)
357    const now = await $.clock.now()
358    // A window that resets mid-session drops to 0% on the next tick, not the next reply.
359    const usage = resetExpired(await read($, usageAtom), now)
360    const model = await read($, modelAtom)
361    const { Box, Text, Image } = $.ui.resolve(e)
362
363    const current = shown()
364    const poseFrames = frames[current]
365    const modelName = model.name ? shortModel(model.name) : '--'
366    const caption = model.effort ? `${modelName} ${model.effort}` : modelName
367    const left = config.showModel ? Math.max(SPRITE_COLUMNS + 1, caption.length) : SPRITE_COLUMNS + 1
368    const barWidth = Math.max(4, e.props.bodyColumns - left - 1 - LABEL - PERCENT - RESET)
369
370    const bar = (label: string, window: Window | null | undefined) => {
371      const percent = window?.percentUsed ?? 0
372      const filled = Math.min(barWidth, Math.round((percent / 100) * barWidth))
373      return (
374        <Box flexDirection="row">
375          <Text dimColor>{label} </Text>
376          <Text color={barColor(percent)}>{'█'.repeat(filled)}</Text>
377          <Text color={config.empty}>{'░'.repeat(barWidth - filled)}</Text>
378          <Text dimColor={!window}>{window ? ` ${String(Math.round(percent)).padStart(3)}%` : '   --'}</Text>
379          <Text dimColor> ↻ </Text>
380          <Text bold={!!window?.resetsAt}>{countdown(window?.resetsAt, now).padStart(RESET - 3)}</Text>
381        </Box>
382      )
383    }
384
385    return (
386      <Box flexDirection="row" alignItems="center">
387        <Box flexDirection="column" width={left} alignItems="center">
388          {live.isAsking ? (
389            // A kitty image sits on a layer above the text and covered the
390            // question menu; while it is open, Clawd is the CLI's text logo.
391            <Box flexDirection="column">
392              <Text color={config.spriteColor}> ▐▛███▜▌ </Text>
393              <Text color={config.spriteColor}>▝▜█████▛▘</Text>
394              <Text color={config.spriteColor}>  ▘▘ ▝▝  </Text>
395            </Box>
396          ) : (
397            <Image
398              key="clawd"
399              source={{ rgba: poseFrames[live.frame % poseFrames.length], width: PIXEL_WIDTH, height: PIXEL_HEIGHT }}
400              columns={SPRITE_COLUMNS}
401              rows={SPRITE_ROWS}
402              alt={ALT[current]}
403            />
404          )}
405          {config.showModel ? (
406            <Box key="model" flexDirection="row">
407              <Text bold>{modelName}</Text>
408              {model.effort ? <Text dimColor> {model.effort}</Text> : null}
409            </Box>
410          ) : null}
411        </Box>
412        <Box flexDirection="column" marginLeft={1}>
413          {bar('7d', usage?.sevenDay)}
414          {bar('5h', usage?.fiveHour)}
415        </Box>
416      </Box>
417    )
418  })
419}
420

1import type { Pose } from '../types'
2
3// Clawd as the CLI prints it at startup (▐▛███▜▌ / ▝▜█████▛▘ / ▘▘ ▝▝): a
4// quadrant is twice as tall as wide, so each logo pixel is drawn here as one
5// column by two rows of square art pixels. The body sits at the bottom of the
6// canvas; the rows above it and the columns beside it hold the props.
7export const ART_WIDTH = 28
8export const ART_HEIGHT = 14
9export const SCALE = 5
10export const PIXEL_WIDTH = ART_WIDTH * SCALE
11export const PIXEL_HEIGHT = ART_HEIGHT * SCALE
12
13export type Rgb = [number, number, number]
14
15export const CLAUDE_ORANGE: Rgb = [215, 119, 87]
16
17const COLORS: Record<string, Rgb> = {
18  '#': CLAUDE_ORANGE, // the body, replaced by the sprite_color option
19  w: [235, 232, 225], // thought dots, speed lines, ink
20  y: [240, 190, 60], // pencil, "?"
21  k: [70, 60, 55], // pencil tip, glass handle
22  b: [240, 236, 226], // book pages
23  l: [150, 120, 100], // book spine
24  g: [170, 200, 220], // magnifying glass
25}
26
27type Grid = string[][]
28
29const blank = (): Grid => Array.from({ length: ART_HEIGHT }, () => Array<string>(ART_WIDTH).fill('.'))
30
31// Paints a pattern at (x, y): a space leaves the pixel, a dot clears it.
32const stamp = (g: Grid, pattern: string[], x: number, y: number): Grid => {
33  pattern.forEach((row, r) =>
34    row.split('').forEach((ch, c) => {
35      const gy = y + r
36      const gx = x + c
37      if (ch === ' ' || gy < 0 || gy >= ART_HEIGHT || gx < 0 || gx >= ART_WIDTH) return
38      g[gy][gx] = ch
39    }),
40  )
41  return g
42}
43
44const fill = (w: number, h: number, ch = '#'): string[] => Array.from({ length: h }, () => ch.repeat(w))
45
46type Arm = 'out' | 'up' | 'down' | 'none'
47
48type Body = {
49  y?: number
50  eyes?: 'open' | 'shut' | 'left' | 'right' | 'down'
51  left?: Arm
52  right?: Arm
53  legs?: 'stand' | 'stride' | 'long'
54}
55
56const X = 5 // the body's left edge, arms included
57
58const body = ({ y = 4, eyes = 'open', left = 'out', right = 'out', legs = 'stand' }: Body = {}): Grid => {
59  const g = blank()
60  stamp(g, fill(12, 8), X + 3, y)
61
62  const eyeRows = eyes === 'down' ? [y + 3] : [y + 2, y + 3]
63  const shift = eyes === 'left' ? -1 : eyes === 'right' ? 1 : 0
64  if (eyes !== 'shut') for (const r of eyeRows) for (const c of [X + 5, X + 12]) g[r][c + shift] = '.'
65
66  const arm = (side: Arm, col: number) => {
67    if (side === 'out') stamp(g, fill(2, 2), col, y + 4)
68    if (side === 'up') stamp(g, fill(2, 5), col, y - 1)
69    if (side === 'down') stamp(g, fill(2, 2), col, y + 6)
70  }
71  arm(left, X + 1)
72  arm(right, X + 15)
73
74  const feet = [X + 4, X + 6, X + 11, X + 13]
75  const spread = [X + 3, X + 7, X + 10, X + 14]
76  for (const c of feet) stamp(g, ['#'], c, y + 8)
77  for (const c of legs === 'stride' ? spread : feet) stamp(g, ['#'], c, y + 9)
78  if (legs === 'long') for (const c of spread) stamp(g, ['#'], c, y + 10)
79  return g
80}
81

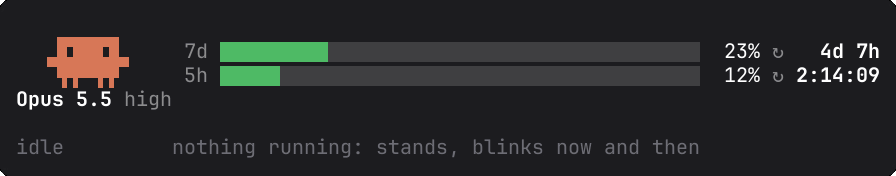

82// Idle: stands, blinks now and then.
83const stand = body()
84const idle = [stand, stand, stand, stand, stand, body({ eyes: 'shut' })]
85
86// Thinking: a hand on the head, scratching, and a thought bubble rising.
87const scratch = (handX: number, dots: number): Grid => {
88  const g = body({ eyes: 'left', right: 'up' })
89  stamp(g, ['###'], handX, 3)
90  if (dots >= 1) stamp(g, ['w'], 6, 2)
91  if (dots >= 2) stamp(g, ['w'], 4, 1)
92  if (dots >= 3) stamp(g, ['ww', 'ww'], 1, 0)
93  return g
94}
95const thinking = [scratch(17, 1), scratch(16, 2), scratch(17, 3), scratch(16, 3)]
96
97// Questioning: a "?" that bobs beside the head.
98const QUESTION = [' yyy ', 'y   y', '    y', '   y ', '  y  ', '     ', '  y  ']
99const asking = (y: number): Grid => stamp(body({ eyes: 'right' }), QUESTION, 22, y)
100const questioning = [asking(0), asking(0), asking(1), asking(1)]
101
102// Working: both arms pumping.
103const working = [body({ left: 'up', right: 'up' }), stand, body({ left: 'down', right: 'down' }), stand]
104
105// Reading: a book held up, the eyes running along the line, then a page turns.
106const BOOK = fill(5, 4, 'b').map(r => `${r}ll${r}`)
107const reader = (eyes: Body['eyes'], turning = false): Grid => {
108  const g = stamp(body({ eyes }), BOOK, X + 3, 8)
109  if (turning) stamp(g, ['  bbbb', ' bbbb'], X + 10, 6)
110  return g
111}
112const reading = [reader('left'), reader('open'), reader('right'), reader('down', true)]
113
114// Writing: a pencil in the right hand, leaving a line of ink as it moves.
115const PENCIL = ['y   ', ' y  ', '  y ', '   k']
116const writer = (step: number): Grid => {
117  const g = body({ eyes: 'down' })
118  const px = 21 + step
119  stamp(g, ['#'.repeat(step + 1)], 21, 8)
120  stamp(g, PENCIL, px, 9)
121  stamp(g, ['w'.repeat(px + 3 - 21)], 21, 13)
122  return g
123}
124const writing = [writer(0), writer(1), writer(2), writer(2)]
125
126// Running: a stride, then a bounce with the legs out, speed lines behind.
127const runA = stamp(stamp(body({ legs: 'stride', left: 'up', right: 'down' }), ['www'], 0, 6), ['ww'], 1, 10)
128const runB = stamp(stamp(body({ y: 3, legs: 'long', left: 'down', right: 'up' }), ['ww'], 1, 5), ['www'], 0, 9)
129const running = [runA, runB]
130
131// Searching: a magnifying glass held up on one side, then the other.
132const GLASS = [' ggg ', 'g   g', 'g   g', 'g   g', ' ggg ']
133const glassRight = stamp(stamp(body({ eyes: 'right', right: 'none' }), GLASS, 22, 0), ['k', '#', '##'], 22, 5)
134const glassLeft = stamp(stamp(body({ eyes: 'left', left: 'none' }), GLASS, 1, 0), [' k', ' #', '##'], 4, 5)
135const searching = [glassRight, glassRight, glassLeft, glassLeft]
136
137// Delegating: waving a small Clawd off on its errand.
138const MINI = ['.###.', '#####', '.###.', '.#.#.']
139const waver = (handX: number, miniX: number, miniY: number): Grid => {
140  const g = body({ left: 'up', eyes: 'right' })
141  stamp(g, ['##'], handX, 2)
142  return stamp(g, MINI, miniX, miniY)
143}
144const delegating = [waver(5, 22, 10), waver(4, 23, 9)]
145
146const ART: Record<Pose, Grid[]> = {
147  idle,
148  thinking,
149  questioning,
150  working,
151  reading,
152  writing,
153  running,
154  searching,
155  delegating,
156}
157
158const toBase64 = (art: Grid, colors: Record<string, Rgb>): string => {
159  const px = new Uint8Array(PIXEL_WIDTH * PIXEL_HEIGHT * 4)
160  for (let y = 0; y < PIXEL_HEIGHT; y++) {
161    const row = art[Math.floor(y / SCALE)]
162    for (let x = 0; x < PIXEL_WIDTH; x++) {
163      const rgb = colors[row[Math.floor(x / SCALE)]]
164      if (!rgb) continue
165      const i = (y * PIXEL_WIDTH + x) * 4
166      px[i] = rgb[0]
167      px[i + 1] = rgb[1]
168      px[i + 2] = rgb[2]
169      px[i + 3] = 255
170    }
171  }
172  return px.toBase64()
173}
174
175// Every frame encoded once at load, so a tick only swaps a string.
176export const framesFor = (body: Rgb): Record<Pose, string[]> => {
177  const colors = { ...COLORS, '#': body }
178  const encode = (art: Grid) => toBase64(art, colors)
179  return {
180    idle: ART.idle.map(encode),
181    thinking: ART.thinking.map(encode),
182    questioning: ART.questioning.map(encode),
183    working: ART.working.map(encode),
184    reading: ART.reading.map(encode),
185    writing: ART.writing.map(encode),
186    running: ART.running.map(encode),
187    searching: ART.searching.map(encode),
188    delegating: ART.delegating.map(encode),
189  }
190}
191
192export const FRAMES = framesFor(CLAUDE_ORANGE)
193
194export const ALT: Record<Pose, string> = {
195  idle: 'Clawd resting',
196  thinking: 'Clawd thinking',
197  questioning: 'Clawd asking',
198  working: 'Clawd working',
199  reading: 'Clawd reading',
200  writing: 'Clawd writing',
201  running: 'Clawd running a command',
202  searching: 'Clawd searching the web',
203  delegating: 'Clawd handing off to a subagent',
204}
205

1export type Pose =
2  | 'idle'
3  | 'thinking'
4  | 'questioning'
5  | 'working'
6  | 'reading'
7  | 'writing'
8  | 'running'
9  | 'searching'
10  | 'delegating'
11
12export type Window = { percentUsed: number; resetsAt: string | null }
13
14export type Model = { name: string | null; effort: string | null }
15
16export type Usage = { fiveHour: Window | null; sevenDay: Window | null }
17
18declare module 'claude-code' {
19  interface PluginState {
20    'clawd-band': { pose: Pose; usage: Usage | null; model: Model }
21  }
22}
23
