progress-tracker

1// Progress tracker: one live bar per task list, in the band above the prompt.
2//
3// A "track" is one task list. TaskCreate / TaskUpdate / TodoWrite fill the
4// newest track; an approved plan, or new tasks after a finished list, start a
5// fresh one. Only the main loop counts: subagent calls (e.agentId) are skipped.
6
7import { barCells, ROWS as BAR_ROWS } from "./bar.mjs";
8import { barSvg, SVG_HEIGHT } from "./bar-svg.mjs";
9import { timelineSvg, ROW_HEIGHT, GUTTER_WIDTH } from "./timeline-svg.mjs";
10
11const MAX_ROWS = 3;
12const MIN_BAR_COLUMNS = 16;
13const FRAME_MS = 66;
14const STALE_MS = 12 * 60 * 60 * 1000;
15// A finished bar stays this long, then hides itself.
16const DONE_LINGER_MS = 60 * 1000;
17
18const DOT = { working: "#a99cf5", failed: "#e5604f", done: "#7cc68a", waiting: "#f0b34a" };
19const PILL = {
20  working: { bg: "#a99cf5", fg: "#1d1a2e" },
21  failed: { bg: "#e5604f", fg: "#ffffff" },
22  done: { bg: "#7cc68a", fg: "#14261a" },
23  waiting: { bg: "#f0b34a", fg: "#2a1c05" },
24};
25
26// The running animation: one timer repaints every moving bar with $.ui.blit.
27// Timers die with a hot reload, so this holds no data worth keeping.
28const animation = { timer: null, requestId: null, bars: [], t: 0 };
29
30// Held by the host, so tracks survive a hot reload of this file.
31const TRACKS = { plugin: "progress-tracker", key: "tracks" };
32// The session's log for the Progress pane: what waited on the person, and what Claude
33// found. Kept apart from the tracks, so it outlives them.
34const LOG = { plugin: "progress-tracker", key: "log" };
35const LOG_CAP = 50;
36// The Progress pane and its selected tab.
37const PANE = "progress";
38const TAB = { plugin: "progress-tracker", key: "tab" };
39// The pane entry whose details are open, by id; null when none is.
40const OPEN = { plugin: "progress-tracker", key: "open" };
41const TABS = [
42  { id: "blocked", label: "Blocked on me", hotkey: "1" },
43  { id: "found", label: "Found", hotkey: "2" },
44];
45// When the main loop's running turn began, or null between turns: work time counts only inside turns.
46const TURN = { plugin: "progress-tracker", key: "turn" };
47// The progress_tracker inputs that move the bar; a call with none of them only logs a finding.
48const TOOL_OPS = new Set(["title", "tasks", "next", "active", "add", "skip", "failed", "fixed"]);
49
50// Parallel tool calls each read-modify-write the tracks; run them one by one.
51let queue = Promise.resolve();
52
53// Outside plan mode a turn's first tool calls wait here; the AUTO_BAR_CALLS-th starts
54// a "Working" bar from them when Claude has no bar running. Reset on each turn.
55const AUTO_BAR_CALLS = 3;
56let turnSteps = [];
57let hasTurnBar = false;
58let lastMode = null;
59// Tokens the running turn's model calls used so far, so a Working bar that starts on the
60// turn's 3rd tool call still counts the calls before it.
61let turnTokens = emptyTokens();
62
63// The sub-agents the main loop started, by the Agent call that started each one.
64// The pill counts these alone; the timeline marks the call's step as a sub-agent.
65const spawned = new Map();
66
67// The mod's own tool, for sessions without TaskCreate / TodoWrite (the desktop app).
68const TOOL_NAME = "progress_tracker";
69const TOOL = `mcp__progress-tracker__${TOOL_NAME}`;
70const RULES = `# Progress bar
71Work over ~3 edits/commands, plan mode included: call ${TOOL} with {title, tasks:[3-8 short names]}, then {next:true} per finished task, {active:"name"}, {add:["found work"]}, {skip:true}, {failed:"why"}, {fixed:true}, {found:"a bug, root cause or decision worth keeping"}. Don't mention the bar.`;
72
73export function register(on) {
74  on("session.start", async ($, e, next) => {
75    const result = await next(e);
76    // Finished, dismissed and abandoned (over 12 h old) tracks go away.
77    const cutoff = Date.now() - STALE_MS;
78    await update($, (tracks) =>
79      tracks.filter((t) => !t.isDismissed && !isComplete(t) && (t.startedAt ?? Date.now()) > cutoff),
80    );
81    await $.tool.register({
82      name: TOOL_NAME,
83      description:
84        "Live progress bar above the prompt. Use it for any work over ~3 edits/commands, plan mode included: create with title + 3-8 short tasks, then call with next per finished task, active, add, skip, failed or fixed; found logs a finding. Don't mention the bar.",
85      inputSchema: {
86        type: "object",
87        properties: {
88          title: { type: "string", description: "Short name of the whole job; only when creating" },
89          tasks: { type: "array", items: { type: "string" }, description: "Every task in order; only when creating" },
90          next: { type: "boolean", description: "Current task finished, start the next one" },
91          active: { type: "string", description: "Task now in progress" },
92          add: { type: "array", items: { type: "string" }, description: "Tasks found mid-run, appended to the list" },
93          skip: { type: "boolean", description: "Current task is not needed; close it and start the next" },
94          failed: { type: "string", description: "What broke, one line" },
95          fixed: { type: "boolean", description: "The failure is resolved" },
96          found: { type: "string", description: "A bug, root cause or decision worth keeping, one line" },
97        },
98      },
99    });
100    await $.command.register({ name: "progress-tracker-demo", description: "Play a sample run of the progress bar" });
101    await $.command.register({ name: "progress", description: "Show what waits on you and what was found" });
102    return result;
103  });
104
105  on("command.run", { command: "progress" }, async ($) => {
106    await openPane($);
107    return { text: "Opened the Progress pane." };
108  });
109
110  on("command.run", { command: "progress-tracker-demo" }, async ($) => {
111    await playDemo($);
112    return { text: "Playing a progress-tracker demo above the prompt (about 30 seconds)." };
113  });
114
115  on("prompt.compose", async ($, e, next) => {
116    const result = await next(e);
117    return { sections: [...result.sections, { id: "progress-tracker:rules", text: RULES, scope: "session" }] };
118  });
119
120  // Org security mods can bypass user-tier prompt.compose, so the tool carries its own rule and stays loaded.
121  on("tool.describe", { tool: TOOL }, async ($, e, next) => ({ ...(await next(e)), isDeferred: false }));
122
123  on("tool.call", { tool: TOOL }, async ($, e) => {
124    if (typeof e.found === "string" && e.found.trim()) await logFinding($, "found", e.found.trim(), e.tool_use_id);
125    if (typeof e.found === "string" && !Object.keys(e).some((k) => TOOL_OPS.has(k))) return { result: "noted" };
126    if (Array.isArray(e.tasks) && e.tasks.length > 0) {
127      const tasks = e.tasks.map((subject, i) => ({
128        id: `step${i + 1}`,
129        subject: String(subject),
130        status: i === 0 ? "in_progress" : "pending",
131      }));
132      await update($, (tracks) => {
133        // A just-approved plan's bar, or a planning bar still guessing its steps, takes Claude's list.
134        const active = activeOf(tracks);
135        const isFreshPlan = active?.isFromPlan && !active.tasks.some((t) => t.status === "completed");
136        if (isFreshPlan || active?.isAutoSteps) {
137          const label = active.isAutoSteps && e.title ? String(e.title) : active.label;
138          return replace(tracks, { ...active, ...declared(active), label, tasks, failedCommand: null });
139        }
140        return [...tracks, { ...newTrack(tracks, e.title ? String(e.title) : null), tasks }];
141      });
142    } else {
143      await update($, (tracks) => {
144        const active = activeOf(tracks);
145        return active ? replace(tracks, applyOps(active, e)) : tracks;
146      });
147    }
148    const { value: tracks = [] } = await $.state.get(TRACKS);
149    const active = activeOf(tracks);
150    if (!active || active.tasks.length === 0) {
151      return { deny: `${TOOL_NAME}: no bar yet; create one with title and tasks.` };
152    }
153    if (typeof e.active === "string" && findTask(active.tasks, e.active) === -1) {
154      const names = active.tasks.map((t) => `"${t.subject}"`).join(", ");
155      return { deny: `${TOOL_NAME}: no task named "${e.active}"; tasks are ${names}.` };
156    }
157    const done = active.tasks.filter((t) => t.status === "completed").length;
158    const at = active.tasks.findIndex((t) => t.status === "in_progress");
159    const upcoming = active.tasks.slice(at + 1).find((t) => t.status === "pending");
160    const state = isComplete(active) ? "done" : active.failedCommand ? "failed" : "running";
161    const parts = [`${done}/${active.tasks.length}`, state];
162    if (at !== -1) parts.push(`active "${active.tasks[at].subject}"`);
163    if (at !== -1 && upcoming) parts.push(`next "${upcoming.subject}"`);
164    return { result: parts.join(", ") };
165  });
166
167  // Plan mode: a "Planning" bar from the first prompt or tool call made in plan mode.
168  // Claude's own progress_tracker list replaces its steps; until then each tool call
169  // becomes a done step, so the bar moves. The plan_mode note on every plan-mode
170  // turn is the surest sign.
171  on("prompt.attachment", { type: "plan_mode" }, async ($, e, next) => {
172    await followMode($, "plan");
173    return next(e);
174  });
175
176  // A reload asks again for every note in the transcript, old ones included, in order.
177  // The exit note that followed an old plan_mode note drops the bar that note just started.
178  for (const type of ["plan_mode_exit", "auto_mode"]) {
179    on("prompt.attachment", { type }, async ($, e, next) => {
180      await followMode($, type === "auto_mode" ? "auto" : "default");
181      return next(e);
182    });
183  }
184
185  on("agent.spawn", async ($, e, next) => {
186    if (e.parentAgentId) return next(e);
187    await followMode($, e.permissionMode);
188    const r = await next(e);
189    if (r.agentId) {
190      spawned.set(e.tool_use_id, { id: r.agentId, type: e.subagentType, isBackground: e.background === true });
191    }
192    return r;
193  });
194
195  on("classic.UserPromptSubmit", async ($, e, next) => {
196    await followMode($, e.permission_mode);
197    return next(e);
198  });
199
200  // A permission dialog waits on the person: the bar turns amber and the pane lists it.
201  on("classic.PermissionRequest", async ($, e, next) => {
202    if (!e.agent_id) {
203      const input = typeof e.tool_input === "object" && e.tool_input ? e.tool_input : {};
204      const what = e.tool_name === "Bash" && input.command ? String(input.command).trim() : stepNameOf({ ...input, tool: e.tool_name });
205      await openBlock($, "permission", `Allow ${what}`, { details: { tool: String(e.tool_name ?? ""), request: requestOf(e.tool_name, input) } });
206    }
207    return next(e);
208  });
209
210  // Where no PermissionRequest fires, the permission notification stands in for it.
211  on("classic.Notification", async ($, e, next) => {
212    if (!e.agent_id && e.notification_type === "permission_prompt") {
213      await openBlock($, "permission", String(e.message ?? "Needs your permission"), { isFallback: true });
214    }
215    return next(e);
216  });
217
218  on("classic.PreToolUse", async ($, e, next) => {
219    if (!e.agent_id) await followMode($, e.permission_mode);
220    return next(e);
221  });
222
223  on("tool.call", async ($, e, next) => {
224    const startedAt = Date.now();
225    const r = await next(e);
226    if (e.agentId) return r;
227    // The call ran or was refused: whatever it asked of the person is answered.
228    await noteBlock($, (b) => b.kind === "permission" && b.outcome == null && (b.answeredAt == null || b.toolUseId === e.tool_use_id), {
229      outcome: outcomeOf(r),
230    });
231    await closeBlocks($, e.tool_use_id);
232    if (NOT_A_STEP.has(e.tool)) return r;
233    const step = stepOf(e, startedAt);
234    await onPlanning($, (t) => (t.isAutoSteps && !t.isWaiting ? autoStep(t, step) : t));
235    const listNudge = await autoWork($, step);
236    if (step.agent) await noteAgentRun($, step);
237    const nudges = [listNudge, await countWork($)].filter(Boolean);
238    return nudges.length > 0 && r.deny === undefined ? { ...r, context: [...(r.context ?? []), ...nudges] } : r;
239  });
240
241  // Every model response reports its tokens; they count toward the list that is running.
242  // Sub-agents' responses count too: their work is part of the list's work.
243  // turn.step streams, so its hook is an async generator that forwards the stream untouched.
244  on("turn.step", async function* ($, e, next) {
245    const r = yield* next(e);
246    const tokens = tokensOfUsage(r?.usage);
247    if (!tokens) return r;
248    if (!e.agentId) turnTokens = addTokens(turnTokens, tokens);
249    await update($, (tracks) => {
250      const active = activeOf(tracks);
251      if (!active || isComplete(active) || active.isDemo) return tracks;
252      return replace(tracks, { ...active, tokens: addTokens(active.tokens, tokens) });
253    });
254    return r;
255  });
256
257  on("turn.start", async ($, e, next) => {
258    if (!e.agentId) {
259      turnSteps = [];
260      turnTokens = emptyTokens();
261      hasTurnBar = false;
262      await $.state.set(TURN, Date.now());
263    }
264    return next(e);
265  });
266
267  // The turn's "Working" bar ends with the turn and turns green; its open step becomes
268  // "Write reply", timed from the last tool call to the end of the turn.
269  on("turn.complete", async ($, e, next) => {
270    if (!e.agentId) {
271      await update($, (tracks) => tracks.map((t) => (t.isWorkBar && t.isAutoSteps ? closeWorkBar(t) : t)));
272      await closeBlocks($);
273      const { value: turnStartedAt = null } = await $.state.get(TURN);
274      await $.state.set(TURN, null);
275      if (turnStartedAt != null) await update($, (tracks) => tracks.map((t) => addTurn(t, turnStartedAt, Date.now())));
276    }
277    return next(e);
278  });
279
280  // Asking for approval turns the bar amber until the person answers. Either answer
281  // ends this round of planning (green); approved, the plan's steps get a bar of their own.
282  on("tool.call", { tool: "ExitPlanMode" }, async ($, e, next) => {
283    if (e.agentId) return next(e);
284    await onPlanning($, (t) => ({ ...toStep(t, t.tasks.length - 1), isWaiting: true }));
285    await openBlock($, "approval", "Approve the plan", { keepsBar: true, toolUseId: e.tool_use_id });
286    const r = await next(e);
287    const approved = typeof e.plan === "string" ? e.plan : r.result?.plan;
288    await noteBlock($, (b) => b.kind === "approval" && b.toolUseId === e.tool_use_id, {
289      outcome: isAnswered(r) ? "Approved" : "Not approved",
290      details: { plan: planTitleOf(approved), steps: planStepsOf(approved).length },
291    });
292    await closeBlocks($);
293    await onPlanning($, (t) => ({
294      ...toStep(t, t.tasks.length),
295      isPlanning: false,
296      isWaiting: false,
297      isAutoSteps: false,
298    }));
299    if (!isAnswered(r)) return r;
300    const plan = typeof e.plan === "string" ? e.plan : r.result?.plan;
301    await update($, (tracks) => [
302      ...tracks,
303      { ...newTrack(tracks, planTitleOf(plan)), tasks: planStepsOf(plan), isFromPlan: true },
304    ]);
305    return r;
306  });
307
308  // A question to the person turns the working bar amber until it is answered.
309  on("tool.call", { tool: "AskUserQuestion" }, async ($, e, next) => {
310    if (e.agentId) return next(e);
311    const questions = (Array.isArray(e.questions) ? e.questions : []).map((q) => ({
312      question: String(q?.question ?? ""),
313      options: (Array.isArray(q?.options) ? q.options : []).map((o) => String(o?.label ?? o)),
314    }));
315    await openBlock($, "question", questions[0]?.question || "A question for you", { toolUseId: e.tool_use_id, details: { questions } });
316    let r;
317    try {
318      r = await next(e);
319      return r;
320    } finally {
321      // The answers come back keyed by the question's text.
322      const answers = isAnswered(r ?? {}) && r.result && typeof r.result.answers === "object" ? r.result.answers : null;
323      await noteBlock($, (b) => b.kind === "question" && b.toolUseId === e.tool_use_id, {
324        outcome: answers ? "Answered" : "Not answered",
325        answers: answers ? Object.fromEntries(Object.entries(answers).map(([q, a]) => [q, String(a)])) : null,
326      });
327      await closeBlocks($);
328    }
329  });
330
331  on("tool.call", { tool: "TaskCreate" }, async ($, e, next) => {
332    const r = await next(e);
333    if (e.agentId || !isAnswered(r)) return r;
334    const id = String(r.result?.task?.id ?? e.tool_use_id);
335    const task = { id, subject: String(e.subject ?? ""), status: "pending" };
336    await update($, (tracks) => {
337      // Claude's first task after an approved plan, or on an automatic bar, replaces its steps.
338      const active = activeOf(tracks);
339      if (active?.isFromPlan || (active?.isCounter && !isComplete(active))) {
340        return replace(tracks, { ...active, ...declared(active), tasks: [task] });
341      }
342      return withActive(tracks, (t) => ({ ...t, tasks: [...t.tasks, task] }));
343    });
344    return r;
345  });
346
347  on("tool.call", { tool: "TaskUpdate" }, async ($, e, next) => {
348    const r = await next(e);
349    if (e.agentId || !isAnswered(r)) return r;
350    const id = String(e.taskId);
351    await update($, (tracks) =>
352      tracks.map((t) => {
353        if (!t.tasks.some((task) => task.id === id)) return t;
354        const tasks =
355          e.status === "deleted"
356            ? t.tasks.filter((task) => task.id !== id)
357            : t.tasks.map((task) =>
358                task.id === id
359                  ? { ...task, subject: e.subject ?? task.subject, status: e.status ?? task.status }
360                  : task,
361              );
362        const isStatusChange = e.status !== undefined;
363        return { ...t, tasks, failedCommand: isStatusChange ? null : t.failedCommand };
364      }),
365    );
366    return r;
367  });
368
369  on("tool.call", { tool: "TodoWrite" }, async ($, e, next) => {
370    const r = await next(e);
371    if (e.agentId || !isAnswered(r) || !Array.isArray(e.todos)) return r;
372    const tasks = e.todos.map((todo, i) => ({
373      id: `todo${i}`,
374      subject: String(todo.content ?? ""),
375      status: todo.status,
376    }));
377    await update($, (tracks) => withActive(tracks, (t) => ({ ...t, ...declared(t), tasks }), tasks));
378    return r;
379  });
380
381  on("tool.call", { tool: "Bash" }, async ($, e, next) => {
382    const r = await next(e);
383    if (e.agentId || r.deny !== undefined) return r;
384    const command = String(e.command ?? "");
385    await update($, (tracks) => {
386      const active = activeOf(tracks);
387      if (!active || isComplete(active)) return tracks;
388      if (r.isError && isCheck(command)) {
389        return replace(tracks, { ...active, failedCommand: command, failedReason: errorLineOf(r.result), failedLines: errorLinesOf(r.result), failedRuns: (active.failedRuns ?? 0) + 1, failedToolUseId: e.tool_use_id });
390      }
391      if (!r.isError && active.failedCommand && sameCheck(active.failedCommand, command)) {
392        return replace(tracks, { ...active, failedCommand: null, failedReason: null });
393      }
394      return tracks;
395    });
396    return r;
397  });
398
399  on("ui.render", { component: "AbovePrompt" }, async ($, e, next) => {
400    if (e.props.hasSurvey) {
401      animate($, null, []);
402      return next(e);
403    }
404    const { value: tracks = [] } = await $.state.get(TRACKS);
405    const agents = await runningAgentsOf($);
406    const shown = tracks
407      .filter((t) => !t.isDismissed && t.tasks.length > 0)
408      .map((t, i, all) => (i === all.length - 1 ? { ...t, agents: t.isDemo ? (t.demoAgents ?? 0) : agents } : t));
409    const ui = $.ui.resolve(e);
410    const ctx = await contextOf($);
411    const dismiss = (id) => () =>
412      void update($, (all) => all.map((t) => (t.id === id ? { ...t, isDismissed: true } : t)));
413    const toggle = (id) => () =>
414      void update($, (all) => all.map((t) => (t.id === id ? { ...t, isExpanded: !t.isExpanded } : t)));
415
416    // Off the terminal there is no Raster: an SVG draws the bar and SMIL moves it.
417    if (e.surface !== "terminal") {
418      animate($, null, []);
419      if (shown.length === 0) return next(e);
420      return drawDesktop(ui, shown.slice(-MAX_ROWS), e.props, { dismiss, toggle, pane: () => void openPane($) }, ctx);
421    }
422
423    const rows = shown
424      .slice(-Math.max(1, Math.min(MAX_ROWS, Math.floor(e.props.maxRows / BAR_ROWS))))
425      .map((t) => rowOf(t, e.props.bodyColumns - 2, ctx));
426    animate($, e.requestId, rows.filter((r) => r.bar && isLive(r.status) && (e.props.isWorking || r.isDemo)));
427    if (rows.length === 0) return next(e);
428
429    // Expanded rows share the rows the bars leave free, in order.
430    let spare = e.props.maxRows - rows.length * BAR_ROWS;
431    const actions = { dismiss, toggle, pane: () => void openPane($) };
432    return ui.Box({
433      flexDirection: "column",
434      paddingX: 1,
435      children: rows.map((r) => {
436        const lines = r.isExpanded ? Math.max(0, spare) : 0;
437        spare -= lines;
438        return draw(ui, r, actions, lines);
439      }),
440    });
441  });
442
443  on("ui.render", { component: "Pane", requestId: PANE }, async ($, e) => {
444    const { value: log = emptyLog() } = await $.state.get(LOG);
445    const { value: saved = "blocked" } = await $.state.get(TAB);
446    const tab = TABS.some((t) => t.id === saved) ? saved : "blocked";
447    const { value: tracks = [] } = await $.state.get(TRACKS);
448    const active = activeOf(tracks.filter((t) => t.tasks.length > 0));
449    const { value: openId = null } = await $.state.get(OPEN);
450    const kit = { ...$.ui.resolve(e), openId, toggle: (id) => () => void $.state.set(OPEN, openId === id ? null : id) };
451    return drawPane(kit, { log, tab, track: active, ctx: await contextOf($) }, (id) => () => void $.state.set(TAB, id));
452  });
453}
454
455// ---- state ----
456
457function update($, change) {
458  queue = queue
459    .then(async () => {
460      const { value: tracks = [] } = await $.state.get(TRACKS);
461      let changed = change(tracks);
462      if (changed === tracks) return;
463      const before = new Map(tracks.map((t) => [t.id, t]));
464      changed = changed.map((t) => stampWait(before.get(t.id), stampDone($, stampFailure(before.get(t.id), stampTasks(t)))));
465      await $.state.set(TRACKS, changed);
466      for (const t of changed) notify($, before.get(t.id), t);
467      const failures = changed.filter((t) => t.failureToLog && t.failureToLog !== before.get(t.id)?.failureToLog);
468      if (failures.length > 0) {
469        await writeLog($, (log) => ({
470          ...log,
471          findings: capped([...log.findings, ...failures.map((t, i) => ({ kind: "failed", ...t.failureToLog, id: entryId("failed", log.findings.length + i), at: Date.now(), isDemo: t.isDemo }))]),
472        }));
473      }
474    })
475    .catch(() => undefined);
476  return queue;
477}
478
479// ---- measured numbers: work, wait, tokens, context ----
480
481// A list Claude declared itself: its total is real, so the bar counts x/y again.
482function declared(track) {
483  return {
484    isFromPlan: false,
485    isAutoSteps: false,
486    isCounter: false,
487    isWorkBar: false,
488    label: track.isWorkBar ? null : track.label,
489  };
490}
491
492// Time spent waiting on the person: from the moment the bar turns amber until it turns back.
493function stampWait(old, track) {
494  const now = Date.now();
495  if (track.isWaiting && !old?.isWaiting) return { ...track, waitingSince: now };
496  if (!track.isWaiting && old?.isWaiting && track.waitingSince != null) {
497    return { ...track, waitMs: (track.waitMs ?? 0) + (now - track.waitingSince), waitingSince: null };
498  }
499  return track;
500}
501
502// A finished turn adds the part of it that overlaps the track's own life.
503function addTurn(track, turnStart, turnEnd) {
504  if (track.isDemo) return track;
505  const overlap = Math.min(turnEnd, track.doneAt ?? turnEnd) - Math.max(turnStart, track.startedAt ?? turnStart);
506  return overlap > 0 ? { ...track, turnMs: (track.turnMs ?? 0) + overlap } : track;
507}
508
509// Work: the time Claude was in a turn while the track ran, less the time it waited on the
510// person. Idle time between turns counts as neither. The demo runs outside any turn.
511export function workOf(track, now, turnStartedAt) {
512  const end = Math.min(now, track.doneAt ?? now);
513  const start = track.isDemo ? track.startedAt : turnStartedAt;
514  const live = start != null ? Math.max(0, end - Math.max(start, track.startedAt ?? start)) : 0;
515  return Math.max(0, (track.turnMs ?? 0) + live - waitOf(track, now));
516}
517
518export function waitOf(track, now) {
519  return (track.waitMs ?? 0) + (track.waitingSince != null ? now - track.waitingSince : 0);
520}
521
522// The context window's fill as the engine reports it; null where it reports none.
523async function usageOf($) {
524  try {
525    const usage = await $.session.usage();
526    return { contextPercent: usage.context?.percent ?? null };
527  } catch {
528    return { contextPercent: null };
529  }
530}
531
532async function contextOf($) {
533  const { value: turnStartedAt = null } = await $.state.get(TURN);
534  return { now: Date.now(), turnStartedAt, ...(await usageOf($)) };
535}
536
537// Tokens as the API reports them per response. Input is every prompt token the model
538// read: uncached, read from the cache, and written to it. Each call re-reads the whole
539// conversation, so input grows much faster than output, and most of it comes from the cache.
540function emptyTokens() {
541  return { input: 0, cached: 0, output: 0, calls: 0 };
542}
543
544function tokensOfUsage(usage) {
545  if (!usage) return null;
546  const cached = usage.cache_read_input_tokens ?? 0;
547  const input = (usage.input_tokens ?? 0) + cached + (usage.cache_creation_input_tokens ?? 0);
548  return { input, cached, output: usage.output_tokens ?? 0, calls: 1 };
549}
550
551function addTokens(a = emptyTokens(), b) {
552  return { input: a.input + b.input, cached: a.cached + b.cached, output: a.output + b.output, calls: a.calls + b.calls };
553}
554
555// 820, 14.2k, 142k, 1.23M.
556export function countOf(n) {
557  if (n < 1000) return String(n);
558  if (n < 100_000) return `${(n / 1000).toFixed(1)}k`;
559  if (n < 1_000_000) return `${Math.round(n / 1000)}k`;
560  return `${(n / 1_000_000).toFixed(2)}M`;
561}
562
563// Notes when each task starts and finishes. A reopened task loses its finish.
564function stampTasks(track) {
565  const now = Date.now();
566  const tasks = track.tasks.map((t) => {
567    if (t.status === "in_progress" && (t.startedAt == null || t.doneAt != null)) {
568      return { ...t, startedAt: t.startedAt ?? now, doneAt: null };
569    }
570    if (t.status === "completed" && t.doneAt == null) return { ...t, doneAt: now };
571    return t;
572  });
573  return tasks.every((t, i) => t === track.tasks[i]) ? track : { ...track, tasks };
574}
575
576// ---- the session log (Progress pane) ----
577
578function emptyLog() {
579  return { blocks: [], findings: [] };
580}
581
582function capped(list) {
583  return list.slice(-LOG_CAP);
584}
585
586// Unqueued: for use inside a queued job. Everything else goes through changeLog.
587async function writeLog($, change) {
588  const { value: log = emptyLog() } = await $.state.get(LOG);
589  const changed = change(log);
590  if (changed !== log) await $.state.set(LOG, changed);
591}
592
593function changeLog($, change) {
594  queue = queue.then(() => writeLog($, change)).catch(() => undefined);
595  return queue;
596}
597
598async function currentTaskOf($) {
599  const { value: tracks = [] } = await $.state.get(TRACKS);
600  const active = activeOf(tracks);
601  return active?.isAutoSteps ? null : (active?.tasks.find((t) => t.status === "in_progress")?.subject ?? null);
602}
603
604// Something waits on the person: the bar turns amber and the pane lists it. A plan
605// approval keeps its own Planning bar; a fallback adds nothing when one is already open.
606async function openBlock($, kind, text, { isFallback = false, keepsBar = false, toolUseId = null, details = null } = {}) {
607  const task = await currentTaskOf($);
608  if (!keepsBar) {
609    await update($, (tracks) => {
610      const active = activeOf(tracks);
611      return active && !isComplete(active) && !active.isWaiting ? replace(tracks, { ...active, isWaiting: true }) : tracks;
612    });
613  }
614  await changeLog($, (log) => {
615    if (isFallback && log.blocks.some((b) => b.kind === kind && b.answeredAt == null)) return log;
616    const block = { id: entryId(kind, log.blocks.length), kind, text: shorten(text, 120), task, at: Date.now(), answeredAt: null, toolUseId, details };
617    return { ...log, blocks: capped([...log.blocks, block]) };
618  });
619}
620
621// Adds what happened to the newest block that matches: the answer, how the call ended.
622function noteBlock($, isTarget, fields) {
623  return changeLog($, (log) => {
624    const at = log.blocks.findLastIndex(isTarget);
625    if (at === -1) return log;
626    return { ...log, blocks: log.blocks.map((b, i) => (i === at ? { ...b, ...fields } : b)) };
627  });
628}
629
630// How a call ended, as its result says. A refusal is not said to be the person's: a hook
631// or a rule can refuse a call too.
632function outcomeOf(r) {
633  if (r.deny !== undefined) return "It did not run";
634  return r.isError ? "It ran and ended with an error" : "It ran";
635}
636
637// What a permission prompt asked to do, in full: the command, else the file, else the input.
638function requestOf(tool, input) {
639  if (input.command) return String(input.command);
640  if (input.file_path || input.notebook_path) return String(input.file_path ?? input.notebook_path);
641  if (input.url) return String(input.url);
642  const text = JSON.stringify(input);
643  return text === "{}" ? String(tool ?? "") : shorten(text, 400);
644}
645
646// A log entry's id: stable while the entry lives, so its details stay open across renders.
647function entryId(kind, n) {
648  return `${kind}-${Date.now().toString(36)}-${n}`;
649}
650
651// A permission prompt learns which call it belonged to when that call ends.
652async function closeBlocks($, toolUseId = null) {
653  await changeLog($, (log) => {
654    if (!log.blocks.some((b) => b.answeredAt == null)) return log;
655    const now = Date.now();
656    const close = (b) => ({ ...b, answeredAt: now, toolUseId: b.toolUseId ?? toolUseId });
657    return { ...log, blocks: log.blocks.map((b) => (b.answeredAt == null ? close(b) : b)) };
658  });
659  await update($, (tracks) => {
660    const active = activeOf(tracks);
661    return active?.isWaiting && !active.isPlanning ? replace(tracks, { ...active, isWaiting: false }) : tracks;
662  });
663}
664
665async function logFinding($, kind, text, toolUseId = null) {
666  const task = await currentTaskOf($);
667  await changeLog($, (log) => ({
668    ...log,
669    findings: capped([...log.findings, { id: entryId(kind, log.findings.length), kind, text: shorten(text, 1000), task, at: Date.now(), toolUseId }]),
670  }));
671}
672
673async function openPane($) {
674  try {
675    const opened = await $.ui.open({ id: PANE, title: "Progress" });
676    if (!opened.isPlaced) $.ui.toast(`Progress pane waits: ${opened.reason ?? "this window shows no panes"}`);
677  } catch {
678    // No panes on this surface.
679  }
680}
681
682// Each new failing run counts against the task in progress; the first of a red spell
683// also goes to the Found tab.
684function stampFailure(old, track) {
685  if (!track.failedRuns || track.failedRuns === old?.failedRuns) return track;
686  const at = track.tasks.findIndex((t) => t.status === "in_progress");
687  if (at === -1) return track;
688  const tasks = track.tasks.map((t, i) => (i === at ? { ...t, failures: (t.failures ?? 0) + 1 } : t));
689  const isNewSpell = old?.failedCommand == null;
690  return {
691    ...track,
692    tasks,
693    failureToLog: isNewSpell
694      ? {
695          text: track.failedReason ?? track.failedCommand,
696          task: tasks[at].subject,
697          toolUseId: track.failedToolUseId ?? null,
698          command: track.failedCommand,
699          lines: track.failedLines ?? [],
700        }
701      : null,
702  };
703}
704
705// A toast when a bar starts waiting on the person, and when a real task list finishes.
706function notify($, old, track) {
707  try {
708    if (track.isWaiting && !old?.isWaiting && !track.isPlanning) {
709      $.ui.toast(`Waiting for you · ${track.label ?? track.tasks[0]?.subject ?? "Claude"}`);
710    }
711    const isAuto = track.isWorkBar || track.isPlanning || track.isAutoSteps;
712    if (track.doneAt != null && old?.doneAt == null && old !== undefined && !isAuto) {
713      const retries = track.tasks.reduce((sum, t) => sum + (t.failures ?? 0), 0);
714      const time = track.startedAt ? ` in ${durationOf(track.doneAt - track.startedAt)}` : "";
715      $.ui.toast(`✓ ${track.label ?? track.tasks[0]?.subject ?? "Tasks"} done${time}${retries ? ` · ${retries} ${retries === 1 ? "retry" : "retries"}` : ""}`);
716    }
717  } catch {
718    // No toasts on this surface.
719  }
720}
721
722// Notes when a track finishes (to freeze its clock) and hides it a minute later.
723// A track that starts again (new tasks, a reopened task) loses the stamp.
724function stampDone($, track) {
725  const isDone = isComplete(track);
726  if (isDone === (track.doneAt != null)) return track;
727  if (!isDone) return { ...track, doneAt: null };
728  const doneAt = Date.now();
729  if (!track.isDemo) {
730    try {
731      $.clock.after(DONE_LINGER_MS, () =>
732        void update($, (all) =>
733          all.map((t) => (t.id === track.id && t.doneAt === doneAt && !t.isExpanded ? { ...t, isDismissed: true } : t)),
734        ),
735      );
736    } catch {
737      // No timer: the finished bar stays until ✕ or the next session.
738    }
739  }
740  return { ...track, doneAt };
741}
742
743// Ids count up from the highest one still held, so two tracks never share a Raster key.
744function newTrack(tracks, label) {
745  const highest = Math.max(0, ...tracks.map((t) => Number(t.id.replace(/^track/, "")) || 0));
746  return {
747    id: `track${highest + 1}`,
748    label,
749    tasks: [],
750    failedCommand: null,
751    isDismissed: false,
752    startedAt: Date.now(),
753    doneAt: null,
754  };
755}
756
757function activeOf(tracks) {
758  return tracks.findLast((t) => !t.isDismissed);
759}
760
761function replace(tracks, track) {
762  return tracks.map((t) => (t.id === track.id ? track : t));
763}
764
765// Applies `change` to the newest track. A finished list (or none) gets a fresh
766// track first, unless `incoming` (a TodoWrite list) still names one of its tasks.
767function withActive(tracks, change, incoming) {
768  const active = activeOf(tracks);
769  const isSameList =
770    incoming !== undefined &&
771    active !== undefined &&
772    incoming.some((task) => active.tasks.some((old) => old.subject === task.subject));
773  if (active && (!isComplete(active) || active.tasks.length === 0 || isSameList)) {
774    return replace(tracks, change(active));
775  }
776  return [...tracks, change(newTrack(tracks, null))];
777}
778

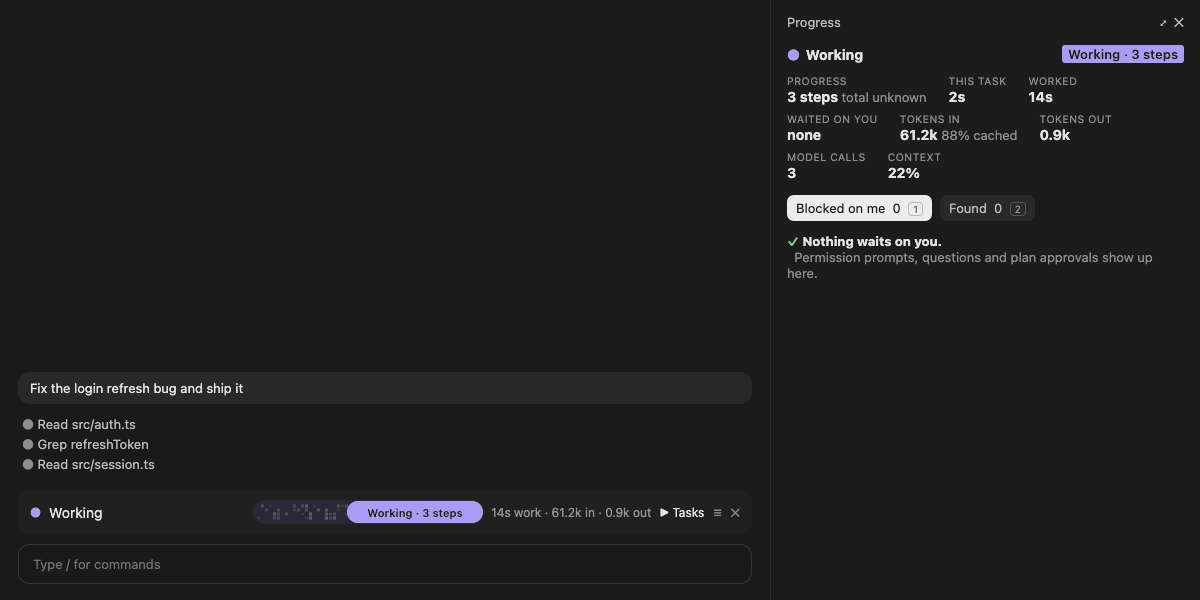

779// /progress-tracker-demo: a scripted run on its own track that shows every feature: three
780// reads in parallel, a sub-agent, a failing check that recovers, time left, and the
781// finished timeline opened on its own. The track goes away a while after it finishes.
782const DEMO_TASKS = ["Plan", "Read config.ts", "Read api.ts", "Read db.ts", "Build", "Test", "Ship"];
783// Each step: [delay, change to the demo track, change to the pane's log]. Demo log
784// entries carry isDemo and go when the demo does.
785const DEMO_STEPS = [
786  [1400, (t) => applyOps(t, { next: true })],
787  [1600, demoParallelReads],
788  [700, (t) => ({ ...t, demoAgents: 1, isExpanded: true })],
789  [1600, demoAgentDone],
790  [600, (t) => applyOps(t, { next: true })],
791  [1200, (t) => applyOps(t, { failed: "2 tests failing" })],
792  [1300, (t) => applyOps(t, { failed: "1 test failing" }), demoFinding("Retry loop in api.ts drops the auth header", "Test")],
793  [1600, (t) => applyOps(t, { fixed: true })],
794  [500, (t) => ({ ...t, isWaiting: true }), demoBlock("Allow npm publish", "Ship")],
795  [1800, (t) => ({ ...t, isWaiting: false }), demoAnswer],
796  [900, (t) => applyOps(t, { next: true })],
797  [1400, (t) => applyOps(t, { next: true })],
798];
799const DEMO_LINGER_MS = 12000;
800
801function demoFinding(text, task) {
802  return (log) => ({ ...log, findings: [...log.findings, { id: entryId("found", log.findings.length), kind: "found", text, task, at: Date.now(), isDemo: true }] });
803}
804
805function demoBlock(text, task) {
806  return (log) => ({
807    ...log,
808    blocks: [
809      ...log.blocks,
810      {
811        id: entryId("permission", log.blocks.length),
812        kind: "permission",
813        text,
814        task,
815        at: Date.now(),
816        answeredAt: null,
817        isDemo: true,
818        details: { tool: "Bash", request: text.replace(/^Allow /, "") },
819      },
820    ],
821  });
822}
823
824function demoAnswer(log) {
825  return {
826    ...log,
827    blocks: log.blocks.map((b) => (b.isDemo && b.answeredAt == null ? { ...b, answeredAt: Date.now(), outcome: "It ran" } : b)),
828  };
829}
830
831function dropDemoLog(log) {
832  const keep = (list) => list.filter((entry) => !entry.isDemo);
833  return { blocks: keep(log.blocks), findings: keep(log.findings) };
834}
835
836async function playDemo($) {
837  let id = null;
838  await update($, (tracks) => {
839    const track = newTrack(tracks, "Demo: ship a feature");
840    id = track.id;
841    const tasks = DEMO_TASKS.map((subject, i) => ({
842      id: `demo${i + 1}`,
843      subject,
844      status: i === 0 ? "in_progress" : "pending",
845    }));
846    return [...tracks, { ...track, tasks, isDemo: true }];
847  });
848  const onDemo = (change) => update($, (tracks) => tracks.map((t) => (t.id === id ? change(t) : t)));
849  await openPane($);
850  let at = 0;
851  for (const [delay, change, logChange] of DEMO_STEPS) {
852    at += delay;
853    $.clock.after(at, () => {
854      void onDemo(change);
855      if (logChange) void changeLog($, logChange);
856    });
857  }
858  $.clock.after(at + DEMO_LINGER_MS, () => {
859    void update($, (tracks) => tracks.filter((t) => t.id !== id));
860    void changeLog($, dropDemoLog);
861  });
862}
863
864// The three reads all start when Plan finishes and end at different times.
865function demoParallelReads(track) {
866  const now = Date.now();
867  const start = track.tasks[0].doneAt ?? now - 1600;
868  const lengths = [900, 1300, 1600];
869  const tasks = track.tasks.map((task, i) => {
870    if (i >= 1 && i <= 3) return { ...task, status: "completed", startedAt: start, doneAt: start + lengths[i - 1] };
871    return i === 4 ? { ...task, status: "in_progress", startedAt: start + Math.max(...lengths) } : task;
872  });
873  return { ...track, tasks };
874}
875
876function demoAgentDone(track) {
877  const now = Date.now();
878  const run = {
879    taskId: "demo5",
880    subject: "Map the routes",
881    agent: { type: "Explore", isBackground: false },
882    startedAt: now - 1600,
883    doneAt: now,
884  };
885  return { ...track, demoAgents: 0, agentRuns: [...(track.agentRuns ?? []), run] };
886}
887
888// Done and waiting-for-approval bars hold still; the rest move while Claude works.
889function isLive(status) {
890  return status === "working" || status === "failed";
891}
892
893// ---- plan mode ----
894
895// Counts work calls since the bar last moved. After NUDGE_AFTER of them Claude gets one
896// note it alone reads, so a forgotten {next:true} does not freeze the bar.
897const NUDGE_AFTER = 12;
898
899async function countWork($) {
900  let nudge = null;
901  await update($, (tracks) => {
902    const active = activeOf(tracks);
903    if (!active || active.isAutoSteps || isComplete(active)) return tracks;
904    const key = active.tasks.map((t) => t.status).join(",");
905    const calls = key === active.statusKey ? (active.callsSinceMove ?? 0) + 1 : 1;
906    if (calls >= NUDGE_AFTER) {
907      const current = active.tasks.find((t) => t.status === "in_progress");
908      const done = active.tasks.filter((t) => t.status === "completed").length;
909      nudge = `The progress bar still shows "${current?.subject ?? "nothing"}" in progress (${done}/${active.tasks.length}). If that task is done, update it now (${TOOL_NAME} next/active, or TaskUpdate). Don't mention this note.`;
910    }
911    return replace(tracks, { ...active, statusKey: key, callsSinceMove: nudge ? 0 : calls });
912  });
913  return nudge;
914}
915
916// Tools that are bookkeeping, not work: they never become a planning step.
917const NOT_A_STEP = new Set([TOOL, "ExitPlanMode", "AskUserQuestion", "ToolSearch", "TaskCreate", "TaskUpdate", "TodoWrite"]);
918
919// In plan mode a Planning bar starts. Out of it, a Planning bar that never reached
920// ExitPlanMode (the person left plan mode by hand) is dropped.
921async function followMode($, mode) {
922  if (mode) lastMode = mode;
923  if (mode === "plan") return startPlanning($);
924  if (mode) await update($, (tracks) => (tracks.some((t) => t.isPlanning) ? tracks.filter((t) => !t.isPlanning) : tracks));
925}
926
927async function startPlanning($) {
928  await update($, (tracks) => {
929    if (tracks.some((t) => t.isPlanning && !t.isDismissed)) return tracks;
930    const tasks = [
931      { id: "plan1", subject: "Explore", status: "in_progress" },
932      { id: "approval", subject: "Approval", status: "pending" },
933    ];
934    return [...tracks, { ...newTrack(tracks, "Planning"), tasks, isPlanning: true, isAutoSteps: true, isCounter: true }];
935  });
936}
937
938// The step in progress is done and named after the call; a new one starts before Approval.
939function autoStep(track, step) {
940  const at = track.tasks.findIndex((t) => t.status === "in_progress");
941  if (at === -1) return track;
942  const done = { ...track.tasks[at], ...taskOf(step), status: "completed" };
943  const subject = track.isWorkBar ? "Working" : step.isWrite ? "Write plan" : "Explore";
944  const following = { id: `plan${at + 2}`, subject, status: "in_progress" };
945  return { ...track, tasks: [...track.tasks.slice(0, at), done, following, ...track.tasks.slice(at + 1)] };
946}
947
948function closeWorkBar(track) {
949  const steps = track.tasks.filter((task) => task.status === "completed");
950  const open = track.tasks.find((task) => task.status === "in_progress");
951  const lastEnd = Math.max(0, ...steps.map((task) => task.doneAt ?? 0));
952  const reply = open
953    ? [{ ...open, subject: "Write reply", status: "completed", startedAt: lastEnd || open.startedAt, doneAt: Date.now() }]
954    : [];
955  return { ...track, tasks: [...steps, ...reply], isAutoSteps: false };
956}
957
958// One finished tool call, timed by the hook that ran it.
959function stepOf(call, startedAt) {
960  const run =
961    spawned.get(call.tool_use_id) ??
962    (call.tool === "Agent"
963      ? { type: String(call.subagent_type ?? "general-purpose"), isBackground: call.run_in_background === true }
964      : undefined);
965  const agent = run ? { type: run.type, isBackground: run.isBackground } : undefined;
966  return { subject: stepNameOf(call), startedAt, doneAt: Date.now(), isWrite: call.tool === "Write" || call.tool === "Edit", agent };
967}
968
969function taskOf(step) {
970  return { subject: step.subject, startedAt: step.startedAt, doneAt: step.doneAt, agent: step.agent };
971}
972
973// A sub-agent run during one of Claude's own tasks is listed under that task.
974async function noteAgentRun($, step) {
975  await update($, (tracks) => {
976    const active = activeOf(tracks);
977    const task = active?.tasks.find((t) => t.status === "in_progress");
978    if (!task || active.isAutoSteps) return tracks;
979    const run = { taskId: task.id, ...taskOf(step) };
980    return replace(tracks, { ...active, agentRuns: [...(active.agentRuns ?? []), run] });
981  });
982}
983
984// The note Claude gets when a turn's work starts without a list: the bar can only count
985// steps until Claude says how many there are.
986const LIST_NUDGE = `This work has no task list yet, so the progress bar can only count steps. If more steps are coming, call ${TOOL} now with {title, tasks:[every step you plan]} so the bar shows a real total. Don't mention this note.`;
987
988// Returns the note for Claude when this call starts a Working bar.
989async function autoWork($, step) {
990  if (lastMode === "plan") return null;
991  turnSteps.push(step);
992  let nudge = null;
993  await update($, (tracks) => {
994    const active = activeOf(tracks);
995    if (active?.isWorkBar && active.isAutoSteps) return replace(tracks, autoStep(active, step));
996    if (hasTurnBar || turnSteps.length < AUTO_BAR_CALLS || (active && !isComplete(active))) return tracks;
997    hasTurnBar = true;
998    nudge = LIST_NUDGE;
999    const done = turnSteps.map((s, i) => ({ id: `plan${i + 1}`, ...taskOf(s), status: "completed" }));
1000    const tasks = [...done, { id: `plan${done.length + 1}`, subject: "Working", status: "in_progress" }];
1001    const track = { ...newTrack(tracks, "Working"), startedAt: turnSteps[0].startedAt, tokens: turnTokens };
1002    return [...tracks, { ...track, tasks, isWorkBar: true, isAutoSteps: true, isCounter: true }];
1003  });
1004  return nudge;
1005}
1006
1007export function stepNameOf(call) {
1008  const file = String(call.file_path ?? call.path ?? "").split("/").filter(Boolean).at(-1);
1009  const name =
1010    call.description ??
1011    (call.tool === "Read" && file ? `Read ${file}` : null) ??
1012    (call.tool === "Write" && file ? `Write ${file}` : null) ??
1013    (call.tool === "Edit" && file ? `Edit ${file}` : null) ??
1014    (call.pattern ? `Search ${call.pattern}` : null) ??
1015    (call.tool === "Bash" ? String(call.command ?? "").trim().split(/\s+/)[0] || "Run a command" : null) ??
1016    String(call.tool ?? "Step").replace(/^mcp__.*__/, "");
1017  return shorten(String(name).replace(/\s+/g, " ").trim(), 40);
1018}
1019
1020function onPlanning($, change) {
1021  return update($, (tracks) => tracks.map((t) => (t.isPlanning && !t.isDismissed ? change(t) : t)));
1022}
1023
1024// Steps before `at` done, `at` in progress, the rest pending.
1025function toStep(track, at) {
1026  const tasks = track.tasks.map((t, i) => ({
1027    ...t,
1028    status: i < at ? "completed" : i === at ? "in_progress" : "pending",
1029  }));
1030  return { ...track, tasks };
1031}
1032
1033// A plan's numbered steps, else its bullets, as tasks: at most 8, short titles.
1034function planStepsOf(plan) {
1035  const all = typeof plan === "string" ? plan.split("\n") : [];
1036  // Steps live under the work headings; Context and Verification lists are not tasks.
1037  const SKIP = /^#{1,4}\s+.*\b(context|background|verif\w*|testing|test plan|risks?|notes?|files?|out of scope)\b/i;
1038  const WORK = /^#{1,4}\s+.*\b(steps?|implementation|phases?|changes?|approach|plan|tasks?)\b/i;
1039  const sections = [];
1040  for (const line of all) {
1041    if (/^#{1,4}\s/.test(line)) sections.push({ heading: line, lines: [] });
1042    else (sections.at(-1) ?? sections[sections.push({ heading: "", lines: [] }) - 1]).lines.push(line);
1043  }
1044  const kept = sections.filter((s) => !SKIP.test(s.heading));
1045  const work = kept.filter((s) => WORK.test(s.heading));
1046  const lines = (work.length > 0 ? work : kept).flatMap((s) => s.lines);
1047  const pick = (pattern) =>
1048    lines.map((line) => line.match(pattern)?.[1]).filter((text) => text && text.trim().length > 0);
1049  const numbered = pick(/^\s{0,3}\d+[.)]\s+(.+)/);
1050  const steps = (numbered.length > 0 ? numbered : pick(/^\s{0,1}[-*]\s+(.+)/)).slice(0, 8);
1051  const titles = steps.length > 0 ? steps : ["Carry out the plan"];
1052  return titles.map((text, i) => ({
1053    id: `step${i + 1}`,
1054    subject: shorten(text.replace(/[*_`#]/g, "").replace(/\s+/g, " ").trim(), 40),
1055    status: i === 0 ? "in_progress" : "pending",
1056  }));
1057}
1058
1059// The tool's short updates against the newest track.
1060function applyOps(track, ops) {
1061  let tasks = track.tasks;
1062  let failedCommand = track.failedCommand;
1063  if (Array.isArray(ops.add) && ops.add.length > 0) {
1064    const added = ops.add.map((subject, i) => ({ id: `add${tasks.length + i + 1}`, subject: String(subject), status: "pending" }));
1065    tasks = [...tasks, ...added];
1066    if (!tasks.some((t) => t.status === "in_progress")) {
1067      const first = tasks.findIndex((t) => t.status === "pending");
1068      tasks = tasks.map((t, i) => (i === first ? { ...t, status: "in_progress" } : t));
1069    }
1070  }
1071  if (ops.next === true || ops.skip === true) {
1072    const at = tasks.findIndex((t) => t.status === "in_progress");
1073    const upTo = at === -1 ? tasks.findIndex((t) => t.status !== "completed") : at;
1074    const closed = ops.skip === true ? { status: "completed", isSkipped: true } : { status: "completed" };
1075    tasks = tasks.map((t, i) =>
1076      i === upTo ? { ...t, ...closed } : i === upTo + 1 && t.status === "pending" ? { ...t, status: "in_progress" } : t,
1077    );
1078    failedCommand = null;
1079  }
1080  if (typeof ops.active === "string") {
1081    const at = findTask(tasks, ops.active);
1082    if (at !== -1) {
1083      tasks = tasks.map((t, i) =>
1084        i < at ? { ...t, status: "completed" } : i === at ? { ...t, status: "in_progress" } : t.status === "in_progress" ? { ...t, status: "pending" } : t,
1085      );
1086    }
1087  }
1088  let failedRuns = track.failedRuns;
1089  if (typeof ops.failed === "string") {
1090    failedCommand = ops.failed || "failed";
1091    failedRuns = (failedRuns ?? 0) + 1;
1092  }
1093  if (ops.fixed === true) failedCommand = null;
1094  const isSameFailure = failedCommand === track.failedCommand;
1095  return {
1096    ...track,
1097    tasks,
1098    failedCommand,
1099    failedRuns,
1100    failedReason: isSameFailure ? track.failedReason : null,
1101    failedLines: isSameFailure ? track.failedLines : null,
1102  };
1103}
1104
1105// Exact name first, then a prefix, then a part of the name; -1 when none fits.
1106export function findTask(tasks, name) {
1107  const want = String(name).trim().toLowerCase();
1108  const names = tasks.map((t) => t.subject.trim().toLowerCase());
1109  const exact = names.indexOf(want);
1110  if (exact !== -1 || want === "") return exact;
1111  const prefix = names.findIndex((n) => n.startsWith(want));
1112  return prefix !== -1 ? prefix : names.findIndex((n) => n.includes(want) || want.includes(n));
1113}
1114
1115function isComplete(track) {
1116  return track.tasks.length > 0 && track.tasks.every((t) => t.status === "completed");
1117}
1118
1119// Only a failing test, build, lint or typecheck turns a row red: grep, diff and
1120// test -f exit 1 as an answer, not a failure. The command's head decides, not any word in it.
1121const RUNNERS = /^(pytest|py\.test|tox|nox|jest|vitest|mocha|tsc|eslint|ruff|mypy|flake8|pylint|black|isort|pre-commit|rspec|phpunit|xcodebuild|gradle|gradlew|mvn|make|bazel|ctest)$/;
1122
1123export function isCheck(command) {
1124  return command.split(/&&|\|\||;|\|/).some((part) => {
1125    const words = part.trim().split(/\s+/).filter((w) => w && !w.startsWith("-"));
1126    while (words.length > 0 && (/^\w+=/.test(words[0]) || words[0] === "cd" || words[0] === "time")) {
1127      words.splice(0, words[0] === "cd" ? 2 : 1);
1128    }
1129    return isCheckWords(words);
1130  });
1131}
1132
1133function isCheckWords([first = "", ...rest]) {
1134  const head = first.split("/").at(-1);
1135  const [a = "", b = ""] = rest;
1136  if (RUNNERS.test(head)) return true;
1137  if (/^(npx|bunx|pnpx|uv|poetry|pipx)$/.test(head)) return isCheckWords(a === "run" || a === "exec" ? rest.slice(1) : rest);
1138  if (/^python[\d.]*$/.test(head)) return isCheckWords(rest);
1139  if (/^(npm|pnpm|yarn|bun)$/.test(head)) {
1140    return /^(test|t|build|lint|typecheck|check)$/.test(a) || (a === "run" && /^(test|build|lint|typecheck|type-check|check)(:|$)/.test(b));
1141  }
1142  if (head === "cargo") return /^(test|build|check|clippy|nextest)$/.test(a);
1143  if (head === "go") return /^(test|build|vet)$/.test(a);
1144  if (head === "dotnet" || head === "swift") return /^(test|build)$/.test(a);
1145  if (head === "claude") return a === "plugin" && /^(test|validate)$/.test(b);
1146  return false;
1147}
1148
1149const ERROR_LINE = /\b(error|errors|failed|failure|FAIL|assert\w*)\b|✕/i;
1150
1151// Up to 8 lines of a failed check's output for the pane: the lines that name a problem,
1152// else the last lines of the output.
1153function errorLinesOf(result) {
1154  const text = `${result?.stdout ?? ""}\n${result?.stderr ?? ""}`;
1155  const lines = text.split("\n").map((l) => l.trim()).filter(Boolean);
1156  const hits = lines.filter((l) => ERROR_LINE.test(l));
1157  return (hits.length > 0 ? hits.slice(0, 8) : lines.slice(-8)).map((l) => shorten(l, 200));
1158}
1159
1160// The first line of a failed check's output that names the problem.
1161function errorLineOf(result) {
1162  const text = `${result?.stdout ?? ""}\n${result?.stderr ?? ""}`;
1163  const line = text.split("\n").find((l) => /\b(error|errors|failed|failure|FAIL|assert\w*)\b|✕/i.test(l));
1164  return line ? line.trim() : null;
1165}
1166
1167// A re-run with other flags or paths still counts as the same check.
1168export function sameCheck(a, b) {
1169  const head = (c) => c.trim().split(/\s+/).filter((w) => !w.startsWith("-")).slice(0, 2).join(" ");
1170  return a === b || head(a) === head(b);
1171}
1172
1173function isAnswered(r) {
1174  return r.deny === undefined && !r.isError;
1175}
1176
1177function planTitleOf(plan) {
1178  if (typeof plan !== "string") return "Plan";
1179  const heading = plan.split("\n").find((line) => /^#{1,3}\s+\S/.test(line));
1180  const title = (heading ?? plan.split("\n").find((line) => line.trim()) ?? "")
1181    .replace(/^#+\s*/, "")
1182    .replace(/^plan:\s*/i, "")
1183    .trim();
1184  return title || "Plan";
1185}
1186
1187// ---- drawing ----
1188
1189// Sub-agents the main loop started that are still running; 0 where the engine cannot list them.
1190async function runningAgentsOf($) {
1191  if (spawned.size === 0) return 0;
1192  try {
1193    const ours = new Set([...spawned.values()].map((run) => run.id));
1194    const agents = await $.agent.list();
1195    return agents.filter((a) => a.status === "running" && ours.has(a.id)).length;
1196  } catch {
1197    return 0;
1198  }
1199}
1200

1// two-row-smooth: a 2-row slider drawn on a 4-pixel-tall canvas.
2// Each cell is split into 2x2 quadrants (▀ ▄ ▌ ▐ ▖ ▗ ▘ ▝ ▙ ▛ ▜ ▟), so the track and
3// the pill are capsules with round ends at half-cell horizontal resolution. Edge
4// cells take an averaged fg/bg colour pair, which anti-aliases the curve. Inside
5// the filled part, plain cells switch to braille so the dot field has real gaps:
6// sparse and dim on the left, dense and bright at the pill, twinkling over time.
7export const ROWS = 2;
8
9const DEF = 0x01000000;
10const TERM_BG = 0x1a1a1c;
11const SPACE = 0x20;
12const TICK_TOP = 0x2577; // ╷  row 0: lower half of a line
13const TICK_BOT = 0x2575; // ╵  row 1: upper half of a line
14const H = 4; // pixel rows (2 per terminal row)
15const R = 2; // vertical capsule radius in pixels
16const RX_TRACK = 2; // horizontal cap radius in cells (circle: a half-cell pixel is ~square)
17const RX_PILL = 2;
18const LEVELS = 8; // dot brightness steps
19const COV_STEPS = 7; // anti-alias coverage steps
20
21// quadrant mask (TL=1, TR=2, BL=4, BR=8) → glyph drawn in fg
22const QUAD = [
23  0x20, 0x2598, 0x259d, 0x2580, 0x2596, 0x258c, 0x259e, 0x259b,
24  0x2597, 0x259a, 0x2590, 0x259c, 0x2584, 0x2599, 0x259f, 0x2588,
25];
26
27const PAL = {
28  working: {
29    empty: 0x29292f, fill: 0x2b2740, dotLo: 0x4a436e, dotHi: 0xe8e3ff,
30    tickFill: 0xb3a8f7, tickEmpty: 0x56555f,
31    pill: 0xaa9df6, pillMid: 0x988aea, pillLip: 0x7a6bd0, ink: 0x15112b,
32    twP: 540, shimmer: true, breathe: 0, twinkle: 0.18,
33  },
34  failed: {
35    empty: 0x29292f, fill: 0x36242a, dotLo: 0x67393b, dotHi: 0xffc4ba,
36    tickFill: 0xf59a8c, tickEmpty: 0x56555f,
37    pill: 0xd04636, pillMid: 0xbb3d2e, pillLip: 0x972e22, ink: 0xffffff,
38    twP: 1600, shimmer: false, breathe: 0, twinkle: 0.08,
39  },
40  done: {
41    empty: 0x29292f, fill: 0x22322a, dotLo: 0x3b5e47, dotHi: 0xd2f6da,
42    tickFill: 0x95dca8, tickEmpty: 0x56555f,
43    pill: 0x8fd19e, pillMid: 0x7cc08c, pillLip: 0x5c9f6d, ink: 0x0e2414,
44    twP: 0, shimmer: false, breathe: 1, twinkle: 0,
45  },
46  waiting: {
47    empty: 0x29292f, fill: 0x342c1f, dotLo: 0x6b5530, dotHi: 0xffe7b8,
48    tickFill: 0xf2c46d, tickEmpty: 0x56555f,
49    pill: 0xf0b34a, pillMid: 0xdca13d, pillLip: 0xb07d2a, ink: 0x2a1c05,
50    twP: 0, shimmer: false, breathe: 1, twinkle: 0,
51  },
52};
53
54const clamp01 = (v) => (v < 0 ? 0 : v > 1 ? 1 : v);
55const qcov = (v) => Math.round(clamp01(v) * (COV_STEPS - 1)) / (COV_STEPS - 1);
56function mix(a, b, k) {
57  if (k <= 0) return a;
58  if (k >= 1) return b;
59  const ch = (s) => {
60    const x = (a >> s) & 255, y = (b >> s) & 255;
61    return Math.round(x + (y - x) * k) & 255;
62  };
63  return (ch(16) << 16) | (ch(8) << 8) | ch(0);
64}
65function hash(a, b, c) {
66  let h = Math.imul(a | 0, 0x27d4eb2d) ^ Math.imul(b | 0, 0x165667b1) ^ Math.imul(c | 0, 0x9e3779b1);
67  h = Math.imul(h ^ (h >>> 15), 0x85ebca6b);
68  h = Math.imul(h ^ (h >>> 13), 0xc2b2ae35);
69  h ^= h >>> 16;
70  return (h >>> 0) / 4294967296;
71}
72
73// Coverage of the box [x, x+w] x [y, y+1] by a capsule spanning x0..x1, 0..H
74// with elliptical ends (horizontal radius rx, vertical radius R).
75function capsuleCov(x, y, w, x0, x1, rx) {
76  if (x + w <= x0 || x >= x1) return 0;
77  let hit = 0;
78  for (let sy = 0; sy < 4; sy++) {
79    for (let sx = 0; sx < 4; sx++) {
80      const px = x + ((sx + 0.5) / 4) * w, py = y + (sy + 0.5) / 4;
81      if (px < x0 || px > x1) continue;
82      const cx = px < x0 + rx ? x0 + rx : px > x1 - rx ? x1 - rx : px;
83      const dx = (px - cx) / rx, dy = (py - R) / R;
84      if (dx * dx + dy * dy <= 1) hit++;
85    }
86  }
87  return hit / 16;
88}
89
90// Braille dot bits: [dotRow][dotCol]
91const BR = [[0x01, 0x08], [0x02, 0x10], [0x04, 0x20], [0x40, 0x80]];
92
93export function barCells({ width, done, total, status, pill, t, skipped = [] }) {
94  const W = width;
95  const P = PAL[status] || PAL.working;
96  const text = Array.from(String(pill ?? "")).slice(0, Math.max(1, W - 4));
97  const pillW = text.length + 4; // cap + pad + text + pad + cap
98  const frac = clamp01(total > 0 ? done / total : 0);
99  const fillEnd = status === "done" ? W : frac * W;
100  let pillX = Math.round(fillEnd - pillW / 2);
101  if (pillX > W - pillW) pillX = W - pillW;
102  if (pillX < 0) pillX = 0;
103  const pillEnd = pillX + pillW;
104  const textX = pillX + 2;
105
106  const breathe = P.breathe ? Math.round(0.5 + 0.5 * Math.sin((t / 3600) * Math.PI * 2)) : 0;
107  const span = Math.max(1, pillX);
108  const shimmerPos = P.shimmer ? ((t % 2200) / 2200) * (span + 8) - 4 : -99;
109
110  const ticks = new Set();
111  for (let i = 1; i < total; i++) ticks.add(Math.round((i / total) * W));
112
113  const out = new Array(W * 2);
114  for (let r = 0; r < 2; r++) {
115    for (let x = 0; x < W; x++) {
116      const trackCol = x < pillX + pillW / 2 ? P.fill : P.empty;
117      const inPill = x >= pillX && x < pillEnd;
118      let cell;
119      if (r === 0 && x >= textX && x < textX + text.length) {
120        cell = [text[x - textX].codePointAt(0), P.ink, P.pill];
121      } else {
122        // four quadrant samples: TL, TR, BL, BR
123        const ct = [], cp = [], pc = [];
124        for (let q = 0; q < 4; q++) {
125          const qx = x + (q & 1) * 0.5, qy = 2 * r + (q >> 1);
126          ct.push(capsuleCov(qx, qy, 0.5, 0, W, RX_TRACK));
127          cp.push(inPill ? capsuleCov(qx, qy, 0.5, pillX, pillEnd, RX_PILL) : 0);
128          pc.push(qy === 0 || qy === 1 ? P.pill : qy === 2 ? P.pillMid : P.pillLip);
129        }
130        const solidTrack = ct.every((v) => v === 1) && cp.every((v) => v === 0);
131        if (solidTrack && !inPill && ticks.has(x) && x > 2 && x < W - 3) {
132          cell = [r === 0 ? TICK_TOP : TICK_BOT, x < pillX ? P.tickFill : P.tickEmpty, trackCol];
133        } else if (solidTrack && x < pillX) {
134          cell = dotCell(x, r, pillX, span, shimmerPos, breathe, t, P);
135          // A skipped task's slice: its dots fade toward the fill.
136          if (skipped.includes(Math.floor((x / W) * total))) cell = [cell[0], mix(cell[1], P.fill, 0.65), cell[2]];
137        } else {
138          cell = shapeCell(ct, cp, pc, trackCol);
139        }
140      }
141      out[r * W + x] = cell;
142    }
143  }
144  return out;
145}
146
147// Split the 4 quadrants into inside/outside of the top-most edge, average each
148// group's coverage (quantized), and draw the matching quadrant glyph.
149function shapeCell(ct, cp, pc, trackCol) {
150  const pillEdge = cp.some((v) => v > 0);
151  const cov = pillEdge ? cp : ct;
152  let mask = 0;
153  for (let q = 0; q < 4; q++) if (cov[q] >= 0.5) mask |= 1 << q;
154  const group = (inside) => {
155    let n = 0, sct = 0, scp = 0, lip = 0;
156    for (let q = 0; q < 4; q++) {
157      if (((mask >> q) & 1) !== (inside ? 1 : 0)) continue;
158      n++; sct += ct[q]; scp += cp[q];
159      lip += q >> 1; // bottom quadrants carry the darker pill rows
160    }
161    if (!n) return null;
162    const t = qcov(sct / n), p = qcov(scp / n);
163    if (t === 0 && p === 0) return -1; // terminal background
164    let c = mix(TERM_BG, trackCol, t);
165    if (p > 0) {
166      const top = pc[0], bot = pc[2];
167      c = mix(c, lip === 0 ? top : lip === n ? bot : mix(top, bot, 0.5), p);
168    }
169    return c;
170  };
171  let fg = group(true), bg = group(false);
172  // full pill cell on the lower row: show the face/lip bevel with ▀
173  if (mask === 15 && pillEdge && pc[0] !== pc[2]) {
174    return [0x2580, pc[0], pc[2]];
175  }
176  if (fg === null) return bg === -1 ? [SPACE, TERM_BG, DEF] : [SPACE, bg, bg];
177  if (bg === null || fg === bg) return fg === -1 ? [SPACE, TERM_BG, DEF] : [SPACE, fg, fg];
178  if (fg === -1) { // draw the visible part as fg instead
179    return [QUAD[15 - mask], bg, DEF];
180  }
181  return [QUAD[mask], fg, bg === -1 ? DEF : bg];
182}
183
184function dotCell(x, r, pillX, span, shimmerPos, breathe, t, P) {
185  const u = clamp01((x + 1) / span); // 0 at the left cap, 1 next to the pill
186  const near = pillX - x; // 1 = cell touching the pill
187  const sh = shimmerPos > -50 ? Math.max(0, 1 - Math.abs(x - shimmerPos) / 3.5) : 0;
188  let density = 0.1 + 0.8 * Math.pow(u, 1.6) + 0.35 * sh;
189  if (near <= 2) density = Math.max(density, near === 1 ? 0.97 : 0.88);
190
191  let bits = 0;
192  // row 0 uses dot rows 1..3, row 1 uses dot rows 0..2 → one dot of margin top and bottom
193  for (let dr = r === 0 ? 1 : 0; dr < (r === 0 ? 4 : 3); dr++) {
194    for (let dc = 0; dc < 2; dc++) {
195      const id = (r * 4 + dr) * 2 + dc;
196      let v = hash(x, id, 1);
197      if (P.twP) {
198        // most dots keep their seat; a few re-roll each staggered epoch → twinkle
199        const epoch = Math.floor((t + hash(x, id, 7) * P.twP) / P.twP);
200        if (hash(x, id, 1000 + epoch) < P.twinkle) v = hash(x, id, 2000 + epoch);
201      }
202      if (v < density) bits |= BR[dr][dc];
203    }
204  }
205  if (!bits) return [SPACE, P.dotLo, P.fill];
206
207  let lvl = Math.round(1 + 4.6 * Math.pow(u, 1.3));
208  if (near <= 2) lvl = near === 1 ? 7 : 6;
209  if (P.twP) {
210    const e = Math.floor((t + hash(x, r, 9) * P.twP * 2) / (P.twP * 2));
211    if (hash(x, r, 3000 + e) < P.twinkle * 0.9) lvl += 1;
212  }
213  lvl += Math.round(2.2 * sh) + breathe;
214  if (lvl > LEVELS - 1) lvl = LEVELS - 1;
215  return [0x2800 + bits, mix(P.dotLo, P.dotHi, lvl / (LEVELS - 1)), P.fill];
216}
217

1// The desktop bar: one SVG, like the Ultracode effort slider. A rounded track,
2// a grid of square dots that grows denser and brighter toward a rounded pill
3// riding the fill edge, and tick marks between tasks. With `isMoving`, SMIL
4// makes the dots twinkle and a soft shine sweep toward the pill; otherwise the
5// same picture holds still.
6
7export const SVG_HEIGHT = 24;
8
9const DOT = 3;
10const PITCH = 4;
11const DOT_ROWS = 4;
12const MAX_COLUMNS = 150;
13const PILL_FONT = 11;
14const PILL_CHAR = 6.7;
15
16const PALETTE = {
17  working: { track: "#2a2838", dot: "#b9adff", tick: "#e6e1ff", pill: "#a99cf5", ink: "#1d1a2e" },
18  failed: { track: "#33242a", dot: "#ff9a8a", tick: "#ffe1db", pill: "#e5604f", ink: "#ffffff" },
19  waiting: { track: "#332b1f", dot: "#ffd27a", tick: "#fff0d1", pill: "#f0b34a", ink: "#2a1c05" },
20  done: { track: "#22302a", dot: "#9fe0ad", tick: "#e3f7e7", pill: "#7cc68a", ink: "#14261a" },
21};
22const EMPTY_TICK = "#55545e";
23const BAND_DARK = "#212121";
24
25export function barSvg({ width, done, total, status, pill, isMoving, skipped = [] }) {
26  const p = PALETTE[status];
27  const h = SVG_HEIGHT;
28  const r = h / 2;
29  const pillW = Math.min(width, Math.ceil(pill.length * PILL_CHAR) + 22);
30  const fillX = Math.round((done / total) * width);
31  const pillX = Math.max(0, Math.min(width - pillW, fillX - pillW / 2));
32  const fillEnd = Math.max(pillX + r, fillX);
33
34  const parts = [
35    // A moving bar is drawn in a sandboxed frame; without a matching color-scheme the browser paints
36    // an opaque white backdrop. The corners outside the track take the band's colour when dark.
37    isMoving ? `<style>:root{color-scheme:light dark}.bd{fill:none}@media (prefers-color-scheme:dark){.bd{fill:${BAND_DARK}}}</style><rect class="bd" width="${width}" height="${h}"/>` : "",
38    `<defs><clipPath id="track"><rect width="${width}" height="${h}" rx="${r}"/></clipPath>`,
39    `<clipPath id="fill"><rect width="${fillEnd}" height="${h}"/></clipPath>`,
40    `<linearGradient id="shine" x1="0" x2="1"><stop offset="0" stop-color="#fff" stop-opacity="0"/>`,
41    `<stop offset=".5" stop-color="#fff" stop-opacity=".22"/><stop offset="1" stop-color="#fff" stop-opacity="0"/></linearGradient></defs>`,
42    `<rect width="${width}" height="${h}" rx="${r}" fill="${p.track}"/>`,
43    `<g clip-path="url(#track)"><g clip-path="url(#fill)">`,
44    dots(p, fillEnd, h, status, isMoving),
45  ];
46  if (isMoving && status === "working" && fillEnd > 40) {
47    const band = Math.max(40, fillEnd * 0.25);
48    parts.push(
49      `<rect x="${-band}" width="${band}" height="${h}" fill="url(#shine)">`,
50      `<animate attributeName="x" from="${-band}" to="${fillEnd}" dur="1.1s" repeatCount="indefinite"/></rect>`,
51    );
52  }
53  // A skipped task's slice is veiled in the track colour, so its dots read dimmer.
54  for (const i of skipped) {
55    const x0 = Math.round((i / total) * width);
56    const x1 = Math.round(((i + 1) / total) * width);
57    parts.push(`<rect class="skip" x="${x0}" width="${x1 - x0}" height="${h}" fill="${p.track}" fill-opacity=".65"/>`);
58  }
59  parts.push(`</g>`);
60  for (let k = 1; k < total; k++) {
61    const x = Math.round((k / total) * width);
62    if (x > pillX - 2 && x < pillX + pillW + 2) continue;
63    const isFilled = x < fillX;
64    parts.push(
65      `<rect x="${x - 0.5}" y="${h * 0.25}" width="1" height="${h * 0.5}" rx=".5" fill="${isFilled ? p.tick : EMPTY_TICK}" fill-opacity="${isFilled ? 0.9 : 0.8}"/>`,
66    );
67  }
68  parts.push(`</g>`);
69  parts.push(
70    `<rect x="${pillX}" y="1" width="${pillW}" height="${h - 2}" rx="${(h - 2) / 2}" fill="${p.pill}"/>`,
71    `<text x="${pillX + pillW / 2}" y="${h / 2}" fill="${p.ink}" font-family="-apple-system,BlinkMacSystemFont,'Segoe UI',sans-serif" font-size="${PILL_FONT}" font-weight="600" text-anchor="middle" dominant-baseline="central">${escape(pill)}</text>`,
72  );
73  return `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${h}" viewBox="0 0 ${width} ${h}">${parts.join("")}</svg>`;
74}
75
76// Square dots on a grid: sparse and faint at the left, dense and bright at the
77// fill edge. Which dots show and how they twinkle come from a hash of their
78// place, so the same bar always draws the same field.
79function dots(p, fillEnd, h, status, isMoving) {
80  const top = (h - (DOT_ROWS - 1) * PITCH - DOT) / 2;
81  // At most MAX_COLUMNS dot columns, so a wide bar stays under the SVG size cap.
82  const step = Math.max(PITCH, fillEnd / MAX_COLUMNS);
83  const out = [];
84  for (let x = PITCH; x < fillEnd - 2; x += step) {
85    const ramp = Math.pow(x / Math.max(1, fillEnd), 1.6);
86    for (let row = 0; row < DOT_ROWS; row++) {
87      const seed = hash(x * 31 + row * 7);
88      if (seed > 0.3 + ramp * 0.7) continue;
89      const opacity = Math.min(1, (0.3 + ramp * 0.8) * (0.75 + 0.35 * hash(seed * 997)));
90      const y = top + row * PITCH;
91      const rect = `<rect x="${Math.round(x)}" y="${y}" width="${DOT}" height="${DOT}" rx=".4" fill="${p.dot}" fill-opacity="${opacity.toFixed(2)}"`;
92      if (!isMoving) {
93        out.push(`${rect}/>`);
94        continue;
95      }
96      const slow = status === "failed" ? 1.8 : status === "done" ? 2.2 : 1;
97      const dur = ((0.35 + hash(seed * 13) * 0.55) * slow).toFixed(2);
98      const begin = (-hash(seed * 29) * Number(dur)).toFixed(2);
99      const dim = (opacity * 0.15).toFixed(2);
100      const twinkle = `<animate attributeName="fill-opacity" values="${opacity.toFixed(2)};${dim};${opacity.toFixed(2)}" dur="${dur}s" begin="${begin}s" repeatCount="indefinite"/>`;
101      // Glitter: some dots, more of them near the pill, flash white for a blink.
102      const isSparkle = status === "working" && hash(seed * 53) < 0.08 + ramp * 0.22;
103      const flashDur = (0.9 + hash(seed * 71) * 1.3).toFixed(2);
104      const flashBegin = (-hash(seed * 89) * Number(flashDur)).toFixed(2);
105      const sparkle = isSparkle
106        ? `<animate attributeName="fill" values="${p.dot};#ffffff;${p.dot};${p.dot}" keyTimes="0;.06;.16;1" dur="${flashDur}s" begin="${flashBegin}s" repeatCount="indefinite"/>`
107        : "";
108      out.push(`${rect}>${twinkle}${sparkle}</rect>`);
109    }
110  }
111  return out.join("");
112}
113
114function hash(n) {
115  const s = Math.sin(n * 12.9898 + 78.233) * 43758.5453;
116  return s - Math.floor(s);
117}
118
119function escape(text) {
120  return text.replace(/&/g, "&amp;").replace(/</g, "&lt;").replace(/>/g, "&gt;");
121}
122

1// The gutter of a finished bar's task list: one small SVG per row that together draw a
2// connected timeline. Steps that ran at the same time leave the main line on a branch
3// (fork, run, join); a sub-agent's row carries a robot head instead of a dot.
4//
5// SMIL moves it: on opening, the line draws itself down and the dots pop in row by row;
6// then a light pulse runs down the line on a loop, splitting into branches, and each dot
7// rings as it passes. Every row times its part by its index, so the rows act as one.
8
9export const ROW_HEIGHT = 22;
10export const GUTTER_WIDTH = 30;
11
12const MAIN_X = 7;
13const BRANCH_X = 21;
14const LINE = "#5d5c68";
15const DONE = "#7cc68a";
16const AGENT = "#a99cf5";
17const BAND_DARK = "#212121";
18
19const STAGGER = 0.07; // seconds between rows as the line draws in
20const DRAW = 0.18;
21const SLOT = 0.28; // seconds the pulse spends crossing one row
22const PAUSE = 1.6; // seconds between pulses
23
24// pos: "main" | "start" | "middle" | "end" | "only" (the last four are rows on the branch).
25export function timelineSvg({ pos, isFirst, isLast, isAgent, isSkipped, index = 0, count = 1 }) {
26  const h = ROW_HEIGHT;
27  const mid = h / 2;
28  const isBranch = pos !== "main";
29  const x = isBranch ? BRANCH_X : MAIN_X;
30  const drawAt = index * STAGGER;
31  const pulse = pulseTiming(index, count);
32  const parts = [
33    // Drawn in a sandboxed frame; without a matching color-scheme the browser paints an
34    // opaque white backdrop. Dark, the corners take the band's colour.
35    `<style>:root{color-scheme:light dark}.bd{fill:none}@media (prefers-color-scheme:dark){.bd{fill:${BAND_DARK}}}</style>`,
36    `<rect class="bd" width="${GUTTER_WIDTH}" height="${h}"/>`,
37  ];
38  const draw = `<animate attributeName="stroke-dashoffset" from="1" to="0" begin="${drawAt}s" dur="${DRAW}s" fill="freeze"/>`;
39  const stroke = (shape) =>
40    parts.push(`${shape} fill="none" stroke="${LINE}" stroke-width="1.5" pathLength="1" stroke-dasharray="1" stroke-dashoffset="1">${draw}</path>`);
41  const line = (x1, y1, x2, y2) => stroke(`<path d="M${x1} ${y1} L${x2} ${y2}"`);
42  const curve = (d) => stroke(`<path d="${d}"`);
43
44  // The main line runs through every row; it starts at the first dot and ends at the last.
45  const top = isFirst && !isBranch ? mid : 0;
46  const bottom = isLast && !isBranch ? mid : h;
47  line(MAIN_X, top, MAIN_X, bottom);
48  parts.push(runner(MAIN_X, top, bottom, pulse));
49
50  if (pos === "start" || pos === "only") curve(`M${MAIN_X} 1 Q${BRANCH_X} 1 ${BRANCH_X} ${mid}`);
51  if (pos === "middle" || pos === "end") line(BRANCH_X, 0, BRANCH_X, mid);
52  if (pos === "start" || pos === "middle") line(BRANCH_X, mid, BRANCH_X, h);
53  if (pos === "end" || pos === "only") curve(`M${BRANCH_X} ${mid} Q${BRANCH_X} ${h - 1} ${MAIN_X} ${h - 1}`);
54  if (isBranch) {
55    const branchTop = pos === "start" || pos === "only" ? mid : 0;
56    const branchBottom = pos === "end" || pos === "only" ? mid : h;
57    parts.push(runner(BRANCH_X, branchTop, branchBottom, pulse));
58  }
59
60  const popAt = drawAt + DRAW * 0.6;
61  if (isAgent) parts.push(robot(x, mid, popAt, index));
62  else parts.push(dot(x, mid, isSkipped, popAt, pulse));
63  return `<svg xmlns="http://www.w3.org/2000/svg" width="${GUTTER_WIDTH}" height="${h}" viewBox="0 0 ${GUTTER_WIDTH} ${h}">${parts.join("")}</svg>`;
64}
65
66// One pulse cycle covers every row in turn, then rests. Rows share the cycle length and
67// start, and each moves its pulse only inside its own slot of it.
68function pulseTiming(index, count) {
69  const cycle = count * SLOT + PAUSE;
70  const begin = count * STAGGER + DRAW + 0.3;
71  const at = (seconds) => Math.min(1, Math.max(0, seconds / cycle)).toFixed(4);
72  return { cycle, begin, from: at(index * SLOT), middle: at((index + 0.5) * SLOT), to: at((index + 1) * SLOT), ring: at((index + 0.5) * SLOT + 0.5) };
73}
74
75// A bright bead with a soft halo that crosses the row in its slot and waits off-canvas otherwise.
76function runner(x, y1, y2, p) {
77  const out = -6;
78  const end = ROW_HEIGHT + 6;
79  const values = `${out};${out};${y1};${y2};${end};${end}`;
80  const keyTimes = `0;${p.from};${p.from};${p.to};${p.to};1`;
81  const move = `<animate attributeName="cy" values="${values}" keyTimes="${keyTimes}" dur="${p.cycle}s" begin="${p.begin}s" repeatCount="indefinite"/>`;
82  return [
83    `<circle cx="${x}" cy="${out}" r="4" fill="${DONE}" fill-opacity=".35">${move}</circle>`,
84    `<circle cx="${x}" cy="${out}" r="1.8" fill="#ffffff">${move}</circle>`,
85  ].join("");
86}
87
88function dot(x, y, isSkipped, popAt, p) {
89  const pop = `<animate attributeName="r" values="0;5;4" keyTimes="0;.7;1" begin="${popAt}s" dur=".25s" fill="freeze"/>`;
90  if (isSkipped) {
91    return `<circle cx="${x}" cy="${y}" r="0" fill="${BAND_DARK}" stroke="${DONE}" stroke-opacity=".6" stroke-width="1.5">${pop}</circle>`;
92  }
93  const ringTimes = `0;${p.middle};${p.middle};${p.ring};1`;
94  const ring = [
95    `<circle cx="${x}" cy="${y}" r="4" fill="none" stroke="${DONE}" stroke-width="1.2" stroke-opacity="0">`,
96    `<animate attributeName="r" values="4;4;4;9;9" keyTimes="${ringTimes}" dur="${p.cycle}s" begin="${p.begin}s" repeatCount="indefinite"/>`,
97    `<animate attributeName="stroke-opacity" values="0;0;.8;0;0" keyTimes="${ringTimes}" dur="${p.cycle}s" begin="${p.begin}s" repeatCount="indefinite"/>`,
98    `</circle>`,
99  ].join("");
100  return `${ring}<circle cx="${x}" cy="${y}" r="0" fill="${DONE}">${pop}</circle>`;
101}
102
103// A robot head: antenna with a blinking light, rounded face, two eyes that blink.
104function robot(x, y, popAt, index) {
105  const blinkAt = (index * 0.37) % 2.8;
106  const eye = (ex) =>
107    `<circle cx="${ex}" cy="${y}" r="1.4" fill="#1d1a2e"><animate attributeName="r" values="1.4;1.4;.25;1.4" keyTimes="0;.9;.95;1" dur="2.8s" begin="${blinkAt}s" repeatCount="indefinite"/></circle>`;
108  return [
109    `<g opacity="0"><animate attributeName="opacity" from="0" to="1" begin="${popAt}s" dur=".25s" fill="freeze"/>`,
110    `<line x1="${x}" y1="${y - 8}" x2="${x}" y2="${y - 5}" stroke="${AGENT}" stroke-width="1.5"/>`,
111    `<circle cx="${x}" cy="${y - 8.5}" r="1.4" fill="${AGENT}"><animate attributeName="fill-opacity" values="1;.25;1" dur="1.2s" repeatCount="indefinite"/></circle>`,
112    `<rect x="${x - 6}" y="${y - 5}" width="12" height="10" rx="3" fill="${AGENT}"/>`,
113    eye(x - 2.5),
114    eye(x + 2.5),
115    `</g>`,
116  ].join("");
117}
118

1export type ProgressTask = {
2  id: string;
3  subject: string;
4  status: "pending" | "in_progress" | "completed";
5  startedAt?: number | null;
6  doneAt?: number | null;
7  isSkipped?: boolean;
8  tokens?: number;
9  failures?: number;
10};
11
12export type ProgressTrack = {
13  id: string;
14  label: string | null;
15  tasks: ProgressTask[];
16  failedCommand: string | null;
17  failedRuns?: number;
18  isDismissed: boolean;
19  isWaiting?: boolean;
20  isExpanded?: boolean;
21  // An automatic bar (Working, Planning): it counts steps, its total unknown.
22  isCounter?: boolean;
23  // Measured time: turns that overlapped the track, and waits on the person.
24  turnMs?: number;
25  waitMs?: number;
26  waitingSince?: number | null;
27  // Tokens the API reported for the model calls made while the track ran. input counts
28  // every prompt token read (uncached, cache reads and cache writes); cached is the reads.
29  tokens?: { input: number; cached: number; output: number; calls: number };
30};
31
32// The Progress pane's log: what waited on the person, and findings.
33export type ProgressBlock = {
34  id?: string;
35  kind: "permission" | "question" | "approval";
36  text: string;
37  task: string | null;
38  at: number;
39  answeredAt: number | null;
40  toolUseId?: string | null;
41  // How it ended: the call's outcome, the plan's answer, or whether a question was answered.
42  outcome?: string;
43  // A question's answers, keyed by the question's text.
44  answers?: Record<string, string> | null;
45  details?: {
46    tool?: string;
47    request?: string;
48    questions?: { question: string; options: string[] }[];
49    plan?: string;
50    steps?: number;
51  } | null;
52  isDemo?: boolean;
53};
54
55export type ProgressFinding = {
56  id?: string;
57  kind: "found" | "failed";
58  text: string;
59  task: string | null;
60  at: number;
61  toolUseId?: string | null;
62  // A failing check: its command and the output lines that name the problem.
63  command?: string;
64  lines?: string[];
65  isDemo?: boolean;
66};
67
68export type ProgressLog = { blocks: ProgressBlock[]; findings: ProgressFinding[] };
69
70declare module "claude-code" {
71  interface PluginState {
72    "progress-tracker": {
73      tracks: ProgressTrack[];
74      log: ProgressLog;
75      tab: "blocked" | "found";
76      turn: number | null;
77      open: string | null;
78    };
79  }
80}
81
