lens

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, RenderElement, RenderSurface } from 'claude-code'
3
4import type { LensDraftImage, LensItem } from '../types'
5import {
6  MEDIA_EXT, RENDERERS, TOOL_NAMES, baseName, commandPaths, configOf, fitCells, hash, imageLinks, imageNumbers, kindOf, pastedLabels, linkLabel,
7  SAMPLES, mosaicCells, mosaicFor, packCells, paintsImages, parseBmp, parsePpm, pixelsPlan, pngSize, rowKey, textRows,
8} from './lib'
9import type { Config, Kind, Mosaic, Run, Size, Source } from './lib'
10
11type $ = EngineInterface
12
13const gallery = atom({ plugin: 'lens', key: 'gallery' } as const, [] as LensItem[])
14const draft = atom({ plugin: 'lens', key: 'draft' } as const, [] as LensDraftImage[])
15const muted = atom({ plugin: 'lens', key: 'muted' } as const, false)
16/** Ids of this turn's previews no row drew: another mod answered their row without passing it on. */
17const unplaced = atom({ plugin: 'lens', key: 'unplaced' } as const, [] as string[])
18
19/** Longest side of a thumbnail PNG, in pixels: enough for 40 rows of a high-density terminal. */
20const THUMB_PX = 800
21/** A file bigger than this is not handed to a converter. */
22const MAX_INPUT_BYTES = 64 * 1024 * 1024
23/** The newest previews the gallery keeps, and how many its pane draws (each Image holds one of 255 terminal ids). */
24const GALLERY_KEEP = 300
25const GALLERY_SHOWN = 12
26const POLL_MS = 250
27/** How long after a turn ends its rows have to draw their previews before the band above the prompt takes the rest. */
28const SETTLE_MS = 1500
29const READS = new Set(['Read'])
30const WRITES = new Set(['Write', 'Edit', 'MultiEdit', 'NotebookEdit'])
31
32type Host = { tools: Set<string>; cache: string; kitty: boolean; csm: boolean; cwd: string; root: string; tmp: string }
33/** A thumbnail as colored blocks: packed `Raster` cells, or rows of colored text runs for sextants (beyond the BMP). */
34type Block = { kind: 'raster'; cells: string; columns: number; rows: number } | { kind: 'text'; rows: Run[][] }
35type Thumb = { png: string; size: Size } | { error: string }
36type Preview = { path: string; label: string; key: string; drawnAs?: string }
37
38let host: Promise<Host> | undefined
39const sizes = new Map<string, Size>()
40const cellCache = new Map<string, Block>()
41const bashCalls = new Map<string, { command: string; at: number }>()
42/** The transcript's width as the last draw saw it, so the collector can make cells of the size a row will ask for. */
43let lastColumns = 80
44/** What the inline hooks drew (`drawnKey`), and the previews this turn found, so the turn's end can tell what no row drew. */
45const drawn = new Set<string>()
46let turnIds: string[] = []
47const drawnKey = (path: string, owner = '') => `${path}|${owner}`
48let isPolling = false
49let isChecking = false
50let pasteDir: { sessionId: string; dir: string } | undefined
51
52async function setup($: $): Promise<Host> {
53  const found = await $.process.run(['/bin/sh', '-c', 'for t in "$@"; do command -v "$t" >/dev/null 2>&1 && echo "$t"; done', 'sh', ...TOOL_NAMES])
54    .catch(() => ({ stdout: '' }))
55  const tmp = ((await $.env.get('TMPDIR')) ?? '/tmp').replace(/\/+$/, '')
56  const kitty = paintsImages({
57    CLAUDE_CODE_FORCE_TERMINAL_IMAGES: await $.env.get('CLAUDE_CODE_FORCE_TERMINAL_IMAGES'),
58    TMUX: await $.env.get('TMUX'),
59    STY: await $.env.get('STY'),
60    TERM: await $.env.get('TERM'),
61    TERM_PROGRAM: await $.env.get('TERM_PROGRAM'),
62    KITTY_WINDOW_ID: await $.env.get('KITTY_WINDOW_ID'),
63    GHOSTTY_RESOURCES_DIR: await $.env.get('GHOSTTY_RESOURCES_DIR'),
64  })
65  const csm = (await $.env.get('CSM_SESSION')) !== undefined
66  return { tools: new Set(found.stdout.split('\n').filter(Boolean)), cache: `${tmp}/claude-lens`, kitty, csm, cwd: await $.session.cwd(), root: $.plugin.root, tmp }
67}
68
69function hostOf($: $): Promise<Host> {
70  host ??= setup($)
71  return host
72}
73
74async function run($: $, steps: readonly string[][]): Promise<string | undefined> {
75  for (const argv of steps) {
76    const ran = await $.process.run(argv, { timeoutMs: 20_000 }).catch((err: unknown) => ({ exitCode: -1, stderr: String(err) }))
77    if (ran.exitCode !== 0) return `${argv[0]} failed: ${ran.stderr.trim().split('\n')[0]?.slice(0, 120) ?? ''}`
78  }
79  return undefined
80}
81
82/**
83 * A PNG thumbnail of one page of `path` in the cache, made once per content (path, size, mtime).
84 *
85 * Only settled results are kept: a draw that is superseded has its calls aborted (its converter killed, its
86 * promise never settling), so in-flight work is never shared between draws. Each run writes a temporary file of
87 * its own and moves it into place, so a killed run leaves no half picture.
88 */
89async function thumbnail($: $, path: string, kind: Kind, page: number): Promise<Thumb> {
90  const env = await hostOf($)
91  const stat = await $.fs.stat(path).catch(() => undefined)
92  if (stat === undefined || stat.kind !== 'file') return { error: 'file not found' }
93  if (stat.size > MAX_INPUT_BYTES) return { error: `too big to preview (${Math.round(stat.size / 1048576)} MB)` }
94  const out = `${env.cache}/${hash(`${path}|${stat.size}|${stat.mtimeMs}|${page}|${THUMB_PX}`)}.png`
95  const known = sizes.get(out)
96  if (known) return { png: out, size: known }
97  if (!(await $.fs.exists(out))) {
98    const part = out.replace(/\.png$/, `.${(await $.clock.now()).toString(36)}.part.png`)
99    const steps = RENDERERS[kind](path, part, THUMB_PX, page, env.tools, env.root)
100    if (steps === undefined) return { error: `no ${kind} converter found (see the lens README)` }
101    await $.fs.write(`${env.cache}/.keep`, '')
102    const failed = await run($, [...steps, ['mv', '-f', part, out]])
103    if (failed !== undefined) return { error: failed }
104  }
105  const bytes = await $.fs.read(out, { as: 'bytes' }).catch(() => undefined)
106  const size = bytes && pngSize(bytes.base64)
107  if (!size) return { error: 'the converter made no picture' }
108  sizes.set(out, size)
109  return { png: out, size }
110}
111

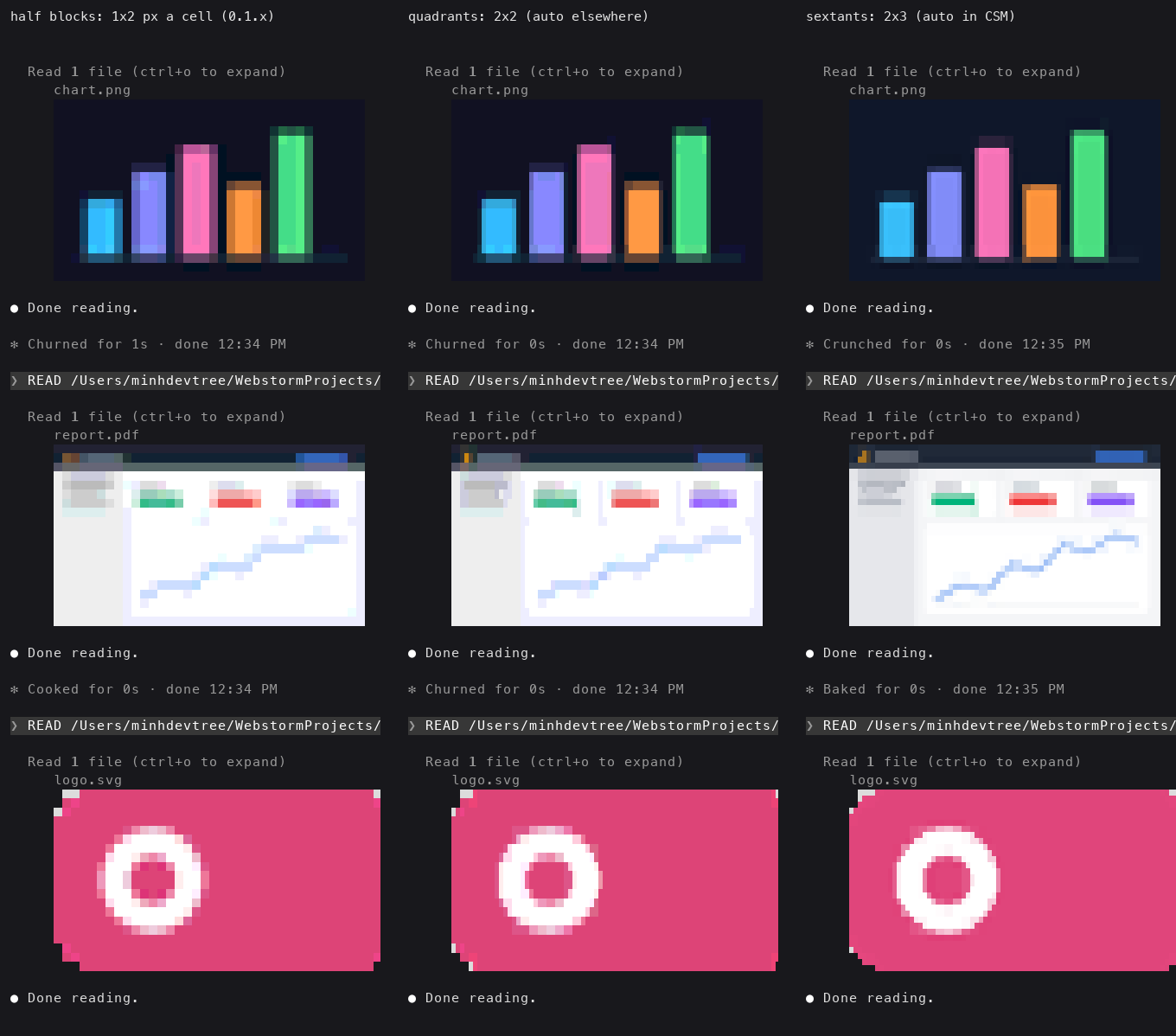

112/**
113 * Colored-block cells for a thumbnail, `columns` x `rows` cells, each cell `SAMPLES[mode]` pixels fitted to the two
114 * colors and the glyph that draw them best; settled results kept.
115 */
116async function blockCells($: $, png: string, columns: number, rows: number, mode: Mosaic): Promise<Block | undefined> {
117  const key = `${png}|${columns}x${rows}|${mode}`
118  const known = cellCache.get(key)
119  if (known) return known
120  const env = await hostOf($)
121  const { x, y } = SAMPLES[mode]
122  const base = png.replace(/\.png$/, `-${columns * x}x${rows * y}`)
123  const plan = pixelsPlan(png, base, columns * x, rows * y, env.tools)
124  if (plan === undefined || (await run($, plan.steps)) !== undefined) return undefined
125  const read = await $.fs.read(`${base}.${plan.format}`, { as: 'bytes' }).catch(() => undefined)
126  if (read === undefined) return undefined
127  const bytes = Uint8Array.fromBase64(read.base64)
128  const cells = mosaicCells(plan.format === 'bmp' ? parseBmp(bytes) : parsePpm(bytes), mode)
129  const block: Block = mode === 'sextant' ? { kind: 'text', rows: textRows(cells) } : { kind: 'raster', ...packCells(cells) }
130  cellCache.set(key, block)
131  return block
132}
133
134/** Writes base64 bytes (a pasted or returned image) to the cache and answers the file's path. */
135async function saveBytes($: $, base64: string, mediaType: string): Promise<string | undefined> {
136  const env = await hostOf($)
137  const ext = MEDIA_EXT[mediaType]
138  if (ext === undefined) return undefined
139  const out = `${env.cache}/${hash(base64)}-${base64.length}.${ext}`
140  if (await $.fs.exists(out)) return out
141  await $.fs.write(`${out}.b64`, base64)
142  const ran = await $.process.run(['/bin/sh', '-c', 'base64 -d < "$1" > "$2" && rm -f "$1"', 'sh', `${out}.b64`, out]).catch(() => undefined)
143  return ran?.exitCode === 0 ? out : undefined
144}
145
146/**
147 * The tree for some previews on this surface: each a picture (kitty), colored blocks, or its name, under a dim
148 * label. `els` is the surface's element table.
149 */
150async function previews($: $, e: { surface: RenderSurface; viewport?: { columns: number }; props: unknown }, cfg: Config,
151  items: readonly Preview[], maxColumns: number, maxRows: number): Promise<RenderElement[]> {
152  const els = $.ui.resolve(e as never) as Record<string, (...args: never[]) => RenderElement>
153  const { Box, Text } = els as never as { Box: any; Text: any }
154  const env = await hostOf($)
155  const nodes: RenderElement[] = []
156  for (const item of items) {
157    const kind = kindOf(item.path)
158    if (kind === undefined || !cfg.kinds[kind]) continue
159    if (e.surface !== 'terminal') {
160      // Remote surfaces have no Image or Raster; an SVG can be drawn by their Svg element.
161      if (kind !== 'svg') continue
162      const { Svg } = els as never as { Svg: any }
163      const source = await $.fs.read(item.path).catch(() => '')
164      if (source.length > 0 && source.length <= 131072) {
165        nodes.push(<Box flexDirection="column"><Text dimColor>{item.label}</Text><Svg source={source} alt={item.label} width={320} /></Box>)
166      }
167      continue
168    }
169    const painter = cfg.painter === 'auto' ? (env.kitty ? 'kitty' : 'blocks') : cfg.painter
170    // Drawn the same on and off screen (`e.props.onScreen`): a row whose Image was swapped for its name off screen
171    // mounted a fresh Image each time it crossed back in, and Claude Code's fullscreen scroll pulled the view down.
172    if (painter === 'text') {
173      nodes.push(<Text dimColor>{`  ${item.label}`}</Text>)
174      continue
175    }
176    const pages = kind === 'pdf' ? cfg.pdfPages : 1
177    const width = pageWidth(maxColumns, pages)
178    const row: RenderElement[] = []
179    for (let page = 1; page <= pages; page++) {
180      const t = await thumbnail($, item.path, kind, page)
181      if ('error' in t) {
182        if (page === 1) row.push(<Text dimColor>{`${item.label}: ${t.error}`}</Text>)
183        break
184      }
185      const cells = fitCells(t.size, maxRows, width)
186      if (painter === 'kitty') {
187        const { Image } = els as never as { Image: any }
188        row.push(<Image key={`${item.key}-${page}`} source={{ file: t.png, format: 'png' }} columns={cells.columns} rows={cells.rows} alt={`[${item.label}${pages > 1 ? ` p${page}` : ''}]`} />)
189      } else {
190        const { Raster } = els as never as { Raster: any }
191        const b = await blockCells($, t.png, cells.columns, cells.rows, mosaicFor(cfg.detail, env))
192        row.push(b === undefined ? <Text dimColor>{`${item.label}: no pixel converter found`}</Text>
193          : b.kind === 'raster' ? <Raster key={`${item.key}-${page}`} cells={b.cells} columns={b.columns} rows={b.rows} />
194          : <Box flexDirection="column">{b.rows.map(runs => <Text wrap="truncate">{runs.map(run => <Text color={run.fg} backgroundColor={run.bg}>{run.text}</Text>)}</Text>)}</Box>)
195      }
196    }
197    nodes.push(<Box flexDirection="column"><Text dimColor>{item.label}</Text><Box flexDirection="row" columnGap={1}>{row}</Box></Box>)
198  }
199  return nodes
200}
201
202const inlineColumns = (viewportColumns: number) => Math.min(120, viewportColumns - 8)
203const pageWidth = (maxColumns: number, pages: number) => Math.max(4, Math.floor((maxColumns - (pages - 1)) / pages))
204
205/** Draws `previews` under what the engine draws for this row, indented like a tool's output. */
206async function under($: $, e: any, next: (e: any) => Promise<RenderElement>, cfg: Config, items: readonly Preview[]): Promise<RenderElement> {
207  if (items.length === 0) return next(e)
208  const below = await next(e)
209  const { Box } = $.ui.resolve(e) as never as { Box: any }
210  lastColumns = e.viewport?.columns ?? lastColumns
211  const nodes = await previews($, e, cfg, items, inlineColumns(lastColumns), cfg.maxRows)
212  for (const item of items) if (item.drawnAs !== undefined) drawn.add(item.drawnAs)
213  if (nodes.length === 0) return below
214  return <Box flexDirection="column">{below}<Box flexDirection="column" paddingLeft={5}>{nodes}</Box></Box>
215}
216
217async function itemsFor($: $, cfg: Config, test: (item: LensItem) => boolean): Promise<Preview[]> {
218  const list = await read($, gallery)
219  return list.filter(item => cfg.where[item.source] === 'inline' || (item.source === 'pasted' && cfg.where.pasted === 'above'))
220    .filter(test).map(item => ({ path: item.path, label: item.label, key: hash(item.id), drawnAs: drawnKey(item.path, item.toolUseId ?? item.row) }))
221}
222
223async function addItems($: $, items: readonly LensItem[]) {
224  if (items.length === 0) return
225  await update($, gallery, list => {
226    const ids = new Set(list.map(item => item.id))
227    return [...list, ...items.filter(item => !ids.has(item.id))].slice(-GALLERY_KEEP)
228  })
229}
230
231/** Turns one stored row into previews: pasted images, files a tool reads or writes, image links, images a tool returns. */
232async function collect($: $, cfg: Config, e: any, uuid: string) {
233  const blocks: any[] = Array.isArray(e.message?.content) ? e.message.content : []
234  const env = await hostOf($)
235  const at = await $.clock.now()
236  const wants = (source: Source, path: string) => {
237    const kind = kindOf(path)
238    return cfg.where[source] !== 'off' && kind !== undefined && cfg.kinds[kind]
239  }
240  const found: LensItem[] = []
241  if (e.door === 'prompt') {
242    const images = blocks.filter(b => b.type === 'image' && b.source?.type === 'base64')
243    const labels = pastedLabels(blocks.filter(b => b.type === 'text').map(b => b.text).join('\n'), images.length)
244    for (const [i, b] of images.entries()) {
245      const path = await saveBytes($, b.source.data, b.source.media_type)
246      if (path && wants('pasted', path)) found.push({ id: `${uuid}:${i + 1}`, source: 'pasted', path, label: labels[i]!, row: rowKey(uuid), at })
247    }
248  }
249  if (e.door === 'response') {
250    for (const b of blocks) {
251      if (b.type === 'tool_use') {
252        const path = b.input?.file_path ?? b.input?.notebook_path
253        const source: Source | undefined = READS.has(b.name) ? 'read' : WRITES.has(b.name) ? 'written' : undefined
254        if (source && typeof path === 'string' && wants(source, path)) {
255          found.push({ id: `${b.id}:${path}`, source, path, label: baseName(path), toolUseId: b.id, at })
256        }
257        if (b.name === 'Bash' && typeof b.input?.command === 'string') bashCalls.set(b.id, { command: b.input.command, at })
258      }
259      if (b.type === 'text' && typeof b.text === 'string') {
260        for (const link of imageLinks(b.text, env.cwd)) {
261          if (wants('links', link.path)) found.push({ id: `${uuid}:${link.path}`, source: 'links', path: link.path, label: linkLabel(link), at })
262        }
263      }
264    }
265  }
266  if (e.door === 'tool-result') {
267    const tool = e.origin?.tool
268    for (const b of blocks) {
269      if (b.type !== 'tool_result') continue
270      const bash = bashCalls.get(b.tool_use_id)
271      if (bash) {
272        bashCalls.delete(b.tool_use_id)
273        for (const path of commandPaths(bash.command, env.cwd)) {
274          const stat = await $.fs.stat(path).catch(() => undefined)
275          // Only a file the command just made or changed, not one it merely read.
276          if (stat?.kind === 'file' && stat.mtimeMs >= bash.at - 2000 && wants('written', path)) {
277            found.push({ id: `${b.tool_use_id}:${path}`, source: 'written', path, label: baseName(path), toolUseId: b.tool_use_id, at })
278          }
279        }
280      }
281      if (READS.has(tool) || !Array.isArray(b.content)) continue
282      let n = 0
283      for (const c of b.content) {
284        if (c.type !== 'image' || c.source?.type !== 'base64') continue
285        n += 1
286        const path = await saveBytes($, c.source.data, c.source.media_type)
287        if (path && wants('toolImages', path)) {
288          found.push({ id: `${b.tool_use_id}:${n}`, source: 'toolImages', path, label: `${tool ?? 'tool'} image ${n}`, toolUseId: b.tool_use_id, at })
289        }
290      }
291    }
292  }
293  await addItems($, found)
294  turnIds.push(...found.map(item => item.id))
295  // Made here, where no draw can supersede the converters, so the row's first draw needs no process: on the
296  // main screen a finished row is printed once, and a draw whose converter was killed would print it bare.
297  const isBlocks = cfg.painter === 'blocks' || (cfg.painter === 'auto' && !env.kitty)
298  for (const item of found) {
299    const kind = kindOf(item.path)
300    const pages = kind === 'pdf' ? cfg.pdfPages : 1
301    for (let page = 1; kind !== undefined && page <= pages; page++) {
302      const t = await thumbnail($, item.path, kind, page)
303      if ('error' in t) break
304      if (isBlocks && cfg.where[item.source] === 'inline') {
305        const cells = fitCells(t.size, cfg.maxRows, pageWidth(inlineColumns(lastColumns), pages))
306        await blockCells($, t.png, cells.columns, cells.rows, mosaicFor(cfg.detail, env))
307      }
308    }
309  }
310}
311
312// The draft band: Claude Code caches each paste as <tmp>/<project>/<session>/images/<n>.png and puts an
313// `[Image #n]` tag in the prompt; pasting raises no prompt event, so the draft is polled. After claude-image-view (MIT).
314async function findPasteDir($: $): Promise<string | undefined> {
315  const sessionId = await $.session.id()
316  if (pasteDir?.sessionId === sessionId) return pasteDir.dir
317  const root = (await $.env.get('CLAUDE_CODE_TMPDIR')) ?? `/tmp/claude-${(await $.process.run(['id', '-u'])).stdout.trim()}`
318  for (const entry of await $.fs.list(root).catch(() => [])) {
319    const dir = `${root}/${entry.name}/${sessionId}/images`
320    if (entry.kind === 'dir' && (await $.fs.exists(dir))) {
321      pasteDir = { sessionId, dir }
322      return dir
323    }
324  }
325  return undefined
326}
327
328async function checkDraft($: $) {
329  if (isChecking) return
330  isChecking = true
331  try {
332    const numbers = imageNumbers((await $.prompt.read()).text)
333    const before = await read($, draft)
334    if (numbers.join() === before.map(d => d.n).join() && before.every(d => d.path !== null)) return
335    const dir = numbers.length > 0 ? await findPasteDir($) : undefined
336    const next: LensDraftImage[] = []
337    for (const n of numbers) {
338      const path = dir === undefined ? null : `${dir}/${n}.png`
339      next.push({ n, path: path !== null && (await $.fs.exists(path)) ? path : null })
340    }
341    if (JSON.stringify(next) !== JSON.stringify(before)) await update($, draft, () => next)
342  } finally {
343    isChecking = false
344  }
345}
346
347function startPolling($: $) {
348  if (isPolling) return
349  isPolling = true
350  $.clock.every(POLL_MS, () => void checkDraft($).catch(() => {}))
351}
352
353/**
354 * At a turn's end: this turn's inline previews that no row drew go to the band above the prompt. A mod outside lens in
355 * the chain (claude-skins draws tool rows and prompts as its own cards) can answer a row without passing it on, and
356 * then lens's hook for that row never runs; the band is a site such mods hand on.
357 */
358async function settle($: $, cfg: Config) {
359  const ids = new Set(turnIds)
360  const list = await read($, gallery)
361  const missing = list.filter(item => ids.has(item.id) && !drawn.has(drawnKey(item.path, item.toolUseId ?? item.row)))
362    .filter(item => cfg.where[item.source] === 'inline' || (item.source === 'pasted' && cfg.where.pasted === 'above'))
363  await update($, unplaced, () => missing.map(item => item.id))
364}
365
366async function status($: $, cfg: Config): Promise<string> {
367  const env = await hostOf($)
368  const blocks = `colored blocks, ${mosaicFor(cfg.detail, env)}${cfg.detail === 'auto' ? ' (auto)' : ''}`
369  const painter = cfg.painter === 'auto' ? `auto (${env.kitty ? 'pictures' : blocks})` : cfg.painter === 'blocks' ? blocks : cfg.painter
370  const off = (await read($, muted)) ? ' (off for now: /lens on)' : ''
371  return [
372    `drawing ${painter}${off}; images ${cfg.kinds.image ? 'on' : 'off'}, svg ${cfg.kinds.svg ? 'on' : 'off'}, pdf ${cfg.kinds.pdf ? `on (${cfg.pdfPages} page${cfg.pdfPages > 1 ? 's' : ''})` : 'off'}`,
373    `placement: pasted ${cfg.where.pasted}, read ${cfg.where.read}, written ${cfg.where.written}, links ${cfg.where.links}, tool images ${cfg.where.toolImages}; up to ${cfg.maxRows} rows`,
374    `converters: ${[...env.tools].join(', ') || 'none found'}; cache ${env.cache}`,
375    `gallery: ${(await read($, gallery)).length} previews this session. Change these in /config (lens rows).`,
376  ].join('\n')
377}
378
379export const register: Register = (on, options) => {
380  const cfg = configOf(options as Record<string, unknown>)
381
382  on('session.start', async ($, e, next) => {
383    void hostOf($)
384    const stored = await $.store.get('muted')
385    if (stored === true) await update($, muted, () => true)
386    if (cfg.where.pasted === 'above') startPolling($)
387    await $.command.register({ name: 'lens', description: 'Image, SVG and PDF previews: the gallery, on/off, status', argumentHint: '[gallery|on|off|status|clear]' })
388    return next(e)
389  })
390
391  on('command.run', { command: 'lens' }, async ($, e) => {
392    const arg = e.args.trim().toLowerCase()
393    if (arg === 'on' || arg === 'off') {
394      await update($, muted, () => arg === 'off')
395      await $.store.set('muted', arg === 'off')
396      return { text: `previews ${arg}` }
397    }
398    if (arg === 'status') return { text: await status($, cfg) }
399    if (arg === 'clear') {
400      await update($, gallery, () => [])
401      return { text: 'gallery cleared' }
402    }
403    if (arg !== '' && arg !== 'gallery') return { text: 'usage: /lens [gallery|on|off|status|clear]' }
404    const opened = await $.ui.open({ id: 'lens', title: 'lens gallery' })
405    return { text: opened.isPlaced ? 'gallery opened' : 'gallery: widen the terminal to see it' }
406  })
407
408  on('prompt.submit', async ($, e, next) => {
409    turnIds = []
410    if ((await read($, unplaced)).length > 0) await update($, unplaced, () => [])
411    return next(e)
412  }).catch(($, e, next) => next(e))
413
414  on('turn.complete', async ($, e, next) => {
415    const done = await next(e)
416    $.clock.after(SETTLE_MS, () => void settle($, cfg).catch(() => {}))
417    return done
418  })
419
420  on('session.append', async ($, e, next) => {
421    const stored = await next(e)
422    if (stored.uuid !== undefined) await collect($, cfg, e, stored.uuid).catch(() => {})
423    return stored
424  }).catch(($, e, next) => next(e))
425
426  on('ui.render', { component: 'ToolGroup' }, async ($, e, next) => {
427    if (e.props.isExpanded || (await read($, muted))) return next(e)
428    const done = new Set(e.props.calls.filter(c => !c.isRunning && !c.isErrored).map(c => c.tool_use_id))
429    return under($, e, next, cfg, await itemsFor($, cfg, item => item.toolUseId !== undefined && done.has(item.toolUseId)))
430  })
431
432  on('ui.render', { component: 'ToolUse' }, async ($, e, next) => {
433    // A Read is drawn in a group; unfolded (verbose, ctrl+o) its rows are ToolUse with the output inline.
434    if (!READS.has(e.props.tool) || e.props.isRunning || e.props.isErrored || (await read($, muted))) return next(e)
435    return under($, e, next, cfg, await itemsFor($, cfg, item => item.toolUseId === e.props.tool_use_id))
436  })
437
438  on('ui.render', { component: 'ToolResult' }, async ($, e, next) => {
439    if (READS.has(e.props.tool) || e.props.isErrored || (await read($, muted))) return next(e)
440    return under($, e, next, cfg, await itemsFor($, cfg, item => item.toolUseId === e.props.tool_use_id))
441  })
442
443  on('ui.render', { component: 'UserMessage' }, async ($, e, next) => {
444    if (await read($, muted)) return next(e)
445    const row = rowKey(e.requestId)
446    return under($, e, next, cfg, await itemsFor($, cfg, item => item.row === row))
447  })
448
449  on('ui.render', { component: 'AssistantMessage' }, async ($, e, next) => {
450    if (cfg.where.links !== 'inline' || (await read($, muted))) return next(e)
451    const env = await hostOf($)
452    const items = imageLinks(e.props.text, env.cwd).map(link => ({ path: link.path, label: linkLabel(link), key: hash(link.path), drawnAs: drawnKey(link.path) }))
453    return under($, e, next, cfg, items)
454  })
455
456  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
457    if (e.props.hasSurvey || (await read($, muted))) return next(e)
458    if (cfg.where.pasted === 'above') startPolling($)
459    const drafts = cfg.where.pasted === 'above' ? (await read($, draft)).filter(d => d.path !== null) : []
460    const ids = new Set(await read($, unplaced))
461    const missed = ids.size === 0 ? [] : (await read($, gallery)).filter(item => ids.has(item.id))
462    if (drafts.length === 0 && missed.length === 0) return next(e)
463    const below = await next(e)
464    const { Box, Text } = $.ui.resolve(e) as never as { Box: any; Text: any }
465    const rows = Math.max(1, Math.min(cfg.maxRows, 6, e.props.maxRows - 4))
466    const tiles = async (items: readonly Preview[]) =>
467      previews($, e, cfg, items, Math.max(4, Math.floor(e.props.bodyColumns / items.length) - 2), rows)
468    const draftNodes = drafts.length === 0 ? [] : await tiles(drafts.map(d => ({ path: d.path!, label: `Image #${d.n}`, key: `draft-${d.n}` })))
469    const missedNodes = missed.length === 0 ? [] : await tiles(missed.map(item => ({ path: item.path, label: item.label, key: `missed-${hash(item.id)}` })))
470    return (
471      <Box flexDirection="column">
472        {missedNodes.length > 0 ? <Text dimColor>lens: previews from this turn (another mod drew their rows)</Text> : null}
473        {missedNodes.length > 0 ? <Box flexDirection="row" columnGap={2}>{missedNodes}</Box> : null}
474        {draftNodes.length > 0 ? <Box flexDirection="row" columnGap={2}>{draftNodes}</Box> : null}
475        {below}
476      </Box>
477    )
478  })
479
480  on('ui.render', { component: 'Pane' }, async ($, e, next) => {
481    if (e.requestId !== 'lens') return next(e)
482    const { Box, Text } = $.ui.resolve(e) as never as { Box: any; Text: any }
483    const list = [...(await read($, gallery))].filter(item => cfg.where[item.source] !== 'off').reverse().slice(0, GALLERY_SHOWN)
484    if (list.length === 0) return <Text dimColor>No previews yet this session. Paste an image, or have Claude read or write one.</Text>
485    const items = list.map(item => ({ path: item.path, label: `${item.label}  (${item.source === 'toolImages' ? 'tool image' : item.source})`, key: hash(item.id) }))
486    const nodes = await previews($, e, cfg, items, e.props.bodyColumns - 2, Math.min(cfg.maxRows, 8))
487    return <Box flexDirection="column" rowGap={1}>{nodes}</Box>
488  })
489}
490

1// Pure helpers: no `$` here (the engine follows `$` only within register.tsx).
2
3export type Kind = 'image' | 'svg' | 'pdf'
4export type Where = 'above' | 'inline' | 'pane' | 'off'
5export type Painter = 'auto' | 'kitty' | 'blocks' | 'text'
6/** How finely the colored blocks divide a cell: 2x3 sextants, 2x2 quadrants, or 1x2 half blocks. */
7export type Detail = 'auto' | 'sextant' | 'quadrant' | 'halfblock'
8export type Mosaic = Exclude<Detail, 'auto'>
9export type Source = 'pasted' | 'read' | 'written' | 'links' | 'toolImages'
10
11export type Config = {
12  kinds: Record<Kind, boolean>
13  where: Record<Source, Where>
14  painter: Painter
15  detail: Detail
16  maxRows: number
17  pdfPages: number
18}
19
20const pick = <T extends string>(value: unknown, allowed: readonly T[], fallback: T): T =>
21  allowed.includes(value as T) ? (value as T) : fallback
22const clamp = (value: unknown, lo: number, hi: number, fallback: number) =>
23  typeof value === 'number' && Number.isFinite(value) ? Math.min(hi, Math.max(lo, Math.round(value))) : fallback
24
25/** The plugin's options (userConfig) as a typed config, out-of-range values clamped. */
26export function configOf(o: Record<string, unknown>): Config {
27  const tool = ['inline', 'pane', 'off'] as const
28  return {
29    kinds: { image: o.images !== false, svg: o.svg !== false, pdf: o.pdf !== false },
30    where: {
31      pasted: pick(o.pasted, ['above', 'inline', 'pane', 'off'], 'above'),
32      read: pick(o.read, tool, 'inline'),
33      written: pick(o.written, tool, 'inline'),
34      links: pick(o.links, tool, 'inline'),
35      toolImages: pick(o.toolImages, tool, 'inline'),
36    },
37    painter: pick(o.painter, ['auto', 'kitty', 'blocks', 'text'], 'auto'),
38    detail: pick(o.detail, ['auto', 'sextant', 'quadrant', 'halfblock'], 'auto'),
39    maxRows: clamp(o.maxRows, 2, 40, 10),
40    pdfPages: clamp(o.pdfPages, 1, 8, 1),
41  }
42}
43
44const EXT: Record<string, Kind> = {
45  png: 'image', jpg: 'image', jpeg: 'image', gif: 'image', webp: 'image', bmp: 'image', tif: 'image', tiff: 'image', heic: 'image',
46  svg: 'svg', pdf: 'pdf',
47}
48
49/** The kind of file a path names, by its extension; undefined when lens does not preview it. */
50export function kindOf(path: string): Kind | undefined {
51  const m = /\.([A-Za-z0-9]+)$/.exec(path)
52  return m ? EXT[m[1]!.toLowerCase()] : undefined
53}
54
55export const MEDIA_EXT: Record<string, string> = { 'image/png': 'png', 'image/jpeg': 'jpg', 'image/gif': 'gif', 'image/webp': 'webp' }
56
57const base = (path: string) => path.slice(path.lastIndexOf('/') + 1)
58export { base as baseName }
59
60/** Absolute path for `path` under `cwd`; `file://` URLs unwrapped; undefined for a web URL. */
61export function resolvePath(path: string, cwd: string): string | undefined {
62  if (/^[a-z][a-z0-9+.-]*:\/\//i.test(path) && !path.startsWith('file://')) return undefined
63  let p = path.startsWith('file://') ? decodeURIComponent(path.slice(7)) : path
64  if (p.startsWith('<') && p.endsWith('>')) p = p.slice(1, -1)
65  if (p.startsWith('/')) return p
66  const parts = `${cwd}/${p}`.split('/')
67  const out: string[] = []
68  for (const part of parts) {
69    if (part === '..') out.pop()
70    else if (part !== '.' && part !== '') out.push(part)
71  }
72  return '/' + out.join('/')
73}
74
75/** The markdown images (`![alt](path)`) in a reply with a local, previewable path: resolved, deduplicated, in order. */
76export function imageLinks(text: string, cwd: string): { path: string; alt: string }[] {
77  const seen = new Map<string, string>()
78  for (const m of text.matchAll(/!\[([^\]]*)\]\((<[^>]+>|[^)\s]+)(?:\s+"[^"]*")?\)/g)) {
79    const p = resolvePath(m[2]!, cwd)
80    if (p !== undefined && kindOf(p) !== undefined && !seen.has(p)) seen.set(p, m[1]!.trim())
81  }
82  return [...seen].map(([path, alt]) => ({ path, alt }))
83}
84
85/** What a link's preview is labelled with: the link's own text and the file, as Claude Code draws the link (`alt (file)`). */
86export const linkLabel = (link: { path: string; alt: string }) =>
87  link.alt === '' ? base(link.path) : `${link.alt} (${base(link.path)})`
88
89/** Paths in a shell command that name a previewable file, quoted or bare (a heuristic: the caller checks they were just written). */
90export function commandPaths(command: string, cwd: string): string[] {
91  const ext = '\\.(?:png|jpe?g|gif|webp|bmp|tiff?|heic|svg|pdf)'
92  const re = new RegExp(`"([^"]+${ext})"|'([^']+${ext})'|(?:^|[\\s=(])([^\\s'"\`;|&<>()=]+${ext})(?=$|[\\s;|&)])`, 'gi')
93  const seen = new Set<string>()
94  for (const m of command.matchAll(re)) {
95    const p = resolvePath(m[1] ?? m[2] ?? m[3]!, cwd)
96    if (p !== undefined) seen.add(p)
97  }
98  return [...seen]
99}
100
101/** The transcript row a pasted prompt is drawn under: its append uuid with the last group zeroed. */
102export const rowKey = (uuid: string) => uuid.split('-').slice(0, 4).join('-')
103
104/** FNV-1a, hex: a cache file name from a path and what makes its content new. */
105export function hash(text: string): string {
106  let h = 0x811c9dc5
107  for (let i = 0; i < text.length; i++) h = Math.imul(h ^ text.charCodeAt(i), 0x01000193)
108  return (h >>> 0).toString(16).padStart(8, '0')
109}
110
111export type Size = { width: number; height: number }
112
113/** Width and height from a PNG's IHDR (base64 of at least its first 24 bytes), or null. */
114export function pngSize(base64: string): Size | null {
115  const head = Uint8Array.fromBase64(base64.slice(0, 32))
116  const sig = [0x89, 0x50, 0x4e, 0x47, 0x0d, 0x0a, 0x1a, 0x0a]
117  if (head.length < 24 || sig.some((b, i) => head[i] !== b)) return null
118  const v = new DataView(head.buffer, head.byteOffset, head.byteLength)
119  const width = v.getUint32(16), height = v.getUint32(20)
120  return width > 0 && height > 0 ? { width, height } : null
121}
122
123export type Cells = { columns: number; rows: number }
124
125/** A box of cells that keeps the picture's shape (a cell is about twice as tall as wide), within the limits. */
126export function fitCells(size: Size, maxRows: number, maxColumns: number): Cells {
127  let rows = maxRows
128  let columns = Math.round((rows * 2 * size.width) / size.height)
129  if (columns > maxColumns) {
130    columns = maxColumns
131    rows = Math.max(1, Math.round((columns * size.height) / (2 * size.width)))
132  }
133  return { columns: Math.max(2, Math.min(columns, 255)), rows: Math.max(1, Math.min(rows, 255)) }
134}
135
136export type Pixels = { width: number; height: number; rgba: Uint8Array }
137
138/** An uncompressed BMP (24 or 32 bit, BI_RGB or BITFIELDS, either row order), what `sips -s format bmp` writes. */
139export function parseBmp(bytes: Uint8Array): Pixels {
140  const v = new DataView(bytes.buffer, bytes.byteOffset, bytes.byteLength)
141  if (v.getUint16(0, true) !== 0x4d42) throw new Error('not a BMP')
142  const off = v.getUint32(10, true), hdr = v.getUint32(14, true)
143  const width = v.getInt32(18, true), rawH = v.getInt32(22, true), bpp = v.getUint16(28, true), comp = v.getUint32(30, true)
144  const height = Math.abs(rawH), topDown = rawH < 0
145  const masks = comp === 3 && hdr >= 52
146    ? [v.getUint32(54, true), v.getUint32(58, true), v.getUint32(62, true), hdr >= 56 ? v.getUint32(66, true) : 0]
147    : [0xff0000, 0xff00, 0xff, 0]
148  const shift = (m: number) => { let s = 0; while (m && !(m & 1)) { m >>>= 1; s++ } return s }
149  const sh = masks.map(shift)
150  const stride = Math.ceil((width * bpp) / 32) * 4
151  const rgba = new Uint8Array(width * height * 4)
152  if (bpp !== 32 && bpp !== 24) throw new Error(`BMP of ${bpp} bits`)
153  for (let y = 0; y < height; y++) {
154    const row = off + (topDown ? y : height - 1 - y) * stride
155    for (let x = 0; x < width; x++) {
156      const o = (y * width + x) * 4
157      if (bpp === 32) {
158        const p = v.getUint32(row + x * 4, true)
159        rgba[o] = (p & masks[0]!) >>> sh[0]!
160        rgba[o + 1] = (p & masks[1]!) >>> sh[1]!
161        rgba[o + 2] = (p & masks[2]!) >>> sh[2]!
162        rgba[o + 3] = masks[3] ? (p & masks[3]) >>> sh[3]! : 255
163      } else {
164        const q = row + x * 3
165        rgba[o] = bytes[q + 2]!; rgba[o + 1] = bytes[q + 1]!; rgba[o + 2] = bytes[q]!; rgba[o + 3] = 255
166      }
167    }
168  }
169  return { width, height, rgba }
170}
171
172/** A binary PPM (P6, maxval 255), what ImageMagick writes for `ppm:` and pdftoppm by default. */
173export function parsePpm(bytes: Uint8Array): Pixels {
174  let i = 0
175  const token = () => {
176    while (true) {
177      while (i < bytes.length && /\s/.test(String.fromCharCode(bytes[i]!))) i++
178      if (bytes[i] !== 0x23) break
179      while (i < bytes.length && bytes[i] !== 0x0a) i++
180    }
181    const start = i
182    while (i < bytes.length && !/\s/.test(String.fromCharCode(bytes[i]!))) i++
183    return String.fromCharCode(...bytes.subarray(start, i))
184  }
185  if (token() !== 'P6') throw new Error('not a binary PPM')
186  const width = Number(token()), height = Number(token()), max = Number(token())
187  if (max !== 255) throw new Error(`PPM maxval ${max}`)
188  i++
189  const rgba = new Uint8Array(width * height * 4)
190  for (let p = 0; p < width * height; p++) {
191    rgba[p * 4] = bytes[i + p * 3]!; rgba[p * 4 + 1] = bytes[i + p * 3 + 1]!; rgba[p * 4 + 2] = bytes[i + p * 3 + 2]!; rgba[p * 4 + 3] = 255
192  }
193  return { width, height, rgba }
194}
195
196const DEFAULT_COLOR = 0x01000000
197
198
199/**
200 * The mosaic `auto` draws with: sextants in CSM (its xterm.js WebGL renderer draws U+1FB00-1FB3B itself, as solid
201 * blocks), quadrants elsewhere (Menlo and most monospace fonts have U+2596-259F; no font macOS ships has sextants).
202 */
203export const mosaicFor = (detail: Detail, env: { csm: boolean }): Mosaic =>
204  detail !== 'auto' ? detail : env.csm ? 'sextant' : 'quadrant'
205
206/** Pixel samples per cell, across and down, for each mosaic. */
207export const SAMPLES: Record<Mosaic, { x: number; y: number }> = { halfblock: { x: 1, y: 2 }, quadrant: { x: 2, y: 2 }, sextant: { x: 2, y: 3 } }
208
209/** Quadrant glyphs by mask, bit 0 upper left, 1 upper right, 2 lower left, 3 lower right (Block Elements, U+2580-259F). */
210export const QUADRANTS = [
211  0x20, 0x2598, 0x259d, 0x2580, 0x2596, 0x258c, 0x259e, 0x259b,
212  0x2597, 0x259a, 0x2590, 0x259c, 0x2584, 0x2599, 0x259f, 0x2588,
213]
214
215/**
216 * The sextant glyph for a mask, bit n the n+1th of the six sub-cells read row by row (upper left, upper right, middle
217 * left, ...). U+1FB00-1FB3B (Symbols for Legacy Computing) skip the three that Block Elements already have: the empty
218 * cell, the left and right halves and the full block.
219 */
220export function sextantGlyph(mask: number): number {
221  if (mask === 0) return 0x20
222  if (mask === 63) return 0x2588
223  if (mask === 21) return 0x258c
224  if (mask === 42) return 0x2590
225  return 0x1fb00 + mask - 1 - (mask > 21 ? 1 : 0) - (mask > 42 ? 1 : 0)
226}
227
228export type Cell = { glyph: number; fg: number; bg: number }
229
230/**
231 * The two colors and the split that draw `n` samples best: every split of the samples into a foreground and a background
232 * set is tried, each set taking its mean color, and the one with the least squared error wins (2^(n-1) splits: 2 for half
233 * blocks, 8 for quadrants, 32 for sextants). Samples whose alpha is under 128 count as the terminal's own background; a
234 * set made only of them takes the default color. `rgba` holds the n samples, 4 bytes each.
235 */
236export function fitCell(rgba: ArrayLike<number>, n: number): { mask: number; fg: number; bg: number } {
237  const clear = (i: number) => rgba[i * 4 + 3]! < 128
238  // Clear samples are fitted as a mid grey so they group together, then drawn as the default color.
239  const ch = (i: number, c: number) => (clear(i) ? 128 : rgba[i * 4 + c]!)
240  let best = { mask: 0, error: Infinity, fg: 0, bg: 0 }
241  for (let mask = 0; mask < 1 << (n - 1); mask++) {
242    const sums = [[0, 0, 0, 0], [0, 0, 0, 0]] as [number[], number[]]
243    for (let i = 0; i < n; i++) {
244      const s = sums[(mask >> i) & 1]!
245      s[0]! += ch(i, 0); s[1]! += ch(i, 1); s[2]! += ch(i, 2); s[3]! += 1
246    }
247    const mean = sums.map(s => (s[3] === 0 ? [0, 0, 0] : [s[0]! / s[3]!, s[1]! / s[3]!, s[2]! / s[3]!]))
248    let error = 0
249    for (let i = 0; i < n; i++) {
250      const m = mean[(mask >> i) & 1]!
251      error += (ch(i, 0) - m[0]!) ** 2 + (ch(i, 1) - m[1]!) ** 2 + (ch(i, 2) - m[2]!) ** 2
252    }
253    if (error < best.error) {
254      const color = (set: 0 | 1, m: number[]) => {
255        let allClear = true
256        for (let i = 0; i < n; i++) if (((mask >> i) & 1) === set && !clear(i)) allClear = false
257        return allClear ? DEFAULT_COLOR : (Math.round(m[0]!) << 16) | (Math.round(m[1]!) << 8) | Math.round(m[2]!)
258      }
259      best = { mask, error, fg: color(1, mean[1]!), bg: color(0, mean[0]!) }
260    }
261  }
262  // Masks are tried with the last sample in the background; when every sample is one color, draw it as background.
263  return { mask: best.mask, fg: best.fg, bg: best.bg }
264}
265
266/** Cells for pixels sampled `SAMPLES[mode]` per cell: `(columns * x) x (rows * y)` pixels in, `columns x rows` cells out. */
267export function mosaicCells(p: Pixels, mode: Mosaic): { columns: number; rows: number; cells: Cell[] } {
268  const { x: sx, y: sy } = SAMPLES[mode]
269  const columns = Math.floor(p.width / sx), rows = Math.ceil(p.height / sy)
270  const n = sx * sy
271  const block = new Uint8Array(n * 4)
272  const cells: Cell[] = []
273  for (let r = 0; r < rows; r++) {
274    for (let c = 0; c < columns; c++) {
275      for (let dy = 0; dy < sy; dy++) {
276        for (let dx = 0; dx < sx; dx++) {
277          const y = r * sy + dy, o = (y * p.width + c * sx + dx) * 4, i = (dy * sx + dx) * 4
278          if (y < p.height) block.set(p.rgba.subarray(o, o + 4), i)
279          else block.fill(0, i, i + 4) // below the last pixel row: clear
280        }
281      }
282      const { mask, fg, bg } = fitCell(block, n)
283      const glyph = mode === 'sextant' ? sextantGlyph(mask) : mode === 'quadrant' ? QUADRANTS[mask]! : mask === 1 ? 0x2580 : mask === 2 ? 0x2584 : 0x20
284      cells.push({ glyph, fg, bg })
285    }
286  }
287  return { columns, rows, cells }
288}
289
290/** A `Raster`'s packed cells (u32 triplets, base64); every glyph must be in the BMP, so not sextants. */
291export function packCells(m: { columns: number; rows: number; cells: Cell[] }): { cells: string; columns: number; rows: number } {
292  const words = new Uint32Array(m.cells.length * 3)
293  m.cells.forEach((c, i) => { words[i * 3] = c.glyph; words[i * 3 + 1] = c.fg; words[i * 3 + 2] = c.bg })
294  return { cells: new Uint8Array(words.buffer).toBase64(), columns: m.columns, rows: m.rows }
295}
296
297export type Run = { text: string; fg?: string; bg?: string }
298
299/** Rows of text runs, adjacent cells of the same colors joined: how sextants are drawn (`Raster` refuses beyond-BMP glyphs). */
300export function textRows(m: { columns: number; rows: number; cells: Cell[] }): Run[][] {
301  const hex = (c: number) => (c === DEFAULT_COLOR ? undefined : '#' + c.toString(16).padStart(6, '0'))
302  const out: Run[][] = []
303  for (let r = 0; r < m.rows; r++) {
304    const row: Run[] = []
305    for (let c = 0; c < m.columns; c++) {
306      const cell = m.cells[r * m.columns + c]!
307      const fg = cell.glyph === 0x20 ? undefined : hex(cell.fg), bg = hex(cell.bg)
308      const last = row[row.length - 1]
309      if (last && last.fg === fg && last.bg === bg) last.text += String.fromCodePoint(cell.glyph)
310      else row.push({ text: String.fromCodePoint(cell.glyph), ...(fg ? { fg } : {}), ...(bg ? { bg } : {}) })
311    }
312    out.push(row)
313  }
314  return out
315}
316
317/** Distinct (foreground, background) pairs, the unit `Raster`'s palette counts (1024 per frame). */
318export const colorPairs = (cells: readonly Cell[]) => new Set(cells.map(c => `${c.fg}/${c.bg}`)).size
319
320/** The tools found on this machine, by the name `command -v` knows them. */
321export type Tools = ReadonlySet<string>
322
323export const TOOL_NAMES = ['sips', 'osascript', 'pdftoppm', 'mutool', 'rsvg-convert', 'magick', 'convert']
324
325/**
326 * RENDERERS: how each kind becomes a PNG of at most `px` on its longest side, as argv steps run in order.
327 * A new kind is one entry here, one extension in EXT and one userConfig key. Undefined: no tool for it here.
328 */
329export const RENDERERS: Record<Kind, (input: string, out: string, px: number, page: number, tools: Tools, root: string) => string[][] | undefined> = {
330  image: (input, out, px, _page, tools) => {
331    if (tools.has('sips')) return [['sips', '-s', 'format', 'png', '-Z', String(px), input, '--out', out]]
332    const im = tools.has('magick') ? 'magick' : tools.has('convert') ? 'convert' : undefined
333    return im ? [[im, `${input}[0]`, '-thumbnail', `${px}x${px}`, `png:${out}`]] : undefined
334  },
335  svg: (input, out, px, _page, tools) => {
336    if (tools.has('sips')) return [['sips', '-s', 'format', 'png', '-Z', String(px), input, '--out', out]]
337    if (tools.has('rsvg-convert')) return [['rsvg-convert', '--width', String(px), '--keep-aspect-ratio', '-o', out, input]]
338    const im = tools.has('magick') ? 'magick' : tools.has('convert') ? 'convert' : undefined
339    return im ? [[im, input, '-thumbnail', `${px}x${px}`, `png:${out}`]] : undefined
340  },
341  pdf: (input, out, px, page, tools, root) => {
342    // sips draws page 1 in about 60 ms; PDFKit through JXA draws any page in 200-900 ms.
343    if (page === 1 && tools.has('sips')) return [['sips', '-s', 'format', 'png', '-Z', String(px), input, '--out', out]]
344    if (tools.has('osascript')) return [['osascript', '-l', 'JavaScript', `${root}/bin/pdfpage.js`, input, String(page), String(px), out]]
345    if (tools.has('pdftoppm')) {
346      return [['pdftoppm', '-png', '-f', String(page), '-l', String(page), '-scale-to', String(px), '-singlefile', input, out.replace(/\.png$/, '')]]
347    }
348    if (tools.has('mutool')) return [['mutool', 'draw', '-q', '-o', out, '-w', String(px), input, String(page)]]
349    const im = tools.has('magick') ? 'magick' : tools.has('convert') ? 'convert' : undefined
350    return im ? [[im, '-density', '96', `${input}[${page - 1}]`, '-thumbnail', `${px}x${px}`, `png:${out}`]] : undefined
351  },
352}
353
354/** How a PNG thumbnail becomes `width` x `height` raw pixels for the colored-block painter. */
355export function pixelsPlan(png: string, out: string, width: number, height: number, tools: Tools):
356  { steps: string[][]; format: 'bmp' | 'ppm' } | undefined {
357  if (tools.has('sips')) return { steps: [['sips', '-s', 'format', 'bmp', '-z', String(height), String(width), png, '--out', `${out}.bmp`]], format: 'bmp' }
358  const im = tools.has('magick') ? 'magick' : tools.has('convert') ? 'convert' : undefined
359  return im ? { steps: [[im, png, '-resize', `${width}x${height}!`, `ppm:${out}.ppm`]], format: 'ppm' } : undefined
360}
361
362/** Whether this terminal paints the engine's Image (kitty graphics with Unicode placeholders), from its environment. */
363export function paintsImages(env: Record<string, string | undefined>): boolean {
364  if (env.CLAUDE_CODE_FORCE_TERMINAL_IMAGES === '1') return true
365  if (env.TMUX || env.STY) return false
366  return env.TERM === 'xterm-kitty' || env.TERM === 'xterm-ghostty' || env.TERM_PROGRAM === 'ghostty' ||
367    env.TERM_PROGRAM === 'kitty' || env.KITTY_WINDOW_ID !== undefined || env.GHOSTTY_RESOURCES_DIR !== undefined
368}
369
370/** The image numbers a draft references (`[Image #n]`), deduplicated, in order. From claude-image-view (MIT). */
371export function imageNumbers(draft: string): number[] {
372  const seen = new Set<number>()
373  for (const m of draft.matchAll(/\[Image #(\d+)\]/g)) seen.add(Number(m[1]))
374  return [...seen]
375}
376
377/** Labels for a prompt's pasted images, in order: Claude Code's own `Image #n` from the prompt's `[Image #n]` tags
378 *  (the stored row keeps the ids beside the blocks, `imagePasteIds`, but the hook's input does not carry them), or
379 *  `pasted image n` when the tags do not match the images one for one. */
380export function pastedLabels(text: string, count: number): string[] {
381  const nums = imageNumbers(text)
382  return Array.from({ length: count }, (_, i) => (nums.length === count ? `Image #${nums[i]}` : `pasted image ${i + 1}`))
383}
384

1/** One preview lens has seen this session: a file on disk, and where it came from. */
2export type LensItem = {
3  /** Unique within the session. */
4  id: string
5  source: 'pasted' | 'read' | 'written' | 'links' | 'toolImages'
6  /** Absolute path of the file shown (a pasted or returned image is first written to the cache). */
7  path: string
8  /** What the person reads beside it: the file's name, or `pasted image 1`. */
9  label: string
10  /** The tool call it belongs to, for previews drawn under a tool row. */
11  toolUseId?: string
12  /** The prompt row it belongs to (the append uuid less its last group), for pasted images. */
13  row?: string
14  /** When lens saw it, epoch ms. */
15  at: number
16}
17
18/** An image the draft references as `[Image #n]`, and its file in Claude Code's paste cache when found. */
19export type LensDraftImage = { n: number; path: string | null }
20
21declare module 'claude-code' {
22  interface PluginState {
23    lens: { gallery: LensItem[]; draft: LensDraftImage[]; muted: boolean; unplaced: string[] }
24  }
25}
26
