1import { atom, read, update } from 'claude-code'
2import type { Elements, EngineInterface, Register } from 'claude-code'
3
4import type { Shown } from '../types'
5
6const TOOL = 'show_image'
7const FULL_NAME = 'mcp__inline-images__show_image'
8const CONVERTED_DIR = '/tmp/claude-inline-images'
9const MAX_ROWS = 40
10const PASTED_COLUMNS = 40
11// A terminal cell is about twice as tall as it is wide.
12const CELL_ASPECT = 2
13const DEFAULT_COLOR = 0x01000000
14const SPACE = 0x20
15const UPPER_HALF_BLOCK = 0x2580
16const LOWER_HALF_BLOCK = 0x2584
17
18// The BMP must be 24-bit, or 32-bit with alpha in the fourth byte, for rasterCells to read it.
19type Converter = {
20  binaries: string[]
21  size: (file: string) => string[]
22  png: (file: string, out: string) => string[]
23  bmp: (file: string, out: string, columns: number, rows: number) => string[]
24}
25
26const imageMagick = (binary: string): Converter => ({
27  binaries: [binary],
28  size: file => [binary, `${file}[0]`, '-format', 'width=%w height=%h', 'info:'],
29  png: (file, out) => [binary, `${file}[0]`, `png:${out}`],
30  bmp: (file, out, columns, rows) => [
31    binary, `${file}[0]`, '-resize', `${columns}x${rows}!`, '-type', 'TrueColorAlpha', '-define', 'bmp:format=bmp4', `bmp:${out}`,
32  ],
33})
34
35const CONVERTERS: Converter[] = [
36  {
37    binaries: ['sips'],
38    size: file => ['sips', '-g', 'pixelWidth', '-g', 'pixelHeight', file],
39    png: (file, out) => ['sips', '-s', 'format', 'png', file, '--out', out],
40    bmp: (file, out, columns, rows) => ['sips', '-s', 'format', 'bmp', '-z', String(rows), String(columns), file, '--out', out],
41  },
42  imageMagick('magick'),
43  imageMagick('convert'),
44  {
45    binaries: ['ffmpeg', 'ffprobe'],
46    size: file => ['ffprobe', '-v', 'error', '-select_streams', 'v:0', '-show_entries', 'stream=width,height', '-of', 'default=nw=1', file],
47    png: (file, out) => ['ffmpeg', '-y', '-v', 'error', '-i', file, '-frames:v', '1', out],
48    bmp: (file, out, columns, rows) => [
49      'ffmpeg', '-y', '-v', 'error', '-i', file, '-frames:v', '1', '-vf', `scale=${columns}:${rows}`, '-pix_fmt', 'bgra', out,
50    ],
51  },
52]
53
54const findConverter = async ($: EngineInterface) => {
55  const found = await Promise.all(
56    CONVERTERS.map(async candidate => {
57      const checks = await Promise.all(candidate.binaries.map(binary => $.process.run(['sh', '-c', `command -v ${binary}`])))
58
59      return checks.every(check => check.exitCode === 0) ? candidate : undefined
60    }),
61  )
62
63  return found.find(candidate => candidate !== undefined)
64}
65
66let converter: Promise<Converter | undefined> | undefined
67
68const run = async ($: EngineInterface, argv: string[]) => {
69  await $.process.run(['mkdir', '-p', CONVERTED_DIR])
70  const { exitCode, stdout, stderr } = await $.process.run(argv)
71
72  if (exitCode !== 0) {
73    throw new Error(`${argv[0]} failed: ${stderr.trim()}`)
74  }
75
76  return stdout
77}
78
79const pixelSize = async ($: EngineInterface, using: Converter, file: string) => {
80  const stdout = await run($, using.size(file)).catch(() => '')
81
82  return {
83    width: Number(/width[:=] ?(\d+)/i.exec(stdout)?.[1] ?? 0),
84    height: Number(/height[:=] ?(\d+)/i.exec(stdout)?.[1] ?? 0),
85  }
86}
87
88// The terminal decodes PNG only, so every other format is converted first.
89const asPng = async ($: EngineInterface, using: Converter, file: string) => {
90  if (/\.png$/i.test(file)) {
91    return file
92  }
93
94  const converted = `${CONVERTED_DIR}/${Date.now()}.png`
95  await run($, using.png(file, converted))
96
97  return converted
98}
99
100const cellBox = (shown: Shown, available: number) => {
101  const wanted = Math.min(shown.columns ?? 80, available, 255)
102  const rows = Math.round((wanted * shown.height) / shown.width / CELL_ASPECT)
103
104  return rows <= MAX_ROWS
105    ? { columns: wanted, rows: Math.max(1, rows) }
106    : { columns: Math.max(1, Math.round((MAX_ROWS * CELL_ASPECT * shown.width) / shown.height)), rows: MAX_ROWS }
107}
108

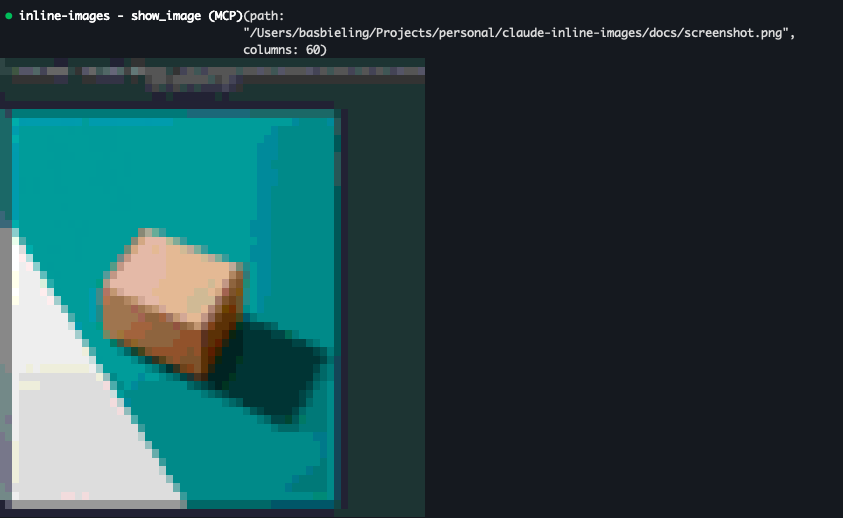

109// Terminals without kitty graphics get the picture as half blocks: each cell shows two stacked pixels.
110const rasterCells = async ($: EngineInterface, using: Converter, file: string, columns: number, rows: number) => {
111  const bmp = `${CONVERTED_DIR}/${Date.now()}-${columns}x${rows}.bmp`
112  await run($, using.bmp(file, bmp, columns, rows * 2))
113  const { base64 } = await $.fs.read(bmp, { as: 'bytes' })
114  const view = new DataView(Uint8Array.fromBase64(base64).buffer)
115  const offset = view.getUint32(10, true)
116  const height = view.getInt32(22, true)
117  const bytesPerPixel = view.getUint16(28, true) / 8
118  const stride = Math.ceil((columns * bytesPerPixel) / 4) * 4
119
120  const pixel = (x: number, y: number) => {
121    const at = offset + (height < 0 ? y : height - 1 - y) * stride + x * bytesPerPixel
122
123    return bytesPerPixel === 4 && view.getUint8(at + 3) < 128
124      ? DEFAULT_COLOR
125      : (view.getUint8(at + 2) << 16) | (view.getUint8(at + 1) << 8) | view.getUint8(at)
126  }
127
128  const words = Array.from({ length: columns * rows }, (_, cell) => {
129    const x = cell % columns
130    const top = pixel(x, Math.floor(cell / columns) * 2)
131    const bottom = pixel(x, Math.floor(cell / columns) * 2 + 1)
132
133    if (top !== DEFAULT_COLOR) {
134      return [UPPER_HALF_BLOCK, top, bottom]
135    }
136
137    return [bottom === DEFAULT_COLOR ? SPACE : LOWER_HALF_BLOCK, bottom, DEFAULT_COLOR]
138  }).flat()
139
140  return new Uint8Array(Uint32Array.from(words).buffer).toBase64()
141}
142
143const rasters = new Map<string, Promise<string>>()
144
145const describe = async ($: EngineInterface, using: Converter, path: string, columns?: number): Promise<Shown> => {
146  const file = await asPng($, using, path)
147  const size = await pixelSize($, using, file)
148
149  if (size.width === 0 || size.height === 0) {
150    throw new Error(`${path} is not an image ${using.binaries[0]} can read`)
151  }
152
153  return { file, ...size, columns }
154}
155
156const picture = async ($: EngineInterface, { Image, Raster }: Elements['terminal'], shown: Shown, available: number, key: string) => {
157  const box = cellBox(shown, available)
158

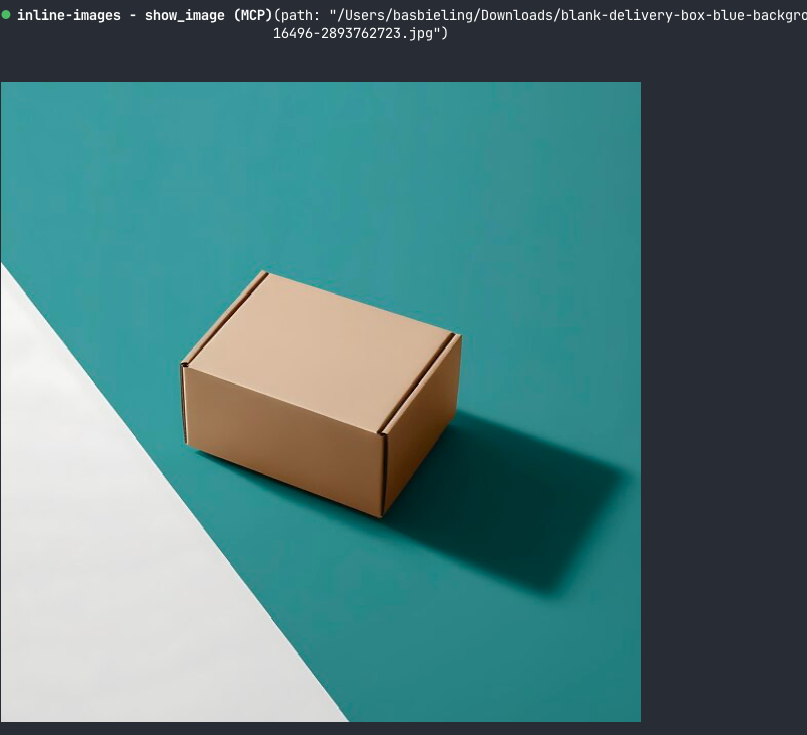

159  if ((await $.env.get('TERM_PROGRAM')) === 'ghostty' || (await $.env.get('TERM')) === 'xterm-kitty') {
160    return <Image source={{ file: shown.file, format: 'png' }} {...box} alt={shown.file} />
161  }
162
163  const using = await (converter ??= findConverter($))
164
165  if (using === undefined) {
166    return undefined
167  }
168
169  const cacheKey = `${shown.file}:${box.columns}x${box.rows}`
170  const cells = rasters.get(cacheKey) ?? rasterCells($, using, shown.file, box.columns, box.rows)
171  rasters.set(cacheKey, cells)
172
173  return <Raster key={key} {...box} cells={await cells} />
174}
175
176const pasted = atom({ plugin: 'inline-images', key: 'pasted' } as const, {})
177
178// A UserMessage row's requestId is its stored row's uuid with the last group zeroed.
179const rowKey = (id: string) => id.slice(0, 23)
180
181
182export const register: Register = (on, options) => {
183  on('session.start', async ($, e, next) => {
184    await $.tool.register({
185      name: TOOL,
186      description:
187        'Show an image file to the user, drawn inline in their terminal. Use it when the user wants to see an image ' +
188        '(a screenshot, a chart, a generated picture). It does not put the image in your context: use Read for that.',
189      inputSchema: {
190        type: 'object',
191        properties: {
192          path: { type: 'string', description: 'Absolute or working-directory-relative path of a PNG, JPEG, GIF, WebP, HEIC or TIFF file' },
193          columns: { type: 'integer', minimum: 4, maximum: 255, description: 'Width in terminal columns, 80 by default' },
194        },
195        required: ['path'],
196      },
197      isDeferred: false,
198    })
199
200    return next(e)
201  })
202
203  on('tool.call', { tool: FULL_NAME }, async ($, e) => {
204    const input = e as { path?: unknown; columns?: unknown }
205
206    if (typeof input.path !== 'string') {
207      return { deny: 'path must be a string' }
208    }
209
210    const real = (await $.fs.stat(input.path, { resolve: true }).catch(() => undefined))?.realPath
211
212    if (real === undefined) {
213      return { deny: `${input.path} does not exist` }
214    }
215
216    const using = await (converter ??= findConverter($))
217
218    if (using === undefined) {
219      return { deny: 'show_image needs sips (macOS), ImageMagick or ffmpeg to read images' }
220    }
221
222    const shown = await describe($, using, real, typeof input.columns === 'number' ? input.columns : undefined)
223
224    return { result: JSON.stringify(shown) }
225  }).catch(($, e, next) => ({ deny: `show_image failed: ${next.error.message ?? next.error.kind}` }))
226
227  on('ui.render', { component: 'ToolResult', props: { tool: FULL_NAME } }, async ($, e, next) => {
228    const shown = typeof e.props.output === 'string' ? (JSON.parse(e.props.output) as Shown) : undefined
229
230    if (e.surface !== 'terminal' || e.props.isErrored || shown === undefined) {
231      return next(e)
232    }
233
234    return (await picture($, $.ui.resolve(e), shown, (e.viewport?.columns ?? 80) - 6, e.requestId)) ?? next(e)
235  })
236
237  if (options.showPastedImages === false) {
238    return
239  }
240
241  // The prompt row holds the pasted image's bytes; the note row right after it names the file.
242  let pastedRow: string | undefined
243
244  on('session.append', { door: 'prompt' }, ($, e, next) => {
245    pastedRow = e.message.content.some(block => block.type === 'image') ? e.uuid : undefined
246
247    return next(e)
248  })
249
250  on('session.append', { door: 'note' }, async ($, e, next) => {
251    const appended = await next(e)
252    const files = e.message.content.flatMap(block =>
253      block.type === 'text' ? [...String(block.text).matchAll(/\[Image: source: ([^\]]+)\]/g)].map(match => match[1] ?? '') : [],
254    )
255    const row = pastedRow
256
257    if (row === undefined || files.length === 0) {
258      return appended
259    }
260
261    pastedRow = undefined
262    const using = await (converter ??= findConverter($)).catch(() => undefined)
263
264    if (using !== undefined) {
265      const shown = await Promise.all(files.map(file => describe($, using, file, PASTED_COLUMNS).catch(() => undefined)))
266      await update($, pasted, all => ({ ...all, [rowKey(row)]: shown.filter(one => one !== undefined) })).catch(() => undefined)
267    }
268
269    return appended
270  })
271
272  on('ui.render', { component: 'UserMessage' }, async ($, e, next) => {
273    const shown = (await read($, pasted))[rowKey(e.requestId)]
274
275    if (e.surface !== 'terminal' || shown === undefined) {
276      return next(e)
277    }
278
279    const elements = $.ui.resolve(e)
280    const available = (e.viewport?.columns ?? 80) - 6
281    const pictures = await Promise.all(shown.map((one, index) => picture($, elements, one, available, `${e.requestId}-${index}`)))
282
283    return (
284      <elements.Box flexDirection="column">
285        {await next(e)}
286        {pictures}
287      </elements.Box>
288    )
289  })
290}
291

1export type Shown = { file: string; width: number; height: number; columns?: number }
2
3declare module 'claude-code' {
4  interface PluginState {
5    'inline-images': { pasted: Record<string, Shown[]> }
6  }
7}
8
