mermaid-render

1import type { EngineInterface, Register } from 'claude-code'
2
3import { lastMermaidSource } from './excalidraw'
4import { drawMermaidFences, splitMermaidFences } from './fences'
5import { flattenSvg } from './flatten'
6import {
7  CACHE_DIR,
8  PALETTES,
9  RESVG,
10  appearanceOf,
11  diagramKey,
12  imagesHint,
13  imageCells,
14  svgSize,
15  terminalShowsImages,
16  type Appearance,
17  type DiagramImage,
18  type TerminalEnv,
19} from './image'
20import { canConvertToScene, excalidrawUrl, svgToScene } from './scene'
21
22const OSASCRIPT = '/usr/bin/osascript'
23const OPEN = '/usr/bin/open'
24
25// Margin for the reply's bullet and indent.
26const REPLY_INDENT = 4
27
28// What the text after a diagram is shifted by, to line up with the reply's text
29// Claude Code draws after its bullet. An estimate, to calibrate on screen.
30const TEXT_INDENT = 2
31
32const DIAGRAMS_SECTION = {
33  id: 'mermaid-render:diagrams',
34  scope: 'session',
35  text: [
36    'This terminal draws each ```mermaid code block of your replies as a diagram.',
37    'When a diagram explains a flow, a call sequence, states or a data model better than prose, add one.',
38    'Drawn kinds: flowchart or graph (TD, LR), sequenceDiagram, stateDiagram-v2, classDiagram, erDiagram, xychart-beta.',
39    'Any other kind, or a block that does not parse, is shown as code.',
40    'Start the fence at the beginning of a line, outside lists and quotes.',
41    'Keep labels short and prefer top-down layouts so the diagram fits.',
42  ].join(' '),
43} as const
44
45/**
46 * The appearance for the person's Claude Code theme, a custom theme's `base`
47 * read from ~/.claude/themes (`dark` when it names none, as Claude Code does).
48 */
49async function currentAppearance($: EngineInterface): Promise<Appearance> {
50  const theme = (await $.config.list()).find(row => row.key === 'theme')?.value
51  if (typeof theme !== 'string' || !theme.startsWith('custom:')) {
52    return appearanceOf(typeof theme === 'string' ? theme : undefined)
53  }
54
55  try {
56    const home = await $.env.get('HOME')
57    const file = JSON.parse(await $.fs.read(`${home}/.claude/themes/${theme.slice('custom:'.length)}.json`))
58    return appearanceOf(theme, typeof file.base === 'string' ? file.base : 'dark')
59  } catch {
60    // A plugin's theme, or a file that is gone or not JSON.
61    return appearanceOf(theme)
62  }
63}
64
65async function terminalEnv($: EngineInterface): Promise<TerminalEnv> {
66  return {
67    force: await $.env.get('CLAUDE_CODE_FORCE_TERMINAL_IMAGES'),
68    tmux: await $.env.get('TMUX'),
69    termProgram: await $.env.get('TERM_PROGRAM'),
70    term: await $.env.get('TERM'),
71    kittyWindowId: await $.env.get('KITTY_WINDOW_ID'),
72  }
73}
74
75/**
76 * Renders a Mermaid source to a PNG in CACHE_DIR: layout and SVG by
77 * beautiful-mermaid under JavaScriptCore (osascript, so no Node), PNG by resvg
78 * at twice the SVG's size. Resolves undefined when a step fails.
79 */
80async function renderDiagramImage($: EngineInterface, source: string, appearance: Appearance): Promise<DiagramImage | undefined> {
81  const renderer = `${$.plugin.root}/renderer`
82  const palette = PALETTES[appearance]
83  const fail = (step: string, detail: string) => {
84    $.ui.log(`mermaid-render: ${step} failed, the diagram stays box art: ${detail.slice(0, 500)}`)
85    return undefined
86  }
87
88  try {
89    const key = await diagramKey(source, appearance)
90    const hasResvg = await $.fs.stat(RESVG).then(() => true, () => false)
91    if (!hasResvg) return fail('resvg', `not found at ${RESVG}: brew install resvg`)
92
93    const laidOut = await $.process.run(
94      [OSASCRIPT, '-l', 'JavaScript', `${renderer}/render.js`, `${renderer}/beautiful-mermaid.iife.js`, palette.bg, palette.fg],
95      { stdin: source, timeoutMs: 10_000 },
96    )
97    if (laidOut.exitCode !== 0) return fail('osascript', laidOut.stderr)
98
99    const svg = flattenSvg(laidOut.stdout)
100    const size = svgSize(svg)
101    if (size === undefined) return fail('svg size', laidOut.stdout.slice(0, 200))
102
103    await $.fs.write(`${CACHE_DIR}/${key}.svg`, svg)
104    const file = `${CACHE_DIR}/${key}.png`
105    const background = palette.isOpaque ? ['--background', palette.bg] : []
106    const rasterized = await $.process.run([RESVG, '--zoom', '2', ...background, `${CACHE_DIR}/${key}.svg`, file], { timeoutMs: 10_000 })
107    if (rasterized.exitCode !== 0) return fail('resvg', rasterized.stderr)
108
109    return { file, ...size, svg }
110  } catch (error) {
111    // osascript or resvg missing, a timeout, a refused call, or an SVG
112    // flattenSvg cannot read.
113    return fail('render', String(error))
114  }
115}
116
117/**
118 * Opens excalidraw.com on the diagram as an editable scene. Excalidraw loads a
119 * #url= link straight onto an empty canvas, and asks before replacing a canvas
120 * that holds a drawing ("Replace my content", with backups offered first).
121 */
122async function openInExcalidraw($: EngineInterface, svg: string): Promise<string> {
123  const scene = svgToScene(svg)
124  if (scene === undefined) return 'This kind of diagram has no Excalidraw export.'
125
126  await $.process.run([OPEN, excalidrawUrl(scene)])
127  $.ui.toast('Excalidraw opened on the diagram')
128
129  return 'Excalidraw opened on the diagram. If your canvas holds a drawing, Excalidraw asks before replacing it.'
130}
131
132// Whether the iTerm2 hint was shown while the module lives.
133let isHintShown = false
134
135// One render per source and appearance while the module lives; a reload
136// starts over.
137const images = new Map<string, Promise<DiagramImage | undefined>>()
138
139function imageOf($: EngineInterface, source: string, appearance: Appearance): Promise<DiagramImage | undefined> {
140  const key = `${appearance}\n${source}`
141  let image = images.get(key)
142  if (image === undefined) {
143    image = renderDiagramImage($, source, appearance)
144    images.set(key, image)
145  }
146  return image
147}
148
149export const register: Register = on => {
150  on('session.start', async ($, e, next) => {
151    await $.command.register({ name: 'excalidraw', description: 'Open the last Mermaid diagram in Excalidraw' })
152
153    return next(e)
154  })
155
156  on('command.run', { command: 'excalidraw' }, async $ => {
157    const source = lastMermaidSource(await $.session.messages())
158    if (source === undefined) return { text: 'No Mermaid diagram in this session.' }
159
160    const image = await imageOf($, source, await currentAppearance($))
161    if (image === undefined) return { text: 'The last diagram could not be rendered.' }
162
163    return { text: await openInExcalidraw($, image.svg) }
164  })
165
166  // Only the screen changes: the stored reply keeps its mermaid source (ctrl+o).
167  on('ui.render', { component: 'AssistantMessage' }, async ($, e, next) => {
168    if (e.surface !== 'terminal' || !e.props.text.includes('```mermaid')) {
169      return next(e)
170    }
171
172    const maxColumns = (e.viewport?.columns ?? 80) - REPLY_INDENT
173    const segments = splitMermaidFences(e.props.text)
174    const hasDiagram = segments.some(segment => segment.kind === 'diagram')
175    // Reading the terminal or the theme can fail; the diagram then stays box art.
176    const env = await terminalEnv($).catch((): TerminalEnv => ({}))
177    const canDraw = hasDiagram && terminalShowsImages(env)
178    const hint = hasDiagram ? imagesHint(env) : undefined
179    if (hint !== undefined && !isHintShown) {
180      isHintShown = true
181      $.ui.log(hint)
182    }
183    const appearance = canDraw ? await currentAppearance($).catch((): Appearance => 'card') : 'card'
184    const drawn = canDraw
185      ? await Promise.all(segments.map(segment => (segment.kind === 'diagram' ? imageOf($, segment.source, appearance) : undefined)))
186      : []
187    const isAllDrawn = segments.every((segment, i) => segment.kind === 'text' || drawn[i] !== undefined)
188
189    if (!canDraw || !isAllDrawn) {
190      return next({ ...e, props: { ...e.props, text: drawMermaidFences(e.props.text, maxColumns) } })
191    }
192
193    const { Box, Button, Image, Markdown } = $.ui.resolve(e)
194    const opening = segments[0]?.kind === 'text' ? segments[0].text : ''
195
196    const body = segments.map((segment, i) => {
197      if (segment.kind === 'text') {
198        return i === 0 ? null : <Markdown key={`text-${i}`} text={segment.text} />
199      }
200
201      const image = drawn[i]!
202      const cells = imageCells(image, maxColumns)
203

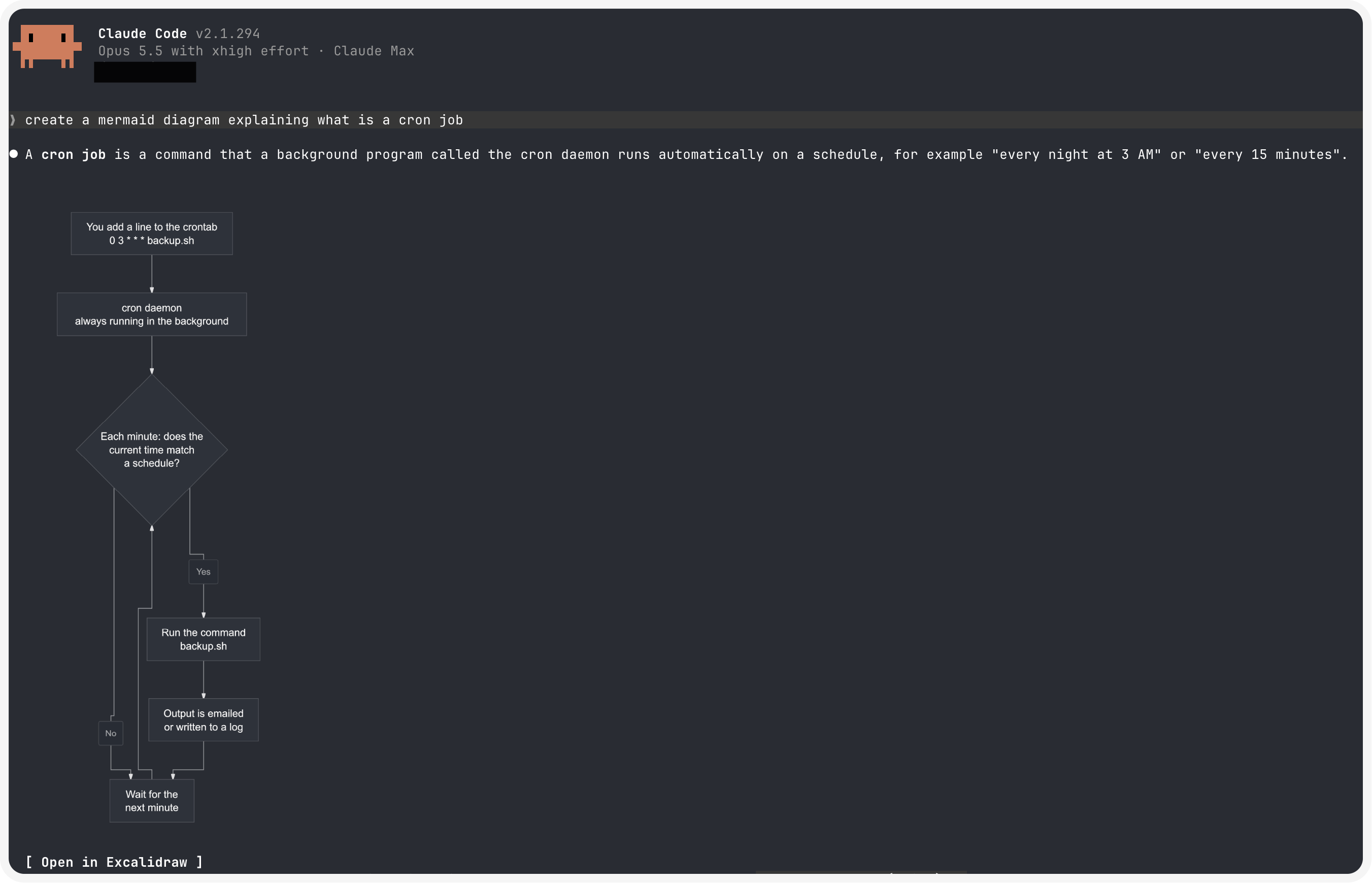

204      return (
205        <Box key={`diagram-${i}`} flexDirection="column" marginTop={1}>
206          <Image source={{ file: image.file, format: 'png' }} columns={cells.columns} rows={cells.rows} alt="Mermaid diagram" />
207          {canConvertToScene(image.svg) ? (
208            <Button key={`excalidraw-${i}`} label="Open in Excalidraw" onPress={() => openInExcalidraw($, image.svg)} />
209          ) : null}
210        </Box>
211      )
212    })
213
214    return (
215      <Box flexDirection="column">
216        {await next({ ...e, props: { ...e.props, text: opening } })}
217        <Box flexDirection="column" paddingLeft={TEXT_INDENT}>
218          {body}
219        </Box>
220      </Box>
221    )
222  })
223
224  on('prompt.compose', async ($, e, next) => {
225    const composed = await next(e)
226
227    if (!e.surfaces.includes('terminal')) {
228      return composed
229    }
230
231    return { sections: [...composed.sections, DIAGRAMS_SECTION] }
232  })
233}
234

1import type { SessionMessage } from 'claude-code'
2
3import { splitMermaidFences } from './fences'
4
5/**
6 * The Mermaid source of the last top-level ```mermaid fence Claude wrote in
7 * these messages, or undefined when it wrote none.
8 */
9export function lastMermaidSource(messages: readonly SessionMessage[]): string | undefined {
10  for (const message of [...messages].reverse()) {
11    if (message.role !== 'assistant') continue
12
13    const diagrams = splitMermaidFences(message.text).filter(segment => segment.kind === 'diagram')
14    const last = diagrams.at(-1)
15    if (last) return last.source
16  }
17  return undefined
18}
19

1import { renderMermaidASCII } from './vendor/beautiful-mermaid-ascii'
2
3// Only a closed fence that starts a line: one still streaming has no closing
4// line yet, and one indented inside a list item or a quote stays code.
5const MERMAID_FENCE = /^```mermaid[^\S\n]*\n([\s\S]*?)\n```[^\S\n]*$/gm
6
7const COMPACT = { colorMode: 'none', paddingX: 2, paddingY: 2, boxBorderPadding: 0 } as const
8
9export type Segment = { kind: 'text'; text: string } | { kind: 'diagram'; source: string }
10
11/**
12 * Cuts a markdown reply into its top-level ```mermaid fences and the text
13 * around them, in order; text segments are trimmed and empty ones left out.
14 */
15export function splitMermaidFences(text: string): Segment[] {
16  const segments: Segment[] = []
17  const pushText = (part: string) => {
18    if (part.trim() !== '') segments.push({ kind: 'text', text: part.trim() })
19  }
20
21  let last = 0
22  for (const match of text.matchAll(MERMAID_FENCE)) {
23    pushText(text.slice(last, match.index))
24    segments.push({ kind: 'diagram', source: match[1]! })
25    last = match.index + match[0].length
26  }
27  pushText(text.slice(last))
28
29  return segments
30}
31
32/**
33 * Replaces each top-level ```mermaid fence of a markdown reply with a ```text
34 * fence holding its box-drawing diagram. A fence keeps its source when the
35 * renderer refuses it or the drawing is wider than `columns`.
36 */
37export function drawMermaidFences(text: string, columns: number): string {
38  return text.replace(MERMAID_FENCE, (fence, source: string) => {
39    const art = drawDiagram(source, columns)
40
41    return art === undefined ? fence : '```text\n' + art + '\n```'
42  })
43}
44
45function drawDiagram(source: string, columns: number): string | undefined {
46  let art: string
47
48  try {
49    art = renderMermaidASCII(source, COMPACT)
50  } catch {
51    // Kinds it does not draw (pie, gantt, mindmap) throw.
52    return undefined
53  }
54
55  const lines = art.split('\n').map(line => line.trimEnd())
56  const widest = Math.max(...lines.map(line => [...line].length))
57
58  // A malformed sequence diagram draws as nothing rather than throwing. Box
59  // drawing cannot shrink to fit a narrower terminal.
60  return widest > 0 && widest <= columns ? lines.join('\n').trimEnd() : undefined
61}
62

1// beautiful-mermaid colors its SVG with CSS custom properties and color-mix().
2// resvg 0.48 refuses the custom property declarations and draws nothing, so
3// every var() and color-mix() is resolved here into a plain color first.
4
5type Props = Record<string, string>
6
7/**
8 * Returns the SVG with its custom properties, var() and color-mix() resolved
9 * into hex colors, its font @imports dropped and the root style (the
10 * background) removed. Throws on a construct it does not know how to resolve.
11 */
12export function flattenSvg(svg: string): string {
13  const props: Props = {}
14  const declare = (css: string) => {
15    for (const match of css.matchAll(/(--[\w-]+)\s*:\s*([^;]+);?/g)) {
16      props[match[1]!] = match[2]!.trim()
17    }
18  }
19
20  const rootStyle = svg.match(/<svg[^>]*\sstyle="([^"]*)"/)
21  if (rootStyle) declare(rootStyle[1]!)
22  for (const block of svg.matchAll(/<style>([\s\S]*?)<\/style>/g)) declare(block[1]!)
23
24  const stripped = svg
25    .replace(/<style>([\s\S]*?)<\/style>/g, (block, css: string) => {
26      const kept = css
27        .replace(/\/\*[\s\S]*?\*\//g, '')
28        .replace(/@import url\([^)]*\);/g, '')
29        .replace(/--[\w-]+\s*:[^;{}]+;/g, '')
30
31      return `<style>${kept}</style>`
32    })
33    .replace(/(<svg[^>]*\sstyle=")[^"]*"/, '$1"')
34
35  return resolve(stripped, props, 0)
36}
37
38function resolve(value: string, props: Props, depth: number): string {
39  if (depth > 20) throw new Error(`custom property cycle in ${value}`)
40
41  let out = value
42  for (const fn of ['var(', 'color-mix('] as const) {
43    let at: number
44    while ((at = out.indexOf(fn)) !== -1) {
45      const open = at + fn.length - 1
46      const close = closingParen(out, open)
47      const inner = out.slice(open + 1, close)
48      const replacement = fn === 'var(' ? resolveVar(inner, props, depth) : colorMix(resolve(inner, props, depth + 1))
49      out = out.slice(0, at) + replacement + out.slice(close + 1)
50    }
51  }
52  return out
53}
54
55function resolveVar(inner: string, props: Props, depth: number): string {
56  const [name, ...fallback] = splitTopLevel(inner)
57  const raw = props[name!] ?? fallback.join(', ')
58  if (raw === '') throw new Error(`undefined custom property ${name}`)
59
60  return resolve(raw, props, depth + 1)
61}
62
63// color-mix(in srgb, A p%, B q%): a missing percentage is 100 minus the other.
64function colorMix(args: string): string {
65  const [space, first, second] = splitTopLevel(args)
66  if (space !== 'in srgb' || first === undefined || second === undefined) {
67    throw new Error(`unsupported color-mix(${args})`)
68  }
69
70  const a = mixOperand(first)
71  const b = mixOperand(second)
72  const pa = a.pct ?? (b.pct === undefined ? 50 : 100 - b.pct)
73  const pb = b.pct ?? 100 - pa
74
75  return rgbToHex(a.rgb.map((c, i) => (c * pa + b.rgb[i]! * pb) / (pa + pb)))
76}
77
78function mixOperand(part: string): { rgb: number[]; pct: number | undefined } {
79  const match = part.match(/^(#[0-9a-fA-F]{3}|#[0-9a-fA-F]{6})(?:\s+([\d.]+)%)?$/)
80  if (!match) throw new Error(`unsupported color-mix operand ${part}`)
81
82  return { rgb: hexToRgb(match[1]!), pct: match[2] === undefined ? undefined : Number(match[2]) }
83}
84
85function hexToRgb(hex: string): number[] {
86  const full = hex.length === 4 ? `#${[...hex.slice(1)].map(c => c + c).join('')}` : hex
87
88  return [1, 3, 5].map(i => parseInt(full.slice(i, i + 2), 16))
89}
90
91function rgbToHex(rgb: number[]): string {
92  return `#${rgb.map(c => Math.round(c).toString(16).padStart(2, '0')).join('')}`
93}
94
95function closingParen(text: string, open: number): number {
96  let depth = 0
97  for (let i = open; i < text.length; i++) {
98    if (text[i] === '(') depth++
99    if (text[i] === ')' && --depth === 0) return i
100  }
101  throw new Error(`unbalanced parentheses in ${text.slice(open, open + 80)}`)
102}
103
104function splitTopLevel(text: string): string[] {
105  const parts: string[] = []
106  let depth = 0
107  let start = 0
108  for (let i = 0; i < text.length; i++) {
109    if (text[i] === '(') depth++
110    if (text[i] === ')') depth--
111    if (text[i] === ',' && depth === 0) {
112      parts.push(text.slice(start, i).trim())
113      start = i + 1
114    }
115  }
116  parts.push(text.slice(start).trim())
117  return parts
118}
119

1export type Appearance = 'dark' | 'light' | 'card'
2
3// The colors a diagram is drawn in, by appearance. `dark` is Ghostty's default
4// background and white; `light` is beautiful-mermaid's github-light pair. A
5// `card` keeps the dark colors on an opaque background, for a terminal whose
6// background the mod cannot know.
7export const PALETTES = {
8  dark: { bg: '#282c34', fg: '#ffffff', isOpaque: false },
9  light: { bg: '#ffffff', fg: '#1f2328', isOpaque: false },
10  card: { bg: '#282c34', fg: '#ffffff', isOpaque: true },
11} as const
12
13// Bump when the rendering changes, so cached PNGs are not reused.
14const RENDER_VERSION = 2
15
16export const CACHE_DIR = '/tmp/mermaid-render'
17
18// Where Homebrew installs resvg on Apple Silicon.
19export const RESVG = '/opt/homebrew/bin/resvg'
20
21// Pixels of a terminal cell at 1x, so a diagram's 13px labels come out about the
22// size of the terminal's text. An estimate for Ghostty's default 13pt font, to
23// calibrate on screen.
24const CELL = { width: 8, height: 17 } as const
25
26const MAX_ROWS = 40
27
28export type DiagramImage = { file: string; width: number; height: number; svg: string }
29
30/**
31 * The appearance for Claude Code's `theme` setting: its dark and light presets
32 * name themselves, a custom theme goes by its `base` preset, and `auto` (the
33 * terminal's own background, which a mod cannot read) gets a card.
34 */
35export function appearanceOf(theme: string | undefined, customBase?: string): Appearance {
36  const preset = theme?.startsWith('custom:') ? customBase : theme
37  if (preset?.startsWith('dark')) return 'dark'
38  if (preset?.startsWith('light')) return 'light'
39  return 'card'
40}
41
42export type TerminalEnv = {
43  force?: string
44  tmux?: string
45  termProgram?: string
46  term?: string
47  kittyWindowId?: string
48}
49
50/**
51 * Whether Claude Code draws pictures in this terminal: kitty and Ghostty
52 * (cmux included) outside tmux, or any terminal when
53 * CLAUDE_CODE_FORCE_TERMINAL_IMAGES is set. Elsewhere an Image shows its alt.
54 */
55export function terminalShowsImages(env: TerminalEnv): boolean {
56  if (env.force === '1') return true
57  if (env.tmux) return false
58
59  return env.termProgram === 'ghostty' || env.term === 'xterm-ghostty' || env.term === 'xterm-kitty' || env.kittyWindowId !== undefined
60}
61
62/**
63 * What to tell an iTerm2 user whose diagrams stay box art: iTerm2 3.7 reads
64 * the kitty graphics Claude Code sends, once Claude Code is told to send them.
65 */
66export function imagesHint(env: TerminalEnv): string | undefined {
67  if (env.termProgram !== 'iTerm.app' || terminalShowsImages(env)) return undefined
68
69  return 'mermaid-render: iTerm2 3.7 or later can show the diagrams as images. Add "env": { "CLAUDE_CODE_FORCE_TERMINAL_IMAGES": "1" } to ~/.claude/settings.json, then start a new session.'
70}
71
72/**
73 * The name a diagram's files take in CACHE_DIR: a hash of its source, its
74 * appearance and the render version.
75 */
76export async function diagramKey(source: string, appearance: Appearance): Promise<string> {
77  const text = `${RENDER_VERSION}\n${appearance}\n${source}`
78  const digest = await crypto.subtle.digest('SHA-256', new TextEncoder().encode(text))
79
80  return [...new Uint8Array(digest)].map(byte => byte.toString(16).padStart(2, '0')).join('')
81}
82
83/**
84 * The width and height an SVG's root element declares, in pixels.
85 */
86export function svgSize(svg: string): { width: number; height: number } | undefined {
87  const size = svg.match(/<svg[^>]*\swidth="([\d.]+)"\s+height="([\d.]+)"/)
88
89  return size ? { width: Number(size[1]), height: Number(size[2]) } : undefined
90}
91
92/**
93 * The cells an image takes: its labels at about the terminal's text size,
94 * narrowed to `maxColumns` and to MAX_ROWS rows, keeping its proportions.
95 */
96export function imageCells(image: { width: number; height: number }, maxColumns: number): { columns: number; rows: number } {
97  const rowsPerColumn = (image.height / image.width) * (CELL.width / CELL.height)
98  const columns = Math.max(1, Math.min(maxColumns, Math.ceil(image.width / CELL.width), Math.floor(MAX_ROWS / rowsPerColumn)))
99
100  return { columns, rows: Math.max(1, Math.round(columns * rowsPerColumn)) }
101}
102

1// Turns a beautiful-mermaid SVG into an Excalidraw scene: the same layout,
2// drawn with Excalidraw's own shapes, bound text and arrows bound to the boxes
3// they join, so the diagram stays editable. Excalidraw's own Mermaid converter
4// needs a browser, which a mod does not have.
5//
6// Fields left out are filled by Excalidraw's restoreElements when it loads the
7// scene (packages/excalidraw/data/restore.ts).
8
9type Attrs = Record<string, string>
10type SvgItem = { tag: string; attrs: Attrs; text: string; group: Attrs | undefined }
11type Element = Record<string, unknown> & { id: string; type: string; boundElements?: { type: string; id: string }[] }
12
13export type ExcalidrawScene = {
14  type: 'excalidraw'
15  version: 2
16  source: string
17  elements: Element[]
18  appState: { viewBackgroundColor: string }
19  files: Record<string, never>
20}
21
22const INK = '#1e1e1e'
23const EXCALIFONT = 5
24
25// beautiful-mermaid's ER cardinalities (src/er/parser.ts) as Excalidraw arrowheads.
26const CARDINALITY: Record<string, string> = {
27  one: 'cardinality_exactly_one',
28  'zero-one': 'cardinality_zero_or_one',
29  many: 'cardinality_one_or_many',
30  'zero-many': 'cardinality_zero_or_many',
31}
32
33// Class relationship kinds whose marker reads best as an outlined head.
34const CLASS_ARROWHEAD: Record<string, string> = {
35  inheritance: 'triangle_outline',
36  realization: 'triangle_outline',
37  composition: 'diamond',
38  aggregation: 'diamond_outline',
39}
40
41/**
42 * Whether svgToScene converts this SVG: every kind but xychart, whose dotted
43 * grid alone is hundreds of circles.
44 */
45export function canConvertToScene(svg: string): boolean {
46  return !svg.includes('xychart')
47}
48
49/**
50 * The Excalidraw scene for a beautiful-mermaid SVG, or undefined for a kind it
51 * does not convert.
52 */
53export function svgToScene(svg: string): ExcalidrawScene | undefined {
54  if (!canConvertToScene(svg)) return undefined
55  const items = parseSvg(svg)
56
57  const elements: Element[] = []
58  const byId = new Map<string, Element>()
59  const add = (element: Element) => {
60    elements.push(element)
61    byId.set(element.id, element)
62    return element
63  }
64  const bind = (container: Element, child: Element, type: string) => {
65    container.boundElements = [...(container.boundElements ?? []), { type, id: child.id }]
66  }
67
68  // Boxes first, so arrows can bind to them whatever the SVG order.
69  const groups = new Map<Attrs, SvgItem[]>()
70  for (const item of items) {
71    if (item.group?.['data-id'] === undefined) continue
72    groups.set(item.group, [...(groups.get(item.group) ?? []), item])
73  }
74  for (const [group, members] of groups) {
75    const shapes = members.filter(item => ['rect', 'polygon', 'circle'].includes(item.tag))
76    const texts = members.filter(item => item.tag === 'text')
77    const [outer] = shapes
78    if (outer === undefined) continue
79
80    const box = add(shapeElement(`box-${group['data-id']}`, outer, elements.length))
81    // A flowchart or state node and a sequence actor hold one centered label;
82    // a class or an entity lays out its own lines.
83    const isSimpleBox = texts.length === 1 && (group.class === 'node' || group.class === 'actor')
84    if (isSimpleBox) {
85      const label = add(textElement(`${box.id}-label`, texts[0]!, elements.length))
86      Object.assign(label, centeredIn(box, label), { containerId: box.id, textAlign: 'center', verticalAlign: 'middle' })
87      bind(box, label, 'text')
88    }
89
90    for (const item of members) {
91      if (item === outer || (isSimpleBox && item.tag === 'text')) continue
92      // A class or entity header repeats the box's own outline.
93      if (item.tag === 'rect' && item.attrs.x === outer.attrs.x && item.attrs.y === outer.attrs.y) continue
94      const extra = convertItem(item, `${box.id}-${elements.length}`, elements.length)
95      if (extra) add(extra)
96    }
97  }
98
99  const arrows: Element[] = []
100  for (const item of items) {
101    if (item.group?.['data-id'] !== undefined) continue
102    const id = `item-${elements.length}`
103    const groupClass = item.group?.class
104
105    if (item.tag === 'polyline' && /\b(edge|class-relationship|er-relationship)\b/.test(item.attrs.class ?? '')) {
106      const arrow = add(linkElement(id, item, elements.length))
107      bindEnds(arrow, item.attrs, byId, bind)
108      arrows.push(arrow)
109      continue
110    }
111    if (groupClass === 'edge-label') {
112      if (item.tag !== 'text') continue
113      const label = add(textElement(id, item, elements.length))
114      const arrow = arrows.find(candidate => candidate.edge === `${item.group!['data-from']}->${item.group!['data-to']}` && !candidate.boundElements?.length)
115      if (arrow) {
116        Object.assign(label, { containerId: arrow.id, textAlign: 'center', verticalAlign: 'middle' })
117        bind(arrow, label, 'text')
118      }
119      continue
120    }
121    if (groupClass === 'message' && (item.tag === 'line' || item.tag === 'polyline')) {
122      const arrow = add(linkElement(id, item, elements.length))
123      arrow.endArrowhead = item.group!['data-arrow-head'] === 'filled' ? 'triangle' : 'arrow'
124      if (item.group!['data-line-style'] === 'dashed') arrow.strokeStyle = 'dashed'
125      continue
126    }
127    if (groupClass === 'note' && item.tag === 'polygon') {
128      // The second polygon is the folded corner.
129      if (elements.some(element => element.note === item.group)) continue
130      add({ ...shapeElement(id, { ...item, tag: 'rect', attrs: boundingRect(item.attrs.points ?? '') }, elements.length), note: item.group })
131      continue
132    }
133    // ER cardinality glyphs and label backgrounds outside any group: the
134    // relationship's arrowheads and its text already say it.
135    if (item.group === undefined && svg.includes('er-relationship') && item.tag !== 'text') continue
136
137    const element = convertItem(item, id, elements.length)
138    if (element) add(element)
139  }
140
141  // A note's text belongs in the note.
142  for (const element of elements) {
143    if (element.note === undefined) continue
144    const text = elements.find(candidate => candidate.type === 'text' && candidate.group === element.note)
145    if (text) {
146      Object.assign(text, centeredIn(element, text), { containerId: element.id, textAlign: 'center', verticalAlign: 'middle' })
147      bind(element, text, 'text')
148    }
149  }
150
151  return {
152    type: 'excalidraw',
153    version: 2,
154    source: 'mermaid-render',
155    elements: elements.map(({ edge, note, group, ...element }) => element as Element),
156    appState: { viewBackgroundColor: '#ffffff' },
157    files: {},
158  }
159}
160
161/**
162 * The link that opens excalidraw.com on a scene: the scene travels in the
163 * fragment as a data: URL, which the browser never sends to the server.
164 */
165export function excalidrawUrl(scene: ExcalidrawScene): string {
166  const bytes = new TextEncoder().encode(JSON.stringify(scene))
167  let binary = ''
168  for (const byte of bytes) binary += String.fromCharCode(byte)
169
170  return `https://excalidraw.com/#url=${encodeURIComponent(`data:application/json;base64,${btoa(binary)}`)}`
171}
172
173function bindEnds(arrow: Element, attrs: Attrs, byId: Map<string, Element>, bind: (container: Element, child: Element, type: string) => void) {
174  const from = attrs['data-from'] ?? attrs['data-entity1']
175  const to = attrs['data-to'] ?? attrs['data-entity2']
176  arrow.edge = `${from}->${to}`
177
178  for (const [end, nodeId] of [['startBinding', from], ['endBinding', to]] as const) {
179    const box = byId.get(`box-${nodeId}`)
180    if (box === undefined) continue
181    arrow[end] = { elementId: box.id, focus: 0, gap: 4 }
182    bind(box, arrow, 'arrow')
183  }
184}
185
186function linkElement(id: string, item: SvgItem, seed: number): Element {
187  const points = item.tag === 'line'
188    ? [[num(item.attrs.x1), num(item.attrs.y1)], [num(item.attrs.x2), num(item.attrs.y2)]]
189    : parsePoints(item.attrs.points ?? '')
190  const [x0, y0] = points[0] ?? [0, 0]
191  const attrs = item.attrs
192  const marker = (side: 'start' | 'end') => {
193    if (attrs['data-cardinality1'] !== undefined) {
194      return CARDINALITY[attrs[side === 'start' ? 'data-cardinality1' : 'data-cardinality2'] ?? ''] ?? null
195    }
196    if (attrs[`marker-${side}`] === undefined) return null
197    return CLASS_ARROWHEAD[attrs['data-type'] ?? ''] ?? 'arrow'
198  }
199
200  return {
201    ...base(id, 'arrow', x0!, y0!, seed),
202    points: points.map(([x, y]) => [x! - x0!, y! - y0!]),
203    startArrowhead: marker('start'),
204    endArrowhead: marker('end'),
205    strokeStyle: attrs['stroke-dasharray'] !== undefined || attrs['data-identifying'] === 'false' ? 'dashed' : 'solid',
206    group: item.group,
207  }
208}
209
210function convertItem(item: SvgItem, id: string, seed: number): Element | undefined {
211  switch (item.tag) {
212    case 'rect':
213    case 'circle':
214    case 'polygon':
215      return shapeElement(id, item, seed)
216    case 'line':
217    case 'polyline':
218      return { ...linkElement(id, item, seed), type: 'line', startArrowhead: null, endArrowhead: null }
219    case 'text':
220      return item.text === '' ? undefined : textElement(id, item, seed)
221    default:
222      return undefined
223  }
224}
225
226function shapeElement(id: string, item: SvgItem, seed: number): Element {
227  const { attrs } = item
228  const isFilled = attrs.fill !== undefined && attrs.fill !== 'none' && item.tag === 'circle' && attrs.stroke === 'none'
229  const fill = isFilled ? { backgroundColor: INK, fillStyle: 'solid' } : {}
230
231  if (item.tag === 'circle') {
232    const r = num(attrs.r)
233    return { ...base(id, 'ellipse', num(attrs.cx) - r, num(attrs.cy) - r, seed), width: 2 * r, height: 2 * r, ...fill }
234  }
235  if (item.tag === 'polygon') {
236    const points = parsePoints(attrs.points ?? '')
237    const box = boundingRect(attrs.points ?? '')
238    if (points.length === 4) return { ...base(id, 'diamond', num(box.x), num(box.y), seed), width: num(box.width), height: num(box.height) }
239
240    const [x0, y0] = points[0] ?? [0, 0]
241    return {
242      ...base(id, 'line', x0!, y0!, seed),
243      points: [...points, points[0]!].map(([x, y]) => [x! - x0!, y! - y0!]),
244      polygon: true,
245    }
246  }
247
248  return {
249    ...base(id, 'rectangle', num(attrs.x), num(attrs.y), seed),
250    width: num(attrs.width),
251    height: num(attrs.height),
252    roundness: num(attrs.rx) > 0 ? { type: 3 } : null,
253  }
254}
255
256function textElement(id: string, item: SvgItem, seed: number): Element {
257  const fontSize = num(item.attrs['font-size']) || 13
258  const lines = item.text.split('\n')
259  const width = Math.max(...lines.map(line => [...line].length)) * fontSize * 0.6
260  const height = lines.length * fontSize * 1.25
261  const isCentered = item.attrs['text-anchor'] === 'middle'
262  const x = num(item.attrs.x)
263
264  return {
265    ...base(id, 'text', isCentered ? x - width / 2 : x, num(item.attrs.y) - height / 2, seed),
266    width,
267    height,
268    text: item.text,
269    originalText: item.text,
270    fontSize,
271    fontFamily: EXCALIFONT,
272    textAlign: isCentered ? 'center' : 'left',
273    verticalAlign: 'top',
274    containerId: null,
275    group: item.group,
276  }
277}
278
279function base(id: string, type: string, x: number, y: number, seed: number): Element {
280  return { id, type, x, y, strokeColor: INK, backgroundColor: 'transparent', strokeWidth: 1, roughness: 1, seed: seed + 1 }
281}
282
283function centeredIn(box: Element, text: Element): { x: number; y: number } {
284  return {
285    x: (box.x as number) + ((box.width as number) - (text.width as number)) / 2,
286    y: (box.y as number) + ((box.height as number) - (text.height as number)) / 2,
287  }
288}
289
290function boundingRect(points: string): Attrs {
291  const xs = parsePoints(points).map(([x]) => x!)
292  const ys = parsePoints(points).map(([, y]) => y!)
293  const [x, y] = [Math.min(...xs), Math.min(...ys)]
294
295  return { x: String(x), y: String(y), width: String(Math.max(...xs) - x), height: String(Math.max(...ys) - y) }
296}
297
298function parsePoints(points: string): number[][] {
299  return points.trim().split(/\s+/).filter(Boolean).map(pair => pair.split(',').map(Number))
300}
301
302function num(value: string | undefined): number {
303  return value === undefined ? 0 : Number(value)
304}
305
306function parseAttrs(source: string): Attrs {
307  const attrs: Attrs = {}
308  for (const match of source.matchAll(/([\w:-]+)="([^"]*)"/g)) attrs[match[1]!] = decodeEntities(match[2]!)
309  return attrs
310}
311
312function decodeEntities(text: string): string {
313  return text
314    .replace(/&#x([0-9a-fA-F]+);/g, (all, hex: string) => String.fromCodePoint(parseInt(hex, 16)))
315    .replace(/&#(\d+);/g, (all, dec: string) => String.fromCodePoint(Number(dec)))
316    .replace(/&quot;/g, '"')
317    .replace(/&#39;|&apos;/g, "'")
318    .replace(/&lt;/g, '<')
319    .replace(/&gt;/g, '>')
320    .replace(/&amp;/g, '&')
321}
322
323// beautiful-mermaid's SVG is flat: drawing elements, at most one <g> deep,
324// <text> holding plain text or <tspan>s.
325function parseSvg(svg: string): SvgItem[] {
326  const body = svg.replace(/<style>[\s\S]*?<\/style>/g, '').replace(/<defs>[\s\S]*?<\/defs>/g, '')
327  const items: SvgItem[] = []
328  let group: Attrs | undefined
329  const tag = /<(\/?)([a-zA-Z]+)([^>]*?)(\/?)>/g
330
331  let match: RegExpExecArray | null
332  while ((match = tag.exec(body)) !== null) {
333    const [, closing, name, rawAttrs, selfClosing] = match
334    if (name === 'svg' || name === 'tspan') continue
335    if (name === 'g') {
336      group = closing ? undefined : parseAttrs(rawAttrs!)
337      continue
338    }
339    if (closing) continue
340
341    const attrs = parseAttrs(rawAttrs!)
342    if (name === 'text' && !selfClosing) {
343      const end = body.indexOf('</text>', tag.lastIndex)
344      const inner = body.slice(tag.lastIndex, end).replace(/<[^>]+>/g, '')
345      tag.lastIndex = end + '</text>'.length
346      items.push({ tag: name, attrs, text: decodeEntities(inner).trim(), group })
347      continue
348    }
349    items.push({ tag: name!, attrs, text: '', group })
350  }
351  return items
352}
353

1// beautiful-mermaid 1.1.3 (MIT, Craft Docs, see LICENSE-beautiful-mermaid): its
2// ASCII renderer alone, bundled from the package's src/ascii so elkjs, which
3// only the SVG renderer needs, stays out. Rebuilt with:
4//   npm install beautiful-mermaid@1.1.3 esbuild
5//   echo "export { renderMermaidASCII } from './node_modules/beautiful-mermaid/src/ascii/index.ts'" > entry.ts
6//   npx esbuild entry.ts --bundle --format=esm --platform=neutral --external:elkjs --outfile=beautiful-mermaid-ascii.js
7// node_modules/beautiful-mermaid/src/multiline-utils.ts
8function normalizeBrTags(label) {
9  const unquoted = label.startsWith('"') && label.endsWith('"') ? label.slice(1, -1) : label;
10  return unquoted.replace(/<br\s*\/?>/gi, "\n").replace(/\\n/g, "\n").replace(/<\/?(?:sub|sup|small|mark)\s*>/gi, "").replace(/\*\*(.+?)\*\*/g, "<b>$1</b>").replace(/(?<!\*)\*([^\s*](?:[^*]*[^\s*])?)\*(?!\*)/g, "<i>$1</i>").replace(/~~(.+?)~~/g, "<s>$1</s>");
11}
12
13// node_modules/beautiful-mermaid/src/parser.ts
14function parseMermaid(text) {
15  const lines = text.split("\n").map((l) => l.trim()).filter((l) => l.length > 0 && !l.startsWith("%%"));
16  if (lines.length === 0) {
17    throw new Error("Empty mermaid diagram");
18  }
19  const header = lines[0];
20  if (/^stateDiagram(-v2)?\s*$/i.test(header)) {
21    return parseStateDiagram(lines);
22  }
23  return parseFlowchart(lines);
24}
25function parseFlowchart(lines) {
26  const headerMatch = lines[0].match(/^(?:graph|flowchart)\s+(TD|TB|LR|BT|RL)\s*$/i);
27  if (!headerMatch) {
28    throw new Error(`Invalid mermaid header: "${lines[0]}". Expected "graph TD", "flowchart LR", "stateDiagram-v2", etc.`);
29  }
30  const direction = headerMatch[1].toUpperCase();
31  const graph = {
32    direction,
33    nodes: /* @__PURE__ */ new Map(),
34    edges: [],
35    subgraphs: [],
36    classDefs: /* @__PURE__ */ new Map(),
37    classAssignments: /* @__PURE__ */ new Map(),
38    nodeStyles: /* @__PURE__ */ new Map(),
39    linkStyles: /* @__PURE__ */ new Map()
40  };
41  const subgraphStack = [];
42  for (let i = 1; i < lines.length; i++) {
43    const line = lines[i];
44    const classDefMatch = line.match(/^classDef\s+(\w+)\s+(.+)$/);
45    if (classDefMatch) {
46      const name = classDefMatch[1];
47      const propsStr = classDefMatch[2];
48      const props = parseStyleProps(propsStr);
49      graph.classDefs.set(name, props);
50      continue;
51    }
52    const classAssignMatch = line.match(/^class\s+([\w,-]+)\s+(\w+)$/);
53    if (classAssignMatch) {
54      const nodeIds = classAssignMatch[1].split(",").map((s) => s.trim());
55      const className = classAssignMatch[2];
56      for (const id of nodeIds) {
57        graph.classAssignments.set(id, className);
58      }
59      continue;
60    }
61    const styleMatch = line.match(/^style\s+([\w,-]+)\s+(.+)$/);
62    if (styleMatch) {
63      const nodeIds = styleMatch[1].split(",").map((s) => s.trim());
64      const props = parseStyleProps(styleMatch[2]);
65      for (const id of nodeIds) {
66        graph.nodeStyles.set(id, { ...graph.nodeStyles.get(id), ...props });
67      }
68      continue;
69    }
70    const linkStyleMatch = line.match(/^linkStyle\s+(default|[\d,\s]+)\s+(.+)$/);
71    if (linkStyleMatch) {
72      const target = linkStyleMatch[1].trim();
73      const props = parseStyleProps(linkStyleMatch[2]);
74      if (target === "default") {
75        graph.linkStyles.set("default", { ...graph.linkStyles.get("default"), ...props });
76      } else {
77        const indices = target.split(",").map((s) => parseInt(s.trim(), 10));
78        for (const idx of indices) {
79          if (!isNaN(idx)) {
80            graph.linkStyles.set(idx, { ...graph.linkStyles.get(idx), ...props });
81          }
82        }
83      }
84      continue;
85    }
86    const dirMatch = line.match(/^direction\s+(TD|TB|LR|BT|RL)\s*$/i);
87    if (dirMatch && subgraphStack.length > 0) {
88      subgraphStack[subgraphStack.length - 1].direction = dirMatch[1].toUpperCase();
89      continue;
90    }
91    const subgraphMatch = line.match(/^subgraph\s+(.+)$/);
92    if (subgraphMatch) {
93      const rest = subgraphMatch[1].trim();
94      const bracketMatch = rest.match(/^([\w-]+)\s*\[(.+)\]$/);
95      let id;
96      let label;
97      if (bracketMatch) {
98        id = bracketMatch[1];
99        label = normalizeBrTags(bracketMatch[2]);
100      } else {
101        label = normalizeBrTags(rest);
102        id = rest.replace(/\s+/g, "_").replace(/[^\w]/g, "");
103      }
104      const sg = { id, label, nodeIds: [], children: [] };
105      subgraphStack.push(sg);
106      continue;
107    }
108    if (line === "end") {
109      const completed = subgraphStack.pop();
110      if (completed) {
111        if (subgraphStack.length > 0) {
112          subgraphStack[subgraphStack.length - 1].children.push(completed);
113        } else {
114          graph.subgraphs.push(completed);
115        }
116      }
117      continue;
118    }
119    parseEdgeLine(line, graph, subgraphStack);
120  }
121  return graph;
122}
123function parseStateDiagram(lines) {
124  const graph = {
125    direction: "TD",
126    nodes: /* @__PURE__ */ new Map(),
127    edges: [],
128    subgraphs: [],
129    classDefs: /* @__PURE__ */ new Map(),
130    classAssignments: /* @__PURE__ */ new Map(),
131    nodeStyles: /* @__PURE__ */ new Map(),
132    linkStyles: /* @__PURE__ */ new Map()
133  };
134  const compositeStack = [];
135  const compositeStateIds = /* @__PURE__ */ new Set();
136  let startCount = 0;
137  let endCount = 0;
138  for (let i = 1; i < lines.length; i++) {
139    const line = lines[i];
140    const dirMatch = line.match(/^direction\s+(TD|TB|LR|BT|RL)\s*$/i);
141    if (dirMatch) {
142      if (compositeStack.length > 0) {
143        compositeStack[compositeStack.length - 1].direction = dirMatch[1].toUpperCase();
144      } else {
145        graph.direction = dirMatch[1].toUpperCase();
146      }
147      continue;
148    }
149    const linkStyleMatch = line.match(/^linkStyle\s+(default|[\d,\s]+)\s+(.+)$/);
150    if (linkStyleMatch) {
151      const target = linkStyleMatch[1].trim();
152      const props = parseStyleProps(linkStyleMatch[2]);
153      if (target === "default") {
154        graph.linkStyles.set("default", { ...graph.linkStyles.get("default"), ...props });
155      } else {
156        const indices = target.split(",").map((s) => parseInt(s.trim(), 10));
157        for (const idx of indices) {
158          if (!isNaN(idx)) {
159            graph.linkStyles.set(idx, { ...graph.linkStyles.get(idx), ...props });
160          }
161        }
162      }
163      continue;
164    }
165    const compositeMatch = line.match(/^state\s+(?:"([^"]+)"\s+as\s+)?([\w\p{L}]+)\s*\{$/u);
166    if (compositeMatch) {
167      const label = compositeMatch[1] ?? compositeMatch[2];
168      const id = compositeMatch[2];
169      const sg = { id, label, nodeIds: [], children: [] };
170      compositeStack.push(sg);
171      compositeStateIds.add(id);
172      graph.nodes.delete(id);
173      continue;
174    }
175    if (line === "}") {
176      const completed = compositeStack.pop();
177      if (completed) {
178        if (compositeStack.length > 0) {
179          compositeStack[compositeStack.length - 1].children.push(completed);
180        } else {
181          graph.subgraphs.push(completed);
182        }
183      }
184      continue;
185    }
186    const stateAliasMatch = line.match(/^state\s+"([^"]+)"\s+as\s+([\w\p{L}]+)\s*$/u);
187    if (stateAliasMatch) {
188      const label = normalizeBrTags(stateAliasMatch[1]);
189      const id = stateAliasMatch[2];
190      registerStateNode(graph, compositeStack, { id, label, shape: "rounded" });
191      continue;
192    }
193    const transitionMatch = line.match(/^(\[\*\]|[\w\p{L}-]+)\s*(-->)\s*(\[\*\]|[\w\p{L}-]+)(?:\s*:\s*(.+))?$/u);
194    if (transitionMatch) {
195      let sourceId = transitionMatch[1];
196      let targetId = transitionMatch[3];
197      const rawTransitionLabel = transitionMatch[4]?.trim();
198      const edgeLabel = rawTransitionLabel ? normalizeBrTags(rawTransitionLabel) : void 0;
199      if (sourceId === "[*]") {
200        startCount++;
201        sourceId = `_start${startCount > 1 ? startCount : ""}`;
202        registerStateNode(graph, compositeStack, { id: sourceId, label: "", shape: "state-start" });
203      } else if (!compositeStateIds.has(sourceId)) {
204        ensureStateNode(graph, compositeStack, sourceId);
205      }
206      if (targetId === "[*]") {
207        endCount++;
208        targetId = `_end${endCount > 1 ? endCount : ""}`;
209        registerStateNode(graph, compositeStack, { id: targetId, label: "", shape: "state-end" });
210      } else if (!compositeStateIds.has(targetId)) {
211        ensureStateNode(graph, compositeStack, targetId);
212      }
213      graph.edges.push({
214        source: sourceId,
215        target: targetId,
216        label: edgeLabel,
217        style: "solid",
218        hasArrowStart: false,
219        hasArrowEnd: true
220      });
221      continue;
222    }
223    const stateDescMatch = line.match(/^([\w\p{L}-]+)\s*:\s*(.+)$/u);
224    if (stateDescMatch) {
225      const id = stateDescMatch[1];
226      const label = normalizeBrTags(stateDescMatch[2].trim());
227      registerStateNode(graph, compositeStack, { id, label, shape: "rounded" });
228      continue;
229    }
230  }
231  return graph;
232}
233function registerStateNode(graph, compositeStack, node) {
234  const isNew = !graph.nodes.has(node.id);
235  if (isNew) {
236    graph.nodes.set(node.id, node);
237  }
238  if (compositeStack.length > 0) {
239    const current = compositeStack[compositeStack.length - 1];
240    if (!current.nodeIds.includes(node.id)) {
241      current.nodeIds.push(node.id);
242    }
243  }
244}
245function ensureStateNode(graph, compositeStack, id) {
246  if (!graph.nodes.has(id)) {
247    registerStateNode(graph, compositeStack, { id, label: id, shape: "rounded" });
248  } else {
249    if (compositeStack.length > 0) {
250      const current = compositeStack[compositeStack.length - 1];
251      if (!current.nodeIds.includes(id)) {
252        current.nodeIds.push(id);
253      }
254    }
255  }
256}
257function parseStyleProps(propsStr) {
258  const cleaned = propsStr.replace(/;\s*$/, "");
259  const props = {};
260  for (const pair of cleaned.split(",")) {
261    const colonIdx = pair.indexOf(":");
262    if (colonIdx > 0) {
263      const key = pair.slice(0, colonIdx).trim();
264      const val = pair.slice(colonIdx + 1).trim();
265      if (key && val) {
266        props[key] = val;
267      }
268    }
269  }
270  return props;
271}
272var ARROW_REGEX = /^(<)?(-->|-.->|==>|---|-\.-|===)(?:\|([^|]*)\|)?/;
273var TEXT_ARROW_REGEX = /^(<)?(--|-\.|==)\s+(.+?)\s+(-->|---|\.\->|-\.\-|==>|===)/;
274var NODE_PATTERNS = [
275  // Triple delimiters (must be first)
276  { regex: /^([\w-]+)\(\(\((.+?)\)\)\)/, shape: "doublecircle" },
277  // A(((text)))
278  // Double delimiters with mixed brackets
279  { regex: /^([\w-]+)\(\[(.+?)\]\)/, shape: "stadium" },
280  // A([text])
281  { regex: /^([\w-]+)\(\((.+?)\)\)/, shape: "circle" },
282  // A((text))
283  { regex: /^([\w-]+)\[\[(.+?)\]\]/, shape: "subroutine" },
284  // A[[text]]
285  { regex: /^([\w-]+)\[\((.+?)\)\]/, shape: "cylinder" },
286  // A[(text)]
287  // Trapezoid variants — must come before plain [text]
288  { regex: /^([\w-]+)\[\/(.+?)\\\]/, shape: "trapezoid" },
289  // A[/text\]
290  { regex: /^([\w-]+)\[\\(.+?)\/\]/, shape: "trapezoid-alt" },
291  // A[\text/]
292  // Asymmetric flag shape
293  { regex: /^([\w-]+)>(.+?)\]/, shape: "asymmetric" },
294  // A>text]
295  // Double curly braces (hexagon) — must come before single {text}
296  { regex: /^([\w-]+)\{\{(.+?)\}\}/, shape: "hexagon" },
297  // A{{text}}
298  // Single-char delimiters (last — most common, least specific)
299  { regex: /^([\w-]+)\[(.+?)\]/, shape: "rectangle" },
300  // A[text]
301  { regex: /^([\w-]+)\((.+?)\)/, shape: "rounded" },
302  // A(text)
303  { regex: /^([\w-]+)\{(.+?)\}/, shape: "diamond" }
304  // A{text}
305];
306var BARE_NODE_REGEX = /^([\w-]+)/;
307var CLASS_SHORTHAND_REGEX = /^:::([\w][\w-]*)/;
308function parseEdgeLine(line, graph, subgraphStack) {
309  let remaining = line.trim();
310  const firstGroup = consumeNodeGroup(remaining, graph, subgraphStack);
311  if (!firstGroup || firstGroup.ids.length === 0) return;
312  remaining = firstGroup.remaining.trim();
313  let prevGroupIds = firstGroup.ids;
314  while (remaining.length > 0) {
315    let hasArrowStart;
316    let style;
317    let hasArrowEnd;
318    let edgeLabel;
319    const arrowMatch = remaining.match(ARROW_REGEX);
320    if (arrowMatch) {
321      hasArrowStart = Boolean(arrowMatch[1]);
322      const arrowOp = arrowMatch[2];
323      const rawEdgeLabel = arrowMatch[3]?.trim();
324      edgeLabel = rawEdgeLabel ? normalizeBrTags(rawEdgeLabel) : void 0;
325      remaining = remaining.slice(arrowMatch[0].length).trim();
326      style = arrowStyleFromOp(arrowOp);
327      hasArrowEnd = arrowOp.endsWith(">");
328    } else {
329      const textMatch = remaining.match(TEXT_ARROW_REGEX);
330      if (!textMatch) break;
331      hasArrowStart = Boolean(textMatch[1]);
332      const rawLabel = textMatch[3].trim();
333      edgeLabel = rawLabel ? normalizeBrTags(rawLabel) : void 0;
334      const openOp = textMatch[2];
335      const closeOp = textMatch[4];
336      remaining = remaining.slice(textMatch[0].length).trim();
337      style = textArrowStyleFromOps(openOp, closeOp);
338      hasArrowEnd = closeOp.endsWith(">");
339    }
340    const nextGroup = consumeNodeGroup(remaining, graph, subgraphStack);
341    if (!nextGroup || nextGroup.ids.length === 0) break;
342    remaining = nextGroup.remaining.trim();
343    for (const sourceId of prevGroupIds) {
344      for (const targetId of nextGroup.ids) {
345        graph.edges.push({
346          source: sourceId,
347          target: targetId,
348          label: edgeLabel,
349          style,
350          hasArrowStart,
351          hasArrowEnd
352        });
353      }
354    }
355    prevGroupIds = nextGroup.ids;
356  }
357}
358function consumeNodeGroup(text, graph, subgraphStack) {
359  const first = consumeNode(text, graph, subgraphStack);
360  if (!first) return null;
361  const ids = [first.id];
362  let remaining = first.remaining.trim();
363  while (remaining.startsWith("&")) {
364    remaining = remaining.slice(1).trim();
365    const next = consumeNode(remaining, graph, subgraphStack);
366    if (!next) break;
367    ids.push(next.id);
368    remaining = next.remaining.trim();
369  }
370  return { ids, remaining };
371}
372function consumeNode(text, graph, subgraphStack) {
373  let id = null;
374  let remaining = text;
375  for (const { regex, shape } of NODE_PATTERNS) {
376    const match = text.match(regex);
377    if (match) {
378      id = match[1];
379      const label = normalizeBrTags(match[2]);
380      registerNode(graph, subgraphStack, { id, label, shape });
381      remaining = text.slice(match[0].length);
382      break;
383    }
384  }
385  if (id === null) {
386    const bareMatch = text.match(BARE_NODE_REGEX);
387    if (bareMatch) {
388      id = bareMatch[1];
389      if (!graph.nodes.has(id)) {
390        registerNode(graph, subgraphStack, { id, label: id, shape: "rectangle" });
391      }
392      remaining = text.slice(bareMatch[0].length);
393    }
394  }
395  if (id === null) return null;
396  const classMatch = remaining.match(CLASS_SHORTHAND_REGEX);
397  if (classMatch) {
398    graph.classAssignments.set(id, classMatch[1]);
399    remaining = remaining.slice(classMatch[0].length);
400  }
401  return { id, remaining };
402}
403function registerNode(graph, subgraphStack, node) {
404  const isNew = !graph.nodes.has(node.id);
405  if (isNew) {
406    graph.nodes.set(node.id, node);
407  }
408  trackInSubgraph(subgraphStack, node.id);
409}
410function trackInSubgraph(subgraphStack, nodeId) {
411  if (subgraphStack.length > 0) {
412    const current = subgraphStack[subgraphStack.length - 1];
413    if (!current.nodeIds.includes(nodeId)) {
414      current.nodeIds.push(nodeId);
415    }
416  }
417}
418function arrowStyleFromOp(op) {
419  if (op === "-.->") return "dotted";
420  if (op === "-.-") return "dotted";
421  if (op === "==>") return "thick";
422  if (op === "===") return "thick";
423  return "solid";
424}
425function textArrowStyleFromOps(openOp, closeOp) {
426  if (openOp === "-." || closeOp === ".->" || closeOp === "-.-") return "dotted";
427  if (openOp === "==" || closeOp === "==>" || closeOp === "===") return "thick";
428  return "solid";
429}
430
431// node_modules/beautiful-mermaid/src/ascii/types.ts
432var Up = { x: 1, y: 0 };
433var Down = { x: 1, y: 2 };
434var Left = { x: 0, y: 1 };
435var Right = { x: 2, y: 1 };
436var UpperRight = { x: 2, y: 0 };
437var UpperLeft = { x: 0, y: 0 };
438var LowerRight = { x: 2, y: 2 };
439var LowerLeft = { x: 0, y: 2 };
440var Middle = { x: 1, y: 1 };
441function gridCoordEquals(a, b) {
442  return a.x === b.x && a.y === b.y;
443}
444function drawingCoordEquals(a, b) {
445  return a.x === b.x && a.y === b.y;
446}
447function gridCoordDirection(c, dir) {
448  return { x: c.x + dir.x, y: c.y + dir.y };
449}
450function gridKey(c) {
451  return `${c.x},${c.y}`;
452}
453var EMPTY_STYLE = { name: "", styles: {} };
454
455// node_modules/beautiful-mermaid/src/ascii/ansi.ts
456var DEFAULT_ASCII_THEME = {
457  fg: "#27272a",
458  // zinc-800 — primary text
459  border: "#a1a1aa",
460  // zinc-400 — node borders (12% mix)
461  line: "#71717a",
462  // zinc-500 — edge lines (35% mix)
463  arrow: "#52525b",
464  // zinc-600 — arrowheads (60% mix)
465  corner: "#71717a",
466  // same as line
467  junction: "#a1a1aa"
468  // same as border
469};
470function detectColorMode() {
471  const proc = globalThis.process;
472  if (proc) {
473    if (!proc.stdout?.isTTY) {
474      return "none";
475    }
476    const colorTerm = proc.env?.COLORTERM?.toLowerCase() ?? "";
477    const term = proc.env?.TERM?.toLowerCase() ?? "";
478    if (colorTerm === "truecolor" || colorTerm === "24bit") {
479      return "truecolor";
480    }
481    if (term.includes("256color") || term.includes("256")) {
482      return "ansi256";
483    }
484    if (term && term !== "dumb") {
485      return "ansi16";
486    }
487    return "none";
488  }
489  if (typeof document !== "undefined") {
490    return "html";
491  }
492  return "none";
493}
494function parseHex(hex) {
495  const h = hex.replace("#", "");
496  if (h.length === 3) {
497    return {
498      r: parseInt(h[0] + h[0], 16),
499      g: parseInt(h[1] + h[1], 16),
500      b: parseInt(h[2] + h[2], 16)
501    };
502  }
503  return {
504    r: parseInt(h.substring(0, 2), 16),
505    g: parseInt(h.substring(2, 4), 16),
506    b: parseInt(h.substring(4, 6), 16)
507  };
508}
509var ESC = "\x1B[";
510var RESET = `${ESC}0m`;
511function truecolorFg(hex) {
512  const { r, g, b } = parseHex(hex);
513  return `${ESC}38;2;${r};${g};${b}m`;
514}
515function rgbTo256(r, g, b) {
516  const avg = (r + g + b) / 3;
517  const maxDiff = Math.max(Math.abs(r - avg), Math.abs(g - avg), Math.abs(b - avg));
518  if (maxDiff < 10) {
519    const gray = Math.round(avg / 255 * 23);
520    return 232 + Math.min(23, Math.max(0, gray));
521  }
522  const toIndex = (v) => {
523    if (v < 48) return 0;
524    if (v < 115) return 1;
525    return Math.min(5, Math.floor((v - 35) / 40));
526  };
527  const ri = toIndex(r);
528  const gi = toIndex(g);
529  const bi = toIndex(b);
530  return 16 + 36 * ri + 6 * gi + bi;
531}
532function ansi256Fg(hex) {
533  const { r, g, b } = parseHex(hex);
534  const index = rgbTo256(r, g, b);
535  return `${ESC}38;5;${index}m`;
536}
537function ansi16Fg(hex) {
538  const { r, g, b } = parseHex(hex);
539  const luma = 0.299 * r + 0.587 * g + 0.114 * b;
540  const bright = luma > 100 ? 0 : 60;
541  let code;
542  if (r > 180 && g < 100 && b < 100) code = 31;
543  else if (g > 180 && r < 100 && b < 100) code = 32;
544  else if (r > 150 && g > 150 && b < 100) code = 33;
545  else if (b > 180 && r < 100 && g < 100) code = 34;
546  else if (r > 150 && b > 150 && g < 100) code = 35;
547  else if (g > 150 && b > 150 && r < 100) code = 36;
548  else if (luma > 200) code = 37;
549  else if (luma < 50) code = 30;
550  else code = 37;
551  return `${ESC}${code + bright}m`;
552}
553function escapeHtml(text) {
554  return text.replace(/&/g, "&amp;").replace(/</g, "&lt;").replace(/>/g, "&gt;");
555}
556function htmlSpan(hex, text) {
557  return `<span style="color:${hex}">${escapeHtml(text)}</span>`;
558}
559function getRoleColor(role, theme) {
560  switch (role) {
561    case "text":
562      return theme.fg;
563    case "border":
564      return theme.border;
565    case "line":
566      return theme.line;
567    case "arrow":
568      return theme.arrow;
569    case "corner":
570      return theme.corner ?? theme.line;
571    case "junction":
572      return theme.junction ?? theme.border;
573    default:
574      return theme.fg;
575  }
576}
577function getAnsiColor(role, theme, mode) {
578  if (mode === "none") return "";
579  const hex = getRoleColor(role, theme);
580  switch (mode) {
581    case "truecolor":
582      return truecolorFg(hex);
583    case "ansi256":
584      return ansi256Fg(hex);
585    case "ansi16":
586      return ansi16Fg(hex);
587    default:
588      return "";
589  }
590}
591function colorizeLine(chars, roles, theme, mode) {
592  if (mode === "none") {
593    return chars.join("");
594  }
595  if (mode === "html") {
596    return colorizeLineHtml(chars, roles, theme);
597  }
598  let result = "";
599  let currentRole = null;
600  let buffer = "";
601  for (let i = 0; i < chars.length; i++) {
602    const char = chars[i];
603    const role = roles[i] ?? null;
604    if (char === " ") {
605      if (buffer.length > 0) {
606        if (currentRole !== null) {
607          result += getAnsiColor(currentRole, theme, mode) + buffer + RESET;
608        } else {
609          result += buffer;
610        }
611        buffer = "";
612        currentRole = null;
613      }
614      result += char;
615      continue;
616    }
617    if (role === currentRole) {
618      buffer += char;
619      continue;
620    }
621    if (buffer.length > 0) {
622      if (currentRole !== null) {
623        result += getAnsiColor(currentRole, theme, mode) + buffer + RESET;
624      } else {
625        result += buffer;
626      }
627    }
628    buffer = char;
629    currentRole = role;
630  }
631  if (buffer.length > 0 && currentRole !== null) {
632    result += getAnsiColor(currentRole, theme, mode) + buffer + RESET;
633  } else if (buffer.length > 0) {
634    result += buffer;
635  }
636  return result;
637}
638function colorizeLineHtml(chars, roles, theme) {
639  let result = "";
640  let currentRole = null;
641  let buffer = "";
642  const flush = () => {
643    if (buffer.length === 0) return;
644    if (currentRole !== null) {
645      result += htmlSpan(getRoleColor(currentRole, theme), buffer);
646    } else {
647      result += escapeHtml(buffer);
648    }
649    buffer = "";
650    currentRole = null;
651  };
652  for (let i = 0; i < chars.length; i++) {
653    const char = chars[i];
654    const role = roles[i] ?? null;
655    if (char === " ") {
656      flush();
657      result += " ";
658      continue;
659    }
660    if (role === currentRole) {
661      buffer += char;
662      continue;
663    }
664    flush();
665    buffer = char;
666    currentRole = role;
667  }
668  flush();
669  return result;
670}
671function colorizeText(text, hex, mode) {
672  if (mode === "none" || text.length === 0) return text;
673  if (mode === "html") return htmlSpan(hex, text);
674  let code;
675  switch (mode) {
676    case "truecolor":
677      code = truecolorFg(hex);
678      break;
679    case "ansi256":
680      code = ansi256Fg(hex);
681      break;
682    case "ansi16":
683      code = ansi16Fg(hex);
684      break;
685    default:
686      return text;
687  }
688  return `${code}${text}${RESET}`;
689}
690
691// node_modules/beautiful-mermaid/src/ascii/canvas.ts
692function mkCanvas(x, y) {
693  const canvas = [];
694  for (let i = 0; i <= x; i++) {
695    const col = [];
696    for (let j = 0; j <= y; j++) {
697      col.push(" ");
698    }
699    canvas.push(col);
700  }
701  return canvas;
702}
703function copyCanvas(source) {
704  const [maxX, maxY] = getCanvasSize(source);
705  return mkCanvas(maxX, maxY);
706}
707function mkRoleCanvas(x, y) {
708  const roleCanvas = [];
709  for (let i = 0; i <= x; i++) {
710    const col = [];
711    for (let j = 0; j <= y; j++) {
712      col.push(null);
713    }
714    roleCanvas.push(col);
715  }
716  return roleCanvas;
717}
718function increaseRoleCanvasSize(roleCanvas, newX, newY) {
719  const currX = roleCanvas.length - 1;
720  const currY = (roleCanvas[0]?.length ?? 1) - 1;
721  const targetX = Math.max(newX, currX);
722  const targetY = Math.max(newY, currY);
723  const grown = mkRoleCanvas(targetX, targetY);
724  for (let x = 0; x < grown.length; x++) {
725    for (let y = 0; y < grown[0].length; y++) {
726      if (x < roleCanvas.length && y < roleCanvas[0].length) {
727        grown[x][y] = roleCanvas[x][y];
728      }
729    }
730  }
731  roleCanvas.length = 0;
732  roleCanvas.push(...grown);
733  return roleCanvas;
734}
735function setRole(roleCanvas, x, y, role) {
736  if (x >= roleCanvas.length || y >= (roleCanvas[0]?.length ?? 0)) {
737    increaseRoleCanvasSize(roleCanvas, x, y);
738  }
739  roleCanvas[x][y] = role;
740}
741function getCanvasSize(canvas) {
742  return [canvas.length - 1, (canvas[0]?.length ?? 1) - 1];
743}
744function increaseSize(canvas, newX, newY) {
745  const [currX, currY] = getCanvasSize(canvas);
746  const targetX = Math.max(newX, currX);
747  const targetY = Math.max(newY, currY);
748  const grown = mkCanvas(targetX, targetY);
749  for (let x = 0; x < grown.length; x++) {
750    for (let y = 0; y < grown[0].length; y++) {
751      if (x < canvas.length && y < canvas[0].length) {
752        grown[x][y] = canvas[x][y];
753      }
754    }
755  }
756  canvas.length = 0;
757  canvas.push(...grown);
758  return canvas;
759}
760var JUNCTION_CHARS = /* @__PURE__ */ new Set([
761  "\u2500",
762  "\u2502",
763  "\u250C",
764  "\u2510",
765  "\u2514",
766  "\u2518",
767  "\u251C",
768  "\u2524",
769  "\u252C",
770  "\u2534",
771  "\u253C",
772  "\u2574",
773  "\u2575",
774  "\u2576",
775  "\u2577"
776]);
777function isJunctionChar(c) {
778  return JUNCTION_CHARS.has(c);
779}
780function isAlphanumeric(c) {
781  return /^[a-zA-Z0-9]$/.test(c);
782}
783var JUNCTION_MAP = {
784  "\u2500": { "\u2502": "\u253C", "\u250C": "\u252C", "\u2510": "\u252C", "\u2514": "\u2534", "\u2518": "\u2534", "\u251C": "\u253C", "\u2524": "\u253C", "\u252C": "\u252C", "\u2534": "\u2534" },
785  "\u2502": { "\u2500": "\u253C", "\u250C": "\u251C", "\u2510": "\u2524", "\u2514": "\u251C", "\u2518": "\u2524", "\u251C": "\u251C", "\u2524": "\u2524", "\u252C": "\u253C", "\u2534": "\u253C" },
786  "\u250C": { "\u2500": "\u252C", "\u2502": "\u251C", "\u2510": "\u252C", "\u2514": "\u251C", "\u2518": "\u253C", "\u251C": "\u251C", "\u2524": "\u253C", "\u252C": "\u252C", "\u2534": "\u253C" },
787  "\u2510": { "\u2500": "\u252C", "\u2502": "\u2524", "\u250C": "\u252C", "\u2514": "\u253C", "\u2518": "\u2524", "\u251C": "\u253C", "\u2524": "\u2524", "\u252C": "\u252C", "\u2534": "\u253C" },
788  "\u2514": { "\u2500": "\u2534", "\u2502": "\u251C", "\u250C": "\u251C", "\u2510": "\u253C", "\u2518": "\u2534", "\u251C": "\u251C", "\u2524": "\u253C", "\u252C": "\u253C", "\u2534": "\u2534" },
789  "\u2518": { "\u2500": "\u2534", "\u2502": "\u2524", "\u250C": "\u253C", "\u2510": "\u2524", "\u2514": "\u2534", "\u251C": "\u253C", "\u2524": "\u2524", "\u252C": "\u253C", "\u2534": "\u2534" },
790  "\u251C": { "\u2500": "\u253C", "\u2502": "\u251C", "\u250C": "\u251C", "\u2510": "\u253C", "\u2514": "\u251C", "\u2518": "\u253C", "\u2524": "\u253C", "\u252C": "\u253C", "\u2534": "\u253C" },
791  "\u2524": { "\u2500": "\u253C", "\u2502": "\u2524", "\u250C": "\u253C", "\u2510": "\u2524", "\u2514": "\u253C", "\u2518": "\u2524", "\u251C": "\u253C", "\u252C": "\u253C", "\u2534": "\u253C" },
792  "\u252C": { "\u2500": "\u252C", "\u2502": "\u253C", "\u250C": "\u252C", "\u2510": "\u252C", "\u2514": "\u253C", "\u2518": "\u253C", "\u251C": "\u253C", "\u2524": "\u253C", "\u2534": "\u253C" },
793  "\u2534": { "\u2500": "\u2534", "\u2502": "\u253C", "\u250C": "\u253C", "\u2510": "\u253C", "\u2514": "\u2534", "\u2518": "\u2534", "\u251C": "\u253C", "\u2524": "\u253C", "\u252C": "\u253C" }
794};
795function mergeJunctions(c1, c2) {
796  return JUNCTION_MAP[c1]?.[c2] ?? c1;
797}
798function mergeCanvases(base, offset, useAscii, ...overlays) {
799  let [maxX, maxY] = getCanvasSize(base);
800  for (const overlay of overlays) {
801    const [oX, oY] = getCanvasSize(overlay);
802    maxX = Math.max(maxX, oX + offset.x);
803    maxY = Math.max(maxY, oY + offset.y);
804  }
805  const merged = mkCanvas(maxX, maxY);
806  for (let x = 0; x <= maxX; x++) {
807    for (let y = 0; y <= maxY; y++) {
808      if (x < base.length && y < base[0].length) {
809        merged[x][y] = base[x][y];
810      }
811    }
812  }
813  for (const overlay of overlays) {
814    for (let x = 0; x < overlay.length; x++) {
815      for (let y = 0; y < overlay[0].length; y++) {
816        const c = overlay[x][y];
817        if (c !== " ") {
818          const mx = x + offset.x;
819          const my = y + offset.y;
820          const current = merged[mx][my];
821          if (!useAscii && isJunctionChar(c) && isJunctionChar(current)) {
822            merged[mx][my] = mergeJunctions(current, c);
823          } else if (isAlphanumeric(current) && isAlphanumeric(c)) {
824          } else {
825            merged[mx][my] = c;
826          }
827        }
828      }
829    }
830  }
831  return merged;
832}
833function canvasToString(canvas, options) {
834  const [maxX, maxY] = getCanvasSize(canvas);
835  const lines = [];
836  const roleCanvas = options?.roleCanvas;
837  const colorMode = options?.colorMode ?? "none";
838  const theme = options?.theme ?? DEFAULT_ASCII_THEME;
839  for (let y = 0; y <= maxY; y++) {
840    if (colorMode === "none" || !roleCanvas) {
841      let line = "";
842      for (let x = 0; x <= maxX; x++) {
843        line += canvas[x][y];
844      }
845      lines.push(line);
846    } else {
847      const chars = [];
848      const roles = [];
849      for (let x = 0; x <= maxX; x++) {
850        chars.push(canvas[x][y]);
851        roles.push(roleCanvas[x]?.[y] ?? null);
852      }
853      lines.push(colorizeLine(chars, roles, theme, colorMode));
854    }
855  }
856  return lines.join("\n");
857}
858var VERTICAL_FLIP_MAP = {
859  // Unicode arrows
860  "\u25B2": "\u25BC",
861  "\u25BC": "\u25B2",
862  "\u25E4": "\u25E3",
863  "\u25E3": "\u25E4",
864  "\u25E5": "\u25E2",
865  "\u25E2": "\u25E5",
866  // ASCII arrows
867  "^": "v",
868  "v": "^",
869  // Unicode corners
870  "\u250C": "\u2514",
871  "\u2514": "\u250C",
872  "\u2510": "\u2518",
873  "\u2518": "\u2510",
874  // Unicode junctions (T-pieces flip vertically)
875  "\u252C": "\u2534",
876  "\u2534": "\u252C",
877  // Box-start junctions (exit points from node boxes)
878  "\u2575": "\u2577",
879  "\u2577": "\u2575"
880};
881function flipCanvasVertically(canvas) {
882  for (const col of canvas) {
883    col.reverse();
884  }
885  for (const col of canvas) {
886    for (let y = 0; y < col.length; y++) {
887      const flipped = VERTICAL_FLIP_MAP[col[y]];
888      if (flipped) col[y] = flipped;
889    }
890  }
891  return canvas;
892}
893function flipRoleCanvasVertically(roleCanvas) {
894  for (const col of roleCanvas) {
895    col.reverse();
896  }
897  return roleCanvas;
898}
899function drawText(canvas, start, text, forceOverwrite = false) {
900  increaseSize(canvas, start.x + text.length, start.y);
901  for (let i = 0; i < text.length; i++) {
902    const x = start.x + i;
903    const current = canvas[x][start.y];
904    if (forceOverwrite || current === " ") {
905      canvas[x][start.y] = text[i];
906    }
907  }
908}
909function setCanvasSizeToGrid(canvas, columnWidth, rowHeight) {
910  let maxX = 0;
911  let maxY = 0;
912  for (const w of columnWidth.values()) maxX += w;
913  for (const h of rowHeight.values()) maxY += h;
914  increaseSize(canvas, maxX - 1, maxY - 1);
915}
916function setRoleCanvasSizeToGrid(roleCanvas, columnWidth, rowHeight) {
917  let maxX = 0;
918  let maxY = 0;
919  for (const w of columnWidth.values()) maxX += w;
920  for (const h of rowHeight.values()) maxY += h;
921  increaseRoleCanvasSize(roleCanvas, maxX - 1, maxY - 1);
922}
923
924// node_modules/beautiful-mermaid/src/ascii/converter.ts
925function convertToAsciiGraph(parsed, config) {
926  const nodeMap = /* @__PURE__ */ new Map();
927  let index = 0;
928  for (const [id, mNode] of parsed.nodes) {
929    const asciiNode = {
930      // Use the parser ID as the unique identity key to avoid collisions
931      // when multiple nodes share the same label (e.g. A[Web Server], C[Web Server]).
932      name: id,
933      // The label is used for rendering inside the box.
934      displayLabel: mNode.label,
935      // Preserve shape from parser for shape-aware rendering
936      shape: mNode.shape,
937      index,
938      gridCoord: null,
939      drawingCoord: null,
940      drawing: null,
941      drawn: false,
942      styleClassName: "",
943      styleClass: EMPTY_STYLE
944    };
945    nodeMap.set(id, asciiNode);
946    index++;
947  }
948  const nodes = [...nodeMap.values()];
949  const edges = [];
950  for (const mEdge of parsed.edges) {
951    const from = nodeMap.get(mEdge.source);
952    const to = nodeMap.get(mEdge.target);
953    if (!from || !to) continue;
954    edges.push({
955      from,
956      to,
957      text: mEdge.label ?? "",
958      path: [],
959      labelLine: [],
960      startDir: { x: 0, y: 0 },
961      endDir: { x: 0, y: 0 },
962      style: mEdge.style,
963      hasArrowStart: mEdge.hasArrowStart,
964      hasArrowEnd: mEdge.hasArrowEnd
965    });
966  }
967  const subgraphs = [];
968  for (const mSg of parsed.subgraphs) {
969    convertSubgraph(mSg, null, nodeMap, subgraphs);
970  }
971  deduplicateSubgraphNodes(parsed.subgraphs, subgraphs, nodeMap, parsed);
972  for (const [nodeId, className] of parsed.classAssignments) {
973    const node = nodeMap.get(nodeId);
974    const classDef = parsed.classDefs.get(className);
975    if (node && classDef) {
976      node.styleClassName = className;
977      node.styleClass = { name: className, styles: classDef };
978    }
979  }
980  return {
981    nodes,
982    edges,
983    canvas: mkCanvas(0, 0),
984    roleCanvas: mkRoleCanvas(0, 0),
985    grid: /* @__PURE__ */ new Map(),
986    columnWidth: /* @__PURE__ */ new Map(),
987    rowHeight: /* @__PURE__ */ new Map(),
988    subgraphs,
989    config,
990    offsetX: 0,
991    offsetY: 0,
992    bundles: []
993    // Populated by analyzeEdgeBundles() during layout
994  };
995}
996function convertSubgraph(mSg, parent, nodeMap, allSubgraphs) {
997  let normalizedDirection;
998  if (mSg.direction) {
999    normalizedDirection = mSg.direction === "LR" || mSg.direction === "RL" ? "LR" : "TD";
1000  }
1001  const sg = {
1002    name: mSg.label,
1003    nodes: [],
1004    parent,
1005    children: [],
1006    minX: 0,
1007    minY: 0,
1008    maxX: 0,
1009    maxY: 0,
1010    direction: normalizedDirection
1011  };
1012  for (const nodeId of mSg.nodeIds) {
1013    const node = nodeMap.get(nodeId);
1014    if (node) sg.nodes.push(node);
1015  }
1016  allSubgraphs.push(sg);
1017  for (const childMSg of mSg.children) {
1018    const child = convertSubgraph(childMSg, sg, nodeMap, allSubgraphs);
1019    sg.children.push(child);
1020    for (const childNode of child.nodes) {
1021      if (!sg.nodes.includes(childNode)) {
1022        sg.nodes.push(childNode);
1023      }
1024    }
1025  }
1026  return sg;
1027}
1028function deduplicateSubgraphNodes(mermaidSubgraphs, asciiSubgraphs, nodeMap, parsed) {
1029  const sgMap = /* @__PURE__ */ new Map();
1030  buildSgMap(mermaidSubgraphs, asciiSubgraphs, sgMap);
1031  const nodeOwner = /* @__PURE__ */ new Map();
1032  function claimNodes(mSg) {
1033    const asciiSg = sgMap.get(mSg);
1034    if (!asciiSg) return;
1035    for (const child of mSg.children) {
1036      claimNodes(child);
1037    }
1038    for (const nodeId of mSg.nodeIds) {
1039      if (!nodeOwner.has(nodeId)) {
1040        nodeOwner.set(nodeId, asciiSg);
1041      }
1042    }
1043  }
1044  for (const mSg of mermaidSubgraphs) {
1045    claimNodes(mSg);
1046  }
1047  for (const asciiSg of asciiSubgraphs) {
1048    asciiSg.nodes = asciiSg.nodes.filter((node) => {
1049      let nodeId;
1050      for (const [id, n] of nodeMap) {
1051        if (n === node) {
1052          nodeId = id;
1053          break;
1054        }
1055      }
1056      if (!nodeId) return false;
1057      const owner = nodeOwner.get(nodeId);
1058      if (!owner) return true;
1059      return isAncestorOrSelf(asciiSg, owner);
1060    });
1061  }
1062}
1063function isAncestorOrSelf(candidate, target) {
1064  let current = target;
1065  while (current !== null) {
1066    if (current === candidate) return true;
1067    current = current.parent;
1068  }
1069  return false;
1070}
1071function buildSgMap(mSgs, aSgs, result) {
1072  const flatMermaid = [];
1073  function flatten(sgs) {
1074    for (const sg of sgs) {
1075      flatMermaid.push(sg);
1076      flatten(sg.children);
1077    }
1078  }
1079  flatten(mSgs);
1080  for (let i = 0; i < flatMermaid.length && i < aSgs.length; i++) {
1081    result.set(flatMermaid[i], aSgs[i]);
1082  }
1083}
1084
1085// node_modules/beautiful-mermaid/src/ascii/pathfinder.ts
1086var MinHeap = class {
1087  items = [];
1088  get length() {
1089    return this.items.length;
1090  }
1091  push(item) {
1092    this.items.push(item);
1093    this.bubbleUp(this.items.length - 1);
1094  }
1095  pop() {
1096    if (this.items.length === 0) return void 0;
1097    const top = this.items[0];
1098    const last = this.items.pop();
1099    if (this.items.length > 0) {
1100      this.items[0] = last;
1101      this.sinkDown(0);
1102    }
1103    return top;
1104  }
1105  bubbleUp(i) {
1106    while (i > 0) {
1107      const parent = i - 1 >> 1;
1108      if (this.items[i].priority < this.items[parent].priority) {
1109        ;
1110        [this.items[i], this.items[parent]] = [this.items[parent], this.items[i]];
1111        i = parent;
1112      } else {
1113        break;
1114      }
1115    }
1116  }
1117  sinkDown(i) {
1118    const n = this.items.length;
1119    while (true) {
1120      let smallest = i;
1121      const left = 2 * i + 1;
1122      const right = 2 * i + 2;
1123      if (left < n && this.items[left].priority < this.items[smallest].priority) {
1124        smallest = left;
1125      }
1126      if (right < n && this.items[right].priority < this.items[smallest].priority) {
1127        smallest = right;
1128      }
1129      if (smallest !== i) {
1130        ;
1131        [this.items[i], this.items[smallest]] = [this.items[smallest], this.items[i]];
1132        i = smallest;
1133      } else {
1134        break;
1135      }
1136    }
1137  }
1138};
1139function heuristic(a, b) {
1140  const absX = Math.abs(a.x - b.x);
1141  const absY = Math.abs(a.y - b.y);
1142  if (absX === 0 || absY === 0) {
1143    return absX + absY;
1144  }
1145  return absX + absY + 1;
1146}
1147var MOVE_DIRS = [
1148  { x: 1, y: 0 },
1149  { x: -1, y: 0 },
1150  { x: 0, y: 1 },
1151  { x: 0, y: -1 }
1152];
1153function isFreeInGrid(grid, c) {
1154  if (c.x < 0 || c.y < 0) return false;
1155  return !grid.has(gridKey(c));
1156}
1157function getPath(grid, from, to) {
1158  const pq = new MinHeap();
1159  pq.push({ coord: from, priority: 0 });
1160  const costSoFar = /* @__PURE__ */ new Map();
1161  costSoFar.set(gridKey(from), 0);
1162  const cameFrom = /* @__PURE__ */ new Map();
1163  cameFrom.set(gridKey(from), null);
1164  while (pq.length > 0) {
1165    const current = pq.pop().coord;
1166    if (gridCoordEquals(current, to)) {
1167      const path = [];
1168      let c = current;
1169      while (c !== null) {
1170        path.unshift(c);
1171        c = cameFrom.get(gridKey(c)) ?? null;
1172      }
1173      return path;
1174    }
1175    const currentCost = costSoFar.get(gridKey(current));
1176    for (const dir of MOVE_DIRS) {
1177      const next = { x: current.x + dir.x, y: current.y + dir.y };
1178      if (!isFreeInGrid(grid, next) && !gridCoordEquals(next, to)) {
1179        continue;
1180      }
1181      const newCost = currentCost + 1;
1182      const nextKey = gridKey(next);
1183      const existingCost = costSoFar.get(nextKey);
1184      if (existingCost === void 0 || newCost < existingCost) {
1185        costSoFar.set(nextKey, newCost);
1186        const priority = newCost + heuristic(next, to);
1187        pq.push({ coord: next, priority });
1188        cameFrom.set(nextKey, current);
1189      }
1190    }
1191  }
1192  return null;
1193}
1194function mergePath(path) {
1195  if (path.length <= 2) return path;
1196  const toRemove = /* @__PURE__ */ new Set();
1197  let step0 = path[0];
1198  let step1 = path[1];
1199  for (let idx = 2; idx < path.length; idx++) {
1200    const step2 = path[idx];
