crab-crew

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { Activity, Captain, CrewMember, CrewPanel } from '../types'
5import {
6  BAND_H,
7  FINISHED_H,
8  HEADER_H,
9  ROSTER_H,
10  RUNNING_H,
11  asciiLane,
12  bandSvg,
13  finishedSvg,
14  headerSvg,
15  rosterSvg,
16  runningSvg,
17} from './art'
18import {
19  CAPTAIN,
20  CHEER_MS,
21  ROSTER,
22  actionOf,
23  activityOf,
24  captainQuip,
25  characterKeyOf,
26  characterOf,
27  crewNameOf,
28  crewProgress,
29  crewSummary,
30  crewTotals,
31  detailOf,
32  elapsed,
33  fmtTime,
34  fmtTokens,
35  modelName,
36  poseOf,
37  progressLabel,
38  progressOf,
39  quipOf,
40  statusOf,
41  titleOf,
42  todoPatch,
43} from './crew'
44
45const crew = atom({ plugin: 'crab-crew', key: 'crew' } as const, [])
46const captain = atom({ plugin: 'crab-crew', key: 'captain' } as const, {
47  isBusy: false,
48  activity: 'other',
49  detail: '',
50  lastActiveAt: 0,
51})
52const panel = atom({ plugin: 'crab-crew', key: 'panel' } as const, {
53  isDoneCollapsed: false,
54  isRosterOpen: false,
55  hasAutoOpened: false,
56  bandSince: 0,
57})
58const now = atom({ plugin: 'crab-crew', key: 'now' } as const, 0)
59
60const PANE = 'crab-crew'
61const PANE_TITLE = 'Crab Crew'
62const MAX_CREW = 60
63const CLAY = '#D97757'
64const STATUS_GLYPH: Record<string, string> = { running: '●', done: '✓', failed: '✗', stopped: '■' }
65
66/** The panel is decoration: nothing it does may break a tool call, a spawn or a turn. */
67async function safely(work: () => Promise<unknown>): Promise<void> {
68  try {
69    await work()
70  } catch {
71    // Dropped: a missed update only costs a frame of the drawing.
72  }
73}
74
75const touch = ($: EngineInterface, agentId: string, fn: (m: CrewMember) => CrewMember) =>
76  update($, crew, list => list.map(m => (m.agentId === agentId ? fn(m) : m)))
77
78const setCaptain = ($: EngineInterface, patch: Partial<Captain>) => update($, captain, c => ({ ...c, ...patch }))
79
80async function openPane($: EngineInterface): Promise<void> {
81  const at = await $.clock.now()
82  await update($, now, () => at)
83  await $.ui.open({ id: PANE, title: PANE_TITLE })
84}
85
86// Opens the crew pane, or closes it when it is up; true when it ends up open.
87async function togglePane($: EngineInterface): Promise<boolean> {
88  const isOpen = (await $.ui.panes()).some(p => p.id === PANE)
89  if (isOpen) {
90    await $.ui.close({ id: PANE })
91    return false
92  }
93  await openPane($)
94  return true
95}
96
97/** Crew the band shows: started or finished after the person last moved on. */
98const bandCrew = (list: readonly CrewMember[], p: CrewPanel): CrewMember[] =>
99  list.filter(m => m.startedAt > p.bandSince || (m.endedAt ?? -1) > p.bandSince)
100
101export const register: Register = (on, options) => {
102  const autoOpen = options.autoOpen !== false
103  const showQuips = options.showQuips !== false
104
105  on('session.start', async ($, e, next) => {
106    const started = await next(e)
107    await $.command.register({
108      name: 'crew',
109      description: 'Show or hide the Crab Crew: every subagent as a crab with a role, animated by its status and progress',
110    })
111
112    // Ticks the clocks and the animations' poses while anyone works or celebrates; quiet otherwise.
113    $.clock.every(1000, () => {
114      void safely(async () => {
115        const list = await read($, crew)
116        const at = await $.clock.now()
117        const isLive = list.some(m => m.status === 'running' || (m.endedAt !== undefined && at - m.endedAt < CHEER_MS + 1000))
118        if (isLive) await update($, now, () => at)
119      })
120    })
121    return started
122  })
123
124  on('command.run', { command: 'crew' }, async $ => {
125    const isOpen = await togglePane($)
126    return { text: isOpen ? 'All hands on deck: the Crab Crew is up.' : 'Crab Crew stood down.' }
127  })
128
129  // A new subagent joins the crew, cast by its agent type.
130  on('agent.spawn', async ($, e, next) => {
131    const started = await next(e)
132    if (started.deny !== undefined) return started
133
134    await safely(async () => {
135      const at = await $.clock.now()
136      const character = characterKeyOf(e.subagentType)
137      await update($, crew, list => {
138        const member: CrewMember = {
139          id: started.agentId ?? e.tool_use_id,
140          agentId: started.agentId,
141          type: e.subagentType,
142          character,
143          name: crewNameOf(character, list),
144          description: e.description,
145          model: started.model,
146          status: 'running',
147          startedAt: at,
148          lastActiveAt: at,
149          activity: 'start',
150          detail: '',
151          toolCalls: 0,
152          errors: 0,
153          steps: 0,
154          contextTokens: 0,
155          tokens: 0,
156        }
157        return [...list.filter(m => m.id !== member.id), member].slice(-MAX_CREW)
158      })
159      await update($, now, () => at)
160      if (!autoOpen) return
161      const p = await read($, panel)
162      if (p.hasAutoOpened) return
163      await update($, panel, prev => ({ ...prev, hasAutoOpened: true }))
164      await $.ui.open({ id: PANE, title: PANE_TITLE })
165    })
166    return started
167  }).catch(($, e, next) => next(e))
168
169  // Each model request: the crab (or the captain) is thinking; then its tokens.
170  on('turn.step', async function* ($, e, next) {
171    const agentId = e.agentId
172    await safely(async () => {
173      const at = await $.clock.now()
174      if (agentId) {
175        await touch($, agentId, m => ({
176          ...m,
177          status: 'running',
178          endedAt: undefined,
179          activity: 'think',
180          detail: '',
181          lastActiveAt: at,
182          effort: typeof e.effort === 'string' ? e.effort : m.effort,
183        }))
184      } else {
185        await setCaptain($, { isBusy: true, activity: 'think', detail: '', lastActiveAt: at })
186      }
187    })
188
189    const result = yield* next(e)
190
191    await safely(async () => {
192      const usage = result.usage
193      if (!agentId || !usage) return
194      const sum =
195        (usage.input_tokens || 0) +
196        (usage.output_tokens || 0) +
197        (usage.cache_read_input_tokens || 0) +
198        (usage.cache_creation_input_tokens || 0)
199      await touch($, agentId, m => ({
200        ...m,
201        model: usage.model || m.model,
202        contextTokens: sum,
203        tokens: m.tokens + sum,
204        steps: m.steps + 1,
205      }))
206    })
207    return result
208  })
209
210  // Every tool call: what the crab is doing, its todos, and how its calls went.
211  on('tool.call', async ($, e, next) => {
212    const tool = String(e.tool)
213    const input = e as unknown as Record<string, unknown>
214    const activity: Activity = activityOf(tool)
215    const detail = detailOf(input)
216    const agentId = e.agentId
217
218    await safely(async () => {
219      const at = await $.clock.now()
220      if (agentId) {
221        await touch($, agentId, m => ({
222          ...m,
223          activity,
224          detail,
225          lastActiveAt: at,
226          toolCalls: m.toolCalls + 1,
227          ...todoPatch(tool, input, m),
228        }))
229      } else {
230        await setCaptain($, { isBusy: true, activity, detail, lastActiveAt: at })
231      }
232    })
233
234    const result = await next(e)
235
236    await safely(async () => {
237      if (!agentId) return
238      const at = await $.clock.now()
239      await touch($, agentId, m => ({ ...m, lastActiveAt: at, errors: m.errors + (result.isError ? 1 : 0) }))
240    })
241    return result
242  }).catch(($, e, next) => next(e))
243
244  // A run ends: back aboard, overboard, or called back.
245  on('turn.complete', async ($, e, next) => {
246    await safely(async () => {
247      const at = await $.clock.now()
248      if (e.agentId) {
249        const usage = e.usage
250        await touch($, e.agentId as string, m => ({
251          ...m,
252          status: statusOf(e.reason),
253          endedAt: at,
254          lastActiveAt: at,
255          ...(m.steps === 0 && usage
256            ? {
257                model: usage.model || m.model,
258                tokens:
259                  usage.input_tokens + usage.output_tokens + usage.cache_read_input_tokens + usage.cache_creation_input_tokens,
260              }
261            : {}),
262        }))
263      } else {
264        await setCaptain($, { isBusy: false, activity: 'other', detail: '', lastActiveAt: at })
265      }
266      await update($, now, () => at)
267    })
268    return next(e)
269  })
270
271  // A new prompt with nobody out: the band clears; the panel keeps the history.
272  on('prompt.submit', async ($, e, next) => {
273    await safely(async () => {
274      const list = await read($, crew)
275      if (list.some(m => m.status === 'running')) return
276      const at = await $.clock.now()
277      await update($, panel, p => ({ ...p, bandSince: at }))
278    })
279    return next(e)
280  }).catch(($, e, next) => next(e))

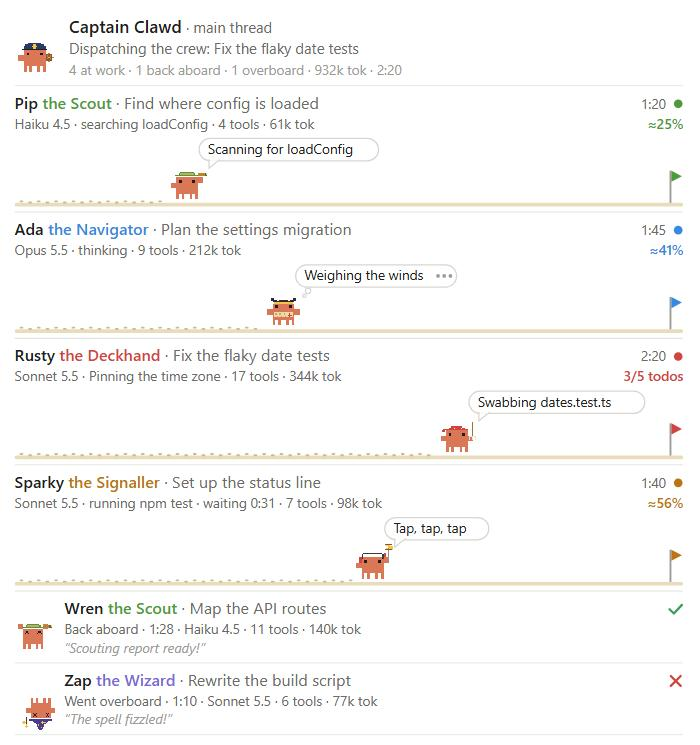

281
282  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
283    const ui = $.ui.resolve(e)
284    const { Box, Text, Button } = ui
285    const list = await read($, crew)
286    const c = await read($, captain)
287    const p = await read($, panel)
288    const at = Math.max(await read($, now), ...list.map(m => m.startedAt), 0)
289    const tick = Math.floor(at / 1000)
290
291    const running = list.filter(m => m.status === 'running').reverse()
292    const finished = list.filter(m => m.status !== 'running').reverse()
293    const isRosterShown = p.isRosterOpen || list.length === 0
294
295    const toggleRoster = (
296      <Button
297        key="roster"
298        label={p.isRosterOpen ? 'Hide roster' : 'Meet the crew'}
299        plain
300        onPress={() => update($, panel, prev => ({ ...prev, isRosterOpen: !prev.isRosterOpen }))}
301      />
302    )
303    const toggleDone = (
304      <Button
305        key="done"
306        label={`${p.isDoneCollapsed ? '▸' : '▾'} Back from duty · ${finished.length}`}
307        plain
308        onPress={() => update($, panel, prev => ({ ...prev, isDoneCollapsed: !prev.isDoneCollapsed }))}
309      />
310    )
311
312    if (e.surface === 'desktop' && 'Svg' in ui) {
313      const { Svg } = ui
314      const W = Math.max(260, Math.min(900, (e.props.bodyColumns || 40) * 8 - 8))
315      return (
316        <Box flexDirection="column">
317          <Svg
318            source={headerSvg(W, c, list, at)}
319            alt={`${CAPTAIN.name}: ${captainQuip(c)}. ${crewSummary(list, at)}`}
320            width={W}
321            height={HEADER_H}
322          />
323          {list.length > 0 && toggleRoster}
324          {running.length > 0 && <Text dimColor>At work · {running.length}</Text>}
325          {running.map(m => (
326            <Svg
327              key={m.id}
328              source={runningSvg(W, m, at, showQuips)}
329              alt={`${titleOf(m)}: ${m.description}. ${actionOf(m, at)}, ${progressLabel(m)}`}
330              width={W}
331              height={RUNNING_H}
332            />
333          ))}
334          {finished.length > 0 && toggleDone}
335          {!p.isDoneCollapsed &&
336            finished.map(m => (
337              <Svg
338                key={m.id}
339                source={finishedSvg(W, m, at, showQuips)}
340                alt={`${titleOf(m)}: ${m.description}. ${actionOf(m, at)}`}
341                width={W}
342                height={FINISHED_H}
343              />
344            ))}
345          {isRosterShown && <Text dimColor>{list.length ? 'The roster' : 'No crew out yet. Meet the roster:'}</Text>}
346          {isRosterShown &&
347            ROSTER.map(r => (
348              <Svg
349                key={`roster-${r.character.key}`}
350                source={rosterSvg(W, r.character, r.types)}
351                alt={`${r.character.role} (${r.types}): ${r.character.trait}`}
352                width={W}
353                height={ROSTER_H}
354              />
355            ))}
356        </Box>
357      )
358    }
359
360    // Terminal and the other text surfaces: the same crew in text, ASCII crabs on their lanes.
361    const cols = Math.max(28, e.props.bodyColumns || 40)
362    const row = (m: CrewMember) => {
363      const ch = characterOf(m.character)
364      const pose = poseOf(m, at)
365      const lane = asciiLane(pose, tick, progressOf(m).value, Math.min(cols - 2, 48))
366      const isRunning = m.status === 'running'
367      return (
368        <Box key={m.id} flexDirection="column" marginBottom={1}>
369          <Box flexDirection="row" gap={1}>
370            <Text color={ch.color} bold wrap="truncate-end">
371              {titleOf(m)}
372            </Text>
373            <Text dimColor wrap="truncate-end">
374              {m.description || m.type}
375            </Text>
376            <Text color={m.status === 'failed' ? 'red' : m.status === 'done' ? 'green' : ch.color}>{STATUS_GLYPH[m.status]}</Text>
377          </Box>
378          {isRunning ? (
379            <Text wrap="truncate-end">
380              <Text dimColor>{lane.before}</Text>
381              <Text color={CLAY}>{lane.crab}</Text>
382              <Text color={ch.color}>{lane.after}</Text>
383            </Text>
384          ) : (
385            <Text wrap="truncate-end">
386              <Text color={CLAY}>{lane.crab}</Text>
387            </Text>
388          )}
389          {showQuips && (
390            <Text italic dimColor wrap="truncate-end">
391              {'  “'}
392              {quipOf(m, at)}
393              {'”'}
394            </Text>
395          )}
396          <Text dimColor wrap="truncate-end">
397            {'  '}
398            {[modelName(m.model), actionOf(m, at), progressLabel(m), `${m.toolCalls} tools`, m.tokens ? `${fmtTokens(m.tokens)} tok` : '', fmtTime(elapsed(m, at))]
399              .filter(Boolean)
400              .join(' · ')}
401          </Text>
402        </Box>
403      )
404    }
405
406    const t = crewTotals(list, at)
407    return (
408      <Box flexDirection="column">
409        <Text wrap="truncate-end">
410          <Text color={CLAY}>{c.isBusy ? '(\\/)(°,,°)(\\/)' : '(\\/)(-,,-)(\\/) z'}</Text>{' '}
411          <Text bold color={CAPTAIN.color}>
412            {CAPTAIN.name}
413          </Text>
414          <Text dimColor> · {captainQuip(c)}</Text>
415        </Text>
416        <Text dimColor wrap="truncate-end">
417          {list.length ? `${crewSummary(list, at)} · ${fmtTokens(t.tokens)} tok · ${fmtTime(t.time)}` : 'No crew dispatched yet.'}
418        </Text>
419        {list.length > 0 && toggleRoster}
420        <Box flexDirection="column" marginTop={1}>
421          {running.length > 0 && <Text dimColor>At work · {running.length}</Text>}
422          {running.map(row)}
423          {finished.length > 0 && toggleDone}
424          {!p.isDoneCollapsed && finished.map(row)}
425          {isRosterShown && <Text dimColor>{list.length ? 'The roster' : 'Meet the roster:'}</Text>}
426          {isRosterShown &&
427            ROSTER.map(r => (
428              <Text key={`roster-${r.character.key}`} wrap="truncate-end">
429                <Text color={r.character.color} bold>
430                  {r.character.role}
431                </Text>
432                <Text dimColor>
433                  {' '}
434                  ({r.types}) {r.character.trait}
435                </Text>
436              </Text>
437            ))}
438        </Box>
439      </Box>
440    )
441  })
442
443  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
444    if (e.props.hasSurvey) return next(e)
445    const list = await read($, crew)
446    const p = await read($, panel)
447    const shown = bandCrew(list, p)
448    if (shown.length === 0) return next(e)
449
450    const ui = $.ui.resolve(e)
451    const { Box, Text, Button } = ui
452    const at = Math.max(await read($, now), ...shown.map(m => m.startedAt))
453    const progress = crewProgress(shown)
454    const crewButton = <Button key="crab-crew-open" label={`Crew ×${shown.length}`} plain onPress={() => void togglePane($)} />
455    const dismiss = (
456      <Button
457        key="crab-crew-dismiss"
458        label="✕"
459        plain
460        role="dismiss"
461        onPress={async () => {
462          const t = await $.clock.now()
463          await update($, panel, prev => ({ ...prev, bandSince: t }))
464        }}
465      />
466    )
467
468    if ('Svg' in ui) {
469      const { Svg } = ui
470      const width = Math.max(200, Math.min(1600, (e.props.bodyColumns || 100) * 8 - 120))
471      return (
472        <Box flexDirection="row" alignItems="center" gap={1}>
473          <Svg source={bandSvg(width, shown, at, progress)} alt={`Crab Crew: ${crewSummary(shown, at)}`} width={width} height={BAND_H} />
474          {crewButton}
475          {dismiss}
476        </Box>
477      )
478    }
479
480    const running = shown.filter(m => m.status === 'running')
481    const lead = running[0]
482    const tick = Math.floor(at / 1000)
483    const crabFace = running.length ? (tick % 2 ? '(\\|)(°,,°)(|/)' : '(\\/)(°,,°)(\\/)') : '\\(^,,^)/'
484    const barW = Math.max(6, Math.min(20, e.props.bodyColumns - 60))
485    const filled = Math.round(barW * progress)
486    return (
487      <Box flexDirection="row" gap={1}>
488        <Text color={CLAY}>{crabFace}</Text>
489        <Text wrap="truncate-end">
490          {lead ? `${titleOf(lead)}: ${quipOf(lead, at)}` : 'All back aboard'}
491          <Text dimColor> · {crewSummary(shown, at)}</Text>
492        </Text>
493        <Text color={running.length ? CLAY : 'green'}>{'█'.repeat(filled) + '░'.repeat(Math.max(0, barW - filled))}</Text>
494        {crewButton}
495        {dismiss}
496      </Box>
497    )
498  })
499}
500

1import type { Captain, CrewMember } from '../types'
2import {
3  CAPTAIN,
4  actionOf,
5  captainQuip,
6  characterOf,
7  crewSummary,
8  crewTotals,
9  elapsed,
10  fmtTime,
11  fmtTokens,
12  modelName,
13  poseOf,
14  progressLabel,
15  progressOf,
16  quipOf,
17  titleOf,
18} from './crew'
19import type { Character, Pose } from './crew'
20
21// ---------------------------------------------------------------------------
22// Pixel crabs: a 30×28 grid, one costume per character. The body keeps the
23// brand clay; the character lives in its hat, its prop and how it moves.
24
25const CLAY = '#D97757'
26const INK = '#1F1E1D'
27const GOLD = '#F5C542'
28
29/** `cls` puts a pixel in a group: `bd` (default) body and costume, `la`/`lb` the leg pairs, else a prop. */
30type Fill = (x: number, y: number, w: number, h: number, c: string, cls?: string) => void
31
32const stamp = (f: Fill, x: number, y: number, rows: readonly string[], map: Record<string, string>, cls?: string): void =>
33  rows.forEach((row, dy) => [...row].forEach((ch, dx) => map[ch] && f(x + dx, y + dy, 1, 1, map[ch] ?? '', cls)))
34
35type Face = 'open' | 'up' | 'happy' | 'x' | 'closed'
36
37const eyes = (f: Fill, face: Face): void => {
38  for (const x of [9, 19]) {
39    if (face === 'open') f(x, 12, 2, 2, INK)
40    else if (face === 'up') f(x, 11, 2, 2, INK)
41    else if (face === 'happy') stamp(f, x - 1, 12, ['.kk.', 'k..k'], { k: INK })
42    else if (face === 'x') stamp(f, x - 1, 11, ['k.k', '.k.', 'k.k'], { k: INK })
43    else f(x - 1, 13, 4, 1, INK)
44  }
45}
46
47type Look = { face: Face; armL: number; armR: number }
48
49const body = (f: Fill, look: Look): void => {
50  f(7, 10, 16, 12, CLAY)
51  f(3, 14 + look.armL, 4, 4, CLAY)
52  f(23, 14 + look.armR, 4, 4, CLAY)
53  eyes(f, look.face)
54  f(7, 22, 2, 4, CLAY, 'la')
55  f(17, 22, 2, 4, CLAY, 'la')
56  f(11, 22, 2, 4, CLAY, 'lb')
57  f(21, 22, 2, 4, CLAY, 'lb')
58}
59
60type Costume = {
61  /** How far the right claw is raised to hold the prop (negative is up). */
62  hold: number
63  draw: (f: Fill, color: string) => void
64}
65
66const COSTUMES: Record<string, Costume> = {
67  // Captain: navy cap with a gold badge; turns the helm while the main thread works.
68  captain: {
69    hold: 0,
70    draw: f => {
71      stamp(f, 6, 5, ['....nnnnnnnnnn....', '..nnnnnnggnnnnnn..', '.nnnnnnggggnnnnnn.', '.nnnnnnnggnnnnnnn.', 'kkkkkkkkkkkkkkkkkk'], { n: '#2B3A67', g: GOLD, k: INK })
72      stamp(f, 22, 12, ['...h...', '.bbbbb.', '.b.b.b.', 'hbbsbbh', '.b.b.b.', '.bbbbb.', '...h...'], { b: '#8B5A2B', h: '#C08A50', s: GOLD }, 'wh')
73    },
74  },
75  // Deckhand: red bandana; swishes a mop.
76  deckhand: {
77    hold: 0,
78    draw: (f, t) => {
79      stamp(f, 7, 7, ['....rrrrrrrr....', '..rrrrwrrrrwrr..', 'rrrrrrrrrrrrrrrr'], { r: t, w: '#F8F6F1' })
80      f(5, 9, 2, 1, t)
81      f(4, 10, 2, 1, t)
82      stamp(f, 24, 4, ['..h..', '..h..', '..h..', '..h..', '..h..', '..h..', '..h..', '..h..', '..h..', '..h..', 'mmmmm', 'm.m.m', 'm.m.m'], { h: '#A0703F', m: '#E9E4D6' }, 'mop')
83    },
84  },
85  // Scout: bush hat; sweeps the horizon with a spyglass.
86  scout: {
87    hold: -4,
88    draw: (f, t) => {
89      stamp(f, 6, 6, ['....gggggggggg....', '...gyyyyyyyyyyg...', 'gggggggggggggggggg'], { g: t, y: '#C9A86A' })
90      stamp(f, 23, 7, ['bbbbbll', 'bbbbbll'], { b: '#B8862B', l: '#7A5A1E' }, 'sg')
91      f(29, 7, 1, 1, '#A9D6F5', 'sg')
92    },
93  },
94  // Navigator: bicorne; unrolls a chart.
95  navigator: {
96    hold: 0,
97    draw: f => {
98      stamp(f, 6, 6, ['kk..............kk', 'kkkk..kkkkkk..kkkk', '.kkkkkkkkkkkkkkkk.', '..gggggggggggggg..'], { k: '#2F2A3A', g: GOLD })
99      stamp(f, 8, 16, ['pppppppppppppp', 'p.pp.pp.ppprpp', 'pppppppppprrrp', 'pp.pp.pp.pprpp'], { p: '#EBD9A8', '.': '#C9A86A', r: '#D0453F' }, 'map')
100    },
101  },
102  // Professor: mortarboard and spectacles (drawn after the eyes); flips the pages of a book.
103  professor: {
104    hold: 0,
105    draw: f => {
106      stamp(f, 5, 5, ['.....kkkkkkkkkk.....', 'kkkkkkkkkkkkkkkkkkkk', '.....kkkkkkkkkk.....', '......kkkkkkkkk.....'], { k: '#2F2A3A' })
107      f(23, 6, 1, 4, GOLD, 'ts')
108      f(22, 10, 3, 1, GOLD, 'ts')
109      for (const x of [8, 18]) {
110        f(x, 11, 4, 1, '#3A3A3C')
111        f(x, 14, 4, 1, '#3A3A3C')
112        f(x, 11, 1, 4, '#3A3A3C')
113        f(x + 3, 11, 1, 4, '#3A3A3C')
114      }
115      f(12, 12, 6, 1, '#3A3A3C')
116      stamp(f, 0, 13, ['bbb.bbb', 'bwwbwwb', 'bwwbwwb', 'bbbbbbb'], { b: '#6B3E9E', w: '#F8F6F1' })
117      f(4, 14, 2, 2, '#E9E4D6', 'pg')
118    },
119  },
120  // Signaller: headset; waves a semaphore flag.
121  signaller: {
122    hold: -4,
123    draw: f => {
124      f(8, 7, 14, 1, '#3A3A3C')
125      f(7, 8, 1, 3, '#3A3A3C')
126      f(22, 8, 1, 3, '#3A3A3C')
127      f(5, 10, 2, 4, '#D0453F')
128      f(23, 7, 2, 3, '#D0453F')
129      f(26, 2, 1, 12, '#8E929A')
130      stamp(f, 27, 2, ['yyy', 'ryy', 'rry'], { y: GOLD, r: '#D0453F' }, 'fl')
131    },
132  },
133  // Echo (a fork): beanie with a pompom; a faint double of the captain.
134  echo: {
135    hold: 0,
136    draw: (f, t) => {
137      stamp(f, 7, 5, ['.......pp.......', '....pppppppp....', '..pppppppppppp..', '.pppppppppppppp.', 'wwwwwwwwwwwwwwww'], { p: t, w: '#C9BFFA' })
138    },
139  },
140  // Cook: toque; tosses an omelette.
141  cook: {
142    hold: -4,
143    draw: f => {
144      stamp(f, 7, 1, ['...wwwwwwwwww...', '.wwwwwwwwwwwwww.', 'wwwwwwwwwwwwwwww', 'wwwwwwgwwwwgwwww', '.wwwwwgwwwwgwww.', '..wwwwgwwwwgww..', '..gggggggggggg..', '..wwwwwwwwwwww..', '..wwwwwwwwwwww..'], { w: '#F4F3EE', g: '#D2D1C8' })
145      f(22, 9, 7, 2, '#4A4A48')
146      f(24, 8, 3, 1, '#F5B731', 'eg')
147    },
148  },
149  // Sleuth: deerstalker; peers through a magnifier.
150  sleuth: {
151    hold: -4,
152    draw: f => {
153      stamp(f, 6, 4, ['......bbbbbb......', '....bbcbbcbbbb....', '...bbbbbbbbbbbb...', '..bcbbcbbcbbcbbb..', '.bbbbbbbbbbbbbbbb.', 'dddddddddddddddddd'], { b: '#7A4A26', c: '#A0703F', d: '#5A3519' })
154      stamp(f, 23, 2, ['.kkk.', 'k...k', 'k...k', 'k...k', '.kkk.'], { k: '#3A3A3C' }, 'mg')
155      f(24, 3, 3, 3, 'rgba(169,214,245,.7)', 'mg')
156      f(25, 7, 1, 3, '#7A4A26', 'mg')
157    },
158  },
159  // Wizard: starry hat; the wand sparkles.
160  wizard: {
161    hold: -4,
162    draw: f => {
163      stamp(f, 7, 0, ['.......bb.......', '......bbbb......', '......bsbb......', '.....bbbbbb.....', '.....bbbbsb.....', '....bbbbbbbb....', '...bsbbbbbbbb...', '..bbbbbbbbbbbb..', 'bbbbbbbbbbbbbbbb'], { b: '#4B3B8F', s: GOLD })
164      f(6, 8, 18, 1, '#4B3B8F')
165      f(26, 5, 1, 6, '#5A3519')
166      stamp(f, 25, 2, ['.s.', 'sss', '.s.'], { s: GOLD }, 'sp')
167    },
168  },
169  // Diver: mask and snorkel; bubbles rise.
170  diver: {
171    hold: 0,
172    draw: f => {
173      f(7, 10, 16, 1, '#2E8BC0')
174      stamp(f, 7, 11, ['mggggm..mggggm', 'mggggmmmmggggm', 'mmmmmm..mmmmmm'], { m: '#2E8BC0', g: 'rgba(169,214,245,.45)' })
175      f(23, 4, 1, 8, '#F07E2E')
176      f(21, 11, 2, 1, '#F07E2E')
177      f(24, 1, 2, 2, '#A9D6F5', 'bu')
178      f(26, 0, 1, 1, '#A9D6F5', 'bu2')
179    },
180  },
181}
182
183
184const lookOf = (pose: Pose, hold: number): Look => {
185  switch (pose) {
186    case 'think':
187      return { face: 'up', armL: 0, armR: hold }
188    case 'cheer':
189      return { face: 'happy', armL: -8, armR: -8 }
190    case 'rest':
191      return { face: 'happy', armL: 0, armR: hold }
192    case 'dizzy':
193      return { face: 'x', armL: 0, armR: 0 }
194    case 'sleep':
195      return { face: 'closed', armL: 0, armR: 0 }
196    default:
197      return { face: 'open', armL: 0, armR: hold }
198  }
199}
200
201/**
202 * Pure CSS on the compositor, no redraws. Periods divide one second, so the
203 * once-a-second redraw of a running row restarts them in phase.
204 */
205export const CRAB_CSS = `<style>
206g{transform-box:fill-box}
207.p-walk .la{animation:st .5s steps(1) infinite}.p-walk .lb{animation:st .5s steps(1) infinite -.25s}.p-walk .bd{animation:bob .5s steps(1) infinite -.125s}
208.p-fast .la{animation:st .25s steps(1) infinite}.p-fast .lb{animation:st .25s steps(1) infinite -.125s}.p-fast .bd{animation:bob .25s steps(1) infinite}
209@keyframes st{50%{transform:translateY(-1px)}}@keyframes bob{50%{transform:translateY(1px)}}
210.p-think .bd{transform-origin:50% 100%;animation:sway 1s ease-in-out infinite}@keyframes sway{25%{transform:rotate(-3deg)}75%{transform:rotate(3deg)}}
211.p-wait .lb{animation:tap .5s steps(1) infinite}@keyframes tap{50%{transform:translateY(-2px)}}
212.p-cheer{animation:jump .5s ease-out infinite}@keyframes jump{40%{transform:translateY(-4px)}}
213.p-dizzy .la{animation:wig .25s steps(1) infinite}.p-dizzy .lb{animation:wig .25s steps(1) infinite -.125s}@keyframes wig{50%{transform:translateX(1px)}}
214.zz{opacity:0;animation:zz 2s linear infinite}.zz2{animation-delay:-1s}@keyframes zz{0%{opacity:0;transform:translate(0,0)}20%{opacity:1}100%{opacity:0;transform:translate(4px,-8px)}}
215.dot{animation:blink 1s steps(1) infinite}.dot2{animation-delay:-.66s}.dot3{animation-delay:-.33s}@keyframes blink{50%{opacity:.15}}
216.star{animation:blink .5s steps(1) infinite}.star2{animation-delay:-.25s}
217.hg{transform-origin:50% 50%;animation:hg 1s steps(1) infinite}@keyframes hg{50%{transform:rotate(180deg)}}
218.on .wh{transform-origin:50% 50%;animation:spin 1s linear infinite}@keyframes spin{to{transform:rotate(90deg)}}
219.on .mop{transform-origin:50% 0;animation:swish .5s ease-in-out infinite}@keyframes swish{25%{transform:rotate(-14deg)}75%{transform:rotate(14deg)}}
220.on .sg{transform-origin:0 50%;animation:scan 1s ease-in-out infinite}@keyframes scan{25%{transform:rotate(-12deg)}75%{transform:rotate(6deg)}}
221.on .map{transform-origin:0 50%;animation:unroll 1s ease-in-out infinite}@keyframes unroll{50%{transform:scaleX(.55)}}
222.on .pg{transform-origin:0 50%;animation:flip .5s steps(1) infinite}@keyframes flip{50%{transform:scaleX(-1)}}
223.on .ts{transform-origin:50% 0;animation:swing 1s ease-in-out infinite}@keyframes swing{25%{transform:rotate(20deg)}75%{transform:rotate(-20deg)}}
224.on .fl{transform-origin:0 50%;animation:wave .25s steps(1) infinite}@keyframes wave{50%{transform:skewY(-14deg) scaleX(.85)}}
225.on .eg{animation:toss 1s ease-in-out infinite}@keyframes toss{30%{transform:translateY(-5px) scaleY(-1)}60%{transform:none}}
226.on .mg{animation:peer 1s steps(1) infinite}@keyframes peer{25%{transform:translate(-1px,1px)}50%{transform:translate(-2px,2px)}75%{transform:translate(-1px,1px)}}
227.on .sp{animation:blink .25s steps(1) infinite}
228.on .bu,.on .bu2{animation:rise 1s linear infinite}.on .bu2{animation-delay:-.5s}@keyframes rise{0%{opacity:0;transform:translateY(2px)}30%{opacity:1}100%{opacity:0;transform:translateY(-6px)}}
229@media (prefers-reduced-motion: reduce){*{animation:none!important}.zz{opacity:1}}
230</style>`
231
232/** One crab at (x, y), in the costume of `key` (a character, or `captain`), drawn in `pose`. */
233export const crab = (x: number, y: number, key: string, pose: Pose, scale = 1.1, color = '#888780'): string => {
234  const groups = new Map<string, string[]>([['bd', []]])
235  const f: Fill = (cx, cy, w, h, c, cls = 'bd') => {
236    const list = groups.get(cls) ?? []
237    groups.set(cls, list)
238    list.push(`<rect x="${cx}" y="${cy}" width="${w}" height="${h}" fill="${c}"/>`)
239  }
240  const costume = COSTUMES[key] ?? COSTUMES.deckhand
241  body(f, lookOf(pose, costume?.hold ?? 0))
242  costume?.draw(f, color)
243
244  const group = (cls: string) => `<g class="${cls}">${(groups.get(cls) ?? []).join('')}</g>`
245  const props = [...groups.keys()].filter(k => k !== 'bd' && k !== 'la' && k !== 'lb')
246  const inner = `<g class="bd">${(groups.get('bd') ?? []).join('')}${props.map(group).join('')}</g>${group('la')}${group('lb')}`
247  const isOn = pose === 'walk' || pose === 'fast'
248  const flipped = pose === 'dizzy' ? `<g transform="rotate(180 15 17)">${inner}</g>` : inner
249
250  const extras: string[] = []
251  if (pose === 'dizzy') {
252    extras.push(`<g fill="${GOLD}"><rect class="star" x="6" y="27" width="3" height="1"/><rect class="star" x="7" y="26" width="1" height="3"/><rect class="star star2" x="21" y="27" width="3" height="1"/><rect class="star star2" x="22" y="26" width="1" height="3"/></g>`)
253  }
254  if (pose === 'sleep') {
255    extras.push(`<text class="zz m" x="24" y="9" font-family="${FONT}" font-size="7" font-weight="700">z</text><text class="zz zz2 m" x="27" y="5" font-family="${FONT}" font-size="5" font-weight="700">z</text>`)
256  }
257  if (pose === 'wait') {
258    const hg: string[] = []
259    stamp((cx, cy, w, h, c) => hg.push(`<rect x="${cx}" y="${cy}" width="${w}" height="${h}" fill="${c}"/>`), 24, 0, ['hhhhh', '.sss.', '..s..', '.s.s.', 'hhhhh'], { h: '#8B5A2B', s: GOLD })
260    extras.push(`<g class="hg">${hg.join('')}</g>`)
261  }
262
263  return `<g transform="translate(${x},${y}) scale(${scale})" shape-rendering="crispEdges"${pose === 'sleep' && key !== 'captain' ? ' opacity="0.7"' : ''}><g class="c-${key} p-${pose}${isOn ? ' on' : ''}">${flipped}</g>${extras.join('')}</g>`
264}
265
266// ---------------------------------------------------------------------------
267// Text measurement and SVG scaffolding.
268
269export const FONT = "-apple-system,BlinkMacSystemFont,'Segoe UI',sans-serif"
270
271export const xml = (s: string): string =>
272  s.replace(/[&<>"]/g, c => ({ '&': '&amp;', '<': '&lt;', '>': '&gt;', '"': '&quot;' })[c] ?? c)
273
274/** Rough advance of system UI text, in em; enough to size bubbles and cut lines. */
275const charEm = (ch: string): number => (/[\s.,:;'|!il1()[\]]/.test(ch) ? 0.3 : /[A-Zmw@%]/.test(ch) ? 0.72 : 0.56)
276
277export const textWidth = (s: string, size: number): number => [...s].reduce((w, ch) => w + charEm(ch) * size, 0)
278
279export const fitText = (s: string, size: number, maxW: number): string => {
280  if (textWidth(s, size) <= maxW) return s
281  let out = ''
282  for (const ch of s) {
283    if (textWidth(out + ch + '…', size) > maxW) break
284    out += ch
285  }
286  return out + '…'
287}
288
289const PALETTE = `<style>
290.t{fill:#1f1f1f}.s{fill:#6b6b68}.m{fill:#9a9a96}.ln{stroke:#e4e4e1}.sand{fill:#E9DCBC}.fp{fill:#CDB98C}.bub{fill:#ffffff;stroke:#d8d6d0}.k{fill:#ecebe8}
291@media (prefers-color-scheme: dark){.t{fill:#ececec}.s{fill:#a8a8a4}.m{fill:#7d7d79}.ln{stroke:#333331}.sand{fill:#4a4232}.fp{fill:#6b5f45}.bub{fill:#2b2b2a;stroke:#444442}.k{fill:#2c2c2b}}
292.live{animation:p 1s ease-in-out infinite}@keyframes p{50%{opacity:.3}}
293@media (prefers-reduced-motion: reduce){.live{animation:none}}
294</style>`
295
296const svg = (W: number, H: number, body: string): string =>
297  `<svg xmlns="http://www.w3.org/2000/svg" width="${W}" height="${H}" viewBox="0 0 ${W} ${H}">${PALETTE}${CRAB_CSS}${body}</svg>`
298
299const statusMark = (x: number, y: number, status: string, color: string): string => {
300  if (status === 'running') return `<circle class="live" cx="${x}" cy="${y}" r="3.5" fill="${color}"/>`
301  if (status === 'done') return `<path d="M${x - 5} ${y}l3.5 3.5 6.5-7" fill="none" stroke="#3B9C5F" stroke-width="1.8" stroke-linecap="round" stroke-linejoin="round"/>`
302  if (status === 'failed') return `<path d="M${x - 4} ${y - 4}l8 8M${x + 4} ${y - 4}l-8 8" stroke="#D0453F" stroke-width="1.8" stroke-linecap="round"/>`
303  return `<rect x="${x - 4}" y="${y - 4}" width="8" height="8" rx="1.5" fill="#9a9a96"/>`
304}
305
306/** A speech bubble, or a thought bubble with dots that blink in turn. */
307const bubble = (x: number, y: number, text: string, isFlipped: boolean, isThought: boolean, maxW: number): string => {
308  const size = 11
309  const dotsW = isThought ? 16 : 0
310  const shown = fitText(text, size, Math.max(30, maxW - 14 - dotsW))
311  const w = Math.round(textWidth(shown, size) + 14 + dotsW)
312  const h = 18
313  const tailX = isFlipped ? x + w - 12 : x + 12
314  const tail = isThought
315    ? `<circle class="bub" cx="${tailX + (isFlipped ? 2 : -2)}" cy="${y + h + 3}" r="2.2"/><circle class="bub" cx="${tailX + (isFlipped ? 5 : -5)}" cy="${y + h + 7}" r="1.4"/>`
316    : `<path class="bub" d="M${tailX - 4} ${y + h - 0.5}L${tailX + (isFlipped ? 4 : -4)} ${y + h + 6}L${tailX + 4} ${y + h - 0.5}Z"/><rect class="bub" style="stroke:none" x="${tailX - 3.4}" y="${y + h - 2}" width="6.8" height="2"/>`
317  const dots = isThought
318    ? [0, 1, 2].map(i => `<circle class="m dot${i ? ` dot${i + 1}` : ''}" cx="${x + w - dotsW - 2 + i * 5 + 3}" cy="${y + h / 2}" r="1.5"/>`).join('')
319    : ''
320  return `<g><rect class="bub" x="${x}" y="${y}" width="${w}" height="${h}" rx="9"/>${tail}<text class="t" x="${x + 7}" y="${y + 12.5}" font-family="${FONT}" font-size="${size}">${xml(shown)}</text>${dots}</g>`
321}
322
323// ---------------------------------------------------------------------------
324// The panel's drawings (desktop): each row is one SVG.
325
326export const RUNNING_H = 98
327export const FINISHED_H = 54
328export const HEADER_H = 58
329export const ROSTER_H = 44
330export const BAND_H = 26
331
332const CRAB_W = 33
333
334export const runningSvg = (W: number, m: CrewMember, at: number, showQuips: boolean): string => {
335  const c = characterOf(m.character)
336  const pose = poseOf(m, at)
337  const { value } = progressOf(m)
338  const right = `${fmtTime(elapsed(m, at))}`
339  const meta = [modelName(m.model), actionOf(m, at), `${m.toolCalls} tools`, m.tokens ? `${fmtTokens(m.tokens)} tok` : ''].filter(Boolean).join(' · ')
340  const label = progressLabel(m)
341  const metaW = W - textWidth(label, 11) - 14
342
343  // The lane: the crab walks toward the flag as its work progresses.
344  const laneBottom = RUNNING_H - 8
345  const crabX = Math.round(value * (W - CRAB_W - 20))
346  const crabY = laneBottom - 31
347  const prints: string[] = []
348  for (let fx = 4, k = 0; fx < crabX - 2; fx += 7, k++) prints.push(`<rect class="fp" x="${fx}" y="${laneBottom - 2 + (k % 2)}" width="3" height="1.5" rx=".75"/>`)
349
350  let speech = ''
351  if (showQuips) {
352    const text = quipOf(m, at)
353    const room = W - 20
354    const bw = Math.min(room, textWidth(text, 11) + 14 + (pose === 'think' ? 16 : 0))
355    const isFlipped = crabX + 26 + bw > W - 18
356    const bx = isFlipped ? Math.max(0, crabX + 8 - bw) : crabX + 26
357    speech = bubble(bx, 38, text, isFlipped, pose === 'think', room)
358  }
359
360  return svg(
361    W,
362    RUNNING_H,
363    `<text x="0" y="14" font-family="${FONT}" font-size="13"><tspan class="t" font-weight="600">${xml(m.name)}</tspan><tspan fill="${c.color}" font-weight="600"> the ${xml(c.role)}</tspan><tspan class="s"> · ${xml(fitText(m.description || m.type, 13, Math.max(40, W - 60 - textWidth(`${m.name} the ${c.role} · `, 13))))}</tspan></text>
364<text class="s" x="${W - 14}" y="14" text-anchor="end" font-family="${FONT}" font-size="11" font-variant-numeric="tabular-nums">${right}</text>
365${statusMark(W - 4, 10, m.status, c.color)}
366<text class="s" x="0" y="30" font-family="${FONT}" font-size="11">${xml(fitText(meta, 11, metaW))}</text>
367<text x="${W}" y="30" text-anchor="end" font-family="${FONT}" font-size="11" font-weight="600" fill="${c.color}" font-variant-numeric="tabular-nums">${label}</text>
368<rect class="sand" x="0" y="${laneBottom}" width="${W}" height="3" rx="1.5"/>
369${prints.join('')}
370<rect class="m" x="${W - 11}" y="${laneBottom - 26}" width="1.5" height="26"/>
371<path d="M${W - 9.5} ${laneBottom - 26}L${W - 1} ${laneBottom - 21.5}L${W - 9.5} ${laneBottom - 17}Z" fill="${c.color}"/>
372${speech}
373${crab(crabX, crabY, m.character, pose, 1.1, c.color)}
374<line class="ln" x1="0" y1="${RUNNING_H - 0.5}" x2="${W}" y2="${RUNNING_H - 0.5}"/>`,
375  )
376}
377
378export const finishedSvg = (W: number, m: CrewMember, at: number, showQuips: boolean): string => {
379  const c = characterOf(m.character)
380  const pose = poseOf(m, at)
381  const how = m.status === 'done' ? 'Back aboard' : m.status === 'failed' ? 'Went overboard' : 'Called back'
382  const meta = [how, fmtTime(elapsed(m, at)), modelName(m.model), `${m.toolCalls} tools`, m.tokens ? `${fmtTokens(m.tokens)} tok` : ''].filter(Boolean).join(' · ')
383  const textW = W - 40 - 16
384  return svg(
385    W,
386    FINISHED_H,
387    `${crab(0, 16, m.character, pose, 1, c.color)}
388<text x="40" y="14" font-family="${FONT}" font-size="13"><tspan class="t" font-weight="600">${xml(m.name)}</tspan><tspan fill="${c.color}" font-weight="600"> the ${xml(c.role)}</tspan><tspan class="s"> · ${xml(fitText(m.description || m.type, 13, Math.max(40, textW - textWidth(`${m.name} the ${c.role} · `, 13))))}</tspan></text>
389<text class="s" x="40" y="30" font-family="${FONT}" font-size="11">${xml(fitText(meta, 11, textW))}</text>
390${showQuips ? `<text class="m" x="40" y="45" font-family="${FONT}" font-size="11" font-style="italic">“${xml(fitText(quipOf(m, at), 11, textW))}”</text>` : ''}
391${statusMark(W - 6, 10, m.status, c.color)}
392<line class="ln" x1="0" y1="${FINISHED_H - 0.5}" x2="${W}" y2="${FINISHED_H - 0.5}"/>`,
393  )
394}
395
396export const headerSvg = (W: number, captain: Captain, crew: readonly CrewMember[], at: number): string => {
397  const pose: Pose = captain.isBusy ? (captain.activity === 'think' ? 'think' : 'walk') : 'sleep'
398  const t = crewTotals(crew, at)
399  const stats = crew.length ? `${crewSummary(crew, at)} · ${fmtTokens(t.tokens)} tok · ${fmtTime(t.time)}` : 'No crew dispatched yet'
400  const textW = W - 44
401  return svg(
402    W,
403    HEADER_H,
404    `${crab(0, 18, 'captain', pose, 1.1, CAPTAIN.color)}
405<text x="44" y="15" font-family="${FONT}" font-size="14"><tspan class="t" font-weight="600">${CAPTAIN.name}</tspan><tspan class="s" font-size="12"> · ${CAPTAIN.role}</tspan></text>
406<text class="s" x="44" y="32" font-family="${FONT}" font-size="12">${xml(fitText(captainQuip(captain), 12, textW))}</text>
407<text class="m" x="44" y="49" font-family="${FONT}" font-size="11" font-variant-numeric="tabular-nums">${xml(fitText(stats, 11, textW))}</text>
408<line class="ln" x1="0" y1="${HEADER_H - 0.5}" x2="${W}" y2="${HEADER_H - 0.5}"/>`,
409  )
410}
411
412export const rosterSvg = (W: number, c: Character, types: string): string =>
413  svg(
414    W,
415    ROSTER_H,
416    `${crab(0, 8, c.key, 'walk', 1, c.color)}
417<text x="40" y="16" font-family="${FONT}" font-size="12"><tspan fill="${c.color}" font-weight="600">${xml(c.role)}</tspan><tspan class="s"> · ${xml(types)} · ${xml(c.names.slice(0, 3).join(', '))}…</tspan></text>
418<text class="m" x="40" y="32" font-family="${FONT}" font-size="11" font-style="italic">${xml(fitText(c.trait, 11, W - 44))}</text>`,
419  )
420
421/** The band above the prompt: the crew at work, walking, and how far along they are. */
422export const bandSvg = (W: number, crew: readonly CrewMember[], at: number, progress: number): string => {
423  const running = crew.filter(m => m.status === 'running')
424  const shown = (running.length ? running : crew).slice(-Math.max(1, Math.floor((W * 0.45) / 26)))
425  const crabs = shown.map((m, i) => crab(i * 26, 3, m.character, running.length ? poseOf(m, at) : 'rest', 0.72, characterOf(m.character).color)).join('')
426  const x0 = shown.length * 26 + 6
427  const names = running.length
428    ? `${running.slice(0, 3).map(m => m.name).join(', ')}${running.length > 3 ? ` +${running.length - 3}` : ''}: ${crewSummary(crew, at)}`
429    : `All back aboard · ${crewSummary(crew, at)}`
430  const barW = Math.max(40, Math.min(160, W * 0.2))
431  const textW = W - x0 - barW - 52
432  const barX = W - barW - 40
433  return svg(
434    W,
435    BAND_H,
436    `${crabs}
437<text class="t" x="${x0}" y="17" font-family="${FONT}" font-size="12.5">${xml(fitText(names, 12.5, textW))}</text>
438<rect class="k" x="${barX}" y="9" width="${barW}" height="8" rx="4"/>
439<rect x="${barX}" y="9" width="${Math.round(barW * progress)}" height="8" rx="4" fill="${running.length ? CLAY : '#3B9C5F'}"/>
440<text class="s" x="${W}" y="17" text-anchor="end" font-family="${FONT}" font-size="11.5" font-variant-numeric="tabular-nums">${running.length ? '≈' : ''}${Math.round(progress * 100)}%</text>`,
441  )
442}
443
444// ---------------------------------------------------------------------------
445// Terminal crabs: the classic ASCII crab, its frame switched by the clock tick.
446
447export const asciiCrab = (pose: Pose, tick: number): string => {
448  const odd = tick % 2 === 1
449  switch (pose) {
450    case 'walk':
451    case 'fast':
452      return odd ? '(\\|)(°,,°)(|/)' : '(\\/)(°,,°)(\\/)'
453    case 'think':
454      return odd ? '(\\/)(˘,,˘)(\\/)' : '(\\/)(°,,°)(\\/)'
455    case 'wait':
456      return '(\\/)(°,,°)(\\/)'
457    case 'cheer':
458      return odd ? '\\(^,,^)/' : '_(^,,^)_'
459    case 'rest':
460      return '(\\/)(^,,^)(\\/)'
461    case 'dizzy':
462      return '(/\\)(x,,x)(/\\)'
463    case 'sleep':
464      return '(\\/)(-,,-)(\\/)'
465  }
466}
467
468/** A crab on its lane in text: footprints behind it, the flag ahead. */
469export const asciiLane = (pose: Pose, tick: number, value: number, width: number): { before: string; crab: string; after: string } => {
470  const c = asciiCrab(pose, tick)
471  const room = Math.max(0, width - c.length - 2)
472  const isMoving = pose === 'walk' || pose === 'fast'
473  const pos = Math.min(room, Math.round(value * room) + (isMoving && tick % 2 ? 1 : 0))
474  return { before: '.'.repeat(pos), crab: c, after: ' '.repeat(Math.max(0, room - pos)) + ' ⚑' }
475}
476

1import type { Activity, Captain, CrewMember, CrewStatus } from '../types'
2
3// ---------------------------------------------------------------------------
4// The roster: one crab character per standard agent type, and a pool that
5// any other agent type (a plugin's, a project's own) is dealt from by name.
6
7/** What a crab says depends on its mood: its activity, or how its run ended. */
8export type Mood = Activity | 'wait' | 'done' | 'failed' | 'stopped'
9
10/** How a crab is drawn: each pose is a body, a face and a motion. */
11export type Pose = 'walk' | 'fast' | 'think' | 'wait' | 'cheer' | 'rest' | 'dizzy' | 'sleep'
12
13export type Character = {
14  key: string
15  role: string
16  names: readonly string[]
17  color: string
18  trait: string
19  /** Tool calls in a typical job: sets the estimated-progress curve. */
20  pace: number
21  quips: Partial<Record<Mood, readonly string[]>>
22}
23
24const GENERIC: Record<Mood, readonly string[]> = {
25  start: ['Reporting for duty!', 'Aye aye!', 'Claws ready.'],
26  think: ['Hmm, let me think', 'Pondering', 'Mulling it over'],
27  read: ['Reading {x}', 'Peeking at {x}'],
28  search: ['Searching for {x}', 'Combing the sand'],
29  edit: ['Tweaking {x}', 'Patching {x}'],
30  shell: ['Running {x}', 'Cranking the engine'],
31  web: ['Checking {x}', 'Asking the wider sea'],
32  delegate: ['Calling in help: {x}', 'Need a hand here!'],
33  plan: ['Making a list', 'Checking it twice'],
34  other: ['On it', 'Busy, busy'],
35  wait: ['Still waiting on {x}', 'Tap, tap, tap'],
36  done: ['Back aboard!', 'Job done.', 'Nailed it.'],
37  failed: ['Man overboard!', 'That went sideways.'],
38  stopped: ['Called back to the ship.', 'Standing down.'],
39}
40
41export const CHARACTERS: Record<string, Character> = {
42  deckhand: {
43    key: 'deckhand',
44    role: 'Deckhand',
45    names: ['Barnacle', 'Rusty', 'Sal', 'Dory', 'Mack'],
46    color: '#D0453F',
47    trait: 'Can-do all-rounder: mops, fixes, hauls.',
48    pace: 22,
49    quips: {
50      start: ["Aye, I'll handle it!", 'Rolling up me claws.'],
51      edit: ['Hammering {x} into shape', 'Swabbing {x}'],
52      shell: ['Hauling on {x}'],
53      wait: ['Leaning on the mop'],
54      done: ['Shipshape and done!', "Deck's clean, Cap'n."],
55      failed: ['Slipped on the deck!'],
56    },
57  },
58  scout: {
59    key: 'scout',
60    role: 'Scout',
61    names: ['Pip', 'Wren', 'Kit', 'Marlo', 'Juno'],
62    color: '#4E9A3A',
63    trait: 'Curious and quick; looks, never touches.',
64    pace: 14,
65    quips: {
66      start: ['Off to explore!', 'Spyglass ready.'],
67      read: ['Spyglass on {x}', 'Ooh, what is {x}?'],
68      search: ['Land ho? Hunting {x}', 'Scanning for {x}'],
69      think: ['Mapping what I saw'],
70      done: ['Scouting report ready!', 'Charted it all!'],
71      failed: ['Lost in the fog!'],
72    },
73  },
74  navigator: {
75    key: 'navigator',
76    role: 'Navigator',
77    names: ['Ada', 'Vela', 'Orion', 'Mags'],
78    color: '#378ADD',
79    trait: 'Measures twice, plots the course.',
80    pace: 16,
81    quips: {
82      start: ['Unrolling the charts.'],
83      think: ['Plotting a course', 'Weighing the winds'],
84      read: ['Studying {x}'],
85      search: ['Taking soundings: {x}'],
86      plan: ['Marking waypoints'],
87      done: ['Course plotted!', 'Heading set, Captain.'],
88      failed: ['Off the edge of the map!'],
89    },
90  },
91  professor: {
92    key: 'professor',
93    role: 'Professor',
94    names: ['Kelp', 'Sage', 'Quill', 'Tomes'],
95    color: '#7F77DD',
96    trait: 'Has read every manual twice.',
97    pace: 10,
98    quips: {
99      start: ['Ahem. To the library!'],
100      read: ['Consulting {x}'],
101      web: ['Looking it up: {x}'],
102      think: ['Fascinating, one moment'],
103      done: ['Footnotes included.'],
104      failed: ['The page is missing!'],
105    },
106  },
107  signaller: {
108    key: 'signaller',
109    role: 'Signaller',
110    names: ['Sparky', 'Dot', 'Morse'],
111    color: '#BA7517',
112    trait: 'Tinkers with the lights and signals.',
113    pace: 8,
114    quips: {
115      start: ['Signals up!'],
116      edit: ['Rewiring {x}'],
117      shell: ['Testing the lamp: {x}'],
118      done: ["Signal's lit!"],
119    },
120  },
121  echo: {
122    key: 'echo',
123    role: 'Understudy',
124    names: ['Echo', 'Mirror', 'Twin'],
125    color: '#8F7CEC',
126    trait: 'Knows everything the Captain knows.',
127    pace: 20,
128    quips: {
129      start: ['Same brain, new claws.'],
130      think: ['As the Captain would'],
131      done: ['Echo complete.'],
132    },
133  },
134  // The pool: other agent types are dealt one of these by name.
135  cook: {
136    key: 'cook',
137    role: 'Cook',
138    names: ['Cookie', 'Saffron', 'Basil'],
139    color: '#D85A30',
140    trait: 'Throws it all in the pan and flips.',
141    pace: 20,
142    quips: {
143      start: ['Firing up the galley!'],
144      edit: ['Stirring {x}', 'A pinch of {x}'],
145      shell: ['Turning up the heat'],
146      done: ['Order up!'],
147      failed: ['Burnt the omelette!'],
148    },
149  },
150  sleuth: {
151    key: 'sleuth',
152    role: 'Sleuth',
153    names: ['Inky', 'Clue', 'Sherl'],
154    color: '#A0703F',
155    trait: 'Follows every clue to the end.',
156    pace: 18,
157    quips: {
158      start: ['The game is afoot!'],
159      search: ['Following the trail: {x}'],
160      read: ['Examining {x}'],
161      think: ['Connecting the dots'],
162      done: ['Case closed.'],
163      failed: ['The trail went cold.'],
164    },
165  },
166  wizard: {
167    key: 'wizard',
168    role: 'Wizard',
169    names: ['Merla', 'Coral', 'Zap'],
170    color: '#7B6BD8',
171    trait: 'Mutters spells at the code.',
172    pace: 20,
173    quips: {
174      start: ['By my shell!'],
175      edit: ['Enchanting {x}'],
176      shell: ['Casting {x}'],
177      think: ['Consulting the stars'],
178      done: ['Ta-da!'],
179      failed: ['The spell fizzled!'],
180    },
181  },
182  diver: {
183    key: 'diver',
184    role: 'Diver',
185    names: ['Bubbles', 'Finn', 'Marina'],
186    color: '#2E8BC0',
187    trait: 'Goes deep, comes up with treasure.',
188    pace: 20,
189    quips: {
190      start: ['Taking the plunge!'],
191      search: ['Diving for {x}'],
192      read: ['Deep in {x}'],
193      done: ['Surfaced with treasure!'],
194      failed: ['Out of air!'],
195    },
196  },
197}
198
199const POOL = ['cook', 'sleuth', 'wizard', 'diver'] as const
200
201const BY_TYPE: Record<string, string> = {
202  'general-purpose': 'deckhand',
203  claude: 'deckhand',
204  Explore: 'scout',
205  Plan: 'navigator',
206  'claude-code-guide': 'professor',
207  'statusline-setup': 'signaller',
208  fork: 'echo',
209}
210
211/** The roster as the panel shows it: the standard crew first, then the pool. */
212export const ROSTER: readonly { character: Character; types: string }[] = [
213  { character: CHARACTERS.deckhand as Character, types: 'general-purpose' },
214  { character: CHARACTERS.scout as Character, types: 'Explore' },
215  { character: CHARACTERS.navigator as Character, types: 'Plan' },
216  { character: CHARACTERS.professor as Character, types: 'claude-code-guide' },
217  { character: CHARACTERS.signaller as Character, types: 'statusline-setup' },
218  { character: CHARACTERS.echo as Character, types: 'fork' },
219  ...POOL.map(k => ({ character: CHARACTERS[k] as Character, types: 'other agent types' })),
220]
221
222export const CAPTAIN = {
223  name: 'Captain Clawd',
224  role: 'main thread',
225  color: '#4A6FB5',
226  quips: {
227    start: ['All hands!'],
228    think: ['Charting the course'],
229    read: ['Reviewing {x}'],
230    search: ['Scanning the horizon: {x}'],
231    edit: ['Taking the wheel: {x}'],
232    shell: ['Full steam: {x}'],
233    web: ['Signalling ashore: {x}'],
234    delegate: ['Dispatching the crew: {x}'],
235    plan: ['Updating the log'],
236    other: ['At the helm'],
237  } as Record<Activity, readonly string[]>,
238  idle: 'Off watch, awaiting orders',
239}
240
241/** `savvy:helper` and `helper` name the same agent; the plugin prefix is dropped. */
242export const bareType = (type: string): string => type.replace(/^[^:]*:/, '')
243
244/** FNV-1a: a stable pick from a name, the same on every load. */
245export const hash = (s: string): number => {
246  let h = 0x811c9dc5
247  for (let i = 0; i < s.length; i++) {
248    h ^= s.charCodeAt(i)
249    h = Math.imul(h, 0x01000193)
250  }
251  return h >>> 0
252}
253
254export const characterKeyOf = (type: string): string => {
255  const known = BY_TYPE[type] ?? BY_TYPE[bareType(type)]
256  return known ?? POOL[hash(bareType(type)) % POOL.length] ?? 'deckhand'
257}
258
259export const characterOf = (key: string): Character => CHARACTERS[key] ?? (CHARACTERS.deckhand as Character)
260
261const ROMAN = ['', 'I', 'II', 'III', 'IV', 'V', 'VI', 'VII', 'VIII', 'IX', 'X']
262
263/** The next free name for this character: Pip, Wren, ..., then Pip II. */
264export const crewNameOf = (key: string, crew: readonly CrewMember[]): string => {
265  const { names } = characterOf(key)
266  const taken = crew.filter(m => m.character === key).length
267  const base = names[taken % names.length] ?? 'Crab'
268  const round = Math.floor(taken / names.length) + 1
269  return round > 1 ? `${base} ${ROMAN[round] ?? round}` : base
270}
271
272export const titleOf = (m: Pick<CrewMember, 'name' | 'character'>): string => `${m.name} the ${characterOf(m.character).role}`
273
274// ---------------------------------------------------------------------------
275// What a tool call says about a crab's activity.
276
277export const activityOf = (tool: string): Activity => {
278  if (/^(Read|NotebookRead)$/.test(tool)) return 'read'
279  if (/^(Grep|Glob|LS|ToolSearch)$/.test(tool)) return 'search'
280  if (/^(Edit|MultiEdit|Write|NotebookEdit)$/.test(tool)) return 'edit'
281  if (/^(Bash|PowerShell|Monitor|BashOutput)$/.test(tool)) return 'shell'
282  if (/^(WebFetch|WebSearch)$/.test(tool) || (tool.startsWith('mcp__') && /browser|chrome|fetch|web/i.test(tool))) return 'web'
283  if (/^(Agent|Task|SendMessage|Workflow)$/.test(tool)) return 'delegate'
284  if (/^(TodoWrite|TaskCreate|TaskUpdate|TaskList|TaskGet|EnterPlanMode|ExitPlanMode)$/.test(tool)) return 'plan'
285  return 'other'
286}
287
288const str = (v: unknown): string => (typeof v === 'string' ? v : '')
289
290const baseName = (p: string): string => p.split(/[\\/]/).filter(Boolean).pop() ?? p
291
292export const clip = (s: string, max: number): string => (s.length > max ? s.slice(0, Math.max(1, max - 1)) + '…' : s)
293
294/** The call's target in a few characters: a file's name, a pattern, a command's head, a host. */
295export const detailOf = (input: Record<string, unknown>): string => {
296  const file = str(input.file_path) || str(input.notebook_path)
297  if (file) return baseName(file)
298  if (str(input.pattern)) return clip(str(input.pattern), 28)
299  const command = str(input.command).trim().split('\n')[0] ?? ''
300  if (command) return clip(command, 28)
301  const url = str(input.url)
302  if (url) return /^[a-z]+:\/\/([^/?#]+)/i.exec(url)?.[1] ?? clip(url, 28)
303  if (str(input.query)) return clip(str(input.query), 28)
304  if (str(input.description)) return clip(str(input.description), 28)
305  if (str(input.skill)) return str(input.skill)
306  if (str(input.path)) return baseName(str(input.path))
307  return ''
308}
309
310type Todo = { status?: unknown; activeForm?: unknown; content?: unknown }
311
312/**
313 * Progress a standard agent reports without knowing it: its own todo list.
314 * TodoWrite carries the whole list; TaskCreate and TaskUpdate are counted.
315 */
316export const todoPatch = (tool: string, input: Record<string, unknown>, m: CrewMember): Partial<CrewMember> => {
317  if (tool === 'TodoWrite' && Array.isArray(input.todos)) {
318    const todos = input.todos as Todo[]
319    const done = todos.filter(t => t.status === 'completed').length
320    const active = todos.find(t => t.status === 'in_progress')
321    return {
322      todoTotal: todos.length,
323      todoDone: done + (active ? 0.5 : 0),
324      todoNote: active ? str(active.activeForm) || str(active.content) || undefined : undefined,
325    }
326  }
327  if (tool === 'TaskCreate') return { todoTotal: (m.todoTotal ?? 0) + 1, todoDone: m.todoDone ?? 0 }
328  if (tool === 'TaskUpdate') {
329    const total = m.todoTotal ?? 0
330    const done = Math.floor(m.todoDone ?? 0)
331    if (input.status === 'completed') return { todoDone: Math.min(total, done + 1), todoNote: undefined }
332    if (input.status === 'deleted') return { todoTotal: Math.max(0, total - 1), todoDone: Math.min(done, Math.max(0, total - 1)) }
333    if (input.status === 'in_progress') return { todoDone: done + 0.5, todoNote: str(input.activeForm) || str(input.subject) || undefined }
334  }
335  return {}
336}
337
338export const statusOf = (reason: string): CrewStatus =>
339  reason === 'answer' ? 'done' : reason === 'aborted' ? 'stopped' : 'failed'
340
341// ---------------------------------------------------------------------------
342// Progress, pose and lines.
343
344/** No call for this long while running: the crab waits, tapping a foot. */
345export const STALL_MS = 20_000
346/** A call this recent: the crab scurries. */
347export const BURST_MS = 3_000
348/** How long a crab that just finished celebrates. */
349export const CHEER_MS = 6_000
350
351export type Progress = { value: number; isEstimate: boolean }
352
353/**
354 * Real progress when the agent keeps a todo list; otherwise an estimate that
355 * climbs with its tool calls toward 92% at the character's usual pace and
356 * only reaches the flag when the agent is done.
357 */
358export const progressOf = (m: CrewMember): Progress => {
359  if (m.status === 'done') return { value: 1, isEstimate: false }
360  if (m.todoTotal) return { value: Math.min(1, (m.todoDone ?? 0) / m.todoTotal), isEstimate: false }
361  const pace = characterOf(m.character).pace
362  return { value: 0.92 * (1 - Math.exp(-(m.toolCalls + 0.5) / pace)), isEstimate: true }
363}
364
365export const progressLabel = (m: CrewMember): string => {
366  if (m.status === 'done') return '100%'
367  if (m.todoTotal) return `${Math.floor(m.todoDone ?? 0)}/${m.todoTotal} todos`
368  return `≈${Math.round(progressOf(m).value * 100)}%`
369}
370
371export const poseOf = (m: CrewMember, at: number): Pose => {
372  if (m.status === 'done') return at - (m.endedAt ?? 0) < CHEER_MS ? 'cheer' : 'rest'
373  if (m.status === 'failed') return 'dizzy'
374  if (m.status === 'stopped') return 'sleep'
375  if (m.activity === 'think') return 'think'
376  if (at - m.lastActiveAt > STALL_MS) return 'wait'
377  return at - m.lastActiveAt < BURST_MS ? 'fast' : 'walk'
378}
379
380export const moodOf = (m: CrewMember, at: number): Mood => {
381  if (m.status !== 'running') return m.status
382  return poseOf(m, at) === 'wait' ? 'wait' : m.activity
383}
384
385const fill = (template: string, detail: string): string => template.replace('{x}', clip(detail, 24) || 'the code')
386
387/** The crab's line: in character, and stable until it does something new. */
388export const quipOf = (m: CrewMember, at: number): string => {
389  const mood = moodOf(m, at)
390  const list = characterOf(m.character).quips[mood] ?? GENERIC[mood]
391  const i = hash(m.id + mood) + (m.status === 'running' ? m.toolCalls : 0)
392  return fill(list[i % list.length] ?? '', m.detail)
393}
394
395export const captainQuip = (c: Captain): string => {
396  if (!c.isBusy) return CAPTAIN.idle
397  const list = CAPTAIN.quips[c.activity] ?? CAPTAIN.quips.other
398  return fill(list[0] ?? '', c.detail)
399}
400
401/** What the crab is doing, plainly: the tool's target, or its todo in progress. */
402export const actionOf = (m: CrewMember, at: number): string => {
403  if (m.status === 'done') return 'back aboard'
404  if (m.status === 'failed') return 'went overboard'
405  if (m.status === 'stopped') return 'called back'
406  if (m.todoNote) return m.todoNote
407  if (m.activity === 'think') return 'thinking'
408  if (m.activity === 'start') return 'setting out'
409  const verb = { read: 'reading', search: 'searching', edit: 'editing', shell: 'running', web: 'browsing', delegate: 'delegating', plan: 'planning', other: 'working' }[m.activity]
410  const waited = at - m.lastActiveAt > STALL_MS ? ` · waiting ${fmtTime(at - m.lastActiveAt)}` : ''
411  return `${verb}${m.detail ? ' ' + m.detail : ''}${waited}`
412}
413
414// ---------------------------------------------------------------------------
415// Formatting.
416
417export const modelName = (id: string): string => {
418  const m = /(fable|mythos|opus|sonnet|haiku)-(\d+)(?:-(\d{1,2})(?!\d))?/i.exec(id)
419  const [, family = '', major = '', minor] = m ?? []
420  if (!family) return id.replace(/^claude-/, '').replace(/\[.*\]$/, '')
421  return `${family.charAt(0).toUpperCase()}${family.slice(1).toLowerCase()} ${major}${minor ? '.' + minor : ''}`
422}
423
424export const fmtTokens = (n: number): string =>
425  n >= 1e6 ? `${(n / 1e6).toFixed(1)}M` : n >= 1e3 ? `${Math.round(n / 1e3)}k` : `${Math.round(n)}`
426
427export const fmtTime = (ms: number): string => {
428  const s = Math.max(0, Math.round(ms / 1000))
429  const h = Math.floor(s / 3600)
430  const m = Math.floor((s % 3600) / 60)
431  const ss = String(s % 60).padStart(2, '0')
432  return h ? `${h}:${String(m).padStart(2, '0')}:${ss}` : `${m}:${ss}`
433}
434
435export const elapsed = (m: CrewMember, at: number): number => (m.endedAt ?? Math.max(at, m.startedAt)) - m.startedAt
436
437export const crewTotals = (crew: readonly CrewMember[], at: number) => {
438  const tokens = crew.reduce((s, m) => s + m.tokens, 0)
439  const start = Math.min(...crew.map(m => m.startedAt))
440  const end = Math.max(...crew.map(m => m.endedAt ?? Math.max(at, m.startedAt)))
441  return {
442    running: crew.filter(m => m.status === 'running').length,
443    done: crew.filter(m => m.status === 'done').length,
444    failed: crew.filter(m => m.status === 'failed').length,
445    stopped: crew.filter(m => m.status === 'stopped').length,
446    tokens,
447    time: crew.length ? end - start : 0,
448  }
449}
450
451export const crewSummary = (crew: readonly CrewMember[], at: number): string => {
452  const t = crewTotals(crew, at)
453  const parts = [
454    t.running ? `${t.running} at work` : '',
455    t.done ? `${t.done} back aboard` : '',
456    t.failed ? `${t.failed} overboard` : '',
457    t.stopped ? `${t.stopped} called back` : '',
458  ].filter(Boolean)
459  return parts.join(' · ') || 'no crew out'
460}
461
462/** Mean progress of the given crew, 0 to 1. */
463export const crewProgress = (crew: readonly CrewMember[]): number =>
464  crew.length ? crew.reduce((s, m) => s + (m.status === 'running' ? progressOf(m).value : 1), 0) / crew.length : 0
465

1export type CrewStatus = 'running' | 'done' | 'failed' | 'stopped'
2
3/** What a crab is doing right now, from the tool it last called. */
4export type Activity = 'start' | 'think' | 'read' | 'search' | 'edit' | 'shell' | 'web' | 'delegate' | 'plan' | 'other'
5
6export type CrewMember = {
7  id: string
8  agentId?: string
9  /** The agent type as spawned: `general-purpose`, `Explore`, `Plan`, a plugin's agent. */
10  type: string
11  /** Key into the character roster. */
12  character: string
13  /** The crab's given name, e.g. `Pip`. */
14  name: string
15  description: string
16  model: string
17  effort?: string
18  status: CrewStatus
19  startedAt: number
20  endedAt?: number
21  lastActiveAt: number
22  activity: Activity
23  /** The target of the last call: a file name, a pattern, a command. */
24  detail: string
25  toolCalls: number
26  errors: number
27  steps: number
28  contextTokens: number
29  tokens: number
30  /** From the agent's own TodoWrite / TaskCreate / TaskUpdate calls, when it makes any. */
31  todoDone?: number
32  todoTotal?: number
33  todoNote?: string
34}
35
36/** The main thread, drawn as the captain at the top of the panel. */
37export type Captain = {
38  isBusy: boolean
39  activity: Activity
40  detail: string
41  lastActiveAt: number
42}
43
44export type CrewPanel = {
45  isDoneCollapsed: boolean
46  isRosterOpen: boolean
47  hasAutoOpened: boolean
48  /** The band above the prompt shows crew started or ended after this time. */
49  bandSince: number
50}
51
52declare module 'claude-code' {
53  interface PluginState {
54    'crab-crew': {
55      crew: CrewMember[]
56      captain: Captain
57      panel: CrewPanel
58      now: number
59    }
60  }
61}
62
