show-and-tell

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, RenderElement, RenderNode } from 'claude-code'
3
4import type { Shot, ShotSource } from '../types'
5
6const SHOTS = { plugin: 'show-and-tell', key: 'shots' } as const
7const FRESH = { plugin: 'show-and-tell', key: 'fresh' } as const
8const PICKED = { plugin: 'show-and-tell', key: 'picked' } as const
9const FILTER = { plugin: 'show-and-tell', key: 'filter' } as const
10
11const shots = atom(SHOTS, [])
12const fresh = atom(FRESH, [])
13const picked = atom(PICKED, null)
14const filter = atom(FILTER, 'all')
15
16const PANE = 'show-and-tell'
17const TITLE = '📸 Show & Tell'
18
19const POLL_MS = 250
20const KEEP_DAYS = 7
21const MAX_SHOTS = 200
22const MAX_READ = 4 * 1024 * 1024
23const THUMB_COLUMNS = 16
24const PREVIEW_COLUMNS = 72
25const GALLERY_ROWS = 24
26const GALLERY_COLUMNS = 90
27// From this width the preview sits beside the details and the list, not above them.
28const SIDE_BY_SIDE = 70
29const SCAN_DIRS = 40
30
31const PICTURE = /\.(png|jpe?g|gif|webp|bmp|tiff?|heic|svg|pdf)$/i
32const VECTOR = /\.(svg|pdf)$/i
33const IMAGE_TOKEN = /\[Image #(\d+)\]/g
34const ICON: Record<ShotSource, string> = { you: '📎', 'claude-read': '👀', 'claude-made': '🎨' }
35
36type Block = { type: string; [field: string]: unknown }
37type Platform = 'mac' | 'linux' | 'windows'
38type Look = { thumb: string | null; width: number | null; height: number | null }
39
40/** The image numbers a draft holds, as Claude Code writes a paste into it: `[Image #2]`. */
41export function imageNumbers(text: string): number[] {
42  return [...text.matchAll(IMAGE_TOKEN)].map(match => Number(match[1]))
43}
44
45/** What kind of picture base64 bytes are, by their first bytes. */
46export function kindOf(base64: string): 'png' | 'jpeg' | 'gif' | 'webp' | null {
47  if (base64.startsWith('iVBORw0KGgo')) return 'png'
48  if (base64.startsWith('/9j/')) return 'jpeg'
49  if (base64.startsWith('R0lGOD')) return 'gif'
50  if (base64.startsWith('UklGR')) return 'webp'
51  return null
52}
53
54const BASE64 = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/'
55
56/** A PNG's width and height, read from its header. */
57export function pngSize(base64: string): { width: number; height: number } | null {
58  if (kindOf(base64) !== 'png' || base64.length < 32) return null
59  const bytes: number[] = []
60  for (let at = 0; at < 32; at += 4) {
61    const n = [0, 1, 2, 3].reduce((acc, i) => (acc << 6) | BASE64.indexOf(base64[at + i] ?? 'A'), 0)
62    bytes.push((n >> 16) & 255, (n >> 8) & 255, n & 255)
63  }
64  const word = (at: number) => (((bytes[at] ?? 0) << 24) | ((bytes[at + 1] ?? 0) << 16) | ((bytes[at + 2] ?? 0) << 8) | (bytes[at + 3] ?? 0)) >>> 0
65  const width = word(16)
66  const height = word(20)
67  return width > 0 && height > 0 ? { width, height } : null
68}
69
70/** How many rows a picture `columns` wide needs; a terminal cell is about twice as tall as wide. */
71export function rowsFor(width: number | null, height: number | null, columns: number, maxRows: number): number {
72  const rows = width !== null && height !== null ? Math.round((columns * height) / width / 2) : Math.round(columns / 3)
73  return Math.max(1, Math.min(maxRows, rows))
74}
75
76/** The base64 of every image block in a row's content, those inside a tool result included. */
77export function imagesIn(content: readonly Block[]): string[] {
78  const found: string[] = []
79  for (const block of content) {
80    if (block.type === 'image') {
81      const source = block.source as { type?: unknown; data?: unknown } | undefined
82      if (source?.type === 'base64' && typeof source.data === 'string') found.push(source.data)
83    } else if (block.type === 'tool_result' && Array.isArray(block.content)) {
84      found.push(...imagesIn(block.content as Block[]))
85    }
86  }
87  return found
88}
89
90/** `mcp__claude-in-chrome__computer` reads as `claude-in-chrome computer`. */
91export function toolLabel(tool: string): string {
92  return tool.startsWith('mcp__') ? tool.slice(5).split('__').join(' ') : tool
93}
94
95function baseName(path: string): string {
96  return path.split(/[\\/]/).pop() ?? path
97}
98
99function dirName(path: string): string {
100  const at = Math.max(path.lastIndexOf('/'), path.lastIndexOf('\\'))
101  return at <= 0 ? path : path.slice(0, at)
102}
103
104/** "10:42" in local time. */
105function clockTime(ms: number): string {
106  const d = new Date(ms)
107  return `${String(d.getHours()).padStart(2, '0')}:${String(d.getMinutes()).padStart(2, '0')}`
108}
109
110async function ran($: EngineInterface, argv: readonly string[], init?: { stdin?: string; env?: Record<string, string> }): Promise<boolean> {
111  const done = await $.process.run(argv, init).catch(() => null)
112  return done?.exitCode === 0
113}
114
115let platformOf: Promise<Platform> | null = null
116let userOf: Promise<string | null> | null = null
117
118function platform($: EngineInterface): Promise<Platform> {
119  platformOf ??= (async (): Promise<Platform> => {
120    if ((await $.env.get('WINDIR')) !== undefined) return 'windows'
121    const uname = await $.process.run(['uname', '-s']).catch(() => null)
122    return uname?.stdout.trim() === 'Darwin' ? 'mac' : 'linux'
123  })()
124  return platformOf
125}
126
127function userId($: EngineInterface): Promise<string | null> {
128  userOf ??= $.process
129    .run(['id', '-u'])
130    .then(r => (r.exitCode === 0 ? r.stdout.trim() : null))
131    .catch(() => null)
132  return userOf
133}
134
135async function storeRoot($: EngineInterface): Promise<string | null> {
136  const home = (await $.env.get('HOME')) ?? (await $.env.get('USERPROFILE'))
137  return home === undefined ? null : `${home}/.claude/show-and-tell`
138}
139
140async function sessionDir($: EngineInterface): Promise<string | null> {
141  const root = await storeRoot($)
142  if (root === null) return null
143  const dir = `${root}/${await $.session.id()}`
144  // `$.fs.write` makes the folders it needs; the shell copies below do not.
145  if (!(await $.fs.exists(dir))) await $.fs.write(`${dir}/.keep`, '')
146  return dir
147}
148
149let seq = 0
150
151async function newId($: EngineInterface, prefix: string): Promise<{ id: string; at: number }> {
152  const at = await $.clock.now()
153  seq += 1
154  return { id: `${prefix}-${at}-${seq}`, at }
155}
156
157async function writeBytes($: EngineInterface, path: string, base64: string): Promise<boolean> {
158  if ((await platform($)) === 'windows') {
159    const script = '[IO.File]::WriteAllBytes($env:SHOW_AND_TELL_OUT, [Convert]::FromBase64String([Console]::In.ReadToEnd()))'
160    return ran($, ['powershell', '-NoProfile', '-Command', script], { stdin: base64, env: { SHOW_AND_TELL_OUT: path } })
161  }
162  return ran($, ['sh', '-c', 'base64 --decode > "$1"', 'sh', path], { stdin: base64 })
163}
164
165async function copyFile($: EngineInterface, from: string, to: string): Promise<boolean> {
166  if ((await platform($)) === 'windows') {
167    const script = 'Copy-Item -LiteralPath $env:SHOW_AND_TELL_FROM -Destination $env:SHOW_AND_TELL_OUT'
168    return ran($, ['powershell', '-NoProfile', '-Command', script], { env: { SHOW_AND_TELL_FROM: from, SHOW_AND_TELL_OUT: to } })
169  }
170  return ran($, ['cp', from, to])
171}
172
173/** Writes the clipboard's picture to `path` as a PNG, with the tool each platform has. */
174async function clipboardTo($: EngineInterface, path: string): Promise<boolean> {
175  const os = await platform($)
176  if (os === 'mac') {
177    await ran($, [
178      'osascript',
179      '-e', 'on run argv',
180      '-e', 'set f to open for access (POSIX file (item 1 of argv)) with write permission',
181      '-e', 'set eof f to 0',
182      '-e', 'write (the clipboard as «class PNGf») to f',
183      '-e', 'close access f',
184      '-e', 'end run',
185      path,
186    ])
187  } else if (os === 'linux') {
188    const read = 'wl-paste --no-newline --type image/png > "$1" 2>/dev/null || xclip -selection clipboard -t image/png -o > "$1"'
189    await ran($, ['sh', '-c', read, 'sh', path])
190  } else {
191    const script =
192      'Add-Type -AssemblyName System.Windows.Forms; $i = [System.Windows.Forms.Clipboard]::GetImage(); if ($i) { $i.Save($env:SHOW_AND_TELL_OUT) } else { exit 1 }'
193    await ran($, ['powershell', '-NoProfile', '-STA', '-Command', script], { env: { SHOW_AND_TELL_OUT: path } })
194  }
195  const stat = await $.fs.stat(path).catch(() => null)
196  return stat !== null && stat.size > 0
197}
198
199/** Where Claude Code keeps a pasted image the moment it lands in the draft. Not an API: when it
200 * moves, the clipboard is read instead, and failing that the image is taken as the prompt is sent. */
201async function pasteCache($: EngineInterface, n: number): Promise<string | null> {
202  const uid = await userId($)
203  if (uid === null) return null
204  const base = (await $.env.get('CLAUDE_CODE_TMPDIR')) ?? '/tmp'
205  const project = (await $.session.cwd()).replace(/[^A-Za-z0-9]/g, '-')
206  const path = `${base}/claude-${uid}/${project}/${await $.session.id()}/images/${n}.png`
207  return (await $.fs.exists(path)) ? path : null
208}
209
210async function sizeOf($: EngineInterface, png: string): Promise<{ width: number; height: number } | null> {
211  const stat = await $.fs.stat(png).catch(() => null)
212  if (stat === null || stat.size > MAX_READ) return null
213  const { base64 } = await $.fs.read(png, { as: 'bytes' })
214  return pngSize(base64)
215}
216
217/** A PNG of `file` the terminal can draw: the file itself when it is one, else one converted
218 * into `dir`. Null where this machine has no converter for it. */
219async function lookOf($: EngineInterface, file: string, dir: string, id: string): Promise<Look> {
220  const size = await sizeOf($, file).catch(() => null)
221  if (size !== null) return { thumb: file, ...size }
222  const os = await platform($)
223  let thumb: string | null = null
224  if (os === 'mac' && VECTOR.test(file)) {
225    const out = `${dir}/${id}`
226    if ((await ran($, ['mkdir', '-p', out])) && (await ran($, ['qlmanage', '-t', '-s', '800', '-o', out, file]))) {
227      thumb = `${out}/${baseName(file)}.png`
228    }
229  } else if (os === 'mac') {
230    const out = `${dir}/${id}.thumb.png`
231    if (await ran($, ['sips', '-s', 'format', 'png', file, '--out', out])) thumb = out
232  } else {
233    const out = `${dir}/${id}.thumb.png`
234    const first = VECTOR.test(file) ? `${file}[0]` : file
235    if ((await ran($, ['magick', first, out])) || (os === 'linux' && (await ran($, ['convert', first, out])))) thumb = out
236  }
237  if (thumb === null || !(await $.fs.exists(thumb))) return { thumb: null, width: null, height: null }
238  const converted = await sizeOf($, thumb).catch(() => null)
239  return { thumb, width: converted?.width ?? null, height: converted?.height ?? null }
240}
241
242let bandMs = 20_000
243
244async function saveManifest($: EngineInterface): Promise<void> {
245  const dir = await sessionDir($)
246  if (dir !== null) await $.fs.write(`${dir}/manifest.json`, JSON.stringify(await read($, shots)))
247}
248
249async function loadManifest($: EngineInterface): Promise<void> {
250  const root = await storeRoot($)
251  const path = root === null ? null : `${root}/${await $.session.id()}/manifest.json`
252  const saved = path !== null && (await $.fs.exists(path)) ? (JSON.parse(await $.fs.read(path)) as Shot[]) : []
253  const kept: Shot[] = []
254  for (const shot of saved) {
255    if (!(await $.fs.exists(shot.path))) continue
256    const hasThumb = shot.thumb !== null && (await $.fs.exists(shot.thumb))
257    kept.push(hasThumb ? shot : { ...shot, thumb: null })
258  }
259  await $.state.set(SHOTS, kept)
260}
261
262async function addShot($: EngineInterface, shot: Shot, isFresh: boolean): Promise<void> {
263  await update($, shots, list => {
264    const same = (s: Shot) => s.id === shot.id || (shot.source !== 'you' && s.source !== 'you' && s.path === shot.path)
265    // Claude often reads back a picture it just made; it stays one Claude made.
266    const wasMade = shot.source === 'claude-read' && list.some(s => same(s) && s.source === 'claude-made')
267    return [{ ...shot, source: wasMade ? 'claude-made' : shot.source }, ...list.filter(s => !same(s))].slice(0, MAX_SHOTS)
268  })
269  await saveManifest($)
270  if (!isFresh) return
271  await update($, fresh, ids => [shot.id, ...ids.filter(id => id !== shot.id)].slice(0, 8))
272  $.clock.after(bandMs, () => void update($, fresh, ids => ids.filter(id => id !== shot.id)).catch(() => undefined))
273}
274
275/** Takes a paste the moment its `[Image #N]` shows in the draft. */
276async function capturePaste($: EngineInterface, n: number): Promise<void> {
277  const known = (await read($, shots)).some(s => s.source === 'you' && s.imageNo === n && s.isSent !== true)
278  if (known) return
279  const dir = await sessionDir($)
280  if (dir === null) return
281  const { id, at } = await newId($, 'paste')
282  const path = `${dir}/${id}.png`
283  const cached = await pasteCache($, n).catch(() => null)
284  const isTaken = cached !== null ? await copyFile($, cached, path) : await clipboardTo($, path)
285  if (!isTaken) return
286  const look = await lookOf($, path, dir, id)
287  await addShot($, { id, source: 'you', label: `Pasted image #${n}`, path, ...look, at, imageNo: n }, true)
288}
289
290async function saveBytes($: EngineInterface, base64: string, source: ShotSource, label: string, isFresh: boolean, imageNo?: number): Promise<void> {
291  const kind = kindOf(base64)
292  if (kind === null) return
293  const dir = await sessionDir($)
294  if (dir === null) return
295  const { id, at } = await newId($, source)
296  const path = `${dir}/${id}.${kind === 'jpeg' ? 'jpg' : kind}`
297  if (!(await writeBytes($, path, base64))) return
298  const size = pngSize(base64)
299  const look = size !== null ? { thumb: path, ...size } : await lookOf($, path, dir, id)
300  await addShot($, { id, source, label, path, ...look, at, ...(imageNo !== undefined ? { imageNo, isSent: true } : {}) }, isFresh)
301}
302
303/** A prompt's images as it is stored: a paste already taken is marked sent, any other is kept now. */
304async function takePrompt($: EngineInterface, images: readonly string[], numbers: readonly number[]): Promise<void> {
305  for (const [index, base64] of images.entries()) {
306    const n = numbers[index]
307    const list = await read($, shots)
308    const taken = list.find(s => s.source === 'you' && s.imageNo === n && s.isSent !== true)
309    if (taken !== undefined) {
310      await update($, shots, all => all.map(s => (s.id === taken.id ? { ...s, isSent: true } : s)))
311      continue
312    }
313    await saveBytes($, base64, 'you', n === undefined ? 'Sent image' : `Image #${n}`, false, n)
314  }
315  await saveManifest($)
316}
317
318/** A file Claude read or made, shown where it lies; only a converted thumbnail is the plugin's. */
319async function keepFile($: EngineInterface, file: string, source: ShotSource): Promise<void> {
320  const dir = await sessionDir($)
321  if (dir === null) return
322  const { id, at } = await newId($, source)
323  const look = await lookOf($, file, dir, id)
324  await addShot($, { id, source, label: baseName(file), path: file, ...look, at }, true)
325}
326
327/** Pictures a shell command wrote: the working directory and the folders just inside it. */
328async function scanMade($: EngineInterface, since: number): Promise<void> {
329  const cwd = await $.session.cwd()
330  const root = await storeRoot($)
331  const top = await $.fs.list(cwd).catch(() => [])
332  const dirs = [cwd, ...top.filter(e => e.kind === 'dir' && !e.name.startsWith('.') && e.name !== 'node_modules').map(e => `${cwd}/${e.name}`)]
333  const made: string[] = []
334  for (const dir of dirs.slice(0, SCAN_DIRS)) {
335    const entries = dir === cwd ? top : await $.fs.list(dir).catch(() => [])
336    for (const entry of entries) {
337      const path = `${dir}/${entry.name}`
338      if (entry.kind === 'file' && PICTURE.test(entry.name) && entry.mtimeMs >= since && (root === null || !path.startsWith(root))) made.push(path)
339    }
340  }
341  for (const path of made.slice(0, 12)) await keepFile($, path, 'claude-made')
342}
343
344/** Removes kept images older than a week. `$.fs` cannot delete, so this asks `find`; where there is
345 * no `find` (Windows) the call fails and the images stay. */
346async function prune($: EngineInterface): Promise<void> {
347  const root = await storeRoot($)
348  if (root === null || !(await $.fs.exists(root))) return
349  await $.process.run(['find', root, '-type', 'f', '-mtime', `+${KEEP_DAYS}`, '-delete'])
350  await $.process.run(['find', root, '-mindepth', '1', '-type', 'd', '-empty', '-delete'])
351}
352
353let seen: number[] = []
354let isPolling = false
355// The image numbers of the prompt being sent, matched in order to the image blocks it is stored with.
356let sending: number[] = []
357
358async function poll($: EngineInterface): Promise<void> {
359  if (isPolling) return
360  isPolling = true
361  try {
362    const now = imageNumbers((await $.prompt.read()).text)
363    const added = now.filter(n => !seen.includes(n))
364    seen = now
365    for (const n of added) await capturePaste($, n)
366  } finally {
367    isPolling = false
368  }
369}
370
371async function openFile($: EngineInterface, path: string): Promise<void> {
372  const os = await platform($)
373  const argv = os === 'mac' ? ['open', path] : os === 'linux' ? ['xdg-open', path] : ['cmd', '/c', 'start', '', path]
374  if (!(await ran($, argv))) $.ui.toast(`📸 Could not open ${path}`)
375}
376
377async function showInFolder($: EngineInterface, path: string): Promise<void> {
378  const os = await platform($)
379  const argv = os === 'mac' ? ['open', '-R', path] : os === 'linux' ? ['xdg-open', dirName(path)] : ['explorer', `/select,${path}`]
380  // Explorer exits 1 even when it opens the folder.
381  if (!(await ran($, argv)) && os !== 'windows') $.ui.toast(`📸 Could not open ${dirName(path)}`)
382}
383
384async function copyPath($: EngineInterface, path: string, surface: 'terminal' | 'desktop' | 'mobile' | 'vscode'): Promise<void> {
385  const copied = await $.ui.copy({ text: path, surface })
386  $.ui.toast(copied.isCopied ? '📸 Path copied' : `📸 ${path}`)
387}
388
389async function insertPath($: EngineInterface, path: string): Promise<void> {
390  await $.ui.close({ id: PANE })
391  await $.prompt.fill({ text: `@${path} `, mode: 'insert' })
392}
393
394async function dropPastes($: EngineInterface): Promise<void> {
395  const list = await read($, shots)
396  await update($, fresh, ids => ids.filter(id => list.find(s => s.id === id)?.source !== 'you'))
397}
398
399async function reset($: EngineInterface): Promise<void> {
400  seen = []
401  await $.state.set(SHOTS, [])
402  await $.state.set(FRESH, [])
403  await $.state.set(PICKED, null)
404}
405
406// The hint line under the prompt is shared. Each Desk Neighbours mod adds one clickable item to
407// a row keyed `desk-hint` after the engine's own hint; items are kept in order by their keys
408// (`desk-1-…` to `desk-6-…`), so the row reads the same alone or together, in any load order.
409const DESK = 'desk-hint'
410
411// The engine draws the band's collapse mark `[-]` over the right end of its first row without
412// narrowing `bodyColumns`, so band rows stop this many cells short of the edge.
413const MARKER = 4
414
415function keyOf(node: RenderNode | undefined): string {
416  if (typeof node !== 'object' || node === null || !('props' in node)) return ''
417  const key = (node.props as Record<string, unknown> | undefined)?.key
418  return typeof key === 'string' ? key : ''
419}
420
421export function joinDesk(below: RenderElement, mine: RenderElement, wrap: (children: RenderNode[]) => RenderElement): RenderElement {
422  if (below.type !== 'Box' || keyOf(below) !== DESK) return wrap([below, mine])
423  const [line, ...items] = below.children ?? []
424  const sorted = [...items.filter(n => keyOf(n) !== keyOf(mine)), mine].sort((a, b) => keyOf(a).localeCompare(keyOf(b)))
425  return { ...below, children: line === undefined ? sorted : [line, ...sorted] }
426}
427

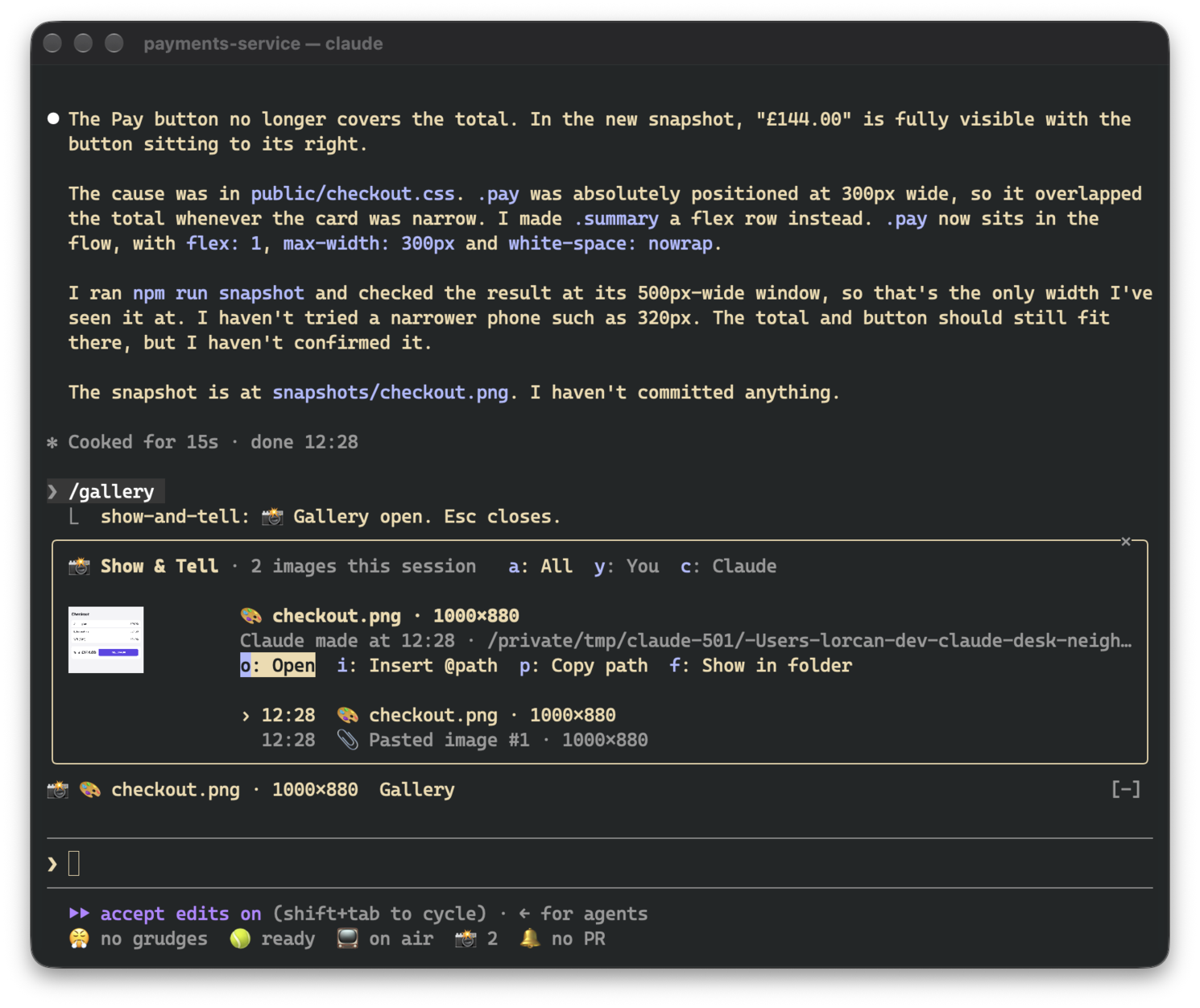

428/** Opens the gallery. Inline it would get a third of the height; a picture needs more. */
429async function openGallery($: EngineInterface): Promise<void> {
430  await $.ui.open({ id: PANE, title: TITLE, focus: true, closeOnEscape: true, rows: GALLERY_ROWS, columns: GALLERY_COLUMNS })
431}
432
433/** Opens the gallery, or closes it when it is the one showing. */
434async function togglePane($: EngineInterface): Promise<void> {
435  const pane = (await $.ui.panes()).find(p => p.id === PANE)
436  if (pane?.isShown === true) {
437    await $.ui.close({ id: PANE })
438    return
439  }
440  await openGallery($)
441}
442
443/** The box a picture fills: `columns` wide unless that would make it taller than `maxRows`,
444 * then as wide as `maxRows` allows, keeping its shape. */
445export function fitPicture(width: number | null, height: number | null, columns: number, maxRows: number): { columns: number; rows: number } {
446  const rows = rowsFor(width, height, columns, maxRows)
447  if (width === null || height === null || Math.round((columns * height) / width / 2) <= maxRows) return { columns, rows }
448  return { columns: Math.max(1, Math.min(columns, Math.round((maxRows * 2 * width) / height))), rows: maxRows }
449}
450
451function sizeText(shot: Shot): string {
452  return shot.width !== null && shot.height !== null ? ` · ${shot.width}×${shot.height}` : ''
453}
454
455const SOURCE_WORD: Record<ShotSource, string> = { you: 'you pasted', 'claude-read': 'Claude looked at', 'claude-made': 'Claude made' }
456
457export const register: Register = (on, options) => {
458  bandMs = Number(options.bandSeconds ?? 20) * 1000
459
460  on('session.start', async ($, e, next) => {
461    await $.command.register({ name: 'gallery', description: '📸 Every image you and Claude passed around this session' })
462    void loadManifest($).catch(() => undefined)
463    void prune($).catch(() => undefined)
464    if (e.isInteractive) $.clock.every(POLL_MS, () => void poll($).catch(() => undefined))
465    return next(e)
466  })
467
468  on('command.run', { command: 'gallery' }, async $ => {
469    await openGallery($)
470    return { text: '📸 Gallery open. Esc closes.' }
471  })
472
473  on('prompt.submit', ($, e, next) => {
474    sending = imageNumbers(e.text)
475    void dropPastes($).catch(() => undefined)
476    return next(e)
477  })
478
479  // The image bytes first reach a plugin here, as the prompt or a tool's result is stored. The row
480  // passes on untouched; what it carries is copied out beside it.
481  on('session.append', { door: 'prompt' }, ($, e, next) => {
482    const images = imagesIn(e.message.content)
483    if (images.length > 0) {
484      const numbers = sending
485      sending = []
486      void takePrompt($, images, numbers).catch(() => undefined)
487    }
488    return next(e)
489  })
490
491  on('session.append', { door: 'tool-result' }, ($, e, next) => {
492    // A Read keeps the file it read (below); every other tool's picture exists only here.
493    const tool = e.origin.kind === 'tool' && 'tool' in e.origin ? e.origin.tool : null
494    if (tool !== null && tool !== 'Read') {
495      for (const base64 of imagesIn(e.message.content)) {
496        void saveBytes($, base64, 'claude-read', toolLabel(tool), true).catch(() => undefined)
497      }
498    }
499    return next(e)
500  })
501
502  on('tool.call', { tool: 'Read' }, async ($, e, next) => {
503    const done = await next(e)
504    if (done.deny === undefined && done.isError !== true && PICTURE.test(e.file_path)) {
505      void keepFile($, e.file_path, 'claude-read').catch(() => undefined)
506    }
507    return done
508  })
509
510  on('tool.call', { tool: 'Write' }, async ($, e, next) => {
511    const done = await next(e)
512    if (done.deny === undefined && done.isError !== true && PICTURE.test(e.file_path)) {
513      void keepFile($, e.file_path, 'claude-made').catch(() => undefined)
514    }
515    return done
516  })
517
518  on('tool.call', { tool: 'Edit' }, async ($, e, next) => {
519    const done = await next(e)
520    if (done.deny === undefined && done.isError !== true && PICTURE.test(e.file_path)) {
521      void keepFile($, e.file_path, 'claude-made').catch(() => undefined)
522    }
523    return done
524  })
525
526  on('tool.call', { tool: 'Bash' }, async ($, e, next) => {
527    const since = await $.clock.now()
528    const done = await next(e)
529    if (done.deny === undefined) void scanMade($, since).catch(() => undefined)
530    return done
531  })
532
533  // `/clear` and `/resume` go on under a new session with empty state and fire no `session.start`;
534  // their classic SessionStart (source `clear` or `resume`) is the one place to load the gallery again.
535  on('classic.SessionStart', ($, e, next) => {
536    if (e.source === 'clear' || e.source === 'resume') void loadManifest($).catch(() => undefined)
537    return next(e)
538  })
539
540  on('session.end', async ($, e, next) => {
541    if (e.reason === 'clear' || e.reason === 'resume') await reset($).catch(() => undefined)
542    return next(e)
543  })
544
545  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
546    if (e.props.hasSurvey) return next(e)
547    const ids = await read($, fresh)
548    const list = await read($, shots)
549    const showing = ids.map(id => list.find(s => s.id === id)).filter((s): s is Shot => s !== undefined)
550    if (showing.length === 0) return next(e)
551    const below = await next(e)
552    const width = e.props.bodyColumns - MARKER
553    const fits = Math.max(1, Math.floor((width - 22) / (THUMB_COLUMNS + 2)))
554    const thumbRows = e.props.maxRows - 2
555    if (e.surface === 'terminal' && thumbRows >= 3) {
556      const { Box, Text, Button, Image } = $.ui.resolve(e)
557      return (
558        <Box flexDirection="column">
559          {below}
560          <Box flexDirection="row" columnGap={2} width={width}>
561            {showing.slice(0, fits).map(shot => (
562              <Box flexDirection="column" width={THUMB_COLUMNS} flexShrink={0}>
563                {/* The label is under it, so where the terminal draws no pixels the alt says the size. */}
564                {shot.thumb !== null && (
565                  <Image
566                    key={`band-${shot.id}`}
567                    source={{ file: shot.thumb, format: 'png', generation: shot.at }}
568                    columns={THUMB_COLUMNS}
569                    rows={rowsFor(shot.width, shot.height, THUMB_COLUMNS, thumbRows)}
570                    alt={shot.width !== null && shot.height !== null ? `${shot.width}×${shot.height}` : 'picture'}
571                  />
572                )}
573                <Text dimColor wrap="truncate-end">
574                  {ICON[shot.source]} {shot.label}
575                </Text>
576              </Box>
577            ))}
578            <Box flexDirection="column" flexShrink={0}>
579              {showing.length > fits && <Text dimColor>+{showing.length - fits} more</Text>}
580              <Button key="band-gallery" plain label="Gallery" onPress={() => void openGallery($)} />
581              <Button key="band-dismiss" plain dimColor label="Dismiss" onPress={() => void $.state.set(FRESH, [])} />
582            </Box>
583          </Box>
584        </Box>
585      )
586    }
587    const { Box, Text, Button } = $.ui.resolve(e)
588    const [first] = showing
589    return (
590      <Box flexDirection="column">
591        {below}
592        <Box flexDirection="row" flexWrap="wrap" columnGap={2} width={width}>
593          <Box flexShrink={1}>
594            <Text>
595              📸 {first === undefined ? '' : `${ICON[first.source]} ${first.label}${sizeText(first)}`}
596              {showing.length > 1 ? ` and ${showing.length - 1} more` : ''}
597            </Text>
598          </Box>
599          <Box flexShrink={0}>
600            <Button key="band-gallery" plain label="Gallery" onPress={() => void openGallery($)} />
601          </Box>
602        </Box>
603      </Box>
604    )
605  })
606
607  on('ui.render', { component: 'PromptHint' }, async ($, e, next) => {
608    const n = (await read($, shots)).length
609    const label = n === 0 ? '📸 gallery' : `📸 ${n}`
610    const below = await next(e)
611    const { Box, Button } = $.ui.resolve(e)
612    const mine = <Button key="desk-6-show-and-tell" plain dimColor label={label} onPress={() => void togglePane($)} />
613    return joinDesk(below, mine, children => (
614      <Box key={DESK} flexDirection="row" columnGap={2}>
615        {children}
616      </Box>
617    ))
618  })
619
620  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
621    const all = await read($, shots)
622    const which = await read($, filter)
623    const pickedId = await read($, picked)
624    const list = all.filter(s => which === 'all' || (which === 'you' ? s.source === 'you' : s.source !== 'you'))
625    const current = list.find(s => s.id === pickedId) ?? list[0]
626    const { bodyColumns } = e.props
627    const bodyRows = e.props.scroll.bodyRows
628    const isBeside = bodyColumns >= SIDE_BY_SIDE
629    // Every row is counted: an inline pane may get far fewer than it asked for, and what does not
630    // fit is cut off. The header (with the filters) takes 2, the footer 2 where there is room.
631    const hasFooter = bodyRows >= 14
632    const room = Math.max(3, bodyRows - 2 - (hasFooter ? 2 : 0))
633    // Beside the picture: the details (3 rows and a gap), the list, and a "+N more" line if needed.
634    const listFits = (rows: number) => (list.length <= rows ? list.length : Math.max(1, rows - 1))
635    const listRows = isBeside ? listFits(room - 4) : listFits(Math.min(3, Math.max(1, room - 7)))
636    const box = fitPicture(
637      current?.width ?? null,
638      current?.height ?? null,
639      isBeside ? Math.min(PREVIEW_COLUMNS, Math.floor(bodyColumns * 0.45)) : Math.min(bodyColumns - 2, PREVIEW_COLUMNS),
640      isBeside ? room : room - 4 - listRows - (list.length > listRows ? 1 : 0),
641    )
642    const hasPicture = current?.thumb != null && e.surface === 'terminal' && box.rows >= 3
643    const tabs = (['all', 'you', 'claude'] as const).map(f => ({ f, label: f === 'all' ? 'All' : f === 'you' ? 'You' : 'Claude', hotkey: f[0] }))
644    const { Box, Text, Button } = $.ui.resolve(e)
645    const preview =
646      hasPicture && current?.thumb != null && e.surface === 'terminal'
647        ? (() => {
648            const { Image } = $.ui.resolve(e)
649            return (
650              <Box flexShrink={0} marginRight={isBeside ? 2 : 0}>
651                <Image
652                  key="preview"
653                  source={{ file: current.thumb, format: 'png', generation: current.at }}
654                  columns={box.columns}
655                  rows={box.rows}
656                  alt="This terminal shows no pictures; o opens it"
657                />
658              </Box>
659            )
660          })()
661        : null
662    const details = current !== undefined && (
663      <Box flexDirection="column" marginBottom={1}>
664        <Text bold wrap="truncate-end">
665          {ICON[current.source]} {current.label}
666          {sizeText(current)}
667        </Text>
668        <Text dimColor wrap="truncate-end">
669          {SOURCE_WORD[current.source]} at {clockTime(current.at)} · {current.path}
670        </Text>
671        <Box flexDirection="row" flexWrap="wrap" columnGap={2}>
672          <Button key="act-open" hotkey="o" plain label="Open" autoFocus onPress={() => void openFile($, current.path)} />
673          <Button key="act-insert" hotkey="i" plain label="Insert @path" onPress={() => void insertPath($, current.path)} />
674          <Button key="act-copy" hotkey="p" plain label="Copy path" onPress={press => void copyPath($, current.path, press.surface)} />
675          <Button key="act-folder" hotkey="f" plain label="Show in folder" onPress={() => void showInFolder($, current.path)} />
676        </Box>
677      </Box>
678    )
679    const picks = list.slice(0, listRows).map(shot => (
680      <Button
681        key={`pick-${shot.id}`}
682        plain
683        dimColor={shot.id !== current?.id}
684        label={`${shot.id === current?.id ? '›' : ' '} ${clockTime(shot.at)}  ${ICON[shot.source]} ${shot.label}${sizeText(shot)}`}
685        onPress={() => void $.state.set(PICKED, shot.id)}
686      />
687    ))
688    const more = list.length > picks.length ? <Text dimColor>  +{list.length - picks.length} more</Text> : null
689    return (
690      <Box flexDirection="column">
691        <Box flexDirection="row" flexWrap="wrap" columnGap={3} marginBottom={1}>
692          <Box flexDirection="row">
693            <Text bold>📸 Show & Tell</Text>
694            <Text dimColor>
695              {' '}
696              · {all.length} image{all.length === 1 ? '' : 's'} this session
697            </Text>
698          </Box>
699          <Box flexDirection="row" columnGap={2}>
700            {tabs.map(t => (
701              <Button key={`tab-${t.f}`} hotkey={t.hotkey} plain dimColor={t.f !== which} label={t.label} onPress={() => void $.state.set(FILTER, t.f)} />
702            ))}
703          </Box>
704        </Box>
705        {current === undefined && <Text dimColor>Nothing yet. Paste an image with ctrl+v, or let Claude read or make one.</Text>}
706        {current !== undefined && isBeside && (
707          <Box flexDirection="row">
708            {preview}
709            <Box flexDirection="column" flexGrow={1} flexShrink={1}>
710              {details}
711              {picks}
712              {more}
713            </Box>
714          </Box>
715        )}
716        {current !== undefined && !isBeside && (
717          <Box flexDirection="column">
718            {preview}
719            {details}
720            {picks}
721            {more}
722          </Box>
723        )}
724        {hasFooter && (
725          <Box marginTop={1}>
726            <Text dimColor>Kept {KEEP_DAYS} days · tab walks the list · esc closes</Text>
727          </Box>
728        )}
729      </Box>
730    )
731  })
732}
733

1/** Who brought an image into the session: you pasted it, Claude looked at it, or Claude made it. */
2export type ShotSource = 'you' | 'claude-read' | 'claude-made'
3
4/** One image of the session, for the band and the gallery. */
5export type Shot = {
6  id: string
7  source: ShotSource
8  label: string
9  /** The file Open, Copy path and Insert use: the plugin's own copy, or the file Claude read or made. */
10  path: string
11  /** A PNG the terminal can draw, or null where none could be made (the gallery lists it as text). */
12  thumb: string | null
13  width: number | null
14  height: number | null
15  at: number
16  /** The `[Image #N]` a paste came in as. */
17  imageNo?: number
18  /** A paste that has gone out with a prompt. */
19  isSent?: boolean
20}
21
22declare module 'claude-code' {
23  interface PluginState {
24    'show-and-tell': {
25      /** Newest first. */
26      shots: Shot[]
27      /** Ids the band above the prompt shows. */
28      fresh: string[]
29      /** The gallery's selected shot. */
30      picked: string | null
31      filter: 'all' | 'you' | 'claude'
32    }
33  }
34}
35
