hook-flow

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, Timer, TraceEntry } from 'claude-code'
3
4import type { Snapshot } from '../types'
5import { EXPLAIN, NODE_BY_KEY } from './explain'
6import type { ChartProps } from './chart'
7import { FLOW_COLUMNS, FLOW_ROWS, Flow, NODES, nodeAt, nodeOf } from './flow'
8import { LABEL_WIDTH, follow, heightOf, insideOf, layout, seconds, spansAt, timelineRows, wholeOf, zoomBy } from './timeline'
9import type { Span, Window } from './timeline'
10
11const PANE = 'hook-flow'
12const SECONDS = 12
13const BARS = '▁▂▃▄▅▆▇█'
14const EIGHTHS = ' ▏▎▍▌▋▊▉█'
15
16// The pane reads `tick`, so a write redraws the pane alone; $.ui.invalidate
17// would redraw every site this plugin hooks, every site on screen with UI on.
18const tick = atom({ plugin: 'hook-flow', key: 'tick' } as const, 0)
19const snapshot = atom({ plugin: 'hook-flow', key: 'snapshot' } as const, null as Snapshot | null)
20
21export type EventStats = {
22  n: number
23  ms: number
24  bytes: number
25  lastAt: number
26  perSecond: Map<number, number>
27  plugins: Set<string>
28}
29export type Step = { input: number; output: number; cached: number }
30export type Turn = { usd: number; tokens: number }
31export type Seen = { event: string; node: string; detail: string; at: number }
32export type Call = { tool: string; ms: number; links: { plugin: string; ms: number; outcome: string }[] }
33
34export const stats = new Map<string, EventStats>()
35export const steps: Step[] = []
36export const turns: Turn[] = []
37export const flow = new Flow()
38let view: 'flow' | 'timeline' = 'flow'
39let selected: string | undefined
40export const seen = new Map<string, Seen>()
41export const history = new Map<string, Seen[]>()
42let recording: Seen[] = []
43export let lastTurnSteps: Seen[] = []
44let replay: { steps: Seen[]; index: number; flow: Flow; timer: Timer } | undefined
45let lastCall: Call | undefined
46export let spans: Span[] = []
47let isRecordingSpans = false
48let turnDepth = 0
49let nextSpanId = 1
50let hoveredId: number | undefined
51let hoverCount = 0
52let pinnedId: number | undefined
53let zoom: Window | undefined
54let paneOffset = 0
55// The pane's rows above the chart: the odometer, then the buttons.
56const CHART_TOP = 2
57let sessionUsd: number | undefined
58let shownUsd = 0
59let flashUntil = 0
60let contextPercent: number | undefined
61let isDirty = false
62let isPaused = false
63let lastActivityAt = 0
64let chartColumns = 0
65let odometer: Timer | undefined
66
67export const sizeOf = (value: unknown): number => {
68  try {
69    return JSON.stringify(value)?.length ?? 0
70  } catch {
71    return 0
72  }
73}
74
75export const record = (event: string, ms: number, bytes: number, plugins: string[], now: number) => {
76  const one = stats.get(event) ?? {
77    n: 0, ms: 0, bytes: 0, lastAt: 0, perSecond: new Map<number, number>(), plugins: new Set<string>(),
78  }
79  const second = Math.floor(now / 1000)
80  one.n += 1
81  one.ms += ms
82  one.bytes += bytes
83  one.lastAt = now
84  one.perSecond.set(second, (one.perSecond.get(second) ?? 0) + 1)
85  for (const old of one.perSecond.keys()) if (old <= second - SECONDS) one.perSecond.delete(old)
86  for (const plugin of plugins) one.plugins.add(plugin)
87  stats.set(event, one)
88  lastActivityAt = now
89  isDirty = true
90}
91
92export const sparkline = (values: readonly number[]): string => {
93  const top = Math.max(...values, 0)
94  return values.map(v => (v === 0 ? ' ' : BARS[Math.min(7, Math.floor((v / top) * 7.999))])).join('')
95}
96
97// A horizontal bar `width` cells wide at most, in eighths of a cell.
98export const bar = (value: number, top: number, width: number): string => {
99  const eighths = top <= 0 ? 0 : Math.round((Math.min(value, top) / top) * width * 8)
100  return '█'.repeat(Math.floor(eighths / 8)) + (eighths % 8 ? EIGHTHS[eighths % 8] : '')
101}
102
103const recentSeconds = (one: EventStats, now: number) => {
104  const second = Math.floor(now / 1000)
105  return Array.from({ length: SECONDS }, (_, i) => one.perSecond.get(second - SECONDS + 1 + i) ?? 0)
106}
107
108const short = (n: number): string =>
109  n >= 1e6 ? `${(n / 1e6).toFixed(1)}M` : n >= 1e3 ? `${(n / 1e3).toFixed(1)}k` : `${Math.round(n)}`
110
111const duration = (ms: number): string => (ms >= 1000 ? `${(ms / 1000).toFixed(2)}s` : `${Math.round(ms)}ms`)
112
113const pad = (text: string, width: number) =>
114  text.length > width ? `${text.slice(0, width - 1)}…` : text.padEnd(width)
115
116export const reset = () => {
117  stats.clear()
118  steps.length = 0
119  turns.length = 0
120  lastCall = undefined
121  isDirty = true
122}
123
124const measure = (event: string, startedAt: number, e: unknown, result: unknown, trace: readonly TraceEntry[]) => {
125  const plugins = trace.map(link => link.plugin).filter(p => p !== 'engine' && p !== 'hook-flow')
126  const bytes = sizeOf(e) + sizeOf(result)
127  record(event, Date.now() - startedAt, bytes, plugins, Date.now())
128  return { bytes, plugins }
129}
130
131// The spans of the turn in progress, or of the last one: a prompt starts a
132// fresh set, and the turn that answers it completing closes it.
133export const startSpan = (event: string, detail: string, now: number): Span | undefined => {
134  const node = nodeOf(event)
135  if (!node || node === 'ui') return undefined
136  if (event === 'prompt.submit') {
137    spans = []
138    isRecordingSpans = true
139    turnDepth = 0
140    hoveredId = undefined
141    pinnedId = undefined
142    zoom = undefined
143  }
144  if (!isRecordingSpans || spans.length >= 600) return undefined
145  if (event === 'turn.start') turnDepth += 1
146  const span: Span = { id: nextSpanId++, event, node, detail, start: now, bytes: 0, plugins: [] }
147  spans.push(span)
148  return span
149}
150
151export const endSpan = (span: Span | undefined, bytes: number, plugins: string[], now: number) => {
152  if (!span) return
153  span.end = now
154  span.bytes = bytes
155  span.plugins = plugins
156  if (span.event === 'turn.complete') {
157    turnDepth -= 1
158    if (turnDepth <= 0) isRecordingSpans = false
159  }
160}
161
162export const toSnapshot = (): Snapshot => ({
163  events: [...stats].map(([event, one]) => ({
164    event, n: one.n, ms: one.ms, bytes: one.bytes, lastAt: one.lastAt,
165    perSecond: [...one.perSecond], plugins: [...one.plugins],
166  })),
167  steps: [...steps],
168  turns: [...turns],
169  isPaused,
170})
171
172export const fromSnapshot = (saved: Snapshot) => {
173  reset()
174  for (const one of saved.events) {
175    stats.set(one.event, { ...one, perSecond: new Map(one.perSecond), plugins: new Set(one.plugins) })
176  }
177  steps.push(...saved.steps)
178  turns.push(...saved.turns)
179  isPaused = saved.isPaused
180}
181
182// Flips the UI option. The engine reloads the module with the new value,
183// which drops module variables, so the counts go to $.state first.
184async function toggleUi($: EngineInterface, isOn: boolean) {
185  await update($, snapshot, () => toSnapshot())
186  const row = (await $.config.list()).find(one => one.key.endsWith('.watchUi') && one.key.startsWith('hook-flow'))
187  const done = row && (await $.config.set({ key: row.key, value: !isOn }))
188  if (!done || 'deny' in done) {
189    await update($, snapshot, () => null)
190    $.ui.toast(`hook-flow: couldn't switch UI events${done && 'deny' in done ? `: ${done.deny}` : ''}`)
191  }
192}
193
194// A box's count: every event it stands for, from the per-event stats; in a
195// replay, the steps replayed so far.
196export const countOf = (id: string): number => {
197  let n = 0
198  if (replay) {
199    for (const step of replay.steps.slice(0, replay.index + 1)) if (step.node === id) n += 1
200    return n
201  }
202  for (const [event, one] of stats) if (nodeOf(event) === id) n += one.n
203  return n
204}
205
206const keyOf = (id: string) => EXPLAIN[id]?.key ?? ''
207
208// The last thing each box saw, and the steps of the turn in progress: a
209// prompt starts a recording, the turn's completion files it for replay.
210export const note = (event: string, detail: string, now: number) => {
211  const node = nodeOf(event)
212  if (!node) return
213  const step: Seen = { event, node, detail, at: now }
214  seen.set(node, step)
215  history.set(node, [step, ...(history.get(node) ?? [])].slice(0, 5))
216  if (node === 'ui') return
217  if (event === 'prompt.submit') recording = []
218  recording.push(step)
219  if (recording.length > 400) recording.shift()
220  if (event === 'turn.complete') {
221    lastTurnSteps = recording
222    recording = []
223  }
224}
225
226const activeFlow = () => replay?.flow ?? flow
227
228// The chart and the timeline need their full width; narrower, neither shows.
229const shownView = (columns: number) => (columns < FLOW_COLUMNS ? 'none' : view)
230
231export const chartProps = (columns: number, now: number): ChartProps => ({
232  // The keys that jump to a box only work, and only show, while explaining.
233  rows: activeFlow().rows(columns, now, countOf, selected ? keyOf : undefined, selected),
234  isHot: activeFlow().isHot(now),
235})
236
237const nodeColor = (id: string) => NODES.find(n => n.id === id)?.color ?? 0xdfe6e9
238const hex = (n: number) => `#${n.toString(16).padStart(6, '0')}`
239
240// The span the timeline lights: the one under the pointer, else the pinned one.
241const focusSpan = () => spans.find(s => s.id === (hoveredId ?? pinnedId))
242
243const readout = (focus: Span | undefined, now: number): string => {
244  if (spans.length === 0) return 'Waiting for a prompt…'
245  if (!focus) return `${spans.length} events · hover a bar · click to pin`
246  const stack = focus.id === hoveredId && hoverCount > 1 ? `×${hoverCount} ` : ''
247  const t0 = spans[0]?.start ?? focus.start
248  return `${stack}${focus.event}${focus.detail ? ` · ${focus.detail}` : ''} · ${seconds((focus.end ?? now) - focus.start)} · +${seconds(focus.start - t0)}`
249}
250
251export const shapeOf = (columns: number, now: number) => layout(spans, columns, now, zoom)
252
253// Zooms the timeline around a point of its field (a fraction), by default
254// the pinned span when it shows, else the middle.
255export const zoomTimeline = (factor: number, columns: number, now: number, anchor?: number) => {
256  const shape = shapeOf(columns, now)
257  const pinned = spans.find(s => s.id === pinnedId)
258  const mid = pinned ? ((pinned.start + (pinned.end ?? now)) / 2 - shape.t0) / (shape.t1 - shape.t0) : 0.5
259  zoom = zoomBy(zoom, shape.whole, factor, anchor ?? Math.max(0, Math.min(1, mid)))
260}
261
262export const zoomOf = () => zoom

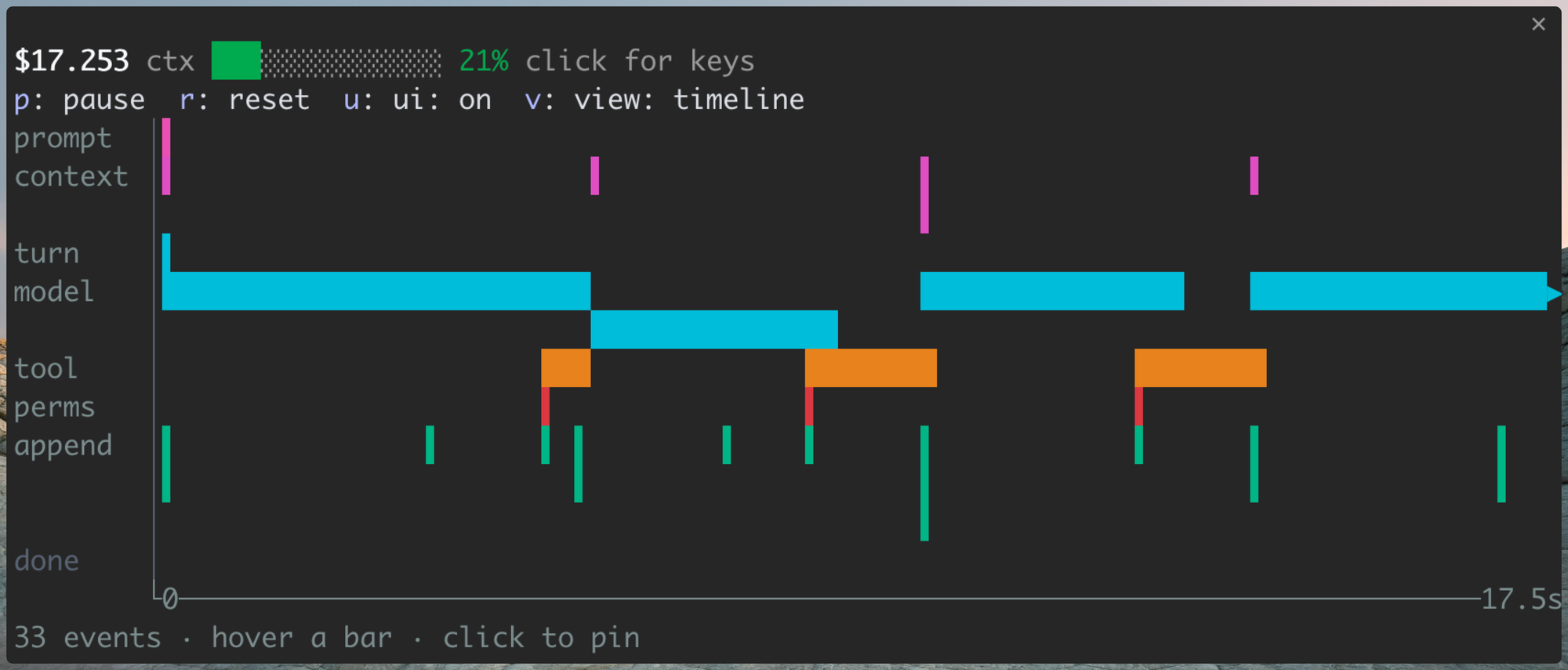

263
264// The timeline's rows and, beneath them, a line on the span in focus.
265export const timelineProps = (columns: number, now: number): ChartProps => {
266  const focus = focusSpan()
267  const rows = timelineRows(spans, shapeOf(columns, now), columns, now, focus)
268  rows.push([[pad(readout(focus, now), columns), focus ? nodeColor(focus.node) : 0x7f8c8d]])
269  return { rows, isHot: isRecordingSpans }
270}
271
272// Moves the pin along the turn, in the order the spans started.
273export const pinFrom = (by: number) => {
274  if (spans.length === 0) return
275  const at = spans.findIndex(s => s.id === pinnedId)
276  const next = at < 0 ? (by > 0 ? 0 : spans.length - 1) : Math.max(0, Math.min(spans.length - 1, at + Math.sign(by)))
277  pinnedId = spans[next]?.id
278  const pinned = spans[next]
279  if (pinned) zoom = follow(zoom, pinned, Date.now())
280}
281
282const NARROW = 52
283const WIDE = 72
284
285// Opens or closes explain mode on a box; the pane asks for more room while
286// it explains, and gives it back after (a width the person dragged wins).
287function select($: EngineInterface, id: string | undefined) {
288  const wasOpen = selected !== undefined
289  selected = selected === id ? undefined : id
290  const isOpen = selected !== undefined
291  if (wasOpen !== isOpen) {
292    $.ui.open({ id: PANE, title: 'Hook flow', columns: isOpen ? WIDE : NARROW }).catch(() => undefined)
293  }
294  return update($, tick, n => n + 1)
295}
296
297// The boxes in loop order, as their keys run: what ↑ and ↓ step through.
298export const ORDER = Object.keys(EXPLAIN)
299
300export const stepFrom = (from: string | undefined, by: number): string => {
301  const at = from === undefined ? -1 : ORDER.indexOf(from)
302  const next = (at + Math.sign(by) + ORDER.length) % ORDER.length
303  return ORDER[next] ?? ORDER[0] ?? 'prompt'
304}
305
306// Where explain mode opens: the box that fired last, else the prompt.
307const latestBox = () => {
308  let best: Seen | undefined
309  for (const one of seen.values()) if (one.node !== 'ui' && (!best || one.at > best.at)) best = one
310  return best?.node ?? 'prompt'
311}
312
313function stopReplay() {
314  replay?.timer.cancel()
315  replay = undefined
316}
317
318// Plays the last finished turn back one step every 450 ms on a chart of its
319// own, so each step lights in order; pressing again stops it.
320function toggleReplay($: EngineInterface) {
321  if (replay) {
322    stopReplay()
323    return update($, tick, n => n + 1)
324  }
325  if (lastTurnSteps.length === 0) {
326    $.ui.toast('hook-flow: no finished turn to replay yet')
327    return
328  }
329  view = 'flow'
330  const steps = lastTurnSteps
331  const played = new Flow()
332  const timer = $.clock.every(450, () => {
333    if (!replay) return
334    replay.index += 1
335    const step = replay.steps[replay.index]
336    if (!step) {
337      stopReplay()
338    } else {
339      replay.flow.hit(step.event, Date.now())
340    }
341    void update($, tick, n => n + 1)
342  })
343  replay = { steps, index: -1, flow: played, timer }
344  return update($, tick, n => n + 1)
345}
346
347// Rolls the shown total toward the real one, a few redraws a second.
348function rollOdometer($: EngineInterface) {
349  if (odometer) return
350  odometer = $.clock.every(60, () => {
351    const target = sessionUsd ?? 0
352    shownUsd += (target - shownUsd) * 0.3
353    if (Math.abs(target - shownUsd) < 0.0005) {
354      shownUsd = target
355      odometer?.cancel()
356      odometer = undefined
357    }
358    void update($, tick, n => n + 1)
359  })
360}
361
362export const register: Register = (on, options) => {
363  const isWatchingUi = options.watchUi === true
364  const costAlert = typeof options.costAlert === 'number' ? options.costAlert : 0.5
365
366  // Every event but the ui.* ones, timed and sized; our own $ calls are left
367  // out, so the widget never counts itself.
368  on('!ui.*', async ($, e, next) => {
369    const isOwn = isPaused || next.origin.plugin === 'hook-flow'
370    const startedAt = Date.now()
371    let span: Span | undefined
372    if (!isOwn) {
373      flow.hit(next.event, startedAt)
374      const detail = next.is('tool.call', e) ? e.tool
375        : next.is('turn.step', e) ? `${e.model} · ${e.messageCount} messages`
376        : next.is('prompt.submit', e) ? `${e.text.length} characters`
377        : next.is('agent.spawn', e) ? (e.subagentType ?? 'agent')
378        : next.is('command.run', e) ? `/${e.command}`
379        : ''
380      note(next.event, detail, startedAt)
381      span = startSpan(next.event, detail, startedAt)
382    }
383    const result = await next(e)
384    if (!isOwn) {
385      const { bytes, plugins } = measure(next.event, startedAt, e, result, next.trace)
386      endSpan(span, bytes, plugins, Date.now())
387      if (next.is('tool.call', e)) {
388        lastCall = {
389          tool: e.tool,
390          ms: Date.now() - startedAt,
391          links: next.trace.map(link => ({ plugin: link.plugin, ms: link.ms, outcome: link.outcome })),
392        }
393      }
394    }
395    return result
396  }).catch(($, e, next) => next(e))
397
398  // The ui.* events, only while the option is on: registered at all, this
399  // hook makes every site on screen call into the module as it draws.
400  if (isWatchingUi) {
401    on('ui.*', async ($, e, next) => {
402      const isOwn =
403        isPaused ||
404        next.origin.plugin === 'hook-flow' ||
405        (next.is('ui.render', e) && e.requestId === PANE) ||
406        (next.is('ui.message', e) && e.requestId === PANE)
407      const startedAt = Date.now()
408      if (!isOwn) {
409        flow.hit(next.event, startedAt)
410        note(next.event, next.is('ui.render', e) ? e.component : '', startedAt)
411      }
412      const result = await next(e)
413      if (!isOwn) {
414        measure(next.event, startedAt, e, result, next.trace)
415      }
416      return result
417    }).catch(($, e, next) => next(e))
418  }
419
420  on('turn.step', async function* ($, e, next) {
421    const result = yield* next(e)
422    if (result.usage && !isPaused) {
423      const u = result.usage
424      steps.push({
425        input: u.input_tokens + u.cache_creation_input_tokens,
426        cached: u.cache_read_input_tokens,
427        output: u.output_tokens,
428      })
429      if (steps.length > 200) steps.shift()
430      contextPercent = (await $.session.usage()).context.percent ?? contextPercent
431      isDirty = true
432    }
433    return result
434  })
435
436  on('turn.complete', async ($, e, next) => {
437    const done = await next(e)
438    const usage = await $.session.usage()
439    const usd = usage.cost?.usd ?? sessionUsd ?? 0
440    const tokens = steps.reduce((sum, s) => sum + s.input + s.output, 0)
441    const spent = usd - (sessionUsd ?? usd)
442    turns.push({ usd: spent, tokens })
443    if (turns.length > 100) turns.shift()
444    sessionUsd = usd
445    contextPercent = usage.context.percent
446    if (spent >= costAlert) {
447      flashUntil = Date.now() + 3000
448      $.ui.toast(`hook-flow: that turn cost $${spent.toFixed(2)}`)
449    }
450    rollOdometer($)
451    isDirty = true
452    return done
453  })
454
455  on('session.start', async ($, e, next) => {
456    const saved = await read($, snapshot)
457    if (saved) {
458      fromSnapshot(saved)
459      await update($, snapshot, () => null)
460    }
461    const usage = await $.session.usage()
462    sessionUsd = usage.cost?.usd
463    shownUsd = sessionUsd ?? 0
464    contextPercent = usage.context.percent
465    await $.command.register({ name: 'flow', description: 'Show the hook-flow pane: every hook event, tokens and $' })
466    // The table redraws at most twice a second, and keeps sliding its
467    // sparklines while anything happened in the window they show.
468    $.clock.every(500, () => {
469      const isSliding = Date.now() - lastActivityAt < SECONDS * 1000
470      if (isDirty || isSliding || Date.now() < flashUntil + 500) {
471        isDirty = false
472        void update($, tick, n => n + 1)
473      }
474    })
475    void $.ui.open({ id: PANE, title: 'Hook flow', columns: selected ? WIDE : NARROW })
476    return next(e)
477  })
478
479  // The charts' posts: a frame request answered with fresh rows; on the flow
480  // chart a click opens the box under it; on the timeline a hover lights the
481  // span under it and a click pins it.
482  on('ui.message', { requestId: PANE }, async ($, e, next) => {
483    const data = e.data as { kind?: string; x?: number; y?: number } | null
484    const now = Date.now()
485    // A click on the chart asks for the pane's keys, so the pane's own focus
486    // (which the badge shows, and Escape hands back) is the only one there is.
487    // Claude Code grants it over an empty prompt; otherwise the keys stay put.
488    if (data?.kind === 'click') void $.ui.open({ id: PANE, title: 'Hook flow', focus: true }).catch(() => undefined)
489    // One Client draws both views, so switching keeps it; the view says which.
490    if (shownView(chartColumns) === 'timeline') {
491      const isAt = typeof data?.x === 'number' && typeof data.y === 'number'
492      const under = isAt && data.x! >= 0 ? spansAt(shapeOf(chartColumns, now), data.x!, data.y!) : []
493      if (data?.kind === 'hover') {
494        hoveredId = under[0]?.id
495        hoverCount = under.length
496      }
497      if (data?.kind === 'click' && under[0]) {
498        pinnedId = pinnedId === under[0].id ? undefined : under[0].id
499        await update($, tick, n => n + 1)
500      }
501      return { props: timelineProps(chartColumns, now) }
502    }
503    if (data?.kind === 'hover') return {}
504    if (data?.kind === 'frame') return { props: chartProps(chartColumns, now) }
505    if (data?.kind === 'click' && typeof data.x === 'number' && typeof data.y === 'number') {
506      const id = nodeAt(data.x, data.y, chartColumns)
507      if (id) await select($, id)
508      return {}
509    }
510    return next(e)
511  })
512
513  // In explain mode the scroll keys step through the boxes instead of
514  // scrolling; the wheel (it carries a pointer) still scrolls the pane.
515  on('ui.scroll', { requestId: PANE }, async ($, e, next) => {
516    // The wheel over the timeline zooms it around the pointer: up in, down out.
517    if (e.pointer && e.by !== 0 && shownView(chartColumns) === 'timeline') {
518      const now = Date.now()
519      const shape = shapeOf(chartColumns, now)
520      const row = e.pointer.row + paneOffset - CHART_TOP
521      const x = e.pointer.column - LABEL_WIDTH
522      if (row >= 0 && row < heightOf(shape) && x >= 0) {
523        zoomTimeline(e.by < 0 ? 0.7 : 1 / 0.7, chartColumns, now, x / shape.field)
524        await update($, tick, n => n + 1)
525        return {}
526      }
527    }
528    if (e.pointer !== undefined || e.by === 0) return next(e)
529    if (!selected && shownView(chartColumns) === 'timeline' && spans.length > 0) {
530      pinFrom(e.by)
531      await update($, tick, n => n + 1)
532      return {}
533    }
534    if (!selected) return next(e)
535    selected = stepFrom(selected, e.by)
536    await update($, tick, n => n + 1)
537    return {}
538  })
539
540  on('command.run', { command: 'flow' }, async $ => {
541    await $.ui.open({ id: PANE, title: 'Hook flow', columns: selected ? WIDE : NARROW })
542    return { text: 'Hook flow pane opened.' }
543  })
544
545  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
546    const { Box, Text, Button, Code } = $.ui.resolve(e)
547    const count = await read($, tick)
548    const now = Date.now()
549    const width = Math.max(30, e.props.bodyColumns)
550    const nameWidth = width - SECONDS - 18
551    const callRows = lastCall ? Math.min(4, lastCall.links.length) + 1 : 1
552    const hasChart = e.surface === 'terminal'
553    const hasKeys = e.props.isFocused
554    const shown = shownView(width)
555    const shape = shapeOf(width, now)
556    paneOffset = e.props.scroll.offset
557    const chartRows = shown === 'flow' ? FLOW_ROWS : shown === 'timeline' ? heightOf(shape) + 1 : 1
558    const pinned = shown === 'timeline' ? spans.find(s => s.id === pinnedId) : undefined
559    const explainer = selected ? EXPLAIN[selected] : undefined
560    const room = Math.max(3, e.props.scroll.bodyRows - 14 - callRows - (hasChart ? chartRows : 0))
561
562    const rows = [...stats.entries()].sort((a, b) => b[1].lastAt - a[1].lastAt).slice(0, room)
563    const lastStep = steps.at(-1)
564    const lastTurn = turns.at(-1)
565
566    // The odometer: amber while it rolls, a blinking alert after a costly turn.
567    const isFlashing = now < flashUntil
568    const usd = sessionUsd === undefined ? '$—.———' : `$${shownUsd.toFixed(3)}`
569    const usdColor = isFlashing ? 'red' : odometer !== undefined ? 'yellow' : undefined
570
571    // The context gauge, green to amber to red as it fills toward compaction.
572    const gaugeWidth = 14
573    const pct = contextPercent ?? 0
574    const gaugeColor = pct >= 80 ? 'red' : pct >= 60 ? 'yellow' : 'green'
575    const filled = bar(pct, 100, gaugeWidth)
576
577    const links = lastCall?.links.filter(l => l.outcome !== 'skipped').slice(0, 4) ?? []
578    const slowest = Math.max(1, ...links.map(l => l.ms))
579    const linkBar = Math.max(6, width - 22)
580
581    let chartView
582    if (hasChart) {
583      chartColumns = width
584      if (shown !== 'none') {
585        const { Client } = $.ui.resolve(e)
586        const props = shown === 'flow' ? chartProps(width, now) : timelineProps(width, now)
587        chartView = <Client key="chart" module="./chart.tsx" props={props} width={width} height={chartRows} />
588      } else {
589        chartView = <Text dimColor>Widen the pane to see the chart.</Text>
590      }
591    }
592
593    return (
594      <Box flexDirection="column">
595        <Box flexDirection="row" gap={1}>
596          <Text bold color={usdColor} inverse={isFlashing && count % 2 === 0}>{usd}</Text>
597          <Text dimColor>ctx</Text>
598          <Box flexDirection="row">
599            <Text color={gaugeColor}>{filled}</Text>
600            <Text dimColor>{'░'.repeat(Math.max(0, gaugeWidth - filled.length))}</Text>
601          </Box>
602          <Text color={gaugeColor}>{contextPercent === undefined ? '—' : `${pct}%`}</Text>
603          {hasKeys
604            ? <Text color="black" backgroundColor="green" bold>{' ⌨ keys · esc '}</Text>
605            : <Text dimColor>{'click for keys'}</Text>}
606        </Box>
607        <Box flexDirection="row" gap={2}>
608          <Button key="pause" label={isPaused ? 'resume' : 'pause'} hotkey="p" plain
609            onPress={() => { isPaused = !isPaused; return update($, tick, n => n + 1) }} />
610          <Button key="reset" label="reset" hotkey="r" plain
611            onPress={() => { reset(); return update($, tick, n => n + 1) }} />
612          <Button key="ui" label={isWatchingUi ? 'ui: on' : 'ui: off'} hotkey="u" plain
613            dimColor={!isWatchingUi} onPress={() => toggleUi($, isWatchingUi)} />
614          {hasChart && (
615            <Button key="view" label={`view: ${view}`} hotkey="v" plain
616              onPress={() => {
617                view = view === 'flow' ? 'timeline' : 'flow'
618                return update($, tick, n => n + 1)
619              }} />
620          )}
621        </Box>
622        {chartView}
623        {replay && (() => {
624          const step = replay.steps[Math.max(0, replay.index)]
625          const first = replay.steps[0]?.at ?? 0
626          const title = step ? EXPLAIN[step.node]?.title ?? step.node : ''
627          return (
628            <Text color="yellow">
629              {step
630                ? `▶ ${replay.index + 1}/${replay.steps.length} · ${title}${step.detail ? ` · ${step.detail}` : ''} · +${duration(step.at - first)}`
631                : `▶ replaying ${replay.steps.length} steps…`}
632            </Text>
633          )
634        })()}
635        {hasChart && shown === 'flow' && !explainer && (
636          <Box flexDirection="row" gap={1}>
637            <Button key="explain" label="? explain" hotkey="e" variant="primary" onPress={() => select($, latestBox())} />
638            <Button key="replay" label={replay ? '■ stop' : '▶ replay'} hotkey="t" plain
639              onPress={() => toggleReplay($)} />
640          </Box>
641        )}
642        {hasChart && shown === 'flow' && (
643          <Text dimColor italic>
644            {!e.props.isFocused
645              ? 'click a box to explain it, or ctrl+x tab then e'
646              : explainer
647                ? '↑↓ step · 1–8 a c s i jump · t replay · x close'
648                : 'click a box or e to explain · t replay the last turn'}
649          </Text>
650        )}
651        {hasChart && shown === 'timeline' && spans.length > 0 && (
652          <Box flexDirection="row" gap={2}>
653            <Button key="zoom:in" label="z zoom in" hotkey="z" plain
654              onPress={() => { zoomTimeline(0.5, chartColumns, Date.now()); return update($, tick, n => n + 1) }} />
655            <Button key="zoom:out" label="o out" hotkey="o" plain dimColor={!zoom}
656              onPress={() => { zoomTimeline(2, chartColumns, Date.now()); return update($, tick, n => n + 1) }} />
657            {zoom && (
658              <Button key="zoom:fit" label="f fit" hotkey="f" plain
659                onPress={() => { zoom = undefined; return update($, tick, n => n + 1) }} />
660            )}
661          </Box>
662        )}
663        {hasChart && shown === 'timeline' && !explainer && (
664          <Text dimColor italic>
665            {!e.props.isFocused
666              ? 'hover a bar to light what ran inside it · click to pin · wheel zooms'
667              : pinned
668                ? '↑↓ or b n step through the turn · e explain · x unpin'
669                : 'hover a bar · click to pin · wheel or z o zoom · ↑↓ step'}
670          </Text>
671        )}
672        {explainer && selected ? (() => {
673          // Explain mode: the boxes as a list on the left, the chosen one's
674          // details on the right, in place of the stats below.
675          const color = hex(NODES.find(n => n.id === selected)?.color ?? 0xffffff)
676          const events = [...stats].filter(([event]) => nodeOf(event) === selected)
677          const recent = history.get(selected) ?? []
678          return (
679            <Box flexDirection="row" gap={1} marginTop={1}>
680              <Box flexDirection="column" width={19} flexShrink={0}>
681                {ORDER.map(id => NODES.find(n => n.id === id)).filter(n => n !== undefined).map(node => {
682                  const one = EXPLAIN[node.id]
683                  const n = countOf(node.id)
684                  return (
685                    <Button key={`explain:${node.id}`} plain hotkey={one?.key}
686                      dimColor={node.id !== selected}
687                      label={`${node.id === selected ? '▸' : ' '}${one?.key ?? ' '} ${pad(node.label, 10)}${(n ? short(n) : '').padStart(5)}`}
688                      onPress={() => select($, node.id)} />
689                  )
690                })}
691                <Text> </Text>
692                <Button key="replay" label={replay ? '■ stop replay' : '▶ replay turn'} hotkey="t" plain
693                  onPress={() => toggleReplay($)} />
694                <Button key="close" label="✕ close" hotkey="x" plain dimColor onPress={() => select($, undefined)} />
695              </Box>
696              <Box flexDirection="column" flexGrow={1} borderStyle="round" borderColor={color} paddingX={1}>
697                <Text bold color={color}>{explainer.title}</Text>
698                <Text>{explainer.what}</Text>
699                <Text> </Text>
700                <Text bold>A hook here can</Text>
701                <Text>{explainer.can}</Text>
702                <Code source={explainer.snippet} language="ts" />
703                <Text bold>Events</Text>
704                {events.length === 0 && <Text dimColor>{`${explainer.events} · not seen yet`}</Text>}
705                {events.map(([event, one]) => (
706                  <Text>
707                    {`${pad(event, 24)}${short(one.n).padStart(6)}  ${duration(one.ms / one.n).padStart(6)} avg`}
708                  </Text>
709                ))}
710                <Text bold>Recently</Text>
711                {recent.length === 0 && <Text dimColor>nothing yet this session</Text>}
712                {recent.map(step => (
713                  <Text dimColor>
714                    {`${duration(now - step.at).padStart(7)} ago  ${step.detail || step.event}`}
715                  </Text>
716                ))}
717              </Box>
718            </Box>
719          )
720        })() : pinned ? (() => {
721          // A pinned span: what it was, how long it took, what ran through
722          // it and inside it, and what its box means.
723          const color = hex(nodeColor(pinned.node))
724          const about = EXPLAIN[pinned.node]
725          const inside = insideOf(spans, pinned, now)
726          const kinds = new Map<string, number>()
727          for (const one of inside) kinds.set(one.event, (kinds.get(one.event) ?? 0) + 1)
728          const index = spans.indexOf(pinned)
729          return (
730            <Box flexDirection="column" borderStyle="round" borderColor={color} paddingX={1} marginTop={1}>
731              <Text bold color={color}>{`${index + 1}/${spans.length} · ${about?.title ?? pinned.node}`}</Text>
732              <Text>{`${pinned.event}${pinned.detail ? ` · ${pinned.detail}` : ''}`}</Text>
733              <Text dimColor>
734                {`started +${seconds(pinned.start - (spans[0]?.start ?? pinned.start))} · took ${pinned.end === undefined ? `${seconds(now - pinned.start)} so far` : seconds(pinned.end - pinned.start)} · ${short(pinned.bytes / 1024)} KB in and out`}
735              </Text>
736              <Text dimColor>
737                {pinned.plugins.length > 0 ? `plugins on it: ${[...new Set(pinned.plugins)].join(', ')}` : 'no other plugin hooked it'}
738              </Text>
739              <Text> </Text>
740              <Text bold>Inside it</Text>
741              {kinds.size === 0 && <Text dimColor>nothing else ran inside this span</Text>}
742              {[...kinds].map(([event, n]) => <Text>{`${pad(event, 26)}×${n}`}</Text>)}
743              <Text> </Text>
744              <Text dimColor>{about?.what ?? ''}</Text>
745              <Box flexDirection="row" gap={2} marginTop={1}>
746                <Button key="span:prev" label="◀ prev" hotkey="b" plain
747                  onPress={() => { pinFrom(-1); return update($, tick, n => n + 1) }} />
748                <Button key="span:next" label="next ▶" hotkey="n" plain
749                  onPress={() => { pinFrom(1); return update($, tick, n => n + 1) }} />
750                <Button key="span:explain" label="? explain" hotkey="e" plain onPress={() => select($, pinned.node)} />
751                <Button key="span:unpin" label="✕ unpin" hotkey="x" plain dimColor
752                  onPress={() => { pinnedId = undefined; return update($, tick, n => n + 1) }} />
753              </Box>
754            </Box>
755          )
756        })() : (
757          <Box flexDirection="column">
758            <Text dimColor>{`${pad('event', nameWidth)} ${pad(`last ${SECONDS}s`, SECONDS)}     n   ms   KB`}</Text>
759            {rows.length === 0 && <Text dimColor>Waiting for events…</Text>}
760            {rows.map(([event, one]) => {
761              const isHot = now - one.lastAt < 1000
762              const avg = one.ms / one.n
763              return (
764                <Text color={isHot ? 'green' : undefined} dimColor={!isHot && now - one.lastAt > SECONDS * 1000}>
765                  {`${pad(event, nameWidth)} ${sparkline(recentSeconds(one, now))} ${short(one.n).padStart(5)} ${short(avg).padStart(4)} ${short(one.bytes / 1024).padStart(4)}`}
766                </Text>
767              )
768            })}
769            <Text> </Text>
770            <Text bold>
771              {lastCall ? `Last call: ${lastCall.tool} · ${duration(lastCall.ms)}` : 'Last call: none yet'}
772            </Text>
773            {links.map(link => (
774              <Box flexDirection="row">
775                <Text dimColor>{pad(link.plugin, 12)} </Text>
776                <Text color={link.plugin === 'engine' ? 'cyan' : 'magenta'}>{pad(bar(link.ms, slowest, linkBar), linkBar)}</Text>
777                <Text dimColor>{duration(link.ms).padStart(8)}</Text>
778              </Box>
779            ))}
780            <Text bold>Tokens per model request</Text>
781            <Text color="cyan">{sparkline(steps.slice(-(width - 2)).map(s => s.input + s.cached + s.output)) || ' '}</Text>
782            <Text dimColor>
783              {lastStep
784                ? `last: ${short(lastStep.input)} in · ${short(lastStep.cached)} cached · ${short(lastStep.output)} out`
785                : 'no requests yet'}
786            </Text>
787            <Text bold>Dollars per turn</Text>
788            <Text color="yellow">{sparkline(turns.slice(-(width - 2)).map(t => t.usd)) || ' '}</Text>
789            <Text dimColor>
790              {lastTurn ? `last turn: $${lastTurn.usd.toFixed(3)} · ${turns.length} turns` : 'no turns yet'}
791            </Text>
792          </Box>
793        )}
794      </Box>
795    )
796  })
797}
798

1// What each box of the flow chart stands for, for the explain panel: what
2// happens there, its events, what a hook can do, and the hook that would.
3
4export type Explainer = {
5  key: string
6  title: string
7  what: string
8  events: string
9  can: string
10  snippet: string
11}
12
13export const EXPLAIN: Record<string, Explainer> = {
14  prompt: {
15    key: '1',
16    title: 'Prompt submitted',
17    what: 'You pressed Enter. Your text becomes the next user message.',
18    events: 'prompt.submit',
19    can: 'Rewrite the text before the model sees it, or drop the prompt.',
20    snippet: "on('prompt.submit', ($, e, next) =>\n  next({ ...e, text: e.text.trim() }))",
21  },
22  context: {
23    key: '2',
24    title: 'Context assembled',
25    what: 'The system prompt is composed from sections, and context blocks are attached.',
26    events: 'prompt.compose, prompt.section, prompt.context, prompt.attachment',
27    can: 'Add, replace, reorder or drop system prompt sections.',
28    snippet: "on('prompt.compose', async ($, e, next) => {\n  const { sections } = await next(e)\n  return { sections: [...sections, mine] }\n})",
29  },
30  turn: {
31    key: '3',
32    title: 'Turn started',
33    what: 'A model turn begins: the loop of requests and tool calls that answers you.',
34    events: 'turn.start',
35    can: 'Observe only: start a timer, reset a counter.',
36    snippet: "on('turn.start', async ($, e, next) => {\n  startedAt = await $.clock.now()\n  return next(e)\n})",
37  },
38  model: {
39    key: '4',
40    title: 'Model request',
41    what: 'One API call. The reply streams back as text and tool calls; its usage is the tokens you pay for.',
42    events: 'turn.step (streams)',
43    can: 'Read or rewrite the streamed chunks, and read the token usage.',
44    snippet: "on('turn.step', async function* ($, e, next) {\n  const result = yield* next(e)\n  log(result.usage)\n  return result\n})",
45  },
46  tool: {
47    key: '5',
48    title: 'Tool call',
49    what: 'The model asked for a tool (Bash, Read, Edit…). It runs here, unless a hook or a permission check stops it.',
50    events: 'tool.call',
51    can: 'Refuse it, rewrite its input, or act on its result.',
52    snippet: "on('tool.call', { tool: 'Bash' }, ($, e, next) =>\n  e.command.includes('rm -rf')\n    ? { deny: 'not here' }\n    : next(e))",
53  },
54  perms: {
55    key: '6',
56    title: 'Permission check',
57    what: 'Rules, your permission mode and settings hooks decide: allow, ask you, or deny.',
58    events: 'classic.PreToolUse, tool.check',
59    can: 'Return your own decision: allow, ask or deny.',
60    snippet: "on('tool.check', { tool: 'Read' }, () =>\n  ({ decision: 'allow' }))",
61  },
62  append: {
63    key: '7',
64    title: 'Transcript row',
65    what: 'A message or tool result is written to the conversation. This is what the model reads on its next request.',
66    events: 'session.append',
67    can: 'Rewrite what is stored and sent, e.g. trim a huge tool result.',
68    snippet: "on('session.append', ($, e, next) =>\n  next({ ...e, message: trimmed(e.message) }))",
69  },
70  done: {
71    key: '8',
72    title: 'Turn complete',
73    what: 'The model stopped asking for tools and answered. The loop ends until your next prompt.',
74    events: 'turn.complete',
75    can: 'Show a line beneath the answer, or react: a toast, the cost.',
76    snippet: "on('turn.complete', async ($, e, next) => {\n  const done = await next(e)\n  $.ui.toast('done')\n  return done\n})",
77  },
78  agent: {
79    key: 'a',
80    title: 'Subagent spawned',
81    what: 'The Agent tool started a subagent: a whole loop of its own, nested inside this tool call.',
82    events: 'agent.spawn',
83    can: 'Refuse the spawn or pick its model.',
84    snippet: "on('agent.spawn', ($, e, next) =>\n  next({ ...e, model: 'haiku' }))",
85  },
86  compact: {
87    key: 'c',
88    title: 'Compaction',
89    what: 'The conversation is summarized to free up the context window.',
90    events: 'session.compact',
91    can: 'Change the summary instructions, or skip compacting.',
92    snippet: "on('session.compact', ($, e, next) =>\n  next({ ...e, instructions: 'keep decisions' }))",
93  },
94  command: {
95    key: 's',
96    title: 'Slash command',
97    what: 'A /command ran: built in, or registered by a plugin.',
98    events: 'command.run',
99    can: 'Answer a command yourself, or change what one prints.',
100    snippet: "on('command.run', { command: 'flow' }, () =>\n  ({ text: 'hello' }))",
101  },
102  ui: {
103    key: 'i',
104    title: 'UI',
105    what: 'The screen draws: messages, tool rows, the spinner, panes. It runs alongside everything else.',
106    events: 'ui.render, ui.press, ui.scroll…',
107    can: 'Draw your own tree for a site, like this pane.',
108    snippet: "on('ui.render', { component: 'Pane', requestId: id },\n  ($, e) => <Text>hi</Text>)",
109  },
110}
111
112export const NODE_BY_KEY: Record<string, string> = Object.fromEntries(
113  Object.entries(EXPLAIN).map(([id, one]) => [one.key, id]),
114)
115

1import type { ClientModule } from 'claude-code'
2
3// The flow chart and the timeline, drawn on the surface so a click or a
4// hover can reach the hooks module. It draws the rows of runs it is handed
5// and asks for fresh ones: every 50 ms while something moves, every half
6// second at rest. A hover is posted when it reaches a new cell.
7
8export type ChartProps = { rows: [string, number][][]; isHot: boolean }
9
10let isHot = false
11
12const hex = (n: number) => `#${n.toString(16).padStart(6, '0')}`
13
14const Chart: ClientModule<ChartProps, true> = (props, surface) => {
15  const { Box, Text } = surface.elements
16  isHot = props.isHot
17  if (surface.state === undefined) {
18    surface.setState(true)
19    let ticks = 0
20    surface.every(50, () => {
21      ticks += 1
22      if (isHot || ticks % 10 === 0) surface.post({ kind: 'frame' })
23    })
24    // No key listener: a click would hand this Client keys of its own, a
25    // focus nobody can see. The hooks module asks for the pane's instead.
26    let hoverAt = ''
27    surface.onPointer(event => {
28      if (event.type === 'down' && event.button === 'left') surface.post({ kind: 'click', x: event.x, y: event.y })
29      if (event.type === 'move' && event.button === undefined && `${event.x},${event.y}` !== hoverAt) {
30        hoverAt = `${event.x},${event.y}`
31        surface.post({ kind: 'hover', x: event.x, y: event.y })
32      }
33      if (event.type === 'leave') {
34        hoverAt = ''
35        surface.post({ kind: 'hover', x: -1, y: -1 })
36      }
37    })
38  }
39  return (
40    <Box flexDirection="column">
41      {props.rows.map(runs => (
42        <Box flexDirection="row">
43          {runs.map(([text, color]) => (color < 0 ? <Text>{text}</Text> : <Text color={hex(color)}>{text}</Text>))}
44        </Box>
45      ))}
46    </Box>
47  )
48}
49
50export default Chart
51

1// The flow chart: the agentic loop as boxes and arrows, each box lit in its
2// color when one of its events fires, each arrow when the loop moves along it.
3// Pure: the hooks module feeds it hits and draws the runs it returns.
4
5export const FLOW_COLUMNS = 45
6export const FLOW_ROWS = 15
7const DEFAULT = 0x01000000
8const IDLE_BORDER = 0x3d434b
9const SEEN_BORDER = 0x5a6270
10const LABEL = 0xb0b8c0
11const FADE_MS = 600
12
13type Node = { id: string; label: string; x: number; y: number; color: number; isSide?: boolean }
14
15// Three columns of 13-cell boxes, 16 apart; rows of 3-cell boxes, 4 apart.
16const col = (i: number) => i * 16
17const row = (i: number) => i * 4
18
19export const NODES: Node[] = [
20  { id: 'prompt', label: 'prompt', x: col(0), y: row(0), color: 0xff6bcb },
21  { id: 'context', label: 'context', x: col(1), y: row(0), color: 0xf368e0 },
22  { id: 'turn', label: 'turn start', x: col(2), y: row(0), color: 0x48dbfb },
23  { id: 'append', label: 'append', x: col(0), y: row(1), color: 0x1dd1a1 },
24  { id: 'tool', label: 'tool call', x: col(1), y: row(1), color: 0xff9f43 },
25  { id: 'model', label: 'model', x: col(2), y: row(1), color: 0x48dbfb },
26  { id: 'agent', label: 'subagent', x: col(0), y: row(2), color: 0xfeca57, isSide: true },
27  { id: 'perms', label: 'permission', x: col(1), y: row(2), color: 0xee5253 },
28  { id: 'done', label: 'turn done', x: col(2), y: row(2), color: 0x0abde3 },
29  { id: 'compact', label: 'compact', x: col(0), y: row(3), color: 0xa29bfe, isSide: true },
30  { id: 'command', label: 'command', x: col(1), y: row(3), color: 0xc8d6e5, isSide: true },
31  { id: 'ui', label: 'ui', x: col(2), y: row(3), color: 0x54a0ff, isSide: true },
32]
33
34// Which box an event lights; undefined for the events the chart leaves out.
35export const nodeOf = (event: string): string | undefined => {
36  if (event.startsWith('ui.')) return 'ui'
37  switch (event) {
38    case 'prompt.submit': return 'prompt'
39    case 'prompt.compose':
40    case 'prompt.section':
41    case 'prompt.context':
42    case 'prompt.attachment': return 'context'
43    case 'turn.start': return 'turn'
44    case 'turn.step': return 'model'
45    case 'tool.call': return 'tool'
46    case 'tool.check':
47    case 'classic.PreToolUse':
48    case 'classic.PermissionRequest': return 'perms'
49    case 'session.append': return 'append'
50    case 'turn.complete': return 'done'
51    case 'agent.spawn': return 'agent'
52    case 'session.compact': return 'compact'
53    case 'command.run': return 'command'
54    default: return undefined
55  }
56}
57
58type Cell = [x: number, y: number, glyph: string]
59type Edge = { from: string; to: string; cells: Cell[] }
60
61const line = (glyph: string, y: number, x0: number, x1: number): Cell[] =>
62  Array.from({ length: x1 - x0 + 1 }, (_, i) => [x0 + i, y, glyph] as Cell)
63
64// Arrowheads sit on the border of the box they point into.
65export const EDGES: Edge[] = [
66  { from: 'prompt', to: 'context', cells: [...line('─', 1, 13, 14), [15, 1, '▶']] },
67  { from: 'context', to: 'turn', cells: [...line('─', 1, 29, 30), [31, 1, '▶']] },
68  { from: 'turn', to: 'model', cells: [[38, 2, '┬'], [38, 3, '│'], [38, 4, '▼']] },
69  { from: 'model', to: 'tool', cells: [[29, 5, '◀'], ...line('─', 5, 30, 31)] },
70  { from: 'tool', to: 'perms', cells: [[22, 6, '┬'], [22, 7, '┼'], [22, 8, '▼']] },
71  { from: 'tool', to: 'append', cells: [[13, 5, '◀'], ...line('─', 5, 14, 15)] },
72  {
73    from: 'append',
74    to: 'model',
75    cells: [[6, 6, '┬'], [6, 7, '└'], ...line('─', 7, 7, 21), ...line('─', 7, 23, 34), [35, 7, '┘'], [35, 6, '▲']],
76  },
77  { from: 'model', to: 'done', cells: [[41, 6, '┬'], [41, 7, '│'], [41, 8, '▼']] },
78]
79
80const blend = (from: number, to: number, by: number): number => {
81  const f = Math.max(0, Math.min(1, by))
82  const mix = (shift: number) =>
83    Math.round(((from >> shift) & 0xff) * (1 - f) + ((to >> shift) & 0xff) * f) << shift
84  return mix(16) | mix(8) | mix(0)
85}
86
87const short = (n: number): string =>
88  n >= 1e6 ? `${(n / 1e6).toFixed(1)}M` : n >= 1e3 ? `${(n / 1e3).toFixed(1)}k` : `${n}`
89
90export class Flow {
91  hitAt = new Map<string, number>()
92  edgeAt = new Map<string, number>()
93  last: string | undefined
94
95  // Lights the event's box, and the arrow from the box the loop was last in.
96  // A permission check branches off its tool call: the loop stays at the tool.
97  hit(event: string, now: number) {
98    const id = nodeOf(event)
99    if (!id) return
100    this.hitAt.set(id, now)
101    const node = NODES.find(n => n.id === id)
102    if (node?.isSide) return
103    if (this.last && this.last !== id) this.edgeAt.set(`${this.last}>${id}`, now)
104    if (id !== 'perms') this.last = id
105  }
106
107  isHot(now: number): boolean {
108    for (const at of [...this.hitAt.values(), ...this.edgeAt.values()]) if (now - at < FADE_MS) return true
109    return false
110  }
111
112  // The chart as glyphs and colors, `columns` x FLOW_ROWS, centered;
113  // `countOf` gives each box's count, `keyOf` the key that explains it, and
114  // `selected` stays lit.
115  grid(
116    columns: number,
117    now: number,
118    countOf: (id: string) => number,
119    keyOf: (id: string) => string = () => '',
120    selected?: string,
121  ): { glyphs: string[][]; colors: number[][] } {
122    const glyphs = Array.from({ length: FLOW_ROWS }, () => Array.from({ length: columns }, () => ' '))
123    const colors = Array.from({ length: FLOW_ROWS }, () => Array.from({ length: columns }, () => DEFAULT))
124    const left = leftOf(columns)
125    const put = (x: number, y: number, glyph: string, fg: number) => {
126      const at = left + x
127      const row = glyphs[y]
128      const tint = colors[y]
129      if (!row || !tint || at < 0 || at >= columns) return
130      row[at] = glyph
131      tint[at] = fg
132    }
133    const heat = (at: number | undefined) => (at === undefined ? 0 : Math.max(0, 1 - (now - at) / FADE_MS))
134
135    for (const node of NODES) {
136      const count = countOf(node.id)
137      const glow = node.id === selected ? 1 : heat(this.hitAt.get(node.id))
138      const rest = count > 0 ? SEEN_BORDER : IDLE_BORDER
139      const border = blend(rest, node.color, glow)
140      const text = blend(count > 0 ? LABEL : SEEN_BORDER, node.color, glow)
141      const { x, y } = node
142      const [tl, tr, bl, br, h, v] = node.isSide ? ['╭', '╮', '╰', '╯', '┄', '┆'] : ['┌', '┐', '└', '┘', '─', '│']
143      put(x, y, tl, border)
144      put(x + 12, y, tr, border)
145      put(x, y + 2, bl, border)
146      put(x + 12, y + 2, br, border)
147      for (let i = 1; i < 12; i++) {
148        put(x + i, y, h, border)
149        put(x + i, y + 2, h, border)
150      }
151      put(x, y + 1, v, border)
152      put(x + 12, y + 1, v, border)
153      const label = node.label.slice(0, 11)
154      for (let i = 0; i < label.length; i++) put(x + 1 + i, y + 1, label[i] ?? ' ', text)
155      const key = keyOf(node.id)
156      if (key) put(x + 1, y, key, blend(LABEL, node.color, Math.max(glow, 0.5)))
157      // The count rides the top border's right end: `┌1─────── 14 ┐`.
158      if (count > 0) {
159        const number = ` ${short(count)} `
160        const from = x + 12 - number.length
161        for (let i = 0; i < number.length; i++) put(from + i, y, number[i] ?? ' ', blend(LABEL, 0xffffff, glow))
162      }
163    }
164
165    for (const edge of EDGES) {
166      const glow = heat(this.edgeAt.get(`${edge.from}>${edge.to}`))
167      const to = NODES.find(n => n.id === edge.to)
168      const fg = blend(SEEN_BORDER, to?.color ?? LABEL, glow)
169      for (const [x, y, glyph] of edge.cells) put(x, y, glyph, fg)
170    }
171    return { glyphs, colors }
172  }
173
174  // The chart as rows of [text, color] runs, a run per stretch of one color:
175  // what a Client draws as Text, `-1` for the terminal's own color.
176  rows(...args: Parameters<Flow['grid']>): Run[][] {
177    const { glyphs, colors } = this.grid(...args)
178    return glyphs.map((row, y) => {
179      const runs: Run[] = []
180      row.forEach((glyph, x) => {
181        const raw = colors[y]?.[x] ?? DEFAULT
182        const color = raw === DEFAULT || glyph === ' ' ? -1 : raw
183        const last = runs.at(-1)
184        if (last && last[1] === color) last[0] += glyph
185        else runs.push([glyph, color])
186      })
187      return runs
188    })
189  }
190}
191
192export type Run = [text: string, color: number]
193
194const leftOf = (columns: number) => Math.max(0, Math.floor((columns - FLOW_COLUMNS) / 2))
195
196// The box under a cell of the chart, as a click lands on it.
197export const nodeAt = (x: number, y: number, columns: number): string | undefined => {
198  const cx = x - leftOf(columns)
199  return NODES.find(n => cx >= n.x && cx <= n.x + 12 && y >= n.y && y <= n.y + 2)?.id
200}
201

1// The span timeline: one turn laid out in time, a row per box of the flow
2// chart, each event a bar from when its hook started to when it returned.
3// Pure: the hooks module records the spans and draws the runs this returns.
4
5import { NODES } from './flow'
6import type { Run } from './flow'
7
8export type Span = {
9  id: number
10  event: string
11  node: string
12  detail: string
13  start: number
14  end?: number
15  bytes: number
16  plugins: string[]
17}
18
19export const LABEL_WIDTH = 9
20const MAX_LANES = 3
21const DIM = 0x5a6270
22const AXIS = 0x7f8c8d
23
24// The loop's boxes, always shown so an empty row says "didn't happen";
25// the side boxes only when the turn used them.
26const MAIN = ['prompt', 'context', 'turn', 'model', 'tool', 'perms', 'append', 'done']
27const SIDE = ['agent', 'compact', 'command']
28const LABELS: Record<string, string> = {
29  prompt: 'prompt', context: 'context', turn: 'turn', model: 'model', tool: 'tool', perms: 'perms',
30  append: 'append', done: 'done', agent: 'subagent', compact: 'compact', command: 'command',
31}
32
33type Row = { node: string; lane: number }
34type Placed = { span: Span; row: number; x0: number; x1: number }
35export type Window = { t0: number; t1: number }
36export type Layout = { rows: Row[]; placed: Placed[]; t0: number; t1: number; field: number; whole: Window }
37
38// The whole turn, first start to last end; an open span runs to `now`.
39export const wholeOf = (spans: readonly Span[], now: number): Window => {
40  const t0 = spans[0]?.start ?? now
41  return { t0, t1: Math.max(t0 + 1, ...spans.map(s => s.end ?? now)) }
42}
43
44// Rows, and each span's cells: a lane per span that would touch another in
45// its row, up to three, the rest drawn over the last. Zoomed to a window,
46// only the spans in it are laid out, those crossing its edges cut there.
47export const layout = (spans: readonly Span[], columns: number, now: number, zoom?: Window): Layout => {
48  const field = Math.max(1, columns - LABEL_WIDTH)
49  const whole = wholeOf(spans, now)
50  const { t0, t1 } = zoom ?? whole
51  const at = (t: number) => Math.max(0, Math.min(field - 1, Math.floor(((t - t0) / (t1 - t0)) * field)))
52  const shown = spans.filter(s => s.start <= t1 && (s.end ?? now) >= t0)
53  const nodes = [...MAIN, ...SIDE.filter(id => spans.some(s => s.node === id))]
54  const rows: Row[] = []
55  const placed: Placed[] = []
56  for (const node of nodes) {
57    const ends: number[] = []
58    const first = rows.length
59    for (const span of shown.filter(s => s.node === node)) {
60      const x0 = at(span.start)
61      const x1 = Math.max(x0, at(span.end ?? now))
62      let lane = ends.findIndex(end => x0 > end + 1)
63      if (lane < 0) lane = ends.length < MAX_LANES ? ends.length : MAX_LANES - 1
64      ends[lane] = Math.max(ends[lane] ?? -2, x1)
65      placed.push({ span, row: first + lane, x0, x1 })
66    }
67    const lanes = Math.max(1, ends.length)
68    for (let lane = 0; lane < lanes; lane++) rows.push({ node, lane })
69  }
70  return { rows, placed, t0, t1, field, whole }
71}
72
73// Zooms by `factor` (below 1 in, above 1 out) keeping the time at `anchor`,
74// a fraction of the window, where it is; out to the whole turn, no window.
75export const zoomBy = (zoom: Window | undefined, whole: Window, factor: number, anchor = 0.5): Window | undefined => {
76  const { t0, t1 } = zoom ?? whole
77  const width = Math.max(5, (t1 - t0) * factor)
78  if (width >= whole.t1 - whole.t0) return undefined
79  const at = t0 + anchor * (t1 - t0)
80  const from = Math.max(whole.t0, Math.min(whole.t1 - width, at - anchor * width))
81  return { t0: from, t1: from + width }
82}
83
84// The window moved just enough to show a span, its width kept.
85export const follow = (zoom: Window | undefined, span: Span, now: number): Window | undefined => {
86  if (!zoom) return undefined
87  const end = span.end ?? now
88  if (span.start >= zoom.t0 && end <= zoom.t1) return zoom
89  const width = zoom.t1 - zoom.t0
90  const t0 = span.start - width / 2 + Math.min(width, end - span.start) / 2
91  return { t0, t1: t0 + width }
92}
93
94// The rows a timeline takes: its lanes plus the time axis.
95export const heightOf = (shape: Layout) => shape.rows.length + 1
96
97// Every span under a cell, latest first; a click or a hover lands here.
98export const spansAt = (shape: Layout, x: number, y: number): Span[] => {
99  const cx = x - LABEL_WIDTH
100  return shape.placed
101    .filter(p => p.row === y && cx >= p.x0 && cx <= p.x1)
102    .map(p => p.span)
103    .reverse()
104}
105
106// The spans that ran inside one: its own work and what it waited on.
107export const insideOf = (spans: readonly Span[], outer: Span, now: number): Span[] =>
108  spans.filter(s => s !== outer && s.start >= outer.start && (s.end ?? now) <= (outer.end ?? now))
109
110const blend = (from: number, to: number, by: number): number => {
111  const mix = (shift: number) =>
112    Math.round(((from >> shift) & 0xff) * (1 - by) + ((to >> shift) & 0xff) * by) << shift
113  return mix(16) | mix(8) | mix(0)
114}
115
116export const seconds = (ms: number) => (ms >= 1000 ? `${(ms / 1000).toFixed(1)}s` : `${Math.round(ms)}ms`)
117
118// The timeline as rows of [text, color] runs. With a span in focus (hovered
119// or pinned) it and everything inside it light up; the rest dims.
120export const timelineRows = (
121  spans: readonly Span[],
122  shape: Layout,
123  columns: number,
124  now: number,
125  focus?: Span,
126): Run[][] => {
127  const color = (node: string) => NODES.find(n => n.id === node)?.color ?? 0xdfe6e9
128  const lit = new Set(focus ? [focus, ...insideOf(spans, focus, now)] : [])
129  const glyphs = shape.rows.map(() => Array.from({ length: columns }, () => ' '))
130  const colors = shape.rows.map(() => Array.from({ length: columns }, () => -1))
131  shape.rows.forEach((row, y) => {
132    if (row.lane > 0) return
133    const label = (LABELS[row.node] ?? row.node).padEnd(LABEL_WIDTH - 1).slice(0, LABEL_WIDTH - 1)
134    const isLit = focus !== undefined && [...lit].some(s => s.node === row.node)
135    for (let i = 0; i < label.length; i++) {
136      glyphs[y]![i] = label[i]!
137      colors[y]![i] = isLit ? color(row.node) : spans.some(s => s.node === row.node) ? AXIS : DIM
138    }
139    glyphs[y]![LABEL_WIDTH - 1] = '│'
140    colors[y]![LABEL_WIDTH - 1] = DIM
141  })
142  shape.rows.forEach((row, y) => {
143    if (row.lane === 0) return
144    glyphs[y]![LABEL_WIDTH - 1] = '│'
145    colors[y]![LABEL_WIDTH - 1] = DIM
146  })
147  // Lit spans draw last, so a stack shows the one in focus.
148  const order = [...shape.placed].sort((a, b) => Number(lit.has(a.span)) - Number(lit.has(b.span)))
149  for (const { span, row, x0, x1 } of order) {
150    const base = color(span.node)
151    const fg = span === focus ? blend(base, 0xffffff, 0.55) : lit.has(span) ? base : focus ? blend(base, 0x000000, 0.6) : blend(base, 0x000000, 0.15)
152    const isOpen = span.end === undefined
153    for (let x = x0; x <= x1; x++) {
154      glyphs[row]![LABEL_WIDTH + x] = isOpen && x === x1 ? '▶' : x1 === x0 ? '▌' : '█'
155      colors[row]![LABEL_WIDTH + x] = fg
156    }
157  }
158  // The axis reads in time since the turn began: `0` to its length, or the
159  // window's edges and how far it is zoomed.
160  const from = shape.t0 - shape.whole.t0
161  const isZoomed = shape.t1 - shape.t0 < shape.whole.t1 - shape.whole.t0
162  const left = isZoomed ? `+${seconds(from)}` : '0'
163  const ratio = (shape.whole.t1 - shape.whole.t0) / (shape.t1 - shape.t0)
164  const zoomed = isZoomed ? ` ${ratio < 10 ? ratio.toFixed(1).replace(/\.0$/, '') : Math.round(ratio)}× ` : ''
165  const right = isZoomed ? `+${seconds(shape.t1 - shape.whole.t0)}` : seconds(shape.t1 - shape.t0)
166  const rule = Math.max(0, shape.field - left.length - right.length - zoomed.length)
167  const axis = `${' '.repeat(LABEL_WIDTH - 1)}└${left}${'─'.repeat(Math.floor(rule / 2))}${zoomed}${'─'.repeat(Math.ceil(rule / 2))}${right}`
168  const rows: Run[][] = glyphs.map((line, y) => {
169    const runs: Run[] = []
170    line.forEach((glyph, x) => {
171      const c = glyph === ' ' ? -1 : colors[y]![x]!
172      const last = runs.at(-1)
173      if (last && last[1] === c) last[0] += glyph
174      else runs.push([glyph, c])
175    })
176    return runs
177  })
178  rows.push([[axis.slice(0, columns), AXIS]])
179  return rows
180}
181

1export type SavedEvent = {
2  event: string
3  n: number
4  ms: number
5  bytes: number
6  lastAt: number
7  perSecond: [number, number][]
8  plugins: string[]
9}
10
11export type Snapshot = {
12  events: SavedEvent[]
13  steps: { input: number; output: number; cached: number }[]
14  turns: { usd: number; tokens: number }[]
15  isPaused: boolean
16}
17
18declare module 'claude-code' {
19  interface PluginState {
20    'hook-flow': {
21      tick: number
22      snapshot: Snapshot | null
23    }
24  }
25}
26
