pixel-pet

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, RenderChildren } from 'claude-code'
3
4import type { ContextMeter, Mini, Mood, PetView } from '../types'
5import { TONES, cardLines, hex, segments } from './meter'
6import type { Source } from './meter'
7import type { MeterViewProps } from './meter-view'
8import type { PetViewProps } from './pet-view'
9import { COLOR_NAMES, COLORS, DEFAULT_COLOR, colorName, petSvg } from './sprite'
10import { LINE_COLORS, actionLine, lineSvg, lineWidth } from './status'
11import { LEAVE_MS, colorFromDefinition, miniColor } from './mini'
12import { lineTwoSvg } from './line2'
13import type { Layout } from './line2'
14import type { MinisViewProps } from './minis-view'
15import type { StatusViewProps } from './status-view'
16
17// `xp` is a leftover field from when the pet had levels; old records keep it, nothing reads it.
18type Pet = { name: string; born: number; turns: number; pets: number; color?: string; xp?: number }
19
20const LINES: Record<Mood, string[]> = {
21  idle: ['is waiting for you', 'is vibing', 'is counting pixels', 'is guarding your repo', 'is humming quietly'],
22  working: ['is typing furiously…', 'is reading your code…', 'is thinking very hard…', 'is chasing a bug…', 'is consulting the docs…'],
23  happy: ['did a happy dance!', 'is proud of you!', 'says: ship it!', 'high-fives the terminal!'],
24  oops: ["saw an error. it's fine. everything's fine.", 'is sweating nervously', "says: that wasn't supposed to happen"],
25  sleepy: ['is fast asleep… zzz', 'is snoring softly', 'dreams of green tests', 'is napping on your keyboard'],
26  dozing: ['is getting sleepy…', 'yawns…', 'is fighting to stay awake'],
27  waking: ['is waking up… ☀️', 'stretches and yawns', 'rubs its eyes'],
28  loved: ['loves you back ♥', 'purrs in binary', 'is blushing in pixels'],
29  reading: ['is reading along…', 'is peeking at what you type 👀', 'is following every keystroke', 'is taking notes'],
30  wince: ['winces at the typo', 'pretends not to see that', 'says: backspace, backspace'],
31  shocked: ['gasps: where did it all go?!', 'is shocked by the delete', 'clutches its pixels'],
32}
33
34const pick = (list: readonly string[]) => list[Math.floor(Math.random() * list.length)]!
35const SLEEP_AFTER_MS = 60_000
36const METER_CELLS = 14
37
38// The configured colour, used until /pet color picks one; and the one being tried on while typing it.
39let defaultColor = DEFAULT_COLOR
40let previewColor: string | undefined
41let meter: ContextMeter = {}
42// The helpers on screen, one per running subagent, and which agent each stands for.
43let minis: Mini[] = []
44// Helpers that start together arrive one by one, this far apart.
45const HATCH_GAP_MS = 450
46let lastHatchAt = 0
47// Where the desktop's second line last put each helper and the bar, to glide from.
48let lineTwoLayout: Layout | undefined
49const miniOf = new Map<string, string>()
50
51export function viewOf(pet: Pet, mood: Mood, line: string, isHidden: boolean): PetView {
52  return { mood, line, name: pet.name, color: previewColor ?? colorName(pet.color) ?? defaultColor, isHidden, meter, minis }
53}
54
55const view = atom({ plugin: 'pixel-pet', key: 'view' } as const, viewOf({ name: 'Bit', born: 0, turns: 0, pets: 0 }, 'sleepy', 'is fast asleep… zzz', false))
56
57// Module state between hooks; the pet's record is rebuilt from the store on reload.
58let pet: Pet = { name: 'Bit', born: 0, turns: 0, pets: 0 }
59// A new session finds the pet asleep; the first keystroke wakes it.
60let mood: Mood = 'sleepy'
61let moodUntil = 0
62let isWorking = false
63let lastActive = 0
64// Where the eyes point while reading along (-1 left … 1 right), and what the band last said.
65let look = 0
66let lastLine = ''
67// What the desktop last drew, so a change of mood or colour fades from it and the meter glides.
68let shown: { mood: Mood; color: string } | undefined
69let fadeFrom: { mood: Mood; color: string; at: number } | undefined
70let drawnPercent = 0
71let shownLine: string | undefined
72let slideFrom: { line: string; at: number } | undefined
73// The desktop draws its line as SVG text, which can't follow the theme by itself.
74let theme: 'dark' | 'light' = 'dark'
75// Who bills the tokens when no plan limits come back: the API, or a cloud provider.
76let provider: Source = 'api'
77// A line stays up at least this long, so a burst of tool calls reads as a story, not a flicker.
78const HOLD_MS = 900
79let lineShownAt = 0
80let pendingLine: string | undefined
81let isLineQueued = false
82
83function baseMood(now: number): Mood {
84  if (isWorking) return 'working'
85  return now - lastActive > SLEEP_AFTER_MS ? 'sleepy' : 'idle'
86}
87
88async function setMood($: EngineInterface, next: Mood, forMs = 0) {
89  const now = await $.clock.now()
90  moodUntil = forMs ? now + forMs : 0
91  if (next === mood && !forMs) return
92  mood = next
93  lineShownAt = now
94  const line = next === 'working' ? 'is thinking… 💭' : next === 'idle' && (meter.percent ?? 0) >= 80 ? `is stuffed with tokens (${meter.percent}% context)` : pick(LINES[next])
95  await update($, view, current => viewOf(pet, next, line, current.isHidden))
96}
97
98type Reading = { context: { percent?: number; tokens?: number; window: number }; cost?: { usd: number }; rateLimits: { kind: string; percentUsed: number; resetsAt?: string }[] }
99
100// Plan windows (5-hour, weekly) only come back on a Claude subscription; a gateway reports a spend
101// limit; with neither, once a reply has come back, the tokens are billed by the API or the provider.
102export function sourceOf(reading: Reading, fallback: Source): Source | undefined {
103  if (reading.rateLimits.some(r => r.kind === 'five_hour' || r.kind.startsWith('seven_day'))) return 'plan'
104  if (reading.rateLimits.some(r => r.kind === 'spend_limit')) return 'gateway'
105  return reading.context.percent !== undefined ? fallback : undefined
106}

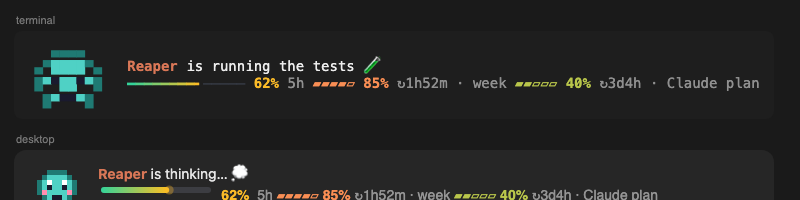

107
108async function setMeter($: EngineInterface, reading: Reading) {
109  const limits = reading.rateLimits.map(r => (r.resetsAt ? { kind: r.kind, percent: r.percentUsed, resetsAt: r.resetsAt } : { kind: r.kind, percent: r.percentUsed }))
110  const source = sourceOf(reading, provider) ?? meter.source
111  const next: ContextMeter = {}
112  const percent = reading.context.percent ?? meter.percent
113  const tokens = reading.context.tokens ?? meter.tokens
114  const usd = reading.cost?.usd ?? meter.usd
115  if (percent !== undefined) next.percent = percent
116  if (tokens !== undefined) next.tokens = tokens
117  if (reading.context.window || meter.window) next.window = reading.context.window || meter.window!
118  if (usd !== undefined) next.usd = usd
119  if (limits.length || meter.limits) next.limits = limits.length ? limits : meter.limits!
120  if (source) next.source = source
121  meter = next
122  await update($, view, current => ({ ...current, meter }))
123}
124
125// Show a working line, holding the current one for HOLD_MS first; only the latest waiting line
126// is kept, so a burst of calls skips straight to what's happening now.
127async function say($: EngineInterface, line: string) {
128  const now = await $.clock.now()
129  const wait = HOLD_MS - (now - lineShownAt)
130  if (wait > 0) {
131    pendingLine = line
132    if (!isLineQueued) {
133      isLineQueued = true
134      $.clock.after(wait, () => {
135        isLineQueued = false
136        const queued = pendingLine
137        pendingLine = undefined
138        if (queued && isWorking) say($, queued).catch(() => undefined)
139      })
140    }
141    return
142  }
143  lineShownAt = now
144  lastLine = line
145  await update($, view, current => (current.line === line ? current : { ...current, line }))
146}
147
148// React first, save after: the blush shouldn't wait on a disk write.
149async function petIt($: EngineInterface) {
150  pet = { ...pet, pets: pet.pets + 1 }
151  await setMood($, 'loved', 4000)
152  await $.store.set('pet', pet)
153}
154
155const COLOR_COMMAND = /^\s*\/pet\s+colou?r\s+(\S*)$/i
156
157// While the draft reads `/pet color <partial>`, the colour to try on: the exact name, else the
158// first that starts with what's typed.
159export function previewFor(draft: string): string | undefined {
160  const partial = COLOR_COMMAND.exec(draft)?.[1]?.toLowerCase()
161  if (!partial) return undefined
162  return colorName(partial) ?? COLOR_NAMES.find(name => name.startsWith(partial))
163}
164
165const afterEdit = (e: { text: string; start: number; end: number; inputText: string }) => e.text.slice(0, e.start) + e.inputText + e.text.slice(e.end)
166
167async function preview($: EngineInterface, color: string | undefined) {
168  if (color === previewColor) return
169  previewColor = color
170  const line = color ? `is trying on ${color}… press Enter to keep it` : pick(LINES.idle)
171  await update($, view, current => viewOf(pet, current.mood, line, current.isHidden))
172}
173
174const CODEY = /[{}();=<>[\]`]|=>|\b(function|const|def|class|import|return)\b/
175
176// How the pet reacts to one edit of the draft: what changed, where the caret is, and what the draft says.
177export function reactionTo(e: { text: string; cursor: number; start: number; end: number; inputText: string; key?: unknown }) {
178  const removed = e.end - e.start
179  const draft = e.text.slice(0, e.start) + e.inputText + e.text.slice(e.end)
180  const caret = e.start + e.inputText.length
181  // The eyes sweep left to right across each 30 characters, like reading a line.
182  const look = Math.round(((caret % 30) / 30) * 2 - 1)
183  if (removed >= 10 || (removed > 0 && draft.trim() === '')) return { mood: 'shocked' as const, look, line: undefined }
184  if (removed > 0) return { mood: 'wince' as const, look, line: undefined }
185  if (e.inputText.length > 40 && e.key === undefined) return { mood: 'shocked' as const, look, line: "whoa, that's a lot of text" }
186  if (e.inputText === '') return undefined // a bare caret move
187  const lastWords = draft.slice(-24).toLowerCase()
188  if (/\b(please|thanks|thank you|ty)\s?$/.test(lastWords)) return { mood: 'loved' as const, look, line: 'appreciates your manners ♥' }
189  if (/\bbug\s?$/.test(lastWords)) return { mood: 'reading' as const, look, line: 'spots the bug 👀' }
190  return { mood: 'reading' as const, look, line: CODEY.test(draft) ? 'is reading your code…' : undefined }
191}
192
193// Typing moods hold while the keys keep coming and fade ~2s after the last one. Only a change of
194// mood, gaze or words touches the band, so a run of keystrokes costs a handful of redraws.
195async function react($: EngineInterface, reaction: NonNullable<ReturnType<typeof reactionTo>>) {
196  const now = await $.clock.now()
197  lastActive = now
198  // Asleep or nodding off, the first keys wake it gently; reactions resume once it's up.
199  if (mood === 'sleepy' || mood === 'dozing') return wake($)
200  if (mood === 'waking' && now < moodUntil) return
201  moodUntil = now + 2000
202  const isSame = mood === reaction.mood && look === reaction.look && (reaction.line === undefined || reaction.line === lastLine)
203  look = reaction.look
204  if (isSame) return
205  const isNewMood = mood !== reaction.mood
206  mood = reaction.mood
207  if (reaction.line !== undefined || isNewMood) lastLine = reaction.line ?? pick(LINES[reaction.mood])
208  await update($, view, current => viewOf(pet, reaction.mood, lastLine, current.isHidden))
209}
210
211const WAKE_MS = 1600
212const DOZE_MS = 2800
213
214// Blinks, a yawn and a little rise, then on with whatever comes next.
215async function wake($: EngineInterface) {
216  if (mood === 'waking') return
217  await setMood($, 'waking', WAKE_MS)
218}
219
220// A passing mood (happy, oops, loved, waking) wears off; a long quiet nods off into sleep, through a
221// few heavy-lidded seconds of dozing. The motion itself runs on the surface's clock or in the SVG.
222async function checkMood($: EngineInterface) {
223  const now = await $.clock.now()
224  if (moodUntil && now > moodUntil) {
225    const next = baseMood(now)
226    // Drifting off from an awake mood goes through dozing first.
227    if (next === 'sleepy' && mood !== 'dozing') await setMood($, 'dozing', DOZE_MS)
228    else await setMood($, next)
229  } else if (mood === 'idle' && baseMood(now) === 'sleepy') await setMood($, 'dozing', DOZE_MS)
230  await tendMinis($, now)
231}
232
233// Helpers whose agents have finished wave bye; ones that have waved long enough leave.
234async function tendMinis($: EngineInterface, now: number) {
235  if (minis.length === 0) return
236  const here = minis.filter(m => m.state === 'here' && now - m.at > 3000)
237  if (here.length) {
238    const agents = await $.agent.list().catch(() => [])
239    const finished = new Set(agents.filter(a => ['completed', 'failed', 'killed'].includes(a.status)).map(a => a.id))
240    for (const [agentId, miniId] of miniOf) if (finished.has(agentId)) await sayBye($, miniId)
241  }
242  const kept = minis.filter(m => m.state === 'here' || now - m.at < LEAVE_MS)
243  if (kept.length !== minis.length) {
244    minis = kept
245    await update($, view, current => ({ ...current, minis }))
246  }
247}
248
249async function hatch($: EngineInterface, id: string, type: string) {
250  const name = type.split(':').pop() ?? type
251  const color = (await definedColor($, name)) ?? miniColor(id, colorName(pet.color) ?? defaultColor)
252  const now = await $.clock.now()
253  const at = Math.max(now, lastHatchAt + HATCH_GAP_MS)
254  lastHatchAt = at
255  minis = [...minis.filter(m => m.id !== id), { id, name, color, state: 'here' as const, at }].slice(-6)
256  await update($, view, current => ({ ...current, minis }))
257  // A queued helper's turn: draw again when it's due, so its slot starts opening on time.
258  if (at > now) $.clock.after(at - now, () => void update($, view, current => ({ ...current, minis })).catch(() => undefined))
259}
260
261async function sayBye($: EngineInterface, id: string) {
262  const mini = minis.find(m => m.id === id)
263  if (!mini || mini.state === 'bye') return
264  const now = await $.clock.now()
265  minis = minis.map(m => (m.id === id ? { ...m, state: 'bye' as const, at: now } : m))
266  await update($, view, current => ({ ...current, minis }))
267  if (isWorking) say($, `${mini.name} is back with answers 👋`).catch(() => undefined)
268}
269
270// A custom agent may name its colour in its definition (`color: blue`): the project's, then the person's.
271async function definedColor($: EngineInterface, name: string): Promise<string | undefined> {
272  if (!/^[\w-]+$/.test(name)) return undefined
273  const home = await $.env.get('HOME').catch(() => undefined)
274  const cwd = await $.session.cwd().catch(() => undefined)
275  for (const dir of [cwd && `${cwd}/.claude/agents`, home && `${home}/.claude/agents`]) {
276    if (!dir) continue
277    const text = await $.fs.read(`${dir}/${name}.md`).catch(() => undefined)
278    const color = text ? colorFromDefinition(text) : undefined
279    if (color) return color
280  }
281  return undefined
282}
283
284export const register: Register = (on, options) => {
285  defaultColor = colorName(String(options.color)) ?? DEFAULT_COLOR
286
287  on('session.start', async ($, e, next) => {
288    await $.command.register({ name: 'pet', description: 'Your pixel pet: stats, or show / hide / rename <name> / color <name>', argumentHint: '[show|hide|rename <name>|color <name>]' })
289    const now = await $.clock.now()
290    const saved = (await $.store.get('pet')) as Pet | undefined
291    pet = saved ?? { name: String(options.name ?? 'Bit'), born: now, turns: 0, pets: 0 }
292    if (!saved) await $.store.set('pet', pet)
293    lastActive = now
294    // Which provider bills the tokens, from the switches Claude Code reads (never a key).
295    if (await $.env.get('CLAUDE_CODE_USE_BEDROCK').catch(() => undefined)) provider = 'bedrock'
296    else if (await $.env.get('CLAUDE_CODE_USE_VERTEX').catch(() => undefined)) provider = 'vertex'
297    else if (await $.env.get('CLAUDE_CODE_USE_FOUNDRY').catch(() => undefined)) provider = 'foundry'
298    const themeRow = (await $.config.list().catch(() => [])).find(row => row.key === 'theme')
299    theme = /light/i.test(String(themeRow?.value ?? '')) ? 'light' : 'dark'
300    const usage = await $.session.usage().catch(() => undefined)
301    if (usage) await setMeter($, usage)
302    mood = 'sleepy'
303    await update($, view, current => viewOf(pet, 'sleepy', saved ? pick(LINES.sleepy) : 'just hatched and fell asleep… type to wake it', current.isHidden))
304    $.clock.every(1000, () => void checkMood($).catch(() => undefined))
305    return next(e)
306  })
307
308  // Keystrokes in the prompt box: answer at once, react off the typing path.
309  on('prompt.edit', async ($, e, next) => {
310    const box = await next(e)
311    // Typing `/pet color …` tries the colour on; anything else reacts to the typing.
312    const color = previewFor(afterEdit(e))
313    if (color || previewColor) preview($, color).catch(() => undefined)
314    else {
315      const reaction = reactionTo(e)
316      if (reaction) react($, reaction).catch(() => undefined)
317    }
318    return box
319  })
320
321  // The colour names as typeahead rows while the colour word is being typed, each with its swatch.
322  on('prompt.autocomplete', async ($, e, next) => {
323    const offered = await next(e)
324    if (!COLOR_COMMAND.test(e.text.slice(0, e.cursor))) return offered
325    const partial = e.token.toLowerCase()
326    const rows = COLOR_NAMES.filter(name => name.startsWith(partial)).map(name => ({ text: name, description: hex(COLORS[name]!.body) }))
327    return { suggestions: [...offered.suggestions, ...rows] }
328  })
329
330  // A click on the sprite (terminal) or on the layer over it (desktop) pets it.
331  on('ui.message', async ($, e, next) => {
332    if ((e.element === 'pet' || e.element === 'pet-hit') && (e.data as { pet?: boolean } | null)?.pet) petIt($).catch(() => undefined)
333    return next(e)
334  })
335
336  on('prompt.submit', async ($, e, next) => {
337    lastActive = await $.clock.now()
338    look = 0
339    if (mood === 'sleepy' || mood === 'dozing') await wake($)
340    else if (mood === 'reading' || mood === 'wince' || mood === 'shocked') await setMood($, 'idle')
341    return next(e)
342  })
343
344  on('turn.start', async ($, e, next) => {
345    isWorking = true
346    lastActive = await $.clock.now()
347    // Asleep, it wakes first; once up, the waking mood wears off into working.
348    if (mood === 'sleepy' || mood === 'dozing') await wake($)
349    else if (!moodUntil) await setMood($, 'working')
350    return next(e)
351  })
352
353  // A sentence for each kind of action as it starts; the pet keeps its working mood.
354  // Each subagent hatches a little helper beside the pet, in its own colour; it waves bye when done.
355  on('agent.spawn', async ($, e, next) => {
356    if (!e.parentAgentId) say($, `sent ${e.subagentType.split(':').pop()} off on a side quest 🧭`).catch(() => undefined)
357    await hatch($, e.tool_use_id, e.subagentType).catch(() => undefined)
358    const started = await next(e)
359    if (started.deny !== undefined || !started.agentId) await sayBye($, e.tool_use_id).catch(() => undefined)
360    else miniOf.set(started.agentId, e.tool_use_id)
361    return started
362  })
363
364  on('session.compact', async ($, e, next) => {
365    say($, 'is tidying its memory 🧹').catch(() => undefined)
366    return next(e)
367  })
368
369  on('classic.Notification', async ($, e, next) => {
370    if (/permission/i.test(e.notification_type)) say($, 'is waiting for your OK ✋').catch(() => undefined)
371    return next(e)
372  })
373
374  on('turn.complete', async ($, e, next) => {
375    const done = await next(e)
376    if (e.agentId !== undefined) {
377      const miniId = miniOf.get(e.agentId)
378      if (miniId) await sayBye($, miniId).catch(() => undefined)
379      return done
380    }
381    isWorking = false
382    lastActive = await $.clock.now()
383    if (e.isAborted) {
384      await setMood($, 'idle')
385      return done
386    }
387    pet = { ...pet, turns: pet.turns + 1 }
388    await $.store.set('pet', pet)
389    await setMood($, 'happy', 6000)
390    return done
391  })
392
393  on('tool.call', async ($, e, next) => {
394    if (e.agentId === undefined && isWorking) {
395      const line = actionLine(String(e.tool), e as unknown as Record<string, unknown>)
396      if (line) say($, line).catch(() => undefined)
397    }
398    const ran = await next(e)
399    if (ran.deny === undefined && ran.isError === true && e.agentId === undefined) await setMood($, 'oops', 5000)
400    return ran
401  })
402
403  on('session.measure', async ($, e, next) => {
404    const measured = await next(e)
405    await setMeter($, e)
406    return measured
407  })
408
409  on('command.run', { command: 'pet' }, async ($, e) => {
410    const [verb, ...rest] = e.args.trim().split(/\s+/)
411    if (verb === 'hide' || verb === 'show') {
412      await update($, view, current => ({ ...current, isHidden: verb === 'hide' }))
413      return { text: verb === 'hide' ? `${pet.name} is resting off-screen. /pet show brings it back.` : `${pet.name} is back!` }
414    }
415    if (verb === 'color' || verb === 'colour') {
416      const choice = colorName(rest[0])
417      if (!choice) {
418        await preview($, undefined)
419        return { text: `Colours: ${COLOR_NAMES.join(', ')}. Try /pet color pink.` }
420      }
421      previewColor = undefined
422      pet = { ...pet, color: choice }
423      await $.store.set('pet', pet)
424      await update($, view, current => viewOf(pet, current.mood, current.line, current.isHidden))
425      return { text: `${pet.name} is now ${choice}.` }
426    }
427    if (verb === 'rename' && rest.length) {
428      pet = { ...pet, name: rest.join(' ').slice(0, 24) }
429      await $.store.set('pet', pet)
430      await update($, view, current => viewOf(pet, current.mood, current.line, current.isHidden))
431      return { text: `Your pet is now called ${pet.name}.` }
432    }
433    const days = Math.max(0, Math.floor(((await $.clock.now()) - pet.born) / 86_400_000))
434    return {
435      text: [
436        `${pet.name} · ${colorName(pet.color) ?? defaultColor}`,
437        `${pet.turns} turns together · petted ${pet.pets} times · ${days} days old`,
438        'Click it to pet it. /pet color <name> changes its colour, /pet rename <name> its name.',
439      ].join('\n'),
440    }
441  })
442
443  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
444    const current = await read($, view)
445    if (e.props.hasSurvey || current.isHidden || e.props.maxRows < 4) return next(e)
446    const { Box, Text } = $.ui.resolve(e)
447    const now = await $.clock.now()
448    const percent = current.meter.percent
449    const parts = segments(current.meter, now)
450    // The helpers' ages at this draw: each one's story (pop in, bob, wave, fade) runs from its age.
451    // Newest first, so a new helper takes the leftmost slot and pushes the rest along; one still
452    // queued has a negative age and no slot yet.
453    const helpers = [...current.minis].sort((a, b) => b.at - a.at).map(m => ({ id: m.id, color: m.color, state: m.state, age: now - m.at }))
454    // Point at the meter for the details the line leaves out: tokens, resets, how you're billed.
455    // Hidden until hovered; it opens over the band, which clips it, so it stays within four rows.
456    const card = cardLines(current.meter, now)
457    const details = card.length > 0 && (
458      <Box position="absolute" top={-2} left={0} display="none" hover={{ display: 'flex' }} flexDirection="column" paddingX={1} backgroundColor={theme === 'light' ? '#f3f3f5' : '#2b2b30'}>
459        {card.map(text => <Text wrap="truncate">{text}</Text>)}
460      </Box>
461    )
462    const hint = card.length > 0 && <Text dimColor> ⓘ</Text>
463
464    // The terminal draws pixels as half-block text on its grid and animates the line and the meter
465    // there too; anywhere else text doesn't line up into pixels, so pet, line and meter are SVGs
466    // with their motion built in.
467    if (e.surface === 'terminal') {
468      const { Client } = $.ui.resolve(e)
469      const pet: PetViewProps = { mood: current.mood, look, color: current.color }
470      const status: StatusViewProps = { name: current.name, line: current.line }
471      const gauge: MeterViewProps = { ...(percent === undefined ? {} : { percent }), segments: parts, isWorking, width: METER_CELLS }
472      return (
473        <Box gap={2} alignItems="center">
474          <Client key="pet" module="./pet-view.tsx" width={10} height={4} props={pet} />
475          <Box flexDirection="column" justifyContent="center">
476            <Client key="status" module="./status-view.tsx" props={status} />
477            <Box key="meter-row" alignItems="flex-end">
478              {helpers.length > 0 && <Client key="minis" module="./minis-view.tsx" props={{ minis: helpers, stamp: now } satisfies MinisViewProps} />}
479              <Client key="meter" module="./meter-view.tsx" props={gauge} />
480              {hint}
481              {details}
482            </Box>
483          </Box>
484        </Box>
485      )
486    }
487
488    if (shown && (shown.mood !== current.mood || shown.color !== current.color)) fadeFrom = { ...shown, at: now }
489    shown = { mood: current.mood, color: current.color }
490    if (shownLine !== undefined && shownLine !== current.line) slideFrom = { line: shownLine, at: now }
491    shownLine = current.line
492    const from = drawnPercent
493    if (percent !== undefined) drawnPercent = percent
494    const { Svg } = $.ui.resolve(e)
495    // An invisible layer over the sprite catches the click; the SVG itself can't.
496    let hit: RenderChildren = null
497    if (e.surface === 'desktop') {
498      const { Client } = $.ui.resolve(e)
499      hit = (
500        <Box position="absolute" top={0} left={0}>
501          <Client key="pet-hit" module="./hit.tsx" width={6} height={2} props={{ columns: 6, rows: 2 }} />
502        </Box>
503      )
504    }
505    const previous = slideFrom && now - slideFrom.at < 600 ? slideFrom.line : undefined
506    // The second line, helpers and all, as one SVG that glides from where the last draw left it.
507    const resets = parts.filter(p => p.text.startsWith(' resets')).map(p => p.text.trim()).join(' · ')
508    const bill = parts.find(p => p.text.startsWith('$'))?.text
509    const two = lineTwoSvg({
510      minis: helpers,
511      ...(percent === undefined ? {} : { percent }),
512      from,
513      isWorking,
514      limits: current.meter.limits ?? [],
515      ...(resets ? { resets } : {}),
516      ...(bill ? { bill } : {}),
517      hasInfo: card.length > 0,
518      tones: { ...TONES[theme], text: LINE_COLORS[theme].text },
519    }, lineTwoLayout)
520    lineTwoLayout = two.layout
521    const helpersAlt = current.minis.map(m => `${m.name} helper${m.state === 'bye' ? ' waving bye' : ''}`)
522    return (
523      <Box gap={2} alignItems="center">
524        <Box>
525          <Svg source={petSvg(current.mood, fadeFrom && now - fadeFrom.at < 500 ? fadeFrom : undefined, look, current.color)} alt={`${current.name}, a pixel pet, ${current.mood}`} width={50} height={40} />
526          {hit}
527        </Box>
528        <Box flexDirection="column" justifyContent="center">
529          <Svg source={lineSvg(current.name, current.line, previous, LINE_COLORS[theme])} alt={`${current.name} ${current.line}`} width={lineWidth(current.name, current.line, previous)} height={20} />
530          <Box key="meter-row">
531            <Svg source={two.svg} alt={[...helpersAlt, ...card].join('; ') || 'context meter'} width={two.width} height={26} />
532            {details}
533          </Box>
534        </Box>
535      </Box>
536    )
537  })
538}
539

1// The context meter on the band's second line: how full the context window is, what the session
2// cost, and the 5-hour limit. A gradient runs mint → amber → red along the bar, so the colour at
3// the tip says how worried to be.
4
5export type Limit = { kind: string; percent: number; resetsAt?: string }
6// Where the numbers come from: a Claude plan meters usage in 5-hour and weekly windows and bills
7// nothing per token; the API and the cloud providers bill per token and have no windows.
8export type Source = 'plan' | 'api' | 'bedrock' | 'vertex' | 'foundry' | 'gateway'
9export type Meter = { percent?: number; tokens?: number; window?: number; usd?: number; limits?: Limit[]; source?: Source }
10export type Segment = { text: string; color?: string; dim?: boolean; bold?: boolean }
11export type Run = { text: string; fg: string; bold?: boolean }
12
13const STOPS: [at: number, color: number][] = [[0, 0x34d399], [0.6, 0xfbbf24], [1, 0xf87171]]
14const TRACK = 0x3a3f4b
15
16const mix = (a: number, b: number, t: number) => {
17  const ch = (s: number) => Math.round(((a >> s) & 255) * (1 - t) + ((b >> s) & 255) * t)
18  return (ch(16) << 16) | (ch(8) << 8) | ch(0)
19}
20export const hex = (color: number) => `#${color.toString(16).padStart(6, '0')}`
21
22export function gradientAt(t: number): number {
23  const x = Math.max(0, Math.min(1, t))
24  for (let i = 1; i < STOPS.length; i++) {
25    const [a, ca] = STOPS[i - 1]!
26    const [b, cb] = STOPS[i]!
27    if (x <= b) return mix(ca, cb, (x - a) / (b - a))
28  }
29  return STOPS[STOPS.length - 1]![1]
30}
31
32const kilo = (n: number) => (n >= 1_000_000 ? `${(n / 1_000_000).toFixed(1)}M` : n >= 1000 ? `${Math.round(n / 1000)}k` : String(n))
33
34const LIMIT_LABELS: Record<string, string> = { five_hour: '5h', seven_day: 'week', seven_day_opus: 'week·opus', spend_limit: 'spend' }
35export const SOURCE_LABELS: Record<Source, string> = { plan: 'Claude plan', api: 'API', bedrock: 'Bedrock', vertex: 'Vertex AI', foundry: 'Foundry', gateway: 'gateway' }
36
37// "1h52m", "38m", "3d4h": how long until a window resets.
38export function resetIn(resetsAt: string | undefined, now: number): string | undefined {
39  if (!resetsAt) return undefined
40  const ms = Date.parse(resetsAt) - now
41  if (!(ms > 0)) return undefined
42  const m = Math.round(ms / 60_000)
43  if (m < 60) return `${m}m`
44  if (m < 24 * 60) return `${Math.floor(m / 60)}h${String(m % 60).padStart(2, '0')}m`
45  const h = Math.round(m / 60)
46  return `${Math.floor(h / 24)}d${h % 24 ? `${h % 24}h` : ''}`
47}
48
49export const miniGauge = (percent: number, width = 5) => {
50  const filled = Math.max(percent > 0 ? 1 : 0, Math.min(width, Math.round((percent / 100) * width)))
51  return '▰'.repeat(filled) + '▱'.repeat(width - filled)
52}
53
54// A window's reset only earns a place on the line once it's getting tight; the card always has it.
55export const RESET_SHOWN_FROM = 70
56
57// The terminal's line after the context bar: tokens (when there are no windows to show), each
58// usage window as a gauge and a percent, and the bill on the API or a cloud provider. On a plan
59// the $ is only what the session would cost at API prices, so it stays in the card.
60export function segments(m: Meter, now: number): Segment[] {
61  const out: Segment[] = []
62  const sep = () => out.length && out.push({ text: '  ' })
63  if (m.tokens !== undefined && m.window && !m.limits?.length) out.push({ text: `${kilo(m.tokens)}/${kilo(m.window)}`, dim: true })
64  for (const limit of m.limits ?? []) {
65    sep()
66    const color = hex(gradientAt(limit.percent / 100))
67    out.push({ text: `${LIMIT_LABELS[limit.kind] ?? limit.kind} `, dim: true }, { text: miniGauge(limit.percent), color }, { text: ` ${Math.round(limit.percent)}%`, color, bold: true })
68    const reset = limit.percent >= RESET_SHOWN_FROM ? resetIn(limit.resetsAt, now) : undefined
69    if (reset) out.push({ text: ` resets ${reset}`, dim: true })
70  }
71  if (m.source && m.source !== 'plan' && m.usd !== undefined) {
72    sep()
73    out.push({ text: `$${m.usd.toFixed(2)}`, bold: true })
74  }
75  return out
76}
77
78const LIMIT_NAMES: Record<string, string> = { five_hour: '5-hour limit', seven_day: 'Weekly limit', seven_day_opus: 'Weekly Opus limit', spend_limit: 'Spend limit' }
79
80// The hover card: everything the line leaves out, in plain words.
81export function cardLines(m: Meter, now: number): string[] {
82  const lines: string[] = []
83  if (m.percent !== undefined) lines.push(`Context ${m.percent}% full${m.tokens !== undefined && m.window ? ` · ${kilo(m.tokens)} of ${kilo(m.window)} tokens` : ''}`)
84  for (const limit of m.limits ?? []) {
85    const reset = resetIn(limit.resetsAt, now)
86    lines.push(`${LIMIT_NAMES[limit.kind] ?? limit.kind} ${Math.round(limit.percent)}% used${reset ? ` · resets in ${reset}` : ''}`)
87  }
88  const usd = m.usd !== undefined ? `$${m.usd.toFixed(2)}` : undefined
89  if (m.source === 'plan') lines.push(`Billing: Claude plan, usage limits instead of per-token charges${usd ? ` (≈${usd} at API rates)` : ''}`)
90  else if (m.source) lines.push(`Billing: ${SOURCE_LABELS[m.source]}${usd ? `, ${usd} billed this session` : ''}`)
91  return lines
92}
93
94export type Tones = { label: string }
95export const TONES: Record<'dark' | 'light', Tones> = { dark: { label: '#9a9aa2' }, light: { label: '#6b7280' } }
96
97// Desktop: the usage windows as one SVG, so labels, pills and percents line up exactly
98// (the app's proportional font draws ▰ and ▱ at different widths).
99// The windows' pieces in their own 16px-tall coordinates; limitsSvg wraps them.
100export function limitsParts(limits: readonly Limit[], tones: Tones): { body: string; width: number } {
101  const CHAR = 7.4
102  const PILL = 30
103  let x = 0
104  let end = 0
105  const parts = limits.map(limit => {
106    const label = LIMIT_LABELS[limit.kind] ?? limit.kind
107    const color = hex(gradientAt(limit.percent / 100))
108    const pct = `${Math.round(limit.percent)}%`
109    const fill = Math.max(limit.percent > 0 ? 4 : 0, (Math.min(100, limit.percent) / 100) * PILL)
110    const lx = x
111    const px = lx + label.length * CHAR + 6
112    const tx = px + PILL + 6
113    end = tx + pct.length * 8.4 // bold digits run wider than labels
114    x = end + 16
115    return `<text x="${lx}" y="12" fill="${tones.label}">${label}</text>`
116      + `<rect x="${px}" y="5" width="${PILL}" height="5" rx="2.5" fill="#8b93a7" fill-opacity="0.25"/>`
117      + `<rect x="${px}" y="5" width="${fill.toFixed(1)}" height="5" rx="2.5" fill="${color}"/>`
118      + `<text x="${tx}" y="12" fill="${color}" font-weight="700">${pct}</text>`
119  })
120  return { body: parts.join(''), width: Math.ceil(Math.max(1, end + 2)) }
121}
122
123export const FONT = `font-family="-apple-system, BlinkMacSystemFont, 'Segoe UI', Inter, system-ui, sans-serif" font-size="12.5"`
124
125export function limitsSvg(limits: readonly Limit[], tones: Tones): { svg: string; width: number } {
126  const { body, width } = limitsParts(limits, tones)
127  return { width, svg: `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="16" viewBox="0 0 ${width} 16" ${FONT}>${body}</svg>` }
128}
129
130export const segmentsText = (parts: readonly Segment[]) => parts.map(p => p.text).join('')
131
132// The terminal bar: heavy line cells in the gradient, a half cell for precision, a dim track after.
133// `shine` is the cell a highlight sweeps across while Claude works.
134export function barRuns(percent: number, width: number, shine?: number): Run[] {
135  const exact = (Math.max(0, Math.min(100, percent)) / 100) * width
136  const full = Math.floor(exact)
137  const half = exact - full >= 0.5
138  const runs: Run[] = []
139  const push = (text: string, color: number) => {
140    const fg = hex(color)
141    const last = runs[runs.length - 1]
142    if (last && last.fg === fg) last.text += text
143    else runs.push({ text, fg })
144  }
145  for (let i = 0; i < width; i++) {
146    const glow = shine === undefined ? 0 : Math.max(0, 1 - Math.abs(i - shine) / 2)
147    const color = mix(gradientAt(i / Math.max(1, width - 1)), 0xffffff, glow * 0.6)
148    if (i < full) push('━', color)
149    else if (i === full && half) push('╸', color)
150    else push('─', TRACK)
151  }
152  return runs
153}
154
155// Desktop: a rounded pill whose fill glides from the last reading to this one, with a soft
156// highlight sweeping across while Claude works and a glow at the tip.
157// The bar's pieces in its own 12px-tall coordinates: what meterSvg wraps, and what the band's
158// second line places among the helpers. Ids are local to whichever SVG holds them.
159export function meterParts(percent: number, from: number, isWorking: boolean, width = 110): { defs: string; body: string } {
160  const w = (p: number) => Math.max(0, Math.min(1, p / 100)) * width
161  const to = w(percent)
162  const start = w(from)
163  const tip = hex(gradientAt(percent / 100))
164  const glide = Math.abs(to - start) > 0.5
165    ? (attr: string) => `<animate attributeName="${attr}" from="${start.toFixed(1)}" to="${to.toFixed(1)}" dur="0.8s" calcMode="spline" keyTimes="0;1" keySplines="0.2 0.8 0.2 1" fill="freeze"/>`
166    : () => ''
167  const shimmer = isWorking
168    ? `<rect y="3" width="30" height="6" fill="url(#s)" clip-path="url(#c)"><animate attributeName="x" values="-30;${width}" dur="1.6s" repeatCount="indefinite"/></rect>`
169    : ''
170  return {
171    defs: `<linearGradient id="g" x1="0" x2="${width}" gradientUnits="userSpaceOnUse"><stop offset="0" stop-color="#34d399"/><stop offset="0.6" stop-color="#fbbf24"/><stop offset="1" stop-color="#f87171"/></linearGradient>`
172      + `<linearGradient id="s" x1="0" x2="1"><stop offset="0" stop-color="#fff" stop-opacity="0"/><stop offset="0.5" stop-color="#fff" stop-opacity="0.55"/><stop offset="1" stop-color="#fff" stop-opacity="0"/></linearGradient>`
173      + `<clipPath id="c"><rect y="3" width="${to.toFixed(1)}" height="6" rx="3">${glide('width')}</rect></clipPath>`,
174    body: `<rect y="3" width="${width}" height="6" rx="3" fill="#8b93a7" fill-opacity="0.22"/>`
175      + `<rect y="3" width="${to.toFixed(1)}" height="6" rx="3" fill="url(#g)">${glide('width')}</rect>`
176      + shimmer
177      + `<circle cx="${to.toFixed(1)}" cy="6" r="4.5" fill="${tip}" fill-opacity="0.35">${glide('cx')}</circle>`,
178  }
179}
180
181export function meterSvg(percent: number, from: number, isWorking: boolean, width = 110): string {
182  const { defs, body } = meterParts(percent, from, isWorking, width)
183  return `<svg xmlns="http://www.w3.org/2000/svg" width="${width + 6}" height="12" viewBox="-3 0 ${width + 6} 12"><defs>${defs}</defs>${body}</svg>`
184}
185

1// The terminal's context meter, on the surface's own clock: the bar and the number glide to each
2// new reading with an ease-out, and a highlight sweeps along the fill while Claude works.
3import type { ClientModule } from 'claude-code'
4
5import { barRuns, gradientAt, hex } from './meter'
6import type { Segment } from './meter'
7
8export type MeterViewProps = { percent?: number; segments: Segment[]; isWorking: boolean; width: number }
9
10type Ref = { shown: number; target: number; phase: number; isWorking: boolean }
11type State = { ref: Ref }
12
13const FRAME_MS = 60
14
15const MeterView: ClientModule<MeterViewProps, State> = (props, surface) => {
16  const { Box, Text } = surface.elements
17  // The first reading shows as it is; later ones glide.
18  const ref = surface.state?.ref ?? { shown: props.percent ?? 0, target: props.percent ?? 0, phase: 0, isWorking: props.isWorking }
19  ref.target = props.percent ?? 0
20  ref.isWorking = props.isWorking
21  if (surface.state === undefined) {
22    surface.setState({ ref })
23    surface.every(FRAME_MS, () => {
24      const isGliding = Math.abs(ref.target - ref.shown) > 0.05
25      if (isGliding) ref.shown += (ref.target - ref.shown) * 0.18
26      else ref.shown = ref.target
27      if (ref.isWorking) ref.phase += 1
28      if (isGliding || ref.isWorking) surface.setState({ ref })
29    })
30  }
31
32  if (props.percent === undefined) return <Text dimColor>context · waiting for the first reply</Text>
33
34  const filled = Math.max(1, Math.round((ref.shown / 100) * props.width))
35  const shine = ref.isWorking ? (ref.phase % (filled + 8)) - 4 : undefined
36  return (
37    <Box>
38      {barRuns(ref.shown, props.width, shine).map(run => <Text color={run.fg}>{run.text}</Text>)}
39      <Text bold color={hex(gradientAt(ref.shown / 100))}> {Math.round(ref.shown)}%</Text>
40      {props.segments.length > 0 && <Text> </Text>}
41      {props.segments.map(seg => <Text color={seg.color} dimColor={seg.dim} bold={seg.bold}>{seg.text}</Text>)}
42    </Box>
43  )
44}
45
46export default MeterView
47

1// The pet itself, drawn on the surface's own frame clock: it bobs and blinks between the band's
2// redraws, a change of mood or colour crossfades instead of popping, and a click pets it.
3import type { ClientModule } from 'claude-code'
4
5import type { Mood } from '../types'
6import { DEFAULT_COLOR, blend, sprite, toRuns } from './sprite'
7
8export type PetViewProps = { mood: Mood; look: number; color: string }
9
10type Ref = { t: number; mood: Mood; color: string; from?: { mood: Mood; color: string; at: number } }
11type State = { ref: Ref }
12
13const FRAME_MS = 100
14const FADE_MS = 350
15
16const PetView: ClientModule<PetViewProps, State> = (props, surface) => {
17  const { Box, Text } = surface.elements
18  const ref = surface.state?.ref ?? { t: 0, mood: props.mood, color: props.color }
19  if (props.mood !== ref.mood || props.color !== ref.color) {
20    ref.from = { mood: ref.mood, color: ref.color, at: ref.t }
21    ref.mood = props.mood
22    ref.color = props.color
23  }
24  if (surface.state === undefined) {
25    surface.setState({ ref })
26    // Some clicks arrive as a down, some only as an up: either pets, once per click.
27    let lastPet = -Infinity
28    surface.onPointer(event => {
29      if ((event.type !== 'down' && event.type !== 'up') || ref.t - lastPet < 300) return
30      lastPet = ref.t
31      surface.post({ pet: true })
32    })
33    surface.every(FRAME_MS, () => {
34      // Asleep it barely moves, so a quarter of the frames will do.
35      ref.t += FRAME_MS
36      if (ref.mood !== 'sleepy' || ref.t % (FRAME_MS * 4) === 0) surface.setState({ ref })
37    })
38  }
39
40  let grid = sprite(ref.mood, ref.t, props.look, ref.color ?? DEFAULT_COLOR)
41  if (ref.from) {
42    const k = (ref.t - ref.from.at) / FADE_MS
43    if (k >= 1) ref.from = undefined
44    else grid = blend(sprite(ref.from.mood, ref.t, 0, ref.from.color), grid, k * k * (3 - 2 * k)) // smoothstep
45  }
46
47  return (
48    <Box flexDirection="column">
49      {toRuns(grid).map(runs => (
50        <Text>
51          {runs.map(run => (run.fg ? <Text color={run.fg} backgroundColor={run.bg}>{run.text}</Text> : <Text>{run.text}</Text>))}
52        </Text>
53      ))}
54    </Box>
55  )
56}
57
58export default PetView
59

1import type { Mood } from '../types'
2
3// A 10x8 pixel canvas, two pixels per terminal row: 10 columns by 4 rows. null is see-through.
4export type Grid = (number | null)[][]
5export const WIDTH = 10
6export const HEIGHT = 8
7
8// Colours a person can pick with /pet color: the common names, plus a few moods. Each is a body
9// and a darker outline; the order is what a typed prefix matches first.
10export const COLORS: Record<string, { body: number; edge: number }> = {
11  teal: { body: 0x4fd1c5, edge: 0x1f7a73 },
12  red: { body: 0xef4444, edge: 0x7f1d1d },
13  orange: { body: 0xfb923c, edge: 0x9a3412 },
14  yellow: { body: 0xfacc15, edge: 0x854d0e },
15  green: { body: 0x4ade80, edge: 0x166534 },
16  blue: { body: 0x60a5fa, edge: 0x1e40af },
17  purple: { body: 0x8b7cf6, edge: 0x4b3cb0 },
18  pink: { body: 0xf9a8d4, edge: 0xbe185d },
19  white: { body: 0xf3f4f6, edge: 0x9ca3af },
20  gray: { body: 0x9ca3af, edge: 0x4b5563 },
21  black: { body: 0x374151, edge: 0x111827 },
22  brown: { body: 0xb08968, edge: 0x5c3d2e },
23  cyan: { body: 0x22d3ee, edge: 0x155e75 },
24  mint: { body: 0x86efac, edge: 0x15803d },
25  lime: { body: 0xa3e635, edge: 0x3f6212 },
26  sky: { body: 0x7dd3fc, edge: 0x0369a1 },
27  navy: { body: 0x4f63d2, edge: 0x1e2a78 },
28  indigo: { body: 0x818cf8, edge: 0x3730a3 },
29  violet: { body: 0xa78bfa, edge: 0x5b21b6 },
30  lavender: { body: 0xc4b5fd, edge: 0x6d28d9 },
31  magenta: { body: 0xe879f9, edge: 0x86198f },
32  rose: { body: 0xfb7185, edge: 0x9f1239 },
33  peach: { body: 0xfdba74, edge: 0xc2410c },
34  coral: { body: 0xff8a65, edge: 0xb2462a },
35  gold: { body: 0xf6c945, edge: 0x9c7a12 },
36  lava: { body: 0xf87171, edge: 0x991b1b },
37  ghost: { body: 0xe5e7eb, edge: 0x6b7280 },
38  midnight: { body: 0x64748b, edge: 0x1e293b },
39}
40export const COLOR_NAMES = Object.keys(COLORS)
41export const DEFAULT_COLOR = 'teal'
42const ALIASES: Record<string, string> = { grey: 'gray', auto: DEFAULT_COLOR }
43
44export const colorName = (name: string | undefined) => {
45  const n = (name ?? '').toLowerCase()
46  return COLORS[n] ? n : ALIASES[n] ?? undefined
47}
48export const paletteFor = (color = DEFAULT_COLOR) => COLORS[colorName(color) ?? DEFAULT_COLOR]!
49
50const INK = 0x1a1a2e
51const WHITE = 0xffffff
52const BLUSH = 0xff8fb1
53const TONGUE = 0xff5c6c
54const SPARK = 0xffe066
55const HEART = 0xff5c8a
56const SWEAT = 0x7fdbff
57const ZZZ = 0xcfd8ff
58
59const BODY = [
60  '..oooo..',
61  '.obbbbo.',
62  'obbbbbbo',
63  'obbbbbbo',
64  'opbbbbpo',
65  '.obbbbo.',
66  '.oo..oo.',
67]
68
69type Eyes = 'open' | 'glance' | 'closed' | 'happy' | 'dizzy' | 'wide'
70type Mouth = 'smile' | 'open' | 'flat' | 'o' | 'gasp'
71
72// Eyes are 1x2 at body columns 2 and 5, rows 2-3: [top, bottom].
73const EYES: Record<Eyes, [string, string]> = {
74  open: ['w', 'k'],
75  glance: ['k', 'k'],
76  closed: ['b', 'k'],
77  happy: ['k', 'b'],
78  dizzy: ['k', 'w'],
79  wide: ['k', 'k'],
80}
81const MOUTHS: Record<Mouth, [x: number, y: number, c: 'k' | 'r'][]> = {
82  smile: [[3, 5, 'k'], [4, 5, 'k']],
83  open: [[3, 4, 'k'], [4, 4, 'k'], [3, 5, 'r'], [4, 5, 'r']],
84  flat: [[2, 5, 'k'], [3, 5, 'k'], [4, 5, 'k'], [5, 5, 'k']],
85  o: [],
86  gasp: [[3, 4, 'k'], [4, 4, 'k'], [3, 5, 'k'], [4, 5, 'k']],
87}
88
89// Rhythm per mood: how fast it bobs (ms per cycle) and whether it shakes instead.
90const RHYTHM: Record<Mood, { period: number; shake?: boolean; still?: boolean }> = {
91  reading: { period: 1400 },
92  wince: { period: 200, shake: true },
93  shocked: { period: 300 },
94  idle: { period: 2400 },
95  working: { period: 640 },
96  happy: { period: 480 },
97  oops: { period: 260, shake: true },
98  sleepy: { period: 3600, still: true },
99  dozing: { period: 3000, still: true },
100  waking: { period: 520 },
101  loved: { period: 900 },
102}
103
104const wave = (t: number, period: number) => 0.5 - 0.5 * Math.cos((2 * Math.PI * (t % period)) / period)
105
106// Blink for 140ms every few seconds, at a beat that doesn't look mechanical.
107export const isBlinking = (t: number) => (t % 3700) < 140 || ((t + 1300) % 6100) < 120
108
109// look: where the eyes point, -1 left, 0 ahead, 1 right (reading along as you type).
110// t: the clock, for extras that drift (a sleeper's z's).
111type Pose = { lift?: number; dx?: number; blink?: boolean; odd?: boolean; look?: number; color?: string; t?: number; withBody?: boolean; withExtras?: boolean }
112
113// One still frame. The terminal animates by drawing many of these; the desktop SVG layers a few.
114export function draw(mood: Mood, { lift = 0, dx = 0, blink = false, odd = false, look = 0, color = DEFAULT_COLOR, t = 0, withBody = true, withExtras = true }: Pose = {}): Grid {
115  const { body, edge } = paletteFor(color)
116  const eyes: Eyes =
117    mood === 'happy' || mood === 'loved' ? 'happy'
118    : mood === 'sleepy' ? 'closed'
119    : mood === 'dozing' ? (blink ? 'open' : 'closed') // heavy lids: only now and then do they open
120    : mood === 'waking' ? (blink ? 'closed' : 'open') // quick bleary blinks
121    : mood === 'oops' ? 'dizzy'
122    : mood === 'wince' ? 'closed'
123    : mood === 'shocked' ? 'wide'
124    : blink ? 'closed'
125    : mood === 'working' && odd ? 'glance'
126    : 'open'
127  const mouth: Mouth = mood === 'happy' ? 'open' : mood === 'oops' || mood === 'wince' ? 'flat' : mood === 'sleepy' ? 'o' : mood === 'shocked' || mood === 'dozing' || mood === 'waking' ? 'gasp' : 'smile'
128
129  const grid: Grid = Array.from({ length: HEIGHT }, () => Array<number | null>(WIDTH).fill(null))
130  const ox = 1 + dx
131  const oy = 1 - lift
132  const put = (x: number, y: number, c: number) => {
133    if (x >= 0 && x < WIDTH && y >= 0 && y < HEIGHT) grid[y]![x] = c
134  }
135  const paint = { o: edge, b: body, p: BLUSH, k: INK, w: WHITE, r: TONGUE } as const
136
137  if (withBody) {
138    BODY.forEach((row, y) => [...row].forEach((c, x) => c !== '.' && put(ox + x, oy + y, paint[c as keyof typeof paint])))
139    const shift = mood === 'reading' ? Math.max(-1, Math.min(1, Math.round(look))) : 0
140    for (const col of [2 + shift, 5 + shift]) EYES[eyes].forEach((c, i) => put(ox + col, oy + 2 + i, paint[c as keyof typeof paint]))
141    for (const [x, y, c] of MOUTHS[mouth]) put(ox + x, oy + y, paint[c])
142  }
143  if (withExtras) {
144    if (mood === 'happy') for (const [x, y] of odd ? [[0, 1], [9, 3]] : [[9, 0], [0, 4]]) put(x!, y!, SPARK)
145    if (mood === 'oops') put(9, 2 + (odd ? 1 : 0), SWEAT)
146    if (mood === 'sleepy') {
147      // Two z's drifting up and away, half a cycle apart, and a snore bubble on the breath.
148      const path = [[7, 4], [8, 3], [8, 2], [9, 1], [9, 0]]
149      for (const offset of [0, 2]) {
150        const [x, y] = path[(Math.floor(t / 420) + offset) % path.length]!
151        put(x!, y!, ZZZ)
152      }
153      if (Math.floor(t / 1800) % 2 === 0) put(9, 4, SWEAT) // the snore bubble, beside the cheek
154    }
155    if (mood === 'loved') for (const [x, y] of odd ? [[8, 0], [9, 1]] : [[0, 0], [1, 1]]) put(x!, y!, HEART)
156    if (mood === 'shocked') for (const y of [0, 1, 3]) put(9, y, odd ? SPARK : 0xff6b6b) // a blinking "!"
157    if (mood === 'wince') put(odd ? 9 : 8, 2, SWEAT)
158  }
159  return grid
160}
161
162// The frame at time t: bob or shake on the mood's rhythm, blink now and then, twinkle the extras.
163export function sprite(mood: Mood, t: number, look = 0, color = DEFAULT_COLOR): Grid {
164  const rhythm = RHYTHM[mood]
165  const phase = wave(t, rhythm.period)
166  const lids = mood === 'dozing' ? (t % 1800) < 420 : mood === 'waking' ? (t % 520) < 140 : isBlinking(t)
167  return draw(mood, {
168    lift: rhythm.still || rhythm.shake ? 0 : phase > 0.5 ? 1 : 0,
169    dx: rhythm.shake ? (phase > 0.5 ? 1 : -1) : 0,
170    blink: lids,
171    odd: Math.floor(t / 350) % 2 === 1,
172    look,
173    color,
174    t,
175  })
176}
177
178export function mix(a: number, b: number, t: number): number {
179  const ch = (shift: number) => Math.round(((a >> shift) & 255) * (1 - t) + ((b >> shift) & 255) * t)
180  return (ch(16) << 16) | (ch(8) << 8) | ch(0)
181}
182
183// A crossfade between two poses: colors blend, and a pixel that appears or vanishes swaps halfway.
184export function blend(from: Grid, to: Grid, t: number): Grid {
185  return to.map((row, y) => row.map((c, x) => {
186    const a = from[y]?.[x] ?? null
187    if (a === null || c === null) return t < 0.5 ? a : c
188    return mix(a, c, t)
189  }))
190}
191
192export type Run = { text: string; fg?: string; bg?: string }
193export const hex = (color: number) => `#${color.toString(16).padStart(6, '0')}`
194
195// Two pixels per cell with half blocks; empty pixels draw nothing, so the surface shows through.
196export const toRuns = (grid: Grid) => toRunsOf(grid, WIDTH)
197
198export function toRunsOf(grid: Grid, width: number): Run[][] {
199  const rows: Run[][] = []
200  for (let y = 0; y < grid.length; y += 2) {
201    const runs: Run[] = []
202    for (let x = 0; x < width; x++) {
203      const top = grid[y]![x] ?? null
204      const bottom = grid[y + 1]?.[x] ?? null
205      const cell: Run =
206        top === null && bottom === null ? { text: ' ' }
207        : top === null ? { text: '▄', fg: hex(bottom!) }
208        : bottom === null ? { text: '▀', fg: hex(top) }
209        : top === bottom ? { text: '█', fg: hex(top) }
210        : { text: '▀', fg: hex(top), bg: hex(bottom) }
211      const last = runs[runs.length - 1]
212      if (last && last.fg === cell.fg && last.bg === cell.bg) last.text += cell.text
213      else runs.push(cell)
214    }
215    rows.push(runs)
216  }
217  return rows
218}
219
220// Desktop: one SVG with the motion built in, so it animates without redraws. The body glides on
221// an eased curve (smoother than whole pixels), blinks and twinkles switch layers, and a mood change
222// fades the previous pose out. Every animated layer rests where a still image should be, so a
223// surface that ignores SMIL still shows a clean pet.
224export function petSvg(mood: Mood, from?: { mood: Mood; color: string }, look = 0, color = DEFAULT_COLOR, px = 5): string {
225  // Pixels as rects, a row's same-coloured neighbours merged; with `over`, only the pixels that differ from it.
226  const rects = (grid: Grid, over?: Grid) =>
227    grid.map((row, y) => {
228      const cells = row.map((c, x) => (over && (over[y]![x] ?? null) === c ? null : c))
229      let out = ''
230      for (let x = 0; x < WIDTH; ) {
231        let end = x + 1
232        while (end < WIDTH && cells[end] === cells[x]) end++
233        if (cells[x] !== null) out += `<rect x="${x * px}" y="${y * px}" width="${(end - x) * px}" height="${px}" fill="${hex(cells[x]!)}"/>`
234        x = end
235      }
236      return out
237    }).join('')
238  const ease = 'calcMode="spline" keyTimes="0;0.5;1" keySplines="0.45 0 0.55 1;0.45 0 0.55 1"'
239  const once = (ms: number, spline = '0.2 0.8 0.2 1') => `dur="${ms}ms" calcMode="spline" keyTimes="0;1" keySplines="${spline}" fill="freeze"`
240  const rhythm = RHYTHM[mood]
241  // How the body moves: a bob or a shake on the mood's rhythm; asleep, a slow breath that swells it
242  // a touch; dozing off, a slow sink; waking, a rise from that sink with a little overshoot.
243  const motion =
244    mood === 'sleepy' ? `<animateTransform attributeName="transform" type="translate" values="0 0;0 ${-px * 0.35};0 0" dur="3600ms" ${ease} repeatCount="indefinite"/>`
245    : mood === 'dozing' ? `<animateTransform attributeName="transform" type="translate" from="0 0" to="0 ${px * 0.6}" ${once(2600, '0.4 0 0.6 1')}/>`
246    : mood === 'waking' ? `<animateTransform attributeName="transform" type="translate" values="0 ${px * 0.6};0 ${-px * 0.5};0 0" keyTimes="0;0.6;1" dur="1100ms" calcMode="spline" keySplines="0.2 0.8 0.3 1;0.4 0 0.6 1" fill="freeze"/>`
247    : rhythm.shake ? `<animateTransform attributeName="transform" type="translate" values="${-px * 0.6} 0;${px * 0.6} 0;${-px * 0.6} 0" dur="${rhythm.period}ms" ${ease} repeatCount="indefinite"/>`
248    : `<animateTransform attributeName="transform" type="translate" values="0 0;0 ${-px * (mood === 'idle' || mood === 'reading' ? 0.6 : 1)};0 0" dur="${rhythm.period}ms" ${ease} repeatCount="indefinite"/>`
249  const toggle = (dur: number, on: string) => `<animate attributeName="opacity" values="0;1" keyTimes="0;${on}" calcMode="discrete" dur="${dur}ms" repeatCount="indefinite"/>`
250
251  const base = draw(mood, { withExtras: false, look, color })
252  // Lids: a blink now and then; dozing, heavy lids that open less and less; waking, quick bleary blinks.
253  const lids =
254    mood === 'idle' || mood === 'working' || mood === 'reading' ? `<g opacity="0">${rects(draw(mood, { blink: true, withExtras: false, look, color }), base)}${toggle(3700, '0.962')}</g>`
255    : mood === 'dozing' ? `<g opacity="0">${rects(draw(mood, { blink: true, withExtras: false, color }), base)}<animate attributeName="opacity" values="0;1;0;1;0" keyTimes="0;0.1;0.35;0.45;1" calcMode="discrete" dur="2600ms" fill="freeze"/></g>`
256    : mood === 'waking' ? `<g opacity="0">${rects(draw(mood, { blink: true, withExtras: false, color }), base)}<animate attributeName="opacity" values="1;0;1;0" keyTimes="0;0.25;0.4;0.6" calcMode="discrete" dur="1100ms" fill="freeze"/></g>`
257    : ''
258  const glance = mood === 'working' ? `<g opacity="0">${rects(draw(mood, { odd: true, withExtras: false, color }), base)}${toggle(700, '0.5')}</g>` : ''
259
260  // Asleep: z's that drift up and fade, one after another, and a snore bubble that swells and pops.
261  const z = (begin: number) =>
262    `<g opacity="0"><rect x="${px * 7.6}" y="${px * 3.6}" width="${px * 0.9}" height="${px * 0.9}" fill="#cfd8ff"/>`
263    + `<animateTransform attributeName="transform" type="translate" values="0 0;${px * 1.2} ${-px * 3.4}" dur="2400ms" begin="${begin}ms" repeatCount="indefinite"/>`
264    + `<animate attributeName="opacity" values="0;0.95;0" keyTimes="0;0.25;1" dur="2400ms" begin="${begin}ms" repeatCount="indefinite"/></g>`
265  const snore = mood === 'sleepy'
266    ? z(0) + z(800) + z(1600)
267      + `<circle shape-rendering="geometricPrecision" cx="${px * 6.9}" cy="${px * 6.2}" r="0" fill="#7fdbff" fill-opacity="0.55" stroke="#bfefff" stroke-opacity="0.8" stroke-width="0.6"><animate attributeName="r" values="0;${px * 0.9};${px * 1.25};0;0" keyTimes="0;0.55;0.7;0.72;1" dur="3600ms" repeatCount="indefinite"/></circle>`
268    : ''
269  const extrasA = mood === 'sleepy' ? '' : rects(draw(mood, { withBody: false }))
270  const extrasB = mood === 'sleepy' ? '' : rects(draw(mood, { withBody: false, odd: true }))
271  const twinkle = extrasA || extrasB
272    ? `<g>${extrasA}<animate attributeName="opacity" values="1;0" keyTimes="0;0.5" calcMode="discrete" dur="700ms" repeatCount="indefinite"/></g><g opacity="0">${extrasB}${toggle(700, '0.5')}</g>`
273    : ''
274  const fade = from && (from.mood !== mood || from.color !== color)
275    ? `<g opacity="0">${rects(draw(from.mood, { color: from.color }))}<animate attributeName="opacity" values="1;0" dur="350ms" fill="freeze"/></g>`
276    : ''
277  return `<svg xmlns="http://www.w3.org/2000/svg" width="${WIDTH * px}" height="${HEIGHT * px}" viewBox="0 0 ${WIDTH * px} ${HEIGHT * px}" shape-rendering="crispEdges"><g>${rects(base)}${lids}${glance}${motion}</g>${twinkle}${snore}${fade}</svg>`
278}
279

1// What the pet says while Claude works, one line per kind of action, and the desktop's slide
2// between one line and the next.
3
4const base = (path: unknown) => (typeof path === 'string' ? path.split('/').filter(Boolean).pop() ?? path : 'a file')
5const clip = (text: unknown, max = 28) => {
6  const s = String(text ?? '').replace(/\s+/g, ' ').trim()
7  return s.length > max ? `${s.slice(0, max - 1)}…` : s
8}
9
10const SHELL: [RegExp, string][] = [
11  [/\b(jest|vitest|pytest|mocha|rspec|phpunit|go test|cargo test|(npm|pnpm|yarn|bun) (run )?test)\b/, 'is running the tests 🧪'],
12  [/\bgit commit\b/, 'is committing the work ✍️'],
13  [/\bgit push\b/, 'is pushing to the remote 🚀'],
14  [/\bgit (pull|fetch|clone)\b/, 'is pulling from git…'],
15  [/\bgit (diff|status|log|show|blame)\b/, 'is checking the git history…'],
16  [/\bgit\b/, 'is talking to git…'],
17  [/\b((npm|pnpm|yarn|bun) (i|install|add)|pip3? install|poetry add|cargo add|brew install|go get|gem install)\b/, 'is installing packages 📦'],
18  [/\b(tsc|webpack|vite build|next build|make|cargo build|go build|gradle|mvn|(npm|pnpm|yarn|bun) run build)\b/, 'is building the project 🔨'],
19  [/\b(eslint|prettier|ruff|black|flake8|rubocop|biome|(npm|pnpm|yarn|bun) run lint)\b/, 'is tidying the code style…'],
20  [/\b(docker|kubectl|helm|terraform)\b/, 'is poking the infrastructure 🐳'],
21  [/\b(curl|wget|http)\b/, 'is fetching something from the web…'],
22  [/^\s*(ls|cat|head|tail|find|tree|pwd|wc)\b/, 'is looking around the repo 👀'],
23  [/\b(rm|mv|cp|mkdir)\b/, 'is moving files around…'],
24]
25
26// The line for a tool call that's starting, or undefined for a tool not worth a line.
27export function actionLine(tool: string, args: Record<string, unknown>): string | undefined {
28  const t = tool
29  if (t === 'Read' || t === 'NotebookRead') return `is reading ${base(args.file_path ?? args.notebook_path)}…`
30  if (t === 'Edit' || t === 'MultiEdit') return `is editing ${base(args.file_path)} ✏️`
31  if (t === 'Write') return `is writing ${base(args.file_path)} ✏️`
32  if (t === 'NotebookEdit') return 'is editing a notebook 📓'
33  if (t === 'Bash') {
34    const cmd = String(args.command ?? '')
35    return SHELL.find(([re]) => re.test(cmd))?.[1] ?? `is running \`${clip(cmd.split(/\s+/)[0], 16)}\`…`
36  }
37  if (t === 'Grep') return `is searching for "${clip(args.pattern, 22)}" 🔍`
38  if (t === 'Glob' || t === 'LS') return `is looking for ${clip(args.pattern ?? args.path, 22)}…`
39  if (t === 'WebSearch') return `is searching the web for "${clip(args.query, 22)}" 🌐`
40  if (t === 'WebFetch') {
41    const host = /^https?:\/\/([^/]+)/.exec(String(args.url ?? ''))?.[1]
42    return `is reading ${host ?? 'a web page'} 🌐`
43  }
44  if (t === 'TodoWrite' || t === 'TaskCreate' || t === 'TaskUpdate') return 'is planning the next steps 📝'
45  if (t === 'EnterPlanMode' || t === 'ExitPlanMode') return 'is drafting a plan 🗺️'
46  if (t === 'AskUserQuestion') return 'has a question for you ❓'
47  if (t === 'Skill') return `is using the ${clip(args.skill ?? args.name, 20)} skill 🧰`
48  if (t === 'Agent' || t === 'Task') return `is sending a helper off ${args.subagent_type ? `(${clip(args.subagent_type, 16)}) ` : ''}🧭`
49  const mcp = /^mcp__([^_]+(?:_[^_]+)*)__/.exec(t)?.[1]
50  if (mcp) return `is asking ${clip(mcp.replace(/[-_]/g, ' '), 20)}…`
51  return undefined
52}
53
54export type LineColors = { name: string; text: string }
55export const LINE_COLORS: Record<'dark' | 'light', LineColors> = {
56  dark: { name: '#d97757', text: '#e6e6e6' },
57  light: { name: '#c4613f', text: '#1f2328' },
58}
59
60const escape = (s: string) => s.replace(/[<>&"]/g, c => ({ '<': '&lt;', '>': '&gt;', '&': '&amp;', '"': '&quot;' })[c]!)
61
62// Desktop: the line as SVG text. A new line rises from below while the old one drifts up and
63// fades. Each layer rests where a still image should be, so without SMIL only the new line shows.
64export const lineWidth = (name: string, line: string, previous?: string) => Math.min(640, Math.ceil((name.length + 1 + Math.max(line.length, previous?.length ?? 0)) * 7.9) + 24)
65
66export function lineSvg(name: string, line: string, previous: string | undefined, colors: LineColors): string {
67  const width = lineWidth(name, line, previous)
68  const text = (l: string) => `<tspan fill="${colors.name}" font-weight="700">${escape(name)}</tspan><tspan fill="${colors.text}"> ${escape(l)}</tspan>`
69  const ease = 'dur="0.38s" calcMode="spline" keyTimes="0;1" keySplines="0.2 0.8 0.2 1" fill="freeze"'
70  const old = previous !== undefined && previous !== line
71    ? `<text x="0" y="-4" opacity="0">${text(previous)}<animate attributeName="y" values="15;-4" ${ease}/><animate attributeName="opacity" values="1;0" ${ease}/></text>`
72    : ''
73  const rise = old ? `<animate attributeName="y" values="32;15" ${ease}/><animate attributeName="opacity" values="0;1" ${ease}/>` : ''
74  return `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="20" viewBox="0 0 ${width} 20" font-family="-apple-system, BlinkMacSystemFont, 'Segoe UI', Inter, system-ui, sans-serif" font-size="14">${old}<text x="0" y="15">${text(line)}${rise}</text></svg>`
75}
76

1// The pet's little helpers, one per running subagent: half its size (5x4 body, plus a column for a
2// waving arm), in the agent's own colour. They pop in, bob while their agent works, and when it's
3// done they wave bye, float up and fade away.
4import type { Grid } from './sprite'
5import { COLOR_NAMES, hex, paletteFor } from './sprite'
6
7export const MINI_W = 6
8export const MINI_H = 4
9export const ARRIVE_MS = 600
10export const WAVE_MS = 1300
11export const LEAVE_MS = 2200
12
13const INK = 0x1a1a2e
14const BODY = ['.ooo.', 'okbko', 'obbbo', '.o.o.']
15
16// A stable colour for an agent with none of its own, never the parent's.
17export function miniColor(id: string, avoid: string): string {
18  const names = COLOR_NAMES.filter(name => name !== avoid && name !== 'black' && name !== 'white')
19  let h = 0
20  for (const ch of id) h = (h * 31 + ch.charCodeAt(0)) >>> 0
21  return names[h % names.length]!
22}
23
24// The Claude Code agent colours as a definition file names them, onto the pet's palette.
25const AGENT_COLORS: Record<string, string> = { red: 'red', blue: 'blue', green: 'green', yellow: 'yellow', purple: 'purple', orange: 'orange', pink: 'pink', cyan: 'cyan' }
26export const colorFromDefinition = (markdown: string) => {
27  const front = /^---\n([\s\S]*?)\n---/.exec(markdown)?.[1] ?? ''
28  const named = /^color:\s*["']?([a-z]+)/im.exec(front)?.[1]?.toLowerCase()
29  return named ? AGENT_COLORS[named] ?? (COLOR_NAMES.includes(named) ? named : undefined) : undefined
30}
31
32export function miniDraw(color: string, { blink = false, armUp = false, arm = false } = {}): Grid {
33  const { body, edge } = paletteFor(color)
34  const paint: Record<string, number> = { o: edge, b: body, k: blink ? body : INK }
35  const grid: Grid = BODY.map(row => [...row].map(c => (c === '.' ? null : paint[c]!)))
36  for (const row of grid) row.push(null)
37  if (arm) grid[armUp ? 0 : 1]![5] = edge
38  return grid
39}
40
41// Terminal frames, by how long the mini has been in its state.
42export function miniFrame(color: string, state: 'here' | 'bye', age: number, seed: number): Grid | null {
43  if (state === 'here' && age < ARRIVE_MS) {
44    // A sparkle, then the body: a pop in two beats.
45    if (age < 200) return Array.from({ length: MINI_H }, (_, y) => Array.from({ length: MINI_W }, (_, x) => (x === 2 && y === 1 ? 0xffe066 : null)))
46    return miniDraw(color)
47  }
48  if (state === 'bye') {
49    if (age < WAVE_MS) return miniDraw(color, { arm: true, armUp: Math.floor(age / 220) % 2 === 0 })
50    if (age < WAVE_MS + 300) return miniDraw(color, { blink: true })
51    if (age < WAVE_MS + 550) return Array.from({ length: MINI_H }, (_, y) => Array.from({ length: MINI_W }, (_, x) => (x === 2 && y === 1 ? 0xcfd8ff : null)))
52    return null
53  }
54  return miniDraw(color, { blink: (age + seed * 377) % 3100 < 130 })
55}
56
57export const seedOf = (id: string) => [...id].reduce((h, ch) => (h * 31 + ch.charCodeAt(0)) >>> 0, 7) % 997
58
59// Desktop: one helper drawn at its slot's origin, its story told by its age: once its slot has
60// opened (SLOT_MS) it pops in with a little spring, then bobs and blinks at its own pace; leaving,
61// it waves, floats up and fades. Laid out by the band's second line (line2.ts).
62export const SLOT_MS = 380
63
64export function miniBody(mini: { id: string; color: string; state: 'here' | 'bye'; age: number }, px = 5): string {
65  const w = MINI_W * px
66  const h = MINI_H * px
67  const rects = (grid: Grid) => grid.map((row, y) => row.map((c, x) => (c === null ? '' : `<rect x="${x * px}" y="${y * px}" width="${px}" height="${px}" fill="${hex(c)}"/>`)).join('')).join('')
68  const seed = seedOf(mini.id)
69  if (mini.state === 'bye') {
70    const wave = (up: boolean) => `<g opacity="${up ? 1 : 0}">${rects(miniDraw(mini.color, { arm: true, armUp: up }))}<animate attributeName="opacity" values="${up ? '1;0' : '0;1'}" keyTimes="0;0.5" calcMode="discrete" dur="440ms" repeatCount="${Math.ceil(WAVE_MS / 440)}" fill="freeze"/></g>`
71    const fadeAt = Math.max(0, WAVE_MS - mini.age)
72    return `<g>${wave(true)}${wave(false)}`
73      + `<animateTransform attributeName="transform" type="translate" values="0 0;0 ${-px * 1.6}" dur="800ms" begin="${fadeAt}ms" calcMode="spline" keyTimes="0;1" keySplines="0.3 0 0.7 1" fill="freeze"/>`
74      + `<animate attributeName="opacity" values="1;0" dur="800ms" begin="${fadeAt}ms" fill="freeze"/></g>`
75  }
76  const spline = 'calcMode="spline" keySplines="0.45 0 0.55 1;0.45 0 0.55 1"'
77  const bob = `<animateTransform attributeName="transform" type="translate" values="0 0;0 ${-px * 0.7};0 0" keyTimes="0;0.5;1" dur="${560 + (seed % 240)}ms" ${spline} repeatCount="indefinite"/>`
78  const blink = `<g opacity="0">${rects(miniDraw(mini.color, { blink: true }))}<animate attributeName="opacity" values="0;1" keyTimes="0;0.96" calcMode="discrete" dur="${2900 + (seed % 900)}ms" begin="${-(seed % 2900)}ms" repeatCount="indefinite"/></g>`
79  const body = `<g>${rects(miniDraw(mini.color))}${blink}${bob}</g>`
80  if (mini.age >= SLOT_MS + ARRIVE_MS) return body
81  // Not yet popped: hold at nothing while the slot opens, then spring out from the middle.
82  const wait = Math.max(0, SLOT_MS - mini.age)
83  const cx = (w - px) / 2
84  const cy = h / 2
85  return `<g transform="translate(${cx} ${cy})"><g transform="scale(${wait > 0 ? 0 : 1})">`
86    + `<animateTransform attributeName="transform" type="scale" values="0;1.2;1" keyTimes="0;0.65;1" dur="${ARRIVE_MS}ms" begin="${wait}ms" calcMode="spline" keySplines="0.2 0.8 0.3 1;0.4 0 0.6 1" fill="freeze"/>`
87    + `<g transform="translate(${-cx} ${-cy})">${body}</g></g></g>`
88}
89

1// Desktop: the band's second line as one SVG: the helpers on the left, newest first, then the
2// context bar, its percent, the usage windows, the bill and the ⓘ. Each element starts where the
3// previous draw left it and glides to its new place, so a helper's slot opening pushes the line
4// right and one closing pulls it back.
5import { FONT, gradientAt, hex, limitsParts, meterParts } from './meter'
6import type { Limit, Tones } from './meter'
7import { MINI_W, miniBody } from './mini'
8
9export type Layout = Map<string, number>
10export type LineTwo = {
11  minis: { id: string; color: string; state: 'here' | 'bye'; age: number }[]
12  percent?: number
13  from: number
14  isWorking: boolean
15  limits: Limit[]
16  resets?: string
17  bill?: string
18  hasInfo: boolean
19  tones: Tones & { text: string }
20}
21
22const PX = 5
23const SLOT = MINI_W * PX + 4
24const HEIGHT = 26
25const PILL = 110
26const GLIDE = 'dur="420ms" calcMode="spline" keyTimes="0;1" keySplines="0.25 0.8 0.25 1" fill="freeze"'
27
28export function lineTwoSvg(line: LineTwo, previous: Layout | undefined): { svg: string; width: number; layout: Layout } {
29  const layout: Layout = new Map()
30  const minis = line.minis.filter(m => m.age >= 0)
31  minis.forEach((m, i) => layout.set(m.id, i * SLOT))
32  const contentX = minis.length ? minis.length * SLOT + 4 : 0
33  layout.set('content', contentX)
34
35  // Where an element was on the last draw, to glide from; a new helper has no past and pops in.
36  const place = (key: string, y: number) => {
37    const x = layout.get(key)!
38    const was = previous?.get(key)
39    const move = was !== undefined && Math.abs(was - x) > 0.5
40      ? `<animateTransform attributeName="transform" type="translate" values="${was} ${y};${x} ${y}" ${GLIDE}/>`
41      : ''
42    return { open: `<g transform="translate(${x} ${y})">${move}`, close: '</g>' }
43  }
44
45  let defs = ''
46  let content = ''
47  let x = 0
48  if (line.percent === undefined) {
49    content = `<text x="0" y="17.5" fill="${line.tones.label}">context · waiting for the first reply</text>`
50    x = 230
51  } else {
52    const meter = meterParts(line.percent, line.from, line.isWorking, PILL)
53    defs = meter.defs
54    const pct = `${line.percent}%`
55    content = `<g transform="translate(3 7)">${meter.body}</g>`
56      + `<text x="${PILL + 12}" y="17.5" fill="${hex(gradientAt(line.percent / 100))}" font-weight="700">${pct}</text>`
57    x = PILL + 12 + pct.length * 8.4 + 12
58    if (line.limits.length) {
59      const limits = limitsParts(line.limits, line.tones)
60      content += `<g transform="translate(${x.toFixed(1)} 5)">${limits.body}</g>`
61      x += limits.width + 10
62    }
63    if (line.resets) {
64      content += `<text x="${x.toFixed(1)}" y="17.5" fill="${line.tones.label}">${line.resets}</text>`
65      x += line.resets.length * 7.1 + 10
66    }
67    if (line.bill) {
68      content += `<text x="${x.toFixed(1)}" y="17.5" fill="${line.tones.text}" font-weight="700">${line.bill}</text>`
69      x += line.bill.length * 8.4 + 10
70    }
71  }
72  if (line.hasInfo) {
73    content += `<text x="${x.toFixed(1)}" y="17.5" fill="${line.tones.label}">ⓘ</text>`
74    x += 14
75  }
76
77  const helpers = minis.map(m => {
78    const at = place(m.id, 5)
79    return `${at.open}${miniBody(m, PX)}${at.close}`
80  })
81  const body = place('content', 0)
82  const width = Math.ceil(Math.max(contentX + x, (previous?.get('content') ?? 0) + x))
83  return {
84    layout,
85    width,
86    svg: `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${HEIGHT}" viewBox="0 0 ${width} ${HEIGHT}" ${FONT}><defs>${defs}</defs>`
87      + `<g shape-rendering="crispEdges">${helpers.join('')}</g>${body.open}${content}${body.close}</svg>`,
88  }
89}
90

1// The terminal's helpers, left of the context bar, newest first, on the surface's own clock. A new
2// one first widens its slot a column at a time, pushing the bar along, then sparkles in; a leaving
3// one waves, shrinks to a speck, and its slot narrows back.
4import type { ClientModule } from 'claude-code'
5
6import { LEAVE_MS, MINI_W, SLOT_MS, miniFrame, seedOf } from './mini'
7import { toRunsOf } from './sprite'
8
9export type MinisViewProps = { minis: { id: string; color: string; state: 'here' | 'bye'; age: number }[]; stamp: number }
10
11type Ref = { t: number; stamp: number }
12type State = { ref: Ref }
13
14const FRAME_MS = 40
15const SLOT = MINI_W + 1
16const CLOSE_MS = 300
17
18// How wide a helper's slot is at this age: opening, full, then closing as it leaves.
19export function slotWidth(state: 'here' | 'bye', age: number): number {
20  if (age < 0) return 0
21  if (state === 'here') return Math.min(SLOT, Math.round((age / SLOT_MS) * SLOT))
22  const closing = age - (LEAVE_MS - CLOSE_MS)
23  return closing <= 0 ? SLOT : Math.max(0, Math.round(SLOT * (1 - closing / CLOSE_MS)))
24}
25
26const MinisView: ClientModule<MinisViewProps, State> = (props, surface) => {
27  const { Box, Text } = surface.elements
28  const ref = surface.state?.ref ?? { t: 0, stamp: props.stamp }
29  if (props.stamp !== ref.stamp) {
30    // Fresh ages from the band; count on from them.
31    ref.stamp = props.stamp
32    ref.t = 0
33  }
34  if (surface.state === undefined) {
35    surface.setState({ ref })
36    surface.every(FRAME_MS, () => {
37      ref.t += FRAME_MS
38      surface.setState({ ref })
39    })
40  }
41
42  const slots = props.minis.map(m => {
43    const age = m.age + ref.t
44    const width = slotWidth(m.state, age)
45    // The helper itself waits for its slot to open; its own story starts then.
46    const grid = width === SLOT || m.state === 'bye' ? miniFrame(m.color, m.state, m.state === 'here' ? age - SLOT_MS : age, seedOf(m.id)) : null
47    const rows = grid ? toRunsOf(grid, MINI_W) : [[{ text: ' '.repeat(MINI_W) }], [{ text: ' '.repeat(MINI_W) }]]
48    return { width, rows }
49  })
50  return (
51    <Box flexDirection="column">
52      {[0, 1].map(row => (
53        <Text>
54          {slots.flatMap(slot => {
55            if (slot.width === 0) return []
56            // A slot narrower than the helper shows its left part: the room it has so far.
57            let room = slot.width
58            const out = []
59            for (const run of slot.rows[row]!) {
60              if (room <= 0) break
61              const text = run.text.slice(0, room)
62              room -= text.length
63              out.push(run.fg ? <Text color={run.fg} backgroundColor={run.bg}>{text}</Text> : <Text>{text}</Text>)
64            }
65            if (room > 0) out.push(<Text>{' '.repeat(room)}</Text>)
66            return out
67          })}
68        </Text>
69      ))}
70    </Box>
71  )
72}
73
74export default MinisView
75

1// The terminal's status line. Text there moves in whole rows only, so a change can't glide; it
2// rolls instead: the old words fade out, then the new ones fade in, in about a quarter second.
3import type { ClientModule } from 'claude-code'
4
5export type StatusViewProps = { name: string; line: string }
6
7type Ref = { t: number; line: string; previous?: string; changedAt: number }
8type State = { ref: Ref }
9
10const FRAME_MS = 50
11const OUT_MS = 110
12const GAP_MS = 40
13const IN_MS = 130
14
15const StatusView: ClientModule<StatusViewProps, State> = (props, surface) => {
16  const { Text } = surface.elements
17  const ref = surface.state?.ref ?? { t: 0, line: props.line, changedAt: -Infinity }
18  if (props.line !== ref.line) {
19    ref.previous = ref.line
20    ref.line = props.line
21    ref.changedAt = ref.t
22  }
23  if (surface.state === undefined) {
24    surface.setState({ ref })
25    surface.every(FRAME_MS, () => {
26      ref.t += FRAME_MS
27      if (ref.t - ref.changedAt <= OUT_MS + GAP_MS + IN_MS + FRAME_MS) surface.setState({ ref })
28    })
29  }
30
31  const since = ref.t - ref.changedAt
32  const name = <Text bold color="claude">{props.name}</Text>
33  if (ref.previous !== undefined && since < OUT_MS) {
34    return <Text wrap="truncate">{name}<Text dimColor> {ref.previous}</Text></Text>
35  }
36  if (ref.previous !== undefined && since < OUT_MS + GAP_MS) return <Text wrap="truncate">{name}</Text>
37  const isFadingIn = ref.previous !== undefined && since < OUT_MS + GAP_MS + IN_MS
38  return <Text wrap="truncate">{name}<Text dimColor={isFadingIn}> {ref.line}</Text></Text>
39}
40
41export default StatusView
42

1// An invisible region laid over the desktop's SVG sprite: a click on it pets the pet. A heart pops
2// where you clicked at once, from here, while the pet's own reaction makes its round trip.
3import type { ClientModule } from 'claude-code'
4
5type Ref = { heart?: { x: number; y: number; at: number }; lastPet: number; t: number }
6type State = { ref: Ref }
7
8const HEART_MS = 700
9
10const Hit: ClientModule<{ columns: number; rows: number }, State> = (props, surface) => {
11  const { Box, Text } = surface.elements
12  const ref = surface.state?.ref ?? { lastPet: -Infinity, t: 0 }
13  if (surface.state === undefined) {
14    surface.setState({ ref })
15    surface.every(100, () => {
16      ref.t += 100
17      if (ref.heart && ref.t - ref.heart.at > HEART_MS) {
18        ref.heart = undefined
19        surface.setState({ ref })
20      }
21    })
22    // Some clicks arrive as a down, some only as an up: either pets, once per click.
23    surface.onPointer(event => {
24      if (event.type !== 'down' && event.type !== 'up') return
25      if (ref.t - ref.lastPet < 300) return
26      ref.lastPet = ref.t
27      ref.heart = { x: event.x, y: event.y, at: ref.t }
28      surface.setState({ ref })
29      surface.post({ pet: true })
30    })
31  }
32
33  const lines = Array.from({ length: Math.max(1, props.rows) }, (_, y) => {
34    const row = ' '.repeat(Math.max(1, props.columns)).split('')
35    if (ref.heart && ref.heart.y === y) row[Math.min(row.length - 1, Math.max(0, ref.heart.x))] = '♥'
36    return row.join('')
37  })
38  return (
39    <Box flexDirection="column">
40      {lines.map(line => <Text color="#ff5c8a" bold>{line}</Text>)}
41    </Box>
42  )
43}
44
45export default Hit
46

1export type Mood = 'idle' | 'working' | 'happy' | 'oops' | 'sleepy' | 'loved' | 'reading' | 'wince' | 'shocked' | 'dozing' | 'waking'
2
3// A subagent's little helper beside the pet: here while its agent works, waving bye when it's done.
4export type Mini = { id: string; name: string; color: string; state: 'here' | 'bye'; at: number }
5
6export type ContextMeter = {
7  percent?: number
8  tokens?: number
9  window?: number
10  usd?: number
11  limits?: { kind: string; percent: number; resetsAt?: string }[]
12  source?: 'plan' | 'api' | 'bedrock' | 'vertex' | 'foundry' | 'gateway'
13}
14
15export type PetView = {
16  mood: Mood
17  line: string
18  name: string
19  color: string
20  isHidden: boolean
21  meter: ContextMeter
22  minis: Mini[]
23}
24
25declare module 'claude-code' {
26  interface PluginState {
27    'pixel-pet': { view: PetView }
28  }
29}
30
