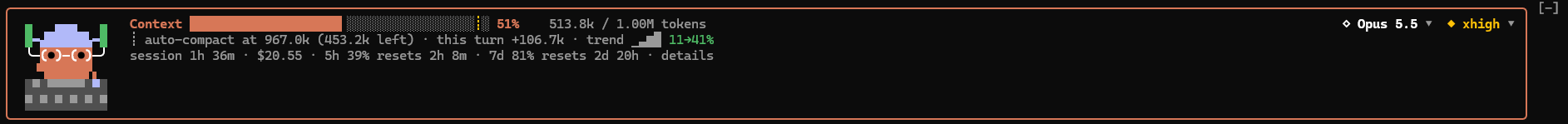

See your context window fill up as you work, no /context needed. A live band above the prompt shows an animated fill bar, token count, auto-compact headroom…
newbandtoastprompttimer
See your context window fill up as you work, no /context needed. A live band above the prompt shows an animated fill bar, token count, auto-compact headroom…
See your context window fill up as you work, without typing /context. A live band above the prompt shows an animated fill bar, the token count, headroom before auto-compaction and about how many turns it lasts, the usage trend, the session's length and cost, how much the prompt cache served and when it has gone cold, and the rate limits with when each resets, or when the recent pace runs one out first. It also has one-click model and effort pickers, a compact button once the context runs high, and Clawd, who types while Claude works, dresses up for the effort level, gets cross as the context fills up and naps when you're idle.
Requires Claude Code 2.1.295 or later. Claude Code Desktop runs its own bundled Claude Code (2.1.295 as of 2026-10-15), whatever version the terminal has. Type this at the prompt of a terminal session:
/plugin install context-meter --marketplace Krs7N/context-metery to Add marketplace? (github:Krs7N/context-meter).Installed context-meter. Plugin is now active. The band appears above the prompt right away.Update to a newer version with /plugin update context-meter, then /reload-plugins (or restart Claude Code): a session that is already open keeps drawing the old version until then. Remove the mod with /plugin uninstall context-meter.
| Setting | Default | What it does |
|---|---|---|
sleepAfterMinutes ("Clawd naps after (minutes)") | 5 | Minutes without activity before Clawd falls asleep. 0 keeps him awake. |
showClawd ("Show Clawd") | on | Off: no mascot, and the stats take his 15 cells. |
reduceMotion ("Reduce motion") | off | On: numbers land at once instead of counting up, and Clawd neither types, blinks nor shakes (his zZ stops growing). His face and colour still follow the bar. The fast timer never runs. |
layout ("Layout") | auto | auto: the full band where it fits, else one line. one-line: always the one-line meter. |
showCost ("Show the session's cost") | on | The $ figure in row 3. |
showRateLimits ("Show rate limits") | on | The 5h, 7d and spend windows in row 3, with their resets and pace. |
showCompactButton ("Show the compact button") | on | The compact button once the bar turns amber or red. |
warnAt ("Bar turns amber at …") | 75 | How far toward auto-compact, in percent, the bar turns amber and Clawd gets annoyed. With no auto-compact point known, the way to 80 % of the window. |
alertAt ("Bar turns red at …") | 95 | The same for red, Clawd fuming. Below warnAt, both keep their defaults. |
cacheLifetime ("Prompt-cache lifetime") | auto | auto: learned from your requests (Cold cache). 5m or 1h: always that. |
models ("Models in the model picker") | haiku, sonnet, opus, fable | The picker's entries as /model takes them, separated by commas or spaces, smallest first: a family, opus[1m] (1M window), best, opusplan or a model id. |
Change them in /config, where each is a row of its own, or from a shell:
echo '{"sleepAfterMinutes":10,"showCost":false}' | claude plugin configure context-meter@context-meter --values-stdinA change reloads the mod with the new values. A value out of range keeps its default.
git clone https://github.com/Krs7N/context-meter
claude --plugin-dir ./context-meterTo load it in every session without a marketplace, add the clone's path to the env block in ~/.claude/settings.json:
{ "env": { "CLAUDE_CODE_PLUGIN_DIRS": "C:/path/to/context-meter" } }On Windows, separate several paths with ;. On macOS and Linux, use :.
| Row | Content | Source |
|---|---|---|
| 1 | Context + fill bar + percent + tokens / window; model badge and effort badge on the right | $.session.usage().context (tokens, window, percent); model and effort: see below |
| 2 | in this order, each only when it applies: ! 150.0k over the 200.0k window: next send compacts (or : /compact before sending with auto-compaction off), in red; cache cold: next send re-writes 162.0k in amber (see Cold cache); window 1.00M → 200.0k for about 10 s after a model switch; ┊ auto-compact at 167.0k (83.0k left, ~6 turns) (the same ┊ as on the bar), or with auto-compaction off window full in ~6 turns; the turn: this turn +12.0k while Claude works, compacted 182.0k → 31.0k after a compaction (shrank 182.0k → 31.0k when the fill fell with no compaction seen), else last turn +3.2k; fill trend trend ▁▂▃▅▇ 12→42% | context.breakdown; each main-thread request's usage; the turn ends; trend and cache state |
| 3 | session duration, session cost, how much of the last request the cache served, rate-limit windows (5h, 7d, spend), each with a countdown to its reset, then the compact button once the bar warns: session 1h 3m · $4.20 · cache 97% · 5h 72% full in ~48m, resets 2h 14m · 7d 41% resets 3d 4h · compact | startedAt and the clock, cost.usd, the main request's usage, rateLimits (percentUsed, resetsAt) and the pace state |
| 4 (optional) | the 5 largest used categories, as /context splits them | breakdown.categories (kind used) — toggled by the details button |
claude theme key), then warning and error as the fill nears the auto-compact point (from three quarters of the way, and from 95 %; the warnAt and alertAt settings). With no auto-compact point known, the way to 80 % of the window: warning from 60 %, error from 76 % (fillColor). Clawd changes with it (see The mascot).▏▎▍▌▋▊▉█), so it moves smoothly. It is up to 40 cells wide.┊ mark on the empty part shows where auto-compaction runs.success) for about 10 s. The percent then shows a green ▲, or a red ▼ (error) when it drops.HIGHLIGHT_TICKS × 0.7 s): green where it went up, red where it went down (moveOf). This covers tokens, tokens left before compaction, percent, cost, each rate-limit percent and the window … → … note. A turn's growth (this turn, last turn) goes by its sign: + green, − red. Unchanged numbers stay dim. A new window (a model switch) is no growth: no ▲, no count-up, just the window … note./theme. Claude Code draws success in blue there and keeps error red, and the band's up and down colours are those two theme keys, so every rise turns blue. Clawd's moods change his face as well as his colour.12→42% green when the fill rose over the trend, red when it fell) and the compaction note (compacted 182.0k → 31.0k, red).TWEEN_STEPS × TWEEN_MS), or over 1 s for a reading in the middle of a turn (LIVE_STRIDE), and the bar grows with it. A newer reading restarts the count.maxRows, a short fullscreen terminal), only row 1 and the two badges are drawn, without frame and mascot. Where even an open picker column is taller than that room, its choices are drawn in a row instead of the meter until it closes.tokens, then Context, then the window, then the token count, and the bar shrinks last;┊ auto-compact at 167.0k (83.0k left, ~6 turns) to ┊ 83.0k left, ~6 turns and the cold-cache warning to cache cold, then leaves out the trend, then the turn's growth;7d one first) and keeps its percent and any full in warning, then leaves out the cache's share, then the session's length, then the rate limits, the cost last. The compact and details buttons always keep their room./clear) the token count shows "waiting for the first reply". Right after a compaction it shows what the compaction left, ~31.0k / 200.0k tokens, until the next reply./clear and /resume start the meter over: no growth or trend is measured against the conversation before.SHRINK) and no compaction was recorded, row 2 shows shrank 182.0k → 31.0k instead of a negative turn, and the next turn counts from there. This covers organisation-managed installs, where Claude Code does not run a plugin's session.compact hooks, and rewinds.clawdSvg), so he looks as he does in the terminal; the badges and picker options are Desktop's own buttons. The band's text is set in the monospaced face where Desktop's engine supports it (2.1.299 or later, read with $.session.version()). An older engine refuses the whole band over that setting, so there, or while the version is unknown, the text uses Desktop's page font.Context waiting for the first reply, or, where reading the usage fails, reading failed on desktop: <why> in warning. The reason also goes to the debug log (claude --debug).┊ auto-compact at 167.0k (83.0k left, ~6 turns): the tokens left before auto-compaction over the average growth of the last 5 turns that grew (a compaction's drop is not a turn's growth), rounded up (turnsLeft). With auto-compaction off it counts toward a full window instead: window full in ~6 turns. Nothing shows before two turns have grown, or from 100 turns on.
Each rate-limit window keeps its readings of the last half hour, about one a minute (withReadings, the pace state); a new window (another reset time) or a drop starts them over. Once they span 10 minutes and rose a point, and while the newest is under 10 minutes old, a window that the recent pace would use up before it resets says when: 5h 72% full in ~48m, resets 2h 14m, the warning in red (fullIn).
cache 97% in row 3: how much of the last main-thread request the prompt cache served (cache_read over all its input). The first request of a conversation reads nearly nothing.cache cold: next send re-writes 162.0k in amber: the next send writes the whole context to the cache again, at the cache-write rate. Not while Claude works.ttlFrom). A request sent more than 5 minutes after the last reply, on the same model and effort, that still read most of its input from the cache means it lives an hour. One that had to write most of it again means 5 minutes. A compaction, another model or effort, or /clear starts a new cache, which tells nothing. What was learned is kept in the mod's store (cacheTtl) for later sessions. Until a request has shown it, the warning assumes an hour, so it never says "cold" too early.$ estimate: token prices are not in the plugin API, and subscription plans do not pay per token.Once the bar turns amber or red (or the context is over the window), and while Claude is not working, row 3 ends · compact · details. A press asks compact now? yes · no; yes compacts the conversation as /compact does without instructions ($.session.compact()), shows compacting…, then compacted 182.0k → 31.0k in row 2. If Claude Code skips the compaction, a toast says why. A prompt moves on from an unanswered confirm. For a compaction with instructions, type /compact <what to keep>.
Left of the effort badge: ◇ Opus 5.5 ▾, the main loop's model as /model shows it ($.session.model(), read at start, after every /model and every 1.4 s, so a change made anywhere shows up). A 1M-context variant reads ◇ Opus 5.5 · 1M.
When the model changes, the meter reads the new window, auto-compact point and saved effort at once, without waiting for the next turn.
Click it to open a picker column around the badge, in the order haiku sonnet opus fable (MODEL_CHOICES): smaller models stack above the badge, larger ones below. A pick runs /model <alias> exactly as if you typed it, so Claude Code's own model changes, and whether it is saved as your default follows /model's own rules. Only one picker is open at a time: opening one closes the other.
When Claude Code keeps the model (/model answers "Kept model as …"), the mod shows a toast: Claude Code kept Opus 5.5: /model sonnet did not switch. Typing the command answers the same, so the toast suggests nothing. Plugins may not submit slash commands themselves.
The badge grows louder with the effort level:
| Effort | Drawn as |
|---|---|
low | · low, dimmed |
medium | ○ medium |
high | ● high, bold orange |
xhigh | ◆ xhigh, bold warning |
max | ▲ MAX , filled error badge |
| ultracode | ✦ ULTRACODE · <LEVEL> , filled orange badge (beats every level) |
| token budget | effort 32.0k budget |
| none (a model that takes no effort) | – no effort, dimmed |
Click it to open a picker column around the badge, in the order low medium high xhigh max ultracode: lower levels stack above the badge, higher ones below it, and the ultracode switch comes last. Click the badge again to close it. The details/hide toggle sits at the end of row 3, away from the picker. A pick runs /effort <choice> exactly as if you typed it ($.command.run), so Claude Code's own setting changes. Whether it is saved as the default follows /effort's own rules. If /effort refuses, caps or overrides the pick (ultracode unavailable, an organization's cap, CLAUDE_CODE_EFFORT_LEVEL), the badge shows what is in force and a toast quotes why. If it prints nothing the mod can read, the badge shows what was picked. Ultracode rides on top of a level: picking a level while it is on changes the level and keeps ultracode on, as /effort itself does (badge ✦ ULTRACODE · XHIGH). Only the last option, ✦ ultracode off (/effort ultracode off), turns it off.
The level comes from these sources:
command.run on /effort (picked from the badge, or typed where the hook sees it): the mod reads the output: "Set effort level to …", "Ultracode on/off", "Effort stays …".prompt.submit of a typed /effort <level>, /effort ultracode [on|off]: read from the arguments. max and ultracode are session-only and saved nowhere else the mod could read.turn.step on the main thread (no agentId): the effort every request actually sends, after any downgrade for the model. A request with none means the model takes no effort (– no effort). Subagents' requests are ignored./config row named effort…, when this build has one: a starting value, read only until a request or a pick names the level.modelSettings[<model>].effortLevel (the key matched by id or by the name /model shows), else effortLevel. This catches Claude Code's own /effort panel, which no hook sees. It applies only when the saved value changes.Ultracode starts off in every session (it is per session). A prompt that only mentions the word "ultracode" does not turn the badge on.
Clawd as the Claude Code welcome banner draws him, in the frame's left corner, sitting behind a keyboard: two rows of keycaps on a dark gray case (a key, the spacebar and a key on top; six keys below; CLAWD.keyboard).
CLAWD.shutEye), so he never looks eyeless.isWorking): he types. One arm reaches down at a time (CLAWD.typing) and a key under that hand lights up blue, a different one each frame (litKey, from CLAWD.keysLeft / CLAWD.keysRight).outfitFor, clawdRows):| Effort | Outfit |
|---|---|
| low | none |
| medium | a blue cap, facing front |
| high | the cap plus a bottle in a holder strapped to each side, straws running into his face |
| xhigh | cap, bottles and straws, plus glasses with round white rims around his eyes |
| max, ultracode | a tall purple magician's hat with a gold band, and nothing else |
He is 13 cells wide in every outfit, so the stats beside him never move.
fillColor, read by moodFor), so the two always change together, count-up included:| Bar | Mood | Clawd |
|---|---|---|
| orange | calm | as above |
warning | annoyed | ember body (#e5603f) and flat eyes (▂, a -_- look; behind the glasses a line through the middle of each lens, ━, where the open eye sits); he still blinks and types as usual |
error | fuming | red body (#e5383b) and eyes squeezed shut (> <), so he does not blink; awake, he shakes a cell left and right each frame (his hat, cap and bottles with him, the keyboard stays), and the key he hits flashes amber (warning) |
The body colours are raw, so he looks the same in every theme (MOOD_BODY, MOOD_EYES). His outfit, width and height never change with the mood. In Claude Code Desktop the picture's alt text names it (Clawd, fuming, typing).
sleepAfterMinutes setting; 0 keeps him awake), he leaves the keyboard (his legs show again in its place), his eyes close (inside the glasses too) and "zZzZ" grows out from the top-left of his head, in an extra row above him and any hat. He keeps his outfit and his mood's colour while asleep, but rests: no squeezed eyes, no shaking. A prompt, a model request or a new reading wakes him (markActive).CLAWD constant in hooks/register.tsx; the timing in TICK_MS (tick length) and BLINK_EVERY (ticks between blinks).All animation runs on two $.clock.every intervals. The ticker (startTicker) ticks every 0.7 s (TICK_MS): Clawd's frames, the highlight's fade and, every second tick, the polls. The counter (startCounter) ticks every 100 ms (TWEEN_MS) only while a changed number counts up, and stops once it lands, so an idle band makes about 86 dispatches a minute. Work that a hook starts with sleep loops dies when that hook's dispatch ends, because each hook has a time budget and sleeps count against it. An engine interval runs until it is cancelled or the module reloads. session.start starts the ticker and lands any count-up a reload interrupted. session.measure, prompt.submit and /effort restart it if it is missing, because a /clear fires no new session.start. session.end stops it, except on /clear and /resume, which keep it and start the meter over 0.3 s later. It runs only while a terminal or Claude Code Desktop draws the band.
Every /effort writes a line to the debug log (claude --debug): context-meter: /effort <args> → "<output>" (applied: …). If /effort was given a level and the mod could not read its output, the line also goes to the transcript.
| Event | What happens |
|---|---|
session.start | reads the engine's version (whether Text takes mono); first reading; starts the mascot's animation loop where a terminal draws the band (the REPL); -p and SDK runs, which draw nothing, run none of the band's work |
session.attach / session.detach | Claude Code Desktop joining starts the band's work with a fresh reading; the last drawing client leaving stops it |
turn.complete | the end of a main-thread turn: a reading with breakdown, the turn's growth and a trend point |
session.measure | a plain reading, after each turn and whenever a rate-limit window moves (mid-turn too) |
turn.step | each main-thread request: its effort level, then a live reading from the response's own usage, and the cache's share and lifetime |
session.compact | a main-conversation compaction: records what it freed and redraws (the compact button records its own) |
session.end | /clear and /resume: start the meter over; anything else: stops the animation loop |
prompt.submit | wakes Clawd; reads a typed /effort … |
command.run (effort) | reads the level and ultracode state back from /effort's output |
command.run (model) | reads the model back ($.session.model()) once /model ran; a new model gets a full reading |
ui.render (AbovePrompt) | draws the band from the stored state; yields to surveys (hasSurvey) |
Turn ends, model switches and compactions call $.session.usage({ breakdown: 'summary' }). A summary breakdown is estimated locally — no token-count API calls, no cost. ('full' would count with the API, as /context does.) Live readings and cost-only measures read the plain figures, which cost nothing.
| File | Purpose |
|---|---|
.claude-plugin/plugin.json | manifest (name, version, description, types) |
hooks/hooks.json | points to the hooks module |
hooks/register.tsx | all logic: refresh, animation, rendering, formatting helpers |
types/index.d.ts | state contract under context-meter: snap, trend, frame, effort, model, the pickers' open flags, pace, cache, cacheTtl, compactStep, … |
tests/meter.test.ts | formatting, band contents and redraw, layouts, model switches, live readings, /clear, /resume, /compact, blink timing |
README.md | this document |
fillColor and the color="claude" props in the ui.render hook. Any theme key works (success, warning, error, subtle, permission, …).const width = Math.max(10, Math.min(40, …)) in the render hook.isCompact in the render hook (planMeter decides what the meter row keeps, fitGroups what rows 2 and 3 keep).TREND_LEN (shown), TREND_KEEP (stored).Snapshot in types/index.d.ts, fill it in toSnapshot, print it in line2 / line3.hooks/register.tsx 2307 lines1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, SessionUsage, TurnStepInput, TurnUsage } from 'claude-code'
3
4import type { CacheReading, CacheTtl, Effort, Limit, LimitPace, Snapshot } from '../types'
5
6const snap = atom({ plugin: 'context-meter', key: 'snap' } as const, null)
7const effort = atom({ plugin: 'context-meter', key: 'effort' } as const, { isUltra: false } as Effort)
8const isPickerOpen = atom({ plugin: 'context-meter', key: 'isPickerOpen' } as const, false)
9const model = atom({ plugin: 'context-meter', key: 'model' } as const, null as string | null)
10const isModelPickerOpen = atom({ plugin: 'context-meter', key: 'isModelPickerOpen' } as const, false)
11const tweenStep = atom({ plugin: 'context-meter', key: 'tweenStep' } as const, 0)
12const trend = atom({ plugin: 'context-meter', key: 'trend' } as const, [])
13const frame = atom({ plugin: 'context-meter', key: 'frame' } as const, 0)
14const awakeTick = atom({ plugin: 'context-meter', key: 'awakeTick' } as const, 0)
15const showDetails = atom({ plugin: 'context-meter', key: 'showDetails' } as const, false)
16const readError = atom({ plugin: 'context-meter', key: 'readError' } as const, null as string | null)
17const hasMono = atom({ plugin: 'context-meter', key: 'hasMono' } as const, false)
18const pace = atom({ plugin: 'context-meter', key: 'pace' } as const, {} as Record<string, LimitPace>)
19const cache = atom({ plugin: 'context-meter', key: 'cache' } as const, {} as CacheReading)
20const cacheTtl = atom({ plugin: 'context-meter', key: 'cacheTtl' } as const, null as CacheTtl | null)
21const compactStep = atom({ plugin: 'context-meter', key: 'compactStep' } as const, 'none' as 'none' | 'ask' | 'running')
22
23const errorText = (err: unknown) => (err instanceof Error ? err.message : String(err))
24
25/**
26 * Clawd, the Claude Code mascot, as the welcome banner draws him.
27 *
28 * His rows are 9 cells wide. He sits behind an 11-cell keyboard that hides his
29 * legs; his arms are the corner nubs of the body row.
30 */
31const CLAWD = {
32 eyesOpen: ' ▐▛███▜▌ ',
33 /** Shut eyes: the eye cells as a thin dark line on orange, so he still has eyes. */
34 shutEye: '▁',
35 body: '▝▜█████▛▘',
36 /** Typing: left arm down, then right arm down. */
37 typing: ['▗▜█████▛▘', '▝▜█████▛▖'],
38 /** Asleep, away from the keyboard: his four legs, in columns 2, 3, 5 and 6. */
39 legs: ' ▘▘ ▝▝ ',
40 /**
41 * Two rows of keycaps on the case, 11 cells: a key, the spacebar and a key
42 * on top; six keys below. Each cap is the upper half of its cell, so the
43 * case shows between rows and between keys.
44 */
45 keyboard: [' ▀ ▀▀▀▀▀ ▀ ', '▀ ▀ ▀ ▀ ▀ ▀'],
46 /** The keys under each hand, as [row, first cell, end cell]; the spacebar is under both. */
47 keysLeft: [
48 [1, 0, 1],
49 [1, 2, 3],
50 [1, 4, 5],
51 [0, 1, 2],
52 [0, 3, 8],
53 ] as const,
54 keysRight: [
55 [1, 6, 7],
56 [1, 8, 9],
57 [1, 10, 11],
58 [0, 9, 10],
59 [0, 3, 8],
60 ] as const,
61 /** Asleep: a row above his head where "zZzZ" grows out from its top-left. */
62 zzz: [' z ', ' Zz ', ' zZz ', 'ZzZz ', ' '],
63}
64
65/** What Clawd wears for the effort: each level adds to the last, max and ultracode swap it all for a top hat. */
66export type Outfit = 'none' | 'cap' | 'cap-bottles' | 'cap-bottles-glasses' | 'top-hat'
67
68export function outfitFor(e: Effort): Outfit {
69 if (e.isUltra) return 'top-hat'
70 switch (e.level) {
71 case 'medium':
72 return 'cap'
73 case 'high':
