cache-guard

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, ModelForkResult, ModelUsage, Register, Timer, TurnUsage } from 'claude-code'
3
4import type { GuardMode, GuardProfile, GuardStats, GuardTtl, GuardView, Ttl } from '../types'
5import {
6  bandParts,
7  cacheCost,
8  callCost,
9  durationText,
10  INITIAL_VIEW,
11  kTokens,
12  line,
13  NO_STATS,
14  pingLimitText,
15  pingLine,
16  ringSvg,
17  savingsText,
18  statsLine,
19  TTL_MS,
20  ttlFromBill,
21  UNLIMITED_PINGS,
22  usdText,
23} from './view'
24
25const view = atom({ plugin: 'cache-guard', key: 'view' } as const, INITIAL_VIEW)
26
27const SETTINGS_PANE = 'cache-guard-settings'
28
29/** What the settings panel changes; kept in the store over the options' defaults. */
30type Settings = {
31  mode: GuardMode
32  ttlOption: GuardTtl
33  profile: GuardProfile
34  maxPings: number
35  marginMs: number
36  minTokens: number
37  /** Keep the cache warm with pings while a long tool runs in the main loop. */
38  toolPings: boolean
39  /** Raise a system notification shortly before the cache lapses or is compacted. */
40  notify: boolean
41  /** How long before that. */
42  notifyMs: number
43}
44
45/** A pause long enough to tell a 5m cache from a 1h one, waiting for the next turn's usage. */
46type Probe = { context: number }
47
48/** The mod's settings and the idle period it watches. */
49type Guard = Settings & {
50  /** Each profile's text in force: the panel's edit, else the options' text, else the built-in one. */
51  instructions: Record<GuardProfile, string>
52  /** Each profile's text as the options set it, the built-in one where left empty. */
53  optionInstructions: Record<GuardProfile, string>
54  learnedTtl?: Ttl
55  /** How `learnedTtl` was found, for the report and the panel. */
56  ttlSource?: string
57  /** The TTL the last requests' bills showed, and how many in a row showed it. */
58  billTtl?: { ttl: Ttl; count: number }
59  stats: GuardStats
60  isWorking: boolean
61  lastReplyAt?: number
62  /** When the cache was last touched; undefined while nothing warm is guarded. */
63  warmAt?: number
64  context: number
65  pings: number
66  /** The main loop's model, from the last reply's usage. */
67  model?: string
68  /** Off for this session: no countdown, no action, no band. */
69  isOff: boolean
70  hasActed: boolean
71  note: string
72  probe?: Probe
73  tick?: Timer
74  fire?: Timer
75  /** The notification before the cache lapses or is compacted. */
76  notice?: Timer
77  /** Which of the system's own notifiers worked last, where the terminal cannot notify. */
78  notifier?: number
79  /** The desktop app's link back to this session, which a click on the notification opens. */
80  link?: string
81  /** This session's stats; `stats` holds all sessions'. */
82  session: GuardStats
83  likelyTtl?: Ttl
84  /** When the main loop's latest model request started: a cache entry lives from there. */
85  requestAt?: number
86  /** Tool calls the main loop is running now; parallel calls share one wait. */
87  toolsRunning: number
88  toolSince?: number
89  /** When the cache was last touched during the current tool wait. */
90  waitAt?: number
91  waitPings: number
92  /** What the current tool wait's pings cost so far. */
93  waitSpent: number
94  waitFire?: Timer
95  /** Re-caching spared, credited once the next request shows the cache was found, not before. */
96  credit?: { amount: number; isChecked: boolean; before?: number; after?: number }
97}
98
99const MODES: readonly GuardMode[] = ['watch', 'ping', 'compact', 'ping+compact']
100const TTLS: readonly GuardTtl[] = ['auto', '5m', '1h']
101const PROFILES: readonly GuardProfile[] = ['code', 'debug', 'plan']
102
103const MODE_LABELS: Record<GuardMode, string> = {
104  watch: 'Watch',
105  ping: 'Ping',
106  compact: 'Compact',
107  'ping+compact': 'Ping → Compact',
108}
109
110const TTL_LABELS: Record<GuardTtl, string> = { auto: 'Auto', '5m': '5 min', '1h': '1 hour' }
111
112const PROFILE_LABELS: Record<GuardProfile, string> = { code: 'Code', debug: 'Debug', plan: 'Plan' }
113
114const MODE_HINTS: Record<GuardMode, string> = {
115  watch: 'Only count down; never touch the conversation.',
116  ping: 'Keep the cache warm with tiny forked questions, then let it lapse.',
117  compact: 'Compact the conversation just before the cache expires.',
118  'ping+compact': 'Keep the cache warm with pings first, then compact.',
119}
120
121/**
122 * The built-in texts behind the options' defaults: what a compaction is told on top of the engine's own
123 * summary prompt. Short on purpose: every item asked for lengthens the summary the next requests re-send.
124 * CLAUDE.md, the plan, skills and recent files are re-injected after compaction, so they are left out.
125 */
126const INSTRUCTIONS: Record<GuardProfile, string> = {
127  code:
128    "Keep it tight: pointers over content. Preserve: user's corrections/preferences/limits quoted verbatim; decisions + why; " +
129    'approaches ruled out (1 line each); exact paths, symbols, commands, failing test names, error text; ' +
130    'uncommitted/unverified changes; todo state; exact next step. Drop: tool output, code already on disk, resolved debugging detail.',
131  debug:
132    'Debug focus: symptom + exact repro command; current hypothesis and its evidence; hypotheses ruled out + why (1 line each); ' +
133    'exact error text, failing tests, file:line; temporary instrumentation to revert. Drop raw logs and resolved branches.',
134  plan:
135    "Design focus: goal, constraints and user's preferences verbatim; options considered: chosen + why, rejected + why; " +
136    'open questions for the user; agreed plan steps and status. No code snippets or file contents; reference paths only.',
137}
138
139/** A numeric setting the panel steps through. */
140type Stepper = {
141  key: string
142  label: string
143  hint: string
144  min: number
145  max: number
146  step: number
147  get: (v: GuardView) => number
148  set: (n: number) => Partial<Settings>
149  show: (n: number) => string
150}
151
152const STEPPERS: readonly Stepper[] = [
153  {
154    key: 'maxPings',
155    label: 'Pings before compact',
156    hint: 'Keep-alive pings in one pause. Ping → Compact compacts after the last one; Ping just stops. Past 10 is ∞.',
157    min: 0,
158    max: UNLIMITED_PINGS,
159    step: 1,
160    get: (v: GuardView) => v.maxPings,
161    set: (n: number): Partial<Settings> => ({ maxPings: n }),
162    show: pingLimitText,
163  },
164  {
165    key: 'margin',
166    label: 'Act before expiry',
167    hint: 'How long before the cache expires the ping or compact runs.',
168    min: 10_000,
169    max: 180_000,
170    step: 10_000,
171    get: (v: GuardView) => v.marginMs,
172    set: (n: number): Partial<Settings> => ({ marginMs: n }),
173    show: (n: number) => `${n / 1000}s`,
174  },
175  {
176    key: 'minTokens',
177    label: 'Minimum context',
178    hint: 'Below this the mod only watches: compacting a small context saves little.',
179    min: 10_000,
180    max: 500_000,
181    step: 10_000,
182    get: (v: GuardView) => v.minTokens,
183    set: (n: number): Partial<Settings> => ({ minTokens: n }),
184    show: kTokens,
185  },
186]
187
188const NOTIFY_STEPPER: Stepper = {
189  key: 'notifyLead',
190  label: 'Notify how early',
191  hint: 'How long before the cache expires, or before the compaction, the notification comes.',
192  min: 30_000,
193  max: 600_000,
194  step: 30_000,
195  get: v => v.notifyMs,
196  set: n => ({ notifyMs: n }),
197  show: durationText,
198}
199
200const PING_PROMPT = 'Automated cache keep-alive, not a message from the user. Reply with exactly: ok'
201
202/**
203 * A Windows toast from PowerShell's own app id, so nothing has to be installed or registered. With a link, a click
204 * on it opens the link: the desktop app, at this session.
205 */
206const WINDOWS_TOAST =
207  '$m=[Windows.UI.Notifications.ToastNotificationManager,Windows.UI.Notifications,ContentType=WindowsRuntime];' +
208  '$x=$m::GetTemplateContent([Windows.UI.Notifications.ToastTemplateType]::ToastText02);' +
209  "if($env:CACHE_GUARD_LINK){$x.DocumentElement.SetAttribute('activationType','protocol');" +
210  "$x.DocumentElement.SetAttribute('launch',$env:CACHE_GUARD_LINK)};" +
211  "$t=$x.GetElementsByTagName('text');" +
212  '$null=$t.Item(0).AppendChild($x.CreateTextNode($env:CACHE_GUARD_TITLE));' +
213  '$null=$t.Item(1).AppendChild($x.CreateTextNode($env:CACHE_GUARD_BODY));' +
214  "$m::CreateToastNotifier('{1AC14E77-02E7-4E5D-B744-2EB1AE5198B7}\\WindowsPowerShell\\v1.0\\powershell.exe')" +
215  '.Show([Windows.UI.Notifications.ToastNotification]::new($x))'
216
217/**
218 * The system's own notifiers, tried in turn where no terminal can notify (the desktop app): Windows, macOS, Linux.
219 * The text travels in the environment or as plain arguments, never through a shell.
220 */
221const NATIVE_NOTIFIERS: readonly ((title: string, body: string) => string[])[] = [
222  () => ['powershell.exe', '-NoProfile', '-NonInteractive', '-Command', WINDOWS_TOAST],
223  () => [
224    'osascript',
225    '-e',
226    'display notification (system attribute "CACHE_GUARD_BODY") with title (system attribute "CACHE_GUARD_TITLE")',
227  ],
228  (title, body) => ['notify-send', '--app-name=cache-guard', title, body],
229]
230
231const pick = <T extends string>(value: unknown, allowed: readonly T[], fallback: T): T =>
232  allowed.includes(value as T) ? (value as T) : fallback
233
234const num = (value: unknown, fallback: number): number =>
235  typeof value === 'number' && Number.isFinite(value) && value >= 0 ? value : fallback
236
237const clamp = (n: number, min: number, max: number): number => Math.min(max, Math.max(min, n))
238
239const text = (value: unknown, fallback: string): string =>
240  typeof value === 'string' && value.trim() ? value.trim() : fallback
241
242const asTtl = (value: unknown): Ttl | undefined => (value === '5m' || value === '1h' ? value : undefined)
243
244/** An environment flag as Claude Code reads one. */
245const isOn = (value: string | undefined): boolean =>
246  value !== undefined && ['1', 'true', 'yes', 'on'].includes(value.trim().toLowerCase())
247
248/**
249 * The TTL Claude Code's own configuration fixes for the main conversation, checked in the engine's order;
250 * undefined where its automatic choice applies (1 hour on a subscription within its limits, else 5 minutes).
251 */
252async function configuredTtl($: EngineInterface): Promise<{ ttl: Ttl; source: string } | undefined> {
253  if (isOn(await $.env.get('FORCE_PROMPT_CACHING_5M'))) return { ttl: '5m', source: 'set by FORCE_PROMPT_CACHING_5M' }
254  const env = asTtl(await $.env.get('CLAUDE_CODE_PROMPT_CACHE_TTL'))
255  if (env) return { ttl: env, source: 'set by CLAUDE_CODE_PROMPT_CACHE_TTL' }
256  const settings = (await $.settings.read().catch(() => ({}))) as { promptCacheTtl?: unknown }
257  const setting = asTtl(settings.promptCacheTtl)
258  if (setting) return { ttl: setting, source: 'set by the promptCacheTtl setting' }
259  if (isOn(await $.env.get('ENABLE_PROMPT_CACHING_1H'))) return { ttl: '1h', source: 'set by ENABLE_PROMPT_CACHING_1H' }
260  const isBedrock = isOn(await $.env.get('CLAUDE_CODE_USE_BEDROCK'))
261  if (isBedrock && isOn(await $.env.get('ENABLE_PROMPT_CACHING_1H_BEDROCK'))) {
262    return { ttl: '1h', source: 'set by ENABLE_PROMPT_CACHING_1H_BEDROCK' }
263  }
264  if (isBedrock || isOn(await $.env.get('CLAUDE_CODE_USE_VERTEX')) || isOn(await $.env.get('CLAUDE_CODE_USE_FOUNDRY'))) {
265    return { ttl: '5m', source: 'Bedrock, Vertex and Foundry cache for 5 min' }
266  }
267
268  return undefined
269}
270
271const ttlOf = (g: Guard): Ttl | undefined => (g.ttlOption === 'auto' ? g.learnedTtl : g.ttlOption)
272
273const settingsOf = (g: Guard): Settings => ({
274  mode: g.mode,
275  ttlOption: g.ttlOption,
276  profile: g.profile,
277  maxPings: g.maxPings,
278  marginMs: g.marginMs,
279  minTokens: g.minTokens,
280  toolPings: g.toolPings,
281  notify: g.notify,
282  notifyMs: g.notifyMs,
283})
284
285/** Settings read from the options or the store, each checked and falling back to `base`. */
286const settingsFrom = (raw: Partial<Record<keyof Settings, unknown>>, base: Settings): Settings => ({
287  mode: pick(raw.mode, MODES, base.mode),
288  ttlOption: pick(raw.ttlOption, TTLS, base.ttlOption),
289  profile: pick(raw.profile, PROFILES, base.profile),
290  maxPings: Math.floor(clamp(num(raw.maxPings, base.maxPings), 0, UNLIMITED_PINGS)),
291  marginMs: clamp(num(raw.marginMs, base.marginMs), 0, 600_000),
292  minTokens: num(raw.minTokens, base.minTokens),
293  toolPings: typeof raw.toolPings === 'boolean' ? raw.toolPings : base.toolPings,
294  notify: typeof raw.notify === 'boolean' ? raw.notify : base.notify,
295  notifyMs: clamp(num(raw.notifyMs, base.notifyMs), 0, 3_600_000),
296})
297
298const nextAction = (g: Guard): 'ping' | 'compact' | null => {
299  const canPing = (g.mode === 'ping' || g.mode === 'ping+compact') && (g.maxPings >= UNLIMITED_PINGS || g.pings < g.maxPings)
300  if (canPing) return 'ping'
301  if (g.mode === 'compact' || g.mode === 'ping+compact') return 'compact'
302
303  return null
304}
305
306/** Reads what the first turn after a pause paid: a rewrite of the context means the cache had lapsed. */
307const ttlFromProbe = (probe: Probe, usage: ModelUsage): Ttl | undefined => {
308  if (usage.cache_creation_input_tokens >= 0.3 * probe.context) return '5m'
309  const isRead = usage.cache_read_input_tokens >= 0.7 * probe.context
310  if (usage.cache_creation_input_tokens < 0.1 * probe.context && isRead) return '1h'
311
312  return undefined
313}
314
315function stopTick(g: Guard) {
316  g.tick?.cancel()
317  g.tick = undefined
318}
319
320function unschedule(g: Guard) {
321  g.fire?.cancel()
322  g.fire = undefined
323  g.notice?.cancel()
324  g.notice = undefined
325}
326
327async function publish($: EngineInterface, g: Guard) {
328  const now = await $.clock.now()
329  await update($, view, () => ({
330    lastReplyAt: g.lastReplyAt ?? null,
331    warmAt: g.warmAt ?? null,
332    now,
333    isWorking: g.isWorking,
334    context: g.context,
335    ttl: ttlOf(g) ?? null,
336    mode: g.mode,
337    ttlOption: g.ttlOption,
338    profile: g.profile,
339    minTokens: g.minTokens,
340    marginMs: g.marginMs,
341    maxPings: g.maxPings,
342    pings: g.pings,
343    stats: g.stats,
344    session: g.session,
345    toolSince: g.toolSince ?? null,
346    toolPings: g.toolPings,
347    notify: g.notify,
348    notifyMs: g.notifyMs,
349    learnedTtl: g.learnedTtl ?? null,
350    ttlSource: g.ttlSource ?? null,
351    likelyTtl: g.likelyTtl ?? null,
352    model: g.model ?? null,
353    isOff: g.isOff,
354    nextAction: nextAction(g),
355    note: g.note,
356  }))
357}
358
359/** Keeps the band's clock running while the session waits. */
360function startTick($: EngineInterface, g: Guard) {
361  if (!g.tick && !g.isOff) g.tick = $.clock.every(1000, () => void publish($, g))
362}
363
364/** Takes the TTL the latest evidence shows; the session can change it (a subscription past its limits caches for 5 min). */
365async function learn($: EngineInterface, g: Guard, value: Ttl | undefined, source: string) {
366  if (value === undefined || g.learnedTtl === value) return
367  g.learnedTtl = value
368  g.ttlSource = source
369  if (g.ttlOption === 'auto') $.ui.toast(`cache-guard: this session's cache TTL is ${value} (${source})`)
370  await schedule($, g)
371}
372
373/** Learns the TTL once two requests in a row were billed at the same cache-write rate. */
374async function measured($: EngineInterface, g: Guard, ttl: Ttl | null) {
375  if (ttl === null) return
376  g.billTtl = g.billTtl?.ttl === ttl ? { ttl, count: g.billTtl.count + 1 } : { ttl, count: 1 }
377  if (g.billTtl.count >= 2) await learn($, g, ttl, 'measured from the cache-write price')
378}
379
380const added = (s: GuardStats, change: Partial<GuardStats>): GuardStats => {
381  const next: GuardStats = { ...s }
382  for (const key of Object.keys(change) as (keyof GuardStats)[]) next[key] += change[key] ?? 0
383
384  return next
385}
386
387/** Adds to the stats of all sessions, kept in the store, and to this session's. */
388async function count($: EngineInterface, g: Guard, change: Partial<GuardStats>) {
389  g.stats = added(g.stats, change)
390  g.session = added(g.session, change)
391  await $.store.set('stats', g.stats)
392}
393
394const costOf = (g: Guard) => cacheCost(g.model ?? null, g.context, ttlOf(g) ?? null)
395
396/** A ping's price, counted as spent whether or not it pays off. */
397async function pingSpent($: EngineInterface, g: Guard, reply: ModelForkResult) {
398  const spent = 'usage' in reply && reply.usage ? callCost(reply.usage, costOf(g), ttlOf(g) ?? null) : 0
399  await count($, g, { pings: 1, spentUsd: spent })
400
401  return spent
402}
403
404type Ping = { reply: ModelForkResult; at: number; cached: number; isWarm: boolean; spent: number }
405
406/**
407 * Sends one ping and writes what came back to the transcript: the answer, what the API read from the cache
408 * and wrote, the price, and how far the session's cost ledger moved, so a ping can be checked, not taken on trust.
409 */
410async function sendPing($: EngineInterface, g: Guard, label: string): Promise<Ping> {
411  const before = (await $.session.usage()).cost?.usd
412  const at = await $.clock.now()
413  const reply = await $.model.fork({ prompt: PING_PROMPT })
414  const after = (await $.session.usage()).cost?.usd
415  const spent = await pingSpent($, g, reply)
416  const cached = 'usage' in reply ? reply.usage.cache_read_input_tokens : 0
417  const isWarm = reply.isAnswered && cached >= 0.7 * g.context
418  $.ui.log(
419    pingLine({
420      label,
421      isWarm,
422      reason: reply.isAnswered ? undefined : reply.reason,
423      cached,
424      context: g.context,
425      written: 'usage' in reply ? reply.usage.cache_creation_input_tokens : 0,
426      spent,
427      billed: before === undefined || after === undefined ? null : Math.max(0, after - before),
428    }),
429  )
430
431  return { reply, at, cached, isWarm, spent }
432}
433
434/** Credits what the request just made spared, once its usage shows the cache was found. */
435async function settle($: EngineInterface, g: Guard, usage: ModelUsage) {
436  const credit = g.credit
437  g.credit = undefined
438  if (!credit) return
439  const isFound = !credit.isChecked || usage.cache_read_input_tokens >= 0.7 * g.context
440  const spared = `spared ${usdText(credit.amount)} of re-caching`
441  if (isFound && credit.before !== undefined && credit.after !== undefined) {
442    $.ui.log(`✓ Reply wrote ${kTokens(credit.after)} instead of ${kTokens(credit.before)} · ${spared}`)
443  } else if (isFound) {
444    $.ui.log(`✓ Reply read ${kTokens(usage.cache_read_input_tokens)} from the cache the ping kept · ${spared}`)
445  }
446  if (isFound) return count($, g, { avoidedUsd: credit.amount, saves: 1 })
447  // The ping said the cache was warm, yet the request that followed paid to write it again.
448  g.note = `the ping did not keep the cache: the reply re-wrote ${kTokens(usage.cache_creation_input_tokens)}`
449  $.ui.log(
450    `✗ Reply re-wrote ${kTokens(usage.cache_creation_input_tokens)} · the ping did not keep the cache warm ` +
451      `(read ${kTokens(usage.cache_read_input_tokens)})`,
452  )
453  await count($, g, { pingMisses: 1 })
454}
455
456/** Sets the action for the margin before the warm cache lapses, and the notification ahead of it. */
457async function schedule($: EngineInterface, g: Guard) {
458  unschedule(g)
459  const known = ttlOf(g)
460  if (g.isOff || g.warmAt === undefined || g.isWorking || known === undefined) return
461  const left = g.warmAt + TTL_MS[known] - (await $.clock.now())
462  if (left <= 0) return
463  const action = nextAction(g)
464  if (action !== null) g.fire = $.clock.after(Math.max(0, left - g.marginMs), () => void act($, g))
465  // A ping keeps the cache, so only the lapse or the compaction after the last one is worth a notification.
466  if (!g.notify || action === 'ping' || g.context < g.minTokens) return
467  const until = action === 'compact' ? left - g.marginMs : left
468  if (until > 0) g.notice = $.clock.after(Math.max(0, until - g.notifyMs), () => void notify($, g))
469}
470
471/** Tells the person, through their notification channel, that the cache is about to lapse or be compacted. */
472async function notify($: EngineInterface, g: Guard) {
473  g.notice = undefined
474  const known = ttlOf(g)
475  if (g.isOff || g.isWorking || g.warmAt === undefined || known === undefined) return
476  const left = g.warmAt + TTL_MS[known] - (await $.clock.now())
477  const isCompact = nextAction(g) === 'compact'
478  const until = isCompact ? left - g.marginMs : left
479  if (until <= 0) return
480  const cost = costOf(g)
481  const title = isCompact ? `Compacting in ${durationText(until)}` : `Prompt cache expires in ${durationText(until)}`
482  const body = isCompact
483    ? `cache-guard compacts ${kTokens(g.context)} before the cache expires. Reply before then to keep the full context.`
484    : `The next reply then re-writes ${kTokens(g.context)}: ≈ ${usdText(cost.cold)} instead of ${usdText(cost.warm)}.`
485  await raise($, g, title, body)
486}
487
488/** Raises a notification; says whether it went out, or why not. */
489async function raise($: EngineInterface, g: Guard, title: string, body: string): Promise<string | null> {
490  const sent = await $.ui.notify(body, { title }).catch(() => ({ isSent: false as const, reason: 'refused' as const }))
491  if (sent.isSent) return null
492  if (sent.reason === 'disabled') return "notifications are turned off in Claude Code's settings"
493  if (sent.reason === 'refused') return 'a Notification hook refused it'
494  // No terminal to notify through (the desktop app), or none that notifies: the system's own notification
495  // reaches the person in another session or another window too.
496  return (await nativeNotify($, g, title, body)) ? null : 'the system has no notifier cache-guard can run'
497}
498
499/** The Notification section's button: one notification now, to see that it arrives and where a click leads. */
500async function testNotify($: EngineInterface, g: Guard) {
501  const body = g.link ? 'Notifications work. Click this one to come back to the session.' : 'Notifications work.'
502  const failure = await raise($, g, 'cache-guard test', body)
503  $.ui.toast(failure ? `cache-guard: no notification: ${failure}` : 'cache-guard: test notification sent')
504}
505
506/** Raises the notification with the first of the system's notifiers that works, starting with the last one that did. */
507async function nativeNotify($: EngineInterface, g: Guard, title: string, body: string): Promise<boolean> {
508  const env = { CACHE_GUARD_TITLE: title, CACHE_GUARD_BODY: body, CACHE_GUARD_LINK: g.link ?? '' }
509  const order = NATIVE_NOTIFIERS.map((make, i) => ({ make, i }))
510  order.sort((a, b) => Number(b.i === g.notifier) - Number(a.i === g.notifier))
511  for (const { make, i } of order) {
512    const isShown = await $.process
513      .run(make(title, body), { env, timeoutMs: 15_000 })
514      .then(done => done.exitCode === 0)
515      .catch(() => false)
516    if (isShown) {
517      g.notifier = i
518      return true
519    }
520  }
521
522  return false
523}
524
525/** Starts guarding a cache touched at `at`. */
526async function arm($: EngineInterface, g: Guard, at: number) {
527  g.warmAt = at
528  startTick($, g)
529  await schedule($, g)
530  await publish($, g)
531}
532
533async function compact($: EngineInterface, g: Guard) {
534  g.hasActed = true
535  unschedule(g)
536  g.note = `compacting ${kTokens(g.context)}…`
537  await publish($, g)
538  try {
539    const done = await $.session.compact({ instructions: g.instructions[g.profile] })
540    if (done.skip !== undefined) {
541      g.note = `compact skipped: ${done.skip}`
542      $.ui.log(`✗ Compact skipped · ${done.skip}`)
543      return
544    }
545    const before = done.tokensBefore ?? g.context
546    const after = done.tokensAfter ?? 0
547    const spent = done.usage ? callCost(done.usage, costOf(g), ttlOf(g) ?? null) : 0
548    // The cache was about to lapse: the next reply writes the summary instead of the whole context.
549    const rates = costOf(g).rates
550    const write = ttlOf(g) === '1h' ? rates.write1h : rates.write5m
551    g.credit = { amount: ((before - after) * write) / 1e6, isChecked: false, before, after }
552    $.ui.log(`✓ Compacted ${kTokens(before)} → ${kTokens(after)} before the cache expired · ≈ ${usdText(spent)}`)
553    g.warmAt = undefined
554    g.context = after
555    await count($, g, { compactions: 1, tokensBefore: before, tokensAfter: after, spentUsd: spent })
556    g.note = `compacted ${kTokens(before)} → ${kTokens(after)}`
557  } catch {
558    // A turn started meanwhile: its end re-arms the countdown.
559    g.note = 'compact did not start (a turn was running)'
560  } finally {
561    await publish($, g)
562  }
563}
564
565async function ping($: EngineInterface, g: Guard) {
566  g.hasActed = true
567  g.pings += 1
568  const { at, cached, isWarm } = await sendPing($, g, `Ping ${g.pings}/${pingLimitText(g.maxPings)}`)
569  if (isWarm) {
570    g.credit = { amount: costOf(g).lapse, isChecked: true }
571    g.note = `ping ${g.pings}/${pingLimitText(g.maxPings)} kept ${kTokens(cached)} warm`
572    // The entry lives from the ping request's start, not from its end.
573    await arm($, g, at)
574    return
575  }
576  g.credit = undefined
577  await count($, g, { pingMisses: 1 })
578  g.note = `ping missed the cache (${kTokens(cached)} of ${kTokens(g.context)})`
579  $.ui.toast(`cache-guard: ${g.note}`)
580  if (g.mode === 'ping+compact') return compact($, g)
581  await publish($, g)
582}
583
584async function act($: EngineInterface, g: Guard) {
585  const known = ttlOf(g)
586  if (g.isOff || g.isWorking || g.warmAt === undefined || known === undefined) return
587  if ((await $.clock.now()) >= g.warmAt + TTL_MS[known]) return
588  g.context = (await $.session.usage()).context.tokens ?? g.context
589  if (g.context < g.minTokens) {
590    g.note = `${kTokens(g.context)} is below the minimum, no action`
591    await publish($, g)
592    return
593  }
594  const action = nextAction(g)
595  if (action === 'ping') return ping($, g)
596  if (action === 'compact') return compact($, g)
597}
598
599/** Sets the next ping of a tool wait for the margin before the cache it started on lapses. */
600async function scheduleWait($: EngineInterface, g: Guard) {
601  g.waitFire?.cancel()
602  g.waitFire = undefined
603  const known = ttlOf(g)
604  if (g.isOff || g.mode === 'watch' || !g.toolPings || g.toolsRunning === 0 || g.waitAt === undefined || !known) return
605  const left = g.waitAt + TTL_MS[known] - (await $.clock.now())
606  if (left <= 0) return
607  g.waitFire = $.clock.after(Math.max(0, left - g.marginMs), () => void waitPing($, g))
608}
609
610/** Keeps the cache warm while a tool runs, as long as pinging stays cheaper than re-caching. */
611async function waitPing($: EngineInterface, g: Guard) {
612  if (g.toolsRunning === 0 || g.isOff) return
613  const cost = costOf(g)
614  if (g.context < g.minTokens) {
615    g.note = `${kTokens(g.context)} is below the minimum, no ping`
616    return publish($, g)
617  }
618  if (g.waitSpent + cost.warm >= cost.lapse) {
619    g.note = 'long tool: re-caching is now cheaper than more pings'
620    return publish($, g)
621  }
622  const { at, cached, isWarm, spent } = await sendPing($, g, `Ping ${g.waitPings + 1} during a tool`)
623  g.waitSpent += spent
624  if (!isWarm) {
625    await count($, g, { pingMisses: 1 })
626    g.note = `ping missed the cache (${kTokens(cached)} of ${kTokens(g.context)})`
627    g.waitPings = 0
628    return publish($, g)
629  }
630  g.waitPings += 1
631  g.waitAt = at
632  g.note = `ping ${g.waitPings} kept ${kTokens(cached)} warm`
633  await scheduleWait($, g)
634  await publish($, g)
635}
636
637async function toolStarts($: EngineInterface, g: Guard) {
638  g.toolsRunning += 1
639  if (g.toolsRunning > 1) return
640  const now = await $.clock.now()
641  g.toolSince = now
642  g.waitAt = g.requestAt ?? now
643  g.waitPings = 0
644  g.waitSpent = 0
645  await scheduleWait($, g)
646  await publish($, g)
647}
648
649async function toolEnds($: EngineInterface, g: Guard) {
650  g.toolsRunning = Math.max(0, g.toolsRunning - 1)
651  if (g.toolsRunning > 0) return
652  g.waitFire?.cancel()
653  g.waitFire = undefined
654  const now = await $.clock.now()
655  if (g.waitPings > 0) {
656    g.credit = { amount: costOf(g).lapse, isChecked: true }
657  } else if (g.waitAt !== undefined && g.context >= 5000) {
658    // A tool that outlasted 5 minutes unpinged tells the TTL by what the next request pays.
659    const gapMs = now - g.waitAt
660    if (gapMs > TTL_MS['5m'] + 30_000 && gapMs < TTL_MS['1h'] - 30_000) g.probe = { context: g.context }
661  }
662  g.toolSince = undefined
663  g.waitAt = undefined
664  await publish($, g)
665}
666
667/**
668 * A main-loop model request: its usage names the model and the context, its bill the TTL its cache writes had,
669 * and it settles what the mod spared.
670 */
671async function stepped($: EngineInterface, g: Guard, usage: TurnUsage | null, billed: number | null) {
672  if (!usage) return
673  g.model = usage.model
674  if (billed !== null) await measured($, g, ttlFromBill(usage.model, usage, billed))
675  if (g.probe) await learn($, g, ttlFromProbe(g.probe, usage), 'learned from a pause')
676  g.probe = undefined
677  await settle($, g, usage)
678  g.context = usage.input_tokens + usage.cache_read_input_tokens + usage.cache_creation_input_tokens
679}
680
681async function changeSettings($: EngineInterface, g: Guard, change: Partial<Settings>) {
682  Object.assign(g, settingsFrom(change, settingsOf(g)))
683  await $.store.set('settings', settingsOf(g))
684  await schedule($, g)
685  await publish($, g)
686}
687
688async function resetSettings($: EngineInterface, g: Guard, defaults: Settings) {
689  Object.assign(g, defaults)
690  await $.store.delete('settings')
691  await schedule($, g)
692  await publish($, g)
693}
694
695/** Turns the mod off or on for this session alone; the session's state keeps it across reloads. */
696async function setOff($: EngineInterface, g: Guard, isOff: boolean) {
697  g.isOff = isOff
698  if (isOff) {
699    stopTick(g)
700    unschedule(g)
701    $.ui.toast('cache-guard is off for this session; /cache-guard turns it back on')
702  } else {
703    if (g.lastReplyAt !== undefined && !g.isWorking) startTick($, g)
704    await schedule($, g)
705  }
706  await publish($, g)
707}
708
709async function nextProfile($: EngineInterface, g: Guard) {
710  const profile = PROFILES[(PROFILES.indexOf(g.profile) + 1) % PROFILES.length]
711  await changeSettings($, g, { profile })
712}
713
714async function openSettings($: EngineInterface) {
715  await $.ui.open({ id: SETTINGS_PANE, title: 'Cache guard', focus: true, closeOnEscape: true })
716}
717
718/** The view as drawn, over the defaults: one written by an older version lacks the newer fields. */
719async function current($: EngineInterface): Promise<GuardView> {
720  const v = await read($, view)
721
722  return {
723    ...INITIAL_VIEW,
724    ...v,
725    stats: { ...NO_STATS, ...v.stats },
726    session: { ...NO_STATS, ...v.session },
727  }
728}
729
730async function report($: EngineInterface, g: Guard): Promise<string> {
731  const v = await current($)
732  const ttlText =
733    g.ttlOption === 'auto' ? `auto (${g.learnedTtl ? `${g.learnedTtl}, ${g.ttlSource}` : 'not known yet'})` : g.ttlOption
734  const cost = cacheCost(g.model ?? null, g.context, ttlOf(g) ?? null)
735  const lines = [
736    `session: ${g.isOff ? 'off (this session only)' : 'on'}`,
737    `mode: ${MODE_LABELS[g.mode]} · TTL: ${ttlText} · pings before compact: ${pingLimitText(g.maxPings)} · ` +
738      `act ${g.marginMs / 1000}s before expiry · minimum ${kTokens(g.minTokens)}`,
739    `notification: ${g.notify ? `${durationText(g.notifyMs)} before the cache expires or is compacted` : 'off'}`,
740    `now: ${line({ ...v, now: await $.clock.now() })}`,
741    `cost at ${cost.name ?? 'an assumed'} API price: next reply ≈ ${usdText(cost.warm)} while warm, ≈ ${usdText(cost.cold)} after expiry`,
742    `compact profile: ${g.profile} — ${g.instructions[g.profile]}`,
743    `this session: ${statsLine(g.session)}`,
744    `total: ${statsLine(g.stats)}`,
745  ]
746
747  return lines.join('\n')
748}
749
750/** The panel's edits of the profiles' texts, kept in the store over the options'. */
751async function loadInstructions($: EngineInterface, g: Guard) {
752  const edits = ((await $.store.get('instructions')) ?? {}) as Partial<Record<GuardProfile, unknown>>
753  g.instructions = { ...g.optionInstructions }
754  for (const profile of PROFILES) g.instructions[profile] = text(edits[profile], g.optionInstructions[profile])
755}
756
757/** Saves a profile's text from the panel; an empty one, or the options' own, drops the edit. */
758async function setInstruction($: EngineInterface, g: Guard, profile: GuardProfile, value: string) {
759  const edits = { ...(((await $.store.get('instructions')) ?? {}) as Partial<Record<GuardProfile, string>>) }
760  const trimmed = value.trim()
761  if (!trimmed || trimmed === g.optionInstructions[profile]) delete edits[profile]
762  else edits[profile] = trimmed
763  await $.store.set('instructions', edits)
764  await loadInstructions($, g)
765  await publish($, g)
766}
767
768async function restore($: EngineInterface, g: Guard) {
769  // The desktop app names its session; its claude:// link opens the app at it.
770  const host = await $.env.get('CLAUDE_CODE_HOST_SESSION_ID')
771  g.link = host && /^local_[A-Za-z0-9-]{1,64}$/.test(host) ? `claude://code/continue?session=${host}&source=cache-guard` : undefined
772  Object.assign(g, settingsFrom((await $.store.get('settings')) ?? {}, settingsOf(g)))
773  await loadInstructions($, g)
774  g.stats = { ...NO_STATS, ...((await $.store.get('stats')) as Partial<GuardStats> | undefined) }
775
776  // A reload keeps the session's state but not this module's: pick the countdown up where it was.
777  const v = await current($)
778  g.isOff = v.isOff
779  g.model = v.model ?? undefined
780  g.session = { ...NO_STATS, ...v.session }
781  g.likelyTtl = v.likelyTtl ?? undefined
782  // The TTL is the session's own: what this session learned, else what Claude Code's configuration fixes.
783  g.learnedTtl = v.learnedTtl ?? undefined
784  g.ttlSource = v.ttlSource ?? undefined
785  const configured = g.learnedTtl ? undefined : await configuredTtl($)
786  if (configured) {
787    g.learnedTtl = configured.ttl
788    g.ttlSource = configured.source
789  }
790  if (v.lastReplyAt === null) return publish($, g)
791  g.context = v.context
792  g.note = v.note
793  g.pings = v.pings
794  if (v.isWorking) {
795    // The engine reloads a mod as a turn ends, so that turn's reply is the last one.
796    const now = await $.clock.now()
797    g.lastReplyAt = now
798    return arm($, g, now)
799  }
800  g.lastReplyAt = v.lastReplyAt
801  if (v.warmAt !== null) return arm($, g, v.warmAt)
802  startTick($, g)
803  await publish($, g)
804}
805
806async function turnStarts($: EngineInterface, g: Guard) {
807  g.probe = undefined
808  if (g.warmAt !== undefined && !g.hasActed) {
809    const gapMs = (await $.clock.now()) - g.warmAt
810    const isTelling = gapMs > TTL_MS['5m'] + 30_000 && gapMs < TTL_MS['1h'] - 30_000
811    if (isTelling && g.context >= 5000) g.probe = { context: g.context }
812  }
813  stopTick(g)
814  unschedule(g)
815  g.isWorking = true
816  g.warmAt = undefined
817  g.requestAt = undefined
818  g.note = ''
819  await publish($, g)
820}
821
822async function turnEnds($: EngineInterface, g: Guard, usage: TurnUsage | undefined) {
823  if (g.probe && usage) await learn($, g, ttlFromProbe(g.probe, usage), 'learned from a pause')
824  if (usage?.model) g.model = usage.model
825  if (usage) await settle($, g, usage)
826  g.probe = undefined
827  g.isWorking = false
828  g.toolsRunning = 0
829  g.toolSince = undefined
830  const measured = await $.session.usage()
831  g.context = measured.context.tokens ?? 0
832  // Usage limits are reported on a subscription alone, which caches for an hour until it runs past them.
833  const isWithinLimits = measured.rateLimits.length > 0 && measured.rateLimits.every(limit => limit.percentUsed < 100)
834  g.likelyTtl = isWithinLimits ? '1h' : '5m'
835  g.pings = 0
836  g.hasActed = false
837  g.note = ''
838  const now = await $.clock.now()
839  g.lastReplyAt = now
840  await arm($, g, Math.min(now, g.requestAt ?? now))
841}
842
843async function compacted($: EngineInterface, g: Guard) {
844  unschedule(g)
845  g.warmAt = undefined
846  await publish($, g)
847}
848
849export const register: Register = (on, options) => {
850  const defaults = settingsFrom(
851    {
852      mode: options.mode,
853      ttlOption: options.ttl,
854      profile: options.profile,
855      maxPings: options.maxPings,
856      marginMs: num(options.marginSeconds, 30) * 1000,
857      minTokens: options.minTokens,
858      toolPings: options.toolPings,
859      notify: options.notify,
860      notifyMs: num(options.notifySeconds, 60) * 1000,
861    },
862    {
863      mode: 'compact',
864      ttlOption: 'auto',
865      profile: 'code',
866      maxPings: 2,
867      marginMs: 30_000,
868      minTokens: 50_000,
869      toolPings: true,
870      notify: true,
871      notifyMs: 60_000,
872    },
873  )
874  const optionInstructions: Record<GuardProfile, string> = {
875    code: text(options.instructionsCode, INSTRUCTIONS.code),
876    debug: text(options.instructionsDebug, INSTRUCTIONS.debug),
877    plan: text(options.instructionsPlan, INSTRUCTIONS.plan),
878  }
879  const g: Guard = {
880    ...defaults,
881    instructions: { ...optionInstructions },
882    optionInstructions,
883    stats: { ...NO_STATS },
884    isWorking: false,
885    context: 0,
886    pings: 0,
887    isOff: false,
888    hasActed: false,
889    note: '',
890    session: { ...NO_STATS },
891    toolsRunning: 0,
892    waitPings: 0,
893    waitSpent: 0,
894  }
895
896  on('session.start', async ($, e, next) => {
897    // The status line entry of earlier versions, should one still show.
898    $.ui.status(undefined)
899    await restore($, g)
900    await $.command.register({
901      name: 'cache-guard',
902      description: 'Cache guard: open its settings and show the countdown and stats',
903    })
904
905    return next(e)
906  })
907
908  on('command.run', { command: 'cache-guard' }, async $ => {
909    await openSettings($)
910
911    return { text: await report($, g) }
912  })
913
914  on('turn.start', async ($, e, next) => {
915    await turnStarts($, g)
916
917    return next(e)
918  })
919
920  on('turn.complete', async ($, e, next) => {
921    const done = await next(e)
922    if (e.agentId === undefined) await turnEnds($, g, e.usage)
923
924    return done
925  })
926
927  on('turn.step', async function* ($, e, next) {
928    if (e.agentId !== undefined) return yield* next(e)
929    g.requestAt = await $.clock.now()
930    const before = (await $.session.usage()).cost?.usd
931    const response = yield* next(e)
932    const after = (await $.session.usage()).cost?.usd
933    await stepped($, g, response.usage, before === undefined || after === undefined ? null : after - before)
934
935    return response
936  })
937
938  on('tool.call', async ($, e, next) => {
939    if (e.agentId !== undefined) return next(e)
940    await toolStarts($, g)
941    try {
942      return await next(e)
943    } finally {
944      await toolEnds($, g)
945    }
946  }).catch(($, e, next) => next(e))
947
948  on('session.compact', async ($, e, next) => {
949    const done = await next(e)
950    if (e.trigger !== 'precompute' && done.skip === undefined) await compacted($, g)
951
952    return done
953  }).catch(($, e, next) => next(e))
954
955  on('classic.PreCompact', async ($, e, next) => {
956    // Newer engines pass the session's cache TTL here; older ones leave it out.
957    await learn($, g, asTtl((e as { cache_ttl?: unknown }).cache_ttl), 'reported by Claude Code')
958
959    return next(e)
960  }).catch(($, e, next) => next(e))
961
962  on('classic.PreModelSwitch', async ($, e, next) => {
963    await learn($, g, e.cache_ttl, 'reported by Claude Code')
964
965    return next(e)
966  }).catch(($, e, next) => next(e))
967

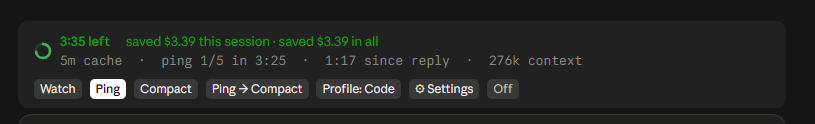

968  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
969    const v = await current($)
970    if (e.props.hasSurvey || v.isOff) return next(e)
971    const p = bandParts(v)
972    const elements = $.ui.resolve(e)
973    const { Box, Button, Text } = elements
974    // The terminal's table answers `Svg` with an empty stand-in, so ask the surface rather than the table.
975    const Svg = e.surface !== 'terminal' && 'Svg' in elements ? elements.Svg : undefined
976    const session = savingsText(v.session)
977    const total = savingsText(v.stats)
978    const saved = total ? `${session ?? 'saved $0'} this session · ${total} in all` : null
979
980    return (
981      <Box flexDirection="row" flexWrap="wrap" alignItems="center" columnGap={2} rowGap={1} paddingX={1}>
982        <Box flexDirection="row" alignItems="center" columnGap={1} flexGrow={1} flexShrink={1}>
983          {Svg ? (
984            <Svg source={ringSvg(p)} alt={p.title} width={18} height={18} isInteractive={p.isSpinning ? true : undefined} />
985          ) : (
986            <Text color={p.tone}>{p.isSpinning ? '◌' : '●'}</Text>
987          )}
988          <Box flexDirection="column" flexShrink={1}>
989            <Box flexDirection="row" columnGap={2}>
990              <Text bold color={p.tone}>
991                {p.title}
992              </Text>
993              {saved ? <Text color={saved.startsWith('net') ? 'warning' : 'success'}>{saved}</Text> : null}
994            </Box>
995            <Text dimColor wrap="truncate-end">
996              {p.details.join('  ·  ')}
997            </Text>
998          </Box>
999        </Box>
1000        <Box flexDirection="row" flexWrap="wrap" alignItems="center" columnGap={1} rowGap={1}>
1001          {v.ttl === null
1002            ? (['5m', '1h'] as const).map(ttlOption => (
1003                <Button
1004                  key={`ttl-${ttlOption}`}
1005                  label={`TTL ${TTL_LABELS[ttlOption]}`}
1006                  variant={ttlOption === (v.likelyTtl ?? '5m') ? 'primary' : 'secondary'}
1007                  onPress={() => changeSettings($, g, { ttlOption })}
1008                />
1009              ))
1010            : null}
1011          {MODES.map(mode => (
1012            <Button
1013              key={`mode-${mode}`}
1014              label={MODE_LABELS[mode]}
1015              variant={mode === v.mode ? 'primary' : 'secondary'}
1016              onPress={() => changeSettings($, g, { mode })}
1017            />
1018          ))}
1019          <Button key="profile" label={`Profile: ${PROFILE_LABELS[v.profile]}`} onPress={() => nextProfile($, g)} />
1020          <Button key="settings" label="⚙ Settings" onPress={() => openSettings($)} />
1021          <Button key="off" label="Off" dimColor onPress={() => setOff($, g, true)} />
1022        </Box>
1023      </Box>
1024    )
1025  })
1026
1027  on('ui.render', { component: 'Pane', requestId: SETTINGS_PANE }, async ($, e) => {
1028    const v = await current($)
1029    const elements = $.ui.resolve(e)
1030    const { Box, Button, Text } = elements
1031    // Every surface but mobile draws a field.
1032    const Input = 'Input' in elements ? elements.Input : undefined
1033    const isEdited = g.instructions[v.profile] !== g.optionInstructions[v.profile]
1034    const learned = v.ttlOption === 'auto' ? (v.ttl ? `${v.ttl}, ${v.ttlSource ?? 'learned'}` : 'not learned yet') : undefined
1035    const cost = cacheCost(v.model, v.context, v.ttl)
1036    const rates = cost.rates
1037    // Unlimited pings keep an idle session warm for good: say what an hour of that costs against one re-cache.
1038    const pingsPerHour = 3_600_000 / Math.max(60_000, TTL_MS[v.ttl ?? '5m'] - v.marginMs)
1039    const perHour = pingsPerHour * cost.warm
1040    const unlimitedHint =
1041      v.context > 0
1042        ? `∞ while idle: ≈ ${usdText(perHour)} an hour at ${kTokens(v.context)}; past ` +
1043          `${(cost.lapse / perHour).toFixed(1)} h that is more than one re-cache (${usdText(cost.cold)}). ` +
1044          'Ping → Compact never compacts.'
1045        : '∞ while idle: the hourly cost shows after the first reply. Ping → Compact never compacts.'
1046    // Each row wraps its controls under its label when the panel is narrow.
1047    const row = { flexDirection: 'row', flexWrap: 'wrap', justifyContent: 'space-between', alignItems: 'center', columnGap: 2, rowGap: 1 } as const
1048    const stepRow = (s: Stepper) => (
1049      <Box {...row}>
1050        <Box flexDirection="column" flexShrink={1}>
1051          <Text>{s.label}</Text>
1052          <Text dimColor>{s.hint}</Text>
1053          {s.key === 'maxPings' && v.maxPings >= UNLIMITED_PINGS ? <Text color="warning">{unlimitedHint}</Text> : null}
1054        </Box>
1055        <Box flexDirection="row" alignItems="center" columnGap={1}>
1056          <Button
1057            key={`dec-${s.key}`}
1058            label="−"
1059            onPress={() => changeSettings($, g, s.set(Math.max(s.min, s.get(v) - s.step)))}
1060          />
1061          <Text bold>{s.show(s.get(v))}</Text>
1062          <Button
1063            key={`inc-${s.key}`}
1064            label="+"
1065            onPress={() => changeSettings($, g, s.set(Math.min(s.max, s.get(v) + s.step)))}
1066          />
1067        </Box>
1068      </Box>
1069    )
1070
1071    return (
1072      <Box flexDirection="column" paddingX={1} rowGap={1}>
1073        <Text bold>Session</Text>
1074        <Box {...row}>
1075          <Box flexDirection="column" flexShrink={1}>
1076            <Text>{v.isOff ? 'Off in this session' : 'On in this session'}</Text>
1077            <Text dimColor>Turning it off hides the band and stops every ping and compact until this session ends.</Text>
1078          </Box>
1079          <Button
1080            key="toggle-off"
1081            label={v.isOff ? 'Turn on' : 'Turn off for this session'}
1082            variant={v.isOff ? 'primary' : 'secondary'}
1083            onPress={() => setOff($, g, !v.isOff)}
1084          />
1085        </Box>
1086
1087        <Text bold>Behaviour</Text>
1088        <Box {...row}>
1089          <Box flexDirection="column" flexShrink={1}>
1090            <Text>Mode</Text>
1091            <Text dimColor>{MODE_HINTS[v.mode]}</Text>
1092          </Box>
1093          <Box flexDirection="row" flexWrap="wrap" columnGap={1}>
1094            {MODES.map(mode => (
1095              <Button
1096                key={`set-mode-${mode}`}
1097                label={MODE_LABELS[mode]}
1098                variant={mode === v.mode ? 'primary' : 'secondary'}
1099                onPress={() => changeSettings($, g, { mode })}
1100              />
1101            ))}
1102          </Box>
1103        </Box>
1104
1105        <Box {...row}>
1106          <Box flexDirection="column" flexShrink={1}>
1107            <Text>Cache TTL</Text>
1108            <Text dimColor>
1109              {learned ? `Auto: ${learned}. The mod acts only once the TTL is known.` : 'Set by hand.'}
1110            </Text>
1111          </Box>
1112          <Box flexDirection="row" columnGap={1}>
1113            {TTLS.map(ttlOption => (
1114              <Button
1115                key={`set-ttl-${ttlOption}`}
1116                label={TTL_LABELS[ttlOption]}
1117                variant={ttlOption === v.ttlOption ? 'primary' : 'secondary'}
1118                onPress={() => changeSettings($, g, { ttlOption })}
1119              />
1120            ))}
1121          </Box>
1122        </Box>
1123
1124        <Box {...row}>
1125          <Box flexDirection="column" flexShrink={1}>
1126            <Text>Keep warm during long tools</Text>
1127            <Text dimColor>
1128              Pings while a tool (tests, a build) outlasts the cache, as long as that stays cheaper than re-caching. Off in Watch.
1129            </Text>
1130          </Box>
1131          <Box flexDirection="row" columnGap={1}>
1132            <Button
1133              key="set-toolPings-on"
1134              label="On"
1135              variant={v.toolPings ? 'primary' : 'secondary'}
1136              onPress={() => changeSettings($, g, { toolPings: true })}
1137            />
1138            <Button
1139              key="set-toolPings-off"
1140              label="Off"
1141              variant={v.toolPings ? 'secondary' : 'primary'}
1142              onPress={() => changeSettings($, g, { toolPings: false })}
1143            />
1144          </Box>
1145        </Box>
1146
1147        {STEPPERS.map(stepRow)}
1148
1149        <Text bold>Notification</Text>
1150        <Box {...row}>
1151          <Box flexDirection="column" flexShrink={1}>
1152            <Text>Notify before expiry</Text>
1153            <Text dimColor>
1154              A system notification before the cache lapses, or before the compaction, so you can reply in time. None while
1155              pings keep the cache warm. Without a terminal that notifies (the desktop app) it is the system's own notification.
1156            </Text>
1157          </Box>
1158          <Box flexDirection="row" columnGap={1}>
1159            <Button
1160              key="set-notify-on"
1161              label="On"
1162              variant={v.notify ? 'primary' : 'secondary'}
1163              onPress={() => changeSettings($, g, { notify: true })}
1164            />
1165            <Button
1166              key="set-notify-off"
1167              label="Off"
1168              variant={v.notify ? 'secondary' : 'primary'}
1169              onPress={() => changeSettings($, g, { notify: false })}
1170            />
1171          </Box>
1172        </Box>
1173        {v.notify ? stepRow(NOTIFY_STEPPER) : null}
1174        <Box {...row}>
1175          <Text dimColor>
1176            {g.link
1177              ? 'On Windows a click on the notification brings you back to this session.'
1178              : 'Check that notifications reach you.'}
1179          </Text>
1180          <Button key="notify-test" label="Send a test" onPress={() => testNotify($, g)} />
1181        </Box>
1182
1183        <Text bold>Compaction</Text>
1184        <Box {...row}>
1185          <Box flexDirection="column" flexShrink={1}>
1186            <Text>Instruction profile</Text>
1187            <Text dimColor>What a compaction is told to keep. The band's Profile button switches it too.</Text>
1188          </Box>
1189          <Box flexDirection="row" columnGap={1}>
1190            {PROFILES.map(profile => (
1191              <Button
1192                key={`set-profile-${profile}`}
1193                label={PROFILE_LABELS[profile]}
1194                variant={profile === v.profile ? 'primary' : 'secondary'}
1195                onPress={() => changeSettings($, g, { profile })}
1196              />
1197            ))}
1198          </Box>
1199        </Box>
1200        <Box flexDirection="column" rowGap={1}>

1import type { GuardStats, GuardView, Ttl } from '../types'
2
3export const TTL_MS: Record<Ttl, number> = { '5m': 5 * 60_000, '1h': 60 * 60_000 }
4
5export const NO_STATS: GuardStats = {
6  compactions: 0,
7  tokensBefore: 0,
8  tokensAfter: 0,
9  pings: 0,
10  pingMisses: 0,
11  avoidedUsd: 0,
12  spentUsd: 0,
13  saves: 0,
14}
15
16/** Where the band starts before the session's first refresh. */
17export const INITIAL_VIEW: GuardView = {
18  lastReplyAt: null,
19  warmAt: null,
20  now: 0,
21  isWorking: false,
22  context: 0,
23  ttl: null,
24  mode: 'compact',
25  ttlOption: 'auto',
26  profile: 'code',
27  minTokens: 50_000,
28  marginMs: 30_000,
29  maxPings: 2,
30  pings: 0,
31  stats: NO_STATS,
32  session: NO_STATS,
33  toolSince: null,
34  toolPings: true,
35  notify: true,
36  notifyMs: 60_000,
37  learnedTtl: null,
38  ttlSource: null,
39  likelyTtl: null,
40  model: null,
41  isOff: false,
42  nextAction: null,
43  note: '',
44}
45
46const MINUTE = 60_000
47
48/** A ping limit at or past this pings without end; the store and the options keep it as a plain number. */
49export const UNLIMITED_PINGS = 11
50
51export const pingLimitText = (n: number): string => (n >= UNLIMITED_PINGS ? '∞' : String(n))
52
53export const kTokens = (n: number): string => `${Math.round(n / 1000)}k`
54
55/** A countdown: minutes while far, m:ss in the last ten minutes. */
56export const clockText = (ms: number): string => {
57  if (ms > 10 * MINUTE) return `${Math.ceil(ms / MINUTE)} min`
58  const s = Math.max(0, Math.ceil(ms / 1000))
59  return `${Math.floor(s / 60)}:${String(s % 60).padStart(2, '0')}`
60}
61
62/** A span in words: `45 s`, `1 min`, `2 min 30 s`. */
63export const durationText = (ms: number): string => {
64  const s = Math.max(0, Math.round(ms / 1000))
65  const m = Math.floor(s / 60)
66  if (m === 0) return `${s} s`
67  return s % 60 === 0 ? `${m} min` : `${m} min ${s % 60} s`
68}
69
70/** Time gone by: m:ss under an hour, then hours and minutes. */
71export const elapsedText = (ms: number): string => {
72  const s = Math.max(0, Math.floor(ms / 1000))
73  if (s < 3600) return `${Math.floor(s / 60)}:${String(s % 60).padStart(2, '0')}`
74  return `${Math.floor(s / 3600)}h ${String(Math.floor((s % 3600) / 60)).padStart(2, '0')}m`
75}
76
77/** Rates in US dollars per million tokens. */
78export type Rates = { input: number; output: number; write5m: number; write1h: number; read: number }
79
80type Tier = Rates & { long?: Rates & { above: number } }
81
82/** The engine's baked-in model catalog's list prices (Claude Code 2.1.295), per pricing tier. */
83const TIERS = {
84  t2: { input: 2, output: 10, write5m: 2.5, write1h: 4, read: 0.2 },
85  t3: { input: 3, output: 15, write5m: 3.75, write1h: 6, read: 0.3 },
86  t4: { input: 4, output: 20, write5m: 5, write1h: 8, read: 0.2 },
87  t5: { input: 5, output: 25, write5m: 6.25, write1h: 10, read: 0.5 },
88  t10: { input: 10, output: 50, write5m: 12.5, write1h: 20, read: 1 },
89  t10r: { input: 10, output: 50, write5m: 12.5, write1h: 20, read: 0.25 },
90  t15: { input: 15, output: 75, write5m: 18.75, write1h: 30, read: 1.5 },
91  haiku35: { input: 0.8, output: 4, write5m: 1, write1h: 1.6, read: 0.08 },
92  haiku45: { input: 1, output: 5, write5m: 1.25, write1h: 2, read: 0.1 },
93  haiku55: {
94    input: 0.1,
95    output: 0.5,
96    write5m: 0.125,
97    write1h: 0.2,
98    read: 0.01,
99    long: { above: 100_000, input: 0.5, output: 2.5, write5m: 0.625, write1h: 1, read: 0.05 },
100  },
101} satisfies Record<string, Tier>
102
103/** Model ids, matched as the longest one the model's id contains, with their name and tier. */
104const MODELS: [string, string, keyof typeof TIERS][] = [
105  ['claude-3-5-haiku', 'Haiku 3.5', 'haiku35'],
106  ['claude-haiku-4-5', 'Haiku 4.5', 'haiku45'],
107  ['claude-haiku-5-5', 'Haiku 5.5', 'haiku55'],
108  ['claude-3-5-sonnet', 'Sonnet 3.5', 't3'],
109  ['claude-3-7-sonnet', 'Sonnet 3.7', 't3'],
110  ['claude-sonnet-4', 'Sonnet 4', 't3'],
111  ['claude-sonnet-4-5', 'Sonnet 4.5', 't3'],
112  ['claude-sonnet-4-6', 'Sonnet 4.6', 't3'],
113  ['claude-sonnet-5', 'Sonnet 5', 't2'],
114  ['claude-sonnet-5-5', 'Sonnet 5.5', 't2'],
115  ['claude-opus-4', 'Opus 4', 't15'],
116  ['claude-opus-4-1', 'Opus 4.1', 't15'],
117  ['claude-opus-4-5', 'Opus 4.5', 't5'],
118  ['claude-opus-4-6', 'Opus 4.6', 't5'],
119  ['claude-opus-4-7', 'Opus 4.7', 't5'],
120  ['claude-opus-4-8', 'Opus 4.8', 't5'],
121  ['claude-opus-5', 'Opus 5', 't5'],
122  ['claude-opus-5-5', 'Opus 5.5', 't4'],
123  ['claude-fable-5', 'Fable 5', 't10'],
124  ['claude-fable-5-1', 'Fable 5.1', 't10r'],
125  ['claude-mythos-5', 'Mythos 5', 't10'],
126  ['claude-mythos-5-1', 'Mythos 5.1', 't10r'],
127]
128
129/** What re-caching or reading the context costs, at the model's list price. */
130export type CacheCost = {
131  /** The model's name, or null when the price is the default tier's guess. */
132  name: string | null
133  rates: Rates
134  /** The next reply on a warm cache: the context read. */
135  warm: number
136  /** The next reply after expiry: the context written again at the TTL's rate. */
137  cold: number
138  /** What a reply on a warm cache saves over one after expiry. */
139  lapse: number
140}
141
142export const cacheCost = (model: string | null, context: number, ttl: Ttl | null): CacheCost => {
143  const id = (model ?? '').toLowerCase()
144  const found = MODELS.filter(([key]) => id.includes(key)).sort((a, b) => b[0].length - a[0].length)[0]
145  const tier: Tier = found ? TIERS[found[2]] : TIERS.t5
146  const rates: Rates = tier.long && context > tier.long.above ? tier.long : tier
147  const write = ttl === '1h' ? rates.write1h : rates.write5m
148
149  const warm = (context * rates.read) / 1e6
150  const cold = (context * write) / 1e6
151
152  return { name: found?.[1] ?? null, rates, warm, cold, lapse: cold - warm }
153}
154
155/** What one model call cost, from its usage, at the rates `cacheCost` found. */
156export const callCost = (
157  usage: { input_tokens: number; output_tokens: number; cache_read_input_tokens: number; cache_creation_input_tokens: number },
158  cost: CacheCost,
159  ttl: Ttl | null,
160): number => {
161  const r = cost.rates
162  const write = ttl === '1h' ? r.write1h : r.write5m
163
164  return (
165    (usage.input_tokens * r.input +
166      usage.output_tokens * r.output +
167      usage.cache_read_input_tokens * r.read +
168      usage.cache_creation_input_tokens * write) /
169    1e6
170  )
171}
172
173/**
174 * The TTL a request's cache writes were billed at, read from how far it moved the session's cost: a 1-hour write
175 * costs 1.6× a 5-minute one. Null when the request wrote too little to tell, the model's price is not known, or
176 * the amount fits neither (a fast-mode surcharge, another request billed meanwhile). A 10% regional surcharge fits.
177 */
178export const ttlFromBill = (
179  model: string | null,
180  usage: { input_tokens: number; output_tokens: number; cache_read_input_tokens: number; cache_creation_input_tokens: number },
181  billed: number,
182): Ttl | null => {
183  if (usage.cache_creation_input_tokens < 500 || billed <= 0) return null
184  const prompt = usage.input_tokens + usage.cache_read_input_tokens + usage.cache_creation_input_tokens
185  const cost = cacheCost(model, prompt, null)
186  if (cost.name === null) return null
187  const short = callCost(usage, cost, '5m')
188  const long = callCost(usage, cost, '1h')
189  for (const surcharge of [1, 1.1]) {
190    const slack = 0.25 * surcharge * (long - short)
191    if (Math.abs(billed - surcharge * short) < slack) return '5m'
192    if (Math.abs(billed - surcharge * long) < slack) return '1h'
193  }
194
195  return null
196}
197
198/** What a ping's transcript line reports. */
199export type PingReport = {
200  label: string
201  isWarm: boolean
202  /** Why no reply came, when none did. */
203  reason?: string
204  cached: number
205  context: number
206  written: number
207  /** The price the usage comes to at list rates. */
208  spent: number
209  /** How far the session's cost ledger moved; null where the host keeps none. */
210  billed: number | null
211}
212
213/** The cost part of a line: what the ledger billed, else the estimate, flagged when the ledger did not move. */
214const priceText = (spent: number, billed: number | null): string => {
215  if (billed === null) return `≈ ${usdText(spent)}`
216  if (billed > 0) return `${usdText(billed)} billed`
217
218  return `≈ ${usdText(spent)}, not in the session cost`
219}
220
221/** A ping's line in the transcript: ✓ or ✗, what it read and wrote, and what it cost. */
222export const pingLine = (p: PingReport): string => {
223  const price = priceText(p.spent, p.billed)
224  if (p.reason !== undefined) {
225    return `✗ ${p.label} · no reply (${p.reason})` + (p.spent > 0 || (p.billed ?? 0) > 0 ? ` · ${price}` : '')
226  }
227  if (p.isWarm) return `✓ ${p.label} · cache kept warm · read ${kTokens(p.cached)} of ${kTokens(p.context)} · ${price}`
228
229  return `✗ ${p.label} · missed the cache · read ${kTokens(p.cached)} of ${kTokens(p.context)}, wrote ${kTokens(p.written)} · ${price}`
230}
231
232/** The mod's net effect: what it spared minus what it spent; null while it has done nothing. */
233export const savingsText = (s: GuardStats): string | null => {
234  if (s.avoidedUsd === 0 && s.spentUsd === 0) return null
235  const net = s.avoidedUsd - s.spentUsd
236
237  return net >= 0 ? `saved ${usdText(net)}` : `net −${usdText(-net)}`
238}
239
240export const usdText = (n: number): string => (n === 0 ? '$0' : n < 0.01 ? '<$0.01' : `$${n.toFixed(n < 10 ? 2 : 1)}`)
241
242/** A theme color the band paints its state in. */
243export type Tone = 'success' | 'warning' | 'error' | 'subtle' | 'claude'
244
245/** What the band shows: a ring, a title in the state's color, and a quiet line of details. */
246export type BandParts = {
247  tone: Tone
248  title: string
249  details: string[]
250  /** How much of the TTL is left, 0 to 1; null draws an empty ring. */
251  share: number | null
252  isSpinning: boolean
253}
254
255const present = (...parts: (string | undefined)[]): string[] => parts.filter((part): part is string => Boolean(part))
256
257export const bandParts = (v: GuardView): BandParts => {
258  const context = v.context > 0 ? `${kTokens(v.context)} context` : undefined
259  const note = v.note || undefined
260
261  if (v.isOff) {
262    return { tone: 'subtle', title: 'Cache guard off', details: ['this session only'], share: null, isSpinning: false }
263  }
264  if (v.isWorking) {
265    const tool = v.toolSince !== null ? `tool running ${elapsedText(v.now - v.toolSince)}` : undefined
266    return {
267      tone: 'claude',
268      title: 'Claude is working',
269      details: present(context, tool, note ?? 'timer resumes after the reply'),
270      share: null,
271      isSpinning: true,
272    }
273  }
274  if (v.lastReplyAt === null) {
275    return { tone: 'subtle', title: 'Cache guard', details: ['starts after the next reply'], share: null, isSpinning: false }
276  }
277
278  const since = `${elapsedText(v.now - v.lastReplyAt)} since reply`
279  const resume = v.context > 0 ? `resume ≈ ${usdText(cacheCost(v.model, v.context, v.ttl).cold)} at API price` : undefined
280  if (v.warmAt === null) {
281    return { tone: 'subtle', title: 'Cache cold', details: present(note, resume, since, context), share: null, isSpinning: false }
282  }
283
284  if (v.ttl === null) {
285    const hint = v.likelyTtl === '1h' ? 'a subscription usually has 1 hour' : v.likelyTtl === '5m' ? 'an API key or a subscription past its limits has 5 min' : undefined
286    return {
287      tone: 'warning',
288      title: 'Pick the cache TTL',
289      details: present("cache-guard can't time anything until it knows", hint, since, context),
290      share: null,
291      isSpinning: false,
292    }
293  }
294
295  const ttlMs = TTL_MS[v.ttl]
296  const left = v.warmAt + ttlMs - v.now
297  if (left <= 0) {
298    return { tone: 'error', title: 'Cache expired', details: present(resume, note, since, context), share: 0, isSpinning: false }
299  }
300
301  const isBelow = v.mode !== 'watch' && v.context < v.minTokens
302  let plan: string | undefined
303  if (isBelow) plan = `below ${kTokens(v.minTokens)}, no action`
304  else if (v.nextAction === 'ping') plan = `ping ${v.pings + 1}/${pingLimitText(v.maxPings)} in ${clockText(left - v.marginMs)}`
305  else if (v.nextAction === 'compact') plan = `compact in ${clockText(left - v.marginMs)}`
306  const details = present(`${v.ttl} cache`, plan, note, since, context)
307
308  if (v.nextAction === 'ping' && !isBelow) {
309    if (v.maxPings >= UNLIMITED_PINGS) {
310      return { tone: 'success', title: 'Kept warm', details, share: left / ttlMs, isSpinning: false }
311    }
312    // The pings still to come each renew the cache: it lapses a TTL after the last one, sent a margin early.
313    const pingsLeft = v.maxPings - v.pings
314    const untilLast = left - v.marginMs + (pingsLeft - 1) * (ttlMs - v.marginMs)
315    const total = untilLast + ttlMs
316    const share = total / (total + v.now - v.lastReplyAt)
317    const tone: Tone = share < 0.25 ? 'warning' : 'success'
318
319    return { tone, title: `${clockText(total)} left`, details, share, isSpinning: false }
320  }
321
322  const share = left / ttlMs
323  const tone: Tone = left < MINUTE ? 'error' : share < 0.25 ? 'warning' : 'success'
324
325  return { tone, title: `${clockText(left)} left`, details, share, isSpinning: false }
326}
327
328/** The band as one line of text, for `/cache-guard` and a reader without color. */
329export const line = (v: GuardView): string => {
330  const p = bandParts(v)
331  return [p.title, ...p.details].join(' · ')
332}
333
334/** The stats as one line. */
335export const statsLine = (s: GuardStats): string =>
336  `${s.compactions} compactions (−${kTokens(s.tokensBefore - s.tokensAfter)} context) · ` +
337  `${s.pings} pings (${s.pingMisses} missed the cache) · ${s.saves} lapses avoided · ` +
338  `${usdText(s.avoidedUsd)} spared − ${usdText(s.spentUsd)} spent = ${savingsText(s) ?? 'nothing yet'}`
339
340const TONE_HEX: Record<Tone, string> = {
341  success: '#3fb950',
342  warning: '#d29922',
343  error: '#f85149',
344  subtle: '#8b949e',
345  claude: '#d97757',
346}
347
348const RING_STEPS = 40
349
350/** A small progress ring: the share of the TTL left, or a spinner while Claude works. */
351export const ringSvg = (p: BandParts): string => {
352  const color = TONE_HEX[p.tone]
353  const length = 2 * Math.PI * 7
354  const track = `<circle cx="9" cy="9" r="7" fill="none" stroke="${color}" stroke-opacity="0.22" stroke-width="2.5"/>`
355  let arc = ''
356  if (p.isSpinning) {
357    arc =
358      `<circle cx="9" cy="9" r="7" fill="none" stroke="${color}" stroke-width="2.5" stroke-linecap="round" ` +
359      `stroke-dasharray="${(length * 0.28).toFixed(2)} ${length.toFixed(2)}">` +
360      '<animateTransform attributeName="transform" type="rotate" from="0 9 9" to="360 9 9" dur="0.9s" repeatCount="indefinite"/>' +
361      '</circle>'
362  } else if (p.share !== null && p.share > 0) {
363    // Stepped, so the image changes now and then rather than every second.
364    const shown = Math.max(1, Math.round(p.share * RING_STEPS)) / RING_STEPS
365    arc =
366      `<circle cx="9" cy="9" r="7" fill="none" stroke="${color}" stroke-width="2.5" stroke-linecap="round" ` +
367      `stroke-dasharray="${(length * shown).toFixed(2)} ${length.toFixed(2)}" transform="rotate(-90 9 9)"/>`
368  }
369
370  return `<svg xmlns="http://www.w3.org/2000/svg" width="18" height="18" viewBox="0 0 18 18">${track}${arc}</svg>`
371}
372

1export type GuardMode = 'watch' | 'ping' | 'compact' | 'ping+compact'
2export type GuardTtl = 'auto' | '5m' | '1h'
3export type Ttl = '5m' | '1h'
4export type GuardProfile = 'code' | 'debug' | 'plan'
5
6/** What the mod has done, kept across sessions. */
7export type GuardStats = {
8  compactions: number
9  tokensBefore: number
10  tokensAfter: number
11  pings: number
12  pingMisses: number
13  /** Re-caching the mod spared, in US dollars at list price: credited only once a reply found the cache it kept. */
14  avoidedUsd: number
15  /** What the mod's own pings and compactions cost, in US dollars at list price. */
16  spentUsd: number
17  /** Replies that found a cache the mod kept warm or made small. */
18  saves: number
19}
20
21/** What the band above the prompt draws, refreshed every second while the session waits. */
22export type GuardView = {
23  /** Clock time the last answer ended; null before the first one. */
24  lastReplyAt: number | null
25  /** Clock time the cache was last touched; null while nothing warm is guarded. */
26  warmAt: number | null
27  /** Clock time of the last refresh. */
28  now: number
29  isWorking: boolean
30  context: number
31  /** The TTL in force: the option, or the learned one under `auto`; null while unknown. */
32  ttl: Ttl | null
33  mode: GuardMode
34  ttlOption: GuardTtl
35  /** Which instructions a compaction is given. */
36  profile: GuardProfile
37  minTokens: number
38  marginMs: number
39  /** Pings allowed in one pause before `ping+compact` compacts (`ping` stops there). */
40  maxPings: number
41  /** Pings made in this pause. */
42  pings: number
43  stats: GuardStats
44  /** The same stats for this session alone. */
45  session: GuardStats
46  /** Clock time the main loop's running tool started; null while none runs. */
47  toolSince: number | null
48  /** Whether the cache is kept warm while a long tool runs. */
49  toolPings: boolean
50  /** Whether a system notification comes shortly before the cache lapses or is compacted. */
51  notify: boolean
52  /** How long before that the notification comes. */
53  notifyMs: number
54  /** The TTL learned for this session under `auto`, and how: measured, configured, reported or from a pause. */
55  learnedTtl: Ttl | null
56  ttlSource: string | null
57  /** The TTL this session most likely has, as a hint while it is unknown. */
58  likelyTtl: Ttl | null
59  /** The main loop's model as the last reply named it; prices the cache. */
60  model: string | null
61  /** Turned off for this session from the band or the settings panel. */
62  isOff: boolean
63  /** What the mod does when the countdown reaches the margin. */
64  nextAction: 'ping' | 'compact' | null
65  note: string
66}
67
68declare module 'claude-code' {
69  interface PluginState {
70    'cache-guard': { view: GuardView }
71  }
72}
73
