Rest in PID

1import { atom, read, update } from 'claude-code'
2import type { Elements, Register, RenderElement, RenderSurface } from 'claude-code'
3
4import type { Proc, SessionGroup, Snapshot, Zombie } from '../types'
5import { count, killOrder, laidToRest, memory, stillSame, zombieTotal } from './model'
6import { clip, header, icons, NIGHT, note, notice, pill, screen, strip, table as processTable } from './panels'
7import type { Drawing, Line } from './panels'
8import { contextOf, readPs, scan } from './scan'
9import type { Context, Envs, Io, Readings } from './scan'
10import { raster, title } from './sprites'
11import type { Sprite } from './sprites'
12
13const PANE = 'rest-in-pid'
14const TICK_MS = 5_000
15/** While the pane is closed only every SLOW_TICKS-th tick scans: enough to keep the status line honest. */
16const SLOW_TICKS = 6
17const ARMED_MS = 4_000
18/** How long SIGTERM gets before SIGKILL follows. */
19const GRACE_MS = 2_000
20const ROWS_SHOWN = 8
21/** A card's right-hand column, for its button or badge: one width, so every card's text lines up. */
22const ACTION_CELLS = 12
23/** Card border and padding, in cells. */
24const CARD_CHROME = 4
25/** Roughly how many CSS pixels a desktop draws per cell; only sizes drawings, which shrink to fit. */
26const CELL_PX = 8
27const TERMINAL_SEGMENTS = 16
28
29const snapshot = atom({ plugin: 'rest-in-pid', key: 'snapshot' } as const, null)
30const isArmed = atom({ plugin: 'rest-in-pid', key: 'isArmed' } as const, false)
31const killing = atom({ plugin: 'rest-in-pid', key: 'killing' } as const, [])
32/** False once the surface would not seat the pane: the command's own row then draws the board. */
33const isPlaced = atom({ plugin: 'rest-in-pid', key: 'isPlaced' } as const, true)
34/** Which sections are open. Both start closed; a press on a section's heading opens it. */
35const zombiesOpen = atom({ plugin: 'rest-in-pid', key: 'zombiesOpen' } as const, false)

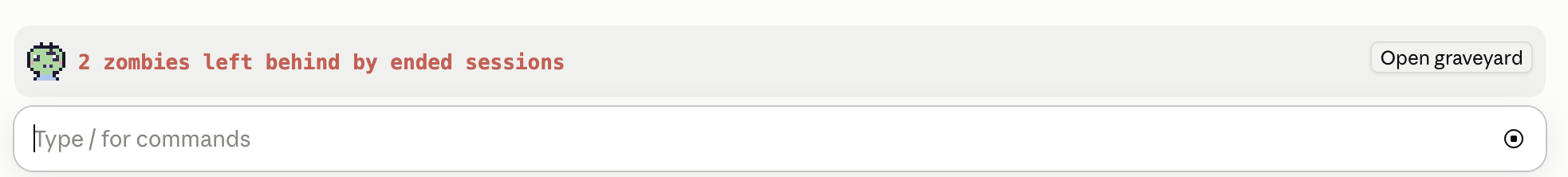

36const sessionsOpen = atom({ plugin: 'rest-in-pid', key: 'sessionsOpen' } as const, false)
37/** The zombie count alone, for the band: it redraws when the count moves, not on every scan. */
38const zombieCount = atom({ plugin: 'rest-in-pid', key: 'zombieCount' } as const, 0)
39
40/** Pastel windows: a rose one for each zombie, a lavender one for each session. */
41const CARD = {
42  zombie: { borderColor: '#f2a7bf', backgroundColor: '#fff3f6' },
43  session: { borderColor: '#cdc0f2', backgroundColor: '#f8f5ff' },
44}
45
46type Common = Pick<Elements['desktop'], 'Box' | 'Text' | 'Button'>
47type Table = Elements[keyof Elements]
48/** How a surface draws the board's parts: drawings where it has Svg, padded text where it is a terminal. */
49type Kit = {
50  screen: (snap: Snapshot) => RenderElement
51  /** A section's heading, which opens and closes it. */
52  toggle: (section: Section, label: string, isOpen: boolean) => RenderElement
53  /** The heading that stands in for the zombies when there are none: nothing to open. */
54  quiet: (label: string) => RenderElement
55  note: (message: string, tone: 'soft' | 'alarm') => RenderElement
56  header: (icon: Sprite, title: string, subtitle: string) => RenderElement
57  table: (lines: readonly Line[], more: number) => RenderElement
58  pill: (status: string) => RenderElement
59}
60type Section = 'zombies' | 'sessions'
61type View = {
62  snap: Snapshot | null
63  isArmed: boolean
64  killing: readonly number[]
65  open: Readonly<Record<Section, boolean>>
66}
67type Actions = {
68  refresh: () => Promise<void>
69  kill: (roots: number[]) => Promise<void>
70  killAll: () => Promise<void>
71  toggle: (section: Section) => Promise<void>
72}
73
74const idle = async () => {}
75const IDLE: Actions = { refresh: idle, kill: idle, killAll: idle, toggle: idle }
76
77const isRecord = (value: unknown): value is Record<string, unknown> => typeof value === 'object' && value !== null
78/** Which section a press region asked to toggle, if the message is one of theirs. */
79const sectionOf = (data: unknown): Section | null =>
80  isRecord(data) && (data.toggle === 'zombies' || data.toggle === 'sessions') ? data.toggle : null
81
82const plural = (n: number, one: string, many: string): string => `${n} ${n === 1 ? one : many}`
83const keyOf = (zombie: Zombie): string => `${zombie.root.pid}:${zombie.root.started}`
84const share = (part: number, whole: number): number => (whole > 0 ? part / whole : 0)
85/** Whether a scan found nothing new: writing an equal snapshot would only redraw the board for nothing. */
86const isSameScan = (a: Snapshot, b: Snapshot): boolean =>
87  JSON.stringify({ ...a, scannedAt: 0 }) === JSON.stringify({ ...b, scannedAt: 0 })
88const empty = (scannedAt: number): Snapshot => ({
89  scannedAt,
90  groups: [],
91  zombies: [],
92  totals: { procs: 0, cpu: 0, rssKb: 0, tokensIn: 0, tokensOut: 0 },
93  machine: { cores: 0, memoryKb: 0 },
94  error: null,
95})
96
97function origin(zombie: Zombie): string {
98  switch (zombie.reason) {
99    case 'session-ended':
100      return 'Session ended'
101    case 'no-live-session':
102      return 'No session left'
103    case 'worktree-deleted':
104      return 'Worktree deleted'
105  }
106}
107
108const lineOf = (proc: Proc, depth: number): Line => ({
109  pid: proc.pid,
110  cpu: proc.isDefunct ? '-' : `${proc.cpu.toFixed(1)}%`,
111  mem: proc.isDefunct ? '-' : memory(proc.rssKb),
112  command: `${'  '.repeat(Math.max(0, depth - 1))}${depth > 0 ? '└ ' : ''}${proc.label}${proc.isDefunct ? ' (defunct)' : ''}`,
113  isFaint: proc.isDefunct,
114})
115
116function zombieCard(els: Common, kit: Kit, zombie: Zombie, view: View, act: Actions): RenderElement {
117  const { Box, Button } = els
118  const { root, children } = zombie
119  const procs = [root, ...children]
120  const shown = procs.slice(0, ROWS_SHOWN)
121  return (
122    <Box key={`zombie-${root.pid}`} flexDirection="column" borderStyle="round" {...CARD.zombie} paddingX={1}>
123      <Box flexDirection="row" justifyContent="space-between" alignItems="center">
124        {kit.header(icons.zombie, zombie.session?.name ?? 'Unknown session', `${origin(zombie)} · ${zombie.place}`)}
125        <Box width={ACTION_CELLS} justifyContent="flex-end">
126          {view.killing.includes(root.pid) ? (
127            kit.pill('killing')
128          ) : (
129            <Button key={`kill-${root.pid}`} label="🪦 Kill" onPress={() => void act.kill([root.pid])} />
130          )}
131        </Box>
132      </Box>
133      {kit.table(shown.map(proc => lineOf(proc, proc.depth)), procs.length - shown.length)}
134    </Box>
135  )
136}
137
138function sessionCard(els: Common, kit: Kit, group: SessionGroup): RenderElement {
139  const { Box } = els
140  const { session, procs } = group
141  const shown = procs.slice(0, ROWS_SHOWN)
142  const subtitle = `${session.place} · ${count(session.tokensIn)} / ${count(session.tokensOut)} tokens`
143  return (
144    <Box key={`session-${session.pid}`} flexDirection="column" borderStyle="round" {...CARD.session} paddingX={1}>
145      <Box flexDirection="row" justifyContent="space-between" alignItems="center">
146        {kit.header(icons.terminal, session.name, subtitle)}
147        <Box width={ACTION_CELLS} justifyContent="flex-end">
148          {kit.pill(session.status)}
149        </Box>
150      </Box>
151      {procs.length > 0 &&
152        kit.table(shown.map(proc => lineOf(proc, proc.depth)), procs.length - shown.length)}
153    </Box>
154  )
155}
156
157function board(els: Common, kit: Kit, view: View, act: Actions): RenderElement {
158  const { Box, Button } = els
159  const { snap, open } = view
160  if (snap === null) return kit.note('Digging up processes…', 'soft')
161  const n = zombieTotal(snap.zombies)
162  return (
163    <Box flexDirection="column" gap={1}>
164      {kit.screen(snap)}
165      {snap.error !== null && kit.note(snap.error, 'alarm')}
166      <Box flexDirection="row" justifyContent="space-between" alignItems="center">
167        {n > 0 ? kit.toggle('zombies', `ZOMBIES · ${n}`, open.zombies) : kit.quiet('ALL QUIET · NO ZOMBIES')}
168        {n > 0 && (
169          <Button
170            key="kill-all"
171            label={view.isArmed ? `🪦 Really kill all ${n}?` : '🪦 Kill all'}
172            onPress={() => void act.killAll()}
173          />
174        )}
175      </Box>
176      {open.zombies && snap.zombies.map(zombie => zombieCard(els, kit, zombie, view, act))}
177      <Box flexDirection="row">
178        {kit.toggle('sessions', `SESSIONS · ${snap.groups.length}`, open.sessions)}
179      </Box>
180      {open.sessions && snap.groups.map(group => sessionCard(els, kit, group))}
181    </Box>
182  )
183}
184
185/**
186 * The kit for the surface drawing. Decided by `surface`, never by probing the
187 * element table: a table answers `in` for elements its surface cannot draw.
188 */
189function kitOf(surface: RenderSurface, table: Table, columns: number, act: Actions): Kit {
190  const cardPx = Math.max(160, (columns - CARD_CHROME) * CELL_PX)
191  if (surface !== 'terminal' && 'Svg' in table) {
192    const { Svg } = table
193    // At its own size: an Svg given none stretches to its slot, text and all.
194    const fixed = (drawing: Drawing) => (
195      <Svg source={drawing.source} width={drawing.width} height={drawing.height} alt={drawing.alt} />
196    )
197    return {

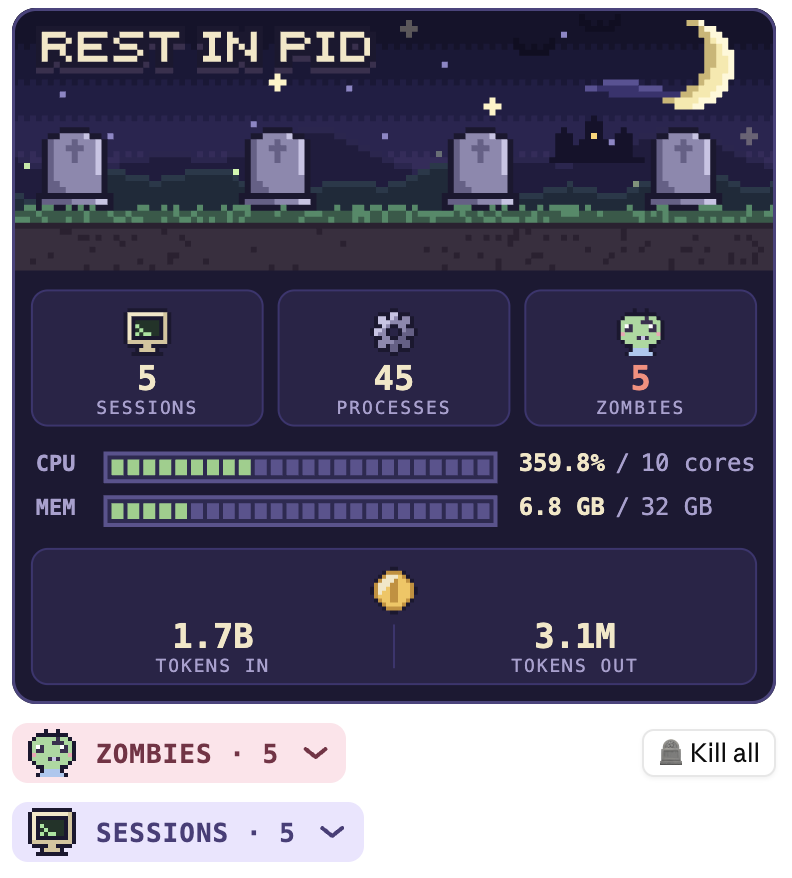

198      // The screen alone fills the pane's width, scaling as one picture.
199      screen: snap => {
200        const picture = screen(snap)
201        return <Svg source={picture.source} alt={picture.alt} />
202      },
203      toggle: (section, label, isOpen) => {
204        const heading = fixed(strip(section, label, isOpen ? 'open' : 'closed'))
205        if (surface !== 'desktop' || !('Client' in table)) {
206          const { Button } = table
207          return <Button key={`toggle-${section}`} label={`${isOpen ? '⌃' : '⌄'}  ${label}`} onPress={() => void act.toggle(section)} />
208        }
209        // The drawn strip with a see-through region over it that takes the press (./press.tsx).
210        const { Box, Client } = table
211        return (
212          <Box key={`toggle-${section}`} position="relative">
213            {heading}
214            <Box position="absolute" top={0} left={0} right={0} bottom={0}>
215              <Client key={`press-${section}`} module="./press.tsx" props={{ section }} width="100%" height="100%" />
216            </Box>
217          </Box>
218        )
219      },
220      quiet: label => fixed(strip('quiet', label, null)),
221      note: (message, tone) => fixed(note(message, tone)),
222      header: (icon, title, subtitle) => fixed(header(icon, title, subtitle, cardPx - ACTION_CELLS * CELL_PX)),
223      table: (lines, more) => fixed(processTable(lines, more, cardPx)),
224      pill: status => fixed(pill(status)),
225    }
226  }
227  const { Box, Text, Button } = table
228  const width = Math.max(20, columns - CARD_CHROME)
229  const bar = (fraction: number) => {
230    const lit =
231      fraction <= 0 ? 0 : Math.max(1, Math.min(TERMINAL_SEGMENTS, Math.round(fraction * TERMINAL_SEGMENTS)))
232    return '▰'.repeat(lit) + '▱'.repeat(TERMINAL_SEGMENTS - lit)
233  }
234  return {
235    screen: snap => {
236      const { totals, machine } = snap
237      const cells = raster(title())
238      return (
239        <Box flexDirection="column">
240          {'Raster' in table && columns >= cells.columns ? (
241            <table.Raster key="title" {...cells} />
242          ) : (
243            <Text bold color={NIGHT.value}>
244              REST IN PID
245            </Text>
246          )}
247          <Text>{`SESSIONS ${snap.groups.length}  PROCESSES ${totals.procs}  ZOMBIES ${zombieTotal(snap.zombies)}`}</Text>
248          <Text>{`CPU ${bar(share(totals.cpu, machine.cores * 100))} ${totals.cpu.toFixed(1)}%`}</Text>
249          <Text>{`MEM ${bar(share(totals.rssKb, machine.memoryKb))} ${memory(totals.rssKb)}`}</Text>
250          <Text dimColor>{`TOKENS ${count(totals.tokensIn)} / ${count(totals.tokensOut)}`}</Text>
251        </Box>
252      )
253    },
254    toggle: (section, label, isOpen) => (
255      <Button key={`toggle-${section}`} label={`${isOpen ? '⌃' : '⌄'}  ${label}`} onPress={() => void act.toggle(section)} />
256    ),
257    quiet: label => <Text bold>{label}</Text>,
258    note: (message, tone) => (tone === 'alarm' ? <Text color="error">{message}</Text> : <Text dimColor>{message}</Text>),
259    header: (_icon, title, subtitle) => (
260      <Box flexDirection="column">
261        <Text bold>{clip(title, width - ACTION_CELLS)}</Text>
262        <Text dimColor>{clip(subtitle, width - ACTION_CELLS)}</Text>
263      </Box>
264    ),
265    table: (lines, more) => (
266      <Box flexDirection="column">
267        <Text dimColor>{`${'PID'.padStart(6)}  ${'CPU'.padStart(6)}  ${'MEM'.padStart(8)}  COMMAND`}</Text>
268        {lines.map(line => (
269          <Text dimColor={line.isFaint}>
270            {clip(`${String(line.pid).padStart(6)}  ${line.cpu.padStart(6)}  ${line.mem.padStart(8)}  ${line.command}`, width)}
271          </Text>
272        ))}
273        {more > 0 && <Text dimColor>{`${' '.repeat(28)}+ ${more} more`}</Text>}
274      </Box>
275    ),
276    pill: status => <Text bold>{status}</Text>,
277  }
278}
279
280export const register: Register = on => {
281  // Built by session.start around its `$`: the engine takes `$` only spelled out at a call site.
282  let actions: Actions | undefined
283
284  on('session.start', async ($, e, next) => {
285    await $.command.register({
286      name: 'rest-in-pid',
287      description: 'Show the processes your Claude Code sessions spawned, and lay their zombies to rest',
288    })
289    const io: Io = {
290      run: (argv, init) => $.process.run(argv, init),
291      exists: path => $.fs.exists(path),
292      list: path => $.fs.list(path),
293      read: path => $.fs.read(path),
294      stat: path => $.fs.stat(path),
295      home: () => $.env.get('HOME'),
296      configDir: () => $.env.get('CLAUDE_CONFIG_DIR'),
297      settings: () => $.settings.read(),
298      now: () => $.clock.now(),
299    }
300    const readings: Readings = new Map()
301    const envs: Envs = new Map()
302    // Earlier versions pinned a status line; the band above the prompt says it now.
303    $.ui.status(undefined)
304    let context: Context | undefined
305    let scanning: Promise<Snapshot> | undefined
306    let ticks = 0
307    let known: ReadonlySet<string> | undefined
308
309    const announce = (snap: Snapshot) => {
310      const before = known
311      known = new Set(snap.zombies.map(keyOf))
312      const risen = before === undefined ? [] : snap.zombies.filter(zombie => !before.has(keyOf(zombie)))
313      const first = risen[0]
314      if (first === undefined) return
315      const total = zombieTotal(risen)
316      $.ui.toast(
317        total === 1
318          ? `A zombie rose in ${first.place}: ${first.root.label}. /rest-in-pid`
319          : `${total} zombies rose. /rest-in-pid`,
320      )
321    }
322
323    /** One scan at a time: a caller arriving mid-scan shares it, so two never read a transcript at once. */
324    const scanNow = (self: Context): Promise<Snapshot> =>
325      (scanning ??= scan(io, self, readings, envs).finally(() => {
326        scanning = undefined
327      }))
328
329    const refresh = async () => {
330      if (context === undefined) return
331      try {
332        const found = await scanNow(context)
333        const previous = await read($, snapshot)
334        if (previous === null || !isSameScan(previous, found)) await update($, snapshot, () => found)
335        const total = zombieTotal(found.zombies)
336        if ((await read($, zombieCount)) !== total) {
337          await update($, zombieCount, () => total)
338        }
339        announce(found)
340      } catch (error) {
341        const message = `Scan failed: ${error instanceof Error ? error.message : String(error)}`
342        const at = await $.clock.now()
343        await update($, snapshot, previous => ({ ...(previous ?? empty(at)), error: message }))
344      }
345    }
346
347    /** Signals what still runs of these zombies' trees, each pid checked against `ps` once more right before. */
348    const signal = async (self: Context, found: Snapshot, zombies: readonly Zombie[], kind: '-TERM' | '-KILL') => {
349      const hostPids = found.groups.flatMap(group => (group.session.pid === null ? [] : [group.session.pid]))
350      const guard = { selfUid: self.selfUid, protectedPids: new Set([self.selfHostPid, ...hostPids]) }
351      const targets = stillSame(killOrder(zombies), await readPs(io, self.os), guard)
352      if (targets.length > 0) await $.process.run(['/bin/kill', kind, ...targets.map(String)])
353      return targets
354    }
355
356    const kill = async (roots: number[]) => {
357      const self = context
358      const board = await read($, snapshot)
359      if (self === undefined || board === null) return
360      // The board can be seconds old: judge again, so each tree is taken as it runs now, with the
361      // children it spawned since and without what has come to life since.
362      const chosen = new Set(board.zombies.filter(zombie => roots.includes(zombie.root.pid)).map(keyOf))
363      const found = await scanNow(self)
364      const doomed = found.zombies.filter(zombie => chosen.has(keyOf(zombie)))
365      const termed = await signal(self, found, doomed, '-TERM')
366      if (termed.length === 0) {
367        $.ui.toast('Those zombies were already gone.')
368        await refresh()
369        return
370      }
371      await update($, killing, list => [...new Set([...list, ...roots])])
372      $.clock.after(GRACE_MS, () => {
373        void (async () => {
374          try {
375            // What outlived SIGTERM, and what a dying process spawned: it rose since, in a group just signalled.
376            const signalled = doomed
377              .flatMap(zombie => [zombie.root, ...zombie.children])
378              .filter(proc => termed.includes(proc.pid))
379            const outlived = new Set(signalled.map(proc => `${proc.pid}:${proc.started}`))
380            const groups = new Set(signalled.map(proc => proc.pgid))
381            const before = new Set(found.zombies.map(keyOf))
382            const later = await scanNow(self)
383            const stubborn = later.zombies.filter(
384              zombie => outlived.has(keyOf(zombie)) || (!before.has(keyOf(zombie)) && groups.has(zombie.root.pgid)),
385            )
386            const killed = await signal(self, later, stubborn, '-KILL')
387            const cleared = laidToRest([...doomed, ...stubborn], new Set([...termed, ...killed]))
388            $.ui.toast(`Killed ${plural(cleared, 'zombie', 'zombies')}`)
389          } finally {
390            await update($, killing, list => list.filter(pid => !roots.includes(pid)))
391            await refresh()
392          }
393        })()
394      })
395    }
396
397    const killAll = async () => {
398      if (!(await read($, isArmed))) {
399        await update($, isArmed, () => true)
400        $.clock.after(ARMED_MS, () => void update($, isArmed, () => false))
401        return
402      }
403      await update($, isArmed, () => false)
404      const snap = await read($, snapshot)
405      await kill(snap?.zombies.map(zombie => zombie.root.pid) ?? [])
406    }
407
408    // One write per atom: the engine lists the state a module writes from its source, so each is named outright.
409    const toggle = async (section: Section) => {
410      if (section === 'zombies') await update($, zombiesOpen, isOpen => !isOpen)
411      else await update($, sessionsOpen, isOpen => !isOpen)
412    }
413
414    actions = { refresh, kill, killAll, toggle }
415    try {
416      context = await contextOf(io)
417    } catch (error) {
418      const message = `Could not start: ${error instanceof Error ? error.message : String(error)}`
419      const at = await $.clock.now()
420      await update($, snapshot, () => ({ ...empty(at), error: message }))
421    }
422    $.clock.every(TICK_MS, () => {
423      ticks += 1
424      void (async () => {
425        const isOpen = (await $.ui.panes()).some(pane => pane.id === PANE)
426        if (isOpen || ticks % SLOW_TICKS === 0) await refresh()
427      })()
428    })
429    $.clock.after(1_000, () => void refresh())
430    return next(e)
431  })
432
433  on('command.run', { command: 'rest-in-pid' }, async $ => {
434    const opened = await $.ui.open({ id: PANE, title: 'Rest in PID' })
435    await update($, isPlaced, () => opened.isPlaced)
436    await actions?.refresh()
437    const snap = await read($, snapshot)
438    const found =
439      snap === null
440        ? 'Still digging.'
441        : `${plural(zombieTotal(snap.zombies), 'zombie', 'zombies')}, ${plural(snap.totals.procs, 'process', 'processes')} across ${plural(snap.groups.length, 'session', 'sessions')}.`
442    return {
443      text: opened.isPlaced
444        ? `Rest in PID is open. ${found}`
445        : `Rest in PID could not place its pane (${opened.reason}). ${found}`,
446    }
447  })
448
449  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
450    const view: View = {
451      snap: await read($, snapshot),
452      isArmed: await read($, isArmed),
453      killing: await read($, killing),
454      open: { zombies: await read($, zombiesOpen), sessions: await read($, sessionsOpen) },
455    }
456    const table = $.ui.resolve(e)
457    return board(table, kitOf(e.surface, table, e.props.bodyColumns, actions ?? IDLE), view, actions ?? IDLE)
458  })
459
460  on('ui.render', { component: 'CommandOutput', props: { command: 'rest-in-pid' } }, async ($, e, next) => {
461    if (await read($, isPlaced)) return next(e)
462    const view: View = {
463      snap: await read($, snapshot),
464      isArmed: await read($, isArmed),
465      killing: await read($, killing),
466      open: { zombies: await read($, zombiesOpen), sessions: await read($, sessionsOpen) },
467    }
468    const table = $.ui.resolve(e)
469    return board(table, kitOf(e.surface, table, e.viewport?.columns ?? 80, actions ?? IDLE), view, actions ?? IDLE)
470  })
471
472  // A press on a section's drawn heading arrives from its see-through region (./press.tsx).
473  on('ui.message', async (_, e, next) => {
474    const section = sectionOf(e.data)
475    if (!e.element.startsWith('press-') || section === null) return next(e)
476    await actions?.toggle(section)
477    return {}
478  })
479
480  // The way in once something rises: the status line is text alone, this band draws the zombie.
481  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
482    const zombies = await read($, zombieCount)
483    if (zombies === 0 || e.props.hasSurvey) return next(e)
484    const surface = $.ui.resolve(e)
485    const { Box, Text, Button } = surface
486    const message = `${plural(zombies, 'zombie', 'zombies')} left behind by ended sessions`
487    const line = notice(message)
488    return (
489      <Box flexDirection="row" justifyContent="space-between" alignItems="center">
490        {e.surface !== 'terminal' && 'Svg' in surface ? (
491          <surface.Svg source={line.source} width={line.width} height={line.height} alt={line.alt} />
492        ) : (
493          <Text color="error">{message}</Text>
494        )}
495        <Button
496          key="open-graveyard"
497          label="Open graveyard"
498          onPress={() =>
499            void (async () => {
500              const opened = await $.ui.open({ id: PANE, title: 'Rest in PID', focus: true })
501              await update($, isPlaced, () => opened.isPlaced)
502              if (!opened.isPlaced) $.ui.toast(`The pane cannot open here (${opened.reason}). Run /rest-in-pid instead.`)
503            })()
504          }
505        />
506      </Box>
507    )
508  })
509}
510

1import type { Proc, Session, SessionGroup, Totals, Zombie, ZombieReason } from '../types'
2
3export type PsRow = {
4  pid: number
5  ppid: number
6  /** Process group: each Bash tool command's shell leads one, and its children stay in it. */
7  pgid: number
8  uid: number
9  stat: string
10  cpu: number
11  rssKb: number
12  /** lstart with its whitespace squashed; UTC when `ps` ran with TZ=UTC. */
13  started: string
14  command: string
15}
16
17/** A `~/.claude/sessions/<pid>.json` entry. The file can outlive a crashed session. */
18export type HostEntry = {
19  pid: number
20  sessionId: string
21  cwd: string
22  name: string
23  status: string
24  procStart: string
25}
26
27/**
28 * What a process inherited from the Claude Code session that spawned it: a Bash tool's
29 * child gets the host's pid, an MCP server the session id alone.
30 */
31export type ProcEnv = { claudePid: number; sessionId: string | null } | { claudePid: null; sessionId: string }
32
33export type Scan = {
34  rows: PsRow[]
35  entries: HostEntry[]
36  env: Map<number, ProcEnv>
37  cwd: Map<number, string>
38  missingWorktrees: Set<string>
39  missingSnapshots: Set<string>
40  selfUid: number
41  os: Os
42}
43
44export type Tally = { seen: Set<string>; tokensIn: number; tokensOut: number }
45
46type Guard = { selfUid: number; protectedPids: ReadonlySet<number> }
47
48type Host = { pid: number; cwd: string; session: Session }
49type Item = { row: PsRow; depth: number }
50type Claim =
51  | { kind: 'live'; hostPid: number }
52  | { kind: 'zombie'; reason: ZombieReason; sessionId: string | null; dir: string }
53
54/** The systems the mod reads. Windows has no ps, process groups or /proc. */
55export type Os = 'darwin' | 'linux'
56
57/**
58 * What differs between the systems: which binaries are the OS's or an app's
59 * (never a session's child, never ours to signal), the toolchains among them
60 * that sessions do run, whose environment the OS hides, and who adopts an orphan.
61 */
62type Rules = { system: RegExp; toolchain: RegExp; hiddenEnv: RegExp | null; isReaper: (row: PsRow) => boolean }
63/** The user's systemd, wherever it is installed: NixOS keeps it in the store. */
64const SYSTEMD_USER = /^\S*\/systemd --user\b/
65const RULES: Record<Os, Rules> = {
66  darwin: {
67    system: /^\/(System|Applications|Library|usr\/libexec|usr\/sbin|sbin)\//,
68    toolchain:
69      /^\/(Library\/Java|Library\/Developer\/CommandLineTools|Library\/Frameworks\/Python\.framework|Applications\/Xcode[^/]*\.app\/Contents\/Developer)\//,
70    // `ps eww` cannot read the environment of macOS's own binaries.
71    hiddenEnv: /^\/(bin|usr\/bin)\//,
72    // macOS has no subreapers: launchd adopts every orphan.
73    isReaper: row => row.pid === 1,
74  },
75  linux: {
76    system: /^\/(usr\/lib|usr\/libexec|usr\/share|usr\/sbin|sbin|lib|opt|snap)\//,
77    toolchain: /^\/(usr\/lib\/jvm|usr\/lib\/dotnet|usr\/share\/dotnet)\//,
78    // /proc/<pid>/environ is readable for every process of the same user.
79    hiddenEnv: null,
80    // An orphan goes to its nearest living subreaper, such as the user's systemd, or to init.
81    isReaper: row => row.pid === 1 || SYSTEMD_USER.test(row.command),
82  },
83}
84
85const PS_LINE =
86  /^\s*(\d+)\s+(\d+)\s+(\d+)\s+(\d+)\s+(\S+)\s+([\d.]+)\s+(\d+)\s+(\w{3} \w{3}\s+\d+ [\d:]{8} \d{4})\s+(.*)$/
87/** This mod's own probes, which run as children of the session hosting it. */
88const PROBE =
89  /^(ps -axww |ps axww |ps eww |lsof -b -w -a -d cwd |find \S+\/projects -maxdepth 2 -name |\/bin\/kill |\/bin\/sh -c echo |\/bin\/sh -c getconf |\/bin\/sh -c for p; do |tr \\0\\n |readlink \/proc\/\d+\/cwd$|id -u|uname -s|sysctl -n |\/bin\/sh -c \{ dd bs=1 skip=|dd bs=1 skip=\d+ count=0$|head -c 4194304$)/
90const WORKTREE = /^(.*?\/\.claude\/worktrees\/[^/]+)(?:\/|$)/
91/**
92 * A Bash tool shell, or a subshell it forked (which keeps its command line), sourcing its
93 * session's shell snapshot. Claude Code deletes the snapshot when the session exits.
94 */
95const SNAPSHOT =
96  /^\/\S*\/(?:zsh|bash|sh) -c source (\/\S+\/shell-snapshots\/snapshot-(?:zsh|bash|sh)-\d+-[a-z0-9]+(?:-[\w-]+)?\.sh) /
97const COMMAND_MAX = 400
98const MONTHS = ['Jan', 'Feb', 'Mar', 'Apr', 'May', 'Jun', 'Jul', 'Aug', 'Sep', 'Oct', 'Nov', 'Dec']
99
100const squash = (text: string): string => text.trim().replace(/\s+/g, ' ')
101const basename = (path: string): string => path.slice(path.lastIndexOf('/') + 1)
102const isRecord = (value: unknown): value is Record<string, unknown> =>
103  typeof value === 'object' && value !== null
104const textOf = (value: unknown): string => (typeof value === 'string' ? value : '')
105const numberOf = (value: unknown): number => (typeof value === 'number' ? value : 0)
106const sum = <T>(list: readonly T[], of: (item: T) => number): number =>
107  list.reduce((total, item) => total + of(item), 0)
108const isWithin = (path: string, dir: string): boolean => path === dir || path.startsWith(`${dir}/`)
109
110/** A squashed lstart ("Tue Oct 6 14:13:53 2026") as milliseconds, to order two starts; NaN when it does not read. */
111function timeOf(started: string): number {
112  const [, month = '', day, clock = '', year] = started.split(' ')
113  const [hours, minutes, seconds] = clock.split(':').map(Number)
114  const index = MONTHS.indexOf(month)
115  return index < 0 ? Number.NaN : Date.UTC(Number(year), index, Number(day), hours, minutes, seconds)
116}
117
118/** A Claude Code host: the desktop's bundled binary, a native `claude`, or the npm CLI. */
119const isHostCommand = (command: string): boolean =>
120  basename(squash(command.split(' -')[0] ?? '')) === 'claude' ||
121  command.includes('@anthropic-ai/claude-code/cli')
122
123const isCandidate = (row: PsRow, selfUid: number, rules: Rules): boolean =>
124  row.pid > 1 &&
125  row.uid === selfUid &&
126  (!rules.system.test(row.command) || rules.toolchain.test(row.command)) &&
127  !PROBE.test(row.command)
128
129export function parsePs(stdout: string): PsRow[] {
130  const rows: PsRow[] = []
131  for (const line of stdout.split('\n')) {
132    const match = PS_LINE.exec(line)
133    if (match === null) continue
134    const [, pid, ppid, pgid, uid, stat = '', cpu, rss, started = '', command = ''] = match
135    rows.push({
136      pid: Number(pid),
137      ppid: Number(ppid),
138      pgid: Number(pgid),
139      uid: Number(uid),
140      stat,
141      cpu: Number(cpu),
142      rssKb: Number(rss),
143      started: squash(started),
144      command,
145    })
146  }
147  return rows
148}
149
150export function parseHost(json: string): HostEntry | null {
151  let value: unknown
152  try {
153    value = JSON.parse(json)
154  } catch {
155    return null
156  }
157  if (!isRecord(value) || typeof value.pid !== 'number' || typeof value.sessionId !== 'string') {
158    return null
159  }
160  return {
161    pid: value.pid,
162    sessionId: value.sessionId,
163    cwd: textOf(value.cwd),
164    name: textOf(value.name),
165    status: textOf(value.status),
166    procStart: squash(textOf(value.procStart)),
167  }
168}
169
170/**
171 * Each line is the pid, the command on macOS (`ps eww`), then the environment the process
172 * started with. The command `commands` knows is cut off first, so an argument reading
173 * `CLAUDE_PID=…` never passes for the environment.
174 */
175export function parseEnv(stdout: string, commands: ReadonlyMap<number, string>): Map<number, ProcEnv> {
176  const found = new Map<number, ProcEnv>()
177  for (const line of stdout.split('\n')) {
178    const head = /^\s*(\d+)\s/.exec(line)
179    if (head === null) continue
180    const pid = Number(head[1])
181    const rest = line.slice(head[0].length)
182    const command = commands.get(pid)
183    const env = ` ${command !== undefined && rest.startsWith(command) ? rest.slice(command.length) : rest}`
184    const claudePid = /\sCLAUDE_PID=(\d+)(?:\s|$)/.exec(env)?.[1]
185    const sessionId = /\sCLAUDE_CODE_SESSION_ID=([\w-]+)(?:\s|$)/.exec(env)?.[1]
186    if (claudePid !== undefined) found.set(pid, { claudePid: Number(claudePid), sessionId: sessionId ?? null })
187    else if (sessionId !== undefined) found.set(pid, { claudePid: null, sessionId })
188  }
189  return found
190}
191
192/** `lsof -Fpn` output: a `p<pid>` line, then an `n<path>` line for its cwd. */
193export function parseCwd(stdout: string): Map<number, string> {
194  const found = new Map<number, string>()
195  let pid = 0
196  for (const line of stdout.split('\n')) {
197    if (line.startsWith('p')) pid = Number(line.slice(1))
198    else if (line.startsWith('n') && pid > 0) found.set(pid, line.slice(1))
199  }
200  return found
201}
202
203/**
204 * Adds each API response's usage once. A transcript writes one line per
205 * content block, and every line of a response repeats the same usage.
206 */
207export function tallyUsage(lines: string, tally: Tally): void {
208  for (const line of lines.split('\n')) {
209    if (!line.includes('"usage"')) continue
210    let row: unknown
211    try {
212      row = JSON.parse(line)
213    } catch {
214      continue
215    }
216    if (!isRecord(row) || row.type !== 'assistant' || !isRecord(row.message)) continue
217    const { id, usage } = row.message
218    if (typeof id !== 'string' || !isRecord(usage) || tally.seen.has(id)) continue
219    tally.seen.add(id)
220    tally.tokensIn +=
221      numberOf(usage.input_tokens) +
222      numberOf(usage.cache_creation_input_tokens) +
223      numberOf(usage.cache_read_input_tokens)
224    tally.tokensOut += numberOf(usage.output_tokens)
225  }
226}
227
228export const worktreeOf = (path: string): string | null => WORKTREE.exec(path)?.[1] ?? null
229
230export const snapshotOf = (command: string): string | null => SNAPSHOT.exec(command)?.[1] ?? null
231
232/** When Claude Code wrote a shell snapshot: the epoch milliseconds in its name. */
233export const bornOf = (snapshot: string): number => Number(/\/snapshot-[a-z]+-(\d+)-/.exec(snapshot)?.[1] ?? 0)
234
235function placeOf(path: string): string {
236  const root = worktreeOf(path)
237  if (root === null) return basename(path)
238  const [repo = '', name = ''] = root.split('/.claude/worktrees/')
239  return `${basename(repo)} › ${name}`
240}
241
242function labelOf(command: string): string {
243  const label = command
244    .split(' ')
245    .filter(Boolean)
246    .map(word => (word.includes('/') ? basename(word) || word : word))
247    .join(' ')
248  return label.length > 72 ? `${label.slice(0, 71)}…` : label
249}
250
251function toProc(row: PsRow, depth: number): Proc {
252  return {
253    pid: row.pid,
254    ppid: row.ppid,
255    pgid: row.pgid,
256    started: row.started,
257    command: row.command.slice(0, COMMAND_MAX),
258    label: labelOf(row.command),
259    cpu: row.cpu,
260    rssKb: row.rssKb,
261    isDefunct: row.stat.includes('Z'),
262    depth,
263  }
264}
265
266/**
267 * The sessions running now. A registry entry vouches for its pid only while
268 * the start time matches, so a reused pid never revives a dead session, and
269 * wherever the binary was installed; a Claude Code process with no entry
270 * still counts, so its children are never taken for orphans.
271 */
272function hostsOf(
273  rows: readonly PsRow[],
274  entries: readonly HostEntry[],
275  selfUid: number,
276  rules: Rules,
277): Map<number, Host> {
278  const hosts = new Map<number, Host>()
279  for (const row of rows) {
280    if (row.uid !== selfUid) continue
281    const entry = entries.find(one => one.pid === row.pid && one.procStart === row.started)
282    if (entry === undefined && (rules.system.test(row.command) || !isHostCommand(row.command))) continue
283    hosts.set(row.pid, {
284      pid: row.pid,
285      cwd: entry?.cwd ?? '',
286      session: {
287        sessionId: entry?.sessionId ?? '',
288        pid: row.pid,
289        name: entry === undefined ? `claude ${row.pid}` : entry.name || `session ${entry.sessionId.slice(0, 8)}`,
290        status: entry?.status || 'running',
291        place: entry === undefined ? 'unregistered session' : placeOf(entry.cwd),
292        tokensIn: 0,
293        tokensOut: 0,
294      },
295    })
296  }
297  return hosts
298}
299
300function childrenOf(rows: readonly PsRow[]): Map<number, PsRow[]> {
301  const kids = new Map<number, PsRow[]>()
302  for (const row of rows) {
303    if (row.pid === row.ppid || PROBE.test(row.command)) continue
304    const list = kids.get(row.ppid)
305    if (list === undefined) kids.set(row.ppid, [row])
306    else list.push(row)
307  }
308  return kids
309}
310
311/** `pid`'s descendants depth-first, stopping at another session's host. */
312function descend(pid: number, kids: Map<number, PsRow[]>, hosts: Map<number, Host>, depth: number): Item[] {
313  return (kids.get(pid) ?? []).flatMap(row =>
314    hosts.has(row.pid) ? [] : [{ row, depth }, ...descend(row.pid, kids, hosts, depth + 1)],
315  )
316}
317
318function liveTrees(rows: readonly PsRow[], entries: readonly HostEntry[], selfUid: number, rules: Rules) {
319  const hosts = hostsOf(rows, entries, selfUid, rules)
320  const kids = childrenOf(rows)
321  const owner = new Map<number, number>()
322  const order = new Map<number, Item[]>()
323  for (const host of hosts.values()) {
324    const items = descend(host.pid, kids, hosts, 0)
325    for (const item of items) owner.set(item.row.pid, host.pid)
326    order.set(host.pid, items)
327  }
328  // What a live session runs inside (a terminal, tmux, an editor) is in use, however it started:
329  // it is never a zombie, nor in one's tree.
330  const byPid = new Map(rows.map(row => [row.pid, row]))
331  for (const host of hosts.values()) {
332    let up = byPid.get(byPid.get(host.pid)?.ppid ?? 0)
333    for (let hop = 0; up !== undefined && up.pid > 1 && !rules.isReaper(up) && hop < 64; hop += 1) {
334      if (!hosts.has(up.pid) && !owner.has(up.pid)) owner.set(up.pid, host.pid)
335      up = byPid.get(up.ppid)
336    }
337  }
338  return { hosts, kids, owner, order, byPid }
339}
340
341/** Processes outside every live session's tree: the ones whose env and cwd are worth reading. */
342export function candidatesOf(
343  rows: readonly PsRow[],
344  entries: readonly HostEntry[],
345  selfUid: number,
346  os: Os,
347): number[] {
348  const rules = RULES[os]
349  const { hosts, owner } = liveTrees(rows, entries, selfUid, rules)
350  return rows
351    .filter(row => !owner.has(row.pid) && !hosts.has(row.pid) && isCandidate(row, selfUid, rules))
352    .map(row => row.pid)
353}
354
355/**
356 * Sorts every process into a live session or a zombie. Ancestry decides
357 * first, then the inherited CLAUDE_PID, then a shell snapshot its session
358 * deleted, and the worktree a process sits in last, since a session often
359 * works outside its own folder. A process with none of these follows its group.
360 */
361export function classify(scan: Scan): { groups: SessionGroup[]; zombies: Zombie[] } {
362  const { rows, env, cwd } = scan
363  const rules = RULES[scan.os]
364  const { hosts, kids, owner, order, byPid } = liveTrees(rows, scan.entries, scan.selfUid, rules)
365  // Who adopts an orphan: launchd on macOS; init or the nearest subreaper on Linux.
366  const reapers = new Set([1, ...rows.filter(row => rules.isReaper(row)).map(row => row.pid)])
367  // A session works in its own folder, and one in a repository's main checkout in its worktrees
368  // too, while they exist.
369  const hostIn = (root: string) => {
370    const repo = root.slice(0, root.indexOf('/.claude/worktrees/'))
371    const isGone = scan.missingWorktrees.has(root)
372    return [...hosts.values()].find(
373      host =>
374        isWithin(host.cwd, root) || (!isGone && isWithin(host.cwd, repo) && worktreeOf(host.cwd) === null),
375    )
376  }
377
378  const claimOf = (row: PsRow): Claim | null => {
379    const dir = cwd.get(row.pid) ?? ''
380    const inherited = env.get(row.pid)
381    if (inherited !== undefined) {
382      // Its host is the one it names if that was already running when this process started: a
383      // process that reused the pid since started later. The session id names a Bash tool child's
384      // host no better, since /clear gives a running host a new one; an MCP server has no other.
385      const host =
386        inherited.claudePid === null
387          ? [...hosts.values()].find(one => one.session.sessionId === inherited.sessionId)
388          : hosts.get(inherited.claudePid)
389      const isItsHost = host !== undefined && !(timeOf(byPid.get(host.pid)?.started ?? '') > timeOf(row.started))
390      return isItsHost
391        ? { kind: 'live', hostPid: host.pid }
392        : { kind: 'zombie', reason: 'session-ended', sessionId: inherited.sessionId, dir }
393    }
394    const snapshot = snapshotOf(row.command)
395    if (snapshot !== null && scan.missingSnapshots.has(snapshot)) {
396      return { kind: 'zombie', reason: 'session-ended', sessionId: null, dir }
397    }
398    // Without the env, only an orphan may be judged by its folder: a person's own shell in a
399    // worktree always has a live parent (a terminal, login, tmux, an editor).
400    const root = reapers.has(row.ppid) ? worktreeOf(dir) : null
401    if (root === null) return null
402    const host = hostIn(root)
403    if (host !== undefined) return { kind: 'live', hostPid: host.pid }
404    const reason = scan.missingWorktrees.has(root) ? 'worktree-deleted' : 'no-live-session'
405    return { kind: 'zombie', reason, sessionId: null, dir: root }
406  }
407
408  const undead = new Map<number, Extract<Claim, { kind: 'zombie' }>>()
409  for (const row of rows) {
410    if (owner.has(row.pid) || hosts.has(row.pid) || !isCandidate(row, scan.selfUid, rules)) continue
411    const claim = claimOf(row)
412    if (claim === null) continue
413    if (claim.kind === 'zombie') {
414      undead.set(row.pid, claim)
415      continue
416    }
417    // Detached from its session's tree (adopted by a reaper), but the session still runs.
418    const items = [{ row, depth: 0 }, ...descend(row.pid, kids, hosts, 1)].filter(
419      item => !owner.has(item.row.pid),
420    )
421    for (const item of items) owner.set(item.row.pid, claim.hostPid)
422    order.get(claim.hostPid)?.push(...items)
423  }
424
425  // A process group is one Bash tool command, and POSIX keeps a group's id from reuse while any
426  // member lives. A member with no evidence of its own (macOS hides the env of its own binaries)
427  // goes with a dead sibling, unless something in the group is still owned or not ours.
428  const jobs = new Map<number, PsRow[]>()
429  for (const row of rows) {
430    const job = jobs.get(row.pgid)
431    if (job === undefined) jobs.set(row.pgid, [row])
432    else job.push(row)
433  }
434  for (const job of jobs.values()) {
435    const claim = job.map(row => undead.get(row.pid)).find(found => found !== undefined)
436    const isLeftover = job.every(
437      row => !owner.has(row.pid) && !hosts.has(row.pid) && isCandidate(row, scan.selfUid, rules),
438    )
439    if (claim === undefined || !isLeftover) continue
440    for (const row of job) if (!undead.has(row.pid)) undead.set(row.pid, claim)
441  }
442
443  // A shell from /bin whose env macOS keeps from us: a `zsh -c` a dead session left running.
444  const isBareShell = (row: PsRow) =>
445    row.uid === scan.selfUid &&
446    rules.hiddenEnv !== null &&
447    rules.hiddenEnv.test(row.command) &&
448    !env.has(row.pid) &&
449    !owner.has(row.pid)
450  /** The orphan atop `row`, when every process between them is the same leftover; null otherwise. */
451  const orphanOf = (row: PsRow): PsRow | null => {
452    let current = row
453    for (let hop = 0; hop < 64; hop += 1) {
454      if (reapers.has(current.ppid)) return current
455      const parent = byPid.get(current.ppid)
456      if (parent === undefined || !(undead.has(parent.pid) || isBareShell(parent))) return null
457      current = parent
458    }
459    return null
460  }
461  const tops = new Map<number, Extract<Claim, { kind: 'zombie' }>>()
462  for (const row of rows) {
463    const claim = undead.get(row.pid)
464    if (claim === undefined || owner.has(row.pid)) continue
465    const top = orphanOf(row)
466    if (top !== null && !tops.has(top.pid)) tops.set(top.pid, undead.get(top.pid) ?? claim)
467  }
468
469  const zombies: Zombie[] = []
470  const inTree = new Set<number>()
471  for (const row of rows) {
472    const claim = tops.get(row.pid)
473    if (claim === undefined || inTree.has(row.pid)) continue
474    const items = [{ row, depth: 0 }, ...descend(row.pid, kids, hosts, 1)].filter(
475      item => !owner.has(item.row.pid) && !inTree.has(item.row.pid),
476    )
477    for (const item of items) inTree.add(item.row.pid)
478    const entry =
479      claim.sessionId === null ? undefined : scan.entries.find(one => one.sessionId === claim.sessionId)
480    const place = entry !== undefined ? placeOf(entry.cwd) : placeOf(claim.dir) || 'an unknown folder'
481    zombies.push({
482      root: toProc(row, 0),
483      children: items.slice(1).map(item => toProc(item.row, item.depth)),
484      reason: claim.reason,
485      place,
486      session:
487        claim.sessionId === null
488          ? null
489          : {
490              sessionId: claim.sessionId,
491              pid: null,
492              name: entry?.name || `session ${claim.sessionId.slice(0, 8)}`,
493              status: 'ended',
494              place,
495              tokensIn: 0,
496              tokensOut: 0,
497            },
498    })
499  }
500
501  const groups = [...hosts.values()].map(host => ({
502    session: host.session,
503    procs: (order.get(host.pid) ?? []).map(item => toProc(item.row, item.depth)),
504  }))
505  groups.sort(
506    (a, b) =>
507      Number(b.session.status === 'busy') - Number(a.session.status === 'busy') ||
508      a.session.name.localeCompare(b.session.name),
509  )
510  zombies.sort((a, b) => a.place.localeCompare(b.place) || a.root.pid - b.root.pid)
511  return { groups, zombies }
512}
513
514export function totalsOf(groups: readonly SessionGroup[], zombies: readonly Zombie[]): Totals {
515  const procs = [
516    ...groups.flatMap(group => group.procs),
517    ...zombies.flatMap(zombie => [zombie.root, ...zombie.children]),
518  ]
519  const sessions = new Map<string, Session>()
520  for (const session of [
521    ...groups.map(group => group.session),
522    ...zombies.flatMap(zombie => (zombie.session === null ? [] : [zombie.session])),
523  ]) {
524    sessions.set(session.sessionId || `pid:${session.pid}`, session)
525  }
526  return {
527    procs: procs.length,
528    cpu: sum(procs, proc => proc.cpu),
529    rssKb: sum(procs, proc => proc.rssKb),
530    tokensIn: sum([...sessions.values()], session => session.tokensIn),
531    tokensOut: sum([...sessions.values()], session => session.tokensOut),
532  }
533}
534
535/**
536 * How many zombies the board counts: every process in the zombie trees, a
537 * zombie's children included, so the number matches the rows. A defunct one
538 * counts too: it is never signalled, but it goes once its parent does.
539 */
540export const zombieTotal = (zombies: readonly Zombie[]): number =>
541  zombies.reduce((total, zombie) => total + 1 + zombie.children.length, 0)
542
543/** How many rows a kill cleared: the signalled pids, and the defunct children they left to a reaper. */
544export function laidToRest(zombies: readonly Zombie[], signalled: ReadonlySet<number>): number {
545  const cleared = zombies
546    .flatMap(zombie => [zombie.root, ...zombie.children])
547    .filter(proc => signalled.has(proc.pid) || (proc.isDefunct && signalled.has(proc.ppid)))
548  return new Set(cleared.map(proc => proc.pid)).size
549}
550
551/**
552 * The living members of these zombies' trees, deepest first, so no
553 * parent dies before its children and hands them to a reaper mid-kill.
554 * A defunct process is already dead: it goes once its parent does.
555 */
556export function killOrder(zombies: readonly Zombie[]): Proc[] {
557  return zombies
558    .flatMap(zombie => [zombie.root, ...zombie.children])
559    .filter(proc => !proc.isDefunct)
560    .sort((a, b) => b.depth - a.depth)
561}
562
563/** The planned pids that still name the very process the board showed, and that are ours to signal. */
564export function stillSame(planned: readonly Proc[], rows: readonly PsRow[], guard: Guard): number[] {
565  const now = new Map(rows.map(row => [row.pid, row]))
566  return planned
567    .filter(proc => {
568      const row = now.get(proc.pid)
569      return (
570        row !== undefined &&
571        row.pid > 1 &&
572        row.uid === guard.selfUid &&
573        !guard.protectedPids.has(row.pid) &&
574        !isHostCommand(row.command) &&
575        !row.stat.includes('Z') &&
576        row.started === proc.started &&
577        row.command.slice(0, COMMAND_MAX) === proc.command
578      )
579    })
580    .map(proc => proc.pid)
581}
582
583export function bytes(count: number): string {
584  const units = ['B', 'KB', 'MB', 'GB', 'TB']
585  let value = count
586  let unit = 0
587  while (value >= 1024 && unit < units.length - 1) {
588    value /= 1024
589    unit += 1
590  }
591  return `${unit === 0 || value >= 10 ? Math.round(value) : value.toFixed(1)} ${units[unit]}`
592}
593
594export const memory = (kb: number): string => bytes(kb * 1024)
595
596export function count(value: number): string {
597  if (value >= 1e9) return `${(value / 1e9).toFixed(1)}B`
598  if (value >= 1e6) return `${(value / 1e6).toFixed(1)}M`
599  if (value >= 1e3) return `${(value / 1e3).toFixed(1)}k`
600  return String(value)
601}
602

1import type { Snapshot } from '../types'
2import { count, memory, zombieTotal } from './model'
3import { ACTORS, ICON_COIN, ICON_GEAR, ICON_TERMINAL, ICON_ZOMBIE, meter, pixels, scene } from './sprites'
4import type { Sprite } from './sprites'
5
6/**
7 * Everything the board shows, bar its buttons, is drawn here as SVG in one
8 * monospace face: the surfaces draw Text in their own proportional font, and
9 * no prop changes it.
10 */
11
12/** A drawing and the size it is meant to be shown at, in CSS pixels. */
13export type Drawing = { source: string; width: number; height: number; alt: string }
14
15/** One process row of a card's table. */
16export type Line = { pid: number; cpu: string; mem: string; command: string; isFaint: boolean }
17
18/** The night palette of the screen at the top. */
19export const NIGHT = {
20  ground: '#1d1934',
21  slot: '#2a2448',
22  slotFrame: '#3d3570',
23  frame: '#4c4480',
24  label: '#a99fd0',
25  value: '#f3e6c4',
26  alarm: '#ff8a7a',
27  calm: '#93cf87',
28}
29
30/**
31 * The pastel palette of the cards and headings. They keep their own colours
32 * on either theme, so their ink is their own too.
33 */
34const DAY = {
35  ink: '#3d2f4a',
36  soft: '#7d6f8c',
37  faint: '#a094b4',
38  rule: '#e3dcf2',
39  alarm: '#c2413a',
40}
41
42/** Badge looks: a session's state, and a zombie being killed. */
43const BADGES: Readonly<Record<string, { ink: string; ground: string; mark: string }>> = {
44  busy: { ink: '#2c7a4b', ground: '#d4f2dd', mark: '●' },
45  running: { ink: '#2c7a4b', ground: '#d4f2dd', mark: '●' },
46  waiting: { ink: '#8a5d00', ground: '#ffefc4', mark: '◐' },
47  idle: { ink: '#6f6385', ground: '#ebe6f6', mark: '○' },
48  killing: { ink: '#8a3a4e', ground: '#ffe0e8', mark: '◌' },
49}
50
51/** Section strips: the icon, the tint, and the ink of each. */
52type Strip = 'zombies' | 'sessions' | 'quiet'
53const STRIPS: Readonly<Record<Strip, { icon: Sprite; ground: string; ink: string }>> = {
54  zombies: { icon: ICON_ZOMBIE, ground: '#ffe3ea', ink: '#7a2f45' },
55  sessions: { icon: ICON_TERMINAL, ground: '#ebe5ff', ink: '#4a3d7a' },
56  quiet: { icon: ICON_ZOMBIE, ground: '#dcf2e3', ink: '#2c6b45' },
57}
58
59const MONO = "ui-monospace, 'SF Mono', SFMono-Regular, Menlo, Monaco, Consolas, monospace"
60/** One monospace column is about 0.6em wide; CJK and emoji take two. */
61const ADVANCE = 0.6
62const WIDE = /[ᄀ-ᅟ⺀-꓏가-힣豈-﫿︰-﹏＀-｠￠-￦]|\p{Extended_Pictographic}/u
63
64/** The screen: the graveyard scene is 128 pixels drawn three times over. */
65const SCALE = 3
66const SCREEN_W = 384
67const BANNER_H = 132
68const PAD = 10
69const GAP = 8
70const SLOT_H = 68
71const METER_SEGMENTS = 24
72const GAUGE_H = 22
73/** A gauge's reading in three fixed stops, so both rows line up at value, slash and total. */
74const VALUE_END = 298
75const SLASH_AT = 307
76const TOTAL_START = 316
77const ICON_BOX = 24
78const TITLE_SIZE = 13
79const SUBTITLE_SIZE = 11
80const BODY_SIZE = 12
81
82/**
83 * Ambient motion, all of it in CSS inside the drawing: it runs without the mod
84 * drawing anything again, and stops for anyone who asked for less motion.
85 */
86const MOTION =
87  '<style>' +
88  '.twinkle{animation:twinkle 2.4s steps(1,end) infinite}' +
89  '@keyframes twinkle{0%,100%{opacity:1}50%{opacity:.3}}' +
90  '.glow{animation:glow 3.2s ease-in-out infinite}' +
91  '@keyframes glow{0%,100%{opacity:.2}50%{opacity:1}}' +
92  '@media (prefers-reduced-motion:reduce){.twinkle,.glow{animation:none}}' +
93  '</style>'
94
95/** The still scene never changes, so it is drawn once. */
96const SCENE = pixels(scene(), 0, 0, SCALE)
97const fragments = new Map<Sprite, string>()
98/** A 12-pixel icon at twice its size, drawn once and placed by translation after that. */
99const icon = (sprite: Sprite, x: number, y: number): string => {
100  let fragment = fragments.get(sprite)
101  if (fragment === undefined) {
102    fragment = pixels(sprite, 0, 0, 2)
103    fragments.set(sprite, fragment)
104  }
105  return `<g transform="translate(${x} ${y})">${fragment}</g>`
106}
107
108const columnsOf = (text: string): number =>
109  [...text].reduce((total, char) => total + (WIDE.test(char) ? 2 : 1), 0)
110
111/** `text` cut to `columns`, an ellipsis standing for the rest. */
112export function clip(text: string, columns: number): string {
113  if (columnsOf(text) <= columns) return text
114  let kept = ''
115  let used = 0
116  for (const char of text) {
117    const width = WIDE.test(char) ? 2 : 1
118    if (used + width > columns - 1) break
119    kept += char
120    used += width
121  }
122  return `${kept}…`
123}
124
125const escape = (text: string): string =>
126  text.replace(/&/g, '&amp;').replace(/</g, '&lt;').replace(/>/g, '&gt;').replace(/"/g, '&quot;')
127
128type Style = { size: number; fill: string; isBold?: boolean; anchor?: 'start' | 'middle' | 'end'; spacing?: number }
129
130function text(x: number, y: number, content: string, style: Style): string {
131  const bold = style.isBold === true ? ' font-weight="bold"' : ''
132  const anchor = style.anchor !== undefined && style.anchor !== 'start' ? ` text-anchor="${style.anchor}"` : ''
133  const spacing = style.spacing !== undefined ? ` letter-spacing="${style.spacing}"` : ''
134  return (
135    `<text x="${x}" y="${y}" font-family="${MONO}" font-size="${style.size}" fill="${style.fill}"${bold}${anchor}${spacing}>` +
136    `${escape(content)}</text>`
137  )
138}
139
140const drawing = (width: number, height: number, body: string, alt: string): Drawing => ({
141  source: `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 ${width} ${height}" width="${width}" height="${height}">${body}</svg>`,
142  width,
143  height,
144  alt,
145})
146
147const share = (part: number, whole: number): number => (whole > 0 ? part / whole : 0)
148
149type Counter = { icon: Sprite; value: string; label: string; tone: string }
150
151/** A slot of the status window: icon over value over label, all on one centre line. */
152function slot(x: number, y: number, width: number, counter: Counter): string {
153  const centre = x + width / 2
154  return (
155    `<rect x="${x}" y="${y}" width="${width}" height="${SLOT_H}" rx="8" fill="${NIGHT.slot}" stroke="${NIGHT.slotFrame}"/>` +
156    icon(counter.icon, centre - ICON_BOX / 2, y + 9) +
157    text(centre, y + 50, counter.value, { size: 17, fill: counter.tone, isBold: true, anchor: 'middle' }) +
158    text(centre, y + 62, counter.label, { size: 9, fill: NIGHT.label, anchor: 'middle', spacing: 1 })
159  )
160}
161
162/** The tokens slot: the coin on the centre line, each figure over its own label, a rule between them. */
163function tokens(x: number, y: number, width: number, spentIn: string, spentOut: string): string {
164  const centre = x + width / 2
165  const halves: Array<[number, string, string]> = [
166    [x + width / 4, spentIn, 'TOKENS IN'],
167    [x + (width * 3) / 4, spentOut, 'TOKENS OUT'],
168  ]
169  return (
170    `<rect x="${x}" y="${y}" width="${width}" height="${SLOT_H}" rx="8" fill="${NIGHT.slot}" stroke="${NIGHT.slotFrame}"/>` +
171    icon(ICON_COIN, centre - ICON_BOX / 2, y + 9) +
172    `<rect x="${centre - 0.5}" y="${y + 38}" width="1" height="${SLOT_H - 46}" fill="${NIGHT.slotFrame}"/>` +
173    halves
174      .map(
175        ([middle, value, label]) =>
176          text(middle, y + 50, value, { size: 17, fill: NIGHT.value, isBold: true, anchor: 'middle' }) +
177          text(middle, y + 62, label, { size: 9, fill: NIGHT.label, anchor: 'middle', spacing: 1 }),
178      )
179      .join('')
180  )
181}
182
183/** A meter row: label, segments, then value / total, each on its own stop. */
184function gauge(y: number, label: string, fraction: number, value: string, total: string): string {
185  const baseline = y + 13
186  return (
187    text(PAD + 2, baseline, label, { size: 11, fill: NIGHT.label, isBold: true }) +
188    pixels(meter(fraction, METER_SEGMENTS), PAD + 36, y + 3, 2) +
189    text(VALUE_END, baseline, value, { size: BODY_SIZE, fill: NIGHT.value, isBold: true, anchor: 'end' }) +
190    (total === ''
191      ? ''
192      : text(SLASH_AT, baseline, '/', { size: BODY_SIZE, fill: NIGHT.label, anchor: 'middle' }) +
193        text(TOTAL_START, baseline, total, { size: BODY_SIZE, fill: NIGHT.label }))
194  )
195}
196
197/** What moves over the scene: stars and fireflies, each out of step with the next. */
198function actors(): string {
199  const offset = (index: number, period: number) => `animation-delay:-${((index * 0.37) % 1) * period}s`
200  const stars = ACTORS.stars.map(
201    (star, index) =>
202      `<g class="twinkle" style="${offset(index, 2.4)}">${pixels(star.sprite, star.x * SCALE, star.y * SCALE, SCALE)}</g>`,
203  )
204  const flies = ACTORS.fireflies.map(
205    (fly, index) =>
206      `<g class="glow" style="${offset(index, 3.2)}">${pixels(fly.sprite, fly.x * SCALE, fly.y * SCALE, SCALE)}</g>`,
207  )
208  return [...stars, ...flies].join('')
209}
210
211/** The scene and what moves over it never change, so they are drawn once. */
212const BACKDROP = SCENE + actors()
213
214let lastScreen: { key: string; drawing: Drawing } | undefined
215
216/**
217 * The graveyard and its status window as one picture, so nothing in it can
218 * drift out of line. Built again only when what it shows has changed.
219 */
220export function screen(snap: Snapshot): Drawing {
221  const { totals, machine } = snap
222  const zombies = zombieTotal(snap.zombies)
223  const key = JSON.stringify([snap.groups.length, zombies, totals, machine])
224  if (lastScreen?.key === key) return lastScreen.drawing
225  const third = (SCREEN_W - PAD * 2 - GAP * 2) / 3
226  const full = SCREEN_W - PAD * 2
227  const parts = [BACKDROP]
228  let y = BANNER_H + PAD
229  const counters: Counter[] = [
230    { icon: ICON_TERMINAL, value: String(snap.groups.length), label: 'SESSIONS', tone: NIGHT.value },
231    { icon: ICON_GEAR, value: String(totals.procs), label: 'PROCESSES', tone: NIGHT.value },
232    { icon: ICON_ZOMBIE, value: String(zombies), label: 'ZOMBIES', tone: zombies > 0 ? NIGHT.alarm : NIGHT.calm },
233  ]
234  counters.forEach((counter, index) => parts.push(slot(PAD + index * (third + GAP), y, third, counter)))
235  y += SLOT_H + GAP + 2
236  const cores = machine.cores > 0 ? `${machine.cores} cores` : ''
237  const ram = machine.memoryKb > 0 ? memory(machine.memoryKb) : ''
238  parts.push(gauge(y, 'CPU', share(totals.cpu, machine.cores * 100), `${totals.cpu.toFixed(1)}%`, cores))
239  y += GAUGE_H
240  parts.push(gauge(y, 'MEM', share(totals.rssKb, machine.memoryKb), memory(totals.rssKb), ram))
241  y += GAUGE_H + GAP
242  parts.push(tokens(PAD, y, full, count(totals.tokensIn), count(totals.tokensOut)))
243  const height = y + SLOT_H + PAD
244  const body =
245    MOTION +
246    `<defs><clipPath id="screen"><rect width="${SCREEN_W}" height="${height}" rx="12"/></clipPath></defs>` +
247    `<g clip-path="url(#screen)"><rect width="${SCREEN_W}" height="${height}" fill="${NIGHT.ground}"/>${parts.join('')}</g>` +
248    `<rect x="0.75" y="0.75" width="${SCREEN_W - 1.5}" height="${height - 1.5}" rx="11.5" fill="none" stroke="${NIGHT.frame}" stroke-width="1.5"/>`
249  const alt =
250    `${snap.groups.length} sessions, ${totals.procs} processes, ${zombies} zombies; ` +
251    `CPU ${totals.cpu.toFixed(1)}%, memory ${memory(totals.rssKb)}; ` +
252    `tokens ${count(totals.tokensIn)} in, ${count(totals.tokensOut)} out`
253  lastScreen = { key, drawing: drawing(SCREEN_W, height, body, alt) }
254  return lastScreen.drawing
255}
256
257const STRIP_H = 30
258const STRIP_PAD = 8
259const LABEL_SPACING = 0.5
260const CHEVRON_W = 10
261
262/**
263 * A section's heading: a tinted strip with its icon and label, and, when the
264 * section folds, a chevron at its right end (down while closed, up when open).
265 * It reads the same on a light or a dark page.
266 */
267export function strip(kind: Strip, label: string, fold: 'open' | 'closed' | null): Drawing {
268  const look = STRIPS[kind]
269  const labelX = STRIP_PAD + ICON_BOX + 10
270  // Letter spacing widens every column, so it counts toward the width too.
271  const labelW = columnsOf(label) * (TITLE_SIZE * ADVANCE + LABEL_SPACING) - LABEL_SPACING
272  const chevronX = labelX + labelW + 14
273  const width = Math.ceil((fold === null ? labelX + labelW : chevronX + CHEVRON_W) + STRIP_PAD + 2)
274  const middle = STRIP_H / 2
275  const chevron =
276    fold === null
277      ? ''
278      : `<path d="M${chevronX} ${fold === 'closed' ? middle - 2 : middle + 2}l${CHEVRON_W / 2} ${fold === 'closed' ? 4 : -4}l${CHEVRON_W / 2} ${fold === 'closed' ? -4 : 4}" ` +
279        `fill="none" stroke="${look.ink}" stroke-width="2" stroke-linecap="round" stroke-linejoin="round"/>`
280  const body =
281    `<rect width="${width}" height="${STRIP_H}" rx="8" fill="${look.ground}"/>` +
282    icon(look.icon, STRIP_PAD, (STRIP_H - ICON_BOX) / 2) +
283    text(labelX, 20, label, { size: TITLE_SIZE, fill: look.ink, isBold: true, spacing: LABEL_SPACING }) +
284    chevron
285  const state = fold === null ? '' : fold === 'open' ? ', open' : ', closed'
286  return drawing(width, STRIP_H, body, `${label}${state}`)
287}
288
289/** A line of text on the page: an empty state, an error, a wait. */
290export function note(message: string, tone: 'soft' | 'alarm'): Drawing {
291  const width = Math.ceil(columnsOf(message) * BODY_SIZE * ADVANCE + 4)
292  const fill = tone === 'alarm' ? DAY.alarm : DAY.soft
293  return drawing(width, 18, text(0, 13, message, { size: BODY_SIZE, fill }), message)
294}
295
296/** A card's head: its icon in a fixed box, so every title starts on the same line, then title over subtitle. */
297export function header(sprite: Sprite, title: string, subtitle: string, widthPx: number): Drawing {
298  const textX = ICON_BOX + 10
299  const room = Math.max(40, widthPx - textX)
300  const titleText = clip(title, Math.floor(room / (TITLE_SIZE * ADVANCE)))
301  const subtitleText = clip(subtitle, Math.floor(room / (SUBTITLE_SIZE * ADVANCE)))
302  const used = Math.max(
303    columnsOf(titleText) * TITLE_SIZE * ADVANCE,
304    columnsOf(subtitleText) * SUBTITLE_SIZE * ADVANCE,
305  )
306  const width = Math.ceil(textX + used + 2)
307  const body =
308    icon(sprite, 0, 6) +
309    text(textX, 16, titleText, { size: TITLE_SIZE, fill: DAY.ink, isBold: true }) +
310    text(textX, 31, subtitleText, { size: SUBTITLE_SIZE, fill: DAY.soft })
311  return drawing(width, 36, body, `${title}. ${subtitle}`)
312}
313
314const TABLE_SIZE = 11
315const ROW_H = 17
316const COLUMNS = [
317  { title: 'PID', width: 6 },
318  { title: 'CPU', width: 6 },
319  { title: 'MEM', width: 8 },
320] as const
321
322/** A card's processes: numbers flush right in fixed columns, the command after them, then how many more. */
323export function table(lines: readonly Line[], more: number, widthPx: number): Drawing {
324  const advance = TABLE_SIZE * ADVANCE
325  const gap = 2 * advance
326  const edges: number[] = []
327  let x = 0
328  for (const column of COLUMNS) {
329    x += column.width * advance
330    edges.push(x)
331    x += gap
332  }
333  const commandX = x
334  const commandColumns = Math.max(12, Math.floor((widthPx - commandX) / advance))
335  const width = Math.ceil(commandX + commandColumns * advance)
336  const head =
337    COLUMNS.map((column, index) =>
338      text(edges[index] ?? 0, 11, column.title, { size: 9, fill: DAY.faint, anchor: 'end', spacing: 0.5 }),
339    ).join('') +
340    text(commandX, 11, 'COMMAND', { size: 9, fill: DAY.faint, spacing: 0.5 }) +
341    `<rect x="0" y="16" width="${width}" height="1" fill="${DAY.rule}"/>`
342  const rows = lines.map((line, index) => {
343    const y = 31 + index * ROW_H
344    const ink = line.isFaint ? DAY.faint : DAY.ink
345    const cells = [String(line.pid), line.cpu, line.mem]
346    return (
347      cells
348        .map((cell, column) => text(edges[column] ?? 0, y, cell, { size: TABLE_SIZE, fill: ink, anchor: 'end' }))
349        .join('') + text(commandX, y, clip(line.command, commandColumns), { size: TABLE_SIZE, fill: ink })
350    )
351  })
352  if (more > 0) {
353    rows.push(text(commandX, 31 + lines.length * ROW_H, `+ ${more} more`, { size: TABLE_SIZE, fill: DAY.faint }))
354  }
355  const height = 20 + rows.length * ROW_H
356  return drawing(width, height, head + rows.join(''), `${lines.length + more} processes`)
357}
358
359/** A badge in a card's right-hand column, every badge as wide as the longest so they line up. */
360export function pill(status: string): Drawing {
361  const look = BADGES[status] ?? BADGES.idle ?? { ink: DAY.soft, ground: DAY.rule, mark: '○' }
362  const label = `${look.mark} ${status}`
363  const width = Math.ceil(columnsOf('◐ waiting') * 11 * ADVANCE + 16)
364  const body =
365    `<rect width="${width}" height="20" rx="10" fill="${look.ground}"/>` +
366    text(width / 2, 14, label, { size: 11, fill: look.ink, isBold: true, anchor: 'middle' })
367  return drawing(width, 20, body, status)
368}
369
370const NOTICE_SIZE = 13
371/** Zombie red that reads on a light or a dark prompt band. */
372const NOTICE_INK = '#d0584f'
373
374/**
375 * The zombie's face and a line of text as one drawing, so the two share a
376 * centre line; a Text beside an Svg sits on its own baseline instead.
377 */
378export function notice(message: string): Drawing {
379  const textX = ICON_BOX + 8
380  const width = Math.ceil(textX + columnsOf(message) * NOTICE_SIZE * ADVANCE + 2)
381  const body = icon(ICON_ZOMBIE, 0, 0) + text(textX, 17, message, { size: NOTICE_SIZE, fill: NOTICE_INK, isBold: true })
382  return drawing(width, ICON_BOX, body, message)
383}
384
385export const icons = { zombie: ICON_ZOMBIE, terminal: ICON_TERMINAL } as const
386

1import type { FsEntry, FsStat, ProcessRunInit, ProcessRunResult } from 'claude-code'
2
3import type { Machine, Snapshot } from '../types'
4import {
5  bornOf,
6  candidatesOf,
7  classify,
8  parseCwd,
9  parseEnv,
10  parseHost,
11  parsePs,
12  snapshotOf,
13  tallyUsage,
14  totalsOf,
15  worktreeOf,
16} from './model'
17import type { HostEntry, Os, ProcEnv, PsRow, Tally } from './model'
18
19/**
20 * The session host this mod runs in, the user it runs as, the folder Claude Code keeps its
21 * sessions and transcripts in, their system, and the machine.
22 */
23export type Context = { configDir: string; os: Os; selfUid: number; selfHostPid: number; machine: Machine }
24
25/**
26 * The host calls a scan makes. The engine only takes `$` spelled out at each
27 * call site, so the hook that owns `$` hands these over as closures.
28 */
29export type Io = {
30  run: (argv: readonly string[], init?: ProcessRunInit) => Promise<ProcessRunResult>
31  exists: (path: string) => Promise<boolean>
32  list: (path: string) => Promise<FsEntry[]>
33  read: (path: string) => Promise<string>
34  stat: (path: string) => Promise<FsStat>
35  home: () => Promise<string | undefined>
36  /** CLAUDE_CONFIG_DIR, which Claude Code uses in place of ~/.claude when it is set. */
37  configDir: () => Promise<string | undefined>
38  /** The settings Claude Code runs under, merged over every source. */
39  settings: () => Promise<Readonly<Record<string, unknown>>>
40  now: () => Promise<number>
41}
42
43/** A transcript counted so far: where it is, how many bytes were read, and what they added up to. */
44type Reading = Tally & { path: string | null; offset: number; checkedAt: number }
45export type Readings = Map<string, Reading>
46/**
47 * The session each process inherited, by pid, start time and command. `ps eww`
48 * shows the environment a process started with, which only an exec replaces,
49 * and an exec changes the command.
50 */
51export type Envs = Map<string, ProcEnv | null>
52
53/** `ps` prints lstart in the local zone, while the session registry writes procStart in UTC. */
54const UTC = { TZ: 'UTC', LC_ALL: 'C' }
55/** The engine hands back this much of a command's output, and reads the rest only to drop it. */
56const OUTPUT_CAP = 4_194_304
57const SESSION_ID = /^[\w-]+$/
58const MISSING_TRANSCRIPT_RETRY_MS = 60_000
59const DAY_MS = 86_400_000
60/** Claude Code's cleanupPeriodDays when no settings name one. */
61const RETENTION_DAYS = 30
62// ponytail: at most 8 x 4 MiB of a transcript per scan; a longer backlog finishes over the next scans.
63const CHUNKS_PER_SCAN = 8
64/** Linux: each pid, then the environment it started with, from /proc (what `ps eww` reads on macOS). */
65const LINUX_ENVS = `for p; do printf '%s ' "$p"; tr '\\0\\n' '  ' < "/proc/$p/environ" 2>/dev/null; echo; done`
66/** Linux: each pid's working folder from /proc, as the `p<pid>` and `n<path>` lines lsof prints. */
67const LINUX_CWDS = `for p; do d=$(readlink "/proc/$p/cwd" 2>/dev/null) && printf 'p%s\\nn%s\\n' "$p" "$d"; done`
68
69export async function contextOf(io: Io): Promise<Context> {
70  const configDir = (await io.configDir()) || `${(await io.home()) ?? ''}/.claude`
71  const { stdout } = await io.run(['/bin/sh', '-c', 'echo "$PPID $(id -u) $(uname -s)"'])
72  const [host = '0', uid = '-1', system = ''] = stdout.trim().split(' ')
73  const os = osOf(system)
74  return { configDir, os, selfHostPid: Number(host), selfUid: Number(uid), machine: await machineOf(io, os) }
75}
76
77function osOf(system: string): Os {
78  if (system === 'Darwin') return 'darwin'
79  if (system === 'Linux') return 'linux'
80  throw new Error(`Rest in PID reads macOS and Linux processes, not ${system || 'this system'}'s`)
81}
82
83/** The cores and memory the meters measure against; zeros when the probe fails. */
84async function machineOf(io: Io, os: Os): Promise<Machine> {
85  if (os === 'darwin') {
86    const facts = await optional(io.run(['sysctl', '-n', 'hw.ncpu', 'hw.memsize']))
87    const [cores = 0, memoryBytes = 0] = facts.trim().split('\n').map(Number)
88    return { cores, memoryKb: Math.round(memoryBytes / 1024) }
89  }
90  const facts = await optional(io.run(['/bin/sh', '-c', 'getconf _NPROCESSORS_ONLN; grep MemTotal /proc/meminfo']))
91  return { cores: Number(facts.split('\n')[0]) || 0, memoryKb: Number(/MemTotal:\s+(\d+)/.exec(facts)?.[1] ?? 0) }
92}
93
94/** procps takes BSD options only without the dash; macOS ps takes either. */
95export async function readPs(io: Io, os: Os): Promise<PsRow[]> {
96  const fields = 'pid=,ppid=,pgid=,uid=,stat=,%cpu=,rss=,lstart=,command='
97  const argv = os === 'darwin' ? ['ps', '-axww', '-o', fields] : ['ps', 'axww', '-o', fields]
98  const { stdout } = await io.run(argv, { env: UTC })
99  return parsePs(stdout)
100}
101
102/** Output of a probe that may be missing or fail (lsof is not on every host); nothing then. */
103async function optional(run: Promise<ProcessRunResult>): Promise<string> {
104  try {
105    return (await run).stdout
106  } catch {
107    return ''
108  }
109}
110
111/**
112 * The paths among `paths` that no longer exist. A path the host will not check
113 * (it rejects a network location) counts as present, so it never makes a zombie.
114 */
115async function missing(io: Io, paths: ReadonlyArray<string | null>): Promise<Set<string>> {
116  const gone = new Set<string>()
117  for (const path of new Set(paths)) {
118    if (path !== null && !(await io.exists(path).catch(() => true))) gone.add(path)
119  }
120  return gone
121}
122
123/**
124 * Before when a shell snapshot may be gone while its session still runs: Claude Code's retention
125 * sweep deletes the ones older than cleanupPeriodDays either way.
126 */
127async function sweptBefore(io: Io, now: number): Promise<number> {
128  const settings = await io.settings().catch((): Readonly<Record<string, unknown>> => ({}))
129  const days = settings.cleanupPeriodDays
130  return now - (typeof days === 'number' && days >= 0 ? days : RETENTION_DAYS) * DAY_MS
131}
132
133async function readEntries(io: Io, configDir: string): Promise<HostEntry[]> {
134  const dir = `${configDir}/sessions`
135  if (!(await io.exists(dir))) return []
136  const files = (await io.list(dir)).filter(file => file.kind === 'file' && file.name.endsWith('.json'))
137  const entries = await Promise.all(files.map(async file => parseHost(await io.read(`${dir}/${file.name}`))))
138  return entries.filter((entry): entry is HostEntry => entry !== null)
139}
140
141async function readingOf(io: Io, configDir: string, sessionId: string, readings: Readings) {
142  const now = await io.now()
143  let reading = readings.get(sessionId)
144  if (reading === undefined || (reading.path === null && now - reading.checkedAt > MISSING_TRANSCRIPT_RETRY_MS)) {
145    const found = await io.run([
146      'find',
147      `${configDir}/projects`,
148      '-maxdepth',
149      '2',
150      '-name',
151      `${sessionId}.jsonl`,
152    ])
153    reading = {
154      path: found.stdout.split('\n')[0] || null,
155      offset: 0,
156      checkedAt: now,
157      seen: new Set(),
158      tokensIn: 0,
159      tokensOut: 0,
160    }
161    readings.set(sessionId, reading)
162  }
163  if (reading.path === null) return reading
164  const { size } = await io.stat(reading.path)
165  if (size < reading.offset) Object.assign(reading, { offset: 0, seen: new Set(), tokensIn: 0, tokensOut: 0 })
166  for (let chunk = 0; chunk < CHUNKS_PER_SCAN && reading.offset < size; chunk += 1) {
167    // dd seeks to the offset and head stops at what the engine keeps: `tail -c +N` copies byte
168    // by byte, and the engine would read the whole rest of the file every time.
169    const { stdout } = await io.run([
170      '/bin/sh',
171      '-c',
172      `{ dd bs=1 skip="$1" count=0 2>/dev/null; head -c ${OUTPUT_CAP}; } < "$2"`,
173      'sh',
174      String(reading.offset),
175      reading.path,
176    ])
177    const end = stdout.lastIndexOf('\n')
178    if (end < 0) break
179    // Whole lines only: the byte count stays exact, and a cut line is read again next time.
180    const lines = stdout.slice(0, end + 1)
181    reading.offset += new TextEncoder().encode(lines).length
182    tallyUsage(lines, reading)
183  }
184  return reading
185}
186
187const envKey = (row: PsRow): string => `${row.pid} ${row.started} ${row.command}`
188
189/** The command that prints each pid followed by the environment it started with. */
190const envProbe = (os: Os, pids: readonly string[]): string[] =>
191  os === 'darwin'
192    ? ['ps', 'eww', '-o', 'pid=,command=', '-p', pids.join(',')]
193    : ['/bin/sh', '-c', LINUX_ENVS, 'sh', ...pids]
194
195/** The command that prints each pid's working folder, as lsof's `p<pid>` and `n<path>` lines. */
196const cwdProbe = (os: Os, pids: readonly string[]): string[] =>
197  os === 'darwin'
198    ? // -b skips the stat and readlink calls that can block (the kernel names the cwd either way).
199      ['lsof', '-b', '-w', '-a', '-d', 'cwd', '-Fpn', '-p', pids.join(',')]
200    : ['/bin/sh', '-c', LINUX_CWDS, 'sh', ...pids]
201
202/**
203 * The session each candidate inherited. Only the ones not read before are
204 * asked about; a pid the probe did not print (gone, or the probe failed) is
205 * asked again.
206 */
207async function readEnvs(
208  io: Io,
209  os: Os,
210  rows: readonly PsRow[],
211  candidates: ReadonlySet<number>,
212  envs: Envs,
213): Promise<Map<number, ProcEnv>> {
214  const unread = rows.filter(row => candidates.has(row.pid) && !envs.has(envKey(row)))
215  const pids = unread.map(row => String(row.pid))
216  const stdout = pids.length === 0 ? '' : await optional(io.run(envProbe(os, pids)))
217  const found = parseEnv(stdout, new Map(unread.map(row => [row.pid, row.command])))
218  const printed = new Set(stdout.split('\n').map(line => Number(/^\s*(\d+)\s/.exec(line)?.[1])))
219  const kept: Envs = new Map()
220  const env = new Map<number, ProcEnv>()
221  for (const row of rows) {
222    const key = envKey(row)
223    if (!candidates.has(row.pid) || (!envs.has(key) && !printed.has(row.pid))) continue
224    const value = envs.has(key) ? (envs.get(key) ?? null) : (found.get(row.pid) ?? null)
225    kept.set(key, value)
226    if (value !== null) env.set(row.pid, value)
227  }
228  // Only the processes still running stay remembered.
229  envs.clear()
230  for (const [key, value] of kept) envs.set(key, value)
231  return env
232}
233
234export async function scan(io: Io, context: Context, readings: Readings, envs: Envs): Promise<Snapshot> {
235  const { os } = context
236  const [rows, entries, swept] = await Promise.all([
237    readPs(io, os),
238    readEntries(io, context.configDir),
239    io.now().then(now => sweptBefore(io, now)),
240  ])
241  const candidates = new Set(candidatesOf(rows, entries, context.selfUid, os))
242  const pids = [...candidates].map(String)
243  const [env, cwdOut] = await Promise.all([
244    readEnvs(io, os, rows, candidates, envs),
245    pids.length === 0 ? '' : optional(io.run(cwdProbe(os, pids))),
246  ])
247  const cwd = parseCwd(cwdOut)
248  const { groups, zombies } = classify({
249    rows,
250    entries,
251    env,
252    cwd,
253    missingWorktrees: await missing(io, [...cwd.values()].map(worktreeOf)),
254    // Only a snapshot the retention sweep could not have taken says its session exited.
255    missingSnapshots: await missing(
256      io,
257      rows
258        .filter(row => candidates.has(row.pid))
259        .map(row => snapshotOf(row.command))
260        .map(snapshot => (snapshot !== null && bornOf(snapshot) >= swept ? snapshot : null)),
261    ),
262    selfUid: context.selfUid,
263    os,
264  })
265  const sessions = [
266    ...groups.map(group => group.session),
267    ...zombies.flatMap(zombie => (zombie.session === null ? [] : [zombie.session])),
268  ]
269  for (const session of sessions) {
270    if (!SESSION_ID.test(session.sessionId)) continue
271    const reading = await readingOf(io, context.configDir, session.sessionId, readings).catch(() => undefined)
272    session.tokensIn = reading?.tokensIn ?? 0
273    session.tokensOut = reading?.tokensOut ?? 0
274  }
275  return {
276    scannedAt: await io.now(),
277    groups,
278    zombies,
279    totals: totalsOf(groups, zombies),
280    machine: context.machine,
281    error: null,
282  }
283}
284

1/** A picture as rows of palette keys; `.` is see-through. */
2export type Sprite = readonly string[]
3
4/**
5 * One moonlit palette. The scene is night on either theme, a framed game
6 * screen, so it needs no light and dark pair.
7 */
8const PALETTE: Readonly<Record<string, string>> = {
9  k: '#1c1830', // outline
10  K: '#3b2f4f', // brows, scar, mouth, title shadow
11  '1': '#15132b', // sky, top band
12  '2': '#1b1838',
13  '3': '#221e45',
14  '4': '#2b2552',
15  '5': '#352c5c',
16  '6': '#433566', // sky, horizon
17  m: '#f7e8a8', // moon
18  M: '#fff8d6', // moon rim light
19  n: '#cdb56f', // moon inner edge
20  y: '#fff3c4', // bright stars
21  Y: '#8e86c8', // dim stars
22  C: '#5a5196', // moonlit cloud edge
23  B: '#3a3370', // cloud wisp
24  h: '#211c3f', // far hills
25  H: '#2c2650', // far hill rim
26  q: '#16122b', // castle
27  L: '#ffd36b', // lit window, flame
28  t: '#110e22', // bats
29  i: '#1d2a3a', // near hills
30  I: '#27384a', // near hill rim
31  g: '#2f5a48', // grass
32  G: '#468a66', // moonlit grass tips
33  d: '#3a2e3f', // soil
34  D: '#2b2131', // soil specks
35  s: '#8e88b0', // stone
36  S: '#666088', // stone shade
37  w: '#c9c4e6', // stone in moonlight
38  f: '#c8f7a8', // fireflies
39  z: '#a3d99b', // zombie skin
40  e: '#ffffff', // eye shine, fang
41  c: '#f2a3b3', // rosy cheeks
42  j: '#a9c8f0', // shirt
43  x: '#1e3328', // terminal screen
44  X: '#9be59a', // phosphor prompt
45  v: '#f3e6c4', // title, wax, bone
46  V: '#d6c49a', // wax shade
47  F: '#f6c453', // coin
48  R: '#c98e2c', // coin rim
49  p: '#93cf87', // meter fill
50  P: '#f6c453', // meter fill, busy
51  Q: '#ff8a7a', // meter fill, hot
52  u: '#2f2a52', // meter track
53  U: '#5b5290', // meter frame
54}
55const SKY = ['1', '2', '3', '4', '5', '6']
56/** Keys a terminal leaves to its own background. */
57const BACKDROP = new Set(['.', ...SKY])
58const TERMINAL_DEFAULT = 0x01000000
59
60/** A headstone with a carved cross, lit from the moon's side. */
61const GRAVE: Sprite = [
62  '....kkkkk....',
63  '..kksssswkk..',
64  '.kSsssSssswk.',
65  '.kSssSSSsswk.',
66  '.kSsssSssswk.',
67  '.kSsssSssswk.',
68  '.kSssssssswk.',
69  '.kSssssssswk.',
70  '.kSssssssssk.',
71  '.kSSsssssssk.',
72  '.kSSSssssssk.',
73  'kkkkkkkkkkkkk',
74  'kSSSSSsssswwk',
75  'kkkkkkkkkkkkk',
76]
77
78/** Up on the hill, the doctor's castle: three spires, one lit window. */
79const CASTLE: Sprite = [
80  '.......q........',
81  '......qqq.......',
82  '..q...qqq...q...',
83  '.qqq..qLq..qqq..',
84  '.qqq.qqqqq.qqq..',
85  '.qqqqqqqqqqqqq..',
86  '.qqqqqqqqqqqqq..',
87  'qqqqqqqqqqqqqqqq',
88]
89
90const BAT: Sprite = ['t.....t', 'tt.t.tt', '.ttttt.']
91const WISP: Sprite = ['.....CCCCCC.........', '..CCBBBBBBBCCCC.....', '......BBBBBBBBBBBB..']
92const TWINKLE: Sprite = ['.y.', 'yyy', '.y.']
93const FIREFLY: Sprite = ['f']
94
95/** The icon set: twelve pixels square, outlined, lit from the top left, so any two line up. */
96/** The same zombie's face: the mark for whatever was left behind. */
97export const ICON_ZOMBIE: Sprite = [
98  '....k..k....',
99  '..kkkkkkkk..',
100  '.kzzzzzKzzk.',
101  'kzzzzzKKKzzk',
102  'kzeKzzzzeKzk',
103  'kzKKzzzzKKzk',
104  'kczzzzzzzzck',
105  'kzzzzKwKzzzk',
106  '.kzzzzzzzzk.',
107  '..kkzzzzkk..',
108  '...kjjjjk...',
109  '..kjjjjjjk..',
110]
111/** A beige terminal with a green prompt: a Claude Code session at work. */
112export const ICON_TERMINAL: Sprite = [
113  '.kkkkkkkkkk.',
114  'kvvvvvvvvvVk',
115  'kvkkkkkkkkVk',
116  'kvkxxxxxxkVk',
117  'kvkXxxxxxkVk',
118  'kvkxXxxxxkVk',
119  'kvkXxXXxxkVk',
120  'kvkkkkkkkkVk',
121  'kVVVVVVVVVVk',
122  '.kkkkVVkkkk.',
123  '...kVVVVk...',
124  '..kkkkkkkk..',
125]
126/** A cog: a running process. */
127export const ICON_GEAR: Sprite = [
128  '.....kk.....',
129  '..kkkwwkkk..',
130  '.kwwkwskssk.',
131  '.kwwwsssssk.',
132  '.kkwskksskk.',
133  'kwwsk..ksSSk',
134  'kwssk..kSSSk',
135  '.kksskkSSkk.',
136  '.kssssSSSSk.',
137  '.ksskSSkSSk.',
138  '..kkkSSkkk..',
139  '.....kk.....',
140]
141/** A coin: tokens spent. */
142export const ICON_COIN: Sprite = [
143  '.....kk.....',
144  '...kRRRRk...',
145  '..kRvvvFRk..',
146  '.kRvvvRFFRk.',
147  '.RvvvRRFFFR.',
148  'kRvvFRRFFFRk',
149  'kRvFFRRFFFRk',
150  '.RFFFRRFFFR.',
151  '.kRFFRRFFRk.',
152  '..kRFFFFRk..',
153  '...kRRRRk...',
154  '.....kk.....',
155]
156const FONT: Readonly<Record<string, Sprite>> = {
157  D: ['####.', '#...#', '#...#', '#...#', '####.'],
158  E: ['#####', '#....', '####.', '#....', '#####'],
159  I: ['###', '.#.', '.#.', '.#.', '###'],
160  N: ['#...#', '##..#', '#.#.#', '#..##', '#...#'],
161  P: ['####.', '#...#', '####.', '#....', '#....'],
162  R: ['####.', '#...#', '####.', '#..#.', '#...#'],
163  S: ['.####', '#....', '.###.', '....#', '####.'],
164  T: ['#####', '..#..', '..#..', '..#..', '..#..'],
165  ' ': ['..', '..', '..', '..', '..'],
166}
167
168const BANNER_W = 128
169const BANNER_H = 44
170const GRASS = 34
171const GRAVES = [4, 38, 72, 106]
172const STARS: ReadonlyArray<readonly [number, number]> = [
173  [66, 3],
174  [80, 16],
175  [44, 12],
176  [123, 21],
177]
178const SPECKS: ReadonlyArray<readonly [number, number]> = [
179  [72, 9],
180  [92, 4],
181  [56, 13],
182  [8, 14],
183  [40, 19],
184  [100, 22],
185  [62, 21],
186  [16, 21],
187]
188const FIREFLIES: ReadonlyArray<readonly [number, number]> = [
189  [37, 27],
190  [71, 24],
191  [104, 29],
192  [2, 26],
193]
194
195type Canvas = string[][]
196
197const blank = (width: number, height: number, key = '.'): Canvas =>
198  Array.from({ length: height }, () => Array.from({ length: width }, () => key))
199
200function paint(canvas: Canvas, x: number, y: number, key: string): void {
201  const row = canvas[y]
202  if (row !== undefined && x >= 0 && x < row.length) row[x] = key
203}
204
205function stamp(canvas: Canvas, sprite: Sprite, left: number, top: number): void {
206  sprite.forEach((row, y) => {
207    ;[...row].forEach((key, x) => {
208      if (key !== '.') paint(canvas, left + x, top + y, key)
209    })
210  })
211}
212
213const flat = (canvas: Canvas): Sprite => canvas.map(row => row.join(''))
214
215/** A fixed 0-99 noise per pixel, so speckles look scattered yet never move between draws. */
216const scatter = (x: number, y: number): number => (((x * 73856093) ^ (y * 19349663)) >>> 0) % 100
217
218/** A crescent lit from the right: a disc with an offset disc bitten out of it. */
219function crescent(size: number): Sprite {
220  const r = size / 2
221  const canvas = blank(size, size)
222  for (let y = 0; y < size; y += 1) {
223    for (let x = 0; x < size; x += 1) {
224      const cx = x + 0.5 - r
225      const cy = y + 0.5 - r
226      const fromCentre = Math.hypot(cx, cy)
227      const fromBite = Math.hypot(cx + 0.45 * r, cy + 0.2 * r)
228      const bite = 0.85 * r
229      if (fromCentre > r || fromBite <= bite) continue
230      const key = fromBite <= bite + 1.2 ? 'n' : r - fromCentre < 1.2 && cx > 0 ? 'M' : 'm'
231      paint(canvas, x, y, key)
232    }
233  }
234  return flat(canvas)
235}
236
237/** `text` in the 5-pixel font, filled `fill`, outlined in `k` over a one-pixel drop shadow. */
238function lettering(text: string, fill: string): Sprite {
239  const glyphs = [...text].map(letter => FONT[letter] ?? FONT[' '] ?? [])
240  const inner = glyphs.reduce((width, glyph) => width + (glyph[0]?.length ?? 0) + 1, -1)
241  const canvas = blank(inner + 3, 5 + 3)
242  const ink: Array<[number, number]> = []
243  let left = 1
244  for (const glyph of glyphs) {
245    glyph.forEach((row, y) => {
246      ;[...row].forEach((bit, x) => {
247        if (bit === '#') ink.push([left + x, 1 + y])
248      })
249    })
250    left += (glyph[0]?.length ?? 0) + 1
251  }
252  const around = (key: string, shift: number) => {
253    for (const [x, y] of ink) {
254      for (let dy = -1; dy <= 1; dy += 1) {
255        for (let dx = -1; dx <= 1; dx += 1) paint(canvas, x + dx, y + dy + shift, key)
256      }
257    }
258  }
259  around('K', 1)
260  around('k', 0)
261  for (const [x, y] of ink) paint(canvas, x, y, fill)
262  return flat(canvas)
263}
264
265export const title = (): Sprite => lettering('REST IN PID', 'v')
266
267const farHill = (x: number) => 24 + Math.round(2.5 * Math.sin(x / 10) + 1.5 * Math.sin(x / 4.7))
268const nearHill = (x: number) => 29 + Math.round(2 * Math.sin(x / 7 + 1) + 1.5 * Math.sin(x / 3.1))
269
270/** The still part of the graveyard: sky, moon, hills, castle, title, graves and ground. */
271export function scene(): Sprite {
272  const canvas = blank(BANNER_W, BANNER_H, '6')
273  for (let y = 0; y < GRASS; y += 1) {
274    const band = Math.min(Math.floor(y / 6), SKY.length - 1)
275    for (let x = 0; x < BANNER_W; x += 1) {
276      // A dithered seam between bands, as SNES skies were banded.
277      const isSeam = band > 0 && y % 6 === 0 && (x + y) % 2 === 0
278      paint(canvas, x, y, SKY[isSeam ? band - 1 : band] ?? '6')
279    }
280  }
281  for (const [x, y] of SPECKS) paint(canvas, x, y, 'Y')
282  stamp(canvas, crescent(15), 106, 2)
283  stamp(canvas, WISP, 94, 12)
284  stamp(canvas, BAT, 84, 5)
285  stamp(canvas, BAT, 95, 1)
286  for (let x = 0; x < BANNER_W; x += 1) {
287    const far = farHill(x)
288    for (let y = far; y < GRASS; y += 1) paint(canvas, x, y, y === far ? 'H' : 'h')
289  }
290  stamp(canvas, CASTLE, 90, farHill(97) - CASTLE.length + 1)
291  for (let x = 0; x < BANNER_W; x += 1) {
292    const near = nearHill(x)
293    for (let y = near; y < GRASS; y += 1) paint(canvas, x, y, y === near ? 'I' : 'i')
294  }
295  stamp(canvas, title(), 4, 3)
296  for (const x of GRAVES) stamp(canvas, GRAVE, x, GRASS - GRAVE.length)
297  for (let x = 0; x < BANNER_W; x += 1) {
298    if (scatter(x, 1) < 35) paint(canvas, x, GRASS - 1, 'G')
299    for (let y = GRASS; y < BANNER_H; y += 1) {
300      const key =
301        y < GRASS + 2 ? (scatter(x, y) < 25 ? 'G' : 'g') : y === GRASS + 2 || scatter(x, y) < 9 ? 'D' : 'd'
302      paint(canvas, x, y, key)
303    }
304  }
305  return flat(canvas)
306}
307
308/** What moves over the scene, each sprite with where its top-left pixel goes. */
309export const ACTORS = {
310  stars: STARS.map(([x, y]) => ({ sprite: TWINKLE, x: x - 1, y: y - 1 })),
311  fireflies: FIREFLIES.map(([x, y]) => ({ sprite: FIREFLY, x, y })),
312}
313
314/** A segmented meter, as a status window draws HP: green, amber past 60%, coral past 85%. */
315export function meter(fraction: number, segments: number): Sprite {
316  const width = segments * 4 + 3
317  const canvas = blank(width, 8, 'u')
318  for (let x = 0; x < width; x += 1) {
319    paint(canvas, x, 0, 'U')
320    paint(canvas, x, 7, 'U')
321  }
322  for (let y = 0; y < 8; y += 1) {
323    paint(canvas, 0, y, 'U')
324    paint(canvas, width - 1, y, 'U')
325  }
326  const lit = fraction <= 0 ? 0 : Math.max(1, Math.min(segments, Math.round(fraction * segments)))
327  const fill = fraction > 0.85 ? 'Q' : fraction > 0.6 ? 'P' : 'p'
328  for (let segment = 0; segment < segments; segment += 1) {
329    for (let y = 2; y < 6; y += 1) {
330      for (let dx = 0; dx < 3; dx += 1) paint(canvas, 2 + segment * 4 + dx, y, segment < lit ? fill : 'U')
331    }
332  }
333  return flat(canvas)
334}
335
336/**
337 * A sprite as SVG paths, one per colour, placed at (x, y) and scaled: what
338 * every drawing is built from. One path per colour keeps a whole board far
339 * below the 131,072-character Svg cap.
340 */
341export function pixels(sprite: Sprite, x: number, y: number, scale: number): string {
342  const paths = new Map<string, string>()
343  sprite.forEach((row, top) => {
344    for (let left = 0; left < row.length; ) {
345      const key = row[left] ?? '.'
346      let run = 1
347      while (row[left + run] === key) run += 1
348      if (key !== '.') paths.set(key, `${paths.get(key) ?? ''}M${left} ${top}h${run}v1h-${run}z`)
349      left += run
350    }
351  })
352  const body = [...paths].map(([key, d]) => `<path fill="${PALETTE[key] ?? '#ff00ff'}" d="${d}"/>`).join('')
353  return `<g transform="translate(${x} ${y}) scale(${scale})" shape-rendering="crispEdges">${body}</g>`
354}
355
356/** Two pixels per terminal cell: the upper one as a half block's ink, the lower one as its background. */
357export function raster(sprite: Sprite): { columns: number; rows: number; cells: string } {
358  const columns = sprite[0]?.length ?? 0
359  const rows = Math.ceil(sprite.length / 2)
360  const colour = (key: string | undefined) =>
361    key === undefined || BACKDROP.has(key) ? TERMINAL_DEFAULT : parseInt((PALETTE[key] ?? '#ffffff').slice(1), 16)
362  const words = new Uint32Array(columns * rows * 3)
363  for (let y = 0; y < rows; y += 1) {
364    for (let x = 0; x < columns; x += 1) {
365      const top = colour(sprite[y * 2]?.[x])
366      const bottom = colour(sprite[y * 2 + 1]?.[x])
367      const cell =
368        top !== TERMINAL_DEFAULT
369          ? [0x2580, top, bottom]
370          : bottom !== TERMINAL_DEFAULT
371            ? [0x2584, bottom, TERMINAL_DEFAULT]
372            : [0x20, TERMINAL_DEFAULT, TERMINAL_DEFAULT]
373      words.set(cell, (y * columns + x) * 3)
374    }
375  }
376  let binary = ''
377  for (const byte of new Uint8Array(words.buffer)) binary += String.fromCharCode(byte)
378  return { columns, rows, cells: btoa(binary) }
379}
380

1import type { ClientModule } from 'claude-code'
2
3/**
4 * A see-through region laid over a section's drawn heading, so the whole
5 * strip toggles its section: an Svg takes no press, and a Button would draw
6 * its own chrome over the design. A click, or Enter once it has the focus,
7 * tells the hooks module which section to open or close.
8 */
9const Press: ClientModule<{ section: string }, true> = (props, surface) => {
10  if (surface.state === undefined) {
11    const toggle = () => surface.post({ toggle: props.section })
12    // A press lands on the button going down, which only happens inside the region.
13    surface.onPointer(event => {
14      if (event.type === 'down' && event.button === 'left') toggle()
15    })
16    surface.onKey(event => {
17      if (event.key === 'return' || event.key === ' ') toggle()
18    })
19    surface.setState(true)
20  }
21  const { Box } = surface.elements
22  return <Box width="100%" height="100%" />
23}
24
25export default Press
26

1/** One process on the board: a live session's own, or part of a zombie's tree. */
2export type Proc = {
3  pid: number
4  ppid: number
5  /** Its process group, which a child spawned while it dies shares. */
6  pgid: number
7  /** `ps` lstart in UTC. With `pid` and `command` it is what a kill checks again. */
8  started: string
9  command: string
10  label: string
11  cpu: number
12  rssKb: number
13  isDefunct: boolean
14  depth: number
15}
16
17export type Session = {
18  sessionId: string
19  /** The session's host process while it runs; null once it ended. */
20  pid: number | null
21  name: string
22  status: string
23  place: string
24  tokensIn: number
25  tokensOut: number
26}
27
28export type SessionGroup = { session: Session; procs: Proc[] }
29
30export type ZombieReason = 'session-ended' | 'no-live-session' | 'worktree-deleted'
31
32export type Zombie = {
33  root: Proc
34  /** The root's descendants, depth-first. */
35  children: Proc[]
36  reason: ZombieReason
37  session: Session | null
38  place: string
39}
40
41export type Totals = {
42  procs: number
43  cpu: number
44  rssKb: number
45  tokensIn: number
46  tokensOut: number
47}
48
49/** What the CPU and memory meters measure against; 0 where the host would not say. */
50export type Machine = { cores: number; memoryKb: number }
51
52export type Snapshot = {
53  scannedAt: number
54  groups: SessionGroup[]
55  zombies: Zombie[]
56  totals: Totals
57  machine: Machine
58  error: string | null
59}
60
61declare module 'claude-code' {
62  interface PluginState {
63    'rest-in-pid': {
64      snapshot: Snapshot | null
65      isArmed: boolean
66      killing: number[]
67      isPlaced: boolean
68      zombieCount: number
69      zombiesOpen: boolean
70      sessionsOpen: boolean
71    }
72  }
73}
74
