viz

1import { atom, read, update } from 'claude-code'
2import type { Register } from 'claude-code'
3
4import type { EngineInterface } from 'claude-code'
5
6import { drawSegments } from './draw'
7import { CELL_PX, DOT_THEME_ARGS, NOTE, RENDER_DIR, chartSpec, hash, pngSize, sliceLines } from './graph'
8import type { Loaded, Rendered } from './graph'
9import { holdViz } from './hold'
10import { SNIPPET_MAX_LINES, hasViz, segment } from './parse'
11import type { Chart, Graph, Snippet } from './parse'
12import type { Drawing } from '../types'
13
14const drawing = atom({ plugin: 'viz', key: 'drawing' } as const, null as Drawing)
15
16// A code block's lines: inline source at once, a file's lines once read.
17// Read once per module life, so an edit after the reply does not move them.
18const snippets = new Map<string, Loaded>()
19
20const snippetOf = ($: EngineInterface, block: Snippet): Loaded => {
21  if (block.source !== undefined) {
22    return sliceLines(block.source, 1, undefined, SNIPPET_MAX_LINES)
23  }
24
25  const path = block.path ?? ''
26  const start = block.start ?? 1
27  const id = `${path}:${start}:${block.end ?? ''}`
28  const known = snippets.get(id)
29  if (known !== undefined) return known
30
31  snippets.set(id, { kind: 'pending' })
32  void $.fs
33    .read(path)
34    .then(
35      text => sliceLines(text, start, block.end, SNIPPET_MAX_LINES),
36      (error: unknown): Loaded => ({ kind: 'failed', reason: error instanceof Error ? error.message : String(error) }),
37    )
38    .then(loaded => {
39      snippets.set(id, loaded)
40      $.ui.invalidate('ui.render')
41    })
42
43  return { kind: 'pending' }
44}
45
46// Each distinct picture source is rendered once for the module's life; a
47// reload renders again, which is cheap.
48const pictures = new Map<string, Rendered>()
49
50const pictureOf = ($: EngineInterface, block: Graph | Chart): Rendered => {
51  const source = block.type === 'graph' ? block.dot : JSON.stringify(chartSpec(block.spec))
52  const id = `${block.type}-${hash(source)}`
53  const known = pictures.get(id)
54  if (known !== undefined) return known
55
56  pictures.set(id, { kind: 'pending' })
57  void renderPicture($, id, block.type, source).then(rendered => {
58    pictures.set(id, rendered)
59    $.ui.invalidate('ui.render')
60  })
61
62  return { kind: 'pending' }
63}
64
65// Why a renderer failed, in one line.
66const failure = (tool: string, ran: { exitCode: number; stderr: string }): Rendered => ({
67  kind: 'failed',
68  reason: ran.stderr.trim().split('\n')[0] || `${tool} exited with ${ran.exitCode}`,
69})
70
71const renderPicture = async (
72  $: EngineInterface,
73  id: string,
74  kind: 'graph' | 'chart',
75  source: string,
76): Promise<Rendered> => {
77  const png = `${RENDER_DIR}/${id}.png`
78  // A renderer's first warning: why a picture came out empty, say.
79  let warning: string | undefined
80
81  try {
82    await $.process.run(['mkdir', '-p', RENDER_DIR])

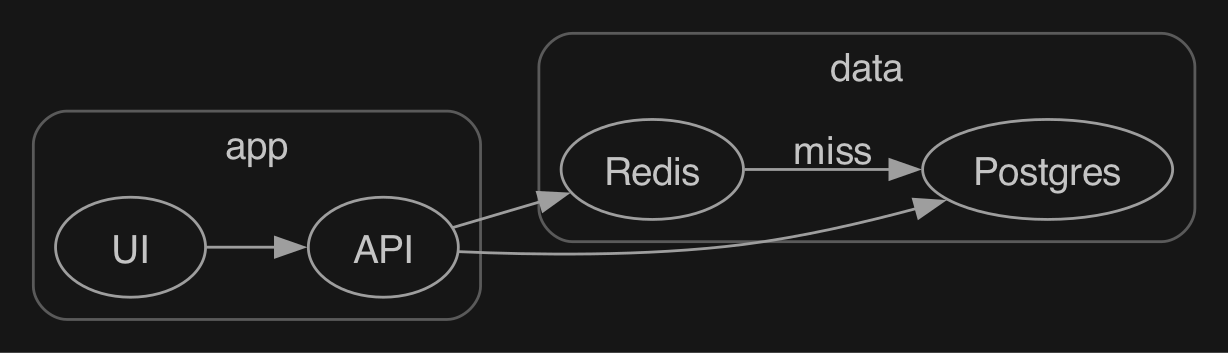

83
84    if (kind === 'graph') {
85      const ran = await $.process.run(['dot', '-Tpng', '-Gdpi=144', '-Gpad=0.2', ...DOT_THEME_ARGS, '-o', png], {
86        stdin: source,
87        timeoutMs: 15_000,
88      })
89      if (ran.exitCode !== 0) return failure('dot', ran)

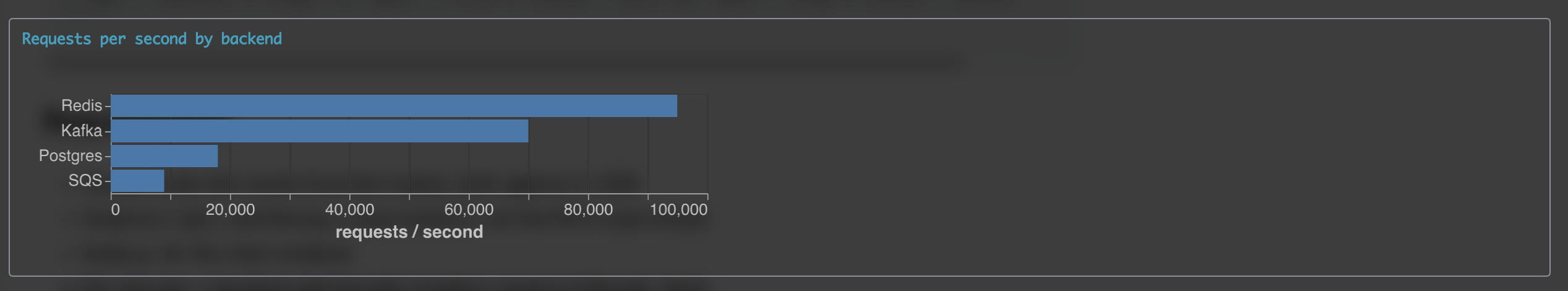

90    } else {
91      // Vega-Lite to SVG with the mod's own vega-cli, then SVG to a PNG at
92      // twice the size, as dot's 144 dpi is.
93      const spec = `${RENDER_DIR}/${id}.vl.json`
94      const svg = `${RENDER_DIR}/${id}.svg`
95      await $.fs.write(spec, source)
96      const vl = await $.process.run([`${$.plugin.root}/renderers/node_modules/.bin/vl2svg`, spec, svg], {
97        timeoutMs: 30_000,
98      })
99      if (vl.exitCode !== 0) return failure('vl2svg', vl)
100      warning = vl.stderr
101        .split('\n')
102        .find(line => line.startsWith('WARN'))
103        ?.replace(/^WARN\s*/, '')
104      const rsvg = await $.process.run(['rsvg-convert', '-z', '2', svg, '-o', png], { timeoutMs: 15_000 })
105      if (rsvg.exitCode !== 0) return failure('rsvg-convert', rsvg)
106    }
107
108    const { base64 } = await $.fs.read(png, { as: 'bytes' })
109    const size = pngSize(base64)
110    if (size !== undefined) lastPicture = png
111
112    // Sent inline: a file path leaves the terminal to open it itself.
113    return size === undefined
114      ? { kind: 'failed', reason: 'no PNG was written' }
115      : { kind: 'ready', png: base64, ...size, warning }
116  } catch (error) {
117    return { kind: 'failed', reason: error instanceof Error ? error.message : String(error) }
118  }
119}

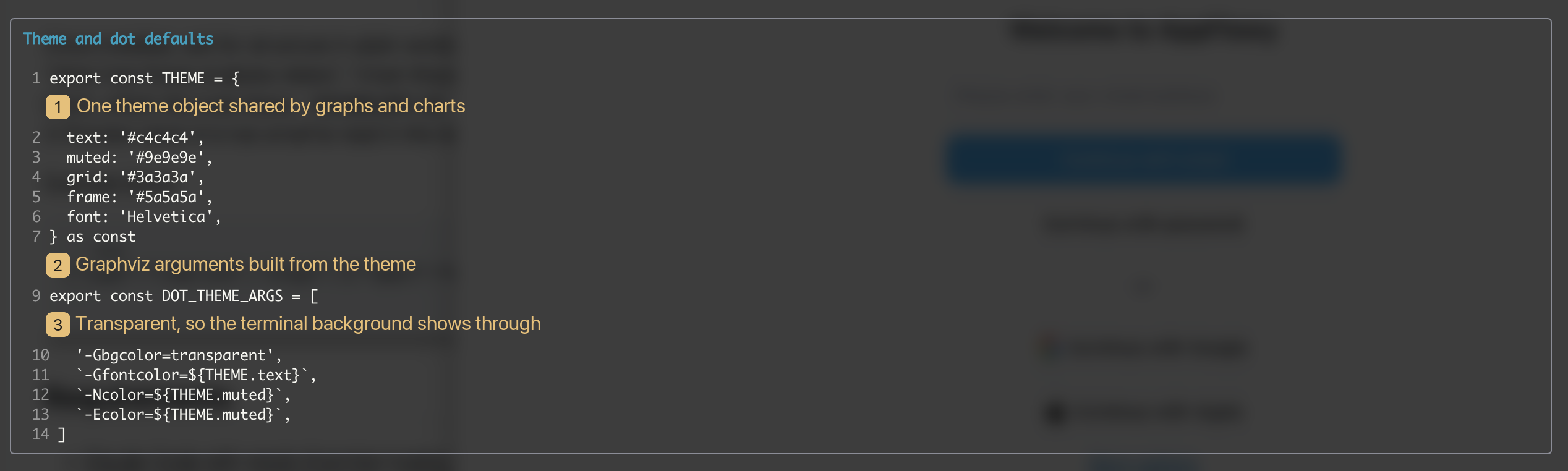

120
121// Code-block note `n` as a picture `columns` cells wide: a numbered badge,
122// then the text. Rendered once per number, text and width (a resize renders
123// again, at the new width).
124const noteOf = ($: EngineInterface, n: number, text: string, columns: number): Rendered => {
125  const id = `note-${n}-${hash(text)}-${columns}`
126  const known = pictures.get(id)
127  if (known !== undefined) return known
128
129  pictures.set(id, { kind: 'pending' })
130  void renderNote($, id, n, text, columns).then(rendered => {
131    pictures.set(id, rendered)
132    $.ui.invalidate('ui.render')
133  })
134
135  return { kind: 'pending' }
136}
137
138const renderNote = async (
139  $: EngineInterface,
140  id: string,
141  n: number,
142  text: string,
143  columns: number,
144): Promise<Rendered> => {
145  const txt = `${RENDER_DIR}/${id}.txt`
146  const textPng = `${RENDER_DIR}/${id}.text.png`
147  const png = `${RENDER_DIR}/${id}.png`
148  const width = columns * CELL_PX.width
149  const textWidth = width - NOTE.badgeSlot
150
151  try {
152    await $.process.run(['mkdir', '-p', RENDER_DIR])
153    await $.fs.write(txt, text)
154    const drawn = await $.process.run(
155      [
156        'magick',
157        '-background', 'none',
158        '-fill', NOTE.color,
159        '-font', NOTE.font,
160        '-pointsize', String(NOTE.points),
161        '-interline-spacing', String(NOTE.interline),
162        '-size', `${textWidth}x`,
163        `caption:@${txt}`,
164        textPng,
165      ],
166      { timeoutMs: 15_000 },
167    )
168    if (drawn.exitCode !== 0) return failure('magick', drawn)
169
170    const size = pngSize((await $.fs.read(textPng, { as: 'bytes' })).base64)
171    if (size === undefined) return { kind: 'failed', reason: 'magick wrote no PNG' }
172
173    // Whole rows, so the Image box holds the note unstretched; the badge
174    // and the text are centred in them. `n` is the mod's own count, so it
175    // is safe on the command line where the model's text is not.
176    const height = Math.max(1, Math.ceil(size.height / CELL_PX.height)) * CELL_PX.height
177    const b = NOTE.badge
178    // The text is centred in its rows; the badge sits beside its first line.
179    const textTop = Math.floor((height - size.height) / 2)
180    const badgeLeft = Math.floor((NOTE.badgeSlot - b) / 2)
181    const badgeTop = Math.max(0, textTop + Math.floor((NOTE.lineHeight - b) / 2))
182    const joined = await $.process.run(
183      [
184        'magick',
185        '(',
186        '-size', `${b}x${b}`, 'xc:none',
187        '-fill', NOTE.color,
188        '-draw', `roundrectangle 0,0 ${b - 1},${b - 1} 10,10`,
189        '-fill', NOTE.badgeText,
190        '-font', NOTE.font,
191        '-pointsize', String(NOTE.badgePoints),
192        '-gravity', 'center',
193        '-annotate', '+0+0', String(n),
194        '-background', 'none',
195        '-gravity', 'northwest',
196        '-extent', `${NOTE.badgeSlot}x${height}-${badgeLeft}-${badgeTop}`,
197        ')',
198        '(',
199        textPng,
200        '-background', 'none',
201        '-gravity', 'west',
202        '-extent', `${textWidth}x${height}`,
203        ')',
204        '+append',
205        '+repage',
206        png,
207      ],
208      { timeoutMs: 15_000 },
209    )
210    if (joined.exitCode !== 0) return failure('magick', joined)
211
212    const { base64 } = await $.fs.read(png, { as: 'bytes' })
213    return { kind: 'ready', png: base64, width, height }
214  } catch (error) {
215    return { kind: 'failed', reason: error instanceof Error ? error.message : String(error) }
216  }
217}
218
219// The picture rendered last, for /viz-open; after a reload, the newest
220// graph, chart or types picture on disk stands in.
221let lastPicture: string | undefined
222
223const latestPicture = async ($: EngineInterface): Promise<string | undefined> => {
224  if (lastPicture !== undefined) return lastPicture
225  const listed = await $.process.run(['ls', '-t', RENDER_DIR])
226  const newest = listed.stdout.split('\n').find(name => /^(graph|chart)-[0-9a-f]+\.png$/.test(name))
227  return newest !== undefined ? `${RENDER_DIR}/${newest}` : undefined
228}
229
230export const register: Register = on => {
231  // /viz-open: the latest picture full size in Preview, to zoom and pan.
232  on('session.start', async ($, e, next) => {
233    await $.command.register({
234      name: 'viz-open',
235      description: 'Open the latest viz diagram or chart full size in Preview',
236    })
237    return next(e)
238  })
239
240  on('command.run', { command: 'viz-open' }, async $ => {
241    const picture = await latestPicture($)
242    if (picture === undefined) return { text: 'No viz diagram or chart has been drawn yet.' }
243
244    const opened = await $.process.run(['open', '-a', 'Preview', picture])
245    return {
246      text: opened.exitCode === 0 ? `Opened ${picture} in Preview.` : `Could not open ${picture}: ${opened.stderr.trim()}`,
247    }
248  })
249
250  // The live stream is drawn by the engine, not by ui.render, so a block is
251  // held back until it is whole rather than shown as raw JSON.
252  on('turn.step', async function* ($, e, next) {
253    const stream = next(e)
254    if (e.agentId !== undefined) return yield* stream
255
256    // Writes are chained so a late one never lands before an earlier one.
257    let writes = Promise.resolve()
258    const show = (type: string | undefined) => {
259      writes = writes.then(async () => {
260        await update($, drawing, () => (type === undefined ? null : `Drawing ${type}`))
261      })
262    }
263
264    yield* holdViz(stream, show)
265    await writes
266
267    return await stream.result
268  })
269
270  // While a block is held, the spinner says so in place of its word.
271  on('ui.render', { component: 'Spinner' }, async ($, e, next) => {
272    const message = await read($, drawing)
273
274    return message === null ? next(e) : next({ ...e, props: { ...e.props, message } })
275  })
276
277  on('ui.render', { component: 'AssistantMessage' }, async ($, e, next) => {
278    if (!hasViz(e.props.text)) return next(e)
279
280    // The row sits behind the reply's two-column bullet.
281    const columns = (e.viewport?.columns ?? 80) - 2
282
283    return drawSegments($.ui.resolve(e), segment(e.props.text), columns, {
284      picture: block => pictureOf($, block),
285      snippet: block => snippetOf($, block),
286      note: (n, text, width) => noteOf($, n, text, width),
287    })
288  })
289}
290

1// Draws each viz block from Box and Text, which every surface has; a graph
2// or chart block is a picture where the surface has Image (the terminal),
3// and elsewhere its dot source as code or its data as a table.
4
5import type { ElementTable, RenderElement } from 'claude-code'
6
7import { CELL_PX, NOTE, typesToDot } from './graph'
8import type { Loaded, Rendered } from './graph'
9import { nest, parseAt } from './parse'
10import type {
11  Chart,
12  Compare,
13  Graph,
14  Node,
15  Segment,
16  Sequence,
17  SequenceKind,
18  Snippet,
19  Status,
20  Timeline,
21  Trace,
22  TraceKind,
23  Tree,
24  Types,
25} from './parse'
26
27type Els = Pick<ElementTable, 'Box' | 'Text' | 'Markdown' | 'Code'> & {
28  Image?: ElementTable<'terminal'>['Image']
29}
30
31// What the render hook fetches for a block: a graph or chart's picture, a
32// code block's lines; each pending, ready or failed.
33export type Lookups = {
34  picture: (block: Graph | Chart) => Rendered
35  snippet: (block: Snippet) => Loaded
36  note: (n: number, text: string, columns: number) => Rendered
37}
38
39const ACCENT = 'cyan'
40const GOOD = 'green'
41
42export const drawSegments = (els: Els, segments: Segment[], columns: number, lookups: Lookups): RenderElement => {
43  const { Box } = els
44
45  return (
46    <Box flexDirection="column" gap={1}>
47      {segments.map((s, i) => drawSegment(els, s, columns, lookups, `seg:${i}`))}
48    </Box>
49  )
50}
51
52const drawSegment = (els: Els, s: Segment, columns: number, lookups: Lookups, key: string): RenderElement => {
53  const { Box, Text, Markdown } = els
54
55  if (s.kind === 'markdown') return <Markdown key={key} text={s.text} />
56
57  if (s.kind === 'pending') {
58    return (
59      <Text dimColor italic>
60        ◌ drawing {s.hint}…
61      </Text>
62    )
63  }
64
65  if (s.kind === 'broken') {
66    return (
67      <Box flexDirection="column">
68        <Markdown key={key} text={s.source} />
69        <Text dimColor>viz: {s.reason}, shown as text</Text>
70      </Box>
71    )
72  }
73
74  // Inside the frame: two border columns and one of padding each side.
75  const inner = Math.max(20, columns - 4)
76  const body =
77    s.viz.type === 'compare'
78      ? drawCompare(els, s.viz, inner)
79      : s.viz.type === 'timeline'
80        ? drawTimeline(els, s.viz, inner)
81        : s.viz.type === 'graph' || s.viz.type === 'chart'
82          ? drawPicture(els, s.viz, inner, lookups.picture(s.viz))
83          : s.viz.type === 'code'
84            ? drawSnippet(els, s.viz, lookups.snippet(s.viz), inner, lookups.note)
85            : s.viz.type === 'trace'
86              ? drawTrace(els, s.viz, inner, lookups.snippet)
87              : s.viz.type === 'sequence'
88                ? drawSequence(els, s.viz, inner)
89                : s.viz.type === 'types'
90                  ? drawTypes(els, s.viz, inner, lookups.picture)
91                  : drawTree(els, s.viz)
92
93  return (
94    <Box key={key} flexDirection="column" borderStyle="round" borderColor="gray" paddingX={1}>
95      {s.viz.title !== undefined && (
96        <Box marginBottom={1}>
97          <Text bold color={ACCENT}>
98            {s.viz.title}
99          </Text>
100        </Box>
101      )}
102      {body}
103    </Box>
104  )
105}
106

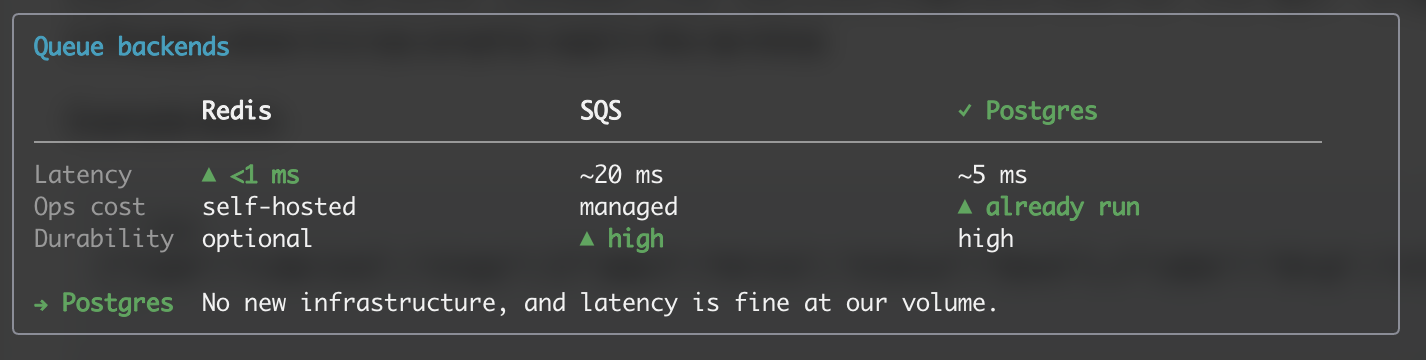

107// compare: options as columns, criteria as rows, the best cell of each row
108// and the picked option marked; stacked cards when the columns would be too
109// narrow to read.
110const drawCompare = (els: Els, c: Compare, width: number): RenderElement => {
111  const { Box, Text } = els
112  const labelWidth = Math.min(22, Math.max(...c.criteria.map(r => r.name.length)) + 2)
113  const optionWidth = Math.floor((width - labelWidth) / c.options.length)
114  const isPick = (i: number) => c.pick === i
115
116  const verdict = c.pick !== undefined && c.options[c.pick] !== undefined && (
117    <Box marginTop={1}>
118      <Text>
119        <Text bold color={GOOD}>
120          → {c.options[c.pick]}
121        </Text>
122        {c.why !== undefined && <Text>  {c.why}</Text>}
123      </Text>
124    </Box>
125  )
126
127  if (optionWidth < 14) {
128    return (
129      <Box flexDirection="column" gap={1}>
130        {c.options.map((option, i) => (
131          <Box flexDirection="column">
132            <Text bold color={isPick(i) ? GOOD : undefined}>
133              {isPick(i) ? '✓ ' : '  '}
134              {option}
135            </Text>
136            {c.criteria.map(row => (
137              <Text>
138                <Text dimColor>  {row.name}: </Text>
139                <Text color={row.best === i ? GOOD : undefined} bold={row.best === i}>
140                  {row.values[i]}
141                </Text>
142              </Text>
143            ))}
144          </Box>
145        ))}
146        {verdict}
147      </Box>
148    )
149  }
150
151  return (
152    <Box flexDirection="column">
153      <Box flexDirection="row">
154        <Box width={labelWidth}>
155          <Text> </Text>
156        </Box>
157        {c.options.map((option, i) => (
158          <Box width={optionWidth} paddingRight={1}>
159            <Text bold color={isPick(i) ? GOOD : undefined}>
160              {isPick(i) ? '✓ ' : ''}
161              {option}
162            </Text>
163          </Box>
164        ))}
165      </Box>
166      <Text dimColor>{'─'.repeat(Math.max(1, labelWidth + optionWidth * c.options.length - 1))}</Text>
167      {c.criteria.map(row => (
168        <Box flexDirection="row">
169          <Box width={labelWidth}>
170            <Text dimColor>
171              {row.name}
172            </Text>
173          </Box>
174          {row.values.map((value, i) => (
175            <Box width={optionWidth} paddingRight={1}>
176              <Text color={row.best === i ? GOOD : undefined} bold={row.best === i}>
177                {row.best === i ? '▲ ' : ''}
178                {value}
179              </Text>
180            </Box>
181          ))}
182        </Box>
183      ))}
184      {verdict}
185    </Box>
186  )
187}
188
189const GLYPH: Record<Status, { mark: string; color: string; strip: string }> = {
190  done: { mark: '✔', color: GOOD, strip: '■' },
191  active: { mark: '▶', color: ACCENT, strip: '■' },
192  blocked: { mark: '✖', color: 'red', strip: '■' },
193  todo: { mark: '○', color: 'gray', strip: '□' },
194}
195

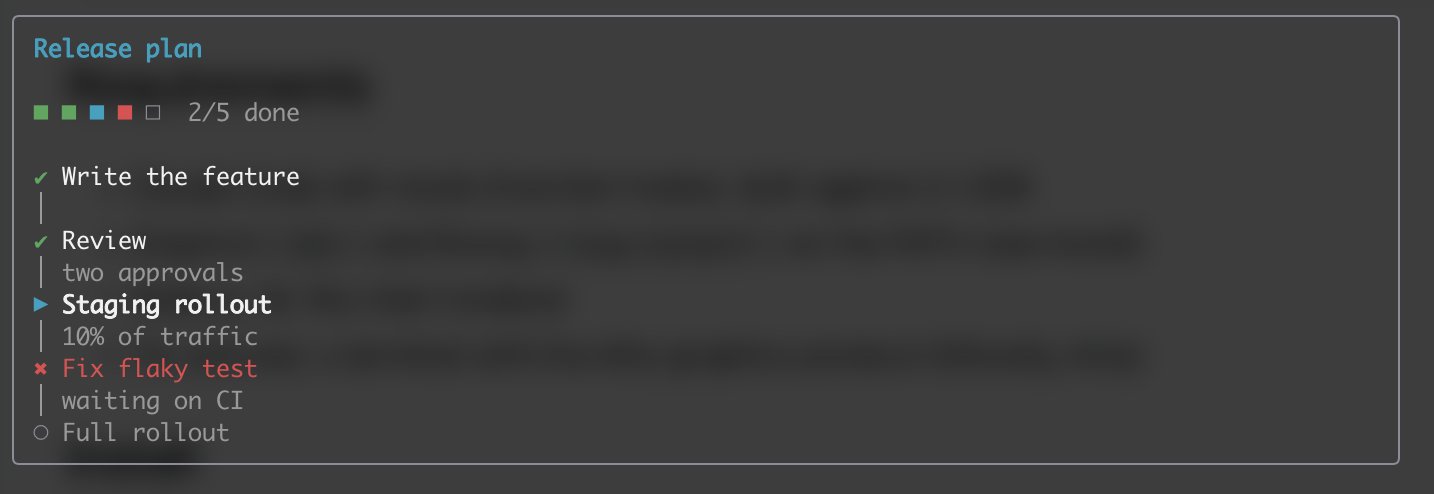

196// timeline: a one-line progress strip, then the steps on a rail.
197const drawTimeline = (els: Els, t: Timeline, width: number): RenderElement => {
198  const { Box, Text } = els
199  const done = t.steps.filter(s => s.status === 'done').length
200
201  return (
202    <Box flexDirection="column">
203      <Box marginBottom={1}>
204        <Text>
205          {t.steps.map(s => (
206            <Text color={GLYPH[s.status].color}>{GLYPH[s.status].strip} </Text>
207          ))}
208          <Text dimColor>
209            {' '}
210            {done}/{t.steps.length} done
211          </Text>
212        </Text>
213      </Box>
214      {t.steps.map((s, i) => {
215        const g = GLYPH[s.status]
216        const isLast = i === t.steps.length - 1
217
218        return (
219          <Box flexDirection="row">
220            <Box flexDirection="column" width={2}>
221              <Text color={g.color} bold>
222                {g.mark}
223              </Text>
224              {!isLast && <Text dimColor>│</Text>}
225            </Box>
226            <Box flexDirection="column" width={Math.max(10, width - 2)}>
227              <Text
228                bold={s.status === 'active'}
229                dimColor={s.status === 'todo'}
230                color={s.status === 'blocked' ? 'red' : undefined}
231              >
232                {s.label}
233              </Text>
234              {s.detail !== undefined && <Text dimColor>{s.detail}</Text>}
235            </Box>
236          </Box>
237        )
238      })}
239    </Box>
240  )
241}
242
243const CHANGE = {
244  add: { mark: '+', color: GOOD },
245  edit: { mark: '~', color: 'yellow' },
246  del: { mark: '-', color: 'red' },
247} as const
248

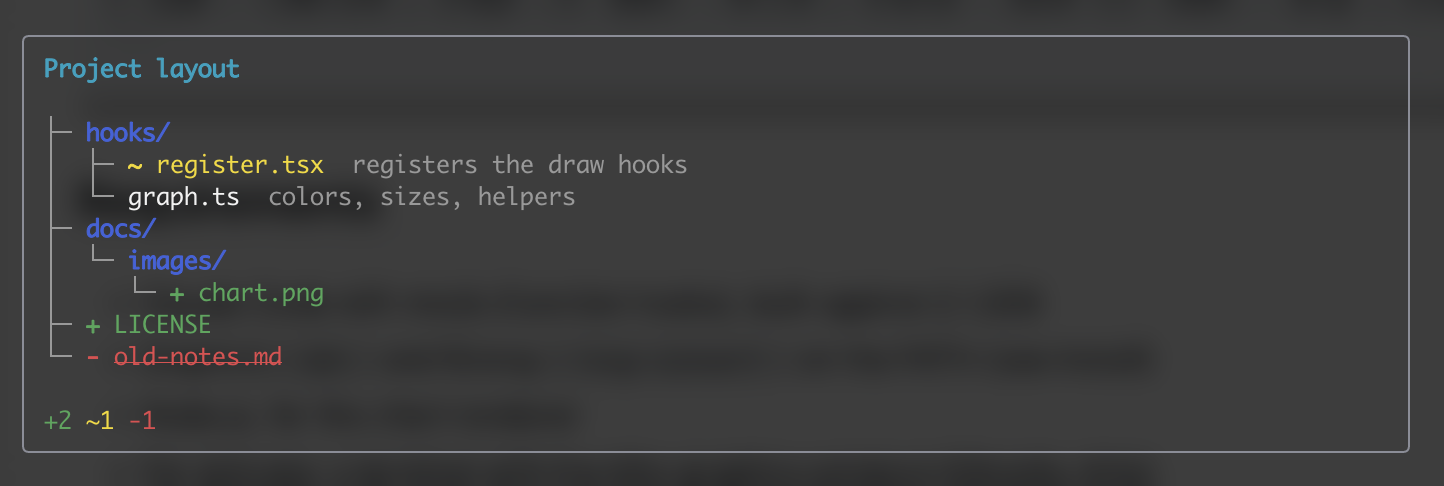

249// tree: flat paths drawn as a directory tree with change marks and notes.
250const drawTree = (els: Els, t: Tree): RenderElement => {
251  const { Box, Text } = els
252  const count = (change: keyof typeof CHANGE) => t.items.filter(i => i.change === change).length
253  const lines: RenderElement[] = []
254
255  const walk = (nodes: Node[], prefix: string) => {
256    nodes.forEach((node, i) => {
257      const isLast = i === nodes.length - 1
258      const isDir = node.children.length > 0
259      const change = node.change !== undefined ? CHANGE[node.change] : undefined
260
261      lines.push(
262        <Text>
263          <Text dimColor>
264            {prefix}
265            {isLast ? '└─ ' : '├─ '}
266          </Text>
267          {change !== undefined && (
268            <Text color={change.color} bold>
269              {change.mark}{' '}
270            </Text>
271          )}
272          <Text
273            bold={isDir}
274            color={isDir ? 'blue' : change?.color}
275            strikethrough={node.change === 'del'}
276          >
277            {node.name}
278            {isDir ? '/' : ''}
279          </Text>
280          {node.note !== undefined && <Text dimColor>  {node.note}</Text>}
281        </Text>,
282      )
283      walk(node.children, prefix + (isLast ? '   ' : '│  '))
284    })
285  }
286  walk(nest(t.items), '')
287
288  const tally = (['add', 'edit', 'del'] as const)
289    .filter(c => count(c) > 0)
290    .map(c => (
291      <Text color={CHANGE[c].color}>
292        {CHANGE[c].mark}
293        {count(c)}{' '}
294      </Text>
295    ))
296
297  return (
298    <Box flexDirection="column">
299      {lines}
300      {tally.length > 0 && (
301        <Box marginTop={1}>
302          <Text>{tally}</Text>
303        </Box>
304      )}
305    </Box>
306  )
307}
308
309// A terminal cell is about half as wide as it is tall; at 144 dpi a cell
310// spans about 14 pixels of the picture.
311const CELL_ASPECT = 0.5
312const PIXELS_PER_COLUMN = 14
313const MAX_ROWS = 60
314// Below this share of its natural size, a picture says how to see it whole.
315const SHRUNK = 0.7
316
317// graph and chart: the rendered picture, sized to its own aspect within the
318// room; where there is no picture, what the block holds as text.
319const drawPicture = (
320  els: Els,
321  block: Graph | Chart,
322  width: number,
323  rendered: Rendered,
324  fallback?: RenderElement,
325): RenderElement => {
326  const { Box, Text, Code, Image } = els
327  const noun = block.type === 'graph' ? 'diagram' : 'chart'
328
329  if (rendered.kind === 'pending') {
330    return (
331      <Text dimColor italic>
332        ◌ rendering {noun}…
333      </Text>
334    )
335  }
336
337  if (rendered.kind === 'failed' || Image === undefined) {
338    return (
339      <Box flexDirection="column">
340        {fallback ?? (block.type === 'graph' ? <Code source={block.dot} language="dot" /> : drawChartData(els, block))}
341        {rendered.kind === 'failed' && (
342          <Text dimColor>
343            {block.type}: {rendered.reason}
344          </Text>
345        )}
346      </Box>
347    )
348  }
349
350  const ratio = rendered.height / rendered.width
351  const natural = Math.ceil(rendered.width / PIXELS_PER_COLUMN)
352  let columns = Math.max(10, Math.min(width, natural))
353  let rows = Math.max(1, Math.round(columns * ratio * CELL_ASPECT))
354  if (rows > MAX_ROWS) {
355    rows = MAX_ROWS
356    columns = Math.max(10, Math.round(rows / ratio / CELL_ASPECT))
357  }
358
359  return (
360    <Box flexDirection="column">
361      <Image
362        source={{ png: rendered.png }}
363        columns={columns}
364        rows={rows}
365        alt={`[${noun}${block.title !== undefined ? `: ${block.title}` : ''}: this terminal shows no images]`}
366      />
367      {rendered.warning !== undefined && (
368        <Text dimColor>
369          {block.type}: {rendered.warning}
370        </Text>
371      )}
372      {columns / natural < SHRUNK && (
373        <Text dimColor>
374          shrunk to {Math.round((columns / natural) * 100)}% · /viz-open to zoom
375        </Text>
376      )}
377    </Box>
378  )
379}
380
381const TABLE_COLUMNS = 5
382const TABLE_ROWS = 10
383const CELL_WIDTH = 16
384
385// A chart without its picture: the first rows of its inline data.
386const drawChartData = (els: Els, chart: Chart): RenderElement => {
387  const { Box, Text } = els
388  const data = chart.spec.data
389  const values =
390    typeof data === 'object' && data !== null && 'values' in data && Array.isArray(data.values)
391      ? data.values.filter((row): row is Record<string, unknown> => typeof row === 'object' && row !== null)
392      : []
393
394  if (values.length === 0) return <Text dimColor>chart: no picture on this surface, and no inline rows to list</Text>
395
396  const fields = Object.keys(values[0] ?? {}).slice(0, TABLE_COLUMNS)
397  const cell = (value: unknown) => String(value ?? '').slice(0, CELL_WIDTH - 1)
398
399  return (
400    <Box flexDirection="column">
401      <Box flexDirection="row">
402        {fields.map(field => (
403          <Box width={CELL_WIDTH}>
404            <Text bold>{cell(field)}</Text>
405          </Box>
406        ))}
407      </Box>
408      {values.slice(0, TABLE_ROWS).map(row => (
409        <Box flexDirection="row">
410          {fields.map(field => (
411            <Box width={CELL_WIDTH}>
412              <Text>{cell(row[field])}</Text>
413            </Box>
414          ))}
415        </Box>
416      ))}
417      {values.length > TABLE_ROWS && <Text dimColor>… {values.length - TABLE_ROWS} more rows</Text>}
418    </Box>
419  )
420}
421
422// ① to ⑳, then (21) and on.
423const mark = (n: number): string => (n >= 1 && n <= 20 ? String.fromCodePoint(0x245f + n) : `(${n})`)
424
425// A note's indent under the code; where a text note's marker ends and its
426// text begins ("  ↳ ① ").
427const NOTE_LEFT = 2
428const NOTE_INDENT = 6
429const NOTE_TINT = '#2a2418'
430
431// code: the lines with the engine's highlighter, cut after each line a note
432// points at so the note sits right under it; numbering runs on across cuts.
433// A note is prose in a reading font where the terminal shows pictures, and
434// tinted italic text elsewhere (and until its picture is ready).
435const drawSnippet = (
436  els: Els,
437  s: Snippet,
438  loaded: Loaded,
439  width: number,
440  noteLookup: Lookups['note'],
441): RenderElement => {
442  const { Box, Text, Code, Image } = els
443  const imageColumns = Math.max(20, width - NOTE_LEFT)
444  const textColumns = Math.max(20, width - NOTE_INDENT)
445
446  const drawNote = (n: number, text: string): RenderElement => {
447    const rendered = Image !== undefined ? noteLookup(n, text, imageColumns) : undefined
448
449    // The picture carries its own numbered badge.
450    if (Image !== undefined && rendered?.kind === 'ready') {
451      return (
452        <Box paddingLeft={NOTE_LEFT}>
453          <Image
454            source={{ png: rendered.png }}
455            columns={imageColumns}
456            rows={rendered.height / CELL_PX.height}
457            alt={`${n}. ${text}`}
458          />
459        </Box>
460      )
461    }
462
463    return (
464      <Box flexDirection="row">
465        <Box width={NOTE_INDENT}>
466          <Text color={NOTE.color} bold>
467            {'  '}↳ {mark(n)}
468          </Text>
469        </Box>
470        <Box width={textColumns} backgroundColor={NOTE_TINT} paddingX={1}>
471          <Text italic color={NOTE.color}>
472            {text}
473          </Text>
474        </Box>
475      </Box>
476    )
477  }
478  const where =
479    s.path !== undefined ? `${s.path}:${s.start ?? 1}${s.end !== undefined ? `–${s.end}` : ''}` : undefined
480
481  const header = where !== undefined && (
482    <Text dimColor>
483      {where}
484      {s.source === undefined ? '  (read from disk)' : ''}
485    </Text>
486  )
487
488  if (loaded.kind === 'pending') {
489    return (
490      <Box flexDirection="column">
491        {header}
492        <Text dimColor italic>
493          ◌ reading {s.path}…
494        </Text>
495      </Box>
496    )
497  }
498
499  if (loaded.kind === 'failed') {
500    return (
501      <Box flexDirection="column">
502        {header}
503        <Text color="red">code: {loaded.reason}</Text>
504      </Box>
505    )
506  }
507
508  const lines = loaded.text.split('\n')
509  const first = loaded.start
510  const last = first + lines.length - 1
511  const notes = (s.notes ?? []).map((note, i) => ({ ...note, n: i + 1 })).sort((a, b) => a.line - b.line)
512  const shown = notes.filter(note => note.line >= first && note.line <= last)
513  const outside = notes.filter(note => note.line < first || note.line > last)
514
515  const parts: RenderElement[] = []
516  let at = first
517  const code = (from: number, to: number) => (
518    <Code
519      source={lines.slice(from - first, to - first + 1).join('\n')}
520      startLine={from}
521      language={s.language}
522      path={s.path}
523    />
524  )
525
526  for (const line of [...new Set(shown.map(note => note.line))]) {
527    if (line >= at) parts.push(code(at, line))
528    at = Math.max(at, line + 1)
529    for (const note of shown.filter(n => n.line === line)) parts.push(drawNote(note.n, note.text))
530  }
531  if (at <= last) parts.push(code(at, last))
532
533  return (
534    <Box flexDirection="column">
535      {header}
536      {parts}
537      {loaded.isCut && <Text dimColor>… cut at {lines.length} lines</Text>}
538      {outside.map(note => (
539        <Text dimColor>
540          {mark(note.n)} line {note.line} is outside the snippet: {note.text}
541        </Text>
542      ))}
543    </Box>
544  )
545}
546
547const STEP: Record<TraceKind, { mark: string; color: string; label?: string }> = {
548  call: { mark: '●', color: ACCENT },
549  async: { mark: '◌', color: ACCENT, label: 'async' },
550  effect: { mark: '◆', color: NOTE.color, label: 'effect' },
551  return: { mark: '↩', color: 'gray' },
552}
553
554// Below this many columns a step's place goes under its text, not beside it.
555const TRACE_SIDE_BY_SIDE = 72
556
557const STEP_KEY: Record<TraceKind, string> = {
558  call: 'call',
559  async: 'runs later',
560  effect: 'side effect',
561  return: 'returns',
562}
563
564// The folder every path shares, as whole segments ("" when none).
565const sharedFolder = (paths: string[]): string => {
566  const split = paths.map(path => path.split('/').slice(0, -1))
567  const first = split[0] ?? []
568  let n = 0
569  while (n < first.length && split.every(parts => parts[n] === first[n])) n += 1
570  return first.slice(0, n).join('/')
571}
572
573// Lines with their shared leading whitespace taken off.
574const dedent = (text: string): string => {
575  const lines = text.split('\n')
576  const indents = lines.filter(line => line.trim() !== '').map(line => /^[ \t]*/.exec(line)?.[0].length ?? 0)
577  const cut = indents.length > 0 ? Math.min(...indents) : 0
578  return lines.map(line => line.slice(cut)).join('\n')
579}
580
581// The call-tree guides before each step, as `tree` draws them: for each
582// level above the step a bar where that level goes on below, then the
583// step's own branch. A phase starts a fresh tree.
584const treeGuides = (depths: number[], phaseStarts: boolean[]): { branch: string; under: string }[] => {
585  const goesOn = (i: number, depth: number): boolean => {
586    for (let j = i + 1; j < depths.length; j += 1) {
587      if (phaseStarts[j]) return false
588      const d = depths[j] ?? 0
589      if (d < depth) return false
590      if (d === depth) return true
591    }
592    return false
593  }
594  const ancestor = (i: number, depth: number): number => {
595    for (let j = i - 1; j >= 0; j -= 1) {
596      if ((depths[j] ?? 0) === depth) return j
597      if (phaseStarts[j]) break
598    }
599    return -1
600  }
601
602  return depths.map((depth, i) => {
603    let lead = ''
604    for (let level = 1; level < depth; level += 1) {
605      const a = ancestor(i, level)
606      lead += a >= 0 && goesOn(a, level) ? '│  ' : '   '
607    }
608    if (depth === 0) return { branch: '', under: '' }
609    const more = goesOn(i, depth)
610    return { branch: lead + (more ? '├─ ' : '└─ '), under: lead + (more ? '│  ' : '   ') }
611  })
612}
613

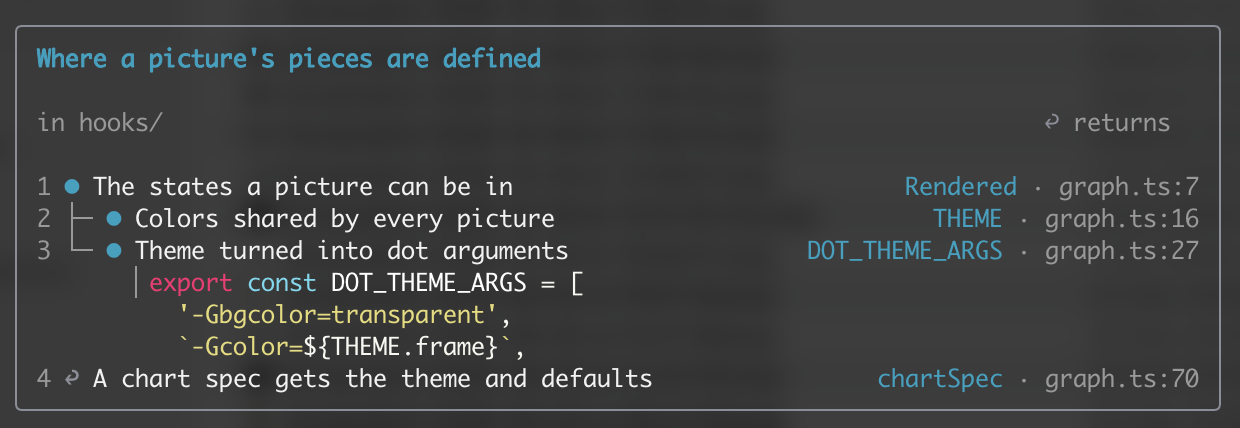

614// trace: one line per step: its number, call-tree guides, its kind, what
615// happens, and where: the function, then the place (the folder all steps
616// share said once, above). A phase
617// heading marks a new stretch of time; a step's own lines from disk sit
618// under it, dedented, behind a thin bar; a key names the marks in use.
619const drawTrace = (els: Els, t: Trace, width: number, snippet: Lookups['snippet']): RenderElement => {
620  const { Box, Text, Code } = els
621  const places = t.steps.map(step => parseAt(step.at))
622  const folder = sharedFolder(places.flatMap(place => (place !== undefined ? [place.path] : [])))
623  const short = (path: string) => (folder !== '' ? path.slice(folder.length + 1) : path)
624  const isSideBySide = width >= TRACE_SIDE_BY_SIDE
625  const numberWidth = String(t.steps.length).length + 1
626  const depths = t.steps.map(step => Math.min(step.depth ?? 0, 6))
627  const guides = treeGuides(
628    depths,
629    t.steps.map((step, i) => i > 0 && step.phase !== undefined),
630  )
631  const kindsUsed = (['async', 'effect', 'return'] as const).filter(kind => t.steps.some(step => step.kind === kind))
632
633  return (
634    <Box flexDirection="column">
635      {(folder !== '' || kindsUsed.length > 0) && (
636        <Box marginBottom={1} flexDirection="row" justifyContent="space-between">
637          <Text dimColor>{folder !== '' ? `in ${folder}/` : ''}</Text>
638          {kindsUsed.length > 0 && (
639            <Text>
640              {kindsUsed.map(kind => (
641                <Text>
642                  <Text color={STEP[kind].color}>{STEP[kind].mark}</Text>
643                  <Text dimColor> {STEP_KEY[kind]}  </Text>
644                </Text>
645              ))}
646            </Text>
647          )}
648        </Box>
649      )}
650      {t.steps.map((step, i) => {
651        const kind = STEP[step.kind ?? 'call']
652        const place = places[i]
653        const guide = guides[i] ?? { branch: '', under: '' }
654        const where = place !== undefined ? `${short(place.path)}:${place.line}` : step.at
655        const placeText = (
656          <Text>
657            {step.fn !== undefined && <Text color={ACCENT}>{step.fn}</Text>}
658            <Text dimColor>
659              {step.fn !== undefined ? ' · ' : ''}
660              {where}
661            </Text>
662          </Text>
663        )
664        const shown =
665          place !== undefined && (step.show ?? 0) > 0
666            ? snippet({ type: 'code', path: place.path, start: place.line, end: place.line + (step.show ?? 1) - 1 })
667            : undefined
668
669        return (
670          <Box flexDirection="column">
671            {step.phase !== undefined && (
672              <Box marginTop={i > 0 ? 1 : 0}>
673                <Text color={ACCENT}>── {step.phase} ──</Text>
674              </Box>
675            )}
676            <Box flexDirection="row">
677              <Box width={numberWidth} flexShrink={0}>
678                <Text dimColor>{i + 1}</Text>
679              </Box>
680              <Box flexShrink={0}>
681                <Text dimColor>{guide.branch}</Text>
682              </Box>
683              <Box width={2} flexShrink={0}>
684                <Text color={kind.color} bold>
685                  {kind.mark}
686                </Text>
687              </Box>
688              <Box flexDirection="column" flexGrow={1} flexShrink={1}>
689                <Text bold={step.kind === 'effect'} color={step.kind === 'effect' ? NOTE.color : undefined}>
690                  {step.what}
691                </Text>
692                {!isSideBySide && placeText}
693              </Box>
694              {isSideBySide && (
695                <Box flexShrink={0} marginLeft={2}>
696                  {placeText}
697                </Box>
698              )}
699            </Box>
700            {shown !== undefined && (
701              <Box flexDirection="row">
702                <Box width={numberWidth} flexShrink={0} />
703                <Text dimColor>{guide.under}  ▏</Text>
704                {shown.kind === 'ready' ? (
705                  <Code source={dedent(shown.text)} path={place?.path} wrap="truncate-end" />
706                ) : shown.kind === 'failed' ? (
707                  <Text dimColor>
708                    couldn't read {place !== undefined ? short(place.path) : step.at}: {shown.reason.replace(/^.*failed: /, '')}
709                  </Text>
710                ) : (
711                  <Text dimColor italic>
712                    reading…
713                  </Text>
714                )}
715              </Box>
716            )}
717          </Box>
718        )
719      })}
720    </Box>
721  )
722}
723

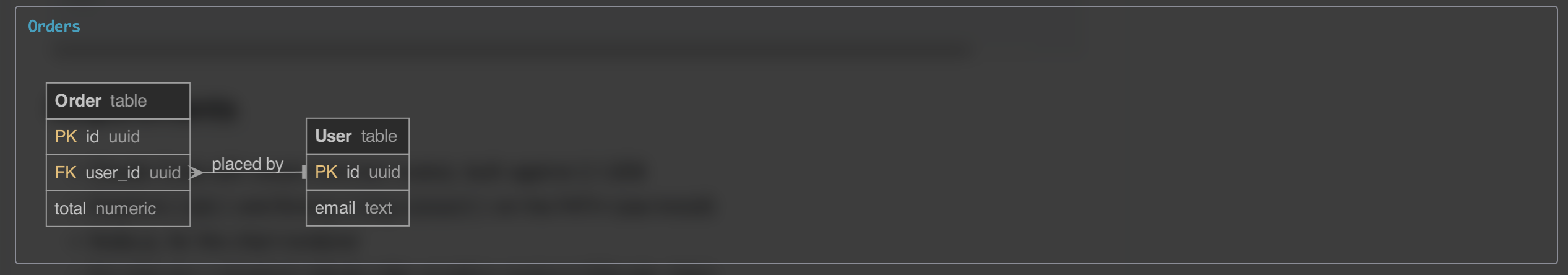

724// types: shapes as tables, arrows from a field to what it refers to, laid
725// out by Graphviz from the block (no dot written by the model); without a
726// picture, the shapes and links as text.
727const drawTypes = (els: Els, t: Types, width: number, picture: Lookups['picture']): RenderElement => {
728  const { Box, Text } = els
729  const graph: Graph = { type: 'graph', title: t.title, dot: typesToDot(t) }
730  const asText = (
731    <Box flexDirection="column">
732      {t.shapes.map(shape => (
733        <Text>
734          <Text bold>{shape.name}</Text>
735          {shape.kind !== undefined && <Text dimColor> {shape.kind}</Text>}
736          <Text dimColor>: </Text>
737          {shape.fields.map((field, i) => (
738            <Text>
739              {i > 0 ? ', ' : ''}
740              {field.key !== undefined && <Text color={NOTE.color}>{field.key.toUpperCase()} </Text>}
741              {field.name}
742              {field.type !== undefined && <Text dimColor> {field.type}</Text>}
743            </Text>
744          ))}
745        </Text>
746      ))}
747      {(t.links ?? []).map(link => (
748        <Text dimColor>
749          {link.from} → {link.to}
750          {link.kind !== undefined && link.kind !== 'ref' ? ` (${link.kind})` : ''}
751          {link.label !== undefined ? `: ${link.label}` : ''}
752        </Text>
753      ))}
754    </Box>
755  )
756
757  return drawPicture(els, graph, width, picture(graph), asText)
758}
759
760type CellStyle = 'space' | 'life' | 'name' | 'label' | 'num' | SequenceKind
761type Cell = { ch: string; style: CellStyle }
762
763const ARROW: Record<SequenceKind, { line: string; right: string; left: string }> = {
764  call: { line: '─', right: '▶', left: '◀' },
765  reply: { line: '╌', right: '▶', left: '◀' },
766  async: { line: '─', right: '▷', left: '◁' },
767}
768
769// Below this many columns between lifelines a sequence is listed instead.
770const SEQUENCE_MIN_SPACING = 8
771const SEQUENCE_MAX_SPACING = 32
772
773// sequence: lifelines in columns, one numbered message per two rows (its
774// text, then its arrow), drawn from text so it copies and fits any surface.
775const drawSequence = (els: Els, s: Sequence, width: number): RenderElement => {
776  const { Box, Text } = els
777  const n = s.participants.length
778  const longest = Math.max(...s.participants.map(p => p.length))
779  const margin = Math.ceil(longest / 2)
780  const spacing = Math.min(SEQUENCE_MAX_SPACING, Math.floor((width - 1 - 2 * margin) / (n - 1)))

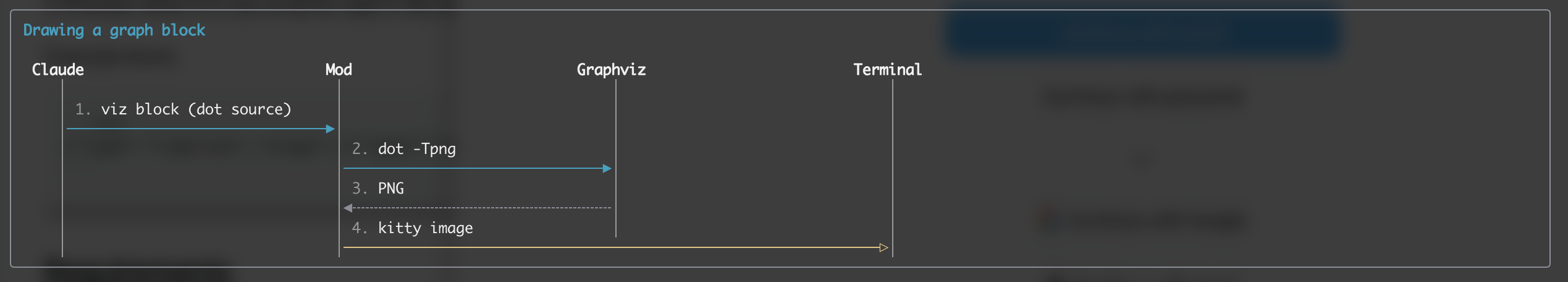

781
782  if (spacing < SEQUENCE_MIN_SPACING || longest > spacing + 2) {
783    return (
784      <Box flexDirection="column">
785        {s.messages.map((m, i) => (
786          <Text>
787            <Text dimColor>{i + 1}. </Text>
788            {m.from} <Text color={m.kind === 'async' ? NOTE.color : ACCENT}>{m.kind === 'reply' ? '⇠' : '→'}</Text> {m.to}
789            <Text dimColor>: </Text>
790            {m.text}
791          </Text>
792        ))}
793      </Box>
794    )
795  }
796
797  const centers = s.participants.map((_, i) => margin + i * spacing)
798  const total = (centers[n - 1] ?? 0) + margin + 1
799  const column = (name: string) => centers[s.participants.indexOf(name)] ?? 0
800
801  const blank = (): Cell[] => {
802    const row: Cell[] = Array.from({ length: total }, () => ({ ch: ' ', style: 'space' }))
803    for (const c of centers) row[c] = { ch: '│', style: 'life' }
804    return row
805  }
806  const put = (row: Cell[], at: number, text: string, style: CellStyle, max = total - at) => {
807    const fitted = text.length > max ? `${text.slice(0, Math.max(0, max - 1))}…` : text
808    ;[...fitted].forEach((ch, i) => {
809      if (at + i >= 0 && at + i < total) row[at + i] = { ch, style }
810    })
811  }
812
813  const header: Cell[] = Array.from({ length: total }, () => ({ ch: ' ', style: 'space' }))
814  s.participants.forEach((name, i) => {
815    const start = Math.min(Math.max(0, (centers[i] ?? 0) - Math.floor(name.length / 2)), total - name.length)
816    put(header, start, name, 'name')
817  })
818
819  const rows: Cell[][] = [header, blank()]
820  s.messages.forEach((m, i) => {
821    const kind = m.kind ?? 'call'
822    const from = column(m.from)
823    const to = column(m.to)
824    const number = `${i + 1}. `
825    const label = blank()
826
827    if (from === to) {
828      put(label, from + 2, `↺ ${number}`, 'num')
829      put(label, from + 4 + number.length, m.text, 'label')
830      rows.push(label)
831      return
832    }
833
834    const left = Math.min(from, to)
835    const right = Math.max(from, to)
836    const room = right - left - 3
837    put(label, left + 2, number, 'num', room)
838    put(label, left + 2 + number.length, m.text, 'label', Math.max(0, room - number.length))
839
840    const arrow = blank()
841    for (let x = left + 1; x < right; x += 1) arrow[x] = { ch: ARROW[kind].line, style: kind }
842    if (from < to) arrow[right - 1] = { ch: ARROW[kind].right, style: kind }
843    else arrow[left + 1] = { ch: ARROW[kind].left, style: kind }
844    rows.push(label, arrow)
845  })
846
847  const color: Record<CellStyle, { color?: string; dimColor?: boolean; bold?: boolean }> = {
848    space: {},
849    life: { dimColor: true },
850    name: { bold: true },
851    label: {},
852    num: { dimColor: true },
853    call: { color: ACCENT },
854    reply: { color: 'gray' },
855    async: { color: NOTE.color },
856  }
857
858  // Each row as runs of one style, so a row is a handful of Texts.
859  const draw = (row: Cell[]) => {
860    const runs: { style: CellStyle; text: string }[] = []
861    for (const cell of row) {
862      const last = runs[runs.length - 1]
863      if (last !== undefined && last.style === cell.style) last.text += cell.ch
864      else runs.push({ style: cell.style, text: cell.ch })
865    }
866    return (
867      <Text wrap="truncate-end">
868        {runs.map(run => (
869          <Text {...color[run.style]}>{run.text}</Text>
870        ))}
871      </Text>
872    )
873  }
874
875  return <Box flexDirection="column">{rows.map(draw)}</Box>
876}
877

1// What a graph or chart block's picture is while register.tsx renders it
2// (Graphviz, or Vega-Lite through the mod's own vega-cli), and the pure
3// pieces of that: where files go, what they are named, a chart's defaults,
4// and how big the PNG is. (The engine follows `$` only into functions of the
5// hooks module's own file, so the rendering lives there.)
6
7export type Rendered =
8  | { kind: 'pending' }
9  | { kind: 'ready'; png: string; width: number; height: number; warning?: string }
10  | { kind: 'failed'; reason: string }
11
12export const RENDER_DIR = '/tmp/claude-viz-renders'
13
14// The terminal's colors (Ghostty: black at 0.76 opacity, #c4c4c4 text).
15// Pictures are transparent so the terminal's own background shows through.
16export const THEME = {
17  text: '#c4c4c4',
18  muted: '#9e9e9e',
19  grid: '#3a3a3a',
20  frame: '#5a5a5a',
21  font: 'Helvetica',
22} as const
23
24// Graphviz defaults for the theme; a graph's own attributes still win.
25// `color` and `style` are what a cluster's frame takes: what lives inside
26// what (package, file, function) is drawn as rounded grey frames.
27export const DOT_THEME_ARGS = [
28  '-Gbgcolor=transparent',
29  `-Gcolor=${THEME.frame}`,
30  '-Gstyle=rounded',
31  `-Gfontcolor=${THEME.text}`,
32  `-Gfontname=${THEME.font}`,
33  `-Ncolor=${THEME.muted}`,
34  `-Nfontcolor=${THEME.text}`,
35  `-Nfontname=${THEME.font}`,
36  `-Ecolor=${THEME.muted}`,
37  `-Efontcolor=${THEME.text}`,
38  `-Efontname=${THEME.font}`,
39]
40
41const objectOr = (value: unknown): Record<string, unknown> =>
42  typeof value === 'object' && value !== null && !Array.isArray(value) ? (value as Record<string, unknown>) : {}
43
44// Text sizes, about a third over Vega's defaults (10 for labels, 11 for
45// axis titles, 13 for the chart title), so they read at terminal size.
46const LABEL_SIZE = 13
47const AXIS_TITLE_SIZE = 14
48const TITLE_SIZE = 17
49
50// Vega-Lite config for the theme: light text, grey axes and grid.
51const CHART_THEME = {
52  axis: {
53    domainColor: THEME.muted,
54    tickColor: THEME.muted,
55    gridColor: THEME.grid,
56    labelColor: THEME.text,
57    titleColor: THEME.text,
58    labelFontSize: LABEL_SIZE,
59    titleFontSize: AXIS_TITLE_SIZE,
60  },
61  title: { color: THEME.text, subtitleColor: THEME.muted, fontSize: TITLE_SIZE, subtitleFontSize: LABEL_SIZE },
62  legend: { labelColor: THEME.text, titleColor: THEME.text, labelFontSize: LABEL_SIZE, titleFontSize: LABEL_SIZE },
63  header: { labelColor: THEME.text, titleColor: THEME.text, labelFontSize: LABEL_SIZE, titleFontSize: AXIS_TITLE_SIZE },
64  text: { color: THEME.text, fontSize: LABEL_SIZE },
65}
66
67// A chart's spec as rendered: the theme, a transparent background, and a
68// wide default view (Vega-Lite otherwise gives each bar a fixed step, tall
69// and narrow on a terminal). The spec's own settings win over all of these.
70export const chartSpec = (spec: Record<string, unknown>): Record<string, unknown> => {
71  const config = objectOr(spec.config)
72
73  return {
74    ...spec,
75    background: spec.background ?? 'transparent',
76    padding: spec.padding ?? 12,
77    config: {
78      ...CHART_THEME,
79      ...config,
80      view: {
81        stroke: THEME.grid,
82        continuousWidth: 480,
83        continuousHeight: 240,
84        discreteWidth: 480,
85        ...objectOr(config.view),
86      },
87    },
88  }
89}
90
91// FNV-1a, enough to name a file by its source.
92export const hash = (text: string): string => {
93  let h = 0x811c9dc5
94  for (let i = 0; i < text.length; i++) {
95    h ^= text.charCodeAt(i)
96    h = Math.imul(h, 0x01000193)
97  }
98  return (h >>> 0).toString(16).padStart(8, '0')
99}
100
101const ALPHABET = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/'
102
103// The first bytes of standard base64, decoded: enough for a PNG header.
104const decodeHead = (base64: string, count: number): Uint8Array => {
105  const out = new Uint8Array(count)
106  let bits = 0
107  let value = 0
108  let at = 0
109  for (const char of base64) {
110    if (at === count) break
111    const digit = ALPHABET.indexOf(char)
112    if (digit < 0) break
113    value = (value << 6) | digit
114    bits += 6
115    if (bits >= 8) {
116      bits -= 8
117      out[at++] = (value >> bits) & 0xff
118    }
119  }
120  return out.subarray(0, at)
121}
122
123// A PNG's IHDR holds its width and height, big-endian, at bytes 16 and 20.
124export const pngSize = (base64: string): { width: number; height: number } | undefined => {
125  const head = decodeHead(base64, 24)
126  const isPng = head.length === 24 && head[0] === 0x89 && head[1] === 0x50 && head[2] === 0x4e && head[3] === 0x47
127  if (!isPng) return undefined
128
129  const view = new DataView(head.buffer, head.byteOffset, head.byteLength)
130  return { width: view.getUint32(16), height: view.getUint32(20) }
131}
132
133// A code block's lines while register.tsx reads them from disk.
134export type Loaded =
135  | { kind: 'pending' }
136  | { kind: 'ready'; text: string; start: number; isCut: boolean }
137  | { kind: 'failed'; reason: string }
138
139// Lines `start` to `end` (1-based, inclusive) of a file's text, at most
140// `max` of them; `end` absent, from `start` for `max` lines.
141export const sliceLines = (text: string, start: number, end: number | undefined, max: number): Loaded => {
142  const lines = text.split('\n')
143  if (start > lines.length) return { kind: 'failed', reason: `the file has ${lines.length} lines, fewer than ${start}` }
144
145  const wanted = Math.min(end ?? start + max - 1, lines.length)
146  const last = Math.min(wanted, start + max - 1)
147
148  return { kind: 'ready', text: lines.slice(start - 1, last).join('\n'), start, isCut: last < wanted }
149}
150
151// Code-block notes drawn as pictures: prose in the system's reading font, a
152// size over the terminal's, so a note reads as commentary rather than code.
153// The text goes to ImageMagick through a file, where it stays literal (no
154// `@file` reads, no `%` escapes, as a command-line `caption:` argument has).
155export const NOTE = {
156  font: '/System/Library/Fonts/SFNS.ttf',
157  color: '#e5c07b',
158  points: 32,
159  interline: 6,
160  // The numbered badge before the text: its square, the slot it is
161  // centred in, and its digit.
162  badge: 40,
163  badgeSlot: 56,
164  badgeText: '#1c1c1c',
165  badgePoints: 26,
166  // One line of text at `points`, measured: the badge lines up with it.
167  lineHeight: 45,
168} as const
169
170// A terminal cell in picture pixels, as the 144 dpi pictures are drawn: a
171// note is rendered at its columns' width and padded to whole rows, so the
172// Image box holds it unstretched.
173export const CELL_PX = { width: 14, height: 28 } as const
174
175// Text for a Graphviz HTML-like label: its markup characters escaped.
176const html = (text: string): string =>
177  text.replace(/&/g, '&amp;').replace(/</g, '&lt;').replace(/>/g, '&gt;').replace(/"/g, '&quot;')
178
179type TypesInput = {
180  shapes: { name: string; kind?: string; fields: { name: string; type?: string; key?: 'pk' | 'fk' }[]; note?: string }[]
181  links?: { from: string; to: string; kind?: 'ref' | 'many-to-one' | 'one-to-one' | 'many-to-many'; label?: string }[]
182}
183
184// The ends of each link kind, read from the `from` side: a plain arrow for
185// "refers to"; crow's foot for many and a bar for one, for tables.
186const LINK_ENDS = {
187  ref: 'arrowhead=normal',
188  'many-to-one': 'dir=both, arrowtail=crow, arrowhead=tee',
189  'one-to-one': 'dir=both, arrowtail=tee, arrowhead=tee',
190  'many-to-many': 'dir=both, arrowtail=crow, arrowhead=crow',
191} as const
192
193// A types block as Graphviz source: each shape a table (its name and kind,
194// then a row per field with its key and type), each link an arrow from a
195// field row to a shape or field. Nodes and ports get generated ids, so no
196// name reaches the source outside an escaped label.
197export const typesToDot = (types: TypesInput): string => {
198  const ids = new Map<string, string>()
199  const nodes = types.shapes.map((shape, n) => {
200    ids.set(shape.name, `s${n}`)
201    const rows = shape.fields.map((field, f) => {
202      ids.set(`${shape.name}.${field.name}`, `s${n}:f${f}`)
203      const key = field.key !== undefined ? `<font color="${NOTE.color}">${field.key.toUpperCase()}</font>  ` : ''
204      const type = field.type !== undefined ? `  <font color="${THEME.muted}">${html(field.type)}</font>` : ''
205      return `<tr><td port="f${f}" align="left">${key}${html(field.name)}${type}</td></tr>`
206    })
207    const kind = shape.kind !== undefined ? `  <font color="${THEME.muted}">${html(shape.kind)}</font>` : ''
208    const note =
209      shape.note !== undefined
210        ? `<tr><td align="left"><i><font color="${THEME.muted}">${html(shape.note)}</font></i></td></tr>`
211        : ''
212    return (
213      `s${n} [label=<<table border="0" cellborder="1" cellspacing="0" cellpadding="6" color="${THEME.muted}">` +
214      `<tr><td bgcolor="#2b2b2b" align="left"><b>${html(shape.name)}</b>${kind}</td></tr>${rows.join('')}${note}</table>>];`
215    )
216  })
217  const edges = (types.links ?? []).flatMap(link => {
218    const from = ids.get(link.from)
219    const to = ids.get(link.to)
220    if (from === undefined || to === undefined) return []
221    const label = link.label !== undefined ? `, label=<${html(link.label)}>` : ''
222    return [`${from} -> ${to} [${LINK_ENDS[link.kind ?? 'ref']}${label}];`]
223  })
224
225  // Left to right reads best in place, though a wide one is shrunk to fit;
226  // /viz-open shows it full size.
227  return `digraph { rankdir=LR; node [shape=plain]; ${nodes.join(' ')} ${edges.join(' ')} }`
228}
229

1// Holds a streaming reply back from the moment a ```viz fence opens in a
2// text block until that block ends, so the person never watches raw JSON
3// stream in; the block then arrives whole and the render hook draws it.
4// `onHold` hears the held block's type, or undefined once nothing is held.
5//
6// Nothing is rewritten: every chunk leaves in the order it came, engine
7// chunks (a block's start and end) included, only later. A block ends when
8// a chunk of another block, or the stop, arrives; the stream's end flushes.
9
10import type { TurnStepChunk } from 'claude-code'
11
12export async function* holdViz(
13  stream: AsyncIterable<TurnStepChunk>,
14  onHold: (type: string | undefined) => void,
15): AsyncGenerator<TurnStepChunk, void> {
16  let held: TurnStepChunk[] = []
17  let holding: number | undefined
18  let block: number | undefined
19  let text = ''
20  let hint: string | undefined
21
22  const say = (next: string | undefined) => {
23    if (next !== hint) onHold((hint = next))
24  }
25
26  try {
27    for await (const chunk of stream) {
28      const index = 'index' in chunk ? chunk.index : undefined
29      const endsHeld = holding !== undefined && (chunk.kind === 'stop' || (index !== undefined && index !== holding))
30
31      if (endsHeld) {
32        yield* held
33        held = []
34        holding = undefined
35        say(undefined)
36      }
37
38      if (chunk.kind === 'text') {
39        if (chunk.index !== block) {
40          block = chunk.index
41          text = ''
42        }
43        text += chunk.text
44        if (holding === undefined && text.includes('```viz')) holding = chunk.index
45      }
46
47      if (holding === undefined) {
48        yield chunk
49        continue
50      }
51
52      held.push(chunk)
53      const type = /"type"\s*:\s*"(\w+)"/.exec(text.slice(text.lastIndexOf('```viz')))?.[1]
54      say(type ?? 'visual')
55    }
56
57    yield* held
58  } finally {
59    say(undefined)
60  }
61}
62

1// Splits an assistant text block into markdown and ```viz segments, and
2// checks each viz block's JSON against the vocabulary the prompt teaches.
3
4export type Status = 'done' | 'active' | 'todo' | 'blocked'
5export type Change = 'add' | 'edit' | 'del'
6
7export type Compare = {
8  type: 'compare'
9  title?: string
10  options: string[]
11  criteria: { name: string; values: string[]; best?: number }[]
12  pick?: number
13  why?: string
14}
15
16export type Timeline = {
17  type: 'timeline'
18  title?: string
19  steps: { label: string; detail?: string; status: Status }[]
20}
21
22export type Tree = {
23  type: 'tree'
24  title?: string
25  items: { path: string; note?: string; change?: Change }[]
26}
27
28// graph: Graphviz source, laid out and drawn by the host's `dot`.
29export type Graph = {
30  type: 'graph'
31  title?: string
32  dot: string
33}
34
35// chart: a Vega-Lite spec with its data inline, drawn by vl2svg.
36export type Chart = {
37  type: 'chart'
38  title?: string
39  spec: Record<string, unknown>
40}
41
42// code: a snippet with numbered callouts pinned to its lines. Given `path`
43// and `start` (and `end`), the lines are read from disk, so what shows is
44// the file itself; `source` is for code that is in no file.
45export type Snippet = {
46  type: 'code'
47  title?: string
48  path?: string
49  start?: number
50  end?: number
51  source?: string
52  language?: string
53  notes?: { line: number; text: string }[]
54}
55
56// trace: an execution path, step by step: where (`file:line`, and the
57// function or class it is in), what happens there, what kind of step it is, how deep in the calls, optionally a few of
58// its lines read from disk, and a `phase` that starts a new stretch of time
59// (a later callback, a second pass).
60export type TraceKind = 'call' | 'async' | 'effect' | 'return'
61
62export type Trace = {
63  type: 'trace'
64  title?: string
65  steps: {
66    at: string
67    what: string
68    fn?: string
69    kind?: TraceKind
70    depth?: number
71    show?: number
72    phase?: string
73  }[]
74}
75
76// sequence: who calls whom, in order. A message's kind: a call (solid), a
77// reply (dashed back), or async (fire and forget).
78export type SequenceKind = 'call' | 'reply' | 'async'
79
80export type Sequence = {
81  type: 'sequence'
82  title?: string
83  participants: string[]
84  messages: { from: string; to: string; text: string; kind?: SequenceKind }[]
85}
86
87// types: shapes (interfaces, types, classes, tables) with their fields, and
88// links from a field to the shape or field it refers to. A link is a plain
89// "refers to" arrow; the database kinds draw crow's feet for many.
90export type LinkKind = 'ref' | 'many-to-one' | 'one-to-one' | 'many-to-many'
91
92export type Types = {
93  type: 'types'
94  title?: string
95  shapes: { name: string; kind?: string; fields: { name: string; type?: string; key?: 'pk' | 'fk' }[]; note?: string }[]
96  links?: { from: string; to: string; kind?: LinkKind; label?: string }[]
97}
98
99export type Viz = Compare | Timeline | Tree | Graph | Chart | Snippet | Trace | Sequence | Types
100
101// `path:line` as a trace step names its place; undefined when it does not.
102export const parseAt = (at: string): { path: string; line: number } | undefined => {
103  const match = /^(.+):(\d+)$/.exec(at.trim())
104  const line = Number(match?.[2])
105  return match?.[1] !== undefined && line >= 1 ? { path: match[1], line } : undefined
106}
107
108// The most lines one trace step may show.
109export const TRACE_MAX_SHOW = 8
110
111// The most lines a code block shows, read from disk or given inline.
112export const SNIPPET_MAX_LINES = 80
113
114export type Segment =
115  | { kind: 'markdown'; text: string }
116  | { kind: 'viz'; viz: Viz }
117  | { kind: 'pending'; hint: string }
118  | { kind: 'broken'; source: string; reason: string }
119
120const FENCE = /```viz[^\S\n]*\n([\s\S]*?)\n?```/g
121const OPEN_FENCE = /```viz[^\S\n]*(\n[\s\S]*)?$/
122
123export const hasViz = (text: string): boolean => text.includes('```viz')
124
125export const segment = (text: string): Segment[] => {
126  const out: Segment[] = []
127  let at = 0
128
129  for (const match of text.matchAll(FENCE)) {
130    pushMarkdown(out, text.slice(at, match.index))
131    out.push(toSegment(match[1] ?? '', match[0]))
132    at = match.index + match[0].length
133  }
134
135  const rest = text.slice(at)
136  const open = OPEN_FENCE.exec(rest)
137
138  if (open) {
139    // An unclosed fence: the reply is still streaming in.
140    pushMarkdown(out, rest.slice(0, open.index))
141    const type = /"type"\s*:\s*"(\w+)"/.exec(open[1] ?? '')?.[1]
142    out.push({ kind: 'pending', hint: type ?? 'visual' })
143  } else {
144    pushMarkdown(out, rest)
145  }
146
147  return out
148}
149
150const pushMarkdown = (out: Segment[], text: string) => {
151  if (text.trim() !== '') out.push({ kind: 'markdown', text: text.trim() })
152}
153
154const toSegment = (body: string, source: string): Segment => {
155  let data: unknown
156
157  try {
158    data = JSON.parse(body)
159  } catch (error) {
160    return { kind: 'broken', source, reason: 'not valid JSON' }
161  }
162
163  const reason = check(data)
164
165  return reason === undefined
166    ? { kind: 'viz', viz: data as Viz }
167    : { kind: 'broken', source, reason }
168}
169
170const isObject = (v: unknown): v is Record<string, unknown> =>
171  typeof v === 'object' && v !== null && !Array.isArray(v)
172
173const isStrings = (v: unknown): v is string[] =>
174  Array.isArray(v) && v.every(s => typeof s === 'string')
175
176// Whether `key` appears anywhere in a JSON value, however deep.
177const hasKey = (value: unknown, key: string): boolean => {
178  if (Array.isArray(value)) return value.some(item => hasKey(item, key))
179  if (!isObject(value)) return false
180  return Object.entries(value).some(([k, v]) => k === key || hasKey(v, key))
181}
182
183const STATUSES: readonly string[] = ['done', 'active', 'todo', 'blocked']
184const CHANGES: readonly string[] = ['add', 'edit', 'del']
185
186// Returns why `data` is not a viz block, or undefined when it is one.
187export const check = (data: unknown): string | undefined => {
188  if (!isObject(data)) return 'not an object'
189
190  if (data.type === 'compare') {
191    if (!isStrings(data.options) || data.options.length < 2) return 'compare needs 2+ options'
192    const width = data.options.length
193    if (!Array.isArray(data.criteria) || data.criteria.length === 0) return 'compare needs criteria'
194    const isCriterion = (c: unknown) =>
195      isObject(c) && typeof c.name === 'string' && isStrings(c.values) && c.values.length === width
196    if (!data.criteria.every(isCriterion)) return `each criterion needs a name and ${width} values`
197    return undefined
198  }
199
200  if (data.type === 'timeline') {
201    const isStep = (s: unknown) =>
202      isObject(s) && typeof s.label === 'string' && STATUSES.includes(String(s.status))
203    if (!Array.isArray(data.steps) || !data.steps.every(isStep)) return 'each step needs a label and a status'
204    return undefined
205  }
206
207  if (data.type === 'tree') {
208    const isItem = (i: unknown) =>
209      isObject(i) && typeof i.path === 'string' && (i.change === undefined || CHANGES.includes(String(i.change)))
210    if (!Array.isArray(data.items) || !data.items.every(isItem)) return 'each item needs a path'
211    return undefined
212  }
213
214  if (data.type === 'graph') {
215    if (typeof data.dot !== 'string' || !/^\s*(strict\s+)?(di)?graph\b/.test(data.dot)) return 'graph needs "dot": a digraph { ... } or graph { ... }'
216    return undefined
217  }
218
219  if (data.type === 'chart') {
220    if (!isObject(data.spec)) return 'chart needs "spec": a Vega-Lite object'
221    const views = ['mark', 'layer', 'concat', 'hconcat', 'vconcat', 'facet', 'repeat']
222    if (!views.some(view => view in (data.spec as object))) return 'chart spec needs a mark (or layer, concat, facet, repeat)'
223    // The renderer must not fetch anything: data rides in the spec.
224    if (hasKey(data.spec, 'url')) return 'chart data must be inline ("data": {"values": [...]}), not a url'
225    return undefined
226  }
227
228  if (data.type === 'code') {
229    const isLine = (n: unknown): n is number => typeof n === 'number' && Number.isInteger(n) && n >= 1
230    const hasSource = typeof data.source === 'string'
231    const hasFile = typeof data.path === 'string' && isLine(data.start)
232    if (!hasSource && !hasFile) return 'code needs "path" and "start" (lines read from the file), or "source"'
233    if (data.end !== undefined && !(isLine(data.end) && isLine(data.start) && data.end >= data.start)) {
234      return 'code "end" must be a line number at or after "start"'
235    }
236    if (hasFile && isLine(data.end) && data.end - (data.start as number) + 1 > SNIPPET_MAX_LINES) {
237      return `code shows at most ${SNIPPET_MAX_LINES} lines`
238    }
239    const isNote = (n: unknown) => isObject(n) && isLine(n.line) && typeof n.text === 'string'
240    if (data.notes !== undefined && !(Array.isArray(data.notes) && data.notes.every(isNote))) {
241      return 'each code note needs a "line" number and a "text"'
242    }
243    return undefined
244  }
245
246  if (data.type === 'trace') {
247    const kinds: readonly unknown[] = ['call', 'async', 'effect', 'return']
248    const isStep = (step: unknown) =>
249      isObject(step) &&
250      typeof step.at === 'string' &&
251      parseAt(step.at) !== undefined &&
252      typeof step.what === 'string' &&
253      (step.kind === undefined || kinds.includes(step.kind)) &&
254      (step.depth === undefined || (Number.isInteger(step.depth) && (step.depth as number) >= 0)) &&
255      (step.phase === undefined || typeof step.phase === 'string') &&
256      (step.fn === undefined || typeof step.fn === 'string') &&
257      (step.show === undefined ||
258        (Number.isInteger(step.show) && (step.show as number) >= 0 && (step.show as number) <= TRACE_MAX_SHOW))
259    if (!Array.isArray(data.steps) || data.steps.length === 0) return 'trace needs steps'
260    if (!data.steps.every(isStep)) {
261      return `each trace step needs "at" as path:line and "what"; kind is call, async, effect or return; show at most ${TRACE_MAX_SHOW}`
262    }
263    return undefined
264  }
265
266  if (data.type === 'sequence') {
267    if (!isStrings(data.participants) || data.participants.length < 2) return 'sequence needs 2+ participants'
268    const names: readonly unknown[] = data.participants
269    const kinds: readonly unknown[] = ['call', 'reply', 'async']
270    const isMessage = (m: unknown) =>
271      isObject(m) &&
272      names.includes(m.from) &&
273      names.includes(m.to) &&
274      typeof m.text === 'string' &&
275      (m.kind === undefined || kinds.includes(m.kind))
276    if (!Array.isArray(data.messages) || data.messages.length === 0) return 'sequence needs messages'
277    if (!data.messages.every(isMessage)) return 'each message needs "from" and "to" among the participants, and "text"; kind is call, reply or async'
278    return undefined
279  }
280
281  if (data.type === 'types') {
282    const isField = (f: unknown) =>
283      isObject(f) &&
284      typeof f.name === 'string' &&
285      (f.type === undefined || typeof f.type === 'string') &&
286      (f.key === undefined || f.key === 'pk' || f.key === 'fk')
287    const isShape = (sh: unknown) =>
288      isObject(sh) &&
289      typeof sh.name === 'string' &&
290      (sh.kind === undefined || typeof sh.kind === 'string') &&
291      Array.isArray(sh.fields) &&
292      sh.fields.every(isField)
293    if (!Array.isArray(data.shapes) || data.shapes.length === 0 || !data.shapes.every(isShape)) {
294      return 'types needs shapes, each with a "name" and "fields" ({"name", "type"?})'
295    }
296    const names = new Set(
297      (data.shapes as { name: string; fields: { name: string }[] }[]).flatMap(sh => [
298        sh.name,
299        ...sh.fields.map(f => `${sh.name}.${f.name}`),
300      ]),
301    )
302    const kinds: readonly unknown[] = ['ref', 'many-to-one', 'one-to-one', 'many-to-many']
303    const isLink = (l: unknown) =>
304      isObject(l) && names.has(String(l.from)) && names.has(String(l.to)) && (l.kind === undefined || kinds.includes(l.kind))
305    if (data.links !== undefined && !(Array.isArray(data.links) && data.links.every(isLink))) {
306      return 'each link needs "from" and "to" naming a shape or Shape.field; kind is ref, many-to-one, one-to-one or many-to-many'
307    }
308    return undefined
309  }
310
311  return `unknown type ${JSON.stringify(data.type)}`
312}
313
314// A tree block's flat paths as nested nodes, directories first.
315export type Node = { name: string; note?: string; change?: Change; children: Node[] }
316
317export const nest = (items: Tree['items']): Node[] => {
318  const root: Node = { name: '', children: [] }
319
320  for (const item of items) {
321    let at = root
322    for (const part of item.path.split('/').filter(Boolean)) {
323      let child = at.children.find(c => c.name === part)
324      if (!child) {
325        child = { name: part, children: [] }
326        at.children.push(child)
327      }
328      at = child
329    }
330    at.note = item.note
331    at.change = item.change
332  }
333
334  const sort = (nodes: Node[]): Node[] =>
335    nodes
336      .map(n => ({ ...n, children: sort(n.children) }))
337      .sort((a, b) => Number(b.children.length > 0) - Number(a.children.length > 0))
338
339  return sort(root.children)
340}
341

1// The spinner's message while a viz block is held back, else null.
2export type Drawing = string | null
3
4declare module 'claude-code' {
5  interface PluginState {
6    viz: { drawing: Drawing }
7  }
8}
9
