hud

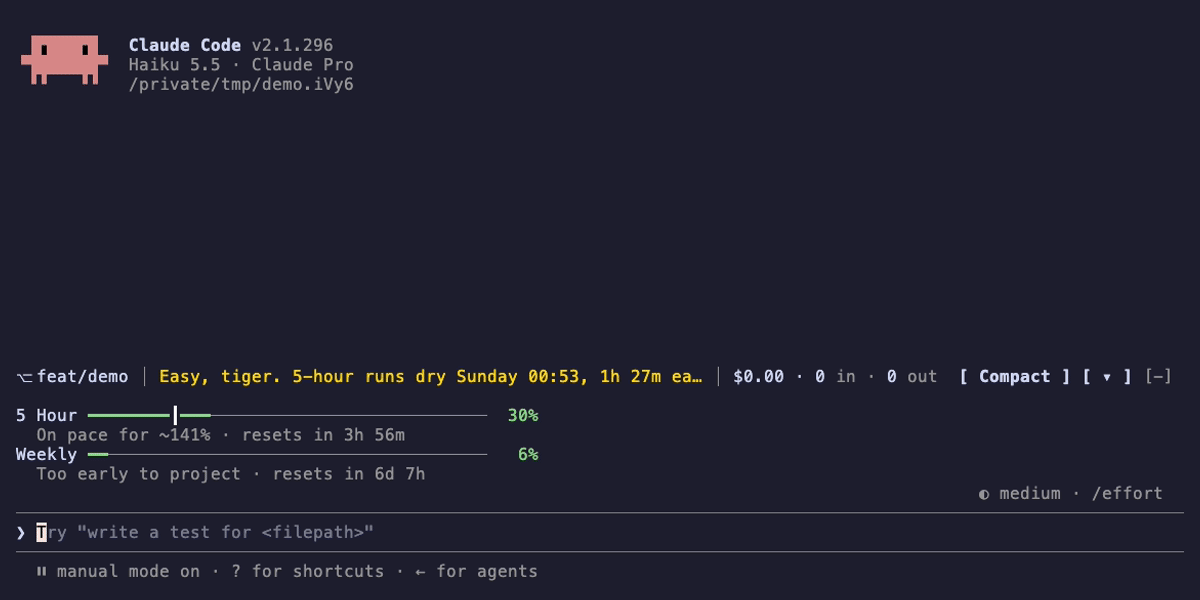

1// HUD: a band above the prompt. Expanded: the branch, a verdict on the usage
2// limits and the cost, then the 5h and weekly limits beside the context
3// (character bars in a terminal, SVG bars in the desktop app).
4// Collapsed: one line spread across the band, with each bar drawn as a ring.
5
6import { atom, read, update } from "claude-code";
7
8const branch = atom({ plugin: "hud", key: "branch" }, null);
9const budget = atom({ plugin: "hud", key: "budget" }, {});
10const tokens = atom({ plugin: "hud", key: "tokens" }, { input: 0, output: 0 });
11const isHidden = atom({ plugin: "hud", key: "isHidden" }, false);
12const isCollapsed = atom({ plugin: "hud", key: "isCollapsed" }, false);
13const minute = atom({ plugin: "hud", key: "minute" }, 0); // bumped so countdowns redraw
14
15async function refreshBranch($) {
16  try {
17    const name = (await $.process.run(["git", "branch", "--show-current"], { timeoutMs: 5000 })).stdout.trim();
18    if (!name) return update($, branch, () => null);
19    const status = await $.process.run(["git", "status", "--porcelain"], { timeoutMs: 5000 });
20    await update($, branch, () => ({ name, isDirty: status.stdout.trim() !== "" }));
21  } catch {
22    await update($, branch, () => null); // not a repo, or no git
23  }
24}
25
26// Filled cells of a `width`-cell bar at `percent`.
27const cells = (percent, width) => Math.max(0, Math.min(width, Math.round((percent / 100) * width)));
28
29// Theme colour for how much of a budget is used.
30const level = (used) => (used >= 90 ? "error" : used >= 70 ? "warning" : "success");
31
32// The desktop draws bars as SVG, an image that can't read theme names: hex
33// for the level colours and the context groups, a grey track for either theme.
34const HEX = { success: "#4ade80", warning: "#f5c04a", error: "#f87171", Messages: "#5ec8e5", Tools: "#a78bfa", Other: "#8b93a1" };
35const TRACK = "rgba(128,128,128,0.25)";
36
37// A rounded bar the width of its column: [percent, colour] segments laid end to end.
38function svgBar(Svg, alt, segments, tick = null) {
39  let x = 0;
40  const rects = segments.map(([w, fill]) => {
41    const rect = `<rect x="${x}%" width="${w}%" height="8" fill="${fill}"/>`;
42    x += w;
43    return rect;
44  });
45  if (tick !== null) rects.push(`<rect x="${Math.min(99, tick)}%" width="2" height="8" fill="rgba(160,160,160,0.9)"/>`);
46  const source = `<svg xmlns="http://www.w3.org/2000/svg" width="100%" height="8"><clipPath id="r"><rect width="100%" height="8" rx="4"/></clipPath><g clip-path="url(#r)"><rect width="100%" height="8" fill="${TRACK}"/>${rects.join("")}</g></svg>`;
47  return Svg({ alt, height: 8, source });
48}
49
50// A ring filled clockwise from the top to `percent`, in its level's colour.
51const ringSvg = (percent) => {
52  const arc = `<circle cx="6" cy="6" r="4.5" fill="none" stroke-width="2"`;
53  return `<svg xmlns="http://www.w3.org/2000/svg" width="12" height="12">${arc} stroke="${TRACK}"/>` +
54    `${arc} stroke="${HEX[level(percent)]}" pathLength="100" stroke-dasharray="${Math.max(0, Math.min(100, percent))} 100" transform="rotate(-90 6 6)"/></svg>`;
55};
56
57// A bar in one glyph, for the collapsed line: ○ ◔ ◑ ◕ ●.
58const circle = (percent) => "○◔◑◕●"[Math.max(0, Math.min(4, Math.round(percent / 25)))];
59
60// 1.2M, 38k, 950.
61function count(n) {
62  if (n >= 999_500) return `${(n / 1e6).toFixed(1)}M`; // not "1000k"
63  if (n >= 1e3) return `${Math.round(n / 1e3)}k`;
64  return String(n);
65}
66
67const DAYS = ["Sunday", "Monday", "Tuesday", "Wednesday", "Thursday", "Friday", "Saturday"];
68const clock = (time) => {
69  const d = new Date(time);
70  return `${String(d.getHours()).padStart(2, "0")}:${String(d.getMinutes()).padStart(2, "0")}`;
71};
72// "14:50" today, "Wednesday 09:00" (or "Wed 09:00") on another day.
73const when = (time, now, isShort = false) => {
74  if (new Date(time).toDateString() === new Date(now).toDateString()) return clock(time);
75  const day = DAYS[new Date(time).getDay()];
76  return `${isShort ? day.slice(0, 3) : day} ${clock(time)}`;
77};
78
79// Two units at most: "2d 20h", "3h 5m", "23m".
80function span(ms) {
81  const m = Math.max(0, Math.round(ms / 60e3));
82  if (m >= 1440) return `${Math.floor(m / 1440)}d ${Math.floor((m % 1440) / 60)}h`;
83  if (m >= 60) return `${Math.floor(m / 60)}h ${m % 60}m`;
84  return `${m}m`;
85}
86
87const WINDOWS = { five_hour: { ms: 5 * 3600e3, name: "5-hour" }, seven_day: { ms: 7 * 86400e3, name: "weekly" } };
88
89// How far through its window a limit is, 0 to 1, or null when that isn't
90// known yet: no reset time, or under 10% in, too early to project from.
91function pace(limit, now) {
92  if (!limit.resetsAt) return null;
93  const f = 1 - (Date.parse(limit.resetsAt) - now) / WINDOWS[limit.kind].ms;
94  return f >= 0.1 ? Math.min(1, f) : null;
95}
96
97// One sentence on the limits: reached, running out before the reset, or on track.
98function verdict(limits, now) {
99  const reached = limits.find((l) => l.percentUsed >= 100);
100  if (reached) {
101    const name = WINDOWS[reached.kind].name;
102    const reset = reached.resetsAt ? ` Back ${when(reached.resetsAt, now)}.` : "";
103    return { color: "error", text: `${name[0].toUpperCase()}${name.slice(1)}'s tapped out.${reset}` };
104  }
105  const runsOut = limits.flatMap((l) => {
106    const f = pace(l, now);
107    if (f === null || l.percentUsed <= 0) return [];
108    const reset = Date.parse(l.resetsAt);
109    const start = reset - WINDOWS[l.kind].ms;
110    const out = start + ((now - start) * 100) / l.percentUsed;
111    return out < reset ? [{ l, out, reset }] : [];
112  }).sort((a, b) => a.out - b.out)[0];
113  if (runsOut) {
114    const { l, out, reset } = runsOut;
115    return {
116      color: level(Math.max(70, l.percentUsed)),
117      text: `Easy, tiger. ${WINDOWS[l.kind].name[0].toUpperCase()}${WINDOWS[l.kind].name.slice(1)} runs dry ${when(out, now)}, ${span(reset - out)} early.`,
118    };
119  }
120  const weekly = limits.find((l) => l.kind === "seven_day" && l.resetsAt);
121  return { color: "success", text: weekly ? `Cruising. Plenty left for ${DAYS[new Date(weekly.resetsAt).getDay()]}.` : "Cruising." };
122}
123
124// The context breakdown in three groups, each in the colour /context gives its largest row.
125function groups(categories) {
126  const named = { Messages: [], Tools: [], Other: [] };
127  for (const c of categories.filter((c) => c.kind === "used")) {
128    named[c.name === "Messages" ? "Messages" : /tool/i.test(c.name) ? "Tools" : "Other"].push(c);
129  }
130  return Object.entries(named).map(([name, rows]) => ({
131    name,
132    tokens: rows.reduce((sum, c) => sum + c.tokens, 0),
133    color: rows.sort((a, b) => b.tokens - a.tokens)[0]?.color ?? "inactive",
134  }));
135}
136
137// [glyph, colour] cells merged into one Text per run of a colour; no colour draws dim.
138function runs(Text, list) {
139  const out = [];
140  for (const [glyph, color] of list) {
141    const last = out.at(-1);
142    if (last && last.color === color) last.text += glyph;
143    else out.push({ text: glyph, color });
144  }
145  return out.map(({ text, color }) => Text(color ? { color, children: text } : { dimColor: true, children: text }));
146}
147
148let ticker; // the minute timer
149let isCompacting = false; // so a second press doesn't queue a second /compact
150
151export function register(on) {
152  on("session.start", async ($, e, next) => {
153    const r = await next(e);
154    await $.command.register({ name: "hud", description: "Hide or show the HUD band above the prompt" });
155    const hidden = (await $.store.get("isHidden")) === true;
156    await update($, isHidden, () => hidden);
157    const collapsed = (await $.store.get("isCollapsed")) === true;
158    await update($, isCollapsed, () => collapsed);
159    await refreshBranch($);
160    ticker?.cancel(); // session.start fires again on /clear and resume
161    ticker = $.clock.every(60e3, () => update($, minute, (n) => n + 1));
162    return r;
163  });
164
165  on("command.run", { command: "hud" }, async ($) => {
166    const hidden = !(await read($, isHidden));
167    await update($, isHidden, () => hidden);
168    await $.store.set("isHidden", hidden);
169    return { text: hidden ? "HUD hidden. Run /hud to show it again." : "HUD shown." };
170  });
171
172  // /clear starts the conversation over: its token counts with it.
173  on("session.end", async ($, e, next) => {
174    if (e.reason === "clear") {
175      await update($, tokens, () => ({ input: 0, output: 0 }));
176    }
177    return next(e);
178  });
179
180  on("tool.call", async ($, e, next) => {
181    const r = await next(e);
182    if (e.tool === "Bash") await refreshBranch($);
183    return r;
184  });
185
186  // Subagent turns count too: their tokens are in /cost as well.
187  on("turn.complete", async ($, e, next) => {
188    const u = e.usage;
189    if (u) {
190      const input = u.input_tokens + u.cache_creation_input_tokens + u.cache_read_input_tokens;
191      await update($, tokens, (t) => ({ input: t.input + input, output: t.output + u.output_tokens }));
192    }
193    return next(e);
194  });
195
196  on("session.measure", async ($, e, next) => {
197    let contextPercent = e.context.percent === undefined ? undefined : Math.round(e.context.percent);
198    let contextLimit = e.context.window;
199    let isToCompact = false;
200    let contextGroups;
201    if (e.context.tokens !== undefined) {
202      try {
203        // The local estimate: no API request. Absent threshold means auto-compact is off.
204        const breakdown = (await $.session.usage({ breakdown: "summary" })).context.breakdown;
205        if (breakdown?.categories) contextGroups = groups(breakdown.categories);
206        if (breakdown?.autoCompactThreshold) {
207          contextLimit = breakdown.autoCompactThreshold;
208          contextPercent = Math.round((e.context.tokens / contextLimit) * 100);
209          isToCompact = true;
210        }
211      } catch { /* keep the window's percent */ }
212    }
213    const limit = (kind) => e.rateLimits.find((l) => l.kind === kind);
214    await update($, budget, () => ({
215      contextPercent, contextTokens: e.context.tokens, contextLimit, isToCompact, contextGroups,
216      costUsd: e.cost?.usd, fiveHour: limit("five_hour"), weekly: limit("seven_day"),
217    }));
218    return next(e);
219  });
220
221  on("ui.render", { component: "AbovePrompt" }, async ($, e, next) => {
222    if (e.props.hasSurvey || (await read($, isHidden))) return next(e);
223    const { Box, Text, Button, Svg } = $.ui.resolve(e);
224    const isDesktop = e.surface === "desktop"; // draws bars as SVG and hotkeys as chips, so none
225    const dim = (children) => Text({ dimColor: true, children });
226    await read($, minute); // redraw each minute
227    const now = Date.now();
228
229    const b = await read($, branch);
230    const collapsed = await read($, isCollapsed);
231    const { contextPercent, contextTokens, contextLimit, isToCompact, contextGroups, costUsd, fiveHour, weekly } = await read($, budget);
232    const t = await read($, tokens);
233    const limits = [["5 Hour", "5 Hour", fiveHour], ["Weekly", "Week", weekly]].filter(([, , l]) => l);
234    const hasContext = contextPercent !== undefined;
235    const sep = dim(" │ ");
236    const line = (key, children) => Box({ key, children: Text({ children }) }); // a Text takes no key
237
238    // /compact rather than $.session.compact(), which an SDK session (the desktop app) lacks;
239    // the command waits for a running turn. Started on a timer: it outlasts a press.
240    const compact = () => {
241      if (isCompacting) return;
242      isCompacting = true;
243      $.clock.after(0, async () => {
244        try {
245          await $.command.run({ command: "compact" });
246        } catch (err) {
247          $.ui.toast(`Compact failed: ${err?.message ?? err}`);
248        } finally {
249          isCompacting = false;
250        }
251      });
252    };
253    const toggle = async () => {
254      await update($, isCollapsed, () => !collapsed);
255      await $.store.set("isCollapsed", !collapsed);
256    };
257    // The desktop shades every button but a plain one, so a bigger triangle is drawn and a
258    // chromeless button laid over it takes the click.
259    const triangle = () => Box({ key: "collapse-box", width: 4, height: 1, overflow: "hidden", children: [
260      Box({ key: "glyph", position: "absolute", top: 0, left: 0, width: 4, height: 1, alignItems: "center", justifyContent: "center",
261        children: Svg({ alt: collapsed ? "Expand" : "Collapse", width: 12, height: 8,
262          source: `<svg xmlns="http://www.w3.org/2000/svg" width="12" height="8"><path d="${collapsed ? "M1 7 6 1 11 7z" : "M1 1h10L6 7z"}" fill="#a0a0a0"/></svg>` }) }),
263      // Centred like the triangle and wider than it: spaces in the desktop's font are narrow.
264      Box({ key: "press", position: "absolute", top: 0, left: 0, width: 4, height: 1, alignItems: "center", justifyContent: "center",
265        children: Button({ key: "collapse", label: "\u2003\u2003", plain: true, hover: { backgroundColor: "#00000000" }, onPress: toggle }) }),
266    ] });
267    const buttons = [
268      Button({ key: "compact", label: "Compact", ...(!isDesktop && { hotkey: "c" }), variant: "secondary", onPress: compact }),
269      isDesktop ? triangle() : Button({ key: "collapse", label: collapsed ? "▸" : "▾", hotkey: "h", onPress: toggle }),
270    ];
271    // Parts kept whole; the one marked `shrinks` is cut with … when the row is too narrow.
272    const row = (key, parts) => Box({
273      key, flexDirection: "row",
274      children: [
275        ...parts.map(({ shrinks, children }, i) => Box({
276          key: `part${i}`, flexShrink: shrinks ? 1 : 0, children: Text({ wrap: "truncate-end", children }),
277        })),
278        Box({ key: "gap", flexGrow: 1, minWidth: 2 }),
279        ...buttons.flatMap((button, i) => (i ? [Text({ children: " " }), button] : [button])),
280      ],
281    });
282    const join = (parts, between) => parts.flatMap((p, i) => (i ? [{ children: between }, p] : [p]));
283    const cost = costUsd === undefined ? null : [`$${costUsd.toFixed(2)} · ${count(t.input)}`, dim(" in · "), count(t.output), dim(" out")];
284
285    let lines;
286    if (collapsed) {
287      // A ring per limit: SVG on the desktop, a circle glyph in a terminal.
288      const chip = (label, percent, resetsAt) => [
289        isDesktop ? Svg({ alt: `${label} ${Math.round(percent)}% used`, width: 12, height: 12, source: ringSvg(percent) })
290          : Text({ color: level(percent), children: circle(percent) }),
291        Text({ children: [` ${label} `, Text({ color: level(percent), children: `${Math.round(percent)}%` }), resetsAt ? dim(` ↻ ${when(resetsAt, now, true)}`) : ""] }),
292      ];
293      const parts = [
294        b && [Text({ wrap: "truncate-end", children: `⎇ ${b.name}${b.isDirty ? "*" : ""}` })],
295        ...limits.map(([, short, l]) => chip(short, l.percentUsed, l.resetsAt)),
296        hasContext && chip("Context", contextPercent),
297        costUsd !== undefined && [Text({ children: `$${costUsd.toFixed(2)}` })],
298      ].filter(Boolean);
299      // Spread evenly, dividers between; nothing to show still draws the buttons, so a
300      // collapsed band can be expanded.
301      lines = [Box({ key: "head", flexDirection: "row", children: [
302        Box({ key: "parts", flexGrow: 1, flexDirection: "row", justifyContent: "space-evenly", alignItems: "center",
303          children: parts.flatMap((children, i) => [
304            ...(i ? [Box({ key: `sep${i}`, children: sep })] : []),
305            Box({ key: `part${i}`, flexDirection: "row", alignItems: "center", flexShrink: i === 0 && b ? 1 : 0, children }), // the branch is cut first
306          ]) }),
307        Box({ key: "gap", minWidth: 2 }),
308        ...buttons.flatMap((button, i) => (i ? [Text({ children: " " }), button] : [button])),
309      ] })];
310    } else {
311      const v = limits.length ? verdict(limits.map(([, , l]) => l), now) : null;
312      const parts = [
313        b && { children: `⎇ ${b.name}${b.isDirty ? "*" : ""}` },
314        v && { shrinks: true, children: Text({ color: v.color, children: v.text }) },
315        cost && { children: cost },
316      ].filter(Boolean);
317      if (!parts.length && !hasContext) return next(e);
318      const isWide = isDesktop || (e.props.bodyColumns ?? 120) >= 80;
319      const half = Math.floor(((e.props.bodyColumns ?? 120) - 3) / 2);
320      const barWidth = isWide ? half - 14 : 16;
321
322      // Each limit: its bar with a ┃ at how far through the window it is, and the pace below.
323      const limitRows = limits.flatMap(([label, , l]) => {
324        const used = l.percentUsed;
325        const f = pace(l, now);
326        const n = cells(used, barWidth);
327        const tick = f === null ? -1 : Math.min(barWidth - 1, Math.floor(f * barWidth));
328        const bar = runs(Text, Array.from({ length: barWidth }, (_, i) => (i === tick ? ["┃", "text"] : i < n ? ["━", level(used)] : ["─", null])));
329        const resets = l.resetsAt ? `resets in ${span(Date.parse(l.resetsAt) - now)}` : null;
330        const percent = Text({ color: level(used), children: `${String(Math.round(used)).padStart(3)}%` });
331        if (!isWide) return [line(l.kind, [`${label} `, ...bar, " ", percent, resets ? dim(` · ${span(Date.parse(l.resetsAt) - now)}`) : ""])];
332        const projected = f === null ? null : `On pace for ~${Math.round(used / f)}%`;
333        const head = isDesktop
334          ? Box({ key: l.kind, flexDirection: "row", children: [
335            Box({ key: "label", width: 7, flexShrink: 0, children: Text({ children: label }) }),
336            Box({ key: "bar", flexGrow: 1, children: svgBar(Svg, `${label} ${Math.round(used)}% used`,
337              [[Math.min(100, used), HEX[level(used)]]], f === null ? null : Math.round(f * 100)) }),
338            Text({ children: " " }), percent,
339          ] })
340          : line(l.kind, [`${label} `, ...bar, " ", percent]);
341        // The bar and its pace line kept together, so the column spreads the pairs, not the rows.
342        return [Box({ key: `${l.kind}-group`, flexDirection: "column", children: [
343          head,
344          line(`${l.kind}-pace`, dim(`  ${[projected, resets].filter(Boolean).join(" · ")}`)),
345        ] })];
346      });
347
348      // The context: one bar split by group against the auto-compact point (or the window).
349      const contextRows = [];
350      if (hasContext) {
351        const width = isWide ? half : barWidth;
352        const filled = cells(contextPercent, width);
353        const total = contextGroups?.reduce((sum, g) => sum + g.tokens, 0);
354        let bar;
355        if (total) {
356          let done = 0, before = 0;
357          bar = contextGroups.flatMap((g) => {
358            done += g.tokens;
359            const upTo = Math.round((done / total) * filled);
360            const these = Array.from({ length: upTo - before }, () => ["█", g.color]);
361            before = upTo;
362            return these;
363          });
364        } else {
365          bar = Array.from({ length: filled }, () => ["█", level(contextPercent)]);
366        }
367        bar = runs(Text, [...bar, ...Array.from({ length: width - filled }, () => ["░", null])]);
368        const percent = Text({ color: level(contextPercent), children: `${contextPercent}% ${isToCompact ? "to compact" : "used"}` });
369        const left = contextTokens !== undefined && contextLimit ? `${count(Math.max(0, contextLimit - contextTokens))} left of ${count(contextLimit)}` : "";
370        const name = (g) => Text({ color: isDesktop ? HEX[g.name] : g.color, children: g.name });
371        const spread = (key, a, z) => Box({ key, flexDirection: "row", justifyContent: "space-between", width: isDesktop ? "100%" : width, children: [Text({ children: a }), dim(z)] });
372        if (isDesktop) {
373          const filledPercent = Math.min(100, contextPercent);
374          const segments = total
375            ? contextGroups.map((g) => [+((g.tokens / total) * filledPercent).toFixed(2), HEX[g.name]])
376            : [[filledPercent, HEX[level(contextPercent)]]];
377          contextRows.push(svgBar(Svg, `Context ${contextPercent}% ${isToCompact ? "to compact" : "used"}`, segments));
378        } else if (isWide) contextRows.push(line("context-bar", bar));
379        if (isWide) {
380          contextRows.push(spread("context-label", ["Context ", percent], left));
381          for (const g of contextGroups ?? []) contextRows.push(spread(g.name, name(g), count(g.tokens)));
382        } else {
383          contextRows.push(line("context", ["Context ", ...bar, " ", percent]));
384        }
385      }
386
387      lines = [row("head", join(parts, sep))];
388      if (isWide) {
389        const column = (key, children) => children.length && Box({ key, flexDirection: "column", justifyContent: "space-between", width: isDesktop ? "50%" : half, children });
390        const columns = [column("limits", limitRows), column("context-column", contextRows)].filter(Boolean);
391        if (columns.length) lines.push(Box({ key: "body", flexDirection: "row", gap: 3, marginTop: isDesktop ? 0.5 : 1, children: columns }));
392      } else {
393        lines.push(...limitRows, ...contextRows);
394      }
395    }
396
397    const beneath = await next(e); // another mod's band, kept under this one
398    return Box({ flexDirection: "column", children: [...lines, beneath].filter(Boolean) });
399  });
400}
401

1export type Todo = { content: string; status: string; activeForm?: string }
2export type Branch = { name: string; isDirty: boolean }
3export type Limit = { kind: string; percentUsed: number; resetsAt?: string }
4export type ContextGroup = { name: string; tokens: number; color: string }
5export type Budget = { contextPercent?: number; contextTokens?: number; contextLimit?: number; isToCompact?: boolean; contextGroups?: ContextGroup[]; costUsd?: number; fiveHour?: Limit; weekly?: Limit }
6
7declare module 'claude-code' {
8  interface PluginState {
9    hud: {
10      todos: Todo[]
11      tasks: Record<string, Todo>
12      branch: Branch | null
13      budget: Budget
14      tokens: { input: number; output: number }
15      isHidden: boolean
16      isCollapsed: boolean
17      minute: number
18    }
19  }
20}
21
