session-usage-band

1// The hooks: the one place that touches `$`. Each reads what the engine knows
2// into the pure modules, and ui.render hands drawBand a snapshot of them.
3
4import { atom, read, update } from 'claude-code'
5import type { EngineInterface, Register, Timer } from 'claude-code'
6import { drawBand } from './band'
7import {
8  cache,
9  cacheView,
10  msLeft,
11  noteCompaction,
12  noteConversationStart,
13  noteLedger,
14  noteLoad,
15  noteRecall,
16  modelName,
17  noteBilledModel,
18  notePriceModel,
19  pricedModel,
20  pinTtl,
21  ratePerToken,
22  recordResponse,
23  resetCache,
24  resetConversation,
25  resolveTtl,
26} from './cache'
27import { COMPACT_NEAR, SEVERE_AT, WARN_AT, contextUsed, fmtCountdown, fmtEta, fmtTokens } from './format'
28import {
29  fiveHourEtaMs,
30  insights,
31  noteFiveHour,
32  noteTurnEnd,
33  noteTurnStart,
34  escalate,
35  resetConversationInsights,
36  resetInsights,
37} from './insights'
38import { DARK, resolvePalette } from './palette'
39import type { Palette } from './palette'
40import {
41  RATES_KEY,
42  READ_LIMIT,
43  SESSIONS_KEY,
44  asRates,
45  asSessions,
46  lastReplyAt,
47  lastReplyModel,
48  rateFromTranscript,
49  rememberReply,
50  transcriptPath,
51} from './memory'
52import { GIT_DIRS_ARGV, GIT_STATUS_ARGV, homeRelative, parseGitState, splitPath } from './workspace'
53import type { Workspace } from './workspace'
54
55const isHidden = atom({ plugin: 'session-usage-band', key: 'isHidden' } as const, false)
56const isExpanded = atom({ plugin: 'session-usage-band', key: 'isExpanded' } as const, false)
57
58const FIVE_HOUR = 'five_hour'
59const SEVEN_DAY = 'seven_day'
60
61/** How much of a transcript's end to read: room for a long last reply. */
62const TAIL_BYTES = 1024 * 1024
63
64/** Long enough for a large repository's status or a transcript's tail,
65 *  short enough that a hung command never holds a read open for long. */
66const PROCESS_TIMEOUT_MS = 3000
67
68/** What /usage-band answers. */
69const REPLY = {
70  shown: 'Usage band shown.',
71  shownFirst: 'Usage band shown. /usage-band more shows every fact.',
72  hidden: 'Usage band hidden. /usage-band shows it again.',
73  expanded: 'Usage band expanded.',
74  collapsed: 'Usage band collapsed.',
75  usage: 'Usage: /usage-band [more | less | show | hide]',
76} as const
77
78/** Everything the band keeps between hooks, in one place. A reload starts it
79 *  over with the module; session.start resets the rest. */
80const band: {
81  palette: Readonly<Palette>
82  /** Where auto-compaction runs, as the context breakdown last said; read
83   *  after each turn, not on every redraw. Undefined when off or unknown. */
84  compactAt: number | undefined
85  /** The breakdown said auto-compaction is off. */
86  autoCompactOff: boolean
87  /** Where the session is: its project, home-relative, and git there. Read
88   *  between redraws, never while drawing, since git takes a process. */
89  workspace: Workspace | undefined
90  /** Reads begun, so one that ends after a newer one never overwrites it. */
91  reads: number
92  /** What the band last drew, so the timer repaints only when it would change. */
93  lastPaintKey: string
94  /** Each toast's level reached, so it speaks once per crossing. */
95  warned: Map<string, number>
96  tick: Timer | undefined
97} = {
98  palette: DARK,
99  compactAt: undefined,
100  autoCompactOff: false,
101  workspace: undefined,
102  reads: 0,
103  lastPaintKey: '',
104  warned: new Map(),
105  tick: undefined,
106}
107
108/** A transcript's end, where its last reply and cost record are: its last
109 *  megabyte by `tail`, whatever its size; failing that, the whole file if it
110 *  is small enough to read. */
111const transcriptEnd = async ($: EngineInterface, path: string): Promise<string | undefined> => {
112  const tail = await $.process
113    .run(['tail', '-c', String(TAIL_BYTES), path], { timeoutMs: PROCESS_TIMEOUT_MS })
114    .catch(() => undefined)
115  if (tail?.exitCode === 0) return tail.stdout
116  const stat = await $.fs.stat(path).catch(() => undefined)
117  if (stat === undefined || stat.size > READ_LIMIT) return undefined
118  const text = await $.fs.read(path).catch(() => undefined)
119  return typeof text === 'string' ? text : undefined
120}
121
122/** Recalls when this session last had a reply, and what a token costs on
123 *  its model: the band's own memory first; for a session from before the
124 *  band, its transcript's last reply and cost record, if it is small enough
125 *  to read. Read once at load, and only those two facts kept. Never throws:
126 *  unknown stays unknown. */
127const recallLastReply = async ($: EngineInterface): Promise<void> => {
128  try {
129    const id = await $.session.id()
130    const model = modelName(await $.session.model())
131    const rates = asRates(await $.store.get(RATES_KEY))
132    let lastAt = asSessions(await $.store.get(SESSIONS_KEY))[id]?.lastAt
133    let rate = rates[model] ?? null
134    if (lastAt === undefined || rate === null) {
135      const home = await $.env.get('HOME')
136      const transcript = home ? await transcriptEnd($, transcriptPath(home, await $.session.root(), id)) : undefined
137      if (transcript !== undefined) {
138        lastAt ??= lastReplyAt(transcript)
139        // /model may name an alias; the last reply names the model it was billed under.
140        const billed = lastReplyModel(transcript)
141        if (billed !== undefined) noteBilledModel(billed)
142        rate ??= billed === undefined ? rateFromTranscript(transcript, model) : (rates[billed] ?? rateFromTranscript(transcript, billed))
143      }
144    }
145    if (lastAt !== undefined) noteRecall(lastAt, rate)
146  } catch {
147    // nothing to recall
148  }
149}
150
151/** Remembers this session's last reply and the rate its bill solves to, for
152 *  when it is reopened or the band reloads. */
153const rememberTurn = async ($: EngineInterface, costNow: number | undefined): Promise<void> => {
154  if (cache.requests === 0) return
155  try {
156    const id = await $.session.id()
157    await $.store.set(SESSIONS_KEY, rememberReply(asSessions(await $.store.get(SESSIONS_KEY)), id, cache.lastAt))
158    const rate = ratePerToken(costNow)
159    if (rate !== null) await $.store.set(RATES_KEY, { ...asRates(await $.store.get(RATES_KEY)), [pricedModel() ?? modelName(await $.session.model())]: rate })
160  } catch {
161    // memory is a convenience; the band works without it
162  }
163}
164
165/** Reads the project and git into `band.workspace`, then redraws. It never throws:
166 *  outside a repository, or with git missing or slow, the band shows the
167 *  path alone. Callers don't wait on it. */
168const readWorkspace = async ($: EngineInterface): Promise<void> => {
169  const mine = ++band.reads
170  try {
171    const root = await $.session.root()
172    const home = await $.env.get('HOME')
173    const run = (argv: readonly string[]): Promise<string | undefined> =>
174      $.process.run(argv, { cwd: root, timeoutMs: PROCESS_TIMEOUT_MS }).then(
175        r => (r.exitCode === 0 ? r.stdout : undefined),
176        () => undefined,
177      )
178    const [status, dirs, repo] = await Promise.all([
179      run(GIT_STATUS_ARGV),
180      run(GIT_DIRS_ARGV),
181      $.session.repo().catch(() => null),
182    ])
183    if (mine !== band.reads) return
184    const path = homeRelative(root, home)
185    const last = band.workspace
186    band.workspace = {
187      path,
188      // A status that failed or timed out keeps the last good reading of the
189      // same project, so a slow repository doesn't flicker to the path alone.
190      git: status === undefined ? (last?.path === path ? last.git : undefined) : parseGitState(status, dirs ?? ''),
191      // A linked worktree's main repository, by its folder's name.
192      repoName: repo === null ? undefined : splitPath(repo.root).name,
193    }
194    $.ui.invalidate('ui.render')
195  } catch {
196    // keep the last reading
197  }
198}
199
200/** What the session has cost so far, if the host keeps a ledger; undefined
201 *  when it has none, or the read fails. */
202const ledgerUsd = async ($: EngineInterface): Promise<number | undefined> =>
203  (await $.session.usage().catch(() => undefined))?.cost?.usd
204
205type BandCommand = 'toggle' | 'more' | 'less' | 'show' | 'hide'
206
207const parseCommand = (args: string): BandCommand | undefined => {
208  const word = args.trim().toLowerCase()
209  if (word === '') return 'toggle'
210  return word === 'more' || word === 'less' || word === 'show' || word === 'hide' ? word : undefined
211}
212
213
214export const register: Register = on => {
215
216  on('session.start', async ($, e, next) => {
217    resetCache()
218    resetInsights()
219    band.warned.clear()
220    band.lastPaintKey = ''
221    band.workspace = undefined
222    band.reads++ // any read still out began before this load
223    notePriceModel(await $.session.model().catch(() => undefined))
224    noteLoad(await ledgerUsd($))
225    void readWorkspace($)
226    // Loaded mid-conversation, the band has seen no reply: recall the last.
227    if (!cache.knownFresh) await recallLastReply($)
228
229    band.palette = resolvePalette((await $.env.get('CC_BAND_APPEARANCE'))?.toLowerCase(), await $.env.get('NO_COLOR'))
230    const pinned = resolveTtl({
231      force5m: await $.env.get('FORCE_PROMPT_CACHING_5M'),
232      chosen: await $.env.get('CLAUDE_CODE_PROMPT_CACHE_TTL'),
233      enable1h: await $.env.get('ENABLE_PROMPT_CACHING_1H'),
234    })
235    if (pinned !== undefined) pinTtl(pinned)
236
237    // One timer, repainting only when the drawing would differ: every minute
238    // (the battery, the reset countdowns, the pace tick), and every second of
239    // the cache's last ten minutes, when its countdown shows seconds.
240    band.tick?.cancel()
241    band.tick = $.clock.every(1000, () => {
242      void (async () => {
243        const now = await $.clock.now()
244        const left = msLeft(now)
245        const eta = fiveHourEtaMs(now)
246        const key = `${Math.floor(now / 60_000)}|${fmtCountdown(left)}|${left > 0}|${eta === null ? '-' : fmtEta(eta)}`
247        if (key !== band.lastPaintKey) {
248          band.lastPaintKey = key
249          $.ui.invalidate('ui.render')
250        }
251      })().catch(() => undefined)
252    })
253
254    $.command.register({
255      name: 'usage-band',
256      description: 'Show, hide, expand or collapse the session usage band',
257    })
258    return next(e)
259  })
260
261  // /clear and resume end the conversation but not the process, and no
262  // session.start follows, so the next conversation starts from here.
263  on('session.end', async ($, e, next) => {
264    resetConversation((await ledgerUsd($)) ?? 0)
265    // The context warning is this conversation's; the 5-hour one is the
266    // account's, and /clear changes nothing about it.
267    resetConversationInsights()
268    band.warned.delete('context')
269    band.lastPaintKey = ''
270    // A resume may be another project.
271    void readWorkspace($)
272    $.ui.invalidate('ui.render')
273    return next(e)
274  })
275
276  on('turn.start', async ($, e, next) => {
277    // /model may have switched what the session's tokens are priced at.
278    notePriceModel(await $.session.model().catch(() => undefined))
279    const cost = await ledgerUsd($)
280    noteTurnStart(e.turnId, cost)
281    if (cost !== undefined) noteConversationStart(cost)
282    return next(e)
283  })
284
285  // Main-loop turns only: a subagent's run is part of the turn that spawned it.
286  on('turn.complete', async ($, e, next) => {
287    const result = await next(e)
288    if (e.agentId === undefined) {
289      const cost = await ledgerUsd($)
290      noteTurnEnd(e.turnId, cost)
291      void rememberTurn($, cost)
292      // A turn may have switched branch, committed or moved the session.
293      void readWorkspace($)
294      $.ui.invalidate('ui.render')
295    }
296    return result
297  })
298
299  on('turn.step', async function* ($, e, next) {
300    // The cache's TTL runs from when the request is sent, not when its reply ends.
301    const sentAt = await $.clock.now()
302    const result = yield* next(e)
303    const isMain = e.agentId === undefined
304    if (result?.usage) {
305      if (isMain && result.usage.model) noteBilledModel(result.usage.model)
306      recordResponse(result.usage, sentAt, isMain, result.usage.model)
307      const cost = await ledgerUsd($)
308      if (cost !== undefined) noteLedger(cost)
309      $.ui.invalidate('ui.render')
310    }
311    if (isMain && result?.stopReason === 'compaction') noteCompaction(undefined)
312    return result
313  })
314
315  // A compaction of the main conversation rebuilds the cache on purpose.
316  on('session.compact', async ($, e, next) => {
317    const result = await next(e)
318    if (e.agentId === undefined && e.trigger !== 'precompute' && result.skip === undefined) {
319      noteCompaction(result.tokensAfter)
320      $.ui.invalidate('ui.render')
321    }
322    return result
323  }).catch(($, e, next) => next(e)) // a failure here must never stop a compaction
324
325  on('session.measure', async ($, e, next) => {
326    const now = await $.clock.now()
327    const note = (key: string, frac: number, levels: readonly number[], text: (pct: number) => string): void => {
328      const { level, speak } = escalate(band.warned.get(key) ?? 0, frac, levels)
329      band.warned.set(key, level)
330      if (speak) $.ui.toast(text(Math.round(frac * 100)))
331    }
332
333    for (const limit of e.rateLimits) {
334      if (limit.kind !== FIVE_HOUR) continue
335      noteFiveHour(now, limit.percentUsed, limit.resetsAt)
336      note(FIVE_HOUR, limit.percentUsed / 100, [WARN_AT, SEVERE_AT], pct => `You've used ${pct}% of your 5-hour limit.`)
337    }
338
339    // Local and token-free, but it can fail; the last answer stands until a new one.
340    try {
341      const breakdown = (await $.session.usage({ breakdown: 'summary' })).context.breakdown
342      if (breakdown !== undefined) {
343        // On without a threshold says nothing about where: leave it unknown.
344        band.autoCompactOff = !breakdown.isAutoCompactEnabled
345        band.compactAt = breakdown.isAutoCompactEnabled ? breakdown.autoCompactThreshold : undefined
346      }
347    } catch {
348      // keep the last known setting
349    }
350
351    // The context toast speaks where the context pill turns amber.
352    const used = contextUsed(e.context)
353    if (used !== undefined) {
354      const at = band.compactAt
355      if (at !== undefined) {
356        note('context', used / at, [COMPACT_NEAR], () => `Auto-compaction in ~${fmtTokens(Math.max(0, at - used))} tokens.`)
357      } else {
358        const off = band.autoCompactOff
359        note('context', used / e.context.window, [WARN_AT, SEVERE_AT], pct =>
360          off
361            ? `Context is ${pct}% full and auto-compaction is off, so the conversation will run out of room.`
362            : `Context is ${pct}% full.`,
363        )
364      }
365    }
366
367    $.ui.invalidate('ui.render')
368    return next(e)
369  })
370
371  on('command.run', { command: 'usage-band' }, async ($, e, next) => {
372    const command = parseCommand(e.args)
373    switch (command) {
374      case 'more':
375      case 'less':
376        await update($, isExpanded, () => command === 'more')
377        await update($, isHidden, () => false)
378        if (command === 'more') void readWorkspace($)
379        return { text: command === 'more' ? REPLY.expanded : REPLY.collapsed }
380      case 'show':
381      case 'hide':
382        await update($, isHidden, () => command === 'hide')
383        return { text: command === 'hide' ? REPLY.hidden : REPLY.shown }
384      case 'toggle': {
385        const wasHidden = await read($, isHidden)
386        await update($, isHidden, () => !wasHidden)
387        return { text: wasHidden ? REPLY.shownFirst : REPLY.hidden }
388      }
389      case undefined:
390        return { text: REPLY.usage }
391    }
392  })
393
394  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
395    if (e.props.hasSurvey || (await read($, isHidden))) return next(e)
396
397    const usage = await $.session.usage()
398    const now = await $.clock.now()
399    const five = usage.rateLimits.find(l => l.kind === FIVE_HOUR)
400    const seven = usage.rateLimits.find(l => l.kind === SEVEN_DAY)
401    if (usage.cost !== undefined) noteLedger(usage.cost.usd)
402    const contextTokens = contextUsed(usage.context) ?? 0
403
404    return drawBand(
405      $.ui.resolve(e),
406      {
407        surface: e.surface,
408        columns: e.props.bodyColumns,
409        maxRows: e.props.maxRows,
410        isWorking: e.props.isWorking,
411        expanded: await read($, isExpanded),
412        palette: band.palette,
413        now,
414        cache: cacheView(now, usage.cost?.usd, contextTokens),
415        costUsd: usage.cost?.usd ?? 0,
416        lastTurnUsd: insights.lastTurnUsd,
417        context: {
418          tokens: usage.context.tokens,
419          window: usage.context.window,
420          percent: usage.context.percent,
421          compactAt: band.compactAt,
422        },
423        fiveHour: five ? { percentUsed: five.percentUsed, resetsAt: five.resetsAt, etaMs: fiveHourEtaMs(now) } : undefined,
424        sevenDay: seven ? { percentUsed: seven.percentUsed, resetsAt: seven.resetsAt } : undefined,
425        workspace: band.workspace,
426        otherLimits: usage.rateLimits
427          .filter(l => l.kind !== FIVE_HOUR && l.kind !== SEVEN_DAY)
428          .map(l => ({ kind: l.kind, percentUsed: l.percentUsed, resetsAt: l.resetsAt })),
429      },
430      {
431        toggleExpanded: async () => {
432          // Opening reads git, so the cards never show a stale branch.
433          if (await update($, isExpanded, current => !current)) void readWorkspace($)
434        },
435        hide: async () => {
436          await update($, isHidden, () => true)
437        },
438      },
439    )
440  })
441}
442

1// The band, drawn: a pure function of the snapshot register.tsx reads.
2// It never sees `$`, so everything it shows arrives in the snapshot.
3
4import type { ElementTable, RenderChildren, RenderElement } from 'claude-code'
5import {
6  clamp01,
7  fmtCost,
8  fmtEstimate,
9  fmtAgo,
10  fmtEta,
11  fmtSmallCost,
12  fmtTokens,
13  resetIn,
14  severityMark,
15} from './format'
16import type { Icon } from './icons'
17import { makeKit } from './kit'
18import {
19  CARD_TEXT,
20  CHIP_BAR,
21  GIVES_WAY,
22  HOTKEY_MARK,
23  ROW_SLACK,
24  SHORT_BELOW,
25  cellsOf,
26  keeps,
27  squeezeToFit,
28} from './layout'
29import type { BarSize, Piece } from './layout'
30import { BARE } from './palette'
31import type { Palette } from './palette'
32import {
33  cacheCharge,
34  cacheCopy,
35  cacheMood,
36  contextReading,
37  hasReset as resetPassed,
38  limitTone as toneOf,
39  reWarmEstimate,
40  windowGone as goneOf,
41} from './reading'
42import type { Tone } from './reading'
43import type { BandActions, BandSnapshot, LimitReading } from './snapshot'
44import { drawStrip } from './strip'
45
46
47// ---- limits ---------------------------------------------------------------
48
49type LimitKey = '5h' | '7d'
50type Tint = Readonly<{ bg: string; fg: string; accent: string }>
51type LimitSpec = Readonly<{
52  icon: Icon
53  windowMs: number
54  title: string
55  calm: Piece
56  reset: Piece
57  amberReset: Piece
58  tint: (p: Readonly<Palette>) => Tint
59}>
60
61/** The two limit chips: one shape, their own window, tint and steps. */
62const LIMITS: Readonly<Record<LimitKey, LimitSpec>> = {
63  '5h': {
64    icon: 'five',
65    windowMs: 5 * 3600_000,
66    title: '5-hour limit',
67    calm: 'calmFive',
68    reset: 'fiveReset',
69    amberReset: 'amberFiveReset',
70    tint: p => ({ bg: p.fiveBg, fg: p.fiveFg, accent: p.fiveAccent }),
71  },
72  '7d': {
73    icon: 'week',
74    windowMs: 7 * 24 * 3600_000,
75    title: 'Weekly limit',
76    calm: 'calmWeek',
77    reset: 'weekReset',
78    amberReset: 'amberWeekReset',
79    tint: p => ({ bg: p.weekBg, fg: p.weekFg, accent: p.weekAccent }),
80  },
81}
82
83// ---- drawing --------------------------------------------------------------
84
85/** The expanded view's cards, in the order they are drawn. */
86type CardName = 'cache' | 'spend' | 'context' | 'limits'
87
88type PillSpec = Readonly<{
89  key: string
90  tone: Tone
91  body: RenderChildren[]
92  /** The one-line explanation shown while the pill is hovered. */
93  hover: string
94  /** The terminal battery paints its own background in its Texts. */
95  paintsOwnBg?: boolean
96  bg?: string
97}>
98
99export const drawBand = (el: ElementTable, snap: BandSnapshot, act: BandActions): RenderElement => {
100  const kit = makeKit(el, snap)
101  const { Box, Button, Text, Svg, palette, measure, onTone, hoverCard, gap, icon } = kit
102  const c = snap.cache
103  // A pill carries its own foreground and background, never one of each. Its
104  // card is a child, so the engine counts the pointer on the card as on the
105  // pill and reading it keeps the pill hovered. The card has no key: a keyed
106  // Box is its own hover scope, and a hidden one could never be hovered. One
107  // line, since a collapsed band is one row. Plain has no background to cover
108  // the row with, so no cards; the expanded line says it all. A pill never
109  // shrinks: the squeeze drops pieces instead, so its text never wraps.
110  const pill = ({ key, tone, body, hover, paintsOwnBg, bg }: PillSpec, anchor: 'left' | 'right') => {
111    if (!palette.filled) {
112      const fg = onTone(tone, palette.value)
113      return (
114        <Box key={key} flexShrink={0}>
115          <Text color={fg}>[</Text>
116          {body}
117          <Text color={fg}>]</Text>
118        </Box>
119      )
120    }
121    const fill = paintsOwnBg ? {} : { backgroundColor: onTone(tone, bg ?? palette.surface, palette.amberBg), paddingX: 1 }
122    return (
123      <Box key={key} flexShrink={0} {...fill}>
124        {body}
125        {hoverCard(hover, anchor)}
126      </Box>
127    )
128  }
129
130  /** A bar: `frac` filled, with a thumb where the fill ends, so the eye finds
131   *  the number's place on it at once. `label` names it for a reader, and
132   *  `reads` says whether the fill is what's used or what's left. A stretched bar has no width of its
133   *  own: drawn wider than any slot, the slot caps it, so it spans its card. */
134  const meter = (
135    label: string,
136    frac: number,
137    tone: Tone,
138    accent: string,
139    size: BarSize = CHIP_BAR,
140    stretch = false,
141    reads: 'used' | 'left' = 'used',
142  ) => {
143    const fill = onTone(tone, accent)
144    if (Svg) {
145      // Never name a local `h`: JSX compiles to the global h().
146      const tall = 8
147      // Twice the estimate, so the slot always caps it; corners in kind, so
148      // they round true at the scale it lands on.
149      const k = stretch ? 2 : 1
150      const width = size.px * k
151      // A sliver under 6px reads as a dot or nothing: any use shows as a nub.
152      // No clipPath: ids are document-wide where Svgs share a page, so a
153      // rounded fill draws its own ends.
154      const fillWidth = frac > 0 ? Math.max(6 * k, Math.round(clamp01(frac) * width)) : 0
155      const source =
156        `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${tall}" viewBox="0 0 ${width} ${tall}"${stretch ? ' preserveAspectRatio="none"' : ''}>` +
157        `<rect x="${0.5 * k}" y="1.5" width="${width - k}" height="5" rx="${2.5 * k}" ry="2.5" fill="${palette.meterTrack}" stroke="${palette.trackStroke}"${stretch ? ' vector-effect="non-scaling-stroke"' : ''}/>` +
158        (fillWidth > 0
159          ? `<rect class="fill" y="1" width="${fillWidth}" height="6" rx="${3 * k}" ry="3" fill="${fill}"/>` +
160            `<rect class="thumb" x="${Math.min(width - 2 * k, fillWidth - k)}" y="0" width="${2 * k}" height="${tall}" rx="${k}" ry="1" fill="${palette.value}"/>`
161          : '') +
162        '</svg>'
163      const alt = `${label} ${Math.round(clamp01(frac) * 100)}% ${reads}`
164      return stretch ? (
165        <Svg key="meter" source={source} alt={alt} height={tall} />
166      ) : (
167        <Svg key="meter" source={source} alt={alt} width={width} height={tall} />
168      )
169    }
170    // Two glyphs only: partial blocks jitter across fonts and read as noise to
171    // a screen reader. The number beside a meter carries the value.
172    const filled = Math.round(clamp01(frac) * size.cells)
173    return (
174      <Text key="meter" color={fill}>
175        {'█'.repeat(filled)}
176        {filled < size.cells ? <Text key="track" color={palette.meterTrack}>{'░'.repeat(size.cells - filled)}</Text> : null}
177      </Text>
178    )
179  }
180
181  // ---- what the pills say, whatever the squeeze ----------------------------
182  const mood = cacheMood(c)
183  const copy = cacheCopy(c, mood, snap.isWorking)
184  const estimate = reWarmEstimate(c)
185  const cacheTone: Tone = mood === 'expiring' ? 'amber' : 'calm'
186  const charge = cacheCharge(c, mood, snap.isWorking)
187
188  const tokenBreakdown = `input ${fmtTokens(c.tokens.sent)} · output ${fmtTokens(c.tokens.back)} · cache reads ${fmtTokens(c.tokens.cached)}`
189  const tokenTotal = c.tokens.sent + c.tokens.back + c.tokens.cached
190
191  const ctx = snap.context
192  const {
193    known: hasContext,
194    used: ctxUsed,
195    frac: ctxFrac,
196    pct: ctxPct,
197    toCompact,
198    nearCompact,
199    tone: ctxTone,
200  } = contextReading(ctx)
201
202  // ---- the cache pill ----------------------------------------------------
203  const batteryIcon = (): RenderChildren => {
204    if (!Svg) return null
205    const outline = onTone(cacheTone, palette.label)
206    const fill = onTone(cacheTone, palette.warm)
207    const width = Math.round(clamp01(charge) * 15 * 10) / 10
208    const source =
209      '<svg xmlns="http://www.w3.org/2000/svg" width="22" height="12" viewBox="0 0 22 12">' +
210      `<rect x="0.75" y="0.75" width="18.5" height="10.5" rx="3" fill="none" stroke="${outline}" stroke-width="1.5"/>` +
211      `<rect x="19.75" y="4" width="1.75" height="4" rx="0.8" fill="${outline}"/>` +
212      `<rect class="charge" x="2.5" y="2.5" width="${width}" height="7" rx="1.5" fill="${fill}"/>` +
213      '</svg>'
214    const alt = copy.alt
215    return <Svg key="battery" source={source} alt={alt} width={22} height={12} />
216  }
217
218  // On a text surface the battery is the pill itself: its charge painted as
219  // the background of the leading characters, draining right to left.
220  const textBattery = (text: string): RenderChildren[] => {
221    const chars = [...` ${text} `]
222    const cut = Math.round(clamp01(charge) * chars.length)
223    const fg = onTone(cacheTone, palette.value)
224    return [
225      cut > 0 ? (
226        <Text key="bf" color={fg} backgroundColor={onTone(cacheTone, palette.batteryFill, palette.batteryAmber)}>
227          {chars.slice(0, cut).join('')}
228        </Text>
229      ) : null,
230      cut < chars.length ? (
231        <Text key="be" color={fg} backgroundColor={onTone(cacheTone, palette.surface, palette.amberBg)}>
232          {chars.slice(cut).join('')}
233        </Text>
234      ) : null,
235    ]
236  }
237
238  const cachePill = (short: boolean): PillSpec => {
239    const text = copy.pill(short)
240    if (Svg) {
241      // A normal rounded pill led by a draining battery icon; the text-surface
242      // battery would paint a square-cornered block here.
243      return {
244        key: 'cache',
245        tone: cacheTone,
246        body: [batteryIcon(), <Text key="c" color={onTone(cacheTone, palette.value)}>{` ${text}`}</Text>],
247        hover: copy.hover,
248      }
249    }
250    if (palette.filled) return { key: 'cache', tone: cacheTone, body: textBattery(`◷ ${text}`), hover: copy.hover, paintsOwnBg: true }
251    const dot = mood === 'warm' || mood === 'expiring' ? palette.warm : palette.cold
252    return {
253      key: 'cache',
254      tone: cacheTone,
255      body: [
256        cacheTone === 'amber' ? null : <Text key="dot" color={dot}>{'● '}</Text>,
257        <Text key="c" color={onTone(cacheTone, palette.value)}>
258          {cacheTone === 'amber' ? `◷ ${text}` : text}
259        </Text>,
260      ],
261      hover: copy.hover,
262    }
263  }
264
265  // ---- a limit chip ------------------------------------------------------
266  // Its usage on a bar and the reset; a pace that fills it early speaks in
267  // words. A window whose reset has passed shows as reset: its last reading
268  // is from before it.
269  const limitChip = (key: LimitKey, reading: LimitReading, pace: string, tone: Tone, squeeze: number): PillSpec => {
270    const spec = LIMITS[key]
271    const tint = spec.tint(palette)
272    const r = resetIn(reading.resetsAt, snap.now)
273    if (r?.kind === 'passed') {
274      return {
275        key,
276        tone: 'calm',
277        bg: tint.bg,
278        body: [...icon(spec.icon, tint.accent), <Text key="l" color={tint.fg}>{`${key} reset`}</Text>],
279        hover: `${spec.title} has reset; it updates after your next message`,
280      }
281    }
282    const fg = onTone(tone, tint.fg)
283    const accent = onTone(tone, tint.accent)
284    const frac = clamp01(reading.percentUsed / 100)
285    const bar = keeps(squeeze, 'limitBars') ? [gap('g-bar'), meter(key, frac, tone, tint.accent)] : []
286    const reset =
287      r !== undefined && keeps(squeeze, tone === 'amber' ? spec.amberReset : spec.reset)
288        ? [<Text key="d" color={palette.label}>{' │ '}</Text>, ...icon('reset', accent), <Text key="r" color={fg}>{r.text}</Text>]
289        : []
290    return {
291      key,
292      tone,
293      bg: tint.bg,
294      body: [
295        ...icon(spec.icon, accent),
296        <Text key="l" color={fg}>
297          {key}
298        </Text>,
299        ...bar,
300        <Text key="v" color={fg} bold>
301          {` ${Math.round(reading.percentUsed)}%${severityMark(frac)}${pace}`}
302        </Text>,
303        ...reset,
304      ],
305      hover:
306        r === undefined
307          ? `Your ${spec.title.toLowerCase()}, across all your Claude use`
308          : `${spec.title} across all your Claude use; resets in ${r.text}`,
309    }
310  }
311
312  const windowGone = (reading: LimitReading, windowMs: number | undefined) => goneOf(reading, windowMs, snap.now)
313  const hasReset = (reading: LimitReading) => resetPassed(reading, snap.now)
314  const limitTone = (reading: LimitReading, etaMs: number | null = null) => toneOf(reading, snap.now, etaMs)
315
316  // ---- the row, at a given squeeze ---------------------------------------

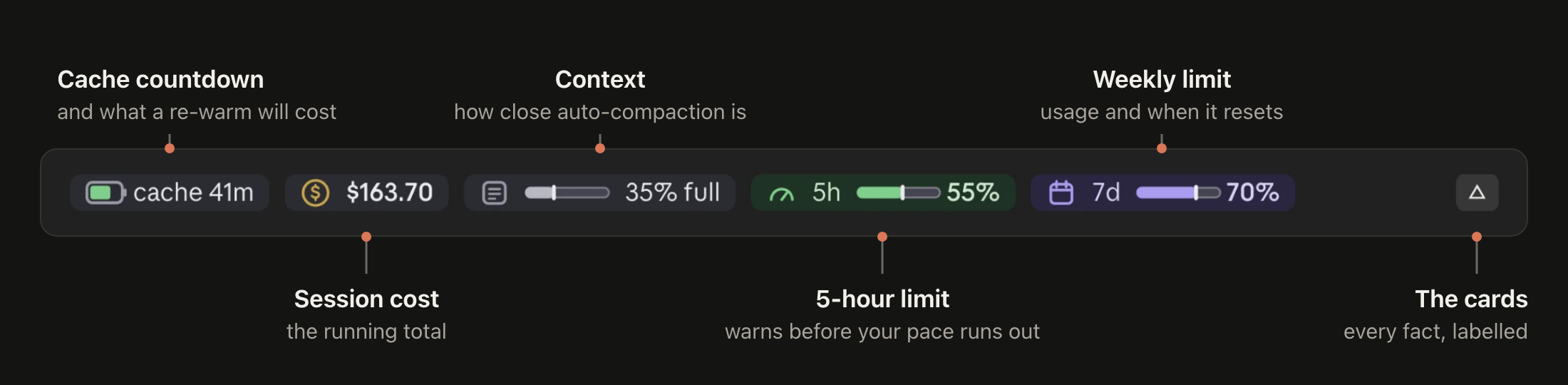

317  const buildPills = (squeeze: number): PillSpec[] => {
318    const short = snap.columns < SHORT_BELOW || !keeps(squeeze, 'shortWording')
319    const pills: PillSpec[] = [
320      cachePill(short),
321      {
322        key: 'cost',
323        tone: 'calm',
324        body: [...icon('cost', palette.coin), <Text key="v" color={palette.value} bold>{fmtCost(snap.costUsd)}</Text>],
325        hover:
326          snap.lastTurnUsd === null
327            ? 'What this session has cost so far'
328            : `${fmtSmallCost(snap.lastTurnUsd)} spent during your last message, subagents included`,
329      },
330    ]
331
332    if (c.requests > 0 && keeps(squeeze, 'tokens')) {
333      pills.push({
334        key: 'tokens',
335        tone: 'calm',
336        body: [...icon('tokens', palette.label), <Text key="v" color={palette.value}>{fmtTokens(tokenTotal)}</Text>],
337        hover: tokenBreakdown,
338      })
339    }
340
341    if (hasContext && (ctxTone === 'amber' || keeps(squeeze, 'calmContext'))) {
342      const amount =
343        ctx.compactAt !== undefined
344          ? keeps(squeeze, 'shortWording')
345            ? `${ctxPct} full`
346            : ctxPct
347          : !keeps(squeeze, 'shortWording') || ctx.tokens === undefined
348            ? ctxPct
349            : `${fmtTokens(ctx.tokens)} / ${fmtTokens(ctx.window)}`
350      const mark = ctx.compactAt === undefined ? severityMark(ctxFrac) : ''
351      const countdown = nearCompact && toCompact !== undefined ? ` · compacts in ~${fmtTokens(toCompact)}` : ''
352      pills.push({
353        key: 'ctx',
354        tone: ctxTone,
355        body: [
356          ...icon('context', onTone(ctxTone, palette.label)),
357          ...(keeps(squeeze, 'contextMeter')
358            ? [meter('context', ctxFrac, ctxTone, palette.meterFill), gap('g-bar')]
359            : []),
360          <Text key="v" color={onTone(ctxTone, palette.value)}>
361            {`${amount}${mark}${countdown}`}
362          </Text>,
363        ],
364        hover:
365          ctx.compactAt === undefined || toCompact === undefined
366            ? 'Conversation fill; near full, older turns get summarized'
367            : `Full toward auto-compaction at ${fmtTokens(ctx.compactAt)}; ${fmtTokens(toCompact)} to go`,
368      })
369    }
370
371    if (snap.fiveHour) {
372      const eta = snap.fiveHour.etaMs
373      const tone = limitTone(snap.fiveHour, eta)
374      if (tone === 'amber' || keeps(squeeze, LIMITS['5h'].calm)) {
375        const pace = eta === null ? '' : short ? ` ${fmtEta(eta)}` : ` full in ${fmtEta(eta)}`
376        pills.push(limitChip('5h', snap.fiveHour, pace, tone, squeeze))
377      }
378    }
379
380    if (snap.sevenDay) {
381      const tone = limitTone(snap.sevenDay)
382      if (tone === 'amber' || keeps(squeeze, LIMITS['7d'].calm)) pills.push(limitChip('7d', snap.sevenDay, '', tone, squeeze))
383    }
384    return pills
385  }
386
387  const rowOf = (pills: PillSpec[]): RenderElement => (
388    <Box key="row" flexDirection="row" flexWrap="nowrap" overflow="hidden" columnGap={1}>
389      {pills.map((spec, i) => pill(spec, i === pills.length - 1 ? 'right' : 'left'))}
390      <Box flexGrow={1} />
391      <Box flexShrink={0}>
392        {/* A Button holds text alone, so its icon is a glyph. The outlined
393            triangles are measured centred in the line, within half a pixel,
394            and wider than tall like a disclosure icon; arrowhead chevrons sit
395            5 px low. On the desktop in a native frame like Collapse's, in the
396            terminal bare. */}
397        <Button
398          key="more"
399          label={snap.expanded ? '▵' : '▿'}
400          {...(Svg ? { variant: 'secondary' as const } : { plain: true as const, dimColor: true })}
401          onPress={act.toggleExpanded}
402        />
403      </Box>
404    </Box>
405  )
406
407  const row = squeezeToFit(squeeze => rowOf(buildPills(squeeze)), GIVES_WAY.length, snap.columns - ROW_SLACK, measure)
408

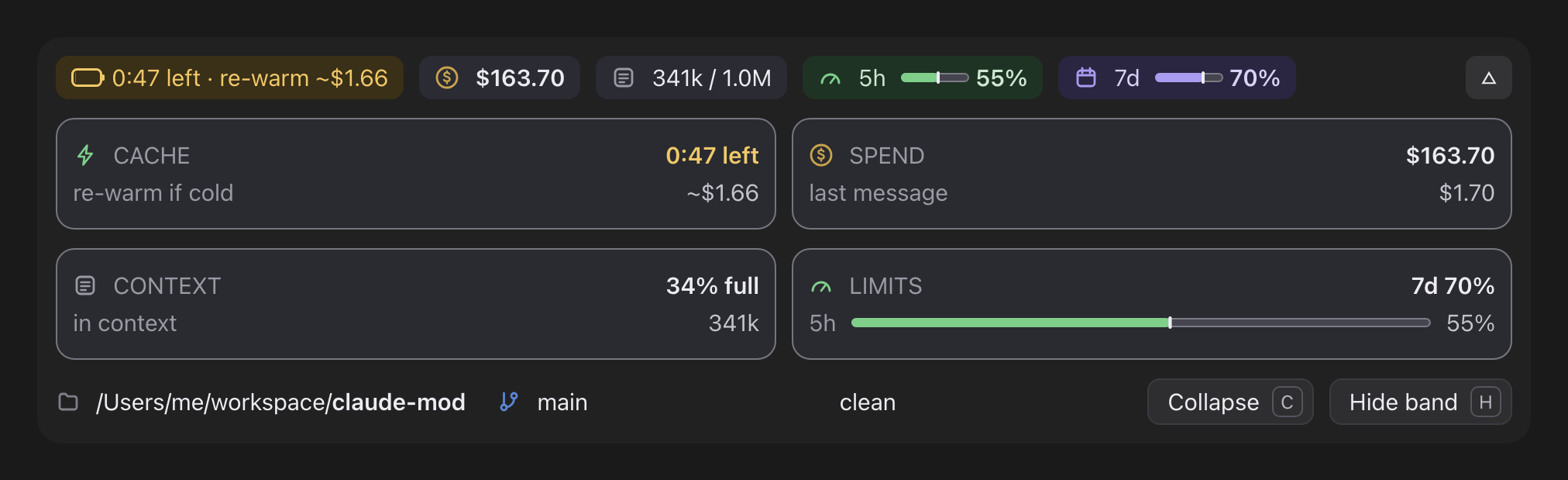

409  // ---- the expanded view: four cards, every fact labelled ----------------
410  // Built only when open: a closed band draws the row alone.
411  const expandedView = (): RenderChildren[] => {
412    /** A label and its value at either end of a line; `swatch` keys a legend. */
413    const factRow = (label: string, value: string, swatch?: string) => (
414      <Box key={`fact:${label}`} flexDirection="row" justifyContent="space-between" columnGap={2}>
415        <Text color={palette.label}>
416          {swatch === undefined ? null : <Text key="sw" color={swatch}>{'■ '}</Text>}
417          {label}
418        </Text>
419        <Text color={palette.cardValue}>{value}</Text>
420      </Box>
421    )
422    const note = (text: string) => (
423      <Text key="note" color={palette.label} wrap="wrap">
424        {text}
425      </Text>
426    )
427
428    // The grid: as many cards to a line as hold their text, else two, else one.
429    // Each line shares its width equally (a zero basis, grown alike), so the
430    // cards align whatever their text and a line never wraps one away. A
431    // desktop card has a visible edge; a terminal card is a fill, its border
432    // would cost two columns. Lines keep a row of air between them.
433    const bordered = Svg !== undefined || !palette.filled
434    const edge = bordered ? 2 : 0
435    const minCard = Math.ceil(CARD_TEXT * measure.text) + 2 + edge
436    // The cards present, which the grid lays out.
437    const present: readonly CardName[] = [
438      'cache',
439      'spend',
440      ...(hasContext ? (['context'] as const) : []),
441      ...(snap.fiveHour || snap.sevenDay || snap.otherLimits.length > 0 ? (['limits'] as const) : []),
442    ]
443    const cardCount = present.length
444    const fits = (n: number) => n * minCard + (n - 1) <= snap.columns
445    const perLine = [cardCount, Math.ceil(cardCount / 2)].find(fits) ?? 1
446    const lineCount = Math.ceil(cardCount / perLine)
447    const lineGap = 1
448    // The rows a card's body may take: the band's, less the chip row, the
449    // buttons, the row of air above each line of cards and the buttons and,
450    // when it shows, the workspace strip, shared by the lines, less a card's
451    // edge and its header. A taller band would scroll, hiding the buttons.
452    const bodyFor = (strip: number) =>
453      Math.floor((snap.maxRows - 4 - strip - lineGap * (lineCount - 1)) / lineCount) - edge - 1
454    // The strip heads the view when every card still keeps a fact of its own;
455    // short of that row it takes the footer's, in place of the hint.
456    const stripPlace: 'top' | 'footer' | undefined =
457      snap.workspace === undefined ? undefined : bodyFor(1) >= 1 ? 'top' : 'footer'
458    const bodyRows = Math.max(1, bodyFor(stripPlace === 'top' ? 1 : 0))
459    const inner = Math.max(4, Math.floor((snap.columns - (perLine - 1)) / perLine) - 2 - edge)
460    const cardBar: BarSize = { px: inner * measure.pxPerCell, cells: inner }
461    /** As much of a card's body as the band has rows for, its facts listed
462     *  most important first. Its bar repeats a chip's, so it shows only when
463     *  every fact fits beside it; short of rows, a fact wins. */
464    const fitBody = (bar: RenderChildren, body: RenderChildren[]): RenderChildren[] => {
465      const facts = body.filter(part => part !== null && part !== undefined)
466      return bar !== null && facts.length < bodyRows ? [bar, ...facts] : facts.slice(0, bodyRows)
467    }
468    // Each card's mark: the chips' own icons, so the band speaks one language.
469    const cardIcon: Readonly<Record<CardName, readonly [Icon, string]>> = {
470      cache: ['cache', palette.warm],
471      spend: ['cost', palette.coin],
472      context: ['context', palette.label],
473      limits: ['limits', LIMITS['5h'].tint(palette).accent],
474    }
475    /** A card: its title and headline on one line, then its bar and body. */
476    const card = (
477      name: CardName,
478      title: string,
479      head: Readonly<{ text: string; tone?: Tone }>,
480      bar: RenderChildren,
481      body: RenderChildren[],
482    ) => (
483      <Box
484        key={`card:${name}`}
485        flexDirection="column"
486        flexGrow={1}
487        width={0}
488        minWidth={0}
489        paddingX={1}
490        {...(palette.filled ? { backgroundColor: palette.cardBg } : {})}
491        {...(bordered ? { borderStyle: 'round', borderColor: palette.cardBorder } : {})}
492      >
493        <Box key="head" flexDirection="row" justifyContent="space-between" columnGap={1}>
494          <Box key="title" flexDirection="row" flexShrink={0}>
495            {/* Desktop alone: a terminal title stays plain text. */}
496            {Svg ? icon(...cardIcon[name]) : null}
497            <Text color={palette.label}>{title.toUpperCase()}</Text>
498          </Box>
499          <Text color={onTone(head.tone ?? 'calm', palette.value)} bold wrap="truncate-end">
500            {head.text}
501          </Text>
502        </Box>
503        {fitBody(bar, body)}
504      </Box>
505    )
506
507    /** A bar split into parts, each its share of the whole, in its own colour. */
508    const splitBar = (label: string, parts: ReadonlyArray<readonly [number, string]>) => {
509      const total = parts.reduce((sum, [n]) => sum + n, 0)
510      if (total <= 0) return null
511      if (Svg) {
512        // Drawn wider than any card and capped by it, like a stretched meter.
513        // No clipPath, whose id would be page-wide: the end segments draw their
514        // own rounded ends, as paths, the inner ones square.
515        const width = cardBar.px * 2
516        const R = 6
517        const shown = parts.filter(([n]) => n > 0)
518        let x = 0
519        const segments = shown.map(([n, color], i) => {
520          const x0 = x
521          const x1 = x + (n / total) * width
522          x = x1
523          const f = (v: number) => v.toFixed(1)
524          const first = i === 0
525          const last = i === shown.length - 1
526          if (x1 - x0 < 2 * R || (!first && !last)) {
527            return `<rect x="${f(x0)}" y="1" width="${f(x1 - x0)}" height="6"${first && last ? ` rx="${R}" ry="3"` : ''} fill="${color}"/>`
528          }
529          if (first && last) return `<rect x="${f(x0)}" y="1" width="${f(x1 - x0)}" height="6" rx="${R}" ry="3" fill="${color}"/>`
530          return first
531            ? `<path d="M${f(x0 + R)} 1H${f(x1)}V7H${f(x0 + R)}A${R} 3 0 0 1 ${f(x0 + R)} 1Z" fill="${color}"/>`
532            : `<path d="M${f(x0)} 1H${f(x1 - R)}A${R} 3 0 0 1 ${f(x1 - R)} 7H${f(x0)}Z" fill="${color}"/>`
533        })
534        const source = `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="8" viewBox="0 0 ${width} 8" preserveAspectRatio="none">${segments.join('')}</svg>`
535        return <Svg key="split" source={source} alt={label} height={8} />
536      }
537      const cells = cardBar.cells
538      let used = 0
539      return (
540        <Text key="split">
541          {parts.map(([n, color], i) => {
542            const count = i === parts.length - 1 ? cells - used : Math.round((n / total) * cells)
543            used += count
544            return (
545              <Text key={`s${i}`} color={color}>
546                {'█'.repeat(Math.max(0, count))}
547              </Text>
548            )
549          })}
550        </Text>
551      )
552    }
553
554    const measured = c.requests > 0
555    // Measured, or recalled from the session's last reply: time and price known.
556    const known = measured || c.recalled
557    const cacheView = card(
558      'cache',
559      'Cache',
560      {
561        text: copy.head,
562        tone: cacheTone,
563      },
564      known ? meter('cache', charge, cacheTone, palette.warm, cardBar, true, 'left') : null,
565      [
566        copy.note === undefined ? null : note(copy.note),
567        known ? factRow(mood === 'cold' ? 'next message' : 're-warm if cold', estimate) : null,
568        c.recalled && c.idleMs !== null ? factRow('idle for', fmtAgo(c.idleMs)) : null,
569        c.misses > 0 ? factRow('unexpected rebuilds', String(c.misses)) : null,
570        measured && c.savedUsd !== null ? factRow('saved by cache', fmtEstimate(c.savedUsd)) : null,
571        measured && c.hitRatio !== null ? factRow('hit rate', `${Math.round(c.hitRatio * 100)}%`) : null,
572        // Inference only ever moves an assumed hour to 5m, so an unpinned hour is the guess.
573        factRow('expires', `${c.ttl} idle${!c.ttlPinned && c.ttl === '1h' ? ' · assumed' : ''}`),
574      ],
575    )
576
577    // Cache reads in the warm colour: cheap, and often most of the bar.
578    const tokenParts: ReadonlyArray<readonly [string, number, string]> = [
579      ['input', c.tokens.sent, palette.meterFill],
580      ['output', c.tokens.back, palette.coin],
581      ['cache reads', c.tokens.cached, palette.warm],
582    ]
583    const spendView = card(
584      'spend',
585      'Spend',
586      { text: fmtCost(snap.costUsd) },
587      measured ? splitBar('token split: input, output, cache reads', tokenParts.map(([, n, color]) => [n, color] as const)) : null,
588      [
589      snap.lastTurnUsd !== null ? factRow('last message', fmtSmallCost(snap.lastTurnUsd)) : null,
590      ...(measured ? tokenParts.map(([label, n, color]) => factRow(label, fmtTokens(n), color)) : [note('Breakdown counts from your next message.')]),
591      ],
592    )
593
594    const contextView = hasContext
595      ? card(
596          'context',
597          'Context',
598          { text: `${ctxPct} full${ctx.compactAt === undefined ? severityMark(ctxFrac) : ''}`, tone: ctxTone },
599          meter('context', ctxFrac, ctxTone, palette.meterFill, cardBar, true),
600          [
601          toCompact !== undefined ? factRow('room left', `~${fmtTokens(toCompact)}`) : null,
602          ctx.compactAt !== undefined ? factRow('auto-compacts at', fmtTokens(ctx.compactAt)) : null,
603          factRow('in context', fmtTokens(ctxUsed)),
604          factRow('model window', fmtTokens(ctx.window)),
605          ],
606        )
607      : null
608
609    /** A window of the Limits card. `etaMs` is the measured pace the 5h chip
610     *  shows, when there is one; the card says the same. */
611    type Window = Readonly<{
612      name: string
613      reading: LimitReading
614      windowMs: number | undefined
615      accent: string
616      etaMs: number | null
617    }>
618    const windows: Window[] = [
619      ...(snap.fiveHour
620        ? [{ name: '5h', reading: snap.fiveHour, windowMs: LIMITS['5h'].windowMs, accent: LIMITS['5h'].tint(palette).accent, etaMs: snap.fiveHour.etaMs }]
621        : []),
622      ...(snap.sevenDay ? [{ name: '7d', reading: snap.sevenDay, windowMs: LIMITS['7d'].windowMs, accent: LIMITS['7d'].tint(palette).accent, etaMs: null }] : []),
623      ...snap.otherLimits.map(limit => ({
624        name: limit.kind === 'spend_limit' ? 'spend' : limit.kind.replace(/_/g, ' '),
625        reading: limit,
626        windowMs: undefined,
627        accent: palette.meterFill,
628        etaMs: null,
629      })),
630    ]
631    const live = windows.filter(w => !hasReset(w.reading))
632    const valueOf = (reading: LimitReading) => `${Math.round(reading.percentUsed)}%${severityMark(clamp01(reading.percentUsed / 100))}`
633
634    /** One window: its name, bar and value on a line, then its reset and pace in words. */
635    const limitRows = ({ name, reading, windowMs, accent, etaMs }: Window): readonly [RenderChildren, RenderChildren] => {
636      const r = resetIn(reading.resetsAt, snap.now)
637      if (r?.kind === 'passed') return [factRow(name, 'reset'), null]
638      const frac = clamp01(reading.percentUsed / 100)
639      const tone = limitTone(reading, etaMs)
640      const gone = windowGone(reading, windowMs)
641      const value = valueOf(reading)
642      const room = Math.max(4, inner - [...name].length - [...value].length - 2)
643      // A measured pace, as the chip says it; else where the window's average
644      // rate ends it. Too early to say, it waits.
645      const projected = gone === undefined || gone < 0.05 ? undefined : reading.percentUsed / gone
646      const pace =
647        etaMs !== null
648          ? ` · full in ${fmtEta(etaMs)}`
649          : projected === undefined
650            ? ''
651            : projected >= 100
652              ? ' · full before reset'
653              : ` · on pace for ~${Math.round(projected)}%`
654      return [
655        <Box key={`fact:${name}`} flexDirection="row" columnGap={1}>
656          <Text color={palette.label}>{name}</Text>
657          <Box key="bar" flexGrow={1} width={0} minWidth={0}>
658            {meter(name, frac, tone, accent, { px: room * measure.pxPerCell, cells: room }, true)}
659          </Box>
660          <Text color={onTone(tone, palette.cardValue)}>{value}</Text>
661        </Box>,
662        r === undefined ? null : (
663          <Box key={`fact:${name} pace`}>
664            <Text color={palette.label} wrap="truncate-end">{`resets ${r.text}${pace}`}</Text>
665          </Box>
666        ),
667      ]
668    }
669    /** Every window's rows; short of rows, each window's bar row before any
670     *  pace line. */
671    const limitLines = (): RenderChildren[] => {
672      const rows = windows.map(limitRows)
673      const lines = rows.flat().filter(part => part !== null)
674      return lines.length <= bodyRows ? lines : [...rows.map(([bar]) => bar), ...rows.map(([, pace]) => pace)]
675    }
676    // The headline is the window closest to its limit.
677    const worst = live.reduce<Window | undefined>((top, w) => (top === undefined || w.reading.percentUsed > top.reading.percentUsed ? w : top), undefined)
678    const limitsView =
679      windows.length > 0
680        ? card(
681            'limits',
682            'Limits',
683            {
684              text: worst === undefined ? 'all reset' : `${worst.name} ${valueOf(worst.reading)}`,
685              tone: worst === undefined ? 'calm' : limitTone(worst.reading, worst.etaMs),
686            },
687            // Each window's bar is in its own row, so the card has none apart.
688            null,
689            limitLines(),
690          )
691        : null
692
693    const cardViews = [cacheView, spendView, contextView, limitsView].filter(view => view !== null)
694
695    const buttons = [
696      <Button key="collapse" label="Collapse" variant="secondary" hotkey="c" onPress={act.toggleExpanded} />,
697      <Button key="hide" label="Hide band" variant="secondary" hotkey="h" onPress={act.hide} />,
698    ]
699    let strip: RenderElement | null = null
700    if (stripPlace !== undefined && snap.workspace !== undefined) {
701      // In the footer it shares the line with the buttons and their hotkey marks.
702      const room =
703        snap.columns - ROW_SLACK - (stripPlace === 'footer' ? cellsOf(buttons, measure) + 2 * HOTKEY_MARK + 2 : 0)
704      strip = drawStrip(kit, snap.workspace, stripPlace, edge, room)
705    }
706
707    return [
708      stripPlace === 'top' ? strip : null,
709      <Box key="cards" flexDirection="column" rowGap={lineGap} marginTop={stripPlace === 'top' ? 0 : 1}>
710        {Array.from({ length: lineCount }, (_, i) => (
711          <Box key={`cards:${i}`} flexDirection="row" columnGap={1}>
712            {cardViews.slice(i * perLine, (i + 1) * perLine)}
713          </Box>
714        ))}
715      </Box>,
716      <Box key="actions" flexDirection="row" columnGap={1} marginTop={1}>
717        {stripPlace === 'footer' ? (
718          strip
719        ) : (
720          <Box key="hint" flexDirection="row">
721            {Svg ? icon('info', BARE.icon) : null}
722            <Text color={BARE.label}>Bring it back with /usage-band</Text>
723          </Box>
724        )}
725        <Box flexGrow={1} />
726        {buttons}
727      </Box>,
728    ]
729  }
730
731  return (
732    <Box flexDirection="column">
733      {row}
734      {snap.expanded ? expandedView() : null}
735    </Box>
736  )
737}
738

1// The prompt cache, as the band models it from each response's token counts.
2
3import type { ModelUsage } from 'claude-code'
4import type { BandSnapshot } from './snapshot'
5
6type CacheView = BandSnapshot['cache']
7
8export type Ttl = '5m' | '1h'
9export const TTL_MS: Readonly<Record<Ttl, number>> = { '5m': 5 * 60_000, '1h': 60 * 60_000 }
10
11
12// A response that read this much less than the cache held, both in tokens and
13// as a share of it, missed the cache.
14const MISS_MIN_TOKENS = 2000
15const MISS_MIN_SHARE = 0.05
16
17type CacheState = {
18  ttl: Ttl
19  /** Set by the environment, so never inferred. */
20  ttlPinned: boolean
21  /** Main-loop requests this conversation. */
22  requests: number
23  // Every token since the conversation began, subagents included.
24  read: number
25  written: number
26  uncached: number
27  output: number
28  /** Requests that missed a cache that should have been warm. */
29  misses: number
30  /** When the last main-loop request was sent. */
31  lastAt: number
32  /** The last main-loop request's whole window, its response included. */
33  window: number
34  /** What that request left in the cache; the response is only written on
35   *  the next request, never read. */
36  cached: number
37  /** The next request rebuilds the cache on purpose (a compaction). */
38  rebuilding: boolean
39  /** The model the last main-loop request ran on; a switch rebuilds the cache. */
40  model: string | undefined
41  /** The ledger when this conversation's first turn began, so spend from
42   *  before it (a /clear, a resume, a reload) can't inflate the rate the
43   *  re-warm price is solved from. */
44  costBase: number
45  baselined: boolean
46  /** The conversation is known to start here (a new session, a /clear), so
47   *  its cache is warming; after a reload mid-conversation it is unmeasured. */
48  knownFresh: boolean
49  /** Before this band's first reply: when the conversation's last reply was,
50   *  and the base rate per token on its model, as recalled. */
51  recall: Readonly<{ lastAt: number; rate: number | null }> | undefined
52  /** The model /model has in force, as it names it: perhaps an alias. */
53  priceModel: string | undefined
54  /** The model the main loop's last reply was billed under, as the API names
55   *  it. Where known, the tokens are priced at it. */
56  billedModel: string | undefined
57}
58
59const INITIAL: Readonly<CacheState> = {
60  ttl: '1h',
61  ttlPinned: false,
62  requests: 0,
63  read: 0,
64  written: 0,
65  uncached: 0,
66  output: 0,
67  misses: 0,
68  lastAt: 0,
69  window: 0,
70  cached: 0,
71  rebuilding: false,
72  model: undefined,
73  costBase: 0,
74  baselined: false,
75  knownFresh: false,
76  recall: undefined,
77  priceModel: undefined,
78  billedModel: undefined,
79}
80
81const state: CacheState = { ...INITIAL }
82
83/** The model, read-only: only this module's functions change it. */
84export const cache: Readonly<CacheState> = state
85
86export const resetCache = (): void => {
87  Object.assign(state, INITIAL)
88}
89
90/** A new conversation in the same process (/clear, resume): the billing mode
91 *  and its TTL carry over, everything measured starts again. The baseline is
92 *  provisional until the next turn starts and takes the ledger then. */
93export const resetConversation = (costNow: number): void => {
94  const { ttl, ttlPinned, priceModel, billedModel } = state
95  Object.assign(state, INITIAL, { ttl, ttlPinned, priceModel, billedModel, costBase: costNow, knownFresh: true })
96}
97
98/** What the band recalls of the conversation's last reply, before its own. */
99export const noteRecall = (lastAt: number, rate: number | null): void => {
100  state.recall = { lastAt, rate }
101}
102
103/** Whether the cache stands as recalled: no reply seen yet, a conversation
104 *  that didn't start here, and something to recall. */
105const isRecalled = (): boolean => state.requests === 0 && !state.knownFresh && state.recall !== undefined
106
107/** At load: a ledger that has spent nothing is a new conversation. */
108export const noteLoad = (costNow: number | undefined): void => {
109  state.knownFresh = !costNow
110}
111
112/** The TTL the environment pins, if it pins one. */
113export const resolveTtl = (env: {
114  force5m: string | undefined
115  chosen: string | undefined
116  enable1h: string | undefined
117}): Ttl | undefined => {
118  if (env.force5m === '1') return '5m'
119  if (env.chosen === '5m' || env.chosen === '1h') return env.chosen
120  if (env.enable1h === '1') return '1h'
121  return undefined
122}
123
124export const pinTtl = (ttl: Ttl): void => {
125  state.ttl = ttl
126  state.ttlPinned = true
127}
128
129/** A compaction replaces the conversation with a summary: the next request
130 *  rebuilds the cache on purpose, at the summary's size. */
131export const noteCompaction = (sizeAfter: number | undefined): void => {
132  state.rebuilding = true
133  if (sizeAfter !== undefined) {
134    state.window = sizeAfter
135    state.cached = 0
136  }
137}
138
139/** The engine may reset the ledger on /clear: once it reads below the
140 *  baseline, it counts this conversation alone, so the baseline is 0. */
141export const noteLedger = (costNow: number): void => {
142  if (costNow < state.costBase) state.costBase = 0
143}
144
145/** The ledger as this conversation's first turn starts: its baseline. */
146export const noteConversationStart = (costNow: number): void => {
147  if (state.baselined) return
148  state.costBase = costNow
149  state.baselined = true
150}
151
152export const recordResponse = (
153  usage: Pick<ModelUsage, 'input_tokens' | 'output_tokens' | 'cache_read_input_tokens' | 'cache_creation_input_tokens'>,
154  sentAt: number,
155  isMain: boolean,
156  model: string | undefined,
157): void => {
158  const hit = usage.cache_read_input_tokens
159  const written = usage.cache_creation_input_tokens
160  const fresh = usage.input_tokens
161
162  // The session's bill includes every subagent, so their tokens count toward
163  // the totals the rate is solved from. Their prefixes are their own, though:
164  // they say nothing about the main conversation's cache or its countdown.
165  state.read += hit
166  state.written += written
167  state.uncached += fresh
168  state.output += usage.output_tokens
169  if (!isMain) return
170
171  const prefix = state.cached
172  const gap = state.requests > 0 ? sentAt - state.lastAt : 0
173  // Another model has its own cache: reading nothing after a switch is no miss.
174  const switched = state.model !== undefined && model !== undefined && model !== state.model
175
176  if (prefix > 0 && !state.rebuilding && !switched && gap <= TTL_MS[state.ttl]) {
177    const shortfall = prefix - hit
178    if (shortfall >= MISS_MIN_TOKENS && shortfall > prefix * MISS_MIN_SHARE) {
179      // An assumed hour that read nothing after five idle minutes was five.
180      if (!state.ttlPinned && state.ttl === '1h' && hit === 0 && gap > TTL_MS['5m']) {
181        state.ttl = '5m'
182      } else {
183        state.misses += 1
184      }
185    }
186  }
187
188  state.requests += 1
189  state.window = fresh + hit + written + usage.output_tokens
190  state.cached = hit + written
191  state.lastAt = sentAt
192  state.rebuilding = false
193  state.model = model ?? state.model
194}
195
196// The price of each kind of token against base input. Writes and output hold
197// one ratio across Anthropic's models; reads do not. Claude Code's own ledger
198// prices every cache write at 1.25×, whatever its lifetime, so the band does
199// too, to agree with the cost it shows.
200const WRITE_MULT = 1.25
201const OUTPUT_MULT = 5
202/** A cache read against base input, by model; 0.1× elsewhere. Per Anthropic's
203 *  list prices as of 2026-10: Opus 5.5 reads at $0.20 on $4.00 input, Sonnet
204 *  5.5 at $0.10 on $2.00, Fable and Mythos 5.1 at $0.25 on $10.00. */
205const READ_MULT_BY_MODEL: Readonly<Record<string, number>> = {
206  'claude-opus-5-5': 0.05,
207  'claude-sonnet-5-5': 0.05,
208  'claude-fable-5-1': 0.025,
209  'claude-mythos-5-1': 0.025,
210}
211const DEFAULT_READ_MULT = 0.1
212
213/** The model a name bills as. `/model` names a 1M context window with a
214 *  suffix, `claude-opus-5-5[1m]`, and the cost record names the model alone. */
215export const modelName = (model: string): string => model.replace(/\[[^\]]*\]$/, '')
216
217/** What a cache read costs against base input on `model`. */
218export const readMultiplier = (model: string | undefined): number =>
219  (model === undefined ? undefined : READ_MULT_BY_MODEL[modelName(model)]) ?? DEFAULT_READ_MULT
220
221export const notePriceModel = (model: string | undefined): void => {
222  state.priceModel = model
223}
224
225export const noteBilledModel = (model: string): void => {
226  state.billedModel = model
227}
228
229/** The model the tokens are priced at: the one replies are billed under, else
230 *  what /model names, which may be an alias such as `opus[1m]`. */
231export const pricedModel = (): string | undefined =>
232  state.billedModel ?? (state.priceModel === undefined ? undefined : modelName(state.priceModel))
233
234/** A cache read's price against input, on the model in force. */
235export const readShare = (): number => readMultiplier(pricedModel())
236
237/** Tokens weighted by their price against base input on `model`: the one
238 *  unknown left is the base rate itself. */
239export const weightedTokens = (
240  t: Readonly<{ uncached: number; written: number; read: number; output: number }>,
241  model: string | undefined,
242): number => t.uncached + WRITE_MULT * t.written + readMultiplier(model) * t.read + OUTPUT_MULT * t.output
243
244/** The base rate per token, in dollars.
245 *
246 *  No pricing table is available to a mod, so the rate is solved from the
247 *  session's own bill, which leaves one unknown:
248 *
249 *    cost = r * (uncached + 1.25*written + read multiplier*read + 5*output)
250 *
251 *  It self-calibrates to whatever model and plan are in force, and it is an
252 *  estimate on top of an estimate (the session cost is itself computed at list
253 *  price), so what it prices is always shown with a "~". Call noteLedger first. */
254export const ratePerToken = (sessionCost: number | undefined): number | null => {
255  if (!sessionCost || sessionCost <= 0) return null
256  const weighted = weightedTokens(state, pricedModel())
257  if (weighted <= 0) return null
258  const billed = sessionCost - state.costBase
259  if (billed <= 0) return null
260  const rate = billed / weighted
261  return Number.isFinite(rate) && rate > 0 ? rate : null
262}
263
264/** What writing `tokens` to the cache costs at a base `rate` per token. */
265export const reWarmAt = (rate: number, tokens: number): number => rate * WRITE_MULT * tokens
266
267/** What a cold cache would cost to rebuild: a cache write of the whole window. */
268export const reWarmUsd = (sessionCost: number | undefined): number | null => {
269  const rate = ratePerToken(sessionCost)
270  return rate === null ? null : reWarmAt(rate, state.window)
271}
272
273/** What reading from the cache saved against paying full input price for
274 *  the same tokens: the rest of the base rate on every cache read. */
275export const savedUsd = (sessionCost: number | undefined): number | null => {
276  const rate = ratePerToken(sessionCost)
277  return rate === null || state.read <= 0 ? null : rate * (1 - readShare()) * state.read
278}
279
280export const hitRatio = (): number | null => {
281  const total = state.read + state.written + state.uncached
282  return total > 0 ? state.read / total : null
283}
284
285/** The cache's time left: from the last reply this band saw, else the one
286 *  it recalls; a full lifetime before either. */
287export const msLeft = (now: number): number => {
288  const from = state.requests > 0 ? state.lastAt : isRecalled() ? state.recall?.lastAt : undefined
289  return from === undefined ? TTL_MS[state.ttl] : Math.max(0, from + TTL_MS[state.ttl] - now)
290}
291
292/** The cache as the band shows it, at `now`: measured once a reply has been
293 *  seen, recalled before that. `contextTokens` is the context as it stands,
294 *  which a recalled cold cache would rebuild. */
295export const cacheView = (now: number, sessionCost: number | undefined, contextTokens: number): CacheView => {
296  const recalled = isRecalled()
297  const rate = state.recall?.rate ?? null
298  return {
299    requests: state.requests,
300    msLeft: msLeft(now),
301    ttl: state.ttl,
302    ttlPinned: state.ttlPinned,
303    window: recalled ? contextTokens : state.window,
304    hitRatio: hitRatio(),
305    misses: state.misses,
306    reWarmUsd: recalled ? (rate === null ? null : reWarmAt(rate, contextTokens)) : reWarmUsd(sessionCost),
307    recalled,
308    idleMs: recalled && state.recall !== undefined ? now - state.recall.lastAt : null,
309    savedUsd: savedUsd(sessionCost),
310    readShare: readShare(),
311    fresh: state.knownFresh,
312    tokens: { sent: state.uncached + state.written, back: state.output, cached: state.read },
313  }
314}
315

1// Numbers, times and escalation marks, as the band words them.
2
3/** The cache's last minute: the one span where acting changes the bill. */
4export const SOON_MS = 60_000
5
6/** At this share a pill turns amber and gains `!`, and a toast speaks. */
7export const WARN_AT = 0.8
8/** At this share the mark becomes `!!`, and a toast speaks again. */
9export const SEVERE_AT = 0.95
10/** Within this share of the compaction point, context counts down to it. */
11export const COMPACT_NEAR = 0.9
12
13export const clamp01 = (n: number): number => (n < 0 ? 0 : n > 1 ? 1 : n)
14
15export const fmtTokens = (n: number): string => {
16  const v = Math.max(0, Math.round(n))
17  // Each unit from where the one below would round up to it: 9,999 is 10k,
18  // not 10.0k; 999,999 is 1.0M, not 1000k.
19  if (v >= 999_500) return `${(v / 1_000_000).toFixed(1)}M`
20  if (v >= 9_950) return `${Math.round(v / 1000)}k`
21  if (v >= 1_000) return `${(v / 1000).toFixed(1)}k`
22  return String(v)
23}
24
25/** Whole dollars from $1000, and from what would round to it. */
26const WHOLE_FROM = 999.995
27
28export const fmtCost = (usd: number): string => (usd >= WHOLE_FROM ? `$${Math.round(usd)}` : `$${usd.toFixed(2)}`)
29
30/** A small figure honestly: under a cent is not $0.00. */
31export const fmtSmallCost = (usd: number): string => (usd < 0.01 ? '<$0.01' : fmtCost(usd))
32
33/** An estimate is always marked as one. */
34export const fmtEstimate = (usd: number): string =>
35  usd < 0.01 ? '~<$0.01' : usd >= WHOLE_FROM ? `~$${Math.round(usd)}` : `~$${usd.toFixed(2)}`
36
37/** From an hour, `1h 05m`; from ten minutes, whole minutes; below, `M:SS`.
38 *  The countdown is still for most of its life and ticks only when ticking
39 *  means something. */
40export const fmtCountdown = (ms: number): string => {
41  const secs = Math.max(0, Math.round(ms / 1000))
42  if (secs >= 3600) {
43    const hours = Math.floor(secs / 3600)
44    return `${hours}h ${String(Math.floor((secs % 3600) / 60)).padStart(2, '0')}m`
45  }
46  if (secs >= 600) return `${Math.floor(secs / 60)}m`
47  return `${Math.floor(secs / 60)}:${String(secs % 60).padStart(2, '0')}`
48}
49
50/** How far off a reset is: the time left, or that it has already passed. */
51export type ResetIn = { kind: 'in'; text: string } | { kind: 'passed' }
52
53/** When `iso` comes, from `now`; undefined without a readable time. */
54/** A span coarsely, to the minute: `2d 4h`, `3h 05m`, `12m`, `<1m`. */
55const fmtSpan = (ms: number): string => {
56  const mins = Math.floor(Math.max(0, ms) / 60_000)
57  const hours = Math.floor(mins / 60)
58  const days = Math.floor(hours / 24)
59  if (days) return `${days}d ${hours % 24}h`
60  if (hours) return `${hours}h ${String(mins % 60).padStart(2, '0')}m`
61  return mins > 0 ? `${mins}m` : '<1m'
62}
63
64export const resetIn = (iso: string | undefined, now: number): ResetIn | undefined => {
65  if (!iso) return undefined
66  const at = Date.parse(iso)
67  if (Number.isNaN(at)) return undefined
68  const secs = Math.floor((at - now) / 1000)
69  return secs <= 0 ? { kind: 'passed' } : { kind: 'in', text: fmtSpan(secs * 1000) }
70}
71
72/** The words for escalation: colour is never the only signal. */
73export const severityMark = (frac: number): string => (frac >= SEVERE_AT ? '!!' : frac >= WARN_AT ? '!' : '')
74
75/** A projection, never a countdown: 5-minute steps under an hour, 15 from one. */
76export const fmtEta = (ms: number): string => {
77  const mins = Math.max(0, ms) / 60_000
78  if (mins < 57.5) return `~${Math.max(5, Math.round(mins / 5) * 5)}m`
79  const quarter = Math.round(mins / 15) * 15
80  const hours = Math.floor(quarter / 60)
81  const rest = quarter % 60
82  return rest ? `~${hours}h ${rest}m` : `~${hours}h`
83}
84
85/** `text` at most `max` characters, cut in the middle: a branch keeps both
86 *  its prefix and its end, where names differ. */
87export const clipMiddle = (text: string, max: number): string => {
88  const chars = [...text]
89  if (chars.length <= max) return text
90  if (max <= 1) return '…'.slice(0, max)
91  const head = Math.ceil((max - 1) / 2)
92  return `${chars.slice(0, head).join('')}…${chars.slice(chars.length - (max - 1 - head)).join('')}`
93}
94
95/** How long ago, coarsely: `2d 4h`, `3h 05m`, `12m`; under a minute is `now`. */
96export const fmtAgo = (ms: number): string => (ms < 60_000 ? 'now' : fmtSpan(ms))
97
98/** The context in use: its token count, else its percent of the window;
99 *  undefined when the engine reports neither. */
100export const contextUsed = (ctx: Readonly<{ tokens?: number; percent?: number; window: number }>): number | undefined =>
101  ctx.tokens ?? (ctx.percent === undefined ? undefined : (ctx.percent / 100) * ctx.window)
102

1// What the band can tell you that the engine's own figures don't: what your
2// last message cost, and when your pace fills the 5-hour limit.
3
4type Sample = { t: number; pct: number }
5
6const WINDOW_MS = 30 * 60_000
7const MIN_SPAN_MS = 10 * 60_000
8const MIN_RISE = 2
9const STALE_MS = 15 * 60_000
10// resetsAt readings of one window can differ by a few seconds.
11const SAME_RESET_MS = 60_000
12
13type InsightState = {
14  turnStartCost: Map<string, number>
15  samples: Sample[]
16  resetsAt: string | undefined
17}
18
19const state: InsightState = {
20  turnStartCost: new Map(),
21  samples: [],
22  resetsAt: undefined,
23}
24
25const turns: { lastTurnUsd: number | null } = { lastTurnUsd: null }
26
27/** What the last main-loop turn cost, read-only: set by noteTurnEnd. */
28export const insights: Readonly<typeof turns> = turns
29
30/** A new conversation (/clear, resume): its turns start over, but the
31 *  5-hour window is account-wide, so its pace carries on. */
32export const resetConversationInsights = (): void => {
33  state.turnStartCost.clear()
34  turns.lastTurnUsd = null
35}
36
37export const resetInsights = (): void => {
38  resetConversationInsights()
39  state.samples = []
40  state.resetsAt = undefined
41}
42
43export const noteTurnStart = (turnId: string, costUsd: number | undefined): void => {
44  if (costUsd !== undefined) state.turnStartCost.set(turnId, costUsd)
45}
46
47/** Everything the ledger rose by during the turn: its tool calls and
48 *  subagents, and any background work that ran meanwhile. */
49export const noteTurnEnd = (turnId: string, costUsd: number | undefined): void => {
50  const start = state.turnStartCost.get(turnId)
51  state.turnStartCost.delete(turnId)
52  if (start === undefined || costUsd === undefined) return
53  const spent = costUsd - start
54  turns.lastTurnUsd = spent > 0 ? spent : null
55}
56
57const sameReset = (a: string | undefined, b: string | undefined): boolean => {
58  if (a === b) return true
59  if (a === undefined || b === undefined) return false
60  const da = Date.parse(a)
61  const db = Date.parse(b)
62  return !Number.isNaN(da) && !Number.isNaN(db) && Math.abs(da - db) < SAME_RESET_MS
63}
64
65export const noteFiveHour = (now: number, percentUsed: number, resetsAt: string | undefined): void => {
66  const last = state.samples[state.samples.length - 1]
67  if (!sameReset(resetsAt, state.resetsAt) || (last !== undefined && percentUsed < last.pct)) {
68    state.samples = []
69  }
70  state.resetsAt = resetsAt
71  state.samples.push({ t: now, pct: percentUsed })
72  state.samples = state.samples.filter(s => now - s.t <= WINDOW_MS)
73}
74
75/** Time until your pace fills the 5-hour window, or null while the
76 *  evidence is thin, stale, or the window resets first. */
77export const fiveHourEtaMs = (now: number): number | null => {
78  const first = state.samples[0]
79  const last = state.samples[state.samples.length - 1]
80  if (first === undefined || last === undefined || last.pct >= 100) return null
81  const span = last.t - first.t
82  const rise = last.pct - first.pct
83  if (span < MIN_SPAN_MS || rise < MIN_RISE || now - last.t > STALE_MS) return null
84  const tFull = last.t + ((100 - last.pct) * span) / rise
85  if (state.resetsAt !== undefined) {
86    const resetAt = Date.parse(state.resetsAt)
87    if (!Number.isNaN(resetAt) && tFull >= resetAt) return null
88  }
89  return Math.max(0, tFull - now)
90}
91
92/** A toast re-arms once its figure falls back below this share. */
93export const TOAST_REARM_BELOW = 0.75
94
95/** Whether a toast speaks, and the level to remember: it speaks once per
96 *  threshold crossed (at the highest reached), holds while the figure stays
97 *  up, and re-arms, back to level 0, once the figure falls under the re-arm
98 *  share. `prev` is the level remembered from before. */
99export const escalate = (prev: number, frac: number, levels: readonly number[]): Readonly<{ level: number; speak: boolean }> => {
100  const level = levels.filter(at => frac >= at).length
101  if (level > prev) return { level, speak: true }
102  return { level: frac < TOAST_REARM_BELOW ? 0 : prev, speak: false }
103}
104

1// A filled pill needs its foreground and background from one source: a theme
2// key resolves against the user's theme, a hex does not, and mixing them makes
3// a pill that is legible on one theme and blank on the other. Nothing in the
4// API reports whether the theme is light or dark, so the palette is declared
5// rather than guessed: CC_BAND_APPEARANCE = dark | light | plain.
6export type Palette = {
7  filled: boolean
8  surface: string
9  value: string
10  label: string
11  /** A warm cache: the battery's charge, and the dot in plain appearance. */
12  warm: string
13  /** A cold cache's dot in plain appearance. */
14  cold: string
15  amberBg: string
16  amberFg: string
17  meterTrack: string
18  meterFill: string
19  /** The expanded view's cards: fill, edge, and their values. */
20  cardBg: string
21  cardBorder: string
22  cardValue: string
23  /** Hover explanations, a step above the cards. */
24  tooltipBg: string
25  /** A bar track's edge, so the track reads against any ground. */
26  trackStroke: string
27  /** The cache battery's charge, calm and in its last minute. */
28  batteryFill: string
29  batteryAmber: string
30  /** The cost pill's coin. */
31  coin: string
32  /** The 5-hour and 7-day chips' tints: background, text, and bar and icons. */
33  fiveBg: string
34  fiveFg: string
35  fiveAccent: string
36  weekBg: string
37  weekFg: string
38  weekAccent: string
39}
40
41export const DARK: Readonly<Palette> = {
42  filled: true,
43  surface: '#2b2b33',
44  value: '#ececf2',
45  label: '#9a9aa4',
46  warm: '#7fcf8a',
47  cold: '#6f6f7a',
48  amberBg: '#3a2f17',
49  amberFg: '#f0c969',
50  meterTrack: '#45454f',
51  meterFill: '#b8b8c2',
52  cardBg: '#2a2a31',
53  cardBorder: '#76767f',
54  cardValue: '#c4c4cc',
55  tooltipBg: '#303037',
56  trackStroke: '#7c7c86',
57  batteryFill: '#24402b',
58  batteryAmber: '#5a4719',
59  coin: '#c9a54a',
60  fiveBg: '#1e3324',
61  fiveFg: '#cfe8d3',
62  fiveAccent: '#7fcf8a',
63  weekBg: '#2a2540',
64  weekFg: '#d9d3f5',
65  weekAccent: '#a99cf0',
66}
67
68export const LIGHT: Readonly<Palette> = {
69  filled: true,
70  surface: '#ededf2',
71  value: '#1d1d22',
72  label: '#63636e',
73  warm: '#2f8a45',
74  cold: '#a0a0aa',
75  amberBg: '#fbeccd',
76  amberFg: '#7a4e06',
77  meterTrack: '#d6d6de',
78  meterFill: '#55555f',
79  cardBg: '#f4f4f7',
80  cardBorder: '#77777f',
81  cardValue: '#3a3a42',
82  tooltipBg: '#ffffff',
83  trackStroke: '#77777f',
84  batteryFill: '#cfe8d3',
85  batteryAmber: '#f3d9a0',
86  coin: '#9a7414',
87  fiveBg: '#dff0e0',
88  fiveFg: '#1f5c2e',
89  fiveAccent: '#2f8a45',
90  weekBg: '#e8e4fa',
91  weekFg: '#3c3489',
92  weekAccent: '#6b5fd3',
93}
94
95// No backgrounds at all: every colour is a theme key, so it follows whatever
96// theme the user has. The safe fallback, and what NO_COLOR terminals want.
97export const PLAIN: Readonly<Palette> = {
98  filled: false,
99  surface: '',
100  value: 'text',
101  label: 'subtle',
102  warm: 'success',
103  cold: 'subtle',
104  amberBg: '',
105  amberFg: 'warning',
106  meterTrack: 'subtle',
107  meterFill: 'text',
108  cardBg: '',
109  cardBorder: 'subtle',
110  cardValue: 'text',
111  tooltipBg: '',
112  trackStroke: 'subtle',
113  batteryFill: '',
114  batteryAmber: '',
115  coin: 'warning',
116  fiveBg: '',
117  fiveFg: 'text',
118  fiveAccent: 'success',
119  weekBg: '',
120  weekFg: 'text',
121  weekAccent: 'text',
122}
123
124/** The palette CC_BAND_APPEARANCE names; NO_COLOR forces plain. */
125export const resolvePalette = (appearance: string | undefined, noColor: string | undefined): Readonly<Palette> =>
126  noColor ? PLAIN : appearance === 'light' ? LIGHT : appearance === 'plain' ? PLAIN : DARK
127
128/** Colours for what sits on the band's bare ground, which is the host's and
129 *  may be dark or light whatever the palette says. Text there takes theme
130 *  keys; an icon needs hex, so these hold 3:1 on dark and light grounds
131 *  alike. The branch icon is the band's one blue: it means git, never a
132 *  status. */
133export const BARE = {
134  value: 'text',
135  label: 'subtle',
136  icon: '#80808a',
137  branch: '#5c85d6',
138} as const
139

1// What the band remembers across sessions, in the plugin's own store: when
2// each session last had a reply, and what a token costs on each model. With
3// them a reopened session, or a reload, says whether its cache is cold and
4// what the next message costs, before any reply of its own.
5
6import { modelName, weightedTokens } from './cache'
7import { stripTrailingSlashes } from './workspace'
8
9/** Store keys. */
10export const SESSIONS_KEY = 'sessions'
11export const RATES_KEY = 'rates'
12
13/** Sessions kept, newest reply first; the rest are forgotten. */
14export const MAX_SESSIONS = 50
15
16/** Each session's last main-loop reply, by session id. */
17export type Sessions = Readonly<Record<string, Readonly<{ lastAt: number }>>>
18
19/** The base input rate per token, solved from a session's own bill, by model. */
20export type Rates = Readonly<Record<string, number>>
21
22const isRecord = (v: unknown): v is Record<string, unknown> => typeof v === 'object' && v !== null && !Array.isArray(v)
23
24/** The store's sessions, keeping only well-formed entries: it is data, not trusted. */
25export const asSessions = (v: unknown): Sessions =>
26  isRecord(v)
27    ? Object.fromEntries(
28        Object.entries(v).filter(
29          (entry): entry is [string, { lastAt: number }] =>
30            isRecord(entry[1]) && typeof entry[1].lastAt === 'number' && Number.isFinite(entry[1].lastAt),
31        ),
32      )
33    : {}
34
35/** The store's rates, keeping only positive finite numbers. */
36export const asRates = (v: unknown): Rates =>
37  isRecord(v)
38    ? Object.fromEntries(
39        Object.entries(v).filter((entry): entry is [string, number] => typeof entry[1] === 'number' && Number.isFinite(entry[1]) && entry[1] > 0),
40      )
41    : {}
42
43/** `sessions` with `id`'s reply at `lastAt`, the oldest dropped past MAX_SESSIONS. */
44export const rememberReply = (sessions: Sessions, id: string, lastAt: number): Sessions =>
45  Object.fromEntries(
46    Object.entries({ ...sessions, [id]: { lastAt } })
47      .sort(([, a], [, b]) => b.lastAt - a.lastAt)
48      .slice(0, MAX_SESSIONS),
49  )
50
51/** Where Claude Code keeps a session's transcript: its project folder named
52 *  for the project root, every character but a letter or digit a dash. */
53export const transcriptPath = (home: string, root: string, id: string): string =>
54  `${stripTrailingSlashes(home)}/.claude/projects/${root.replace(/[^a-zA-Z0-9]/g, '-')}/${id}.jsonl`
55
56/** The most a mod may read in one go; a larger transcript stays unread. */
57export const READ_LIMIT = 4 * 1024 * 1024
58
59const parsed = (line: string): Record<string, unknown> | undefined => {
60  try {
61    const v: unknown = JSON.parse(line)
62    return isRecord(v) ? v : undefined
63  } catch {
64    return undefined
65  }
66}
67
68/** A transcript's lines from its end, parsed, the ones that name `marker`:
69 *  a cheap text test first, so most lines are never parsed. */
70function* fromEnd(transcript: string, marker: string): Generator<Record<string, unknown>> {
71  const lines = transcript.split('\n')
72  for (let i = lines.length - 1; i >= 0; i--) {
73    const line = lines[i] ?? ''
74    if (!line.includes(marker)) continue
75    const entry = parsed(line)
76    if (entry !== undefined) yield entry
77  }
78}
79
80/** When a transcript's last assistant reply was. Its file time won't do:
81 *  Claude Code writes a cost line each time it opens a session. */
82export const lastReplyAt = (transcript: string): number | undefined => {
83  for (const entry of fromEnd(transcript, '"assistant"')) {
84    if (entry.type !== 'assistant' || typeof entry.timestamp !== 'string') continue
85    const at = Date.parse(entry.timestamp)
86    if (Number.isFinite(at)) return at
87  }
88  return undefined
89}
90
91/** The model the transcript's last reply was billed under, as the API names it. */
92export const lastReplyModel = (transcript: string): string | undefined => {
93  for (const entry of fromEnd(transcript, '"assistant"')) {
94    if (entry.type !== 'assistant' || !isRecord(entry.message)) continue
95    const model = entry.message.model
96    if (typeof model === 'string' && model !== '') return model
97  }
98  return undefined
99}
100
101/** The base rate per token on `model`, solved from the transcript's last
102 *  cost record: its dollars over its weighted tokens. */
103export const rateFromTranscript = (transcript: string, model: string): number | null => {
104  for (const entry of fromEnd(transcript, '"cost-state"')) {
105    if (entry.type !== 'cost-state') continue
106    const usage = entry.modelUsage
107    const m = isRecord(usage) ? usage[modelName(model)] : undefined
108    if (!isRecord(m)) return null
109    const n = (k: string) => (typeof m[k] === 'number' ? (m[k] as number) : 0)
110    const weighted = weightedTokens(
111      {
112        uncached: n('inputTokens'),
113        written: n('cacheCreationInputTokens'),
114        read: n('cacheReadInputTokens'),
115        output: n('outputTokens'),
116      },
117      model,
118    )
119    const rate = weighted > 0 ? n('costUSD') / weighted : 0
120    return Number.isFinite(rate) && rate > 0 ? rate : null
121  }
122  return null
123}
124

1// The workspace: git state from porcelain v2, and the folder path, as the band words them.
2
3export type GitState = Readonly<{
4  /** The branch, or undefined when HEAD is detached. */
5  branch: string | undefined
6  /** The short commit (7 chars), for a detached HEAD or a branch with no commits yet (undefined then). */
7  commit: string | undefined
8  /** The linked worktree's folder name; undefined in the main working tree. */
9  worktree: string | undefined
10  /** Files with uncommitted changes, staged, unstaged or untracked, each counted once. */
11  changed: number
12  /** Commits ahead of / behind the upstream; undefined when there is no upstream. */
13  ahead: number | undefined
14  behind: number | undefined
15}>
16
17/** Where the session is: its project, home-relative, git there, and, for a
18 *  linked worktree, its main repository's folder name. */
19export type Workspace = Readonly<{ path: string; git: GitState | undefined; repoName: string | undefined }>
20
21/** Status without the index lock, so the band never blocks a commit, and
22 *  without a repository's own fsmonitor, a program its config could name.
23 *  Untracked files follow the user's own setting. */
24export const GIT_STATUS_ARGV: readonly string[] = [
25  'git',
26  '-c',
27  'core.fsmonitor=false',
28  '--no-optional-locks',
29  'status',
30  '--porcelain=v2',
31  '--branch',
32]
33
34/** Three lines: git-dir, common-dir, toplevel. */
35export const GIT_DIRS_ARGV: readonly string[] = [
36  'git',
37  'rev-parse',
38  '--path-format=absolute',
39  '--git-dir',
40  '--git-common-dir',
41  '--show-toplevel',
42]
43
44const lines = (text: string): string[] => text.split(/\r?\n/).map(line => line.replace(/\r$/, ''))
45
46/** A path without its trailing slashes. */
47export const stripTrailingSlashes = (p: string): string => p.replace(/\/+$/, '')
48
49/** The same, keeping a lone `/`, which is a root, not a slash. */
50const trimSlash = (p: string): string => (p.length > 1 ? stripTrailingSlashes(p) : p)
51
52const basename = (p: string): string => trimSlash(p).split('/').pop() ?? ''
53
54/** Porcelain v2 entries that are changes: ordinary, renamed, unmerged, untracked. */
55const CHANGED = /^[12u?] /
56
57const isAbsolute = (p: string): boolean => /^(\/|[A-Za-z]:[\\/])/.test(p)
58
59/** The worktree's folder name when git-dir and common-dir differ; else
60 *  undefined. Git before 2.31 echoes the unknown `--path-format` back and
61 *  answers relative paths, which can differ in the main tree, so only three
62 *  absolute lines count. */
63const worktreeName = (dirs: string): string | undefined => {
64  const found = lines(dirs).filter(line => line !== '')
65  if (found.length !== 3 || !found.every(isAbsolute)) return undefined
66  const [gitDir, commonDir, top] = found
67  if (!gitDir || !commonDir || !top) return undefined
68  return trimSlash(gitDir) === trimSlash(commonDir) ? undefined : basename(top) || undefined
69}
70
71/** Undefined without a `# branch.head` line: not a repo, or not porcelain v2. */
72export const parseGitState = (status: string, dirs: string): GitState | undefined => {
73  let head: string | undefined
74  let oid: string | undefined
75  let ahead: number | undefined
76  let behind: number | undefined
77  let changed = 0
78  for (const line of lines(status)) {
79    if (line.startsWith('# branch.head ')) head = line.slice('# branch.head '.length)
80    else if (line.startsWith('# branch.oid ')) oid = line.slice('# branch.oid '.length)
81    else if (line.startsWith('# branch.ab ')) {
82      const m = /^# branch\.ab \+(\d+) -(\d+)$/.exec(line)
83      if (m) {
84        ahead = Number(m[1])
85        behind = Number(m[2])
86      }
87    } else if (CHANGED.test(line)) changed++
88  }
89  if (head === undefined) return undefined
90  return {
91    branch: head === '(detached)' ? undefined : head,
92    commit: oid && oid !== '(initial)' ? oid.slice(0, 7) : undefined,
93    worktree: worktreeName(dirs),
94    changed,
95    ahead,
96    behind,
97  }
98}
99
100/** `~` for home and `~/…` under it; anything else unchanged. */
101export const homeRelative = (path: string, home: string | undefined): string => {
102  const homeDir = home === undefined ? '' : stripTrailingSlashes(home)
103  if (!homeDir) return path
104  if (path === homeDir || path === `${homeDir}/`) return '~'
105  return path.startsWith(`${homeDir}/`) ? `~${path.slice(homeDir.length)}` : path
106}
107
108/** The parent keeps its trailing slash; a root is all name. */
109export const splitPath = (path: string): Readonly<{ parent: string; name: string }> => {
110  const p = trimSlash(path)
111  const cut = p.lastIndexOf('/')
112  if (p === '/' || cut < 0) return { parent: '', name: p }
113  return { parent: p.slice(0, cut + 1), name: p.slice(cut + 1) }
114}
115
116/** One plain line for a screen reader or a hover. */
117export const gitSummary = (g: GitState): string => {
118  const parts = [
119    g.branch !== undefined ? `branch ${g.branch}` : g.commit ? `detached at ${g.commit}` : 'detached',
120  ]
121  if (g.branch !== undefined && !g.commit) parts.push('no commits yet')
122  if (g.worktree) parts.push(`worktree ${g.worktree}`)
123  parts.push(g.changed ? `${g.changed} changed` : 'clean')
124  if (g.ahead) parts.push(`${g.ahead} ahead`)
125  if (g.behind) parts.push(`${g.behind} behind`)
126  return parts.join(', ')
127}
128

1// The band's icons: one-colour SVG bodies for the desktop, the glyphs that
2// stand in for them elsewhere, and their names for a reader.
3
4/** An icon's side, in px. */
5export const ICON_PX = 16
6
7export type Icon =
8  | 'cost'
9  | 'tokens'
10  | 'context'
11  | 'five'
12  | 'week'
13  | 'reset'
14  | 'cache'
15  | 'limits'
16  | 'info'
17  | 'folder'
18  | 'branch'
19  | 'commit'
20  | 'worktree'
21  | 'changes'
22  | 'ahead'
23  | 'behind'
24
25/** The 5-hour gauge, which also heads the Limits card. */
26const GAUGE = (color: string): string =>
27  `<path d="M2.5 11.5a5.5 5.5 0 1 1 11 0" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>` +
28  `<path d="M8 11.5l2.6-3.4" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>`
29
30/** Desktop icons, as SVG bodies drawn in one colour. */
31export const ICON_PATHS: Readonly<Record<Icon, (color: string) => string>> = {
32  cost: color =>
33    `<circle cx="8" cy="8" r="6.5" fill="none" stroke="${color}" stroke-width="1.4"/>` +
34    `<path d="M9.6 5.6c-.4-.5-1-.8-1.7-.8-1 0-1.7.6-1.7 1.3 0 1.7 3.6 1 3.6 2.9 0 .8-.8 1.4-1.9 1.4-.8 0-1.5-.3-1.9-.9M8 3.9v1M8 10.4v1.4" fill="none" stroke="${color}" stroke-width="1.2" stroke-linecap="round"/>`,
35  tokens: color =>
36    `<rect x="2.5" y="3" width="11" height="2.4" rx="1.2" fill="${color}"/>` +
37    `<rect x="2.5" y="6.8" width="11" height="2.4" rx="1.2" fill="${color}" opacity=".75"/>` +
38    `<rect x="2.5" y="10.6" width="11" height="2.4" rx="1.2" fill="${color}" opacity=".5"/>`,
39  context: color =>
40    `<rect x="2.5" y="2.5" width="11" height="11" rx="2.5" fill="none" stroke="${color}" stroke-width="1.4"/>` +
41    `<path d="M5.2 6h5.6M5.2 8.5h5.6M5.2 11h3.2" stroke="${color}" stroke-width="1.2" stroke-linecap="round"/>`,
42  five: GAUGE,
43  limits: GAUGE,
44  // A bolt: the cache is what makes a warm reply fast and cheap.
45  cache: color =>
46    `<path d="M9.2 1.8 3.6 9h3.9l-.8 5.2L12.4 7H8.5z" fill="none" stroke="${color}" stroke-width="1.3" stroke-linejoin="round"/>`,
47  info: color =>
48    `<circle cx="8" cy="8" r="6.5" fill="none" stroke="${color}" stroke-width="1.4"/>` +
49    `<path d="M8 7.3v4" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>` +
50    `<circle cx="8" cy="4.9" r=".9" fill="${color}"/>`,
51  folder: color =>
52    `<path d="M2.5 4.5A1.5 1.5 0 0 1 4 3h2.3l1.5 1.6H12a1.5 1.5 0 0 1 1.5 1.5v5.4A1.5 1.5 0 0 1 12 13H4a1.5 1.5 0 0 1-1.5-1.5z" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round" stroke-linejoin="round"/>`,
53  branch: color =>
54    `<circle cx="4.75" cy="11.75" r="1.75" fill="none" stroke="${color}" stroke-width="1.4"/>` +
55    `<circle cx="11.25" cy="4.25" r="1.75" fill="none" stroke="${color}" stroke-width="1.4"/>` +
56    `<path d="M4.75 2.5V10M11.25 6c0 3-2.3 5.1-4.75 5.6" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>`,
57  commit: color =>
58    `<circle cx="8" cy="8" r="2.6" fill="none" stroke="${color}" stroke-width="1.4"/>` +
59    `<path d="M2.5 8h2.9M10.6 8h2.9" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>`,
60  // Rounded squares, where the branch has circles, so the two stay apart at 16px.
61  worktree: color =>
62    `<path d="M4 2.5v7.75a1.5 1.5 0 0 0 1.5 1.5H9M4 5h5" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round" stroke-linejoin="round"/>` +
63    `<rect x="9" y="3.25" width="4.5" height="3.5" rx="1.2" fill="none" stroke="${color}" stroke-width="1.4"/>` +
64    `<rect x="9" y="10" width="4.5" height="3.5" rx="1.2" fill="none" stroke="${color}" stroke-width="1.4"/>`,
65  changes: color => `<path d="M8 2.5v7M4.5 6h7M4.5 13h7" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>`,
66  ahead: color =>
67    `<path d="M8 13V3.5M4.5 7 8 3.5 11.5 7" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round" stroke-linejoin="round"/>`,
68  behind: color =>
69    `<path d="M8 3v9.5M4.5 9 8 12.5 11.5 9" fill="none" stroke="${color}" stroke-width="1.4" stroke-linecap="round" stroke-linejoin="round"/>`,
70  week: color =>
71    `<rect x="2.5" y="3.5" width="11" height="10" rx="2" fill="none" stroke="${color}" stroke-width="1.4"/>` +
72    `<path d="M2.5 6.5h11M5.5 2v3M10.5 2v3" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>`,
73  reset: color =>
74    `<circle cx="8" cy="8" r="5.6" fill="none" stroke="${color}" stroke-width="1.4"/>` +
75    `<path d="M8 5v3l2 1.4" stroke="${color}" stroke-width="1.4" stroke-linecap="round"/>`,
76}
77
78/** What stands in for an icon where there is no Svg; the cost keeps its `$`. */
79export const GLYPH: Readonly<Record<Icon, string>> = {
80  cost: '',
81  tokens: 'Σ',
82  context: '◔',
83  five: '',
84  week: '',
85  reset: '↻',
86  cache: '',
87  limits: '',
88  info: '',
89  // The text strip says these in words.
90  folder: '',
91  branch: '',
92  commit: '',
93  worktree: '',
94  changes: '',
95  ahead: '',
96  behind: '',
97}
98
99/** An icon's name for a reader that cannot see it. */
100export const ALT: Readonly<Record<Icon, string>> = {
101  cost: 'cost',
102  tokens: 'tokens',
103  context: 'context',
104  five: 'five-hour',
105  week: 'week',
106  reset: 'resets',
107  cache: 'cache',
108  limits: 'limits',
109  info: 'info',
110  // Each reads as a phrase with the text after it: "HEAD detached at a1b2c3d".
111  folder: 'folder',
112  branch: 'branch',
113  commit: 'HEAD',
114  worktree: 'linked',
115  changes: 'uncommitted',
116  ahead: 'ahead',
117  behind: 'behind',
118}
119

1// The drawing kit: what every part of the band draws with, made once per
2// draw from the surface's element table and the snapshot. JSX compiles to the
3// global h(), so nothing here, or anywhere, is named h.
4
5import type { ElementTable, RenderChildren } from 'claude-code'
6import { ALT, GLYPH, ICON_PATHS, ICON_PX } from './icons'
7import type { Icon } from './icons'
8import { DESKTOP, TERMINAL } from './layout'
9import type { Tone } from './reading'
10import type { BandSnapshot } from './snapshot'
11
12export const makeKit = (el: ElementTable, snap: BandSnapshot) => {
13  const { Box, Button, Text } = el
14  const palette = snap.palette
15  const measure = snap.surface === 'desktop' ? DESKTOP : TERMINAL
16  // Svg draws on the desktop alone (other surfaces hold the element but drop
17  // it), and its markup takes hex: theme keys can't reach inside it, so plain
18  // appearance keeps text.
19  const Svg = snap.surface === 'desktop' && palette.filled && 'Svg' in el ? el.Svg : undefined
20  const onTone = (tone: Tone, calm: string, amber: string = palette.amberFg) => (tone === 'amber' ? amber : calm)
21
22  /** A one-line explanation shown while its keyed parent is hovered. It has
23   *  no key: a keyed Box is its own hover scope, and a hidden one could never
24   *  be hovered. Plain has no background to cover the row with, so none. */
25  const hoverCard = (text: string, anchor: 'left' | 'right'): RenderChildren =>
26    palette.filled ? (
27      <Box
28        position="absolute"
29        top={0}
30        {...(anchor === 'left' ? { left: 0 } : { right: 0 })}
31        width={Math.min(text.length + 2, snap.columns)}
32        display="none"
33        hover={{ display: 'flex' }}
34        backgroundColor={palette.tooltipBg}
35        paddingX={1}
36      >
37        <Text color={palette.value} wrap="truncate-end">
38          {text}
39        </Text>
40      </Box>
41    ) : null
42
43
44  /** A column of air. The desktop drops a string child that is only spaces,
45   *  so there the gap is an empty Box; a text surface keeps its space. */
46  const gap = (key: string): RenderChildren => (Svg ? <Box key={key} width={1} flexShrink={0} /> : ' ')
47
48  /** An icon and the gap after it: an Svg on desktop, a glyph elsewhere. */
49  const icon = (name: Icon, color: string, alt: string = ALT[name]): RenderChildren[] => {
50    if (Svg) {
51      const source = `<svg xmlns="http://www.w3.org/2000/svg" width="${ICON_PX}" height="${ICON_PX}" viewBox="0 0 16 16">${ICON_PATHS[name](color)}</svg>`
52      return [<Svg key={`i-${name}`} source={source} alt={alt} width={ICON_PX} height={ICON_PX} />, gap(`g-${name}`)]
53    }
54    return GLYPH[name] ? [<Text key={`i-${name}`} color={color}>{`${GLYPH[name]} `}</Text>] : []
55  }
56
57  return { Box, Button, Text, Svg, palette, measure, columns: snap.columns, onTone, hoverCard, gap, icon }
58}
59
60export type Kit = ReturnType<typeof makeKit>
61

1// How the band measures and fits a line: what gives way as it narrows, and
2// how many columns a drawn tree takes on each surface.
3
4import type { RenderChildren, RenderElement } from 'claude-code'
5
6/** What the row gives up as it narrows, least important first. The row is
7 *  measured after each step; an amber piece holds out until the end. */
8export const GIVES_WAY = [
9  'tokens',
10  'weekReset',
11  'fiveReset',
12  'contextMeter',
13  'calmWeek',
14  'limitBars',
15  'shortWording',
16  'calmContext',
17  'calmFive',
18  'amberWeekReset',
19  'amberFiveReset',
20] as const
21export type Piece = (typeof GIVES_WAY)[number]
22
23/** For a give-way order: whether a line squeezed `squeeze` steps still keeps `piece`. */
24export const keepsIn =
25  <P extends string>(order: readonly P[]) =>
26  (squeeze: number, piece: P): boolean =>
27    squeeze <= order.indexOf(piece)
28
29export const keeps = keepsIn<Piece>(GIVES_WAY)
30
31/** What the workspace strip gives up as it narrows, least important first.
32 *  The path, the branch and the change count's word shorten; the extras go
33 *  whole, and the path's hover card still says everything. Uncommitted
34 *  changes never go: they are what a narrow line must still say. */
35export const STRIP_GIVES_WAY = [
36  'clean',
37  'parent',
38  'changedWord',
39  'branchLong',
40  'worktreeOf',
41  'aheadBehind',
42  'branchShort',
43  'worktree',
44  'nameLong',
45  'nameShort',
46] as const
47export const stripKeeps = keepsIn<(typeof STRIP_GIVES_WAY)[number]>(STRIP_GIVES_WAY)
48
49/** Below this, the cache and context wording turns short whatever the squeeze. */
50export const SHORT_BELOW = 68
51export const METER_CELLS = 6
52export const METER_PX = 44
53/** The longest line a card holds unwrapped, in characters:
54 *  `resets 2d 19h · full before reset`. */
55export const CARD_TEXT = 33
56/** Columns a framed Button's padding and edges take beyond its label. */
57export const BUTTON_CHROME = 3
58/** Columns a Button's hotkey mark takes beside its label. */
59export const HOTKEY_MARK = 2
60/** Room the band keeps free, so a row measured a little short never wraps. */
61export const ROW_SLACK = 4
62
63/** A bar's length: px on desktop, cells elsewhere. */
64export type BarSize = Readonly<{ px: number; cells: number }>
65export const CHIP_BAR: BarSize = { px: METER_PX, cells: METER_CELLS }
66
67/** How a surface lays text out against its bodyColumns: the terminal one cell
68 *  a character; the desktop's proportional font runs about three quarters of
69 *  a column, at roughly 10px a column. */
70export type Measure = Readonly<{ text: number; pxPerCell: number }>
71export const TERMINAL: Measure = { text: 1, pxPerCell: 8 }
72export const DESKTOP: Measure = { text: 0.75, pxPerCell: 10 }
73
74export const isList = (n: RenderChildren): n is readonly RenderChildren[] => Array.isArray(n)
75
76/** Columns a drawn tree takes: text, padding, gaps and Button labels. Hidden
77 *  cards take none; an Svg takes its width in columns, rounded up. */
78export const cellsOf = (n: RenderChildren, m: Measure): number => {
79  if (n === null || n === undefined || typeof n === 'boolean') return 0
80  if (typeof n === 'string' || typeof n === 'number') return [...String(n)].length * m.text
81  if (isList(n)) return n.reduce((sum: number, k: RenderChildren) => sum + cellsOf(k, m), 0)
82  switch (n.type) {
83    case 'Button':
84      // A framed button's chrome: its padding and edges either side.
85      return [...(n.props.label ?? '')].length * m.text + (n.props.variant === undefined ? 0 : BUTTON_CHROME)
86    case 'Svg':
87      return Math.ceil((n.props.width ?? 64) / m.pxPerCell)
88    case 'Box':
89    case 'Text': {
90      if (n.props?.position === 'absolute') return 0
91      if (n.type === 'Box' && typeof n.props?.width === 'number') return n.props.width
92      const kids = (n.children ?? []).filter(k => k !== null && k !== undefined)
93      const pad = typeof n.props?.paddingX === 'number' ? 2 * n.props.paddingX : 0
94      const gap = typeof n.props?.columnGap === 'number' ? n.props.columnGap * Math.max(0, kids.length - 1) : 0
95      const own = kids.reduce((sum: number, k) => sum + cellsOf(k, m), 0) + pad + gap
96      return n.type === 'Box' && typeof n.props?.minWidth === 'number' ? Math.max(n.props.minWidth, own) : own
97    }
98    default:
99      return 0
100  }
101}
102
103/** The first squeeze at which `build` fits `room` columns, or the last tried:
104 *  a line drops its pieces in the order its give-way table names them. */
105export const squeezeToFit = (build: (squeeze: number) => RenderElement, steps: number, room: number, m: Measure): RenderElement => {
106  let line = build(0)
107  for (let squeeze = 1; squeeze <= steps && cellsOf(line, m) > room; squeeze++) line = build(squeeze)
108  return line
109}
110

1// What the band reads off its snapshot before it draws anything: the cache's
2// mood and every word about it, the context's fill, a limit's tone and pace.
3// Pure, so each can be checked without mounting the band.
4
5import { TTL_MS } from './cache'
6import { COMPACT_NEAR, SOON_MS, WARN_AT, clamp01, contextUsed, fmtCountdown, fmtEstimate, fmtTokens, resetIn } from './format'
7import type { BandSnapshot, LimitReading } from './snapshot'
8
9export type Tone = 'calm' | 'amber'
10
11// ---- the cache --------------------------------------------------------------
12
13type Cache = BandSnapshot['cache']
14
15/** Unmeasured: loaded mid-conversation, before its next reply. */
16export type CacheMood = 'unmeasured' | 'warming' | 'warm' | 'expiring' | 'cold'
17
18export const cacheMood = (c: Cache): CacheMood =>
19  c.requests === 0 && !c.recalled
20    ? c.fresh
21      ? 'warming'
22      : 'unmeasured'
23    : c.msLeft <= 0
24      ? 'cold'
25      : c.msLeft <= SOON_MS
26        ? 'expiring'
27        : 'warm'
28
29/** The battery's charge: the share of the lifetime left, full while Claude
30 *  works, empty when there is nothing to count. */
31export const cacheCharge = (c: Cache, mood: CacheMood, isWorking: boolean): number =>
32  mood === 'unmeasured' || mood === 'warming' || mood === 'cold' ? 0 : mood === 'warm' && isWorking ? 1 : c.msLeft / TTL_MS[c.ttl]
33
34/** What the next message costs to rebuild the cache: dollars when a rate is
35 *  known, else the tokens it writes. */
36export const reWarmEstimate = (c: Cache): string => (c.reWarmUsd !== null ? fmtEstimate(c.reWarmUsd) : `${fmtTokens(c.window)} tokens`)
37
38/** Every word the band says about the cache, for one mood: the pill, its
39 *  hover, the card's headline and note, and the battery's name. One table,
40 *  so a mood's wording changes in one place. */
41export type CacheCopy = Readonly<{
42  pill: (short: boolean) => string
43  hover: string
44  head: string
45  note: string | undefined
46  alt: string
47}>
48
49export const cacheCopy = (c: Cache, mood: CacheMood, isWorking: boolean): CacheCopy => {
50  const estimate = reWarmEstimate(c)
51  // What a warm read costs against input on the model in force: 5% on Opus 5.5.
52  const readPct = `${+(c.readShare * 100).toFixed(1)}%`
53  const left = fmtCountdown(c.msLeft)
54  const charge = cacheCharge(c, mood, isWorking)
55  const battery = charge <= 0 ? 'cache battery empty' : `cache battery ${Math.round(clamp01(charge) * 100)}% left`
56  const warmHover = `Warm cache bills input at ${readPct}; expires ${c.ttl} after a reply`
57  switch (mood) {
58    case 'unmeasured':
59      return {
60        pill: () => 'cache –',
61        hover: "Not measured since the band loaded; the countdown starts with Claude's next reply",
62        head: 'Not measured yet',
63        note: "Countdown starts with Claude's next reply.",
64        alt: 'cache not measured yet',
65      }
66    case 'warming':
67      return {
68        pill: () => 'cache warming',
69        hover: `Your first message builds the cache; after that it bills input at ${readPct}`,
70        head: 'Warming',
71        note: 'First message builds the cache.',
72        alt: 'cache warming',
73      }
74    case 'expiring':
75      return {
76        pill: short => (short ? `${left} ${estimate}` : `${left} left · re-warm ${estimate}`),
77        hover: warmHover,
78        head: `${left} left`,
79        note: undefined,
80        alt: battery,
81      }
82    case 'cold':
83      return {
84        // Cold is a price, not an error: neutral, no hue, no alarm.
85        pill: short => (short ? `cold ${estimate}` : `cache cold · next message ${estimate}`),
86        hover: `Cold: next message rebuilds ${fmtTokens(c.window)} tokens${c.reWarmUsd === null ? '' : ` (${fmtEstimate(c.reWarmUsd)})`}`,
87        head: 'Cold',
88        note: undefined,
89        alt: battery,
90      }
91    case 'warm':
92      return {
93        // Mid-turn every step restarts the TTL, so a countdown would only bounce.
94        pill: () => (isWorking ? 'cache warm' : `cache ${left}`),
95        hover: warmHover,
96        head: isWorking ? 'Warm' : `${left} left`,
97        note: undefined,
98        alt: battery,
99      }
100  }
101}
102
103// ---- the context ------------------------------------------------------------
104
105/** The context's fill, measured toward auto-compaction when it is known:
106 *  full means compacting, and no tick is needed to show where. */
107export const contextReading = (ctx: BandSnapshot['context']) => {
108  const used = contextUsed(ctx) ?? 0
109  const frac = clamp01(used / (ctx.compactAt ?? ctx.window))
110  const nearCompact = ctx.compactAt !== undefined && frac >= COMPACT_NEAR
111  const tone: Tone = nearCompact || (ctx.compactAt === undefined && frac >= WARN_AT) ? 'amber' : 'calm'
112  return {
113    known: ctx.percent !== undefined || ctx.tokens !== undefined,
114    used,
115    frac,
116    pct: `${Math.round(frac * 100)}%`,
117    toCompact: ctx.compactAt === undefined ? undefined : Math.max(0, ctx.compactAt - used),
118    nearCompact,
119    tone,
120  }
121}
122
123// ---- the limits -------------------------------------------------------------
124
125/** A window past its reset: its last reading is from before it. */
126export const hasReset = (reading: LimitReading, now: number): boolean => resetIn(reading.resetsAt, now)?.kind === 'passed'
127
128/** The share of a window gone, from its length and its reset. */
129export const windowGone = (reading: LimitReading, windowMs: number | undefined, now: number): number | undefined => {
130  const at = reading.resetsAt === undefined ? NaN : Date.parse(reading.resetsAt)
131  return windowMs === undefined || Number.isNaN(at) || at <= now ? undefined : clamp01(1 - (at - now) / windowMs)
132}
133
134/** A limit's tone, the one rule chip and card share: amber at WARN_AT, or
135 *  when a pace (`etaMs`) would fill it before it resets; calm once reset. */
136export const limitTone = (reading: LimitReading, now: number, etaMs: number | null = null): Tone =>
137  !hasReset(reading, now) && (clamp01(reading.percentUsed / 100) >= WARN_AT || etaMs !== null) ? 'amber' : 'calm'
138
