1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { Build, Issue, Tests } from '../types'
5import {
6  basename,
7  byFile,
8  condense,
9  details,
10  location,
11  percent,
12  plural,
13  seconds,
14  subject,
15  tally,
16  verdict,
17} from './format'
18import type { Detail } from './format'
19import { parseLog } from './log'
20import { parseMcpBuild, parseMcpBuildLog, parseMcpTests, structuredOf } from './mcp'
21import { findInvocations, mixedWith, withResultBundle } from './shell'
22import { parseBuildResults, parseCoverage, parseTestDetails, parseTestSummary } from './xcresult'
23
24const PANE = 'xcpane'
25const TITLE = 'Xcode build'
26const COMMAND = 'xcpane'
27const DETAILS_TOOL = 'mcp__xcpane__details'
28const KEPT_BUILDS = 20
29const KEPT_ISSUES = 300
30const PANE_ISSUES = 60
31const ROW_ERRORS = 3
32
33type AutoOpen = 'always' | 'failure' | 'never'
34
35const builds = atom({ plugin: 'xcpane', key: 'builds' } as const, [])
36const isShowingWarnings = atom({ plugin: 'xcpane', key: 'isShowingWarnings' } as const, false)
37const now = atom({ plugin: 'xcpane', key: 'now' } as const, 0)
38
39const GLYPH = { running: '●', succeeded: '✓', failed: '✗', cancelled: '◌' } as const
40const TONE = { running: 'warning', succeeded: 'success', failed: 'error', cancelled: undefined } as const
41
42const isError = (issue: Issue) => issue.severity === 'error'
43
44const bare = (name: string) => name.replace(/\(\)$/, '')
45
46const run = async ($: EngineInterface, argv: readonly string[]) => {
47  const ran = await $.process.run(argv, { timeoutMs: 20_000 })
48
49  return ran.exitCode === 0 && !ran.isStdoutTruncated ? ran.stdout : ''
50}
51
52const xcresult = ($: EngineInterface, path: string, query: readonly string[]) =>
53  run($, ['xcrun', 'xcresulttool', 'get', ...query, '--path', path, '--compact'])
54
55/** What a result bundle says of its tests: the summary, with locations, the slowest tests and coverage added. */
56const readTests = async ($: EngineInterface, path: string, summary: Tests | null) => {
57  const found = parseTestDetails(await xcresult($, path, ['test-results', 'tests']))
58  const coverage = parseCoverage(await run($, ['xcrun', 'xccov', 'view', '--report', '--only-targets', '--json', path]))
59  const tests =
60    summary === null || found === null
61      ? summary
62      : {
63          ...summary,
64          slowest: found.slowest,
65          failures: summary.failures.map(failure => ({ ...failure, ...found.locations.get(failure.name) })),
66        }
67
68  return { tests, coverage }
69}
70
71const readBundle = async ($: EngineInterface, path: string, hasTests: boolean) => {
72  try {
73    if (!(await $.fs.exists(path))) {
74      return null
75    }
76
77    const built = parseBuildResults(await xcresult($, path, ['build-results']))
78    const summary = hasTests ? parseTestSummary(await xcresult($, path, ['test-results', 'summary'])) : null
79
80    return built === null ? null : { built, ...(await readTests($, path, summary)) }
81  } catch {
82    return null
83  }
84}
85
86/**
87 * The warnings of the build an Xcode MCP server just ran. Its `BuildProject`
88 * result lists errors only, so they are asked for from its build log.
89 */
90const mcpWarnings = async ($: EngineInterface, tool: string, workspace: unknown): Promise<Issue[]> => {
91  try {
92    const server = tool.split('__')[1] ?? ''
93    const args = typeof workspace === 'string' ? { severity: 'warning', workspaceIdentifier: workspace } : { severity: 'warning' }
94    const log = structuredOf({ result: await $.mcp.call(server, 'GetBuildLog', args) })
95
96    return (log === null ? null : parseMcpBuildLog(log))?.filter(one => !isError(one)) ?? []
97  } catch {
98    return []
99  }
100}
101
102const openPane = ($: EngineInterface) => {
103  void $.ui.open({ id: PANE, title: TITLE }).catch(() => undefined)
104}
105
106const store = ($: EngineInterface, build: Build) =>
107  update($, builds, list => [...list.filter(one => one.id !== build.id), build].slice(-KEPT_BUILDS))
108
109const drop = ($: EngineInterface, id: string) => update($, builds, list => list.filter(one => one.id !== id))
110
111/** Moves the pane's clock on, so a running timer redraws. */
112const tick = async ($: EngineInterface) => {
113  const at = await $.clock.now()
114  await update($, now, () => at)
115}
116
117/** Shows `running` in the pane with a ticking timer for as long as `work` takes. */
118async function track<T>($: EngineInterface, running: Build, autoOpen: AutoOpen, work: () => Promise<T>): Promise<T> {
119  await update($, now, () => running.startedAt)
120  await store($, running)
121
122  if (autoOpen === 'always') {
123    openPane($)
124  }
125
126  const ticker = $.clock.every(1000, () => {
127    void tick($).catch(() => undefined)
128  })
129
130  try {
131    return await work()
132  } catch (error) {
133    await drop($, running.id)
134    throw error
135  } finally {
136    ticker.cancel()
137  }
138}
139
140/** Stores a finished build and says how it went: the status line on a failure, a toast on a success. */
141const announce = async ($: EngineInterface, finished: Build, autoOpen: AutoOpen) => {
142  await store($, finished)
143
144  if (finished.status === 'failed') {
145    $.ui.status(`${GLYPH.failed} ${finished.scheme ?? (finished.tool === 'xcode' ? 'Xcode' : finished.tool)}: ${tally(finished)}`)
146
147    if (autoOpen === 'failure') {
148      openPane($)
149    }
150  } else {
151    $.ui.status(undefined)
152  }
153
154  if (finished.status === 'succeeded') {
155    $.ui.toast(`${GLYPH.succeeded} ${verdict(finished)} · ${tally(finished)} · ${seconds(finished.durationMs ?? 0)}`)
156  }
157}
158
159const started = (id: string, startedAt: number, facts: Pick<Build, 'tool' | 'action' | 'hasTests' | 'scheme'>): Build => ({
160  ...facts,
161  id,
162  status: 'running',
163  startedAt,
164  durationMs: null,
165  errorCount: 0,
166  warningCount: 0,
167  issues: [],
168  tests: null,
169  coverage: null,
170  logPath: null,
171  failedCommands: [],
172  source: 'none',
173  logLines: 0,
174  isCondensed: false,
175})
176
177const sorted = (issues: readonly Issue[]) =>
178  [...issues.filter(isError), ...issues.filter(one => !isError(one))].slice(0, KEPT_ISSUES)
179
180export const register: Register = (on, options) => {
181  const wantsCondense = options.condense !== false
182  const wantsBundle = options.resultBundle !== false
183  const wantsCompactRow = options.compactRow !== false
184  const warnings = options.warnings === 'list' ? 'list' : 'count'
185  const autoOpen: AutoOpen = options.autoOpen === 'failure' || options.autoOpen === 'never' ? options.autoOpen : 'always'
186  const condensed = new Map<string, string>()
187  /** Calls whose line printed more than a build, so their transcript row is left as it is. */
188  const mixed = new Set<string>()
189
190  on('session.start', async ($, e, next) => {
191    await $.command.register({
192      name: COMMAND,
193      description: 'Show the Xcode build pane: errors by file, warnings, failed tests (clear: forget the builds)',
194    })
195    await $.tool.register({
196      name: 'details',
197      description:
198        'Lists what the most recent xcodebuild, swift build or Xcode MCP build reported, in full: every error and warning with its file, line and message, the failed and slowest tests, and line coverage. Call it when a build summary counted warnings without listing them. It reads stored results and runs no build.',
199      inputSchema: {
200        type: 'object',
201        properties: {
202          show: {
203            type: 'string',
204            enum: ['all', 'errors', 'warnings', 'tests'],
205            description: 'Which part to list; all by default.',
206          },
207        },
208      },
209    })
210
211    return next(e)
212  })
213
214  on('command.run', { command: COMMAND }, async ($, e) => {
215    if (e.args.trim() === 'clear') {
216      await update($, builds, () => [])
217      $.ui.status(undefined)
218
219      return { text: 'Xcode build history cleared.' }
220    }
221
222    await $.ui.open({ id: PANE, title: TITLE })
223    const latest = (await read($, builds)).at(-1)
224
225    return {
226      text:
227        latest === undefined
228          ? 'Xcode build pane opened. No builds yet.'
229          : `Xcode build pane opened. Last: ${subject(latest)}: ${verdict(latest)} · ${tally(latest)}`,
230    }
231  })
232
233  on('tool.call', { tool: /^mcp__xcpane__details$/ }, async ($, e) => {
234    const latest = (await read($, builds)).findLast(one => one.status !== 'running')
235    const asked = (e as { show?: unknown }).show
236    const show: Detail = asked === 'errors' || asked === 'warnings' || asked === 'tests' ? asked : 'all'
237
238    return { result: latest === undefined ? 'No build has finished in this session yet.' : details(latest, show) }
239  })
240
241  on('tool.call', { tool: 'Bash' }, async ($, e, next) => {
242    const found = findInvocations(e.command).filter(one => !one.isInfoOnly)
243    const invocation = found[0]
244
245    if (invocation === undefined || e.run_in_background === true) {
246      return next(e)
247    }
248
249    const id = e.tool_use_id
250    const isAlone = found.length === 1 && invocation.tool === 'xcodebuild'
251    let command = e.command
252    let bundle: string | null = null
253    let isOwnBundle = false
254
255    if (wantsBundle && isAlone && invocation.resultBundlePath !== null) {
256      const isStale = await $.fs.exists(invocation.resultBundlePath).catch(() => true)
257      bundle = isStale ? null : invocation.resultBundlePath
258    } else if (wantsBundle && isAlone && !invocation.hasResultBundleFlag && invocation.action !== 'clean') {
259      const temporary = ((await $.env.get('TMPDIR')) ?? '/tmp').replace(/\/+$/, '')
260      bundle = `${temporary}/xcpane/${id.replace(/[^A-Za-z0-9_-]/g, '')}.xcresult`
261      command = withResultBundle(e.command, invocation, bundle)
262      isOwnBundle = true
263    }
264
265    const startedAt = await $.clock.now()
266    const running = started(id, startedAt, {
267      tool: invocation.tool,
268      action: invocation.action,
269      hasTests: invocation.hasTests,
270      scheme: invocation.scheme,
271    })
272    const ran = await track($, running, autoOpen, () => next(command === e.command ? e : { ...e, command }))
273
274    if (ran.deny !== undefined) {
275      await drop($, id)
276
277      return ran
278    }
279
280    const shown = ran.text ?? ''
281    let raw = shown
282    let logPath: string | null = null
283    let isStopped = false
284
285    if (ran.isError === true) {
286      raw = typeof ran.result === 'string' ? ran.result : shown
287    } else {
288      const persisted = ran.result.persistedOutputPath
289      raw = [ran.result.stdout, ran.result.stderr].filter(Boolean).join('\n')
290      isStopped = ran.result.interrupted || ran.result.backgroundTaskId !== undefined
291
292      if (persisted !== undefined) {
293        logPath = persisted
294        raw = await $.fs.read(persisted).catch(() => raw)
295      }
296    }
297
298    const log = parseLog(raw)
299    const bundled = bundle === null || isStopped ? null : await readBundle($, bundle, invocation.hasTests)
300    const located = new Map(log.failures.map(failure => [bare(failure.name), failure]))
301    const logTests = log.passedTests + log.failedTests + log.skippedTests
302    const tests: Tests | null =
303      bundled?.tests ??
304      (logTests === 0
305        ? null
306        : {
307            total: logTests,
308            passed: log.passedTests,
309            failed: log.failedTests,
310            skipped: log.skippedTests,
311            failures: log.failures,
312            slowest: [],
313          })
314    const issues = bundled?.built.issues ?? log.issues
315    const errorCount = bundled?.built.errorCount ?? issues.filter(isError).length
316    const hasFailed =
317      ran.isError === true ||
318      bundled?.built.status === 'failed' ||
319      log.marker === 'failed' ||
320      errorCount > 0 ||
321      (tests?.failed ?? 0) > 0
322    const hasEvidence = bundled !== null || log.marker !== null || log.issues.length > 0 || log.failures.length > 0
323    const finished: Build = {
324      ...running,
325      status: isStopped ? 'cancelled' : hasFailed ? 'failed' : 'succeeded',
326      durationMs: (await $.clock.now()) - startedAt,
327      errorCount,
328      warningCount: bundled?.built.warningCount ?? issues.filter(one => !isError(one)).length,
329      issues: sorted(issues),
330      tests:
331        tests === null
332          ? null
333          : {
334              ...tests,
335              failures: tests.failures.map(failure => {
336                const where = failure.file === null ? located.get(bare(failure.name)) : undefined
337
338                return where === undefined ? failure : { ...failure, file: where.file, line: where.line }
339              }),
340            },
341      coverage: bundled?.coverage ?? null,
342      logPath,
343      failedCommands: log.failedCommands.slice(0, 10),
344      source: bundled !== null ? 'xcresult' : hasEvidence ? 'log' : 'none',
345      logLines: log.lines,
346    }
347    const hasFindings = finished.errorCount > 0 || (finished.tests?.failed ?? 0) > 0
348    const isReadable = finished.source !== 'none' && (finished.status === 'succeeded' || hasFindings)
349
350    // A line that also prints something else (a file, a listing) keeps its output: only the build's part could be summed up.
351    const isMixed = mixedWith(e.command).length > 0
352
353    if (isMixed) {
354      mixed.add(id)
355    }
356
357    if (wantsCondense && isReadable && !isStopped && !isMixed && ran.text !== undefined) {
358      const exit = /^Exit code (\d+)/.exec(shown)
359      const summary = condense(finished, {
360        warnings,
361        exitCode: exit === null ? null : Number(exit[1]),
362        isLogCut: log.isCut || (ran.isError === true && log.marker === null),
363        detailsTool: DETAILS_TOOL,
364      })
365
366      if (summary.length < ran.text.length) {
367        condensed.set(id, summary)
368        finished.isCondensed = true
369      }
370    }
371
372    await announce($, finished, autoOpen)
373
374    if (isOwnBundle && bundle !== null) {
375      void $.process.run(['/bin/rm', '-rf', bundle]).catch(() => undefined)
376    }
377
378    return ran
379  })
380
381  // A build Claude runs through Xcode's own MCP server already comes back
382  // structured, so it is left as it is and only shown: pane, status, toast.
383  on('tool.call', { tool: /^mcp__.+__(BuildProject|RunAllTests|RunSomeTests)$/ }, async ($, e, next) => {
384    const id = e.tool_use_id
385    const hasTests = !e.tool.endsWith('__BuildProject')
386    const startedAt = await $.clock.now()
387    const running = started(id, startedAt, { tool: 'xcode', action: hasTests ? 'test' : 'build', hasTests, scheme: null })
388    const ran = await track($, running, autoOpen, () => next(e))
389
390    if (ran.deny !== undefined) {
391      await drop($, id)
392
393      return ran
394    }
395
396    const data = structuredOf(ran)
397    const report = data === null ? null : hasTests ? parseMcpTests(data) : parseMcpBuild(data)
398    const elapsed = (await $.clock.now()) - startedAt
399
400    if (report === null) {
401      await announce($, { ...running, status: 'failed', durationMs: elapsed }, autoOpen)
402
403      return ran
404    }
405
406    const bundled =
407      report.bundlePath === null ? null : await readTests($, report.bundlePath, report.tests).catch(() => null)
408    const issues = hasTests
409      ? report.issues
410      : [...report.issues, ...(await mcpWarnings($, e.tool, (e as { workspaceIdentifier?: unknown }).workspaceIdentifier))]
411
412    await announce(
413      $,
414      {
415        ...running,
416        scheme: report.scheme,
417        status: report.status,
418        durationMs: report.durationMs ?? elapsed,
419        errorCount: issues.filter(isError).length,
420        warningCount: issues.filter(one => !isError(one)).length,
421        issues: sorted(issues),
422        tests: bundled?.tests ?? report.tests,
423        coverage: bundled?.coverage ?? null,
424        logPath: report.logPath,
425        source: 'xcresult',
426      },
427      autoOpen,
428    )
429
430    return ran
431  })
432
433  on('session.append', { door: 'tool-result' }, ($, e, next) => {
434    let isRewritten = false
435    const content = e.message.content.map(block => {
436      const id = typeof block.tool_use_id === 'string' ? block.tool_use_id : ''
437      const summary = block.type === 'tool_result' ? condensed.get(id) : undefined
438
439      if (summary === undefined) {
440        return block
441      }
442
443      condensed.delete(id)
444      isRewritten = true
445
446      return { ...block, content: typeof block.content === 'string' ? summary : [{ type: 'text', text: summary }] }
447    })
448
449    return isRewritten ? next({ ...e, message: { ...e.message, content } }) : next(e)
450  })
451
452  on('ui.render', { component: 'ToolResult', props: { tool: 'Bash' } }, async ($, e, next) => {
453    const build = wantsCompactRow ? (await read($, builds)).find(one => one.id === e.requestId) : undefined
454
455    if (build === undefined || build.status === 'running' || build.source === 'none' || mixed.has(build.id)) {
456      return next(e)
457    }
458
459    const { Box, Text } = $.ui.resolve(e)
460    const errors = build.issues.filter(isError)
461    const failures = build.tests?.failures ?? []
462    const facts = [tally(build), seconds(build.durationMs ?? 0), `${plural(build.logLines, 'log line')} folded`]
463
464    return (
465      <Box flexDirection="column">
466        <Box flexDirection="row">
467          <Text dimColor>{'  ⎿  '}</Text>
468          <Text bold color={TONE[build.status]}>{`${GLYPH[build.status]} ${verdict(build)}`}</Text>
469          <Text dimColor>{` · ${facts.join(' · ')}`}</Text>
470        </Box>
471        {errors.slice(0, ROW_ERRORS).map(issue => (
472          <Text wrap="truncate-end">
473            {`     ${[issue.file === null ? null : basename(issue.file), location(issue)].filter(Boolean).join(':')}  ${issue.message}`}
474          </Text>
475        ))}
476        {errors.length === 0 &&
477          failures
478            .slice(0, ROW_ERRORS)
479            .map(failure => <Text wrap="truncate-end">{`     ${failure.name}  ${failure.message}`}</Text>)}
480        {errors.length > ROW_ERRORS && (
481          <Text dimColor>{`     +${plural(build.errorCount - ROW_ERRORS, 'more error')} · /${COMMAND} shows them all`}</Text>
482        )}
483      </Box>
484    )
485  })
486

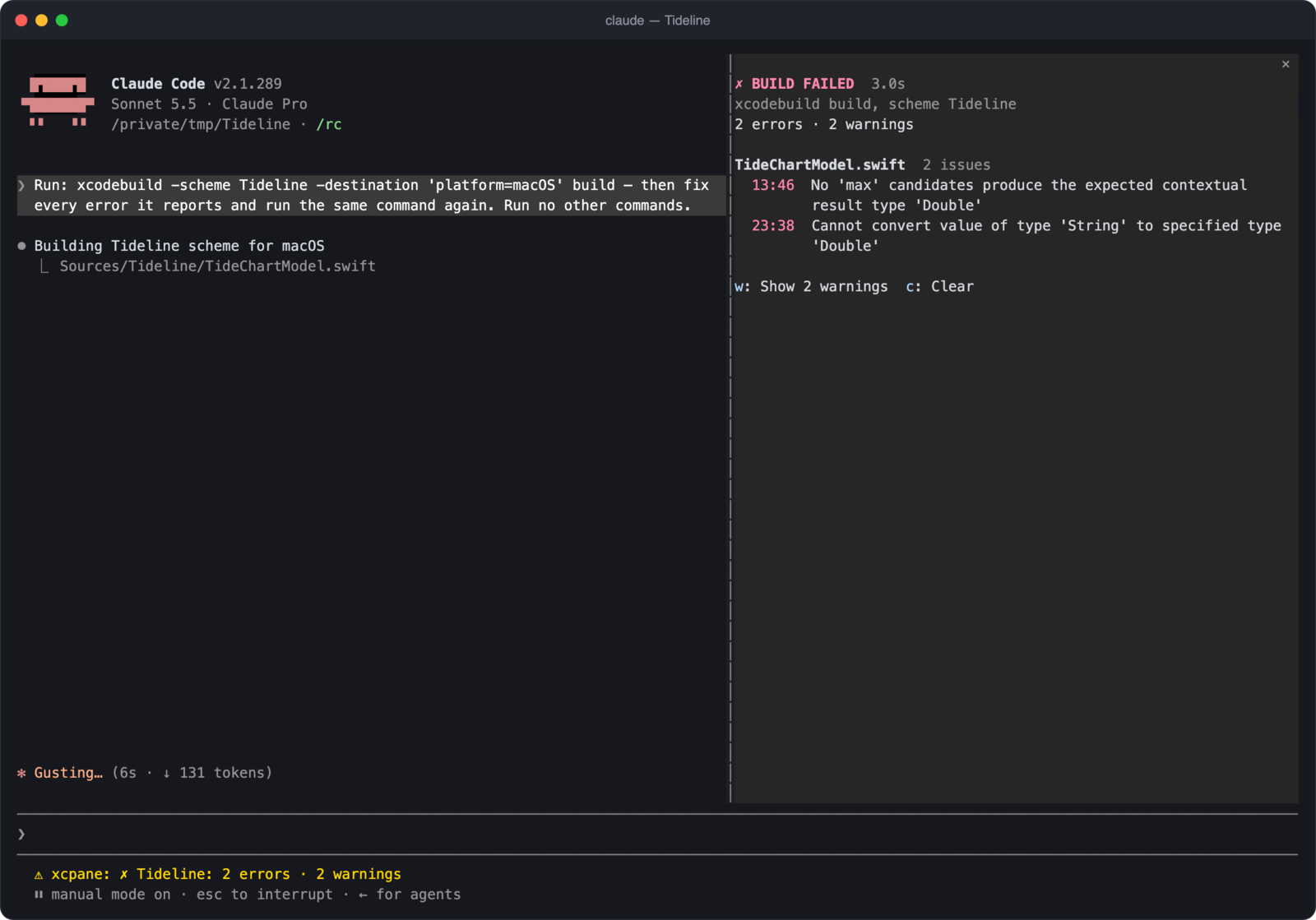

487  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
488    const { Box, Button, Text } = $.ui.resolve(e)
489    const list = await read($, builds)
490    const latest = list.at(-1)
491
492    if (latest === undefined) {
493      return (
494        <Box flexDirection="column">
495          <Text dimColor>No builds yet.</Text>
496          <Text dimColor>Ask Claude to run xcodebuild, swift build or swift test.</Text>
497        </Box>
498      )
499    }
500
501    const showsWarnings = await read($, isShowingWarnings)
502    const elapsed =
503      latest.status === 'running' ? Math.max(0, (await read($, now)) - latest.startedAt) : (latest.durationMs ?? 0)
504    const visible = latest.issues.filter(one => showsWarnings || isError(one))
505    const groups = byFile(visible.slice(0, PANE_ISSUES))
506    const failures = latest.tests?.failures ?? []
507    const slowest = latest.tests?.slowest ?? []
508    const earlier = list.slice(0, -1).slice(-5).reverse()
509    const hasNothingToShow = latest.status === 'failed' && latest.errorCount === 0 && failures.length === 0
510
511    return (
512      <Box flexDirection="column">
513        <Box flexDirection="row">
514          <Text bold color={TONE[latest.status]}>{`${GLYPH[latest.status]} ${verdict(latest)}`}</Text>
515          <Text dimColor>{`  ${seconds(elapsed)}`}</Text>
516        </Box>
517        <Text dimColor>{subject(latest)}</Text>
518        {latest.status !== 'running' && <Text>{tally(latest)}</Text>}
519        {latest.coverage !== null && <Text dimColor>{`Line coverage ${percent(latest.coverage)}`}</Text>}
520        {groups.map(group => (
521          <Box flexDirection="column" marginTop={1}>
522            <Box flexDirection="row">
523              <Text bold>{group.file === null ? 'Project' : basename(group.file)}</Text>
524              <Text dimColor>{`  ${plural(group.issues.length, 'issue')}`}</Text>
525            </Box>
526            {group.issues.map(issue => (
527              <Box flexDirection="row">
528                <Box width={9} flexShrink={0}>
529                  <Text color={isError(issue) ? 'error' : 'warning'}>{`  ${location(issue) || (isError(issue) ? 'error' : 'warn')}`}</Text>
530                </Box>
531                <Box flexGrow={1} flexShrink={1}>
532                  <Text>{issue.message}</Text>
533                </Box>
534              </Box>
535            ))}
536          </Box>
537        ))}
538        {visible.length > PANE_ISSUES && <Text dimColor>{`+${plural(visible.length - PANE_ISSUES, 'more issue')}`}</Text>}
539        {failures.length > 0 && (
540          <Box flexDirection="column" marginTop={1}>
541            <Text bold>Failed tests</Text>
542            {failures.slice(0, PANE_ISSUES).map(failure => (
543              <Box flexDirection="column">
544                <Text color="error">{`  ${GLYPH.failed} ${failure.name}`}</Text>
545                <Text>{`    ${failure.message}`}</Text>
546              </Box>
547            ))}
548          </Box>
549        )}
550        {slowest.length > 0 && (
551          <Box flexDirection="column" marginTop={1}>
552            <Text bold>Slowest tests</Text>
553            {slowest.map(test => (
554              <Text dimColor>{`  ${test.seconds.toFixed(2)}s  ${test.name}`}</Text>
555            ))}
556          </Box>
557        )}
558        {hasNothingToShow && (
559          <Box flexDirection="column" marginTop={1}>
560            <Text dimColor>No diagnostics found in the output; Claude read the raw log.</Text>
561            {latest.failedCommands.slice(0, 5).map(failed => (
562              <Text wrap="truncate-end">{`  ${failed}`}</Text>
563            ))}
564          </Box>
565        )}
566        <Box flexDirection="row" gap={2} marginTop={1}>
567          {latest.warningCount > 0 && (
568            <Button
569              key="warnings"
570              hotkey="w"
571              plain
572              label={showsWarnings ? 'Hide warnings' : `Show ${plural(latest.warningCount, 'warning')}`}
573              onPress={() => update($, isShowingWarnings, shows => !shows)}
574            />
575          )}
576          <Button key="clear" hotkey="c" plain label="Clear" onPress={() => update($, builds, () => [])} />
577        </Box>
578        {earlier.length > 0 && (
579          <Box flexDirection="column" marginTop={1}>
580            <Text dimColor>Earlier</Text>
581            {earlier.map(build => (
582              <Box flexDirection="row">
583                <Text color={TONE[build.status]}>{`  ${GLYPH[build.status]} `}</Text>
584                <Text dimColor>{`${build.action} · ${tally(build)} · ${seconds(build.durationMs ?? 0)}`}</Text>
585              </Box>
586            ))}
587          </Box>
588        )}
589      </Box>
590    )
591  })
592}
593

1import type { Build, Issue } from '../types'
2
3export type FileGroup = { file: string | null; issues: Issue[] }
4
5export type CondenseSettings = {
6  warnings: 'count' | 'list'
7  exitCode: number | null
8  isLogCut: boolean
9  /** The tool the model can call for what the summary leaves out, when there is one. */
10  detailsTool: string | null
11}
12
13export type Detail = 'all' | 'errors' | 'warnings' | 'tests'
14
15const LISTED = 50
16
17export const plural = (count: number, word: string) => `${count} ${word}${count === 1 ? '' : 's'}`
18
19export const basename = (path: string) => path.slice(path.lastIndexOf('/') + 1)
20
21export const seconds = (ms: number) => {
22  if (ms < 10_000) {
23    return `${(ms / 1000).toFixed(1)}s`
24  }
25
26  const whole = Math.round(ms / 1000)
27
28  return whole < 60 ? `${whole}s` : `${Math.floor(whole / 60)}m ${whole % 60}s`
29}
30
31const noun = (build: Build) => {
32  if (build.hasTests) {
33    return 'TEST'
34  }
35
36  if (build.action.includes('archive')) {
37    return 'ARCHIVE'
38  }
39
40  if (build.action.includes('analyze')) {
41    return 'ANALYZE'
42  }
43
44  return build.action === 'clean' ? 'CLEAN' : 'BUILD'
45}
46
47/** `BUILD FAILED`, `TEST SUCCEEDED`: the verdict as xcodebuild words it. */
48export const verdict = (build: Build) => `${noun(build)} ${build.status.toUpperCase()}`
49
50/** `xcodebuild test, scheme Demo`: what ran. */
51export const subject = (build: Build) => {
52  const command = { swift: `swift ${build.action}`, xcodebuild: `xcodebuild ${build.action}`, xcode: `Xcode ${build.action} (MCP)` }[
53    build.tool
54  ]
55
56  return build.scheme === null ? command : `${command}, scheme ${build.scheme}`
57}
58
59/** `1 error · 3 warnings · 12 tests, 1 failed`. */
60export const tally = (build: Build) => {
61  const parts = [plural(build.errorCount, 'error'), plural(build.warningCount, 'warning')]
62
63  if (build.tests !== null) {
64    parts.push(`${plural(build.tests.total, 'test')}, ${build.tests.failed} failed`)
65  }
66
67  return parts.join(' · ')
68}
69
70export const location = (issue: Pick<Issue, 'line' | 'column'>) => {
71  if (issue.line === null) {
72    return ''
73  }
74
75  return issue.column === null ? `${issue.line}` : `${issue.line}:${issue.column}`
76}
77
78/** The issues grouped by file in first-seen order, errors ahead of warnings in each. */
79export const byFile = (issues: readonly Issue[]): FileGroup[] => {
80  const groups = new Map<string | null, Issue[]>()
81
82  for (const issue of issues) {
83    groups.set(issue.file, [...(groups.get(issue.file) ?? []), issue])
84  }
85
86  return [...groups].map(([file, own]) => ({
87    file,
88    issues: [...own.filter(one => one.severity === 'error'), ...own.filter(one => one.severity === 'warning')],
89  }))
90}
91
92export const percent = (fraction: number) => `${Math.round(fraction * 100)}%`
93
94const diagnostic = (issue: Issue) => {
95  const where = issue.file === null ? '' : `${[issue.file, location(issue)].filter(Boolean).join(':')}: `
96
97  return `${where}${issue.severity}: ${issue.message}`
98}
99
100const failedTests = (build: Build, limit: number) =>
101  (build.tests?.failures ?? []).slice(0, limit).map(failure => {
102    const where = failure.file === null ? '' : `${[failure.file, failure.line].filter(Boolean).join(':')}: `
103
104    return `${where}${failure.name}: ${failure.message}`
105  })
106
107const listed = (lines: string[], total: number, word: string) =>
108  total > lines.length ? [...lines, `(+${plural(total - lines.length, `more ${word}`)})`] : lines
109
110/**
111 * The build as the model reads it in place of the raw log: the verdict, every
112 * error in `file:line:column: error: message` form, warnings counted or listed,
113 * and the failed tests.
114 */
115export const condense = (build: Build, settings: CondenseSettings): string => {
116  const errors = build.issues.filter(one => one.severity === 'error')
117  const warnings = build.issues.filter(one => one.severity === 'warning')
118  const took = build.durationMs === null ? '' : ` in ${seconds(build.durationMs)}`
119  const exit = settings.exitCode === null ? '' : ` (exit code ${settings.exitCode})`
120  const blocks: string[][] = [[`${subject(build)}: ${verdict(build)}${took}${exit}`, tally(build)]]
121
122  if (errors.length > 0) {
123    blocks.push(listed(errors.slice(0, LISTED).map(diagnostic), build.errorCount, 'error'))
124  }
125
126  if (build.tests !== null && build.tests.failures.length > 0) {
127    blocks.push(['Failed tests:', ...listed(failedTests(build, LISTED), build.tests.failed, 'failed test')])
128  }
129
130  if (build.coverage !== null) {
131    blocks.push([`Line coverage: ${percent(build.coverage)}`])
132  }
133
134  if (build.warningCount > 0 && settings.warnings === 'list') {
135    blocks.push(listed(warnings.slice(0, LISTED).map(diagnostic), build.warningCount, 'warning'))
136  } else if (build.warningCount > 0) {
137    const files = byFile(warnings)
138      .slice(0, 8)
139      .map(group => `${group.file === null ? 'no file' : basename(group.file)} (${group.issues.length})`)
140    const hint = settings.detailsTool === null ? '' : ` Call ${settings.detailsTool} to list them.`
141    blocks.push([`${plural(build.warningCount, 'warning')} not listed: ${files.join(', ')}.${hint}`])
142  }
143
144  const from = build.source === 'xcresult' ? "Xcode's result bundle" : 'the build log'
145  const notes = [`[xcpane: summarised from ${from}; ${plural(build.logLines, 'line')} of raw log omitted.`]
146
147  if (settings.isLogCut && build.source === 'log') {
148    notes.push('The captured log was cut short, so later diagnostics may be missing.')
149  }
150
151  if (build.logPath !== null) {
152    notes.push(`Full log: ${build.logPath}`)
153  }
154
155  blocks.push([`${notes.join(' ')}]`])
156
157  return blocks.map(block => block.join('\n')).join('\n\n')
158}
159
160/**
161 * A build in full, for the details tool: every stored error and warning with
162 * its location, the failed and slowest tests, and coverage.
163 */
164export const details = (build: Build, show: Detail): string => {
165  const wants = (one: Detail) => show === 'all' || show === one
166  const of = (severity: Issue['severity']) => build.issues.filter(one => one.severity === severity).map(diagnostic)
167  const took = build.durationMs === null ? '' : ` in ${seconds(build.durationMs)}`
168  const blocks: string[][] = [[`${subject(build)}: ${verdict(build)}${took}`, tally(build)]]
169
170  if (wants('errors')) {
171    blocks.push(build.errorCount === 0 ? ['No errors.'] : listed(of('error'), build.errorCount, 'error'))
172  }
173
174  if (wants('warnings')) {
175    blocks.push(build.warningCount === 0 ? ['No warnings.'] : listed(of('warning'), build.warningCount, 'warning'))
176  }
177
178  if (wants('tests') && build.tests !== null) {
179    const { tests } = build
180    const slowest = tests.slowest.map(test => `  ${test.name}: ${test.seconds.toFixed(2)}s`)
181    blocks.push([
182      `${plural(tests.total, 'test')}: ${tests.passed} passed, ${tests.failed} failed, ${tests.skipped} skipped`,
183      ...listed(failedTests(build, tests.failures.length), tests.failed, 'failed test'),
184    ])
185
186    if (slowest.length > 0) {
187      blocks.push(['Slowest tests:', ...slowest])
188    }
189  } else if (show === 'tests') {
190    blocks.push(['This build ran no tests.'])
191  }
192
193  if (show === 'all' && build.coverage !== null) {
194    blocks.push([`Line coverage: ${percent(build.coverage)}`])
195  }
196
197  if (show === 'all' && build.logPath !== null) {
198    blocks.push([`Full log: ${build.logPath}`])
199  }
200
201  return blocks.map(block => block.join('\n')).join('\n\n')
202}
203

1import type { Issue, TestFailure } from '../types'
2
3export type LogReport = {
4  issues: Issue[]
5  failures: TestFailure[]
6  passedTests: number
7  failedTests: number
8  skippedTests: number
9  marker: 'succeeded' | 'failed' | null
10  failedCommands: string[]
11  lines: number
12  isCut: boolean
13}
14
15const ESCAPES = /\u001b\[[0-9;?]*[ -/]*[@-~]|\u001b\][^\u0007\u001b]*(?:\u0007|\u001b\\)/g
16const LOCATED = /^([^\s:][^:]*\.[A-Za-z0-9+]+):(\d+)(?::(\d+))?: (error|warning|fatal error): (.*)$/
17const UNLOCATED = /^(?:([A-Za-z0-9_+.-]+): )?(error|warning|fatal error): (.+)$/
18const NOISE = /failed with a nonzero exit code|^Build failed$|^fatalError$|command failed due to signal|^(?:emit-module|compile) command failed/
19const XCTEST_FAILURE = /^-\[(\S+) (\S+)\] : (.*)$/
20const XCTEST_CASE = /^Test [Cc]ase '(.+?)' (passed|failed|skipped)\b/
21const SWIFT_TESTING_ISSUE = /^\S+ +Test (?:"(.+?)"|(\S+)) recorded an issue at (.+?):(\d+):\d+: (.*)$/
22const SWIFT_TESTING_CASE = /^\S+ +Test (?!run\b|Case\b|Suite\b)(?:"(.+?)"|(\S+)) (passed|failed|skipped) after /
23const MARKER = /^\*\* [A-Z ]+? (SUCCEEDED|FAILED) \*\*/
24const UNDEFINED_SYMBOLS = /^Undefined symbols?(?: for architecture \w+)?:/
25const TAG = /\s*\[#\w+\]$/
26const CUT = /\[\d+ (?:characters|lines) truncated\]|^<persisted-output>/m
27
28const testName = (suite: string, test: string) => `${suite.slice(suite.lastIndexOf('.') + 1)}/${test}`
29
30const caseName = (name: string) => {
31  const objc = /^-\[(\S+) (\S+)\]$/.exec(name)
32
33  return objc === null ? name : testName(objc[1] ?? '', objc[2] ?? '')
34}
35
36/**
37 * Reads what xcodebuild, swift build and swift test print: compiler and linker
38 * diagnostics, test results, the closing verdict and the commands that failed.
39 */
40export const parseLog = (text: string): LogReport => {
41  const lines = text.replace(ESCAPES, '').split(/\r?\n/)
42  const issues = new Map<string, Issue>()
43  const failures = new Map<string, TestFailure>()
44  const outcomes = new Map<string, string>()
45  const failedCommands: string[] = []
46  let marker: LogReport['marker'] = null
47  let isListingFailedCommands = false
48
49  const report = (issue: Issue) => {
50    issues.set([issue.severity, issue.file, issue.line, issue.column, issue.message].join('|'), issue)
51  }
52
53  for (const [index, line] of lines.entries()) {
54    const located = LOCATED.exec(line)
55    const unlocated = located === null ? UNLOCATED.exec(line) : null
56    const verdict = MARKER.exec(line)
57    const xctestCase = XCTEST_CASE.exec(line)
58    const swiftCase = SWIFT_TESTING_CASE.exec(line)
59    const swiftIssue = SWIFT_TESTING_ISSUE.exec(line)
60
61    if (isListingFailedCommands) {
62      isListingFailedCommands = /^\s+\S/.test(line)
63
64      if (isListingFailedCommands) {
65        failedCommands.push(line.trim())
66      }
67    } else if (located !== null) {
68      const file = located[1] ?? ''
69      const row = Number(located[2])
70      const message = (located[5] ?? '').replace(TAG, '')
71      const failed = XCTEST_FAILURE.exec(message)
72
73      if (failed === null) {
74        report({
75          severity: located[4] === 'warning' ? 'warning' : 'error',
76          file,
77          line: row,
78          column: located[3] === undefined ? null : Number(located[3]),
79          message,
80        })
81      } else {
82        const name = testName(failed[1] ?? '', failed[2] ?? '')
83        failures.set(name, { name, message: failed[3] ?? '', file, line: row })
84      }
85    } else if (unlocated !== null) {
86      const message = unlocated[3] ?? ''
87
88      if (message === 'Build failed') {
89        marker = 'failed'
90      }
91
92      if (!NOISE.test(message)) {
93        report({
94          severity: unlocated[2] === 'warning' ? 'warning' : 'error',
95          file: null,
96          line: null,
97          column: null,
98          message: unlocated[1] === undefined ? message : `${unlocated[1]}: ${message}`,
99        })
100      }
101    } else if (UNDEFINED_SYMBOLS.test(line)) {
102      const symbols = lines.slice(index + 1, index + 9).filter(one => /^\s+\S/.test(one))
103      report({ severity: 'error', file: null, line: null, column: null, message: [line, ...symbols].join('\n') })
104    } else if (verdict !== null) {
105      marker = verdict[1] === 'FAILED' || marker === 'failed' ? 'failed' : 'succeeded'
106    } else if (line.startsWith('Build complete!')) {
107      marker ??= 'succeeded'
108    } else if (line.startsWith('The following build commands failed:')) {
109      isListingFailedCommands = true
110    } else if (xctestCase !== null) {
111      outcomes.set(caseName(xctestCase[1] ?? ''), xctestCase[2] ?? '')
112    } else if (swiftCase !== null) {
113      outcomes.set(swiftCase[1] ?? swiftCase[2] ?? '', swiftCase[3] ?? '')
114    } else if (swiftIssue !== null) {
115      const name = swiftIssue[1] ?? swiftIssue[2] ?? ''
116      failures.set(name, { name, message: swiftIssue[5] ?? '', file: swiftIssue[3] ?? null, line: Number(swiftIssue[4]) })
117    }
118  }
119
120  for (const [name, outcome] of outcomes) {
121    if (outcome === 'failed' && !failures.has(name)) {
122      failures.set(name, { name, message: 'failed', file: null, line: null })
123    }
124  }
125
126  const outcome = (wanted: string) => [...outcomes.values()].filter(one => one === wanted).length
127
128  return {
129    issues: [...issues.values()],
130    failures: [...failures.values()],
131    passedTests: outcome('passed'),
132    failedTests: Math.max(outcome('failed'), failures.size),
133    skippedTests: outcome('skipped'),
134    marker,
135    failedCommands,
136    lines: lines.length,
137    isCut: CUT.test(text),
138  }
139}
140

1import type { Issue, Tests } from '../types'
2
3export type McpReport = {
4  status: 'succeeded' | 'failed'
5  scheme: string | null
6  issues: Issue[]
7  tests: Tests | null
8  logPath: string | null
9  bundlePath: string | null
10  durationMs: number | null
11}
12
13type Json = Record<string, unknown>
14
15const object = (value: unknown): Json | null =>
16  typeof value === 'object' && value !== null && !Array.isArray(value) ? (value as Json) : null
17
18const objects = (value: unknown): Json[] => (Array.isArray(value) ? value.map(object).filter(one => one !== null) : [])
19
20const text = (value: unknown) => (typeof value === 'string' ? value : null)
21
22const count = (value: unknown) => (typeof value === 'number' && Number.isFinite(value) ? value : 0)
23
24const parsed = (json: unknown): Json | null => {
25  try {
26    return typeof json === 'string' ? object(JSON.parse(json)) : null
27  } catch {
28    return null
29  }
30}
31
32/**
33 * The structured result of an Xcode MCP tool call, wherever the engine put it:
34 * `structuredContent`, the first text block, or the text the model read.
35 */
36export const structuredOf = (ran: { result?: unknown; text?: string }): Json | null => {
37  const result = object(ran.result)
38  const block = objects(result?.content).find(one => typeof one.text === 'string')
39
40  return object(result?.structuredContent) ?? parsed(block?.text) ?? parsed(ran.result) ?? parsed(ran.text) ?? result
41}
42
43/** Reads the result of Xcode MCP's `BuildProject`. */
44export const parseMcpBuild = (data: Json): McpReport | null => {
45  if (!('buildResult' in data) && !('errors' in data)) {
46    return null
47  }
48
49  const issues = objects(data.errors).map(
50    (entry): Issue => ({
51      severity: entry.classification === 'warning' ? 'warning' : 'error',
52      file: text(entry.filePath),
53      line: typeof entry.lineNumber === 'number' ? entry.lineNumber : null,
54      column: null,
55      message: text(entry.message) ?? 'Unknown issue',
56    }),
57  )
58  const hasFailed = issues.some(one => one.severity === 'error') || /fail/i.test(text(data.buildResult) ?? '')
59
60  return {
61    status: hasFailed ? 'failed' : 'succeeded',
62    scheme: null,
63    issues,
64    tests: null,
65    logPath: text(data.fullLogPath),
66    bundlePath: null,
67    durationMs: typeof data.elapsedTime === 'number' ? Math.round(data.elapsedTime * 1000) : null,
68  }
69}
70
71const FAILURE = /^(\S+?):(\d+) \S+: (.*)$/s
72
73/** Reads the result of Xcode MCP's `RunAllTests` and `RunSomeTests`. */
74export const parseMcpTests = (data: Json): McpReport | null => {
75  const counts = object(data.counts)
76
77  if (counts === null) {
78    return null
79  }
80
81  const failures = objects(data.results)
82    .filter(one => one.state === 'Failed')
83    .map(one => {
84      const message = (Array.isArray(one.errorMessages) ? one.errorMessages : []).filter(each => typeof each === 'string')
85      const located = FAILURE.exec(message[0] ?? '')
86
87      return {
88        name: text(one.identifier) ?? text(one.displayName) ?? 'Unknown test',
89        message: located?.[3] ?? (message.join('; ') || 'failed'),
90        file: located?.[1] ?? null,
91        line: located === null ? null : Number(located[2]),
92      }
93    })
94
95  return {
96    status: count(counts.failed) > 0 ? 'failed' : 'succeeded',
97    scheme: text(data.schemeName),
98    issues: [],
99    tests: {
100      total: count(counts.total),
101      passed: count(counts.passed),
102      failed: count(counts.failed),
103      skipped: count(counts.skipped),
104      failures,
105      slowest: [],
106    },
107    logPath: text(data.fullSummaryPath),
108    bundlePath: text(data.xcresultBundlePath),
109    durationMs: null,
110  }
111}
112
113/**
114 * Reads the result of Xcode MCP's `GetBuildLog`: the issues its build tasks
115 * emitted. `BuildProject` reports errors only, so warnings come from here.
116 */
117export const parseMcpBuildLog = (data: Json): Issue[] | null =>
118  Array.isArray(data.buildLogEntries)
119    ? objects(data.buildLogEntries).flatMap(entry =>
120        objects(entry.emittedIssues)
121          .filter(one => one.severity === 'warning' || one.severity === 'error')
122          .map(
123            (one): Issue => ({
124              severity: one.severity === 'warning' ? 'warning' : 'error',
125              file: text(one.path),
126              line: typeof one.line === 'number' ? one.line : null,
127              column: null,
128              message: text(one.message) ?? 'Unknown issue',
129            }),
130          ),
131      )
132    : null
133

1export type Invocation = {
2  tool: 'xcodebuild' | 'swift'
3  action: string
4  hasTests: boolean
5  scheme: string | null
6  isInfoOnly: boolean
7  hasResultBundleFlag: boolean
8  resultBundlePath: string | null
9  insertAt: number
10}
11
12type Word = {
13  text: string
14  start: number
15  end: number
16  isRedirect: boolean
17  isDynamic: boolean
18}
19
20const ASSIGNMENT = /^[A-Za-z_][A-Za-z0-9_]*=/
21const WRAPPERS = new Set([
22  'time',
23  'command',
24  'exec',
25  'env',
26  'nohup',
27  'xcrun',
28  'arch',
29  'caffeinate',
30  '{',
31  '!',
32  'if',
33  'then',
34  'else',
35  'do',
36  'while',
37])
38const VALUED_WRAPPER_FLAGS = new Set(['-sdk', '--sdk', '-toolchain', '--toolchain'])
39const ACTIONS = new Set([
40  'build',
41  'build-for-testing',
42  'analyze',
43  'archive',
44  'test',
45  'test-without-building',
46  'docbuild',
47  'install',
48  'installsrc',
49  'clean',
50])
51const TEST_ACTIONS = new Set(['test', 'test-without-building'])
52const BOOLEAN_FLAGS = new Set([
53  '-quiet',
54  '-verbose',
55  '-json',
56  '-alltargets',
57  '-allowProvisioningUpdates',
58  '-allowProvisioningDeviceRegistration',
59  '-hideShellScriptEnvironment',
60  '-showBuildTimingSummary',
61  '-skipPackagePluginValidation',
62  '-skipMacroValidation',
63  '-skipPackageUpdates',
64  '-skipUnavailableActions',
65  '-disableAutomaticPackageResolution',
66  '-onlyUsePackageVersionsFromResolvedFile',
67  '-retry-tests-on-failure',
68  '-run-tests-until-failure',
69])
70const INFO_FLAGS = new Set([
71  '-version',
72  '-usage',
73  '-help',
74  '-license',
75  '-list',
76  '-showsdks',
77  '-showdestinations',
78  '-showBuildSettings',
79  '-showTestPlans',
80  '-showComponent',
81  '-checkFirstLaunchStatus',
82  '-runFirstLaunch',
83  '-downloadPlatform',
84  '-downloadAllPlatforms',
85  '-downloadComponent',
86  '-importPlatform',
87  '-exportArchive',
88  '-exportLocalizations',
89  '-importLocalizations',
90  '-exportNotarizedApp',
91  '-resolvePackageDependencies',
92  '-create-xcframework',
93  '-find-executable',
94  '-find-library',
95  '-enumerate-tests',
96  '-dry-run',
97  '-n',
98])
99
100const split = (command: string): Word[][] => {
101  const segments: Word[][] = []
102  let words: Word[] = []
103  let word: Word | null = null
104  const open = (at: number): Word => {
105    word ??= { text: '', start: at, end: at, isRedirect: false, isDynamic: false }
106
107    return word
108  }
109  const push = (at: number) => {
110    if (word !== null) {
111      word.end = at
112      words.push(word)
113      word = null
114    }
115  }
116  const cut = (at: number) => {
117    push(at)
118
119    if (words.length > 0) {
120      segments.push(words)
121    }
122
123    words = []
124  }
125  const size = command.length
126  let i = 0
127
128  while (i < size) {
129    const c = command.charAt(i)
130    const following = command.charAt(i + 1)
131
132    if (c === '\\') {
133      if (following !== '\n') {
134        open(i).text += following
135      }
136
137      i += 2
138    } else if (c === "'") {
139      const close = command.indexOf("'", i + 1)
140      const stop = close < 0 ? size : close
141      open(i).text += command.slice(i + 1, stop)
142      i = stop + 1
143    } else if (c === '"') {
144      const quoted = open(i)
145      i += 1
146
147      while (i < size && command.charAt(i) !== '"') {
148        const inner = command.charAt(i)
149        const escaped = command.charAt(i + 1)
150
151        if (inner === '\\' && '\\"$`\n'.includes(escaped) && escaped !== '') {
152          quoted.text += escaped === '\n' ? '' : escaped
153          i += 2
154        } else {
155          quoted.isDynamic ||= inner === '$' || inner === '`'
156          quoted.text += inner
157          i += 1
158        }
159      }
160
161      i += 1
162    } else if (c === '$' && following === '(') {
163      const substituted = open(i)
164      let depth = 0
165      let stop = i + 1
166
167      for (; stop < size; stop += 1) {
168        const inner = command.charAt(stop)
169        depth += inner === '(' ? 1 : inner === ')' ? -1 : 0
170
171        if (depth === 0) {
172          break
173        }
174      }
175
176      substituted.isDynamic = true
177      substituted.text += command.slice(i, stop + 1)
178      i = stop + 1
179    } else if (c === '`') {
180      const close = command.indexOf('`', i + 1)
181      const stop = close < 0 ? size : close
182      const substituted = open(i)
183      substituted.isDynamic = true
184      substituted.text += command.slice(i, stop + 1)
185      i = stop + 1
186    } else if (c === '#' && word === null) {
187      const newline = command.indexOf('\n', i)
188      i = newline < 0 ? size : newline
189    } else if (c === ' ' || c === '\t') {
190      push(i)
191      i += 1
192    } else if (c === '>' || c === '<') {
193      const redirect = open(i)
194      redirect.isRedirect = true
195      redirect.text += c
196      i += 1
197    } else if (c === '&' && ('<>'.includes(command.charAt(i - 1) || ' ') || following === '>')) {
198      const redirect = open(i)
199      redirect.isRedirect = true
200      redirect.text += c
201      i += 1
202    } else if (';\n|&()'.includes(c)) {
203      cut(i)
204      i += 1
205    } else {
206      const plain = open(i)
207      plain.isDynamic ||= c === '$'
208      plain.text += c
209      i += 1
210    }
211  }
212
213  cut(size)
214
215  return segments
216}
217
218const xcodebuild = (args: Word[], insertAt: number): Invocation => {
219  const actions: string[] = []
220  let scheme: string | null = null
221  let target: string | null = null
222  let isInfoOnly = false
223  let hasResultBundleFlag = false
224  let resultBundlePath: string | null = null
225
226  for (let k = 0; k < args.length; k += 1) {
227    const text = args[k]?.text ?? ''
228    const value = args[k + 1]
229
230    if (!text.startsWith('-')) {
231      if (!text.includes('=') && ACTIONS.has(text)) {
232        actions.push(text)
233      }
234    } else if (INFO_FLAGS.has(text)) {
235      isInfoOnly = true
236    } else if (!BOOLEAN_FLAGS.has(text)) {
237      hasResultBundleFlag ||= text === '-resultBundlePath'
238
239      if (value !== undefined && !value.text.startsWith('-')) {
240        scheme = text === '-scheme' ? value.text : scheme
241        target = text === '-target' ? value.text : target
242
243        if (text === '-resultBundlePath' && !value.isDynamic && value.text.startsWith('/')) {
244          resultBundlePath = value.text
245        }
246
247        k += 1
248      }
249    }
250  }
251
252  return {
253    tool: 'xcodebuild',
254    action: actions.length > 0 ? actions.join(' ') : 'build',
255    hasTests: actions.some(action => TEST_ACTIONS.has(action)),
256    scheme: scheme ?? target,
257    isInfoOnly,
258    hasResultBundleFlag,
259    resultBundlePath,
260    insertAt,
261  }
262}
263
264const analyse = (words: Word[]): Invocation | null => {
265  let i = 0
266
267  while (i < words.length) {
268    const text = words[i]?.text ?? ''
269
270    if (ASSIGNMENT.test(text)) {
271      i += 1
272    } else if (WRAPPERS.has(text)) {
273      i += 1
274
275      while (words[i]?.text.startsWith('-') === true) {
276        i += VALUED_WRAPPER_FLAGS.has(words[i]?.text ?? '') ? 2 : 1
277      }
278    } else {
279      break
280    }
281  }
282
283  const head = words[i]
284
285  if (head === undefined || head.isRedirect || head.isDynamic) {
286    return null
287  }
288
289  const rest = words.slice(i + 1)
290  const redirect = rest.findIndex(one => one.isRedirect)
291  const args = redirect < 0 ? rest : rest.slice(0, redirect)
292  const insertAt = (args.at(-1) ?? head).end
293  const name = head.text.slice(head.text.lastIndexOf('/') + 1)
294  const verb = args[0]?.text
295
296  if (name === 'xcodebuild') {
297    return xcodebuild(args, insertAt)
298  }
299
300  if (name === 'swift' && (verb === 'build' || verb === 'test')) {
301    return {
302      tool: 'swift',
303      action: verb,
304      hasTests: verb === 'test',
305      scheme: null,
306      isInfoOnly: args.some(one => one.text === '--help' || one.text === '-h'),
307      hasResultBundleFlag: false,
308      resultBundlePath: null,
309      insertAt,
310    }
311  }
312
313  return null
314}
315
316/**
317 * The xcodebuild and `swift build|test` invocations a Bash command runs, in order.
318 *
319 * Only a command standing at a command position counts: one inside a quoted
320 * string, a `$(...)` or a here-document is text, not a build this mod can read.
321 */
322export const findInvocations = (command: string): Invocation[] =>
323  command.includes('<<')
324    ? []
325    : split(command)
326        .map(analyse)
327        .filter(one => one !== null)
328
329export const withResultBundle = (command: string, invocation: Invocation, path: string): string => {
330  const quoted = `'${path.replaceAll("'", "'\\''")}'`
331
332  return `${command.slice(0, invocation.insertAt)} -resultBundlePath ${quoted}${command.slice(invocation.insertAt)}`
333}
334
335/** Commands that print nothing of their own, or only pass on what the build printed. */
336const PASSIVE = new Set([
337  'cd', 'pushd', 'popd', 'export', 'unset', 'set', 'source', '.', 'true', ':', 'mkdir', 'touch', 'rm', 'sleep', 'wait',
338  'tail', 'head', 'grep', 'egrep', 'rg', 'tee', 'sort', 'uniq', 'cut', 'awk', 'wc', 'tr', 'less', 'more', 'column',
339  'xcbeautify', 'xcpretty', 'xcsift',
340])
341
342/** The name of the command a segment runs, the assignments and wrappers before it passed over. */
343const headOf = (words: Word[]): { name: string; args: Word[] } | null => {
344  let i = 0
345
346  while (i < words.length) {
347    const text = words[i]?.text ?? ''
348
349    if (ASSIGNMENT.test(text)) {
350      i += 1
351    } else if (WRAPPERS.has(text)) {
352      i += 1
353
354      while (words[i]?.text.startsWith('-') === true) {
355        i += VALUED_WRAPPER_FLAGS.has(words[i]?.text ?? '') ? 2 : 1
356      }
357    } else {
358      break
359    }
360  }
361
362  const head = words[i]
363
364  return head === undefined || head.isRedirect ? null : { name: head.text.slice(head.text.lastIndexOf('/') + 1), args: words.slice(i + 1).filter(one => !one.isRedirect) }
365}
366
367/**
368 * The other commands of a line whose own output Claude may be after:
369 * `xcodebuild build && cat config.json` prints a file as well as a build, so
370 * that line's output is not replaced by a summary.
371 */
372export const mixedWith = (command: string): string[] =>
373  split(command)
374    .filter(words => analyse(words) === null)
375    .map(headOf)
376    .filter(one => one !== null)
377    .filter(one => !PASSIVE.has(one.name) && !((one.name === 'cat' && one.args.every(arg => arg.text.startsWith('-'))) || one.name === 'sed'))
378    .map(one => one.name)
379

1import type { Issue, SlowTest, Tests } from '../types'
2
3export type BundleReport = {
4  status: 'succeeded' | 'failed' | null
5  issues: Issue[]
6  errorCount: number
7  warningCount: number
8}
9
10type Json = Record<string, unknown>
11
12const object = (value: unknown): Json | null =>
13  typeof value === 'object' && value !== null && !Array.isArray(value) ? (value as Json) : null
14
15const objects = (value: unknown): Json[] => (Array.isArray(value) ? value.map(object).filter(one => one !== null) : [])
16
17const count = (value: unknown, fallback: number) => (typeof value === 'number' && Number.isFinite(value) ? value : fallback)
18
19const parse = (json: string): Json | null => {
20  try {
21    return object(JSON.parse(json))
22  } catch {
23    return null
24  }
25}
26
27const decoded = (path: string) => {
28  try {
29    return decodeURIComponent(path)
30  } catch {
31    return path
32  }
33}
34
35const oneBased = (fragment: string, name: string) => {
36  const found = new RegExp(`(?:^|&)${name}=(\\d+)`).exec(fragment)
37
38  return found === null ? null : Number(found[1]) + 1
39}
40
41const issue = (severity: Issue['severity'], entry: Json): Issue => {
42  const url = typeof entry.sourceURL === 'string' && entry.sourceURL.startsWith('file://') ? entry.sourceURL : null
43  const hash = url?.indexOf('#') ?? -1
44  const fragment = url === null || hash < 0 ? '' : url.slice(hash + 1)
45
46  return {
47    severity,
48    file: url === null ? null : decoded(url.slice('file://'.length, hash < 0 ? undefined : hash)),
49    line: oneBased(fragment, 'StartingLineNumber'),
50    column: oneBased(fragment, 'StartingColumnNumber'),
51    message: typeof entry.message === 'string' ? entry.message : String(entry.issueType ?? 'Unknown issue'),
52  }
53}
54
55/**
56 * Reads `xcrun xcresulttool get build-results`: the build's verdict and its
57 * errors and warnings, whose line and column the bundle counts from zero.
58 *
59 * Null for the bundle xcodebuild leaves when it stopped before building
60 * (status `notRequested`, no issues): the log has what went wrong.
61 */
62export const parseBuildResults = (json: string): BundleReport | null => {
63  const root = parse(json)
64
65  if (root === null || !('errors' in root || 'status' in root)) {
66    return null
67  }
68
69  const errors = objects(root.errors).map(entry => issue('error', entry))
70  const warnings = [...objects(root.warnings), ...objects(root.analyzerWarnings)].map(entry => issue('warning', entry))
71  const errorCount = count(root.errorCount, errors.length)
72  const status = root.status === 'failed' || errorCount > 0 ? 'failed' : root.status === 'succeeded' ? 'succeeded' : null
73
74  if (status === null && warnings.length === 0) {
75    return null
76  }
77
78  return {
79    status,
80    issues: [...errors, ...warnings],
81    errorCount,
82    warningCount: count(root.warningCount, 0) + count(root.analyzerWarningCount, 0),
83  }
84}
85
86/**
87 * Reads `xcrun xcresulttool get test-results summary`; null for a bundle that
88 * ran no tests.
89 */
90export const parseTestSummary = (json: string): Tests | null => {
91  const root = parse(json)
92  const total = count(root?.totalTestCount, 0)
93
94  if (root === null || total === 0) {
95    return null
96  }
97
98  return {
99    total,
100    passed: count(root.passedTests, 0),
101    failed: count(root.failedTests, 0),
102    skipped: count(root.skippedTests, 0),
103    failures: objects(root.testFailures).map(entry => ({
104      name: String(entry.testIdentifierString ?? entry.testName ?? 'Unknown test'),
105      message: String(entry.failureText ?? 'failed'),
106      file: null,
107      line: null,
108    })),
109    slowest: [],
110  }
111}
112
113export type TestDetails = {
114  slowest: SlowTest[]
115  locations: Map<string, { file: string; line: number | null }>
116}
117
118const SLOWEST = 3
119
120/**
121 * Reads `xcrun xcresulttool get test-results tests`: the slowest tests, and
122 * where each failed test failed, keyed by the test's identifier.
123 */
124export const parseTestDetails = (json: string): TestDetails | null => {
125  const root = parse(json)
126
127  if (root === null) {
128    return null
129  }
130
131  const timed: SlowTest[] = []
132  const locations: TestDetails['locations'] = new Map()
133  const walk = (node: Json) => {
134    const id = typeof node.nodeIdentifier === 'string' ? node.nodeIdentifier : null
135
136    if (id !== null && typeof node.durationInSeconds === 'number') {
137      timed.push({ name: id, seconds: node.durationInSeconds })
138    }
139
140    for (const child of objects(node.children)) {
141      const where = object(child.sourceLocation)
142
143      if (id !== null && where !== null && typeof where.filePath === 'string' && !locations.has(id)) {
144        locations.set(id, { file: where.filePath, line: typeof where.lineNumber === 'number' ? where.lineNumber : null })
145      }
146
147      walk(child)
148    }
149  }
150
151  objects(root.testNodes).forEach(walk)
152
153  return { slowest: timed.sort((a, b) => b.seconds - a.seconds).slice(0, SLOWEST), locations }
154}
155
156/**
157 * Reads `xcrun xccov view --report --only-targets --json`: line coverage from
158 * 0 to 1 across the targets, test bundles left out.
159 */
160export const parseCoverage = (json: string): number | null => {
161  try {
162    const targets = objects(JSON.parse(json)).filter(target => !String(target.buildProductPath ?? '').includes('.xctest'))
163    const executable = targets.reduce((sum, target) => sum + count(target.executableLines, 0), 0)
164    const covered = targets.reduce((sum, target) => sum + count(target.coveredLines, 0), 0)
165
166    return executable === 0 ? null : covered / executable
167  } catch {
168    return null
169  }
170}
171

1export type Issue = {
2  severity: 'error' | 'warning'
3  file: string | null
4  line: number | null
5  column: number | null
6  message: string
7}
8
9export type TestFailure = {
10  name: string
11  message: string
12  file: string | null
13  line: number | null
14}
15
16export type SlowTest = { name: string; seconds: number }
17
18export type Tests = {
19  total: number
20  passed: number
21  failed: number
22  skipped: number
23  failures: TestFailure[]
24  slowest: SlowTest[]
25}
26
27export type Build = {
28  id: string
29  /** `xcode` is a build run through Xcode's MCP server. */
30  tool: 'xcodebuild' | 'swift' | 'xcode'
31  action: string
32  hasTests: boolean
33  scheme: string | null
34  status: 'running' | 'succeeded' | 'failed' | 'cancelled'
35  startedAt: number
36  durationMs: number | null
37  errorCount: number
38  warningCount: number
39  issues: Issue[]
40  tests: Tests | null
41  /** Line coverage from 0 to 1, when the run collected it. */
42  coverage: number | null
43  logPath: string | null
44  failedCommands: string[]
45  source: 'xcresult' | 'log' | 'none'
46  logLines: number
47  isCondensed: boolean
48}
49
50declare module 'claude-code' {
51  interface PluginState {
52    'xcpane': {
53      builds: Build[]
54      isShowingWarnings: boolean
55      now: number
56    }
57  }
58}
59
