mermaid-render

1import type { ElementTable, Register, RenderElement, RenderSurface } from 'claude-code'
2
3import { header, renderUnicode } from './diagram'
4import type { Failure, Glyph, Unicode } from './diagram'
5import { applyEdit, diagramsInFile, diagramsInOutput, diagramsTouched, isDiagramFile, splitMermaid } from './fences'
6import type { Segment } from './fences'
7
8type Svg = { isRendered: true; svg: string; width: number; height: number }
9type Png = { path: string; width: number; height: number }
10/** What the hook fetched through $ for one source, before anything is drawn. */
11type Prepared = { svg?: Svg | Failure; png?: Png }
12type Draw = { ui: ElementTable; surface: RenderSurface; width: number; prepared: Map<string, Prepared> }
13type FileDiagrams = { path: string; lines: number; sources: string[] }
14
15const KINDS: Record<string, string> = {
16  flowchart: 'Fluxograma',
17  graph: 'Fluxograma',
18  sequenceDiagram: 'Sequência',
19  stateDiagram: 'Estados',
20  'stateDiagram-v2': 'Estados',
21  classDiagram: 'Classes',
22  erDiagram: 'Entidade-relacionamento',
23}
24const GLYPH_COLOR: Record<Glyph, string> = { label: 'text', line: 'inactive', arrow: 'claude' }
25const SVG_LIMIT = 131072
26const CACHE_LIMIT = 200
27// The card's border and padding.
28const CARD_CHROME = 4
29
30const unicodeCache = new Map<string, Unicode | Failure>()
31const svgCache = new Map<string, Svg | Failure>()
32const pngCache = new Map<string, Png | undefined>()
33
34export const register: Register = (on, options) => {
35  const terminalRender = String(options.terminalRender ?? 'unicode')
36  const theme = String(options.theme ?? 'tokyo-night')
37
38  // A run of reads folds into one count line; unfold the finished ones that
39  // read or wrote a diagram, so each row below can draw it.
40  on('ui.render', { component: 'ToolGroup' }, ($, e, next) => {
41    const hasDiagram = e.props.calls.some(call => {
42      if (fileDiagrams(call.tool, call.output) !== undefined) return true
43      if (call.isRunning || call.isErrored || call.isInterrupted) return false
44      if (call.tool === 'Bash') return bashDiagrams(call.input, call.output).length > 0
45
46      return call.tool === 'Edit' && editDiagrams(call.output).length > 0
47    })
48
49    return !e.props.isActive && !e.props.isExpanded && hasDiagram
50      ? next({ ...e, props: { ...e.props, isExpanded: true } })
51      : next(e)
52  })
53
54  on('ui.render', async ($, e, next) => {
55    let segments: Segment[] = []
56    let file: FileDiagrams | undefined
57    let indent = 0
58    // Sources of a Bash or Edit row, drawn under the engine's own row.
59    let kept: string[] = []
60    if (e.component === 'AssistantMessage' && e.props.isSummary !== true) {
61      segments = splitMermaid(e.props.text)
62      indent = 2
63    } else if (e.component === 'ToolUse' && !e.props.isRunning && !e.props.isErrored) {
64      const isInterrupted = e.props.isInterrupted === true
65      file = fileDiagrams(e.props.tool, e.props.output)
66      segments = (file?.sources ?? []).map(source => ({ kind: 'mermaid', source }))
67      indent = 7
68      if (file === undefined && !isInterrupted) {
69        kept = e.props.tool === 'Bash' ? bashDiagrams(e.props.input, e.props.output) : e.props.tool === 'Edit' ? editDiagrams(e.props.output) : []
70        segments = kept.map(source => ({ kind: 'mermaid', source }))
71      }
72    }
73    const sources = segments.flatMap(segment => (segment.kind === 'mermaid' ? [segment.source] : []))
74    if (sources.length === 0) return next(e)
75
76    const wantsSvg = e.surface !== 'terminal' || terminalRender === 'image'
77    const prepared = new Map<string, Prepared>()
78    for (const source of wantsSvg ? sources : []) {
79      const key = `${theme}|${source}`
80      let svg = svgCache.get(key)
81      if (svg === undefined) {
82        // SVG layout needs ELK, too large to import: renderer/svg.mjs runs it under node.
83        try {
84          const ran = await $.process.run(['/usr/bin/env', 'node', `${$.plugin.root}/renderer/svg.mjs`], {
85            stdin: JSON.stringify({ source, theme }),
86            timeoutMs: 15000,
87          })
88          svg = ran.exitCode === 0 && !ran.isStdoutTruncated ? parseSvg(ran.stdout) : failure(source, ran.stderr)
89        } catch (error) {
90          svg = failure(source, error instanceof Error ? error.message : String(error))
91        }
92        remember(svgCache, key, svg)
93      }
94
95      let png: Png | undefined
96      if (e.surface === 'terminal' && svg.isRendered) {
97        if (!pngCache.has(key)) {
98          // The terminal reads the PNG itself, so no pixel crosses $.
99          const dir = `${((await $.env.get('TMPDIR')) ?? '/tmp').replace(/\/$/, '')}/mermaid-render`
100          const name = `${dir}/${hash(key)}`
101          let isRasterized = false
102          try {
103            await $.process.run(['mkdir', '-p', dir])
104            await $.fs.write(`${name}.svg`, svg.svg)
105            const ran = await $.process.run(
106              ['/usr/bin/env', 'rsvg-convert', '--zoom', '2', '--output', `${name}.png`, `${name}.svg`],
107              { timeoutMs: 15000 },
108            )
109            isRasterized = ran.exitCode === 0
110          } catch {
111            isRasterized = false
112          }
113          const evicted = remember(pngCache, key, isRasterized ? { path: `${name}.png`, width: svg.width, height: svg.height } : undefined)
114          // Only the PNG is the cache; the SVG is scratch, and a failed run may leave a half-written PNG.
115          const stale = [`${name}.svg`, ...(isRasterized ? [] : [`${name}.png`]), ...(evicted === undefined ? [] : [evicted.path])]
116          await $.process.run(['rm', '-f', ...stale]).catch(() => undefined)
117        }
118        png = pngCache.get(key)
119      }
120      prepared.set(source, { svg, png })
121    }
122
123    const ui = $.ui.resolve(e)
124    const draw: Draw = { ui, surface: e.surface, width: (e.viewport?.columns ?? 100) - indent - CARD_CHROME, prepared }
125    if (e.component === 'ToolUse' && file !== undefined) return toolRow(draw, e.props.tool, file)
126    if (kept.length > 0) return underEngineRow(draw, await next(e), kept)
127
128    return reply(draw, segments, e.component === 'AssistantMessage' && e.props.isFirstOfReply)
129  })
130}
131
132function reply(draw: Draw, segments: Segment[], isFirstOfReply: boolean): RenderElement {
133  const { Box, Text, Markdown } = draw.ui
134
135  return (
136    <Box flexDirection="row">
137      <Box width={2} flexShrink={0}>
138        <Text>{isFirstOfReply ? '⏺' : ' '}</Text>
139      </Box>
140      <Box flexDirection="column" flexGrow={1} gap={1}>
141        {segments.map((segment, index) =>
142          segment.kind === 'markdown' ? <Markdown key={`md-${index}`} text={segment.text} /> : card(draw, segment.source, index),
143        )}
144      </Box>
145    </Box>
146  )
147}
148
149function underEngineRow(draw: Draw, engineRow: RenderElement, sources: string[]): RenderElement {
150  const { Box } = draw.ui
151
152  return (
153    <Box flexDirection="column">
154      {engineRow}
155      <Box flexDirection="column" marginLeft={5} marginTop={1} gap={1}>
156        {sources.map((source, index) => card(draw, source, index))}
157      </Box>
158    </Box>
159  )
160}
161
162function toolRow(draw: Draw, tool: string, file: FileDiagrams): RenderElement {
163  const { Box, Text } = draw.ui
164  const count = file.sources.length
165
166  return (
167    <Box flexDirection="column">
168      <Text>
169        <Text color="success">⏺ </Text>
170        <Text bold>{tool}</Text>
171        <Text>({file.path})</Text>
172      </Text>
173      <Text dimColor>
174        {`  ⎿  ${file.lines} linhas · ${count} ${count === 1 ? 'diagrama' : 'diagramas'} Mermaid`}
175      </Text>
176      <Box flexDirection="column" marginLeft={5} marginTop={1} gap={1}>
177        {file.sources.map((source, index) => card(draw, source, index))}
178      </Box>
179    </Box>
180  )
181}
182
183/** The diagrams a finished, clean foreground Bash run printed. */
184function bashDiagrams(input: unknown, output: unknown): string[] {
185  const command = (input as { command?: unknown } | undefined)?.command
186  const result = output as { stdout?: unknown; interrupted?: unknown; isImage?: unknown; backgroundTaskId?: unknown } | undefined
187  const stdout = result?.stdout
188  const isClean = result?.interrupted !== true && result?.isImage !== true && result?.backgroundTaskId === undefined
189  if (typeof command !== 'string' || typeof stdout !== 'string' || !isClean) return []
190
191  return diagramsInOutput(command, stdout)
192}
193
194/** The diagrams a finished Edit left in its file: the whole of a .mmd, else the fences the edit touched. */
195function editDiagrams(output: unknown): string[] {
196  const result = output as
197    | { filePath?: unknown; oldString?: unknown; newString?: unknown; originalFile?: unknown; replaceAll?: unknown }
198    | undefined
199  const { filePath, oldString, newString, originalFile } = result ?? {}
200  if (typeof filePath !== 'string' || typeof oldString !== 'string' || typeof newString !== 'string') return []
201  const original = originalFile === null ? null : typeof originalFile === 'string' ? originalFile : undefined
202  if (original === undefined) return []
203
204  const edited = applyEdit(original, oldString, newString, result?.replaceAll === true)
205  if (isDiagramFile(filePath)) return edited.content.trim() === '' ? [] : [edited.content]
206
207  return diagramsTouched(edited.content, edited.spans)
208}
209
210/** The diagrams a finished Read or Write handled, with the file they came from. */
211function fileDiagrams(tool: string, output: unknown): FileDiagrams | undefined {
212  const result = output as { type?: string; file?: { filePath: string; content: string }; filePath?: string; content?: string } | undefined
213  const file =
214    tool === 'Read' && result?.type === 'text' && result.file !== undefined
215      ? { path: result.file.filePath, content: result.file.content }
216      : tool === 'Write' && typeof result?.filePath === 'string' && typeof result.content === 'string'
217        ? { path: result.filePath, content: result.content }
218        : undefined
219  if (file === undefined) return undefined
220  const sources = diagramsInFile(file.path, file.content)
221
222  return sources.length === 0 ? undefined : { path: file.path, lines: file.content.split('\n').length, sources }
223}

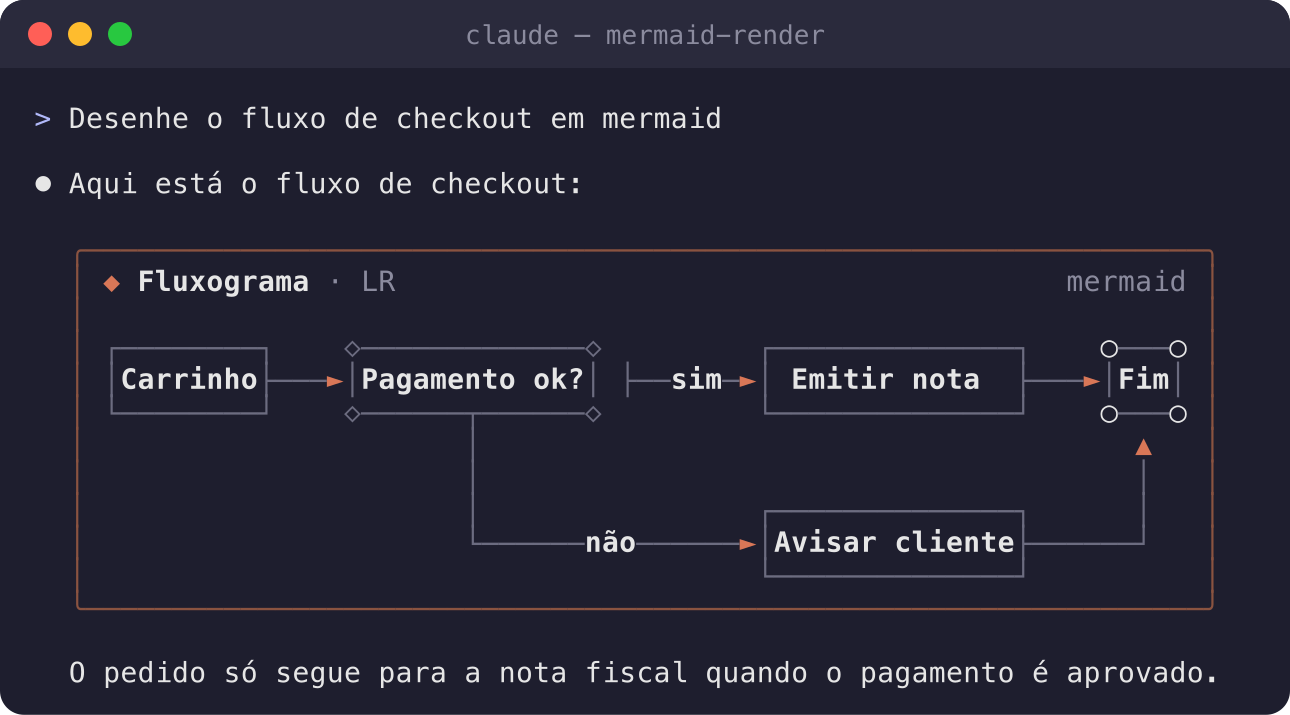

224
225function card(draw: Draw, source: string, index: number): RenderElement {
226  const { Box, Text, Code } = draw.ui
227  const width = Math.max(20, draw.width)
228  const body = cardBody(draw, source, width)
229  const { kind, direction } = header(source)
230  const isFailed = 'reason' in body
231
232  return (
233    <Box
234      key={`mermaid-${index}`}
235      flexDirection="column"
236      borderStyle="round"
237      borderColor={isFailed ? 'warning' : 'claude'}
238      borderDimColor={!isFailed}
239      paddingX={1}
240    >
241      <Box flexDirection="row" justifyContent="space-between">
242        <Text>
243          <Text color={isFailed ? 'warning' : 'claude'}>{isFailed ? '▲ ' : '◆ '}</Text>
244          <Text bold>{KINDS[kind] ?? kind}</Text>
245          {direction !== undefined && <Text dimColor>{` · ${direction}`}</Text>}
246        </Text>
247        <Text dimColor>mermaid</Text>
248      </Box>
249      {'reason' in body ? (
250        <Box flexDirection="column" marginTop={1}>
251          <Text color="warning">Não foi possível desenhar: {body.reason}</Text>
252          <Code source={source} language="mermaid" />
253        </Box>
254      ) : (
255        <Box flexDirection="column" marginTop={1}>
256          {body.element}
257        </Box>
258      )}
259    </Box>
260  )
261}
262
263/** The picture a surface draws best, falling back to box-drawing art. */

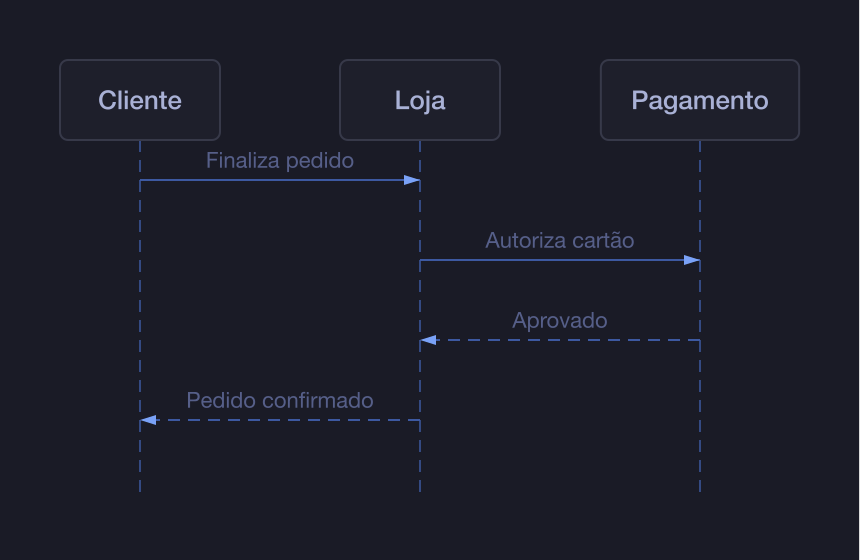

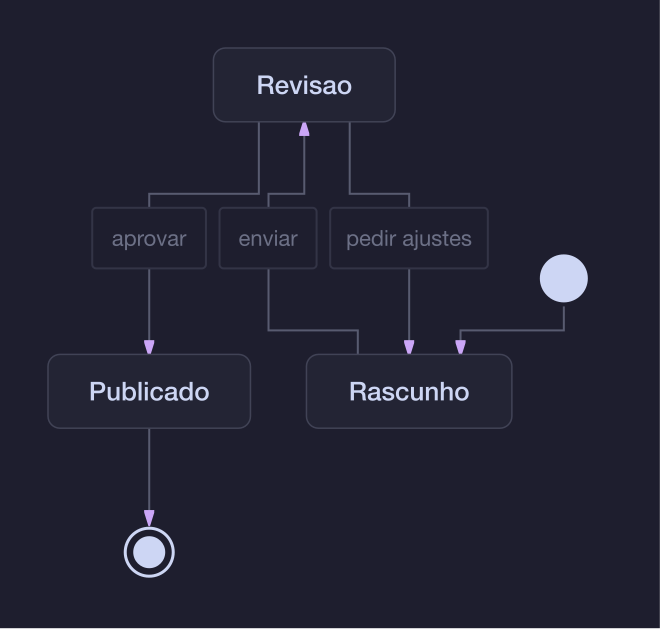

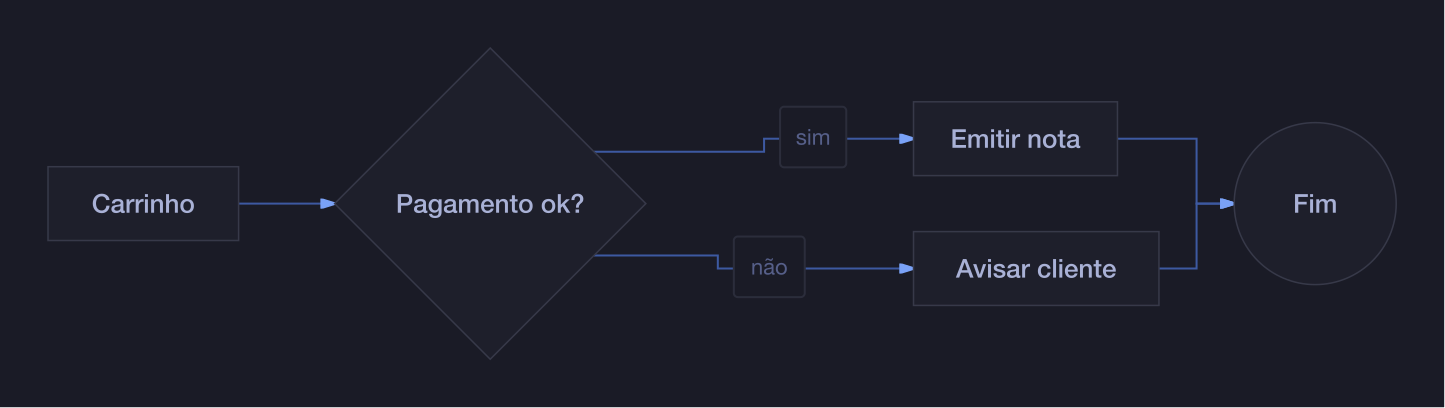

264function cardBody(draw: Draw, source: string, width: number): { element: RenderElement } | { reason: string } {
265  const { ui } = draw
266  const { svg, png } = draw.prepared.get(source) ?? {}
267  const alt = `diagrama ${header(source).kind}`
268
269  if (draw.surface !== 'terminal' && svg?.isRendered && svg.svg.length <= SVG_LIMIT && 'Svg' in ui) {
270    const { Svg } = ui
271    return { element: <Svg source={svg.svg} alt={alt} /> }
272  }
273
274  if (draw.surface === 'terminal' && png !== undefined && 'Image' in ui) {
275    const { Image } = ui
276    // A cell is about twice as tall as it is wide.
277    const columns = Math.min(255, width, Math.max(16, Math.ceil(png.width / 8)))
278    const rows = Math.min(255, Math.max(3, Math.round((columns * png.height) / png.width / 2)))
279    return { element: <Image source={{ file: png.path, format: 'png' }} columns={columns} rows={rows} alt={alt} /> }
280  }
281
282  let art = unicodeCache.get(`${width}|${source}`)
283  if (art === undefined) {
284    art = renderUnicode(source, width)
285    remember(unicodeCache, `${width}|${source}`, art)
286  }
287  if (!art.isRendered) return { reason: art.reason }
288
289  return { element: unicodeArt(ui, art, width) }
290}
291
292function unicodeArt(ui: ElementTable, art: Unicode, width: number): RenderElement {
293  const { Box, Text } = ui
294
295  return (
296    <Box flexDirection="column">
297      {art.lines.map(runs => (
298        <Text wrap="truncate-end">
299          {runs.map(run => (
300            <Text color={GLYPH_COLOR[run.glyph]} bold={run.glyph === 'label'}>
301              {run.text}
302            </Text>
303          ))}
304        </Text>
305      ))}
306      {art.isTurned && <Text dimColor>{'\n↕ disposto na vertical para caber na largura do terminal'}</Text>}
307      {art.width > width && <Text dimColor>{`\n↔ o diagrama tem ${art.width} colunas; alargue o terminal para vê-lo inteiro`}</Text>}
308    </Box>
309  )
310}
311
312function parseSvg(svg: string): Svg {
313  const [, width = '640', height = '360'] = /viewBox="[\d.]+ [\d.]+ ([\d.]+) ([\d.]+)"/.exec(svg) ?? []
314
315  return { isRendered: true, svg, width: Number(width), height: Number(height) }
316}
317
318function failure(source: string, reason: string): Failure {
319  return { isRendered: false, kind: header(source).kind, reason: reason.trim() || 'renderer/svg.mjs falhou' }
320}
321
322/** Stores the value and returns the entry it pushed out, if any. */
323function remember<T>(cache: Map<string, T>, key: string, value: T): T | undefined {
324  let evicted: T | undefined
325  if (cache.size >= CACHE_LIMIT) {
326    const oldest = cache.keys().next().value as string
327    evicted = cache.get(oldest)
328    cache.delete(oldest)
329  }
330  cache.set(key, value)
331
332  return evicted
333}
334
335function hash(text: string): string {
336  let value = 0x811c9dc5
337  for (let index = 0; index < text.length; index += 1) {
338    value ^= text.charCodeAt(index)
339    value = Math.imul(value, 0x01000193)
340  }
341
342  return (value >>> 0).toString(16)
343}
344

1import { renderMermaidASCII } from './vendor/mermaid.js'
2
3export type Glyph = 'label' | 'line' | 'arrow'
4export type Run = { glyph: Glyph; text: string }
5
6export type Unicode = {
7  isRendered: true
8  kind: string
9  direction?: string
10  /** Set when a horizontal flowchart was laid out vertically to fit. */
11  isTurned: boolean
12  lines: Run[][]
13  width: number
14}
15
16export type Failure = { isRendered: false; kind: string; reason: string }
17
18const COMPACT = { colorMode: 'none', paddingX: 4, paddingY: 2, boxBorderPadding: 0 } as const
19const ARROWS = new Set('►▶◀◄▲▼△▽▷◁→←↑↓')
20const LINES = /[─-╿◇◆○●]/
21
22/**
23 * The header Mermaid itself reads: the first line that is neither blank, a
24 * %% comment nor front matter. Its first word is the kind, its second the
25 * direction of a flowchart.
26 */
27export function header(source: string): { kind: string; direction?: string } {
28  const lines = source.split('\n').map(line => line.trim())
29  let index = 0
30  if (lines[0] === '---') index = lines.indexOf('---', 1) + 1
31  const first = lines.slice(index).find(line => line !== '' && !line.startsWith('%%')) ?? ''
32  const [kind = 'diagram', direction] = first.split(/\s+/)
33  const isFlow = kind === 'flowchart' || kind === 'graph'
34
35  return { kind, direction: isFlow && direction ? direction.toUpperCase() : undefined }
36}
37
38/** Box-drawing art cut into colored runs, laid out vertically when too wide. */
39export function renderUnicode(source: string, columns: number): Unicode | Failure {
40  const { kind, direction } = header(source)
41  try {
42    let art = tidy(renderMermaidASCII(source, COMPACT))
43    let isTurned = false
44    if (widest(art) > columns && (direction === 'LR' || direction === 'RL')) {
45      const turned = tidy(renderMermaidASCII(turnVertical(source), COMPACT))
46      if (widest(turned) < widest(art)) {
47        art = turned
48        isTurned = true
49      }
50    }
51
52    return { isRendered: true, kind, direction, isTurned, lines: art.map(toRuns), width: widest(art) }
53  } catch (error) {
54    return { isRendered: false, kind, reason: firstLine(error) }
55  }
56}
57
58function turnVertical(source: string): string {
59  return source.replace(/^(\s*(?:flowchart|graph)\s+)(LR|RL)\b/im, '$1TD')
60}
61
62function tidy(text: string): string[] {
63  const lines = text.split('\n').map(line => line.replace(/\s+$/, ''))
64  while (lines.length > 0 && lines[0] === '') lines.shift()
65  while (lines.length > 0 && lines[lines.length - 1] === '') lines.pop()
66
67  return lines
68}
69
70function widest(lines: string[]): number {
71  return lines.reduce((most, line) => Math.max(most, [...line].length), 0)
72}
73
74function toRuns(line: string): Run[] {
75  const runs: Run[] = []
76  for (const char of line) {
77    const glyph: Glyph = ARROWS.has(char) ? 'arrow' : LINES.test(char) || char === '╌' ? 'line' : 'label'
78    const last = runs[runs.length - 1]
79    // A space joins whatever run it sits in, so labels stay one run each.
80    if (last !== undefined && (last.glyph === glyph || char === ' ')) last.text += char
81    else runs.push({ glyph, text: char })
82  }
83
84  return runs
85}
86
87function firstLine(error: unknown): string {
88  const message = error instanceof Error ? error.message : String(error)
89
90  return message.split('\n')[0] ?? message
91}
92

1import { header } from './diagram'
2
3export type Segment =
4  | { kind: 'markdown'; text: string }
5  | { kind: 'mermaid'; source: string }
6
7const OPENER = /^ {0,3}(`{3,}|~{3,})(.*)$/
8
9/**
10 * Splits markdown into prose and mermaid fences, CommonMark style: the closer
11 * repeats the opener's character at least as long, and a mermaid fence shown
12 * inside another fence is documentation, left as prose. An unclosed mermaid
13 * fence (a reply still streaming) stays prose until it closes.
14 */
15export function splitMermaid(markdown: string): Segment[] {
16  const { lines, fences } = scanFences(markdown)
17  const segments: Segment[] = []
18  let proseFrom = 0
19
20  const flushProse = (to: number) => {
21    const text = lines.slice(proseFrom, to).join('\n').replace(/^\n+|\s+$/g, '')
22    if (text !== '') segments.push({ kind: 'markdown', text })
23  }
24
25  for (const fence of fences) {
26    flushProse(fence.opener)
27    segments.push({ kind: 'mermaid', source: fence.source })
28    proseFrom = fence.closer + 1
29  }
30  flushProse(lines.length)
31
32  return segments
33}
34
35/** A closed top-level mermaid fence: the lines of its opener and closer, and what sits between. */
36type Fence = { opener: number; closer: number; source: string }
37
38function scanFences(markdown: string): { lines: string[]; fences: Fence[] } {
39  const lines = markdown.split('\n').map(line => (line.endsWith('\r') ? line.slice(0, -1) : line))
40  const fences: Fence[] = []
41  let index = 0
42
43  while (index < lines.length) {
44    const opener = OPENER.exec(lines[index] ?? '')
45    if (opener === null) {
46      index += 1
47      continue
48    }
49    const closer = closingLine(lines, index + 1, opener[1] ?? '```')
50    const isMermaid = (opener[2] ?? '').trim().split(/\s+/)[0]?.toLowerCase() === 'mermaid'
51    if (closer !== -1 && isMermaid) fences.push({ opener: index, closer, source: lines.slice(index + 1, closer).join('\n') })
52    index = closer === -1 ? lines.length : closer + 1
53  }
54
55  return { lines, fences }
56}
57
58function closingLine(lines: string[], from: number, fence: string): number {
59  const pattern = new RegExp(`^ {0,3}\\${fence[0]}{${fence.length},}\\s*$`)
60  for (let index = from; index < lines.length; index += 1) {
61    if (pattern.test(lines[index] ?? '')) return index
62  }
63
64  return -1
65}
66
67/** The mermaid sources a file holds: the whole of a .mmd, the fences of anything else. */
68export function diagramsInFile(path: string, content: string): string[] {
69  if (isDiagramFile(path)) return content.trim() === '' ? [] : [content]
70
71  return splitMermaid(content).flatMap(segment => (segment.kind === 'mermaid' ? [segment.source] : []))
72}
73
74export function isDiagramFile(path: string): boolean {
75  return /\.(mmd|mermaid)$/i.test(path)
76}
77
78const DIAGRAM_KINDS = new Set([
79  'flowchart', 'flowchart-elk', 'graph', 'sequenceDiagram', 'stateDiagram', 'stateDiagram-v2', 'classDiagram', 'erDiagram',
80  'pie', 'gantt', 'journey', 'gitGraph', 'mindmap', 'timeline', 'quadrantChart', 'requirementDiagram', 'sankey-beta',
81  'xychart-beta', 'block-beta', 'architecture-beta', 'packet-beta', 'kanban', 'C4Context',
82])
83
84/** The mermaid sources a finished shell command printed: its fences, else the whole of a .mmd/.mermaid file it named. */
85export function diagramsInOutput(command: string, stdout: string): string[] {
86  const fenced = splitMermaid(stdout).flatMap(segment => (segment.kind === 'mermaid' ? [segment.source] : []))
87  if (fenced.length > 0) return fenced
88
89  const namesDiagramFile = /\.(mmd|mermaid)(?=$|[\s'"`;|&<>)])/i.test(command)
90  const source = stdout.replace(/\r\n/g, '\n')
91
92  return namesDiagramFile && DIAGRAM_KINDS.has(header(source).kind) ? [source] : []
93}
94
95/** A character range of the edited file that the edit wrote. */
96export type Span = { start: number; end: number }
97
98/** The file an edit leaves behind and the ranges it wrote. */
99export function applyEdit(original: string | null, oldString: string, newString: string, replaceAll: boolean): { content: string; spans: Span[] } {
100  if (original === null) return { content: newString, spans: [{ start: 0, end: newString.length }] }
101  if (oldString === '') return { content: original, spans: [] }
102
103  let content = ''
104  let from = 0
105  const spans: Span[] = []
106  for (let at = original.indexOf(oldString); at !== -1; at = replaceAll ? original.indexOf(oldString, from) : -1) {
107    content += original.slice(from, at)
108    spans.push({ start: content.length, end: content.length + newString.length })
109    content += newString
110    from = at + oldString.length
111  }
112
113  return { content: content + original.slice(from), spans }
114}
115
116/** The mermaid fences of a markdown text whose lines, opener to closer, overlap a written span. */
117export function diagramsTouched(markdown: string, spans: Span[]): string[] {
118  const starts: number[] = []
119  let offset = 0
120  for (const line of markdown.split('\n')) {
121    starts.push(offset)
122    offset += line.length + 1
123  }
124  starts.push(offset)
125  const { fences } = scanFences(markdown)
126
127  return fences.flatMap(fence => {
128    const start = starts[fence.opener] ?? 0
129    // The raw closer line, \r included: scanFences strips the \r from its lines.
130    const end = (starts[fence.closer + 1] ?? 0) - 1
131    const isTouched = spans.some(span => span.start < end && span.end > start)
132
133    return isTouched ? [fence.source] : []
134  })
135}
136

1var oe;var pe=(oe=String.fromCodePoint)!==null&&oe!==void 0?oe:t=>{let e="";return t>65535&&(t-=65536,e+=String.fromCharCode(t>>>10&1023|55296),t=56320|t&1023),e+=String.fromCharCode(t),e};var re;(function(t){t[t.VALUE_LENGTH=49152]="VALUE_LENGTH",t[t.FLAG13=8192]="FLAG13",t[t.BRANCH_LENGTH=8064]="BRANCH_LENGTH",t[t.JUMP_TABLE=127]="JUMP_TABLE"})(re||(re={}));var ye;(function(t){t[t.NUM=35]="NUM",t[t.SEMI=59]="SEMI",t[t.EQUALS=61]="EQUALS",t[t.ZERO=48]="ZERO",t[t.NINE=57]="NINE",t[t.LOWER_A=97]="LOWER_A",t[t.LOWER_F=102]="LOWER_F",t[t.LOWER_X=120]="LOWER_X",t[t.LOWER_Z=122]="LOWER_Z",t[t.UPPER_A=65]="UPPER_A",t[t.UPPER_F=70]="UPPER_F",t[t.UPPER_Z=90]="UPPER_Z"})(ye||(ye={}));var be;(function(t){t[t.EntityStart=0]="EntityStart",t[t.NumericStart=1]="NumericStart",t[t.NumericDecimal=2]="NumericDecimal",t[t.NumericHex=3]="NumericHex",t[t.NamedEntity=4]="NamedEntity"})(be||(be={}));var jt;(function(t){t[t.Legacy=0]="Legacy",t[t.Strict=1]="Strict",t[t.Attribute=2]="Attribute"})(jt||(jt={}));var yn=String.prototype.codePointAt==null?(t,e)=>(t.charCodeAt(e)&64512)===55296?(t.charCodeAt(e)-55296)*1024+t.charCodeAt(e+1)-56320+65536:t.charCodeAt(e):(t,e)=>t.codePointAt(e);var we;(function(t){t[t.XML=0]="XML",t[t.HTML=1]="HTML"})(we||(we={}));var Ce;(function(t){t[t.UTF8=0]="UTF8",t[t.ASCII=1]="ASCII",t[t.Extensive=2]="Extensive",t[t.Attribute=3]="Attribute",t[t.Text=4]="Text"})(Ce||(Ce={}));function lt(t){return(t.startsWith('"')&&t.endsWith('"')?t.slice(1,-1):t).replace(/<br\s*\/?>/gi,`
2`).replace(/\\n/g,`
3`).replace(/<\/?(?:sub|sup|small|mark)\s*>/gi,"").replace(/\*\*(.+?)\*\*/g,"<b>$1</b>").replace(/(?<!\*)\*([^\s*](?:[^*]*[^\s*])?)\*(?!\*)/g,"<i>$1</i>").replace(/~~(.+?)~~/g,"<s>$1</s>")}function Mn(t){let e=t.split(`
4`).map(s=>s.trim()).filter(s=>s.length>0&&!s.startsWith("%%"));if(e.length===0)throw new Error("Empty mermaid diagram");let n=e[0];return/^stateDiagram(-v2)?\s*$/i.test(n)?$n(e):kn(e)}function kn(t){let e=t[0].match(/^(?:graph|flowchart)\s+(TD|TB|LR|BT|RL)\s*$/i);if(!e)throw new Error(`Invalid mermaid header: "${t[0]}". Expected "graph TD", "flowchart LR", "stateDiagram-v2", etc.`);let s={direction:e[1].toUpperCase(),nodes:new Map,edges:[],subgraphs:[],classDefs:new Map,classAssignments:new Map,nodeStyles:new Map,linkStyles:new Map},i=[];for(let o=1;o<t.length;o++){let r=t[o],c=r.match(/^classDef\s+(\w+)\s+(.+)$/);if(c){let h=c[1],g=c[2],f=qt(g);s.classDefs.set(h,f);continue}let a=r.match(/^class\s+([\w,-]+)\s+(\w+)$/);if(a){let h=a[1].split(",").map(f=>f.trim()),g=a[2];for(let f of h)s.classAssignments.set(f,g);continue}let A=r.match(/^style\s+([\w,-]+)\s+(.+)$/);if(A){let h=A[1].split(",").map(f=>f.trim()),g=qt(A[2]);for(let f of h)s.nodeStyles.set(f,{...s.nodeStyles.get(f),...g});continue}let l=r.match(/^linkStyle\s+(default|[\d,\s]+)\s+(.+)$/);if(l){let h=l[1].trim(),g=qt(l[2]);if(h==="default")s.linkStyles.set("default",{...s.linkStyles.get("default"),...g});else{let f=h.split(",").map(p=>parseInt(p.trim(),10));for(let p of f)isNaN(p)||s.linkStyles.set(p,{...s.linkStyles.get(p),...g})}continue}let u=r.match(/^direction\s+(TD|TB|LR|BT|RL)\s*$/i);if(u&&i.length>0){i[i.length-1].direction=u[1].toUpperCase();continue}let d=r.match(/^subgraph\s+(.+)$/);if(d){let h=d[1].trim(),g=h.match(/^([\w-]+)\s*\[(.+)\]$/),f,p;g?(f=g[1],p=lt(g[2])):(p=lt(h),f=h.replace(/\s+/g,"_").replace(/[^\w]/g,""));let I={id:f,label:p,nodeIds:[],children:[]};i.push(I);continue}if(r==="end"){let h=i.pop();h&&(i.length>0?i[i.length-1].children.push(h):s.subgraphs.push(h));continue}Yn(r,s,i)}return s}function $n(t){let e={direction:"TD",nodes:new Map,edges:[],subgraphs:[],classDefs:new Map,classAssignments:new Map,nodeStyles:new Map,linkStyles:new Map},n=[],s=new Set,i=0,o=0;for(let r=1;r<t.length;r++){let c=t[r],a=c.match(/^direction\s+(TD|TB|LR|BT|RL)\s*$/i);if(a){n.length>0?n[n.length-1].direction=a[1].toUpperCase():e.direction=a[1].toUpperCase();continue}let A=c.match(/^linkStyle\s+(default|[\d,\s]+)\s+(.+)$/);if(A){let g=A[1].trim(),f=qt(A[2]);if(g==="default")e.linkStyles.set("default",{...e.linkStyles.get("default"),...f});else{let p=g.split(",").map(I=>parseInt(I.trim(),10));for(let I of p)isNaN(I)||e.linkStyles.set(I,{...e.linkStyles.get(I),...f})}continue}let l=c.match(/^state\s+(?:"([^"]+)"\s+as\s+)?([\w\p{L}]+)\s*\{$/u);if(l){let g=l[1]??l[2],f=l[2],p={id:f,label:g,nodeIds:[],children:[]};n.push(p),s.add(f),e.nodes.delete(f);continue}if(c==="}"){let g=n.pop();g&&(n.length>0?n[n.length-1].children.push(g):e.subgraphs.push(g));continue}let u=c.match(/^state\s+"([^"]+)"\s+as\s+([\w\p{L}]+)\s*$/u);if(u){let g=lt(u[1]),f=u[2];Xt(e,n,{id:f,label:g,shape:"rounded"});continue}let d=c.match(/^(\[\*\]|[\w\p{L}-]+)\s*(-->)\s*(\[\*\]|[\w\p{L}-]+)(?:\s*:\s*(.+))?$/u);if(d){let g=d[1],f=d[3],p=d[4]?.trim(),I=p?lt(p):void 0;g==="[*]"?(i++,g=`_start${i>1?i:""}`,Xt(e,n,{id:g,label:"",shape:"state-start"})):s.has(g)||Be(e,n,g),f==="[*]"?(o++,f=`_end${o>1?o:""}`,Xt(e,n,{id:f,label:"",shape:"state-end"})):s.has(f)||Be(e,n,f),e.edges.push({source:g,target:f,label:I,style:"solid",hasArrowStart:!1,hasArrowEnd:!0});continue}let h=c.match(/^([\w\p{L}-]+)\s*:\s*(.+)$/u);if(h){let g=h[1],f=lt(h[2].trim());Xt(e,n,{id:g,label:f,shape:"rounded"});continue}}return e}function Xt(t,e,n){if(!t.nodes.has(n.id)&&t.nodes.set(n.id,n),e.length>0){let i=e[e.length-1];i.nodeIds.includes(n.id)||i.nodeIds.push(n.id)}}function Be(t,e,n){if(!t.nodes.has(n))Xt(t,e,{id:n,label:n,shape:"rounded"});else if(e.length>0){let s=e[e.length-1];s.nodeIds.includes(n)||s.nodeIds.push(n)}}function qt(t){let e=t.replace(/;\s*$/,""),n={};for(let s of e.split(",")){let i=s.indexOf(":");if(i>0){let o=s.slice(0,i).trim(),r=s.slice(i+1).trim();o&&r&&(n[o]=r)}}return n}var Dn=/^(<)?(-->|-.->|==>|---|-\.-|===)(?:\|([^|]*)\|)?/,vn=/^(<)?(--|-\.|==)\s+(.+?)\s+(-->|---|\.\->|-\.\-|==>|===)/,Sn=[{regex:/^([\w-]+)\(\(\((.+?)\)\)\)/,shape:"doublecircle"},{regex:/^([\w-]+)\(\[(.+?)\]\)/,shape:"stadium"},{regex:/^([\w-]+)\(\((.+?)\)\)/,shape:"circle"},{regex:/^([\w-]+)\[\[(.+?)\]\]/,shape:"subroutine"},{regex:/^([\w-]+)\[\((.+?)\)\]/,shape:"cylinder"},{regex:/^([\w-]+)\[\/(.+?)\\\]/,shape:"trapezoid"},{regex:/^([\w-]+)\[\\(.+?)\/\]/,shape:"trapezoid-alt"},{regex:/^([\w-]+)>(.+?)\]/,shape:"asymmetric"},{regex:/^([\w-]+)\{\{(.+?)\}\}/,shape:"hexagon"},{regex:/^([\w-]+)\[(.+?)\]/,shape:"rectangle"},{regex:/^([\w-]+)\((.+?)\)/,shape:"rounded"},{regex:/^([\w-]+)\{(.+?)\}/,shape:"diamond"}],En=/^([\w-]+)/,Wn=/^:::([\w][\w-]*)/;function Yn(t,e,n){let s=t.trim(),i=Me(s,e,n);if(!i||i.ids.length===0)return;s=i.remaining.trim();let o=i.ids;for(;s.length>0;){let r,c,a,A,l=s.match(Dn);if(l){r=!!l[1];let d=l[2],h=l[3]?.trim();A=h?lt(h):void 0,s=s.slice(l[0].length).trim(),c=Qn(d),a=d.endsWith(">")}else{let d=s.match(vn);if(!d)break;r=!!d[1];let h=d[3].trim();A=h?lt(h):void 0;let g=d[2],f=d[4];s=s.slice(d[0].length).trim(),c=Hn(g,f),a=f.endsWith(">")}let u=Me(s,e,n);if(!u||u.ids.length===0)break;s=u.remaining.trim();for(let d of o)for(let h of u.ids)e.edges.push({source:d,target:h,label:A,style:c,hasArrowStart:r,hasArrowEnd:a});o=u.ids}}function Me(t,e,n){let s=ke(t,e,n);if(!s)return null;let i=[s.id],o=s.remaining.trim();for(;o.startsWith("&");){o=o.slice(1).trim();let r=ke(o,e,n);if(!r)break;i.push(r.id),o=r.remaining.trim()}return{ids:i,remaining:o}}function ke(t,e,n){let s=null,i=t;for(let{regex:r,shape:c}of Sn){let a=t.match(r);if(a){s=a[1];let A=lt(a[2]);$e(e,n,{id:s,label:A,shape:c}),i=t.slice(a[0].length);break}}if(s===null){let r=t.match(En);r&&(s=r[1],e.nodes.has(s)||$e(e,n,{id:s,label:s,shape:"rectangle"}),i=t.slice(r[0].length))}if(s===null)return null;let o=i.match(Wn);return o&&(e.classAssignments.set(s,o[1]),i=i.slice(o[0].length)),{id:s,remaining:i}}function $e(t,e,n){!t.nodes.has(n.id)&&t.nodes.set(n.id,n),Fn(e,n.id)}function Fn(t,e){if(t.length>0){let n=t[t.length-1];n.nodeIds.includes(e)||n.nodeIds.push(e)}}function Qn(t){return t==="-.->"||t==="-.-"?"dotted":t==="==>"||t==="==="?"thick":"solid"}function Hn(t,e){return t==="-."||e===".->"||e==="-.-"?"dotted":t==="=="||e==="==>"||e==="==="?"thick":"solid"}var T={x:1,y:0},J={x:1,y:2},U={x:0,y:1},X={x:2,y:1},wt={x:2,y:0},yt={x:0,y:0},Bt={x:2,y:2},Ct={x:0,y:2},Ht={x:1,y:1};function De(t,e){return t.x===e.x&&t.y===e.y}function fe(t,e){return t.x===e.x&&t.y===e.y}function Ot(t,e){return{x:t.x+e.x,y:t.y+e.y}}function Wt(t){return`${t.x},${t.y}`}var Ln={name:"",styles:{}},Ne={fg:"#27272a",border:"#a1a1aa",line:"#71717a",arrow:"#52525b",corner:"#71717a",junction:"#a1a1aa"};function Gn(){let t=globalThis.process;if(t){if(!t.stdout?.isTTY)return"none";let e=t.env?.COLORTERM?.toLowerCase()??"",n=t.env?.TERM?.toLowerCase()??"";return e==="truecolor"||e==="24bit"?"truecolor":n.includes("256color")||n.includes("256")?"ansi256":n&&n!=="dumb"?"ansi16":"none"}return typeof document<"u"?"html":"none"}function xe(t){let e=t.replace("#","");return e.length===3?{r:parseInt(e[0]+e[0],16),g:parseInt(e[1]+e[1],16),b:parseInt(e[2]+e[2],16)}:{r:parseInt(e.substring(0,2),16),g:parseInt(e.substring(2,4),16),b:parseInt(e.substring(4,6),16)}}var ee="\x1B[",_t=`${ee}0m`;function Xe(t){let{r:e,g:n,b:s}=xe(t);return`${ee}38;2;${e};${n};${s}m`}function Rn(t,e,n){let s=(t+e+n)/3;if(Math.max(Math.abs(t-s),Math.abs(e-s),Math.abs(n-s))<10){let A=Math.round(s/255*23);return 232+Math.min(23,Math.max(0,A))}let o=A=>A<48?0:A<115?1:Math.min(5,Math.floor((A-35)/40)),r=o(t),c=o(e),a=o(n);return 16+36*r+6*c+a}function Ze(t){let{r:e,g:n,b:s}=xe(t),i=Rn(e,n,s);return`${ee}38;5;${i}m`}function Te(t){let{r:e,g:n,b:s}=xe(t),i=.299*e+.587*n+.114*s,o=i>100?0:60,r;return e>180&&n<100&&s<100?r=31:n>180&&e<100&&s<100?r=32:e>150&&n>150&&s<100?r=33:s>180&&e<100&&n<100?r=34:e>150&&s>150&&n<100?r=35:n>150&&s>150&&e<100?r=36:i>200?r=37:i<50?r=30:r=37,`${ee}${r+o}m`}function Ue(t){return t.replace(/&/g,"&amp;").replace(/</g,"&lt;").replace(/>/g,"&gt;")}function Pe(t,e){return`<span style="color:${t}">${Ue(e)}</span>`}function je(t,e){switch(t){case"text":return e.fg;case"border":return e.border;case"line":return e.line;case"arrow":return e.arrow;case"corner":return e.corner??e.line;case"junction":return e.junction??e.border;default:return e.fg}}function ae(t,e,n){if(n==="none")return"";let s=je(t,e);switch(n){case"truecolor":return Xe(s);case"ansi256":return Ze(s);case"ansi16":return Te(s);default:return""}}function Kn(t,e,n,s){if(s==="none")return t.join("");if(s==="html")return Jn(t,e,n);let i="",o=null,r="";for(let c=0;c<t.length;c++){let a=t[c],A=e[c]??null;if(a===" "){r.length>0&&(o!==null?i+=ae(o,n,s)+r+_t:i+=r,r="",o=null),i+=a;continue}if(A===o){r+=a;continue}r.length>0&&(o!==null?i+=ae(o,n,s)+r+_t:i+=r),r=a,o=A}return r.length>0&&o!==null?i+=ae(o,n,s)+r+_t:r.length>0&&(i+=r),i}function Jn(t,e,n){let s="",i=null,o="",r=()=>{o.length!==0&&(i!==null?s+=Pe(je(i,n),o):s+=Ue(o),o="",i=null)};for(let c=0;c<t.length;c++){let a=t[c],A=e[c]??null;if(a===" "){r(),s+=" ";continue}if(A===i){o+=a;continue}r(),o=a,i=A}return r(),s}function Ae(t,e,n){if(n==="none"||t.length===0)return t;if(n==="html")return Pe(e,t);let s;switch(n){case"truecolor":s=Xe(e);break;case"ansi256":s=Ze(e);break;case"ansi16":s=Te(e);break;default:return t}return`${s}${t}${_t}`}function dt(t,e){let n=[];for(let s=0;s<=t;s++){let i=[];for(let o=0;o<=e;o++)i.push(" ");n.push(i)}return n}function ut(t){let[e,n]=Tt(t);return dt(e,n)}function Ut(t,e){let n=[];for(let s=0;s<=t;s++){let i=[];for(let o=0;o<=e;o++)i.push(null);n.push(i)}return n}function Lt(t,e,n){let s=t.length-1,i=(t[0]?.length??1)-1,o=Math.max(e,s),r=Math.max(n,i),c=Ut(o,r);for(let a=0;a<c.length;a++)for(let A=0;A<c[0].length;A++)a<t.length&&A<t[0].length&&(c[a][A]=t[a][A]);return t.length=0,t.push(...c),t}function Pt(t,e,n,s){(e>=t.length||n>=(t[0]?.length??0))&&Lt(t,e,n),t[e][n]=s}function Tt(t){return[t.length-1,(t[0]?.length??1)-1]}function Ft(t,e,n){let[s,i]=Tt(t),o=Math.max(e,s),r=Math.max(n,i),c=dt(o,r);for(let a=0;a<c.length;a++)for(let A=0;A<c[0].length;A++)a<t.length&&A<t[0].length&&(c[a][A]=t[a][A]);return t.length=0,t.push(...c),t}var Nn=new Set(["\u2500","\u2502","\u250C","\u2510","\u2514","\u2518","\u251C","\u2524","\u252C","\u2534","\u253C","\u2574","\u2575","\u2576","\u2577"]);function ve(t){return Nn.has(t)}function Se(t){return/^[a-zA-Z0-9]$/.test(t)}var Xn={"\u2500":{"\u2502":"\u253C","\u250C":"\u252C","\u2510":"\u252C","\u2514":"\u2534","\u2518":"\u2534","\u251C":"\u253C","\u2524":"\u253C","\u252C":"\u252C","\u2534":"\u2534"},"\u2502":{"\u2500":"\u253C","\u250C":"\u251C","\u2510":"\u2524","\u2514":"\u251C","\u2518":"\u2524","\u251C":"\u251C","\u2524":"\u2524","\u252C":"\u253C","\u2534":"\u253C"},"\u250C":{"\u2500":"\u252C","\u2502":"\u251C","\u2510":"\u252C","\u2514":"\u251C","\u2518":"\u253C","\u251C":"\u251C","\u2524":"\u253C","\u252C":"\u252C","\u2534":"\u253C"},"\u2510":{"\u2500":"\u252C","\u2502":"\u2524","\u250C":"\u252C","\u2514":"\u253C","\u2518":"\u2524","\u251C":"\u253C","\u2524":"\u2524","\u252C":"\u252C","\u2534":"\u253C"},"\u2514":{"\u2500":"\u2534","\u2502":"\u251C","\u250C":"\u251C","\u2510":"\u253C","\u2518":"\u2534","\u251C":"\u251C","\u2524":"\u253C","\u252C":"\u253C","\u2534":"\u2534"},"\u2518":{"\u2500":"\u2534","\u2502":"\u2524","\u250C":"\u253C","\u2510":"\u2524","\u2514":"\u2534","\u251C":"\u253C","\u2524":"\u2524","\u252C":"\u253C","\u2534":"\u2534"},"\u251C":{"\u2500":"\u253C","\u2502":"\u251C","\u250C":"\u251C","\u2510":"\u253C","\u2514":"\u251C","\u2518":"\u253C","\u2524":"\u253C","\u252C":"\u253C","\u2534":"\u253C"},"\u2524":{"\u2500":"\u253C","\u2502":"\u2524","\u250C":"\u253C","\u2510":"\u2524","\u2514":"\u253C","\u2518":"\u2524","\u251C":"\u253C","\u252C":"\u253C","\u2534":"\u253C"},"\u252C":{"\u2500":"\u252C","\u2502":"\u253C","\u250C":"\u252C","\u2510":"\u252C","\u2514":"\u253C","\u2518":"\u253C","\u251C":"\u253C","\u2524":"\u253C","\u2534":"\u253C"},"\u2534":{"\u2500":"\u2534","\u2502":"\u253C","\u250C":"\u253C","\u2510":"\u253C","\u2514":"\u2534","\u2518":"\u2534","\u251C":"\u253C","\u2524":"\u253C","\u252C":"\u253C"}};function Zn(t,e){return Xn[t]?.[e]??t}function It(t,e,n,...s){let[i,o]=Tt(t);for(let c of s){let[a,A]=Tt(c);i=Math.max(i,a+e.x),o=Math.max(o,A+e.y)}let r=dt(i,o);for(let c=0;c<=i;c++)for(let a=0;a<=o;a++)c<t.length&&a<t[0].length&&(r[c][a]=t[c][a]);for(let c of s)for(let a=0;a<c.length;a++)for(let A=0;A<c[0].length;A++){let l=c[a][A];if(l!==" "){let u=a+e.x,d=A+e.y,h=r[u][d];!n&&ve(l)&&ve(h)?r[u][d]=Zn(h,l):Se(h)&&Se(l)||(r[u][d]=l)}}return r}function ne(t,e){let[n,s]=Tt(t),i=[],o=e?.roleCanvas,r=e?.colorMode??"none",c=e?.theme??Ne;for(let a=0;a<=s;a++)if(r==="none"||!o){let A="";for(let l=0;l<=n;l++)A+=t[l][a];i.push(A)}else{let A=[],l=[];for(let u=0;u<=n;u++)A.push(t[u][a]),l.push(o[u]?.[a]??null);i.push(Kn(A,l,c,r))}return i.join(`
5`)}var Tn={"\u25B2":"\u25BC","\u25BC":"\u25B2","\u25E4":"\u25E3","\u25E3":"\u25E4","\u25E5":"\u25E2","\u25E2":"\u25E5","^":"v",v:"^","\u250C":"\u2514","\u2514":"\u250C","\u2510":"\u2518","\u2518":"\u2510","\u252C":"\u2534","\u2534":"\u252C","\u2575":"\u2577","\u2577":"\u2575"};function Un(t){for(let e of t)e.reverse();for(let e of t)for(let n=0;n<e.length;n++){let s=Tn[e[n]];s&&(e[n]=s)}return t}function Pn(t){for(let e of t)e.reverse();return t}function jn(t,e,n,s=!1){Ft(t,e.x+n.length,e.y);for(let i=0;i<n.length;i++){let o=e.x+i,r=t[o][e.y];(s||r===" ")&&(t[o][e.y]=n[i])}}function On(t,e,n){let s=0,i=0;for(let o of e.values())s+=o;for(let o of n.values())i+=o;Ft(t,s-1,i-1)}function Vn(t,e,n){let s=0,i=0;for(let o of e.values())s+=o;for(let o of n.values())i+=o;Lt(t,s-1,i-1)}function zn(t,e){let n=new Map,s=0;for(let[c,a]of t.nodes){let A={name:c,displayLabel:a.label,shape:a.shape,index:s,gridCoord:null,drawingCoord:null,drawing:null,drawn:!1,styleClassName:"",styleClass:Ln};n.set(c,A),s++}let i=[...n.values()],o=[];for(let c of t.edges){let a=n.get(c.source),A=n.get(c.target);!a||!A||o.push({from:a,to:A,text:c.label??"",path:[],labelLine:[],startDir:{x:0,y:0},endDir:{x:0,y:0},style:c.style,hasArrowStart:c.hasArrowStart,hasArrowEnd:c.hasArrowEnd})}let r=[];for(let c of t.subgraphs)Oe(c,null,n,r);qn(t.subgraphs,r,n,t);for(let[c,a]of t.classAssignments){let A=n.get(c),l=t.classDefs.get(a);A&&l&&(A.styleClassName=a,A.styleClass={name:a,styles:l})}return{nodes:i,edges:o,canvas:dt(0,0),roleCanvas:Ut(0,0),grid:new Map,columnWidth:new Map,rowHeight:new Map,subgraphs:r,config:e,offsetX:0,offsetY:0,bundles:[]}}function Oe(t,e,n,s){let i;t.direction&&(i=t.direction==="LR"||t.direction==="RL"?"LR":"TD");let o={name:t.label,nodes:[],parent:e,children:[],minX:0,minY:0,maxX:0,maxY:0,direction:i};for(let r of t.nodeIds){let c=n.get(r);c&&o.nodes.push(c)}s.push(o);for(let r of t.children){let c=Oe(r,o,n,s);o.children.push(c);for(let a of c.nodes)o.nodes.includes(a)||o.nodes.push(a)}return o}function qn(t,e,n,s){let i=new Map;to(t,e,i);let o=new Map;function r(c){let a=i.get(c);if(a){for(let A of c.children)r(A);for(let A of c.nodeIds)o.has(A)||o.set(A,a)}}for(let c of t)r(c);for(let c of e)c.nodes=c.nodes.filter(a=>{let A;for(let[u,d]of n)if(d===a){A=u;break}if(!A)return!1;let l=o.get(A);return l?_n(c,l):!0})}function _n(t,e){let n=e;for(;n!==null;){if(n===t)return!0;n=n.parent}return!1}function to(t,e,n){let s=[];function i(o){for(let r of o)s.push(r),i(r.children)}i(t);for(let o=0;o<s.length&&o<e.length;o++)n.set(s[o],e[o])}var eo=class{items=[];get length(){return this.items.length}push(t){this.items.push(t),this.bubbleUp(this.items.length-1)}pop(){if(this.items.length===0)return;let t=this.items[0],e=this.items.pop();return this.items.length>0&&(this.items[0]=e,this.sinkDown(0)),t}bubbleUp(t){for(;t>0;){let e=t-1>>1;if(this.items[t].priority<this.items[e].priority)[this.items[t],this.items[e]]=[this.items[e],this.items[t]],t=e;else break}}sinkDown(t){let e=this.items.length;for(;;){let n=t,s=2*t+1,i=2*t+2;if(s<e&&this.items[s].priority<this.items[n].priority&&(n=s),i<e&&this.items[i].priority<this.items[n].priority&&(n=i),n!==t)[this.items[t],this.items[n]]=[this.items[n],this.items[t]],t=n;else break}}};function no(t,e){let n=Math.abs(t.x-e.x),s=Math.abs(t.y-e.y);return n===0||s===0?n+s:n+s+1}var oo=[{x:1,y:0},{x:-1,y:0},{x:0,y:1},{x:0,y:-1}];function ro(t,e){return e.x<0||e.y<0?!1:!t.has(Wt(e))}function Kt(t,e,n){let s=new eo;s.push({coord:e,priority:0});let i=new Map;i.set(Wt(e),0);let o=new Map;for(o.set(Wt(e),null);s.length>0;){let r=s.pop().coord;if(De(r,n)){let a=[],A=r;for(;A!==null;)a.unshift(A),A=o.get(Wt(A))??null;return a}let c=i.get(Wt(r));for(let a of oo){let A={x:r.x+a.x,y:r.y+a.y};if(!ro(t,A)&&!De(A,n))continue;let l=c+1,u=Wt(A),d=i.get(u);if(d===void 0||l<d){i.set(u,l);let h=l+no(A,n);s.push({coord:A,priority:h}),o.set(u,r)}}}return null}function Yt(t){if(t.length<=2)return t;let e=new Set,n=t[0],s=t[1];for(let i=2;i<t.length;i++){let o=t[i],r=s.x-n.x,c=s.y-n.y,a=o.x-s.x,A=o.y-s.y;r===a&&c===A&&e.add(i-1),n=s,s=o}return t.filter((i,o)=>!e.has(o))}function Vt(t){return t===T?J:t===J?T:t===U?X:t===X?U:t===wt?Ct:t===yt?Bt:t===Bt?yt:t===Ct?wt:Ht}function x(t,e){return t.x===e.x&&t.y===e.y}function ft(t,e){return t.x===e.x?t.y<e.y?J:T:t.y===e.y?t.x<e.x?X:U:t.x<e.x?t.y<e.y?Bt:wt:t.y<e.y?Ct:yt}function so(t){return t==="LR"?[X,J,J,X]:[J,X,X,J]}function io(t,e){if(t.from===t.to)return so(e);let n=ft(t.from.gridCoord,t.to.gridCoord),s,i,o,r,c=e==="LR"?x(n,U)||x(n,yt)||x(n,Ct):x(n,T)||x(n,yt)||x(n,wt);return x(n,Bt)?e==="LR"?(s=J,i=U,o=X,r=T):(s=X,i=T,o=J,r=U):x(n,wt)?e==="LR"?(s=T,i=U,o=X,r=J):(s=X,i=J,o=T,r=U):x(n,Ct)?e==="LR"?(s=J,i=J,o=U,r=T):(s=U,i=T,o=J,r=X):x(n,yt)?e==="LR"?(s=J,i=J,o=U,r=J):(s=X,i=X,o=T,r=X):c?e==="LR"&&x(n,U)?(s=J,i=J,o=U,r=X):e==="TD"&&x(n,T)?(s=X,i=X,o=T,r=J):(s=n,i=Vt(n),o=n,r=Vt(n)):(s=n,i=Vt(n),o=n,r=Vt(n)),[s,i,o,r]}function co(t,e){let n=xt(t,e.from),s=xt(t,e.to),i=n&&n===s&&n.direction?n.direction:t.config.graphDirection,[o,r,c,a]=io(e,i),A=Ot(e.from.gridCoord,o),l=Ot(e.to.gridCoord,r),u=Kt(t.grid,A,l),d=Ot(e.from.gridCoord,c),h=Ot(e.to.gridCoord,a),g=Kt(t.grid,d,h);if(u!==null&&g!==null){u=Yt(u),g=Yt(g),u.length<=g.length?(e.startDir=o,e.endDir=r,e.path=u):(e.startDir=c,e.endDir=a,e.path=g);return}if(u!==null){e.startDir=o,e.endDir=r,e.path=Yt(u);return}if(g!==null){e.startDir=c,e.endDir=a,e.path=Yt(g);return}e.startDir=o,e.endDir=r,e.path=[A,l]}function Ee(t,e){if(e.text.length===0)return;let n=e.text.length,s=e.path.length,i=t.config.graphDirection==="TD",o=[];for(let d=1;d<s;d++){let h=e.path[d-1],g=e.path[d],f=[h,g],p=ao(t,f),I=h.x===g.x;o.push({line:f,width:p,index:d,isVertical:I})}let r=o.filter(d=>d.width>=n&&d.index>1),c;if(r.length>0)r.sort((d,h)=>h.index-d.index),c=r[0].line;else{let d=o.filter(h=>h.width>=n);d.length>0?(d.sort((h,g)=>g.index-h.index),c=d[0].line):(o.sort((h,g)=>g.width-h.width),c=o[0]?.line??[e.path[0],e.path[1]])}let a=Math.min(c[0].x,c[1].x),A=Math.max(c[0].x,c[1].x),l=a+Math.floor((A-a)/2),u=t.columnWidth.get(l)??0;t.columnWidth.set(l,Math.max(u,n+2)),e.labelLine=[c[0],c[1]]}function ao(t,e){let n=0,s=Math.min(e[0].x,e[1].x),i=Math.max(e[0].x,e[1].x);for(let o=s;o<=i;o++)n+=t.columnWidth.get(o)??0;return n}function Ao(t){if(t.config.graphDirection!=="TD")return[];let e=[],n=new Set,s=new Map;for(let o of t.edges){if(o.from===o.to)continue;let r=s.get(o.to)??[];r.push(o),s.set(o.to,r)}for(let[o,r]of s){if(r.length<2||!We(r,t)||r.some(a=>n.has(a)))continue;let c={type:"fan-in",edges:[...r],sharedNode:o,otherNodes:r.map(a=>a.from),junctionPoint:null,sharedPath:[],junctionDir:Ht,sharedNodeDir:Ht};for(let a of r)a.bundle=c,n.add(a);e.push(c)}let i=new Map;for(let o of t.edges){if(o.from===o.to||n.has(o))continue;let r=i.get(o.from)??[];r.push(o),i.set(o.from,r)}for(let[o,r]of i){if(r.length<2||!We(r,t))continue;let c={type:"fan-out",edges:[...r],sharedNode:o,otherNodes:r.map(a=>a.to),junctionPoint:null,sharedPath:[],junctionDir:Ht,sharedNodeDir:Ht};for(let a of r)a.bundle=c,n.add(a);e.push(c)}return e}function We(t,e){if(t.length<2)return!1;let n=t[0].style,s=xt(e,t[0].from),i=xt(e,t[0].to);for(let o of t){if(o.style!==n||o.text.length>0)return!1;let r=xt(e,o.from),c=xt(e,o.to);if(r!==s||c!==i||r!==c)return!1}return!0}function lo(t,e){let n=t.config.graphDirection,s=e.sharedNode.gridCoord,i=e.otherNodes.map(o=>o.gridCoord);if(e.type==="fan-in"){let o=Math.min(...i.map(A=>A.x)),r=Math.max(...i.map(A=>A.x)),c=Math.min(...i.map(A=>A.y)),a=Math.max(...i.map(A=>A.y));if(n==="TD"){let A=s.y-1,l=Math.floor((o+r)/2)+1;return{x:s.x+1,y:A}}else{let A=s.x-1,l=s.y+1;return{x:A,y:l}}}else{let o=Math.min(...i.map(A=>A.x)),r=Math.max(...i.map(A=>A.x)),c=Math.min(...i.map(A=>A.y)),a=Math.max(...i.map(A=>A.y));if(n==="TD"){let A=s.y+3;return{x:s.x+1,y:A}}else{let A=s.x+3,l=s.y+1;return{x:A,y:l}}}}function ho(t,e){let n=t.config.graphDirection;e.junctionPoint=lo(t,e);let s=e.junctionPoint;if(e.type==="fan-in"){e.junctionDir=n==="TD"?T:U,e.sharedNodeDir=n==="TD"?J:X;let i=e.sharedNode.gridCoord,o=n==="TD"?{x:i.x+1,y:i.y}:{x:i.x,y:i.y+1},r=Kt(t.grid,s,o);e.sharedPath=r?Yt(r):[s,o];for(let c of e.edges){let a=c.from.gridCoord,A=n==="TD"?{x:a.x+1,y:a.y+2}:{x:a.x+2,y:a.y+1},l=Kt(t.grid,A,s);c.pathToJunction=l?Yt(l):[A,s],c.startDir=n==="TD"?J:X,c.endDir=n==="TD"?T:U,c.path=[...c.pathToJunction,...e.sharedPath.slice(1)]}}else{e.junctionDir=n==="TD"?J:X,e.sharedNodeDir=n==="TD"?T:U;let i=e.sharedNode.gridCoord,o=n==="TD"?{x:i.x+1,y:i.y+2}:{x:i.x+2,y:i.y+1},r=Kt(t.grid,o,s);e.sharedPath=r?Yt(r):[o,s];for(let c of e.edges){let a=c.to.gridCoord,A=n==="TD"?{x:a.x+1,y:a.y}:{x:a.x,y:a.y+1},l=Kt(t.grid,s,A);c.pathToJunction=l?Yt(l):[s,A],c.startDir=n==="TD"?J:X,c.endDir=n==="TD"?T:U,c.path=[...e.sharedPath,...c.pathToJunction.slice(1)]}}}function uo(t){for(let e of t.bundles)ho(t,e)}function ct(t){return t.split(`
6`)}function le(t){let e=ct(t);return Math.max(...e.map(n=>n.length),0)}function Ye(t){return ct(t).length}var Fe={rectangle:{unicode:{tl:"\u250C",tr:"\u2510",bl:"\u2514",br:"\u2518"},ascii:{tl:"+",tr:"+",bl:"+",br:"+"}},rounded:{unicode:{tl:"\u256D",tr:"\u256E",bl:"\u2570",br:"\u256F"},ascii:{tl:".",tr:".",bl:"'",br:"'"}},circle:{unicode:{tl:"\u25EF",tr:"\u25EF",bl:"\u25EF",br:"\u25EF"},ascii:{tl:"o",tr:"o",bl:"o",br:"o"}},doublecircle:{unicode:{tl:"\u25CE",tr:"\u25CE",bl:"\u25CE",br:"\u25CE"},ascii:{tl:"@",tr:"@",bl:"@",br:"@"}},diamond:{unicode:{tl:"\u25C7",tr:"\u25C7",bl:"\u25C7",br:"\u25C7"},ascii:{tl:"<",tr:">",bl:"<",br:">"}},hexagon:{unicode:{tl:"\u231C",tr:"\u231D",bl:"\u231E",br:"\u231F"},ascii:{tl:"*",tr:"*",bl:"*",br:"*"}},stadium:{unicode:{tl:"(",tr:")",bl:"(",br:")"},ascii:{tl:"(",tr:")",bl:"(",br:")"}},subroutine:{unicode:{tl:"\u255F",tr:"\u2562",bl:"\u255F",br:"\u2562"},ascii:{tl:"|",tr:"|",bl:"|",br:"|"}},cylinder:{unicode:{tl:"\u256D",tr:"\u256E",bl:"\u2570",br:"\u256F"},ascii:{tl:".",tr:".",bl:"'",br:"'"}},asymmetric:{unicode:{tl:"\u25B7",tr:"\u2510",bl:"\u25B7",br:"\u2518"},ascii:{tl:">",tr:"+",bl:">",br:"+"}},trapezoid:{unicode:{tl:"/",tr:"\\",bl:"\u2514",br:"\u2518"},ascii:{tl:"/",tr:"\\",bl:"+",br:"+"}},"trapezoid-alt":{unicode:{tl:"\u250C",tr:"\u2510",bl:"\\",br:"/"},ascii:{tl:"+",tr:"+",bl:"\\",br:"/"}},"state-start":{unicode:{tl:"\u25CF",tr:"\u25CF",bl:"\u25CF",br:"\u25CF"},ascii:{tl:"*",tr:"*",bl:"*",br:"*"}},"state-end":{unicode:{tl:"\u25C9",tr:"\u25C9",bl:"\u25C9",br:"\u25C9"},ascii:{tl:"@",tr:"@",bl:"@",br:"@"}}};function kt(t,e){let n=Fe[t]??Fe.rectangle;return e?n.ascii:n.unicode}function Dt(t,e){let n=ct(t),s=Math.max(...n.map(l=>l.length),0),i=n.length,o=2*e.padding+s,r=o+2,c=i+2*e.padding,a=c%2===0?c+1:c,A=a+2;return{width:r,height:A,labelArea:{x:1+e.padding,y:1+e.padding,width:s,height:i},gridColumns:[1,o,1],gridRows:[1,a,1]}}function vt(t,e,n,s){let{width:i,height:o}=e,r=dt(i-1,o-1),c={x:0,y:0},a={x:i-1,y:o-1},A=s?"-":"\u2500",l=s?"|":"\u2502";for(let p=c.x+1;p<a.x;p++)r[p][c.y]=A,r[p][a.y]=A;for(let p=c.y+1;p<a.y;p++)r[c.x][p]=l,r[a.x][p]=l;r[c.x][c.y]=n.tl,r[a.x][c.y]=n.tr,r[c.x][a.y]=n.bl,r[a.x][a.y]=n.br;let u=ct(t),d=i-1,h=o-1,f=Math.floor(h/2)-Math.floor((u.length-1)/2);for(let p=0;p<u.length;p++){let I=u[p],H=Math.floor(d/2)-Math.ceil(I.length/2)+1;for(let B=0;B<I.length;B++){let R=H+B,D=f+p;R>=0&&R<r.length&&D>=0&&D<r[0].length&&(r[R][D]=I[B])}}return r}function bt(t,e,n){let{width:s,height:i}=e,o=n.x+Math.floor(s/2),r=n.y+Math.floor(i/2);return x(t,T)?{x:o,y:n.y}:x(t,J)?{x:o,y:n.y+i-1}:x(t,U)?{x:n.x,y:r}:x(t,X)?{x:n.x+s-1,y:r}:x(t,yt)?{x:n.x,y:n.y}:x(t,wt)?{x:n.x+s-1,y:n.y}:x(t,Ct)?{x:n.x,y:n.y+i-1}:x(t,Bt)?{x:n.x+s-1,y:n.y+i-1}:{x:o,y:r}}var Ve={getDimensions:Dt,render(t,e,n){let s=kt("rectangle",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},go={getDimensions:Dt,render(t,e,n){let s=kt("diamond",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},fo={getDimensions:Dt,render(t,e,n){let s=kt("circle",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},xo={getDimensions(t,e){return{width:5,height:3,labelArea:{x:2,y:1,width:1,height:1},gridColumns:[1,3,1],gridRows:[1,1,1]}},render(t,e,n){let{width:s,height:i}=e,o=dt(s-1,i-1),r=Math.floor(s/2);return n.useAscii?(o[0][0]=".",o[1][0]="-",o[2][0]="-",o[3][0]="-",o[4][0]=".",o[0][1]="|",o[r][1]="*",o[4][1]="|",o[0][2]="'",o[1][2]="-",o[2][2]="-",o[3][2]="-",o[4][2]="'"):(o[0][0]="\u256D",o[1][0]="\u2500",o[2][0]="\u2500",o[3][0]="\u2500",o[4][0]="\u256E",o[0][1]="\u2502",o[r][1]="\u25CF",o[4][1]="\u2502",o[0][2]="\u2570",o[1][2]="\u2500",o[2][2]="\u2500",o[3][2]="\u2500",o[4][2]="\u256F"),o},getAttachmentPoint(t,e,n){let{width:s,height:i}=e,o=n.x+Math.floor(s/2),r=n.y+Math.floor(i/2);return x(t,T)?{x:o,y:n.y}:x(t,J)?{x:o,y:n.y+i-1}:x(t,U)?{x:n.x,y:r}:x(t,X)?{x:n.x+s-1,y:r}:{x:o,y:r}}},mo={getDimensions(t,e){return{width:5,height:3,labelArea:{x:2,y:1,width:1,height:1},gridColumns:[1,3,1],gridRows:[1,1,1]}},render(t,e,n){let{width:s,height:i}=e,o=dt(s-1,i-1),r=Math.floor(s/2);return n.useAscii?(o[0][0]="#",o[1][0]="=",o[2][0]="=",o[3][0]="=",o[4][0]="#",o[0][1]="#",o[r][1]="*",o[4][1]="#",o[0][2]="#",o[1][2]="=",o[2][2]="=",o[3][2]="=",o[4][2]="#"):(o[0][0]="\u2554",o[1][0]="\u2550",o[2][0]="\u2550",o[3][0]="\u2550",o[4][0]="\u2557",o[0][1]="\u2551",o[r][1]="\u25CE",o[4][1]="\u2551",o[0][2]="\u255A",o[1][2]="\u2550",o[2][2]="\u2550",o[3][2]="\u2550",o[4][2]="\u255D"),o},getAttachmentPoint(t,e,n){let{width:s,height:i}=e,o=n.x+Math.floor(s/2),r=n.y+Math.floor(i/2);return x(t,T)?{x:o,y:n.y}:x(t,J)?{x:o,y:n.y+i-1}:x(t,U)?{x:n.x,y:r}:x(t,X)?{x:n.x+s-1,y:r}:{x:o,y:r}}},po={getDimensions:Dt,render(t,e,n){let s=kt("rounded",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},yo={getDimensions(t,e){let n=ct(t),s=Math.max(...n.map(A=>A.length),0),i=n.length,o=2*e.padding+s,r=o+4,c=i+2*e.padding,a=Math.max(c+2,3);return{width:r,height:a,labelArea:{x:2+e.padding,y:1+e.padding,width:s,height:i},gridColumns:[2,o,2],gridRows:[1,c,1]}},render(t,e,n){let{width:s,height:i}=e,o=dt(s-1,i-1),r=Math.floor(i/2),c=n.useAscii?"-":"\u2500";if(i===3)o[0][r]="(",o[s-1][r]=")";else if(n.useAscii){for(let l=0;l<i;l++)o[0][l]="(",o[s-1][l]=")";for(let l=1;l<s-1;l++)o[l][0]=c,o[l][i-1]=c}else{o[0][0]="\u256D";for(let l=1;l<s-1;l++)o[l][0]=c;o[s-1][0]="\u256E";for(let l=1;l<i-1;l++)o[0][l]="\u2502",o[s-1][l]="\u2502";o[0][i-1]="\u2570";for(let l=1;l<s-1;l++)o[l][i-1]=c;o[s-1][i-1]="\u256F"}let a=ct(t),A=r-Math.floor((a.length-1)/2);for(let l=0;l<a.length;l++){let u=a[l],d=Math.floor(s/2)-Math.floor(u.length/2);for(let h=0;h<u.length;h++){let g=d+h,f=A+l;g>0&&g<s-1&&f>=0&&f<i&&(o[g][f]=u[h])}}return o},getAttachmentPoint:bt},bo={getDimensions:Dt,render(t,e,n){let s=kt("hexagon",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},wo={getDimensions(t,e){let n=ct(t),s=Math.max(...n.map(A=>A.length),0),i=n.length,o=2*e.padding+s,r=o+4,c=i+2*e.padding,a=c+2;return{width:r,height:a,labelArea:{x:2+e.padding,y:1+e.padding,width:s,height:i},gridColumns:[2,o,2],gridRows:[1,c,1]}},render(t,e,n){let{width:s,height:i}=e,o=dt(s-1,i-1),r=n.useAscii?"-":"\u2500",c=n.useAscii?"|":"\u2502";o[0][0]=n.useAscii?"+":"\u250C",o[1][0]=n.useAscii?"+":"\u252C";for(let u=2;u<s-2;u++)o[u][0]=r;o[s-2][0]=n.useAscii?"+":"\u252C",o[s-1][0]=n.useAscii?"+":"\u2510";for(let u=1;u<i-1;u++)o[0][u]=c,o[1][u]=c,o[s-2][u]=c,o[s-1][u]=c;o[0][i-1]=n.useAscii?"+":"\u2514",o[1][i-1]=n.useAscii?"+":"\u2534";for(let u=2;u<s-2;u++)o[u][i-1]=r;o[s-2][i-1]=n.useAscii?"+":"\u2534",o[s-1][i-1]=n.useAscii?"+":"\u2518";let a=ct(t),l=Math.floor(i/2)-Math.floor((a.length-1)/2);for(let u=0;u<a.length;u++){let d=a[u],h=Math.floor(s/2)-Math.floor(d.length/2);for(let g=0;g<d.length;g++){let f=h+g,p=l+u;f>1&&f<s-2&&p>0&&p<i-1&&(o[f][p]=d[g])}}return o},getAttachmentPoint:bt},Co={getDimensions:Dt,render(t,e,n){let s=kt("doublecircle",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},Io={getDimensions(t,e){let n=ct(t),s=Math.max(...n.map(A=>A.length),0),i=n.length,o=2*e.padding+s,r=o+2,c=i+2*e.padding+2,a=c+2;return{width:r,height:a,labelArea:{x:1+e.padding,y:2+e.padding,width:s,height:i},gridColumns:[1,o,1],gridRows:[2,c-2,2]}},render(t,e,n){let{width:s,height:i}=e,o=dt(s-1,i-1),r=n.useAscii?"-":"\u2500",c=n.useAscii?"|":"\u2502";o[0][0]=n.useAscii?".":"\u256D";for(let u=1;u<s-1;u++)o[u][0]=r;o[s-1][0]=n.useAscii?".":"\u256E",o[0][1]=c;for(let u=1;u<s-1;u++)o[u][1]=r;o[s-1][1]=c;for(let u=2;u<i-2;u++)o[0][u]=c,o[s-1][u]=c;o[0][i-2]=c;for(let u=1;u<s-1;u++)o[u][i-2]=r;o[s-1][i-2]=c,o[0][i-1]=n.useAscii?"'":"\u2570";for(let u=1;u<s-1;u++)o[u][i-1]=r;o[s-1][i-1]=n.useAscii?"'":"\u256F";let a=ct(t),l=Math.floor(i/2)-Math.floor((a.length-1)/2);for(let u=0;u<a.length;u++){let d=a[u],h=Math.floor(s/2)-Math.floor(d.length/2);for(let g=0;g<d.length;g++){let f=h+g,p=l+u;f>0&&f<s-1&&p>1&&p<i-2&&(o[f][p]=d[g])}}return o},getAttachmentPoint:bt},Bo={getDimensions:Dt,render(t,e,n){let s=kt("asymmetric",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},Mo={getDimensions:Dt,render(t,e,n){let s=kt("trapezoid",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},ko={getDimensions:Dt,render(t,e,n){let s=kt("trapezoid-alt",n.useAscii);return vt(t,e,s,n.useAscii)},getAttachmentPoint:bt},$o=new Map([["rectangle",Ve],["rounded",po],["diamond",go],["stadium",yo],["circle",fo],["subroutine",wo],["doublecircle",Co],["hexagon",bo],["cylinder",Io],["asymmetric",Bo],["trapezoid",Mo],["trapezoid-alt",ko],["state-start",xo],["state-end",mo]]);function ze(t){return $o.get(t)??Ve}function Do(t,e,n){return ze(t).getDimensions(e,n)}function vo(t,e,n,s){return ze(t).getAttachmentPoint(e,n,s)}function So(t,e){return Eo(t,e)}function Eo(t,e){let n=t.gridCoord,s=e.config.useAscii,i=0;for(let B=0;B<2;B++)i+=e.columnWidth.get(n.x+B)??0;let o=0;for(let B=0;B<2;B++)o+=e.rowHeight.get(n.y+B)??0;let r={x:0,y:0},c={x:i,y:o},a=dt(Math.max(r.x,c.x),Math.max(r.y,c.y)),A=kt(t.shape,s),l=t.shape==="state-end",u=s?l?"=":"-":l?"\u2550":"\u2500",d=s?l?"\u2016":"|":l?"\u2551":"\u2502",g=l?s?{tl:"#",tr:"#",bl:"#",br:"#"}:{tl:"\u2554",tr:"\u2557",bl:"\u255A",br:"\u255D"}:A;for(let B=r.x+1;B<c.x;B++)a[B][r.y]=u;for(let B=r.x+1;B<c.x;B++)a[B][c.y]=u;for(let B=r.y+1;B<c.y;B++)a[r.x][B]=d;for(let B=r.y+1;B<c.y;B++)a[c.x][B]=d;a[r.x][r.y]=g.tl,a[c.x][r.y]=g.tr,a[r.x][c.y]=g.bl,a[c.x][c.y]=g.br;let f=t.displayLabel,p=ct(f),H=r.y+Math.floor(o/2)-Math.floor((p.length-1)/2);for(let B=0;B<p.length;B++){let R=p[B],D=r.x+Math.floor(i/2)-Math.ceil(R.length/2)+1;for(let j=0;j<R.length;j++)D+j>=0&&D+j<a.length&&H+B>=0&&H+B<a[0].length&&(a[D+j][H+B]=R[j])}return a}function Wo(t,e){return So(t,e)}function qe(t,e,n=1){let s=0;for(let B of t)for(let R of B)s=Math.max(s,R.length);let o=s+2*n+2,r=0;for(let B of t)r+=Math.max(B.length,1);let c=t.length-1,a=r+c+2,A=e?"-":"\u2500",l=e?"|":"\u2502",u=e?"+":"\u250C",d=e?"+":"\u2510",h=e?"+":"\u2514",g=e?"+":"\u2518",f=e?"+":"\u251C",p=e?"+":"\u2524",I=dt(o-1,a-1);I[0][0]=u;for(let B=1;B<o-1;B++)I[B][0]=A;I[o-1][0]=d,I[0][a-1]=h;for(let B=1;B<o-1;B++)I[B][a-1]=A;I[o-1][a-1]=g;for(let B=1;B<a-1;B++)I[0][B]=l,I[o-1][B]=l;let H=1;for(let B=0;B<t.length;B++){let R=t[B],D=R.length>0?R:[""];for(let j of D){let ht=1+n;for(let L=0;L<j.length;L++)I[ht+L][H]=j[L];H++}if(B<t.length-1){I[0][H]=f;for(let j=1;j<o-1;j++)I[j][H]=A;I[o-1][H]=p,H++}}return I}var Yo={solid:{h:{unicode:"\u2500",ascii:"-"},v:{unicode:"\u2502",ascii:"|"}},dotted:{h:{unicode:"\u2504",ascii:"."},v:{unicode:"\u2506",ascii:":"}},thick:{h:{unicode:"\u2501",ascii:"="},v:{unicode:"\u2503",ascii:"\u2016"}}};function me(t,e,n,s,i,o,r="solid"){let c=ft(e,n),a=[],A=Yo[r],l=o?A.h.ascii:A.h.unicode,u=o?A.v.ascii:A.v.unicode;if(x(c,T))for(let d=e.y-s;d>=n.y-i;d--)a.push({x:e.x,y:d}),t[e.x][d]=u;else if(x(c,J))for(let d=e.y+s;d<=n.y+i;d++)a.push({x:e.x,y:d}),t[e.x][d]=u;else if(x(c,U))for(let d=e.x-s;d>=n.x-i;d--)a.push({x:d,y:e.y}),t[d][e.y]=l;else if(x(c,X))for(let d=e.x+s;d<=n.x+i;d++)a.push({x:d,y:e.y}),t[d][e.y]=l;else if(x(c,yt)){for(let d=e.x-s;d>=n.x;d--)a.push({x:d,y:e.y}),t[d][e.y]=l;for(let d=e.y-1;d>=n.y-i;d--)a.push({x:n.x,y:d}),t[n.x][d]=u}else if(x(c,wt)){for(let d=e.x+s;d<=n.x;d++)a.push({x:d,y:e.y}),t[d][e.y]=l;for(let d=e.y-1;d>=n.y-i;d--)a.push({x:n.x,y:d}),t[n.x][d]=u}else if(x(c,Ct)){for(let d=e.x-s;d>=n.x;d--)a.push({x:d,y:e.y}),t[d][e.y]=l;for(let d=e.y+1;d<=n.y+i;d++)a.push({x:n.x,y:d}),t[n.x][d]=u}else if(x(c,Bt))if(n.x-e.x<=1)for(let h=e.y+s;h<=n.y+i;h++)a.push({x:e.x,y:h}),t[e.x][h]=u;else{for(let h=e.x+s;h<=n.x;h++)a.push({x:h,y:e.y}),t[h][e.y]=l;for(let h=e.y+1;h<=n.y+i;h++)a.push({x:n.x,y:h}),t[n.x][h]=u}return a}function Fo(t,e){if(e.path.length===0){let l=ut(t.canvas);return[l,l,l,l,l,l]}let n=Ro(t,e),[s,i,o]=Ho(t,e.path,e.style),r=Lo(t,e.path,i[0],e.from.shape),c;e.hasArrowEnd?c=Qe(t,i[i.length-1],o[o.length-1]):c=ut(t.canvas);let a;if(e.hasArrowStart&&i.length>0){let u=i[0][0],d=Qo(o[0]),h={x:u.x,y:u.y};x(o[0],X)?h.x=u.x-1:x(o[0],U)?h.x=u.x+1:x(o[0],J)?h.y=u.y-1:x(o[0],T)&&(h.y=u.y+1),a=Qe(t,[u,h],d)}else a=ut(t.canvas);let A=Go(t,e.path);return[s,r,c,a,A,n]}function Qo(t){return x(t,T)?J:x(t,J)?T:x(t,U)?X:x(t,X)?U:x(t,yt)?Bt:x(t,wt)?Ct:x(t,Ct)?wt:x(t,Bt)?yt:Ht}function Ho(t,e,n="solid"){let s=ut(t.canvas),i=e[0],o=[],r=[];for(let c=1;c<e.length;c++){let a=e[c],A=Mt(t,i),l=Mt(t,a);if(fe(A,l)){i=a;continue}let u=ft(i,a),d=me(s,A,l,1,-1,t.config.useAscii,n);d.length===0&&d.push(A),o.push(d),r.push(u),i=a}return[s,o,r]}function Lo(t,e,n,s){let i=ut(t.canvas);if(t.config.useAscii||s==="state-start"||s==="state-end")return i;let o=n[0],r=ft(e[0],e[1]);return x(r,T)?i[o.x][o.y+1]="\u2534":x(r,J)?i[o.x][o.y-1]="\u252C":x(r,U)?i[o.x+1][o.y]="\u2524":x(r,X)&&(i[o.x-1][o.y]="\u251C"),i}function Qe(t,e,n){let s=ut(t.canvas);if(e.length===0)return s;let i=e[0],o=e[e.length-1],r=ft(i,o);(e.length===1||x(r,Ht))&&(r=n);let c;return t.config.useAscii?x(r,T)?c="^":x(r,J)?c="v":x(r,U)?c="<":x(r,X)?c=">":x(n,T)?c="^":x(n,J)?c="v":x(n,U)?c="<":x(n,X)?c=">":c="*":x(r,T)?c="\u25B2":x(r,J)?c="\u25BC":x(r,U)?c="\u25C4":x(r,X)?c="\u25BA":x(r,wt)?c="\u25E5":x(r,yt)?c="\u25E4":x(r,Bt)?c="\u25E2":x(r,Ct)?c="\u25E3":x(n,T)?c="\u25B2":x(n,J)?c="\u25BC":x(n,U)?c="\u25C4":x(n,X)?c="\u25BA":x(n,wt)?c="\u25E5":x(n,yt)?c="\u25E4":x(n,Bt)?c="\u25E2":x(n,Ct)?c="\u25E3":c="\u25CF",s[o.x][o.y]=c,s}function Go(t,e){let n=ut(t.canvas);for(let s=1;s<e.length-1;s++){let i=e[s],o=Mt(t,i),r=ft(e[s-1],i),c=ft(i,e[s+1]),a;t.config.useAscii?a="+":x(r,X)&&x(c,J)||x(r,T)&&x(c,U)?a="\u2510":x(r,X)&&x(c,T)||x(r,J)&&x(c,U)?a="\u2518":x(r,U)&&x(c,J)||x(r,T)&&x(c,X)?a="\u250C":x(r,U)&&x(c,T)||x(r,J)&&x(c,X)?a="\u2514":a="+",n[o.x][o.y]=a}return n}function Ro(t,e){let n=ut(t.canvas);if(e.text.length===0)return n;let s=zo(t,e.labelLine),i;if(e.path.length>=2){let o=e.path[0].y,r=e.path[e.path.length-1].y;r<o?i=!0:r>o&&(i=!1)}return Ko(n,s,e.text,i),n}function Ko(t,e,n,s){if(e.length<2)return;let i=Math.min(e[0].x,e[1].x),o=Math.max(e[0].x,e[1].x),r=Math.min(e[0].y,e[1].y),c=Math.max(e[0].y,e[1].y),a=i+Math.floor((o-i)/2),A=r+Math.floor((c-r)/2);if(s!==void 0&&i===o){let d=c-r,h=Math.max(1,Math.floor(d/4));s?A=A+h:A=A-h}let l=ct(n),u=A-Math.floor((l.length-1)/2);for(let d=0;d<l.length;d++){let h=l[d],g=a-Math.floor(h.length/2);jn(t,{x:g,y:u+d},h)}}function Jt(t,e,n){let s=e.gridCoord,i=0;for(let a=0;a<2;a++)i+=t.columnWidth.get(s.x+a)??0;let o=0;for(let a=0;a<2;a++)o+=t.rowHeight.get(s.y+a)??0;let r={width:i+1,height:o+1,labelArea:{x:0,y:0,width:0,height:0},gridColumns:[0,0,0],gridRows:[0,0,0]},c=e.drawingCoord;return vo(e.shape,n,r,c)}function Jo(t,e,n){let s=ut(t.canvas);if(!e.pathToJunction||e.pathToJunction.length===0)return[s,s,s,s,s,s];let i=ut(t.canvas),o=t.config.useAscii,r=e.pathToJunction.map((l,u)=>n.type==="fan-in"&&u===0?Jt(t,e.from,e.startDir):n.type==="fan-out"&&u===e.pathToJunction.length-1?Jt(t,e.to,e.endDir):Mt(t,l));for(let l=1;l<r.length;l++){let u=r[l-1],d=r[l];fe(u,d)||me(i,u,d,1,-1,o,e.style)}let c=ut(t.canvas);for(let l=1;l<e.pathToJunction.length-1;l++){let u=e.pathToJunction[l],d=Mt(t,u),h=ft(e.pathToJunction[l-1],u),g=ft(u,e.pathToJunction[l+1]),f;o?f="+":x(h,X)&&x(g,J)||x(h,T)&&x(g,U)?f="\u2510":x(h,X)&&x(g,T)||x(h,J)&&x(g,U)?f="\u2518":x(h,U)&&x(g,J)||x(h,T)&&x(g,X)?f="\u250C":x(h,U)&&x(g,T)||x(h,J)&&x(g,X)?f="\u2514":f="+",c[d.x][d.y]=f}let a=ut(t.canvas);if(n.type==="fan-in"&&e.pathToJunction.length>=2){let l=r[0],u=ft(e.pathToJunction[0],e.pathToJunction[1]);o||(x(u,T)?a[l.x][l.y]="\u2534":x(u,J)?a[l.x][l.y]="\u252C":x(u,U)?a[l.x][l.y]="\u2524":x(u,X)&&(a[l.x][l.y]="\u251C"))}let A=ut(t.canvas);return[i,a,s,s,c,A]}function No(t,e){let n=ut(t.canvas),s=ut(t.canvas);if(e.sharedPath.length<2)return[n,s];let i=t.config.useAscii,o=e.edges[0]?.style??"solid",r=t.config.graphDirection,c=e.sharedPath.map((a,A)=>{if(e.type==="fan-in"&&A===e.sharedPath.length-1){let l=r==="TD"?T:U;return Jt(t,e.sharedNode,l)}if(e.type==="fan-out"&&A===0){let l=r==="TD"?J:X;return Jt(t,e.sharedNode,l)}return Mt(t,a)});for(let a=1;a<c.length;a++){let A=c[a-1],l=c[a];fe(A,l)||me(n,A,l,1,-1,i,o)}for(let a=1;a<e.sharedPath.length-1;a++){let A=e.sharedPath[a],l=Mt(t,A),u=ft(e.sharedPath[a-1],A),d=ft(A,e.sharedPath[a+1]),h;i?h="+":x(u,X)&&x(d,J)||x(u,T)&&x(d,U)?h="\u2510":x(u,X)&&x(d,T)||x(u,J)&&x(d,U)?h="\u2518":x(u,U)&&x(d,J)||x(u,T)&&x(d,X)?h="\u250C":x(u,U)&&x(d,T)||x(u,J)&&x(d,X)?h="\u2514":h="+",s[l.x][l.y]=h}return[n,s]}function Xo(t,e){let n=ut(t.canvas);if(e.sharedPath.length<2)return n;let s=e.sharedPath.length-1,i=e.sharedPath[s-1],o=e.sharedPath[s],r=ft(i,o),c=t.config.graphDirection,a=c==="TD"?T:U,A=Jt(t,e.sharedNode,a);c==="TD"?A.y-=1:A.x-=1;let l;return t.config.useAscii?x(r,T)?l="^":x(r,J)?l="v":x(r,U)?l="<":x(r,X)?l=">":l="v":x(r,T)?l="\u25B2":x(r,J)?l="\u25BC":x(r,U)?l="\u25C4":x(r,X)?l="\u25BA":l="\u25BC",n[A.x][A.y]=l,n}function Zo(t,e){let n=ut(t.canvas);if(!e.pathToJunction||e.pathToJunction.length<2)return n;let s=e.pathToJunction.length-1,i=e.pathToJunction[s-1],o=e.pathToJunction[s],r=ft(i,o),c=t.config.graphDirection,a=c==="TD"?T:U,A=Jt(t,e.to,a);c==="TD"?A.y-=1:A.x-=1;let l;return t.config.useAscii?x(r,T)?l="^":x(r,J)?l="v":x(r,U)?l="<":x(r,X)?l=">":l="v":x(r,T)?l="\u25B2":x(r,J)?l="\u25BC":x(r,U)?l="\u25C4":x(r,X)?l="\u25BA":l="\u25BC",n[A.x][A.y]=l,n}function To(t,e){let n=ut(t.canvas);if(!e.junctionPoint)return n;let s=Mt(t,e.junctionPoint),i=t.config.useAscii,o=!1,r=!1,c=!1,a=!1;if(e.sharedPath.length>=2){let l=e.type==="fan-in"?0:e.sharedPath.length-1,u=e.type==="fan-in"?1:e.sharedPath.length-2,d=ft(e.sharedPath[l],e.sharedPath[u]);x(d,J)?r=!0:x(d,T)?o=!0:x(d,X)?a=!0:x(d,U)&&(c=!0)}for(let l of e.edges)if(l.pathToJunction&&l.pathToJunction.length>=2){let u=e.type==="fan-in"?l.pathToJunction.length-1:0,d=e.type==="fan-in"?l.pathToJunction.length-2:1,h=ft(l.pathToJunction[d],l.pathToJunction[u]);x(h,J)?o=!0:x(h,T)?r=!0:x(h,X)?c=!0:x(h,U)&&(a=!0)}let A;return i?A="+":o&&r&&c&&a?A="\u253C":r&&c&&a&&!o?A="\u252C":o&&c&&a&&!r?A="\u2534":o&&r&&a&&!c?A="\u251C":o&&r&&c&&!a?A="\u2524":c&&a?A="\u2500":o&&r?A="\u2502":r&&a?A="\u250C":r&&c?A="\u2510":o&&a?A="\u2514":o&&c?A="\u2518":A="\u253C",n[s.x][s.y]=A,n}function Uo(t,e){let n=t.maxX-t.minX,s=t.maxY-t.minY;if(n<=0||s<=0)return dt(0,0);let i={x:0,y:0},o={x:n,y:s},r=dt(n,s);if(e.config.useAscii){for(let c=i.x+1;c<o.x;c++)r[c][i.y]="-";for(let c=i.x+1;c<o.x;c++)r[c][o.y]="-";for(let c=i.y+1;c<o.y;c++)r[i.x][c]="|";for(let c=i.y+1;c<o.y;c++)r[o.x][c]="|";r[i.x][i.y]="+",r[o.x][i.y]="+",r[i.x][o.y]="+",r[o.x][o.y]="+"}else{for(let c=i.x+1;c<o.x;c++)r[c][i.y]="\u2500";for(let c=i.x+1;c<o.x;c++)r[c][o.y]="\u2500";for(let c=i.y+1;c<o.y;c++)r[i.x][c]="\u2502";for(let c=i.y+1;c<o.y;c++)r[o.x][c]="\u2502";r[i.x][i.y]="\u250C",r[o.x][i.y]="\u2510",r[i.x][o.y]="\u2514",r[o.x][o.y]="\u2518"}return r}function Po(t,e){let n=t.maxX-t.minX,s=t.maxY-t.minY;if(n<=0||s<=0)return[dt(0,0),{x:0,y:0}];let i=dt(n,s),o=ct(t.name);for(let r=0;r<o.length;r++){let c=o[r],a=1+r,A=Math.floor(n/2)-Math.floor(c.length/2);A<1&&(A=1);for(let l=0;l<c.length;l++)A+l<n&&a<s&&(i[A+l][a]=c[l])}return[i,{x:t.minX,y:t.minY}]}function jo(t){function e(s){return s.parent===null?0:1+e(s.parent)}let n=[...t];return n.sort((s,i)=>e(s)-e(i)),n}function ge(t,e,n,s){for(let i=0;i<e.length;i++)for(let o=0;o<(e[0]?.length??0);o++){let r=e[i]?.[o];if(r&&r!==" "){let c=i+n.x,a=o+n.y;c>=0&&a>=0&&Pt(t,c,a,s)}}}function Qt(t,e,n,s){for(let i of e)ge(t,i,n,s)}function Oo(t,e,n){let s=i=>/^[┌┐└┘├┤┬┴┼│─╭╮╰╯+\-|.':]$/.test(i);for(let i=0;i<e.length;i++)for(let o=0;o<(e[0]?.length??0);o++){let r=e[i]?.[o];if(r&&r!==" "){let c=i+n.x,a=o+n.y;c>=0&&a>=0&&Pt(t,c,a,s(r)?"border":"text")}}}function Vo(t){let e=t.config.useAscii,n={x:0,y:0},s=jo(t.subgraphs);for(let d of s){let h=Uo(d,t),g={x:d.minX,y:d.minY};t.canvas=It(t.canvas,g,e,h),ge(t.roleCanvas,h,g,"border")}for(let d of t.nodes)!d.drawn&&d.drawingCoord&&d.drawing&&(t.canvas=It(t.canvas,d.drawingCoord,e,d.drawing),Oo(t.roleCanvas,d.drawing,d.drawingCoord),d.drawn=!0);let i=[],o=[],r=[],c=[],a=[],A=[],l=[],u=new Set;for(let d of t.edges)if(d.bundle&&d.pathToJunction){let h=d.bundle,[g,f,,,p,I]=Jo(t,d,h);if(i.push(g),o.push(p),a.push(f),A.push(I),!u.has(h)){u.add(h);let[H,B]=No(t,h);if(i.push(H),o.push(B),h.type==="fan-in"){let D=Xo(t,h);r.push(D)}let R=To(t,h);l.push(R)}if(h.type==="fan-out"&&d.hasArrowEnd){let H=Zo(t,d);r.push(H)}}else{let[h,g,f,p,I,H]=Fo(t,d);i.push(h),o.push(I),r.push(f),c.push(p),a.push(g),A.push(H)}t.canvas=It(t.canvas,n,e,...i),Qt(t.roleCanvas,i,n,"line"),t.canvas=It(t.canvas,n,e,...o),Qt(t.roleCanvas,o,n,"corner"),t.canvas=It(t.canvas,n,e,...l),Qt(t.roleCanvas,l,n,"junction"),t.canvas=It(t.canvas,n,e,...r),Qt(t.roleCanvas,r,n,"arrow"),t.canvas=It(t.canvas,n,e,...a),Qt(t.roleCanvas,a,n,"junction"),t.canvas=It(t.canvas,n,e,...c),Qt(t.roleCanvas,c,n,"arrow"),t.canvas=It(t.canvas,n,e,...A),Qt(t.roleCanvas,A,n,"text");for(let d of t.subgraphs){if(d.nodes.length===0)continue;let[h,g]=Po(d,t);t.canvas=It(t.canvas,g,e,h),ge(t.roleCanvas,h,g,"text")}return t.canvas}function Mt(t,e,n){let s=n?{x:e.x+n.x,y:e.y+n.y}:e,i=0;for(let a=0;a<s.x;a++)i+=t.columnWidth.get(a)??0;let o=0;for(let a=0;a<s.y;a++)o+=t.rowHeight.get(a)??0;let r=t.columnWidth.get(s.x)??0,c=t.rowHeight.get(s.y)??0;return{x:i+Math.floor(r/2)+t.offsetX,y:o+Math.floor(c/2)+t.offsetY}}function zo(t,e){return e.map(n=>Mt(t,n))}function Zt(t,e,n,s){let i=s??tr(t,e);if(t.grid.has(Wt(n)))return i==="LR"?Zt(t,e,{x:n.x,y:n.y+4},i):Zt(t,e,{x:n.x+4,y:n.y},i);for(let o=0;o<3;o++)for(let r=0;r<3;r++){let c={x:n.x+o,y:n.y+r};t.grid.set(Wt(c),e)}return e.gridCoord=n,n}function qo(t,e){let n=e.gridCoord,s=t.config.boxBorderPadding,i=Do(e.shape,e.displayLabel,{useAscii:t.config.useAscii,padding:s}),o=i.gridColumns,r=i.gridRows;for(let c=0;c<o.length;c++){let a=n.x+c,A=t.columnWidth.get(a)??0;t.columnWidth.set(a,Math.max(A,o[c]))}for(let c=0;c<r.length;c++){let a=n.y+c,A=t.rowHeight.get(a)??0;t.rowHeight.set(a,Math.max(A,r[c]))}if(n.x>0){let c=t.columnWidth.get(n.x-1)??0;t.columnWidth.set(n.x-1,Math.max(c,t.config.paddingX))}if(n.y>0){let c=t.config.paddingY;er(t,e)&&(c+=4);let a=t.rowHeight.get(n.y-1)??0;t.rowHeight.set(n.y-1,Math.max(a,c))}}function He(t,e){for(let n of e)t.columnWidth.has(n.x)||t.columnWidth.set(n.x,Math.floor(t.config.paddingX/2)),t.rowHeight.has(n.y)||t.rowHeight.set(n.y,Math.floor(t.config.paddingY/2))}function de(t,e){return t.subgraphs.some(n=>n.nodes.includes(e))}function xt(t,e){let n=null;for(let s of t.subgraphs)s.nodes.includes(e)&&(!n||_o(n,s))&&(n=s);return n}function _o(t,e){let n=e;for(;n!==null;){if(n===t)return!0;n=n.parent}return!1}function tr(t,e){let n=xt(t,e);return n?.direction?n.direction:t.config.graphDirection}function er(t,e){let n=xt(t,e);if(!n)return!1;let s=!1;for(let i of t.edges)if(i.to===e&&xt(t,i.from)!==n){s=!0;break}if(!s)return!1;for(let i of n.nodes){if(i===e||!i.gridCoord)continue;let o=!1;for(let r of t.edges)if(r.to===i&&xt(t,r.from)!==n){o=!0;break}if(o&&i.gridCoord.y<e.gridCoord.y)return!1}return!0}function _e(t,e){if(e.nodes.length===0)return;let n=1e6,s=1e6,i=-1e6,o=-1e6;for(let a of e.children)_e(t,a),a.nodes.length>0&&(n=Math.min(n,a.minX),s=Math.min(s,a.minY),i=Math.max(i,a.maxX),o=Math.max(o,a.maxY));for(let a of e.nodes){if(!a.drawingCoord||!a.drawing)continue;let A=a.drawingCoord.x,l=a.drawingCoord.y,u=A+a.drawing.length-1,d=l+a.drawing[0].length-1;n=Math.min(n,A),s=Math.min(s,l),i=Math.max(i,u),o=Math.max(o,d)}let r=2,c=2;e.minX=n-r,e.minY=s-r-c,e.maxX=i+r,e.maxY=o+r}function nr(t){let n=t.subgraphs.filter(s=>s.parent===null&&s.nodes.length>0);for(let s=0;s<n.length;s++)for(let i=s+1;i<n.length;i++){let o=n[s],r=n[i];o.minX<r.maxX&&o.maxX>r.minX&&(o.maxY>=r.minY-1&&o.minY<r.minY?r.minY=o.maxY+1+1:r.maxY>=o.minY-1&&r.minY<o.minY&&(o.minY=r.maxY+1+1)),o.minY<r.maxY&&o.maxY>r.minY&&(o.maxX>=r.minX-1&&o.minX<r.minX?r.minX=o.maxX+1+1:r.maxX>=o.minX-1&&r.minX<o.minX&&(o.minX=r.maxX+1+1))}}function or(t){for(let e of t.subgraphs)_e(t,e);nr(t)}function rr(t){if(t.subgraphs.length===0)return;let e=0,n=0;for(let o of t.subgraphs)e=Math.min(e,o.minX),n=Math.min(n,o.minY);let s=-e,i=-n;if(!(s===0&&i===0)){t.offsetX=s,t.offsetY=i;for(let o of t.subgraphs)o.minX+=s,o.minY+=i,o.maxX+=s,o.maxY+=i;for(let o of t.nodes)o.drawingCoord&&(o.drawingCoord.x+=s,o.drawingCoord.y+=i)}}function sr(t){let e=t.config.graphDirection,n=new Array(100).fill(0),s=new Set,i=[];for(let d of t.nodes){s.has(d.name)||i.push(d),s.add(d.name);for(let h of he(t,d))s.add(h.name)}let o=i.filter(d=>{let h=xt(t,d);if(!h)return!0;for(let g of t.edges)if(g.to===d&&xt(t,g.from)!==h)return!1;return!0}),r=!1,c=!1;for(let d of o)de(t,d)?he(t,d).length>0&&(c=!0):r=!0;let a=e==="LR"&&r&&c,A,l=[];a?(A=o.filter(d=>!de(t,d)),l=o.filter(d=>de(t,d))):A=o;for(let d of A){let h=e==="LR"?{x:0,y:n[0]}:{x:n[0],y:0};Zt(t,t.nodes[d.index],h),n[0]=n[0]+4}if(a&&l.length>0)for(let h of l){let g=e==="LR"?{x:4,y:n[4]}:{x:n[4],y:4};Zt(t,t.nodes[h.index],g),n[4]=n[4]+4}let u=A.length+l.length;for(;u<t.nodes.length;){let d=u;for(let h of t.nodes){if(h.gridCoord===null)continue;let g=h.gridCoord;for(let f of he(t,h)){if(f.gridCoord!==null)continue;let p=xt(t,h),I=xt(t,f),H=p&&p===I&&p.direction?p.direction:t.config.graphDirection,B=H==="LR"?g.x+4:g.y+4,R;H!==t.config.graphDirection?R=H==="LR"?g.y:g.x:R=n[B];let D=H==="LR"?{x:B,y:R}:{x:R,y:B};Zt(t,t.nodes[f.index],D,H),H===t.config.graphDirection&&(n[B]=R+4),u++}}if(u===d)break}for(let d of t.nodes)qo(t,d);t.bundles=Ao(t),uo(t);for(let d of t.edges){if(d.bundle&&d.path.length>0){He(t,d.path),Ee(t,d);continue}co(t,d),He(t,d.path),Ee(t,d)}for(let d of t.nodes)d.drawingCoord=Mt(t,d.gridCoord),d.drawing=Wo(d,t);On(t.canvas,t.columnWidth,t.rowHeight),Vn(t.roleCanvas,t.columnWidth,t.rowHeight),or(t),rr(t)}function ir(t,e){return t.edges.filter(n=>n.from.name===e.name)}function he(t,e){return ir(t,e).map(n=>n.to)}function cr(t){let e={actors:[],messages:[],blocks:[],notes:[]},n=new Set,s=[];for(let i=1;i<t.length;i++){let o=t[i],r=o.match(/^(participant|actor)\s+(\S+?)(?:\s+as\s+(.+))?$/);if(r){let d=r[1],h=r[2],g=r[3]?.trim()??h,f=lt(g);n.has(h)||(n.add(h),e.actors.push({id:h,label:f,type:d}));continue}let c=o.match(/^Note\s+(left of|right of|over)\s+([^:]+):\s*(.+)$/i);if(c){let d=c[1].toLowerCase(),h=c[2].trim(),g=lt(c[3].trim()),f=h.split(",").map(I=>I.trim());for(let I of f)Nt(e,n,I);let p="over";d==="left of"?p="left":d==="right of"&&(p="right"),e.notes.push({actorIds:f,text:g,position:p,afterIndex:e.messages.length-1});continue}let a=o.match(/^(loop|alt|opt|par|critical|break|rect)\s*(.*)$/);if(a){let d=a[1],h=a[2]?.trim()??"",g=lt(h);s.push({type:d,label:g,startIndex:e.messages.length,dividers:[]});continue}let A=o.match(/^(else|and)\s*(.*)$/);if(A&&s.length>0){let d=A[2]?.trim()??"",h=lt(d);s[s.length-1].dividers.push({index:e.messages.length,label:h});continue}if(o==="end"&&s.length>0){let d=s.pop();e.blocks.push({type:d.type,label:d.label,startIndex:d.startIndex,endIndex:Math.max(e.messages.length-1,d.startIndex),dividers:d.dividers});continue}let l=o.match(/^(\S+?)\s*(--?>?>|--?[)x]|--?>>|--?>)\s*([+-]?)(\S+?)\s*:\s*(.+)$/);if(l){let d=l[1],h=l[2],g=l[3],f=l[4],p=lt(l[5].trim());Nt(e,n,d),Nt(e,n,f);let I=h.startsWith("--")?"dashed":"solid",H=h.includes(">>")||h.includes("x")?"filled":"open",B={from:d,to:f,label:p,lineStyle:I,arrowHead:H};g==="+"&&(B.activate=!0),g==="-"&&(B.deactivate=!0),e.messages.push(B);continue}let u=o.match(/^(\S+?)\s*(->>|-->>|-\)|--\)|-x|--x|->|-->)\s*([+-]?)(\S+?)\s*:\s*(.+)$/);if(u){let d=u[1],h=u[2],g=u[3],f=u[4],p=lt(u[5].trim());Nt(e,n,d),Nt(e,n,f);let I=h.startsWith("--")?"dashed":"solid",H=h.includes(">>")||h.includes("x")?"filled":"open",B={from:d,to:f,label:p,lineStyle:I,arrowHead:H};g==="+"&&(B.activate=!0),g==="-"&&(B.deactivate=!0),e.messages.push(B);continue}}return e}function Nt(t,e,n){e.has(n)||(e.add(n),t.actors.push({id:n,label:n,type:"participant"}))}function ar(t,e,n,s){let i=t.split(`
7`).map(m=>m.trim()).filter(m=>m.length>0&&!m.startsWith("%%")),o=cr(i);if(o.actors.length===0)return"";let r=e.useAscii,c=r?"-":"\u2500",a=r?"|":"\u2502",A=r?"+":"\u250C",l=r?"+":"\u2510",u=r?"+":"\u2514",d=r?"+":"\u2518",h=r?"+":"\u252C",g=r?"+":"\u2534",f=r?"+":"\u251C",p=r?"+":"\u2524",I=new Map;o.actors.forEach((m,b)=>I.set(m.id,b));let H=1,R=o.actors.map(m=>le(m.label)+2*H+2).map(m=>Math.ceil(m/2)),D=o.actors.map(m=>Ye(m.label)+2),j=Math.max(...D,3),ht=new Array(Math.max(o.actors.length-1,0)).fill(0);for(let m of o.messages){let b=I.get(m.from),S=I.get(m.to);if(b===S)continue;let v=Math.min(b,S),Q=Math.max(b,S),k=le(m.label)+4,P=Q-v,Y=Math.ceil(k/P);for(let M=v;M<Q;M++)ht[M]=Math.max(ht[M],Y)}let L=[R[0]];for(let m=1;m<o.actors.length;m++){let b=Math.max(R[m-1]+R[m]+2,ht[m-1]+2,10);L[m]=L[m-1]+b}let nt=[],W=[],z=new Map,y=new Map,O=new Map,V=[],q=j;for(let m=0;m<o.messages.length;m++){for(let Q=0;Q<o.blocks.length;Q++)o.blocks[Q].startIndex===m&&(q+=2,z.set(Q,q-1));for(let Q=0;Q<o.blocks.length;Q++)for(let k=0;k<o.blocks[Q].dividers.length;k++)o.blocks[Q].dividers[k].index===m&&(q+=1,O.set(`${Q}:${k}`,q),q+=1);q+=1;let b=o.messages[m],S=b.from===b.to,v=Ye(b.label);S?(W[m]=q+1,nt[m]=q,q+=2+v):(W[m]=q,nt[m]=q+v,q+=v+1);for(let Q=0;Q<o.notes.length;Q++)if(o.notes[Q].afterIndex===m){q+=1;let k=o.notes[Q],P=ct(k.text),Y=Math.max(...P.map(K=>K.length))+4,M=P.length+2,Z=I.get(k.actorIds[0])??0,$;if(k.position==="left")$=L[Z]-Y-1;else if(k.position==="right")$=L[Z]+2;else if(k.actorIds.length>=2){let K=I.get(k.actorIds[1])??Z;$=Math.floor((L[Z]+L[K])/2)-Math.floor(Y/2)}else $=L[Z]-Math.floor(Y/2);$=Math.max(0,$),V.push({x:$,y:q,width:Y,height:M,lines:P}),q+=M}for(let Q=0;Q<o.blocks.length;Q++)o.blocks[Q].endIndex===m&&(q+=1,y.set(Q,q),q+=1)}q+=1;let E=q,_=E+j,st=L[L.length-1]??0,it=R[R.length-1]??0,w=st+it+2;for(let m=0;m<o.messages.length;m++){let b=o.messages[m];if(b.from===b.to){let S=I.get(b.from),v=L[S]+6+2+b.label.length;w=Math.max(w,v+1)}}for(let m of V)w=Math.max(w,m.x+m.width+1);let G=dt(w,_-1),F=Ut(w,_-1);function C(m,b,S,v){m>=0&&m<G.length&&b>=0&&b<(G[0]?.length??0)&&(G[m][b]=S,Pt(F,m,b,v))}function N(m,b,S){let v=ct(S),Q=le(S),k=Q+2*H+2,P=v.length+2,Y=m-Math.floor(k/2);C(Y,b,A,"border");for(let Z=1;Z<k-1;Z++)C(Y+Z,b,c,"border");C(Y+k-1,b,l,"border");for(let Z=0;Z<v.length;Z++){let $=b+1+Z;C(Y,$,a,"border"),C(Y+k-1,$,a,"border");let K=v[Z],rt=Y+1+H+Math.floor((Q-K.length)/2);for(let et=0;et<K.length;et++)C(rt+et,$,K[et],"text")}let M=b+P-1;C(Y,M,u,"border");for(let Z=1;Z<k-1;Z++)C(Y+Z,M,c,"border");C(Y+k-1,M,d,"border")}for(let m=0;m<o.actors.length;m++){let b=L[m];for(let S=j;S<=E;S++)C(b,S,a,"line")}for(let m=0;m<o.actors.length;m++){let b=o.actors[m];N(L[m],0,b.label),N(L[m],E,b.label),r||(C(L[m],j-1,h,"junction"),C(L[m],E,g,"junction"))}for(let m=0;m<o.messages.length;m++){let b=o.messages[m],S=I.get(b.from),v=I.get(b.to),Q=L[S],k=L[v],P=S===v,Y=b.lineStyle==="dashed",M=b.arrowHead==="filled",Z=Y?r?".":"\u254C":c;if(P){let $=nt[m],K=Math.max(4,4);C(Q,$,f,"junction");for(let ot=Q+1;ot<Q+K;ot++)C(ot,$,Z,"line");C(Q+K,$,r?"+":"\u2510","corner"),C(Q+K,$+1,a,"line");let rt=Q+K+2;for(let ot=0;ot<b.label.length;ot++)rt+ot<w&&C(rt+ot,$+1,b.label[ot],"text");let et=M?r?"<":"\u25C0":r?"<":"\u25C1";C(Q,$+2,et,"arrow");for(let ot=Q+1;ot<Q+K;ot++)C(ot,$+2,Z,"line");C(Q+K,$+2,r?"+":"\u2518","corner")}else{let $=W[m],K=nt[m],rt=Q<k,et=Math.floor((Q+k)/2),ot=ct(b.label);for(let at=0;at<ot.length;at++){let At=ot[at],mt=et-Math.floor(At.length/2),St=$+at;for(let pt=0;pt<At.length;pt++){let Gt=mt+pt;Gt>=0&&Gt<w&&C(Gt,St,At[pt],"text")}}if(rt){for(let At=Q+1;At<k;At++)C(At,K,Z,"line");C(k,K,M?r?">":"\u25B6":r?">":"\u25B7","arrow")}else{for(let At=k+1;At<Q;At++)C(At,K,Z,"line");C(k,K,M?r?"<":"\u25C0":r?"<":"\u25C1","arrow")}}}for(let m=0;m<o.blocks.length;m++){let b=o.blocks[m],S=z.get(m),v=y.get(m);if(S===void 0||v===void 0)continue;let Q=w,k=0;for(let $=b.startIndex;$<=b.endIndex&&!($>=o.messages.length);$++){let K=o.messages[$],rt=I.get(K.from)??0,et=I.get(K.to)??0;Q=Math.min(Q,L[Math.min(rt,et)]),k=Math.max(k,L[Math.max(rt,et)])}let P=Math.max(0,Q-4),Y=Math.min(w-1,k+4);C(P,S,A,"border");for(let $=P+1;$<Y;$++)C($,S,c,"border");C(Y,S,l,"border");let M=b.label?`${b.type} [${b.label}]`:b.type,Z=ct(M);for(let $=0;$<Z.length&&S+$<v;$++){let K=Z[$];for(let rt=0;rt<K.length&&P+1+rt<Y;rt++)C(P+1+rt,S+$,K[rt],"text")}C(P,v,u,"border");for(let $=P+1;$<Y;$++)C($,v,c,"border");C(Y,v,d,"border");for(let $=S+1;$<v;$++)C(P,$,a,"border"),C(Y,$,a,"border");for(let $=0;$<b.dividers.length;$++){let K=O.get(`${m}:${$}`);if(K===void 0)continue;let rt=tt();C(P,K,f,"junction");for(let ot=P+1;ot<Y;ot++)C(ot,K,rt,"line");C(Y,K,p,"junction");let et=b.dividers[$].label;if(et){let ot=`[${et}]`;for(let at=0;at<ot.length&&P+1+at<Y;at++)C(P+1+at,K,ot[at],"text")}}}for(let m of V){Ft(G,m.x+m.width,m.y+m.height),Lt(F,m.x+m.width,m.y+m.height),C(m.x,m.y,A,"border");for(let S=1;S<m.width-1;S++)C(m.x+S,m.y,c,"border");C(m.x+m.width-1,m.y,l,"border");for(let S=0;S<m.lines.length;S++){let v=m.y+1+S;C(m.x,v,a,"border"),C(m.x+m.width-1,v,a,"border");for(let Q=0;Q<m.lines[S].length;Q++)C(m.x+2+Q,v,m.lines[S][Q],"text")}let b=m.y+m.height-1;C(m.x,b,u,"border");for(let S=1;S<m.width-1;S++)C(m.x+S,b,c,"border");C(m.x+m.width-1,b,d,"border")}return ne(G,{roleCanvas:F,colorMode:n,theme:s});function tt(){return r?"-":"\u254C"}}function Ar(t){let e={classes:[],relationships:[],namespaces:[]},n=new Map,s=null,i=null,o=0;for(let r=1;r<t.length;r++){let c=t[r];if(i&&o>0){if(c==="}"){o--,o===0&&(i=null);continue}let g=c.match(/^<<(\w+)>>$/);if(g){i.annotation=g[1];continue}let f=Le(c);f&&(f.isMethod?i.methods.push(f.member):i.attributes.push(f.member));continue}let a=c.match(/^namespace\s+(\S+)\s*\{$/);if(a){s={name:a[1],classIds:[]};continue}if(c==="}"&&s){e.namespaces.push(s),s=null;continue}let A=c.match(/^class\s+(\S+?)(?:\s*~(\w+)~)?\s*\{$/);if(A){let g=A[1],f=A[2],p=Rt(n,g);f&&(p.label=`${g}<${f}>`),i=p,o=1,s&&s.classIds.push(g);continue}let l=c.match(/^class\s+(\S+?)(?:\s*~(\w+)~)?\s*$/);if(l){let g=l[1],f=l[2],p=Rt(n,g);f&&(p.label=`${g}<${f}>`),s&&s.classIds.push(g);continue}let u=c.match(/^class\s+(\S+?)\s*\{\s*<<(\w+)>>\s*\}$/);if(u){let g=Rt(n,u[1]);g.annotation=u[2];continue}let d=c.match(/^(\S+?)\s*:\s*(.+)$/);if(d){let g=d[2];if(!g.match(/<\|--|--|\*--|o--|-->|\.\.>|\.\.\|>/)){let f=Rt(n,d[1]),p=Le(g);p&&(p.isMethod?f.methods.push(p.member):f.attributes.push(p.member));continue}}let h=lr(c);if(h){Rt(n,h.from),Rt(n,h.to),e.relationships.push(h);continue}}return e.classes=[...n.values()],e}function Rt(t,e){let n=t.get(e);return n||(n={id:e,label:e,attributes:[],methods:[]},t.set(e,n)),n}function Le(t){let e=t.trim().replace(/;$/,"");if(!e)return null;let n="",s=e;/^[+\-#~]/.test(s)&&(n=s[0],s=s.slice(1).trim());let i=s.match(/^(.+?)\(([^)]*)\)(?:\s*(.+))?$/);if(i){let l=i[1].trim(),u=i[2]?.trim()||void 0,d=i[3]?.trim(),h=l.endsWith("$")||s.includes("$"),g=l.endsWith("*")||s.includes("*");return{member:{visibility:n,name:l.replace(/[$*]$/,""),type:d||void 0,isStatic:h,isAbstract:g,isMethod:!0,params:u},isMethod:!0}}let o=s.split(/\s+/),r,c;o.length>=2?(c=o[0],r=o.slice(1).join(" ")):r=o[0]??s;let a=r.endsWith("$"),A=r.endsWith("*");return{member:{visibility:n,name:r.replace(/[$*]$/,""),type:c||void 0,isStatic:a,isAbstract:A,isMethod:!1},isMethod:!1}}function lr(t){let e=t.match(/^(\S+?)\s+(?:"([^"]*?)"\s+)?(<\|--|<\|\.\.|\*--|o--|-->|--\*|--o|--\|>|\.\.>|\.\.\|>|<--|<\.\.?|--)\s+(?:"([^"]*?)"\s+)?(\S+?)(?:\s*:\s*(.+))?$/);if(!e)return null;let n=e[1],s=e[2],i=s?lt(s):void 0,o=e[3].trim(),r=e[4],c=r?lt(r):void 0,a=e[5],A=e[6]?.trim(),l=A?lt(A):void 0,u=dr(o);return u?{from:n,to:a,type:u.type,markerAt:u.markerAt,label:l,fromCardinality:i,toCardinality:c}:null}function dr(t){switch(t.trim()){case"<|--":return{type:"inheritance",markerAt:"from"};case"--|>":return{type:"inheritance",markerAt:"to"};case"<|..":return{type:"realization",markerAt:"from"};case"..|>":return{type:"realization",markerAt:"to"};case"*--":return{type:"composition",markerAt:"from"};case"--*":return{type:"composition",markerAt:"to"};case"o--":return{type:"aggregation",markerAt:"from"};case"--o":return{type:"aggregation",markerAt:"to"};case"-->":return{type:"association",markerAt:"to"};case"<--":return{type:"association",markerAt:"from"};case"..>":return{type:"dependency",markerAt:"to"};case"<..":return{type:"dependency",markerAt:"from"};case"--":return{type:"association",markerAt:"to"};default:return null}}function hr(t){return/^[┌┐└┘├┤┬┴┼│─╭╮╰╯+\-|]$/.test(t)?"border":"text"}function Ge(t){let e=t.visibility||"",n=t.type?`: ${t.type}`:"";return`${e}${t.name}${n}`}function ur(t){let e=[];t.annotation&&e.push(`<<${t.annotation}>>`);let n=ct(t.label);e.push(...n);let s=t.attributes.map(Ge),i=t.methods.map(Ge);return s.length===0&&i.length===0?[e]:i.length===0?[e,s]:[e,s,i]}function gr(t,e){return{type:t,markerAt:e,dashed:t==="dependency"||t==="realization"}}function Et(t,e,n){switch(t){case"inheritance":case"realization":return n==="down"?e?"^":"\u25B3":n==="up"?e?"v":"\u25BD":n==="left"?e?">":"\u25C1":e?"<":"\u25B7";case"composition":return e?"*":"\u25C6";case"aggregation":return e?"o":"\u25C7";case"association":case"dependency":return n==="down"?e?"v":"\u25BC":n==="up"?e?"^":"\u25B2":n==="left"?e?"<":"\u25C0":e?">":"\u25B6"}}function fr(t,e,n,s){let i=t.split(`
8`).map(w=>w.trim()).filter(w=>w.length>0&&!w.startsWith("%%")),o=Ar(i);if(o.classes.length===0)return"";let r=e.useAscii,c=4,a=3,A=new Map,l=new Map,u=new Map;for(let w of o.classes){let G=ur(w);A.set(w.id,G);let F=0;for(let m of G)for(let b of m)F=Math.max(F,b.length);let C=F+4,N=0;for(let m of G)N+=Math.max(m.length,1);let tt=N+(G.length-1)+2;l.set(w.id,C),u.set(w.id,tt)}let d=new Map;for(let w of o.classes)d.set(w.id,w);let h=new Map,g=new Map;for(let w of o.relationships){let G=w.type==="inheritance"||w.type==="realization",F=G&&w.markerAt==="to"?w.to:w.from,C=G&&w.markerAt==="to"?w.from:w.to;h.has(C)||h.set(C,new Set),h.get(C).add(F),g.has(F)||g.set(F,new Set),g.get(F).add(C)}let f=new Map,I=o.classes.filter(w=>!h.has(w.id)||h.get(w.id).size===0).map(w=>w.id);for(let w of I)f.set(w,0);let H=o.classes.length-1,B=0;for(;B<I.length;){let w=I[B++],G=g.get(w);if(G)for(let F of G){let C=(f.get(w)??0)+1;C>H||(!f.has(F)||f.get(F)<C)&&(f.set(F,C),I.push(F))}}for(let w of o.classes)f.has(w.id)||f.set(w.id,0);let R=Math.max(...f.values(),0),D=Array.from({length:R+1},()=>[]);for(let w of o.classes)D[f.get(w.id)].push(w.id);let j=new Map,ht=0;for(let w=0;w<=R;w++){let G=D[w];if(G.length===0)continue;let F=0,C=0;for(let N of G){let tt=d.get(N),m=l.get(N),b=u.get(N);j.set(N,{cls:tt,sections:A.get(N),x:F,y:ht,width:m,height:b}),F+=m+c,C=Math.max(C,b)}ht+=C+a}let L=0,nt=0;for(let w of j.values())L=Math.max(L,w.x+w.width),nt=Math.max(nt,w.y+w.height);L+=4,nt+=2;let W=dt(L-1,nt-1),z=Ut(L-1,nt-1);function y(w,G,F,C){w>=0&&w<W.length&&G>=0&&G<(W[0]?.length??0)&&(W[w][G]=F,Pt(z,w,G,C))}for(let w of j.values()){let G=qe(w.sections,r);for(let F=0;F<G.length;F++)for(let C=0;C<G[0].length;C++){let N=G[F][C];if(N!==" "){let tt=w.x+F,m=w.y+C;tt<L&&m<nt&&y(tt,m,N,hr(N))}}}let O=[];for(let w of j.values())O.push({x1:w.x,x2:w.x+w.width-1,y1:w.y,y2:w.y+w.height-1});function V(w,G,F){for(let[C,N]of j.entries())if(!F?.has(C)&&w>=N.x&&w<=N.x+N.width-1&&G>=N.y&&G<=N.y+N.height-1)return!0;return!1}function q(w,G,F,C){let N=!0;for(let tt=Math.min(G,F);tt<=Math.max(G,F);tt++)if(V(w,tt,C)){N=!1;break}if(N)return w;for(let tt=1;tt<L+10;tt++){let m=w+tt;N=!0;for(let S=Math.min(G,F);S<=Math.max(G,F);S++)if(V(m,S,C)){N=!1;break}if(N)return m;let b=w-tt;if(b>=0){N=!0;for(let S=Math.min(G,F);S<=Math.max(G,F);S++)if(V(b,S,C)){N=!1;break}if(N)return b}}return L+2}let E=r?"-":"\u2500",_=r?"|":"\u2502",st=r?".":"\u254C",it=r?":":"\u250A";for(let w of o.relationships){let G=j.get(w.from),F=j.get(w.to);if(!G||!F)continue;let C=gr(w.type,w.markerAt),N=C.dashed?st:E,tt=C.dashed?it:_,m=new Set([w.from,w.to]),b=G.x+Math.floor(G.width/2),S=G.y+G.height-1,v=F.x+Math.floor(F.width/2),Q=F.y;if(S<Q){let k=q(b,S+1,Q-1,m),P=k!==b;if(k>=L&&Ft(W,k+2,nt),P){let Y=S+1,M=Q-1,Z=Math.min(b,k),$=Math.max(b,k);for(let K=Z;K<=$;K++)y(K,Y,N,"line");!r&&Y<(W[0]?.length??0)&&(b<k?(y(b,Y,"\u2514","corner"),y(k,Y,"\u2510","corner")):(y(b,Y,"\u2518","corner"),y(k,Y,"\u250C","corner")));for(let K=Y+1;K<=M;K++)y(k,K,tt,"line");if(k!==v){let K=Math.min(k,v),rt=Math.max(k,v);for(let et=K;et<=rt;et++)y(et,M,N,"line");!r&&M<(W[0]?.length??0)&&(k<v?(y(k,M,"\u2514","corner"),y(v,M,"\u2510","corner")):(y(k,M,"\u2518","corner"),y(v,M,"\u250C","corner")))}if(C.markerAt==="to"){let K=Et(C.type,r,"down");y(v,M,K,"arrow")}if(C.markerAt==="from"){let K=Et(C.type,r,"down");y(b,S+1,K,"arrow")}}else{let Y=S+Math.floor((Q-S)/2);for(let M=S+1;M<=Y;M++)y(b,M,tt,"line");if(b!==v&&Y<(W[0]?.length??0)){let M=Math.min(b,v),Z=Math.max(b,v);for(let $=M;$<=Z;$++)y($,Y,N,"line");r||(y(b,Y,b<v?"\u2514":"\u2518","corner"),y(v,Y,b<v?"\u2510":"\u250C","corner"))}for(let M=Y+1;M<Q;M++)y(v,M,tt,"line");C.markerAt==="to"&&y(v,Q-1,Et(C.type,r,"down"),"arrow"),C.markerAt==="from"&&y(b,S+1,Et(C.type,r,"down"),"arrow")}}else if(F.y+F.height-1<G.y){let k=G.y,P=F.y+F.height-1,Y=P+Math.floor((k-P)/2);for(let M=k-1;M>=Y;M--)y(b,M,tt,"line");if(b!==v){let M=Math.min(b,v),Z=Math.max(b,v);for(let $=M;$<=Z;$++)y($,Y,N,"line");!r&&Y>=0&&Y<nt&&(y(b,Y,b<v?"\u250C":"\u2510","corner"),y(v,Y,b<v?"\u2518":"\u2514","corner"))}for(let M=Y-1;M>P;M--)y(v,M,tt,"line");if(C.markerAt==="from"){let M=Et(C.type,r,"up"),Z=k-1;for(let $=0;$<M.length;$++)y(b-Math.floor(M.length/2)+$,Z,M[$],"arrow")}if(C.markerAt==="to"){let Z=C.type==="inheritance"||C.type==="realization"?"down":"up",$=Et(C.type,r,Z),K=P+1;for(let rt=0;rt<$.length;rt++)y(v-Math.floor($.length/2)+rt,K,$[rt],"arrow")}}else{let k=Math.max(S,F.y+F.height-1)+2;Ft(W,L,k+1),Lt(z,L,k+1);for(let M=S+1;M<=k;M++)y(b,M,tt,"line");let P=Math.min(b,v),Y=Math.max(b,v);for(let M=P;M<=Y;M++)y(M,k,N,"line");for(let M=k-1;M>=F.y+F.height;M--)y(v,M,tt,"line");if(C.markerAt==="from"){let M=Et(C.type,r,"down"),Z=S+1;for(let $=0;$<M.length;$++)y(b-Math.floor(M.length/2)+$,Z,M[$],"arrow")}if(C.markerAt==="to"){let M=Et(C.type,r,"up"),Z=F.y+F.height;for(let $=0;$<M.length;$++)y(v-Math.floor(M.length/2)+$,Z,M[$],"arrow")}}if(w.label){let k=ct(w.label),P=Math.max(...k.map(et=>et.length))+2,Y,M;if(S<Q)Y=Math.floor((S+1+Q-1)/2),M=Math.floor((b+v)/2);else if(F.y+F.height-1<G.y){let et=F.y+F.height-1;Y=Math.floor((et+1+G.y-1)/2),M=Math.floor((b+v)/2)}else Y=Math.max(S,F.y+F.height-1)+2,M=Math.floor((b+v)/2);let Z=Y,$=Math.floor(k.length/2),K=!1;for(let et=0;et<k.length;et++){let ot=Z-$+et,at=M-Math.floor(P/2),At=Math.max(0,at);for(let mt=At;mt<At+P;mt++)if(V(mt,ot,m)){K=!0;break}if(K)break}if(K){let et=S+1,ot=Q-1;for(let at=et;at<=ot;at++){let At=!0,mt=M-Math.floor(P/2),St=Math.max(0,mt);for(let pt=St;pt<St+P;pt++)if(V(pt,at,m)){At=!1;break}if(At){Z=at;break}}}let rt=Z-$;for(let et=0;et<k.length;et++){let ot=` ${k[et]} `,at=M-Math.floor(ot.length/2),At=Math.max(0,at),mt=rt+et,St=At+ot.length;St>0&&mt>=0&&(Ft(W,Math.max(St,1),Math.max(mt+1,1)),Lt(z,Math.max(St,1),Math.max(mt+1,1)));for(let pt=0;pt<ot.length;pt++){let Gt=At+pt;Gt>=0&&mt>=0&&y(Gt,mt,ot[pt],"text")}}}}return ne(W,{roleCanvas:z,colorMode:n,theme:s})}function xr(t){let e={entities:[],relationships:[]},n=new Map,s=null;for(let i=1;i<t.length;i++){let o=t[i];if(s){if(o==="}"){s=null;continue}let a=mr(o);a&&s.attributes.push(a);continue}let r=o.match(/^(\S+)\s*\{$/);if(r){let a=r[1];s=ue(n,a);continue}let c=pr(o);if(c){ue(n,c.entity1),ue(n,c.entity2),e.relationships.push(c);continue}}return e.entities=[...n.values()],e}function ue(t,e){let n=t.get(e);return n||(n={id:e,label:e,attributes:[]},t.set(e,n)),n}function mr(t){let e=t.match(/^(\S+)\s+(\S+)(?:\s+(.+))?$/);if(!e)return null;let n=e[1],s=e[2],i=e[3]?.trim()??"",o=[],r,c=i.match(/"([^"]*)"/);c&&(r=lt(c[1]));let a=i.replace(/"[^"]*"/,"").trim();for(let A of a.split(/\s+/)){let l=A.toUpperCase();(l==="PK"||l==="FK"||l==="UK")&&o.push(l)}return{type:n,name:s,keys:o,comment:r}}function pr(t){let e=t.match(/^(\S+)\s+([|o}{]+(?:--|\.\.)[|o}{]+)\s+(\S+)\s*:\s*(.+)$/);if(!e)return null;let n=e[1],s=e[2],i=e[3],o=e[4].trim().replace(/^["']|["']$/g,""),r=lt(o),c=s.match(/^([|o}{]+)(--|\.\.?)([|o}{]+)$/);if(!c)return null;let a=c[1],A=c[2],l=c[3],u=Re(a),d=Re(l),h=A==="--";return!u||!d?null:{entity1:n,entity2:i,cardinality1:u,cardinality2:d,label:r,identifying:h}}function Re(t){let e=t.split("").sort().join("");return e==="||"?"one":e==="o|"?"zero-one":e==="|}"||e==="{|"?"many":e==="{o"||e==="o{"?"zero-many":null}function yr(t){return/^[┌┐└┘├┤┬┴┼│─╭╮╰╯+\-|]$/.test(t)?"border":"text"}function br(t){return`${t.keys.length>0?t.keys.join(",")+" ":"   "}${t.type} ${t.name}`}function wr(t){let e=ct(t.label),n=t.attributes.map(br);return n.length===0?[e]:[e,n]}function zt(t,e,n=!1){if(e)switch(t){case"one":return"|";case"zero-one":return"o|";case"many":return n?"<":">";case"zero-many":return n?"o<":">o"}else switch(t){case"one":return"\u2502";case"zero-one":return"\u25CB\u2502";case"many":return n?"\u255F":"\u2562";case"zero-many":return n?"\u25CB\u255F":"\u2562\u25CB"}}function Cr(t){let e=new Set,n=[],s=new Map;for(let o of t.entities)s.set(o.id,new Set);for(let o of t.relationships)s.get(o.entity1)?.add(o.entity2),s.get(o.entity2)?.add(o.entity1);function i(o,r){let c=[o];for(;c.length>0;){let a=c.pop();if(!e.has(a)){e.add(a),r.add(a);for(let A of s.get(a)??[])e.has(A)||c.push(A)}}}for(let o of t.entities)if(!e.has(o.id)){let r=new Set;i(o.id,r),r.size>0&&n.push(r)}return n}function Ir(t,e,n,s){let i=t.split(`
9`).map(W=>W.trim()).filter(W=>W.length>0&&!W.startsWith("%%")),o=xr(i);if(o.entities.length===0)return"";let r=e.useAscii,c=6,a=4,A=6,l=new Map,u=new Map,d=new Map,h=new Map;for(let W of o.entities){h.set(W.id,W);let z=wr(W);l.set(W.id,z);let y=0;for(let E of z)for(let _ of E)y=Math.max(y,_.length);let O=y+4,V=0;for(let E of z)V+=Math.max(E.length,1);let q=V+(z.length-1)+2;u.set(W.id,O),d.set(W.id,q)}let g=Cr(o),f=new Map,p=0;for(let W of g){let z=o.entities.filter(_=>W.has(_.id)),y=Math.max(2,Math.ceil(Math.sqrt(z.length))),O=0,V=0,q=0,E=p;for(let _ of z){let st=u.get(_.id),it=d.get(_.id);q>=y&&(p+=V+a,O=0,V=0,q=0),f.set(_.id,{entity:_,sections:l.get(_.id),x:O,y:p,width:st,height:it}),O+=st+c,V=Math.max(V,it),q++}p+=V+A}let I=0,H=0;for(let W of f.values())I=Math.max(I,W.x+W.width),H=Math.max(H,W.y+W.height);I+=4,H+=2;let B=dt(I-1,H-1),R=Ut(I-1,H-1);function D(W,z,y,O){W>=0&&W<B.length&&z>=0&&z<(B[0]?.length??0)&&(B[W][z]=y,Pt(R,W,z,O))}for(let W of f.values()){let z=qe(W.sections,r);for(let y=0;y<z.length;y++)for(let O=0;O<z[0].length;O++){let V=z[y][O];if(V!==" "){let q=W.x+y,E=W.y+O;q<I&&E<H&&D(q,E,V,yr(V))}}}let j=r?"-":"\u2500",ht=r?"|":"\u2502",L=r?".":"\u254C",nt=r?":":"\u250A";for(let W of o.relationships){let z=f.get(W.entity1),y=f.get(W.entity2);if(!z||!y)continue;let O=W.identifying?j:L,V=W.identifying?ht:nt,q=z.x+Math.floor(z.width/2),E=z.y+Math.floor(z.height/2),_=y.x+Math.floor(y.width/2),st=y.y+Math.floor(y.height/2);if(Math.abs(E-st)<Math.max(z.height,y.height)){let[w,G]=q<_?[z,y]:[y,z],[F,C]=q<_?[W.cardinality1,W.cardinality2]:[W.cardinality2,W.cardinality1],N=w.x+w.width,tt=G.x-1,m=w.y+Math.floor(w.height/2);for(let v=N;v<=tt;v++)D(v,m,O,"line");let b=zt(F,r,!1);for(let v=0;v<b.length;v++)D(N+v,m,b[v],"arrow");let S=zt(C,r,!0);for(let v=0;v<S.length;v++)D(tt-S.length+1+v,m,S[v],"arrow");if(W.label){let v=ct(W.label),Q=Math.floor((N+tt)/2);for(let k=0;k<v.length;k++){let P=v[k],Y=Math.max(N,Q-Math.floor(P.length/2)),M=m+1+k;Ft(B,Math.max(Y+P.length,1),Math.max(M+1,1)),Lt(R,Math.max(Y+P.length,1),Math.max(M+1,1));for(let Z=0;Z<P.length;Z++){let $=Y+Z;$>=N&&$<=tt&&D($,M,P[Z],"text")}}}}else{let[w,G]=E<st?[z,y]:[y,z],[F,C]=E<st?[W.cardinality1,W.cardinality2]:[W.cardinality2,W.cardinality1],N=w.y+w.height,tt=G.y-1,m=w.x+Math.floor(w.width/2);for(let k=N;k<=tt;k++)D(m,k,V,"line");let b=G.x+Math.floor(G.width/2);if(m!==b){let k=Math.floor((N+tt)/2),P=Math.min(m,b),Y=Math.max(m,b);for(let M=P;M<=Y;M++)D(M,k,O,"line");for(let M=k+1;M<=tt;M++)D(b,M,V,"line")}let S=zt(F,r,!1);for(let k=0;k<S.length;k++)D(m-Math.floor(S.length/2)+k,N,S[k],"arrow");let v=m!==b?b:m,Q=zt(C,r,!0);for(let k=0;k<Q.length;k++)D(v-Math.floor(Q.length/2)+k,tt,Q[k],"arrow");if(W.label){let k=ct(W.label),Y=Math.floor((N+tt)/2)-Math.floor((k.length-1)/2);for(let M=0;M<k.length;M++){let Z=k[M],$=m+2,K=Y+M;if(K>=0)for(let rt=0;rt<Z.length;rt++){let et=$+rt;et>=0&&(Ft(B,et+1,K+1),Lt(R,et+1,K+1),D(et,K,Z[rt],"text"))}}}}}return ne(B,{roleCanvas:R,colorMode:n,theme:s})}function Br(t){let e={},n={},s=[],i,o=!1;for(let r of t){if(/^xychart(-beta)?\b/i.test(r)){/\bhorizontal\b/i.test(r)&&(o=!0);continue}let c=r.match(/^title\s+"([^"]+)"/);if(c){i=c[1];continue}let a=r.match(/^x-axis\s+(?:"([^"]*)"\s*)?\[([^\]]+)\]/);if(a){a[1]&&(e.title=a[1]),e.categories=a[2].split(",").map(g=>g.trim());continue}let A=r.match(/^x-axis\s+(?:"([^"]*)"\s+)?(-?\d+(?:\.\d+)?)\s*-->\s*(-?\d+(?:\.\d+)?)/);if(A){A[1]&&(e.title=A[1]),e.range={min:parseFloat(A[2]),max:parseFloat(A[3])};continue}let l=r.match(/^y-axis\s+(?:"([^"]*)"\s+)?(-?\d+(?:\.\d+)?)\s*-->\s*(-?\d+(?:\.\d+)?)/);if(l){l[1]&&(n.title=l[1]),n.range={min:parseFloat(l[2]),max:parseFloat(l[3])};continue}let u=r.match(/^y-axis\s+"([^"]+)"\s*$/);if(u){n.title=u[1];continue}let d=r.match(/^bar\s+\[([^\]]+)\]/);if(d){s.push({type:"bar",data:Ke(d[1])});continue}let h=r.match(/^line\s+\[([^\]]+)\]/);if(h){s.push({type:"line",data:Ke(h[1])});continue}}if(!n.range&&s.length>0){let r=s.flatMap(l=>l.data),c=Math.min(...r),a=Math.max(...r),A=a-c||1;c=c-A*.1,a=a+A*.1,c>0&&c<A*.5&&(c=0),n.range={min:c,max:a}}return n.range||(n.range={min:0,max:100}),{title:i,horizontal:o,xAxis:e,yAxis:n,series:s}}function Ke(t){return t.split(",").map(e=>parseFloat(e.trim()))}var tn="#3b82f6";function en(t){let e=t.replace("#",""),n=parseInt(e.substring(0,2),16)/255,s=parseInt(e.substring(2,4),16)/255,i=parseInt(e.substring(4,6),16)/255,o=Math.max(n,s,i),r=Math.min(n,s,i),c=(o+r)/2;if(o===r)return[0,0,c*100];let a=o-r,A=c>.5?a/(2-o-r):a/(o+r),l;return o===n?l=((s-i)/a+(s<i?6:0))/6:o===s?l=((i-n)/a+2)/6:l=((n-s)/a+4)/6,[l*360,A*100,c*100]}function Mr(t,e,n){let s=e/100,i=n/100,o=(1-Math.abs(2*i-1))*s,r=o*(1-Math.abs(t/60%2-1)),c=i-o/2,a,A,l;t<60?(a=o,A=r,l=0):t<120?(a=r,A=o,l=0):t<180?(a=0,A=o,l=r):t<240?(a=0,A=r,l=o):t<300?(a=r,A=0,l=o):(a=o,A=0,l=r);let u=d=>Math.round((d+c)*255).toString(16).padStart(2,"0");return`#${u(a)}${u(A)}${u(l)}`}function Je(t){return/^#[0-9a-fA-F]{6}$/.test(t)}function kr(t){return en(t)[2]<50}function $r(t,e,n){if(t===0)return e;let s=Je(e)?e:tn,i=n&&Je(n)?n:void 0,[o,r]=en(s),c=Math.max(55,Math.min(85,r)),a=Math.ceil(t/2),A=t%2===1,l=i&&kr(i)?!A:A,u=l?Math.max(25,48-a*13):Math.min(78,55+a*11),d=(l?-8:12)*a,h=((o+d)%360+360)%360;return Mr(h,c,u)}var nn=60,on=20,Dr={hLine:"\u2500",vLine:"\u2502",origin:"\u253C",yTick:"\u2524",xTick:"\u252C",bar:"\u2588",grid:"\xB7",cornerTL:"\u256D",cornerTR:"\u256E",cornerBL:"\u2570",cornerBR:"\u256F"},vr={hLine:"-",vLine:"|",origin:"+",yTick:"+",xTick:"+",bar:"#",grid:".",cornerTL:"+",cornerTR:"+",cornerBL:"+",cornerBR:"+"};function rn(t,e){let n=e.accent??tn;return t<=1?[n]:Array.from({length:t},(s,i)=>$r(i,n,e.bg))}function Sr(t,e){switch(t){case"text":return e.fg;case"border":return e.border;case"line":return e.line;case"arrow":return e.arrow;case"corner":return e.corner??e.line;case"junction":return e.junction??e.border;default:return e.fg}}function Er(t,e,n,s){let i=t.split(`
10`).map(c=>c.trim()).filter(c=>c.length>0&&!c.startsWith("%%")),o=Br(i),r=e.useAscii?vr:Dr;return o.horizontal?Yr(o,r,n,s):Wr(o,r,n,s)}function Wr(t,e,n,s){let i=hn(t);if(i===0)return"";let o=t.yAxis.range,r=gn(o.min,o.max),c=r.map(E=>te(E)),a=Math.max(...c.map(E=>E.length))+1,A=Math.max(nn,i*6),l=on,u=Math.floor(A/i),d=un(t,i),h=!!t.title,g=!!t.xAxis.title,f=t.series.length>1,p=h?0:-1,I=(h?2:0)+(f?1:0),H=a+1,B=H+u*i+2,R=I+l,D=R+1,j=g?D+1:-1,ht=D+1+(g?1:0)+0,L=cn(B,ht),nt=an(B,ht),W=An(B,ht),z=rn(t.series.length,s),y=E=>{let _=(E-o.min)/(o.max-o.min||1);return Math.round(_*(l-1))},O=E=>H+Math.floor(u*(E+.5));h&&p>=0&&$t(L,nt,p,Math.floor(B/2-t.title.length/2),t.title,"text"),f&&sn(L,nt,W,t,h?1:0,B,e,z);for(let E=0;E<l;E++){let _=I+(l-1-E);gt(L,nt,_,H-1,e.vLine,"border")}gt(L,nt,R,H-1,e.origin,"border");for(let E of r){let _=y(E);if(_<0||_>=l)continue;let st=I+(l-1-_),it=te(E);gt(L,nt,st,H-1,_===0?e.origin:e.yTick,"border");let w=a-it.length;$t(L,nt,st,Math.max(0,w),it,"text")}for(let E=H;E<H+u*i;E++)gt(L,nt,R,E,e.hLine,"border");for(let E=0;E<i;E++){let _=O(E);gt(L,nt,R,_,e.xTick,"border");let st=d[E],it=_-Math.floor(st.length/2);$t(L,nt,D,Math.max(0,it),st,"text")}if(g&&j>=0){let E=t.xAxis.title;$t(L,nt,j,Math.floor(B/2-E.length/2),E,"text")}for(let E of r){let _=y(E);if(_<0||_>=l)continue;let st=I+(l-1-_);for(let it=H;it<H+u*i;it++)ln(L,st,it)===" "&&gt(L,nt,st,it,e.grid,"line")}let V=[];for(let E=0;E<t.series.length;E++)t.series[E].type==="bar"&&V.push({data:t.series[E].data,globalIdx:E});if(V.length>0){let E=V.length,_=Math.max(1,u-2),st=Math.max(1,Math.min(Math.floor(_/E),8)),it=st*E+(E-1),w=y(Math.max(0,o.min));for(let G=0;G<V.length;G++){let F=V[G],C=z[F.globalIdx];for(let N=0;N<F.data.length;N++){let b=O(N)-Math.floor(it/2)+G*(st+1),S=y(F.data[N]),v=Math.min(w,S),Q=Math.max(w,S);for(let k=v;k<=Q;k++){let P=I+(l-1-k);for(let Y=b;Y<b+st;Y++)gt(L,nt,P,Y,e.bar,"arrow",W,C)}}}}let q=[];for(let E=0;E<t.series.length;E++)t.series[E].type==="line"&&q.push({data:t.series[E].data,globalIdx:E});for(let E of q){if(E.data.length===0)continue;let _=z[E.globalIdx];Fr(L,nt,E.data,O,y,I,l,H,u*i,e,W,_)}return dn(L,nt,W,n,s)}function Yr(t,e,n,s){let i=hn(t);if(i===0)return"";let o=t.yAxis.range,r=gn(o.min,o.max),c=un(t,i),a=Math.max(...c.map(y=>y.length))+1,A=Math.max(nn,40),l=Math.max(2,Math.floor(on/i)),u=l*i,d=!!t.title,h=!!t.yAxis.title,g=t.series.length>1,f=(d?2:0)+(g?1:0),p=a+1,I=p+A+2,H=f+u+2+(h?1:0),B=f+u,R=cn(I,H),D=an(I,H),j=An(I,H),ht=rn(t.series.length,s),L=y=>{let O=(y-o.min)/(o.max-o.min||1);return p+Math.round(O*(A-1))},nt=y=>f+Math.floor(l*(y+.5));d&&$t(R,D,0,Math.floor(I/2-t.title.length/2),t.title,"text"),g&&sn(R,D,j,t,d?1:0,I,e,ht);for(let y=f;y<f+u;y++)gt(R,D,y,p-1,e.vLine,"border");gt(R,D,B,p-1,e.origin,"border");for(let y=0;y<i;y++){let O=nt(y),V=c[y],q=a-V.length;$t(R,D,O,Math.max(0,q),V,"text")}for(let y=p;y<p+A;y++)gt(R,D,B,y,e.hLine,"border");for(let y of r){let O=L(y);if(O<p||O>=p+A)continue;gt(R,D,B,O,e.xTick,"border");let V=te(y);$t(R,D,B+1,O-Math.floor(V.length/2),V,"text")}if(h){let y=t.yAxis.title;$t(R,D,H-1,Math.floor(I/2-y.length/2),y,"text")}for(let y of r){let O=L(y);if(!(O<p||O>=p+A))for(let V=f;V<f+u;V++)ln(R,V,O)===" "&&gt(R,D,V,O,e.grid,"line")}let W=[];for(let y=0;y<t.series.length;y++)t.series[y].type==="bar"&&W.push({data:t.series[y].data,globalIdx:y});if(W.length>0){let y=W.length,O=1,V=O*y+(y-1),q=L(Math.max(0,o.min));for(let E=0;E<W.length;E++){let _=W[E],st=ht[_.globalIdx];for(let it=0;it<_.data.length;it++){let F=nt(it)-Math.floor(V/2)+E*(O+1),C=L(_.data[it]),N=Math.min(q,C),tt=Math.max(q,C);for(let m=F;m<F+O;m++)for(let b=N;b<=tt;b++)gt(R,D,m,b,e.bar,"arrow",j,st)}}}let z=[];for(let y=0;y<t.series.length;y++)t.series[y].type==="line"&&z.push({data:t.series[y].data,globalIdx:y});for(let y of z){if(y.data.length===0)continue;let O=ht[y.globalIdx];Qr(R,D,y.data,nt,L,f,u,p,A,e,j,O)}return dn(R,D,j,n,s)}function Fr(t,e,n,s,i,o,r,c,a,A,l,u){if(n.length===0)return;let d=n.map((g,f)=>({col:s(f),row:i(g)})),h=(g,f,p)=>{let I=o+(r-1-f);I>=0&&g>=c&&g<c+a&&gt(t,e,I,g,p,"arrow",l,u)};if(d.length===1){h(d[0].col,d[0].row,A.hLine);return}for(let g=0;g<d.length-1;g++){let f=d[g],p=d[g+1];if(f.row===p.row){for(let D=f.col;D<=p.col;D++)h(D,f.row,A.hLine);continue}let I=Math.round((f.col+p.col)/2),H=p.row>f.row;for(let D=f.col;D<I;D++)h(D,f.row,A.hLine);H?h(I,f.row,A.cornerBR):h(I,f.row,A.cornerTR);let B=Math.min(f.row,p.row),R=Math.max(f.row,p.row);for(let D=B+1;D<R;D++)h(I,D,A.vLine);H?h(I,p.row,A.cornerTL):h(I,p.row,A.cornerBL);for(let D=I+1;D<=p.col;D++)h(D,p.row,A.hLine);if(g===0){let D=Math.max(c,f.col-Math.floor((p.col-f.col)/4));for(let j=D;j<f.col;j++)h(j,f.row,A.hLine)}if(g===d.length-2){let D=Math.min(c+a-1,p.col+Math.floor((p.col-f.col)/4));for(let j=p.col+1;j<=D;j++)h(j,p.row,A.hLine)}}}function Qr(t,e,n,s,i,o,r,c,a,A,l,u){if(n.length===0)return;let d=n.map((g,f)=>({row:s(f),col:i(g)})),h=(g,f,p)=>{g>=o&&g<o+r&&f>=c&&f<c+a&&gt(t,e,g,f,p,"arrow",l,u)};if(d.length===1){h(d[0].row,d[0].col,A.vLine);return}for(let g=0;g<d.length-1;g++){let f=d[g],p=d[g+1];if(f.col===p.col){for(let D=f.row;D<=p.row;D++)h(D,f.col,A.vLine);continue}let I=Math.round((f.row+p.row)/2),H=p.col>f.col;for(let D=f.row;D<I;D++)h(D,f.col,A.vLine);H?h(I,f.col,A.cornerBL):h(I,f.col,A.cornerBR);let B=Math.min(f.col,p.col),R=Math.max(f.col,p.col);for(let D=B+1;D<R;D++)h(I,D,A.hLine);H?h(I,p.col,A.cornerTR):h(I,p.col,A.cornerTL);for(let D=I+1;D<=p.row;D++)h(D,p.col,A.vLine)}}function sn(t,e,n,s,i,o,r,c){let a=[],A=0,l=0;for(let g=0;g<s.series.length;g++)s.series[g].type==="bar"?(a.push({symbol:r.bar,label:`Bar ${A+1}`,globalIdx:g}),A++):(a.push({symbol:r.hLine,label:`Line ${l+1}`,globalIdx:g}),l++);let u=0;for(let g=0;g<a.length;g++)g>0&&(u+=2),u+=2+a[g].label.length;let h=Math.max(0,Math.floor(o/2-u/2));for(let g=0;g<a.length;g++){g>0&&(h+=2);let f=a[g];gt(t,e,i,h,f.symbol,"arrow",n,c[f.globalIdx]),h+=1,h+=1,$t(t,e,i,h,f.label,"text"),h+=f.label.length}}function cn(t,e){return Array.from({length:t},()=>Array.from({length:e},()=>" "))}function an(t,e){return Array.from({length:t},()=>Array.from({length:e}).fill(null))}function An(t,e){return Array.from({length:t},()=>Array.from({length:e}).fill(null))}function gt(t,e,n,s,i,o,r,c){s>=0&&s<t.length&&n>=0&&n<t[0].length&&(t[s][n]=i,e[s][n]=o,r&&c&&(r[s][n]=c))}function ln(t,e,n){return n>=0&&n<t.length&&e>=0&&e<t[0].length?t[n][e]:" "}function $t(t,e,n,s,i,o){for(let r=0;r<i.length;r++)gt(t,e,n,s+r,i[r],o)}function dn(t,e,n,s,i){if(t.length===0)return"";let o=t[0].length,r=t.length,c=[];for(let a=0;a<o;a++){let A=[],l=[],u=[];for(let h=0;h<r;h++)A.push(t[h][a]),l.push(e[h][a]),u.push(n[h][a]);let d=A.length-1;for(;d>=0&&A[d]===" ";)d--;d<0?c.push(""):c.push(Hr(A.slice(0,d+1),l.slice(0,d+1),u.slice(0,d+1),i,s))}for(;c.length>0&&c[c.length-1]==="";)c.pop();return c.join(`
11`)}function Hr(t,e,n,s,i){if(i==="none")return t.join("");let o="",r=null,c="";for(let a=0;a<t.length;a++){let A=t[a];if(A===" "){c.length>0&&(o+=r?Ae(c,r,i):c,c="",r=null),o+=" ";continue}let l=n[a]??null,u=e[a]??null,d=l??(u?Sr(u,s):null);d===r?c+=A:(c.length>0&&(o+=r?Ae(c,r,i):c),c=A,r=d)}return c.length>0&&(o+=r?Ae(c,r,i):c),o}function hn(t){if(t.xAxis.categories)return t.xAxis.categories.length;for(let e of t.series)if(e.data.length>0)return e.data.length;return 0}function un(t,e){if(t.xAxis.categories)return t.xAxis.categories;if(t.xAxis.range){let{min:n,max:s}=t.xAxis.range,i=e>1?(s-n)/(e-1):0;return Array.from({length:e},(o,r)=>te(n+i*r))}return Array.from({length:e},(n,s)=>String(s+1))}function gn(t,e){let n=e-t;if(n<=0)return[t];let s=n/6,i=Math.pow(10,Math.floor(Math.log10(s))),o=s/i,r;o<=1.5?r=i:o<=3?r=2*i:o<=7?r=5*i:r=10*i;let c=Math.ceil(t/r)*r,a=[];for(let A=c;A<=e+r*.001;A+=r)a.push(Math.round(A*1e10)/1e10);return a}function te(t){return Number.isInteger(t)?String(t):t.toFixed(Math.abs(t)<10?1:0)}function Lr(t){let e=t.trim().split(`
12`)[0]?.trim().toLowerCase()??"";return/^xychart(-beta)?\b/.test(e)?"xychart":/^sequencediagram\s*$/.test(e)?"sequence":/^classdiagram\s*$/.test(e)?"class":/^erdiagram\s*$/.test(e)?"er":"flowchart"}function Gr(t,e={}){let n={useAscii:e.useAscii??!1,paddingX:e.paddingX??5,paddingY:e.paddingY??5,boxBorderPadding:e.boxBorderPadding??1,graphDirection:"TD"},s=e.colorMode==="auto"||e.colorMode===void 0?Gn():e.colorMode,i={...Ne,...e.theme};switch(Lr(t)){case"xychart":return Er(t,n,s,i);case"sequence":return ar(t,n,s,i);case"class":return fr(t,n,s,i);case"er":return Ir(t,n,s,i);case"flowchart":default:{let r=Mn(t);r.direction==="LR"||r.direction==="RL"?n.graphDirection="LR":n.graphDirection="TD";let c=zn(r,n);return sr(c),Vo(c),r.direction==="BT"&&(Un(c.canvas),Pn(c.roleCanvas)),ne(c.canvas,{roleCanvas:c.roleCanvas,colorMode:s,theme:i})}}}var Rr="'JetBrains Mono'",Ms=`${Rr}, 'SF Mono', 'Fira Code', ui-monospace, monospace`;export{Gr as renderMermaidASCII};
13
