1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, SessionContextUsage, SessionRateLimit } from 'claude-code'
3
4import type { CacheReading, LimitReading, UsageReading } from '../types'
5import {
6  HOUR,
7  LIMIT_LABEL,
8  LIMIT_NAME,
9  MINUTE,
10  PACE_COLOR,
11  WARN_BEFORE_MS,
12  WINDOW_MS,
13  bar,
14  cacheColor,
15  cacheLeftMs,
16  contextColor,
17  currentLimit,
18  duration,
19  expectedPercent,
20  hitRatio,
21  pace,
22  parseResetsAt,
23  readingFromTranscript,
24} from './model'
25
26const TICK_MS = 15_000
27const BAR_WIDTH = 24
28const TAIL_BYTES = 262_144
29
30const cache = atom({ plugin: 'dashband', key: 'cache' } as const, null)
31const usage = atom({ plugin: 'dashband', key: 'usage' } as const, null)
32const working = atom({ plugin: 'dashband', key: 'working' } as const, false)
33const now = atom({ plugin: 'dashband', key: 'now' } as const, 0)
34
35// Optional trace for troubleshooting: on while this directory exists
36// (`mkdir /tmp/dashband-trace`). Each session writes its own log there. Checked on every
37// entry, because writing a log would otherwise recreate the directory after it was removed.
38const TRACE_DIR = '/tmp/dashband-trace'
39const TRACE_MAX_LINES = 500
40const traceLines: string[] = []
41
42const trace = async ($: EngineInterface, message: string) => {
43  if (!(await $.fs.exists(TRACE_DIR))) return
44
45  traceLines.push(`${new Date(await $.clock.now()).toISOString()} ${message}`)
46  if (traceLines.length > TRACE_MAX_LINES) traceLines.shift()
47  await $.fs.write(`${TRACE_DIR}/${await $.session.id()}.log`, traceLines.join('\n') + '\n')
48}
49
50let transcriptPath: string | null = null
51// The transcript may not hold the last response yet when its turn completes: look again on the
52// next ticks until the entry shows up.
53const TTL_LOOKUPS = 10
54// The entry usually lands within seconds: look again soon before falling back to the ticks.
55const TTL_QUICK_LOOKUPS_MS = [1_500, 4_000]
56let ttlPending: { after: number; lookups: number } | null = null
57// Time of the newest transcript entry already read, to tell a new one apart.
58let transcriptSeenAt = 0
59let statusShown: string | undefined
60const warned = new Set<number>()
61// Turns that started and have not completed. turn.start does not say whether a turn is the main
62// conversation's, so working means any turn is running; every start is matched by its completion.
63const activeTurns = new Set<string>()
64const renders: Record<string, number> = {}
65
66const toUsage = (context: SessionContextUsage, limits: readonly SessionRateLimit[]): UsageReading => ({
67  contextPercent: context.percent ?? null,
68  contextTokens: context.tokens ?? null,
69  limits: limits.map(l => ({
70    kind: l.kind,
71    used: l.percentUsed,
72    resetsAt: parseResetsAt(l.resetsAt),
73  })),
74})
75
76// Finds the transcript by session id when no classic SessionStart told us its path,
77// as after a hot reload.
78const findTranscript = async ($: EngineInterface): Promise<string | null> => {
79  const script = 'ls "${CLAUDE_CONFIG_DIR:-$HOME/.claude}"/projects/*/"$1".jsonl 2>/dev/null | head -1'
80  const result = await $.process.run(['sh', '-c', script, 'sh', await $.session.id()])
81  return result.stdout.trim() || null
82}
83
84// Reads the end of the transcript; the whole file can exceed what $.fs.read takes.
85const transcriptReading = async ($: EngineInterface): Promise<CacheReading | null> => {
86  if (!transcriptPath) {
87    try {
88      transcriptPath = await findTranscript($)
89    } catch {
90      return null
91    }
92  }
93  if (!transcriptPath) return null
94  try {
95    const result = await $.process.run(['tail', '-c', String(TAIL_BYTES), transcriptPath])
96    return result.exitCode === 0 ? readingFromTranscript(result.stdout) : null
97  } catch {
98    return null
99  }
100}
101
102// Plan limits are per account, and a session only learns them with its first response.
103// Every session shares its latest reading through the store and fills in from it.
104const LIMITS_KEY = 'limits'
105type StoredLimits = { at: number; limits: LimitReading[] }
106let limitsAt = 0
107
108const withSharedLimits = async ($: EngineInterface, reading: UsageReading): Promise<UsageReading> => {
109  const t = await $.clock.now()
110  const isComplete = reading.limits.length > 0 && reading.limits.every(l => l.resetsAt !== null)
111  if (isComplete) {
112    limitsAt = t
113    await $.store.set(LIMITS_KEY, { at: t, limits: reading.limits })
114    return reading
115  }
116  // No limits yet, or some without a readable reset time: a stored reading is the better one.
117  const stored = (await $.store.get(LIMITS_KEY)) as StoredLimits | undefined
118  const valid = stored?.limits.filter(l => l.resetsAt !== null && l.resetsAt > t) ?? []
119  return valid.length > 0 ? { ...reading, limits: valid } : reading
120}
121
122// Takes a fresher reading another session stored.
123const pullSharedLimits = async ($: EngineInterface) => {
124  const stored = (await $.store.get(LIMITS_KEY)) as StoredLimits | undefined
125  if (!stored || stored.at <= limitsAt) return
126  limitsAt = stored.at
127  await update($, usage, prev => ({
128    contextPercent: prev?.contextPercent ?? null,
129    contextTokens: prev?.contextTokens ?? null,
130    limits: stored.limits,
131  }))
132}
133
134// Reads the cache lifetime of the last response, once its entry is in the transcript.
135const lookUpTtl = async ($: EngineInterface) => {
136  if (ttlPending === null) return
137  ttlPending.lookups++
138  const reading = await transcriptReading($)
139  const isCurrent = reading !== null && reading.at > ttlPending.after
140  if (reading && isCurrent) {
141    transcriptSeenAt = reading.at
142    await update($, cache, prev => (prev ? { ...prev, ttlMs: reading.ttlMs } : reading))
143  }
144  await trace($, `ttl lookup #${ttlPending.lookups} found=${isCurrent} ttl=${reading ? reading.ttlMs / MINUTE : '?'}m`)
145  if (isCurrent || ttlPending.lookups >= TTL_LOOKUPS) ttlPending = null
146}
147
148const refreshUsage = async ($: EngineInterface) => {
149  const u = await $.session.usage()
150  const reading = await withSharedLimits($, toUsage(u.context, u.rateLimits))
151  await update($, usage, () => reading)
152}
153
154const warnBeforeExpiry = async ($: EngineInterface, t: number) => {
155  const reading = await read($, cache)
156  if (reading === null || (await read($, working))) return
157
158  const left = cacheLeftMs(reading, t)
159  if (left > 0 && left <= WARN_BEFORE_MS && !warned.has(reading.at)) {
160    if (warned.size > 100) warned.clear()
161    warned.add(reading.at)
162    const tokens = (await read($, usage))?.contextTokens
163    const rewrite = tokens ? `; the next request rewrites about ${Math.round(tokens / 1000)}k tokens` : ''
164    $.ui.toast(`Prompt cache expires in ${Math.ceil(left / MINUTE)} min${rewrite}`, { timeoutMs: 60_000 })
165    await trace($, `toast left=${Math.round(left / 1000)}s`)
166  }
167}

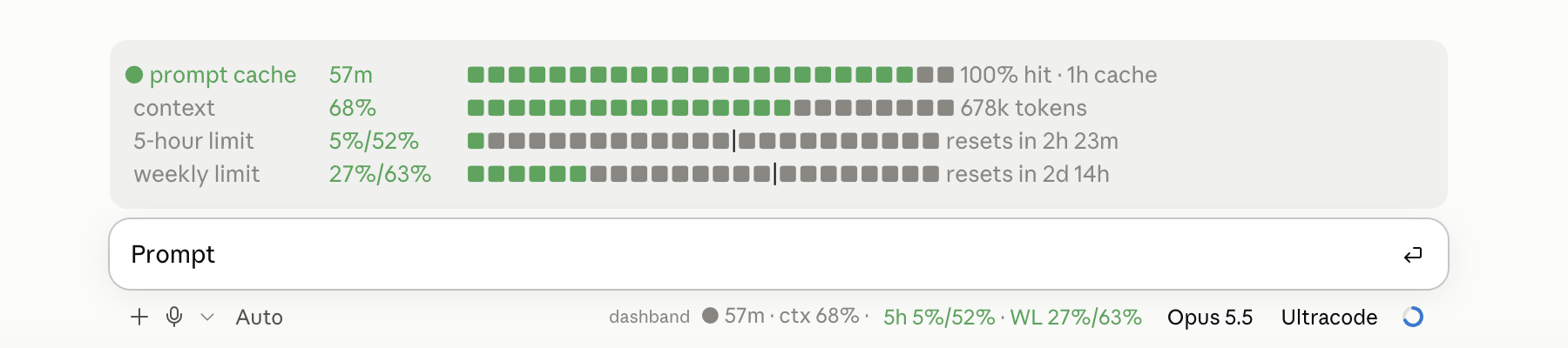

168
169// Status line for the desktop app, which cuts a footer item at about 28 characters: cache and
170// context go here. The terminal shows a status line as a warning and has room in the footer,
171// so there everything goes into the footer item.
172const pushStatus = async ($: EngineInterface) => {
173  if (!(await $.session.surfaces()).includes('desktop')) {
174    if (statusShown !== undefined) {
175      statusShown = undefined
176      $.ui.status(undefined)
177    }
178    return
179  }
180  const t = await $.clock.now()
181  const reading = await read($, cache)
182  const u = await read($, usage)
183  let text: string
184  if (await read($, working)) {
185    text = '● hot'
186  } else if (reading === null) {
187    text = '● …'
188  } else {
189    const left = cacheLeftMs(reading, t)
190    text = `● ${left > 0 ? `${Math.ceil(left / MINUTE)}m` : 'cold'}`
191  }
192  if (u?.contextPercent != null) text += ` · ctx ${u.contextPercent}%`
193  // Separates the status line from the footer item that follows it.
194  if (u?.limits.length) text += ' ·'
195  if (text !== statusShown) {
196    statusShown = text
197    $.ui.status(text)
198  }
199}
200
201const countRender = async ($: EngineInterface, site: string, surface: string) => {
202  renders[site] = (renders[site] ?? 0) + 1
203  const n = renders[site]
204  if (n <= 3 || n % 50 === 0) await trace($, `render ${site} #${n} surface=${surface}`)
205}
206
207export const register: Register = on => {
208  on('classic.SessionStart', async ($, e, next) => {
209    // Set the clock first: the band may draw before session.start runs.
210    const t = await $.clock.now()
211    await update($, now, () => t)
212    transcriptPath = e.transcript_path
213    const reading = await transcriptReading($)
214    transcriptSeenAt = reading?.at ?? 0
215    await update($, cache, () => reading)
216    await trace($, `classic.SessionStart source=${e.source} reading=${reading !== null}`)
217    return next(e)
218  })
219
220  on('session.start', async ($, e, next) => {
221    const t0 = await $.clock.now()
222    await update($, now, () => t0)
223    $.clock.every(TICK_MS, async () => {
224      const t = await $.clock.now()
225      await update($, now, () => t)
226      await lookUpTtl($)
227      await warnBeforeExpiry($, t)
228      await pullSharedLimits($)
229      await pushStatus($)
230    })
231    await refreshUsage($)
232    if ((await read($, cache)) === null) {
233      const reading = await transcriptReading($)
234      transcriptSeenAt = reading?.at ?? 0
235      await update($, cache, prev => prev ?? reading)
236    }
237    await pushStatus($)
238    await trace($, `session.start surfaces=${(await $.session.surfaces()).join(',')} transcript=${transcriptPath !== null}`)
239    return next(e)
240  })
241
242  on('session.attach', async ($, e, next) => {
243    await trace($, `attach surface=${e.surface} client=${e.clientId}`)
244    return next(e)
245  })
246
247  on('session.detach', async ($, e, next) => {
248    await trace($, `detach client=${e.clientId}`)
249    return next(e)
250  })
251
252  on('session.measure', async ($, e, next) => {
253    const reading = await withSharedLimits($, toUsage(e.context, e.rateLimits))
254    await update($, usage, () => reading)
255    await pushStatus($)
256    return next(e)
257  })
258
259  on('turn.start', async ($, e, next) => {
260    activeTurns.add(e.turnId)
261    await update($, working, () => true)
262    await pushStatus($)
263    return next(e)
264  })
265
266  on('turn.step', async function* ($, e, next) {
267    const result = yield* next(e)
268    if (!e.agentId && result.usage) {
269      const u = result.usage
270      const t = await $.clock.now()
271      await update($, cache, prev => ({ at: t, hit: hitRatio(u), ttlMs: prev?.ttlMs ?? HOUR }))
272      await update($, now, () => t)
273    }
274    return result
275  })
276
277  on('turn.complete', async ($, e, next) => {
278    activeTurns.delete(e.turnId)
279    await update($, working, () => activeTurns.size > 0)
280    if (!e.agentId) {
281      ttlPending = { after: transcriptSeenAt, lookups: 0 }
282      await lookUpTtl($)
283      for (const ms of TTL_QUICK_LOOKUPS_MS) {
284        $.clock.after(ms, () => void lookUpTtl($))
285      }
286      await refreshUsage($)
287    }
288    await pushStatus($)
289    return next(e)
290  })

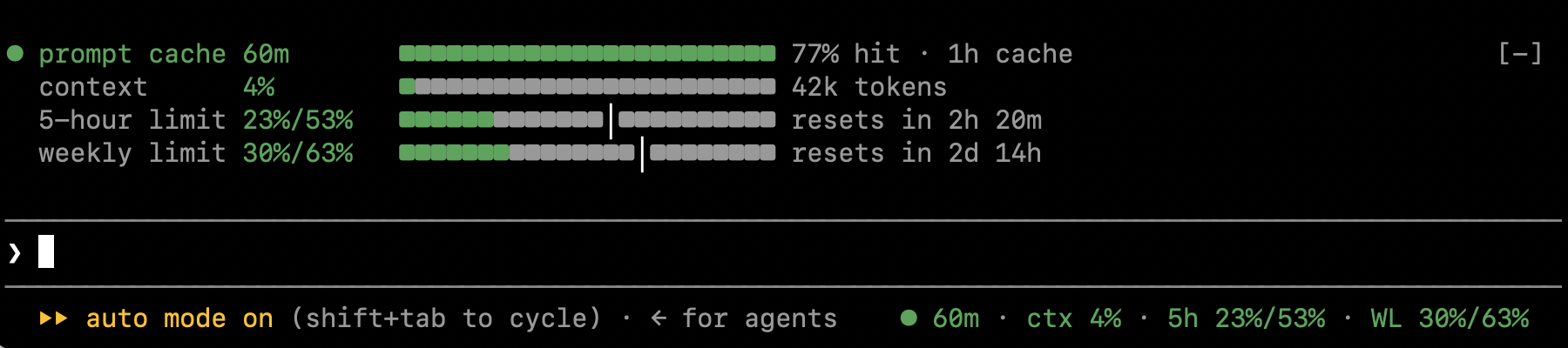

291
292  // Footer item, drawn in every chat: the plan limits, colored by pace; in the terminal also
293  // cache and context, which the desktop app shows in the status line instead.
294  on('ui.render', { component: 'SessionMode' }, async ($, e, next) => {
295    const { Box, Text } = $.ui.resolve(e)
296    await countRender($, 'SessionMode', e.surface)
297    const t = await read($, now)
298    const u = await read($, usage)
299    const modes = e.props.modes.join(' & ')
300
301    const parts = []
302    if (e.surface === 'terminal') {
303      const reading = await read($, cache)
304      if (await read($, working)) {
305        parts.push(<Text color="green">● hot</Text>)
306      } else if (reading === null) {
307        parts.push(<Text dimColor>● …</Text>)
308      } else {
309        const left = cacheLeftMs(reading, t)
310        parts.push(<Text color={cacheColor(left)}>● {left > 0 ? `${Math.ceil(left / MINUTE)}m` : 'cold'}</Text>)
311      }
312      if (u?.contextPercent != null) {
313        parts.push(<Text dimColor> · </Text>)
314        parts.push(<Text color={contextColor(u.contextPercent)}>ctx {u.contextPercent}%</Text>)
315      }
316    }
317    for (const limit of (u?.limits ?? []).map(l => currentLimit(l, t))) {
318      const name = LIMIT_LABEL[limit.kind]
319      const windowMs = WINDOW_MS[limit.kind]
320      if (!name || !windowMs) continue
321      if (parts.length) parts.push(<Text dimColor> · </Text>)
322      if (limit.resetsAt === null) {
323        parts.push(<Text dimColor>{name} {Math.round(limit.used)}%</Text>)
324        continue
325      }
326      const expected = expectedPercent(windowMs, limit.resetsAt, t)
327      parts.push(
328        <Text color={PACE_COLOR[pace(limit.used, expected)]}>
329          {name} {Math.round(limit.used)}%/{Math.round(expected)}%
330        </Text>,
331      )
332    }
333    if (parts.length === 0) return next(e)
334
335    return (
336      <Box>
337        {modes ? <Text dimColor>{modes} · </Text> : null}
338        {parts}
339      </Box>
340    )
341  })
342
343  // Band above the prompt: bars and details. The desktop app draws it in one chat at a time.
344  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
345    if (e.props.hasSurvey) return next(e)
346    const { Box, Text } = $.ui.resolve(e)
347    await countRender($, 'AbovePrompt', e.surface)
348    const t = await read($, now)
349    const reading = await read($, cache)
350    const isWorking = await read($, working)
351    const u = await read($, usage)
352
353    const cells = (used: number, color: string, expected?: number) => {
354      const { filled, marker } = bar(BAR_WIDTH, used, expected)
355      const fill = color === 'gray' ? 'green' : color
356      return Array.from({ length: BAR_WIDTH }, (_, i) =>
357        i === marker ? <Text>│</Text> : i < filled ? <Text color={fill}>■</Text> : <Text dimColor>■</Text>,
358      )
359    }
360    // Fixed columns: the desktop app draws proportional text, so padding with spaces does not align.
361    const label = (text: string, color?: string) => (
362      <Box width={15}>{color ? <Text color={color}>{text}</Text> : <Text dimColor>{text}</Text>}</Box>
363    )
364    const value = (text: string, color: string) => (
365      <Box width={10}>
366        <Text color={color}>{text}</Text>
367      </Box>
368    )
369
370    const rows = []
371    if (reading === null) {
372      rows.push(<Text dimColor>● prompt cache: waiting for the next response</Text>)
373    } else {
374      const left = isWorking ? reading.ttlMs : cacheLeftMs(reading, t)
375      const color = isWorking ? 'green' : cacheColor(left)
376      const status = isWorking ? 'hot' : left > 0 ? `${Math.ceil(left / MINUTE)}m` : 'cold'
377      rows.push(
378        <Box>
379          {label('● prompt cache', color)}
380          {value(status, color)}
381          {cells((left / reading.ttlMs) * 100, color)}
382          <Text dimColor> {Math.round(reading.hit * 100)}% hit · {reading.ttlMs >= HOUR ? '1h' : '5m'} cache</Text>
383        </Box>,
384      )
385    }
386    if (u?.contextPercent != null) {
387      const color = contextColor(u.contextPercent)
388      rows.push(
389        <Box>
390          {label('  context')}
391          {value(`${u.contextPercent}%`, color)}
392          {cells(u.contextPercent, color)}
393          {u.contextTokens ? <Text dimColor> {Math.round(u.contextTokens / 1000)}k tokens</Text> : null}
394        </Box>,
395      )
396    }
397    for (const limit of (u?.limits ?? []).map(l => currentLimit(l, t))) {
398      const name = LIMIT_NAME[limit.kind]
399      const windowMs = WINDOW_MS[limit.kind]
400      if (!name || !windowMs) continue
401      if (limit.resetsAt === null) {
402        rows.push(
403          <Box>
404            {label(`  ${name}`)}
405            {value(`${Math.round(limit.used)}%`, 'gray')}
406            {cells(limit.used, 'gray')}
407            <Text dimColor> starts with the next request</Text>
408          </Box>,
409        )
410        continue
411      }
412      const expected = expectedPercent(windowMs, limit.resetsAt, t)
413      const color = PACE_COLOR[pace(limit.used, expected)]
414      rows.push(
415        <Box>
416          {label(`  ${name}`)}
417          {value(`${Math.round(limit.used)}%/${Math.round(expected)}%`, color)}
418          {cells(limit.used, color, expected)}
419          <Text dimColor> resets in {duration(limit.resetsAt - t)}</Text>
420        </Box>,
421      )
422    }
423
424    return <Box flexDirection="column">{rows}</Box>
425  })
426}
427

1import type { CacheReading, LimitReading } from '../types'
2
3export const MINUTE = 60_000
4export const HOUR = 60 * MINUTE
5
6// Length of each rate-limit window the band knows how to pace.
7export const WINDOW_MS: Record<string, number> = {
8  five_hour: 5 * HOUR,
9  seven_day: 7 * 24 * HOUR,
10}
11
12export const LIMIT_LABEL: Record<string, string> = {
13  five_hour: '5h',
14  seven_day: 'WL',
15}
16
17// Spelled-out names for the band, where there is room.
18export const LIMIT_NAME: Record<string, string> = {
19  five_hour: '5-hour limit',
20  seven_day: 'weekly limit',
21}
22
23// Pace thresholds in percentage points: used minus where usage should be by now.
24export const PACE_UNDER = -10
25export const PACE_OVER = 5
26export const PACE_FAR_OVER = 15
27
28export type Pace = 'under' | 'on' | 'over' | 'far-over'
29
30export const PACE_COLOR: Record<Pace, string> = {
31  under: 'green',
32  on: 'gray',
33  over: '#e8912d',
34  'far-over': 'red',
35}
36
37// A reset time as milliseconds since the epoch, from an ISO timestamp or epoch seconds or
38// milliseconds; null when it cannot be read.
39export const parseResetsAt = (value: unknown): number | null => {
40  if (value === null || value === undefined || value === '') return null
41  const text = String(value).trim()
42  const n = typeof value === 'number' || /^\d+(\.\d+)?$/.test(text) ? Number(text) : Date.parse(text)
43  if (!Number.isFinite(n) || n <= 0) return null
44  return n < 1e12 ? n * 1000 : n
45}
46
47// A limit as it stands now. A reading taken before its window reset is stale: the weekly window
48// restarts at the same time a week later, a five-hour window only with the next request.
49export const currentLimit = (limit: LimitReading, now: number): LimitReading => {
50  if (limit.resetsAt === null || limit.resetsAt > now) return limit
51  const windowMs = WINDOW_MS[limit.kind]
52  if (limit.kind !== 'seven_day' || !windowMs) return { ...limit, used: 0, resetsAt: null }
53  let resetsAt = limit.resetsAt
54  while (resetsAt <= now) resetsAt += windowMs
55  return { ...limit, used: 0, resetsAt }
56}
57
58// Where usage of a window should be by now if it were spread evenly, 0 to 100.
59export const expectedPercent = (windowMs: number, resetsAt: number, now: number): number => {
60  const elapsed = windowMs - (resetsAt - now)
61  return Math.min(100, Math.max(0, (elapsed / windowMs) * 100))
62}
63
64export const pace = (used: number, expected: number): Pace => {
65  const ahead = used - expected
66  if (ahead <= PACE_UNDER) return 'under'
67  if (ahead <= PACE_OVER) return 'on'
68  if (ahead <= PACE_FAR_OVER) return 'over'
69  return 'far-over'
70}
71
72export const cacheLeftMs = (reading: CacheReading, now: number): number =>
73  Math.max(0, reading.ttlMs - (now - reading.at))
74
75// How long before the cache expires the band turns yellow and a notice shows.
76export const WARN_BEFORE_MS = 2 * MINUTE
77
78export const cacheColor = (leftMs: number): string =>
79  leftMs <= 0 ? 'gray' : leftMs <= WARN_BEFORE_MS ? 'yellow' : 'green'
80
81export const contextColor = (percent: number): string =>
82  percent >= 90 ? 'red' : percent >= 75 ? '#e8912d' : 'green'
83
84type Usage = {
85  input_tokens?: number
86  cache_read_input_tokens?: number
87  cache_creation_input_tokens?: number
88  cache_creation?: { ephemeral_5m_input_tokens?: number; ephemeral_1h_input_tokens?: number } | null
89}
90
91export const hitRatio = (u: Usage): number => {
92  const read = u.cache_read_input_tokens ?? 0
93  const total = (u.input_tokens ?? 0) + read + (u.cache_creation_input_tokens ?? 0)
94  return total ? read / total : 0
95}
96
97// The cache lifetime a response wrote with, or null when it wrote nothing.
98export const ttlFromUsage = (u: Usage): number | null => {
99  const c = u.cache_creation
100  if (!c) return null
101  if ((c.ephemeral_1h_input_tokens ?? 0) > 0) return HOUR
102  if ((c.ephemeral_5m_input_tokens ?? 0) > 0) return 5 * MINUTE
103  return null
104}
105
106// The last main-thread response in the tail of a transcript (JSON lines), with the
107// cache lifetime of the latest response that wrote to the cache.
108export const readingFromTranscript = (tail: string): CacheReading | null => {
109  let reading: CacheReading | null = null
110  const lines = tail.split('\n')
111  for (let i = lines.length - 1; i >= 0; i--) {
112    let entry: { type?: string; isSidechain?: boolean; timestamp?: string; message?: { usage?: Usage } }
113    try {
114      entry = JSON.parse(lines[i] ?? '')
115    } catch {
116      continue
117    }
118    const usage = entry.message?.usage
119    if (entry.type !== 'assistant' || entry.isSidechain || !usage) continue
120    if (reading === null) {
121      const at = Date.parse(entry.timestamp ?? '')
122      if (Number.isNaN(at)) continue
123      reading = { at, hit: hitRatio(usage), ttlMs: HOUR }
124    }
125    const ttl = ttlFromUsage(usage)
126    if (ttl !== null) return { ...reading, ttlMs: ttl }
127  }
128  return reading
129}
130
131// A short, locale-free duration: `3d 4h`, `2h 15m`, `9m`.
132export const duration = (ms: number): string => {
133  const minutes = Math.max(0, Math.round(ms / MINUTE))
134  const days = Math.floor(minutes / 1440)
135  const hours = Math.floor((minutes % 1440) / 60)
136  if (days > 0) return `${days}d ${hours}h`
137  if (hours > 0) return `${hours}h ${minutes % 60}m`
138  return `${minutes}m`
139}
140
141// A bar of `width` cells: `filled` cells used, and the cell where usage should be, if any.
142export const bar = (width: number, used: number, expected?: number) => {
143  const filled = Math.round((Math.min(100, Math.max(0, used)) / 100) * width)
144  const marker = expected === undefined ? -1 : Math.min(width - 1, Math.round((expected / 100) * width))
145  return { filled, marker }
146}
147

1export type CacheReading = {
2  // When the last main-thread response arrived, in milliseconds since the epoch.
3  at: number
4  // Share of that response's input tokens read from the prompt cache, 0 to 1.
5  hit: number
6  // Lifetime of the prompt cache the session writes: five minutes or one hour.
7  ttlMs: number
8}
9
10export type LimitReading = {
11  // `five_hour`, `seven_day` or a gateway's `spend_limit`.
12  kind: string
13  // Percent of the window used, 0 to 100.
14  used: number
15  // When the window resets, in milliseconds since the epoch.
16  resetsAt: number | null
17}
18
19export type UsageReading = {
20  contextPercent: number | null
21  contextTokens: number | null
22  limits: LimitReading[]
23}
24
25declare module 'claude-code' {
26  interface PluginState {
27    dashband: {
28      cache: CacheReading | null
29      usage: UsageReading | null
30      working: boolean
31      now: number
32    }
33  }
34}
35
