compact-usage-meter

1import { atom, read, update } from 'claude-code'
2import type {
3  Color,
4  EngineInterface,
5  Register,
6  SessionCost,
7  SessionRateLimit,
8  Timer,
9} from 'claude-code'
10
11import { BAR_GAP, fitParts, room, SEPARATOR } from './format'
12import type { Level, Part } from './format'
13import type { Reading } from '../types'
14
15const reading = atom({ plugin: 'compact-usage-meter', key: 'reading' } as const, null)
16
17const THRESHOLDS = [95, 80]
18
19const EFFORTS = new Set(['low', 'medium', 'high', 'xhigh', 'max'])
20
21// Blank rows between the engine's hint line and the meter.
22const GAP = 1
23
24const NAMES: Record<string, string> = {
25  five_hour: 'Session usage',
26  seven_day: 'Weekly usage',
27}
28
29// Each meter's own hue, from the theme so it suits light and dark.
30const HUES: Record<string, Color> = {
31  context: 'suggestion',
32  session: 'planMode',
33  weekly: 'merged',
34}
35
36// The percentage leaves the meter's hue only to warn.
37const WARNINGS: Record<Level, Color | undefined> = {
38  low: undefined,
39  mid: 'warning',
40  high: 'error',
41}
42
43// What a usage reading carries; the model is read at draw time, the effort from turn.step.
44type Figures = Omit<Reading, 'nowMs' | 'model' | 'effort'>
45
46let tick: Timer | undefined
47const warned = new Set<string>()
48
49function toFigures(usage: {
50  context: { percent?: number }
51  rateLimits: SessionRateLimit[]
52  cost?: SessionCost
53}): Figures {
54  return {
55    contextPercent: usage.context.percent,
56    rateLimits: usage.rateLimits,
57    cost: usage.cost?.usd,
58  }
59}
60
61async function record($: EngineInterface, figures?: Figures) {
62  const latest = figures ?? toFigures(await $.session.usage())
63  const nowMs = await $.clock.now()
64  await update($, reading, previous => ({ ...latest, effort: previous?.effort, nowMs }))
65}
66
67// The effort of the latest main-loop request; kept across readings until the next one.
68async function noteEffort($: EngineInterface, effort: string | number | undefined) {
69  const label = effort === undefined ? undefined : String(effort)
70  await update($, reading, previous =>
71    previous === null ? previous : { ...previous, effort: label },
72  )
73}
74
75// One toast per window per threshold; re-armed once usage drops below it.
76function warn($: EngineInterface, limits: SessionRateLimit[]) {
77  for (const { kind, percentUsed } of limits) {
78    const name = NAMES[kind]
79
80    if (name === undefined) {
81      continue
82    }
83
84    for (const threshold of THRESHOLDS) {
85      if (percentUsed < threshold) {
86        warned.delete(`${kind}@${threshold}`)
87      }
88    }
89
90    const crossed = THRESHOLDS.find(t => percentUsed >= t)
91
92    if (crossed !== undefined && !warned.has(`${kind}@${crossed}`)) {
93      THRESHOLDS.filter(t => t <= crossed).forEach(t => warned.add(`${kind}@${t}`))
94      $.ui.toast(`${name} at ${percentUsed}%`)
95    }
96  }
97}
98
99export const register: Register = on => {
100  on('session.start', async ($, e, next) => {
101    // v0.1 pinned a status line; take it down.
102    $.ui.status(undefined)
103    tick?.cancel()
104    tick = $.clock.every(60_000, () => void record($))
105    await record($)
106
107    return next(e)
108  })
109
110  on('session.measure', async ($, e, next) => {
111    await record($, toFigures(e))
112    warn($, e.rateLimits)
113
114    return next(e)
115  })
116
117  // Effort rides on each model request. Subagents have their own; the stream passes untouched.
118  on('turn.step', async function* ($, e, next) {
119    if (e.agentId === undefined) {
120      await noteEffort($, e.effort)
121    }
122
123    return yield* next(e)
124  })
125
126  // A switch from anywhere (/model, its picker, /config, a fallback) redraws now, not at the
127  // next reading; the drawing reads the model itself.
128  on('classic.PostModelSwitch', async ($, e, next) => {
129    await record($)
130
131    return next(e)
132  })
133
134  // `/effort <level>` shows at once. Its picker passes no level, so that one waits for the
135  // next request.
136  on('command.run', { command: 'effort' }, async ($, e, next) => {
137    const result = await next(e)
138    const level = e.args.trim().toLowerCase()
139
140    if (EFFORTS.has(level)) {
141      await noteEffort($, level)
142    }
143
144    return result
145  })

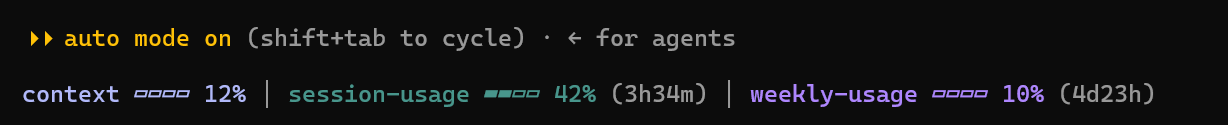

146
147  // A row of its own, under the engine's hint line ("⏵⏵ auto mode on …").
148  on('ui.render', { component: 'PromptHint' }, async ($, e, next) => {
149    const engine = await next(e)
150    const current = await read($, reading)
151    // Read per draw, so a /model switch shows at the next redraw, not the next reading.
152    const model = current === null ? undefined : await $.session.model()
153    const columns = e.viewport?.columns ?? 80
154    const parts = current === null ? undefined : fitParts({ ...current, model }, room(columns))
155
156    if (parts === undefined) {
157      return engine
158    }
159
160    const { Box, Text } = $.ui.resolve(e)
161    const drawPart = (part: Part, index: number) => {
162      const hue = HUES[part.label]
163      const separator = index > 0 ? <Text dimColor>{SEPARATOR}</Text> : null
164
165      // The info part is plain text: no hue, bar or percentage.
166      if (part.pct === undefined) {
167        return (
168          <Text key={`part-${index}`} wrap="truncate">
169            {separator}
170            <Text dimColor>{part.label}</Text>
171          </Text>
172        )
173      }
174
175      return (
176        <Text key={`part-${index}`} wrap="truncate">
177          {separator}
178          <Text color={hue}>{part.label} </Text>
179          {part.bar === undefined ? null : <Text color={hue}>{part.bar}{BAR_GAP} </Text>}
180          <Text color={WARNINGS[part.level] ?? hue} bold={part.level !== 'low'}>{part.pct}</Text>
181          {part.reset === undefined ? null : <Text dimColor> {part.reset}</Text>}
182        </Text>
183      )
184    }
185
186    // The terminal draws the engine's line ahead of anything else in the tree,
187    // whatever its place, so the meter goes under it, GAP blank rows between.
188    return (
189      <Box flexDirection="column">
190        {engine}
191        <Box flexDirection="row" marginTop={GAP}>{parts.map(drawPart)}</Box>
192      </Box>
193    )
194  })
195}
196

1import type { Reading } from '../types'
2
3// The hint line's left gutter, and one cell kept free at the right edge.
4const GUTTER = 2
5const EDGE = 1
6// 'ascii' draws bars as #/- for terminals that render ▰▱ double-width.
7export const GLYPHS: Glyphs = 'blocks'
8// Cells per ▰/▱; set 2 where an East-Asian locale draws ambiguous glyphs wide.
9export const AMBIGUOUS_WIDTH = 1
10
11// 'bar' puts │ between the meters, 'dot' puts · there; both take one cell.
12export const DIVIDER: Divider = 'bar'
13export const DIVIDERS = { bar: '│', dot: '·' } as const
14
15export const SEPARATOR = ` ${DIVIDERS[DIVIDER]} `
16const INFO_SEPARATOR = ' · '
17
18export type Divider = keyof typeof DIVIDERS
19export type Glyphs = 'blocks' | 'ascii'
20export type Level = 'low' | 'mid' | 'high'
21
22// The info part (model, effort, cost) is label-only: no bar, no percentage.
23export type Part = {
24  label: string
25  bar?: string
26  pct?: string
27  reset?: string
28  level: Level
29}
30
31export type FitOptions = {
32  glyphs?: Glyphs
33  ambiguousWidth?: number
34}
35
36type Tier = { barCells: number; hasResets: boolean; hasLimits: boolean; hasInfo: boolean }
37
38// Richest first; the first that fits the room is drawn. Only the richest carries
39// the info part, so it is the first thing to go when the room narrows.
40const TIERS: Tier[] = [
41  { barCells: 8, hasResets: true, hasLimits: true, hasInfo: true },
42  { barCells: 8, hasResets: true, hasLimits: true, hasInfo: false },
43  { barCells: 4, hasResets: true, hasLimits: true, hasInfo: false },
44  { barCells: 0, hasResets: true, hasLimits: true, hasInfo: false },
45  { barCells: 0, hasResets: false, hasLimits: true, hasInfo: false },
46  { barCells: 0, hasResets: false, hasLimits: false, hasInfo: false },
47]
48
49const LIMITS = [
50  { kind: 'five_hour', label: 'session' },
51  { kind: 'seven_day', label: 'weekly' },
52] as const
53
54const BAR = {
55  blocks: { full: '▰', empty: '▱' },
56  ascii: { full: '#', empty: '-' },
57} as const
58
59const AMBIGUOUS = new Set(['▰', '▱'])
60
61export const cellWidth = (text: string, ambiguousWidth = AMBIGUOUS_WIDTH) => {
62  let cells = 0
63
64  for (const char of text) {
65    cells += AMBIGUOUS.has(char) ? ambiguousWidth : 1
66  }
67
68  return cells
69}
70
71const clamp = (n: number, low: number, high: number) =>
72  Math.min(high, Math.max(low, n))
73
74export const level = (pct: number | undefined): Level =>
75  pct === undefined || pct < 50 ? 'low' : pct <= 80 ? 'mid' : 'high'
76
77export const bar = (pct: number | undefined, cells: number, glyphs: Glyphs = GLYPHS) => {
78  const filled = pct === undefined ? 0 : Math.round((clamp(pct, 0, 100) / 100) * cells)
79  const { full, empty } = BAR[glyphs]
80
81  return full.repeat(filled) + empty.repeat(cells - filled)
82}
83
84// Unpadded, so no gap opens between the bar and the number: '--%', '6%', '13%', '100%'.
85export const pctText = (pct: number | undefined) =>
86  pct === undefined
87    ? '--%'
88    : `${String(clamp(Math.round(pct), 0, 999))}%`
89
90// '45m', '3h12m', '14h', '2d05h', 'now', '--'.
91export const countdown = (resetsAt: string | undefined, nowMs: number) => {
92  const at = resetsAt === undefined ? NaN : Date.parse(resetsAt)
93
94  if (Number.isNaN(at)) {
95    return '--'
96  }
97
98  const minutes = Math.ceil((at - nowMs) / 60_000)
99
100  if (minutes <= 0) {
101    return 'now'
102  }
103
104  if (minutes < 60) {
105    return `${minutes}m`
106  }
107
108  const hours = Math.floor(minutes / 60)
109
110  if (hours < 10) {
111    return `${hours}h${String(minutes % 60).padStart(2, '0')}m`
112  }
113
114  if (hours < 24) {
115    return `${hours}h`
116  }
117
118  const days = Math.floor(hours / 24)
119
120  return days < 10
121    ? `${days}d${String(hours % 24).padStart(2, '0')}h`
122    : `${days}d`
123}
124
125const title = (family: string, major?: string, minor?: string) => {
126  const name = family.charAt(0).toUpperCase() + family.slice(1)
127
128  return major === undefined ? name : `${name} ${major}${minor === undefined ? '' : `.${minor}`}`
129}
130
131// 'claude-sonnet-5-5' -> 'Sonnet 5.5', 'claude-haiku-4-5-20251001' -> 'Haiku 4.5',
132// 'claude-3-5-sonnet-20241022' -> 'Sonnet 3.5', 'opus[1m]' -> 'Opus'; anything else as given.
133export const modelName = (id: string) => {
134  const bare = id.replace(/\[[^\]]*\]$/, '')
135  const named = /^claude-([a-z]+)-(\d+)(?:-(\d{1,2}))?(?:-\d{8})?$/.exec(bare)
136  const numbered = /^claude-(\d+)(?:-(\d{1,2}))?-([a-z]+)(?:-\d{8})?$/.exec(bare)
137
138  if (named !== null) {
139    return title(named[1], named[2], named[3])
140  }
141
142  if (numbered !== null) {
143    return title(numbered[3], numbered[1], numbered[2])
144  }
145
146  return /^[a-z]+$/.test(bare) ? title(bare) : bare
147}
148
149// '$0.00', '$1.23', '$142.50'.
150export const costText = (usd: number) => `$${usd.toFixed(2)}`
151
152// Only a subscription reports 5-hour and 7-day windows; its cost is a list-price estimate,
153// not a bill, so it is left out. Nothing spent yet shows nothing either way.
154const isBilled = ({ rateLimits, cost }: Reading) =>
155  cost !== undefined && cost > 0 && !rateLimits.some(r => LIMITS.some(l => l.kind === r.kind))
156
157const info = (reading: Reading): Part | undefined => {
158  const { model, effort, cost = 0 } = reading
159
160  return model === undefined
161    ? undefined
162    : {
163        label: [
164          `${modelName(model)}${effort === undefined ? '' : ` (${effort})`}`,
165          isBilled(reading) ? costText(cost) : undefined,
166        ]
167          .filter(piece => piece !== undefined)
168          .join(INFO_SEPARATOR),
169        level: 'low',
170      }
171}
172
173const part = (
174  label: string,
175  pct: number | undefined,
176  tier: Tier,
177  glyphs: Glyphs,
178  reset?: string,
179): Part => ({
180  label,
181  bar: tier.barCells > 0 ? bar(pct, tier.barCells, glyphs) : undefined,
182  pct: pctText(pct),
183  reset: reset === undefined ? undefined : `(${reset})`,
184  level: level(pct),
185})
186
187export const segments = (reading: Reading, tier: Tier, glyphs: Glyphs = GLYPHS) => {
188  const lead = tier.hasInfo ? info(reading) : undefined
189  const parts: Part[] = lead === undefined ? [] : [lead]
190
191  parts.push(part('context', reading.contextPercent, tier, glyphs))
192
193  if (!tier.hasLimits) {
194    return parts
195  }
196
197  for (const { kind, label } of LIMITS) {
198    const limit = reading.rateLimits.find(r => r.kind === kind)
199
200    if (limit !== undefined) {
201      const reset = tier.hasResets ? countdown(limit.resetsAt, reading.nowMs) : undefined
202      parts.push(part(label, limit.percentUsed, tier, glyphs, reset))
203    }
204  }
205
206  return parts
207}
208
209// One space beyond the usual, after a bar, so the number does not crowd the glyphs.
210export const BAR_GAP = ' '
211
212// One part as drawn: the register's tree puts exactly these spaces between its Texts.
213export const partText = ({ label, bar, pct, reset }: Part) =>
214  [label, bar === undefined ? undefined : `${bar}${BAR_GAP}`, pct, reset]
215    .filter(piece => piece !== undefined)
216    .join(' ')
217
218export const plainText = (parts: Part[]) => parts.map(partText).join(SEPARATOR)
219
220// Cells for the meter on its own row, `columns` being the conversation column's width.
221export const room = (columns: number) => columns - GUTTER - EDGE
222
223// The richest parts that fit `roomCells`, or undefined when none do.
224export const fitParts = (reading: Reading, roomCells: number, options: FitOptions = {}) => {
225  const { glyphs = GLYPHS, ambiguousWidth = AMBIGUOUS_WIDTH } = options
226
227  for (const tier of TIERS) {
228    const parts = segments(reading, tier, glyphs)
229
230    if (cellWidth(plainText(parts), ambiguousWidth) <= roomCells) {
231      return parts
232    }
233  }
234
235  return undefined
236}
237

1export type RateLimit = { kind: string; percentUsed: number; resetsAt?: string }
2
3export type Reading = {
4  contextPercent?: number
5  rateLimits: RateLimit[]
6  nowMs: number
7  // As `/model` shows it, the last turn's effort, and the session's cost in US dollars.
8  model?: string
9  effort?: string
10  cost?: number
11}
12
13declare module 'claude-code' {
14  interface PluginState {
15    'compact-usage-meter': { reading: Reading | null }
16  }
17}
18
