1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { Diagram, Setup } from '../types'
5import { dgmoError, fitCells, pngSize } from './layout'
6
7const PANE = 'dgmo-pane'
8const OUT_DIR = '/tmp/dgmo-pane'
9/** Svg's own bound on its markup. */
10const MAX_SVG = 131072
11/** Image's bound on inline bytes, 2 MiB decoded, as base64 characters. */
12const MAX_PNG_BASE64 = Math.floor((2 * 1024 * 1024 * 4) / 3)
13
14const TOOL = 'show_diagram'
15const TOOL_ID = 'mcp__dgmo-pane__show_diagram'
16const TOOL_DESCRIPTION = [
17  'Draws a diagram for the user in the dgmo pane beside the conversation.',
18  'Use it whenever the user asks to diagram, draw, chart or visualize something.',
19  'Pass the diagram as DGMO source, the language of the `dgmo` command: the first line names the chart type and a title,',
20  'then the content, e.g. "flowchart Login\n\n(Start) -> [Check password] -> (Signed in)".',
21  'Run `dgmo types` for every chart type. A parse error comes back as the result: fix the source and call again.',
22].join(' ')
23
24const diagram = atom({ plugin: 'dgmo-pane', key: 'diagram' } as const, null as Diagram | null)
25const setup = atom({ plugin: 'dgmo-pane', key: 'setup' } as const, { isDgmoMissing: false } as Setup)
26
27const PACKAGE = '@diagrammo/dgmo-cli'
28const INSTALL_COMMAND = `npm install -g ${PACKAGE}`
29const MISSING = `dgmo is not installed. The user can press Install dgmo in the pane, or run \`${INSTALL_COMMAND}\`.`
30
31const isDgmoMissing = ($: EngineInterface): Promise<boolean> =>
32  $.process.run(['dgmo', '--version']).then(
33    ran => ran.exitCode !== 0,
34    () => true,
35  )
36
37/** The pane's Install dgmo button: npm installs the CLI, then the last diagram draws again. */
38const installDgmo = async ($: EngineInterface): Promise<void> => {
39  await update($, setup, (old): Setup => ({ ...old, install: 'running', installError: undefined }))
40  const ran = await $.process.run(['npm', 'install', '-g', PACKAGE], { timeoutMs: 600_000 }).catch(() => undefined)
41  let installError: string | undefined
42  if (ran === undefined) {
43    installError = 'npm was not found. Install Node.js from nodejs.org, then press Install dgmo again.'
44  } else if (ran.exitCode !== 0) {
45    const last = ran.stderr.trim().split('\n').filter(line => line.trim() !== '').pop() ?? `exit ${ran.exitCode}`
46    installError = `npm install failed: ${last}`
47  } else if (await isDgmoMissing($)) {
48    installError = 'dgmo is installed, but this session cannot find it. Restart Claude Code.'
49  }
50  await update($, setup, (): Setup => ({
51    isDgmoMissing: installError !== undefined,
52    install: installError === undefined ? 'done' : 'failed',
53    installError,
54  }))
55  const last = await read($, diagram)
56  if (installError === undefined && last !== null) await render($, last.path, last.label)
57}
58
59/** Renders to temp files; only the newest render of a path writes the state. */
60let latest = 0
61
62const render = async ($: EngineInterface, path: string, label?: string): Promise<string | undefined> => {
63  const ticket = ++latest
64  await update($, diagram, old => ({
65    ...(old?.path === path ? old : { generation: 0 }),
66    path,
67    label,
68    isRendering: true,
69  }))
70
71  const stem = `${OUT_DIR}/${path.replace(/[^A-Za-z0-9._-]/g, '_')}`
72  let error: string | undefined
73  let size: { width: number; height: number } | undefined
74  let bytes: string | undefined
75  let markup: string | undefined
76  try {
77    await $.process.run(['mkdir', '-p', OUT_DIR])
78    const [png, svg] = await Promise.all([
79      $.process.run(['dgmo', path, '-o', `${stem}.png`, '--json', '--theme', 'dark'], { timeoutMs: 60_000 }),
80      $.process.run(['dgmo', path, '-o', `${stem}.svg`, '--json', '--theme', 'dark'], { timeoutMs: 60_000 }),
81    ])
82    error = dgmoError(png.stdout, png.stderr, png.exitCode)
83    if (error === undefined) {
84      const { base64 } = await $.fs.read(`${stem}.png`, { as: 'bytes' })
85      if (base64.length > MAX_PNG_BASE64) throw new Error('the PNG is over the 2 MiB an Image takes')
86      bytes = base64
87      size = pngSize(Uint8Array.fromBase64(base64))
88      if (dgmoError(svg.stdout, svg.stderr, svg.exitCode) === undefined) {
89        const text = await $.fs.read(`${stem}.svg`).catch(() => undefined)
90        markup = text !== undefined && text.length <= MAX_SVG ? text : undefined
91      }
92    }
93  } catch (err) {
94    error = (await isDgmoMissing($))
95      ? MISSING
96      : `could not show it: ${err instanceof Error ? err.message : String(err)}`
97  }
98  const isMissing = error === MISSING
99  if ((await read($, setup)).isDgmoMissing !== isMissing) {
100    await update($, setup, old => ({ ...old, isDgmoMissing: isMissing }))
101  }
102  if (ticket !== latest) return error
103
104  await update($, diagram, old => {
105    const base: Diagram = old?.path === path ? old : { path, label, generation: 0, isRendering: false }
106    if (error !== undefined || size === undefined || bytes === undefined) {
107      return { ...base, error: error ?? 'dgmo wrote no readable PNG', isRendering: false }
108    }
109
110    return {
111      path,
112      label,
113      png: bytes,
114      width: size.width,
115      height: size.height,
116      svg: markup,
117      generation: base.generation + 1,
118      isRendering: false,
119    }
120  })
121
122  return error
123}
124
125/** Inline diagrams get a fresh file each, so one never overwrites a picture still drawing. */
126let inline = 0
127
128/**
129 * Declares the command and the tool. `session.start` is too late for a mod
130 * installed mid-session (the session has already started), so the first
131 * event after a load also tries; both calls replace what they declared.
132 */
133let isDeclared = false
134const declare = async ($: EngineInterface): Promise<void> => {
135  if (isDeclared) return
136  isDeclared = true
137  try {
138    await $.command.register({
139      name: 'dgmo-pane',
140      description: 'Show a diagram in the dgmo pane: a .dgmo file, or describe what to draw',
141      argumentHint: '[file.dgmo | what to draw]',
142    })
143    await $.tool.register({
144      name: TOOL,
145      description: TOOL_DESCRIPTION,
146      inputSchema: {
147        type: 'object',
148        properties: {
149          source: { type: 'string', description: 'The whole diagram in DGMO.' },
150          title: { type: 'string', description: 'A short name for the pane header.' },
151        },
152        required: ['source'],
153      },
154    })
155  } catch {
156    isDeclared = false
157  }
158}
159
160export const register: Register = on => {
161  on('session.start', async ($, e, next) => {
162    await declare($)
163
164    return next(e)
165  })
166
167  on('prompt.submit', async ($, e, next) => {
168    await declare($)
169
170    return next(e)
171  })
172
173  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
174    void declare($)
175
176    return next(e)
177  })
178
179  on('command.run', { command: 'dgmo-pane' }, async ($, e) => {
180    await $.ui.open({ id: PANE, title: 'dgmo' }).catch(() => undefined)
181    const arg = e.args.trim()
182    if (arg === '') return { text: 'dgmo pane opened.' }
183
184    const stat = await $.fs.stat(arg, { resolve: true }).catch(() => undefined)
185    if (stat?.realPath !== undefined && stat.kind === 'file') {
186      const error = await render($, stat.realPath)
187
188      return { text: error === undefined ? `Rendered ${arg}.` : `dgmo: ${error}` }
189    }
190
191    // A command.run hook cannot submit: the prompt would wait on the dispatch
192    // this hook holds. A timer runs after it, once the session is idle.
193    $.clock.after(0, () => {
194      void $.prompt.submit({ text: `Draw this with the ${TOOL} tool: ${arg}`, asUser: true }).catch(() => undefined)
195    })
196
197    return { text: 'Asked Claude to draw it.' }
198  })

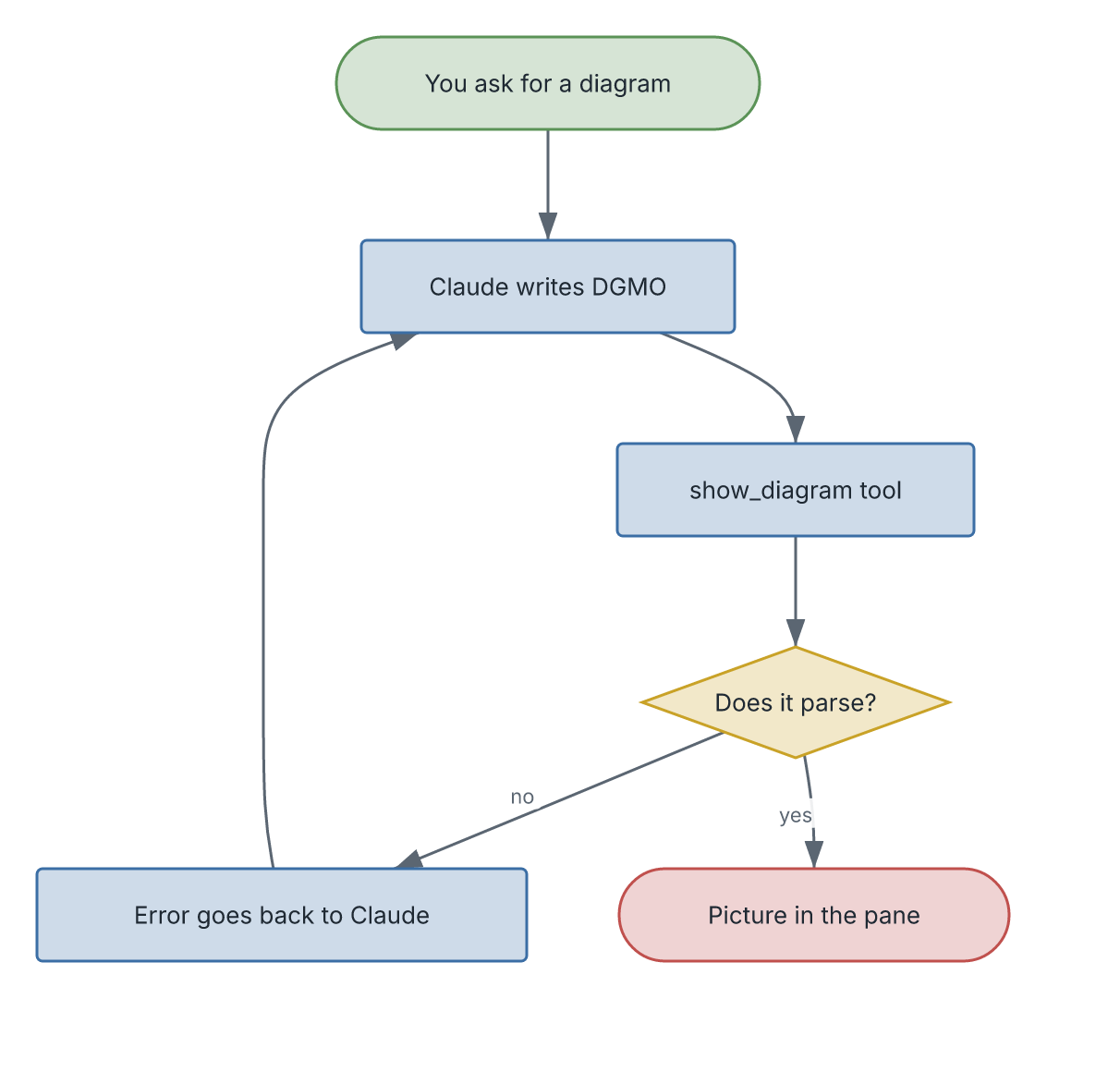

199
200  on('tool.call', { tool: TOOL_ID }, async ($, e) => {
201    const input = (e as unknown as { source?: unknown; title?: unknown })
202    if (typeof input.source !== 'string' || input.source.trim() === '') {
203      return { result: 'show_diagram needs `source`, the diagram in DGMO.', isError: true }
204    }
205    const title = typeof input.title === 'string' && input.title.trim() !== '' ? input.title.trim() : undefined
206    const path = `${OUT_DIR}/inline-${++inline}.dgmo`
207    const isWritten = await $.fs
208      .write(path, input.source.endsWith('\n') ? input.source : `${input.source}\n`)
209      .then(() => true, () => false)
210    if (!isWritten) return { result: `show_diagram could not write ${path}.`, isError: true }
211    void $.ui.open({ id: PANE, title: 'dgmo' }).catch(() => undefined)
212    const error = await render($, path, title)
213
214    return error === undefined
215      ? { result: 'The diagram is showing in the dgmo pane.' }
216      : { result: `dgmo could not render it: ${error}`, isError: true }
217  })
218
219  on('tool.call', async ($, e, next) => {
220    const ran = await next(e)
221    const isEdit = e.tool === 'Write' || e.tool === 'Edit'
222    if (!isEdit || ran.deny !== undefined || ran.isError === true) return ran
223    const path = e.file_path
224    if (!path.endsWith('.dgmo')) return ran
225
226    void $.ui.open({ id: PANE, title: 'dgmo' }).catch(() => undefined)
227    const error = await render($, path)
228    if (error === undefined) return ran
229
230    return { ...ran, context: [...(ran.context ?? []), `dgmo could not render ${path}: ${error}`] }
231  }).catch(($, e, next) => next(e))
232
233  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
234    const shown = await read($, diagram)
235    const name = shown?.label ?? shown?.path.split('/').pop() ?? ''
236    const status = shown === null ? '' : shown.isRendering ? ' · rendering…' : ''
237    const header = `${name}${status}`
238
239    const ready = await read($, setup)
240    if (ready.isDgmoMissing) {
241      const { Box, Text, Button } = $.ui.resolve(e)
242
243      return (
244        <Box flexDirection="column">
245          <Text bold>dgmo is not installed</Text>
246          <Text>The pane needs the dgmo command to draw diagrams.</Text>
247          {ready.install === 'running' ? (
248            <Text>Installing {PACKAGE}…</Text>
249          ) : (
250            <Button key="install" label="Install dgmo" hotkey="i" onPress={() => installDgmo($)} />
251          )}
252          {ready.installError !== undefined && <Text color="red">✖ {ready.installError}</Text>}
253          <Text>Or run it yourself: {INSTALL_COMMAND}</Text>
254        </Box>
255      )
256    }
257
258    if (e.surface === 'terminal') {
259      const { Box, Text, Image } = $.ui.resolve(e)
260      if (shown === null) {
261        return <Text dimColor>Nothing drawn yet. Ask Claude to diagram something, or run /dgmo-pane &lt;file or description&gt;.</Text>
262      }
263      const errorRows = shown.error === undefined ? 0 : 3
264      const room = {
265        columns: Math.max(1, (e.viewport?.columns ?? 80) - 2),
266        rows: Math.max(1, (e.viewport?.rows ?? 24) - 6 - errorRows),
267      }
268      const cells = shown.width && shown.height ? fitCells({ width: shown.width, height: shown.height }, room) : undefined
269
270      return (
271        <Box flexDirection="column">
272          <Text bold>{header}</Text>
273          {shown.error !== undefined && <Text color="red">✖ {shown.error}</Text>}
274          {shown.png !== undefined && cells !== undefined ? (
275            <Image
276              key="diagram"
277              source={{ png: shown.png }}
278              columns={cells.columns}
279              rows={cells.rows}
280              alt={`diagram from ${name}`}
281            />
282          ) : (
283            <Text dimColor>No picture yet.</Text>
284          )}
285        </Box>
286      )
287    }
288
289    const { Box, Text, Svg } = $.ui.resolve(e)
290    if (shown === null) return <Text>Nothing drawn yet. Ask Claude to diagram something.</Text>
291
292    return (
293      <Box flexDirection="column">
294        <Text bold>{header}</Text>
295        {shown.error !== undefined && <Text color="red">✖ {shown.error}</Text>}
296        {shown.svg !== undefined ? <Svg source={shown.svg} alt={`diagram from ${name}`} /> : <Text>No picture yet.</Text>}
297      </Box>
298    )
299  })
300}
301

1/** Width and height of a PNG from its IHDR chunk, or undefined if not a PNG. */
2export const pngSize = (bytes: Uint8Array): { width: number; height: number } | undefined => {
3  const SIGNATURE = [0x89, 0x50, 0x4e, 0x47]
4  if (bytes.length < 24 || SIGNATURE.some((b, i) => bytes[i] !== b)) return undefined
5  const view = new DataView(bytes.buffer, bytes.byteOffset, bytes.byteLength)
6
7  return { width: view.getUint32(16), height: view.getUint32(20) }
8}
9
10/** A terminal cell is about twice as tall as it is wide. */
11const CELL_ASPECT = 2
12const MAX_CELLS = 255
13
14/** Fits a picture into the pane, keeping its aspect ratio. */
15export const fitCells = (
16  size: { width: number; height: number },
17  room: { columns: number; rows: number },
18): { columns: number; rows: number } => {
19  const ratio = size.height / size.width / CELL_ASPECT
20  let columns = Math.min(MAX_CELLS, Math.max(1, room.columns))
21  let rows = Math.round(columns * ratio)
22  const maxRows = Math.min(MAX_CELLS, Math.max(1, room.rows))
23  if (rows > maxRows) {
24    rows = maxRows
25    columns = Math.max(1, Math.round(rows / ratio))
26  }
27
28  return { columns, rows: Math.max(1, rows) }
29}
30
31/** The error `dgmo --json` reports, or undefined on success. */
32export const dgmoError = (stdout: string, stderr: string, exitCode: number): string | undefined => {
33  try {
34    const report = JSON.parse(stdout) as { success?: boolean; error?: string }
35    if (report.success === true) return undefined
36    if (typeof report.error === 'string') return report.error
37  } catch {
38    // not JSON: fall through to the raw streams
39  }
40  const text = (stderr || stdout).trim()
41
42  return exitCode === 0 && text === '' ? undefined : text || `dgmo exited ${exitCode}`
43}
44

1export type Diagram = {
2  /** The .dgmo file shown, absolute. */
3  path: string
4  /** What the pane calls it; the file name when absent. */
5  label?: string
6  /** The last PNG that rendered, base64; sent inline so it draws over ssh too. */
7  png?: string
8  /** Its pixel size, read from the PNG header. */
9  width?: number
10  height?: number
11  /** The last SVG that rendered, for surfaces without Image. */
12  svg?: string
13  /** Counts the renders that succeeded. */
14  generation: number
15  /** The parser's error for the latest save; the picture is the last good one. */
16  error?: string
17  isRendering: boolean
18}
19
20export type Setup = {
21  /** The last render could not start `dgmo`, and `dgmo --version` failed too. */
22  isDgmoMissing: boolean
23  /** The pane's Install dgmo button: absent until pressed. */
24  install?: 'running' | 'done' | 'failed'
25  /** Why the install did not leave a working `dgmo`. */
26  installError?: string
27}
28
29declare module 'claude-code' {
30  interface PluginState {
31    'dgmo-pane': { diagram: Diagram | null; setup: Setup }
32  }
33}
34
