context-bar

1import { atom, read, update } from 'claude-code'
2import type { ElementTable, EngineInterface, Register, RenderSurface } from 'claude-code'
3
4import type { ContextBarCount, ContextBarSegment, ContextBarUsage } from '../types'
5import {
6  CELL,
7  FILL,
8  badgeColor,
9  barRuns,
10  breakdownLines,
11  formatTokens,
12  hasShifted,
13  meter,
14  orList,
15  overheadOf,
16  packRows,
17  rankRows,
18  toUsage,
19  topItems,
20  withCount,
21} from './layout'
22
23const isVisible = atom({ plugin: 'context-bar', key: 'isVisible' } as const, false)
24const isDrilled = atom({ plugin: 'context-bar', key: 'isDrilled' } as const, false)
25const openCategory = atom({ plugin: 'context-bar', key: 'openCategory' } as const, null)
26const expandedCategory = atom({ plugin: 'context-bar', key: 'expandedCategory' } as const, null)
27const usage = atom({ plugin: 'context-bar', key: 'usage' } as const, null)
28const counted = atom({ plugin: 'context-bar', key: 'counted' } as const, null)
29
30/**
31 * Whether an exact count is scheduled or running, so a second one waits for
32 * the next turn. Not drawn from, so a module variable will do: a reload clears
33 * it, and the most that costs is one count more.
34 */
35let isCounting = false
36
37/** Long enough for the engine to install a compaction or a /clear before we measure. */
38const SETTLE_MS = 250
39

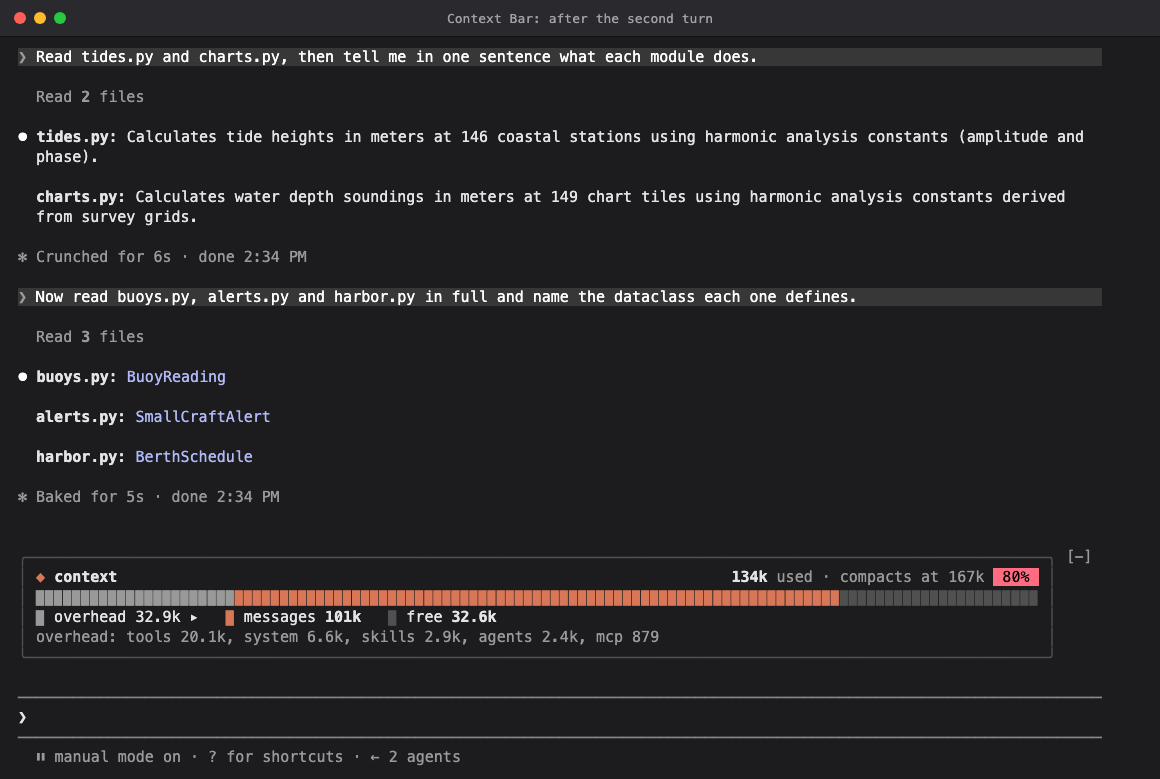

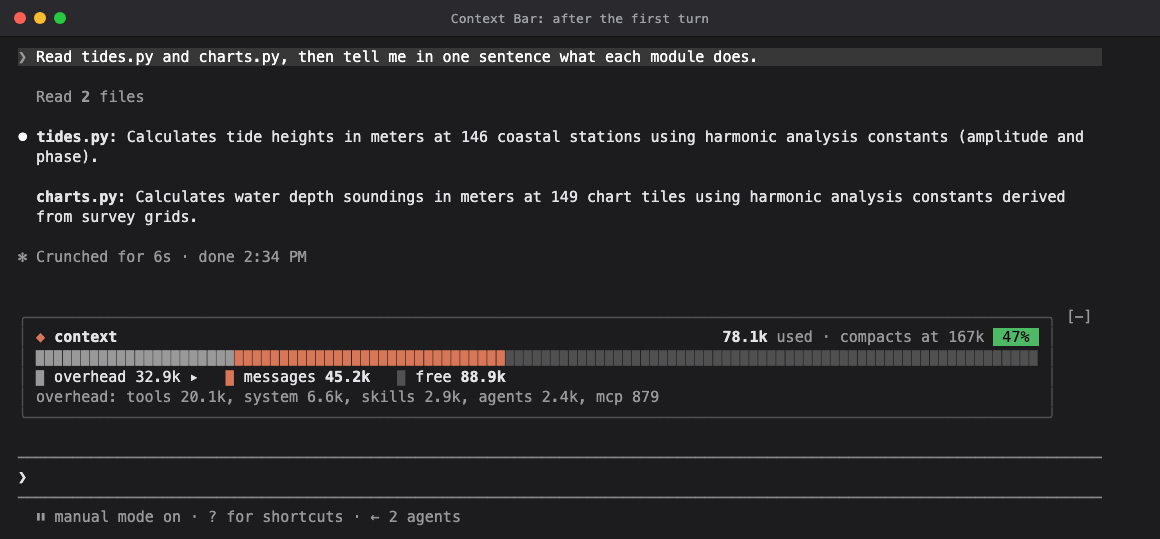

40/**
41 * The surfaces that draw the band above the prompt. Everywhere else (Claude
42 * Code for VS Code, the mobile app) the card opens in a pane under this id.
43 */
44const BAND_SURFACES: readonly RenderSurface[] = ['terminal', 'desktop']
45const PANE = 'context-bar'
46
47/**
48 * How this session draws the card: in the band, where a terminal or the
49 * desktop app shows the session; in a pane, where only other surfaces do; or
50 * nowhere, in a `-p` run or under the SDK, where nothing is drawn at all.
51 */
52async function form($: EngineInterface): Promise<'band' | 'pane' | null> {
53  const surfaces = await $.session.surfaces()
54  if (surfaces.length === 0) return null
55
56  return surfaces.some(surface => BAND_SURFACES.includes(surface)) ? 'band' : 'pane'
57}
58
59/** Where the choice to show the card is kept: one for the band, one for the pane, so each form keeps its own. */
60const CHOICE = { band: 'isVisible', pane: 'isPaneVisible' } as const
61
62/** The card's border and padding take two cells on each side. */
63const CHROME = 4
64
65const TITLE = '◆ context'
66
67/** Cells between legend entries. */
68const GAP = 3
69
70/**
71 * A legend entry's swatch: one of the bar's own cells, so it stands exactly as
72 * wide as a cell of the bar, with the same gap after it. A full block, or a
73 * square from the font, runs into that gap and sits out of line with the bar.
74 */
75const SWATCH = CELL
76
77/** How far the ranked bars sit in from the card's edge; a category's items sit two further. */
78const INDENT = 2
79
80/** The items a category opens to before the rest are summed up in one line. */
81const MAX_ITEMS = 8
82
83/** The most an item's name may take before it is cut. */
84const ITEM_LABEL = 28
85
86/**
87 * Measures the window as /context breaks it down. The `summary` breakdown is
88 * free and takes its total from the last response's usage, exactly, but its
89 * categories are local estimates that can run to twice what /context counts.
90 * So the overhead comes from the last exact count, taken again in the
91 * background whenever the estimates show the overhead has changed.
92 */
93async function refresh($: EngineInterface) {
94  const { context } = await $.session.usage({ breakdown: 'summary' })
95  if (context.breakdown === undefined) {
96    await update($, usage, () => null)
97    return
98  }
99
100  const estimate = toUsage(context.breakdown)
101  const count = await read($, counted)
102  await update($, usage, () => withCount(estimate, count))
103  if (!isCounting && (count === null || hasShifted(overheadOf(estimate), count.basis))) {
104    isCounting = true
105    $.clock.after(0, () => void countExactly($))
106  }
107}
108
109/**
110 * Counts the overhead with the token-count API, as /context does: one request
111 * per tool and memory file, which is why it runs only when the overhead
112 * changed. Should the count fail, the estimates stand until they shift again.
113 */
114async function countExactly($: EngineInterface) {
115  try {
116    const { context } = await $.session.usage({ breakdown: 'summary' })
117    if (context.breakdown === undefined) return
118    const estimate = toUsage(context.breakdown)
119
120    const count = await countOverhead($, estimate)
121    await update($, counted, () => count)
122    await update($, usage, () => withCount(estimate, count))
123  } finally {
124    isCounting = false
125  }
126}
127
128/** One exact count of the overhead, with the estimates it was taken against as its basis. */
129async function countOverhead($: EngineInterface, estimate: ContextBarUsage): Promise<ContextBarCount> {
130  let segments: ContextBarSegment[] | null = null
131  try {
132    const exact = (await $.session.usage({ breakdown: 'full' })).context.breakdown
133    if (exact !== undefined) segments = overheadOf(toUsage(exact))
134  } catch {
135    // Keeps the estimates; the basis holds the next attempt off until they move.
136  }
137
138  return { basis: overheadOf(estimate).map(({ name, tokens }) => ({ name, tokens })), segments }
139}
140
141/**
142 * The card's figures as text, for a session that draws nowhere: today Claude
143 * Code for VS Code, whose panel draws no mod's band or pane yet, and `-p`
144 * runs. Measured now, exactly; the last count serves while the overhead holds.
145 * With a category, its biggest items too.
146 */
147async function snapshot($: EngineInterface, category: string | null): Promise<string> {
148  const { context } = await $.session.usage({ breakdown: 'summary' })
149  if (context.breakdown === undefined) return 'the context window could not be measured'
150
151  const estimate = toUsage(context.breakdown)
152  const last = await read($, counted)
153  const count = last !== null && !hasShifted(overheadOf(estimate), last.basis) ? last : await countOverhead($, estimate)
154  await update($, counted, () => count)
155
156  const measured = withCount(estimate, count)
157  const m = meter(measured)
158  const limit = measured.compactsAt === null ? ` of ${formatTokens(measured.maxTokens)}` : ' used'
159  const compacts = measured.compactsAt === null ? '' : ` · compacts at ${formatTokens(measured.compactsAt)}`
160  const lines = [
161    `${TITLE}  ${formatTokens(m.used)}${limit}${compacts} · ${m.percent}%`,
162    `overhead ${formatTokens(m.overhead.tokens)} · messages ${formatTokens(m.messages)} · free ${formatTokens(m.free)}`,
163    ...breakdownLines(m.overhead.parts, Infinity),
164  ]
165
166  if (category !== null) {
167    const openable = m.overhead.parts.filter(part => (part.items?.length ?? 0) > 0)
168    const part = openable.find(one => one.label === category)
169    if (part === undefined) {
170      return openable.length === 0
171        ? 'the overhead has nothing to open'
172        : `nothing to open in "${category}": try ${orList(openable.map(one => one.label))}`
173    }
174    const { shown, rest } = topItems(part.items!, MAX_ITEMS)
175    const items = shown.map(item => `${item.name} ${formatTokens(item.tokens)}`)
176    if (rest !== null) items.push(`+ ${rest.count} more ${formatTokens(rest.tokens)}`)
177    lines.push(`${part.label} ${formatTokens(part.tokens)}: ${items.join(', ')}`)
178  }
179
180  return [...lines, "a snapshot: this session can't keep the card on screen; run /context-bar again to measure again"].join('\n')
181}
182
183/**
184 * Shows or hides the card, as a pane where the session has no band, and
185 * remembers which for the next session; says which form it took.
186 */
187async function show($: EngineInterface, shown: boolean): Promise<'band' | 'pane' | null> {
188  const where = await form($)
189  if (shown) await refresh($)
190  await update($, isVisible, () => shown)
191  if (where === 'pane') {
192    if (shown) await $.ui.open({ id: PANE, title: 'context' })
193    else await $.ui.close({ id: PANE })
194  }
195  await $.store.set(CHOICE[where ?? 'band'], shown)
196
197  return where
198}
199
200/**
201 * Shows the card again if the person left it on in an earlier session, in the
202 * form this session draws it. A session that draws nowhere measures nothing.
203 */
204async function restore($: EngineInterface) {
205  const where = await form($)
206  if (where === null) return
207
208  const shown = (await $.store.get(CHOICE[where])) === true
209  if (shown) await refresh($)
210  await update($, isVisible, () => shown)
211  if (shown && where === 'pane') void $.ui.open({ id: PANE, title: 'context' })
212}

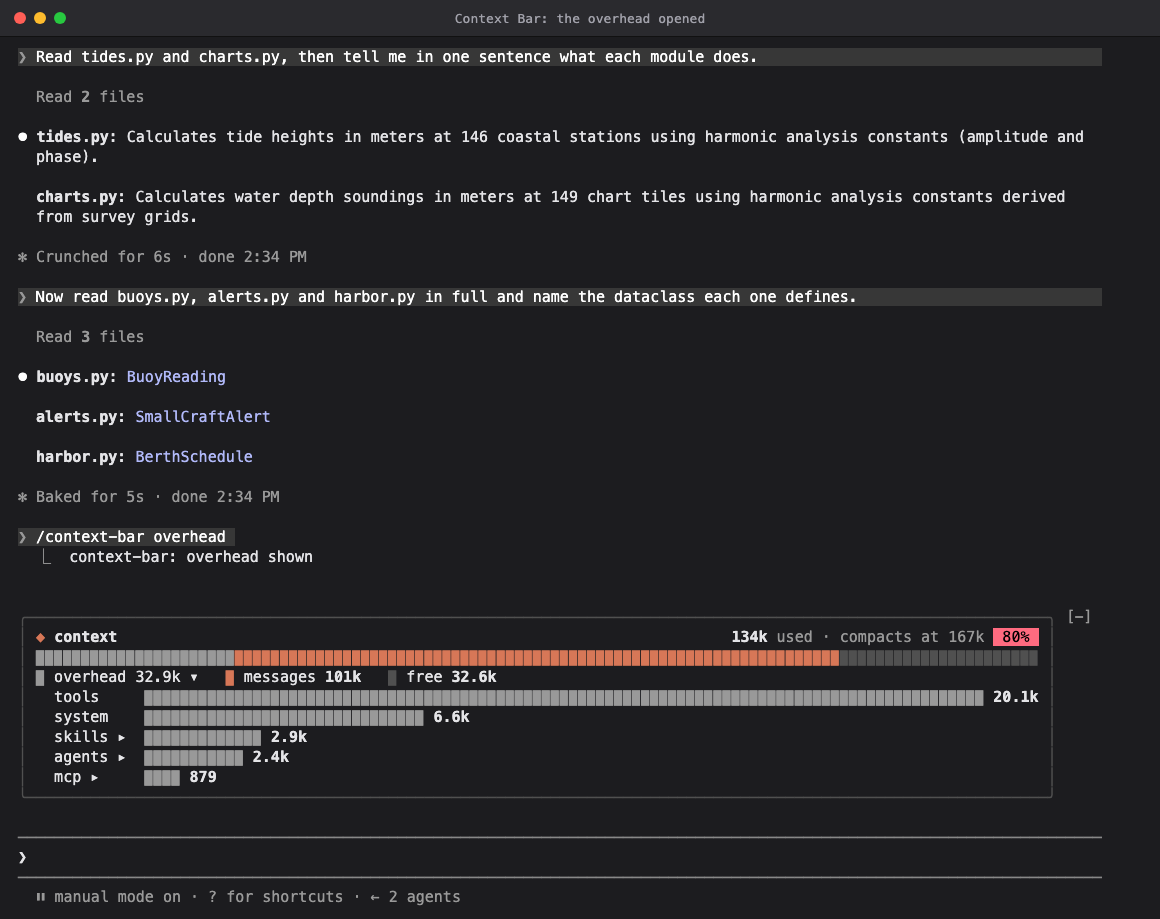

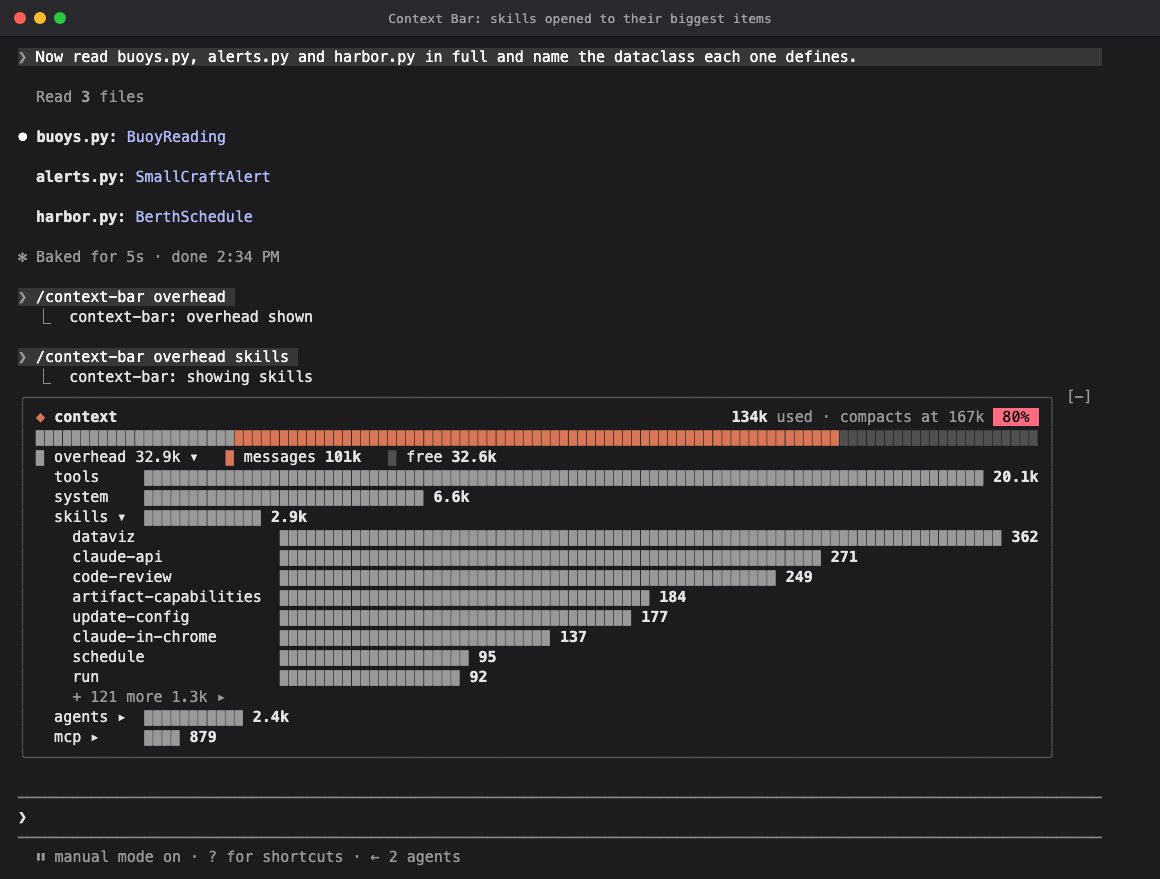

213
214/** Opens the overhead to one category's items, `/context-bar overhead <category>`. */
215async function openOverhead($: EngineInterface, category: string) {
216  if (!(await read($, isVisible))) await show($, true)
217
218  const measured = await read($, usage)
219  const openable = measured === null ? [] : meter(measured).overhead.parts.filter(part => (part.items?.length ?? 0) > 0)
220  if (!openable.some(part => part.label === category)) {
221    return openable.length === 0
222      ? 'the overhead has nothing to open'
223      : `nothing to open in "${category}": try ${orList(openable.map(part => part.label))}`
224  }
225
226  await update($, isDrilled, () => true)
227  await update($, expandedCategory, () => null)
228  await update($, openCategory, () => category)
229
230  return `showing ${category}`
231}
232
233export const register: Register = on => {
234  on('session.start', async ($, e, next) => {
235    await $.command.register({
236      name: 'context-bar',
237      description: 'Show or hide your context window as a bar above the prompt (its figures where none can draw); overhead opens its breakdown',
238      argumentHint: '[overhead [category]]',
239      immediate: true,
240    })
241    await restore($)
242
243    return next(e)
244  })
245
246  on('command.run', { command: 'context-bar' }, async ($, e) => {
247    const option = e.args.trim().replace(/\s+/g, ' ')
248
249    // Where nothing draws, a card left on would only measure for nobody: answer with the figures instead.
250    if ((await form($)) === null && (option === '' || option === 'overhead' || option.startsWith('overhead '))) {
251      await update($, isVisible, () => false)
252
253      return { text: await snapshot($, option.startsWith('overhead ') ? option.slice('overhead '.length) : null) }
254    }
255
256    if (option === 'overhead') {
257      const drilled = !(await read($, isDrilled))
258      if (drilled && !(await read($, isVisible))) await show($, true)
259      await update($, isDrilled, () => drilled)
260
261      return { text: drilled ? 'overhead shown' : 'overhead hidden' }
262    }
263    if (option.startsWith('overhead ')) return { text: await openOverhead($, option.slice('overhead '.length)) }
264    if (option !== '') return { text: `unknown option "${option}": try /context-bar or /context-bar overhead` }
265
266    const shown = !(await read($, isVisible))
267    const where = await show($, shown)
268    if (!shown) return { text: 'off' }
269
270    return { text: where === 'pane' ? 'on, in a pane' : 'on' }
271  })
272
273  on('session.measure', async ($, e, next) => {
274    if (e.changed.includes('context') && (await read($, isVisible))) await refresh($)
275
276    return next(e)
277  })
278
279  on('session.compact', async ($, e, next) => {
280    const compacted = await next(e)
281    if (await read($, isVisible)) $.clock.after(SETTLE_MS, () => void refresh($))
282
283    return compacted
284  }).catch(($, e, next) => next(e)) // replays the compaction already run; never runs it twice
285
286  // A /clear or a /resume puts another conversation in place, and no session.start follows a /clear.
287  on('session.end', async ($, e, next) => {
288    const ended = await next(e)
289    if (e.reason === 'clear' || e.reason === 'resume') $.clock.after(SETTLE_MS, () => void restore($))
290
291    return ended
292  })
293
294  // Claude Code for VS Code and the mobile app join as they connect, after session.start.
295  on('session.attach', async ($, e, next) => {
296    const attached = await next(e)
297    await restore($)
298
299    return attached
300  })
301
302  // Closing the pane is the person's /context-bar off, kept for the next session that draws a pane.
303  on('ui.close', { id: PANE }, async ($, e, next) => {
304    const closed = await next(e)
305    if (e.origin.kind === 'person') {
306      await update($, isVisible, () => false)
307      await $.store.set(CHOICE.pane, false)
308    }
309
310    return closed
311  }).catch(($, e, next) => next(e)) // replays the close already made; never closes twice
312
313  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
314    if (e.props.hasSurvey || !(await read($, isVisible))) return next(e)
315
316    const measured = await read($, usage)
317    if (measured === null) return next(e)
318
319    return card($, $.ui.resolve(e), measured, e.props.bodyColumns, true)
320  })
321
322  // Where the session has no band (Claude Code for VS Code, the mobile app), the card is a pane's body.
323  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
324    const measured = await read($, usage)
325    if (measured === null) {
326      const { Text } = $.ui.resolve(e)
327      return <Text dimColor>measuring the context window…</Text>
328    }
329
330    return card($, $.ui.resolve(e), measured, e.props.bodyColumns, false)
331  })
332}
333
334/**
335 * The card: the header, the meter, its legend, and the overhead's breakdown or
336 * its ranked bars, laid out `columns` cells wide. Framed for the band; a
337 * pane's own frame holds it there.
338 */
339async function card($: EngineInterface, ui: ElementTable, measured: ContextBarUsage, columns: number, isFramed: boolean) {
340  const { Box, Button, Text } = ui
341  const drilled = await read($, isDrilled)
342  const open = await read($, openCategory)
343  const expanded = await read($, expandedCategory)
344  const m = meter(measured)
345  const inner = isFramed ? columns - CHROME : columns
346  const total = formatTokens(m.used)
347  const limit = measured.compactsAt === null ? ` of ${formatTokens(measured.maxTokens)}` : ' used'
348  const compacts = measured.compactsAt === null ? '' : ` · compacts at ${formatTokens(measured.compactsAt)}`
349  const badge = ` ${m.percent}% `
350  const hasRoom = TITLE.length + 1 + total.length + limit.length + compacts.length + 1 + badge.length <= inner
351
352  const fills = [
353    { label: 'overhead', tokens: m.overhead.tokens, color: FILL.overhead },
354    { label: 'messages', tokens: m.messages, color: FILL.messages },
355    { label: 'free', tokens: m.free, color: FILL.free },
356  ].map(fill => ({ ...fill, amount: formatTokens(fill.tokens) }))
357  const opener = `overhead ${fills[0]!.amount} ${drilled ? '▾' : '▸'}`
358  const rows = packRows(
359    fills.map((fill, i) => 2 + (i === 0 ? opener.length : fill.label.length + 1 + fill.amount.length)),
360    inner,
361    GAP,
362  )
363
364  const parts = m.overhead.parts
365  const isOpenable = (part: (typeof parts)[number]) => (part.items?.length ?? 0) > 0
366  const arrow = (part: (typeof parts)[number]) => (isOpenable(part) ? (open === part.label ? ' ▾' : ' ▸') : '')
367  const ranked = rankRows(
368    parts.map(part => ({ label: `${part.label}${arrow(part)}`, tokens: part.tokens })),
369    inner - INDENT,
370  )
371  const opened = parts.find(part => part.label === open && isOpenable(part))
372  const showsAll = opened !== undefined && opened.label === expanded
373  const top = opened === undefined ? null : topItems(opened.items!, showsAll ? Infinity : MAX_ITEMS)
374  const canFold = showsAll && opened.items!.length > MAX_ITEMS
375  const items =
376    top === null
377      ? null
378      : rankRows(
379          top.shown.map(item => ({ label: item.name, tokens: item.tokens })),
380          inner - INDENT - 2,
381          ITEM_LABEL,
382        )
383  const breakdown = breakdownLines(parts, inner)
384
385  return (
386    <Box flexDirection="column" {...(isFramed ? { borderStyle: 'round', borderColor: 'subtle', paddingX: 1 } : {})}>
387      <Box key="header" justifyContent="space-between">
388        <Text>
389          <Text color="claude">◆</Text> <Text bold>context</Text>
390        </Text>
391        <Text>
392          <Text bold>{total}</Text>
393          <Text dimColor>
394            {limit}
395            {hasRoom ? compacts : ''}
396          </Text>{' '}
397          <Text color="inverseText" backgroundColor={badgeColor(m)}>
398            {badge}
399          </Text>
400        </Text>
401      </Box>
402      <Box key="bar">
403        {barRuns(fills, inner).map(({ glyph, length, color }) => (
404          <Text color={color}>{glyph.repeat(length)}</Text>
405        ))}
406      </Box>
407      <Box key="legend" flexDirection="column">
408        {rows.map(row => (
409          <Box columnGap={GAP}>
410            {row.map(i => {
411              const fill = fills[i]!
412              if (i === 0) {
413                return (
414                  <Box>
415                    <Text>
416                      <Text color={fill.color}>{SWATCH}</Text>{' '}
417                    </Text>
418                    <Button key="overhead" plain label={opener} onPress={() => update($, isDrilled, shown => !shown)} />
419                  </Box>
420                )
421              }
422
423              return (
424                <Text>
425                  <Text color={fill.color}>{SWATCH}</Text> {fill.label} <Text bold>{fill.amount}</Text>
426                </Text>
427              )
428            })}
429          </Box>
430        ))}
431      </Box>
432      {drilled && parts.length > 0 && (
433        <Box key="drill" flexDirection="column">
434          {parts.flatMap((part, i) => {
435            const row = ranked.rows[i]!
436            const line = (
437              <Box key={`row:${part.label}`}>
438                <Text>{' '.repeat(INDENT)}</Text>
439                {isOpenable(part) ? (
440                  <Button
441                    key={`category:${part.label}`}
442                    plain
443                    label={row.label}
444                    onPress={async () => {
445                      await update($, expandedCategory, () => null)
446                      await update($, openCategory, current => (current === part.label ? null : part.label))
447                    }}
448                  />
449                ) : (
450                  <Text>{row.label}</Text>
451                )}
452                <Text>
453                  {' '.repeat(row.pad + 2)}
454                  <Text color={FILL.overhead}>{CELL.repeat(row.cells)}</Text> <Text bold>{row.amount}</Text>
455                </Text>
456              </Box>
457            )
458            if (part !== opened || top === null || items === null) return [line]
459
460            return [
461              line,
462              <Box key="items" flexDirection="column">
463                {items.rows.map((item, j) => (
464                  <Box key={`row:item:${j}`}>
465                    <Text>
466                      {' '.repeat(INDENT + 2)}
467                      {item.label}
468                      {' '.repeat(item.pad + 2)}
469                      <Text color={FILL.overhead}>{CELL.repeat(item.cells)}</Text> <Text bold>{item.amount}</Text>
470                    </Text>
471                  </Box>
472                ))}
473                {(top.rest !== null || canFold) && (
474                  <Box key="more-row">
475                    <Text>{' '.repeat(INDENT + 2)}</Text>
476                    <Button
477                      key="more"
478                      plain
479                      dimColor
480                      label={
481                        top.rest === null
482                          ? 'show fewer ▴'
483                          : `+ ${top.rest.count} more ${formatTokens(top.rest.tokens)} ▸`
484                      }
485                      onPress={() => update($, expandedCategory, () => (top.rest === null ? null : part.label))}
486                    />
487                  </Box>
488                )}
489              </Box>,
490            ]
491          })}
492        </Box>
493      )}
494      {!drilled && breakdown.length > 0 && (
495        <Box key="breakdown" flexDirection="column">
496          {breakdown.map(line => (
497            <Text dimColor>{line}</Text>
498          ))}
499        </Box>
500      )}
501    </Box>
502  )
503}
504

1import type { SessionContextBreakdown, ThemeKey } from 'claude-code'
2
3import type { ContextBarCount, ContextBarItem, ContextBarSegment, ContextBarUsage } from '../types'
4
5/**
6 * The meter's fills, from the theme keys the mod API documents: the
7 * conversation in the accent, the overhead every request carries in quiet
8 * gray, and the room left as the track.
9 */
10export const FILL = { overhead: 'inactive', messages: 'claude', free: 'subtle' } as const satisfies Record<
11  string,
12  ThemeKey
13>
14
15/** The /context category that is the conversation; every other one is overhead. */
16const MESSAGES = 'Messages'
17
18/**
19 * Shorter names for /context's categories; one it does not know keeps its own,
20 * lowercased. Both of MCP's categories go under one name, so the card shows one
21 * entry for what MCP servers cost, not two that read alike.
22 */
23const LABELS = new Map([
24  ['System prompt', 'system'],
25  ['System tools', 'tools'],
26  ['MCP tools', 'mcp'],
27  ['MCP server instructions', 'mcp'],
28  ['Custom agents', 'agents'],
29  ['Memory files', 'memory files'],
30  ['Skills', 'skills'],
31])
32
33/**
34 * The breakdown as the card keeps it, leaving out the tool schemas deferred
35 * until searched for, each category with what it is made of where listed.
36 */
37export function toUsage(breakdown: SessionContextBreakdown): ContextBarUsage {
38  return {
39    segments: breakdown.categories.flatMap(({ name, tokens, kind }) => {
40      if (kind === 'deferred') return []
41      const items = itemsOf({ name, tokens }, breakdown)
42
43      return [{ name, tokens, kind, ...(items === undefined ? {} : { items }) }]
44    }),
45    totalTokens: breakdown.totalTokens,
46    maxTokens: breakdown.rawMaxTokens,
47    compactsAt: breakdown.autoCompactThreshold ?? null,
48  }
49}
50
51/**
52 * What a /context category is made of, for those the breakdown lists: the MCP
53 * server instructions as one item and the MCP tools in the window by server
54 * (the two make up `mcp`), the agents, the memory files, the skills.
55 */
56function itemsOf(category: ContextBarItem, breakdown: SessionContextBreakdown): ContextBarItem[] | undefined {
57  switch (category.name) {
58    case 'MCP server instructions':
59      return [{ name: 'instructions', tokens: category.tokens }]
60    case 'MCP tools': {
61      const servers = new Map<string, number>()
62      for (const tool of breakdown.mcpTools) {
63        if (tool.isLoaded) servers.set(tool.serverName, (servers.get(tool.serverName) ?? 0) + tool.tokens)
64      }
65
66      return [...servers].map(([name, tokens]) => ({ name, tokens }))
67    }
68    case 'Custom agents':
69      return breakdown.agents.map(agent => ({ name: agent.agentType, tokens: agent.tokens }))
70    case 'Memory files':
71      return breakdown.memoryFiles.map(file => ({
72        name: `${file.path.split(/[\\/]/).pop()} (${file.type.toLowerCase()})`,
73        tokens: file.tokens,
74      }))
75    case 'Skills':
76      return breakdown.skills?.skillFrontmatter.map(skill => ({ name: skill.name, tokens: skill.tokens }))
77    default:
78      return undefined
79  }
80}
81
82export type OverheadPart = { label: string; tokens: number; items?: ContextBarItem[] }
83
84export type Meter = {
85  /**
86   * What the meter fills toward: where auto-compaction runs, or, when it is
87   * off, the window's end less the buffer held back for /compact.
88   */
89  capacity: number
90  used: number
91  /**
92   * `used` as a whole percentage of where auto-compaction runs, or, when it is
93   * off, of the whole window, as /context gives it; past 100 once over.
94   */
95  percent: number
96  messages: number
97  /** Every other category in use, largest first, each with its items largest first. */
98  overhead: { tokens: number; parts: OverheadPart[] }
99  free: number
100}
101
102/**
103 * The window as a meter: the conversation, the overhead, and the room left
104 * before compaction. The compaction point already sits a buffer below the
105 * window's end; with auto-compaction off, /context still holds a smaller
106 * buffer back for /compact, so the meter stops short of the end by as much
107 * and its free space reads as /context's does, while its percentage stays of
108 * the whole window, as /context's does.
109 */
110export function meter(usage: ContextBarUsage): Meter {
111  const held = usage.segments.filter(segment => segment.kind === 'buffer').reduce((sum, segment) => sum + segment.tokens, 0)
112  const capacity = usage.compactsAt ?? (held < usage.maxTokens ? usage.maxTokens - held : usage.maxTokens)
113  const scale = usage.compactsAt ?? usage.maxTokens
114  const inUse = usage.segments.filter(segment => segment.kind === 'used')
115  const byLabel = new Map<string, OverheadPart>()
116  for (const { name, tokens, items } of inUse.filter(segment => segment.name !== MESSAGES)) {
117    const label = LABELS.get(name) ?? name.toLowerCase()
118    const part = byLabel.get(label)
119    const merged = [...(part?.items ?? []), ...(items ?? [])]
120    byLabel.set(label, {
121      label,
122      tokens: (part?.tokens ?? 0) + tokens,
123      ...(part?.items === undefined && items === undefined ? {} : { items: merged.sort(largestFirst) }),
124    })
125  }
126  const parts = [...byLabel.values()].sort(largestFirst)
127
128  return {
129    capacity,
130    used: usage.totalTokens,
131    percent: Math.round((usage.totalTokens / scale) * 100),
132    messages: inUse.find(segment => segment.name === MESSAGES)?.tokens ?? 0,
133    overhead: { tokens: parts.reduce((sum, part) => sum + part.tokens, 0), parts },
134    free: Math.max(0, capacity - usage.totalTokens),
135  }
136}
137
138function largestFirst(a: { tokens: number }, b: { tokens: number }): number {
139  return b.tokens - a.tokens
140}
141
142/** A breakdown's overhead: every category in use but the conversation. */
143export function overheadOf(usage: ContextBarUsage): ContextBarSegment[] {
144  return usage.segments.filter(segment => segment.kind === 'used' && segment.name !== MESSAGES)
145}
146
147/**
148 * Whether the overhead's estimates have moved since it was counted: a category
149 * came or went, or one moved by more than 2% of itself (and at least 200
150 * tokens), as when a tool loads; smaller drift leaves the count standing.
151 */
152export function hasShifted(estimates: readonly ContextBarItem[], basis: readonly ContextBarItem[]): boolean {
153  if (estimates.length !== basis.length) return true
154  const before = new Map(basis.map(item => [item.name, item.tokens]))
155
156  return estimates.some(({ name, tokens }) => {
157    const was = before.get(name)
158
159    return was === undefined || Math.abs(tokens - was) > Math.max(200, was * 0.02)
160  })
161}
162
163/**
164 * The window with the overhead as counted: the total and the room left stay
165 * the estimate's (it takes the total from the last response's usage, exactly),
166 * and the conversation is whatever of the total the counted overhead leaves.
167 */
168export function withCount(estimate: ContextBarUsage, count: ContextBarCount | null): ContextBarUsage {
169  if (count === null || count.segments === null) return estimate
170  const overhead = count.segments.reduce((sum, segment) => sum + segment.tokens, 0)
171
172  return {
173    ...estimate,
174    segments: [
175      ...count.segments,
176      { name: MESSAGES, tokens: Math.max(0, estimate.totalTokens - overhead), kind: 'used' },
177      ...estimate.segments.filter(segment => segment.kind !== 'used'),
178    ],
179  }
180}
181
182/**
183 * The overhead's one-line breakdown (`overhead: tools 14.6k, mcp 11k, …`)
184 * broken into lines `width` cells wide, only ever between entries.
185 */
186export function breakdownLines(parts: readonly { label: string; tokens: number }[], width: number): string[] {
187  const entries = parts.map(
188    (part, i) => `${i === 0 ? 'overhead: ' : ''}${part.label} ${formatTokens(part.tokens)}${i < parts.length - 1 ? ',' : ''}`,
189  )
190
191  return packRows(
192    entries.map(entry => entry.length),
193    width,
194    1,
195  ).map(row => row.map(i => entries[i]).join(' '))
196}
197
198/** The first `max` items, and how many more there are and what they come to, if any. */
199export function topItems(
200  items: readonly ContextBarItem[],
201  max: number,
202): { shown: ContextBarItem[]; rest: { count: number; tokens: number } | null } {
203  const rest = items.slice(max)
204
205  return {
206    shown: items.slice(0, max),
207    rest: rest.length === 0 ? null : { count: rest.length, tokens: rest.reduce((sum, item) => sum + item.tokens, 0) },
208  }
209}
210
211export type RankRow = { label: string; pad: number; cells: number; amount: string }
212
213/**
214 * A ranked bar chart laid out `width` cells wide: each label padded to the
215 * widest (cut with an ellipsis past `maxLabel`), two cells, its bar scaled to
216 * the largest value, a cell, and its amount.
217 */
218export function rankRows(
219  entries: readonly { label: string; tokens: number }[],
220  width: number,
221  maxLabel = Infinity,
222): { labelWidth: number; rows: RankRow[] } {
223  const labelWidth = Math.min(maxLabel, Math.max(0, ...entries.map(entry => entry.label.length)))
224  const labels = entries.map(({ label }) => (label.length > labelWidth ? `${label.slice(0, labelWidth - 1)}…` : label))
225  const amounts = entries.map(entry => formatTokens(entry.tokens))
226  const amountWidth = Math.max(0, ...amounts.map(amount => amount.length))
227  const cells = scaleBars(
228    entries.map(entry => entry.tokens),
229    width - labelWidth - 2 - 1 - amountWidth,
230  )
231
232  return {
233    labelWidth,
234    rows: labels.map((label, i) => ({ label, pad: labelWidth - label.length, cells: cells[i]!, amount: amounts[i]! })),
235  }
236}
237
238/** Words joined as a sentence lists them: `a, b or c`. */
239export function orList(words: readonly string[]): string {
240  return words.length < 2 ? (words[0] ?? '') : `${words.slice(0, -1).join(', ')} or ${words[words.length - 1]}`
241}
242
243/**
244 * The badge's status color, from the percentage it shows: green while
245 * compaction (or the window's end) is far off, yellow nearing it, red close.
246 */
247export function badgeColor(m: Meter): 'success' | 'warning' | 'error' {
248  return m.percent < 50 ? 'success' : m.percent < 80 ? 'warning' : 'error'
249}
250
251/**
252 * One cell of a bar: seven-eighths of a block, so the eighth left over draws a
253 * thin gap after every cell, and every cell stands at the same height.
254 */
255export const CELL = '▉'
256
257export type BarRun = { glyph: string; length: number; color: string }
258
259/** The bar as runs of cells, `width` long, each segment's cells in its color. */
260export function barRuns(segments: readonly { tokens: number; color: string }[], width: number): BarRun[] {
261  const cells = allocateCells(
262    segments.map(segment => segment.tokens),
263    width,
264  )
265
266  return segments.flatMap((segment, i) => (cells[i]! > 0 ? [{ glyph: CELL, color: segment.color, length: cells[i]! }] : []))
267}
268
269/**
270 * Bars for a ranked chart: the largest value's bar fills `width` cells and the
271 * rest scale to it, each that holds anything at least one cell long.
272 */
273export function scaleBars(tokens: readonly number[], width: number): number[] {
274  const largest = Math.max(0, ...tokens)
275  if (width <= 0 || largest === 0) return tokens.map(() => 0)
276
277  return tokens.map(n => (n > 0 ? Math.max(1, Math.round((n / largest) * width)) : 0))
278}
279
280/** Packs entries of the given widths into rows `width` cells wide, `gap` cells apart, as few rows as fit. */
281export function packRows(widths: readonly number[], width: number, gap: number): number[][] {
282  const rows: number[][] = []
283  let filled = 0
284  widths.forEach((entry, i) => {
285    const row = rows[rows.length - 1]
286    if (row !== undefined && filled + gap + entry <= width) {
287      row.push(i)
288      filled += gap + entry
289    } else {
290      rows.push([i])
291      filled = entry
292    }
293  })
294
295  return rows
296}
297
298/**
299 * Splits `width` cells among segments in proportion to their tokens, as whole
300 * cells adding up to `width`. While there are cells enough, every segment that
301 * holds tokens gets at least one, as /context's grid gives every row a square;
302 * those cells come out of the segments drawn widest past their share.
303 */
304export function allocateCells(tokens: readonly number[], width: number): number[] {
305  const total = tokens.reduce((sum, n) => sum + n, 0)
306  if (width <= 0 || total <= 0) return tokens.map(() => 0)
307
308  const exact = tokens.map(n => (n / total) * width)
309  const cells = exact.map(Math.floor)
310
311  if (tokens.filter(n => n > 0).length <= width) {
312    tokens.forEach((n, i) => {
313      if (n > 0 && cells[i] === 0) cells[i] = 1
314    })
315  }
316
317  let spare = width - cells.reduce((sum, n) => sum + n, 0)
318  while (spare > 0) {
319    const i = widest(exact.map((x, j) => x - cells[j]!))
320    cells[i]! += 1
321    spare -= 1
322  }
323  while (spare < 0) {
324    const i = widest(cells.map((n, j) => (n > 1 ? n - exact[j]! : -Infinity)))
325    cells[i]! -= 1
326    spare += 1
327  }
328
329  return cells
330}
331
332/** The index of the largest value, the first on a tie. */
333function widest(values: readonly number[]): number {
334  return values.reduce((best, value, i) => (value > values[best]! ? i : best), 0)
335}
336
337/** A token count as the card prints one: `999`, `1.2k`, `62.4k`, from 100k whole (`212k`), `1.5M`. */
338export function formatTokens(tokens: number): string {
339  if (tokens < 1_000) return String(Math.round(tokens))
340  if (tokens < 100_000) return `${Math.round(tokens / 100) / 10}k`
341
342  const thousands = Math.round(tokens / 1_000)
343  if (thousands < 1_000) return `${thousands}k`
344
345  return `${Math.round(tokens / 100_000) / 10}M`
346}
347

1/** One thing a category is made of: an MCP server, an agent, a memory file, a skill. */
2export type ContextBarItem = {
3  name: string
4  tokens: number
5}
6
7/**
8 * One row of /context's breakdown that sits inside the window: a category
9 * in use, the free space, or the autocompact buffer.
10 */
11export type ContextBarSegment = {
12  name: string
13  tokens: number
14  kind: 'used' | 'free' | 'buffer'
15  /** What the category is made of, where the breakdown itemizes it. */
16  items?: ContextBarItem[]
17}
18
19/** The window as the card draws it, measured after each turn. */
20export type ContextBarUsage = {
21  /** /context's rows inside the window, in its order. */
22  segments: ContextBarSegment[]
23  totalTokens: number
24  maxTokens: number
25  /** The token count auto-compaction runs at, or null when it is off. */
26  compactsAt: number | null
27}
28
29/** The overhead as last counted with the token-count API, as /context counts it. */
30export type ContextBarCount = {
31  /** The overhead's local estimates when it was counted; the count is taken again once they shift. */
32  basis: ContextBarItem[]
33  /** The overhead's categories as counted, or null when the count failed and the estimates stand. */
34  segments: ContextBarSegment[] | null
35}
36
37declare module 'claude-code' {
38  interface PluginState {
39    'context-bar': {
40      isVisible: boolean
41      /** Whether the overhead is open as ranked bars; for the session only. */
42      isDrilled: boolean
43      /** The overhead category open to its items, by its label; for the session only. */
44      openCategory: string | null
45      /** The open category showing every item, not only the largest; for the session only. */
46      expandedCategory: string | null
47      usage: ContextBarUsage | null
48      /** The last exact count of the overhead; for the session only. */
49      counted: ContextBarCount | null
50    }
51  }
52}
53
