mission-control

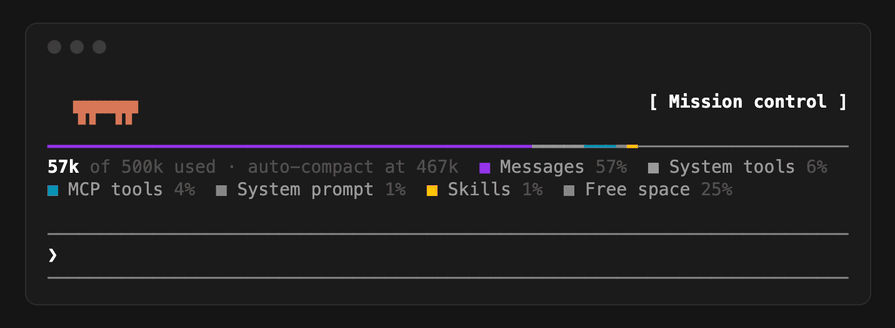

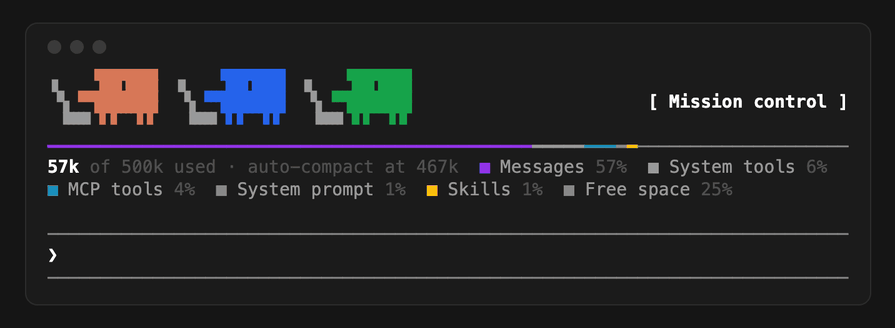

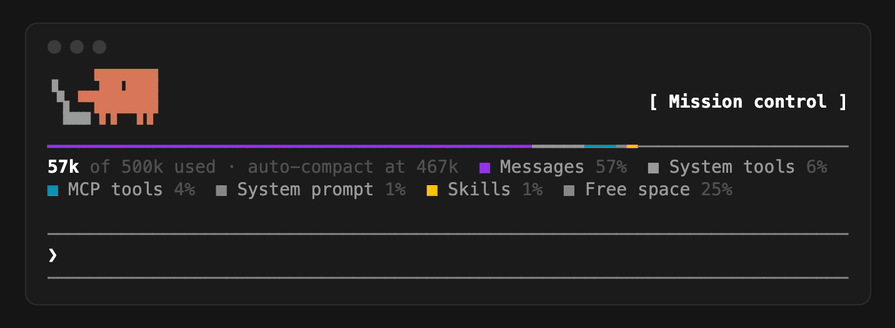

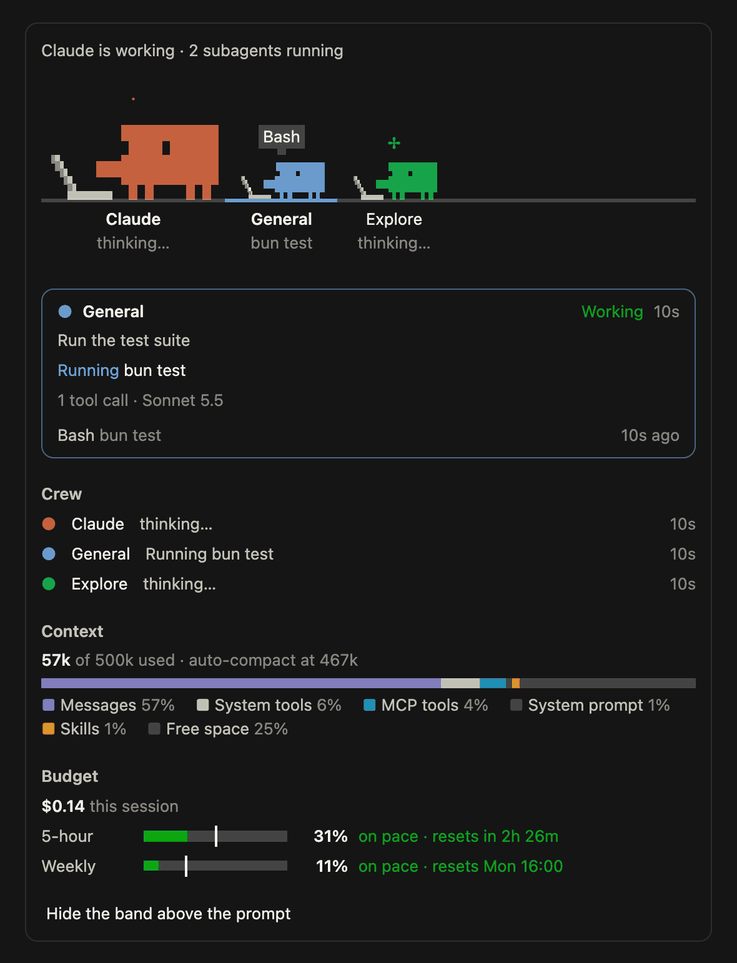

1// Mission control: every agent of the session as a living Clawd, how full the

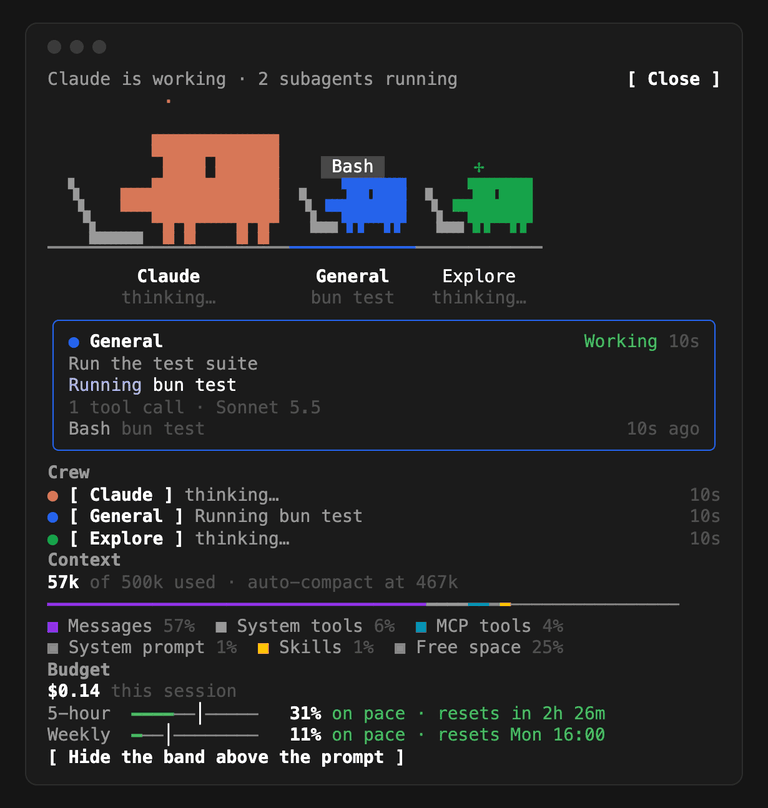

2// context window is, and the budget's pace. The band above the prompt keeps
3// the crew in view, nothing more; the pane (/mission) has the stage, the
4// crew, the context and the budget.
5//
6// The hooks keep the facts in `$.state` (who is doing what, the readings);
7// the band and the pane draw them, and the surface module (./clawd.tsx)
8// animates the Clawds between redraws.
9
10import { atom, read, update } from 'claude-code'
11import type { AgentInfo, AgentSpawnInput, EngineInterface, ModelUsage, Register, TurnCompleteInput } from 'claude-code'
12
13import type { Actor, Member, Mood, Reading, StageProps, StripProps, Walker, Where } from '../types'
14import { fillOf, paceOf, spendLine } from './budget'
15import type { Fill, Tone } from './budget'
16import { plural, prettyModel, shorten, span, tokens } from './format'
17import { ASKING, DELEGATING, badgeOf, captionOf, detailOf, verbOf } from './tools'
18import { Band, Pane } from './view'
19import type { ContextView, CrewRow, Kit, Spotlight } from './view'
20
21type Engine = EngineInterface
22
23const PANE = 'mission-control'
24const TITLE = 'Mission control'
25
26const crew = atom({ plugin: 'mission-control', key: 'crew' } as const, [])
27const selected = atom({ plugin: 'mission-control', key: 'selected' } as const, null)
28const reading = atom({ plugin: 'mission-control', key: 'reading' } as const, null)
29const turns = atom({ plugin: 'mission-control', key: 'turns' } as const, [])
30const samples = atom({ plugin: 'mission-control', key: 'samples' } as const, [])
31const isBandHidden = atom({ plugin: 'mission-control', key: 'isBandHidden' } as const, false)
32
33/** The app's own subagent colours, in the order new subagents take them. */
34const PALETTE = [
35  'blue_FOR_SUBAGENTS_ONLY',
36  'green_FOR_SUBAGENTS_ONLY',
37  'purple_FOR_SUBAGENTS_ONLY',
38  'pink_FOR_SUBAGENTS_ONLY',
39  'cyan_FOR_SUBAGENTS_ONLY',
40  'yellow_FOR_SUBAGENTS_ONLY',
41  'red_FOR_SUBAGENTS_ONLY',
42]
43
44const MAIN = 'main'
45const ENDED: readonly Mood[] = ['done', 'failed', 'stopped']

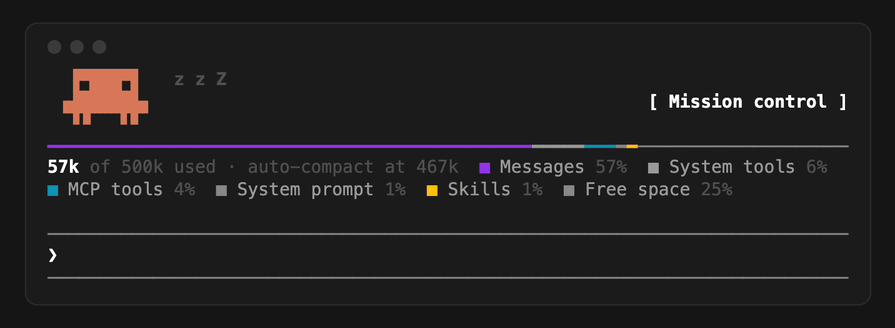

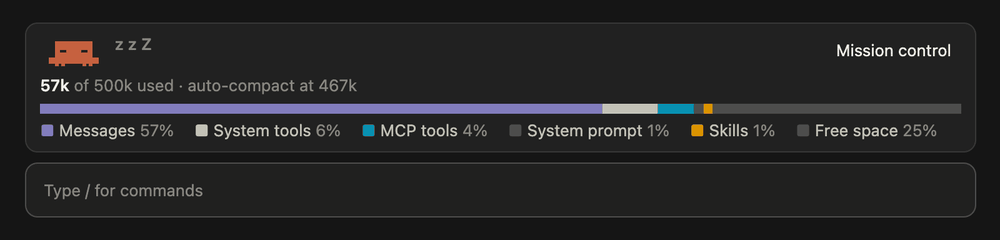

46const BUSY: readonly Mood[] = ['working', 'asking', 'delegating']
47const SLEEP_AFTER_MS = 3 * 60_000

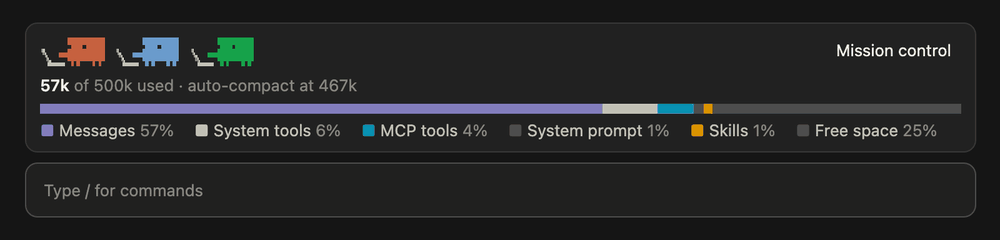

48const OFF_STAGE_AFTER_MS = 5 * 60_000
49/** How long a subagent that ended stays on the band's strip, to play it out. */

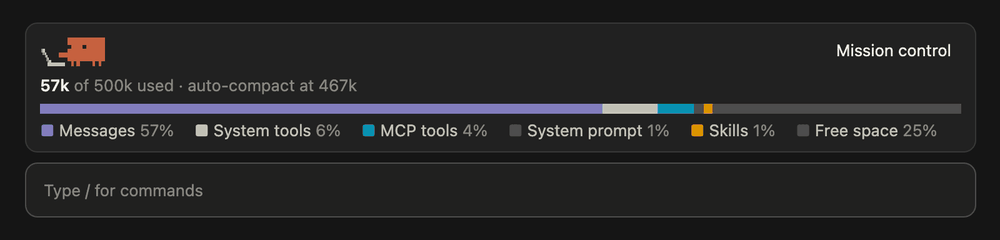

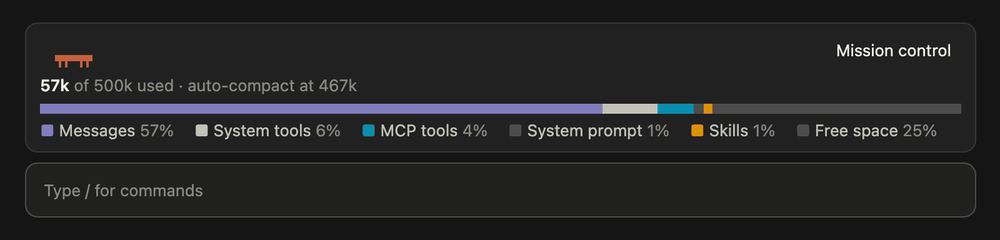

50const OFF_STRIP_AFTER_MS = 20_000
51/** The band's Clawds on the desktop: as tall as a hover's bubble beside them, in lines, and Claude's own room, in ch. */
52const STRIP_LH = 1.5
53const STRIP_MAIN_CH = 6.3
54const KEEP_MEMBERS = 24
55const BEAT_MS = 15_000
56
57/** The engine's own plumbing, not work worth showing: a subagent handing its report back. */
58const INTERNAL = new Set(['SubagentHandback', 'StructuredOutput'])
59
60// Module state: rebuilt on every reload, and nothing is drawn from it.
61const inFlight = new Map<string, number>()
62/** Each subagent's latest response, in tokens: its context as it stands. */
63const lastSize = new Map<string, number>()
64let beats = 0
65
66const sizeOf = (usage: ModelUsage) => usage.input_tokens + usage.cache_read_input_tokens + usage.cache_creation_input_tokens + usage.output_tokens
67
68// ── The crew ──────────────────────────────────────────────────────────────
69
70function newMember(id: string, type: string, task: string, color: string, at: number, extra: Partial<Member> = {}): Member {
71  return {
72    id,
73    type,
74    task,
75    color,
76    mood: 'thinking',
77    since: at,
78    tool: null,
79    detail: null,
80    calls: 0,
81    tokens: null,
82    model: null,
83    joinedAt: at,
84    startedAt: at,
85    endedAt: null,
86    isBackground: false,
87    isTeammate: false,
88    recent: [],
89    ...extra,
90  }
91}
92
93const colorFor = (index: number) => PALETTE[index % PALETTE.length] ?? 'blue_FOR_SUBAGENTS_ONLY'
94
95/** Keeps Claude and the latest subagents, letting the oldest finished ones go first. */
96function trim(list: readonly Member[]): Member[] {
97  if (list.length <= KEEP_MEMBERS) return [...list]
98  const ended = list.filter(one => one.id !== MAIN && ENDED.includes(one.mood)).sort((a, b) => (a.endedAt ?? 0) - (b.endedAt ?? 0))
99  const drop = new Set(ended.slice(0, list.length - KEEP_MEMBERS).map(one => one.id))
100  return list.filter(one => !drop.has(one.id))
101}
102
103function moodOfStatus(status: AgentInfo['status'], now: Mood): Mood {
104  switch (status) {
105    case 'completed':
106      return ENDED.includes(now) ? now : 'done'
107    case 'failed':
108      return 'failed'
109    case 'killed':
110      return 'stopped'
111    case 'waiting':
112      return 'asking'
113    case 'idle':
114      return 'idle'
115    case 'pending':
116    case 'running':
117      return now === 'idle' || now === 'asking' ? 'thinking' : now
118  }
119}
120
121async function ensureMain($: Engine): Promise<void> {
122  const [at, model] = await Promise.all([$.clock.now(), $.session.model()])
123  await update($, crew, list =>
124    list.some(one => one.id === MAIN)
125      ? list.map(one => (one.id === MAIN ? { ...one, model } : one))
126      : [newMember(MAIN, 'Claude', '', 'clawd_body', at, { mood: 'idle', model }), ...list],
127  )
128}
129
130async function toolStarted($: Engine, who: string, tool: string, detail: string | null): Promise<void> {
131  try {
132    const at = await $.clock.now()
133    inFlight.set(who, (inFlight.get(who) ?? 0) + 1)
134    const mood: Mood = ASKING.has(tool) ? 'asking' : DELEGATING.has(tool) ? 'delegating' : 'working'
135    await update($, crew, list =>
136      list.map(one => {
137        if (one.id !== who) return one
138        return {
139          ...one,
140          mood,
141          since: one.mood === mood ? one.since : at,
142          tool,
143          detail,
144          calls: one.calls + 1,
145          recent: [...one.recent, { tool, detail, at }].slice(-6),
146        }
147      }),
148    )
149  } catch {
150    // The bookkeeping never stands in a tool's way.
151  }
152}
153
154async function toolEnded($: Engine, who: string): Promise<void> {
155  try {
156    const left = Math.max(0, (inFlight.get(who) ?? 1) - 1)
157    inFlight.set(who, left)
158    if (left > 0) return
159    const at = await $.clock.now()
160    await update($, crew, list =>
161      list.map((one): Member => (one.id === who && BUSY.includes(one.mood) ? { ...one, mood: 'thinking', since: at, tool: null } : one)),
162    )
163  } catch {
164    // As above.
165  }
166}
167
168/**
169 * A turn the engine began rather than you: a background task's notice, a
170 * message relayed from another session. Its text is markup, not an ask.
171 */
172const isEngineText = (text: string) => /^\s*<[a-z][\w-]*[\s/>]/i.test(text) || text.startsWith('Another Claude session sent a message')
173
174async function turnStarted($: Engine, text: string): Promise<void> {
175  try {
176    const at = await $.clock.now()
177    inFlight.set(MAIN, 0)
178    const prompt = isEngineText(text) ? '' : text.trim()
179    await update($, crew, list =>
180      list.map((one): Member =>
181        one.id === MAIN
182          ? { ...one, mood: 'thinking', since: at, task: prompt === '' ? one.task : shorten(prompt, 240), calls: 0, startedAt: at, endedAt: null, tool: null, detail: null }
183          : one,
184      ),
185    )
186  } catch {
187    // As above.
188  }
189}
190
191async function turnEnded($: Engine, e: TurnCompleteInput): Promise<void> {
192  try {
193    const at = await $.clock.now()
194    if (e.agentId === undefined) {
195      inFlight.set(MAIN, 0)
196      await update($, crew, list => list.map((one): Member => (one.id === MAIN ? { ...one, mood: 'idle', since: at, tool: null, endedAt: at } : one)))
197      await refresh($, true, true)
198      return
199    }
200    const id = e.agentId
201    const member = (await read($, crew)).find(one => one.id === id)
202    if (member === undefined) return
203    inFlight.delete(id)
204    // What the run took, as Claude Code counts it: the context its last
205    // response stood on. A turn's usage sums every response, re-reading the
206    // same context each time, so without a step seen it counts each token once.
207    const usage = e.usage
208    const used =
209      lastSize.get(id) ?? (usage === undefined ? null : usage.input_tokens + usage.cache_creation_input_tokens + usage.output_tokens)
210    lastSize.delete(id)
211    const mood: Mood = member.isTeammate ? 'idle' : e.reason === 'answer' ? 'done' : e.reason === 'aborted' ? 'stopped' : 'failed'
212    await update($, crew, list =>
213      list.map((one): Member =>
214        one.id === id ? { ...one, mood, since: at, tool: null, endedAt: member.isTeammate ? null : at, tokens: used ?? one.tokens } : one,
215      ),
216    )
217  } catch {
218    // As above.
219  }
220}
221
222async function joined($: Engine, e: AgentSpawnInput, agentId: string, model: string): Promise<void> {
223  try {
224    const at = await $.clock.now()
225    await update($, crew, list => {
226      if (list.some(one => one.id === agentId)) return list
227      const subs = list.filter(one => one.id !== MAIN).length
228      const type = e.name ?? e.subagentType
229      return trim([
230        ...list,
231        newMember(agentId, type, e.description, colorFor(subs), at, { model, isBackground: e.background, isTeammate: e.isTeammate === true }),
232      ])
233    })
234  } catch {
235    // As above.
236  }
237}
238
239/** Squares the crew with the engine's own list: statuses, and agents started before this load. */
240async function reconcile($: Engine): Promise<void> {
241  try {
242    const [agents, at] = await Promise.all([$.agent.list(), $.clock.now()])
243    await update($, crew, list => {
244      const known = new Set(list.map(one => one.id))
245      const next = list.map(one => {
246        const info = agents.find(agent => agent.id === one.id)
247        if (info === undefined || one.id === MAIN) return one
248        const mood = moodOfStatus(info.status, one.mood)
249        if (mood === one.mood) return one
250        return { ...one, mood, since: at, endedAt: ENDED.includes(mood) ? (one.endedAt ?? at) : null }
251      })
252      const subs = next.filter(one => one.id !== MAIN).length
253      const fresh = agents
254        .filter(agent => !known.has(agent.id))
255        .map((agent, i) =>
256          newMember(agent.id, agent.name ?? agent.type, agent.description, colorFor(subs + i), at, {
257            mood: moodOfStatus(agent.status, 'thinking'),
258            isTeammate: agent.teammateId !== undefined,
259          }),
260        )
261      return fresh.length === 0 && next.every((one, i) => one === list[i]) ? list : trim([...next, ...fresh])
262    })
263  } catch {
264    // The list is a nicety; a failed read waits for the next beat.
265  }
266}
267
268// ── Readings ──────────────────────────────────────────────────────────────
269
270async function refresh($: Engine, withBreakdown: boolean, isTurnEnd = false): Promise<void> {
271  try {
272    const usage = await $.session.usage(withBreakdown ? { breakdown: 'summary' } : {})
273    const [model, at, before] = await Promise.all([$.session.model(), $.clock.now(), read($, reading)])
274    const live = usage.context
275    const breakdown = live.breakdown
276    // The window /context measures against: the model's, or a compaction
277    // window set smaller. Its breakdown comes now and then; until the next,
278    // the last one's window stands.
279    const window = breakdown?.rawMaxTokens ?? before?.context?.window ?? live.window
280    // Before the window's first response (a fresh session, a compaction just
281    // run) only /context's estimate has a figure: what the next one carries.
282    const used = live.tokens !== undefined && live.tokens > 0 ? live.tokens : (breakdown?.totalTokens ?? before?.context?.tokens ?? 0)
283    const context = used <= 0 || window <= 0 ? null : { tokens: used, window, percent: (used / window) * 100 }
284    const next: Reading = {
285      at,
286      model,
287      startedAt: usage.startedAt,
288      context,
289      compactAt:
290        breakdown === undefined
291          ? (before?.compactAt ?? null)
292          : breakdown.isAutoCompactEnabled
293            ? (breakdown.autoCompactThreshold ?? null)
294            : null,
295      categories:
296        breakdown === undefined
297          ? (before?.categories ?? [])
298          : breakdown.categories.flatMap(one =>
299              one.kind === 'deferred' || one.tokens <= 0 ? [] : [{ name: one.name, tokens: one.tokens, color: one.color, kind: one.kind }],
300            ),
301      limits: usage.rateLimits.map(one => ({ kind: one.kind, percent: one.percentUsed, resetsAt: one.resetsAt ?? null })),
302      costUsd: usage.cost?.usd ?? null,
303    }
304    await update($, reading, () => next)
305
306    if (isTurnEnd && context !== null) await update($, turns, list => [...list, context.tokens].slice(-40))
307
308    const fiveHour = next.limits.find(one => one.kind === 'five_hour')?.percent ?? null
309    await update($, samples, list => [...list.filter(one => at - one.at <= 50 * 60_000), { at, costUsd: next.costUsd, fiveHour }].slice(-240))
310  } catch {
311    // A reading that fails is retried on the next beat.
312  }
313}
314
315async function heartbeat($: Engine): Promise<void> {
316  beats += 1
317  await refresh($, beats % 4 === 0)
318  await reconcile($)
319}
320
321async function pick($: Engine, id: string): Promise<void> {
322  await update($, selected, now => (now === id ? null : id))
323}
324
325async function openPane($: Engine): Promise<boolean> {
326  void refresh($, true)
327  const opened = await $.ui.open({ id: PANE, title: TITLE })
328  return opened.isPlaced
329}
330
331// ── From facts to what is drawn ───────────────────────────────────────────
332
333function labelOf(member: Member): string {
334  if (member.type === 'general-purpose') return 'General'
335  return member.type
336}
337
338function moodNow(member: Member, now: number): Mood {
339  return member.mood === 'idle' && member.id === MAIN && now - member.since > SLEEP_AFTER_MS ? 'sleeping' : member.mood
340}
341
342function captionFor(member: Member, now: number, isNarrow = false): string {
343  const mood = moodNow(member, now)
344  switch (mood) {
345    case 'working':
346    case 'asking':
347    case 'delegating':
348      // The bubble names the tool; a subagent's narrow caption keeps the argument.
349      if (member.tool === null) return 'working'
350      return isNarrow && member.detail !== null ? member.detail : captionOf(member.tool, member.detail)
351    case 'thinking':
352      return 'thinking…'
353    case 'idle':
354      return member.id === MAIN ? 'waiting for you' : 'idle'
355    case 'sleeping':
356      return 'napping'
357    case 'done':
358      return `done · ${span((member.endedAt ?? now) - member.startedAt)}`
359    case 'failed':
360      return 'failed'
361    case 'stopped':
362      return 'stopped'
363  }
364}
365
366const MOOD_WORD: Record<Mood, string> = {
367  working: 'Working',
368  thinking: 'Thinking',
369  asking: 'Needs you',
370  delegating: 'Waiting on the crew',
371  idle: 'Idle',
372  sleeping: 'Napping',
373  done: 'Done',
374  failed: 'Failed',
375  stopped: 'Stopped',
376}
377
378const MOOD_TONE: Record<Mood, Tone> = {
379  working: 'ok',
380  thinking: 'ok',
381  asking: 'warn',
382  delegating: 'muted',
383  idle: 'muted',
384  sleeping: 'muted',
385  done: 'ok',
386  failed: 'bad',
387  stopped: 'muted',
388}
389
390/** Claude first, then the crew at work in the order they joined, then the ones that finished, latest first. */
391function lineUp(members: readonly Member[], now: number, isStage: boolean): Member[] {
392  const main = members.filter(one => one.id === MAIN)
393  const subs = members.filter(one => one.id !== MAIN)
394  const busy = subs.filter(one => !ENDED.includes(one.mood)).sort((a, b) => a.startedAt - b.startedAt)
395  const ended = subs
396    .filter(one => ENDED.includes(one.mood) && (!isStage || now - (one.endedAt ?? now) < OFF_STAGE_AFTER_MS))
397    .sort((a, b) => (b.endedAt ?? 0) - (a.endedAt ?? 0))
398  return [...main, ...busy, ...ended]
399}
400
401/** How long since it joined; one kept from before join times were kept counts as long ago. */
402const joinedMs = (member: Member, now: number) => (typeof member.joinedAt === 'number' ? Math.max(0, now - member.joinedAt) : Number.MAX_SAFE_INTEGER)
403
404function actorOf(member: Member, now: number): Actor {
405  return {
406    id: member.id,
407    name: labelOf(member),
408    caption: captionFor(member, now, member.id !== MAIN),
409    color: member.color,
410    mood: moodNow(member, now),
411    ageMs: Math.max(0, now - member.since),
412    joinedMs: joinedMs(member, now),
413    tool: member.tool === null ? null : badgeOf(member.tool),
414    isMain: member.id === MAIN,
415  }
416}
417
418/** The band's Clawds: Claude, the crew at work in the order they joined, and those just ended, still playing it out. */
419function stripOf(members: readonly Member[], now: number, where: Where): StripProps {
420  const main = members.filter(one => one.id === MAIN)
421  const subs = members
422    .filter(one => one.id !== MAIN && (!ENDED.includes(one.mood) || now - (one.endedAt ?? now) < OFF_STRIP_AFTER_MS))
423    .sort((a, b) => a.startedAt - b.startedAt)
424  const walkers: Walker[] = [...main, ...subs].map(one => ({
425    id: one.id,
426    name: one.id === MAIN ? 'Claude' : labelOf(one),
427    // Claude's is your own last prompt: its bubble leaves it out.
428    task: one.id === MAIN ? '' : shorten(one.task, 120),
429    doing: captionFor(one, now),
430    color: one.color,
431    mood: moodNow(one, now),
432    ageMs: Math.max(0, now - one.since),
433    joinedMs: joinedMs(one, now),
434  }))
435  return { view: 'strip', surface: where, walkers }
436}
437
438/** What the stage says while Claude is alone on it: what became of the crew, if there was one. */
439function hintOf(members: readonly Member[]): string | null {
440  const done = members.filter(one => one.id !== MAIN && ENDED.includes(one.mood)).length
441  return done === 0 ? null : `${plural(done, 'subagent')} done and off the stage · see Crew below`
442}
443
444function spotlightOf(member: Member, now: number, isPinned: boolean): Spotlight {
445  const mood = moodNow(member, now)
446  const facts = [
447    member.id === MAIN ? plural(member.calls, 'tool call') + ' this turn' : plural(member.calls, 'tool call'),
448    member.tokens === null ? null : `${tokens(member.tokens)} tokens`,
449    member.model === null ? null : prettyModel(member.model),
450    member.isBackground ? 'in the background' : null,
451  ].filter((one): one is string => one !== null)
452  return {
453    id: member.id,
454    name: member.id === MAIN ? 'Claude' : labelOf(member),
455    color: member.color,
456    status: MOOD_WORD[mood],
457    tone: MOOD_TONE[mood],
458    elapsed: span((member.endedAt ?? now) - member.startedAt),
459    task: member.task === '' ? null : member.task,
460    doing: member.tool === null || !BUSY.includes(mood) ? null : { verb: verbOf(member.tool), detail: member.detail },
461    facts: facts.join(' · '),
462    recent: [...member.recent]
463      .reverse()
464      .slice(0, 5)
465      .map(step => ({ tool: step.tool, detail: step.detail, ago: `${span(now - step.at)} ago` })),
466    isPinned,
467  }
468}
469
470/** The pinned agent, else the newest subagent at work, else Claude. */
471function focusOf(members: readonly Member[], pinned: string | null): { member: Member | null; isPinned: boolean } {
472  const chosen = pinned === null ? undefined : members.find(one => one.id === pinned)
473  if (chosen !== undefined) return { member: chosen, isPinned: true }
474  const busy = members.filter(one => one.id !== MAIN && !ENDED.includes(one.mood)).sort((a, b) => b.startedAt - a.startedAt)[0]
475  return { member: busy ?? members.find(one => one.id === MAIN) ?? null, isPinned: false }
476}
477
478function headlineOf(members: readonly Member[], now: number): string {
479  const main = members.find(one => one.id === MAIN)
480  const subs = members.filter(one => one.id !== MAIN)
481  const busy = subs.filter(one => !ENDED.includes(one.mood)).length
482  const done = subs.filter(one => one.mood === 'done').length
483  const claude =
484    main === undefined
485      ? null
486      : moodNow(main, now) === 'idle' || moodNow(main, now) === 'sleeping'
487        ? 'Claude is waiting for you'
488        : main.mood === 'asking'
489          ? 'Claude needs you'
490          : main.mood === 'delegating'
491            ? 'Claude is waiting on the crew'
492            : 'Claude is working'
493  return [claude, busy === 0 ? null : `${plural(busy, 'subagent')} running`, done === 0 ? null : `${done} done`]
494    .filter((one): one is string => one !== null)
495    .join(' · ')
496}
497
498function compactNote(fill: Fill): { text: string; tone: Tone } | null {
499  if (fill.compactTokens === null) return null
500  const at = `auto-compact at ${tokens(fill.compactTokens)}`
501  if (fill.turnsLeft === null) return { text: at, tone: 'muted' }
502  const tone: Tone = fill.turnsLeft <= 2 ? 'bad' : fill.turnsLeft <= 5 ? 'warn' : 'muted'
503  return { text: `${at} · ${fill.turnsLeft === 0 ? 'compacts next turn' : `~${plural(fill.turnsLeft, 'turn')} to compact`}`, tone }
504}
505
506function contextOf(fill: Fill, current: Reading | null): ContextView {
507  const parts = current?.categories ?? []
508  const total = parts.reduce((sum, one) => sum + one.tokens, 0)
509  return {
510    used: fill.tokens === null ? null : tokens(fill.tokens),
511    window: fill.window === null ? null : tokens(fill.window),
512    compact: compactNote(fill),
513    parts:
514      total <= 0
515        ? []
516        : [
517            ...parts.filter(one => one.kind === 'used').sort((a, b) => b.tokens - a.tokens),
518            // The buffer auto-compact keeps is left out: the compact note says where it starts.
519            ...parts.filter(one => one.kind === 'free'),
520          ].map(one => ({ name: one.name, share: one.tokens / total, color: one.color, kind: one.kind })),
521  }
522}
523
524// ── The hooks ─────────────────────────────────────────────────────────────
525
526export const register: Register = on => {
527  // One Mission control a session: a second copy of this plugin, from
528  // another folder (a working copy beside the installed one), stays out
529  // rather than drawing a second band. A reload of this one comes from its
530  // own folder, and passes.
531  on('plugin.register', async ($, e, next) =>
532    e.name === $.plugin.name && e.root !== $.plugin.root
533      ? { refuse: `${$.plugin.name} is already loaded from ${$.plugin.root}` }
534      : next(e),
535  ).catch(($, e, next) => next(e))
536
537  on('session.start', async ($, e, next) => {
538    const started = await next(e)
539    await $.command.register({ name: 'mission', description: 'Open Mission control: every agent live, the context and the budget' })
540    // Every load starts with the band in view: once hidden it has no way back
541    // of its own (the switch is in the pane), so a hide never outlives the
542    // load it was made in, an older version's Hide button's included.
543    await update($, isBandHidden, () => false)
544    await ensureMain($)
545    await refresh($, true)
546    await reconcile($)
547    $.clock.every(BEAT_MS, () => {
548      void heartbeat($)
549    })
550    return started
551  })
552
553  on('turn.start', async ($, e, next) => {
554    await turnStarted($, e.text)
555    return next(e)
556  })
557
558  on('turn.complete', async ($, e, next) => {
559    const done = await next(e)
560    await turnEnded($, e)
561    return done
562  })
563
564  on('agent.spawn', async ($, e, next) => {
565    const spawned = await next(e)
566    if ('agentId' in spawned && typeof spawned.agentId === 'string') await joined($, e, spawned.agentId, spawned.model)
567    return spawned
568  }).catch(($, e, next) => next(e))
569
570  on('turn.step', async function* ($, e, next) {
571    const result = yield* next(e)
572    try {
573      if (e.agentId !== undefined && result.usage !== null) lastSize.set(e.agentId, sizeOf(result.usage))
574    } catch {
575      // A count missed is a count estimated at the run's end.
576    }
577    return result
578  })
579
580  on('session.compact', async ($, e, next) => {
581    const done = await next(e)
582    try {
583      if (e.agentId === undefined && e.trigger !== 'precompute' && done.skip === undefined) {
584        await update($, turns, () => [])
585        void refresh($, true)
586      }
587    } catch {
588      // As above.
589    }
590    return done
591  }).catch(($, e, next) => next(e))
592
593  on('tool.call', async ($, e, next) => {
594    const who = e.agentId ?? MAIN
595    const tool = String(e.tool)
596    if (INTERNAL.has(tool)) return next(e)
597    await toolStarted($, who, tool, detailOf(tool, e as unknown as Readonly<Record<string, unknown>>))
598    try {
599      return await next(e)
600    } finally {
601      await toolEnded($, who)
602    }
603  }).catch(($, e, next) => next(e))
604
605  on('ui.message', async ($, e, next) => {
606    const data = e.data
607    if (typeof data === 'object' && data !== null) {
608      const message = data as Record<string, unknown>
609      if (typeof message.select === 'string') await pick($, message.select)
610      if (typeof message.focus === 'string') await update($, selected, () => (message.focus === MAIN ? null : (message.focus as string)))
611      if (message.open === true) await openPane($)
612    }
613    return next(e)
614  })
615
616  on('command.run', { command: 'mission' }, async $ => {
617    const isPlaced = await openPane($)
618    return { text: isPlaced ? 'Mission control is open.' : 'Mission control is ready; widen the window to see it.' }
619  })
620
621  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
622    if (e.props.hasSurvey) return next(e)
623    // Each reading redraws the band: the context under the crew stays current,
624    // a long wait turns into a nap and a hover's figures stay fresh.
625    const [isHidden, members, current, history, now] = await Promise.all([read($, isBandHidden), read($, crew), read($, reading), read($, turns), $.clock.now()])
626    if (isHidden) return next(e)
627
628    const table = $.ui.resolve(e)
629    const kit: Kit = { surface: e.surface, Box: table.Box, Text: table.Text, Button: table.Button }
630    const Client = 'Client' in table ? table.Client : undefined
631    const where: Where | null = e.surface === 'desktop' || e.surface === 'terminal' ? e.surface : null
632    const { Box } = kit
633    const shown = contextOf(fillOf(current, history), current)
634
635    return Band(
636      kit,
637      {
638        strip:
639          Client === undefined || where === null ? null : (
640            <Box flexGrow={1} flexShrink={1} minWidth={where === 'desktop' ? STRIP_MAIN_CH : 11}>
641              <Client key="strip" module="./clawd.tsx" width="100%" height={where === 'desktop' ? STRIP_LH : 3} props={stripOf(members, now, where)} />
642            </Box>
643          ),
644        context: shown.used === null ? null : shown,
645        width: e.props.bodyColumns,
646        rows: e.props.maxRows,
647      },
648      { open: () => void openPane($) },
649    )
650  })
651
652  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
653    const [members, pinned, current, history, taken, isHidden, now] = await Promise.all([
654      read($, crew),
655      read($, selected),
656      read($, reading),
657      read($, turns),
658      read($, samples),
659      read($, isBandHidden),
660      $.clock.now(),
661    ])
662    const table = $.ui.resolve(e)
663    const kit: Kit = { surface: e.surface, Box: table.Box, Text: table.Text, Button: table.Button }
664    const Client = 'Client' in table ? table.Client : undefined
665    const where: Where | null = e.surface === 'desktop' || e.surface === 'terminal' ? e.surface : null
666    const width = Math.max(30, e.props.bodyColumns)
667    const fill = fillOf(current, history)
668    const focus = focusOf(members, pinned)
669    const isBig = where === 'desktop' || width >= 44
670
671    const stageProps: StageProps | null =
672      where === null
673        ? null
674        : {
675            view: 'stage',
676            surface: where,
677            big: isBig,
678            actors: lineUp(members, now, true).map(one => actorOf(one, now)),
679            selected: focus.member?.id ?? null,
680            hint: hintOf(members),
681          }
682
683    const crewRows: CrewRow[] = lineUp(members, now, false)
684      .slice(0, 10)
685      .map(one => ({
686        id: one.id,
687        name: one.id === MAIN ? 'Claude' : labelOf(one),
688        color: one.color,
689        caption: captionFor(one, now),
690        elapsed: span((one.endedAt ?? now) - one.startedAt),
691        isEnded: ENDED.includes(one.mood),
692        isPicked: one.id === focus.member?.id,
693      }))
694
695    return Pane(
696      kit,
697      {
698        headline: headlineOf(members, now),
699        stage:
700          Client === undefined || stageProps === null ? null : (
701            <Client key="stage" module="./clawd.tsx" width="100%" height={where === 'desktop' ? 7.5 : isBig ? 10 : 7} props={stageProps} />
702          ),
703        spotlight: focus.member === null ? null : spotlightOf(focus.member, now, focus.isPinned),
704        crew: crewRows,
705        context: contextOf(fill, current),
706        spend: spendLine(current, taken, now),
707        paces: (current?.limits ?? []).map(one => paceOf(one, taken, now)),
708        isBandHidden: isHidden,
709        width,
710      },
711      {
712        close: () => void $.ui.close({ id: PANE }),
713        pick: id => void pick($, id),
714        follow: () => void update($, selected, () => null),
715        toggleBand: () => void update($, isBandHidden, value => !value),
716      },
717    )
718  })
719}
720

1// The arithmetic behind the band and the pane: how full the context is and
2// how many turns are left before auto-compact, what the session burns
3// per hour, and whether each rate-limit window is on pace to last.
4
5import type { Limit, Reading, Sample } from '../types'
6import { clock, limitInfo, money, span, when } from './format'
7
8export type Tone = 'ok' | 'warn' | 'bad' | 'muted'
9
10// ── Context ───────────────────────────────────────────────────────────────
11
12export type Fill = {
13  tokens: number | null
14  window: number | null
15  /** Shares of the window, 0 to 1: what is used, and where auto-compact runs. */
16  used: number | null
17  compactAt: number | null
18  compactTokens: number | null
19  /** Average growth per turn over the recent turns, in tokens. */
20  perTurn: number | null
21  /** Whole turns left before auto-compact at that pace. */
22  turnsLeft: number | null
23  tone: Tone
24}
25
26const RECENT_TURNS = 6
27
28export function fillOf(reading: Reading | null, turns: readonly number[]): Fill {
29  const context = reading?.context ?? null
30  const window = context?.window ?? null
31  const tokens = context?.tokens ?? null
32  const compactTokens = reading?.compactAt ?? null
33  const share = (count: number | null) => (count === null || window === null || window <= 0 ? null : Math.min(1, count / window))
34
35  const growth: number[] = []
36  for (let i = 1; i < turns.length; i++) {
37    const delta = (turns[i] ?? 0) - (turns[i - 1] ?? 0)
38    if (delta > 0) growth.push(delta)
39  }
40  const recent = growth.slice(-RECENT_TURNS)
41  const perTurn = recent.length === 0 ? null : recent.reduce((sum, one) => sum + one, 0) / recent.length
42  const turnsLeft =
43    tokens !== null && compactTokens !== null && perTurn !== null && perTurn > 0 ? Math.max(0, Math.floor((compactTokens - tokens) / perTurn)) : null
44
45  const ratio = tokens === null ? 0 : compactTokens !== null ? tokens / compactTokens : (share(tokens) ?? 0)
46  const tone: Tone = ratio >= 0.9 ? 'bad' : ratio >= 0.75 ? 'warn' : 'ok'
47
48  return { tokens, window, used: share(tokens), compactAt: share(compactTokens), compactTokens, perTurn, turnsLeft, tone }
49}
50
51// ── Spend ─────────────────────────────────────────────────────────────────
52
53/** Dollars per hour over the last half hour of samples, once there are five minutes of them. */
54export function burnOf(samples: readonly Sample[], now: number): number | null {
55  const priced = samples.filter(one => one.costUsd !== null && now - one.at <= 30 * 60_000)
56  const first = priced[0]
57  const last = priced[priced.length - 1]
58  if (first === undefined || last === undefined || first.costUsd === null || last.costUsd === null) return null
59  const hours = (last.at - first.at) / 3_600_000
60  if (hours < 5 / 60) return null
61  return Math.max(0, (last.costUsd - first.costUsd) / hours)
62}
63
64export function spendLine(reading: Reading | null, samples: readonly Sample[], now: number): string | null {
65  const cost = reading?.costUsd ?? null
66  if (cost === null) return null
67  const burn = burnOf(samples, now)
68  return burn === null ? money(cost) : `${money(cost)} · ${money(burn)}/h`
69}
70
71// ── Rate-limit windows ────────────────────────────────────────────────────
72
73export type Pace = {
74  kind: string
75  label: string
76  percent: number
77  /** How much of the window's time has gone, as a percent; null when not known. */
78  elapsed: number | null
79  /** Where it would stand at the reset at the recent rate. */
80  projected: number | null
81  verdict: string
82  tone: Tone
83  resets: string | null
84}
85
86export function paceOf(limit: Limit, samples: readonly Sample[], now: number): Pace {
87  const { label, hours } = limitInfo(limit.kind)
88  const resetAt = limit.resetsAt === null ? Number.NaN : Date.parse(limit.resetsAt)
89  const hasReset = !Number.isNaN(resetAt) && resetAt > now
90  const resets = hasReset ? when(resetAt, now) : null
91  const base = { kind: limit.kind, label, percent: limit.percent, resets }
92
93  if (limit.percent >= 100) {
94    return { ...base, elapsed: null, projected: null, verdict: resets === null ? 'limit reached' : `limit reached · back ${resets}`, tone: 'bad' }
95  }
96  if (hours === null || !hasReset) {
97    return { ...base, elapsed: null, projected: null, verdict: resets === null ? 'used' : `resets ${resets}`, tone: limit.percent >= 80 ? 'warn' : 'muted' }
98  }
99
100  const length = hours * 3_600_000
101  const start = resetAt - length
102  const gone = clampNumber((now - start) / length, 0, 1)
103  const left = resetAt - now
104
105  // The recent rate, from this session's samples of the 5-hour window; else
106  // the window's own average since it opened.
107  let rate: number | null = null
108  if (limit.kind === 'five_hour') {
109    const recent = samples.filter(one => one.fiveHour !== null && now - one.at <= 45 * 60_000 && one.at >= start)
110    const first = recent[0]
111    const last = recent[recent.length - 1]
112    if (first !== undefined && last !== undefined && first.fiveHour !== null && last.fiveHour !== null && last.at - first.at >= 10 * 60_000) {
113      rate = Math.max(0, (last.fiveHour - first.fiveHour) / (last.at - first.at))
114    }
115  }
116  if (rate === null && now > start) rate = limit.percent / (now - start)
117  const projected = rate === null ? null : limit.percent + rate * left
118
119  if (projected !== null && rate !== null && rate > 0 && projected >= 100) {
120    const outAt = now + (100 - limit.percent) / rate
121    return { ...base, elapsed: gone * 100, projected, verdict: `out ~${clock(outAt)} · resets ${resets}`, tone: 'bad' }
122  }
123  if (projected !== null && projected >= 85) {
124    return { ...base, elapsed: gone * 100, projected, verdict: `tight · ~${Math.round(projected)}% by reset`, tone: 'warn' }
125  }
126  return {
127    ...base,
128    elapsed: gone * 100,
129    projected,
130    verdict: `on pace · resets ${hours <= 24 ? `in ${span(left)}` : resets}`,
131    tone: 'ok',
132  }
133}
134
135function clampNumber(n: number, low: number, high: number): number {
136  return Math.max(low, Math.min(high, n))
137}
138

1// Plain formatting: numbers, money, durations, model names, short text.
2
3export function tokens(count: number): string {
4  if (count >= 1_000_000) return `${(count / 1_000_000).toFixed(count % 1_000_000 === 0 ? 0 : 1)}M`
5  if (count >= 10_000) return `${Math.round(count / 1000)}k`
6  if (count >= 1000) return `${(count / 1000).toFixed(1)}k`
7  return String(count)
8}
9
10export function money(usd: number): string {
11  if (usd >= 100) return `$${Math.round(usd)}`
12  return `$${usd.toFixed(2)}`
13}
14
15/** `42s`, `3m`, `1h 5m`, `2d`. */
16export function span(ms: number): string {
17  const seconds = Math.max(0, Math.round(ms / 1000))
18  if (seconds < 60) return `${seconds}s`
19  const minutes = Math.round(seconds / 60)
20  if (minutes < 60) return `${minutes}m`
21  const hours = Math.floor(minutes / 60)
22  if (hours < 48) return minutes % 60 === 0 ? `${hours}h` : `${hours}h ${minutes % 60}m`
23  return `${Math.round(hours / 24)}d`
24}
25
26export function clock(at: number): string {
27  const date = new Date(at)
28  return `${String(date.getHours()).padStart(2, '0')}:${String(date.getMinutes()).padStart(2, '0')}`
29}
30
31const DAYS = ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat']
32
33/** `15:40` today, else `Mon 09:00`. */
34export function when(at: number, now: number): string {
35  const day = new Date(at)
36  const today = new Date(now)
37  const isToday = day.getFullYear() === today.getFullYear() && day.getMonth() === today.getMonth() && day.getDate() === today.getDate()
38  return isToday ? clock(at) : `${DAYS[day.getDay()] ?? ''} ${clock(at)}`
39}
40
41const LIMITS: Record<string, { label: string; hours: number | null }> = {
42  five_hour: { label: '5-hour', hours: 5 },
43  seven_day: { label: 'Weekly', hours: 7 * 24 },
44  seven_day_opus: { label: 'Weekly Opus', hours: 7 * 24 },
45  spend_limit: { label: 'Spend', hours: null },
46}
47
48export function limitInfo(kind: string): { label: string; hours: number | null } {
49  const known = LIMITS[kind]
50  if (known !== undefined) return known
51  const words = kind.replace(/_/g, ' ')
52  return { label: words.charAt(0).toUpperCase() + words.slice(1), hours: null }
53}
54
55/** `claude-opus-5-5[1m]` → `Opus 5.5`; anything else as given. */
56export function prettyModel(id: string): string {
57  const found = /(opus|sonnet|haiku|fable)[-_ ]?(\d+)(?:[-_.](\d+))?/i.exec(id)
58  if (found === null) return id
59  const family = found[1] ?? ''
60  const name = family.charAt(0).toUpperCase() + family.slice(1).toLowerCase()
61  const version = found[3] === undefined || found[3].length > 2 ? found[2] : `${found[2]}.${found[3]}`
62  return `${name} ${version}`
63}
64
65export function shorten(text: string, width: number): string {
66  const line = text.replace(/\s+/g, ' ').trim()
67  return line.length <= width ? line : `${line.slice(0, Math.max(1, width - 1))}…`
68}
69
70export function plural(count: number, one: string, many = `${one}s`): string {
71  return `${count} ${count === 1 ? one : many}`
72}
73
74export function baseName(path: string): string {
75  const trimmed = path.replace(/\/+$/, '')
76  return trimmed.slice(trimmed.lastIndexOf('/') + 1) || trimmed
77}
78

1// What a tool call is doing, in a few words: "Reading app.tsx", "Running bun
2// test". The badge is what a Clawd's speech bubble says while it runs.
3
4import { baseName, shorten } from './format'
5
6type Input = Readonly<Record<string, unknown>>
7
8const text = (input: Input, key: string): string | null => {
9  const value = input[key]
10  return typeof value === 'string' && value.trim() !== '' ? value : null
11}
12
13const VERBS: Record<string, string> = {
14  Read: 'Reading',
15  Edit: 'Editing',
16  MultiEdit: 'Editing',
17  Write: 'Writing',
18  NotebookEdit: 'Editing',
19  Bash: 'Running',
20  BashOutput: 'Watching',
21  KillShell: 'Stopping',
22  Grep: 'Searching',
23  Glob: 'Finding',
24  WebFetch: 'Fetching',
25  WebSearch: 'Searching the web',
26  Agent: 'Delegating',
27  Task: 'Delegating',
28  TodoWrite: 'Planning',
29  AskUserQuestion: 'Asking you',
30  ExitPlanMode: 'Presenting a plan',
31  Skill: 'Using',
32  SendMessage: 'Messaging',
33  ToolSearch: 'Loading tools',
34}
35
36/** Tools that wait on the person while they run. */
37export const ASKING = new Set(['AskUserQuestion', 'ExitPlanMode'])
38
39/** Tools that wait on subagents while they run. */
40export const DELEGATING = new Set(['Agent', 'Task'])
41
42function mcpParts(tool: string): [string, string] | null {
43  const found = /^mcp__(.+?)__(.+)$/.exec(tool)
44  return found === null ? null : [found[1] ?? '', found[2] ?? '']
45}
46
47/** The argument worth showing: a file's name, a command, a pattern, a host. */
48export function detailOf(tool: string, input: Input): string | null {
49  switch (tool) {
50    case 'Read':
51    case 'Edit':
52    case 'MultiEdit':
53    case 'Write': {
54      const path = text(input, 'file_path')
55      return path === null ? null : baseName(path)
56    }
57    case 'NotebookEdit': {
58      const path = text(input, 'notebook_path')
59      return path === null ? null : baseName(path)
60    }
61    case 'Bash': {
62      const command = text(input, 'command')
63      if (command === null) return null
64      const line = (command.split('\n')[0] ?? '').replace(/^cd\s+\S+\s*&&\s*/, '')
65      return shorten(line, 48)
66    }
67    case 'Grep': {
68      const pattern = text(input, 'pattern')
69      return pattern === null ? null : `"${shorten(pattern, 32)}"`
70    }
71    case 'Glob':
72      return text(input, 'pattern')
73    case 'WebFetch': {
74      const url = text(input, 'url')
75      if (url === null) return null
76      const host = /^[a-z]+:\/\/([^/?#]+)/i.exec(url)
77      return host?.[1] ?? shorten(url, 32)
78    }
79    case 'WebSearch': {
80      const query = text(input, 'query')
81      return query === null ? null : `"${shorten(query, 32)}"`
82    }
83    case 'Agent':
84    case 'Task':
85      return text(input, 'description')
86    case 'TodoWrite': {
87      const todos = input.todos
88      return Array.isArray(todos) ? `${todos.length} todos` : null
89    }
90    case 'AskUserQuestion': {
91      const questions = input.questions
92      const first = Array.isArray(questions) ? (questions[0] as Input | undefined) : undefined
93      const question = first === undefined ? null : text(first, 'question')
94      return question === null ? null : shorten(question, 48)
95    }
96    case 'Skill':
97      return text(input, 'skill') ?? text(input, 'command')
98    case 'SendMessage':
99      return text(input, 'to') ?? text(input, 'recipient')
100    default: {
101      const mcp = mcpParts(tool)
102      return mcp === null ? null : mcp[1].replace(/_/g, ' ')
103    }
104  }
105}
106
107export function verbOf(tool: string): string {
108  const known = VERBS[tool]
109  if (known !== undefined) return known
110  const mcp = mcpParts(tool)
111  return mcp === null ? `Using ${tool}` : `Calling ${mcp[0]}`
112}
113
114/** What a tool call reads as: `Reading app.tsx`. */
115export function captionOf(tool: string, detail: string | null): string {
116  return detail === null ? verbOf(tool) : `${verbOf(tool)} ${detail}`
117}
118
119/** The speech-bubble word: the tool, or an MCP tool's server. */
120export function badgeOf(tool: string): string {
121  const mcp = mcpParts(tool)
122  return shorten(mcp === null ? tool : mcp[0], 12)
123}
124

1// The band and the pane, as plain functions over a surface's element table.
2//
3// Every colour is a theme key, never a raw colour: the desktop maps each key
4// onto its own design token and the terminal onto the person's theme, so
5// both follow light, dark and custom themes. The animated parts (the stage
6// and the band's strip of Clawds) are `Client`s the hooks module builds and
7// hands in.
8
9import type { BoxProps, ButtonProps, ElementConstructor, RenderElement, RenderSurface, TextProps } from 'claude-code'
10
11import type { Pace, Tone } from './budget'
12
13export type Kit = {
14  surface: RenderSurface
15  Box: ElementConstructor<BoxProps>
16  Text: ElementConstructor<TextProps>
17  Button: ElementConstructor<ButtonProps>
18}
19
20export const INK: Record<Tone, string> = { ok: 'success', warn: 'warning', bad: 'error', muted: 'subtle' }
21
22const isTerminal = (kit: Kit) => kit.surface === 'terminal'
23
24/** Half a line between stacked parts on the desktop; none in a terminal. */
25const breath = (kit: Kit, rows = 1) => (isTerminal(kit) ? 0 : rows)
26
27function card(kit: Kit, ink: string | null): Partial<BoxProps> {
28  if (isTerminal(kit)) return { borderStyle: 'round', borderColor: ink ?? 'subtle', paddingX: 1 }
29  return ink === null ? { borderStyle: 'round' } : { borderStyle: 'round', borderColor: ink, borderDimColor: true }
30}
31
32function section(kit: Kit, title: string, children: RenderElement[], aside: RenderElement | null = null): RenderElement {
33  const { Box, Text } = kit
34  return (
35    <Box flexDirection="column" rowGap={breath(kit, 0.5)}>
36      <Box flexDirection="row" alignItems="center">
37        <Text bold color="inactive">
38          {title}
39        </Text>
40        <Box flexGrow={1} />
41        {aside}
42      </Box>
43      {children}
44    </Box>
45  )
46}
47
48/** Splits `columns` among shares by largest remainder, so the cells add up. */
49function cellsOf(shares: readonly number[], columns: number): number[] {
50  const total = shares.reduce((sum, one) => sum + one, 0)
51  if (total <= 0) return shares.map(() => 0)
52  const exact = shares.map(one => (one / total) * columns)
53  const cells = exact.map(Math.floor)
54  let left = columns - cells.reduce((sum, one) => sum + one, 0)
55  const order = exact.map((one, i) => [one - Math.floor(one), i] as const).sort((a, b) => b[0] - a[0])
56  for (const [, i] of order) {
57    if (left <= 0) break
58    cells[i] = (cells[i] ?? 0) + 1
59    left -= 1
60  }
61  return cells
62}
63
64/** A width the engine takes: a whole percent. */
65const percent = (n: number) => `${Math.round(Math.max(0, Math.min(100, n)))}%`
66
67// ── The band ──────────────────────────────────────────────────────────────
68//
69// The crew, alive, and the way in: the Clawds say who is at work and a hover
70// names one and says what it is doing. Under them, the context they work in;
71// the budget waits in the pane.
72
73export type BandView = {
74  /** The crew, animated: a Client the hooks build. */
75  strip: RenderElement | null
76  /** The context under the crew, as the pane shows it; null before the first reading. */
77  context: ContextView | null
78  /** Cells the context spans in a terminal. */
79  width: number
80  /** Rows the band may take before it scrolls, in a terminal. */
81  rows: number
82}
83
84export type BandActions = { open: () => void }
85
86export function Band(kit: Kit, view: BandView, act: BandActions): RenderElement {
87  const { Box, Button } = kit
88  const crew = (
89    <Box flexDirection="row" alignItems="center" width="100%" columnGap={2}>
90      {view.strip ?? <Box flexGrow={1} />}
91      <Box flexShrink={0}>
92        {isTerminal(kit) ? (
93          <Button key="open" label="Mission control" hotkey="m" onPress={act.open} />
94        ) : (
95          <Button key="open" plain label="Mission control" onPress={act.open} />
96        )}
97      </Box>
98    </Box>
99  )
100  const ctx = view.context
101  if (ctx === null) return crew
102  if (isTerminal(kit)) {
103    // Rows are dear here: the bar is the floor the crew stands on, and the
104    // figures and what fills it share the row under it. Short of rows, the
105    // legend goes first, then the figures, so the band never scrolls.
106    const room = view.rows - CREW_ROWS
107    const hasBar = ctx.parts.length > 0 && room >= 1
108    const lines = room - (hasBar ? 1 : 0)
109    const words = lines >= textRows(ctx, view.width) ? [contextLine(kit, ctx), ...legendOf(kit, ctx.parts)] : lines >= 1 ? [contextLine(kit, ctx)] : []
110    return (
111      <Box flexDirection="column" width="100%">
112        {crew}
113        {hasBar ? contextBar(kit, ctx.parts, view.width) : null}
114        {words.length === 0 ? null : (
115          <Box flexDirection="row" flexWrap="wrap" columnGap={2}>
116            {words}
117          </Box>
118        )}
119      </Box>
120    )
121  }
122  return (
123    <Box flexDirection="column" width="100%" rowGap={0.5}>
124      {crew}
125      {contextBlock(kit, ctx, view.width)}
126    </Box>
127  )
128}
129
130// ── The pane ──────────────────────────────────────────────────────────────
131
132export type Spotlight = {
133  id: string
134  name: string
135  color: string
136  status: string
137  tone: Tone
138  elapsed: string
139  task: string | null
140  doing: { verb: string; detail: string | null } | null
141  facts: string
142  recent: { tool: string; detail: string | null; ago: string }[]
143  isPinned: boolean
144}
145
146export type CrewRow = {
147  id: string
148  name: string
149  color: string
150  caption: string
151  elapsed: string
152  isEnded: boolean
153  isPicked: boolean
154}
155
156export type ContextView = {
157  used: string | null
158  window: string | null
159  compact: { text: string; tone: Tone } | null
160  /** What fills the window, each a share of it, with its /context colour: what is used, then the free space. */
161  parts: { name: string; share: number; color: string; kind: 'used' | 'free' | 'buffer' }[]
162}
163
164
165export type PaneView = {
166  headline: string
167  stage: RenderElement | null
168  spotlight: Spotlight | null
169  crew: CrewRow[]
170  context: ContextView
171  spend: string | null
172  paces: Pace[]
173  isBandHidden: boolean
174  width: number
175}
176
177export type PaneActions = {
178  close: () => void
179  pick: (id: string) => void
180  follow: () => void
181  toggleBand: () => void
182}
183
184function spotlightCard(kit: Kit, spot: Spotlight, act: PaneActions): RenderElement {
185  const { Box, Text, Button } = kit
186  return (
187    <Box flexDirection="column" rowGap={breath(kit, 0.5)} {...card(kit, spot.color)}>
188      <Box flexDirection="row" alignItems="center" columnGap={1}>
189        <Text color={spot.color}>●</Text>
190        <Text bold wrap="truncate-end">
191          {spot.name}
192        </Text>
193        <Box flexGrow={1} />
194        <Text color={INK[spot.tone]}>{spot.status}</Text>
195        <Text color="subtle">{spot.elapsed}</Text>
196      </Box>
197      {spot.task === null ? null : (
198        <Text color="inactive" wrap="truncate-end">
199          {spot.task}
200        </Text>
201      )}
202      {spot.doing === null ? null : (
203        <Text wrap="truncate-end">
204          <Text color="permission">{spot.doing.verb}</Text>
205          {spot.doing.detail === null ? '' : ` ${spot.doing.detail}`}
206        </Text>
207      )}
208      <Text color="subtle" wrap="truncate-end">
209        {spot.facts}
210      </Text>
211      {spot.recent.length === 0 ? null : (
212        <Box flexDirection="column" marginTop={breath(kit, 0.5)}>
213          {spot.recent.map(one => (
214            <Box flexDirection="row" columnGap={1}>
215              <Text wrap="truncate-end">
216                <Text color="inactive">{one.tool}</Text>
217                {one.detail === null ? '' : <Text color="subtle">{` ${one.detail}`}</Text>}
218              </Text>
219              <Box flexGrow={1} />
220              <Text color="subtle">{one.ago}</Text>
221            </Box>
222          ))}
223        </Box>
224      )}
225      {spot.isPinned ? (
226        <Box flexDirection="row">
227          <Button key="follow" plain label="Follow the action" onPress={act.follow} />
228        </Box>
229      ) : null}
230    </Box>
231  )
232}
233
234function crewList(kit: Kit, rows: CrewRow[], act: PaneActions): RenderElement {
235  const { Box, Text, Button } = kit
236  return section(
237    kit,
238    'Crew',
239    rows.map(row => (
240      <Box flexDirection="row" alignItems="center" columnGap={1}>
241        <Text color={row.isEnded ? 'subtle' : row.color}>{row.isEnded ? '○' : '●'}</Text>
242        <Button key={`pick:${row.id}`} plain label={row.name} onPress={() => act.pick(row.id)} />
243        <Text color={row.isEnded ? 'subtle' : 'inactive'} wrap="truncate-end">
244          {row.caption}
245        </Text>
246        <Box flexGrow={1} />
247        <Text color="subtle">{row.elapsed}</Text>
248      </Box>
249    )),
250  )
251}
252
253/** A terminal's bar: what is used a heavy rule, the free space a light one. */
254const GLYPH = { used: '━', free: '─', buffer: '╌' }
255
256/** What fills the context, as one bar of its parts' colours, `width` cells wide in a terminal. */
257function contextBar(kit: Kit, parts: ContextView['parts'], width: number): RenderElement {
258  const { Box, Text } = kit
259  if (isTerminal(kit)) {
260    return (
261      <Text wrap="truncate">
262        {cellsOf(
263          parts.map(part => part.share),
264          Math.max(10, width),
265        ).map((cells, i) => {
266          const part = parts[i]
267          return part === undefined || cells === 0 ? null : <Text color={part.color}>{GLYPH[part.kind].repeat(cells)}</Text>
268        })}
269      </Text>
270    )
271  }
272  return (
273    <Box flexDirection="row" width="100%" height={0.4} overflow="hidden" flexShrink={0}>
274      {cellsOf(
275        parts.map(part => part.share),
276        100,
277      ).map((whole, i) => {
278        const part = parts[i]
279        return part === undefined || whole === 0 ? null : <Box width={percent(whole)} height={0.4} flexShrink={1} backgroundColor={part.color} />
280      })}
281    </Box>
282  )
283}
284
285function composition(kit: Kit, parts: ContextView['parts'], width: number): RenderElement[] {
286  const { Box, Text } = kit
287  if (parts.length === 0) return []
288  return [
289    contextBar(kit, parts, width),
290    <Box flexDirection="row" flexWrap="wrap" columnGap={2}>
291      {legendOf(kit, parts)}
292    </Box>,
293  ]
294}
295
296/** The parts a legend names: the five biggest used, then the free space. */
297function legendNames(parts: ContextView['parts']): ContextView['parts'] {
298  return [...parts.filter(part => part.kind === 'used' && part.share >= 0.005).slice(0, 5), ...parts.filter(part => part.kind !== 'used')]
299}
300
301/** Each part that counts, by name and share: the five biggest used, then the free space. */
302function legendOf(kit: Kit, parts: ContextView['parts']): RenderElement[] {
303  const { Text } = kit
304  return legendNames(parts).map(part => (
305    <Text wrap="truncate-end">
306      <Text color={part.color}>■</Text>
307      <Text color="inactive">{` ${part.name} `}</Text>
308      <Text color="subtle">{`${Math.round(part.share * 100)}%`}</Text>
309    </Text>
310  ))
311}
312
313/** A terminal strip's rows: a whole Clawd. */
314const CREW_ROWS = 3
315
316/** Rows the figures and the legend wrap to in `width` cells, each item kept whole. */
317function textRows(ctx: ContextView, width: number): number {
318  const line = `${ctx.used ?? ''} of ${ctx.window ?? '?'} used${ctx.compact === null ? '' : ` · ${ctx.compact.text}`}`
319  const items = [line, ...legendNames(ctx.parts).map(part => `■ ${part.name} ${Math.round(part.share * 100)}%`)]
320  let rows = 1
321  let at = 0
322  for (const item of items) {
323    const n = [...item].length
324    if (at > 0 && at + 2 + n > width) {
325      rows += 1
326      at = n
327    } else at += (at > 0 ? 2 : 0) + n
328  }
329  return rows
330}
331
332/** How much is used of the window, and when it compacts. */
333function contextLine(kit: Kit, ctx: ContextView): RenderElement {
334  const { Text } = kit
335  return (
336    <Text wrap="truncate-end">
337      {ctx.used === null ? (
338        <Text color="subtle">No reading yet: the context shows after Claude's first reply.</Text>
339      ) : (
340        [<Text bold>{ctx.used}</Text>, <Text color="subtle">{` of ${ctx.window ?? '?'} used`}</Text>]
341      )}
342      {ctx.compact === null ? null : [<Text color="subtle"> · </Text>, <Text color={INK[ctx.compact.tone]}>{ctx.compact.text}</Text>]}
343    </Text>
344  )
345}
346
347/** How much is used, when it compacts, and what fills it: the pane's Context, and the band's. */
348function contextBlock(kit: Kit, ctx: ContextView, width: number): RenderElement[] {
349  return [contextLine(kit, ctx), ...composition(kit, ctx.parts, width)]
350}
351
352function paceBar(kit: Kit, pace: Pace, width: number): RenderElement {
353  const { Box, Text } = kit
354  const used = Math.max(0, Math.min(100, pace.percent))
355  const gone = pace.elapsed
356  const ink = INK[pace.tone === 'muted' ? 'ok' : pace.tone]
357  if (isTerminal(kit)) {
358    const cells = Math.round((used / 100) * width)
359    const mark = gone === null ? -1 : Math.min(width - 1, Math.round((gone / 100) * (width - 1)))
360    const glyphs: RenderElement[] = []
361    for (let i = 0; i < width; i++) {
362      if (i === mark) glyphs.push(<Text color="text">│</Text>)
363      else glyphs.push(<Text color={i < cells ? ink : 'promptBorder'}>{i < cells ? '━' : '─'}</Text>)
364    }
365    return <Text>{glyphs}</Text>
366  }
367  // Used, then the rest of the window; the time gone is a tick across the
368  // bar, and what is used past it (ahead of pace) is drawn as a warning.
369  const mark = gone === null ? null : Math.max(0, Math.min(100, gone))
370  const segments: { share: number; ink: string }[] =
371    mark === null
372      ? [
373          { share: used, ink },
374          { share: 100 - used, ink: 'promptBorder' },
375        ]
376      : used <= mark
377        ? [
378            { share: used, ink },
379            { share: mark - used, ink: 'promptBorder' },
380            { share: -1, ink: 'text' },
381            { share: 100 - mark, ink: 'promptBorder' },
382          ]
383        : [
384            { share: mark, ink },
385            { share: -1, ink: 'text' },
386            { share: used - mark, ink: 'warning' },
387            { share: 100 - used, ink: 'promptBorder' },
388          ]
389  const wholes = cellsOf(
390    segments.map(one => Math.max(0, one.share)),
391    100,
392  )
393  return (
394    <Box flexDirection="row" width={width} height={0.9} flexShrink={0} overflow="hidden" alignItems="center">
395      {segments.map((one, i) =>
396        one.share < 0 ? (
397          <Box width={0.25} height={0.9} flexShrink={0} backgroundColor={one.ink} />
398        ) : (wholes[i] ?? 0) === 0 ? null : (
399          <Box width={percent(wholes[i] ?? 0)} height={0.45} flexShrink={1} backgroundColor={one.ink} />
400        ),
401      )}
402    </Box>
403  )
404}
405
406export function Pane(kit: Kit, view: PaneView, act: PaneActions): RenderElement {
407  const { Box, Text, Button } = kit
408  const ctx = view.context
409  const barWidth = isTerminal(kit) ? 12 : 14
410
411  return (
412    <Box flexDirection="column" width="100%" rowGap={breath(kit, 2)}>
413      <Box flexDirection="row" alignItems="center" columnGap={1}>
414        <Text color="inactive" wrap="truncate-end">
415          {view.headline}
416        </Text>
417        <Box flexGrow={1} />
418        {isTerminal(kit) ? <Button key="close" label="Close" hotkey="q" onPress={act.close} /> : null}
419      </Box>
420
421      {view.stage}
422
423      {view.spotlight === null ? null : spotlightCard(kit, view.spotlight, act)}
424
425      {view.crew.length > 1 ? crewList(kit, view.crew, act) : null}
426
427      {section(kit, 'Context', contextBlock(kit, ctx, view.width - 4))}
428
429      {section(kit, 'Budget', [
430        <Text wrap="truncate-end">
431          {view.spend === null ? <Text color="subtle">No spend recorded yet</Text> : <Text bold>{view.spend}</Text>}
432          {view.spend === null ? null : <Text color="subtle"> this session</Text>}
433        </Text>,
434        ...view.paces.map(pace => (
435          <Box flexDirection="row" alignItems="center" columnGap={1}>
436            <Box width={isTerminal(kit) ? 7 : 9} flexShrink={0}>
437              <Text color="inactive" wrap="truncate-end">
438                {pace.label}
439              </Text>
440            </Box>
441            {paceBar(kit, pace, barWidth)}
442            <Box width={5} flexShrink={0} justifyContent="flex-end">
443              <Text bold>{`${Math.round(pace.percent)}%`}</Text>
444            </Box>
445            <Text color={INK[pace.tone]} wrap="truncate-end">
446              {pace.verdict}
447            </Text>
448          </Box>
449        )),
450      ])}
451
452      <Box flexDirection="row">
453        <Button key="band" plain label={view.isBandHidden ? 'Show the band above the prompt' : 'Hide the band above the prompt'} onPress={act.toggleBand} />
454      </Box>
455    </Box>
456  )
457}
458

1// The crew, drawn where it is seen: pixel Clawds on the desktop, block
2// characters in a terminal. The hooks hand it who is doing what; it keeps
3// the frames, so the Clawds go on moving between the hooks' redraws.
4//
5// Two views share the sprites: `stage` (the pane's: everyone side by side,
6// Claude twice the size, a speech bubble over each head) and `strip` (the
7// band's: Claude and the crew at work, small, in a row). An agent at work
8// sits side-on at a laptop, typing; one that waits on you, or is done, turns
9// to face you, and so does one under the pointer, its laptop left on the desk.
10//
11// A frame is drawn only when something in it changed: a calm scene costs a
12// blink every few seconds, a busy one eight frames a second.
13
14import type { ClientModule, ClientSurface, RenderElement } from 'claude-code'
15
16import type { Actor, ClawdProps, Mood, StageProps, StripProps, Walker } from '../types'
17
18const TICK_MS = 125
19
20type State = { frame: number; hover: string | null }
21type Surface = ClientSurface<State>
22type Elements = Surface['elements']
23
24// ── Pixels ────────────────────────────────────────────────────────────────
25//
26// A pixel is half a terminal cell wide and half a cell tall, as in the CLI
27// logo, so it stands twice as tall as it is wide. The desktop draws one `w`
28// ch wide and `tall(w)` lh tall: the same shape in its 13 px / 19 px line.
29
30type Canvas = { width: number; height: number; ink: (string | null)[] }
31
32const round3 = (n: number) => Math.round(n * 1000) / 1000
33const tall = (w: number) => round3((w * 2 * 7.4) / 19)
34const clamp = (n: number, low: number, high: number) => Math.max(low, Math.min(high, n))
35
36function blank(width: number, height: number): Canvas {
37  return { width, height, ink: new Array<string | null>(width * height).fill(null) }
38}
39
40/**
41 * Paints a block of a sprite's pixels: columns [col, col + w) of rows
42 * [row, row + h), each pixel `scale` canvas pixels a side, the sprite's
43 * corner at canvas (x, y). Halves land from scale 2 up and round down at
44 * scale 1. `null` cuts a hole.
45 */
46function paint(c: Canvas, x: number, y: number, scale: number, col: number, row: number, w: number, h: number, ink: string | null): void {
47  const x0 = Math.max(0, x + Math.floor(col * scale))
48  const x1 = Math.min(c.width, x + Math.floor((col + w) * scale))
49  const y0 = Math.max(0, y + Math.floor(row * scale))
50  const y1 = Math.min(c.height, y + Math.floor((row + h) * scale))
51  for (let py = y0; py < y1; py++) for (let px = x0; px < x1; px++) c.ink[py * c.width + px] = ink
52}
53
54// ── The Clawd ─────────────────────────────────────────────────────────────
55//
56// 18 × 5 pixels, the CLI logo exactly:   ▐▛███▜▌
57//                                        ▝▜█████▛▘
58//                                          ▘▘ ▝▝
59// The eyes are holes in the head; the arms move between rows; the legs
60// scuttle between three stances. Side-on it faces left, toward its laptop:
61// one eye, the brow's notch at the front of the face, the near arm reaching
62// for the keys.
63
64type View = 'front' | 'side'
65type Eyes = 'open' | 'shut' | 'left' | 'right' | 'closed'
66type Legs = 'stand' | 'out' | 'in' | 'none'
67
68type Pose = {
69  view: View
70  eyes: Eyes
71  legs: Legs
72  /**
73   * The row each arm is on: 2 at rest, 0 raised high, 1 waving, 3 lowered;
74   * halves show from scale 2. Side-on, `armL` is the arm at the keys.
75   */
76  armL: number
77  armR: number
78  /** Rows above the stand (1, a hop) or below it (a half: settled down to doze). */
79  lift: number
80  /** Rows drawn from the feet up: 5 is all of it, fewer while it appears. */
81  reveal: number
82}
83
84const LEGS: Record<Legs, readonly number[]> = {
85  stand: [4, 6, 11, 13],
86  out: [3, 5, 12, 14],
87  in: [5, 7, 10, 12],
88  none: [],
89}
90const SCUTTLE: readonly Legs[] = ['stand', 'out', 'stand', 'in']
91const SPRITE_W = 18
92const SPRITE_H = 5
93
94/** An eye hole in the head's second row: its column, its width, and how far up from the row's foot it reaches. */
95type Hole = readonly [number, number, number]
96
97function holesOf(view: View, eyes: Eyes, isFine: boolean): readonly Hole[] {
98  if (view === 'side') {
99    const notch: Hole = [3, 1, 1]
100    if (eyes === 'shut') return [notch]
101    return [notch, eyes === 'closed' && isFine ? [7.5, 2, 0.5] : [8, 1, 1]]
102  }
103  switch (eyes) {
104    case 'open':
105      return [
106        [5, 1, 1],
107        [12, 1, 1],
108      ]
109    case 'left':
110      return [
111        [4, 1, 1],
112        [11, 1, 1],
113      ]
114    case 'right':
115      return [
116        [6, 1, 1],
117        [13, 1, 1],
118      ]
119    case 'shut':
120      return []
121    case 'closed':
122      // Slits: half an eye tall where there is room for halves, else as wide
123      // as two eyes, which a terminal draws as `▀`.
124      return isFine
125        ? [
126            [4.5, 2, 0.5],
127            [11.5, 2, 0.5],
128          ]
129        : [
130            [4, 2, 1],
131            [12, 2, 1],
132          ]
133  }
134}
135
136function drawClawd(c: Canvas, x: number, y: number, pose: Pose, ink: string, scale = 1): void {
137  const hidden = SPRITE_H - pose.reveal
138  const fill = (col: number, row: number, w: number, h: number, what: string | null = ink) => {
139    if (row >= hidden) paint(c, x, y, scale, col, row, w, h, what)
140  }
141  for (let row = 0; row < 4; row++) fill(3, row, 12, 1)
142  for (const [col, w, h] of holesOf(pose.view, pose.eyes, scale >= 2)) fill(col, 2 - h, w, h, null)
143  if (pose.view === 'side') {
144    fill(0, pose.armL, 3, 1)
145  } else {
146    fill(1, pose.armL, 2, 1)
147    fill(15, pose.armR, 2, 1)
148  }
149  for (const col of LEGS[pose.legs]) fill(col, 4, 1, 1)
150}
151
152/** The laptop's greys: the lid's back and its screen, the keys. A terminal cell holds one colour, so it is one grey there. */
153const DESK_INKS = {
154  desktop: { back: 'subtle', face: 'inactive', keys: 'inactive' },
155  terminal: { back: 'inactive', face: 'inactive', keys: 'inactive' },
156}
157
158/** How far left of a Clawd's own columns its laptop reaches. */
159const LAPTOP_W = 6
160
161/**
162 * The laptop a Clawd types at, in the Clawd's own columns: to its left, the
163 * lid leaning back from the hinge, the keyboard under its near arm. While it
164 * works on the desktop, a line of the screen lights, scrolling down.
165 */
166function drawLaptop(c: Canvas, x: number, y: number, scale: number, glow: number | null, isDesktop: boolean): void {
167  const inks = DESK_INKS[isDesktop ? 'desktop' : 'terminal']
168  const fill = (col: number, row: number, w: number, h: number, ink: string) => paint(c, x, y, scale, col, row, w, h, ink)
169  if (scale >= 2 && isDesktop) {
170    // Half pixels: a two-tone lid, a slim keyboard.
171    for (let i = 0; i < 5; i++) {
172      fill(-5.5 + i / 2, 2 + i / 2, 0.5, 0.5, inks.back)
173      fill(-5 + i / 2, 2 + i / 2, 0.5, 0.5, glow === i ? 'text' : inks.face)
174    }
175    fill(-3.5, 4.5, 5.5, 0.5, inks.keys)
176    return
177  }
178  if (scale >= 2) {
179    // A terminal's quadrants: the lid one line of `▚`, the keyboard `▙▄▄▄`.
180    for (let i = 0; i < 5; i++) fill(-5 + i / 2, 2 + i / 2, 0.5, 0.5, inks.back)
181    fill(-3, 4.5, 5, 0.5, inks.keys)
182    return
183  }
184  for (let i = 0; i < 3; i++) fill(-5 + i, 1 + i, 1, 1, inks.back)
185  fill(-3, 4, 5, 1, inks.keys)
186}
187
188/**
189 * The row a Clawd's head starts on. The desktop keeps a row of headroom for
190 * hops. A terminal draws two pixel rows per cell, so a head that starts on an
191 * odd row comes out as a different set of block glyphs: at scale 1 it stands
192 * on even rows (the CLI logo's own), and hops by tucking its legs instead.
193 */
194function standY(isDesktop: boolean, pose: Pose, scale: number): { y: number; pose: Pose } {
195  if (isDesktop || scale > 1) return { y: Math.floor((1 - pose.lift) * scale), pose }
196  if (pose.lift > 0) return { y: 0, pose: { ...pose, legs: 'none' } }
197  return { y: 0, pose }
198}
199
200/** The row the floor puts a laptop's corner on: the Clawd's, standing. */
201const floorY = (isDesktop: boolean, scale: number) => (isDesktop || scale > 1 ? scale : 0)
202
203// ── Moods, as poses and speech bubbles ────────────────────────────────────
204
205const SPIN = ['·', '✢', '✳', '✶', '✻', '✽', '✻', '✶', '✳', '✢']
206const SPARK = ['·', '✦', '✶', '✻', '✦', '·']
207const ENDED: readonly Mood[] = ['done', 'failed', 'stopped']
208/** Keys pressed, a frame each: steadily on a tool's work, in bursts while it writes. */
209const TYPING: Record<'working' | 'thinking', string> = {
210  working: '1101011010110101',
211  thinking: '10101100000010110000',
212}
213/** A breath every three seconds while it dozes: in, then out with a snore. */
214const BREATH = 24
215const SNORE = ['z', 'z z', 'z z Z']
216/** Frames a Clawd under the pointer waves hello before it just looks at you: two waves. */
217const GREET = 8
218
219/** When the module first saw an agent, or saw it in its mood; `isFresh` when that was live, not a late mount. */
220type Mark = { mood: Mood; at: number; isFresh: boolean }
221
222type Look = {
223  pose: Pose
224  ink: string
225  bubble: string
226  bubbleInk: string | null
227  isPill: boolean
228  /** At the laptop: which line of its screen is lit, if any. */
229  desk: { glow: number | null } | null
230}
231
232type Who = { id: string; mood: Mood; color: string; tool: string | null }
233
234function seedOf(text: string): number {
235  let seed = 7
236  for (let i = 0; i < text.length; i++) seed = (seed * 31 + text.charCodeAt(i)) % 9973
237  return seed
238}
239
240/** Where an idle Clawd looks: ahead, then left, ahead, right, a few seconds each. */
241const glanceOf = (t: number): Eyes => (['open', 'left', 'open', 'right'] as const)[Math.floor(t / 22) % 4] ?? 'open'
242
243/** `hovered`: frames since the pointer came to this Clawd, null while it is elsewhere. */
244function lookOf(who: Who, frame: number, mark: Mark, born: Mark, hovered: number | null): Look {
245  const t = frame + seedOf(who.id)
246  const since = frame - mark.at
247  const isBlink = t % 41 === 0
248  const rest: Pose = { view: 'front', eyes: isBlink ? 'shut' : 'open', legs: 'stand', armL: 2, armR: 2, lift: 0, reveal: SPRITE_H }
249  const droop: Pose = { ...rest, armL: 3, armR: 3 }
250  let look: Look = { pose: rest, ink: who.color, bubble: ' ', bubbleInk: null, isPill: false, desk: null }
251
252  switch (who.mood) {
253    case 'working':
254    case 'thinking': {
255      const keys = TYPING[who.mood]
256      const isDown = keys[t % keys.length] === '1'
257      const isWorking = who.mood === 'working'
258      look = {
259        ...look,
260        pose: { ...rest, view: 'side', armL: isDown ? 3.5 : 2.5 },
261        desk: { glow: isWorking ? Math.floor(t / 2) % 7 : null },
262        bubble: isWorking ? (who.tool ?? '…') : (SPIN[t % SPIN.length] ?? '·'),
263        bubbleInk: isWorking ? null : who.color,
264        isPill: isWorking && who.tool !== null,
265      }
266      break
267    }
268    case 'asking':
269      look = { ...look, pose: { ...rest, armR: frame % 4 < 2 ? 0 : 1 }, bubble: '?', bubbleInk: 'warning' }
270      break
271    case 'delegating':
272      look = { ...look, pose: { ...rest, eyes: isBlink ? 'shut' : 'right' }, bubble: '⋯', bubbleInk: 'subtle' }
273      break
274    case 'idle':
275      look = { ...look, pose: { ...rest, eyes: isBlink ? 'shut' : glanceOf(t) } }
276      break
277    case 'sleeping':
278      look = dozing(look, t)
279      break
280    case 'done': {
281      const isCheering = mark.isFresh && since < 16
282      look = {
283        ...look,
284        pose: isCheering ? { ...rest, eyes: 'closed', armL: 0, armR: 0, lift: since % 8 < 4 ? 1 : 0 } : rest,
285        bubble: '✓',
286        bubbleInk: 'success',
287      }
288      break
289    }
290    case 'failed':
291      look = { ...look, pose: { ...droop, eyes: 'closed', legs: 'in' }, ink: 'inactive', bubble: '✕', bubbleInk: 'error' }
292      break
293    case 'stopped':
294      look = { ...look, pose: droop, ink: 'inactive', bubble: '–', bubbleInk: 'subtle' }
295      break
296  }
297
298  if (hovered !== null && !ENDED.includes(who.mood) && who.mood !== 'sleeping') {
299    // It looks at you: at work it turns from its laptop, which stays on the
300    // desk, still lit. It waves hello with the far arm, then holds your gaze.
301    const isAtDesk = look.desk !== null
302    look = {
303      ...look,
304      pose: {
305        ...look.pose,
306        view: 'front',
307        eyes: isBlink ? 'shut' : 'open',
308        armL: isAtDesk ? 2 : look.pose.armL,
309        armR: hovered < GREET ? (hovered % 4 < 2 ? 0 : 1) : look.pose.armR,
310      },
311    }
312  }
313  const age = frame - born.at
314  if (born.isFresh && age >= 0 && age < SPARK.length) {
315    // Appearing: it rises from the floor facing you, then goes to its desk.
316    look = {
317      ...look,
318      pose: { ...look.pose, view: 'front', armL: 2, armR: 2, reveal: Math.min(SPRITE_H, age + 1) },
319      desk: null,
320      bubble: SPARK[age] ?? '·',
321      bubbleInk: who.color,
322      isPill: false,
323    }
324  }
325  return look
326}
327
328/**
329 * Asleep: eyes closed, legs splayed. It rises as it breathes in, and settles,
330 * arms dropping, as it breathes out with a snore.
331 */
332function dozing(look: Look, t: number): Look {
333  const phase = t % BREATH
334  const isOut = phase >= BREATH / 2
335  const snore = Math.floor(((phase - BREATH / 2) / (BREATH / 2)) * SNORE.length)
336  return {
337    ...look,
338    pose: { ...look.pose, view: 'front', eyes: 'closed', legs: 'out', armL: isOut ? 3 : 2.5, armR: isOut ? 3 : 2.5, lift: isOut ? -0.5 : 0 },
339    bubble: isOut ? (SNORE[snore] ?? ' ') : ' ',
340    bubbleInk: 'subtle',
341  }
342}
343
344/** On its way somewhere: facing you, scuttling, looking where it goes. */
345function walking(look: Look, heading: number, frame: number): Look {
346  return {
347    ...look,
348    desk: null,
349    pose: { ...look.pose, view: 'front', legs: SCUTTLE[frame % 4] ?? 'stand', eyes: heading > 0 ? 'right' : 'left', armL: 2, armR: 2, lift: 0 },
350  }
351}
352
353const keyOf = (look: Look) => {
354  const p = look.pose
355  const desk = look.desk === null ? '-' : String(look.desk.glow)
356  return `${p.view}.${p.eyes}.${p.legs}.${p.armL}.${p.armR}.${p.lift}.${p.reveal}.${look.ink}.${look.bubble}.${desk}`
357}
358
359// ── What each instance remembers between frames ───────────────────────────
360
361type Memo = {
362  /** The frame clock: one tick every TICK_MS, drawn or not. */
363  ticks: number
364  props: ClawdProps | null
365  moods: Map<string, Mark>
366  born: Map<string, Mark>
367  /** Who is drawn, in order, each slot's columns for the pointer, and where in its slot each Clawd stands. */
368  cast: string[]
369  slots: { id: string; from: number; to: number }[]
370  at: Map<string, number>
371  /** The tick the pointer came to the Clawd it is on: its hello starts there. */
372  hoverAt: number
373  /** Claude idling alone on the band: where it is, and what it is up to. */
374  roam: Roam | null
375  /** What the frame on screen shows, so a still frame is not drawn again. */
376  shown: string
377}
378
379const memos = new WeakMap<object, Memo>()
380
381function memoOf(surface: Surface): Memo {
382  let memo = memos.get(surface)
383  if (memo === undefined) {
384    memo = {
385      ticks: 0,
386      props: null,
387      moods: new Map(),
388      born: new Map(),
389      cast: [],
390      slots: [],
391      at: new Map(),
392      hoverAt: 0,
393      roam: null,
394      shown: '',
395    }
396    memos.set(surface, memo)
397  }
398  return memo
399}
400
401/** Notes each agent's arrival and each change of mood, as the props bring them. */
402function remember(memo: Memo, who: readonly { id: string; mood: Mood; ageMs: number; joinedMs: number }[]): void {
403  for (const one of who) {
404    const isFresh = one.ageMs < 2500
405    if (!memo.born.has(one.id)) {
406      memo.born.set(one.id, { mood: one.mood, at: memo.ticks, isFresh: one.joinedMs < 2500 && !ENDED.includes(one.mood) })
407    }
408    if (memo.moods.get(one.id)?.mood !== one.mood) memo.moods.set(one.id, { mood: one.mood, at: memo.ticks, isFresh })
409  }
410}
411
412const LONG_AGO: Mark = { mood: 'idle', at: -1000, isFresh: false }
413
414function looksOf(memo: Memo, who: readonly Who[], frame: number, hover: string | null): Look[] {
415  return who.map(one => {
416    const look = lookOf(one, frame, memo.moods.get(one.id) ?? LONG_AGO, memo.born.get(one.id) ?? LONG_AGO, hover === one.id ? frame - memo.hoverAt : null)
417    return memo.roam?.id === one.id && hover !== one.id ? roamLook(look, memo.roam, frame, one.mood) : look
418  })
419}
420
421// ── Drawing pixels on each surface ────────────────────────────────────────
422
423/**
424 * Desktop: one row of pixels as Boxes, a Box per run of one colour. Each run
425 * reaches a hair into the row below, which paints over it: rows a fraction
426 * of a line tall would otherwise show hairline seams where they meet.
427 */
428function pixelRow(el: Elements, inks: readonly (string | null)[], w: number, rowLh: number): RenderElement {
429  const { Box } = el
430  const reach = round3(rowLh + Math.min(0.06, rowLh * 0.2))
431  const runs: RenderElement[] = []
432  let gap = 0
433  let x = 0
434  while (x < inks.length) {
435    const ink = inks[x] ?? null
436    if (ink === null) {
437      gap += 1
438      x += 1
439      continue
440    }
441    let n = 1
442    while (x + n < inks.length && inks[x + n] === ink) n += 1
443    runs.push(
444      <Box
445        width={round3(n * w)}
446        height={reach}
447        flexShrink={0}
448        backgroundColor={ink}
449        {...(gap > 0 ? { marginLeft: round3(gap * w) } : {})}
450      />,
451    )
452    gap = 0
453    x += n
454  }
455  return (
456    <Box flexDirection="row" height={rowLh} flexShrink={0}>
457      {runs}
458    </Box>
459  )
460}
461
462/** The canvas as rows of Boxes, rows alike drawn as one. */
463function pixelRows(el: Elements, c: Canvas, w: number): RenderElement[] {
464  const rows: RenderElement[] = []
465  const rowOf = (y: number) => c.ink.slice(y * c.width, (y + 1) * c.width)
466  const isSame = (a: number, b: number) => {
467    for (let x = 0; x < c.width; x++) if (c.ink[a * c.width + x] !== c.ink[b * c.width + x]) return false
468    return true
469  }
470  let y = 0
471  while (y < c.height) {
472    let n = 1
473    while (y + n < c.height && isSame(y, y + n)) n += 1
474    rows.push(pixelRow(el, rowOf(y), w, round3(tall(w) * n)))
475    y += n
476  }
477  return rows
478}
479
480const QUADS = ' ▘▝▀▖▌▞▛▗▚▐▜▄▙▟█'
481const CORNERS: readonly (readonly [number, number, number])[] = [
482  [0, 0, 1],
483  [1, 0, 2],
484  [0, 1, 4],
485  [1, 1, 8],
486]
487
488type Run = { ink: string | null; text: string }
489
490/** Terminal: a cell holds 2 × 2 pixels as one quadrant block, in one colour. */
491function quadCells(c: Canvas, cy: number): Run[] {
492  const cells: Run[] = []
493  for (let cx = 0; cx < Math.ceil(c.width / 2); cx++) {
494    let bits = 0
495    let ink: string | null = null
496    for (const [dx, dy, bit] of CORNERS) {
497      const x = cx * 2 + dx
498      const y = cy * 2 + dy
499      if (x >= c.width || y >= c.height) continue
500      const here = c.ink[y * c.width + x] ?? null
501      if (here !== null && (ink === null || here === ink)) {
502        bits |= bit
503        ink = here
504      }
505    }
506    cells.push({ ink, text: QUADS[bits] ?? ' ' })
507  }
508  return cells
509}
510
511/** Joins cells into runs of one colour; a blank joins whatever is beside it. */
512function joinRuns(cells: readonly Run[]): Run[] {
513  const runs: Run[] = []
514  for (const cell of cells) {
515    const last = runs[runs.length - 1]
516    if (last !== undefined && (cell.ink === null || last.ink === null || last.ink === cell.ink)) {
517      last.text += cell.text
518      if (last.ink === null) last.ink = cell.ink
519    } else {
520      runs.push({ ...cell })
521    }
522  }
523  return runs
524}
525
526function textRow(el: Elements, runs: readonly Run[]): RenderElement {
527  const { Text } = el
528  return (
529    <Text wrap="truncate">
530      {runs.map(run => (run.ink === null ? run.text : <Text color={run.ink}>{run.text}</Text>))}
531    </Text>
532  )
533}
534
535function quadRows(el: Elements, c: Canvas): RenderElement[] {
536  const rows: RenderElement[] = []
537  for (let cy = 0; cy < Math.ceil(c.height / 2); cy++) rows.push(textRow(el, joinRuns(quadCells(c, cy))))
538  return rows
539}
540
541// ── The stage ─────────────────────────────────────────────────────────────
542//
543// Each Clawd stands in a slot of its own, on a canvas wide enough for it and
544// its laptop. Facing you it stands in the middle; at work it sits right of
545// the middle, the laptop at its left, and it walks between the two. Turned
546// from its laptop to look at you, it keeps its seat, a step to the left.
547
548const STAGE = {
549  desktop: { mainPixel: 0.4, crewPixel: 0.2, mainSlot: 18, crewSlot: 11 },
550  terminal: { mainPixel: 0.5, crewPixel: 0.5, mainSlot: 23, crewSlot: 12 },
551}
552
553/** A slot's canvas, in sprite pixels, and where in it the Clawd's own columns start, each way it faces. */
554const SCENE_W = 21
555const FRONT_AT = 2
556const SIDE_AT = 6
557
558/** Who is on the stage: Claude, then as many of the crew as fit, then a count of the rest. */
559function castOf(props: StageProps, columns: number): { cast: Actor[]; more: number; mainSlot: number } {
560  const size = STAGE[props.surface]
561  const mainSlot = props.surface === 'desktop' || props.big ? size.mainSlot : size.crewSlot
562  const main = props.actors.find(one => one.isMain)
563  const crew = props.actors.filter(one => !one.isMain)
564  const fit = Math.max(0, Math.floor((columns - mainSlot) / size.crewSlot))
565  const shown = crew.length > fit ? crew.slice(0, Math.max(0, fit - 1)) : crew
566  return { cast: [...(main === undefined ? [] : [main]), ...shown], more: crew.length - shown.length, mainSlot }
567}
568
569/** Canvas pixels per sprite pixel: twice for Claude, and on the desktop for everyone, drawn finer. */
570const scaleOf = (props: StageProps, actor: Actor) => (props.surface === 'desktop' || (actor.isMain && props.big) ? 2 : 1)
571
572type Figure<T extends Who = Actor> = { actor: T; look: Look; at: number }
573
574const homeOf = (look: Look) => (look.desk === null ? FRONT_AT : SIDE_AT)
575/** How far left of its seat a Clawd turned from its laptop stands: facing you, its far arm needs the room. */
576const TURN = 2
577
578/** A Clawd on its slot's canvas: its laptop at the seat, then the Clawd, side-on at the keys or turned to you. */
579function drawFigure(c: Canvas, look: Look, at: number, k: number, isDesktop: boolean, reveal = look.pose.reveal): void {
580  if (look.desk !== null) drawLaptop(c, at * k, floorY(isDesktop, k), k, look.desk.glow, isDesktop)
581  const x = look.desk !== null && look.pose.view === 'front' ? at - TURN : at
582  const stand = standY(isDesktop, look.pose, k)
583  drawClawd(c, x * k, stand.y, { ...stand.pose, reveal }, look.ink, k)
584}
585
586/** Each Clawd as it looks this frame, where it stands, walking if it is not home yet. */
587function figuresOf<T extends Who>(memo: Memo, cast: readonly T[], frame: number, hover: string | null): Figure<T>[] {
588  const looks = looksOf(memo, cast, frame, hover)
589  const out: Figure<T>[] = []
590  cast.forEach((actor, i) => {
591    const look = looks[i]
592    if (look === undefined) return
593    const home = homeOf(look)
594    const at = memo.at.get(actor.id) ?? home
595    if (!memo.at.has(actor.id)) memo.at.set(actor.id, at)
596    out.push({ actor, look: at === home ? look : walking(look, Math.sign(home - at), frame), at })
597  })
598  return out
599}
600
601/** One tick: each Clawd two pixels nearer where it belongs. */
602function shuffle(memo: Memo, cast: readonly Who[], frame: number, hover: string | null): void {
603  looksOf(memo, cast, frame, hover).forEach((look, i) => {
604    const id = cast[i]?.id
605    if (id === undefined) return
606    const home = homeOf(look)
607    const at = memo.at.get(id)
608    memo.at.set(id, at === undefined ? home : at + clamp(home - at, -2, 2))
609  })
610}
611
612const stageKey = (figures: readonly Figure<Who>[]) => figures.map(one => `${one.at}:${keyOf(one.look)}`).join('|')
613
614function stage(props: StageProps, memo: Memo, frame: number, hover: string | null, surface: Surface): RenderElement {
615  const el = surface.elements
616  const { Box, Text } = el
617  const isDesktop = props.surface === 'desktop'
618  const size = STAGE[props.surface]
619  const { cast, more, mainSlot } = castOf(props, surface.columns)
620  const figures = figuresOf(memo, cast, frame, hover)
621  const hasCrew = props.actors.some(one => !one.isMain)
622
623  type Slot = { figure: Figure | null; width: number }
624  const slots: Slot[] = figures.map(figure => ({ figure, width: figure.actor.isMain ? mainSlot : size.crewSlot }))
625  if (more > 0) slots.push({ figure: null, width: size.crewSlot })
626
627  let from = 0
628  memo.slots = []
629  for (const slot of slots) {
630    if (slot.figure !== null) memo.slots.push({ id: slot.figure.actor.id, from, to: from + slot.width })
631    from += slot.width
632  }
633  memo.cast = cast.map(one => one.id)
634  memo.shown = stageKey(figures)
635
636  const sprite = ({ actor, look, at }: Figure) => {
637    const k = scaleOf(props, actor)
638    const c = blank(SCENE_W * k, (SPRITE_H + 1) * k)
639    drawFigure(c, look, at, k, isDesktop)
640    if (!isDesktop) return <Box flexDirection="column">{quadRows(el, c)}</Box>
641    const pixel = actor.isMain ? size.mainPixel : size.crewPixel
642    return (
643      <Box flexDirection="column" width={round3(c.width * pixel)} flexShrink={0}>
644        {pixelRows(el, c, pixel)}
645      </Box>
646    )
647  }
648
649  const bubble = (look: Look | null) =>
650    look === null ? (
651      <Text> </Text>
652    ) : look.isPill && isDesktop ? (
653      <Box flexDirection="column" alignItems="center" width="100%">
654        <Text wrap="truncate-end" color="text" backgroundColor="promptBorder">
655          {` ${look.bubble} `}
656        </Text>
657        <Box width={0.8} height={0.22} backgroundColor="promptBorder" />
658      </Box>
659    ) : look.isPill ? (
660      <Text wrap="truncate-end" color="text" backgroundColor="userMessageBackgroundHover">
661        {` ${look.bubble} `}
662      </Text>
663    ) : (
664      <Text wrap="truncate-end" bold color={look.bubbleInk ?? 'subtle'}>
665        {look.bubble}
666      </Text>
667    )
668
669  const actorOf = (slot: Slot) => slot.figure?.actor ?? null
670  const floorInk = (slot: Slot) => {
671    const actor = actorOf(slot)
672    return actor !== null && actor.id === props.selected ? (slot.figure?.look.ink ?? 'promptBorder') : 'promptBorder'
673  }
674  const labelInk = (slot: Slot) => {
675    const actor = actorOf(slot)
676    return actor === null ? 'subtle' : ENDED.includes(actor.mood) ? 'inactive' : 'text'
677  }
678
679  return (
680    <Box flexDirection="column" width="100%">
681      <Box flexDirection="row" alignItems="flex-end">
682        {slots.map(slot => (
683          <Box flexDirection="column" alignItems="center" width={slot.width} flexShrink={0}>
684            {bubble(slot.figure?.look ?? null)}
685            {slot.figure !== null ? sprite(slot.figure) : <Text bold color="subtle">{`+${more}`}</Text>}
686          </Box>
687        ))}
688        {hasCrew ? null : (
689          <Box flexDirection="column" flexGrow={1} paddingLeft={2}>
690            <Text color="subtle" wrap="wrap">
691              {props.hint ?? 'Subagents join the stage as Claude starts them.'}
692            </Text>
693          </Box>
694        )}
695      </Box>
696      <Box flexDirection="row">
697        {slots.map(slot =>
698          isDesktop ? (
699            <Box width={slot.width} height={0.16} flexShrink={0} backgroundColor={floorInk(slot)} />
700          ) : (
701            <Text color={floorInk(slot)}>{'▔'.repeat(slot.width)}</Text>
702          ),
703        )}
704        {isDesktop ? <Box flexGrow={1} height={0.16} backgroundColor="promptBorder" /> : null}
705      </Box>
706      <Box flexDirection="row" marginTop={isDesktop ? 0.2 : 0}>
707        {slots.map(slot => {
708          const actor = actorOf(slot)
709          return (
710            <Box width={slot.width} flexShrink={0} justifyContent="center" paddingX={1}>
711              <Text
712                wrap="truncate-end"
713                bold={actor !== null && (actor.isMain || actor.id === props.selected)}
714                underline={actor !== null && actor.id === hover}
715                color={labelInk(slot)}
716              >
717                {actor?.name ?? 'more'}
718              </Text>
719            </Box>
720          )
721        })}
722      </Box>
723      <Box flexDirection="row">
724        {slots.map(slot => (
725          <Box width={slot.width} flexShrink={0} justifyContent="center" paddingX={1}>
726            <Text wrap="truncate-end" color="subtle">
727              {actorOf(slot)?.caption ?? ' '}
728            </Text>
729          </Box>
730        ))}
731      </Box>
732    </Box>
733  )
734}
735
736/** The stage's actors as cast at the last draw, in order. */
737function castNow(memo: Memo, props: StageProps): Actor[] {
738  return memo.cast.map(id => props.actors.find(one => one.id === id)).filter((one): one is Actor => one !== undefined)
739}
740
741// ── The strip ─────────────────────────────────────────────────────────────
742//
743// The band's: Claude, then the crew at work, each in a slot as wide as its
744// scene, packed from the left. A subagent that ends plays it out (a cheer,
745// or a droop) and sinks out of sight. A terminal gives it one row: the
746// heads, their eyes at work. A nap snores beside the head. A hover names
747// the Clawd under the pointer and says what it is doing; the Clawd turns to
748// look at you and waves hello.
749
750/** The desktop's: a canvas pixel in ch, drawn at twice the sprite's pixels for the fine details. */
751const STRIP = { pixel: 0.15, scale: 2, gap: 1 }
752/** Frames an ended subagent stays before it sinks: two hops' cheer. */
753const STAY = 16
754
755type OnStrip = { walker: Walker; who: Who; reveal: number; aside: string | null }
756
757// ── Idling on the band ────────────────────────────────────────────────────
758//
759// Alone and waiting on you, Claude has the band to itself: it wanders off
760// along it, looks about, hops, dances, stretches, twirls, ducks into the
761// floor and pops back up, and dozes off for a while. Back to work, it walks
762// home to its desk. Under the pointer it stops to look at you.
763
764type Act = 'walk' | 'look' | 'hop' | 'dance' | 'stretch' | 'twirl' | 'peek' | 'doze'
765/** Where it is and where it is headed, in the strip's cells; what it is doing since `at`, until `until`. */
766type Roam = { id: string; x: number; to: number; act: Act; at: number; until: number }
767
768/** Each act's odds, out of 100, and how many frames it lasts (a walk lasts until it gets there). */
769const ACTS: readonly (readonly [Act, number, number])[] = [
770  ['walk', 38, 0],
771  ['look', 20, 32],
772  ['hop', 8, 18],
773  ['dance', 8, 32],
774  ['stretch', 8, 24],
775  ['twirl', 6, 16],
776  ['peek', 4, 18],
777  ['doze', 8, 96],
778]
779/** How far it walks a frame: a sprite pixel on the desktop, half a cell in a terminal. */
780const STRIDE = { desktop: 0.3, terminal: 0.5 }
781/** Cells kept clear right of where it may wander, so a hover's bubble always has room. */
782const ROAM_CLEAR = 30
783
784/** A number from 0 to n - 1 that a frame always gives the same, frames apart no alike. */
785function roll(frame: number, n: number): number {
786  let h = Math.imul(frame ^ 0x9e3779b9, 0x85ebca6b)
787  h ^= h >>> 13
788  h = Math.imul(h, 0xc2b2ae35)
789  h ^= h >>> 16
790  return (h >>> 0) % n
791}
792
793/** One frame of Claude's idling: a step nearer where it is going, or its next act. */
794function roamTick(memo: Memo, main: Walker | undefined, isAlone: boolean, room: number, step: number, frame: number, isHovered: boolean): void {
795  if (main === undefined) {
796    memo.roam = null
797    return
798  }
799  const r: Roam = memo.roam?.id === main.id ? memo.roam : { id: main.id, x: 0, to: 0, act: 'look', at: frame, until: frame + 24 }
800  memo.roam = r
801  const toward = (to: number) => (Math.abs(to - r.x) <= step ? to : round3(r.x + Math.sign(to - r.x) * step))
802  if (!isAlone) {
803    // Company: back in its own slot at once, so no one stands on another.
804    Object.assign(r, { x: 0, to: 0, act: 'look', at: frame, until: frame + 24 })
805    return
806  }
807  if (main.mood === 'sleeping') {
808    // A nap stays where it falls.
809    Object.assign(r, { to: r.x, act: 'look', at: frame, until: frame + 24 })
810    return
811  }
812  if (main.mood !== 'idle') {
813    // To work: home to the desk.
814    Object.assign(r, { to: 0, act: 'walk', x: toward(0) })
815    return
816  }
817  if (isHovered) {
818    r.until += 1
819    return
820  }
821  const far = Math.max(0, room)
822  if (r.act === 'walk' && r.x !== r.to) {
823    r.x = toward(Math.min(r.to, far))
824    return
825  }
826  if (r.act !== 'walk' && frame < r.until) return
827  // Next: a walk to somewhere else on the band, or an act where it stands.
828  let pick = roll(frame, 100)
829  const found = ACTS.find(([, odds]) => (pick -= odds) < 0) ?? ACTS[1]
830  const [act, , lasts] = found ?? ['look', 0, 32]
831  if (act === 'walk' && far >= 4) {
832    let to = Math.round((roll(frame + 7, 1000) / 1000) * far / step) * step
833    if (Math.abs(to - r.x) < 4) to = r.x < far / 2 ? far : 0
834    Object.assign(r, { act, to: round3(to), at: frame, until: frame })
835    return
836  }
837  Object.assign(r, { act: act === 'walk' ? 'look' : act, to: r.x, at: frame, until: frame + (lasts || 32) })
838}
839
840/** How Claude looks at its act this frame, over the look its mood gave it. */
841function roamLook(look: Look, r: Roam, frame: number, mood: Mood): Look {
842  if (r.act === 'walk' && r.x !== r.to) return walking(look, Math.sign(r.to - r.x), frame)
843  if (mood !== 'idle') return look
844  const t = frame - r.at
845  const pose = look.pose
846  switch (r.act) {
847    case 'hop': {
848      const isUp = t % 6 < 3
849      return { ...look, pose: { ...pose, lift: isUp ? 1 : 0, armL: isUp ? 1 : 2, armR: isUp ? 1 : 2, eyes: 'open' } }
850    }
851    case 'dance': {
852      const isLeft = t % 4 < 2
853      return { ...look, pose: { ...pose, eyes: 'closed', legs: SCUTTLE[t % 4] ?? 'stand', armL: isLeft ? 0 : 2, armR: isLeft ? 2 : 0 } }
854    }
855    case 'stretch':
856      // Arms up, eyes squeezed shut, a long breath; then a shake.
857      return t < 14
858        ? { ...look, pose: { ...pose, eyes: 'closed', armL: 0, armR: 0, lift: t < 4 ? 0 : 0.5 } }
859        : { ...look, pose: { ...pose, armL: t % 2 === 0 ? 1 : 2, armR: t % 2 === 0 ? 2 : 1 } }
860    case 'twirl':
861      return t % 4 < 2 ? { ...look, pose: { ...pose, view: 'side', eyes: 'open' } } : { ...look, pose: { ...pose, eyes: t % 8 < 4 ? 'left' : 'right' } }
862    case 'peek': {
863      // Ducks into the floor and pops back up.
864      const down = Math.max(0, Math.min(SPRITE_H - 1, Math.floor(Math.min(t, 18 - t) / 2)))
865      return { ...look, pose: { ...pose, reveal: Math.min(pose.reveal, SPRITE_H - down), eyes: t < 9 ? 'open' : 'shut' } }
866    }
867    case 'doze':
868      return dozing(look, t)
869    default:
870      return look
871  }
872}
873
874/** What a Clawd says beside its head, for the moods that speak: a snore (room kept between snores), a question. */
875function asideOf(look: Look, mood: Mood): string | null {
876  if (mood === 'sleeping') return look.bubble === ' ' ? '' : look.bubble
877  if (mood === 'asking') return '?'
878  return null
879}
880
881/** Who is on the strip this frame, how much of each shows, and what each says: an ended one only while it plays out. */
882function onStrip(memo: Memo, walkers: readonly Walker[], frame: number, hover: string | null): OnStrip[] {
883  const out: OnStrip[] = []
884  for (const walker of walkers) {
885    const who: Who = { id: walker.id, mood: walker.mood, color: walker.color, tool: null }
886    let reveal = SPRITE_H
887    if (ENDED.includes(walker.mood)) {
888      const mark = memo.moods.get(walker.id)
889      if (mark === undefined || !mark.isFresh) continue
890      reveal = Math.min(SPRITE_H, SPRITE_H - (frame - mark.at - STAY))
891      if (reveal <= 0) continue
892    }
893    out.push({ walker, who, reveal, aside: null })
894  }
895  looksOf(memo, out.map(one => one.who), frame, hover).forEach((look, i) => {
896    const one = out[i]
897    if (one === undefined) return
898    const isDozing = memo.roam?.id === one.walker.id && memo.roam.act === 'doze' && one.walker.mood === 'idle' && one.walker.id !== hover
899    one.aside = asideOf(look, isDozing ? 'sleeping' : one.walker.mood)
900  })
901  return out
902}
903
904/** A frame of the strip as a key: who is on it, then each drawn Clawd's look and place. */
905function stripKey(all: readonly OnStrip[], drawn: readonly OnStrip[], figures: readonly Figure<Who>[], x: number): string {
906  const who = all.map(one => `${one.walker.id}^${one.reveal}`).join(',')
907  const looks = drawn.map((one, i) => {
908    const figure = figures[i]
909    return figure === undefined ? '' : `${one.aside ?? '-'}@${figure.at}:${keyOf(figure.look)}`
910  })
911  return `${who}~${x}#${looks.join('|')}`
912}
913
914const ASIDE_W = 6
915/** A terminal strip's slot: a scene's columns, two to a cell. */
916const STRIP_CELLS = Math.ceil(SCENE_W / 2)
917const MORE_W = 4
918/** The slot of the `+N` the strip has no room for. */
919const MORE = '+'
920
921function strip(props: StripProps, memo: Memo, frame: number, hover: string | null, surface: Surface): RenderElement {
922  const el = surface.elements
923  const { Box, Text } = el
924  const isDesktop = props.surface === 'desktop'
925  const all = onStrip(memo, props.walkers, frame, hover)
926
927  // As many as fit, Claude first, then a count of the rest.
928  const gap = isDesktop ? STRIP.gap : 1
929  const widthOf = (one: OnStrip, i: number) =>
930    (isDesktop ? round3(SCENE_W * STRIP.pixel * STRIP.scale) : STRIP_CELLS) + (one.aside === null ? 0 : ASIDE_W)
931  const room = all.map((one, i) => widthOf(one, i) + (i === 0 ? 0 : gap))
932  const across = (n: number) => room.slice(0, n).reduce((sum, one) => sum + one, 0) + (n < all.length ? gap + MORE_W : 0)
933  let fit = all.length
934  while (fit > 1 && across(fit) > surface.columns) fit -= 1
935  const drawn = all.slice(0, fit)
936  const more = across(fit) <= surface.columns ? all.length - fit : 0
937
938  // Claude, idling, stands where its wandering took it.
939  const roamX = roamAt(memo, drawn[0]?.walker.id, isDesktop)
940  memo.slots = []
941  let from = roamX
942  drawn.forEach((one, i) => {
943    if (i > 0) from += gap
944    const w = widthOf(one, i)
945    memo.slots.push({ id: one.walker.id, from, to: from + w })
946    from += w
947  })
948  if (more > 0) memo.slots.push({ id: MORE, from: from + gap, to: from + gap + MORE_W })
949  memo.cast = drawn.map(one => one.walker.id)
950  const figures = figuresOf(memo, drawn.map(one => one.who), frame, hover)
951  memo.shown = stripKey(all, drawn, figures, roamX)
952
953  const aside = (one: OnStrip) =>
954    one.aside === null ? null : (
955      <Box width={ASIDE_W} flexShrink={0} paddingLeft={1}>
956        <Text bold color={one.walker.mood === 'asking' ? 'warning' : 'subtle'}>
957          {one.aside}
958        </Text>
959      </Box>
960    )
961  const count =
962    more === 0 ? null : (
963      <Box flexShrink={0} marginLeft={gap} alignSelf="center">
964        <Text bold underline={hover === MORE} color="subtle">{`+${more}`}</Text>
965      </Box>
966    )
967  // The bubble floats over the strip from the hovered slot's right edge, so
968  // showing it moves no Clawd. Those past it step out of view behind it, or
969  // a neighbour's laptop would show through its stepped edges; the pointer
970  // still finds them where they stand.
971  const pointed = all.find(one => one.walker.id === hover)?.walker
972  const hidden = all.slice(drawn.length).map(one => one.walker.name)
973  const say: Say | null =
974    pointed !== undefined
975      ? { name: pointed.name, doing: pointed.doing, task: pointed.task }
976      : hover === MORE && hidden.length > 0
977        ? { name: `+${hidden.length}`, doing: hidden.join(', '), task: '' }
978        : null
979  const under = memo.slots.find(one => one.id === hover)
980  const left = under === undefined ? 0 : Math.ceil(under.to) + (isDesktop ? 0 : 1)
981  const speech =
982    say === null || under === undefined || surface.columns - left < BUBBLE_ROOM ? null : (
983      <Box position="absolute" top={isDesktop ? 0 : 1} left={left} right={0} flexDirection="row">
984        {bubble(el, isDesktop, fitSay(say, surface.columns - left - (isDesktop ? BUBBLE_EDGES : 0)))}
985      </Box>
986    )
987
988  /** The last slot drawn: the hovered one while its bubble shows. */
989  const last = speech === null || under === undefined ? memo.slots.length : memo.slots.indexOf(under)
990
991  const k = isDesktop ? STRIP.scale : 1
992  const slots = figures.map(({ look, at }, i) => {
993    const one = drawn[i]
994    if (one === undefined || i > last) return null
995    const reveal = Math.min(look.pose.reveal, one.reveal)
996    let sprite: RenderElement
997    if (isDesktop) {
998      const c = blank(SCENE_W * k, (SPRITE_H + 1) * k)
999      drawFigure(c, look, at, k, true, reveal)
1000      sprite = (
1001        <Box flexDirection="column" width={round3(c.width * STRIP.pixel)} flexShrink={0}>
1002          {pixelRows(el, c, STRIP.pixel)}
1003        </Box>
1004      )
1005    } else {
1006      // The whole Clawd, laptop and all, as the stage draws it: three rows.
1007      const c = blank(SCENE_W, SPRITE_H + 1)
1008      drawFigure(c, look, at, 1, false, reveal)
1009      sprite = (
1010        <Box flexDirection="column" width={STRIP_CELLS} flexShrink={0}>
1011          {quadRows(el, c)}
1012        </Box>
1013      )
1014    }
1015    return (
1016      <Box flexDirection="row" flexShrink={0} alignItems="flex-start" marginLeft={i === 0 ? roamX : gap}>
1017        {sprite}
1018        {aside(one)}
1019      </Box>
1020    )
1021  })
1022  return (
1023    <Box flexDirection="row" width="100%" alignItems="flex-end">
1024      {slots}
1025      {drawn.length > last ? null : count}
1026      {speech}
1027    </Box>
1028  )
1029}
1030
1031// ── The hover's bubble ────────────────────────────────────────────────────
1032//
1033// Paper in the app's text colour and words in its inverse: light on the dark
1034// theme, dark on the light one. On the desktop it is pixel art on the
1035// strip's grid, a pixel as wide as two canvas pixels and as tall as one: its
1036// corners step in twice, and a tail of steps points back at the Clawd. A
1037// terminal says it in plain words beside the Clawd: a font draws block
1038// glyphs shorter than the row a background fills, so paper there shows seams.
1039
1040/** What a hover's bubble says: the name, what it is doing, then what it was asked, cut first. */
1041type Say = { name: string; doing: string; task: string }
1042
1043const PAPER = 'text'
1044const WORDS = 'inverseText'
1045const BUBBLE = { px: round3(STRIP.pixel * 2), py: tall(STRIP.pixel) }
1046/** The tail's rows, top to bottom: how many pixels each reaches out from the bubble. */
1047const TAIL = [1, 2, 3, 2, 1]
1048/** The least room the strip must have right of a Clawd for its bubble, in cells. */
1049const BUBBLE_ROOM = 10
1050
1051/** A desktop bubble's cells besides its words: the tail, the padding either side, and a cell to spare. */
1052const BUBBLE_EDGES = Math.ceil(3 * BUBBLE.px) + 3
1053
1054/**
1055 * What a bubble says, cut to `room` cells so its paper hugs the words: the
1056 * task goes first, then what it is doing, each ending in an ellipsis. A
1057 * surface left to cut it drops whole runs, and the paper stays wide and blank.
1058 */
1059function fitSay(say: Say, room: number): Say {
1060  const cut = (text: string, n: number) => ([...text].length <= n ? text : n <= 1 ? '' : `${[...text].slice(0, n - 1).join('').trimEnd()}…`)
1061  const name = cut(say.name, room)
1062  let left = room - [...name].length
1063  const doing = say.doing === '' || left < 4 ? '' : cut(say.doing, left - 2)
1064  left -= doing === '' ? 0 : 2 + [...doing].length
1065  const task = say.task === '' || left < 8 ? '' : cut(say.task, left - 5)
1066  return { name, doing, task }
1067}
1068
1069function bubble(el: Elements, isDesktop: boolean, say: Say): RenderElement {
1070  const { Box, Text } = el
1071  const words = (pad: string) => (
1072    <Text wrap="truncate-end" color={WORDS}>
1073      {pad}
1074      <Text bold color={WORDS}>
1075        {say.name}
1076      </Text>
1077      {say.doing === '' ? '' : `  ${say.doing}`}
1078      {say.task === '' ? null : (
1079        <Text dimColor color={WORDS}>{`  ·  ${say.task}`}</Text>
1080      )}
1081      {pad}
1082    </Text>
1083  )
1084  if (!isDesktop) {
1085    return (
1086      <Box flexShrink={1} minWidth={0}>
1087        <Text wrap="truncate-end">
1088          <Text bold color="text">
1089            {say.name}
1090          </Text>
1091          {say.doing === '' ? null : <Text color="inactive">{`  ${say.doing}`}</Text>}
1092          {say.task === '' ? null : <Text color="subtle">{`  ·  ${say.task}`}</Text>}
1093        </Text>
1094      </Box>
1095    )
1096  }
1097  const { px, py } = BUBBLE
1098  /** One row of the stepped corners: the paper, `inset` pixels in from each end. */
1099  const edge = (inset: number) => (
1100    <Box height={py} flexShrink={0} marginLeft={round3(inset * px)} marginRight={round3(inset * px)} backgroundColor={PAPER} />
1101  )
1102  return (
1103    <Box flexDirection="row" alignItems="center" flexShrink={1} minWidth={0}>
1104      <Box flexDirection="column" width={round3(3 * px)} flexShrink={0}>
1105        {TAIL.map(n => (
1106          <Box height={py} width={round3(n * px)} marginLeft={round3((3 - n) * px)} flexShrink={0} backgroundColor={PAPER} />
1107        ))}
1108      </Box>
1109      <Box flexDirection="column" flexShrink={1} minWidth={0}>
1110        {edge(2)}
1111        {edge(1)}
1112        <Box height={1} paddingX={1} flexShrink={0} backgroundColor={PAPER}>
1113          {words('')}
1114        </Box>
1115        {edge(1)}
1116        {edge(2)}
1117      </Box>
1118    </Box>
1119  )
1120}
1121
1122/** One tick of the strip: the Clawds drawn last step nearer their places; the frame's key. */
1123function stripTick(memo: Memo, props: StripProps, frame: number, hover: string | null, columns: number): string {
1124  const isDesktop = props.surface === 'desktop'
1125  const main = props.walkers[0]
1126  const isAlone = onStrip(memo, props.walkers, frame, hover).length === 1
1127  const room = columns - (isDesktop ? round3(SCENE_W * STRIP.pixel * STRIP.scale) : STRIP_CELLS) - ASIDE_W - ROAM_CLEAR
1128  roamTick(memo, main, isAlone, room, STRIDE[isDesktop ? 'desktop' : 'terminal'], frame, main !== undefined && hover === main.id)
1129  const all = onStrip(memo, props.walkers, frame, hover)
1130  const drawn = memo.cast.flatMap(id => all.filter(one => one.walker.id === id))
1131  const who = drawn.map(one => one.who)
1132  shuffle(memo, who, frame, hover)
1133  return stripKey(all, drawn, figuresOf(memo, who, frame, hover), roamAt(memo, drawn[0]?.walker.id, isDesktop))
1134}
1135
1136/** Where Claude's slot starts while it wanders: in cells, whole ones in a terminal. */
1137function roamAt(memo: Memo, id: string | undefined, isDesktop: boolean): number {
1138  const r = memo.roam
1139  if (r === null || r.id !== id) return 0
1140  return isDesktop ? r.x : Math.round(r.x)
1141}
1142
1143// ── The module ────────────────────────────────────────────────────────────
1144
1145function tick(surface: Surface): void {
1146  const memo = memoOf(surface)
1147  memo.ticks += 1
1148  const props = memo.props
1149  if (props === null) return
1150  const hover = surface.state?.hover ?? null
1151  let next: string
1152  if (props.view === 'stage') {
1153    const cast = castNow(memo, props)
1154    shuffle(memo, cast, memo.ticks, hover)
1155    next = stageKey(figuresOf(memo, cast, memo.ticks, hover))
1156  } else {
1157    next = stripTick(memo, props, memo.ticks, hover, surface.columns)
1158  }
1159  if (next !== memo.shown) surface.setState({ frame: memo.ticks, hover })
1160}
1161
1162function point(surface: Surface, event: { type: string; x: number }): void {
1163  const memo = memoOf(surface)
1164  const view = memo.props?.view
1165  if (view === undefined) return
1166  const state = surface.state ?? { frame: memo.ticks, hover: null }
1167  const slot = memo.slots.find(one => event.x >= one.from && event.x < one.to)
1168  const hover = event.type === 'leave' ? null : (slot?.id ?? null)
1169  if (event.type === 'down' && slot !== undefined) {
1170    surface.post(view === 'stage' ? { select: slot.id } : slot.id === MORE ? { open: true } : { open: true, focus: slot.id })
1171  }
1172  if (hover !== state.hover) {
1173    memo.hoverAt = memo.ticks
1174    surface.setState({ ...state, hover })
1175  }
1176}
1177
1178const Clawd: ClientModule<ClawdProps, State> = (props, surface) => {
1179  const memo = memoOf(surface)
1180  memo.props = props
1181  if (surface.state === undefined) {
1182    surface.every(TICK_MS, () => tick(surface))
1183    surface.onPointer(event => point(surface, event))
1184    surface.setState({ frame: 0, hover: null })
1185  }
1186  remember(memo, props.view === 'stage' ? props.actors : props.walkers)
1187  const { Box } = surface.elements
1188  if (surface.columns <= 0) return <Box flexDirection="column" />
1189  const frame = memo.ticks
1190  const hover = surface.state?.hover ?? null
1191  if (props.view === 'stage') return stage(props, memo, frame, hover, surface)
1192  return strip(props, memo, frame, hover, surface)
1193}
1194
1195export default Clawd
1196

1// What Mission control keeps for the session, and what its surface module
2// (hooks/clawd.tsx) is handed to draw.
3
4/** What an agent is doing, as its Clawd shows it. */
5export type Mood =
6  | 'thinking' // the model is writing
7  | 'working' // a tool runs
8  | 'asking' // waiting on the person: a question, a plan to approve
9  | 'delegating' // waiting on subagents it started
10  | 'idle' // its turn ended
11  | 'sleeping' // idle for a good while
12  | 'done' // a subagent that finished
13  | 'failed' // a subagent that ended in an error
14  | 'stopped' // a subagent that was stopped
15
16export type Step = { tool: string; detail: string | null; at: number }
17
18export type Member = {
19  /** `main` for Claude itself, else the subagent's id. */
20  id: string
21  /** `Claude`, or the subagent type (`Explore`, `general-purpose`). */
22  type: string
23  /** What it was asked: the prompt, or the task's few words. */
24  task: string
25  /** A theme key: `clawd_body` for Claude, a subagent colour for the rest. */
26  color: string
27  mood: Mood
28  /** When the mood began. */
29  since: number
30  tool: string | null
31  detail: string | null
32  /** Tool calls so far (Claude's: this turn). */
33  calls: number
34  /** Tokens its run took, once it ended. */
35  tokens: number | null
36  model: string | null
37  /** When it joined the session: Claude's when the session began. */
38  joinedAt: number
39  /** When its run (Claude's: this turn) began. */
40  startedAt: number
41  endedAt: number | null
42  isBackground: boolean
43  /** A teammate goes idle between turns rather than finishing. */
44  isTeammate: boolean
45  /** The latest tool calls, newest last. */
46  recent: Step[]
47}
48
49
50export type Category = { name: string; tokens: number; color: string; kind: 'used' | 'free' | 'buffer' }
51
52export type Limit = { kind: string; percent: number; resetsAt: string | null }
53
54export type Reading = {
55  at: number
56  model: string
57  startedAt: number
58  /** The last response's context, or before one (a fresh or just compacted window) /context's estimate. */
59  context: { tokens: number; window: number; percent: number } | null
60  /** Tokens at which auto-compact runs; null when it is off or not known yet. */
61  compactAt: number | null
62  categories: Category[]
63  limits: Limit[]
64  costUsd: number | null
65}
66
67export type Sample = { at: number; costUsd: number | null; fiveHour: number | null }
68
69// ── What the surface module draws: plain data ─────────────────────────────
70
71export type Where = 'desktop' | 'terminal'
72
73export type Actor = {
74  id: string
75  name: string
76  caption: string
77  color: string
78  mood: Mood
79  /** How long it had been in this mood when the hooks drew. */
80  ageMs: number
81  /** How long since it joined: one that just did rises into view. */
82  joinedMs: number
83  /** The tool running, for its speech bubble. */
84  tool: string | null
85  isMain: boolean
86}
87
88export type StageProps = {
89  view: 'stage'
90  surface: Where
91  /** Claude drawn at twice the crew's size. */
92  big: boolean
93  actors: Actor[]
94  selected: string | null
95  /** What the stage says while Claude has it to itself. */
96  hint: string | null
97}
98
99export type Walker = {
100  id: string
101  /** `Claude`, or the subagent's type: what a hover names it. */
102  name: string
103  /** What it was asked, and what it is doing now: what a hover says of it. */
104  task: string
105  doing: string
106  color: string
107  mood: Mood
108  ageMs: number
109  joinedMs: number
110}
111
112/** The band's crew: Claude, then the subagents at work (and those just ended, to play it out), side by side. */
113export type StripProps = {
114  view: 'strip'
115  surface: Where
116  walkers: Walker[]
117}
118
119export type ClawdProps = StageProps | StripProps
120
121declare module 'claude-code' {
122  interface PluginState {
123    'mission-control': {
124      crew: Member[]
125      selected: string | null
126      reading: Reading | null
127      /** Context tokens after each of Claude's turns, oldest first. */
128      turns: number[]
129      samples: Sample[]
130      isBandHidden: boolean
131    }
132  }
133}
134
