cache-panel

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register, Timer } from 'claude-code'
3
4import type { PingInfo, Snap, Warm } from '../types'
5import {
6  DEFAULT_HOURS,
7  HOUR,
8  MAX_HOURS,
9  PING_EVERY_MS,
10  TTL_MS,
11  fmtDur,
12  fmtHours,
13  fmtK,
14  fmtUsd,
15  makePlan,
16  parseHours,
17  pickLabel,
18  priceOf,
19  optionRows,
20  thresholdTokens,
21} from './model.ts'
22
23// Passive reminder at minute 50 of idle, one panel to decide keep-warm / ping / compact.
24// Everything except the reminder is opened by the person: the band button, or /warm.
25
26const PANE = 'cache-panel'
27const REMIND_AFTER_MS = 50 * 60_000
28const TICK_MS = 30_000
29const TOAST_MS = 5000
30const PING_PROMPT = 'Reply with exactly: ok'
31
32// CACHE_PANEL_FAST=1 shortens the clocks so the whole flow can be tried in a few minutes.
33let remindAfter = REMIND_AFTER_MS
34let pingEvery = PING_EVERY_MS
35let isFast = false
36
37const EMPTY_SNAP: Snap = { ctx: 0, model: '', hasLimits: false, fiveHour: null }
38
39const nowAt = atom({ plugin: 'cache-panel', key: 'nowAt' } as const, 0)
40const lastRequestAt = atom({ plugin: 'cache-panel', key: 'lastRequestAt' } as const, 0)
41const remindedFor = atom({ plugin: 'cache-panel', key: 'remindedFor' } as const, 0)
42const isReminding = atom({ plugin: 'cache-panel', key: 'isReminding' } as const, false)
43const hoursText = atom({ plugin: 'cache-panel', key: 'hoursText' } as const, '')
44const warm = atom({ plugin: 'cache-panel', key: 'warm' } as const, null)
45const snap = atom({ plugin: 'cache-panel', key: 'snap' } as const, EMPTY_SNAP)
46const note = atom({ plugin: 'cache-panel', key: 'note' } as const, '')
47
48let remindTimer: Timer | undefined
49let pingTimer: Timer | undefined
50
51function folderOf(cwd: string): string {
52  return cwd.split('/').filter(Boolean).pop() ?? cwd
53}
54
55async function refreshSnap($: EngineInterface): Promise<void> {
56  const u = await $.session.usage()
57  const model = await $.session.model()
58  const five = u.rateLimits.find(l => l.kind === 'five_hour')
59  const next: Snap = {
60    ctx: u.context.tokens ?? 0,
61    model,
62    hasLimits: u.rateLimits.length > 0,
63    fiveHour: five ? Math.round(five.percentUsed) : null,
64  }
65  await update($, snap, () => next)
66}
67
68/** Sound and a notice through herdr, the way herdr raises its own agent alerts. */
69async function notify($: EngineInterface, title: string, body: string): Promise<void> {
70  const inHerdr = await $.env.get('HERDR_ENV')
71  if (inHerdr !== '1') return
72  const bin = (await $.env.get('HERDR_BIN_PATH')) || 'herdr'
73  try {
74    const r = await $.process.run([bin, 'notification', 'show', title, '--body', body, '--sound', 'done'], { timeoutMs: 5000 })
75    $.ui.log(`notify exit=${r.exitCode} ${r.stdout.trim().slice(0, 120)}`, { to: 'debug' })
76  } catch (err) {
77    // The reminder line is still on screen; a failed sound is not worth a toast.
78    $.ui.log(`notify failed: ${err instanceof Error ? err.message : String(err)}`, { to: 'debug' })
79  }
80}
81
82async function isWarmNow($: EngineInterface, now: number): Promise<boolean> {
83  const w = await read($, warm)
84  return w !== null && now < w.deadline
85}
86
87/** Minute 50 of idle with the cache still alive: show the line and ring once per idle stretch. */
88async function remindIfDue($: EngineInterface): Promise<void> {
89  const now = await $.clock.now()
90  await update($, nowAt, () => now)
91  const last = await read($, lastRequestAt)
92  if (last === 0) return
93  const idle = now - last
94  if (idle < remindAfter - 1000 || idle >= TTL_MS) return
95  if (await isWarmNow($, now)) return
96  if ((await read($, remindedFor)) === last) return
97  await refreshSnap($)
98  const s = await read($, snap)
99  if (!isFast && s.ctx < thresholdTokens(priceOf(s.model))) return
100  await update($, remindedFor, () => last)
101  await update($, isReminding, () => true)
102  $.ui.log(`reminder due: idle ${fmtDur(idle)}, ctx ${fmtK(s.ctx)}, model ${s.model}`, { to: 'debug' })
103  const cwd = await $.session.cwd()
104  await notify($, `Cache cools in ${fmtDur(last + TTL_MS - now)}`, `${folderOf(cwd)} · ${fmtK(s.ctx)}`)
105}
106
107function armReminder($: EngineInterface): void {
108  remindTimer?.cancel()
109  remindTimer = $.clock.after(remindAfter, () => void remindIfDue($))
110}
111
112/** The next keep-warm ping, one period after the last request that touched the cache. */
113async function armPing($: EngineInterface): Promise<void> {
114  pingTimer?.cancel()
115  pingTimer = undefined
116  const w = await read($, warm)
117  if (w === null) return
118  const now = await $.clock.now()
119  if (now >= w.deadline) {
120    await endWarm($, 'expired')
121    return
122  }
123  const last = await read($, lastRequestAt)
124  // Nothing to keep warm until a request has run, and a cold cache is not worth paying for.
125  if (last === 0 || now - last >= TTL_MS) return
126  const delay = Math.min(Math.max(1000, last + pingEvery - now), w.deadline - now)
127  pingTimer = $.clock.after(delay, () => void runPing($))
128}
129
130/** A request, or a ping, touched the cache just now. */
131async function touch($: EngineInterface): Promise<void> {
132  const now = await $.clock.now()
133  await update($, nowAt, () => now)
134  await update($, lastRequestAt, () => now)
135  await update($, isReminding, () => false)
136  armReminder($)
137  await armPing($)
138}
139
140async function runPing($: EngineInterface): Promise<void> {
141  pingTimer = undefined
142  const w = await read($, warm)
143  if (w === null) return
144  const now = await $.clock.now()
145  if (now >= w.deadline) {
146    await endWarm($, 'expired')
147    return
148  }
149  const last = await read($, lastRequestAt)
150  // A request since the timer was set moved the ping later.
151  if (now - last < pingEvery - 1000) {
152    await armPing($)
153    return
154  }
155  await doPing($, 'window')
156}
157
158async function endWarm($: EngineInterface, why: 'expired' | 'stopped' | 'error', message?: string): Promise<void> {
159  pingTimer?.cancel()
160  pingTimer = undefined
161  await update($, warm, () => null)
162  if (why === 'expired') $.ui.toast('Keep-warm ended', { timeoutMs: TOAST_MS })
163  else if (why === 'stopped') $.ui.toast('Keep-warm stopped', { timeoutMs: TOAST_MS })
164  else $.ui.toast(message ?? 'Keep-warm stopped: ping failed', { timeoutMs: 8000 })
165  await remindIfDue($)
166}
167
168/** One tool-less fork over the transcript: the server answers it from the cache and the hour restarts. */
169async function doPing($: EngineInterface, kind: 'window' | 'once'): Promise<void> {
170  const now = await $.clock.now()
171  const last = await read($, lastRequestAt)
172  if (last > 0 && now - last >= TTL_MS) {
173    $.ui.toast('Cache is already cold', { timeoutMs: TOAST_MS })
174    return
175  }
176  let reply: Awaited<ReturnType<EngineInterface['model']['fork']>> | undefined
177  let failure = ''
178  try {
179    reply = await $.model.fork({ prompt: PING_PROMPT })
180  } catch (err) {
181    failure = err instanceof Error ? err.message : String(err)
182  }
183  const usage = reply !== undefined && 'usage' in reply ? reply.usage : undefined
184  if (usage === undefined) {
185    const why = reply !== undefined && !reply.isAnswered ? reply.reason : failure || 'no reply'
186    const text = `Ping failed: ${why}`
187    if (kind === 'window') await endWarm($, 'error', text)
188    else $.ui.toast(text, { timeoutMs: 8000 })
189    return
190  }
191  const isWarm = usage.cache_read_input_tokens > 0 && usage.cache_creation_input_tokens < 0.1 * usage.cache_read_input_tokens
192  const info: PingInfo = {
193    at: now,
194    read: usage.cache_read_input_tokens,
195    write: usage.cache_creation_input_tokens,
196    out: usage.output_tokens,
197    isWarm,
198  }
199  $.ui.log(`ping(${kind}): read ${info.read}, write ${info.write}, out ${info.out}, warm=${isWarm}`, { to: 'debug' })
200  await update($, note, () =>
201    isWarm
202      ? `Last ping: read ${fmtK(info.read)}, out ${info.out}`
203      : `Last ping: read ${fmtK(info.read)}, wrote ${fmtK(info.write)} (new entry)`,
204  )
205  if (!isWarm) {
206    // The ping wrote the cache: it is warm now. In a young session this is normal (the fork
207    // starts its own entry and the next ping reads it), so one miss in a row is tolerated.
208    if (kind === 'window') {
209      const w0 = await read($, warm)
210      if (w0 !== null && w0.misses === 0) {
211        await update($, warm, (w: Warm | null) => (w === null ? null : { ...w, misses: 1, last: info }))
212      } else {
213        await endWarm($, 'error', `Keep-warm stopped: pings keep missing (read ${fmtK(info.read)}, wrote ${fmtK(info.write)})`)
214      }
215    } else {
216      $.ui.toast(`Pinged: wrote ${fmtK(info.write)}, cache held another hour`, { timeoutMs: TOAST_MS })
217    }
218    await touch($)
219    return
220  }
221  if (kind === 'window') {
222    await update($, warm, (w: Warm | null) => (w === null ? null : { ...w, pings: w.pings + 1, misses: 0, last: info }))
223  } else {
224    $.ui.toast(`Pinged: cache read ${fmtK(info.read)}, held another hour`, { timeoutMs: TOAST_MS })
225  }
226  await touch($)
227}
228
229async function startWarm($: EngineInterface, hours: number): Promise<void> {
230  const now = await $.clock.now()
231  const last = await read($, lastRequestAt)
232  if (last > 0 && now - last >= TTL_MS) {
233    $.ui.toast('Cache is already cold', { timeoutMs: TOAST_MS })
234    return
235  }
236  await update($, warm, () => ({ startedAt: now, deadline: now + hours * HOUR, pings: 0, misses: 0, last: null }))
237  await update($, isReminding, () => false)
238  await armPing($)
239  $.ui.toast(`Keep warm on for ${fmtHours(hours)}`, { timeoutMs: 3000 })
240  await $.ui.close({ id: PANE })
241}

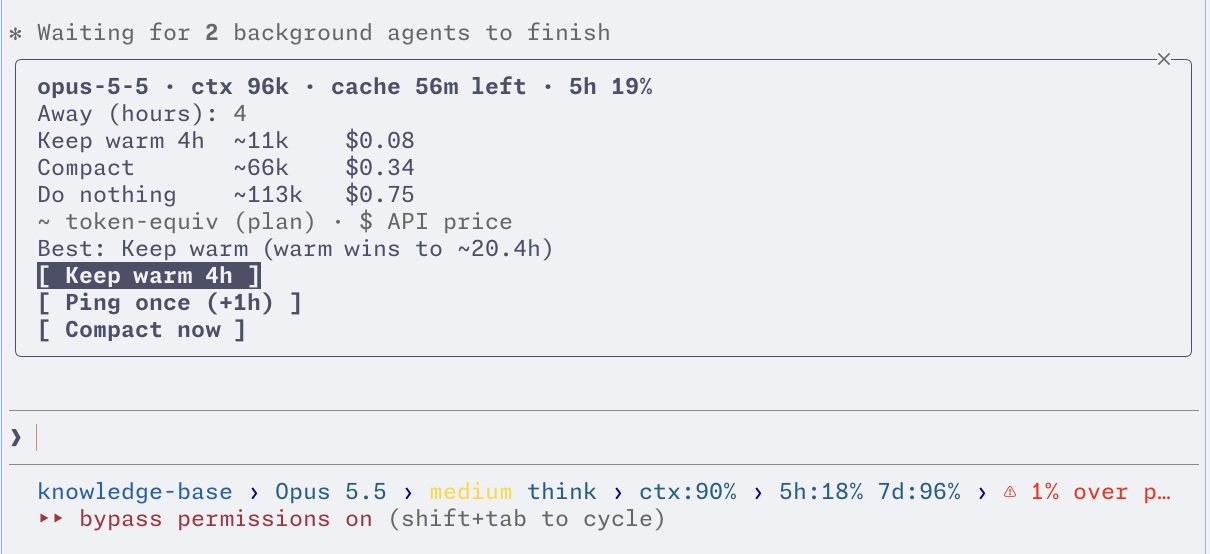

242
243async function openPanel($: EngineInterface): Promise<void> {
244  await refreshSnap($)
245  const now = await $.clock.now()
246  await update($, nowAt, () => now)
247  await update($, hoursText, () => '')
248  await $.ui.open({ id: PANE, title: 'Cache', focus: true, closeOnEscape: true, rows: 12 })
249}
250
251async function compactNow($: EngineInterface): Promise<void> {
252  await $.ui.close({ id: PANE })
253  try {
254    await $.command.run({ command: 'compact', args: '' })
255  } catch (err) {
256    $.ui.toast(`Compact failed: ${err instanceof Error ? err.message : String(err)}`, { timeoutMs: 8000 })
257  }
258}
259
260async function tick($: EngineInterface): Promise<void> {
261  const now = await $.clock.now()
262  await update($, nowAt, () => now)
263  const w = await read($, warm)
264  if (w !== null && now >= w.deadline) await endWarm($, 'expired')
265  const last = await read($, lastRequestAt)
266  if ((await read($, isReminding)) && last > 0 && now - last >= TTL_MS) await update($, isReminding, () => false)
267}
268
269export const register: Register = on => {
270  on('session.start', async ($, e, next) => {
271    const now = await $.clock.now()
272    await update($, nowAt, () => now)
273    await refreshSnap($)
274    if ((await $.env.get('CACHE_PANEL_FAST')) === '1') {
275      isFast = true
276      remindAfter = 60_000
277      pingEvery = 120_000
278    }
279    $.clock.every(TICK_MS, () => void tick($))
280    try {
281      await $.command.register({
282        name: 'warm',
283        description: 'Cache panel: keep warm, ping once, or compact',
284        argumentHint: '[hours | off]',
285        immediate: true,
286      })
287    } catch {
288      try {
289        await $.command.register({
290          name: 'cache-panel',
291          description: 'Cache panel: keep warm, ping once, or compact',
292          argumentHint: '[hours | off]',
293          immediate: true,
294        })
295      } catch {
296        // Both names are taken; the band button still opens the panel.
297      }
298    }
299    return next(e)
300  })
301
302  // /clear, /resume and /branch reset the session's state: stop the timers that belonged to it.
303  on('classic.SessionStart', { source: ['clear', 'resume', 'fork'] }, async ($, e, next) => {
304    remindTimer?.cancel()
305    remindTimer = undefined
306    pingTimer?.cancel()
307    pingTimer = undefined
308    await refreshSnap($)
309    return next(e)
310  })
311
312  // A request has just been sent: that is when the cache's hour starts.
313  on('turn.step', async function* ($, e, next) {
314    if (!e.agentId) await touch($)
315    return yield* next(e)
316  })
317
318  on('session.measure', async ($, e, next) => {
319    await refreshSnap($)
320    return next(e)
321  })
322
323  // The context was replaced: the new prefix is cold until the next request writes it.
324  on('session.compact', async ($, e, next) => {
325    const r = await next(e)
326    if (!e.agentId) {
327      remindTimer?.cancel()
328      remindTimer = undefined
329      pingTimer?.cancel()
330      pingTimer = undefined
331      await update($, lastRequestAt, () => 0)
332      await update($, isReminding, () => false)
333    }
334    return r
335  })
336
337  on('command.run', { command: ['warm', 'cache-panel'] }, async ($, e) => {
338    const arg = String(e.args ?? '').trim().toLowerCase()
339    if (arg === '') {
340      await openPanel($)
341      return {}
342    }
343    if (arg === 'off' || arg === 'stop') {
344      if ((await read($, warm)) === null) return { text: 'Keep-warm is not running' }
345      await endWarm($, 'stopped')
346      return {}
347    }
348    const hours = parseHours(arg)
349    if (hours === null) return { text: `Usage: /warm [hours 0-${MAX_HOURS} | off]` }
350    await startWarm($, hours)
351    return {}
352  })
353
354  // The one-line reminder, or the keep-warm status. Nothing is drawn the rest of the time.
355  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
356    const w = await read($, warm)
357    const now = await read($, nowAt)
358    const last = await read($, lastRequestAt)
359    const reminding = await read($, isReminding)
360    const showReminder = w === null && reminding && last > 0 && now - last < TTL_MS
361    if (e.props.hasSurvey || (w === null && !showReminder)) return next(e)
362
363    const below = await next(e)
364    const { Box, Button } = $.ui.resolve(e)
365    const short = e.props.bodyColumns < 40
366    const label =
367      w !== null
368        ? `warm ${fmtDur(w.deadline - now)}`
369        : short
370          ? `cache ${fmtDur(last + TTL_MS - now)}`
371          : `cache cools in ${fmtDur(last + TTL_MS - now)}`
372    const mine = <Button key="open" label={label} onPress={() => void openPanel($)} />
373
374    return below ? (
375      <Box flexDirection="column">
376        {mine}
377        {below}
378      </Box>
379    ) : (
380      mine
381    )
382  })
383
384  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e, next) => {
385    // Text fields exist in the terminal and the Desktop app only.
386    if (e.surface !== 'terminal' && e.surface !== 'desktop') return next(e)
387    const { Box, Text, Button, Input } = $.ui.resolve(e)
388    const s = await read($, snap)
389    const now = await read($, nowAt)
390    const last = await read($, lastRequestAt)
391    const w = await read($, warm)
392    const typed = await read($, hoursText)
393    const lastNote = await read($, note)
394
395    const price = priceOf(s.model)
396    const basis = s.hasLimits ? 'subscription' : 'api'
397    const parsed = parseHours(typed)
398    const hours = parsed ?? DEFAULT_HOURS
399    const isCold = last > 0 && now - last >= TTL_MS
400    const plan = makePlan({ ctx: s.ctx, price, basis, hours, lastReq: last, now, isWarm: !isCold })
401    // Short enough to fit above the prompt, so the arrow keys move focus and do not scroll.
402    const narrow = e.props.bodyColumns < 44
403
404    const cacheText = isCold
405      ? `cold ${fmtDur(now - last - TTL_MS)}`
406      : last > 0
407        ? `${fmtDur(last + TTL_MS - now)} left`
408        : 'no request'
409    const quota = s.fiveHour !== null ? ` · 5h ${s.fiveHour}%` : ''
410    const guess = price.isGuess ? ' · guessed' : ''
411
412    let advice: string
413    if (parsed === null) advice = `Hours: 0 to ${MAX_HOURS}`
414    else if (isCold) advice = 'Cache is cold: just send.'
415    else if (s.ctx < thresholdTokens(price)) advice = 'Small context: do nothing.'
416    else advice = narrow ? `Best: ${pickLabel(plan.recommended)}` : `Best: ${pickLabel(plan.recommended)} (warm wins to ~${plan.breakEvenHours.toFixed(1)}h)`
417    const legend = basis === 'subscription' ? '~ token-equiv (plan) · $ API price' : '~ token-equiv · $ API price'
418
419    return (
420      <Box flexDirection="column">
421        {narrow ? (
422          <Box flexDirection="column">
423            <Text bold>{`${price.id} · ctx ${fmtK(s.ctx)}`}</Text>
424            <Text>{`cache ${cacheText}${quota}${guess}`}</Text>
425          </Box>
426        ) : (
427          <Text bold>{`${price.id} · ctx ${fmtK(s.ctx)} · cache ${cacheText}${quota}${guess}`}</Text>
428        )}
429        <Input
430          key="hours"
431          label="Away (hours)"
432          placeholder={String(DEFAULT_HOURS)}
433          value={typed}
434          submitLabel="warm"
435          onInput={(v: string) => void update($, hoursText, () => v)}
436          onSubmit={(v: string) => {
437            const h = parseHours(v)
438            if (h === null) $.ui.toast(`Enter hours between 0 and ${MAX_HOURS}`, { timeoutMs: TOAST_MS })
439            else void startWarm($, h)
440          }}
441        />
442        {optionRows(plan, !isCold, narrow).map(line => (
443          <Text>{line}</Text>
444        ))}
445        {!narrow && <Text dimColor>{lastNote !== '' ? lastNote : legend}</Text>}
446        <Text>{advice}</Text>
447        {w !== null && (
448          <Button
449            key="stop"
450            label={`Stop warm (${fmtDur(w.deadline - now)} left, ${w.pings} ping${w.pings === 1 ? '' : 's'})`}
451            autoFocus
452            onPress={() => void endWarm($, 'stopped')}
453          />
454        )}
455        {w === null && !isCold && (
456          <Button
457            key="warm"
458            label={`Keep warm ${fmtHours(hours)}`}
459            autoFocus
460            onPress={() => {
461              if (parsed === null) $.ui.toast(`Enter hours between 0 and ${MAX_HOURS}`, { timeoutMs: TOAST_MS })
462              else void startWarm($, parsed)
463            }}
464          />
465        )}
466        {!isCold && <Button key="once" label="Ping once (+1h)" onPress={() => void doPing($, 'once')} />}
467        <Button key="compact" label="Compact now" onPress={() => void $.clock.after(50, () => void compactNow($))} />
468        {isCold && <Button key="close" label="Dismiss" autoFocus onPress={() => void $.ui.close({ id: PANE })} />}
469      </Box>
470    )
471  })
472}
473

1// Pure cost model for the cache panel: no engine calls in here.
2//
3// Two bases are computed side by side:
4//   - API list prices (official pricing page, checked 2026-10-04)
5//   - subscription weights, measured by a Reddit user as multiples of one plain
6//     input token: cache read 0.028, 1h cache write 1.2, output 5. Approximate,
7//     measured on Fable 5.1 and Opus 5 only; applied to every model here.
8
9export const MIN = 60_000
10export const HOUR = 60 * MIN
11/** The 1-hour prompt cache. */
12export const TTL_MS = HOUR
13/** A ping lands this long after the last request that touched the cache. */
14export const PING_EVERY_MS = 50 * MIN
15export const DEFAULT_HOURS = 4
16export const MAX_HOURS = 24
17/** Remind only when letting the cache go cold would cost at least this much (API-equivalent USD). */
18export const STAKE_USD = 0.3
19/** Never remind below this many context tokens, whatever the price. */
20export const FLOOR_TOKENS = 30_000
21/** Assumed size of the summary a compaction writes. */
22export const SUMMARY_TOKENS = 8_000
23/** Assumed size of the conversation right after a compaction. */
24export const COMPACTED_TOKENS = 20_000
25
26export type Basis = 'subscription' | 'api'
27
28export type Price = {
29  id: string
30  /** $ per million tokens */
31  inp: number
32  write: number
33  read: number
34  out: number
35  /** True when the model id was not found and a family default was used. */
36  isGuess: boolean
37}
38
39// key, base input, 1h cache write, cache read, output ($ per million tokens).
40// Longer keys first: an id matches the first key it starts with.
41const TABLE: ReadonlyArray<readonly [string, number, number, number, number]> = [
42  ['fable-5-1', 10, 20, 0.25, 50],
43  ['mythos-5-1', 10, 20, 0.25, 50],
44  ['fable-5', 10, 20, 1, 50],
45  ['mythos-5', 10, 20, 1, 50],
46  ['opus-5-5', 4, 8, 0.2, 20],
47  ['opus-5', 5, 10, 0.5, 25],
48  ['opus-4-8', 5, 10, 0.5, 25],
49  ['opus-4-7', 5, 10, 0.5, 25],
50  ['opus-4-6', 5, 10, 0.5, 25],
51  ['opus-4-5', 5, 10, 0.5, 25],
52  ['opus-4-1', 15, 30, 1.5, 75],
53  ['opus-4', 15, 30, 1.5, 75],
54  ['sonnet-5-5', 2, 4, 0.2, 10],
55  ['sonnet-5', 2, 4, 0.2, 10],
56  ['sonnet-4-6', 3, 6, 0.3, 15],
57  ['sonnet-4-5', 3, 6, 0.3, 15],
58  ['sonnet-4', 3, 6, 0.3, 15],
59  ['haiku-4-5', 1, 2, 0.1, 5],
60  ['haiku-3-5', 0.8, 1.6, 0.08, 4],
61]
62
63const FAMILY: ReadonlyArray<readonly [string, string]> = [
64  ['fable', 'fable-5-1'],
65  ['mythos', 'mythos-5-1'],
66  ['opus', 'opus-5-5'],
67  ['sonnet', 'sonnet-5-5'],
68  ['haiku', 'haiku-4-5'],
69]
70
71export function normalizeModel(model: string): string {
72  return String(model || '')
73    .toLowerCase()
74    .replace(/^claude-/, '')
75    .replace(/\[.*?\]/g, '')
76    .replace(/-\d{8}$/, '')
77    .trim()
78}
79
80function rowOf(key: string, isGuess: boolean): Price | null {
81  for (const [k, inp, write, read, out] of TABLE) {
82    if (k === key) return { id: k, inp, write, read, out, isGuess }
83  }
84  return null
85}
86
87export function priceOf(model: string): Price {
88  const id = normalizeModel(model)
89  for (const [k] of TABLE) {
90    if (id.startsWith(k)) return rowOf(k, false) as Price
91  }
92  for (const [family, key] of FAMILY) {
93    if (id.includes(family)) return rowOf(key, true) as Price
94  }
95  return rowOf('sonnet-5-5', true) as Price
96}
97
98export type Ratios = { r: number; w: number; o: number }
99
100/** Subscription weights, as multiples of one plain input token. */
101export const SUBSCRIPTION: Ratios = { r: 0.028, w: 1.2, o: 5 }
102
103export function apiRatios(p: Price): Ratios {
104  return { r: p.read / p.inp, w: p.write / p.inp, o: p.out / p.inp }
105}
106
107export function ratiosFor(basis: Basis, p: Price): Ratios {
108  return basis === 'subscription' ? SUBSCRIPTION : apiRatios(p)
109}
110
111/** Context tokens above which letting the cache go cold costs at least STAKE_USD. */
112export function thresholdTokens(p: Price): number {
113  const perToken = (p.write - p.read) / 1e6
114  return Math.max(FLOOR_TOKENS, Math.ceil(STAKE_USD / perToken))
115}
116
117/** One keep-warm ping over a context of `c` tokens, in plain-input-token units. */
118export function pingUnits(c: number, x: Ratios): number {
119  return c * x.r
120}
121
122/** Extra cost of letting the next turn rewrite the whole context instead of reading it. */
123export function nothingUnits(c: number, x: Ratios): number {
124  return c * (x.w - x.r)
125}
126
127/**
128 * A compaction: one request over the whole context (a read while the cache is
129 * warm, a write once it is cold), the summary, and the next turn writing the
130 * short new context instead of reading it.
131 */
132export function compactUnits(c: number, x: Ratios, isWarm: boolean): number {
133  return c * (isWarm ? x.r : x.w) + SUMMARY_TOKENS * x.o + COMPACTED_TOKENS * (x.w - x.r)
134}
135
136export function toUsd(units: number, p: Price): number {
137  return (units * p.inp) / 1e6
138}
139
140/** Pings a keep-warm window of `hours` from `now` will send, given the last cache touch. */
141export function pingsIn(hours: number, lastReq: number, now: number): number {
142  const end = now + hours * HOUR
143  const from = lastReq > 0 ? lastReq : now
144  return Math.max(0, Math.floor((end - from) / PING_EVERY_MS))
145}
146
147/** "" means the default; accepts 3, 3h, 1.5. Null when not a number in (0, MAX_HOURS]. */
148export function parseHours(text: string): number | null {
149  const t = text.trim().toLowerCase().replace(/h$/, '').trim()
150  if (t === '') return DEFAULT_HOURS
151  if (!/^\d+(\.\d+)?$/.test(t)) return null
152  const n = Number(t)
153  return n > 0 && n <= MAX_HOURS ? n : null
154}
155
156export type Pick = 'warm' | 'compact' | 'nothing'
157
158export type Plan = {
159  hours: number
160  pings: number
161  warmUnits: number
162  warmUsd: number
163  compactUnits: number
164  compactUsd: number
165  nothingUnits: number
166  nothingUsd: number
167  /** Hours of absence up to which keep-warm costs less than compacting. */
168  breakEvenHours: number
169  recommended: Pick
170  /** Turns after which compacting a cold context has paid for itself through smaller reads. */
171  paybackTurns: number
172}
173
174export type PlanInput = {
175  ctx: number
176  price: Price
177  basis: Basis
178  hours: number
179  lastReq: number
180  now: number
181  isWarm: boolean
182}
183
184export function makePlan(i: PlanInput): Plan {
185  const x = ratiosFor(i.basis, i.price)
186  const api = apiRatios(i.price)
187  const pings = i.isWarm ? pingsIn(i.hours, i.lastReq, i.now) : 0
188  const warmU = pings * pingUnits(i.ctx, x)
189  const compactU = compactUnits(i.ctx, x, i.isWarm)
190  const nothingU = nothingUnits(i.ctx, x)
191  const pingU = pingUnits(i.ctx, x)
192  const breakEvenHours = pingU > 0 ? ((compactUnits(i.ctx, x, true) / pingU) * PING_EVERY_MS) / HOUR : 0
193
194  let recommended: Pick
195  if (!i.isWarm || i.ctx < FLOOR_TOKENS) {
196    recommended = 'nothing'
197  } else {
198    const best: Pick = warmU <= compactU ? 'warm' : 'compact'
199    const bestU = Math.min(warmU, compactU)
200    recommended = nothingU <= bestU ? 'nothing' : best
201  }
202
203  const saving = (i.ctx - COMPACTED_TOKENS) * x.r
204  const extra = compactU - nothingU
205  const paybackTurns = extra <= 0 ? 0 : saving > 0 ? extra / saving : Infinity
206
207  return {
208    hours: i.hours,
209    pings,
210    warmUnits: warmU,
211    warmUsd: toUsd(pings * pingUnits(i.ctx, api), i.price),
212    compactUnits: compactU,
213    compactUsd: toUsd(compactUnits(i.ctx, api, i.isWarm), i.price),
214    nothingUnits: nothingU,
215    nothingUsd: toUsd(nothingUnits(i.ctx, api), i.price),
216    breakEvenHours,
217    recommended,
218    paybackTurns,
219  }
220}
221
222export function fmtK(n: number): string {
223  if (n >= 1e6) return (n / 1e6).toFixed(1) + 'M'
224  if (n >= 1000) return Math.round(n / 1000) + 'k'
225  return String(Math.round(n))
226}
227
228export function fmtUsd(u: number): string {
229  if (u > 0 && u < 0.01) return '<$0.01'
230  return '$' + u.toFixed(2)
231}
232
233export function fmtDur(ms: number): string {
234  const total = Math.max(0, Math.round(ms / MIN))
235  const h = Math.floor(total / 60)
236  const m = total % 60
237  return h > 0 ? `${h}h${String(m).padStart(2, '0')}m` : `${m}m`
238}
239
240export function fmtHours(h: number): string {
241  return `${Number.isInteger(h) ? h : h.toFixed(1)}h`
242}
243
244const pad = (s: string, n: number): string => s.padEnd(n)
245
246/**
247 * The three options as one line each. Narrow (a side-by-side herdr pane, about 21
248 * usable columns): short labels, so nothing wraps and the whole panel stays short
249 * enough for the arrow keys to move focus instead of scrolling it.
250 */
251export function optionRows(p: Plan, isWarm: boolean, narrow: boolean): string[] {
252  const warmLabel = narrow ? (isWarm ? `Warm ${fmtHours(p.hours)}` : 'Warm') : isWarm ? `Keep warm ${fmtHours(p.hours)}` : 'Keep warm'
253  const items: Array<readonly [string, string, string]> = [
254    [warmLabel, isWarm ? '~' + fmtK(p.warmUnits) : 'n/a', isWarm ? fmtUsd(p.warmUsd) : 'n/a'],
255    ['Compact', '~' + fmtK(p.compactUnits), fmtUsd(p.compactUsd)],
256    [narrow ? 'Nothing' : 'Do nothing', '~' + fmtK(p.nothingUnits), fmtUsd(p.nothingUsd)],
257  ]
258  const w1 = narrow ? 9 : 14
259  const w2 = narrow ? 6 : 8
260  return items.map(([label, units, usd]) => `${pad(label, w1)}${pad(units, w2)}${usd}`)
261}
262
263export function pickLabel(pick: Pick): string {
264  return pick === 'warm' ? 'Keep warm' : pick === 'compact' ? 'Compact' : 'Do nothing'
265}
266

1export type Snap = {
2  ctx: number
3  model: string
4  hasLimits: boolean
5  fiveHour: number | null
6}
7
8export type PingInfo = {
9  at: number
10  read: number
11  write: number
12  out: number
13  isWarm: boolean
14}
15
16export type Warm = {
17  startedAt: number
18  deadline: number
19  pings: number
20  /** Consecutive pings that wrote instead of read. One is tolerated: a young session's first ping writes its own entry. */
21  misses: number
22  last: PingInfo | null
23}
24
25declare module 'claude-code' {
26  interface PluginState {
27    'cache-panel': {
28      nowAt: number
29      lastRequestAt: number
30      remindedFor: number
31      isReminding: boolean
32      hoursText: string
33      warm: Warm | null
34      snap: Snap
35      note: string
36    }
37  }
38}
39
