1// @ts-check
2// cadence-mod.mjs - the Cadence module: the in-process half of the plugin, for
3// hosts that load mods. hooks/hooks.json names it under `modules`, beside the
4// command hooks. A host without mods ignores that key and keeps the hooks.
5//
6// It stays thin on purpose. A hooks module may import only relative files and
7// `claude-code`: no `node:` module, no Node globals. So every rule it applies
8// lives in a dependency-free file under ../cadence-core/bin/lib/, where CI's
9// typecheck and test.mjs cover it and the command hooks can share it (the
10// `.planning/` walk in lib/git-segments.mjs is the first). This file only wires
11// those rules to host events and does its I/O through `$`.
12//
13// What it does: the band above the prompt, naming the running Cadence agents
14// it tracks from subagent start and stop, and redrawn on those and on every
15// tool call (Plan 2 of phase 3).
16//
17// The band and token capture run only with the plugin's `panel` userConfig
18// field on, which is off by default. Off, the band draws nothing, so the
19// drawing beneath it shows as it was, and no window is kept, no fact written
20// and no close rewritten. The pane, the listing filter, the prefix safety net
21// and the cache meter run either way. `/cad-panel on` and `/cad-panel off`
22// write the field through `$.config.set`, as the `/config` row does, and the
23// host reloads the module with the new value.
24//
25// And token capture (Plan 3, D-10/D-11). It keeps each subagent's last
26// `turn.step` window, never `turn.complete`'s sum, and writes it as one
27// `step_window` fact through `planning.mjs trace append` for the figureless
28// `trace close` that names that agent id. The fact takes that close's own
29// `--phase` and `--anchor`, never the STATE.md cursor's, which often names
30// another phase. A subagent's own close (an advisory reviewer's tail) runs
31// before its last step, so its fact is written at its stop; a coordinator's
32// close runs after the stop, so its fact is written just before the close is
33// passed on. A window whose close never comes is never written, and at most
34// HELD_MAX of them wait at once (PNL-07). A subagent's
35// own `trace close` gains the `--agent-id` the host sees, so an advisory
36// reviewer's bracket and its fact join. The trace reader folds the fact only
37// into a bracket whose return carried no figure, so a return's own figure
38// always wins. A write that fails is silent: a record may not change a
39// decision.

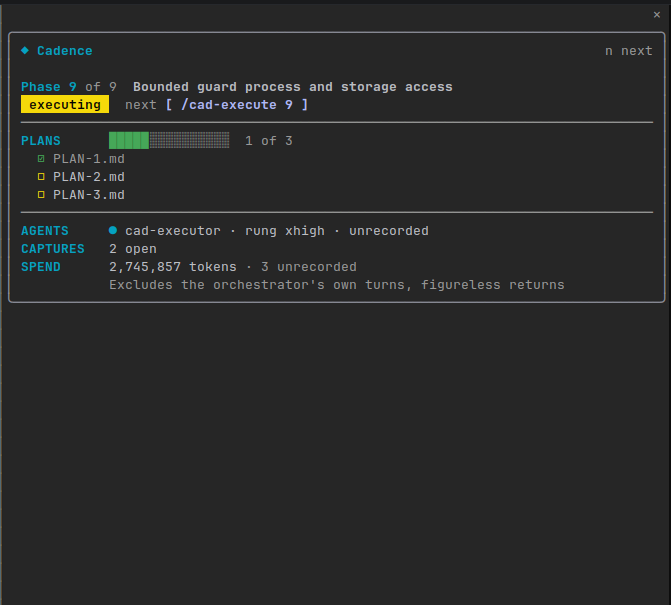

40//
41// And the Cadence pane (phase 4), beside the band and the token capture: the
42// full picture of the current phase, its rows built by lib/pane-view.mjs. The
43// `/cad-panel` command this module registers opens it. Like everything here
44// it exists only on hosts with mods, so it adds no skill, no resident
45// description and no byte budget (D-01). The pane draws from the snapshot its
46// last fetch left and does no I/O while drawing. `/cad-panel` calls `next`
47// and then answers its own result in that one's place: a registered command
48// has no core for `next` to run, and its own text, an empty one included,
49// replaces the line the host prints for a command nobody answered. The band's
50// `[ pane ]` button, `p` while the band holds the focus, opens the same pane.
51// Docked beside the transcript it draws its own round frame, since the host
52// draws only a separator there; inline the host borders it, so it draws none.
53// It draws a title row, because the host shows the title only as a tab once
54// two panes are open. The next command is a button: `n` while the pane holds
55// the focus puts it in the prompt.
56//
57// And the listing filter (phase 5, D-01). The 30 rung agents' and the six
58// contract skills' entries come out of the agent and skill listings the model
59// reads, in every session and every repo (D-02): route.mjs picks each agent
60// and the skill dispatching it names it, so the descriptions bought nothing.
61// It edits the `prompt.attachment` text by lib/listing-filter.mjs's line rule.
62// The module never withholds through `agent.offer`, it only watches there:
63// withholding would take the type out of dispatch too (`Agent type
64// 'cadence:cad-reviewer-low' not found`), and `command.describe` `isHidden`
65// only hides the command menu entry.
66//
67// And the prefix safety net (phase 5, D-07; MOD-04). Cadence commands dispatch
68// route.mjs's `agent_type`, already `<plugin name>:<stem>`, since a bare name
69// belongs to whoever owns it. An Agent call that still names exactly one of
70// Cadence's bare stems gets `<plugin name>:` added here, read from
71// `$.plugin.name`, unless an `agent.offer` from a non-`plugin` source named
72// that bare agent: the offer observer records those, and a user's own
73// `cad-reviewer` goes through as sent. The rule is lib/agent-prefix.mjs; every
74// other call goes through as sent.
75//
76// And the cache meter. The same `turn.step` hands every request's usage, the
77// main loop's and each agent's, to lib/cache-meter.mjs. The band counts the
78// session's cache breaks once there is one, and the pane shows each loop's hit
79// rate and breaks. Live and in memory only; the trace keeps none of it (#309).
80//
81// Every handler calls `next` exactly once and swallows its own errors (D-12).
82//
83// git-guard, read-trace and subagent-trace stay command hooks on every host, so
84// this module makes no git decision and stands no hook down.
85
86import { planningRootAsync } from '../cadence-core/bin/lib/git-segments.mjs';
87import { parseCursor } from '../cadence-core/bin/lib/state-cursor.mjs';
88import { bandLine, rosterReconcile, rosterStart, rosterStop } from '../cadence-core/bin/lib/band.mjs';
89import { roleOfAgent } from '../cadence-core/bin/lib/rung-agent.mjs';
90import { ownedAgent, prefixedAgent } from '../cadence-core/bin/lib/agent-prefix.mjs';
91import { filterListing, LISTING_TYPES } from '../cadence-core/bin/lib/listing-filter.mjs';
92import { closeArgs, stepWindow, stepWindowArgv, withAgentId } from '../cadence-core/bin/lib/token-capture.mjs';
93import { NO_PROJECT_TEXT, PANEL_FIELD, PANEL_OFF_TEXT, PANEL_ON_TEXT, PANEL_USAGE, panelArg, panelOn,
94  panelUnchanged, parseResolves, RUN_FAILED, SEAM_TIMEOUT_MS, seamAnswer, seamArgv, sightDraw, sightStart, sightStop,
95  singleFlight } from '../cadence-core/bin/lib/pane.mjs';
96import { paneView } from '../cadence-core/bin/lib/pane-view.mjs';
97import { EMPTY_METER, MAIN, meterDrop, meterStep } from '../cadence-core/bin/lib/cache-meter.mjs';
98
99/**
100 * The pane's id and title, held once: `/cad-panel` and anything else that
101 * opens the pane open this one.
102 */
103const PANE_ID = 'cadence';
104const PANE = Object.freeze({ id: PANE_ID, title: 'Cadence' });
105
106/**
107 * One view segment as a host Text. A style the segment leaves unset is left
108 * off the props, never passed as undefined. Box and Text take the same props
109 * on every surface, so there is nothing to drop on a desktop.
110 * @param {any} Text
111 * @param {import('../cadence-core/bin/lib/pane-view.mjs').Segment} s
112 */
113const segmentText = (Text, s) => Text({ children: s.text, ...(s.color ? { color: s.color } : {}),
114  ...(s.bg ? { backgroundColor: s.bg } : {}), ...(s.bold ? { bold: true } : {}), ...(s.dim ? { dimColor: true } : {}) });
115
116/** The pane's button that puts the next command in the prompt: `n` while the pane has the keys. */
117const NEXT_KEY = 'n';
118/** Cells a frame takes from the body: the border and one cell of padding, each side. */
119const FRAME_CELLS = 4;
120
121/** The command that opens the pane. User-facing, so the name is locked (D-01). */
122const PANEL_COMMAND = 'cad-panel';
123
124/** The band's button that opens the pane: drawn `[ pane ]`, pressed by `p`. */
125const PANE_BUTTON_LABEL = 'pane';
126const PANE_BUTTON_KEY = 'p';
127const PANE_BUTTON_CELLS = PANE_BUTTON_LABEL.length + 4;
128
129/** `dir/name`, without doubling the separator at a filesystem root. */
130const at = (/** @type {string} */ dir, /** @type {string} */ name) =>
131  (/[\\/]$/.test(dir) ? dir + name : `${dir}/${name}`);
132
133/**
134 * Ask the host to draw the band again (D-08). The draw re-reads STATE.md, so
135 * this is all a refresh needs. A throw here never reaches the event's answer.
136 * @param {any} $
137 */
138function redraw($) {
139  try {
140    $.ui.invalidate('ui.render');
141  } catch {
142    // the next event tries again
143  }
144}
145
146/**
147 * The most stopped subagents' windows `held` keeps waiting for a close (PNL-07).
148 * A close comes right after its subagent's return, so a window still waiting
149 * after this many later stops is one no close will ever name; the oldest goes.
150 */
151const HELD_MAX = 64;
152
153/**
154 * @typedef {{windows: Map<string, number>, adopted: Map<string, {phase: string, anchor: string | null}>,
155 *   held: Map<string, number>}} Capture
156 * `windows`: each running subagent's latest step window. `adopted`: the
157 * close a running subagent ran on itself, waiting for its last window.
158 * `held`: a stopped Cadence subagent's last window, waiting for its close,
159 * at most HELD_MAX of them.
160 * Every read-and-forget below happens before the first await, so two
161 * handlers interleaving never write one window twice.
162 */
163
164/**
165 * Run one step-window fact in the project a walk from `start` finds.
166 * @param {any} $
167 * @param {string} start
168 * @param {{phase: string, anchor: string | null}} close the close it prices
169 * @param {string} id
170 * @param {number} tokens
171 */
172async function writeFact($, start, close, id, tokens) {
173  const root = await planningRootAsync(start, (dir, name) => $.fs.exists(at(dir, name)));
174  if (root === null) return;
175  await $.process.run(stepWindowArgv($.plugin.root, close.phase, id, tokens, close.anchor),
176    { cwd: root, timeoutMs: 10000 });
177}
178
179/**
180 * A subagent stopped. A Cadence subagent whose own close already named its
181 * phase gets its fact now, with the window of its LAST step; the project is
182 * the walk from the stop's own `cwd`, the field subagent-trace walks from, so
183 * the fact lands in the trace.jsonl the close landed in. Without that close
184 * its window is held for the coordinator's.
185 * @param {any} $
186 * @param {any} e the `classic.SubagentStop` input
187 * @param {Capture} c
188 */
189async function stopped($, e, c) {
190  try {
191    const id = e.agent_id;
192    if (typeof id !== 'string') return;
193    const tokens = c.windows.get(id);
194    const close = c.adopted.get(id);
195    c.windows.delete(id);
196    c.adopted.delete(id);
197    if (tokens === undefined || roleOfAgent(e.agent_type) === null) return;
198    if (close === undefined) {
199      // Re-inserted, so a Map's insertion order stays oldest-first.
200      c.held.delete(id);
201      c.held.set(id, tokens);
202      if (c.held.size > HELD_MAX) c.held.delete(c.held.keys().next().value);
203      return;
204    }
205    await writeFact($, typeof e.cwd === 'string' && e.cwd ? e.cwd : await $.session.cwd(), close, id, tokens);
206  } catch {
207    // no record this time; the bracket stays figureless
208  }
209}
210
211/**
212 * A Bash call is about to run. When it is a figureless `trace close` naming a
213 * stopped Cadence subagent, write that subagent's held window under the
214 * close's own phase first. When it names a subagent still running, keep the
215 * close for its stop. A close carrying `--tokens` needs no fact.
216 * @param {any} $
217 * @param {any} e the event as it goes to `next`, rewrite included
218 * @param {Capture} c
219 */
220async function closing($, e, c) {
221  try {
222    if (e.tool !== 'Bash') return;
223    const close = closeArgs(e.command);
224    if (close === null) return;
225    const id = close.agentId;
226    const tokens = c.held.get(id);
227    c.held.delete(id);
228    if (close.priced) return;
229    if (tokens === undefined) {
230      if (c.windows.has(id)) c.adopted.set(id, { phase: close.phase, anchor: close.anchor });
231      return;
232    }
233    await writeFact($, await $.session.cwd(), close, id, tokens);
234  } catch {
235    // no record this time; the bracket stays figureless
236  }
237}
238
239/**
240 * @typedef {{snapshot: import('../cadence-core/bin/lib/pane.mjs').Snapshot | null, open: boolean,
241 *   kick: (task: () => unknown) => Promise<void>}} Pane
242 * `snapshot`: what the pane's last fetch read, or null before the first one
243 * settles. `open`: whether the pane is up, so a fetch is worth running.
244 * `kick`: the pane's single-flight runner.
245 */
246
247/**
248 * Hand the pane a fetch when it is open, without waiting on it, so no event's
249 * answer ever waits on a fetch.
250 * @param {any} $
251 * @param {Pane} p
252 */
253function refresh($, p) {
254  if (!p.open) return;
255  void p.kick(() => fetchPane($, p));
256}
257
258/**
259 * Read what the pane shows, keep it, and ask for a draw. Never throws, and
260 * always leaves a snapshot, failed or not.
261 * @param {any} $
262 * @param {Pane} p
263 */
264async function fetchPane($, p) {
265  if (!p.open) return;
266  try {
267    // A pane whose drawing threw is dropped without a `ui.close` reaching
268    // the hooks, so ask the engine whether it is still up.
269    const panes = await $.ui.panes();
270    if (Array.isArray(panes) && !panes.some((x) => x && x.id === PANE_ID)) {
271      p.open = false;
272      return;
273    }
274  } catch {
275    // no list: fetch anyway
276  }
277  /** @type {import('../cadence-core/bin/lib/pane.mjs').Snapshot} */
278  const read = { cursor: null, status: { ok: false, reason: 'not-read' }, captures: { ok: false, reason: 'not-read' },
279    spend: null, resolves: [], sessionModel: null };
280  try {
281    const root = await planningRootAsync(await $.session.cwd(), (dir, name) => $.fs.exists(at(dir, name)));
282    if (root === null) {
283      read.status = read.captures = { ok: false, reason: 'no-planning-dir' };
284    } else {
285      [read.cursor, read.status, read.captures, read.resolves, read.sessionModel] = await Promise.all([
286        readCursor($, root), runSeam($, root, ['status']), runSeam($, root, ['capture-check']),
287        readResolves($, root), sessionModel($)]);
288      // The spend describes status's derived phase (D-05); none, no run.
289      const current = read.status.ok ? read.status.value.current : null;
290      if (current !== null && current !== undefined) {
291        read.spend = await runSeam($, root, ['trace', 'render', '--phase', String(current)]);
292      }
293    }
294  } catch {
295    // no walk: nothing read
296  }
297  p.snapshot = read;
298  redraw($);
299}
300
301/**
302 * The project's STATE.md cursor, or null when it is missing or unreadable:
303 * the band's feed (D-03).
304 * @param {any} $
305 * @param {string} root
306 */
307async function readCursor($, root) {
308  try {
309    return parseCursor(await $.fs.read(at(root, '.planning/STATE.md')));
310  } catch {
311    return null;
312  }
313}
314
315/**
316 * The resolve events in the project's trace.jsonl. A read that rejects (no
317 * file, or one over the host's 4 MiB cap) yields none.
318 * @param {any} $
319 * @param {string} root
320 */
321async function readResolves($, root) {
322  try {
323    return parseResolves(await $.fs.read(at(root, '.planning/trace.jsonl')));
324  } catch {
325    return [];
326  }
327}
328
329/**
330 * The session's model, for a resolve that routed none, or null unread.
331 * @param {any} $
332 * @returns {Promise<string | null>}
333 */
334async function sessionModel($) {
335  try {
336    const m = await $.session.model();
337    return typeof m === 'string' && m ? m : null;
338  } catch {
339    return null;
340  }
341}
342
343/**
344 * One `planning.mjs` subcommand against the project, its answer parsed. The
345 * pane re-derives nothing in-process: planning-files imports `node:fs`, and a
346 * second derivation would be a second answer (D-04).
347 * @param {any} $
348 * @param {string} root
349 * @param {readonly string[]} args
350 * @returns {Promise<import('../cadence-core/bin/lib/pane.mjs').Seam>}
351 */
352async function runSeam($, root, args) {
353  try {
354    const ran = await $.process.run(seamArgv($.plugin.root, root, args), { cwd: root, timeoutMs: SEAM_TIMEOUT_MS });
355    return seamAnswer(ran && ran.stdout);
356  } catch {
357    return RUN_FAILED;
358  }
359}
360
361/**
362 * Open the pane in the project a walk from the session's directory finds, and
363 * start its fetch without waiting on it. The answer is the command's text: the
364 * no-project line, the reason an open waits undrawn, or none once it is drawn.
365 * @param {any} $
366 * @param {Pane} p
367 */
368async function openPane($, p) {
369  try {
370    const root = await planningRootAsync(await $.session.cwd(), (dir, name) => $.fs.exists(at(dir, name)));
371    if (root === null) return { text: NO_PROJECT_TEXT };
372    const opened = await $.ui.open({ id: PANE.id, title: PANE.title });
373    p.open = true;
374    refresh($, p);
375    // An empty text, never a missing one: only a text replaces the host's own
376    // "no command.run hook answered it" line (measured on 2.1.289).
377    return opened && opened.isPlaced === false ? { text: String(opened.reason) } : { text: '' };
378  } catch {
379    return { text: 'The Cadence pane did not open.' };
380  }
381}
382
383/**
384 * Write the `panel` setting, as its `/config` row would. Off closes the pane
385 * first: the write reloads the module, and the pane goes with the band. The
386 * answer is the command's text, the host's deny included.
387 * @param {any} $
388 * @param {Pane} p
389 * @param {boolean} value
390 */
391async function setPanel($, p, value) {
392  if (!value) {
393    try {
394      await $.ui.close({ id: PANE_ID });
395    } catch {
396      // not up
397    }
398    p.open = false;
399  }
400  try {
401    const set = await $.config.set({ key: `${$.plugin.name}.${PANEL_FIELD}`, value });
402    if (set && set.deny !== undefined) return { text: panelUnchanged(String(set.deny)) };
403  } catch {
404    return { text: panelUnchanged('') };
405  }
406  return { text: value ? PANEL_ON_TEXT : PANEL_OFF_TEXT };
407}
408
409/**
410 * @param {any} on the host's hook registrar
411 * @param {unknown} [options] the plugin's userConfig values; a change reloads
412 *   the module, so they are fixed for this activation
413 */
414export function register(on, options) {
415  // The band and token capture run only with the `panel` setting on, off by
416  // default.
417  const panel = panelOn(options);
418  // The Cadence agents running in this session (D-07). Every write is
419  // `roster = transition(roster, ...)` with its await done first, so two
420  // handlers interleaving never write back a stale roster.
421  /** @type {readonly {id: string, role: string, rung: string}[]} */
422  let roster = [];
423  // When the module first saw each roster agent, and its host type: the
424  // pane's, kept beside the roster so the roster's shape stays phase 3's.
425  /** @type {readonly import('../cadence-core/bin/lib/pane.mjs').Sight[]} */
426  let sights = [];
427  /** @type {Pane} */
428  const pane = { snapshot: null, open: false, kick: singleFlight() };
429  /** @type {Capture} */
430  const capture = { windows: new Map(), adopted: new Map(), held: new Map() };
431  // The session's cache meter. Like the roster, every write is
432  // `meter = meterStep(meter, ...)`.
433  let meter = EMPTY_METER;
434  const { windows } = capture;
435  // Bare agent names a non-`plugin` `agent.offer` named (MOD-04). It only
436  // grows: an agent deleted mid-session stays owned, which errs toward sending
437  // the user's name as written.
438  /** @type {Set<string>} */
439  const owned = new Set();
440
441  // Pass-through: `e` goes down unchanged (D-12 leaves Phase 6 its effort
442  // override here). A subagent's step that reports usage replaces its window,
443  // so the last step wins, with the `panel` setting on. Every step, main's
444  // too, goes to the cache meter, and a break or an open pane asks for a draw.
445  on('turn.step', async function* ($, e, next) {
446    const result = yield* next(e);
447    try {
448      const w = panel && typeof e.agentId === 'string' ? stepWindow(result && result.usage) : null;
449      if (w !== null) windows.set(e.agentId, w);
450    } catch {
451      // a step we could not read prices nothing
452    }
453    try {
454      const before = meter.breaks;
455      meter = meterStep(meter, typeof e.agentId === 'string' ? e.agentId : MAIN, e.model, e.messageCount,
456        result && result.usage);
457      if (meter.breaks !== before || pane.open) redraw($);
458    } catch {
459      // a step we could not read counts nothing
460    }
461    return result;
462  });
463
464  on('classic.SubagentStart', async ($, e, next) => {
465    const answer = await next(e);
466    try {
467      const session = await $.session.id();
468      roster = rosterStart(roster, e, session);
469      // The band's reconcile may have added this agent already; its type and
470      // start still count.
471      if (roster.some((a) => a.id === e.agent_id)) sights = sightStart(sights, e.agent_id, e.agent_type, Date.now());
472    } catch {
473      // the next draw's reconcile adds what this missed
474    }
475    redraw($);
476    refresh($, pane);
477    return answer;
478  });
479
480  on('classic.SubagentStop', async ($, e, next) => {
481    const answer = await next(e);
482    try {
483      roster = rosterStop(roster, e.agent_id);
484      sights = sightStop(sights, e.agent_id);
485      meter = meterDrop(meter, e.agent_id);
486    } catch {
487      // the next draw's reconcile drops what this missed
488    }
489    redraw($);
490    refresh($, pane);
491    if (panel) await stopped($, e, capture);
492    return answer;
493  });
494
495  // A `cursor set` or `renumber` is a Bash call, and they are the only STATE
496  // writers, so redrawing after each tool call shows a cursor change as soon as
497  // it lands. A write from outside the session shows at the next event. No timer.
498  //
499  // With the `panel` setting on, a subagent's own `planning.mjs trace close`
500  // gains `--agent-id` here (D-11), and any figureless close that names an
501  // agent id prices it from its window.
502  // An Agent call naming a bare Cadence stem gains the plugin's prefix (phase 5,
503  // D-07) as a safety net, unless the offer observer below saw a project or
504  // user agent of that bare name. Anything that goes wrong before `next` sends
505  // the event exactly as the model wrote it.
506  on('tool.call', async ($, e, next) => {
507    let sent = e;
508    try {
509      if (panel && e.tool === 'Bash' && typeof e.agentId === 'string') {
510        const rewritten = withAgentId(e.command, e.agentId);
511        if (rewritten !== null) sent = { ...e, command: rewritten };
512      } else if (e.tool === 'Agent') {
513        const type = prefixedAgent(e.subagent_type, $.plugin.name, owned);
514        if (type !== null) sent = { ...e, subagent_type: type };
515      }
516    } catch {
517      sent = e;
518    }
519    if (panel) await closing($, sent, capture);
520    const result = await next(sent);
521    redraw($);
522    refresh($, pane);
523    return result;
524  });
525
526  // The offer observer (MOD-04). The listing batch reaches here before the
527  // first Agent call, so every project and user agent is known by then. No
528  // matcher: a matcher cannot say "any source but `plugin`". It passes `e`
529  // through and returns what `next` returned, never `isOffered: false`.
530  on('agent.offer', async ($, e, next) => {
531    try {
532      const name = ownedAgent(e);
533      if (name !== null) owned.add(name);
534    } catch { /* an offer it cannot read records nothing (D-04) */ }
535    return next(e);
536  });
537
538  // The two listings, without Cadence's agents and contract skills (phase 5,
539  // D-01). It filters what `next` resolved, so a text another hook dropped
540  // stays dropped, and anything that throws sends the listing unfiltered.
541  on('prompt.attachment', { type: LISTING_TYPES }, async ($, e, next) => {
542    const result = await next(e);
543    try {
544      const text = result.text;
545      if (typeof text !== 'string') return result;
546      const kept = filterListing(e.type, text);
547      return kept === text ? result : { text: kept };
548    } catch {
549      return result;
550    }
551  });
552
553  // The band. AbovePrompt holds one tree, so the band goes in a column above
554  // whatever the mods beneath drew, never in place of it. No band with the
555  // `panel` setting off, while a survey holds the row, or outside a Cadence
556  // project (D-06).
557  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
558    const drawn = await next(e);
559    try {
560      if (!panel || e.props.hasSurvey) return drawn;
561      const root = await planningRootAsync(await $.session.cwd(), (dir, name) => $.fs.exists(at(dir, name)));
562      if (root === null) return drawn;
563      let cursor = null;
564      try {
565        cursor = parseCursor(await $.fs.read(at(root, '.planning/STATE.md')));
566      } catch {
567        // unreadable is the same as absent: the /cad-progress line
568      }
569      try {
570        const list = await $.agent.list();
571        roster = rosterReconcile(roster, list);
572      } catch {
573        // no list: draw the roster the start and stop events built
574      }
575      const { Box, Text, Button } = $.ui.resolve(e);
576      if (typeof Button !== 'function') {
577        const band = Text({ wrap: 'truncate-end', children: bandLine(cursor, roster, e.props.bodyColumns, meter.breaks) });
578        return Box({ flexDirection: 'column', children: [band, drawn] });
579      }
580      // The pane's button beside the line, which takes what is left. A letter,
581      // never a digit: a bare digit in an empty composer presses a band Button.
582      const line = bandLine(cursor, roster, Math.max(0, e.props.bodyColumns - PANE_BUTTON_CELLS - 1), meter.breaks);
583      const button = Button({ label: PANE_BUTTON_LABEL, hotkey: PANE_BUTTON_KEY,
584        onPress: () => { openPane($, pane).catch(() => {}); } });
585      const band = Box({ flexDirection: 'row', gap: 1, children: [Text({ wrap: 'truncate-end', children: line }), button] });
586      return Box({ flexDirection: 'column', children: [band, drawn] });
587    } catch {
588      return drawn;
589    }
590  });
591
592  // --- the pane --------------------------------------------------------------
593
594  on('session.start', async ($, e, next) => {
595    try {
596      await $.command.register({ name: PANEL_COMMAND, immediate: true, argumentHint: 'on | off',
597        description: 'Open the Cadence pane: plans, running agents, UAT, captures, spend and next command' });
598    } catch {
599      // no command this session; the band still draws
600    }
601    return next(e);
602  });
603
604  // `/cad-panel` opens the pane whatever the setting; `on` and `off` write it.
605  on('command.run', { command: PANEL_COMMAND }, async ($, e, next) => {
606    await next(e);
607    const arg = panelArg(e.args);
608    if (arg === 'open') return openPane($, pane);
609    if (arg === null) return { text: PANEL_USAGE };
610    return setPanel($, pane, arg === 'on');
611  });
612
613  // `/cad-panel`'s empty answer draws as a bare `cadence:`; draw one dim
614  // line in its place. A reason (no project, the open waited) draws as written.
615  on('ui.render', { component: 'CommandOutput', props: { command: PANEL_COMMAND } }, async ($, e, next) => {
616    const drawn = await next(e);
617    try {
618      // The host prints a plugin's answer after its name (`cadence: `).
619      const said = String(e.props.text).replace(`${$.plugin.name}:`, '').trim();
620      if (said) return drawn;
621      const { Box, Text } = $.ui.resolve(e);
622      return Box({ paddingLeft: 2, children: [Text({ dimColor: true, children: '⎿  Cadence pane open' })] });
623    } catch {
624      return drawn;
625    }
626  });
627
628  // A close marks the pane down, so no event fetches for it.
629  on('ui.close', { id: PANE_ID }, async ($, e, next) => {
630    const answer = await next(e);
631    pane.open = false;
632    return answer;
633  });
634
635  // The pane draws the last snapshot and awaits nothing but `next`. With no
636  // snapshot (a module reloaded while its pane stayed up) the pane is up, so
637  // it counts as open and starts the one fetch that leaves a snapshot.
638  on('ui.render', { component: 'Pane', requestId: PANE_ID }, async ($, e, next) => {
639    const drawn = await next(e);
640    try {
641      if (pane.snapshot === null) {
642        pane.open = true;
643        refresh($, pane);
644      }
645      const { Box, Text, Button } = $.ui.resolve(e);
646      sights = sightDraw(sights, roster, Date.now());
647      // Docked beside the transcript the pane has a separator only, so it gets
648      // a frame; inline above the prompt the host draws a border already.
649      const framed = e.props.placement === 'dock';
650      const width = Math.max(1, e.props.bodyColumns - (framed ? FRAME_CELLS : 0));
651      const title = Box({ flexDirection: 'row', justifyContent: 'space-between', children: [
652        Text({ bold: true, color: 'cyan', children: '◆ Cadence' }),
653        Text({ dimColor: true, wrap: 'truncate-end', children: typeof Button === 'function' ? `${NEXT_KEY} next` : '' })] });
654      const cell = (/** @type {any} */ s) => s.action === 'next' && typeof Button === 'function'
655        ? Button({ key: 'next', label: s.text, hotkey: NEXT_KEY, variant: 'primary',
656          onPress: () => { $.prompt.fill({ text: s.text, mode: 'replace' }).catch(() => {}); } })
657        : segmentText(Text, s);
658      const rows = paneView(pane.snapshot, width, roster, sights, meter)
659        .map((row) => Box({ flexDirection: 'row', children: row.map(cell) }));
660      const body = [title, Text({ children: ' ' }), ...rows];
661      return framed
662        ? Box({ flexDirection: 'column', borderStyle: 'round', borderColor: 'gray', paddingX: 1, children: body })
663        : Box({ flexDirection: 'column', children: body });
664    } catch {
665      return drawn;
666    }
667  });
668}
669

1// @ts-check
2// git-segments.mjs - the whole of what git-guard.mjs sees. It replaces an
3// 840-line shell tokenizer plus a 367-line model of git's option grammar, both
4// deleted, and it is deliberately the smaller thing.
5//
6// WHY IT IS THIS SMALL. The guard is a PreToolUse hook whose adversary is the
7// model issuing the command, not an attacker, and references/git-publish.md has always
8// conceded the rail is "a detection widener, not a security boundary": being
9// wrong here costs a prompt, never a bypass, and the sanctioned publish never
10// reaches this hook at all (it runs through the git-publish seam as a
11// subprocess). A reader that tries to predict what the shell will do has an
12// unbounded escape surface - `bash -c`, `$(...)`, backticks, `env -S`, aliases,
13// variable indirection - so every review round found another hole and every
14// patch added grammar to close it. That cost three blocking review panels in a
15// single phase, a measured V8 OOM at 280KB of input on a hook that runs on
16// EVERY Bash call, and it still left three families of live silent destruction
17// open. The escape surface does not shrink by being modelled harder.
18//
19// So this reads one thing and declines to guess at the rest: a segment counts
20// ONLY when its command word is `git`. Everything else is silent BY
21// CONSTRUCTION rather than by a rule somebody has to keep correct - and the
22// shapes that consequently go silent are written down in references/git-publish.md
23// rail 3 and in the CHANGELOG-v1-v2.md entry that removed the parser, as the accepted
24// cost rather than as an oversight.
25//
26// IT ALSO HOLDS THE SCOPE RULE: the `.planning/` walk that decides whether a
27// directory sits inside a Cadence project. git-guard applies it, read-trace and
28// subagent-trace share it, and the Cadence module (hooks/cadence-mod.mjs)
29// imports it. It lives here because git-guard.test.mjs pins git-guard's import
30// set, and this is the one dependency-free file in that set.
31//
32// The module runs with no Node globals and may import no `node:` module, so
33// nothing in this file may either. That shapes the walk two ways:
34// - The existence probe is injected. The walk is one generator that yields
35//   `[dir, name]` and takes back a boolean; `planningRoot` drives it with a
36//   sync probe (the hooks' `existsSync`), `planningRootAsync` with an async one
37//   (the module's `$.fs.exists`). One loop, two drivers.
38// - The parent step is `parentDir`, a port of node's own `dirname`, so the
39//   hooks and the module step through the same directories.
40'use strict';
41
42/** The git global options that take a SEPARATE argument. A fixed list, not a
43 * grammar: it is the only reason the scan looks past a flag at all. Without it
44 * `git -C /srv/repo push` reads `/srv/repo` as its verb and a real push goes
45 * silent. The `=`-glued spellings (`--git-dir=x`) need no entry of their own -
46 * each is one `-`-leading word, which the flag skip below already covers. */
47const GLOBAL_OPT_WITH_ARG = new Set([
48  '-C', '-c', '--git-dir', '--work-tree', '--namespace', '--exec-path', '--config-env',
49]);
50
51/** `;`, a newline, `|`, `||`, `&&` and `&` each end a simple command. The
52 * two-character forms lead the alternation so they match before the
53 * single-character class can split them in half. */
54const SEPARATOR = /&&|\|\||[;|&\n]/;
55
56/**
57 * Every git verb this command runs, in order: `git add . && git push` reads
58 * `['add', 'push']`.
59 *
60 * TOTAL and LINEAR. Any input at all - a non-string, a hostile object, a
61 * megabyte of repeated separators - returns an array and never throws, because
62 * this runs on every Bash tool call and a guard that stalls or aborts is worse
63 * than one that misses. The deleted reader was neither: it was O(K x N) in
64 * memory and OOMed the hook, which fails OPEN.
65 *
66 * A segment contributes a verb only when its FIRST word is `git` (or ends in
67 * `/git`, so `/usr/bin/git push` counts). That anchor is the whole story, and
68 * it is why there is no separate deny gate any more: a verb read here came from
69 * a command word by construction, so `rg -t sh "git commit"`,
70 * `command -v git commit`, `grep git commit` and `echo "git push"` are silent
71 * rather than being detected wide and then gated back down to an ask.
72 *
73 * The cost, stated rather than hidden: an invocation reached through a wrapper,
74 * a substitution or a transparent prefix (`bash -c "git push"`, `$(git push)`,
75 * `sudo git push`, `xargs git push`, `env -S "git push"`) is NOT seen.
76 * references/git-publish.md rail 3 carries the list.
77 *
78 * @param {unknown} text the raw command string from the hook payload
79 * @returns {string[]} the verbs, in the order they appear
80 */
81export function gitVerbs(text) {
82  if (typeof text !== 'string' || !text) return [];
83
84  const verbs = [];
85  for (const segment of text.split(SEPARATOR)) {
86    const words = segment.trim().split(/\s+/).filter(Boolean);
87    const head = words[0];
88    // ANCHORED: the command word, and nothing else, admits a segment.
89    if (head !== 'git' && !(head !== undefined && head.endsWith('/git'))) continue;
90
91    for (let i = 1; i < words.length; i++) {
92      const word = words[i];
93      if (GLOBAL_OPT_WITH_ARG.has(word)) { i++; continue; } // skip it AND its argument
94      if (word.startsWith('-')) continue;
95      verbs.push(word);
96      break; // the first non-flag word is the verb; the rest are its operands
97    }
98  }
99  return verbs;
100}
101
102/**
103 * The parent of an absolute directory, as node's `path.dirname` answers it. A
104 * `/`-leading path steps the way `path.posix.dirname` does; anything else (a
105 * drive path, a UNC path) steps the way `path.win32.dirname` does, with both
106 * separators. A root answers itself, which is what ends the walk.
107 *
108 * @param {string} dir
109 * @returns {string}
110 */
111export function parentDir(dir) {
112  const posix = dir.startsWith('/');
113  const isSep = posix ? (c) => c === '/' : (c) => c === '/' || c === '\\';
114  let root = 0; // how much of the front is root, which a step never cuts into
115  if (posix) {
116    root = 1;
117  } else if (/^[A-Za-z]:/.test(dir)) {
118    root = isSep(dir[2]) ? 3 : 2;
119  } else if (isSep(dir[0])) {
120    // UNC: `\\server\share\` is the root, and a bare `\\server\share` is too.
121    const unc = /^[\\/]{2}[^\\/]+[\\/]+[^\\/]+/.exec(dir);
122    if (unc && unc[0].length === dir.length) return dir;
123    root = unc ? unc[0].length + 1 : 1;
124  }
125
126  // Skip the trailing separators and the last name, then cut at the separator
127  // before it. Only that one separator goes: `/a//b` answers `/a/`, as node does.
128  let end = -1;
129  let named = false;
130  for (let i = dir.length - 1; i >= root; i--) {
131    if (!isSep(dir[i])) named = true;
132    else if (named) { end = i; break; }
133  }
134  if (end === -1) return root ? dir.slice(0, root) : '.';
135  if (posix && end === 1) return '//'; // posix.dirname's own quirk for `//a`
136  return dir.slice(0, end);
137}
138
139/**
140 * The walk itself. From `start` upward: a directory holding `.planning` is the
141 * project root; a directory holding `.git` first is a repo that is not Cadence's;
142 * reaching the filesystem root is nothing. Yields each `[dir, name]` it needs
143 * probed and expects the answer back through `next(boolean)`.
144 *
145 * @param {string} start
146 * @returns {Generator<[string, string], string | null, boolean>}
147 */
148function* planningWalk(start) {
149  let dir = start;
150  for (;;) {
151    if (yield [dir, '.planning']) return dir;
152    if (yield [dir, '.git']) return null; // repo root, not Cadence
153    const parent = parentDir(dir);
154    if (parent === dir) return null;
155    dir = parent;
156  }
157}
158
159/**
160 * The Cadence project root above `start`, or null. Sync driver for the hooks.
161 *
162 * @param {string} start
163 * @param {(dir: string, name: string) => boolean} has does `dir/name` exist
164 * @returns {string | null}
165 */
166export function planningRoot(start, has) {
167  const walk = planningWalk(start);
168  let step = walk.next();
169  while (!step.done) {
170    const [dir, name] = step.value;
171    step = walk.next(has(dir, name));
172  }
173  return step.value;
174}
175
176/**
177 * The same answer through an async probe. Driver for the module.
178 *
179 * @param {string} start
180 * @param {(dir: string, name: string) => Promise<boolean> | boolean} has
181 * @returns {Promise<string | null>}
182 */
183export async function planningRootAsync(start, has) {
184  const walk = planningWalk(start);
185  let step = walk.next();
186  while (!step.done) {
187    const [dir, name] = step.value;
188    step = walk.next(await has(dir, name));
189  }
190  return step.value;
191}
192

1// @ts-check
2// state-cursor.mjs - the grammar of STATE.md's four-line cursor, read side.
3//
4// It lives apart from lib/planning-files.mjs so the Cadence module
5// (hooks/cadence-mod.mjs) can load it: a hooks module may import only relative
6// files and `claude-code`, and planning-files imports `node:fs`. The band reads
7// STATE.md through `$.fs.read` and parses it here, with the same parser
8// `planning.mjs cursor get` uses (phase 3, D-05).
9//
10// planning-files re-exports `parseCursor`, so the seam and its tests still
11// import it from there. The writer (`renderCursor`) and the status vocabulary
12// (`CURSOR_STATUSES`) stay there with the code that writes the file.
13//
14// Imports nothing and touches no Node global.
15'use strict';
16
17/**
18 * Parse the canonical 4-line cursor. Returns null when any line is missing
19 * or malformed - callers degrade, never guess.
20 * @param {string} text
21 */
22export function parseCursor(text) {
23  const m = (re) => { const r = text.match(re); return r ? r : null; };
24  const phase = m(/^Phase:\s*(\d+(?:\.\d+)?)\s+of\s+(\d+)\s+\((.+)\)\s*$/m);
25  const status = rest(text, /^Status:([^\r\n]*)/m);
26  const next = rest(text, /^Next:([^\r\n]*)/m);
27  const updated = m(/^Updated:\s*(\d{4}-\d{2}-\d{2})\s*$/m);
28  if (!phase || !status || !next || !updated) return null;
29  return {
30    phase: Number(phase[1]), total: Number(phase[2]), name: phase[3],
31    status, next, updated: updated[1],
32  };
33}
34
35/**
36 * The rest of a `Key:` line, trimmed, or null when the line is missing or
37 * holds nothing. Greedy to the end of the line and then `trim()`, never a lazy
38 * capture before `\s*$`: that one backtracks in quadratic time on a long run of
39 * inner spaces, and the band parses STATE.md inside the host's hooks worker on
40 * every draw.
41 *
42 * The capture stops at `\r` or `\n` only, never at `.`'s edge: `.` and a
43 * multiline `$` also stop at U+2028 and U+2029, which `cursor set` accepts in a
44 * value, so a value led by one would trim to nothing. `trim()` drops them from
45 * either end, as the `\s*` of the parser before this one did.
46 * @param {string} text
47 * @param {RegExp} re one capture: everything after the colon
48 */
49function rest(text, re) {
50  const r = text.match(re);
51  const value = r ? r[1].trim() : '';
52  return value === '' ? null : value;
53}
54

1// @ts-check
2// band.mjs - the one line the Cadence module (hooks/cadence-mod.mjs) draws
3// above the prompt: phase, status, the running Cadence agents, next command.
4//
5// No imports beyond lib/, no Node globals: a hooks module may load nothing
6// else. The module does the I/O and hands this the parsed cursor.
7//
8// Once the session has a cache break (lib/cache-meter.mjs), the count follows
9// the status, so it is seen before the running list or next is.
10//
11// The line never wraps and never runs past the width it is given. Too long,
12// the running list shrinks to its first agent plus a count, then the end of
13// the line is cut with an ellipsis.
14//
15// The running list is a roster: a plain array of `{id, role, rung}`, oldest
16// first, moved only by the three pure transitions below (D-07). The module
17// holds the current value and swaps in what each transition returns. A start
18// or stop event can be missed (a subagent spawned before the module loaded, a
19// stop the host never delivered), so the module reconciles against
20// `$.agent.list()` before each draw. Role and rung come from RUNG_FILES through
21// `roleOfAgent` and `rungOfAgent`, never from a `-<rung>` suffix.
22'use strict';
23
24import { breaksText } from './cache-meter.mjs';
25import { roleOfAgent, rungOfAgent } from './rung-agent.mjs';
26
27/** The line when STATE.md is missing or does not parse (phase 3, D-06). */
28export const NO_CURSOR_LINE = 'Cadence · no readable cursor · run /cad-progress';
29
30/**
31 * The status the band and the pane draw: `executing` while a Cadence executor
32 * runs on a `planned` phase, the status as given otherwise. Display only: no
33 * cursor or derived status is ever `executing`, since a value outside
34 * planning.mjs's AGREE map reads as drift. An executor `/cad-task --plan`
35 * dispatches shows the same way, because the roster cannot tell them apart.
36 * @param {string} status
37 * @param {readonly {role: string}[]} running
38 * @returns {string}
39 */
40export function shownStatus(status, running) {
41  return status === 'planned' && running.some((a) => a.role === 'cad-executor') ? 'executing' : status;
42}
43
44/**
45 * @param {{phase: number, total: number, status: string, next: string} | null} cursor
46 * @param {readonly {role: string, rung: string}[]} running
47 * @param {number} width cells the line may take
48 * @param {number} [breaks] the session's cache breaks
49 * @returns {string}
50 */
51export function bandLine(cursor, running, width, breaks = 0) {
52  const flag = breaks > 0 ? ` · ${breaksText(breaks)}` : '';
53  if (!cursor) return fit(NO_CURSOR_LINE + flag, width);
54  const head = `Cadence · Phase ${cursor.phase} of ${cursor.total} · ${visible(shownStatus(cursor.status, running))}${flag}`;
55  const tail = ` · next ${visible(cursor.next)}`;
56  const names = running.map((a) => `${a.role} (${a.rung})`);
57  let line = head + (names.length ? ` · running ${names.join(', ')}` : '') + tail;
58  if (names.length > 1 && cells(line) > width) {
59    line = `${head} · running ${names[0]} +${names.length - 1}${tail}`;
60  }
61  return fit(line, width);
62}
63
64/**
65 * STATE.md text with every control character shown as `?`. The host refuses a
66 * whole AbovePrompt tree when any text child holds one (C0, DEL, C1, and so
67 * tab, CR and LF too), which would wipe out every other mod's drawing beside
68 * the band. `cursor get` still answers the text as written.
69 * @param {string} s
70 */
71function visible(s) {
72  return String(s).replace(/[\x00-\x1f\x7f-\x9f]/g, '?');
73}
74
75/** @param {string} s */
76function cells(s) {
77  return Array.from(s).length;
78}
79
80/**
81 * Cut at the width, ending in `…`. Counted by code point, so a cut never
82 * splits a surrogate pair.
83 * @param {string} line
84 * @param {number} width
85 */
86function fit(line, width) {
87  const chars = Array.from(line);
88  if (chars.length <= width) return line;
89  if (!(width >= 1)) return '';
90  return chars.slice(0, width - 1).join('') + '…';
91}
92
93/**
94 * @typedef {{id: string, role: string, rung: string}} RosterEntry
95 * @typedef {readonly RosterEntry[]} Roster
96 */
97
98/**
99 * The entry a Cadence agent type gets, or null for any type RUNG_FILES does not
100 * file (the host's own `general-purpose`, `Explore`, a fork).
101 * @param {unknown} id
102 * @param {unknown} type
103 * @returns {RosterEntry | null}
104 */
105function entry(id, type) {
106  const role = roleOfAgent(type);
107  const rung = rungOfAgent(type);
108  if (typeof id !== 'string' || id === '' || role === null || rung === null) return null;
109  return { id, role, rung };
110}
111
112/**
113 * A `classic.SubagentStart` input joins the roster when it is a Cadence agent
114 * of THIS session. Anything else answers the roster unchanged.
115 * @param {Roster} roster
116 * @param {{session_id?: unknown, agent_id?: unknown, agent_type?: unknown}} start
117 * @param {string} sessionId this session's id, `$.session.id()`
118 * @returns {Roster}
119 */
120export function rosterStart(roster, start, sessionId) {
121  if (!start || start.session_id !== sessionId) return roster;
122  const added = entry(start.agent_id, start.agent_type);
123  if (added === null || roster.some((a) => a.id === added.id)) return roster;
124  return [...roster, added];
125}
126
127/**
128 * A `classic.SubagentStop` drops the agent with that id, if the roster holds it.
129 * @param {Roster} roster
130 * @param {unknown} agentId
131 * @returns {Roster}
132 */
133export function rosterStop(roster, agentId) {
134  return roster.some((a) => a.id === agentId) ? roster.filter((a) => a.id !== agentId) : roster;
135}
136
137/**
138 * The roster `$.agent.list()` says is true: exactly the Cadence agents it shows
139 * `running`. Ones the roster already held keep their place; ones it missed join
140 * at the end, in the list's order. The list holds this session's agents only,
141 * so no session check is needed here.
142 * @param {Roster} roster
143 * @param {unknown} list `$.agent.list()`'s answer: `{id, type, status}` entries
144 * @returns {Roster}
145 */
146export function rosterReconcile(roster, list) {
147  if (!Array.isArray(list)) return roster;
148  /** @type {Map<string, RosterEntry>} */
149  const running = new Map();
150  for (const a of list) {
151    if (!a || a.status !== 'running') continue;
152    const found = entry(a.id, a.type);
153    if (found !== null) running.set(found.id, found);
154  }
155  const kept = roster.filter((a) => running.has(a.id));
156  const held = new Set(kept.map((a) => a.id));
157  return [...kept, ...[...running.values()].filter((a) => !held.has(a.id))];
158}
159

1// @ts-check
2// rung-agent.mjs - the ONE statement of which agent FILE carries which rung of
3// which role, imported by route.mjs (which resolves a cell's rung to an agent
4// name), through lib/route-cells.mjs by self-verify.mjs (which proves every
5// name the grids can produce exists on disk), and through `roleOfAgent` and
6// `rungOfAgent` by lib/read-trace.mjs, lib/subagent-trace.mjs and the Cadence
7// module, hooks/cadence-mod.mjs (which names running agents in its band).
8// Spelling the map twice is exactly the resolved-then-silently-wrong class this
9// repo keeps closing (#39, #43, #64): route.mjs would name a file the linter
10// never looked for.
11//
12// RUNG_FILES is the whole mapping story - a stated table, not a naming
13// convention, because no convention is true of all 30 files.
14// `rungBody`/`normalizeBody`/`rungBodyIssue` beside it state the one legitimate
15// BODY of a rung file, and `rungPrefixIssues` states that one role's rung files
16// all carry it byte for byte, for the same single-source reason.
17//
18// Pure lib: no fs, no emit, no process, no Date, no randomness. It returns
19// names and problem CODES; the callers own the envelope - route.mjs decides
20// what an unmapped rung means for a dispatch (nothing: it fails open), and
21// self-verify.mjs decides what it means for CI (a problem entry).
22'use strict';
23
24/**
25 * The rung ladder, weakest first - the whole vocabulary of rung names, and the
26 * order `rungFiles` returns a role's files in. It lived in the routing data
27 * table until the stakes level was deleted and that table with it; it now
28 * belongs beside RUNG_FILES because the two are the two halves of ONE
29 * statement - the ladder names the rungs, the map says which file carries each -
30 * and `rungOrderIssues` below is what holds them together now that no data file
31 * does.
32 * @type {readonly string[]}
33 */
34export const RUNG_ORDER = Object.freeze(['low', 'medium', 'high', 'xhigh', 'max']);
35
36/**
37 * The rung -> agent-file map, stated per role rather than derived (D-05). The
38 * unsuffixed `agents/<role>.md` is one rung among the others, and nothing about
39 * a rung's NAME says which file carries it:
40 * `cad-assumptions-analyzer` is the `xhigh` rung while its `-high` sibling is
41 * the lower one, so any convention would have to lie about one of them. The
42 * alternative was renaming five of six files to make a convention true, which
43 * invalidates every one of their exact-fit weight budgets and buys nothing a
44 * reader of this table cannot already see.
45 *
46 * Each role's rungs are listed in RUNG_ORDER (low -> max), which is the order
47 * `rungFiles` returns them in. Frozen: this is a statement of what is on disk,
48 * and a caller mutating it would make route.mjs and self-verify disagree about
49 * the same question.
50 * @type {Readonly<Record<string, Readonly<Record<string, string>>>>}
51 */
52export const RUNG_FILES = Object.freeze({
53  'cad-planner': Object.freeze({
54    low: 'cad-planner-low',
55    medium: 'cad-planner-medium',
56    high: 'cad-planner',
57    xhigh: 'cad-planner-xhigh',
58    max: 'cad-planner-max',
59  }),
60  'cad-assumptions-analyzer': Object.freeze({
61    low: 'cad-assumptions-analyzer-low',
62    medium: 'cad-assumptions-analyzer-medium',
63    high: 'cad-assumptions-analyzer-high',
64    xhigh: 'cad-assumptions-analyzer',
65    max: 'cad-assumptions-analyzer-max',
66  }),
67  'cad-verifier': Object.freeze({
68    low: 'cad-verifier-low',
69    medium: 'cad-verifier-medium',
70    high: 'cad-verifier',
71    xhigh: 'cad-verifier-xhigh',
72    max: 'cad-verifier-max',
73  }),
74  'cad-reviewer': Object.freeze({
75    low: 'cad-reviewer-low',
76    medium: 'cad-reviewer-medium',
77    high: 'cad-reviewer',
78    xhigh: 'cad-reviewer-xhigh',
79    max: 'cad-reviewer-max',
80  }),
81  'cad-executor': Object.freeze({
82    low: 'cad-executor-low',
83    medium: 'cad-executor-medium',
84    high: 'cad-executor',
85    xhigh: 'cad-executor-xhigh',
86    max: 'cad-executor-max',
87  }),
88  'cad-plan-checker': Object.freeze({
89    low: 'cad-plan-checker',
90    medium: 'cad-plan-checker-medium',
91    high: 'cad-plan-checker-high',
92    xhigh: 'cad-plan-checker-xhigh',
93    max: 'cad-plan-checker-max',
94  }),
95});
96
97/**
98 * Whether the map and the ladder still say the same thing: every role's rung
99 * keys are exactly RUNG_ORDER, in that order.
100 *
101 * The routing data table used to hold the ladder and self-verify held the cells
102 * against it, so a rung the map dropped could not be named by any cell. With
103 * that table gone the two exports above are the only statement left, and nothing
104 * else compares them: a role missing `xhigh` would resolve `rungFile` to null
105 * and route.mjs would fail open, while a role whose keys were REORDERED would
106 * hand `rungFiles` and `rungPrefixIssues` a tie-break order that is not the
107 * ladder's - both silent.
108 *
109 * Takes the map so a caller can hold a drifted one against the ladder; defaults
110 * to the shipped map, which is the only one that exists today.
111 *
112 * @param {any} [files] the rung map to check, stem values unread
113 * @param {any} [order] the ladder to check it against, weakest first
114 * @returns {{code: string, role: string, detail: string}[]}
115 */
116export function rungOrderIssues(files, order) {
117  const map = files !== undefined && files !== null ? files : RUNG_FILES;
118  const ladder = Array.isArray(order) ? order : RUNG_ORDER;
119  /** @type {{code: string, role: string, detail: string}[]} */
120  const out = [];
121  const read = map !== null && typeof map === 'object' && !Array.isArray(map) ? map : {};
122  for (const role of Object.keys(read)) {
123    const rungs = read[role];
124    const got = rungs !== null && typeof rungs === 'object' && !Array.isArray(rungs)
125      ? Object.keys(rungs) : [];
126    if (got.length === ladder.length && ladder.every((r, i) => got[i] === r)) continue;
127    out.push({ code: 'rung-order-drift', role,
128      detail: `${role} files rungs ${JSON.stringify(got)}, but the rung ladder is ${
129        JSON.stringify([...ladder])} - the map and RUNG_ORDER are one statement `
130        + 'and nothing else holds them together' });
131  }
132  return out;
133}
134
135/**
136 * The agent-file stem for one rung of one role, or null when the pair is not
137 * in the map. Null rather than a guessed `<role>-<rung>`: a guess names a file
138 * that does not exist and reads as a real answer, while null is a fact the
139 * caller can act on - route.mjs degrades the dispatch and says so, self-verify
140 * files a problem.
141 * @param {string} role
142 * @param {string} rung
143 * @returns {string|null}
144 */
145export function rungFile(role, rung) {
146  const map = typeof role === 'string' ? RUNG_FILES[role] : undefined;
147  if (!map || typeof rung !== 'string') return null;
148  return Object.prototype.hasOwnProperty.call(map, rung) ? map[rung] : null;
149}
150
151/**
152 * Every agent-file stem one role's map names, in declared rung order. An
153 * unknown role yields an empty array rather than throwing - self-verify calls
154 * this on a table it has not validated yet.
155 * @param {string} role
156 * @returns {string[]}
157 */
158export function rungFiles(role) {
159  const map = typeof role === 'string' ? RUNG_FILES[role] : undefined;
160  return map ? Object.values(map) : [];
161}
162
163// The reverse lookups: a recorded `agent_type` back to the role and rung it is
164// filed under. Built off RUNG_FILES rather than a `-<rung>` suffix regex, which
165// would be a SECOND statement of the mapping: `cad-assumptions-analyzer` is that
166// role's `xhigh` rung while `cad-assumptions-analyzer-high` is its lower one, so
167// no suffix convention is true of all 30 files, and a rung added to the table
168// but not to the regex would leave the answer silently wrong.
169
170/** Every rung file's stem, mapped back to the role whose rung it is. */
171const ROLE_OF_STEM = new Map(
172  Object.keys(RUNG_FILES).flatMap(
173    (role) => Object.values(RUNG_FILES[role]).map((stem) => [stem, role]),
174  ),
175);
176
177/**
178 * The same 30 stems, mapped back to the RUNG each one is filed under. Built off
179 * the SAME import in the same shape as `ROLE_OF_STEM`, because the two answers
180 * are two columns of one table: a rung added to `RUNG_FILES` reaches both maps
181 * or neither, and neither can go stale while the other does not.
182 */
183const RUNG_OF_STEM = new Map(
184  Object.keys(RUNG_FILES).flatMap(
185    (role) => Object.entries(RUNG_FILES[role]).map(([rung, stem]) => [stem, rung]),
186  ),
187);
188
189/**
190 * The agent-file stem inside a recorded `agent` value - the host writes
191 * `<plugin>:<agent-file-stem>` and a bare stem is accepted as itself.
192 *
193 * ONE copy of the split, called by both readers below. A second copy is how the
194 * role answer and the rung answer start disagreeing about which file a spelling
195 * names, and `helper-census.test.mjs` matches shared-contract BODY idioms
196 * precisely so a paste-back under another name is caught rather than noticed.
197 * @param {any} agent
198 * @returns {string|null} null for anything that is not a non-empty string.
199 */
200function stemOfAgent(agent) {
201  if (typeof agent !== 'string' || !agent) return null;
202  return agent.includes(':') ? agent.slice(agent.indexOf(':') + 1) : agent;
203}
204
205/**
206 * The role a recorded `agent` value names, or null when it names none.
207 *
208 * The corpus carries `cadence:cad-executor`, `cadence:cad-planner`,
209 * `cadence:cad-verifier-medium` and `cadence:cad-assumptions-analyzer-high` -
210 * the host's `<plugin>:<agent-file-stem>` spelling - while a dispatch event
211 * carries the bare ROLE. Null for anything else, including the host types and
212 * `coordinator`, so the caller decides what each absence means rather than
213 * having one of them silently become a role.
214 *
215 * EXPORTED for `lib/read-trace.mjs`'s join, for `lib/subagent-trace.mjs`, whose
216 * `SubagentStop` self-filter asks the same question of the same spelling (both
217 * through read-trace's re-export), and for the band in `hooks/cadence-mod.mjs`.
218 * They import this rather than holding a copy: two readers of one record
219 * deriving the role independently is how they start disagreeing about which
220 * bracket closed.
221 * @param {any} agent
222 * @returns {string|null}
223 */
224export function roleOfAgent(agent) {
225  const stem = stemOfAgent(agent);
226  if (stem === null) return null;
227  return ROLE_OF_STEM.get(stem) || null;
228}
229
230/**
231 * The RUNG a recorded `agent` value names, or null when it names none.
232 *
233 * The sibling of `roleOfAgent` over the same spelling and the same table:
234 * `cadence:cad-verifier-medium` is the `cad-verifier` role at its `medium`
235 * rung, so the two functions answer the two halves of one lookup. Null for
236 * anything `RUNG_FILES` does not file - the host's own types, `coordinator`, a
237 * non-string - so the caller decides what the absence means.
238 *
239 * NEVER derived from a `-<rung>` filename suffix, for the reason stated above
240 * `ROLE_OF_STEM`: `cad-assumptions-analyzer` is that role's
241 * `xhigh` rung while `cad-assumptions-analyzer-high` is its lower one, so no
242 * suffix convention is true of all 30 files and a suffix rule would report the
243 * wrong rung for the unsuffixed file of every role.
244 *
245 * EXPORTED for `lib/subagent-trace.mjs`, whose `SubagentStop` close records the
246 * rung a worker was DISPATCHED under beside the effort its own transcript says
247 * it RAN at - the pair the run record exists to let a reader compare - and for
248 * the band, which names the rung of each running Cadence agent.
249 * @param {any} agent
250 * @returns {string|null}
251 */
252export function rungOfAgent(agent) {
253  const stem = stemOfAgent(agent);
254  if (stem === null) return null;
255  return RUNG_OF_STEM.get(stem) || null;
256}
257
258/**
259 * Whether one role's rung files still share ONE body, byte for byte (RNG-03).
260 *
261 * A role's rungs are separate registered agents whose bodies are assembled
262 * into separate prompts, and a prompt cache can only reuse a prefix that is
263 * identical from its first byte. The rung sentence used to make that
264 * impossible by construction - every rung file opened with a different line -
265 * and deleting it bought a shared prefix that nothing then held. This is what
266 * holds it: an edit landing in one rung file and not its siblings re-forecloses
267 * the sharing, and it is invisible to every other check, because each file on
268 * its own is still a perfectly legal rung file.
269 *
270 * RAW BYTES, deliberately, and this is the one place in this lib where
271 * whitespace is load-bearing (D-04). `rungBodyIssue` normalizes whitespace away
272 * so that re-wrapping a paragraph is free - which is right for "does this file
273 * carry behaviour of its own" and exactly wrong here, since two line-break
274 * variants are two different cache prefixes. Re-wrapping ONE rung file and not
275 * its siblings is precisely the edit this rule exists to catch, so the two
276 * rules are not duplicates: they disagree about that edit on purpose.
277 *
278 * Scoped by RUNG_FILES: a stem the map does not name is not this rule's
279 * business (check 8's reachability arm owns stale and unreachable files), and
280 * a role contributing fewer than two bodies yields nothing - an absent file is
281 * already `missing-rung-agent`'s to report, and a second entry would
282 * double-count one fault.
283 *
284 * The majority body is the rank and the minority is what broke it, ties going
285 * to whichever group holds the earliest-declared rung, so the detail names the
286 * FILE a maintainer would open rather than every file in the role.
287 *
288 * @param {any} bodies stem -> that file's raw prose, frontmatter already
289 *   stripped; entries whose value is not a string are treated as absent
290 * @returns {{code: string, role: string, stems: string[], detail: string}[]}
291 */
292export function rungPrefixIssues(bodies) {
293  const read = bodies !== null && typeof bodies === 'object' && !Array.isArray(bodies)
294    ? bodies : {};
295  const bodyOf = (stem) => (Object.prototype.hasOwnProperty.call(read, stem)
296    && typeof read[stem] === 'string' ? read[stem] : null);
297
298  /** @type {{code: string, role: string, stems: string[], detail: string}[]} */
299  const out = [];
300  for (const role of Object.keys(RUNG_FILES)) {
301    // Declared rung order (low -> max), which is what makes the tie-break and
302    // the listed order below reproducible rather than filesystem-dependent.
303    const stems = Object.values(RUNG_FILES[role]).filter((s) => bodyOf(s) !== null);
304    if (stems.length < 2) continue;
305
306    /** @type {Map<string, string[]>} */
307    const groups = new Map();
308    for (const stem of stems) {
309      const body = /** @type {string} */ (bodyOf(stem));
310      const seen = groups.get(body);
311      if (seen) seen.push(stem);
312      else groups.set(body, [stem]);
313    }
314    if (groups.size === 1) continue;
315
316    // Insertion order IS declared rung order, and `>` is strict, so a tie
317    // leaves the earliest-declared group as the rank.
318    let rank = [];
319    for (const members of groups.values()) {
320      if (members.length > rank.length) rank = members;
321    }
322    const strays = stems.filter((s) => !rank.includes(s));
323    const name = (s) => `agents/${s}.md`;
324    out.push({ code: 'rung-prefix-split', role, stems: strays,
325      detail: `${strays.map(name).join(', ')} ${strays.length === 1 ? 'does' : 'do'} not carry `
326        + `the same body BYTE FOR BYTE as ${rank.map(name).join(', ')} - `
327        + `${role}'s rungs are dispatched as separate agents and share a cached prefix `
328        + 'only while their bodies are identical, so this edit has to land in every '
329        + `rung file of ${role} or in none` });
330  }
331  return out;
332}
333
334/**
335 * The canonical BODY of a rung agent file: a pointer at the contract it
336 * preloads, and nothing else. Stated here rather than inside self-verify for
337 * the same reason the name mapping is - the check and the files it checks must
338 * read ONE source, or they drift and the linter blesses the drift.
339 *
340 * It names NO rung, and that is the point (RNG-03). The body used to open
341 * ``Your rung is `high`.``, which put a per-rung token at body line 1 and gave
342 * every rung file of one role a different prefix from its first character - so
343 * two rungs of the same role could share no cached prefix at all, however
344 * identical the rest. The rung was never lost by deleting it: the frontmatter
345 * `effort:` is what the host actually reads and what `rungEffortIssue` holds
346 * against this map. A role whose CONTRACT branches on the rung takes it from
347 * its dispatch prompt, which is billed fresh and costs no prefix.
348 * @param {string} skill the contract skill the file preloads
349 * @returns {string}
350 */
351export function rungBody(skill) {
352  return `Follow the preloaded \`${skill}\` skill exactly - it is your full\n`
353    + 'contract. This file names that contract and adds nothing else.\n';
354}
355
356/**
357 * A body in whitespace-insensitive form, so re-wrapping a paragraph is free
358 * and only a REWORD counts as a change. Comparing raw text would make the
359 * line breaks load-bearing - a CI failure with no fix a maintainer would
360 * think of.
361 * @param {string} text
362 * @returns {string}
363 */
364export function normalizeBody(text) {
365  return String(text === undefined || text === null ? '' : text).replace(/\s+/g, ' ').trim();
366}
367
368/**
369 * Whether a rung file's body is anything other than the canonical template.
370 *
371 * An ALLOWLIST, deliberately, and this is the second attempt at the rule.
372 * D-04 rejected a size-only check because a 200-byte behavioural instruction
373 * fits under any weight budget - but so does a 200-byte instruction carrying
374 * no contract section tag, so the tag denylist it chose instead had the same
375 * hole: a rung file whose whole body is plain prose passed CI. A rung file has
376 * exactly ONE legitimate body, so "is it that body" is the only rule that
377 * matches what INTERNALS.md:11 claims - it refuses a rung file carrying any
378 * instruction of its own, including a same-size REPLACEMENT of the pointer
379 * paragraph, which no byte budget can see.
380 *
381 * The tag denylist stays in front of this in self-verify: when a body DOES
382 * carry `<process>`, naming the tag is the more actionable message.
383 *
384 * A file declaring several skills passes if its body points at any ONE of
385 * them - the template names a single contract, and nothing here rules out a
386 * future multi-contract agent.
387 *
388 * The template no longer names a rung, so this rule no longer holds a body
389 * against its own frontmatter `effort:` (RNG-03). That arm is gone, not
390 * bypassed, and it was the redundant one: `rungEffortIssue` below holds the
391 * file's `effort:` against the rung RUNG_FILES filed it under, which is the
392 * link that decides how deep a dispatch actually thinks.
393 *
394 * @param {string} body the agent file's prose, frontmatter already stripped
395 * @param {string[]} [skills] the file's declared `skills:` entries
396 * @returns {null|{detail: string}} null when the body IS the template
397 */
398export function rungBodyIssue(body, skills) {
399  const found = normalizeBody(body);
400  const declared = (Array.isArray(skills) ? skills : [])
401    .filter((s) => typeof s === 'string' && s);
402  const names = declared.length ? declared : ['<contract>'];
403  const wanted = names.map((s) => normalizeBody(rungBody(s)));
404  if (wanted.includes(found)) return null;
405  return { detail: `body is not the rung template - expected exactly ${JSON.stringify(wanted[0])}` };
406}
407
408/** The config-key prefix every per-role start rung is written under. */
409export const EFFORT_PREFIX = 'model.effort.';
410
411/**
412 * The roles-block spelling of the same quantity, as its two fixed halves:
413 * `roles.<role>.effort`. It is a SECOND key naming one role's start rung, not a
414 * rename - the older prefix above stays live as the narrower fallback - so both
415 * spellings are held to the rules below rather than one of them being trusted.
416 */
417export const ROLES_PREFIX = 'roles.';
418/** The last segment that makes a `roles.<role>.*` key a start rung. */
419export const ROLES_EFFORT_SUFFIX = '.effort';
420
421/**
422 * The two keys one role's start rung can be written under, older spelling
423 * first - which is also the order the issues below come out in, so a drift in
424 * the older key still reports before its roles-block sibling.
425 * @param {string} role
426 * @returns {string[]}
427 */
428function effortKeyNames(role) {
429  return [`${EFFORT_PREFIX}${role}`, `${ROLES_PREFIX}${role}${ROLES_EFFORT_SUFFIX}`];
430}
431
432/**
433 * The role a start-rung key names, or null when the key is neither spelling.
434 *
435 * `roles.<role>.model` is deliberately NOT one: D-10 types it `string_or_null`
436 * with nothing to drift against, so classifying it here would file a drift
437 * issue about a key that has no enum to drift.
438 * @param {string} key
439 * @returns {string|null}
440 */
441function effortKeyRole(key) {
442  if (key.startsWith(EFFORT_PREFIX)) return key.slice(EFFORT_PREFIX.length);
443  if (key.startsWith(ROLES_PREFIX) && key.endsWith(ROLES_EFFORT_SUFFIX)) {
444    return key.slice(ROLES_PREFIX.length, key.length - ROLES_EFFORT_SUFFIX.length);
445  }
446  return null;
447}
448
449/**
450 * Whether the shipped `model.effort.<role>` and `roles.<role>.effort` schema
451 * enums still say what RUNG_FILES says. It belongs beside the map because the
452 * map is the statement it checks against, and because the refusal it protects
453 * is one a USER meets:
454 * `config.mjs` refuses a start rung by key off these enums, so an enum that
455 * drifts from the map starts refusing the wrong values - accepting a rung with
456 * no file (which route.mjs then has to warn its way out of) or refusing one
457 * this role really has.
458 *
459 * BOTH spellings, to the same rules and with no shared-enum shortcut: the two
460 * keys are separate schema rows and `checkValue` reads whichever one the user
461 * typed, so a guard that checked only the older prefix would leave the winning
462 * key - the roles block beats `model.effort.<role>` - the unguarded one.
463 *
464 * The DEFAULT is checked on the roles spelling ALONE. Since the cells grid went,
465 * `roles.<role>.effort`'s default is the rung a project with no config resolves
466 * at, so a default naming no rung of this role leaves nothing to dispatch;
467 * `model.effort.<role>` defaults to null on purpose, meaning "this key does not
468 * answer", and refusing that would refuse the fall-through itself.
469 *
470 * self-verify never reads a user's config and so cannot refuse a user's value;
471 * this is its half of that criterion (D-08), which is why every detail NAMES
472 * THE KEY a maintainer would edit.
473 *
474 * `rungOrder` is the caller's rung vocabulary - RUNG_ORDER above, handed in
475 * rather than read here so a caller can hold a drifted ladder against these
476 * enums. An empty or absent one skips the vocabulary arm ALONE, the way
477 * `cellIssues` tolerates an absent vocabulary - the schema-vs-map proof must
478 * still run when the ladder is unavailable, which is where a drifted enum is
479 * likeliest and least noticed.
480 *
481 * @param {any} schema the `keys` map of config.schema.json, trusted for nothing
482 * @param {any} [rungOrder] the declared rung vocabulary, lowest first
483 * @returns {{code: string, detail: string}[]}
484 */
485export function effortEnumIssues(schema, rungOrder) {
486  /** @type {{code: string, detail: string}[]} */
487  const out = [];
488  const keys = schema !== null && typeof schema === 'object' && !Array.isArray(schema)
489    ? schema : {};
490  const order = Array.isArray(rungOrder) ? rungOrder.filter((r) => typeof r === 'string') : [];
491
492  for (const role of Object.keys(RUNG_FILES)) {
493    for (const key of effortKeyNames(role)) {
494      const spec = keys[key];
495      if (!spec || typeof spec !== 'object' || Array.isArray(spec)) {
496        out.push({ code: 'missing-effort-key',
497          detail: `${key} is absent, but lib/rung-agent.mjs files ${
498            Object.keys(RUNG_FILES[role]).length} rungs for ${role}` });
499        continue;
500      }
501      // Type BEFORE values: `checkValue` enforces an enum's `values` only when
502      // `type` IS "enum", so a key whose type drifted to "string" keeps a correct
503      // values list while the write face silently accepts any rung - the exact
504      // accepting-a-rung-with-no-file drift this function exists to refuse.
505      if (spec.type !== 'enum') {
506        out.push({ code: 'effort-enum-drift',
507          detail: `${key} has type ${JSON.stringify(spec.type)}, must be "enum" - `
508            + 'a non-enum type disables the write-face refusal' });
509        continue;
510      }
511      // The map's rungs in DECLARED order, then null - the exact shape D-03 ships,
512      // so a reordered enum reads as drift too: the order is what a reader of the
513      // refusal message sees, and it is meant to be the ladder's own order.
514      const want = [...Object.keys(RUNG_FILES[role]), null];
515      const got = Array.isArray(spec.values) ? spec.values : null;
516      if (!got || got.length !== want.length || want.some((v, i) => got[i] !== v)) {
517        out.push({ code: 'effort-enum-drift',
518          detail: `${key} holds ${JSON.stringify(got)}, but lib/rung-agent.mjs files ${
519            role} at ${JSON.stringify(want)}` });
520        continue;
521      }
522      // The DEFAULT half, and only for the roles spelling. `roles.<role>.effort`
523      // is what answers when no layer names a rung, so its default has to name a
524      // rung this role has a FILE for: a null or stray default hands `agentFor`
525      // nothing, and the dispatch falls open to the unsuffixed file while the
526      // resolve still reports a rung - the report-a-rung-nothing-ran-at shape
527      // `rungEffortIssue` exists to close, reached one door out.
528      //
529      // `model.effort.<role>` is EXEMPT and its null default is correct: null
530      // there means the key does not answer, and the roles row's own default
531      // decides. Checking both would refuse the very fall-through the two-key
532      // precedence is built on.
533      if (key.startsWith(ROLES_PREFIX)) {
534        const def = spec.default;
535        if (typeof def !== 'string'
536          || !Object.prototype.hasOwnProperty.call(RUNG_FILES[role], def)) {
537          out.push({ code: 'effort-default-invalid',
538            detail: `${key} defaults to ${def === undefined ? '(absent)' : JSON.stringify(def)}, `
539              + `which is not one of ${role}'s rungs (${Object.keys(RUNG_FILES[role]).join(', ')}) `
540              + '- this default IS the rung route.mjs resolves when no layer sets one' });
541        }
542      }
543
544      if (!order.length) continue;
545      const strays = want.filter((v) => v !== null && !order.includes(v));
546      if (strays.length) {
547        out.push({ code: 'effort-enum-drift',
548          detail: `${key} offers ${JSON.stringify(strays)}, which the rung ladder `
549            + `(${order.join(', ')}) does not carry` });
550      }
551    }
552  }
553
554  for (const key of Object.keys(keys)) {
555    const role = effortKeyRole(key);
556    if (role === null) continue;
557    if (Object.prototype.hasOwnProperty.call(RUNG_FILES, role)) continue;
558    out.push({ code: 'unknown-effort-role',
559      detail: `${key} names "${role}", which lib/rung-agent.mjs files no rungs for `
560        + `(${Object.keys(RUNG_FILES).join(', ')})` });
561  }
562  return out;
563}
564
565/**
566 * Whether the file a rung is filed under carries a DIFFERENT effort than that
567 * rung. The third link in the chain, and the one that was open.
568 *
569 * A cell states a rung, RUNG_FILES turns it into a file NAME, and the dispatch
570 * carries only that name - so the depth that actually runs is the `effort` in
571 * that file's frontmatter, and since RNG-03 deleted the rung sentence from the
572 * body this is the ONLY rule that reads that field against anything. Check 8's
573 * reachability arm reads the rung out of the FILENAME rather than out of the
574 * file, and `rungBodyIssue` held a file's body against its OWN frontmatter, so
575 * a file that was internally consistent and externally wrong passed it
576 * anyway - which is why losing that arm loses no coverage this one has, and
577 * why this one may not be weakened. Leave the gap and a config layer can
578 * name `xhigh`, this map
579 * can resolve it to a file carrying `effort: high`, and the resolver's JSON,
580 * the transcript's `subagent_type` and the escalation `reason` all report
581 * `xhigh` while nothing ran at it. Subagent turns record no effort anywhere,
582 * so no observable downstream disagrees either - it is unfalsifiable outside
583 * the file. It is also the same invariant CI already holds against the table,
584 * where a retry rung may not sit below the rung it started on; this holds it
585 * against the filesystem, so a rung cannot think less while every surface
586 * reports that it thought more.
587 *
588 * A stem this map does not name is not this rule's business - check 8's
589 * reachability arm owns stale and unreachable files - and returns null.
590 *
591 * @param {string} stem the agent file's basename without `.md`
592 * @param {string} [effort] the file's frontmatter `effort`
593 * @returns {null|{role: string, rung: string, detail: string}} null when they agree
594 */
595export function rungEffortIssue(stem, effort) {
596  for (const role of Object.keys(RUNG_FILES)) {
597    const map = RUNG_FILES[role];
598    for (const rung of Object.keys(map)) {
599      if (map[rung] !== stem) continue;
600      if (effort === rung) return null;
601      const found = effort === undefined ? 'carries no effort' : `carries effort: ${effort}`;
602      return { role, rung,
603        detail: `lib/rung-agent.mjs files this as ${role}'s ${rung} rung, but it ${found}` };
604    }
605  }
606  return null;
607}
608

1// @ts-check
2// agent-prefix.mjs - the rule that gives a bare Cadence agent stem its plugin
3// prefix at dispatch, as a safety net (phase 5, D-07). The Cadence module
4// (hooks/cadence-mod.mjs) applies it to an Agent `tool.call`.
5//
6// Cadence's commands dispatch the `agent_type` route.mjs returns, which
7// already carries the plugin's prefix (`cadence:cad-planner`), because a bare
8// stem belongs to whoever owns that bare name. This rewrite catches the calls
9// that still go out bare - route's `{ok:false}` arm dispatches the base stem,
10// and a model can drop the prefix - since the host resolves only the prefixed
11// name and the listing filter took away the line the model used to read it off
12// (spike agent-offer-dispatch, criteria 8 and 9).
13//
14// Only a value that is exactly one of the stems RUNG_FILES files is rewritten,
15// and never one a non-`plugin` `agent.offer` named: a project or user agent
16// called `cad-reviewer` is the user's, and it goes through as sent. So a
17// user's own unnamespaced `cad-<x>` agent, a name that already carries a
18// prefix, and the host's own types all go through as sent, for every name.
19//
20// Its one import is lib/rung-agent.mjs, which imports nothing; no Node globals,
21// because a hooks module may load only relative dependency-free files. The
22// stem lookup is rung-agent's own `roleOfAgent`, not a second copy of the map.
23'use strict';
24
25import { roleOfAgent } from './rung-agent.mjs';
26
27/**
28 * The bare agent name an `agent.offer` says someone other than a plugin owns,
29 * or null. Keyed on `source` alone - `projectSettings`, `userSettings`, or any
30 * other non-`plugin` source - never on `provider.plugin`. Reads the event's
31 * getters, so the caller wraps it: a throw must record nothing.
32 * @param {any} offer the `agent.offer` input
33 * @returns {string | null}
34 */
35export function ownedAgent(offer) {
36  const { agent, source } = offer;
37  if (typeof agent !== 'string' || agent === '' || agent.includes(':')) return null;
38  return typeof source === 'string' && source !== 'plugin' ? agent : null;
39}
40
41/**
42 * The `subagent_type` to dispatch: `<plugin>:<value>` when `value` is exactly
43 * one of Cadence's agent stems, `plugin` is a non-empty string, and `owned`
44 * does not hold `value`; null when the call stays as sent.
45 * @param {unknown} value the Agent call's `subagent_type`
46 * @param {unknown} plugin the plugin's own name, from plugin.json
47 * @param {ReadonlySet<string>} [owned] bare names a non-plugin offer named
48 * @returns {string | null}
49 */
50export function prefixedAgent(value, plugin, owned) {
51  if (typeof value !== 'string' || value.includes(':')) return null;
52  if (typeof plugin !== 'string' || plugin === '') return null;
53  if (owned !== undefined && owned.has(value)) return null;
54  return roleOfAgent(value) === null ? null : `${plugin}:${value}`;
55}
56

1// @ts-check
2// listing-filter.mjs - the line rule that takes Cadence's agents and contract
3// skills out of the two listings the host shows the model (phase 5, D-01/D-04).
4// The Cadence module (hooks/cadence-mod.mjs) applies it to the `prompt.attachment`
5// text of those two types. Every other type comes back as it was given: the
6// spike's first filter ignored the type and cut lines out of a
7// `hook_additional_context` attachment.
8//
9// No imports, no Node globals: a hooks module may load nothing else. The
10// answer depends on the type and the text alone, nothing kept between calls,
11// because the host caches the prompt on this text (D-05).
12//
13// The rule, read off listings 2.1.289 rendered (fixtures/listing.*.json):
14// - the text splits on `\n` and the kept lines join on `\n`, so every kept
15//   byte, a `\r` included, comes back as it was;
16// - an entry starts at a line beginning `- `, and its name runs to the first
17//   `: `, or to the end of the line when there is none. Over its character
18//   budget the host lists a skill as a bare `- <name>`, least-used first, and
19//   the contract skills are never invoked through the Skill tool, so they go
20//   bare first;
21// - an entry runs on through each line that neither begins `- ` nor is empty.
22//   The host prints a description's own newlines raw at column 0, which is
23//   how a two-line entry looks;
24// - an empty line ends it too. In `agent_listing_delta` the last entry is
25//   followed by an empty line and a trailer that belongs to no entry;
26// - a target goes with all of its lines. Targets: in `agent_listing_delta`,
27//   a name beginning `cadence:`; in `skill_listing`, a name beginning
28//   `cadence:` and ending `-contract`. Another plugin's `-contract` skill
29//   stays.
30//
31// Its one limit: a description holding an empty line, or a line beginning
32// `- `, can't be told from the listing's own structure by text, so whatever
33// follows that line stays in the prompt. All 36 Cadence target descriptions
34// are one line today, and self-verify check 26 keeps them, and any
35// `when_to_use`, that way.
36'use strict';
37
38/** The agent listing's attachment type, as 2.1.289 names it. */
39export const AGENT_LISTING = 'agent_listing_delta';
40
41/** The skill listing's attachment type, as 2.1.289 names it. */
42export const SKILL_LISTING = 'skill_listing';
43
44/** The two types this filters: the module's matcher, and nothing else's. */
45export const LISTING_TYPES = Object.freeze([AGENT_LISTING, SKILL_LISTING]);
46
47/** An entry's name: after `- `, up to the first `: ` or the end of the line. */
48function entryName(/** @type {string} */ line) {
49  const rest = line.slice(2);
50  const at = rest.indexOf(': ');
51  return at < 0 ? rest : rest.slice(0, at);
52}
53
54/**
55 * Which entry names `type` drops, or null for a type this leaves alone.
56 * @param {unknown} type
57 * @returns {((name: string) => boolean) | null}
58 */
59function targetsOf(type) {
60  if (type === AGENT_LISTING) return (name) => name.startsWith('cadence:');
61  if (type === SKILL_LISTING) return (name) => name.startsWith('cadence:') && name.endsWith('-contract');
62  return null;
63}
64
65/**
66 * The attachment text to send: `text` without Cadence's target entries for
67 * the two listing types, and `text` itself for any other type.
68 * @param {unknown} type
69 * @param {string} text
70 * @returns {string}
71 */
72export function filterListing(type, text) {
73  const isTarget = targetsOf(type);
74  if (isTarget === null) return text;
75  /** @type {string[]} */
76  const kept = [];
77  let dropping = false;
78  for (const line of text.split('\n')) {
79    if (line.startsWith('- ')) dropping = isTarget(entryName(line));
80    else if (line === '') dropping = false;
81    if (!dropping) kept.push(line);
82  }
83  return kept.join('\n');
84}
85

1// @ts-check
2// token-capture.mjs - the rules the Cadence module (hooks/cadence-mod.mjs) uses
3// to price a subagent dispatch whose return carried no token figure (phase 3,
4// PNL-06, D-10).
5//
6// It lives apart from lib/trace.mjs so the module can load it: a hooks module
7// may import only relative files and `claude-code`, and lib/trace.mjs imports
8// `node:fs`. lib/trace.mjs imports the event name from here and re-exports it,
9// so the name has one definition.
10//
11// Imports nothing and touches no Node global.
12'use strict';
13
14/**
15 * The lifecycle event the Cadence module writes for a Cadence subagent's
16 * figureless close: the host's own usage for that subagent's LAST `turn.step`,
17 * keyed by `corr` and `agent_id`. `renderTrace`'s post-pass folds it into the
18 * bracket that names the same pair, and only into one whose return carried no figure. A
19 * return's own `tokens` always wins, whichever line landed first.
20 *
21 * It is a lifecycle NAME and not a fifth family, for the reason `COORDINATOR`
22 * states in lib/trace.mjs: `FAMILIES` is validated at the seam while
23 * `renderTrace`'s `counts` is a fixed four-key literal, so a new family would
24 * write fine and count nowhere.
25 *
26 * It must NEVER join `TERMINAL`, for the reason `WORKER_CACHE` states: a name
27 * in that array re-enters the pairing and the `funded` accounting, and would
28 * open and close a bracket for a worker that never returned.
29 *
30 * Its `tokens` is ONE step's window, `input + cache_read + cache_creation +
31 * output`, the same denomination as a return's `tokens`, which is a
32 * final-window figure. It never carries `turn.complete`'s usage, which is the
33 * SUM of every step in the turn (`.planning/spikes/mod-runtime-facts/SPIKE.md`,
34 * criterion 5): a sum of windows counts one cached prefix once per step and is
35 * denominated in nothing a bracket holds.
36 */
37export const STEP_WINDOW = 'step_window';
38
39// --- the advisory reviewer's own close gains its id (D-11) ------------------
40//
41// An advisory reviewer closes its own bracket from a persistence tail, and a
42// subagent never sees its own id, so that close carries no `--agent-id` and the
43// step-window fact had nothing to join. The host does see the id, on the
44// subagent's `tool.call`, so the module appends it there.
45//
46// The rewrite answers for ONE simple `planning.mjs trace close` command and
47// nothing else. In a compound line an appended flag could land on another
48// command, so any `;`, `&`, `|`, newline, backtick, `$(`, `#` or trailing `\`
49// answers nothing. A command git-guard acts on has a `git` segment and is never
50// a bare `planning.mjs` call, so the rewrite cannot touch one.
51
52/** A host agent id, as `tool.call` carries it. */
53const AGENT_ID = /^[A-Za-z0-9_-]+$/;
54/** Anything that makes a command line more than one simple command. */
55const COMPOUND = /[;&|\r\n`#]|\$\(|\\\s*$/;
56/** `node <…/planning.mjs> trace close`, the path quoted or bare. */
57const TRACE_CLOSE = /^\s*node\s+(?:"[^"]*planning\.mjs"|'[^']*planning\.mjs'|\S*planning\.mjs)\s+trace\s+close(?=\s|$)/;
58const HAS_AGENT_ID = /(?:^|\s)--agent-id(?=[=\s]|$)/;
59
60/** @param {unknown} command */
61function isTraceClose(command) {
62  return typeof command === 'string' && !COMPOUND.test(command) && TRACE_CLOSE.test(command);
63}
64
65/**
66 * The command with ` --agent-id <agentId>` appended, or null when the rewrite
67 * does not apply: a bad id, a compound line, anything but `trace close`, or a
68 * close that already names an id.
69 * @param {unknown} command the Bash call's `command`
70 * @param {unknown} agentId the call's `agentId`
71 * @returns {string | null}
72 */
73export function withAgentId(command, agentId) {
74  if (typeof agentId !== 'string' || !AGENT_ID.test(agentId)) return null;
75  if (!isTraceClose(command) || HAS_AGENT_ID.test(/** @type {string} */ (command))) return null;
76  return `${command} --agent-id ${agentId}`;
77}
78
79/**
80 * How many times `--<name>` appears, and its value when it appears exactly once
81 * and reads as one plain token (`--name v`, `--name=v`, quoted or bare), never
82 * the next flag. A flag written twice reads as nothing: the module cannot know
83 * which one the seam kept, and a fact filed under the other would never join.
84 * @param {string} command
85 * @param {string} name
86 */
87function flag(command, name) {
88  const count = command.match(new RegExp(`(?:^|\\s)--${name}(?=[=\\s]|$)`, 'g'))?.length ?? 0;
89  const m = count === 1
90    ? command.match(new RegExp(`(?:^|\\s)--${name}(?:=|\\s+)(["']?)([A-Za-z0-9._][A-Za-z0-9._-]*)\\1(?=\\s|$)`))
91    : null;
92  return { count, value: m ? m[2] : null };
93}
94
95/**
96 * The `--phase` of a simple `planning.mjs trace close` command, as written
97 * (`3`, `2.1`), or null.
98 * @param {unknown} command
99 * @returns {string | null}
100 */
101export function closePhase(command) {
102  if (!isTraceClose(command)) return null;
103  const { value } = flag(/** @type {string} */ (command), 'phase');
104  return value !== null && /^\d+(?:\.\d+)?$/.test(value) ? value : null;
105}
106
107/**
108 * What a step-window fact adopts from the `trace close` it prices: the phase
109 * and agent id the close names, its `--anchor` when it carries one, and whether
110 * it carries its own `--tokens`. Null for anything but one simple close naming
111 * a readable phase and agent id, and for a close whose anchor cannot be read.
112 *
113 * The phase is ADOPTED, never derived. The STATE.md cursor often names another
114 * phase than the dispatch's (a `/cad-context N+1` dispatch while the cursor
115 * still reads N, every `/cad-task` dispatch under phase 0), and a fact filed
116 * there joins nothing and lands as a stray line in another phase's record. The
117 * same rule as lib/subagent-trace.mjs's ADOPT, NEVER DERIVE.
118 * @param {unknown} command the Bash call's `command`, after any D-11 rewrite
119 * @returns {{phase: string, agentId: string, anchor: string | null, priced: boolean} | null}
120 */
121export function closeArgs(command) {
122  const phase = closePhase(command);
123  if (phase === null) return null;
124  const text = /** @type {string} */ (command);
125  const id = flag(text, 'agent-id').value;
126  if (id === null || !AGENT_ID.test(id)) return null;
127  const anchor = flag(text, 'anchor');
128  if (anchor.count > 0 && anchor.value === null) return null;
129  return { phase, agentId: id, anchor: anchor.value, priced: flag(text, 'tokens').count > 0 };
130}
131
132// --- the step window and the fact that carries it (D-10) --------------------
133
134const USAGE_KEYS = ['input_tokens', 'cache_read_input_tokens', 'cache_creation_input_tokens', 'output_tokens'];
135
136/**
137 * One step's window: `input + cache_read + cache_creation + output`, off a
138 * `turn.step` result's `usage`. Null when the usage is null or any of the four
139 * is not a finite non-negative number. Never fed `turn.complete`'s usage, which
140 * sums the steps (see `STEP_WINDOW`).
141 * @param {unknown} usage
142 * @returns {number | null}
143 */
144export function stepWindow(usage) {
145  if (!usage || typeof usage !== 'object') return null;
146  let sum = 0;
147  for (const k of USAGE_KEYS) {
148    const n = /** @type {Record<string, unknown>} */ (usage)[k];
149    if (typeof n !== 'number' || !Number.isFinite(n) || n < 0) return null;
150    sum += n;
151  }
152  return sum;
153}
154
155/**
156 * The argv that writes one step-window fact through the plugin's own seam,
157 * with `--anchor` when the close it prices carried one, so the fact takes that
158 * close's `corr`.
159 * @param {string} pluginRoot the plugin's directory, `$.plugin.root`
160 * @param {string} phase
161 * @param {string} agentId
162 * @param {number} tokens
163 * @param {string | null} [anchor]
164 * @returns {string[]}
165 */
166export function stepWindowArgv(pluginRoot, phase, agentId, tokens, anchor = null) {
167  const planning = /[\\/]$/.test(pluginRoot)
168    ? `${pluginRoot}cadence-core/bin/planning.mjs`
169    : `${pluginRoot}/cadence-core/bin/planning.mjs`;
170  return ['node', planning, 'trace', 'append', '--phase', phase, '--family', 'lifecycle',
171    '--event', STEP_WINDOW, '--agent-id', agentId, '--tokens', String(tokens),
172    ...(anchor === null ? [] : ['--anchor', anchor])];
173}
174

1// @ts-check
2// pane.mjs - the Cadence pane: the full picture of the current phase, drawn
3// by the Cadence module (hooks/cadence-mod.mjs) in a pane of its own, opened
4// with `/cad-panel` (phase 4, D-01).
5//
6// Every figure it shows is a seam's answer, taken as the seam gave it. None is
7// re-derived here (D-04): a second derivation would be a second answer, free
8// to disagree with the first. The adapter owns all I/O, through `$`, and hands
9// this file what it read; this file only turns that into lines.
10//
11// No imports beyond lib/ files that import nothing, no Node globals: a hooks
12// module may load nothing else.
13//
14// What each section reads:
15// - `next`: the STATE.md cursor's `next`, parsed by lib/state-cursor.mjs, the
16//   value the band shows (D-03).
17// - the heading, the disagreement line and the plan rows: one `planning.mjs
18//   status` run. The phase is its derived `current` (D-05); the rows are that
19//   entry's `plans`, or one `PLAN.md` once it is planned, each marked by
20//   `outstanding[]` (D-06). A cursor `status` says disagrees (`cursor.agrees`
21//   false) gets a line of its own: the pane names both phases, picks neither.
22// - UAT: the same run's `phases[current].uat`, the five counts in its order.
23//   No `uat` key, no line: never a row of zeros (D-06).
24// - running agents: the band's roster, as phase 3's start, stop and
25//   reconcile leave it, is who runs (D-07). Each row's role, rung and model
26//   come from the newest `routing`/`resolve` in trace.jsonl whose `agent` is
27//   the host type without `cadence:`, written at or before the module saw the
28//   agent start; phase, plan and corr are ignored. A null model is the
29//   session's, marked so. No match: role and rung from the host type through
30//   lib/rung-agent.mjs, and the model `unrecorded`. The file is read, not
31//   `trace render --events`: the default render carries no routing event.
32// - open captures: `capture-check`'s `substantive`, from a run of its own
33//   beside `status` (D-08). Its count is not `capture-sections`' bullets: a
34//   `None.` placeholder counts zero there. An absent CAPTURE.md is its own
35//   `exists: false`, `substantive: 0`, an empty queue, and shows as 0.
36// - token spend: `trace render --phase <current>`, run once `status` names a
37//   current phase. The total is the sum of `roles[*].tokens`, the figure
38//   `/cad-report` prints as tokens on subagent returns (D-02), and the
39//   unrecorded count the sum of `roles[*].unrecorded`. No role with a figure
40//   is no figure, never 0. The caveat names every `SPEND_EXCLUDES` entry,
41//   imported, never copied. Whatever the render folds into brackets and
42//   keeps out of `roles` (phase 3's step-window facts) stays out of this.
43//
44// The layout, one row per line, top to bottom:
45//   1. the phase heading
46//   2. the cursor-disagreement line
47//   3. `next <command>`
48//   4. the plan rows
49//   5. UAT
50//   6. the running agents
51//   7. the open captures
52//   8. the token spend and its caveat
53// A line never wraps and never runs past the width: too long, it is cut and
54// ends in `…`. A section whose source failed reads as unavailable and names
55// the refusal's reason, never an empty list or a zero in place of the data.
56'use strict';
57
58import { roleOfAgent, rungOfAgent } from './rung-agent.mjs';
59import { SPEND_EXCLUDES } from './trace-suggest.mjs';
60
61/** What the pane draws until its first fetch has left a snapshot. */
62export const READING_LINE = 'Cadence · reading…';
63
64/** The `next` line with no readable cursor: the band's hint (phase 3, D-06). */
65export const NO_CURSOR_NEXT = 'next · no readable cursor · run /cad-progress';
66
67/** The answer to `/cad-panel` outside a Cadence project (PNL-02). */
68export const NO_PROJECT_TEXT =
69  'No .planning/ here, so there is no Cadence pane to open. /cad-new-project or /cad-adopt starts one.';
70
71/** The plugin's userConfig field that turns the band and token capture on: `<plugin>.panel` in `/config`. */
72export const PANEL_FIELD = 'panel';
73
74/**
75 * Whether the band draws and token capture runs: the `panel` field, as
76 * `register(on, options)` receives it. Off unless it is exactly true, so a
77 * host that hands no options runs neither.
78 * @param {unknown} options
79 */
80export function panelOn(options) {
81  return typeof options === 'object' && options !== null && /** @type {any} */ (options)[PANEL_FIELD] === true;
82}
83
84/**
85 * What `/cad-panel <args>` asks for: `open` with no argument, `on` or `off`
86 * in any case, or null for anything else.
87 * @param {unknown} args
88 * @returns {'open' | 'on' | 'off' | null}
89 */
90export function panelArg(args) {
91  const arg = String(args ?? '').trim().toLowerCase();
92  if (arg === '') return 'open';
93  return arg === 'on' || arg === 'off' ? arg : null;
94}
95
96/** `/cad-panel on`'s answer once the setting is written. */
97export const PANEL_ON_TEXT = 'Cadence band and token capture on. /cad-panel off turns them off.';
98/** `/cad-panel off`'s answer once the setting is written. */
99export const PANEL_OFF_TEXT = 'Cadence band and token capture off. /cad-panel on turns them back on.';
100/** `/cad-panel` with an argument it does not take. */
101export const PANEL_USAGE = '/cad-panel opens the pane. /cad-panel on or /cad-panel off turns the band and token capture on or off.';
102
103/**
104 * `/cad-panel on` or `off`'s answer when the setting was not written.
105 * @param {string} reason the host's deny, or '' when the write threw
106 */
107export function panelUnchanged(reason) {
108  return `The panel setting did not change${reason ? `: ${reason}` : ''}. It is "Cadence band and token capture" in /config.`;
109}
110
111/** How long one seam run may take before the host kills it. */
112export const SEAM_TIMEOUT_MS = 10000;
113
114/**
115 * @typedef {{next: string} | null} Cursor
116 * @typedef {{ok: boolean, value?: any, reason?: string, hint?: string}} Seam
117 *   a seam's answer: `ok` with its envelope in `value`, or not `ok` with the
118 *   refusal's `reason` and `hint`
119 * @typedef {{agent: unknown, role: unknown, effort: unknown, model: unknown, ts: unknown}} Resolve
120 * @typedef {{cursor: Cursor, status: Seam, captures: Seam, spend: Seam | null,
121 *   resolves: readonly Resolve[], sessionModel: string | null}} Snapshot one fetch's answers;
122 *   `spend` is null when there was no current phase to price
123 * @typedef {{id: string, role: string, rung: string}} RosterEntry the band's (lib/band.mjs)
124 * @typedef {{id: string, type: string | null, seen: number}} Sight when the module first
125 *   saw a running agent, and its host type when the start carried one
126 */
127
128/**
129 * The argv that runs one `planning.mjs` subcommand against a project.
130 * @param {string} pluginRoot `$.plugin.root`
131 * @param {string} projectRoot the directory holding `.planning/`
132 * @param {readonly string[]} args the subcommand and its flags
133 * @returns {string[]}
134 */
135export function seamArgv(pluginRoot, projectRoot, args) {
136  return ['node', join(pluginRoot, 'cadence-core/bin/planning.mjs'), '--dir', join(projectRoot, '.planning'), ...args];
137}
138
139/** The answer for a run that rejected: a timeout, a spawn the host refused. */
140export const RUN_FAILED = Object.freeze({ ok: false, reason: 'run-failed' });
141
142/**
143 * A seam's stdout as a Seam: the envelope when it says `ok: true`, else the
144 * refusal's `reason` and `hint`, else `unparseable-output`.
145 * @param {unknown} stdout
146 * @returns {Seam}
147 */
148export function seamAnswer(stdout) {
149  let v;
150  try {
151    v = JSON.parse(String(stdout));
152  } catch {
153    v = null;
154  }
155  if (!v || typeof v !== 'object' || Array.isArray(v)) return { ok: false, reason: 'unparseable-output' };
156  if (v.ok === true) return { ok: true, value: v };
157  const reason = typeof v.reason === 'string' && v.reason ? v.reason : 'refused';
158  return typeof v.hint === 'string' && v.hint ? { ok: false, reason, hint: v.hint } : { ok: false, reason };
159}
160
161/**
162 * The pane's lines for a snapshot, each at most `width` cells.
163 * @param {Snapshot | null} snapshot null until the first fetch settles
164 * @param {number} width the pane's `bodyColumns`
165 * @param {readonly RosterEntry[]} [roster] the running agents at draw time
166 * @param {readonly Sight[]} [sights] what the module saw of them
167 * @returns {string[]}
168 */
169export function paneLines(snapshot, width, roster = [], sights = []) {
170  if (!snapshot) return [fit(READING_LINE, width)];
171  const phase = phaseView(snapshot.status);
172  const lines = [
173    ...phase.heading,
174    snapshot.cursor ? `next ${snapshot.cursor.next}` : NO_CURSOR_NEXT,
175    ...phase.rows,
176    ...uatLines(phase.entry),
177    ...agentRows(roster, sights, snapshot.resolves || [], snapshot.sessionModel ?? null),
178    capturesLine(snapshot.captures),
179    ...spendLines(snapshot.spend),
180  ];
181  return lines.map((line) => fit(visible(line), width));
182}
183
184/** The UAT counts, in `status`'s spelling and order. */
185const UAT_COUNTS = Object.freeze(['pass', 'fail', 'pending', 'skipped', 'blocked']);
186
187/**
188 * The UAT line, or none when the current phase's entry carries no `uat`.
189 * @param {any} entry `phaseView`'s entry
190 * @returns {string[]}
191 */
192function uatLines(entry) {
193  const uat = entry && entry.uat;
194  if (!uat || typeof uat !== 'object') return [];
195  return [`UAT ${UAT_COUNTS.map((k) => `${k} ${uat[k]}`).join(' · ')}`];
196}
197
198/**
199 * The open-captures line: `capture-check`'s `substantive`, or why it is missing.
200 * @param {Seam} captures
201 */
202function capturesLine(captures) {
203  if (!captures || !captures.ok) return unavailable('Open captures', captures);
204  const n = captures.value.substantive;
205  return Number.isInteger(n) ? `Open captures ${n}` : unavailable('Open captures', { ok: false, reason: 'unparseable-output' });
206}
207
208/**
209 * The `routing`/`resolve` events in trace.jsonl's text. A line that does not
210 * parse is skipped, as is every other event.
211 * @param {string} text
212 * @returns {Resolve[]}
213 */
214export function parseResolves(text) {
215  /** @type {Resolve[]} */
216  const out = [];
217  for (const line of String(text).split('\n')) {
218    if (!line.trim()) continue;
219    let e;
220    try {
221      e = JSON.parse(line);
222    } catch {
223      continue;
224    }
225    if (e && e.family === 'routing' && e.event === 'resolve') out.push(e);
226  }
227  return out;
228}
229
230/**
231 * A Cadence agent the roster holds has started, seen now. A typeless record a
232 * draw made first (the band's reconcile can add the agent before its start
233 * lands) takes the start's type and time.
234 * @param {readonly Sight[]} sights
235 * @param {unknown} id
236 * @param {unknown} type its host `agent_type`
237 * @param {number} now ms
238 * @returns {readonly Sight[]}
239 */
240export function sightStart(sights, id, type, now) {
241  if (typeof id !== 'string') return sights;
242  const typed = typeof type === 'string' ? type : null;
243  const had = sights.find((s) => s.id === id);
244  if (!had) return [...sights, { id, type: typed, seen: now }];
245  if (had.type !== null || typed === null) return sights;
246  return sights.map((s) => (s === had ? { id, type: typed, seen: now } : s));
247}
248
249/**
250 * An agent stopped: its record goes.
251 * @param {readonly Sight[]} sights
252 * @param {unknown} id
253 * @returns {readonly Sight[]}
254 */
255export function sightStop(sights, id) {
256  return sights.some((s) => s.id === id) ? sights.filter((s) => s.id !== id) : sights;
257}
258
259/**
260 * Every roster agent gets a record the first time the pane draws it (a start
261 * the reconcile made up for carries no type), and records of agents the
262 * roster no longer holds go.
263 * @param {readonly Sight[]} sights
264 * @param {readonly RosterEntry[]} roster
265 * @param {number} now ms
266 * @returns {readonly Sight[]}
267 */
268export function sightDraw(sights, roster, now) {
269  const kept = sights.filter((s) => roster.some((a) => a.id === s.id));
270  const added = roster.filter((a) => !kept.some((s) => s.id === a.id)).map((a) => ({ id: a.id, type: null, seen: now }));
271  return kept.length === sights.length && added.length === 0 ? sights : [...kept, ...added];
272}
273
274/**
275 * One row per running agent: `<role> · rung <rung> · <model>`.
276 * @param {readonly RosterEntry[]} roster
277 * @param {readonly Sight[]} sights
278 * @param {readonly Resolve[]} resolves
279 * @param {string | null} sessionModel `$.session.model()`, or null unread
280 * @returns {string[]}
281 */
282export function agentRows(roster, sights, resolves, sessionModel) {
283  if (roster.length === 0) return ['No Cadence agents running'];
284  return roster.map((a) => {
285    const sight = sights.find((s) => s.id === a.id);
286    const type = sight ? sight.type : null;
287    const r = type === null ? null : newestResolve(resolves, type.replace(/^cadence:/, ''), sight.seen);
288    if (r === null) {
289      return `${roleOfAgent(type) ?? a.role} · rung ${rungOfAgent(type) ?? a.rung} · unrecorded`;
290    }
291    const model = r.model === null ? `${sessionModel ?? 'the session model'} (session)`
292      : typeof r.model === 'string' && r.model ? r.model : 'unrecorded';
293    // trace.jsonl is any JSON: a field that is not text counts as absent, so
294    // one odd line costs its own row's field, never the whole pane.
295    const role = typeof r.role === 'string' ? r.role : roleOfAgent(type) ?? a.role;
296    const rung = typeof r.effort === 'string' || Number.isFinite(r.effort) ? r.effort : rungOfAgent(type) ?? a.rung;
297    return `${role} · rung ${rung} · ${model}`;
298  });
299}
300
301/**
302 * The newest resolve for `agent` written at or before `seen`; the later line
303 * wins a tie.
304 * @param {readonly Resolve[]} resolves
305 * @param {string} agent
306 * @param {number} seen ms
307 * @returns {Resolve | null}
308 */
309function newestResolve(resolves, agent, seen) {
310  let best = null;
311  let bestAt = -Infinity;
312  for (const r of resolves) {
313    const at = typeof r.ts === 'string' ? Date.parse(r.ts) : NaN;
314    if (r.agent !== agent || !(at <= seen) || at < bestAt) continue;
315    best = r;
316    bestAt = at;
317  }
318  return best;
319}
320
321/**
322 * The phase's spend as `/cad-report` reads it from the render's `roles`.
323 * @param {any} render `trace render --phase N`'s envelope
324 * @returns {{total: number | null, unrecorded: number}} `total` is null when
325 *   no role carries a figure
326 */
327export function spendOf(render) {
328  const roles = render && render.roles && typeof render.roles === 'object' ? Object.values(render.roles) : [];
329  let total = null;
330  let unrecorded = 0;
331  for (const r of roles) {
332    if (r && typeof r.tokens === 'number') total = (total ?? 0) + r.tokens;
333    if (r && typeof r.unrecorded === 'number') unrecorded += r.unrecorded;
334  }
335  return { total, unrecorded };
336}
337
338/**
339 * The spend line and its caveat, or none when there was no phase to price.
340 * @param {Seam | null} spend
341 * @returns {string[]}
342 */
343function spendLines(spend) {
344  if (spend === null || spend === undefined) return [];
345  const label = 'Tokens on subagent returns';
346  if (!spend.ok) return [unavailable(label, spend)];
347  const { total, unrecorded } = spendOf(spend.value);
348  const figure = total === null ? `${label}: none recorded` : `${label} ${total}`;
349  return [`${figure}${unrecorded ? ` · ${unrecorded} unrecorded` : ''}`, `Excludes ${SPEND_EXCLUDES.join(', ')}`];
350}
351
352/** The statuses a phase has a `PLAN.md` in, when `status` lists no `plans`. */
353const PLANNED = new Set(['planned', 'executed', 'complete']);
354
355/**
356 * The heading, the disagreement line and the plan rows, from `status`.
357 * @param {Seam} status
358 * @returns {{heading: string[], rows: string[], entry: any}} `entry`: the
359 *   current phase's `phases[]` entry, or null with no current phase
360 */
361export function phaseView(status) {
362  if (!status || !status.ok) return { heading: [unavailable('Phase', status)], rows: [], entry: null };
363  const s = status.value;
364  /** @type {string[]} */
365  const heading = [];
366  let entry = null;
367  if (s.current === null || s.current === undefined) {
368    heading.push(s.cycle === 'none' ? 'No active phase · the milestone is closed' : 'No active phase · every phase is complete');
369  } else {
370    entry = (Array.isArray(s.phases) ? s.phases : []).find((p) => p && String(p.n) === String(s.current)) || null;
371    heading.push(`Phase ${s.current} of ${s.total}${entry ? ` · ${entry.name} · ${entry.status}` : ''}`);
372  }
373  if (s.cursor && s.cursor.agrees === false) heading.push(`Cursor says phase ${s.cursor.phase} · ${s.cursor.status}`);
374  if (entry === null) return { heading, rows: [], entry };
375  const plans = Array.isArray(entry.plans) ? entry.plans : PLANNED.has(entry.status) ? ['PLAN.md'] : [];
376  if (plans.length === 0) return { heading, rows: ['No plan yet'], entry };
377  const due = (Array.isArray(s.outstanding) ? s.outstanding : [])
378    .find((o) => o && String(o.phase) === String(s.current));
379  const open = new Set(due && Array.isArray(due.plans) ? due.plans : []);
380  return { heading, rows: plans.map((f) => `${f} · ${open.has(f) ? 'outstanding' : 'complete'}`), entry };
381}
382
383/**
384 * A section whose source failed: never an empty list or a zero in its place.
385 * @param {string} label
386 * @param {Seam | null | undefined} seam
387 */
388function unavailable(label, seam) {
389  if (!seam || seam.ok) return `${label} unavailable · not-read`;
390  return `${label} unavailable · ${seam.reason}${seam.hint ? ` · ${seam.hint}` : ''}`;
391}
392
393/**
394 * `dir/name`, without doubling the separator at a filesystem root.
395 * @param {string} dir
396 * @param {string} name
397 */
398function join(dir, name) {
399  return /[\\/]$/.test(dir) ? dir + name : `${dir}/${name}`;
400}
401
402/**
403 * A kick runs its task when nothing is running (D-04). A kick during a run
404 * queues exactly one more run, of the latest kick's task, started when this
405 * one settles: the last change is never missed, and a burst of events costs
406 * two runs, not one each. A task that throws leaves the runner usable.
407 *
408 * The task comes with each kick rather than once here because the module may
409 * not hold `$` between events; each kick's task closes over its own.
410 * @returns {(task: () => unknown) => Promise<void>} the kick; its promise
411 *   settles once the run it started or joined, and any queued behind it, have
412 */
413export function singleFlight() {
414  /** @type {Promise<void> | null} */
415  let running = null;
416  /** @type {(() => unknown) | null} */
417  let queued = null;
418  return function kick(task) {
419    if (running) {
420      queued = task;
421      return running;
422    }
423    running = (async () => {
424      try {
425        for (let run = task; run; run = queued) {
426          queued = null;
427          try {
428            // through `then`, so even a task that throws at once yields first
429            // and `running` is set before this loop can end
430            await Promise.resolve().then(run);
431          } catch {
432            // the next kick runs it again
433          }
434        }
435      } finally {
436        running = null;
437      }
438    })();
439    return running;
440  };
441}
442
443/**
444 * Every control character shown as `?`. The text comes from files and seam
445 * output a person or a tool wrote, and the host refuses a whole tree when a
446 * text child holds one (C0, DEL, C1: tab, CR and LF too).
447 * @param {string} s
448 */
449function visible(s) {
450  return String(s).replace(/[\x00-\x1f\x7f-\x9f]/g, '?');
451}
452
453/**
454 * Cut at the width, ending in `…`. Counted by code point, so a cut never
455 * splits a surrogate pair.
456 * @param {string} line
457 * @param {number} width
458 */
459function fit(line, width) {
460  const chars = Array.from(line);
461  if (chars.length <= width) return line;
462  if (!(width >= 1)) return '';
463  return chars.slice(0, width - 1).join('') + '…';
464}
465

1// @ts-check
2// pane-view.mjs - the Cadence pane as styled rows: what lib/pane.mjs reads,
3// laid out as the owner's dashboard. Each row is a list of segments
4// `{ text, color?, bold?, dim? }`; the module's Pane render turns a segment
5// into a host Text. Nothing here is a host element.
6//
7// It draws what paneLines draws and reads it the same way: the heading, the
8// drift and closed-milestone lines and the plan rows come from phaseView, the
9// agents from agentRows, the spend from spendOf. Nothing is derived twice.
10//
11// The cache figures are the one part paneLines never had. They come from the
12// module's live meter (lib/cache-meter.mjs), not a seam, so they are the
13// session's and say so, never the phase's.
14//
15// No imports beyond lib/ files that import nothing, no Node globals: the
16// hooks module loads this.
17'use strict';
18
19import { shownStatus } from './band.mjs';
20import { breaksText, EMPTY_METER, hitRate, kilo, MAIN, percent } from './cache-meter.mjs';
21import { agentRows, NO_CURSOR_NEXT, phaseView, READING_LINE, spendOf } from './pane.mjs';
22import { SPEND_EXCLUDES } from './trace-suggest.mjs';
23
24/**
25 * @typedef {{text: string, color?: string, bg?: string, bold?: boolean, dim?: boolean, action?: 'next'}} Segment
26 * @typedef {Segment[]} Row
27 */
28
29/** Cells the section heads take, the head included. */
30const LABEL_CELLS = 11;
31
32/** A phase status's chip colour, by the first word it starts with. */
33const STATUS_COLORS = Object.freeze([['unplanned', 'gray'], ['context', 'blue'], ['planned', 'cyan'],
34  ['executing', 'yellow'], ['executed', 'magenta'], ['verif', 'green'], ['complete', 'green']]);
35
36/** The UAT counts in `status`'s order, and the color each draws in. */
37const UAT_COLORS = Object.freeze({ pass: 'green', fail: 'red', pending: 'yellow', skipped: undefined, blocked: 'red' });
38
39/**
40 * The pane's rows for a snapshot, none wider than `width` cells.
41 * @param {import('./pane.mjs').Snapshot | null} snapshot null until the first fetch settles
42 * @param {number} width the pane's `bodyColumns`
43 * @param {readonly import('./pane.mjs').RosterEntry[]} [roster]
44 * @param {readonly import('./pane.mjs').Sight[]} [sights]
45 * @param {import('./cache-meter.mjs').Meter} [meter] the session's cache meter
46 * @returns {Row[]}
47 */
48export function paneView(snapshot, width, roster = [], sights = [], meter = EMPTY_METER) {
49  if (!snapshot) return [fitRow([{ text: READING_LINE, dim: true }], width)];
50  const phase = phaseView(snapshot.status);
51  const bar = barCells(width);
52  /** @type {Row} */
53  const rule = [{ text: '─'.repeat(Math.max(0, width)), dim: true }];
54  /** @type {Row[]} */
55  const rows = [
56    ...headingRows(snapshot, phase, roster),
57    rule,
58    ...planRows(phase.rows, bar),
59    ...(phase.rows.length ? [rule] : []),
60    ...agentLines(roster, sights, snapshot, meter),
61    ...uatRows(phase.entry, bar),
62    capturesRow(snapshot.captures),
63    ...spendRows(snapshot.spend, width),
64    ...cacheRows(meter, width),
65  ];
66  return rows.map((row) => fitRow(row.map((s) => ({ ...s, text: visible(s.text) })), width));
67}
68
69/**
70 * The heading, the next command, and the drift line when the cursor disagrees.
71 * @param {import('./pane.mjs').Snapshot} snapshot
72 * @param {ReturnType<typeof phaseView>} phase
73 * @param {readonly import('./pane.mjs').RosterEntry[]} roster
74 * @returns {Row[]}
75 */
76function headingRows(snapshot, phase, roster) {
77  const s = snapshot.status && snapshot.status.ok ? snapshot.status.value : null;
78  const [first, ...drift] = phase.heading;
79  /** @type {Row[]} */
80  const rows = [];
81  if (!s) rows.push([{ text: first, color: 'red' }]);
82  else if (phase.entry) rows.push([{ text: `Phase ${s.current}`, bold: true, color: 'cyan' }, { text: ` of ${s.total}  `, dim: true }, { text: String(phase.entry.name), bold: true }]);
83  else rows.push([{ text: first, bold: true }]);
84  /** @type {Row} */
85  const next = snapshot.cursor
86    ? [{ text: 'next ', dim: true }, { text: snapshot.cursor.next, action: 'next' }]
87    : [{ text: NO_CURSOR_NEXT, color: 'yellow' }];
88  rows.push(phase.entry ? [chip(shownStatus(String(phase.entry.status), roster)), { text: '  ' }, ...next] : next);
89  for (const line of drift) rows.push([{ text: '⚠ ', color: 'yellow' }, { text: line, color: 'yellow' }]);
90  return rows;
91}
92
93/**
94 * PLANS with its bar, then one row per plan: `✓` complete, `○` outstanding.
95 * The rows are phaseView's, which end in ` · complete` or ` · outstanding`.
96 * @param {readonly string[]} lines
97 * @param {number} bar
98 * @returns {Row[]}
99 */
100function planRows(lines, bar) {
101  if (lines.length === 0) return [];
102  const plans = lines.map((l) => /^(.*) · (complete|outstanding)$/.exec(l));
103  if (plans.some((m) => m === null)) return [[head('PLANS'), { text: lines.join(' · '), dim: true }]];
104  const done = plans.filter((m) => m[2] === 'complete').length;
105  return [
106    [head('PLANS'), ...barSegments(done, plans.length, bar, 'green'), { text: `  ${done} of ${plans.length}`, dim: true }],
107    ...plans.map((m) => m[2] === 'complete'
108      ? [{ text: '  ' }, { text: '☑', color: 'green' }, { text: ` ${m[1]}`, dim: true }]
109      : [{ text: '  ' }, { text: '☐', color: 'yellow' }, { text: ` ${m[1]}` }]),
110  ];
111}
112
113/**
114 * AGENTS: one row per running agent behind a cyan `●`, the first beside the
115 * head, then its cache figure once it has sent a request, and its breaks.
116 * @param {readonly import('./pane.mjs').RosterEntry[]} roster
117 * @param {readonly import('./pane.mjs').Sight[]} sights
118 * @param {import('./pane.mjs').Snapshot} snapshot
119 * @param {import('./cache-meter.mjs').Meter} meter
120 * @returns {Row[]}
121 */
122function agentLines(roster, sights, snapshot, meter) {
123  const lines = agentRows(roster, sights, snapshot.resolves || [], snapshot.sessionModel ?? null);
124  if (roster.length === 0) return [[head('AGENTS'), { text: lines[0], dim: true }]];
125  return lines.map((line, i) => {
126    const loop = meter.loops.get(roster[i].id);
127    /** @type {Row} */
128    const cache = loop ? [{ text: ' · ', dim: true }, { text: `cache ${rateText(loop)}` }] : [];
129    if (loop && loop.breaks) cache.push({ text: ' · ', dim: true }, { text: breaksText(loop.breaks), color: 'yellow' });
130    return [i === 0 ? head('AGENTS') : { text: ' '.repeat(LABEL_CELLS) },
131      { text: '●', color: 'cyan' }, { text: ` ${line}` }, ...cache];
132  });
133}
134
135/**
136 * UAT: pass of total as a bar, then each count that is not 0 in its color.
137 * No `uat` key, no row.
138 * @param {any} entry
139 * @param {number} bar
140 * @returns {Row[]}
141 */
142function uatRows(entry, bar) {
143  const uat = entry && entry.uat;
144  if (!uat || typeof uat !== 'object') return [];
145  const keys = /** @type {(keyof typeof UAT_COLORS)[]} */ (Object.keys(UAT_COLORS));
146  const total = keys.reduce((sum, k) => sum + (Number.isFinite(uat[k]) ? uat[k] : 0), 0);
147  const pass = Number.isFinite(uat.pass) ? uat.pass : 0;
148  /** @type {Row} */
149  const counts = [];
150  for (const k of keys.filter((key) => uat[key] !== 0 && uat[key] !== undefined)) {
151    if (counts.length) counts.push({ text: ' · ', dim: true });
152    counts.push(UAT_COLORS[k] ? { text: `${uat[k]} ${k}`, color: UAT_COLORS[k] } : { text: `${uat[k]} ${k}` });
153  }
154  if (counts.length === 0) counts.push({ text: 'none recorded', dim: true });
155  const drawn = total > 0 ? [...barSegments(pass, total, bar, 'green'), { text: '  ' }] : [];
156  return [[head('UAT'), ...drawn, ...counts]];
157}
158
159/**
160 * CAPTURES: `capture-check`'s `substantive`, or why it is missing.
161 * @param {import('./pane.mjs').Seam} captures
162 * @returns {Row}
163 */
164function capturesRow(captures) {
165  const n = captures && captures.ok ? captures.value.substantive : null;
166  if (!Number.isInteger(n)) {
167    const why = !captures ? { ok: false, reason: 'not-read' } : captures.ok ? { ok: false, reason: 'unparseable-output' } : captures;
168    return [head('CAPTURES'), unavailable(why)];
169  }
170  return [head('CAPTURES'), { text: `${n} open` }];
171}
172
173/**
174 * SPEND and its caveat, dim; none when there was no phase to price.
175 * @param {import('./pane.mjs').Seam | null} spend
176 * @param {number} width the pane's width, which the caveat wraps inside
177 * @returns {Row[]}
178 */
179function spendRows(spend, width) {
180  if (spend === null || spend === undefined) return [];
181  if (!spend.ok) return [[head('SPEND'), unavailable(spend)]];
182  const { total, unrecorded } = spendOf(spend.value);
183  /** @type {Row} */
184  const row = [head('SPEND'), total === null ? { text: 'none recorded', dim: true } : { text: `${grouped(total)} tokens` }];
185  if (unrecorded) row.push({ text: ` · ${unrecorded} unrecorded`, dim: true });
186  const room = Math.max(10, width - LABEL_CELLS);
187  return [row, ...wrapWords(`Excludes ${SPEND_EXCLUDES.join(', ')}`, room)
188    .map((line) => [{ text: ' '.repeat(LABEL_CELLS) }, { text: line, dim: true }])];
189}
190
191/**
192 * CACHE: the main loop's hit rate over the session and on its last request,
193 * or what its first request wrote while that is all it has sent, its breaks
194 * with the last one's tokens lost, and the breaks in agents, then a dim line
195 * saying whose figures they are.
196 * @param {import('./cache-meter.mjs').Meter} meter
197 * @param {number} width the pane's width, which the caveat wraps inside
198 * @returns {Row[]}
199 */
200function cacheRows(meter, width) {
201  const main = meter.loops.get(MAIN);
202  if (!main) return [[head('CACHE'), { text: 'no request yet this session', dim: true }]];
203  /** @type {Row} */
204  const row = [head('CACHE'), { text: `main ${rateText(main)}` }];
205  if (main.calls > 1) row.push({ text: ` (last ${percent(main.last)})`, dim: true });
206  if (main.breaks) row.push({ text: ' · ', dim: true }, { text: `${breaksText(main.breaks)}, last ${kilo(main.lost)} lost`, color: 'yellow' });
207  const agents = meter.breaks - main.breaks;
208  if (agents > 0) row.push({ text: ' · ', dim: true }, { text: `${agents} in agents`, color: 'yellow' });
209  const room = Math.max(10, width - LABEL_CELLS);
210  return [row, ...wrapWords('This session, live: not part of the phase\'s spend', room)
211    .map((line) => [{ text: ' '.repeat(LABEL_CELLS) }, { text: line, dim: true }])];
212}
213
214/**
215 * A loop's hit rate over the session, or what its first request wrote while
216 * that is all it has sent: one request's rate is only its cold write. After a
217 * module reload that first request may be warm, so this says first, not cold.
218 * @param {import('./cache-meter.mjs').Loop} loop
219 * @returns {string}
220 */
221function rateText(loop) {
222  return loop.calls === 1 ? `first request, ${kilo(loop.write)} written` : percent(hitRate(loop));
223}
224
225/**
226 * A section head, bold, padded to the label column.
227 * @param {string} label
228 * @returns {Segment}
229 */
230function head(label) {
231  return { text: label.padEnd(LABEL_CELLS), bold: true, color: 'cyan' };
232}
233
234/**
235 * A status as a chip: the word on its colour.
236 * @param {string} status
237 * @returns {Segment}
238 */
239function chip(status) {
240  const hit = STATUS_COLORS.find(([word]) => status.startsWith(word));
241  return { text: ` ${status} `, color: 'black', bg: hit ? hit[1] : 'white', bold: true };
242}
243
244/**
245 * `text` in lines of at most `room` cells, broken at spaces.
246 * @param {string} text
247 * @param {number} room
248 * @returns {string[]}
249 */
250function wrapWords(text, room) {
251  const lines = [];
252  let line = '';
253  for (const word of text.split(' ')) {
254    if (line && (line + ' ' + word).length > room) { lines.push(line); line = word; }
255    else line = line ? `${line} ${word}` : word;
256  }
257  if (line) lines.push(line);
258  return lines;
259}
260
261/**
262 * A failed source's reason, red: never an empty list or a zero in its place.
263 * @param {import('./pane.mjs').Seam} seam
264 * @returns {Segment}
265 */
266function unavailable(seam) {
267  return { text: `unavailable · ${seam.reason}${seam.hint ? ` · ${seam.hint}` : ''}`, color: 'red' };
268}
269
270/**
271 * Bar cells for a pane `width` cells across: a fifth of it, 10 to 24, and
272 * never more than what the label column leaves.
273 * @param {number} width
274 */
275function barCells(width) {
276  return Math.max(0, Math.min(24, Math.max(10, Math.floor(width / 5)), width - LABEL_CELLS - 1));
277}
278
279/**
280 * `part` of `whole` as `cells` cells: `█` filled in `color`, `░` dim.
281 * @param {number} part
282 * @param {number} whole
283 * @param {number} cells
284 * @param {string} color
285 * @returns {Segment[]}
286 */
287function barSegments(part, whole, cells, color) {
288  const filled = Math.max(0, Math.min(cells, Math.round((part / whole) * cells)));
289  return [{ text: '█'.repeat(filled), color }, { text: '░'.repeat(cells - filled), dim: true }];
290}
291
292/**
293 * Thousands with commas, without Intl.
294 * @param {number} n
295 */
296function grouped(n) {
297  return String(n).replace(/\B(?=(\d{3})+(?!\d))/g, ',');
298}
299
300/**
301 * Every control character shown as `?`, as paneLines shows it: the host
302 * refuses a whole tree when a text child holds one.
303 * @param {unknown} s
304 */
305function visible(s) {
306  return String(s).replace(/[\x00-\x1f\x7f-\x9f]/g, '?');
307}
308
309/**
310 * A row cut at the width, its last kept segment ending in `…`. Counted by
311 * code point, so a cut never splits a surrogate pair. Empty segments drop.
312 * @param {Row} row
313 * @param {number} width
314 * @returns {Row}
315 */
316function fitRow(row, width) {
317  const kept = row.filter((s) => s.text !== '');
318  const cells = kept.reduce((n, s) => n + Array.from(s.text).length, 0);
319  if (cells <= width) return kept;
320  if (!(width >= 1)) return [];
321  /** @type {Row} */
322  const out = [];
323  let room = width - 1;
324  for (const s of kept) {
325    const chars = Array.from(s.text);
326    if (chars.length >= room) {
327      out.push({ ...s, text: chars.slice(0, room).join('') + '…' });
328      break;
329    }
330    out.push(s);
331    room -= chars.length;
332  }
333  return out;
334}
335

1// @ts-check
2// cache-meter.mjs - the session's prompt-cache hit rate and its cache breaks,
3// per loop: the main loop under MAIN, each agent under its id. The Cadence
4// module (hooks/cadence-mod.mjs) steps it from every request's usage; the band
5// and the pane draw it.
6//
7// A loop's hit rate is the share of what it sent that the cache served: cache
8// read over cache read, cache write and fresh input. A break is a request that
9// read back less than the same loop's previous request cached (read plus
10// write). A new model, or a message count that dropped (compaction, /clear, a
11// rewind), starts a new prefix, so there is nothing to read back and no break.
12// A cache that expired between requests is a break, because it was one.
13//
14// Live and in memory: a session's figures, gone on a module reload. The trace
15// keeps none of it yet (#309).
16//
17// No imports, no Node globals: the hooks module loads this.
18'use strict';
19
20/** The main loop's key. Every agent id is non-empty. */
21export const MAIN = '';
22
23/**
24 * @typedef {{model: string, messages: number, cached: number}} Prefix
25 *   what a loop's last request left cached, and on what
26 * @typedef {{read: number, write: number, fresh: number, calls: number, last: number | null,
27 *   breaks: number, lost: number, prefix: Prefix | null}} Loop
28 *   `last`: the last request's hit rate. `lost`: the tokens the last break
29 *   failed to read back.
30 * @typedef {{loops: ReadonlyMap<string, Loop>, breaks: number}} Meter
31 *   `breaks` counts every loop's, a dropped one's included
32 */
33
34/** @type {Meter} */
35export const EMPTY_METER = Object.freeze({ loops: new Map(), breaks: 0 });
36
37/** @param {unknown} n */
38const count = (n) => typeof n === 'number' && Number.isFinite(n) && n >= 0;
39
40/**
41 * The share the cache served, or null when nothing was sent.
42 * @param {number} read
43 * @param {number} write
44 * @param {number} fresh
45 * @returns {number | null}
46 */
47function rate(read, write, fresh) {
48  const total = read + write + fresh;
49  return total === 0 ? null : read / total;
50}
51
52/**
53 * A loop's hit rate over the session, or null before it sent anything.
54 * @param {Loop | undefined} loop
55 * @returns {number | null}
56 */
57export function hitRate(loop) {
58  return loop ? rate(loop.read, loop.write, loop.fresh) : null;
59}
60
61/**
62 * The meter after one request of `loop`. A usage it cannot read leaves the
63 * meter as it was.
64 * @param {Meter} meter
65 * @param {string} loop MAIN, or the agent id
66 * @param {unknown} model the request's model
67 * @param {unknown} messages the request's message count
68 * @param {unknown} usage the step's usage
69 * @returns {Meter}
70 */
71export function meterStep(meter, loop, model, messages, usage) {
72  if (!usage || typeof usage !== 'object') return meter;
73  const u = /** @type {Record<string, unknown>} */ (usage);
74  const read = u.cache_read_input_tokens;
75  const write = u.cache_creation_input_tokens;
76  const fresh = u.input_tokens;
77  if (!count(read) || !count(write) || !count(fresh)) return meter;
78  const r = /** @type {number} */ (read);
79  const w = /** @type {number} */ (write);
80  const f = /** @type {number} */ (fresh);
81
82  const was = meter.loops.get(loop);
83  const before = was ? was.prefix : null;
84  const known = typeof model === 'string' && count(messages);
85  const broke = known && before !== null && before.model === model
86    && /** @type {number} */ (messages) >= before.messages && r < before.cached;
87
88  /** @type {Loop} */
89  const next = {
90    read: (was ? was.read : 0) + r,
91    write: (was ? was.write : 0) + w,
92    fresh: (was ? was.fresh : 0) + f,
93    calls: (was ? was.calls : 0) + 1,
94    last: rate(r, w, f),
95    breaks: (was ? was.breaks : 0) + (broke ? 1 : 0),
96    lost: broke && before !== null ? before.cached - r : was ? was.lost : 0,
97    prefix: known ? { model: /** @type {string} */ (model), messages: /** @type {number} */ (messages), cached: r + w } : null,
98  };
99  return { loops: new Map(meter.loops).set(loop, next), breaks: meter.breaks + (broke ? 1 : 0) };
100}
101
102/**
103 * The meter without a stopped agent's loop. Its breaks stay in the session's.
104 * @param {Meter} meter
105 * @param {unknown} loop
106 * @returns {Meter}
107 */
108export function meterDrop(meter, loop) {
109  if (typeof loop !== 'string' || loop === MAIN || !meter.loops.has(loop)) return meter;
110  const loops = new Map(meter.loops);
111  loops.delete(loop);
112  return { loops, breaks: meter.breaks };
113}
114
115/**
116 * A rate as `87.9%`, or `-` for none.
117 * @param {number | null} r
118 */
119export function percent(r) {
120  return r === null ? '-' : `${(r * 100).toFixed(1)}%`;
121}
122
123/**
124 * Tokens as `850` or `38.5k`.
125 * @param {number} n
126 */
127export function kilo(n) {
128  return n < 1000 ? String(n) : `${(n / 1000).toFixed(1)}k`;
129}
130
131/**
132 * `1 cache break`, `2 cache breaks`.
133 * @param {number} n
134 */
135export function breaksText(n) {
136  return `${n} cache break${n === 1 ? '' : 's'}`;
137}
138

1// @ts-check
2// trace-suggest.mjs - evidence-backed config suggestions read off the joined
3// run record. The pure half of `planning.mjs trace suggest`: renderTrace()
4// produces the render, this file turns it into suggestions, and the caller
5// owns the envelope. No I/O here, deliberately - every rule is a pure
6// function over the render so a test can pin exact outputs to exact traces.
7//
8// The posture is the triage gate's, applied to configuration: suggestions are
9// INPUT to a decision the user makes, never applied by anything. Each carries
10// its evidence inline (counts drawn from the record, not adjectives), the
11// exact config key it concerns, and a kind:
12//   - `suggest` - the record supports changing a key; the user decides.
13//   - `info`    - a receipt worth seeing that asks for nothing.
14//
15// Every rule needs a floor of evidence before it speaks (MIN_* below). A
16// suggestion computed from one event is a guess wearing a verdict, and the
17// whole point of reading the trace is to not guess.
18//
19// A keyed suggestion also names WHICH WAY to move the key and what it holds now
20// (SGT-01), and that is why `suggestFromRender` takes a second argument. The
21// values behind those keys live on disk - the merged config layers, the gate
22// ladder in `config.schema.json`, the resolved task ceiling - and reading them
23// here would end the purity above. So the CALLER resolves them and passes them
24// in: `planning.mjs`'s `suggest` arm owns every read, this file owns every
25// rule, and the argument is optional so a test can still call
26// `suggestFromRender(render(...))` with one argument and get an honest "unset"
27// rather than a throw. `direction` is assigned per RULE rather than by the
28// caller (phase 5 plan-2 note): the caller cannot know whether R1 fired on its
29// gate arm or its reviewer arm until these rules have run.
30
31/**
32 * @typedef {{kind: 'suggest'|'info', subject: string, evidence: string,
33 *            action: string|null, direction?: 'raise'|'lower',
34 *            current?: any, proposed?: any}} Suggestion
35 * @typedef {{values?: Record<string, any>, gates?: string[], rungs?: string[],
36 *            checkpointTasks?: (number|null)[]}} Resolution
37 * @typedef {{counts: Record<string, number>,
38 *            roles: Record<string, {dispatches: number, tokens?: number, unrecorded?: number}>,
39 *            events: any[],
40 *            brackets?: {duration_ms?: number}[],
41 *            coordinator?: {wall_ms: number, bracket_ms: number, residue_ms: number,
42 *                           steps: {phase: any, step: any, ts: any, residue_ms: number}[]}}} RenderLike
43 * @typedef {{roles: {role: string, brackets: number, touches: number, distinct: number,
44 *                    ratio: number|null,
45 *                    worst: {path: string, count: number, phase: any, plan: any}|null}[],
46 *            joined: number, fileCarrying: number, coverage: number|null,
47 *            coordinatorFiles: number}} InDispatchReads
48 */
49
50// Evidence floors. Below these a rule stays silent rather than extrapolating.
51/**
52 * R1's floor, counted in UNVETOED EMPTY fires - fires that adjudicated zero
53 * survivors and were not the fire a re-arm round came back to fix - never in a
54 * trigger's fires overall. A trigger that fires ten times and comes back empty
55 * once is not evidence about the gate; two empty fires are the least that can
56 * be.
57 */
58export const MIN_FIRES_FOR_GATE_SUGGESTION = 2;
59export const MIN_DISPATCHES_FOR_RUNG_INFO = 4;
60export const MIN_ESCALATIONS_FOR_RUNG_SUGGESTION = 2;
61export const MIN_CHECKPOINTS_FOR_SIZE_SUGGESTION = 2;
62/**
63 * R9's floor, counted in OVERRIDE RECEIPTS carrying one trigger - the WRITES,
64 * never the authorizations behind them. Two is the least that can be: a single
65 * receipt cannot be the second application of an answer, so one override says
66 * nothing about whether a decision was reused.
67 */
68export const MIN_OVERRIDES_FOR_AUTHORIZATION_INFO = 2;
69/**
70 * The coordinator receipt's floor, in milliseconds. Ten minutes: below that the
71 * residue is dominated by the second or two between a step's marker and the
72 * dispatch that follows it, which is a measurement artefact rather than time
73 * anyone spent. The other floors count events; this one cannot, because one
74 * marker can carry a whole afternoon and a hundred can carry nothing.
75 */
76export const MIN_RESIDUE_MS_FOR_COORDINATOR_INFO = 600000;
77
78/**
79 * R7's floor, PER ROLE, and the map is the gate rather than the number: a role
80 * this object does not name never produces an in-dispatch entry whatever its
81 * ratio.
82 *
83 * Only two roles are named because only two showed signal.
84 * `.planning/spikes/read-set-redundancy/SPIKE.md` measured, in-dispatch:
85 * `cad-executor` 3.64 over 78 dispatches, `cad-verifier` 2.05 over 31,
86 * `cad-planner` 1.88, `cad-assumptions-analyzer` 1.78, `cad-reviewer` 1.74.
87 * The last three sit in a band the spike calls noise - a rule firing on them
88 * spends the user's attention to save nothing - so a global threshold picked
89 * low enough to keep `cad-verifier` would speak on all five.
90 *
91 * The two numbers, derived rather than chosen:
92 *   - `cad-verifier` sits at the spike's own C2 bar of 2.0, the level at which
93 *     it declared the redundancy real, and clears it at 2.05.
94 *   - `cad-executor` sits ABOVE that bar because that role legitimately returns
95 *     to a file once per task across up to `workflow.max_plan_tasks` tasks in
96 *     one dispatch, so the same 2.0 would report ordinary per-task work as
97 *     repetition. 3.00 leaves it speaking on today's 3.64 and goes quiet on a
98 *     real improvement, which is the whole test of a floor.
99 */
100export const IN_DISPATCH_FLOORS = Object.freeze({
101  'cad-executor': 3.00,
102  'cad-verifier': 2.00,
103});
104
105/**
106 * The two sources the recorded token total DOES NOT include, in the words
107 * every reader of that total states.
108 *
109 * Exported and frozen for the reason `lib/trace.mjs` exports
110 * `DISPATCH`/`TERMINAL`/`ANCHOR` rather than letting the bracket census hold
111 * its own copy of them: this claim has TWO readers - R5's `evidence` string
112 * below, which `/cad-suggest` relays unchanged, and the spend line in
113 * `cadence-core/workflows/report.md` - and a second copy of the list is green
114 * on the day the two stop claiming the same thing. `prose-agreement.test.mjs`
115 * reads THIS array to check the prose, so there is one list and one claim.
116 *
117 * Why these two, and why they are not a hedge:
118 *   1. the orchestrator's own turns - a figure is read off a subagent RETURN
119 *      and the coordinator has no return, so it contributes nothing to a total
120 *      that most of the run's spend belongs to;
121 *   2. figureless returns - a close that carried no `--tokens`, the advisory
122 *      fire among them, counted under `unrecorded` rather than as a zero.
123 *
124 * THREE until v3.7.10, when `'cross-model provider calls'` was DROPPED from
125 * this list - and it must not come back. The entry's stated reason was that the
126 * arm had no lifecycle bracket and no token field at all; the seam now records
127 * the provider's own reported usage on the `provider/request` event,
128 * `planning/trace.mjs` folds it into `provider_spend`, and
129 * `workflows/report.md` prints it on its own `Cross-model reviews` line. That
130 * spend is a DIFFERENT denomination and still never sums into this total, so
131 * the arithmetic did not move - but "excluded" became the wrong word for it,
132 * because it is reported rather than missing, and naming it here would send a
133 * reader hunting for a figure already on the page.
134 *
135 * No third entry is a ratio or a correction factor, and none is coming: the
136 * terms are what MSR-03 and PLN-01 need, and a stored product is the
137 * maintenance loop `v2.7.0` deleted.
138 */
139export const SPEND_EXCLUDES = Object.freeze([
140  "the orchestrator's own turns",
141  'figureless returns',
142]);
143
144/**
145 * A duration in whole minutes, the unit a run record is read in.
146 * @param {number} ms
147 */
148function minutes(ms) {
149  return `${Math.round(ms / 60000)} min`;
150}
151
152/**
153 * The value a config layer (or the caller's schema-default fallback) holds for
154 * `key`, or `undefined` when nothing does. `null` reads as nothing on purpose:
155 * on the keys this seam names it is the sentinel for "no layer pins this", not
156 * a value anybody set.
157 * @param {Resolution|undefined} resolution
158 * @param {string} key
159 */
160function resolved(resolution, key) {
161  const values = resolution && typeof resolution.values === 'object' && resolution.values
162    ? resolution.values
163    : null;
164  if (!values) return undefined;
165  const v = /** @type {any} */ (values)[key];
166  return v === undefined || v === null ? undefined : v;
167}
168
169/**
170 * What an unset key prints as `current`: the refusal `config.mjs get` makes, in
171 * the same words and for the same reason (D-06). It names the DECIDER and never
172 * the value that decider would fire, because printing an effective value
173 * invites the user to set it and pin a key the schema is already answering.
174 *
175 * The decider used to be the routing LEVEL the record carried, interpolated
176 * into the sentence. That level is gone and the schema's own default is what
177 * answers, so the sentence names that instead - and takes no `resolution`
178 * reading at all, because every historical `routing/resolve` row still carries
179 * the retired level string that the resolver no longer produces, and rendering
180 * it would name a decider that does not decide (D-05).
181 */
182function unsetCurrent() {
183  return 'unset: no config layer pins this, so the schema default decides it';
184}
185
186/**
187 * `current` and, where one can be READ rather than guessed, `proposed` - as the
188 * fragment a suggestion spreads into itself. `proposed` is OMITTED rather than
189 * set to null or 0 (D-07/D-12), the omit-not-zero rule `--turns` already
190 * follows: a key nobody computed a target for must be invisible, not zero.
191 * @param {Resolution|undefined} resolution
192 * @param {string} key
193 * @param {(current: any) => any} [target] priced only when the key is SET
194 */
195function keyState(resolution, key, target) {
196  const value = resolved(resolution, key);
197  const proposed = value === undefined || !target ? undefined : target(value);
198  return {
199    current: value === undefined ? unsetCurrent() : value,
200    ...(proposed === undefined ? {} : { proposed }),
201  };
202}
203
204/**
205 * The rung the record shows a role's escalated resolves landing on, kept only
206 * where it names an actual RAISE. A rung a config layer SET is compared against
207 * it on the caller's rung ladder and must sit strictly BELOW it, so a target
208 * equal to the current rung - a retune that changes nothing - or under it -
209 * a target contradicting the `raise` it ships beside - is omitted instead.
210 * An UNSET key has no rung to compare and keeps the target: the record's rung
211 * is still a change from a default nobody stated. No ladder means no
212 * comparison and no target, the same omission `oneStepDown` reports.
213 * @param {Resolution|undefined} resolution
214 * @param {string} key
215 * @param {string|undefined} rung
216 */
217function raiseTarget(resolution, key, rung) {
218  if (!rung) return undefined;
219  const current = resolved(resolution, key);
220  if (current === undefined) return rung;
221  const rungs = resolution && Array.isArray(resolution.rungs) ? resolution.rungs : null;
222  if (!rungs) return undefined;
223  const i = rungs.indexOf(current);
224  return i >= 0 && rungs.indexOf(rung) > i ? rung : undefined;
225}
226
227/**
228 * One step DOWN the gate ladder `config.schema.json` states, or `undefined` when
229 * there is no ladder, the value is not on it, or it is already the bottom rung.
230 * The ladder is the caller's: an absent one omits `proposed`, and that omission
231 * IS the report - no ladder is substituted from memory here.
232 * @param {string[]|undefined} gates
233 * @param {any} value
234 */
235function oneStepDown(gates, value) {
236  if (!Array.isArray(gates)) return undefined;
237  const i = gates.indexOf(value);
238  return i > 0 ? gates[i - 1] : undefined;
239}
240
241/**
242 * Parse an adjudication EVENT: the trigger and survivor count out of its
243 * `<trigger>: <n> survivors; voices <...>` detail line (review-triggers.md
244 * step 5's shape), and the RAISED count - how many findings the reviewers put
245 * up before adjudication killed them.
246 *
247 * A bare detail STRING is accepted as well as the event, because the trigger
248 * and survivor half has always been readable from the string alone and callers
249 * that only hold one must keep working.
250 *
251 * Resolution order for `raised`, and it is the whole point of the widening:
252 *   1. the event's structured `raised` field (planning.mjs `--raised`);
253 *   2. else a legacy `of <m>` clause written into the detail by hand, before
254 *      the flag existed - read only immediately after the survivor count, so a
255 *      stray "of" further down the voice list cannot be mistaken for one;
256 *   3. else `null`, meaning UNKNOWN - never 0. A fire whose raised count
257 *      nobody recorded is not a fire that raised nothing, and collapsing the
258 *      two is the exact conflation the flag exists to end.
259 *
260 * The trigger/survivor regex stays as permissive as it has always been: D-03
261 * measured that tightening it drops the historical fires already on disk and
262 * takes R1's evidence floor down with them.
263 *
264 * A RE-ARM round's adjudication is spelled `<trigger> rearm:` or
265 * `<trigger> re-arm:` on disk - both spellings live in this project's own
266 * record, written by hand months apart - and both read as the BASE trigger
267 * carrying `rearm: true` (D-04). Never a trigger of its own: that would mint
268 * the phantom config key `review.triggers.risk_surface rearm.gate`, which this
269 * file's own schema test refuses. Those two spellings are the ONLY embedded
270 * space admitted; any other token with a space in it stays unparseable exactly
271 * as it is today, because counting it as a fire would feed R1 evidence it does
272 * not have.
273 * @param {unknown} input an adjudication event, or its detail string
274 * @returns {{trigger: string, survivors: number, raised: number|null,
275 *            rearm: boolean}|null}
276 */
277export function parseAdjudication(input) {
278  const event = typeof input === 'string' ? { detail: input } : input;
279  if (!event || typeof event !== 'object') return null;
280  const detail = /** @type {any} */ (event).detail;
281  if (typeof detail !== 'string') return null;
282  const trimmed = detail.trim();
283  const m = /^([a-z_]+)(?:\s+(re-?arm))?:\s*(\d+)\s+survivors?\b/.exec(trimmed);
284  if (!m) return null;
285  const field = /** @type {any} */ (event).raised;
286  let raised = null;
287  if (typeof field === 'number' && Number.isInteger(field) && field >= 0) {
288    raised = field;
289  } else {
290    const legacy = /^\s*of\s+(\d+)\b/.exec(trimmed.slice(m[0].length));
291    if (legacy) raised = Number(legacy[1]);
292  }
293  return { trigger: m[1], survivors: Number(m[3]), raised, rearm: Boolean(m[2]) };
294}
295
296/**
297 * All suggestions the render supports, most actionable first (`suggest`
298 * before `info`, then by subject for a stable order tests can pin).
299 * @param {RenderLike} render
300 * @param {Resolution} [resolution] the values the caller read off disk for the
301 *   keys these rules name - absent, every keyed suggestion still carries a
302 *   direction and reports its `current` as unset.
303 * @param {InDispatchReads} [reads] the per-role in-dispatch file figures
304 *   `lib/read-trace.mjs`'s `inDispatchReads` folded off `.planning/reads.jsonl`,
305 *   for the same reason `resolution` is a parameter and not a read: the rules
306 *   stay pure and the caller owns every open. Absent - which is every one- and
307 *   two-argument call - R7 stays silent and nothing else changes.
308 * @returns {Suggestion[]}
309 */
310export function suggestFromRender(render, resolution, reads) {
311  /** @type {Suggestion[]} */
312  const out = [];
313  const events = Array.isArray(render.events) ? render.events : [];
314
315  // --- gather ---------------------------------------------------------------
316  // One row per FIRE, in file order, because that is the unit a re-arm veto
317  // acts on (D-03). A trigger's lifetime totals cannot carry the veto: nothing
318  // prunes `.planning/trace.jsonl` at a close, so a re-arm recorded in one
319  // cycle muted its trigger four cycles after the gate stopped finding
320  // anything. The record now ROTATES at its size bound (TRC-08), which bounds
321  // "the life of the file" at that cut rather than leaving it permanent - and
322  // changes nothing here: a bound measured in mebibytes is not a scoping rule,
323  // and one row per fire is what makes the veto act on the fire it belongs to.
324  /** @type {{corr: string, trigger: string, survivors: number, raised: number|null,
325   *          rearm: boolean, vetoed: boolean}[]} */
326  const fires = [];
327  /** @type {Set<string>} */
328  const rearmed = new Set();
329  /**
330   * The correlation id an event joins on, as a comparable string.
331   * @param {any} e
332   */
333  const corrOf = (e) => (typeof e.corr === 'string' || typeof e.corr === 'number' ? String(e.corr) : '');
334  /**
335   * The authorization an override receipt descends from, as a comparable
336   * string - the SAME guard `corrOf` applies to `corr`, because this value is a
337   * join key too and an object or an array must not become the group key
338   * `[object Object]`. Empty string means unlabelled, which R9 reads as an
339   * unknown rather than as a shared answer. Trimmed for the reason the writer
340   * trims it: a padded copy of an id must not read as a second decision.
341   * @param {any} e
342   */
343  const authOf = (e) => (typeof e.authorization_id === 'string' || typeof e.authorization_id === 'number'
344    ? String(e.authorization_id).trim()
345    : '');
346  /**
347   * Per role: the resolve counts R3 reads, and the rung its ESCALATED resolves
348   * actually landed on, off the `effort` field those events carry. That rung is
349   * R3's `proposed` - a rung the routing table really resolved for this role,
350   * rather than a legal one it would never produce (D-07).
351   * @type {Map<string, {resolves: number, escalated: number, rung?: string}>}
352   */
353  const rungs = new Map();
354  /** @type {Map<string, number>} */
355  const checkpoints = new Map();
356  /**
357   * Per trigger, R9's two figures: the override receipts WRITTEN, and the
358   * distinct authorizations that stood behind them. The labelled ids go in the
359   * set and the rest are counted, because an unlabelled receipt is its own
360   * decision - see R9 for why that half is load-bearing.
361   * @type {Map<string, {writes: number, ids: Set<string>, unlabelled: number}>}
362   */
363  const overrides = new Map();
364
365  for (const e of events) {
366    if (!e || typeof e !== 'object') continue;
367    if (e.family === 'outcome' && e.event === 'adjudication') {
368      const parsed = parseAdjudication(e);
369      if (!parsed) continue;
370      fires.push({
371        corr: corrOf(e),
372        trigger: parsed.trigger,
373        survivors: parsed.survivors,
374        raised: parsed.raised,
375        rearm: parsed.rearm,
376        vetoed: false,
377      });
378    } else if (e.family === 'outcome' && e.event === 'rearm') {
379      const trigger = typeof e.detail === 'string' ? e.detail.trim() : '';
380      if (!trigger) continue;
381      rearmed.add(trigger);
382      // The veto lands on exactly ONE fire: the nearest fire BEFORE this one in
383      // the same `(corr, trigger)` group - the fire that forced the round.
384      // Nearest rather than oldest, because an earlier fire in the same phase
385      // was answered by its own adjudication and this round says nothing about
386      // it. A re-arm round's OWN adjudication is skipped: it is the second
387      // round's RESULT, not the fire that forced the round. A fire already
388      // vetoed is skipped too, so two re-arms mute two fires rather than one.
389      const corr = corrOf(e);
390      for (let i = fires.length - 1; i >= 0; i--) {
391        const f = fires[i];
392        if (f.trigger === trigger && f.corr === corr && !f.rearm && !f.vetoed) {
393          f.vetoed = true;
394          break;
395        }
396      }
397    } else if (e.family === 'routing' && e.event === 'resolve') {
398      const role = typeof e.role === 'string' ? e.role : '';
399      if (!role) continue;
400      const row = rungs.get(role) || { resolves: 0, escalated: 0 };
401      row.resolves++;
402      // Either spelling of a climb counts: the seam's own `escalated` flag, or
403      // a retry attempt (`--attempt 2`) that lands on the retry rung.
404      if (e.escalated === true || (typeof e.attempt === 'number' && e.attempt >= 2)) {
405        row.escalated++;
406        if (typeof e.effort === 'string' && e.effort.trim()) row.rung = e.effort.trim();
407      }
408      rungs.set(role, row);
409    } else if (e.family === 'lifecycle' && e.event === 'checkpoint') {
410      const role = typeof e.role === 'string' ? e.role : '';
411      if (!role) continue;
412      checkpoints.set(role, (checkpoints.get(role) || 0) + 1);
413    } else if (e.family === 'outcome' && e.event === 'override') {
414      // The trigger comes off the STRUCTURED field and is never parsed out of
415      // `detail` (D-12), the same rule `risk-check status` holds when it reads
416      // these events: on this repository's own record the trigger is spelled
417      // four different ways in that free text. An override carrying no
418      // structured trigger reaches no reader today - the gate filters on the
419      // same field - so it is grouped by nothing here either.
420      const trigger = typeof e.trigger === 'string' ? e.trigger.trim() : '';
421      if (!trigger) continue;
422      const row = overrides.get(trigger) || { writes: 0, ids: new Set(), unlabelled: 0 };
423      row.writes++;
424      const id = authOf(e);
425      if (id) row.ids.add(id);
426      else row.unlabelled++;
427      overrides.set(trigger, row);
428    }
429  }
430
431  // --- rules ----------------------------------------------------------------
432  // R1: an adjudicated trigger that keeps coming back empty. Read a FIRE at a
433  // time: a fire counts as evidence when it adjudicated zero survivors and no
434  // re-arm came back to it - a gate that forced a fix round has already paid
435  // for itself on THAT fire, whatever its adjudication said, and says nothing
436  // about the other fires the same trigger had. The evidence names the empty
437  // count out of the trigger's fires overall, so a reader sees the productive
438  // fires beside the empty ones instead of a bare total.
439  //
440  // Two OUTCOMES on the same evidence floor, because "nothing survived" means
441  // two opposite things (D-16). Nothing raised at all is a gate finding
442  // nothing; nine raised and nine killed is a gate doing real work in front of
443  // a reviewer that cannot tell a finding from an opinion - and proposing to
444  // turn that gate off is the wrong move on the same row. The raised total is
445  // summed over the EMPTY fires alone, and an UNKNOWN raised count contributes
446  // 0 rather than being invented, so every trace written before `--raised`
447  // existed keeps landing on the gate arm it lands on today.
448  /** @type {Map<string, {total: number, empty: number, raised: number}>} */
449  const triggers = new Map();
450  for (const f of fires) {
451    const row = triggers.get(f.trigger) || { total: 0, empty: 0, raised: 0 };
452    row.total++;
453    if (!f.vetoed && f.survivors === 0) {
454      row.empty++;
455      row.raised += f.raised === null ? 0 : f.raised;
456    }
457    triggers.set(f.trigger, row);
458  }
459  for (const [trigger, row] of [...triggers.entries()].sort()) {
460    if (row.empty >= MIN_FIRES_FOR_GATE_SUGGESTION) {
461      // The two arms move OPPOSITE ways, which is the whole reason the split
462      // exists: the gate arm's evidence is fires that keep coming back empty,
463      // so the move is DOWN the ladder; the reviewer arm's evidence is a gate
464      // catching work in front of a reviewer set that killed all of it, so the
465      // move is to STRENGTHEN that set. `raise`/`lower` is the whole vocabulary
466      // - widening it is a schema-shaped decision, and `lower` on the reviewer
467      // arm would name the opposite move.
468      out.push(row.raised > 0
469        ? {
470          kind: 'suggest',
471          subject: `${trigger} reviewers`,
472          evidence: `${row.empty} of ${row.total} adjudicated fire(s), 0 survivors of ${row.raised} raised`
473            + ' - the gate caught work; the reviewer set is what looks miscalibrated',
474          action: 'review.reviewers',
475          direction: 'raise',
476          // No `proposed`: which backend to add is not a thing the record
477          // names, and a guessed reviewer set beside two measured targets is
478          // the credibility the no-fabricated-figures guardrail protects.
479          ...keyState(resolution, 'review.reviewers'),
480        }
481        : {
482          kind: 'suggest',
483          subject: trigger,
484          evidence: `${row.empty} of ${row.total} adjudicated fire(s), 0 survivors, no re-arm`,
485          action: `review.triggers.${trigger}.gate`,
486          direction: 'lower',
487          // Priced only off a value a LAYER set: an unset gate has no position
488          // on the ladder to step down from, and reading the level's value to
489          // find one is exactly what D-06 refuses.
490          ...keyState(resolution, `review.triggers.${trigger}.gate`,
491            (current) => oneStepDown(resolution && resolution.gates, current)),
492        });
493    }
494  }
495
496  // R2: a gate that caught real work. Receipt only - nothing to change.
497  for (const trigger of [...rearmed].sort()) {
498    out.push({
499      kind: 'info',
500      subject: trigger,
501      evidence: 'a fire FAILed and re-armed on its own fix - the gate caught real work; keep it',
502      action: null,
503    });
504  }
505
506  // R3: escalation pressure per role, both directions.
507  for (const [role, row] of [...rungs.entries()].sort()) {
508    if (row.escalated >= MIN_ESCALATIONS_FOR_RUNG_SUGGESTION) {
509      // The target is a rung the record SHOWS this role's escalated resolves
510      // landing on, never a step guessed off `rung_order`: a rung the routing
511      // table actually resolved cannot be one the table would never produce.
512      // It still has to name a CHANGE against the rung in force - see
513      // `raiseTarget`.
514      const proposed = raiseTarget(resolution, `model.effort.${role}`, row.rung);
515      out.push({
516        kind: 'suggest',
517        subject: role,
518        evidence: `${row.escalated} of ${row.resolves} resolves climbed to the retry rung`,
519        action: `model.effort.${role}`,
520        direction: 'raise',
521        ...keyState(resolution, `model.effort.${role}`),
522        ...(proposed ? { proposed } : {}),
523      });
524    } else if (row.escalated === 0 && row.resolves >= MIN_DISPATCHES_FOR_RUNG_INFO) {
525      out.push({
526        kind: 'info',
527        subject: role,
528        evidence: `start rung held across ${row.resolves} resolves, 0 escalations`,
529        action: null,
530      });
531    }
532  }
533
534  // R4: executor checkpoint pressure. A checkpoint is a fresh-context
535  // continuation paid at full dispatch price; repeated ones say the plans are
536  // outrunning one context.
537  //
538  // SUPPRESSED - not returned with a caveat - when every checkpoint it counted
539  // maps to a readable plan whose task count is UNDER the resolved ceiling
540  // (D-08). A suggestion the evidence does not support is the thing that made
541  // `/cad-suggest` read as a report rather than advice: telling a user to lower
542  // a ceiling their plans never reached is a sentence they can only ignore, and
543  // a caveat printed beside it still leaves the retune list to be sorted by
544  // hand. This is a new class of check, not a tightened floor - the four MIN_*
545  // constants above are untouched.
546  //
547  // The comparison is against the ceiling the suggestion PRINTS as `current`,
548  // never a hardcoded 8 (D-10): a project that raised it to 12 must not be told
549  // to lower one its plans never touched. An unknown count - a checkpoint whose
550  // plan file cannot be read - is never under-ceiling (D-09), so a single one
551  // leaves the rule speaking; a count EQUAL to the ceiling is not under it
552  // either. And with no ceiling resolved at all, or no per-checkpoint counts
553  // passed, there is nothing to bind against and the rule speaks exactly as it
554  // did before this check existed.
555  const execCp = checkpoints.get('cad-executor') || 0;
556  const ceiling = resolved(resolution, 'workflow.max_plan_tasks');
557  const counted = resolution && Array.isArray(resolution.checkpointTasks)
558    ? resolution.checkpointTasks
559    : [];
560  const bounded = typeof ceiling === 'number' && Number.isFinite(ceiling)
561    && counted.length === execCp && execCp > 0
562    && counted.every((n) => typeof n === 'number' && Number.isFinite(n) && n < ceiling);
563  if (execCp >= MIN_CHECKPOINTS_FOR_SIZE_SUGGESTION && !bounded) {
564    out.push({
565      kind: 'suggest',
566      subject: 'cad-executor',
567      evidence: `${execCp} checkpoint return(s) - plans may exceed one context`,
568      action: 'workflow.max_plan_tasks',
569      direction: 'lower',
570      // No `proposed`, and none is derivable: no field in the record names a
571      // plan's task count, so the only target available would be a number
572      // invented here (D-07). The key is OMITTED rather than sent as null.
573      ...keyState(resolution, 'workflow.max_plan_tasks'),
574    });
575  }
576
577  // R5: the spend receipt. Names where the recorded tokens went and what that
578  // total is NOT - the two `SPEND_EXCLUDES` names ride the evidence string
579  // rather than the envelope, because `workflows/suggest.md` relays evidence
580  // unchanged and adds no flag, so this is the only way the caveat reaches a
581  // `/cad-suggest` reader at all. Asks for nothing: still `kind: 'info'`,
582  // still `action: null`, still silent when no role carried a figure, and the
583  // only arithmetic is the share it already computed.
584  const roles = render.roles && typeof render.roles === 'object' ? render.roles : {};
585  let top = null;
586  let total = 0;
587  for (const [role, row] of Object.entries(roles)) {
588    const t = typeof row.tokens === 'number' && Number.isFinite(row.tokens) ? row.tokens : 0;
589    total += t;
590    if (t > 0 && (!top || t > top.tokens)) top = { role, tokens: t };
591  }
592  if (top && total > 0) {
593    out.push({
594      kind: 'info',
595      subject: top.role,
596      evidence: `largest recorded spend: ${top.tokens.toLocaleString('en-US')} of ${total.toLocaleString('en-US')} recorded tokens (${Math.round((top.tokens / total) * 100)}%); excludes ${SPEND_EXCLUDES.join(', ')}`,
597      action: null,
598    });
599  }
600
601  // R6: the coordinator's own share of the run. The counterpart to R5 - that
602  // one names where the TOKENS went, this one names the time no worker was
603  // billed for. Receipt only, and `action` is null on purpose: no
604  // `config.schema.json` key governs coordinator spend, and this file's own
605  // test refuses an action naming a key the schema lacks.
606  //
607  // The figure it relays is CORR-SCOPED (phase 5 D-01): `lib/trace.mjs` keys the
608  // residue accumulators on `corr`, so each run's last marker closes at that
609  // run's own last event and no window spans the clock between two runs that
610  // share a phase number. A `--phase` render can still pool several runs, and
611  // this receipt then relays the sum of their windows - never a span across
612  // them. The evidence string below is unchanged byte for byte: D-02 keeps the
613  // name, which the corrected arithmetic earns rather than outgrows.
614  //
615  // SILENT on a render with no `coordinator` block, never an "absent
616  // coordinator record" line (D-06). Every trace written before the marker
617  // existed - Cadence's own and the committed fixture - would otherwise gain a
618  // suggestion line saying nothing about the run it read.
619  const coord = render.coordinator;
620  const residue = coord && typeof coord.residue_ms === 'number' && Number.isFinite(coord.residue_ms)
621    ? coord.residue_ms
622    : null;
623  if (residue !== null && residue >= MIN_RESIDUE_MS_FOR_COORDINATOR_INFO) {
624    // The figures are the render's own (lib/trace.mjs computes the residue
625    // once, so this rule and `/cad-report` cannot disagree); the only
626    // arithmetic here is the share, and it is skipped rather than divided by a
627    // zero or absent wall.
628    const steps = Array.isArray(coord.steps) ? coord.steps : [];
629    /** @type {{step: any, residue_ms: number}|null} */
630    let top = null;
631    for (const s of steps) {
632      if (!s || typeof s !== 'object') continue;
633      const ms = typeof s.residue_ms === 'number' && Number.isFinite(s.residue_ms) ? s.residue_ms : 0;
634      if (!top || ms > top.residue_ms) top = { step: s.step, residue_ms: ms };
635    }
636    const wall = typeof coord.wall_ms === 'number' && Number.isFinite(coord.wall_ms) ? coord.wall_ms : 0;
637    const share = wall > 0 ? ` (${Math.round((residue / wall) * 100)}% of wall time)` : '';
638    const named = top && typeof top.step === 'string' && top.step
639      ? `, most of it at \`${top.step}\` (${minutes(top.residue_ms)})`
640      : '';
641    out.push({
642      kind: 'info',
643      subject: 'coordinator',
644      evidence: `coordinator time between worker brackets: ${minutes(residue)}${share}${named}`,
645      action: null,
646    });
647  }
648
649  // R7: in-dispatch re-reading, per role. `.planning/reads.jsonl` has recorded
650  // what a worker actually OPENED for four cycles and nothing has ever acted on
651  // the number; this is the rule that does.
652  //
653  // `action` is null, and that is this phase's ANSWER rather than an omission:
654  // no key in `cadence-core/config.schema.json` governs in-dispatch re-reading.
655  // The falsifying check was run over all 78 keys - counted as
656  // `Object.keys(schema.keys).length`, so the denominator is re-runnable - and
657  // the three closest candidates all fail:
658  //   - `workflow.max_dispatch_tokens.<role>` is report-only by its own purpose
659  //     text; moving it changes when `trace window` complains, never what a
660  //     worker opens.
661  //   - `workflow.max_plan_tasks` counts TASKS. It was re-decided at 8 in
662  //     `v3.5.3` under PLN-01 against cold-prefix cost and context risk,
663  //     neither of which is in-dispatch re-reading, and lowering it moves the
664  //     same file opens into MORE dispatches rather than removing them -
665  //     improving this ratio while raising the bill. R4 above already moves
666  //     that key on checkpoint evidence, so a second rule moving it on
667  //     unrelated evidence would put two entries for one key in the same list.
668  //   - `model.effort.*` and `model.overrides.*` choose a rung and a model.
669  // The remedy that does exist is DISCIPLINE rather than configuration -
670  // symbol or line anchors on a plan's `files:` entries, and targeted reads
671  // over whole-file ones - filed at `.planning/CAPTURE.md:271` as parts 2 and 3
672  // of a three-part fix whose part 1 is the unshipped `workflow.max_plan_tokens`.
673  // Minting a key here to have somewhere to point would ship a key nothing
674  // reads. So the entry names the remedy in WORDS, exactly the precedent R6
675  // sets with its own null action.
676  //
677  // Everything the entry has to state rides the EVIDENCE string - the
678  // direction, the coverage, the scope and the exclusion - because
679  // `cadence-core/workflows/suggest.md` relays evidence unchanged and adds no
680  // flag, the same reason R5 carries `SPEND_EXCLUDES` there rather than on the
681  // envelope. The `Suggestion` vocabulary stays closed: an info entry gains no
682  // `direction`, `current` or `proposed`, which this file's own D-12 test pins
683  // and which `suggest.md`'s ask step depends on, since it builds
684  // `/cad-config <key>=<value>` tokens out of `action` plus `proposed`.
685  //
686  // SILENT - nothing at all, never an entry saying nothing - when the argument
687  // is absent, the role is not in `IN_DISPATCH_FLOORS`, the ratio is null, or
688  // the ratio is under the role's floor. A null ratio is never rendered as `0`:
689  // that is the reading which says the worker opened each file once.
690  const inDispatch = reads && Array.isArray(reads.roles) ? reads.roles : [];
691  for (const row of inDispatch) {
692    if (!row || typeof row !== 'object') continue;
693    const floor = Object.prototype.hasOwnProperty.call(IN_DISPATCH_FLOORS, row.role)
694      ? IN_DISPATCH_FLOORS[/** @type {keyof typeof IN_DISPATCH_FLOORS} */ (row.role)]
695      : undefined;
696    if (floor === undefined) continue;
697    const ratio = typeof row.ratio === 'number' && Number.isFinite(row.ratio) ? row.ratio : null;
698    if (ratio === null || ratio < floor) continue;
699    const worst = row.worst;
700    // A non-null ratio has at least one counted file behind it, so this guard
701    // is unreachable - it is here so the sentence below can never name a file
702    // nothing measured.
703    if (!worst || typeof worst.path !== 'string') continue;
704    const where = worst.phase == null && worst.plan == null
705      ? ''
706      : ` (phase ${worst.phase ?? '?'}, plan ${worst.plan ?? '?'})`;
707    const coverage = typeof reads.coverage === 'number' && Number.isFinite(reads.coverage)
708      ? `${Math.round(reads.coverage * 100)}% of the joined reads in scope, the share that recorded file paths`
709      : 'an unmeasured share of the joined reads in scope';
710    const excluded = typeof reads.coordinatorFiles === 'number' && Number.isFinite(reads.coordinatorFiles)
711      ? reads.coordinatorFiles
712      : 0;
713    out.push({
714      kind: 'info',
715      subject: row.role,
716      evidence: `in-dispatch re-reading: ${ratio} opens per distinct file inside one dispatch`
717        + ` over ${row.brackets} dispatch(es), and DOWN is the direction that helps`
718        + ` - worst inside one dispatch: read \`${worst.path}\` ${worst.count} times${where}.`
719        + ` Computed over ${coverage}.`
720        + ' SCOPE: nothing prunes `.planning/reads.jsonl` at a milestone close, and the one thing'
721        + ' that ever shortens it is the cut at its size bound, which moves the older generation'
722        + ' to a sibling no fold here reads - so an unscoped run reaches every milestone still in'
723        + ' the LIVE record, and `reads.rotated` on this envelope says whether the record was cut.'
724        + ` Excludes ${excluded.toLocaleString('en-US')} coordinator read(s) carrying files:`
725        + ' the main thread has no dispatch bracket by construction, so its re-reading cannot be'
726        + ' attributed to one and cannot be measured here.'
727        + ' No key in `config.schema.json` governs in-dispatch re-reading - the remedy is discipline, not'
728        + " configuration: symbol or line anchors on a plan's `files:` entries, and targeted reads"
729        + ' over whole-file ones.',
730      action: null,
731    });
732  }
733
734  // R8: the worker wall clock, the receipt denominated in the figure the HOST
735  // reported for the worker itself. The counterpart to R6 from the other end:
736  // that one names the time no worker was billed for, this one names the time
737  // the workers themselves reported. Receipt only, `action` null, for R6's
738  // reason - no `config.schema.json` key governs how long a worker runs.
739  //
740  // The two clocks are named APART in the evidence, the way `lib/trace.mjs`'s
741  // `TraceRender` typedef names them under TWO ELAPSED FIGURES: a bracket's
742  // `ms` is dispatch-to-close and includes whatever the orchestrator did
743  // between the two writes, while `duration_ms` is what the host reported for
744  // the worker. A reader handed one figure and no name for it would price a
745  // worker with the step's clock.
746  //
747  // The dispatches whose close carried no wall clock are COUNTED beside the sum
748  // rather than folded in as zeros (D-04) - a zero would claim a worker that
749  // took no time, which is not a measurement anyone made.
750  //
751  // SILENT - nothing at all, never an entry saying nothing - when no bracket in
752  // scope carries a `duration_ms`. That is R6's posture for a render with no
753  // coordinator block, and it is the only reading that fits the record: with 6
754  // of 386 live brackets carrying one (measured 2026-08-26), a scope where none
755  // does has no figure to denominate a receipt IN, rather than a run that took
756  // no worker time. R6's `coordinator.residue_ms` is NOT re-based on this
757  // figure for the same measurement (D-02): 380 of those brackets would
758  // contribute zero worker time and fire R6 on every run.
759  const brackets = Array.isArray(render.brackets) ? render.brackets : [];
760  let workerMs = 0;
761  let priced = 0;
762  let silent = 0;
763  for (const b of brackets) {
764    if (!b || typeof b !== 'object') continue;
765    const d = typeof b.duration_ms === 'number' && Number.isFinite(b.duration_ms)
766      ? b.duration_ms : null;
767    if (d === null) { silent++; continue; }
768    workerMs += d;
769    priced++;
770  }
771  if (priced > 0) {
772    out.push({
773      kind: 'info',
774      subject: 'workers',
775      evidence: `worker wall clock reported by the host: ${minutes(workerMs)} across`
776        + ` ${priced} dispatch(es)`
777        + (silent > 0
778          ? `, with ${silent} more whose close carried none - unrecorded, never counted as zero`
779          : '')
780        + '. This is the WORKER\'s own run time and not the dispatch-to-close `ms`'
781        + " /cad-report prints beside it, which includes the orchestrator's own time"
782        + ' between the two writes.',
783      action: null,
784    });
785  }
786
787  // R9: one human authorization, written as two receipts (AUT-03). An override
788  // re-applied to a second range is TWO events by construction - `risk-check
789  // status` requires every fired range to carry a receipt naming its own base
790  // and head, and a shared id never changes that (D-03) - so nothing on either
791  // event said the pair came from one answer, and a reader could not tell it
792  // from one range settled twice by hand. `trace append --authorization-id`
793  // carries the id the coordinator minted when the engineer answered, and this
794  // rule counts DECISIONS against WRITES off it.
795  //
796  // An UNLABELLED receipt counts as its OWN decision, and that half is the
797  // load-bearing one: every override written before the flag existed carries no
798  // id, and reading those as one shared answer would report a reuse on every
799  // trace already on disk. Unrecorded is never a match - the same disposition
800  // the token and turn totals take.
801  //
802  // SILENT where the two figures agree, which is every unlabelled trace and
803  // every run whose overrides were genuinely separate answers: `2 decisions
804  // from 2 writes` is a line added to every render that says nothing about the
805  // run it read, which is R6's disposition for a render with no coordinator
806  // block. `action` is null because no `config.schema.json` key governs this -
807  // the receipt is for a reader, not a retune.
808  for (const [trigger, row] of [...overrides.entries()].sort()) {
809    if (row.writes < MIN_OVERRIDES_FOR_AUTHORIZATION_INFO) continue;
810    const decisions = row.ids.size + row.unlabelled;
811    if (decisions >= row.writes) continue;
812    out.push({
813      kind: 'info',
814      subject: trigger,
815      evidence: `${row.writes} override receipt(s) on ${decisions} authorization(s)`
816        + ` - ${decisions} decision(s) from ${row.writes} writes, so one answer applied to a`
817        + ' second range is distinguishable from a duplicate write of one range. The shared id'
818        + ' LABELS that pair only: every fired range still carries a receipt naming its own'
819        + ' base and head.',
820      action: null,
821    });
822  }
823
824  out.sort((a, b) => (a.kind === b.kind ? (a.subject < b.subject ? -1 : a.subject > b.subject ? 1 : 0) : a.kind === 'suggest' ? -1 : 1));
825  return out;
826}
827
