clarity

1import { atom, memberOf, read, update } from 'claude-code'
2import type { EngineInterface, Register, RenderElement, RenderInput } from 'claude-code'
3
4import type { Activity, Env, FontChoice, Ledger, Prefs, RunPlace, ToolRun } from '../types'
5import {
6  ALERTS,
7  ASKS,
8  FONTS,
9  DEFAULT_PREFS,
10  EDITS,
11  FOLD_PROMPT,
12  FOLD_REPLY,
13  EMPTY_LEDGER,
14  IDLE,
15  KEEP_RESULT,
16  NARROW,
17  PALETTES,
18  PANELS,
19  WIDTHS,
20  activityText,
21  applyFont,
22  clip,
23  describeInput,
24  drawnByMod,
25  editDelta,
26  editedPath,
27  editorSettingsPath,
28  nearestLimit,
29  fillActivity,
30  fillLedger,
31  firstLine,
32  foldText,
33  groupTools,
34  lineCount,
35  palettes,
36  parseAttachments,
37  parseTodos,
38  readPrefs,
39  recordEdit,
40  resolvePalette,
41  runCommand,
42  runStatus,
43  splitBlocks,
44  statusOf,
45  summarizeTurn,
46} from './logic'
47import type { Status, TurnSnapshot } from './logic'
48import {
49  badge,
50  band,
51  card,
52  failHeader,
53  attachmentCards,
54  awayCard,
55  menu,
56  openedRow,
57  panel,
58  questionBanner,
59  replyBlocks,
60  replyBox,
61  toolLine,
62  turnRule,
63  userRow,
64} from './rows'
65import type { Chip, Look, MenuSection, ToolParts, UI } from './rows'
66
67const prefsAtom = atom({ plugin: 'clarity', key: 'prefs' } as const, DEFAULT_PREFS)
68const envAtom = atom({ plugin: 'clarity', key: 'env' } as const, { theme: 'dark' } as Env)
69const tickAtom = atom({ plugin: 'clarity', key: 'tick' } as const, 0)
70const activityAtom = atom({ plugin: 'clarity', key: 'activity' } as const, IDLE)
71const ledgerAtom = atom({ plugin: 'clarity', key: 'ledger' } as const, EMPTY_LEDGER)
72const expandedAtom = atom({ plugin: 'clarity', key: 'expanded' } as const, false)
73const runsAtom = atom({ plugin: 'clarity', key: 'runs' } as const, null as ToolRun | null)
74const placesAtom = atom({ plugin: 'clarity', key: 'places' } as const, null as RunPlace | null)
75
76// Every read and write of the session's state goes through these, which fill in fields an
77// older clarity never wrote.
78async function readLedger($: EngineInterface): Promise<Ledger> {
79  return fillLedger(await read($, ledgerAtom))
80}
81
82function editLedger($: EngineInterface, fn: (ledger: Ledger) => Ledger) {
83  return update($, ledgerAtom, raw => fn(fillLedger(raw)))
84}
85
86async function readActivity($: EngineInterface): Promise<Activity> {
87  return fillActivity(await read($, activityAtom))
88}
89
90function editActivity($: EngineInterface, fn: (activity: Activity) => Activity) {
91  return update($, activityAtom, raw => fn(fillActivity(raw)))
92}
93
94const STORE_KEY = 'prefs'
95const MENU = 'clarity-menu'
96const PANEL = 'clarity-session'
97// Below this many columns a docked pane is squeezing the transcript.
98const CRAMPED = 70
99// A turn longer than this raises the "done" alert.
100const LONG_TURN_MS = 45_000
101// A reply block at least this many lines tall gets a copy button.
102const COPY_LINES = 4
103
104let hasWarnedCramped = false
105// Ticks the band's timer while a turn runs.
106let ticker: ReturnType<EngineInterface['clock']['every']> | undefined
107// The run the next tool call joins: set by a call, ended by any text the model writes.
108let currentRun: string | null = null
109// Tool calls this session, and the session as the running turn found it.
110let toolCount = 0
111let turnStart: TurnSnapshot | null = null
112
113// What a render hook needs, or null when clarity should hand the row back.
114async function look($: EngineInterface, e: RenderInput): Promise<Look | null> {
115  if (e.surface !== 'terminal') return null
116  const prefs = await read($, prefsAtom)
117  if (!prefs.isOn) return null
118  const env = await read($, envAtom)
119  const columns = e.viewport?.columns ?? 100
120  if (columns < CRAMPED && !hasWarnedCramped) {
121    hasWarnedCramped = true
122    $.ui.toast(
123      `clarity: only ${columns} columns to draw in. Move the terminal into the editor area, or close a side pane, for easier reading.`,
124    )
125  }
126  return { prefs, colors: palettes[resolvePalette(prefs.palette, env.theme)], columns, isNarrow: columns < NARROW }
127}
128
129function elements($: EngineInterface, e: RenderInput): UI {
130  // look() has already returned null off the terminal.
131  return $.ui.resolve(e) as unknown as UI
132}
133
134// Writes the prefs, keeps them for later sessions and redraws every row clarity draws.
135async function savePrefs($: EngineInterface, prefs: Prefs) {
136  await update($, prefsAtom, () => prefs)
137  await $.store.set(STORE_KEY, prefs)
138  $.ui.invalidate('ui.render')
139}
140
141// The settings button: opens the menu, or closes it when it is already showing.
142async function toggleMenu($: EngineInterface) {
143  const isOpen = (await $.ui.panes()).some(pane => pane.id === MENU && pane.isShown)
144  if (isOpen) await $.ui.close({ id: MENU }).catch(() => undefined)
145  else await openMenu($)
146}
147
148function openMenu($: EngineInterface) {
149  return $.ui.open({ id: MENU, title: 'clarity', focus: true, closeOnEscape: true, rows: 52 })
150}
151
152// Unasked (at start) it waits for room; asked (a press, a command) it opens at any width and
153// comes to the front, so the button never seems to do nothing.
154function openPanel($: EngineInterface, isAsked = true) {
155  return isAsked ? $.ui.open({ id: PANEL, title: 'Session', focus: true }) : $.ui.open({ id: PANEL, title: 'Session' })
156}
157
158// The terminal's own clipboard first; where it refuses (Cursor's terminal often does), the
159// Mac's pasteboard.
160function copyText($: EngineInterface, e: RenderInput, text: string) {
161  void (async () => {
162    const result = await $.ui.copy({ text, surface: e.surface }).catch(() => ({ isCopied: false }))
163    if (result.isCopied) return $.ui.toast('Copied')
164    const fallback = await $.process.run(['pbcopy'], { stdin: text }).catch(() => null)
165    $.ui.toast(fallback !== null && fallback.exitCode === 0 ? 'Copied' : 'Could not copy here')
166  })()
167}
168
169// Sets the font of the editor this terminal runs in (Cursor, VS Code) to the person's choice.
170// Asked (a pick in the menu), it says what it did; at session start it only keeps the editor
171// in step, quietly unless something needs saying.
172async function syncFont($: EngineInterface, choice: FontChoice, isAsked: boolean) {
173  const home = await $.env.get('HOME')
174  const path = editorSettingsPath({
175    home,
176    termProgram: await $.env.get('TERM_PROGRAM'),
177    askpass: await $.env.get('VSCODE_GIT_ASKPASS_MAIN'),
178    platform: home?.startsWith('/Users/') ? 'mac' : home?.startsWith('/home/') ? 'linux' : 'other',
179  })
180  if (path === null) {
181    if (isAsked) $.ui.toast('clarity: this terminal is not Cursor or VS Code, so set its font in its own settings.')
182    return
183  }
184  const before = await $.fs.read(path).catch(() => '')
185  const edit = applyFont(typeof before === 'string' ? before : '', choice)
186  if ('error' in edit) {
187    if (isAsked) $.ui.toast(`clarity: left the font alone: ${edit.error}.`)
188    return
189  }
190  if (!edit.isChanged) {
191    if (isAsked) $.ui.toast(choice === 'leave' ? 'clarity: the font is yours again.' : 'clarity: the font is already set.')
192    return
193  }
194  await $.fs.write(path, edit.text)
195  if (choice === 'leave') {
196    if (isAsked) $.ui.toast('clarity: took its font settings out; your editor\'s own font is back.')
197    return
198  }
199  const fonts = home === undefined ? '' : (await $.process.run(['ls', `${home}/Library/Fonts`]).catch(() => null))?.stdout ?? ''
200  const hasFont = /JetBrainsMono/i.test(fonts)
201  $.ui.toast(
202    hasFont
203      ? 'clarity: terminal font set. Quit and reopen the editor if any letters look out of line.'
204      : 'clarity: font set, using Menlo until JetBrains Mono is installed: brew install --cask font-jetbrains-mono',
205  )
206}
207
208async function alert($: EngineInterface, text: string) {
209  const { alerts } = await read($, prefsAtom)
210  if (alerts === 'notify' || alerts === 'both') {
211    await $.ui.notify(text, { title: 'Claude Code' }).catch(() => undefined)
212  }
213  if (alerts === 'sound' || alerts === 'both') {
214    await $.audio.play({ asset: 'assets/chime.wav' }).catch(() => undefined)
215  }
216}
217
218async function refreshContext($: EngineInterface) {
219  try {
220    const usage = await $.session.usage()
221    const percent = usage.context.percent ?? (usage.context.tokens !== undefined ? (usage.context.tokens / usage.context.window) * 100 : null)
222    await editLedger($, ledger => ({ ...ledger, context: percent, cost: usage.cost?.usd ?? ledger.cost, limit: nearestLimit(usage.rateLimits) }))
223  } catch {
224    // No usage to read here (a test, a headless run): the band leaves context out.
225  }
226}
227
228type RunView = { run: ToolRun; place: RunPlace; isOpen: boolean; toggle: () => void }
229
230// The run a row belongs to, when it is one of several calls made back to back.
231async function runOf($: EngineInterface, id: string | undefined): Promise<RunView | null> {
232  if (id === undefined) return null
233  const place = await read($, memberOf(placesAtom, { requestId: id }))
234  if (place === null) return null
235  const run = await read($, memberOf(runsAtom, { requestId: place.run }))
236  if (run === null || run.ids.length < 2) return null
237  const open = memberOf(expandedAtom, { requestId: place.run })
238  return { run, place, isOpen: await read($, open), toggle: () => void update($, open, v => !v) }
239}
240
241// ` 5 tools  [Bash ×2] [Edit] [Read ×2]  ✓ `: a run as one strip.
242function runLine(ui: UI, look: Look, view: RunView): RenderElement {
243  return toolLine(
244    ui,
245    look,
246    {
247      tools: groupTools(view.run.tools.map(tool => ({ tool }))),
248      detail: `${view.run.ids.length} tools`,
249      status: runStatus(view.run),
250      isOpen: view.isOpen,
251    },
252    view.toggle,
253  )
254}
255
256// A row in a run: the first draws the run's strip, the rest stay folded into it until it is
257// opened; a failure always shows.
258function inRun(ui: UI, look: Look, view: RunView, own: RenderElement, failure: RenderElement | null): RenderElement {
259  const { Box } = ui
260  if (!view.isOpen) {
261    if (view.place.index > 0) return failure ?? <Box />
262    return failure === null ? (
263      runLine(ui, look, view)
264    ) : (
265      <Box flexDirection="column">
266        {runLine(ui, look, view)}
267        {failure}
268      </Box>
269    )
270  }
271  return view.place.index === 0 ? (
272    <Box flexDirection="column">
273      {runLine(ui, look, view)}
274      {indent(ui, look, own)}
275    </Box>
276  ) : (
277    indent(ui, look, own)
278  )
279}
280
281function indent(ui: UI, look: Look, body: RenderElement): RenderElement {
282  return <ui.Box paddingLeft={look.isNarrow ? 0 : 2}>{body}</ui.Box>
283}
284
285export const register: Register = on => {
286  hasWarnedCramped = false
287
288  on('session.start', async ($, e, next) => {
289    await $.command.register({
290      name: 'clarity',
291      description: 'Readable transcript: opens the clarity menu (or: panel, on, off, focus, tools, status)',
292      argumentHint: '[panel | on | off | focus | tools summary | tools full | status]',
293    })
294    const prefs = readPrefs(await $.store.get(STORE_KEY))
295    // An older clarity pinned a status line; nothing here sets one now.
296    $.ui.status(undefined)
297    let theme = 'dark'
298    try {
299      const value = (await $.config.list()).find(row => row.key === 'theme')?.value
300      if (typeof value === 'string') theme = value
301    } catch {
302      // No /config here: the dark default stands.
303    }
304    await update($, prefsAtom, () => prefs)
305    await update($, envAtom, () => ({ theme }))
306    await refreshContext($)
307    // Opened unasked, the pane waits until the terminal is wide enough to dock it.
308    if (prefs.isOn && prefs.panel === 'auto') void openPanel($, false)
309    if (prefs.font !== 'leave') void syncFont($, prefs.font, false).catch(() => undefined)
310    return next(e)
311  })
312
313  on('command.run', { command: 'clarity' }, async ($, e) => {
314    const result = runCommand(e.args, await read($, prefsAtom))
315    if (result.open === 'menu') {
316      await openMenu($)
317      return {}
318    }
319    if (result.open === 'panel') {
320      await openPanel($)
321      return {}
322    }
323    await savePrefs($, result.prefs)
324    return { text: result.text }
325  })
326
327  // --- What the session is doing, for the band, the panel, the spinner and the alerts ---
328
329  on('prompt.submit', async ($, e, next) => {
330    if (e.origin.kind === 'composer' && e.command === undefined && e.isMeta !== true && e.text.trim() !== '') {
331      const text = firstLine(e.text, 200)
332      const whole = e.text.slice(0, 4000)
333      await editLedger($, ledger => ({
334        ...ledger,
335        turns: [...ledger.turns, text].slice(-200),
336        prompts: [...ledger.prompts, whole].slice(-200),
337      }))
338    }
339    return next(e)
340  })
341
342  on('turn.start', async ($, e, next) => {
343    if (e.agentId === undefined) {
344      const now = await $.clock.now()
345      await editActivity($, (): Activity => ({ phase: 'thinking', tool: '', detail: '', since: now, tokens: 0 }))
346      await update($, tickAtom, () => now)
347      const ledger = await readLedger($)
348      turnStart = { tools: toolCount, errors: ledger.errors.length, files: ledger.files }
349      currentRun = null
350      ticker?.cancel()
351      ticker = $.clock.every(1000, () => void $.clock.now().then(t => update($, tickAtom, () => t)))
352    }
353    return next(e)
354  })
355
356  // The model's output as it streams: whether it is thinking or writing, and how many tokens
357  // so far (four characters a token while it streams, the exact count when each step ends).
358  on('turn.step', async function* ($, e, next) {
359    const stream = next(e)
360    const isMain = e.agentId === undefined
361    const base = isMain ? await readActivity($).then(a => a.tokens, () => 0) : 0
362    let chars = 0
363    let shown = 0
364    let phase: Activity['phase'] = 'thinking'
365    for (;;) {
366      const step = await stream.next()
367      if (step.done === true) return step.value
368      const chunk = step.value
369      // Counting never stands in the stream's way: a failure here leaves the chunk to pass.
370      try {
371        if (isMain && chunk.kind === 'text') currentRun = null
372        if (isMain && (chunk.kind === 'text' || chunk.kind === 'thinking')) {
373          chars += chunk.text.length
374          const now: Activity['phase'] = chunk.kind === 'text' ? 'writing' : 'thinking'
375          const estimate = Math.round(chars / 4)
376          if (estimate - shown >= 40 || now !== phase) {
377            shown = estimate
378            phase = now
379            await editActivity($, (a): Activity => ({ ...a, phase: a.phase === 'tool' || a.phase === 'waiting' ? a.phase : now, tokens: base + estimate }))
380          }
381        } else if (isMain && chunk.kind === 'stop' && chunk.usage !== null) {
382          const exact = base + chunk.usage.output_tokens
383          await editActivity($, (a): Activity => ({ ...a, tokens: exact }))
384        }
385      } catch {
386        // The band's count is a nicety; the model's output is not.
387      }
388      yield chunk
389    }
390  })
391
392  on('tool.call', async ($, e, next) => {
393    const isMain = e.agentId === undefined
394    const tool = String(e.tool)
395    const id = e.tool_use_id
396    let runId: string | null = null
397    if (isMain) {
398      const isAsk = ASKS.has(tool)
399      await editActivity($, (a): Activity => ({ ...a, phase: isAsk ? 'waiting' : 'tool', tool, detail: describeInput(tool, e) }))
400      if (isAsk) void alert($, 'Claude needs your answer')
401      if (id !== undefined) {
402        // Calls with no text between them join one run, keyed by its first call.
403        runId = currentRun ?? id
404        currentRun = runId
405        const run = (await read($, memberOf(runsAtom, { requestId: runId }))) ?? { ids: [], tools: [], running: 0, failed: 0 }
406        const joined: ToolRun = { ...run, ids: [...run.ids, id], tools: [...run.tools, tool], running: run.running + 1 }
407        await update($, memberOf(runsAtom, { requestId: runId }), () => joined)
408        await update($, memberOf(placesAtom, { requestId: id }), () => ({ run: runId ?? id, index: joined.ids.length - 1 }))
409      }
410      const todos = tool === 'TodoWrite' ? parseTodos(e) : null
411      await editLedger($, ledger => ({
412        ...ledger,
413        ...(todos === null ? {} : { todos }),
414        agents: ledger.agents + (tool === 'Agent' ? 1 : 0),
415      }))
416    }
417    const ran = await next(e)
418    toolCount += 1
419    const isError = ran.deny === undefined && ran.isError === true
420    if (ran.deny === undefined) {
421      const path = editedPath(e)
422      if (isError) {
423        const failure = { tool, detail: describeInput(tool, e), text: firstLine(ran.text) }
424        await editLedger($, ledger => ({ ...ledger, errors: [...ledger.errors, failure].slice(-50) }))
425      } else if (EDITS.has(tool) && path !== undefined) {
426        await editLedger($, ledger => recordEdit(ledger, path, editDelta(tool, e)))
427      }
428    }
429    if (isMain) {
430      if (runId !== null) {
431        const finished = runId
432        await update($, memberOf(runsAtom, { requestId: finished }), run =>
433          run === null ? null : { ...run, running: Math.max(0, run.running - 1), failed: run.failed + (isError ? 1 : 0) },
434        )
435      }
436      const at = await $.clock.now()
437      const action = { at, tool, detail: describeInput(tool, e), isOk: !isError && ran.deny === undefined }
438      await editLedger($, ledger => ({
439        ...ledger,
440        recent: [...ledger.recent, action].slice(-8),
441        agents: Math.max(0, ledger.agents - (tool === 'Agent' ? 1 : 0)),
442      }))
443      await editActivity($, (a): Activity => ({ ...a, phase: 'thinking', tool: '', detail: '' }))
444    }
445    return ran
446  })
447
448  // Compaction: the band says it is happening and for how long, and a toast says what it freed.
449  // A compaction worked out ahead of time, in the background, is left alone.
450  on('session.compact', async ($, e, next) => {
451    if (e.trigger === 'precompute') return next(e)
452    const now = await $.clock.now()
453    const before = (await readLedger($)).context
454    await editActivity($, (): Activity => ({ phase: 'compacting', tool: '', detail: '', since: now, tokens: 0 }))
455    await update($, tickAtom, () => now)
456    ticker?.cancel()
457    ticker = $.clock.every(1000, () => void $.clock.now().then(t => update($, tickAtom, () => t)))
458    try {
459      return await next(e)
460    } finally {
461      ticker?.cancel()
462      ticker = undefined
463      await editActivity($, () => IDLE)
464      await refreshContext($)
465      const after = (await readLedger($)).context
466      const took = Math.round(((await $.clock.now()) - now) / 1000)
467      const freed = before !== null && after !== null ? ` · context ${Math.round(before)}% → ${Math.round(after)}%` : ''
468      $.ui.toast(`clarity: compacted in ${took}s${freed}`)
469    }
470  }).catch(($, e, next) => next(e))
471
472  on('turn.complete', async ($, e, next) => {
473    const result = await next(e)
474    if (e.agentId === undefined) {
475      const reply = 'answer' in e ? e.answer : ''
476      ticker?.cancel()
477      ticker = undefined
478      await editActivity($, () => IDLE)
479      const durationMs = 'durationMs' in e ? e.durationMs : 0
480      const before = turnStart
481      turnStart = null
482      await editLedger($, (ledger): Ledger => {
483        const summary = before !== null && durationMs > LONG_TURN_MS ? summarizeTurn(before, { tools: toolCount, errors: ledger.errors.length, files: ledger.files }) : null
484        const kept = Object.entries(ledger.summaries).slice(-49)
485        return {
486          ...ledger,
487          lastReply: reply,
488          summaries: summary === null ? ledger.summaries : Object.fromEntries([...kept, [String(durationMs), summary]]),
489        }
490      })
491      await refreshContext($)
492      if ('durationMs' in e && e.durationMs > LONG_TURN_MS) void alert($, `Done: ${firstLine(reply, 100) || 'the turn finished'}`)
493    }
494    return result
495  })
496
497  // --- Panes: the menu and the session panel ---
498
499  on('ui.render', { component: 'Pane', requestId: MENU }, async ($, e) => {
500    const ui = $.ui.resolve(e)
501    if (e.surface !== 'terminal') return <ui.Text>Open the clarity menu in the terminal.</ui.Text>
502    const prefs = await read($, prefsAtom)
503    const env = await read($, envAtom)
504    const l: Look = {
505      prefs,
506      colors: palettes[resolvePalette(prefs.palette, env.theme)],
507      columns: e.props.bodyColumns,
508      isNarrow: e.props.bodyColumns < NARROW,
509    }
510    const save = (change: Partial<Prefs>) => void savePrefs($, { ...prefs, ...change })
511    const onOff = [
512      { value: 'on', label: 'on' },
513      { value: 'off', label: 'off' },
514    ]
515    const flag = (v: boolean) => (v ? 'on' : 'off')
516    const choices = (values: readonly (string | number)[], label = (v: string | number) => String(v)) =>
517      values.map(v => ({ value: String(v), label: label(v) }))
518    const sections: MenuSection[] = [
519      {
520        title: 'General',
521        tone: l.colors.claude,
522        settings: [
523          { key: 'on', hotkey: '1', label: 'clarity', hint: 'Turn it off for regular Claude Code.', options: onOff, current: flag(prefs.isOn), pick: v => save({ isOn: v === 'on' }) },
524          { key: 'focus', hotkey: '2', label: 'focus', hint: 'Hides startup notices and tool output that worked.', options: onOff, current: flag(prefs.isFocus), pick: v => save({ isOn: true, isFocus: v === 'on' }) },
525        ],
526      },
527      {
528        title: 'Look',
529        tone: l.colors.you,
530        settings: [
531          { key: 'palette', hotkey: '3', label: 'colours', hint: 'Auto matches your Claude Code theme.', options: choices(PALETTES), current: prefs.palette, pick: v => save({ palette: v as Prefs['palette'] }) },
532          { key: 'width', hotkey: '4', label: 'line width', hint: 'How wide replies get before they wrap.', options: choices([...WIDTHS].sort((a, b) => (a || 999) - (b || 999)), v => (v === 0 ? 'full' : String(v))), current: String(prefs.measure), pick: v => save({ measure: Number(v) }) },
533          {
534            key: 'font',
535            hotkey: 'f',
536            label: 'terminal font',
537            hint: 'Sets the editor terminal to JetBrains Mono, readable or large.',
538            options: FONTS.map(f => ({ value: f, label: f })),
539            current: prefs.font,
540            pick: v => {
541              const font = v as FontChoice
542              save({ font })
543              void syncFont($, font, true).catch(() => $.ui.toast('clarity: could not change the font here.'))
544            },
545          },
546          {
547            key: 'tools',
548            hotkey: '5',
549            label: 'tool rows',
550            hint: 'Click any tool row to see its full output.',
551            options: [
552              { value: 'summary', label: 'one line' },
553              { value: 'full', label: 'full' },
554            ],
555            current: prefs.tools,
556            pick: v => save({ tools: v === 'full' ? 'full' : 'summary' }),
557          },
558        ],
559      },
560      {
561        title: 'Layout',
562        tone: l.colors.kinds.write,
563        settings: [
564          { key: 'band', hotkey: '6', label: 'status band', hint: 'The bar just above where you type.', options: onOff, current: flag(prefs.band), pick: v => save({ band: v === 'on' }) },
565          {
566            key: 'panel',
567            hotkey: '7',
568            label: 'session panel',
569            hint: "Opens beside the chat when there's room.",
570            options: [...choices(PANELS), { value: 'open', label: '▤ open now' }],
571            current: prefs.panel,
572            pick: v => {
573              if (v === 'open') {
574                void openPanel($)
575                return
576              }
577              save({ panel: v === 'off' ? 'off' : 'auto' })
578              if (v === 'auto') void openPanel($)
579              else void $.ui.close({ id: PANEL }).catch(() => undefined)
580            },
581          },
582        ],
583      },
584      {
585        title: 'Behaviour',
586        tone: l.colors.warn,
587        settings: [
588          { key: 'alerts', hotkey: '8', label: 'alerts', hint: 'A ping when Claude needs you or finishes a long task.', options: choices(ALERTS), current: prefs.alerts, pick: v => save({ alerts: v as Prefs['alerts'] }) },
589          { key: 'copy', hotkey: '9', label: 'copy buttons', hint: 'Copy buttons under code and long replies.', options: onOff, current: flag(prefs.copy), pick: v => save({ copy: v === 'on' }) },
590        ],
591      },
592    ]
593    return menu(elements($, e), l, sections, [
594      'Esc to close · /clarity panel to open the session panel',
595      'Tip: clarity works best on its own. Turn off other mods that restyle the transcript (like skins) in /plugin.',
596    ])
597  })
598
599  on('ui.render', { component: 'Pane', requestId: PANEL }, async ($, e) => {
600    const ui = $.ui.resolve(e)
601    if (e.surface !== 'terminal') return <ui.Text>The session panel draws in the terminal.</ui.Text>
602    const prefs = await read($, prefsAtom)
603    const env = await read($, envAtom)
604    const l: Look = { prefs, colors: palettes[resolvePalette(prefs.palette, env.theme)], columns: e.props.bodyColumns, isNarrow: false }
605    const ledger = await readLedger($)
606    return panel(elements($, e), l, await readActivity($), ledger, e.props.bodyColumns, {
607      copyTurn: i => copyText($, e, ledger.prompts[i] ?? ledger.turns[i] ?? ''),
608    })
609  })
610
611  // --- The band above the prompt ---

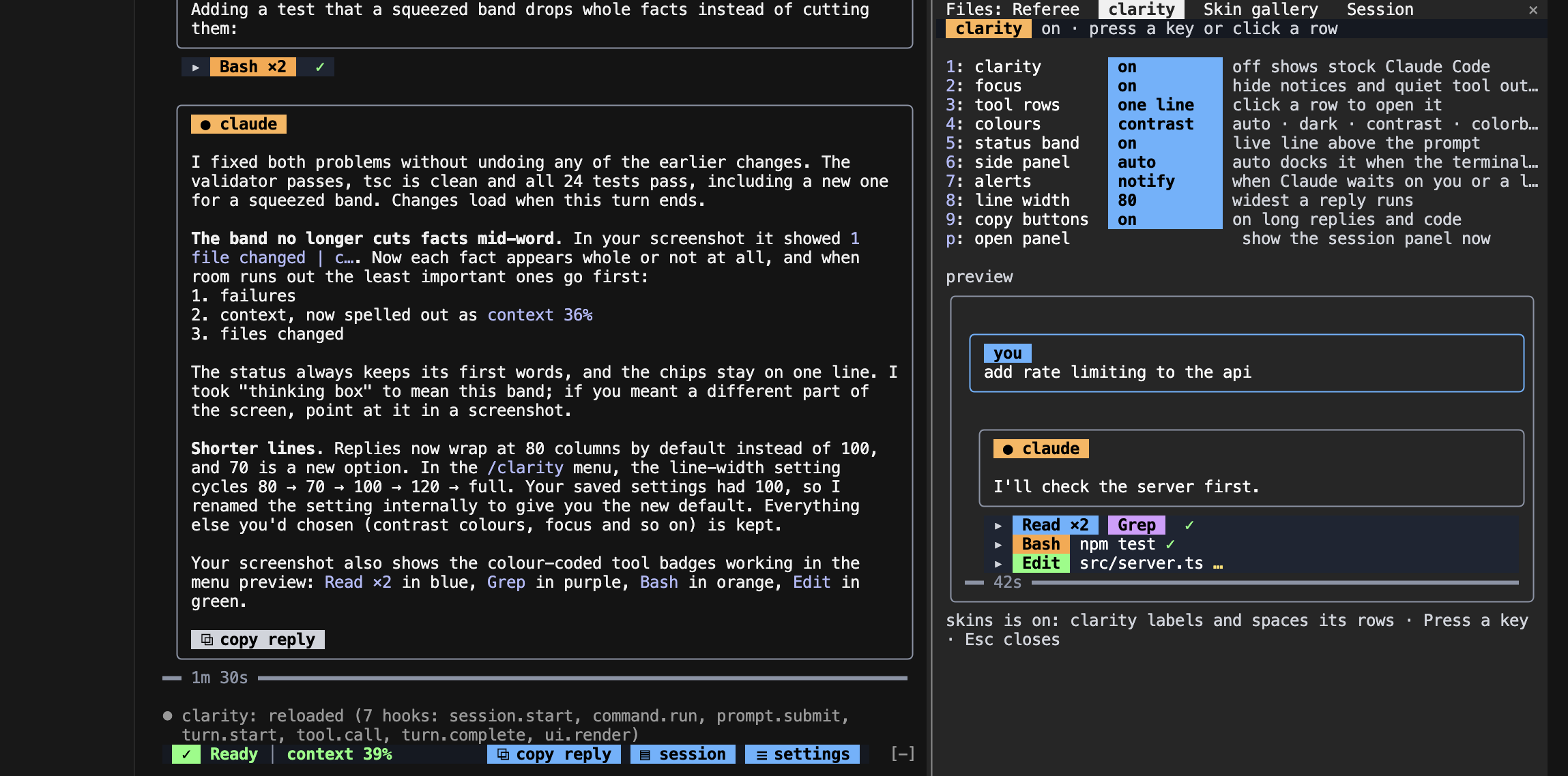

612
613  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
614    if (e.surface !== 'terminal' || e.props.hasSurvey) return next(e)
615    const prefs = await read($, prefsAtom)
616    if (!prefs.isOn || !prefs.band) return next(e)
617    const below = await next(e)
618    const env = await read($, envAtom)
619    const l: Look = { prefs, colors: palettes[resolvePalette(prefs.palette, env.theme)], columns: e.props.bodyColumns, isNarrow: false }
620    const ui = elements($, e)
621    const ledger = await readLedger($)
622    const activity = await readActivity($)
623    const elapsed = activity.phase === 'idle' || activity.since === 0 ? 0 : Math.max(0, (await read($, tickAtom)) - activity.since)
624    const ours = band(ui, l, activity, ledger, e.props.bodyColumns, { elapsedMs: elapsed, tokens: activity.tokens }, {
625      panel: () => void openPanel($),
626      menu: () => void toggleMenu($),
627      copy: prefs.copy && ledger.lastReply !== '' ? () => copyText($, e, ledger.lastReply) : undefined,
628    })
629    // Another mod's band keeps its place under ours.
630    return drawnByMod(next.trace) !== null && below !== undefined && below !== null ? (
631      <ui.Box flexDirection="column">
632        {ours}
633        {below}
634      </ui.Box>
635    ) : (
636      ours
637    )
638  })
639
640  // --- The transcript ---
641
642  // The person's prompt: a labelled, tinted block. Over another mod's row, the label alone.
643  on('ui.render', { component: 'UserMessage' }, async ($, e, next) => {
644    const l = await look($, e)
645    if (l === null || e.props.origin.kind !== 'composer') return next(e)
646    const below = await next(e)
647    const ui = elements($, e)
648    if (drawnByMod(next.trace) !== null) {
649      return (
650        <ui.Box flexDirection="column" marginTop={1}>
651          {badge(ui, l.colors, ' you ', l.colors.you)}
652          {below}
653          {attachmentCards(ui, l, parseAttachments(e.props.text))}
654        </ui.Box>
655      )
656    }
657    // A long prompt (a paste, say) folds to its first lines until opened.
658    const fold = foldText(e.props.text, FOLD_PROMPT)
659    const open = memberOf(expandedAtom, e)
660    const isOpen = fold !== null && (await read($, open))
661    const more: Chip | undefined =
662      fold === null
663        ? undefined
664        : { key: 'fold', label: isOpen ? '▴ show less' : `▾ show ${fold.hidden} more lines`, onPress: () => void update($, open, v => !v) }
665    return userRow(ui, l, fold === null || isOpen ? e.props.text : fold.head, parseAttachments(e.props.text), more)
666  })
667

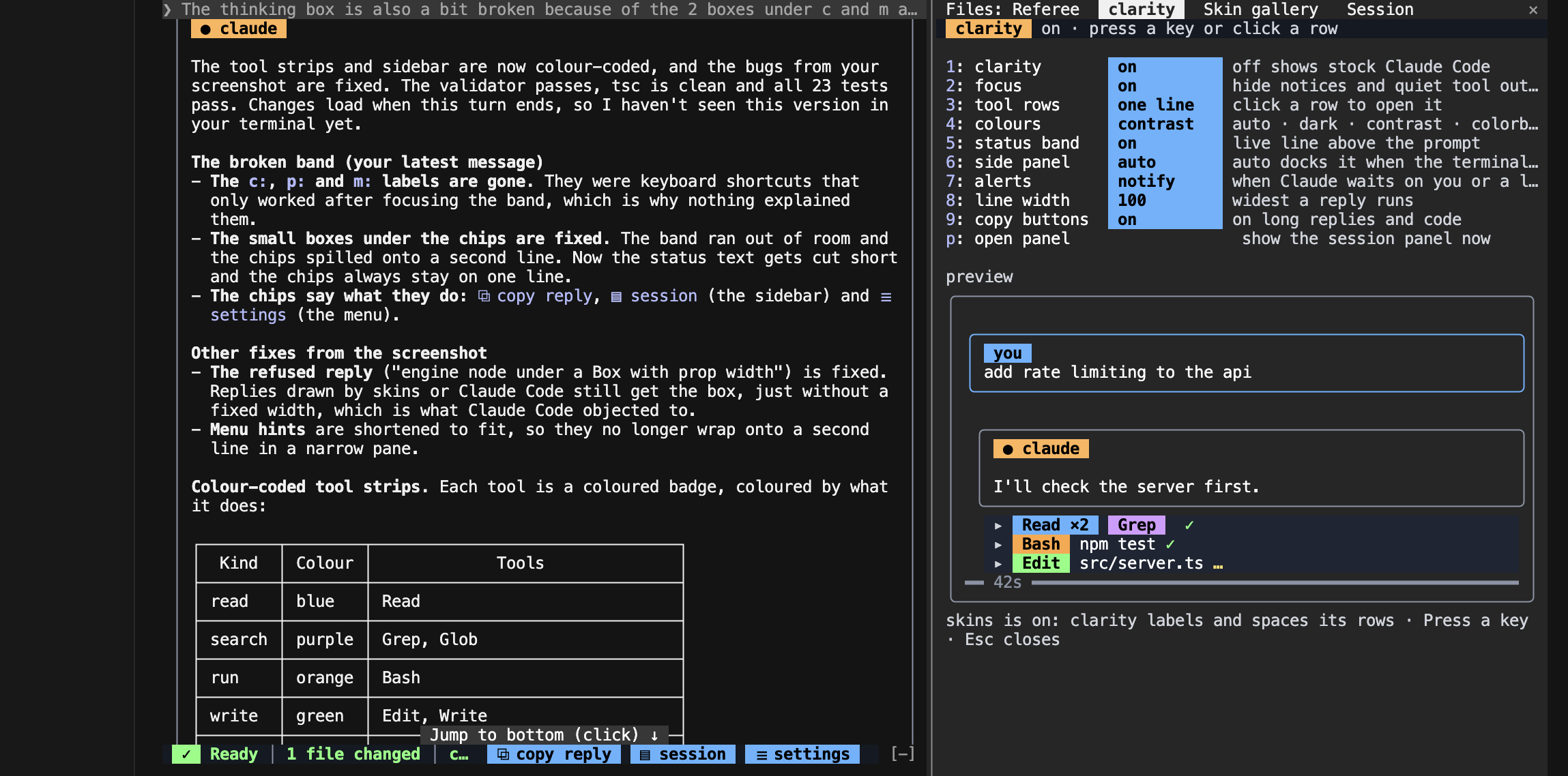

668  // A reply: each block in a soft frame, paragraphs spaced, code in its own copyable box.
669  on('ui.render', { component: 'AssistantMessage' }, async ($, e, next) => {
670    const l = await look($, e)
671    if (l === null || e.props.isSummary === true) return next(e)
672    const below = await next(e)
673    const ui = elements($, e)
674    const byMod = drawnByMod(next.trace) !== null
675    const text = e.props.text
676    const onCopy = l.prefs.copy ? (code: string) => copyText($, e, code) : undefined
677    // A long reply folds to its first lines until opened (clarity's own drawing only).
678    const fold = byMod ? null : foldText(text, FOLD_REPLY)
679    const open = memberOf(expandedAtom, e)
680    const isOpen = fold !== null && (await read($, open))
681    const chips: Chip[] = [
682      ...(fold === null
683        ? []
684        : [{ key: 'fold', label: isOpen ? '▴ show less' : `▾ show ${fold.hidden} more lines`, onPress: () => void update($, open, v => !v) }]),
685      ...(l.prefs.copy && text.split('\n').length >= COPY_LINES
686        ? [{ key: 'copy-reply', label: '⧉ copy reply', onPress: () => copyText($, e, text) }]
687        : []),
688    ]
689    // Another mod sizes its own tables and cards to the width: leave it the whole of it.
690    const boxLook = byMod ? { ...l, prefs: { ...l.prefs, measure: 0 } } : l
691    const shown = fold === null || isOpen ? text : fold.head
692    const body = byMod ? below : replyBlocks(ui, l, splitBlocks(shown), onCopy)
693    return replyBox(ui, boxLook, e.props.isFirstOfReply, body, chips, !byMod)
694  })
695
696  // One tool call: one clickable line (an edit's line counts on it); a failure gets a red box.
697  // Calls made back to back fold into one strip for the run until it is opened.
698  on('ui.render', { component: 'ToolUse' }, async ($, e, next) => {
699    const l = await look($, e)
700    if (l === null) return next(e)
701    const p = e.props
702    const below = await next(e)
703    const ui = elements($, e)
704    if (drawnByMod(next.trace) !== null) return indent(ui, l, below)
705    const detail = describeInput(p.tool, p.input)
706    const failure = p.isErrored && !p.isInterrupted ? failHeader(ui, l, p.tool, detail, below) : null
707    if (l.prefs.tools === 'full') return failure ?? below
708    const open = memberOf(expandedAtom, e)
709    const isOpen = await read($, open)
710    const status: Status = p.isRunning ? 'running' : p.isInterrupted ? 'interrupted' : 'ok'
711    const delta = EDITS.has(p.tool) ? editDelta(p.tool, p.input) : undefined
712    const parts: ToolParts = { tools: [{ tool: p.tool, label: p.tool }], detail, status, ...(delta === undefined ? {} : { delta }) }
713    const toggle = () => void update($, open, v => !v)
714    const own = failure ?? (isOpen ? openedRow(ui, l, parts, toggle, below) : toolLine(ui, l, parts, toggle))
715    const view = await runOf($, p.tool_use_id)
716    return view === null ? own : inRun(ui, l, view, own, failure)
717  })
718
719  // A tool's output: shown when opened, for edits and errors; a line count for shell output.
720  on('ui.render', { component: 'ToolResult' }, async ($, e, next) => {
721    const l = await look($, e)
722    if (l === null) return next(e)
723    const p = e.props
724    const below = await next(e)
725    const ui = elements($, e)
726    if (drawnByMod(next.trace) !== null) return indent(ui, l, below)
727    if (l.prefs.tools === 'full' || p.isErrored) return below
728    const view = await runOf($, p.tool_use_id)
729    if (view !== null && !view.isOpen) return <ui.Box />
730    if (KEEP_RESULT.has(p.tool)) return below
731    if (await read($, memberOf(expandedAtom, e))) return indent(ui, l, below)
732    if (p.tool !== 'Bash' || l.prefs.isFocus) return <ui.Box />
733    const lines = lineCount(p.output)
734    return (
735      <ui.Box paddingLeft={l.isNarrow ? 2 : 4}>
736        <ui.Text color={l.colors.muted}>{lines === 0 ? '⎿ no output' : `⎿ ${lines} line${lines === 1 ? '' : 's'} of output · click the row to see it`}</ui.Text>
737      </ui.Box>
738    )
739  })
740
741  // A folded run of reads and searches: one clickable line of tool names.
742  on('ui.render', { component: 'ToolGroup' }, async ($, e, next) => {
743    const l = await look($, e)
744    if (l === null || e.props.isExpanded) return next(e)
745    const ui = elements($, e)
746    if (l.prefs.tools === 'full') {
747      const below = await next(e)
748      return drawnByMod(next.trace) !== null ? indent(ui, l, below) : below
749    }
750    const calls = e.props.calls
751    const status = statusOf(calls)
752    const open = memberOf(expandedAtom, e)
753    const isOpen = await read($, open)
754    const first = calls[0]
755    const parts: ToolParts = {
756      tools: groupTools(calls),
757      detail: calls.length === 1 && first !== undefined ? describeInput(first.tool, first.input) : '',
758      status,
759    }
760    const toggle = () => void update($, open, v => !v)
761    const view = await runOf($, first?.tool_use_id)
762    if (isOpen || status === 'error') {
763      const below = await next({ ...e, props: { ...e.props, isExpanded: true } })
764      if (drawnByMod(next.trace) !== null) return indent(ui, l, below)
765      const own = openedRow(ui, l, parts, toggle, below)
766      return view === null ? own : inRun(ui, l, view, own, status === 'error' ? own : null)
767    }
768    const below = await next(e)
769    if (drawnByMod(next.trace) !== null) return indent(ui, l, below)
770    const own = toolLine(ui, l, parts, toggle)
771    return view === null ? own : inRun(ui, l, view, own, null)
772  })
773
774  // The end of a turn: a rule, so turns read as blocks. Under another mod's footer, the rule alone.
775  on('ui.render', { component: 'TurnDuration' }, async ($, e, next) => {
776    const l = await look($, e)
777    if (l === null) return next(e)
778    const below = await next(e)
779    const ui = elements($, e)
780    // A long turn closes with what it did, for whoever looked away while it ran.
781    const summary = (await readLedger($)).summaries[String(e.props.durationMs)]
782    const away = summary === undefined || summary.tools === 0 ? null : awayCard(ui, l, e.props.durationMs, summary)
783    if (drawnByMod(next.trace) !== null) {
784      return (
785        <ui.Box flexDirection="column" marginBottom={1}>
786          {away}
787          {below}
788          <ui.Text color={l.colors.rule}>{'─'.repeat(Math.max(10, l.columns - 2))}</ui.Text>
789        </ui.Box>
790      )
791    }
792    return away === null ? (
793      turnRule(ui, l, e.props.durationMs)
794    ) : (
795      <ui.Box flexDirection="column">
796        {away}
797        {turnRule(ui, l, e.props.durationMs)}
798      </ui.Box>
799    )
800  })
801
802  // A slash command's output in a titled card.
803  on('ui.render', { component: 'CommandOutput' }, async ($, e, next) => {
804    const l = await look($, e)
805    if (l === null || e.props.text.trim() === '') return next(e)
806    const below = await next(e)
807    if (drawnByMod(next.trace) !== null) return below
808    const ui = elements($, e)
809    const title = `/${e.props.command}${e.props.args === '' ? '' : ` ${clip(e.props.args, 40)}`}`
810    return card(ui, l, title, <ui.Markdown text={e.props.text} />, e.props.isErrored)
811  })
812
813  // A question for the person: a banner so it is never missed.
814  on('ui.render', { component: 'AskUserQuestion' }, async ($, e, next) => {
815    const l = await look($, e)
816    if (l === null) return next(e)
817    return questionBanner(elements($, e), l, await next(e))
818  })
819
820  // While the band is on it is the one status line, with its own timer: the stock spinner
821  // steps aside. With the band off, the spinner says what is happening.
822  on('ui.render', { component: 'Spinner' }, async ($, e, next) => {
823    const l = await look($, e)
824    if (l === null) return next(e)
825    // Claude Code's own messages (compacting, retrying) always show; only the word steps aside.
826    if (e.props.message !== null) return next(e)
827    if (l.prefs.band) return elements($, e).Box({})
828    const activity = await readActivity($)
829    if (activity.phase !== 'tool' && activity.phase !== 'waiting') return next(e)
830    return next({ ...e, props: { ...e.props, message: clip(activityText(activity), Math.max(20, l.columns - 40)) } })
831  })
832
833  // Startup notices: one short dim line, or none in focus mode.
834  on('ui.render', { component: 'InfoNotice' }, async ($, e, next) => {
835    const l = await look($, e)
836    if (l === null) return next(e)
837    const ui = elements($, e)
838    if (l.prefs.isFocus) return <ui.Box />
839    const command = e.props.command === null ? '' : `  ${e.props.command}`
840    return (
841      <ui.Text color={l.colors.muted} wrap="truncate">
842        · {e.props.text}
843        {command}
844      </ui.Text>
845    )
846  })
847}
848

1// Pure helpers: no `$`, so tests import them directly.
2import type { Activity, Alerts, FileChange, FontChoice, IconChoice, Ledger, PaletteChoice, PaletteName, PanelChoice, Prefs, Todo, ToolRun, TurnSummary } from '../types'
3
4// What a tool does, for its colour: reading, searching, running, writing, the web, delegating.
5export type Kind = 'read' | 'search' | 'run' | 'write' | 'web' | 'agent' | 'other'
6
7export type Palette = {
8  kinds: Record<Kind, string>
9  text: string
10  muted: string
11  you: string
12  youBg: string | undefined
13  claude: string
14  tool: string
15  ok: string
16  error: string
17  warn: string
18  rule: string
19  accentBg: string | undefined
20  /** Dark text on a coloured chip; undefined draws chips inverse instead. */
21  chipText: string | undefined
22  /** The toolbar's background. */
23  barBg: string | undefined
24}
25
26// Hex chosen for at least 7:1 (text) and 4.5:1 (accents) against a near-black background.
27const DARK: Palette = {
28  kinds: { read: '#82AAFF', search: '#C3A6FF', run: '#FFB86C', write: '#A6E3A1', web: '#7DCFFF', agent: '#FF9AC1', other: '#A3ACBD' },
29  text: '#E6E9EF',
30  muted: '#A3ACBD',
31  you: '#82AAFF',
32  youBg: '#1B2233',
33  claude: '#F0A875',
34  tool: '#7FD6C2',
35  ok: '#A6E3A1',
36  error: '#FF8A9B',
37  warn: '#F2C97D',
38  rule: '#4A5263',
39  accentBg: '#262B38',
40  chipText: '#10131A',
41  barBg: '#1F2430',
42}
43
44// As bright as a terminal goes: white text, saturated accents, no mid-greys.
45const CONTRAST: Palette = {
46  kinds: { read: '#5FB3FF', search: '#D69CFF', run: '#FFA640', write: '#7CFF7C', web: '#4DF0F0', agent: '#FF7AC8', other: '#D0D4DC' },
47  text: '#FFFFFF',
48  muted: '#D0D4DC',
49  you: '#5FB3FF',
50  youBg: '#0B2340',
51  claude: '#FFB454',
52  tool: '#4DF0D0',
53  ok: '#7CFF7C',
54  error: '#FF5C7A',
55  warn: '#FFE066',
56  rule: '#8A93A6',
57  accentBg: '#1E2533',
58  chipText: '#000000',
59  barBg: '#141922',
60}
61
62// Okabe–Ito hues: told apart with any common colour-vision deficiency.
63const COLORBLIND: Palette = {
64  kinds: { read: '#56B4E9', search: '#CC79A7', run: '#E69F00', write: '#009E73', web: '#F0E442', agent: '#D55E00', other: '#B5B5B5' },
65  text: '#EDEDED',
66  muted: '#B5B5B5',
67  you: '#56B4E9',
68  youBg: '#13283A',
69  claude: '#E69F00',
70  tool: '#CC79A7',
71  ok: '#009E73',
72  error: '#D55E00',
73  warn: '#F0E442',
74  rule: '#5A5A5A',
75  accentBg: '#262626',
76  chipText: '#111111',
77  barBg: '#1E1E1E',
78}
79
80// Theme keys only, so a light (or any custom) theme stays legible.
81const THEME: Palette = {
82  kinds: { read: 'suggestion', search: 'remember', run: 'warning', write: 'success', web: 'ide', agent: 'claude', other: 'inactive' },
83  text: 'text',
84  muted: 'inactive',
85  you: 'suggestion',
86  youBg: undefined,
87  claude: 'claude',
88  tool: 'permission',
89  ok: 'success',
90  error: 'error',
91  warn: 'warning',
92  rule: 'subtle',
93  accentBg: undefined,
94  chipText: undefined,
95  barBg: undefined,
96}
97
98export const palettes: Record<PaletteName, Palette> = { dark: DARK, contrast: CONTRAST, colorblind: COLORBLIND, theme: THEME }
99
100export function resolvePalette(choice: PaletteChoice, theme: string): PaletteName {
101  if (choice !== 'auto') return choice
102  // auto: our hex only where the person's theme is a dark one.
103  return theme.startsWith('dark') ? 'dark' : 'theme'
104}
105
106type TraceLink = { readonly plugin: string; readonly tier: string }
107
108const KINDS: Record<string, Kind> = {
109  Read: 'read',
110  NotebookRead: 'read',
111  LSP: 'read',
112  Grep: 'search',
113  Glob: 'search',
114  ToolSearch: 'search',
115  Bash: 'run',
116  Monitor: 'run',
117  Edit: 'write',
118  MultiEdit: 'write',
119  Write: 'write',
120  NotebookEdit: 'write',
121  TodoWrite: 'write',
122  WebFetch: 'web',
123  WebSearch: 'web',
124  Agent: 'agent',
125  Skill: 'agent',
126  Workflow: 'agent',
127}
128
129export function kindOf(tool: string): Kind {
130  return KINDS[tool] ?? (tool.startsWith('mcp__') ? 'web' : 'other')
131}
132
133// The tools of a folded group as labels with counts, in first-seen order: `Read ×2`, `Grep`.
134export function groupTools(calls: readonly { tool: string }[]): { tool: string; label: string }[] {
135  const counts = new Map<string, number>()
136  for (const call of calls) counts.set(call.tool, (counts.get(call.tool) ?? 0) + 1)
137  return [...counts].map(([tool, n]) => ({ tool, label: n > 1 ? `${tool} ×${n}` : tool }))
138}
139
140// The tiers of plugins a person or their admin installs; `builtin` and
141// `core` are Claude Code's own drawing, which clarity replaces rather than decorates.
142const MOD_TIERS = new Set(['user', 'prepend', 'append'])
143
144// The mod that drew a row beneath clarity, or null when Claude Code drew it (or nothing did).
145// A trace ends at the link that answered itself, so its last entry is the one that drew.
146export function drawnByMod(trace: readonly TraceLink[]): string | null {
147  const last = trace[trace.length - 1]
148  if (last === undefined || !MOD_TIERS.has(last.tier)) return null
149  return last.plugin
150}
151
152// Below this the indents go; labels always stay, they are what tells rows apart.
153export const NARROW = 60
154
155function basename(path: string): string {
156  const parts = path.split('/').filter(Boolean)
157  return parts.slice(-2).join('/') || path
158}
159
160function field(input: unknown, key: string): string | undefined {
161  if (input === null || typeof input !== 'object') return undefined
162  const value = (input as Record<string, unknown>)[key]
163  return typeof value === 'string' && value.length > 0 ? value : undefined
164}
165
166export function shortPath(path: string): string {
167  return basename(path)
168}
169
170// The one fact that identifies a call: its file, command, pattern or target.
171export function describeInput(tool: string, input: unknown): string {
172  const path = field(input, 'file_path') ?? field(input, 'notebook_path') ?? field(input, 'path')
173  if (path !== undefined && tool !== 'Grep' && tool !== 'Glob') return basename(path)
174  const first =
175    field(input, 'command') ??
176    field(input, 'pattern') ??
177    field(input, 'query') ??
178    field(input, 'url') ??
179    field(input, 'description') ??
180    field(input, 'skill') ??
181    field(input, 'prompt')
182  if (first !== undefined) return first.split('\n')[0] ?? ''
183  if (input !== null && typeof input === 'object') {
184    for (const value of Object.values(input)) {
185      if (typeof value === 'string' && value.length > 0) return value.split('\n')[0] ?? ''
186    }
187  }
188  return ''
189}
190
191export function editedPath(input: unknown): string | undefined {
192  return field(input, 'file_path') ?? field(input, 'notebook_path')
193}
194
195const VERBS: Record<string, string> = {
196  Bash: 'Running',
197  Read: 'Reading',
198  Edit: 'Editing',
199  MultiEdit: 'Editing',
200  Write: 'Writing',
201  NotebookEdit: 'Editing',
202  Grep: 'Searching for',
203  Glob: 'Finding',
204  WebFetch: 'Fetching',
205  WebSearch: 'Searching the web for',
206  Agent: 'Delegating:',
207  Skill: 'Using skill',
208  TodoWrite: 'Updating the plan',
209}
210
211// `Running npm test`, `Editing src/app.ts`: what the spinner and the band say.
212export function activityText(activity: Activity): string {
213  switch (activity.phase) {
214    case 'idle':
215      return 'Ready'
216    case 'thinking':
217      return 'Thinking'
218    case 'writing':
219      return 'Writing'
220    case 'compacting':
221      return 'Compacting the conversation'
222    case 'waiting':
223      return 'Waiting for you'
224    case 'tool': {
225      const verb = VERBS[activity.tool] ?? `Using ${activity.tool}`
226      return activity.detail === '' ? verb : `${verb} ${activity.detail}`
227    }
228  }
229}
230
231// Tools that stop and wait on the person.
232export const ASKS = new Set(['AskUserQuestion', 'ExitPlanMode'])
233
234export const EDITS = new Set(['Edit', 'MultiEdit', 'Write', 'NotebookEdit'])
235
236function countLines(text: string | undefined): number {
237  return text === undefined || text === '' ? 0 : text.split('\n').length
238}
239
240// Lines in and out of one edit, from its input (an estimate: a rewrite counts whole).
241export function editDelta(tool: string, input: unknown): { added: number; removed: number } {
242  if (tool === 'Write') return { added: countLines(field(input, 'content')), removed: 0 }
243  if (tool === 'MultiEdit' && input !== null && typeof input === 'object') {
244    const edits = (input as { edits?: unknown }).edits
245    if (Array.isArray(edits)) {
246      return edits.reduce(
247        (sum: { added: number; removed: number }, one: unknown) => ({
248          added: sum.added + countLines(field(one, 'new_string')),
249          removed: sum.removed + countLines(field(one, 'old_string')),
250        }),
251        { added: 0, removed: 0 },
252      )
253    }
254  }
255  return {
256    added: countLines(field(input, 'new_string') ?? field(input, 'new_source')),
257    removed: countLines(field(input, 'old_string')),
258  }
259}
260
261export function recordEdit(ledger: Ledger, path: string, delta: { added: number; removed: number }): Ledger {
262  const before = ledger.files[path] ?? { added: 0, removed: 0, edits: 0 }
263  return {
264    ...ledger,
265    files: {
266      ...ledger.files,
267      [path]: { added: before.added + delta.added, removed: before.removed + delta.removed, edits: before.edits + 1 },
268    },
269  }
270}
271
272export function firstLine(text: unknown, room = 120): string {
273  const s = typeof text === 'string' ? text : ''
274  return clip((s.split('\n').find(line => line.trim() !== '') ?? '').trim(), room)
275}
276
277export type Attachment = { kind: 'file' | 'folder' | 'image' | 'paste'; name: string; detail: string }
278
279// What a prompt brings along, read from its text: `@path` mentions (a trailing slash is a
280// folder), pasted images (`[Image #1]`) and pasted text (`[Pasted text #1 +40 lines]`).
281export function parseAttachments(text: string): Attachment[] {
282  const found: Attachment[] = []
283  const seen = new Set<string>()
284  const add = (a: Attachment) => {
285    const id = `${a.kind}:${a.name}:${a.detail}`
286    if (!seen.has(id)) {
287      seen.add(id)
288      found.push(a)
289    }
290  }
291  for (const m of text.matchAll(/(?:^|\s)@(?:"([^"]+)"|([^\s@]+))/g)) {
292    const path = (m[1] ?? m[2] ?? '').replace(/[.,;:!?)]+$/, '')
293    if (path === '') continue
294    const isFolder = path.endsWith('/')
295    const parts = path.replace(/\/$/, '').split('/')
296    const name = parts.pop() ?? path
297    add({ kind: isFolder ? 'folder' : 'file', name, detail: parts.slice(-2).join('/') })
298  }
299  for (const m of text.matchAll(/\[Image #(\d+)\]/g)) add({ kind: 'image', name: `Image ${m[1]}`, detail: '' })
300  for (const m of text.matchAll(/\[Pasted text #(\d+)(?: \+(\d+) lines?)?\]/g)) {
301    add({ kind: 'paste', name: `Pasted text ${m[1]}`, detail: m[2] === undefined ? '' : `${m[2]} lines` })
302  }
303  return found
304}
305
306export type Block = { kind: 'prose'; text: string } | { kind: 'code'; text: string; lang: string; body: string }
307
308// A reply cut into paragraphs and fenced code blocks, so each can sit apart with room around it.
309// A list or table stays whole: only a blank line ends a prose block.
310export function splitBlocks(markdown: string): Block[] {
311  const blocks: Block[] = []
312  const lines = markdown.replace(/\r\n/g, '\n').split('\n')
313  let prose: string[] = []
314  const flush = () => {
315    const text = prose.join('\n').trim()
316    if (text !== '') blocks.push({ kind: 'prose', text })
317    prose = []
318  }
319  for (let i = 0; i < lines.length; i++) {
320    const line = lines[i] ?? ''
321    const fence = /^(\s*)(```+|~~~+)(.*)$/.exec(line)
322    if (fence !== null) {
323      flush()
324      const mark = fence[2] ?? '```'
325      const body: string[] = []
326      let j = i + 1
327      while (j < lines.length && !(lines[j] ?? '').trim().startsWith(mark)) body.push(lines[j++] ?? '')
328      const lang = (fence[3] ?? '').trim()
329      blocks.push({ kind: 'code', lang, body: body.join('\n'), text: [line, ...body, mark].join('\n') })
330      i = j
331      continue
332    }
333    if (line.trim() === '') flush()
334    else prose.push(line)
335  }
336  flush()
337  return blocks
338}
339
340// Every fenced code block's body, joined, for the copy-code button.
341export function codeBlocks(markdown: string): string {
342  const blocks: string[] = []
343  const re = /```[^\n]*\n([\s\S]*?)```/g
344  let m: RegExpExecArray | null
345  while ((m = re.exec(markdown)) !== null) blocks.push((m[1] ?? '').replace(/\n$/, ''))
346  return blocks.join('\n\n')
347}
348
349export function clip(text: string, room: number): string {
350  if (room <= 1) return ''
351  return text.length <= room ? text : `${text.slice(0, room - 1)}…`
352}
353
354type CallLike = { tool: string; isRunning: boolean; isErrored: boolean; isInterrupted: boolean }
355
356// `Read ×2 · Grep · Bash`, in first-seen order.
357export function groupSummary(calls: readonly CallLike[]): string {
358  const counts = new Map<string, number>()
359  for (const call of calls) counts.set(call.tool, (counts.get(call.tool) ?? 0) + 1)
360  return [...counts].map(([tool, n]) => (n > 1 ? `${tool} ×${n}` : tool)).join(' · ')
361}
362
363export type Status = 'running' | 'error' | 'interrupted' | 'ok'
364
365export function statusOf(calls: readonly CallLike[]): Status {
366  if (calls.some(call => call.isRunning)) return 'running'
367  if (calls.some(call => call.isErrored)) return 'error'
368  if (calls.some(call => call.isInterrupted)) return 'interrupted'
369  return 'ok'
370}
371
372export const MARK: Record<Status, string> = { running: '…', error: '✗', interrupted: '⊘', ok: '✓' }
373
374// Tools whose result is the point (a diff, a plan): their result stays in summary mode.
375export const KEEP_RESULT = new Set(['Edit', 'Write', 'MultiEdit', 'NotebookEdit', 'ExitPlanMode', 'TodoWrite', 'AskUserQuestion'])
376
377export function lineCount(output: unknown): number {
378  const text =
379    typeof output === 'string'
380      ? output
381      : output !== null && typeof output === 'object'
382        ? [field(output, 'stdout'), field(output, 'stderr')].filter(Boolean).join('\n')
383        : ''
384  return text.length === 0 ? 0 : text.trimEnd().split('\n').length
385}
386
387// `8.5k`, as the stock spinner counts tokens.
388export function formatTokens(n: number): string {
389  return n < 1000 ? String(Math.round(n)) : `${(n / 1000).toFixed(n < 10_000 ? 1 : 0)}k`
390}
391
392export function formatDuration(ms: number): string {
393  const seconds = Math.round(ms / 1000)
394  if (seconds < 60) return `${seconds}s`
395  return `${Math.floor(seconds / 60)}m ${seconds % 60}s`
396}
397
398export function nextOf<T extends string | number>(list: readonly T[], current: T): T {
399  const at = list.indexOf(current)
400  return list[(at + 1) % list.length] ?? list[0]!
401}
402
403export const PALETTES: readonly PaletteChoice[] = ['auto', 'dark', 'contrast', 'colorblind', 'theme']
404export const ALERTS: readonly Alerts[] = ['notify', 'sound', 'both', 'off']
405export const PANELS: readonly PanelChoice[] = ['auto', 'off']
406// 80 is a comfortable reading measure; the menu cycles from it.
407export const WIDTHS: readonly number[] = [80, 70, 100, 120, 0]
408export const FONTS: readonly FontChoice[] = ['leave', 'readable', 'large']
409export const ICONS: readonly IconChoice[] = ['unicode', 'ascii']
410
411// The editor terminal settings each font choice writes. JetBrains Mono first, Menlo where it
412// is not installed; ligatures off so `!=` and `->` read as typed.
413const FONT_KEYS: Record<Exclude<FontChoice, 'leave'>, Record<string, unknown>> = {
414  readable: {
415    'terminal.integrated.fontFamily': "'JetBrains Mono', Menlo, monospace",
416    'terminal.integrated.fontSize': 13,
417    'terminal.integrated.lineHeight': 1.3,
418    'terminal.integrated.fontWeightBold': 'bold',
419    'terminal.integrated.fontLigatures.enabled': false,
420    'terminal.integrated.smoothScrolling': true,
421  },
422  large: {
423    'terminal.integrated.fontFamily': "'JetBrains Mono', Menlo, monospace",
424    'terminal.integrated.fontSize': 14,
425    'terminal.integrated.lineHeight': 1.35,
426    'terminal.integrated.fontWeightBold': 'bold',
427    'terminal.integrated.fontLigatures.enabled': false,
428    'terminal.integrated.smoothScrolling': true,
429  },
430}
431const FONT_KEY_NAMES = Object.keys(FONT_KEYS.readable)
432
433// Where the editor that hosts this terminal keeps its settings, from its environment.
434export function editorSettingsPath(env: { home?: string; termProgram?: string; askpass?: string; platform: 'mac' | 'linux' | 'other' }): string | null {
435  if (env.home === undefined || env.termProgram !== 'vscode' || env.platform === 'other') return null
436  const app = (env.askpass ?? '').includes('Cursor') ? 'Cursor' : 'Code'
437  return env.platform === 'mac' ? `${env.home}/Library/Application Support/${app}/User/settings.json` : `${env.home}/.config/${app}/User/settings.json`
438}
439
440export type FontEdit = { text: string; isChanged: boolean } | { error: string }
441
442// The editor's settings with clarity's font keys set (or, for `leave`, taken out). A file with
443// comments or trailing commas is not plain JSON: it is left alone rather than rewritten.
444export function applyFont(settingsText: string, choice: FontChoice): FontEdit {
445  let settings: Record<string, unknown>
446  try {
447    const parsed: unknown = settingsText.trim() === '' ? {} : JSON.parse(settingsText)
448    if (parsed === null || typeof parsed !== 'object' || Array.isArray(parsed)) return { error: 'the settings file is not a JSON object' }
449    settings = parsed as Record<string, unknown>
450  } catch {
451    return { error: 'the settings file has comments or trailing commas' }
452  }
453  const next: Record<string, unknown> = { ...settings }
454  if (choice === 'leave') for (const key of FONT_KEY_NAMES) delete next[key]
455  else Object.assign(next, FONT_KEYS[choice])
456  const isChanged = JSON.stringify(next) !== JSON.stringify(settings)
457  return { text: `${JSON.stringify(next, null, 4)}\n`, isChanged }
458}
459
460export type CommandResult = { prefs: Prefs; text: string; open?: 'menu' | 'panel' }
461
462const HELP = '/clarity opens the menu · /clarity panel · on | off | focus | tools summary | tools full | status'
463
464export function runCommand(args: string, prefs: Prefs): CommandResult {
465  const [word, arg] = args.trim().toLowerCase().split(/\s+/)
466  const verb = word || 'menu'
467  switch (verb) {
468    case 'menu':
469      return { prefs, text: '', open: 'menu' }
470    case 'panel':
471      return { prefs, text: '', open: 'panel' }
472    case 'on':
473      return { prefs: { ...prefs, isOn: true }, text: 'on.' }
474    case 'off':
475      return { prefs: { ...prefs, isOn: false }, text: 'off: Claude Code draws everything as usual. /clarity on brings it back.' }
476    case 'focus': {
477      const isFocus = arg === 'on' ? true : arg === 'off' ? false : !prefs.isFocus
478      return {
479        prefs: { ...prefs, isOn: true, isFocus },
480        text: isFocus ? 'Focus on: notices and successful tool output are hidden.' : 'Focus off.',
481      }
482    }
483    case 'tools': {
484      const tools = arg === 'full' ? 'full' : arg === 'summary' ? 'summary' : prefs.tools === 'full' ? 'summary' : 'full'
485      return {
486        prefs: { ...prefs, tools },
487        text: tools === 'full' ? 'Tool rows are drawn in full.' : 'Tool rows are one line each; click one to open it.',
488      }
489    }
490    case 'status':
491      return { prefs, text: status(prefs) }
492    default:
493      return { prefs, text: HELP }
494  }
495}
496
497export function status(prefs: Prefs): string {
498  if (!prefs.isOn) return `off. ${HELP}`
499  return `on · colours ${prefs.palette} · tools ${prefs.tools} · focus ${prefs.isFocus ? 'on' : 'off'} · band ${prefs.band ? 'on' : 'off'} · alerts ${prefs.alerts}. ${HELP}`
500}
501
502export const DEFAULT_PREFS: Prefs = {
503  isOn: true,
504  isFocus: false,
505  tools: 'summary',
506  palette: 'auto',
507  alerts: 'notify',
508  band: true,
509  panel: 'auto',
510  measure: 80,
511  copy: true,
512  font: 'leave',
513  icons: 'unicode',
514}
515
516function oneOf<T>(list: readonly T[], value: unknown, fallback: T): T {
517  return list.includes(value as T) ? (value as T) : fallback
518}
519
520export function readPrefs(stored: unknown): Prefs {
521  if (stored === null || typeof stored !== 'object') return DEFAULT_PREFS
522  const s = stored as Partial<Record<keyof Prefs, unknown>>
523  const bool = (v: unknown, d: boolean) => (typeof v === 'boolean' ? v : d)
524  return {
525    isOn: bool(s.isOn, DEFAULT_PREFS.isOn),
526    isFocus: bool(s.isFocus, DEFAULT_PREFS.isFocus),
527    tools: oneOf(['summary', 'full'] as const, s.tools, DEFAULT_PREFS.tools),
528    palette: oneOf(PALETTES, s.palette, DEFAULT_PREFS.palette),
529    alerts: oneOf(ALERTS, s.alerts, DEFAULT_PREFS.alerts),
530    band: bool(s.band, DEFAULT_PREFS.band),
531    panel: oneOf(PANELS, s.panel, DEFAULT_PREFS.panel),
532    measure: oneOf(WIDTHS, s.measure, DEFAULT_PREFS.measure),
533    copy: bool(s.copy, DEFAULT_PREFS.copy),
534    font: oneOf(FONTS, s.font, DEFAULT_PREFS.font),
535    icons: oneOf(ICONS, s.icons, DEFAULT_PREFS.icons),
536  }
537}
538
539export const EMPTY_LEDGER: Ledger = {
540  turns: [],
541  prompts: [],
542  files: {},
543  errors: [],
544  lastReply: '',
545  context: null,
546  cost: null,
547  limit: null,
548  stopped: null,
549  todos: [],
550  recent: [],
551  agents: 0,
552  summaries: {},
553}
554
555// Claude's plan, from a TodoWrite call's input; anything malformed is left out.
556export function parseTodos(input: unknown): Todo[] | null {
557  const todos = input !== null && typeof input === 'object' ? (input as { todos?: unknown }).todos : undefined
558  if (!Array.isArray(todos)) return null
559  return todos.flatMap((t: unknown): Todo[] => {
560    const content = field(t, 'content')
561    const status = field(t, 'status')
562    if (content === undefined || (status !== 'pending' && status !== 'in_progress' && status !== 'completed')) return []
563    return [{ content, status, activeForm: field(t, 'activeForm') ?? content }]
564  })
565}
566
567// `task 2/5`: the step Claude is on, counted from one.
568export function planProgress(todos: readonly Todo[]): { at: number; of: number; doing: string } | null {
569  const doing = todos.findIndex(t => t.status === 'in_progress')
570  if (todos.length === 0 || doing < 0) return null
571  return { at: doing + 1, of: todos.length, doing: todos[doing]?.activeForm ?? '' }
572}
573
574export type TurnSnapshot = { tools: number; errors: number; files: Record<string, FileChange> }
575
576// What a turn did: the difference between the session before it and after it.
577export function summarizeTurn(before: TurnSnapshot, after: TurnSnapshot): TurnSummary {
578  let files = 0
579  let added = 0
580  let removed = 0
581  for (const [path, change] of Object.entries(after.files)) {
582    const was = before.files[path] ?? { added: 0, removed: 0, edits: 0 }
583    if (change.edits > was.edits) files += 1
584    added += change.added - was.added
585    removed += change.removed - was.removed
586  }
587  return { tools: after.tools - before.tools, files, added, removed, failed: after.errors - before.errors }
588}
589
590export function runStatus(run: ToolRun): Status {
591  return run.running > 0 ? 'running' : run.failed > 0 ? 'error' : 'ok'
592}
593
594// `5:07 pm`, for the Recent list.
595export function formatClock(ms: number): string {
596  const d = new Date(ms)
597  const h = d.getHours()
598  return `${h % 12 === 0 ? 12 : h % 12}:${String(d.getMinutes()).padStart(2, '0')} ${h < 12 ? 'am' : 'pm'}`
599}
600export const IDLE: Activity = { phase: 'idle', tool: '', detail: '', since: 0, tokens: 0 }
601
602// State an earlier version of clarity wrote lacks the fields added since; a hot reload keeps
603// it. Reading through these fills in what is missing, so old state never breaks a hook.
604export function fillLedger(raw: unknown): Ledger {
605  const r = (raw !== null && typeof raw === 'object' ? raw : {}) as Partial<Record<keyof Ledger, unknown>>
606  const list = <T>(v: unknown): T[] => (Array.isArray(v) ? (v as T[]) : [])
607  const record = <T>(v: unknown): Record<string, T> => (v !== null && typeof v === 'object' && !Array.isArray(v) ? (v as Record<string, T>) : {})
608  const num = (v: unknown): number | null => (typeof v === 'number' && Number.isFinite(v) ? v : null)
609  return {
610    turns: list(r.turns),
611    prompts: list(r.prompts),
612    files: record(r.files),
613    errors: list(r.errors),
614    lastReply: typeof r.lastReply === 'string' ? r.lastReply : '',
615    context: num(r.context),
616    cost: num(r.cost),
617    limit: readLimit(r.limit),
618    stopped: typeof r.stopped === 'string' ? r.stopped : null,
619    todos: list(r.todos),
620    recent: list(r.recent),
621    agents: num(r.agents) ?? 0,
622    summaries: record(r.summaries),
623  }
624}
625
626function readLimit(v: unknown): Ledger['limit'] {
627  if (v === null || typeof v !== 'object') return null
628  const r = v as { percent?: unknown; resetsAt?: unknown }
629  if (typeof r.percent !== 'number') return null
630  return { percent: r.percent, resetsAt: typeof r.resetsAt === 'string' ? r.resetsAt : null }
631}
632
633// The limit nearest to running out, from Claude Code's report of the plan's limits.
634export function nearestLimit(limits: readonly { percentUsed: number; resetsAt?: string }[]): Ledger['limit'] {
635  const top = [...limits].sort((a, b) => b.percentUsed - a.percentUsed)[0]
636  return top === undefined ? null : { percent: top.percentUsed, resetsAt: top.resetsAt ?? null }
637}
638
639// Text over this many lines folds to its first lines until opened.
640export const FOLD_REPLY = 30
641export const FOLD_PROMPT = 12
642export const FOLD_SHOWN = 12
643
644// The first `shown` lines of a long text, with a code fence it cut open closed again so the
645// rest still draws as prose. Null when the text is short enough to show whole.
646export function foldText(text: string, over: number, shown = FOLD_SHOWN): { head: string; hidden: number } | null {
647  const lines = text.split('\n')
648  if (lines.length <= over) return null
649  const kept = lines.slice(0, shown)
650  const fences = kept.filter(line => /^\s*(```|~~~)/.test(line)).length
651  return { head: kept.join('\n') + (fences % 2 === 1 ? '\n```' : ''), hidden: lines.length - shown }
652}
653
654export function fillActivity(raw: unknown): Activity {
655  const r = (raw !== null && typeof raw === 'object' ? raw : {}) as Partial<Activity>
656  const phases = ['idle', 'thinking', 'writing', 'tool', 'waiting', 'compacting'] as const
657  return {
658    phase: phases.includes(r.phase as never) ? (r.phase as Activity['phase']) : 'idle',
659    tool: typeof r.tool === 'string' ? r.tool : '',
660    detail: typeof r.detail === 'string' ? r.detail : '',
661    since: typeof r.since === 'number' ? r.since : 0,
662    tokens: typeof r.tokens === 'number' ? r.tokens : 0,
663  }
664}
665
666// Every symbol clarity draws, and its plain ASCII stand-in for terminals or fonts without it.
667const ASCII: Record<string, string> = {
668  '▸': '>', '▾': 'v', '▴': '^', '✓': '+', '✗': 'x', '●': '*', '⧉': '#', '▤': '#', '☰': '=',
669  '━': '=', '─': '-', '│': '|', '↓': 'v', '…': '...', '⊘': '-', '▣': '#', '≡': '=', '○': 'o',
670  '❯': '>', '▮': '|', '█': '#', '░': '.', '·': '-', '−': '-', '→': '->', '×': 'x', '⎿': '\\',
671}
672const ASCII_RE = new RegExp(`[${Object.keys(ASCII).join('')}]`, 'g')
673
674export function toAscii(text: string): string {
675  return text.replace(ASCII_RE, ch => ASCII[ch] ?? ch)
676}
677
678// Short tips the band shows, one at a time, while a turn runs long. Claude Code's own tips are
679// not readable by a mod, so these are clarity's.
680export const TIPS = [
681  'Esc stops Claude at any point.',
682  'Type @ in your prompt to add a file.',
683  '/compact frees context when it runs high.',
684  'Shift+Tab switches modes, like plan mode.',
685  'Ctrl+O shows every tool call in full.',
686  'Click a tool strip to open it.',
687  '/clarity panel shows the plan and changed files.',
688  '/clarity opens the settings.',
689]
690
691// The tip for this moment: a new one every 10 seconds, none in the first 6.
692export function tipAt(elapsedMs: number): string | null {
693  if (elapsedMs < 6000) return null
694  return TIPS[Math.floor((elapsedMs - 6000) / 10_000) % TIPS.length] ?? null
695}
696
697// How long the panel's prompt list is before it folds.
698export const PANEL_TURNS = 8
699

1// Drawing, from the surface's element table: no `$`, so the transcript, the menu's live
2// preview, the band and the panel all draw from the same rows.
3import type { ElementTable, RenderElement } from 'claude-code'
4
5import type { Activity, Ledger, Prefs, TurnSummary } from '../types'
6import { MARK, PANEL_TURNS, activityText, clip, formatClock, formatDuration, formatTokens, kindOf, planProgress, shortPath, toAscii } from './logic'
7import type { Attachment, Block, Palette, Status } from './logic'
8
9export type UI = ElementTable<'terminal'>
10
11export type Look = { prefs: Prefs; colors: Palette; columns: number; isNarrow: boolean }
12
13// The element table with every symbol clarity draws swapped for plain ASCII, and borders drawn
14// in ASCII too. Everything clarity draws goes through the table, so this one wrap covers it all.
15export function asciiUI(ui: UI): UI {
16  const plain = (children: unknown): unknown =>
17    typeof children === 'string' ? toAscii(children) : Array.isArray(children) ? children.map(plain) : children
18  const table = { ...ui } as Record<string, unknown>
19  table.Text = (props: Record<string, unknown>) => (ui.Text as (p: unknown) => RenderElement)({ ...props, children: plain(props.children) })
20  table.Button = (props: Record<string, unknown>) =>
21    (ui.Button as (p: unknown) => RenderElement)({
22      ...props,
23      children: plain(props.children),
24      ...(typeof props.label === 'string' ? { label: toAscii(props.label) } : {}),
25    })
26  table.Box = (props: Record<string, unknown>) =>
27    (ui.Box as (p: unknown) => RenderElement)(props.borderStyle === undefined ? props : { ...props, borderStyle: 'classic' })
28  return table as unknown as UI
29}
30
31// A word on a coloured ground: dark text on the colour, or inverse where the theme has no hex.
32export function badge(ui: UI, colors: Palette, text: string, tone: string): RenderElement {
33  return colors.chipText === undefined ? (
34    <ui.Text color={tone} inverse bold>
35      {text}
36    </ui.Text>
37  ) : (
38    <ui.Text backgroundColor={tone} color={colors.chipText} bold>
39      {text}
40    </ui.Text>
41  )
42}
43
44export type Chip = { key: string; label: string; onPress: () => void; hotkey?: string; tone?: string }
45
46// A button: bracketed in its colour, filling in under the pointer. Filled words with no
47// brackets (badge) are labels, so nothing that only labels looks pressable.
48export function chip(ui: UI, look: Look, c: Chip): RenderElement {
49  const { colors } = look
50  const tone = c.tone ?? colors.you
51  const label = `[ ${c.label} ]`
52  const face =
53    // Under the pointer it lifts onto the bar's ground and brightens, staying in its colour.
54    colors.barBg === undefined ? (
55      <ui.Text color={tone} bold hover={{ color: colors.text, underline: true }}>
56        {label}
57      </ui.Text>
58    ) : (
59      <ui.Text color={tone} bold hover={{ backgroundColor: colors.accentBg, color: colors.text, underline: true }}>
60        {label}
61      </ui.Text>
62    )
63  // The keyed Box is what the pointer hovers, so the chip lights alone.
64  return (
65    <ui.Box key={`chip-${c.key}`}>
66      {c.hotkey === undefined ? (
67        <ui.Button key={c.key} plain onPress={c.onPress}>
68          {face}
69        </ui.Button>
70      ) : (
71        <ui.Button key={c.key} plain hotkey={c.hotkey} onPress={c.onPress}>
72          {face}
73        </ui.Button>
74      )}
75    </ui.Box>
76  )
77}
78
79const ATTACHMENT_ICON: Record<Attachment['kind'], string> = { file: '▤', folder: '▸', image: '▣', paste: '≡' }
80
81// What a prompt brought along, each in a small frame of its own, as files sit under a message
82// on claude.ai: the icon and name, then where it is or how long.
83export function attachmentCards(ui: UI, look: Look, attachments: readonly Attachment[]): RenderElement | null {
84  if (attachments.length === 0) return null
85  const { Box, Text } = ui
86  const { colors } = look
87  const tone = (a: Attachment) =>
88    a.kind === 'image' ? colors.kinds.web : a.kind === 'paste' ? colors.kinds.search : a.kind === 'folder' ? colors.kinds.write : colors.kinds.read
89  return (
90    <Box flexDirection="row" flexWrap="wrap" columnGap={1}>
91      {attachments.map(a => (
92        <Box borderStyle="round" borderColor={tone(a)} paddingX={1}>
93          <Text wrap="truncate">
94            <Text color={tone(a)} bold>
95              {ATTACHMENT_ICON[a.kind]} {clip(a.name, 28)}
96            </Text>
97            {a.detail !== '' && <Text color={colors.muted}> {clip(a.detail, 24)}</Text>}
98          </Text>
99        </Box>
100      ))}
101    </Box>
102  )
103}
104
105// The person's prompt: a rounded box in their colour, labelled, with what it brought along.
106export function userRow(ui: UI, look: Look, text: string, attachments: readonly Attachment[] = [], more?: Chip): RenderElement {
107  const { Box, Text } = ui
108  const { colors } = look
109  return (
110    <Box flexDirection="column" marginTop={1} borderStyle="round" borderColor={colors.you} paddingX={1} width={replyWidth(look) + (look.isNarrow ? 0 : 1)}>
111      {badge(ui, colors, ' you ', colors.you)}
112      <Text color={colors.text}>{text}</Text>
113      {more !== undefined && chip(ui, look, { ...more, tone: copyTone(colors) })}
114      {attachmentCards(ui, look, attachments)}
115    </Box>
116  )
117}
118
119export function claudeHeader(ui: UI, look: Look): RenderElement {
120  return badge(ui, look.colors, ' ● claude ', look.colors.claude)
121}
122
123// The width a reply's box takes: the person's line width plus the frame, never past the screen.
124function replyWidth(look: Look): number {
125  const room = Math.max(24, look.columns - (look.isNarrow ? 0 : 2))
126  return look.prefs.measure > 0 ? Math.min(room, look.prefs.measure + 4) : room
127}
128
129function copyTone(colors: Palette): string {
130  return colors.rule === 'subtle' ? 'inactive' : colors.muted
131}
132
133// One block of a reply in a soft frame: the `claude` badge on the first, copy chips at the foot.
134// `isOwnBody` false: the body holds Claude Code's own drawing, which may not sit under a sized Box.
135export function replyBox(ui: UI, look: Look, isFirst: boolean, body: RenderElement, chips: readonly Chip[], isOwnBody = true): RenderElement {
136  const { Box } = ui
137  const frame = {
138    flexDirection: 'column' as const,
139    marginTop: isFirst ? 1 : 0,
140    marginLeft: look.isNarrow ? 0 : 1,
141    borderStyle: 'round',
142    borderColor: look.colors.rule,
143    paddingX: 1,
144  }
145  return (
146    <Box {...frame} {...(isOwnBody ? { width: replyWidth(look) } : {})}>
147      {isFirst && claudeHeader(ui, look)}
148      {body}
149      {chips.length > 0 && (
150        <Box flexDirection="row" gap={1}>
151          {chips.map(c => chip(ui, look, { ...c, tone: copyTone(look.colors) }))}
152        </Box>
153      )}
154    </Box>
155  )
156}
157
158// A reply's paragraphs with a line of room between them, and each code block in its own
159// frame with its language and a copy chip.
160export function replyBlocks(ui: UI, look: Look, blocks: readonly Block[], onCopy?: (code: string) => void): RenderElement {
161  const { Box, Markdown } = ui
162  const { colors } = look
163  return (
164    <Box flexDirection="column">
165      {blocks.map((block, i) =>
166        block.kind === 'prose' ? (
167          <Box marginTop={i === 0 ? 0 : 1}>
168            <Markdown text={block.text} />
169          </Box>
170        ) : (
171          <Box flexDirection="column" marginTop={i === 0 ? 0 : 1} borderStyle="single" borderColor={colors.rule} paddingX={1}>
172            <Box flexDirection="row" justifyContent="space-between">
173              {badge(ui, colors, ` ${block.lang === '' ? 'code' : block.lang} `, colors.tool)}
174              {onCopy !== undefined && chip(ui, look, { key: `copy-code-${i}`, label: '⧉ copy', tone: copyTone(colors), onPress: () => onCopy(block.body) })}
175            </Box>
176            <Markdown text={block.text} />
177          </Box>
178        ),
179      )}
180    </Box>
181  )
182}
183
184export type ToolParts = {
185  tools: readonly { tool: string; label: string }[]
186  detail: string
187  status: Status
188  isOpen?: boolean
189  /** An edit's lines in and out, drawn green and red before its file. */
190  delta?: { added: number; removed: number }
191}
192
193function markColor(colors: Palette, status: Status): string {
194  return status === 'error' ? colors.error : status === 'running' ? colors.warn : status === 'interrupted' ? colors.muted : colors.ok
195}
196
197function badgesWidth(parts: ToolParts): number {
198  return parts.tools.reduce((n, t) => n + t.label.length + 3, 0)
199}
200
201// `▸ [Read ×2] [Grep] detail ✓`: each tool a badge in the colour of what it does.
202function toolFace(ui: UI, look: Look, parts: ToolParts, room: number): RenderElement[] {
203  const { Text } = ui
204  const { colors } = look
205  const badges = parts.tools.flatMap((t, i) => [
206    ...(i === 0 ? [] : [<Text> </Text>]),
207    badge(ui, colors, ` ${t.label} `, parts.status === 'error' ? colors.error : colors.kinds[kindOf(t.tool)]),
208  ])
209  const delta = parts.delta
210  return [
211    <Text color={colors.muted}>{parts.isOpen === true ? '▾ ' : '▸ '}</Text>,
212    ...badges,
213    ...(delta === undefined
214      ? []
215      : [
216          <Text color={colors.ok} bold>
217            {' '}+{delta.added}
218          </Text>,
219          <Text color={colors.error} bold>
220            {' '}−{delta.removed}
221          </Text>,
222        ]),
223    <Text color={colors.text}> {clip(parts.detail, room)} </Text>,
224    <Text color={markColor(colors, parts.status)} bold>
225      {MARK[parts.status]}
226    </Text>,
227  ]
228}
229
230// A tool row on a tinted strip; a press opens or folds it where it stands.
231export function toolLine(ui: UI, look: Look, parts: ToolParts, onPress?: () => void): RenderElement {
232  const { Box, Button, Text } = ui
233  const face = toolFace(ui, look, parts, look.columns - badgesWidth(parts) - 12)
234  return (
235    <Box marginLeft={look.isNarrow ? 0 : 2} paddingX={1} backgroundColor={look.colors.accentBg}>
236      {onPress === undefined ? (
237        <Text wrap="truncate">{face}</Text>
238      ) : (
239        <Button key="row" plain onPress={onPress}>
240          {face}
241        </Button>
242      )}
243    </Box>
244  )
245}
246
247// An opened row: a box in the tool colour, its line to fold it, the full row inside.
248export function openedRow(ui: UI, look: Look, parts: ToolParts, onFold: () => void, body: RenderElement): RenderElement {
249  const { Box, Button } = ui
250  return (
251    <Box
252      flexDirection="column"
253      marginLeft={look.isNarrow ? 0 : 2}
254      borderStyle="round"
255      borderColor={look.colors.kinds[kindOf(parts.tools[0]?.tool ?? '')]}
256      paddingX={1}
257    >
258      <Button key="row" plain onPress={onFold}>
259        {toolFace(ui, look, { ...parts, isOpen: true }, look.columns - badgesWidth(parts) - 14)}
260      </Button>
261      {body}
262    </Box>
263  )
264}
265
266// A failure: a red box with what failed on top and the full row inside.
267export function failHeader(ui: UI, look: Look, tool: string, detail: string, body: RenderElement): RenderElement {
268  const { Box, Text } = ui
269  return (
270    <Box flexDirection="column" marginLeft={look.isNarrow ? 0 : 2} borderStyle="round" borderColor={look.colors.error} paddingX={1}>
271      <Text color={look.colors.error} bold wrap="truncate">
272        ✗ {tool} failed{detail === '' ? '' : ` · ${clip(detail, look.columns - tool.length - 18)}`}
273      </Text>
274      {body}
275    </Box>
276  )
277}
278
279// The end of a turn: a rule with the time, so turns read as blocks.
280export function turnRule(ui: UI, look: Look, durationMs: number): RenderElement {
281  const label = ` ${formatDuration(durationMs)} `
282  const right = Math.max(0, Math.max(12, look.columns - 2) - 2 - label.length)
283  return (
284    <ui.Box>
285      <ui.Text color={look.colors.rule}>{'━━' + label + '━'.repeat(right)}</ui.Text>
286    </ui.Box>
287  )
288}
289
290// A slash command's output in a titled card.
291export function card(ui: UI, look: Look, title: string, body: RenderElement, isErrored: boolean): RenderElement {
292  const tone = isErrored ? look.colors.error : look.colors.claude
293  return (
294    <ui.Box flexDirection="column" borderStyle="round" borderColor={tone} paddingX={1}>
295      {badge(ui, look.colors, ` ${title} `, tone)}
296      {body}
297    </ui.Box>
298  )
299}
300
301export function questionBanner(ui: UI, look: Look, body: RenderElement): RenderElement {
302  return (
303    <ui.Box flexDirection="column" borderStyle="double" borderColor={look.colors.warn} paddingX={1}>
304      {badge(ui, look.colors, ' ❯ Claude needs your answer ', look.colors.warn)}
305      {body}
306    </ui.Box>
307  )
308}
309
310// The close of a long turn: what it did while you looked away.
311export function awayCard(ui: UI, look: Look, durationMs: number, summary: TurnSummary): RenderElement {
312  const { Box, Text } = ui
313  const { colors } = look
314  const facts: { text: string; tone: string }[] = [
315    { text: `${summary.tools} tool call${summary.tools === 1 ? '' : 's'}`, tone: colors.tool },
316    ...(summary.files > 0 ? [{ text: `${summary.files} file${summary.files === 1 ? '' : 's'} changed (+${summary.added} −${summary.removed})`, tone: colors.kinds.write }] : []),
317    ...(summary.failed > 0 ? [{ text: `${summary.failed} failed`, tone: colors.error }] : []),
318  ]
319  return (
320    <Box flexDirection="column" marginTop={1} marginLeft={look.isNarrow ? 0 : 1} borderStyle="round" borderColor={colors.claude} paddingX={1}>
321      <Text>
322        {badge(ui, colors, ' While you were away ', colors.claude)}
323        <Text color={colors.muted}> {formatDuration(durationMs)}</Text>
324      </Text>
325      <Text wrap="wrap">
326        {facts.map((f, i) => (
327          <Text>
328            {i === 0 ? '' : <Text color={colors.rule}> · </Text>}
329            <Text color={f.tone} bold>
330              {f.text}
331            </Text>
332          </Text>
333        ))}
334      </Text>
335    </Box>
336  )
337}
338
339function meter(percent: number, cells: number): { full: string; empty: string } {
340  const full = Math.round((Math.max(0, Math.min(100, percent)) / 100) * cells)
341  return { full: '█'.repeat(full), empty: '░'.repeat(cells - full) }
342}
343
344// Green with room to spare, yellow past half, red near the end.
345function levelColor(colors: Palette, percent: number): string {
346  return percent >= 80 ? colors.error : percent >= 50 ? colors.warn : colors.ok
347}
348
349function phaseColor(colors: Palette, activity: Activity): string {
350  if (activity.phase === 'waiting' || activity.phase === 'compacting') return colors.warn
351  if (activity.phase === 'idle') return colors.ok
352  return activity.phase === 'tool' ? colors.kinds[kindOf(activity.tool)] : colors.claude
353}
354
355function phaseBadge(ui: UI, colors: Palette, activity: Activity): RenderElement {
356  return badge(ui, colors, activity.phase === 'idle' ? ' ✓ ' : activity.phase === 'waiting' ? ' ❯ ' : ' ● ', phaseColor(colors, activity))
357}
358
359export type BandActions = { panel: () => void; menu: () => void; copy?: () => void }
360
361// The toolbar above the prompt: what Claude is doing, what changed, context, and chips.
362export type TurnStats = { elapsedMs: number; tokens: number; tip: string | null }
363
364export function band(ui: UI, look: Look, activity: Activity, ledger: Ledger, width: number, stats: TurnStats, actions: BandActions): RenderElement {
365  const { Box, Text } = ui
366  const { colors } = look
367  const files = Object.keys(ledger.files).length
368  // In order of what matters most when room is short.
369  const plan = planProgress(ledger.todos)
370  // A plan usage limit shows once it passes 80%, with when it resets.
371  const limit = ledger.limit !== null && ledger.limit.percent >= 80 ? ledger.limit : null
372  const resets = limit?.resetsAt != null && !Number.isNaN(Date.parse(limit.resetsAt)) ? ` · resets ${formatClock(Date.parse(limit.resetsAt))}` : ''
373  const wanted: { text: string; tone: string }[] = [
374    ...(limit !== null ? [{ text: `limit ${Math.round(limit.percent)}%${resets}`, tone: limit.percent >= 95 ? colors.error : colors.warn }] : []),
375    ...(ledger.errors.length > 0 ? [{ text: `${ledger.errors.length} failed`, tone: colors.error }] : []),
376    ...(plan !== null ? [{ text: `task ${plan.at}/${plan.of}`, tone: colors.claude }] : []),
377    ...(ledger.agents > 0 ? [{ text: `${ledger.agents} agent${ledger.agents === 1 ? '' : 's'}`, tone: colors.kinds.agent }] : []),
378    ...(ledger.context !== null ? [{ text: `context ${Math.round(ledger.context)}%`, tone: levelColor(colors, ledger.context) }] : []),
379    ...(files > 0 ? [{ text: `${files} file${files === 1 ? '' : 's'} changed`, tone: colors.kinds.write }] : []),
380  ]
381  // No hotkeys here: the terminal prints them as `c:` before each chip, which crowds the bar.
382  const chips: Chip[] = [
383    ...(actions.copy === undefined ? [] : [{ key: 'copy', label: '⧉ copy reply', onPress: actions.copy }]),
384    { key: 'panel', label: '▤ session', onPress: actions.panel },
385    { key: 'menu', label: '☰ settings', onPress: actions.menu },
386  ]
387  // Each button is `[ label ]` (four more than its label) with a column between, after a gap of two.
388  const chipsWidth = chips.reduce((n, c) => n + c.label.length + 5, 0) + 2
389  // While a turn runs: what it is doing, how long, and how much it has written, as the
390  // stock spinner says it (`Thinking · 1m 42s · ↓ 8.5k tokens`).
391  const running = activity.phase === 'idle' ? [] : [
392    ...(stats.elapsedMs >= 1000 ? [formatDuration(stats.elapsedMs)] : []),
393    ...(stats.tokens > 0 ? [`↓ ${formatTokens(stats.tokens)} tokens`] : []),
394  ]
395  // A turn that died on an error says so, in red, until the next one starts.
396  const isStopped = activity.phase === 'idle' && ledger.stopped !== null
397  const doingParts = isStopped ? [`Stopped: ${ledger.stopped}`] : [activityText(activity), ...running]
398  const doing = doingParts.join(' · ')
399  // The status comes first: it keeps up to 48 columns (enough for the step, its time and its
400  // tokens) before any fact gets a place; each fact then shows whole or not at all.
401  let room = width - 2 - chipsWidth - 4 - Math.min(doing.length, 48)
402  const facts = wanted.filter(f => {
403    const cost = f.text.length + 3
404    if (cost > room) return false
405    room -= cost
406    return true
407  })
408  const statusRoom = Math.max(8, width - 2 - chipsWidth - 4 - facts.reduce((n, f) => n + f.text.length + 3, 0))
409  // Short of room, the status sheds its tokens, then its time, whole; only the step itself is cut.
410  let shown = doingParts
411  while (shown.length > 1 && shown.join(' · ').length > statusRoom) shown = shown.slice(0, -1)
412  const status = clip(shown.join(' · '), statusRoom)
413  const tone = isStopped ? colors.error : phaseColor(colors, activity)
414  const line = (
415    <Box flexDirection="row" justifyContent="space-between" width={width} paddingX={1} backgroundColor={colors.barBg}>
416      {/* The status gives way first; the chips keep their size so they never wrap. */}
417      <Box flexShrink={1} overflow="hidden">
418      <Text wrap="truncate">
419        {isStopped ? badge(ui, colors, ' ✗ ', colors.error) : phaseBadge(ui, colors, activity)}
420        <Text color={tone} bold>
421          {' '}
422          {status}
423        </Text>
424        {facts.map(f => (
425          <Text>
426            <Text color={colors.rule}> │ </Text>
427            <Text color={f.tone} bold>
428              {f.text}
429            </Text>
430          </Text>
431        ))}
432      </Text>
433      </Box>
434      <Box flexDirection="row" gap={1} marginLeft={2} flexShrink={0}>
435        {chips.map(c => chip(ui, look, c))}
436      </Box>
437    </Box>
438  )
439  // During a long turn, a tip under the bar, one at a time.
440  return activity.phase === 'idle' || stats.tip === null ? (
441    line
442  ) : (
443    <Box flexDirection="column">
444      {line}
445      <Box paddingX={1}>
446        <Text color={colors.muted} italic wrap="truncate">
447          Tip: {stats.tip}
448        </Text>
449      </Box>
450    </Box>
451  )
452}
453
454// The sidebar: what is happening, the turns so far, what changed, what failed.
455export type PanelActions = { copyTurn: (index: number) => void; toggleTurns: () => void; isAllTurns: boolean }
456
457export function panel(ui: UI, look: Look, activity: Activity, ledger: Ledger, width: number, actions: PanelActions): RenderElement {
458  const { Box, Button, Text } = ui
459  const { colors } = look
460  const heading = (title: string, count: number | string, tone: string) => (
461    <Box marginTop={1} paddingX={1} backgroundColor={colors.barBg} width={width} justifyContent="space-between">
462      {badge(ui, colors, ` ${title} `, tone)}
463      <Text color={colors.muted}>{count}</Text>
464    </Box>
465  )
466  const empty = (text: string) => (
467    <Text color={colors.muted} italic>
468      {text}
469    </Text>
470  )
471  const files = Object.entries(ledger.files)
472  const biggest = Math.max(1, ...files.map(([, c]) => c.added + c.removed))
473  const turns = ledger.turns.slice(actions.isAllTurns ? -50 : -PANEL_TURNS)
474  const firstTurn = ledger.turns.length - turns.length + 1
475  const isFolded = ledger.turns.length > PANEL_TURNS
476  const cells = Math.max(6, Math.min(20, width - 20))
477  const level = ledger.context === null ? null : meter(ledger.context, cells)
478  const done = ledger.todos.filter(t => t.status === 'completed').length
479  return (
480    <Box flexDirection="column" width={width}>
481      {/* Now: what Claude is doing, and how full the context is. */}
482      <Box flexDirection="column" borderStyle="round" borderColor={phaseColor(colors, activity)} paddingX={1}>
483        <Text wrap="truncate">
484          {phaseBadge(ui, colors, activity)}
485          <Text color={phaseColor(colors, activity)} bold>
486            {' '}
487            {activityText(activity)}
488          </Text>
489        </Text>
490        {ledger.context !== null && level !== null && (
491          <Text>
492            <Text color={colors.muted}>context </Text>
493            <Text color={levelColor(colors, ledger.context)}>{level.full}</Text>
494            <Text color={colors.rule}>{level.empty}</Text>
495            <Text color={levelColor(colors, ledger.context)} bold>
496              {' '}
497              {Math.round(ledger.context)}%
498            </Text>
499            {ledger.cost !== null && <Text color={colors.muted}>  ${ledger.cost.toFixed(2)}</Text>}
500          </Text>
501        )}
502      </Box>
503      {ledger.todos.length > 0 && heading('Plan', `${done} of ${ledger.todos.length} done`, colors.claude)}
504      {ledger.todos.length > 0 && (
505        <Box flexDirection="column" paddingX={1}>
506          {ledger.todos.slice(0, 10).map(t => (
507            <Text wrap="truncate">
508              {t.status === 'completed' ? (
509                <Text color={colors.ok}>✓ </Text>
510              ) : t.status === 'in_progress' ? (
511                <Text color={colors.claude} bold>
512                  ▸{' '}
513                </Text>
514              ) : (
515                <Text color={colors.rule}>○ </Text>
516              )}
517              <Text color={t.status === 'in_progress' ? colors.text : colors.muted} bold={t.status === 'in_progress'} strikethrough={t.status === 'completed'}>
518                {t.status === 'in_progress' ? t.activeForm : t.content}
519              </Text>
520            </Text>
521          ))}
522        </Box>
523      )}
524      {heading('Changed', files.length === 1 ? '1 file' : `${files.length} files`, colors.kinds.write)}
525      <Box flexDirection="column" paddingX={1}>
526        {files.length === 0 && empty('No files changed yet.')}
527        {files.slice(-12).map(([path, change]) => {
528          const share = Math.max(1, Math.round(((change.added + change.removed) / biggest) * 5))
529          const greens = Math.round((change.added / Math.max(1, change.added + change.removed)) * share)
530          return (
531            <Text wrap="truncate">
532              <Text color={colors.ok}>{'▮'.repeat(greens)}</Text>
533              <Text color={colors.error}>{'▮'.repeat(share - greens)}</Text>
534              <Text>{' '.repeat(6 - share)}</Text>
535              <Text color={colors.text} bold>
536                {shortPath(path)}
537              </Text>
538              <Text color={colors.ok}> +{change.added}</Text>
539              <Text color={colors.error}> −{change.removed}</Text>
540            </Text>
541          )
542        })}
543      </Box>
544      {ledger.errors.length > 0 && heading('Failed', ledger.errors.length, colors.error)}
545      {ledger.errors.length > 0 && (
546        <Box flexDirection="column" paddingX={1}>
547          {ledger.errors.slice(-5).map(err => (
548            <Text wrap="truncate">
549              <Text color={colors.error} bold>
550                ✗ {err.tool}
551              </Text>
552              <Text color={colors.muted}> {err.detail || err.text}</Text>
553            </Text>
554          ))}
555        </Box>
556      )}
557      {ledger.recent.length > 0 && heading('Recent', 'latest first', colors.tool)}
558      {ledger.recent.length > 0 && (
559        <Box flexDirection="column" paddingX={1}>
560          {ledger.recent
561            .slice(-6)
562            .reverse()
563            .map(r => (
564              <Text wrap="truncate">
565                <Text color={colors.rule}>{formatClock(r.at).padStart(8)}  </Text>
566                <Text color={r.isOk ? colors.kinds[kindOf(r.tool)] : colors.error} bold>
567                  {r.tool}
568                </Text>
569                <Text color={colors.muted}> {r.detail}</Text>
570              </Text>
571            ))}
572        </Box>
573      )}
574      {heading('Your prompts', turns.length === 0 ? '' : 'click to copy', colors.you)}
575      <Box flexDirection="column" paddingX={1}>
576        {turns.length === 0 && empty('Nothing asked yet.')}
577        {turns.map((text, i) => {
578          const n = firstTurn + i
579          const isLatest = i === turns.length - 1
580          return (
581            <Box key={`turn-${n}`}>
582              <Button key={`copy-turn-${n}`} plain onPress={() => actions.copyTurn(n - 1)}>
583                <Text color={isLatest ? colors.you : colors.rule} bold>
584                  {String(n).padStart(2)}
585                </Text>
586                <Text color={isLatest ? colors.text : colors.muted} hover={{ color: colors.you, underline: true }}>
587                  {'  '}
588                  {clip(text, Math.max(8, width - 8))}
589                </Text>
590              </Button>
591            </Box>
592          )
593        })}
594        {isFolded &&
595          chip(ui, look, {
596            key: 'all-turns',
597            label: actions.isAllTurns ? '▴ show fewer' : `▾ show all ${Math.min(ledger.turns.length, 50)}`,
598            tone: copyTone(colors),
599            onPress: actions.toggleTurns,
600          })}
601      </Box>
602    </Box>
603  )
604}
605
606export type MenuOption = { value: string; label: string }
607
608// One setting: its label (a press, or its number key, steps to the next choice) and every
609// choice as a chip, the current one filled.
610export type MenuSetting = {
611  key: string
612  hotkey: string
613  label: string
614  hint: string
615  options: readonly MenuOption[]
616  current: string
617  pick: (value: string) => void
618}
619
620export type MenuSection = { title: string; tone: string; settings: readonly MenuSetting[] }
621
622const LABEL_WIDTH = 17
623
624function optionChip(ui: UI, look: Look, key: string, label: string, isCurrent: boolean, onPress: () => void): RenderElement {
625  const { colors } = look
626  const text = ` ${label} `
627  const face = isCurrent ? (
628    badge(ui, colors, text, colors.you)
629  ) : (
630    <ui.Text color={colors.muted} hover={{ color: colors.text, bold: true }}>
631      {text}
632    </ui.Text>
633  )
634  return (
635    <ui.Box key={`opt-${key}`}>
636      <ui.Button key={key} plain onPress={onPress}>
637        {face}
638      </ui.Button>
639    </ui.Box>
640  )
641}
642
643function settingRow(ui: UI, look: Look, setting: MenuSetting): RenderElement {
644  const { Box, Button, Text } = ui
645  const { colors } = look
646  const at = Math.max(0, setting.options.findIndex(o => o.value === setting.current))
647  const next = setting.options[(at + 1) % setting.options.length]
648  return (
649    <Box key={`set-${setting.key}`} flexDirection="column">
650      <Box flexDirection="row">
651        <Box key={`label-${setting.key}`} width={LABEL_WIDTH} flexShrink={0}>
652          <Button key={`cycle-${setting.key}`} plain hotkey={setting.hotkey} onPress={() => next !== undefined && setting.pick(next.value)}>
653            <Text color={colors.text} bold hover={{ color: colors.you }}>
654              {setting.label}
655            </Text>
656          </Button>
657        </Box>
658        <Box flexDirection="row" flexWrap="wrap">
659          {setting.options.map(o => optionChip(ui, look, `${setting.key}-${o.value}`, o.label, o.value === setting.current, () => setting.pick(o.value)))}
660        </Box>
661      </Box>
662      {/* The description sits on its own line under the choices, dim and set in. */}
663      {setting.hint !== '' && (
664        <Box paddingLeft={LABEL_WIDTH}>
665          <Text color={colors.muted} italic wrap="wrap">
666            {setting.hint}
667          </Text>
668        </Box>
669      )}
670    </Box>
671  )
672}
673
674export function menu(ui: UI, look: Look, sections: readonly MenuSection[], footer: readonly string[]): RenderElement {
675  const { Box, Text } = ui
676  const { colors } = look
677  return (
678    <Box flexDirection="column">
679      <Box paddingX={1} backgroundColor={colors.barBg}>
680        {badge(ui, colors, ' clarity ', colors.claude)}
681        <Text color={colors.muted}> settings</Text>
682      </Box>
683      {sections.map(section => (
684        <Box flexDirection="column" marginTop={1} paddingX={1}>
685          {badge(ui, colors, ` ${section.title} `, section.tone)}
686          {section.settings.map((setting, i) => (
687            <Box key={`gap-${setting.key}`} marginTop={i === 0 ? 0 : 1}>
688              {settingRow(ui, look, setting)}
689            </Box>
690          ))}
691        </Box>
692      ))}
693      <Box flexDirection="column" marginTop={1} paddingX={1}>
694        {footer.map(line => (
695          <Text color={colors.muted} wrap="wrap">
696            {line}
697          </Text>
698        ))}
699      </Box>
700      <Box flexDirection="column" marginTop={1} paddingX={1}>
701        {badge(ui, colors, ' Preview ', colors.rule === 'subtle' ? 'inactive' : colors.muted)}
702        {preview(ui, { ...look, columns: Math.min(look.columns - 4, 64) })}
703      </Box>
704    </Box>
705  )
706}
707
708// A sample turn in the current look, so a change in the menu shows at once.
709export function preview(ui: UI, look: Look): RenderElement {
710  const { Box, Text } = ui
711  return (
712    <Box flexDirection="column" borderStyle="round" borderColor={look.colors.rule} paddingX={1}>
713      {userRow(ui, look, 'add rate limiting to the api')}
714      {replyBox(ui, look, true, <Text color={look.colors.text}>I'll check the server first.</Text>, [])}
715      {toolLine(ui, look, { tools: [{ tool: 'Read', label: 'Read ×2' }, { tool: 'Grep', label: 'Grep' }], detail: '', status: 'ok' })}
716      {toolLine(ui, look, { tools: [{ tool: 'Bash', label: 'Bash' }], detail: 'npm test', status: 'ok' })}
717      {toolLine(ui, look, { tools: [{ tool: 'Edit', label: 'Edit' }], detail: 'src/server.ts', status: 'running' })}
718      {turnRule(ui, look, 42000)}
719    </Box>
720  )
721}
722

1export type ToolDetail = 'summary' | 'full'
2export type PaletteChoice = 'auto' | 'dark' | 'contrast' | 'colorblind' | 'theme'
3export type PaletteName = Exclude<PaletteChoice, 'auto'>
4export type Alerts = 'off' | 'notify' | 'sound' | 'both'
5export type PanelChoice = 'auto' | 'off'
6/** The editor terminal's font: clarity's readable sizes, or left as the person has it. */
7export type FontChoice = 'leave' | 'readable' | 'large'
8/** Symbols as drawn: unicode, or plain ASCII for terminals and fonts without them. */
9export type IconChoice = 'unicode' | 'ascii'
10
11export type Prefs = {
12  /** The mod draws at all; off hands every row back to the engine. */
13  isOn: boolean
14  /** Focus hides notices and successful tool output entirely. */
15  isFocus: boolean
16  tools: ToolDetail
17  palette: PaletteChoice
18  alerts: Alerts
19  /** The status band above the prompt. */
20  band: boolean
21  /** auto opens the session panel beside the transcript once the terminal is wide enough. */
22  panel: PanelChoice
23  /** The widest a reply's prose runs, in columns; 0 for the full width. (Was `width`, whose
24   *  100-column default read too long: renamed so stored prefs take the new default.) */
25  measure: number
26  copy: boolean
27  font: FontChoice
28  icons: IconChoice
29}
30
31export type Env = {
32  /** The person's /config theme, which `auto` follows. */
33  theme: string
34}
35
36export type Phase = 'idle' | 'thinking' | 'writing' | 'tool' | 'waiting' | 'compacting'
37
38/** What the main loop is doing now, for the band and the spinner. */
39export type Activity = {
40  phase: Phase
41  tool: string
42  detail: string
43  /** When the turn began, ms. */
44  since: number
45  /** Tokens the model has written this turn: estimated as it streams, exact at each step's end. */
46  tokens: number
47}
48
49export type FileChange = { added: number; removed: number; edits: number }
50export type ToolError = { tool: string; detail: string; text: string }
51
52/** One item of the plan Claude keeps with TodoWrite. */
53export type Todo = { content: string; status: 'pending' | 'in_progress' | 'completed'; activeForm: string }
54
55/** One finished tool call, for the panel's Recent list. */
56export type RecentAction = { at: number; tool: string; detail: string; isOk: boolean }
57
58/** What one turn did, for the card that closes a long turn. */
59export type TurnSummary = { tools: number; files: number; added: number; removed: number; failed: number }
60
61/** Tool calls made back to back, with no text between them: drawn as one strip until opened. */
62export type ToolRun = { ids: string[]; tools: string[]; running: number; failed: number }
63
64/** Where one call sits in its run; the run is keyed by its first call's id. */
65export type RunPlace = { run: string; index: number }
66
67/** What this session has done, for the panel and the band. */
68export type Ledger = {
69  /** Each prompt's first line, for the panel; `prompts` holds them whole, for copying. */
70  turns: string[]
71  prompts: string[]
72  files: Record<string, FileChange>
73  errors: ToolError[]
74  lastReply: string
75  /** Percent of the context window in use, when known. */
76  context: number | null
77  /** What the session has cost so far, in US dollars, when known. */
78  cost: number | null
79  /** The plan usage limit nearest to running out, when Claude Code reports one. */
80  limit: { percent: number; resetsAt: string | null } | null
81  /** Why the last turn stopped, when it died on an error (a usage limit, the context limit). */
82  stopped: string | null
83  todos: Todo[]
84  recent: RecentAction[]
85  /** Subagents running now. */
86  agents: number
87  /** Each long turn's summary, by its duration in ms (what the turn's closing row carries). */
88  summaries: Record<string, TurnSummary>
89}
90
91declare module 'claude-code' {
92  interface PluginState {
93    clarity: {
94      prefs: Prefs
95      env: Env
96      activity: Activity
97      ledger: Ledger
98      /** The clock, ticked each second while a turn runs, so the band's timer redraws. */
99      tick: number
100      /** Each tool row (or run, by its first id) the person clicked open, by tool_use_id. */
101      expanded: StateFamily<boolean>
102      runs: StateFamily<ToolRun | null>
103      places: StateFamily<RunPlace | null>
104    }
105  }
106}
107
