context-cache

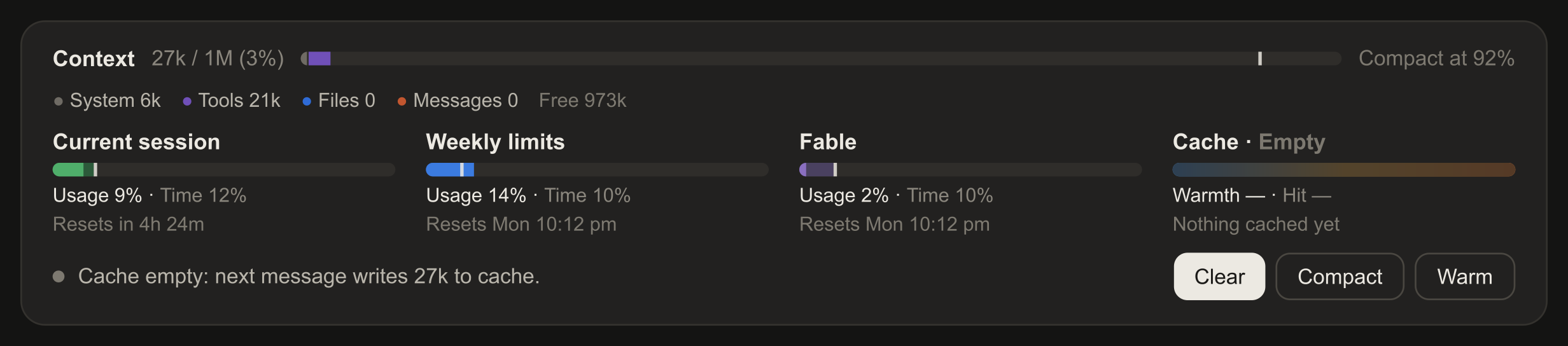

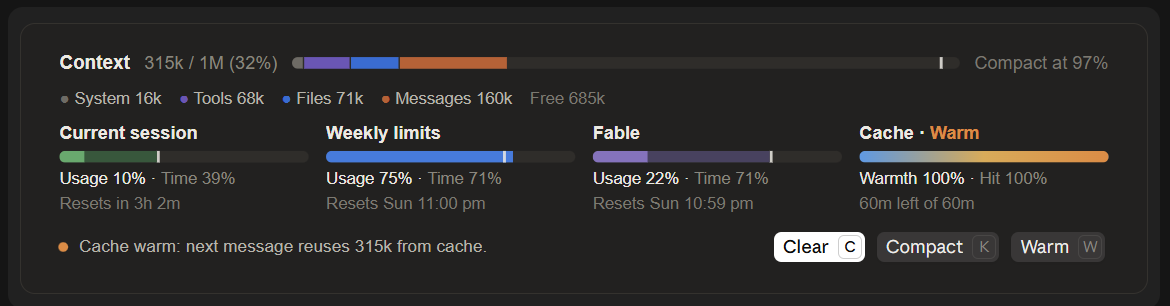

1// context-cache: a panel above the prompt with context usage, usage limits
2// (session, weekly, Fable) and prompt-cache temperature, plus Clear / Compact.
3//
4// Where each number comes from (all real, nothing sampled):
5// - Context: $.session.usage() (the status line's figures) and its /context
6//   breakdown; Files is the share of Messages that is file contents read.
7// - Limits: the account usage endpoint (api.anthropic.com/api/oauth/usage),
8//   called with the session's own credential through the host; falls back to
9//   the rate-limit headers of the last response.
10// - Cache: the time of the last main-thread response, the TTL the responses
11//   were cached with (read from the transcript's usage, or the engine's own
12//   model-switch report), and the last turn's cache-read share.
13
14import { atom, read, update } from 'claude-code'
15import type { EngineInterface, Register } from 'claude-code'
16
17import type { ContextCacheCache, ContextCacheLimit, ContextCacheSnapshot } from '../types'
18import {
19  buildContext,
20  buildView,
21  cacheView,
22  noticeText,
23  pct,
24  type ViewModel,
25  fileShareOf,
26  limitsFromResponse,
27  parseAccountUsage,
28  TTL_1H,
29  TTL_5M,
30  usageWindowsOf,
31} from './model'
32import { renderDesktop, renderTerminal, type Actions } from './view'
33
34const snapshotAtom = atom({ plugin: 'context-cache', key: 'snapshot' } as const, null)
35const hiddenAtom = atom({ plugin: 'context-cache', key: 'isHidden' } as const, false)
36const nowAtom = atom({ plugin: 'context-cache', key: 'now' } as const, 0)
37// Desktop and mobile draw the design in CSS px, but the band is measured in
38// cells; this is the conversion. 8 fits the desktop app's default font;
39// /cache scale <px> adjusts it and the value is kept across sessions.
40const pxPerCellAtom = atom({ plugin: 'context-cache', key: 'pxPerCell' } as const, 8)
41const DEFAULT_PX_PER_CELL = 8
42
43const USAGE_URL = 'https://api.anthropic.com/api/oauth/usage'
44// The account endpoint answers 429 to anyone who leans on it; the status-line
45// tools that use it hold to one request per 5 minutes, so this does too. The
46// 5h/7d figures still move every response through the rate-limit headers.
47const ACCOUNT_EVERY_MS = 5 * 60_000
48// Two reset times this close describe the same window (the sources round differently).
49const SAME_WINDOW_MS = 30 * 60_000
50const MAX_TRANSCRIPT_BYTES = 4 * 1024 * 1024 - 1024
51
52const emptyCache = (ttlMs: number, isTtlKnown: boolean): ContextCacheCache => ({
53  lastAt: null,
54  ttlMs,
55  isTtlKnown,
56  hitRate: null,
57})
58
59/** The TTL a response was cached with, from a transcript line's usage. */
60export function ttlFromTranscript(text: string): number | null {
61  const lines = text.split('\n')
62  for (let i = lines.length - 1, seen = 0; i >= 0 && seen < 400; i--, seen++) {
63    const line = lines[i]
64    if (!line || !line.includes('cache_creation')) continue
65    try {
66      const row = JSON.parse(line) as { message?: { usage?: { cache_creation?: Record<string, number> } } }
67      const cc = row.message?.usage?.cache_creation
68      if (!cc) continue
69      if ((cc['ephemeral_1h_input_tokens'] ?? 0) > 0) return TTL_1H
70      if ((cc['ephemeral_5m_input_tokens'] ?? 0) > 0) return TTL_5M
71    } catch {
72      // a partial line; keep looking
73    }
74  }
75  return null
76}
77
78// Module state: rebuilt on reload; what the drawing needs lives in $.state.
79let accountLimits: ContextCacheLimit[] | null = null
80let accountAt = 0
81let accountInFlight = false
82let refreshing: Promise<void> | null = null
83// Diagnostics for /cache status: what asked the mod to draw, and where, and
84// how the last account usage request went.
85const draws: Record<string, number> = {}
86const attached: string[] = []
87let cwd = ''
88const DIAG_FILE = 'context-cache-status.json' // written in the session's working directory
89type AccountDiag = {
90  at: number
91  authKind: string
92  status: number | null
93  ok: boolean | null
94  topLevelKeys: string[]
95  /** JSON paths of every node with a utilization figure, and which matched Fable. */
96  windows: string[]
97  fableMatched: string[]
98  bodyPreview: string
99  error: string | null
100}
101let lastAccount: AccountDiag | null = null
102
103function noteDraw(component: string, surface: string) {
104  const k = `${component}@${surface}`
105  draws[k] = (draws[k] ?? 0) + 1
106}
107
108async function statusReport($: EngineInterface): Promise<string> {
109  let surfaces: readonly string[] = []
110  try {
111    surfaces = await $.session.surfaces()
112  } catch {
113    surfaces = []
114  }
115  const [snap, hidden, pxPerCell] = await Promise.all([read($, snapshotAtom), read($, hiddenAtom), read($, pxPerCellAtom)])
116  const drawn = Object.entries(draws).map(([k, n]) => `${k} ×${n}`).join(', ') || 'nothing yet'
117  const a = lastAccount
118  const account = a
119    ? `auth ${a.authKind}, HTTP ${a.status ?? '—'}${a.ok === false ? ' (not ok)' : ''}` +
120      `${a.error ? `, error: ${a.error}` : ''}; keys: ${a.topLevelKeys.join(', ') || '—'}; ` +
121      `windows: ${a.windows.join(', ') || 'none'}; Fable matched: ${a.fableMatched.join(', ') || 'none'}`
122    : 'not attempted yet'
123  const lines = [
124    `Surfaces attached now: ${surfaces.length ? surfaces.join(', ') : 'none'}`,
125    `Clients that attached since load: ${attached.length ? attached.join(', ') : 'none seen'}`,
126    `Draw requests received: ${drawn}`,
127    `Panel hidden: ${hidden ? 'yes' : 'no'}; px per cell: ${pxPerCell} (/cache scale <px> changes it)`,
128    `Context: ${snap?.context ? `${snap.context.used} / ${snap.context.window}` : 'no reading'}`,
129    `Limits: ${snap?.limits.length ? snap.limits.map(l => `${l.kind} ${l.usage}%`).join(', ') : 'none'} (source: ${snap?.limitsSource ?? 'none'})`,
130    `Account usage request: ${account}`,
131    `Cache: last write ${snap?.cache.lastAt ? new Date(snap.cache.lastAt).toISOString() : 'none'}, TTL ${snap ? snap.cache.ttlMs / 60000 : '?'}m${snap?.cache.isTtlKnown ? '' : ' (default)'}`,
132    `Full report: ${cwd ? `${cwd}/` : ''}${DIAG_FILE}`,
133  ]
134  const text = lines.join('\n')
135  try {
136    await $.fs.write(
137      DIAG_FILE,
138      JSON.stringify({ at: await $.clock.now(), surfaces, attached, draws, hidden, pxPerCell, account: lastAccount, snap }, null, 2),
139    )
140  } catch {
141    // diagnostics only
142  }
143  return text
144}
145
146async function current($: EngineInterface): Promise<ContextCacheSnapshot> {
147  const snap = await read($, snapshotAtom)
148  if (snap) return snap
149  const stored = await $.store.get('ttlMs')
150  const ttl = stored === TTL_5M || stored === TTL_1H ? stored : TTL_1H
151  return {
152    context: null,
153    limits: [],
154    limitsSource: 'none',
155    cache: emptyCache(ttl, stored === TTL_5M || stored === TTL_1H),
156    updatedAt: await $.clock.now(),
157  }
158}
159
160async function patchCache($: EngineInterface, patch: Partial<ContextCacheCache>) {
161  const base = await current($)
162  await update($, snapshotAtom, prev => {
163    const s = prev ?? base
164    return { ...s, cache: { ...s.cache, ...patch } }
165  })
166}
167
168async function setTtl($: EngineInterface, ttlMs: number) {
169  await $.store.set('ttlMs', ttlMs)
170  await patchCache($, { ttlMs, isTtlKnown: true })
171}
172
173async function fetchAccount($: EngineInterface, now: number, force: boolean) {
174  if (accountInFlight) return
175  if (!force && now - accountAt < ACCOUNT_EVERY_MS) return
176  accountInFlight = true
177  const diag: AccountDiag = { at: now, authKind: 'none', status: null, ok: null, topLevelKeys: [], windows: [], fableMatched: [], bodyPreview: '', error: null }
178  lastAccount = diag
179  try {
180    const auth = await $.session.authorize()
181    diag.authKind = auth ? auth.kind : 'none'
182    if (!auth || auth.kind !== 'bearer') return
183    const res = await $.http.fetch(USAGE_URL, {
184      auth: auth.handle,
185      headers: { 'anthropic-beta': 'oauth-2025-04-20', accept: 'application/json' },
186    })
187    diag.status = res.status
188    diag.ok = res.ok
189    diag.bodyPreview = res.text.slice(0, 2000)
190    if (res.status === 429) {
191      // Back off a whole interval (or what retry-after asks) before trying again.
192      const retry = Number(res.headers['retry-after'])
193      accountAt = now + (Number.isFinite(retry) && retry > 0 ? Math.max(0, retry * 1000 - ACCOUNT_EVERY_MS) : 0)
194      return
195    }
196    if (!res.ok) return
197    const json: unknown = JSON.parse(res.text)
198    if (json && typeof json === 'object') diag.topLevelKeys = Object.keys(json as object)
199    const found = usageWindowsOf(json)
200    diag.windows = found.map(f => `${f.path}=${f.usage}%`)
201    diag.fableMatched = found.filter(f => f.isFable).map(f => f.path)
202    const limits = parseAccountUsage(json)
203    if (limits.length > 0) {
204      accountLimits = limits
205      accountAt = now
206    }
207  } catch (err) {
208    // keep the last good reading; the response headers cover the gap
209    diag.error = err instanceof Error ? err.message : String(err)
210  } finally {
211    accountInFlight = false
212  }
213}
214
215// The Files share of the conversation: reading the whole transcript is the
216// dear part of a refresh, so it is done once per turn and reused between.
217let fileShare = 0
218let fileShareTurn = -1
219let turnNo = 0
220
221async function doRefresh($: EngineInterface, forceAccount: boolean) {
222  const now = await $.clock.now()
223  const prev = await current($)
224
225  let context = prev.context
226  let responseLimits: ContextCacheLimit[] = []
227  try {
228    const usage = await $.session.usage({ breakdown: 'summary' })
229    responseLimits = limitsFromResponse(usage.rateLimits)
230    const b = usage.context.breakdown
231    if (fileShareTurn !== turnNo) {
232      try {
233        const msgs = await $.session.messages()
234        if (Array.isArray(msgs)) fileShare = fileShareOf(msgs)
235        fileShareTurn = turnNo
236      } catch {
237        // keep the last share
238      }
239    }
240    context = buildContext({
241      categories: b?.categories ?? [],
242      realTokens: usage.context.tokens ?? b?.totalTokens,
243      window: usage.context.window,
244      autoCompactAt: b?.autoCompactThreshold,
245      isAutoCompactEnabled: b?.isAutoCompactEnabled ?? false,
246      fileShare,
247    })
248  } catch {
249    // keep the last context reading
250  }
251
252  await fetchAccount($, now, forceAccount)
253  // A reload empties module memory but not the session's snapshot: a recent
254  // account reading there still stands, so Fable does not blink out meanwhile.
255  if (accountLimits === null && prev.limitsSource === 'account' && now - prev.updatedAt < 10 * ACCOUNT_EVERY_MS) {
256    accountLimits = prev.limits
257    accountAt = prev.updatedAt
258  }
259  const isAccountFresh = accountLimits !== null && now - accountAt < 10 * ACCOUNT_EVERY_MS
260  let limits: ContextCacheLimit[]
261  let limitsSource: ContextCacheSnapshot['limitsSource']
262  if (isAccountFresh && accountLimits) {
263    // The headers arrive with every reply and the account reading is up to 5
264    // minutes old, yet the headers can trail it (weekly 25% against the
265    // account's and /usage's 26%). Usage only climbs inside a window, so for
266    // the same window the higher reading is the newer one; across a reset the
267    // later window wins. The account adds what the headers lack (Fable).
268    limits = [
269      ...responseLimits.map(r => {
270        const a = accountLimits!.find(x => x.kind === r.kind)
271        if (!a) return r
272        const resetsAt = r.resetsAt ?? a.resetsAt
273        if (resetsAt !== null && a.resetsAt !== null && Math.abs(resetsAt - a.resetsAt) > SAME_WINDOW_MS) {
274          return a.resetsAt > resetsAt ? a : { ...r, resetsAt }
275        }
276        return { ...r, resetsAt, usage: Math.max(r.usage, a.usage) }
277      }),
278      ...accountLimits.filter(a => !responseLimits.some(r => r.kind === a.kind)),
279    ]
280    limitsSource = 'account'
281  } else if (responseLimits.length > 0) {
282    limits = responseLimits
283    limitsSource = 'response'
284  } else {
285    limits = prev.limits
286    limitsSource = prev.limitsSource
287  }
288
289  await update($, snapshotAtom, latest => {
290    const s = latest ?? prev
291    return { ...s, context, limits, limitsSource, updatedAt: now }
292  })
293  await update($, nowAtom, () => now)
294}
295
296function refresh($: EngineInterface, forceAccount = false): Promise<void> {
297  if (refreshing) return refreshing
298  refreshing = doRefresh($, forceAccount)
299    .catch(() => undefined) // a refresh outliving its session, or a refused write: the next one retries
300    .finally(() => {
301    refreshing = null
302  })
303  return refreshing
304}
305
306async function learnTtl($: EngineInterface, transcriptPath: string) {
307  if (!transcriptPath) return
308  try {
309    const stat = await $.fs.stat(transcriptPath)
310    if (stat.size > MAX_TRANSCRIPT_BYTES) return
311    const text = await $.fs.read(transcriptPath)
312    const ttl = ttlFromTranscript(typeof text === 'string' ? text : '')
313    if (ttl !== null) await setTtl($, ttl)
314  } catch {
315    // unreadable: the stored TTL stands
316  }
317}
318
319const PANE = 'context-cache'
320
321const COMMANDS = [
322  { name: 'cache', description: 'Context & cache panel: show or hide it' },
323  { name: 'cache-status', description: 'Context & cache panel: where each figure comes from (surfaces, draws, the account usage request, Fable)' },
324  { name: 'cache-pane', description: 'Context & cache panel: open it as a pane (the way it shows on mobile)' },
325  { name: 'cache-refresh', description: 'Context & cache panel: re-read usage now' },
326  { name: 'cache-scale', description: 'Context & cache panel: px per cell the desktop draws at (default 8); a number sets it, none steps it', argumentHint: '[px]' },
327] as const
328
329async function hasMobile($: EngineInterface): Promise<boolean> {
330  try {
331    return (await $.session.surfaces()).includes('mobile')
332  } catch {
333    return false
334  }
335}
336
337/** The card's inner width in CSS px on a remote surface: the band's cells × px per cell, less the border. */
338async function widthPx($: EngineInterface, columns: number): Promise<number> {
339  return columns * (await read($, pxPerCellAtom)) - 2
340}
341
342/** The size classes are set in the design's cells (8px each): a px width as that many. */
343function designCells(px: number): number {
344  return px / DEFAULT_PX_PER_CELL
345}
346
347/** The view model for a drawing, or null while hidden or before any reading. */
348async function panelModel($: EngineInterface, columns: number, maxRows: number): Promise<ViewModel | null> {
349  const [snap, hidden, tick] = await Promise.all([read($, snapshotAtom), read($, hiddenAtom), read($, nowAtom)])
350  if (hidden || !snap) return null
351  return buildView(snap, Math.max(tick, snap.updatedAt), columns, maxRows)
352}
353
354/** Clear and Compact. Neither hides the notice row: it stays on whatever the cache holds. */
355function actionsFor($: EngineInterface, isWorking: boolean): Actions {
356  return {
357    clear: async () => {
358      if (isWorking) $.ui.toast('Clear runs once the current turn finishes.')
359      try {
360        await $.command.run({ command: 'clear' })
361      } catch {
362        $.ui.toast('Could not run /clear right now.')
363      }
364    },
365    compact: async () => {
366      try {
367        const r = await $.session.compact()
368        if ('skip' in r) {
369          $.ui.toast('Compaction was skipped.')
370        } else {
371          // Our own session.compact hook does not see our own call: reset here.
372          await patchCache($, { lastAt: null, hitRate: null })
373          void refresh($)
374        }
375      } catch {
376        $.ui.toast('Compact runs between turns: try again when this one finishes.')
377      }
378    },
379  }
380}
381
382export const register: Register = on => {
383  // ── Session lifecycle ──────────────────────────────────────────────────
384
385  on('session.start', async ($, e, next) => {
386    cwd = e.cwd
387    // One command each: the desktop composer drops anything typed after a slash command's name.
388    for (const c of COMMANDS) await $.command.register(c)
389    const storedPx = await $.store.get('pxPerCell')
390    if (typeof storedPx === 'number' && storedPx > 0) await update($, pxPerCellAtom, () => storedPx)
391    const initial = await current($)
392    await update($, snapshotAtom, prev => prev ?? initial)
393    void refresh($, true)
394    // Started from the phone: the pane is how the panel shows there.
395    if (await hasMobile($)) void $.ui.open({ id: PANE, title: 'Context & cache' }).catch(() => undefined)
396    // The countdown: checked once a second, redrawn only when a figure the
397    // panel shows would change (a 60m TTL moves a whole percent every 36s; a
398    // 5m one shows seconds, so it redraws every second).
399    let lastShown = ''
400    $.clock.every(1000, () => {
401      void (async () => {
402        const [snap, hidden] = await Promise.all([read($, snapshotAtom), read($, hiddenAtom)])
403        if (hidden || !snap || snap.cache.lastAt === null) return
404        const now = await $.clock.now()
405        const c = cacheView(snap.cache, now)
406        const shown = `${c.state}|${pct(c.warmth * 100)}|${c.detail}|${c.state === 'cooling' ? noticeText(c, snap.context, snap.cache.ttlMs) : ''}`
407        if (shown === lastShown) return
408        lastShown = shown
409        await update($, nowAtom, () => now)
410      })().catch(() => undefined)
411    })
412    $.clock.every(ACCOUNT_EVERY_MS, () => void refresh($, false))
413    return next(e)
414  })
415
416  // Resumed: the transcript says how long ago the last response was.
417  on('classic.SessionStart', async ($, e, next) => {
418    const now = await $.clock.now()
419    if ((e.source === 'resume' || e.source === 'fork') && typeof e.seconds_since_last_response === 'number') {
420      await patchCache($, { lastAt: now - e.seconds_since_last_response * 1000 })
421    } else if (e.source === 'clear' || e.source === 'compact') {
422      await patchCache($, { lastAt: null, hitRate: null })
423    }
424    void learnTtl($, e.transcript_path)
425    return next(e)
426  }).catch((_$, e, next) => next(e))
427
428  // Each main-thread response writes/reads the cache as it lands, so a long
429  // turn (or the first one after /clear) does not sit at "Empty" until it ends.
430  on('turn.step', async function* ($, e, next) {
431    const r = yield* next(e)
432    const u = r.usage
433    if (e.agentId === undefined && u) {
434      const total = u.cache_read_input_tokens + u.cache_creation_input_tokens + u.input_tokens
435      void $.clock
436        .now()
437        .then(now => patchCache($, { lastAt: now, hitRate: total > 0 ? u.cache_read_input_tokens / total : null }))
438        .catch(() => undefined)
439    }
440    return r
441  })
442
443  // A turn of the main conversation ended: its requests just wrote/read the cache.
444  on('turn.complete', async ($, e, next) => {
445    const result = await next(e)
446    if (e.agentId === undefined) {
447      turnNo += 1
448      const now = await $.clock.now()
449      const u = e.usage
450      const total = u ? u.cache_read_input_tokens + u.cache_creation_input_tokens + u.input_tokens : 0
451      await patchCache($, {
452        lastAt: u ? now : (await current($)).cache.lastAt,
453        hitRate: u && total > 0 ? u.cache_read_input_tokens / total : (await current($)).cache.hitRate,
454      })
455      void refresh($)
456    }
457    return result
458  })
459
460  // After each turn, read which TTL the responses were cached with.
461  on('classic.Stop', ($, e, next) => {
462    void learnTtl($, e.transcript_path)
463    return next(e)
464  }).catch((_$, e, next) => next(e))
465
466  // The engine reports the TTL itself on a model switch; a switch also forfeits the cache.
467  on('classic.PostModelSwitch', async ($, e, next) => {
468    await setTtl($, e.cache_ttl === '5m' ? TTL_5M : TTL_1H)
469    await patchCache($, { lastAt: null, hitRate: null })
470    void refresh($)
471    return next(e)
472  }).catch((_$, e, next) => next(e))
473
474  // Usage figures moved (context fill, a limit window).
475  on('session.measure', ($, e, next) => {
476    void refresh($)
477    return next(e)
478  })
479
480  // A compaction replaces the conversation: nothing of the new one is cached yet.
481  on('session.compact', async ($, e, next) => {
482    const result = await next(e)
483    if (e.trigger !== 'precompute' && !('skip' in result)) {
484      await patchCache($, { lastAt: null, hitRate: null })
485      void refresh($)
486    }
487    return result
488  }).catch((_$, e, next) => next(e))
489
490  // /clear starts a fresh conversation in the same process.
491  on('session.end', async ($, e, next) => {
492    const result = await next(e)
493    if (e.reason === 'clear') {
494      await patchCache($, { lastAt: null, hitRate: null })
495      void refresh($)
496    }
497    return result
498  })
499
500  // ── /cache, /cache-status, /cache-pane, /cache-refresh, /cache-scale ────
501
502  on('command.run', { command: 'cache-status' }, async $ => ({ text: await statusReport($) }))
503
504  on('command.run', { command: 'cache-refresh' }, async $ => {
505    await refresh($, true)
506    return { text: 'Context & cache panel refreshed.' }
507  })
508
509  on('command.run', { command: 'cache-scale' }, async ($, e) => {
510    const was = await read($, pxPerCellAtom)
511    const typed = Number(e.args.trim())
512    // No number typed (or none delivered): step through 7 … 9.5 and round.
513    const n = Number.isFinite(typed) && typed > 0 ? typed : was >= 9.5 ? 7 : Math.round((was + 0.5) * 2) / 2
514    await $.store.set('pxPerCell', n)
515    await update($, pxPerCellAtom, () => n)
516    return { text: `Desktop now draws at ${n} px per cell (was ${was}). Run it again to step up; /cache-scale <px> sets it outright.` }
517  })
518
519  on('command.run', { command: 'cache-pane' }, async $ => {
520    await update($, hiddenAtom, () => false)
521    void refresh($)
522    await $.ui.open({ id: PANE, title: 'Context & cache' })
523    return { text: 'Context & cache panel opened.' }
524  })
525
526  on('command.run', { command: 'cache' }, async $ => {
527    const isHidden = await read($, hiddenAtom)
528    await update($, hiddenAtom, () => !isHidden)
529    if (isHidden) {
530      void refresh($)
531      // Phones have no band above the prompt: show it there as a pane.
532      if (await hasMobile($)) await $.ui.open({ id: PANE, title: 'Context & cache' })
533      return { text: 'Context & cache panel shown.' }
534    }
535    await $.ui.close({ id: PANE }).catch(() => undefined)
536    return { text: 'Context & cache panel hidden. /cache shows it again.' }
537  })
538
539  // A phone joined the session: open the panel as a pane there.
540  on('session.attach', async ($, e, next) => {
541    const result = await next(e)
542    attached.push(e.surface)
543    if (e.surface === 'mobile' && !(await read($, hiddenAtom))) {
544      void $.ui.open({ id: PANE, title: 'Context & cache' }).catch(() => undefined)
545    }
546    return result
547  })
548
549  // ── The band above the prompt (terminal, desktop) ──────────────────────
550
551  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
552    noteDraw('AbovePrompt', e.surface)
553    if (e.props.hasSurvey) return next(e)
554    if (e.props.view.agentId !== undefined) return next(e)
555    const E = $.ui.resolve(e)
556    if (e.surface === 'terminal') {
557      const vm = await panelModel($, e.props.bodyColumns, e.props.maxRows)
558      if (!vm) return next(e)
559      return renderTerminal(E as Parameters<typeof renderTerminal>[0], vm, e.props.bodyColumns, actionsFor($, e.props.isWorking))
560    }
561    if (e.surface === 'desktop' || e.surface === 'vscode') {
562      const px = await widthPx($, e.props.bodyColumns)
563      const vm = await panelModel($, designCells(px), e.props.maxRows)
564      if (!vm) return next(e)
565      return renderDesktop(E as Parameters<typeof renderDesktop>[0], vm, px, actionsFor($, e.props.isWorking))
566    }
567    return next(e)
568  })
569
570  // ── The same panel as a pane (every surface; the phone's way to see it) ─
571
572  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
573    noteDraw('Pane', e.surface)
574    const E = $.ui.resolve(e)
575    const { Text } = E
576    const rows = Math.max(e.props.scroll.bodyRows, 12)
577    if (e.surface === 'terminal') {
578      const vm = await panelModel($, e.props.bodyColumns, rows)
579      if (!vm) return <Text dimColor>Reading usage…</Text>
580      return renderTerminal(E as Parameters<typeof renderTerminal>[0], vm, e.props.bodyColumns, actionsFor($, false))
581    }
582    const px = await widthPx($, e.props.bodyColumns)
583    const vm = await panelModel($, designCells(px), rows)
584    if (!vm) return <Text dimColor>Reading usage…</Text>
585    return renderDesktop(E as Parameters<typeof renderDesktop>[0], vm, px, actionsFor($, false))
586  })
587}
588

1// Pure maths and copy for the context-cache panel: no `$`, no drawing.
2// Everything here takes real figures in and returns what the panel shows.
3
4import type { ContextCategory, SessionMessage, SessionRateLimit } from 'claude-code'
5
6import type {
7  ContextCacheCache,
8  ContextCacheContext,
9  ContextCacheGroup,
10  ContextCacheLimit,
11  ContextCacheLimitKind,
12  ContextCacheSnapshot,
13} from '../types'
14
15// ── Design tokens ──────────────────────────────────────────────────────────
16
17export const TOKENS = {
18  card: '#222120',
19  border: '#34322e',
20  borderStrong: '#4a4741',
21  track: '#2f2d2a',
22  ringTrack: '#3a3835',
23  text: '#ece9e2',
24  text2: '#b9b5ab',
25  text3: '#8a867d',
26  text4: '#7d7970',
27  tick: '#ece9e2',
28  buttonText: '#1b1a18',
29} as const
30
31export const GROUP_COLORS: Record<ContextCacheGroup, string> = {
32  system: '#6f6b64',
33  tools: '#7050b8',
34  files: '#2f6bd6',
35  messages: '#c2562f',
36}
37
38export const GROUP_LABELS: Record<ContextCacheGroup, string> = {
39  system: 'System',
40  tools: 'Tools',
41  files: 'Files',
42  messages: 'Messages',
43}
44
45export const GROUPS: readonly ContextCacheGroup[] = ['system', 'tools', 'files', 'messages']
46
47export const LIMIT_COLORS: Record<ContextCacheLimitKind, { bright: string; dark: string }> = {
48  session: { bright: '#4fae6a', dark: '#2c5a3a' },
49  weekly: { bright: '#3b7be0', dark: '#2b4a80' },
50  fable: { bright: '#8a6fc0', dark: '#4a4160' },
51}
52export const AMBER = { bright: '#e0a84f', dark: '#6b5428' }
53export const RED = { bright: '#e5604f', dark: '#6b2f2a' }
54
55export const LIMIT_TITLES: Record<ContextCacheLimitKind, string> = {
56  session: 'Current session',
57  weekly: 'Weekly limits',
58  fable: 'Fable',
59}
60
61export const CACHE_COLORS = {
62  warm: '#e8833a',
63  cooling: '#e0a84f',
64  cold: '#4f9be8',
65  empty: '#7d7970',
66} as const
67
68export const HOUR = 3_600_000
69export const FIVE_HOURS = 5 * HOUR
70export const SEVEN_DAYS = 7 * 24 * HOUR
71export const TTL_5M = 5 * 60_000
72export const TTL_1H = HOUR
73
74// ── Formatting ─────────────────────────────────────────────────────────────
75
76/** 452000 → "452k", 1000000 → "1M", 1500000 → "1.5M", 640 → "640". */
77export function fmtTokens(n: number): string {
78  if (n >= 1_000_000) {
79    const m = n / 1_000_000
80    return `${Number.isInteger(m) ? m : m.toFixed(1).replace(/\.0$/, '')}M`
81  }
82  if (n >= 1000) return `${Math.round(n / 1000)}k`
83  return String(Math.max(0, Math.round(n)))
84}
85
86/** Whole percent, never NaN. */
87export function pct(n: number): number {
88  return Number.isFinite(n) ? Math.round(n) : 0
89}
90
91/** 7_920_000 → "2h 12m"; 200_000 → "3m 20s"; 45_000 → "45s"; days when ≥ 24h. */
92export function fmtSpan(ms: number, withSeconds = false): string {
93  const s = Math.max(0, Math.round(ms / 1000))
94  const d = Math.floor(s / 86400)
95  const h = Math.floor((s % 86400) / 3600)
96  const m = Math.floor((s % 3600) / 60)
97  const sec = s % 60
98  if (d > 0) return `${d}d ${h}h`
99  if (h > 0) return `${h}h ${m}m`
100  if (withSeconds) return m > 0 ? `${m}m ${sec}s` : `${sec}s`
101  return `${m}m`
102}
103
104const DAYS = ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat']
105
106/** "Resets in 2h 12m" inside a day, else "Resets Sun 11:00 pm" (local time). */
107export function fmtReset(resetsAt: number | null, now: number): string {
108  if (resetsAt === null) return 'Reset time not reported'
109  const left = resetsAt - now
110  if (left <= 0) return 'Resetting now'
111  if (left < 24 * HOUR) return `Resets in ${fmtSpan(left)}`
112  const d = new Date(resetsAt)
113  const h24 = d.getHours()
114  const h12 = h24 % 12 === 0 ? 12 : h24 % 12
115  const mm = String(d.getMinutes()).padStart(2, '0')
116  return `Resets ${DAYS[d.getDay()]} ${h12}:${mm} ${h24 < 12 ? 'am' : 'pm'}`
117}
118
119// ── Context ────────────────────────────────────────────────────────────────
120
121/** Tools whose results are file contents, for the Files share of Messages. */
122const FILE_TOOLS = new Set(['Read', 'NotebookRead'])
123
124/**
125 * The share of the conversation's text that is file contents the model read,
126 * 0 to 1: the Files segment is that share of the Messages row's real tokens.
127 */
128export function fileShareOf(messages: readonly SessionMessage[]): number {
129  let total = 0
130  let files = 0
131  for (const m of messages) {
132    total += m.text.length
133    for (const use of m.toolUses) {
134      const len = (use.text ?? '').length + JSON.stringify(use.input ?? {}).length
135      total += len
136      if (FILE_TOOLS.has(use.tool)) files += (use.text ?? '').length
137    }
138  }
139  return total > 0 ? Math.min(1, files / total) : 0
140}
141
142/** Which of the four groups a /context row belongs to. */
143export function groupOf(name: string): ContextCacheGroup {
144  if (/message/i.test(name)) return 'messages'
145  if (/tool|mcp|agent|skill|command/i.test(name)) return 'tools'
146  return 'system'
147}
148
149/**
150 * The context row's figures: /context's categories grouped into four and
151 * scaled so they sum to the real token count the last response reported.
152 */
153export function buildContext(args: {
154  categories: readonly ContextCategory[]
155  realTokens: number | undefined
156  window: number
157  autoCompactAt: number | undefined
158  isAutoCompactEnabled: boolean
159  fileShare: number
160}): ContextCacheContext {
161  const raw: Record<ContextCacheGroup, number> = { system: 0, tools: 0, files: 0, messages: 0 }
162  for (const c of args.categories) {
163    if (c.kind !== 'used') continue
164    raw[groupOf(c.name)] += c.tokens
165  }
166  const fileTokens = Math.round(raw.messages * args.fileShare)
167  raw.files = fileTokens
168  raw.messages -= fileTokens
169  const estimate = GROUPS.reduce((s, g) => s + raw[g], 0)
170  const used = args.realTokens ?? estimate
171  const k = estimate > 0 ? used / estimate : 0
172  const parts = { system: 0, tools: 0, files: 0, messages: 0 } as Record<ContextCacheGroup, number>
173  for (const g of GROUPS) parts[g] = Math.round(raw[g] * k)
174  return {
175    used,
176    window: args.window,
177    autoCompactAt: args.isAutoCompactEnabled && args.autoCompactAt ? args.autoCompactAt : null,
178    parts,
179  }
180}
181
182// ── Limits ─────────────────────────────────────────────────────────────────
183
184type Found = { path: string[]; node: Record<string, unknown>; usage: number }
185
186function walk(node: unknown, path: string[], out: Found[]): void {
187  if (Array.isArray(node)) {
188    node.forEach((n, i) => walk(n, [...path, String(i)], out))
189    return
190  }
191  if (node === null || typeof node !== 'object') return
192  const obj = node as Record<string, unknown>
193  // five_hour / seven_day say `utilization`; the limits[] items (the per-model windows) say `percent`.
194  const u = obj['utilization'] ?? obj['percent'] ?? obj['percent_used'] ?? obj['used_percent']
195  if (typeof u === 'number') {
196    out.push({ path, node: obj, usage: u })
197    return
198  }
199  for (const [k, v] of Object.entries(obj)) walk(v, [...path, k], out)
200}
201
202const isFable = (f: Found) => /fable/i.test(f.path.join('.')) || /fable/i.test(JSON.stringify(f.node))
203
204/** Every window with a utilization figure in the account usage JSON, for /cache status. */
205export function usageWindowsOf(json: unknown): { path: string; usage: number; isFable: boolean }[] {
206  const found: Found[] = []
207  walk(json, [], found)
208  return found.map(f => ({ path: f.path.join('.'), usage: f.usage, isFable: isFable(f) }))
209}
210
211function toEpochMs(v: unknown): number | null {
212  if (typeof v === 'number') return v < 1e12 ? v * 1000 : v
213  if (typeof v === 'string') {
214    const t = Date.parse(v)
215    return Number.isNaN(t) ? null : t
216  }
217  return null
218}
219
220/**
221 * Reads the account usage endpoint's JSON (api.anthropic.com/api/oauth/usage),
222 * the same source /usage draws on: `five_hour` is the current session,
223 * `seven_day` the weekly limit, and Fable is the `limits[]` item of kind
224 * `weekly_scoped` whose `scope.model.display_name` is "Fable" (an item with
225 * `scope: null` repeats `seven_day`). Matching by name rather than a fixed
226 * key keeps it working if the key moves.
227 */
228export function parseAccountUsage(json: unknown): ContextCacheLimit[] {
229  const found: Found[] = []
230  walk(json, [], found)
231  const out: ContextCacheLimit[] = []
232  const take = (kind: ContextCacheLimitKind, f: Found | undefined, windowMs: number) => {
233    if (!f) return
234    out.push({
235      kind,
236      usage: Math.max(0, Math.min(100, f.usage)),
237      resetsAt: toEpochMs(f.node['resets_at'] ?? f.node['resetsAt']),
238      windowMs,
239    })
240  }
241  const keyOf = (f: Found) => f.path[f.path.length - 1] ?? ''
242  take('session', found.find(f => keyOf(f) === 'five_hour'), FIVE_HOURS)
243  take('weekly', found.find(f => keyOf(f) === 'seven_day'), SEVEN_DAYS)
244  const fable = found.filter(isFable).sort((a, b) => b.usage - a.usage)[0]
245  take('fable', fable, SEVEN_DAYS)
246  return out
247}
248
249/** The engine's own per-response rate-limit readings, as a fallback. */
250export function limitsFromResponse(rateLimits: readonly SessionRateLimit[]): ContextCacheLimit[] {
251  const out: ContextCacheLimit[] = []
252  for (const r of rateLimits) {
253    const kind: ContextCacheLimitKind | null =
254      r.kind === 'five_hour' ? 'session' : r.kind === 'seven_day' ? 'weekly' : /fable/i.test(r.kind) ? 'fable' : null
255    if (!kind) continue
256    out.push({
257      kind,
258      usage: Math.max(0, Math.min(100, r.percentUsed)),
259      resetsAt: r.resetsAt ? toEpochMs(r.resetsAt) : null,
260      windowMs: kind === 'session' ? FIVE_HOURS : SEVEN_DAYS,
261    })
262  }
263  return out
264}
265
266export type LimitTone = 'normal' | 'amber' | 'red'
267
268export type LimitView = {
269  kind: ContextCacheLimitKind
270  title: string
271  /** Null when this limit has no reading at all. */
272  usage: number | null
273  time: number | null
274  tone: LimitTone
275  bright: string
276  dark: string
277  reset: string
278}
279
280/** Percent of the window that has elapsed, from its reset time. */
281export function timePct(limit: ContextCacheLimit, now: number): number | null {
282  if (limit.resetsAt === null) return null
283  const elapsed = limit.windowMs - (limit.resetsAt - now)
284  return Math.max(0, Math.min(100, (elapsed / limit.windowMs) * 100))
285}
286
287/** Red at ≥ 90% used; amber when > 15 points and > 1.4× ahead of time. */
288export function toneOf(usage: number, time: number | null): LimitTone {
289  if (usage >= 90) return 'red'
290  const t = time ?? 0
291  if (usage - t > 15 && (t === 0 || usage / t > 1.4)) return 'amber'
292  return 'normal'
293}
294
295export function limitView(kind: ContextCacheLimitKind, limit: ContextCacheLimit | undefined, now: number): LimitView {
296  if (!limit) {
297    const base = LIMIT_COLORS[kind]
298    return { kind, title: LIMIT_TITLES[kind], usage: null, time: null, tone: 'normal', ...base, reset: 'No reading yet' }
299  }
300  const time = timePct(limit, now)
301  const tone = toneOf(limit.usage, time)
302  const colors = tone === 'red' ? RED : tone === 'amber' ? AMBER : LIMIT_COLORS[kind]
303  return {
304    kind,
305    title: LIMIT_TITLES[kind],
306    usage: limit.usage,
307    time,
308    tone,
309    ...colors,
310    reset: fmtReset(limit.resetsAt, now),
311  }
312}
313
314// ── Cache ──────────────────────────────────────────────────────────────────
315
316export type CacheState = 'warm' | 'cooling' | 'cold' | 'empty'
317
318export type CacheView = {
319  state: CacheState
320  /** Remaining TTL ÷ TTL, 0 to 1. */
321  warmth: number
322  remainingMs: number
323  color: string
324  label: string
325  hit: number | null
326  detail: string
327}
328
329/** Warm > 25% of the TTL left, cooling 1–25%, cold at 0; empty with nothing cached. */
330export function cacheView(cache: ContextCacheCache, now: number): CacheView {
331  const ttl = cache.ttlMs
332  const hit = cache.hitRate === null ? null : cache.hitRate * 100
333  if (cache.lastAt === null) {
334    return {
335      state: 'empty',
336      warmth: 0,
337      remainingMs: 0,
338      color: CACHE_COLORS.empty,
339      label: 'Empty',
340      hit,
341      detail: 'Nothing cached yet',
342    }
343  }
344  const remainingMs = Math.max(0, cache.lastAt + ttl - now)
345  const warmth = ttl > 0 ? remainingMs / ttl : 0
346  const state: CacheState = warmth <= 0 ? 'cold' : warmth > 0.25 ? 'warm' : 'cooling'
347  const short = ttl < 10 * 60_000
348  const ttlText = `${Math.round(ttl / 60_000)}m`
349  const detail =
350    state === 'cold'
351      ? (() => {
352          const ago = now - (cache.lastAt + ttl)
353          return ago < 60_000 ? 'Expired just now' : `Expired ${fmtSpan(ago)} ago`
354        })()
355      : short
356        ? `${fmtSpan(remainingMs, true)} left of ${ttlText}`
357        : `${Math.max(1, Math.round(remainingMs / 60_000))}m left of ${ttlText}`
358  return {
359    state,
360    warmth,
361    remainingMs,
362    color: CACHE_COLORS[state],
363    label: state === 'warm' ? 'Warm' : state === 'cooling' ? 'Cooling' : 'Cold',
364    hit,
365    detail,
366  }
367}
368
369/** The notice line's copy. Always a line: the row with Clear / Compact never hides. */
370export function noticeText(cache: CacheView, context: ContextCacheContext | null, ttlMs: number): string {
371  if (!context) return cache.state === 'empty' ? 'Cache empty: nothing cached yet.' : `Cache ${cache.label.toLowerCase()}: reading context size…`
372  const tokens = fmtTokens(context.used)
373  if (cache.state === 'empty') return `Cache empty: next message writes ${tokens} to cache.`
374  if (cache.state === 'warm') {
375    const usedPct = (context.used / context.window) * 100
376    if (context.autoCompactAt !== null && usedPct >= 85) {
377      const away = Math.max(0, pct((context.autoCompactAt / context.window) * 100 - usedPct))
378      return `Cache warm: next message reuses ${tokens}. Auto-compact is ${away}% away.`
379    }
380    return `Cache warm: next message reuses ${tokens} from cache.`
381  }
382  if (cache.state === 'cooling') {
383    const within =
384      ttlMs < 10 * 60_000 ? fmtSpan(cache.remainingMs, true) : `${Math.max(1, Math.round(cache.remainingMs / 60_000))}m`
385    return `Cache cooling: send within ${within} to keep ${tokens} cached.`
386  }
387  return `Cache cold: next message re-reads ${tokens}. Clear is free.`
388}
389
390// ── Layout ─────────────────────────────────────────────────────────────────
391
392/**
393 * The design's four widths, in the cells the band is laid out in (≈ 8px a
394 * cell): a ≈ 900px, b ≈ 620px (columns from ~500px), c ≈ 420px (rings),
395 * d ≈ 320px (rings, no legend or detail lines).
396 */
397export type SizeClass = 'a' | 'b' | 'c' | 'd'
398
399export function sizeClassOf(columns: number): SizeClass {
400  if (columns >= 100) return 'a'
401  if (columns >= 62) return 'b'
402  if (columns >= 45) return 'c'
403  return 'd'
404}
405
406/** Rows the terminal card takes in each class (border included). */
407export function rowsFor(size: SizeClass, hasNotice: boolean): number {
408  const body = size === 'a' || size === 'b' ? 1 + 1 + 4 + (hasNotice ? 1 : 0) : size === 'c' ? 1 + 1 + 2 + (hasNotice ? 2 : 0) : 1 + 1 + (hasNotice ? 2 : 0)
409  return body + 2
410}
411
412// ── The whole view ─────────────────────────────────────────────────────────
413
414export type ViewModel = {
415  size: SizeClass
416  context: {
417    used: number
418    window: number
419    usedLabel: string
420    compactPct: number | null
421    rightLabel: string
422    segments: { group: ContextCacheGroup; tokens: number; color: string; label: string }[]
423    free: number
424  } | null
425  limits: LimitView[]
426  cache: CacheView
427  notice: string
428  showLegend: boolean
429  showDetail: boolean
430}
431
432export function buildView(
433  snap: ContextCacheSnapshot,
434  now: number,
435  columns: number,
436  maxRows: number,
437): ViewModel {
438  let size = sizeClassOf(columns)
439  const cache = cacheView(snap.cache, now)
440  const notice = noticeText(cache, snap.context, snap.cache.ttlMs)
441  // Fall back to a shorter layout when the band has fewer rows than it needs.
442  while (size !== 'd' && rowsFor(size, true) > maxRows) {
443    size = size === 'a' ? 'c' : size === 'b' ? 'c' : 'd'
444  }
445
446  const ctx = snap.context
447  const context = ctx
448    ? (() => {
449        const compactPct = ctx.autoCompactAt === null ? null : pct((ctx.autoCompactAt / ctx.window) * 100)
450        const wide = size === 'a' || size === 'b'
451        const rightLabel =
452          compactPct === null
453            ? `${pct((ctx.used / ctx.window) * 100)}%`
454            : wide
455              ? `Compact at ${compactPct}%`
456              : `${compactPct}%`
457        return {
458          used: ctx.used,
459          window: ctx.window,
460          usedLabel: `${fmtTokens(ctx.used)} / ${fmtTokens(ctx.window)} (${pct((ctx.used / ctx.window) * 100)}%)`,
461          compactPct,
462          rightLabel,
463          segments: GROUPS.map(g => ({
464            group: g,
465            tokens: ctx.parts[g],
466            color: GROUP_COLORS[g],
467            label: GROUP_LABELS[g],
468          })),
469          free: Math.max(0, ctx.window - ctx.used),
470        }
471      })()
472    : null
473
474  const byKind = (k: ContextCacheLimitKind) => snap.limits.find(l => l.kind === k)
475  const limits = (['session', 'weekly', 'fable'] as const).map(k => limitView(k, byKind(k), now))
476
477  return {
478    size,
479    context,
480    limits,
481    cache,
482    notice,
483    showLegend: size !== 'd',
484    showDetail: size === 'a' || size === 'b',
485  }
486}
487
488// ── Colour helpers ─────────────────────────────────────────────────────────
489
490function hexToRgb(hex: string): [number, number, number] {
491  const h = hex.replace('#', '')
492  return [parseInt(h.slice(0, 2), 16), parseInt(h.slice(2, 4), 16), parseInt(h.slice(4, 6), 16)]
493}
494
495function rgbToHex([r, g, b]: [number, number, number]): string {
496  return `#${[r, g, b].map(v => Math.round(v).toString(16).padStart(2, '0')).join('')}`
497}
498
499/** Mixes `a` toward `b` by `t` (0 → a, 1 → b). */
500export function mix(a: string, b: string, t: number): string {
501  const x = hexToRgb(a)
502  const y = hexToRgb(b)
503  return rgbToHex([x[0] + (y[0] - x[0]) * t, x[1] + (y[1] - x[1]) * t, x[2] + (y[2] - x[2]) * t])
504}
505
506/** The temperature gradient: blue → amber (50%) → orange. */
507export function tempColorAt(x: number): string {
508  const t = Math.max(0, Math.min(1, x))
509  return t < 0.5 ? mix(CACHE_COLORS.cold, CACHE_COLORS.cooling, t / 0.5) : mix(CACHE_COLORS.cooling, CACHE_COLORS.warm, (t - 0.5) / 0.5)
510}
511

1// Drawing for the context-cache panel: one view model, two renderers.
2// Terminal: block-character bars in the design's colours, text glyphs for rings.
3// Desktop (and the editor, the phone's pane): the design drawn as SVG, host buttons.
4
5import type { Elements } from 'claude-code'
6
7import { fmtTokens, pct, TOKENS, tempColorAt, mix, type CacheView, type LimitView, type ViewModel } from './model'
8import { panelSvg } from './panel-svg'
9
10export type Actions = {
11  clear: () => void | Promise<void>
12  compact: () => void | Promise<void>
13}
14
15type TermEls = Elements['terminal']
16type DeskEls = Elements['desktop'] | Elements['vscode'] | Elements['mobile']
17
18const BAR = '━'
19const TICK = '┃'
20
21// ── Shared bits ────────────────────────────────────────────────────────────
22
23function usageLine(l: LimitView): { main: string; time: string } {
24  if (l.usage === null) return { main: 'No data', time: '' }
25  return { main: `Usage ${pct(l.usage)}%`, time: l.time === null ? '' : ` · Time ${pct(l.time)}%` }
26}
27
28function cacheLine(c: CacheView): { main: string; hit: string } {
29  if (c.state === 'empty') return { main: 'Warmth —', hit: c.hit === null ? '' : ` · Hit ${pct(c.hit)}%` }
30  return { main: `Warmth ${pct(c.warmth * 100)}%`, hit: ` · Hit ${c.hit === null ? '—' : `${pct(c.hit)}%`}` }
31}
32
33// ── Terminal ───────────────────────────────────────────────────────────────
34
35type Cell = { ch: string; color: string }
36
37/** Context bar: one cell run per group, the auto-compact tick over it. */
38export function contextCells(vm: NonNullable<ViewModel['context']>, n: number): Cell[] {
39  const cells: Cell[] = Array.from({ length: n }, () => ({ ch: BAR, color: TOKENS.track }))
40  let acc = 0
41  for (const s of vm.segments) {
42    const start = Math.round((acc / vm.window) * n)
43    acc += s.tokens
44    const end = Math.min(n, Math.round((acc / vm.window) * n))
45    for (let i = start; i < end; i++) cells[i] = { ch: BAR, color: s.color }
46  }
47  if (vm.compactPct !== null) {
48    const i = Math.min(n - 1, Math.floor((vm.compactPct / 100) * n))
49    cells[i] = { ch: TICK, color: TOKENS.tick }
50  }
51  return cells
52}
53
54/** Double bar: dark = time (to max of both), bright = usage, tick at time. */
55export function limitCells(l: LimitView, n: number): Cell[] {
56  const u = l.usage ?? 0
57  const t = l.time ?? 0
58  // Any usage at all shows as at least one cell.
59  const brightEnd = u > 0 ? Math.max(1, Math.round((u / 100) * n)) : 0
60  const darkEnd = Math.max(brightEnd, Math.round((Math.max(u, t) / 100) * n))
61  const cells: Cell[] = Array.from({ length: n }, (_, i) => ({
62    ch: BAR,
63    color: i < brightEnd ? l.bright : i < darkEnd ? l.dark : TOKENS.track,
64  }))
65  // The time tick; at the very start of a window it would hide the bar's first cell.
66  const tickAt = Math.min(n - 1, Math.round((t / 100) * n))
67  if (l.usage !== null && l.time !== null && tickAt >= 1) {
68    cells[tickAt] = { ch: TICK, color: TOKENS.tick }
69  }
70  return cells
71}
72
73/** Temperature bar: the gradient, covered right of the current warmth, a tick at it. */
74export function tempCells(c: CacheView, n: number): Cell[] {
75  const cells: Cell[] = Array.from({ length: n }, (_, i) => {
76    const x = (i + 0.5) / n
77    const color = tempColorAt(x)
78    return { ch: BAR, color: x > c.warmth ? mix(color, TOKENS.card, 0.74) : color }
79  })
80  if (c.state !== 'empty' && c.warmth > 0) {
81    cells[Math.min(n - 1, Math.floor(c.warmth * n))] = { ch: TICK, color: TOKENS.tick }
82  }
83  return cells
84}
85
86function runsOf(cells: Cell[]): { text: string; color: string }[] {
87  const runs: { text: string; color: string }[] = []
88  for (const c of cells) {
89    const last = runs[runs.length - 1]
90    if (last && last.color === c.color) last.text += c.ch
91    else runs.push({ text: c.ch, color: c.color })
92  }
93  return runs
94}
95
96const TERM_GLYPH = { session: '◷', weekly: '▦', fable: '✦' } as const
97function cacheGlyph(c: CacheView): string {
98  return c.state === 'cold' ? '❄' : c.state === 'empty' ? '○' : '♨'
99}
100
101export function renderTerminal(E: TermEls, vm: ViewModel, columns: number, actions: Actions) {
102  const { Box, Text, Button } = E
103  const inner = Math.max(20, columns - 4)
104  const wide = vm.size === 'a' || vm.size === 'b'
105
106  const bar = (cells: Cell[]) => (
107    <Text wrap="truncate">
108      {runsOf(cells).map(r => (
109        <Text color={r.color}>{r.text}</Text>
110      ))}
111    </Text>
112  )
113
114  // Row 1: context
115  const ctx = vm.context
116  const contextRow = ctx ? (
117    <Box flexDirection="row">
118      <Text bold color={TOKENS.text}>Context </Text>
119      <Text color={TOKENS.text3}>{ctx.usedLabel} </Text>
120      {bar(contextCells(ctx, Math.max(6, inner - 8 - ctx.usedLabel.length - 1 - ctx.rightLabel.length - 1)))}
121      <Text color={TOKENS.text4}> {ctx.rightLabel}</Text>
122    </Box>
123  ) : (
124    <Text color={TOKENS.text4}>Context: waiting for the first reading</Text>
125  )
126
127  // Row 2: legend
128  const legend =
129    ctx && vm.showLegend ? (
130      <Text wrap="wrap">
131        {ctx.segments.map(s => (
132          <Text>
133            <Text color={s.color}>● </Text>
134            <Text color={TOKENS.text2}>{`${s.label} ${fmtTokens(s.tokens)}  `}</Text>
135          </Text>
136        ))}
137        <Text color={TOKENS.text4}>{`Free ${fmtTokens(ctx.free)}`}</Text>
138      </Text>
139    ) : null
140
141  // Row 3: limits + cache
142  let limitsRow
143  if (wide) {
144    const gap = vm.size === 'a' ? 3 : 2
145    const colW = Math.max(8, Math.floor((inner - 3 * gap) / 4))
146    const limitCol = (l: LimitView) => {
147      const line = usageLine(l)
148      return (
149        <Box key={`limit-${l.kind}`} flexDirection="column" width={colW}>
150          <Text bold wrap="truncate" color={l.usage === null ? TOKENS.text4 : TOKENS.text}>
151            {l.title}
152          </Text>
153          {bar(limitCells(l, colW))}
154          <Text wrap="truncate">
155            <Text color={TOKENS.text}>{line.main}</Text>
156            <Text color={TOKENS.text3}>{line.time}</Text>
157          </Text>
158          <Text wrap="truncate" color={TOKENS.text4}>
159            {l.reset}
160          </Text>
161        </Box>
162      )
163    }
164    const c = vm.cache
165    const cl = cacheLine(c)
166    limitsRow = (
167      <Box flexDirection="row" columnGap={gap}>
168        {vm.limits.map(limitCol)}
169        <Box key="cache" flexDirection="column" width={colW}>
170          <Text bold wrap="truncate">
171            <Text color={TOKENS.text}>Cache · </Text>
172            <Text color={c.color}>{c.label}</Text>
173          </Text>
174          {bar(tempCells(c, colW))}
175          <Text wrap="truncate">
176            <Text color={TOKENS.text}>{cl.main}</Text>
177            <Text color={TOKENS.text3}>{cl.hit}</Text>
178          </Text>
179          <Text wrap="truncate" color={TOKENS.text4}>
180            {c.detail}
181          </Text>
182        </Box>
183      </Box>
184    )
185  } else {
186    const showTime = vm.size === 'c'
187    const ring = (l: LimitView) => (
188      <Box key={`limit-${l.kind}`} flexDirection="column">
189        <Text>
190          <Text color={l.bright}>{TERM_GLYPH[l.kind]} </Text>
191          <Text bold color={l.usage === null ? TOKENS.text4 : TOKENS.text}>
192            {l.usage === null ? '—' : `${pct(l.usage)}%`}
193          </Text>
194        </Text>
195        {showTime && <Text color={TOKENS.text3}>{l.time === null ? ' ' : `Time ${pct(l.time)}%`}</Text>}
196      </Box>
197    )
198    const c = vm.cache
199    const cacheMain =
200      c.state === 'cold' || c.state === 'empty' ? (showTime ? c.label : c.label) : showTime ? c.label : `${pct(c.warmth * 100)}%`
201    limitsRow = (
202      <Box flexDirection="row" justifyContent="space-between">
203        {vm.limits.map(ring)}
204        <Box key="cache" flexDirection="column">
205          <Text>
206            <Text color={c.color}>{cacheGlyph(c)} </Text>
207            <Text bold color={TOKENS.text}>
208              {cacheMain}
209            </Text>
210          </Text>
211          {showTime && (
212            <Text color={TOKENS.text3}>
213              {c.state === 'warm' || c.state === 'cooling' ? `${pct(c.warmth * 100)}% warm` : c.detail}
214            </Text>
215          )}
216        </Box>
217      </Box>
218    )
219  }
220
221  // Row 4: notice + actions
222  const buttons = (
223    <Box flexDirection="row" columnGap={1}>
224      <Button key="clear" label="Clear" variant="primary" hotkey="c" onPress={actions.clear} />
225      <Button key="compact" label="Compact" hotkey="k" onPress={actions.compact} />
226    </Box>
227  )
228  const notice = vm.notice
229    ? wide ? (
230        <Box flexDirection="row" columnGap={1}>
231          <Box flexGrow={1} flexShrink={1}>
232            <Text wrap="truncate">
233              <Text color={vm.cache.color}>● </Text>
234              <Text color={TOKENS.text2}>{vm.notice}</Text>
235            </Text>
236          </Box>
237          {buttons}
238        </Box>
239      ) : (
240        <Box flexDirection="column">
241          <Text wrap="wrap">
242            <Text color={vm.cache.color}>● </Text>
243            <Text color={TOKENS.text2}>{vm.notice}</Text>
244          </Text>
245          {buttons}
246        </Box>
247      )
248    : null
249
250  return (
251    <Box
252      key="context-cache"
253      flexDirection="column"
254      borderStyle="round"
255      borderColor={TOKENS.border}
256      paddingX={1}
257    >
258      {contextRow}
259      {legend}
260      {limitsRow}
261      {notice}
262    </Box>
263  )
264}
265
266// ── Desktop (and the editor, and the phone's pane) ─────────────────────────
267//
268// The design at its real pixel sizes: hooks/panel-svg.ts lays rows 1–3 (and a
269// narrow layout's notice) out as one SVG, the host draws the card around it
270// and its own buttons for Clear / Compact. The SVG is drawn at the
271// width the band is believed to be (cells × px per cell, see /cache scale);
272// where the slot is narrower the host scales it down to fit, so it always
273// fills the width whole and resizes without reflowing.
274
275export function renderDesktop(E: DeskEls, vm: ViewModel, widthPx: number, actions: Actions) {
276  const { Box, Button, Svg } = E
277  const p = panelSvg(vm, Math.max(240, widthPx))
278  const wide = p.size === 'a' || p.size === 'b'
279  const padX = p.size === 'd' ? 1 : 2
280  const button = (key: 'clear' | 'compact', label: string, hotkey: string, extra: Record<string, unknown>) => (
281    <Button key={key} label={label} hotkey={hotkey} onPress={actions[key]} {...extra} />
282  )
283  const buttons = (
284    <Box flexDirection="row" columnGap={1}>
285      {button('clear', 'Clear', 'c', { variant: 'primary' })}
286      {button('compact', 'Compact', 'k', {})}
287    </Box>
288  )
289  let actionsRow = null
290  if (vm.notice) {
291    actionsRow =
292      wide && p.notice ? (
293        <Box flexDirection="row" alignItems="center" columnGap={1} paddingRight={padX} paddingBottom={1}>
294          <Box flexGrow={1} flexShrink={1} minWidth={0}>
295            <Svg source={p.notice.svg} alt={vm.notice} />
296          </Box>
297          {buttons}
298        </Box>
299      ) : (
300        // The notice is in the SVG above; the buttons sit together under it.
301        // (The design's equal-width buttons need stretchable controls, which the host's native buttons are not.)
302        <Box flexDirection="row" paddingX={padX} paddingBottom={1}>{buttons}</Box>
303      )
304  }
305  return (
306    <Box key="context-cache" flexDirection="column" borderStyle="round" borderColor={TOKENS.border} backgroundColor={TOKENS.card}>
307      <Svg source={p.body.svg} alt={p.alt} />
308      {actionsRow}
309    </Box>
310  )
311}
312

1// The desktop/mobile panel drawn as SVG at the design's exact pixel sizes.
2//
3// The host's Text has no font size, so every line of the design (13px titles,
4// 12.5px labels, 11.5px detail, 10.5px ring captions) is laid out here with
5// the design's own font stack and Arial-compatible metrics, positioned the
6// way the browser positions the design's HTML (line-height normal, flex gaps,
7// ellipsis). The host draws the card, and its own buttons for the actions.
8
9import { ellipsize, textWidth } from './metrics'
10import { CACHE_COLORS, fmtTokens, pct, TOKENS, type CacheView, type LimitView, type ViewModel } from './model'
11
12const FONT = `'Helvetica Neue', Helvetica, Arial, sans-serif`
13// Arial / Helvetica vertical metrics per em. Chrome rounds each to whole
14// pixels before stacking them into a line box, so this does too.
15const ASC = 0.905
16const DESC = 0.212
17const GAP = 0.0327
18const A = (size: number) => Math.round(ASC * size)
19const D = (size: number) => Math.round(DESC * size)
20const TICK = 'rgba(236,233,226,.85)'
21const NS = 'http://www.w3.org/2000/svg'
22
23/** The design's four widths: a ≈ 900px, b ≈ 620px (columns from ~500px), c ≈ 420px (rings), d ≈ 320px (no legend). */
24export type DesignSize = ViewModel['size']
25
26const PAD: Record<DesignSize, { y: number; x: number }> = {
27  a: { y: 14, x: 18 },
28  b: { y: 11, x: 14 },
29  c: { y: 11, x: 14 },
30  d: { y: 10, x: 12 },
31}
32const ROW_GAP = 11
33/** A design button: 12.5px text, 6px padding, a 1px border on Compact. */
34export const BUTTON_H = lhOf(12.5) + 12 + 2
35
36function lhOf(size: number): number {
37  return A(size) + D(size) + Math.round(GAP * size)
38}
39
40const lh = lhOf
41/** Baseline of a line box of height `box` (default: line-height normal) with its top at `top`. */
42const baseline = (top: number, size: number, box = lhOf(size)) => top + (box - A(size) - D(size)) / 2 + A(size)
43const esc = (s: string) => s.replace(/&/g, '&amp;').replace(/</g, '&lt;').replace(/>/g, '&gt;')
44const r2 = (n: number) => Math.round(n * 100) / 100
45
46type Run = { text: string; color: string; bold?: boolean }
47
48/** One line of runs starting at x, its line box's top at `top`. */
49function line(x: number, top: number, size: number, runs: Run[], anchor: 'start' | 'end' = 'start', clipId?: string): string {
50  const y = r2(baseline(top, size))
51  const spans = runs
52    .map(r => `<tspan fill="${r.color}"${r.bold ? ' font-weight="700"' : ''}>${esc(r.text)}</tspan>`)
53    .join('')
54  const clip = clipId ? ` clip-path="url(#${clipId})"` : ''
55  return `<text x="${r2(x)}" y="${y}" font-size="${size}" text-anchor="${anchor}"${clip} xml:space="preserve">${spans}</text>`
56}
57
58function runsWidth(runs: Run[], size: number): number {
59  return runs.reduce((w, r) => w + textWidth(r.text, size, r.bold), 0)
60}
61
62/** Cuts a run list to `max` px with an ellipsis on the run that overflows. */
63function fitRuns(runs: Run[], size: number, max: number): Run[] {
64  if (runsWidth(runs, size) <= max) return runs
65  const out: Run[] = []
66  let used = 0
67  for (const r of runs) {
68    const w = textWidth(r.text, size, r.bold)
69    if (used + w <= max - textWidth('…', size, r.bold)) {
70      out.push(r)
71      used += w
72      continue
73    }
74    out.push({ ...r, text: ellipsize(r.text, size, max - used, r.bold) })
75    break
76  }
77  return out
78}
79
80/** A rounded 8px bar track, clipped, with whatever is drawn inside. */
81function bar(id: string, x: number, y: number, w: number, inner: string, track: string = TOKENS.track): string {
82  return (
83    `<clipPath id="${id}"><rect x="${r2(x)}" y="${r2(y)}" width="${r2(Math.max(0, w))}" height="8" rx="4"/></clipPath>` +
84    `<g clip-path="url(#${id})"><rect x="${r2(x)}" y="${r2(y)}" width="${r2(Math.max(0, w))}" height="8" fill="${track}"/>${inner}</g>`
85  )
86}
87
88function tick(x: number, y: number): string {
89  return `<rect x="${r2(x)}" y="${r2(y)}" width="2" height="8" fill="${TICK}"/>`
90}
91
92/** Context: segments as flex children with 1px gaps; the auto-compact tick. */
93function contextBar(id: string, ctx: NonNullable<ViewModel['context']>, x: number, y: number, w: number): string {
94  let inner = ''
95  let at = x
96  for (const s of ctx.segments) {
97    const sw = (s.tokens / ctx.window) * w
98    if (s.tokens > 0) inner += `<rect x="${r2(at)}" y="${r2(y)}" width="${r2(sw)}" height="8" fill="${s.color}"/>`
99    at += sw + 1
100  }
101  if (ctx.compactPct !== null) inner += tick(x + (ctx.compactPct / 100) * w, y)
102  return bar(id, x, y, w, inner)
103}
104
105/** Limit: dark = time (to the larger of both), bright = usage, tick at time. */
106function limitBar(id: string, l: LimitView, x: number, y: number, w: number): string {
107  if (l.usage === null) return bar(id, x, y, w, '')
108  const u = l.usage
109  const t = l.time ?? 0
110  const darkW = (Math.max(u, t) / 100) * w
111  let inner = `<rect x="${r2(x)}" y="${r2(y)}" width="${r2(darkW)}" height="8" fill="${l.dark}"/>`
112  inner += `<rect x="${r2(x)}" y="${r2(y)}" width="${r2((u / 100) * w)}" height="8" fill="${l.bright}"/>`
113  if (l.time !== null) inner += tick(x + (t / 100) * w, y)
114  return bar(id, x, y, w, inner)
115}
116
117/** Cache: the temperature gradient, covered right of the warmth, tick at it. */
118function tempBar(id: string, c: CacheView, x: number, y: number, w: number): string {
119  const gid = `${id}g`
120  const wx = x + c.warmth * w
121  let inner =
122    `<linearGradient id="${gid}" gradientUnits="userSpaceOnUse" x1="${r2(x)}" x2="${r2(x + w)}" y1="0" y2="0">` +
123    `<stop offset="0" stop-color="${CACHE_COLORS.cold}"/><stop offset="0.5" stop-color="${CACHE_COLORS.cooling}"/>` +
124    `<stop offset="1" stop-color="${CACHE_COLORS.warm}"/></linearGradient>` +
125    `<rect x="${r2(x)}" y="${r2(y)}" width="${r2(w)}" height="8" fill="url(#${gid})"/>` +
126    `<rect x="${r2(wx)}" y="${r2(y)}" width="${r2(x + w - wx)}" height="8" fill="rgba(34,33,32,.74)"/>`
127  if (c.state !== 'empty') inner += tick(wx, y)
128  return bar(id, x, y, w, inner, 'transparent')
129}
130
131// ── Icons and rings ────────────────────────────────────────────────────────
132
133type IconName = 'clock' | 'calendar' | 'fable' | 'flame' | 'snow' | 'empty'
134
135/** 24-unit icons standing in for the design's text glyphs (5h, 7d, F, ◆). */
136function icon(name: IconName, color: string): string {
137  const s = `fill="none" stroke="${color}" stroke-width="2.6" stroke-linecap="round" stroke-linejoin="round"`
138  switch (name) {
139    case 'clock':
140      return `<circle cx="12" cy="12" r="9" ${s}/><path d="M12 7v5l3.5 2" ${s}/>`
141    case 'calendar':
142      return `<rect x="3.5" y="5" width="17" height="15" rx="2.5" ${s}/><path d="M3.5 10h17M8.5 3v4M15.5 3v4" ${s}/>`
143    case 'fable':
144      return `<path d="M12 2.5l2.2 6.6 6.8 2.4-6.8 2.4L12 20.5l-2.2-6.6L3 11.5l6.8-2.4z" fill="${color}"/>`
145    case 'flame':
146      return `<path d="M12 2.5c.8 3.4 5 5.6 5 10.5a5 5 0 0 1-10 0c0-2.6 1.4-4 2.6-5.2.2 2 1 3.2 2.4 3.6-.6-3.2-.8-6.2 0-8.9z" fill="${color}"/>`
147    case 'snow':
148      return `<path d="M12 2.5v19M3.8 7.2l16.4 9.6M20.2 7.2L3.8 16.8" ${s}/>`
149    case 'empty':
150      return `<circle cx="12" cy="12" r="7" ${s}/>`
151  }
152}
153
154/** An arc of the 30px ring (centre radius 13, 4 wide) from deg a to deg b, clockwise from 12 o'clock. */
155function arc(cx: number, cy: number, a: number, b: number, color: string): string {
156  if (b - a <= 0) return ''
157  if (b - a >= 359.99) return `<circle cx="${cx}" cy="${cy}" r="13" fill="none" stroke="${color}" stroke-width="4"/>`
158  const p = (deg: number) => {
159    const rad = ((deg - 90) * Math.PI) / 180
160    return `${r2(cx + 13 * Math.cos(rad))} ${r2(cy + 13 * Math.sin(rad))}`
161  }
162  const large = b - a > 180 ? 1 : 0
163  return `<path d="M${p(a)} A13 13 0 ${large} 1 ${p(b)}" fill="none" stroke="${color}" stroke-width="4"/>`
164}
165
166/** The design's conic ring: bright = usage, dark to the larger of usage and time, a 4° notch at time. */
167function ring(x: number, y: number, a: { usage: number | null; time: number | null; bright: string; dark: string; icon: IconName; iconColor: string }): string {
168  const cx = x + 15
169  const cy = y + 15
170  let s = `<circle cx="${cx}" cy="${cy}" r="13" fill="none" stroke="${TOKENS.ringTrack}" stroke-width="4"/>`
171  if (a.usage !== null) {
172    const u = a.usage * 3.6
173    const t = (a.time ?? 0) * 3.6
174    s += arc(cx, cy, 0, Math.max(u, t), a.dark)
175    s += arc(cx, cy, 0, u, a.bright)
176    if (a.time !== null) s += arc(cx, cy, Math.max(0, t - 2), Math.min(360, t + 2), TICK)
177  }
178  s += `<circle cx="${cx}" cy="${cy}" r="11" fill="${TOKENS.card}"/>`
179  s += `<g transform="translate(${cx - 6} ${cy - 6}) scale(0.5)">${icon(a.icon, a.iconColor)}</g>`
180  return s
181}
182
183const LIMIT_ICON = { session: 'clock', weekly: 'calendar', fable: 'fable' } as const
184const cacheIcon = (c: CacheView): IconName => (c.state === 'cold' ? 'snow' : c.state === 'empty' ? 'empty' : 'flame')
185
186// ── The panel ──────────────────────────────────────────────────────────────
187
188export type PanelSvg = {
189  size: DesignSize
190  /** What the whole panel says, for a reader that cannot see it. */
191  alt: string
192  /** Everything above the buttons: rows 1–3 (and, narrow, the notice text), padded as the card. */
193  body: { svg: string; width: number; height: number }
194  /** Wide layouts: the notice line beside the buttons. */
195  notice: { svg: string; width: number; height: number } | null
196  /** The width the host's buttons take on wide layouts, right padding included. */
197  buttonsWidth: number
198  /** Wide, but the notice is too long to sit beside the buttons: they wrap below it, left-aligned. */
199  noticeWraps: boolean
200  pad: { x: number; y: number }
201}
202
203function svgDoc(width: number, height: number, body: string, alt: string): string {
204  return (
205    `<svg xmlns="${NS}" width="${r2(width)}" height="${r2(height)}" viewBox="0 0 ${r2(width)} ${r2(height)}" ` +
206    `font-family="${FONT}" role="img" aria-label="${esc(alt)}">${body}</svg>`
207  )
208}
209
210/** Width of the design's two buttons and their gap. */
211function buttonsWidthOf(): number {
212  const b = (label: string, padX: number, border: number) => textWidth(label, 12.5) + padX * 2 + border * 2
213  return b('Clear', 12, 0) + b('Compact', 12, 1) + 6
214}
215
216/**
217 * Lays the panel out at `width` px (the card's inner width, border excluded)
218 * in the view model's size class. Ids are prefixed so several panels can share a page.
219 */
220export function panelSvg(vm: ViewModel, width: number, idPrefix = 'cc'): PanelSvg {
221  const size = vm.size
222  const pad = PAD[size]
223  const W = width
224  const inner = W - pad.x * 2
225  const wide = size === 'a' || size === 'b'
226  let y = pad.y
227  let out = ''
228  let n = 0
229  const id = () => `${idPrefix}${n++}`
230
231  // Row 1: Context
232  const ctx = vm.context
233  const h1 = lh(13)
234  if (ctx) {
235    const right = ctx.compactPct === null ? `${pct((ctx.used / ctx.window) * 100)}%` : wide ? `Compact at ${ctx.compactPct}%` : `${ctx.compactPct}%`
236    const cy = y + h1 / 2
237    let x = pad.x
238    out += line(x, cy - lh(13) / 2, 13, [{ text: 'Context', color: TOKENS.text, bold: true }])
239    x += textWidth('Context', 13, true) + 10
240    const used = ctx.usedLabel
241    out += line(x, cy - lh(12.5) / 2, 12.5, [{ text: used, color: TOKENS.text3 }])
242    x += textWidth(used, 12.5) + 10
243    const rightX = W - pad.x
244    out += line(rightX, cy - lh(12.5) / 2, 12.5, [{ text: right, color: TOKENS.text4 }], 'end')
245    const barW = Math.max(40, rightX - textWidth(right, 12.5) - 10 - x)
246    out += contextBar(id(), ctx, x, cy - 4, barW)
247  } else {
248    out += line(pad.x, y, 12.5, [{ text: 'Context: waiting for the first reading', color: TOKENS.text4 }])
249  }
250  y += h1 + ROW_GAP
251
252  // Row 2: legend (wraps; 12px between items, 4px between lines)
253  if (ctx && size !== 'd') {
254    const items: Run[][] = ctx.segments.map(s => [
255      { text: '●', color: s.color },
256      { text: ` ${s.label} ${fmtTokens(s.tokens)}`, color: TOKENS.text2 },
257    ])
258    items.push([{ text: `Free ${fmtTokens(ctx.free)}`, color: TOKENS.text4 }])
259    // Lines decided with the metrics; within a line the font itself flows the runs.
260    const lines: Run[][][] = [[]]
261    let x = pad.x
262    for (const it of items) {
263      const w = runsWidth(it, 11.5)
264      if (x > pad.x && x + w > pad.x + inner) {
265        lines.push([])
266        x = pad.x
267      }
268      lines[lines.length - 1]!.push(it)
269      x += w + 12
270    }
271    let lineTop = y
272    lines.forEach((ln, i) => {
273      if (i > 0) lineTop += lh(11.5) + 4
274      const base = r2(baseline(lineTop, 11.5))
275      const spans = ln
276        .map((it, j) =>
277          it
278            .map((r, k) => `<tspan${j > 0 && k === 0 ? ' dx="12"' : ''} fill="${r.color}">${esc(r.text)}</tspan>`)
279            .join(''),
280        )
281        .join('')
282      out += `<text x="${pad.x}" y="${base}" font-size="11.5" xml:space="preserve">${spans}</text>`
283    })
284    y = lineTop + lh(11.5) + ROW_GAP
285  }
286
287  // Row 3: limits + cache
288  const c = vm.cache
289  if (wide) {
290    const gap = size === 'a' ? 18 : 12
291    const colW = (inner - gap * 3) / 4
292    const ts = size === 'a' ? 13 : 12.5
293    const col = (i: number) => pad.x + i * (colW + gap)
294    vm.limits.forEach((l, i) => {
295      const x = col(i)
296      const clip = id()
297      out += `<clipPath id="${clip}"><rect x="${r2(x)}" y="${r2(y)}" width="${r2(colW)}" height="80"/></clipPath>`
298      let yy = y
299      out += line(x, yy, ts, fitRuns([{ text: l.title, color: l.usage === null ? TOKENS.text4 : TOKENS.text, bold: true }], ts, colW), 'start', clip)
300      yy += lh(ts) + 5
301      out += limitBar(id(), l, x, yy, colW)
302      yy += 8 + 5
303      const usage: Run[] =
304        l.usage === null
305          ? [{ text: 'No data', color: TOKENS.text4 }]
306          : [
307              { text: `Usage ${pct(l.usage)}% · `, color: TOKENS.text },
308              { text: l.time === null ? '' : `Time ${pct(l.time)}%`, color: TOKENS.text3 },
309            ]
310      out += line(x, yy, 11.5, fitRuns(usage, 11.5, colW), 'start', clip)
311      yy += lh(11.5) + 5
312      out += line(x, yy, 11.5, fitRuns([{ text: l.reset, color: TOKENS.text4 }], 11.5, colW), 'start', clip)
313    })
314    {
315      const x = col(3)
316      const clip = id()
317      out += `<clipPath id="${clip}"><rect x="${r2(x)}" y="${r2(y)}" width="${r2(colW)}" height="80"/></clipPath>`
318      let yy = y
319      out += line(
320        x,
321        yy,
322        ts,
323        fitRuns(
324          [
325            { text: 'Cache · ', color: TOKENS.text, bold: true },
326            { text: c.label, color: c.color, bold: true },
327          ],
328          ts,
329          colW,
330        ),
331        'start',
332        clip,
333      )
334      yy += lh(ts) + 5
335      out += tempBar(id(), c, x, yy, colW)
336      yy += 8 + 5
337      const warm: Run[] = [
338        { text: c.state === 'empty' ? 'Warmth — · ' : `Warmth ${pct(c.warmth * 100)}% · `, color: TOKENS.text },
339        { text: `Hit ${c.hit === null ? '—' : `${pct(c.hit)}%`}`, color: TOKENS.text3 },
340      ]
341      out += line(x, yy, 11.5, fitRuns(warm, 11.5, colW), 'start', clip)
342      yy += lh(11.5) + 5
343      out += line(x, yy, 11.5, fitRuns([{ text: c.detail, color: TOKENS.text4 }], 11.5, colW), 'start', clip)
344    }
345    y += lh(ts) + 5 + 8 + 5 + lh(11.5) + 5 + lh(11.5) + ROW_GAP
346  } else {
347    // Rings: four items spread with space-between, each a 30px ring, 6px, then text.
348    const twoLines = size === 'c'
349    const items = [
350      ...vm.limits.map(l => ({
351        ring: { usage: l.usage, time: l.time, bright: l.bright, dark: l.dark, icon: LIMIT_ICON[l.kind], iconColor: l.bright },
352        main: { text: l.usage === null ? '—' : `${pct(l.usage)}%`, color: TOKENS.text },
353        sub: l.time === null ? '' : `Time ${pct(l.time)}%`,
354      })),
355      {
356        ring: {
357          usage: c.state === 'empty' ? null : c.warmth * 100,
358          time: null,
359          bright: c.color,
360          dark: c.color,
361          icon: cacheIcon(c),
362          iconColor: c.color,
363        },
364        main: {
365          text: twoLines || c.state === 'cold' || c.state === 'empty' ? c.label : `${pct(c.warmth * 100)}%`,
366          color: c.color,
367        },
368        sub: c.state === 'empty' ? 'Nothing cached' : `${pct(c.warmth * 100)}% warm`,
369      },
370    ]
371    const widths = items.map(it => 30 + 6 + Math.max(textWidth(it.main.text, 13, true), twoLines ? textWidth(it.sub, 10.5) : 0))
372    const free = Math.max(0, inner - widths.reduce((a, b) => a + b, 0))
373    const step = free / (items.length - 1)
374    const textH = twoLines ? 13 * 1.25 + 10.5 * 1.25 : 13 * 1.25
375    const rowH = Math.max(30, textH)
376    let x = pad.x
377    items.forEach((it, i) => {
378      out += ring(x, y + (rowH - 30) / 2, it.ring)
379      const tx = x + 36
380      const ty = y + (rowH - textH) / 2
381      // line-height 1.25: the 13px line is 16.25 tall, the 10.5px one 13.125
382      out += `<text x="${r2(tx)}" y="${r2(baseline(ty, 13, 16.25))}" font-size="13" font-weight="700" fill="${it.main.color}">${esc(it.main.text)}</text>`
383      if (twoLines) {
384        out += `<text x="${r2(tx)}" y="${r2(baseline(ty + 16.25, 10.5, 13.125))}" font-size="10.5" fill="${TOKENS.text3}">${esc(it.sub)}</text>`
385      }
386      x += (widths[i] ?? 0) + step
387    })
388    y += rowH + ROW_GAP
389  }
390
391  // Notice: beside the buttons when wide; above them, wrapped, when narrow.
392  let notice: PanelSvg['notice'] = null
393  let noticeWraps = false
394  const buttonsWidth = buttonsWidthOf() + pad.x
395  if (vm.notice) {
396    noticeWraps = wide && 15 + textWidth(vm.notice, 12.5) + 12 + buttonsWidthOf() > inner
397    if (wide && !noticeWraps) {
398      const nw = Math.max(80, W - buttonsWidth - 12)
399      const top = (BUTTON_H - lh(12.5)) / 2
400      const body =
401        `<circle cx="${pad.x + 3.5}" cy="${r2(BUTTON_H / 2)}" r="3.5" fill="${c.color}"/>` +
402        line(pad.x + 15, top, 12.5, [{ text: ellipsize(vm.notice, 12.5, nw - pad.x - 15), color: TOKENS.text2 }])
403      notice = { svg: svgDoc(nw, BUTTON_H, body, vm.notice), width: nw, height: BUTTON_H }
404    } else {
405      const maxW = inner - 15 // narrow, or wide with the buttons wrapped below
406      // Break where the browser would: after spaces, and after hyphens.
407      const words = vm.notice.match(/[^\s-]*-|[^\s-]+\s*|\s+/g) ?? [vm.notice]
408      const lines: string[] = []
409      let cur = ''
410      for (const w of words) {
411        const next = cur + w
412        if (cur && textWidth(next.trimEnd(), 12.5) > maxW) {
413          lines.push(cur.trimEnd())
414          cur = w.trimStart()
415        } else cur = next
416      }
417      if (cur.trim()) lines.push(cur.trimEnd())
418      const blockH = lines.length * lh(12.5)
419      out += `<circle cx="${pad.x + 3.5}" cy="${r2(y + blockH / 2)}" r="3.5" fill="${c.color}"/>`
420      lines.forEach((t, i) => {
421        out += line(pad.x + 15, y + i * lh(12.5), 12.5, [{ text: t, color: TOKENS.text2 }])
422      })
423      y += blockH + (noticeWraps ? 12 : ROW_GAP)
424    }
425  }
426
427  const alt = [
428    ctx ? `Context ${ctx.usedLabel}` : 'Context: no reading',
429    ...vm.limits.map(l => `${l.title}: ${l.usage === null ? 'no data' : `${pct(l.usage)}% used, ${pct(l.time ?? 0)}% of time`}`),
430    `Cache ${c.label}, ${c.detail}`,
431  ].join('. ')
432  // The bottom gap belongs to the buttons row when there is one.
433  const height = vm.notice ? y : y - ROW_GAP + pad.y
434  return { size, alt, body: { svg: svgDoc(W, height, out, alt), width: W, height }, notice, buttonsWidth, noticeWraps, pad }
435}
436

1// Advance widths (per 1000 em) of Arial / Helvetica-compatible metrics
2// (Liberation Sans), for laying out SVG text the way the browser lays out
3// the design's "Helvetica Neue", Helvetica, Arial stack. Generated.
4
5const CHARS = ' !"#$%&\'()*+,-./0123456789:;<=>?@ABCDEFGHIJKLMNOPQRSTUVWXYZ[\\]^_`abcdefghijklmnopqrstuvwxyz{|}~·●—…◆–'
6const REGULAR = [278, 278, 355, 556, 556, 889, 667, 191, 333, 333, 389, 584, 278, 333, 278, 278, 556, 556, 556, 556, 556, 556, 556, 556, 556, 556, 278, 278, 584, 584, 584, 556, 1015, 667, 667, 722, 722, 667, 611, 778, 722, 278, 500, 667, 556, 833, 722, 778, 667, 778, 722, 667, 611, 722, 667, 944, 667, 667, 611, 278, 278, 278, 469, 556, 333, 556, 556, 500, 556, 556, 278, 556, 556, 222, 222, 500, 222, 833, 556, 556, 556, 556, 333, 500, 278, 556, 500, 722, 500, 500, 500, 334, 260, 334, 584, 333, 604, 1000, 1000, 600, 556]
7const BOLD = [278, 333, 474, 556, 556, 889, 722, 238, 333, 333, 389, 584, 278, 333, 278, 278, 556, 556, 556, 556, 556, 556, 556, 556, 556, 556, 333, 333, 584, 584, 584, 611, 975, 722, 722, 722, 722, 667, 611, 778, 722, 278, 556, 722, 611, 833, 722, 778, 667, 778, 722, 667, 611, 722, 667, 944, 667, 667, 611, 333, 278, 333, 584, 556, 333, 556, 611, 556, 611, 556, 333, 611, 611, 278, 278, 556, 278, 889, 611, 611, 611, 611, 389, 556, 333, 611, 556, 778, 556, 556, 500, 389, 280, 389, 584, 333, 604, 1000, 1000, 600, 556]
8
9const reg = new Map<string, number>()
10const bold = new Map<string, number>()
11for (let i = 0; i < CHARS.length; i++) {
12  reg.set(CHARS[i]!, REGULAR[i]!)
13  bold.set(CHARS[i]!, BOLD[i]!)
14}
15
16/** Width in px of `text` at `size` px, regular or bold. */
17export function textWidth(text: string, size: number, isBold = false): number {
18  const table = isBold ? bold : reg
19  let units = 0
20  for (const ch of text) units += table.get(ch) ?? 556
21  return (units / 1000) * size
22}
23
24/** `text` cut to fit `max` px, with an ellipsis, as CSS text-overflow does. */
25export function ellipsize(text: string, size: number, max: number, isBold = false): string {
26  if (textWidth(text, size, isBold) <= max) return text
27  const ell = '…'
28  let out = ''
29  for (const ch of text) {
30    if (textWidth(out + ch + ell, size, isBold) > max) break
31    out += ch
32  }
33  return out.replace(/\s+$/, '') + ell
34}
35

1// Contract for the context-cache mod: the values it keeps in $.state.
2
3/** The four groups the context bar is split into. */
4export type ContextCacheGroup = 'system' | 'tools' | 'files' | 'messages'
5
6/** The live context window, as measured after the last response. */
7export type ContextCacheContext = {
8  /** Tokens in the window now (the last response's input side, or the local estimate before one). */
9  used: number
10  /** The model's context window in tokens. */
11  window: number
12  /** Token count at which auto-compact runs; null when auto-compact is off. */
13  autoCompactAt: number | null
14  /** Tokens per group, scaled so they sum to `used`. */
15  parts: Record<ContextCacheGroup, number>
16}
17
18export type ContextCacheLimitKind = 'session' | 'weekly' | 'fable'
19
20/** One usage-limit window. */
21export type ContextCacheLimit = {
22  kind: ContextCacheLimitKind
23  /** Percent of the window used, 0 to 100. */
24  usage: number
25  /** When the window resets, epoch milliseconds; null when not reported. */
26  resetsAt: number | null
27  /** The window's length in milliseconds (5h or 7d). */
28  windowMs: number
29}
30
31/** What is known about the prompt cache. */
32export type ContextCacheCache = {
33  /** When the main conversation's cache was last written or read (end of the last turn); null when nothing is cached. */
34  lastAt: number | null
35  /** The cache's time to live in milliseconds (300000 or 3600000). */
36  ttlMs: number
37  /** True once the TTL was read from a real response or the engine. */
38  isTtlKnown: boolean
39  /** cache_read ÷ (cache_read + cache_creation + uncached input) of the last turn, 0 to 1. */
40  hitRate: number | null
41}
42
43export type ContextCacheSnapshot = {
44  context: ContextCacheContext | null
45  limits: ContextCacheLimit[]
46  /** Where the limits came from: the account usage endpoint, the last response's headers, or nowhere. */
47  limitsSource: 'account' | 'response' | 'none'
48  cache: ContextCacheCache
49  /** When this snapshot was taken, epoch milliseconds. */
50  updatedAt: number
51}
52
53declare module 'claude-code' {
54  interface PluginState {
55    'context-cache': {
56      snapshot: ContextCacheSnapshot | null
57      isHidden: boolean
58      /** The clock, written once a second so the countdown redraws. */
59      now: number
60      /** Desktop/mobile: CSS px per host cell, to draw the design at its real px size (/cache scale). */
61      pxPerCell: number
62    }
63  }
64}
65
