Progress Band

1import type {
2  EngineInterface,
3  Frozen,
4  On,
5  PluginOptions,
6  PromptComposeSection,
7  RenderElement,
8  RenderInput,
9  Timer,
10} from 'claude-code'
11
12import {
13  breachOf,
14  CHECKPOINT_PROMPT,
15  LIMIT_START,
16  nudgedLimit,
17  denialOf,
18  guardStateOf,
19  limitsOf,
20  RESET_PROMPT,
21  RESUME_PROMPT,
22  type Limits,
23  type Pause,
24} from './guard'
25import type { FrameContext, PlanFrame } from './meter'
26import { quotasOf, type Quota } from './usage'
27import { flashProgress, FILL_MS, FRAME_MS, isFilling, shownShare, type Fill } from './motion'
28import {
29  applied,
30  excerptOf,
31  idOf,
32  isDone,
33  isPlan,
34  isWaiting,
35  folderKeyOf,
36  keyOf,
37  legacyKeyOf,
38  parseKey,
39  reportOf,
40  sortedPlans,
41  summaryOf,
42  WAITING_STALE_MS,
43  type Plan,
44} from './plans'
45import {
46  alertWaveWidthOf,
47  desktopBandView,
48  glyphsCellsOf,
49  GLYPHS_KEY,
50  metersCellsOf,
51  METERS_KEY,
52  plainBandView,
53  terminalBandView,
54  terminalLayoutOf,
55  type BandModel,
56  type Move,
57  type TerminalLayout,
58} from './views/band'
59import { DISSOLVE_MS } from './views/svg-bar'
60import { ALERT_WAVE_KEY, alertWaveCellsOf, type GuardView } from './views/guard'
61
62/** The tool's short name; the model calls it as `mcp__progress__report_progress`. */
63const TOOL_NAME = 'report_progress'
64/** The slash command, `/progress`. */
65const COMMAND_NAME = 'progress'
66/** The plugin's own clips, under `fx/`. */
67const STEP_SOUND = 'fx/step-done.wav'
68const PLAN_SOUND = 'fx/plan-done.wav'
69const ALERT_SOUND = 'fx/alert.wav'
70const REMOVE_SOUND = 'fx/dissolve.wav'
71/** The store key of the limits: one set for the account, as the windows are. */
72const LIMITS_KEY = 'limits'
73/** How long after a window's reset the work picks up, so the new window is in place. */
74const RESET_GRACE_MS = 20_000
75/** The loop stops when no blit has landed for this long (the band is collapsed or gone). */
76const STALE_MS = 3000
77

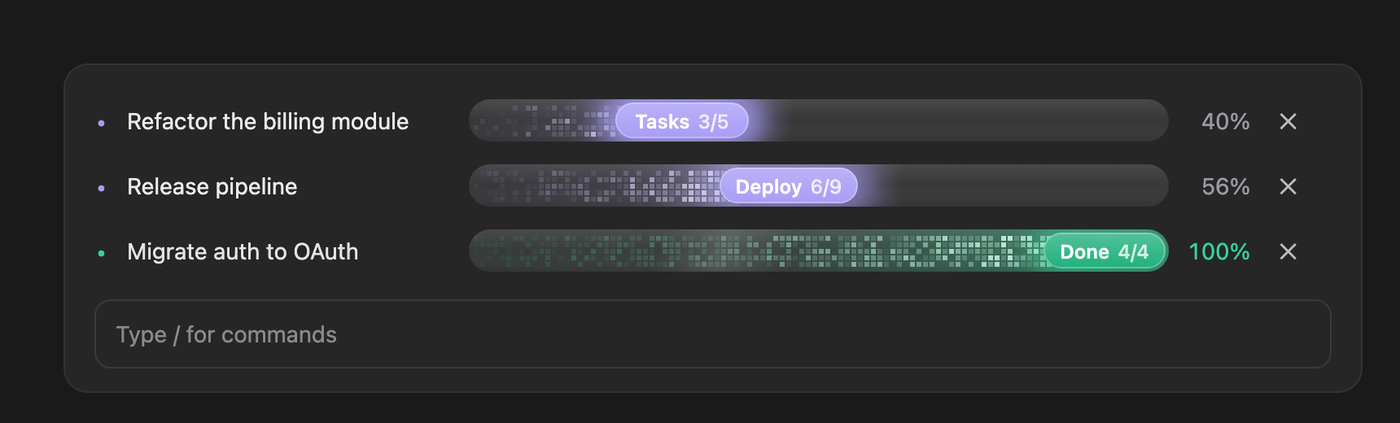

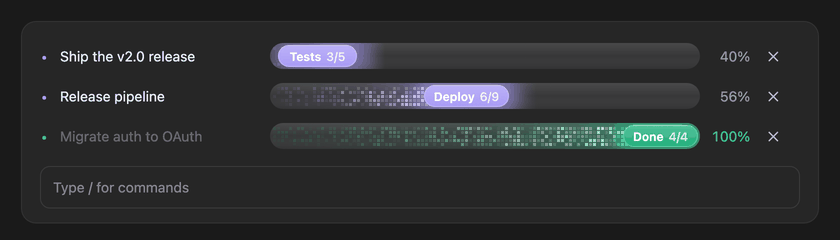

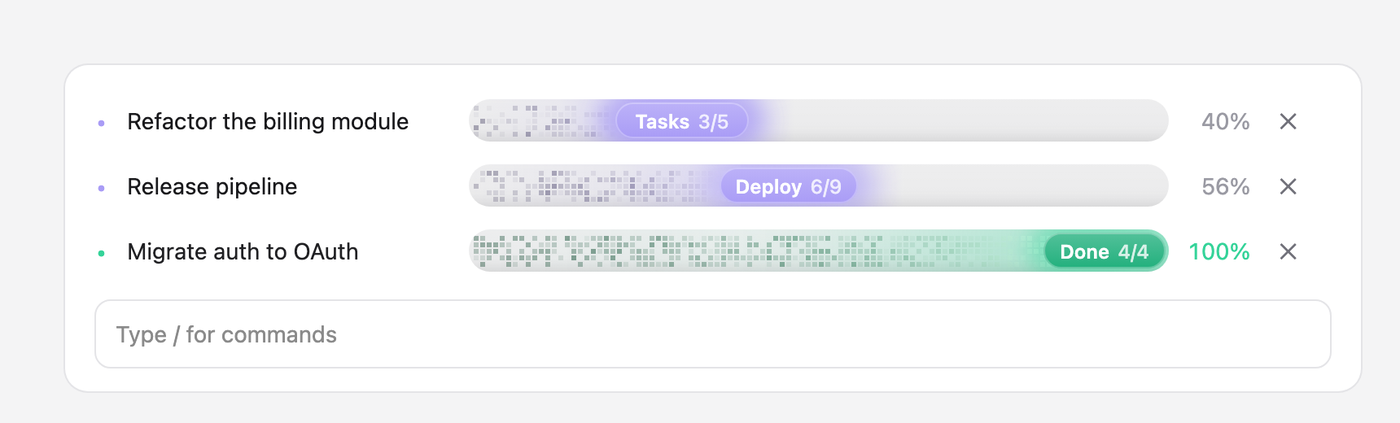

78const TOOL_DESCRIPTION =
79  'Report your progress on a multi-step plan. The user sees one row per plan ' +
80  'above their prompt: the name, a progress bar of animated pixels and a chip ' +
81  'riding its head that names the current stage and the step under way ' +
82  '("Tests 3/5"), the percentage and a ✕ to dismiss it. Call it when you start ' +
83  'a plan of two or more steps (step 0 with total), again after each step you ' +
84  'complete (step n), and once more with done: true when the whole plan is ' +
85  'finished. Reuse the exact same plan name to update a row, and give each call ' +
86  'a note naming the stage you are entering in one to three words. Set remove: ' +

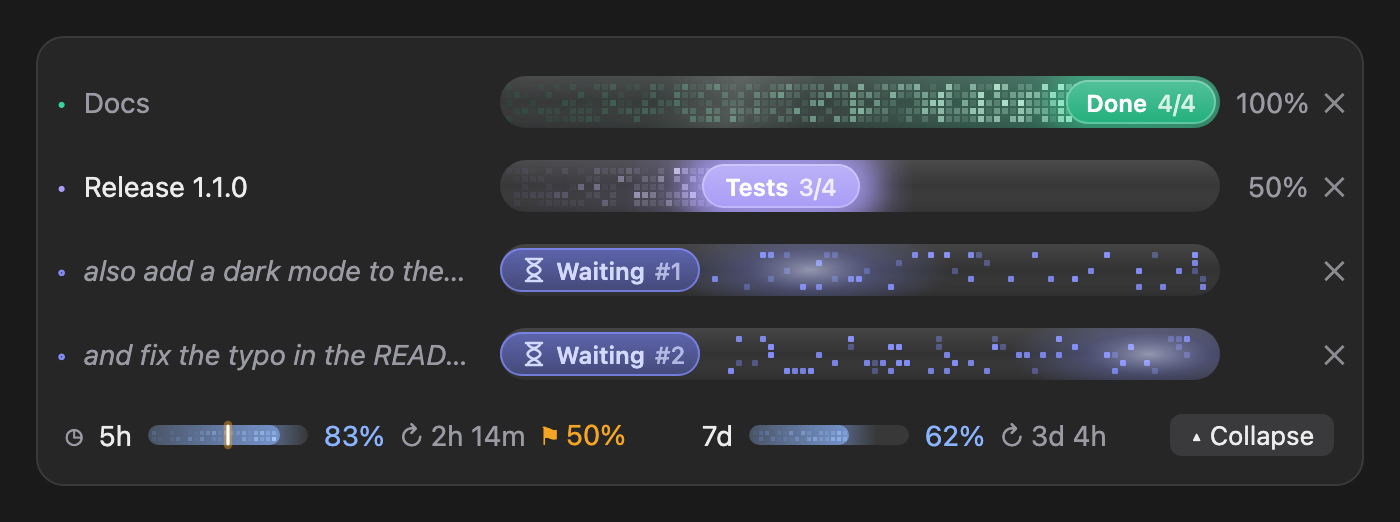

87  'true to drop a row. A chime plays when a step completes. A message the user ' +
88  'sends while you work shows as a Waiting row; when you start a plan for it, ' +
89  'set queued: true and that row turns into your plan.'
90
91const INPUT_SCHEMA = {
92  type: 'object',
93  properties: {
94    plan: {
95      type: 'string',
96      description:
97        "The plan's name, the row's label (e.g. \"Migrate auth to OAuth\"). " +
98        'Reuse the exact same name to update that plan.',
99    },
100    step: {
101      type: 'integer',
102      minimum: 0,
103      description: 'How many steps are completed so far.',
104    },
105    total: {
106      type: 'integer',
107      minimum: 1,
108      description: 'How many steps the plan has in all. Required the first time a plan is reported.',
109    },
110    note: {
111      type: 'string',
112      description:
113        'The stage you are entering, one to three words (e.g. "Tests", "Deploy"); shown on the chip at the head of the bar.',
114    },
115    done: {
116      type: 'boolean',
117      description: 'true once the whole plan is finished (sets step to total).',
118    },
119    remove: {
120      type: 'boolean',
121      description: "true to remove the plan's row.",
122    },
123    queued: {
124      type: 'boolean',
125      description:
126        'true when this new plan takes up a message the user sent while you were working: ' +
127        'the oldest Waiting row turns into this plan.',
128    },
129  },
130  required: ['plan'],
131  additionalProperties: false,
132}
133
134/** The system-prompt section asking the model to report, sent while the tool is offered. */
135const PROMPT_SECTION: PromptComposeSection = {
136  id: 'progress:report',
137  text:
138    '# Progress band\n' +
139    'The user watches a progress bar above their prompt for every plan you report ' +
140    'with the mcp__progress__report_progress tool. Whenever you work through a ' +
141    'plan of two or more steps, call it once when you start (step 0, total), ' +
142    'again after each step you complete, and with done: true at the end, each ' +
143    'time with a note naming the next stage in one to three words. Keep the ' +
144    'calls short and do not narrate them. A message the user sends while you ' +
145    'work shows in the band as Waiting: when you start a plan for it, report ' +
146    'that plan with queued: true.',
147  scope: 'session',
148}

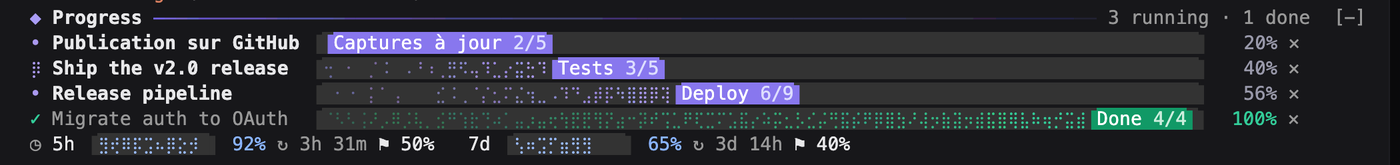

149
150/** Where the terminal band was last drawn, so the frame loop can repaint its Rasters. */
151type Mounted = {
152  requestId: string
153  layout: TerminalLayout
154  /** The plans' ids in the order the Rasters' rows draw them. */
155  ids: readonly string[]
156  /** The alert wave's width, while the alert is drawn. */
157  alertCells: number | null
158}
159
160/** The plans the band draws, by id; loaded from `$.store` at the start and before each turn. */
161let plans = new Map<string, Plan>()
162/**
163 * Whether this instance of the module has read the store yet: a hot reload
164 * can hand it a tool call or a drawing before its `session.start` has run.
165 */
166let hasLoaded = false
167/** The project folder the band shows the plans of, as the store names it; null until first read. */
168let folder: string | null = null
169/**
170 * Unfinished plans of the first release, which belonged to no folder: kept
171 * out of every band, and adopted by the first folder that reports one again.
172 */
173let legacy = new Map<string, Plan>()
174/** Each plan's fill on its way to a new share. */
175const fills = new Map<string, Fill>()
176/** When each plan that just finished starts its flash. */
177const flashes = new Map<string, number>()
178/** When each plan whose ✕ was pressed began to come apart. */
179const removing = new Map<string, number>()
180/** When each plan that took up a waiting message lit up: its bar sweeps in once. */
181const ignites = new Map<string, number>()
182/** How long a lit-up plan's sweep plays. */
183const IGNITE_MS = 900
184/** The `sound` option: chimes play while true. */

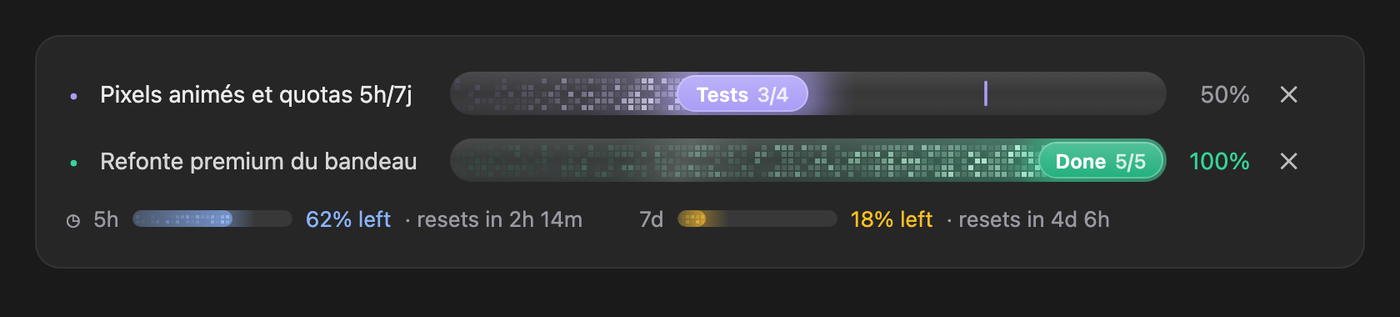

185let isSoundOn = true
186/** The `usage` option: the 5-hour and 7-day windows show under the plans while true. */
187let isUsageOn = true
188/** The 5-hour and 7-day windows as the engine last measured them; empty off a subscription. */
189let quotas: Quota[] = []
190/** Whether this instance of the module has asked the engine for the windows yet. */
191let hasUsage = false
192/** The minute tick: re-reads the folder's plans other sessions report, and keeps the windows' countdowns current. */
193let minuteTick: Timer | null = null
194/** How often the band re-reads the store for what other sessions of the folder reported. */
195const REFRESH_MS = 60_000
196/** Whether a model turn runs: the active plan spins and shimmers meanwhile. */
197let isWorking = false
198/** The running main-loop turn, as `turn.start` named it: what a pause stops. */
199let runningTurn: string | null = null
200/** The limits the person set, per window, in percent left. */

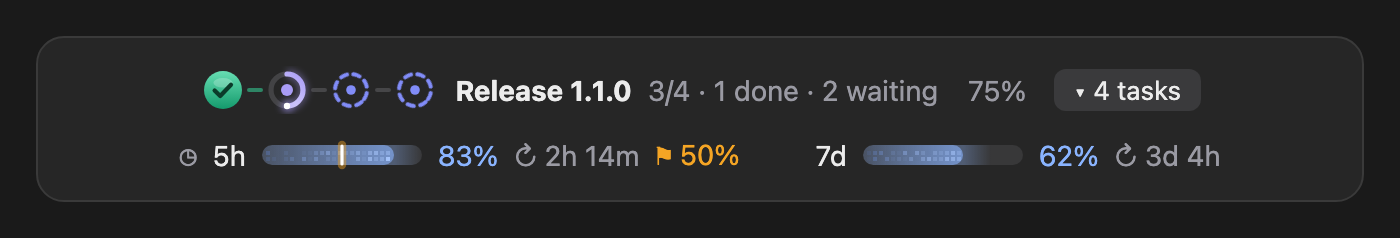

201let limits: Limits = {}
202/** Whether this folder's plans are folded into one line, and when that last changed (its animation plays a moment). */
203let isFolded = false
204let foldedAt = Number.NEGATIVE_INFINITY
205/** How long a fold or an unfold animates; a redraw after it draws the band at rest. */

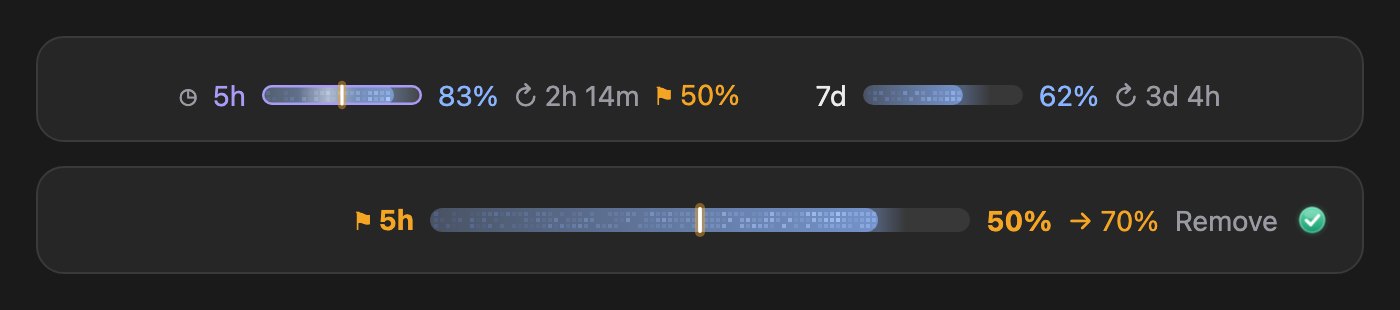

206const FOLD_MS = 1600
207/** The window whose limit picker is open, in the quota row's place, and when it opened (its dial opens out). */
208let editing: string | null = null
209let editedAt = Number.NEGATIVE_INFINITY
210/** The window whose limit ✓ last validated, and when: the quota row comes back with it lit. */
211let confirmed: { kind: string; at: number } | null = null
212/** How long the picker's opening and the quota row's return animate. */
213const OPEN_MS = 1200
214const RETURN_MS = 1300
215/** The limit the picker shows, the one its knob last slid from, and when. */
216let draft: number | null = null
217let draftFrom: number | null = null
218let draftMovedAt = 0
219/** The surfaces whose dial drag region has said it runs; elsewhere the dial takes clicks instead. */
220const dragReady = new Set<string>()
221/** How long a nudge's slide plays: a redraw after it draws the knob at rest. */
222const NUDGE_MS = 450
223/** The pause at a limit, while one holds the work. */
224let pause: Pause | null = null
225/** Per window, the reset time of the window the person chose to go on in past its limit. */
226let acknowledged: Record<string, number> = {}
227/** The wake-up that resumes the work once a saved pause's window resets. */
228let resumeTimer: Timer | null = null
229let mounted: Mounted | null = null
230let loop: Timer | null = null
231/** The cells last blitted per Raster key, so an unchanged frame sends nothing. */
232const blitted = new Map<string, string>()
233let lastLandedAt = 0
234
235/**
236 * Registers the progress band: the `report_progress` tool and `/progress` at
237 * the session's start, the tool's hook that updates a plan, animates it and
238 * plays a chime, the band's drawing, the command, the store's re-read before
239 * each turn, the tool kept out of ToolSearch, and the prompt section that
240 * asks the model to report.
241 *
242 * @param on the engine's registrar
243 * @param options the plugin's options; `sound` (default true) plays the chimes
244 */
245export function register(on: On, options: PluginOptions): void {
246  isSoundOn = options.sound !== false
247  isUsageOn = options.usage !== false
248
249  on('session.start', async ($, e, next) => {
250    await $.tool.register({
251      name: TOOL_NAME,
252      description: TOOL_DESCRIPTION,
253      inputSchema: INPUT_SCHEMA,
254    })
255    await loadPlans($)
256    await loadGuard($)
257    await refreshUsage($)
258    startMinuteTick($)
259    await armResume($)
260
261    try {
262      await $.command.register({
263        name: COMMAND_NAME,
264        description: 'List the plans in the progress band; clear drops them all, remove <plan> one',
265        argumentHint: '[clear | remove <plan>]',
266        immediate: true,
267      })
268    } catch {
269      // Another plugin's /progress stands; the band and the tool work without it.
270    }
271
272    return next(e)
273  })
274
275  on('turn.start', async ($, e, next) => {
276    isWorking = true
277    runningTurn = e.turnId
278    // Another session may have reported since: its plans share the store.
279    await loadPlans($)
280    $.ui.invalidate('ui.render')
281
282    return next(e)
283  })
284
285  on('turn.complete', async ($, e, next) => {
286    if (e.agentId === undefined) {
287      isWorking = false
288      runningTurn = null
289      // The messages sent during the turn have reached Claude by its end: none waits any more.
290      await clearWaiting($)
291      $.ui.invalidate('ui.render')
292    }
293
294    return next(e)
295  })
296
297  on('session.end', async ($, e, next) => {
298    await clearWaiting($)
299
300    return next(e)
301  })
302
303  on('session.measure', ($, e, next) => {
304    // The windows' figures, pushed after each turn and whenever one moves a point.
305    if (e.changed.includes('rateLimits')) {
306      quotas = quotasOf(e.rateLimits)
307      hasUsage = true
308      $.ui.invalidate('ui.render')
309      void checkLimits($)
310    }
311
312    return next(e)
313  })
314
315  // The pause holds every tool but this plugin's own, outermost of its hooks.
316  on('tool.call', ($, e, next) => {
317    if (pause !== null && e.tool !== `mcp__progress__${TOOL_NAME}`) {
318      return { deny: denialOf(pause) }
319    }
320
321    return next(e)
322  })
323
324  on('prompt.submit', async ($, e, next) => {
325    // The person writing to Claude during a pause is the person going on.
326    if (pause !== null && e.origin.kind === 'composer') {
327      await resumeWork($, false)
328      $.ui.toast('Usage-limit pause lifted')
329    }
330
331    // A message the person sends while a turn runs waits its turn: it shows as a row of its own.
332    if (e.turnId !== undefined && isPersonOrigin(e.origin.kind) && e.text.trim() !== '' && !e.text.trim().startsWith('/')) {
333      await addWaiting($, e.text)
334    }
335
336    return next(e)
337  })
338
339  // The limit dial's drag region posts the limit under the pointer.
340  on('ui.message', { module: /dial-drag/ }, ($, e) => {
341    const data = e.data as { limit?: unknown; isFinal?: unknown; isReady?: unknown } | null
342
343    if (data?.isReady === true) {
344      if (!dragReady.has(e.surface)) {
345        dragReady.add(e.surface)
346        $.ui.invalidate('ui.render')
347      }
348
349      return {}
350    }
351
352    const limit = typeof data?.limit === 'number' && Number.isFinite(data.limit) ? nudgedLimit(data.limit, 0) : null
353
354    if (limit !== null && editing !== null && limit !== draft) {
355      draft = limit
356      draftFrom = null
357      $.ui.invalidate('ui.render')
358    }
359
360    return {}
361  })
362
363  on('tool.describe', { tool: 'mcp__progress__report_progress' }, async ($, e, next) => {
364    // Listed in the prompt, not behind ToolSearch: the model reaches for it unprompted.
365    const described = await next(e)
366
367    return { ...described, isDeferred: false }
368  })
369
370  on('tool.call', { tool: 'mcp__progress__report_progress' }, async ($, e) => {
371    await ensureLoaded($)
372    const report = reportOf(e)
373
374    if ('error' in report) {
375      return { result: `report_progress refused: ${report.error}` }
376    }
377
378    const id = idOf(report.name)
379    const adopted = plans.has(id) ? undefined : legacy.get(id)
380    const previous = plans.get(id) ?? adopted
381
382    if (report.isRemoved) {
383      await removePlan($, id)
384
385      return {
386        result:
387          previous === undefined
388            ? `No plan named "${report.name}" in the progress band.`
389            : `Removed "${previous.name}" from the progress band.`,
390      }
391    }
392
393    const now = await $.clock.now()
394    const owner = report.isQueued && previous === undefined ? await $.session.id() : null
395    const taken = owner === null ? undefined : sortedPlans(plans.values()).find(plan => plan.waiting?.owner === owner)
396    const reported = applied(previous, report, now)
397
398    if ('error' in reported) {
399      return { result: `report_progress refused: ${reported.error}` }
400    }
401
402    // A plan that takes up a waiting message stands in its row, and lights up there.
403    const updated = taken === undefined ? reported : { ...reported, createdAt: taken.createdAt }
404
405    if (taken !== undefined) {
406      await removePlan($, taken.id)
407      ignites.set(updated.id, now)
408    }
409
410    const fromShare = shareAt(previous, now)
411    const toShare = updated.step / updated.total
412    const wasDone = previous !== undefined && isDone(previous)
413    const hasFinished = isDone(updated) && !wasDone
414    const hasAdvanced = updated.step > (previous?.step ?? 0)
415
416    plans.set(updated.id, updated)
417
418    if (fromShare !== toShare) {
419      fills.set(updated.id, { from: fromShare, to: toShare, startedAt: now })
420    }
421
422    if (hasFinished) {
423      flashes.set(updated.id, now + FILL_MS * 0.7)
424    }
425
426    $.ui.invalidate('ui.render')
427    startLoop($)
428    await $.store.set(keyOf(await folderOf($), updated.id), updated)
429
430    if (adopted !== undefined) {
431      legacy.delete(id)
432      await $.store.delete(legacyKeyOf(id)).catch(() => undefined)
433    }
434
435    if (hasFinished) {
436      playSound($, PLAN_SOUND)
437    } else if (hasAdvanced) {
438      playSound($, STEP_SOUND)
439    }
440
441    return {
442      result: `${taken === undefined ? '' : `Took up the waiting message "${taken.name}". `}Progress band: ${summaryOf(updated)}`,
443    }
444  }).catch(($, e, next) => ({
445    result: `report_progress failed (${next.error.kind}): ${next.error.message}`,
446  }))
447
448  on('command.run', { command: 'progress' }, async ($, e) => {
449    await ensureLoaded($)
450    const [verb = '', ...rest] = e.args.trim().split(/\s+/)
451    const target = rest.join(' ')
452
453    if (verb === 'clear') {
454      const count = plans.size
455
456      for (const id of [...plans.keys()]) {
457        await removePlan($, id)
458      }
459
460      return { text: count === 0 ? 'No plan to clear.' : `Cleared ${count} plan${count === 1 ? '' : 's'}.` }
461    }
462
463    if (verb === 'remove') {
464      const id = idOf(target)
465      const plan = plans.get(id)
466
467      if (target === '' || plan === undefined) {
468        return { text: `No plan named "${target}". /progress lists them.` }
469      }
470
471      await removePlan($, id)
472
473      return { text: `Removed "${plan.name}".` }
474    }
475
476    const lines = sortedPlans(plans.values()).map(
477      plan => `${isWaiting(plan) ? '◌' : isDone(plan) ? '✓' : '·'} ${summaryOf(plan)}`,
478    )
479
480    return {
481      text:
482        lines.length === 0
483          ? 'No plan in progress. Claude adds one by calling report_progress.'
484          : lines.join('\n'),
485    }
486  })
487
488  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
489    await ensureLoaded($)
490
491    if (e.props.hasSurvey || (plans.size === 0 && shownQuotas().length === 0 && pause === null)) {
492      if (e.surface === 'terminal') {
493        mounted = null
494      }
495
496      return next(e)
497    }
498
499    isWorking = e.props.isWorking
500    const theirs = await next(e)
501    const now = await $.clock.now()
502
503    return drawBand($, e, theirs, now)
504  })
505
506  on('prompt.compose', async ($, e, next) => {
507    const result = await next(e)
508
509    if (!e.tools.includes(`mcp__progress__${TOOL_NAME}`)) {
510      return result
511    }
512
513    const sections = result.sections.filter(section => section.id !== PROMPT_SECTION.id)
514
515    return { sections: [...sections, PROMPT_SECTION] }
516  })
517}
518
519/**
520 * Draws the band for the surface: the terminal's Rasters (and remembers
521 * where, for the frame loop), the desktop's SVG bars, plain text elsewhere.
522 */
523function drawBand(
524  $: EngineInterface,
525  e: Frozen<RenderInput<'AbovePrompt'>>,
526  theirs: RenderElement,
527  now: number,
528): RenderElement {
529  const frames = framesAt(now)
530  const context: FrameContext = { now, isWorking, isPaused: pause !== null }
531  const columns = e.props.bodyColumns > 0 ? e.props.bodyColumns : (e.viewport?.columns ?? 80)
532  const model: BandModel = {
533    frames,
534    context,
535    columns,
536    theirs,
537    quotas: shownQuotas(),
538    guard: guardViewOf($, now, e.surface),
539    fold: {
540      isFolded,
541      isAnimating: now - foldedAt < FOLD_MS,
542      onToggle: () => {
543        void toggleFold($)
544      },
545    },
546    onRemove: id => {
547      void dissolvePlan($, id)
548    },
549  }
550
551  if (e.surface === 'terminal') {
552    const { Box, Text, Button, Input, Raster, Client } = $.ui.resolve(e)
553    const layout = terminalLayoutOf(columns, frames)
554    const alertCells = pause === null ? null : alertWaveWidthOf(columns)
555
556    const shownIds = isFolded ? [] : frames.map(frame => frame.plan.id)
557
558    mounted =
559      shownIds.length === 0 && alertCells === null
560        ? null
561        : { requestId: e.requestId, layout, ids: shownIds, alertCells }
562    blitted.clear()
563
564    if (isAnimating()) {
565      startLoop($)
566    }
567
568    return terminalBandView({ Box, Text, Button, Input, Raster, Client }, model, layout)
569  }
570
571  if (e.surface === 'desktop') {
572    const { Box, Text, Button, Input, Svg, Client } = $.ui.resolve(e)
573    const moves = new Map<string, Move>()
574
575    // The SVG eases the head itself: hand it where the head is now and the time left.
576    for (const [id, fill] of fills) {
577      if (isFilling(fill, now)) {
578        moves.set(id, { from: shownShare(fill, now), durationMs: FILL_MS - (now - fill.startedAt) })
579      }
580    }
581
582    return desktopBandView({ Box, Text, Button, Input, Svg, Client }, { ...model, moves })
583  }
584
585  const { Box, Text, Button } = $.ui.resolve(e)
586
587  return plainBandView({ Box, Text, Button }, model)
588}
589
590/** The plans as the instant `now` shows them, in the order they were first reported. */
591function framesAt(now: number): PlanFrame[] {
592  const ordered = sortedPlans(plans.values())
593  const active = ordered
594    .filter(plan => !isDone(plan) && !isWaiting(plan))
595    .reduce<Plan | null>((latest, plan) => (latest === null || plan.updatedAt > latest.updatedAt ? plan : latest), null)
596
597  const queue = ordered.filter(isWaiting).map(plan => plan.id)
598
599  return ordered.map(plan => {
600    const removedAt = removing.get(plan.id)
601    const position = queue.indexOf(plan.id)
602
603    return {
604      plan,
605      share: shareAt(plan, now),
606      flash: flashProgress(flashes.get(plan.id), now),
607      isActive: active !== null && plan.id === active.id,
608      dissolve: removedAt === undefined ? null : Math.max(0, Math.min(1, (now - removedAt) / DISSOLVE_MS)),
609      isIgniting: now - (ignites.get(plan.id) ?? Number.NEGATIVE_INFINITY) < IGNITE_MS,
610      ...(position === -1 ? {} : { queue: position + 1 }),
611    }
612  })
613}
614
615/** The share a plan's bar shows at `now`: mid-fill when it is animating. */
616function shareAt(plan: Plan | undefined, now: number): number {
617  if (plan === undefined) {
618    return 0
619  }
620
621  const fill = fills.get(plan.id)
622
623  return fill !== undefined && isFilling(fill, now) ? shownShare(fill, now) : plan.step / plan.total
624}
625
626/** True while the band shows a plan or the alert: their pixels never stop moving. */
627function isAnimating(): boolean {
628  return plans.size > 0 || pause !== null
629}
630
631/** Starts the frame loop unless it runs. */
632function startLoop($: EngineInterface): void {
633  if (loop !== null) {
634    return
635  }
636
637  lastLandedAt = Number.POSITIVE_INFINITY
638  loop = $.clock.every(FRAME_MS, () => {
639    void onFrame($)
640  })
641}
642
643function stopLoop(): void {
644  loop?.cancel()
645  loop = null
646}
647
648/**
649 * One frame: repaints the glyphs and the meters of the band last drawn,
650 * each only when its cells changed, and stops the loop once nothing moves
651 * or nothing has landed for STALE_MS.
652 */
653async function onFrame($: EngineInterface): Promise<void> {
654  const now = await $.clock.now()
655
656  if (lastLandedAt === Number.POSITIVE_INFINITY) {
657    lastLandedAt = now
658  }
659
660  const target = mounted
661  const isStale = now - lastLandedAt > STALE_MS
662
663  if (target === null || isStale || !isAnimating()) {
664    settleAnimations(now)
665    stopLoop()
666
667    if (target !== null) {
668      await paint($, target, now)
669    }
670
671    return
672  }
673
674  await paint($, target, now)
675}
676
677/** Blits the band's two Rasters for `now`, skipping a frame whose rows changed shape. */
678async function paint($: EngineInterface, target: Mounted, now: number): Promise<void> {
679  const frames = framesAt(now)
680  const ids = frames.map(row => row.plan.id)
681
682  const context: FrameContext = { now, isWorking, isPaused: pause !== null }
683  const hasPlanRasters = target.ids.length > 0 && ids.join('\n') === target.ids.join('\n')
684  const repaints: [string, string, number, number][] =
685    !hasPlanRasters
686      ? []
687      : [
688          [GLYPHS_KEY, glyphsCellsOf(frames, context), 1, frames.length],
689          [METERS_KEY, metersCellsOf(frames, context, target.layout), target.layout.meter, frames.length],
690        ]
691
692  if (pause !== null && target.alertCells !== null) {
693    repaints.push([ALERT_WAVE_KEY, alertWaveCellsOf(pause, target.alertCells, now), target.alertCells, 1])
694  }
695
696  for (const [key, cells, columns, rows] of repaints) {
697    if (blitted.get(key) === cells) {
698      continue
699    }
700
701    const result = await $.ui.blit({ requestId: target.requestId, key, cells, columns, rows })
702
703    if (result.deny === undefined) {
704      blitted.set(key, cells)
705      lastLandedAt = now
706    }
707  }
708}
709
710/** Forgets fills and flashes that have run their course. */
711function settleAnimations(now: number): void {
712  for (const [id, fill] of fills) {
713    if (!isFilling(fill, now)) {
714      fills.delete(id)
715    }
716  }
717
718  for (const [id, startedAt] of flashes) {
719    if (now >= startedAt + FILL_MS * 2) {
720      flashes.delete(id)
721    }
722  }
723}
724
725/** What the band's guard controls do, bound to this `$`. */
726function guardViewOf($: EngineInterface, now: number, surface: string): GuardView {
727  return {
728    limits,
729    editing,
730    draft,
731    draftFrom: draftFrom !== null && now - draftMovedAt < NUDGE_MS ? draftFrom : null,
732    isOpening: now - editedAt < OPEN_MS,
733    justSet: confirmed !== null && now - confirmed.at < RETURN_MS ? confirmed.kind : null,
734    isDragReady: dragReady.has(surface),
735    onPick: limit => {
736      void pickLimit($, limit)
737    },
738    pause,
739    onEdit: kind => {
740      void openEditor($, kind)
741    },
742    onNudge: delta => {
743      void nudgeDraft($, delta)
744    },
745    onConfirm: () => {
746      void confirmLimit($)
747    },
748    onClear: () => {
749      draftFrom = null
750      draft = null
751      $.ui.invalidate('ui.render')
752    },
753    onSave: () => {
754      void saveAndWait($)
755    },
756    onResume: () => {
757      void resumeWork($, true)
758      $.ui.toast('Resumed past the limit')
759    },
760  }
761}
762
763/**
764 * Opens a window's limit picker in the quota row's place, on the limit set
765 * (or none); its dial opens out of the middle. The window's label pressed
766 * again while it is open leaves the limit as it was.
767 */
768async function openEditor($: EngineInterface, kind: string): Promise<void> {
769  const now = await $.clock.now()
770
771  if (editing === kind) {
772    editing = null
773    confirmed = { kind, at: now }
774  } else {
775    editing = kind
776    editedAt = now
777    confirmed = null
778  }
779
780  draft = limits[kind] ?? null
781  draftFrom = null
782  $.ui.invalidate('ui.render')
783  // Redraws once the animation is over, so later redraws draw it at rest.
784  $.clock.after(Math.max(OPEN_MS, RETURN_MS) + 50, () => {
785    $.ui.invalidate('ui.render')
786  })
787}
788
789/**
790 * A click on the dial's track: the bar moves there and slides over from
791 * where it stood; nothing is kept until the ✓.
792 */
793async function pickLimit($: EngineInterface, limit: number): Promise<void> {
794  const picked = nudgedLimit(limit, 0)
795
796  if (editing === null || picked === draft) {
797    return
798  }
799
800  draftFrom = draft
801  draft = picked
802  draftMovedAt = await $.clock.now()
803  $.ui.invalidate('ui.render')
804}
805
806/** The ✓: keeps the limit the dial shows (none, after Remove), closes the picker, and the quota row comes back lit. */
807async function confirmLimit($: EngineInterface): Promise<void> {
808  const kind = editing
809
810  if (kind === null) {
811    return
812  }
813
814  editing = null
815  confirmed = { kind, at: await $.clock.now() }
816  $.clock.after(RETURN_MS + 50, () => {
817    $.ui.invalidate('ui.render')
818  })
819
820  if (draft === (limits[kind] ?? null)) {
821    $.ui.invalidate('ui.render')
822
823    return
824  }
825
826  await setLimit($, kind, draft)
827}
828
829/** Moves the picker's knob a step, remembering where it slides from. */
830async function nudgeDraft($: EngineInterface, delta: number): Promise<void> {
831  const moved = nudgedLimit(draft ?? LIMIT_START, delta)
832
833  if (moved === draft) {
834    return
835  }
836
837  draftFrom = draft
838  draft = moved
839  draftMovedAt = await $.clock.now()
840  $.ui.invalidate('ui.render')
841}
842
843/** The store key of this folder's guard: its pause and the windows resumed past their limit. */
844async function guardKeyOf($: EngineInterface): Promise<string> {
845  return `guard:${await folderOf($)}`
846}
847
848/** The store key of this folder's view: whether its plans are folded. */
849async function viewKeyOf($: EngineInterface): Promise<string> {
850  return `view:${await folderOf($)}`
851}
852
853/** Folds the plans into one line, or opens them again; remembered for the folder, animated once. */
854async function toggleFold($: EngineInterface): Promise<void> {
855  isFolded = !isFolded
856  foldedAt = await $.clock.now()
857  $.ui.invalidate('ui.render')
858  // A redraw once the animation is over, so later redraws draw the band at rest.
859  $.clock.after(FOLD_MS + 50, () => {
860    $.ui.invalidate('ui.render')
861  })
862
863  try {
864    await $.store.set(await viewKeyOf($), { isFolded })
865  } catch {
866    // The fold holds for this session.
867  }
868}
869
870/** Reads the limits and this folder's pause and view from the store. */
871async function loadGuard($: EngineInterface): Promise<void> {
872  try {
873    const view = (await $.store.get(await viewKeyOf($))) as { isFolded?: unknown } | undefined
874
875    isFolded = view?.isFolded === true
876  } catch {
877    // An unreadable store: the plans show open.
878  }
879
880  try {
881    limits = limitsOf(await $.store.get(LIMITS_KEY))
882
883    const state = guardStateOf(await $.store.get(await guardKeyOf($)))
884
885    pause = state.pause
886    acknowledged = state.acknowledged
887  } catch {
888    // An unreadable store: no limit, no pause.
889  }
890}
891
892async function saveGuard($: EngineInterface): Promise<void> {
893  try {
894    await $.store.set(await guardKeyOf($), { pause, acknowledged })
895  } catch {
896    // The pause holds for this session; the next one starts without it.
897  }
898}
899
900/** Sets (or, with null, lifts) a window's limit, closes the picker, and checks the windows against it. */
901async function setLimit($: EngineInterface, kind: string, limit: number | null): Promise<void> {
902  const next: Limits = { ...limits }
903
904  if (limit === null) {
905    delete next[kind]
906  } else {
907    next[kind] = limit
908  }
909
910  limits = next
911  editing = null
912  draft = limit
913  delete acknowledged[kind]
914  $.ui.invalidate('ui.render')
915  $.ui.toast(limit === null ? 'Limit removed' : `Work pauses when ${kind === 'seven_day' ? '7d' : '5h'} has ${limit}% left`)
916
917  try {
918    await $.store.set(LIMITS_KEY, limits)
919  } catch {
920    // The limit holds for this session.
921  }
922
923  await saveGuard($)
924  await checkLimits($)
925}
926

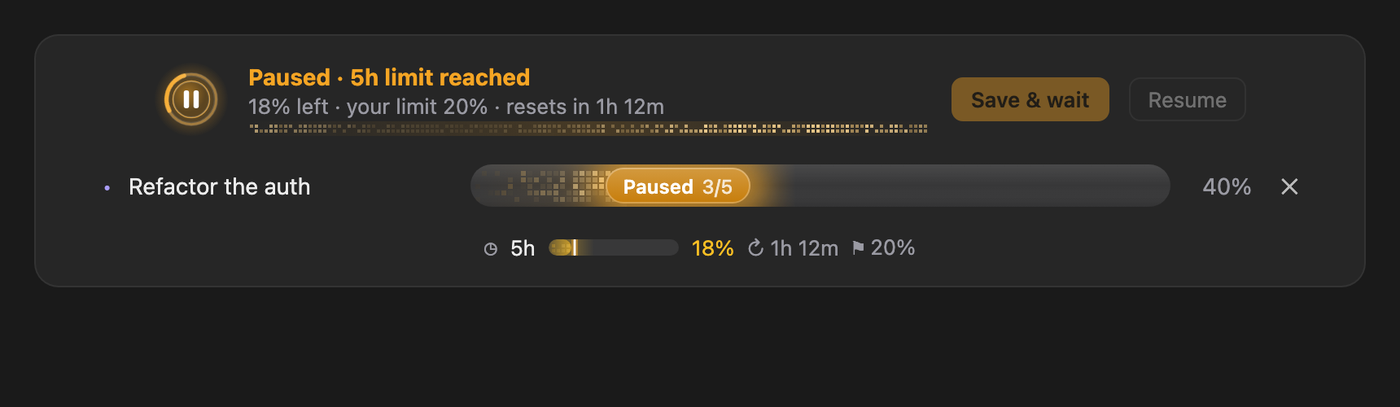

927/** Pauses the work when a window has reached the limit the person set, unless it already is. */
928async function checkLimits($: EngineInterface): Promise<void> {
929  if (pause !== null) {
930    return
931  }
932
933  const breach = breachOf(quotas, limits, acknowledged)
934
935  if (breach === null) {
936    return
937  }
938
939  const turn = runningTurn
940
941  pause = {
942    kind: breach.kind,
943    label: breach.label,
944    limit: breach.limit,
945    remaining: breach.remaining,
946    since: await $.clock.now(),
947    hasInterrupted: turn !== null,
948    phase: 'alert',
949    ...(breach.resetsAt === undefined ? {} : { resetsAt: breach.resetsAt }),
950  }
951
952  if (turn !== null) {
953    $.turn.abort({ turnId: turn }).catch(() => {
954      // The turn had already ended; the tool guard holds whatever comes next.
955    })
956  }
957
958  playSound($, ALERT_SOUND)
959  $.ui.toast(`⏸ ${breach.label} limit reached: the work is paused`)
960  $.ui.invalidate('ui.render')
961  startLoop($)
962  await saveGuard($)
963}
964
965/** Save & wait: Claude writes a checkpoint without tools, and the work resumes once the window resets. */
966async function saveAndWait($: EngineInterface): Promise<void> {
967  if (pause === null || pause.phase === 'waiting') {
968    return
969  }
970
971  pause = { ...pause, phase: 'waiting' }
972  $.ui.invalidate('ui.render')
973  await saveGuard($)
974  await armResume($)
975  $.ui.toast(pause.resetsAt === undefined ? 'Saved: resume whenever you are ready' : 'Saved: Claude picks up on its own after the reset')
976  $.prompt.submit({ text: CHECKPOINT_PROMPT }).catch(() => {
977    // No checkpoint: the wait holds all the same.
978  })
979}
980
981/** Arms the wake-up of a saved pause: shortly after its window resets, or at once when that is past. */
982async function armResume($: EngineInterface): Promise<void> {
983  resumeTimer?.cancel()
984  resumeTimer = null
985
986  if (pause === null || pause.phase !== 'waiting' || pause.resetsAt === undefined) {
987    return
988  }
989
990  const delay = Math.max(0, pause.resetsAt + RESET_GRACE_MS - (await $.clock.now()))
991
992  resumeTimer = $.clock.after(delay, () => {
993    void resumeAfterReset($)
994  })
995}
996
997/** The window has reset after a save: lift the pause and ask Claude to pick up from its checkpoint. */
998async function resumeAfterReset($: EngineInterface): Promise<void> {
999  if (pause === null || pause.phase !== 'waiting') {
1000    return
1001  }
1002
1003  const label = pause.label
1004
1005  pause = null
1006  resumeTimer = null
1007  await saveGuard($)
1008  await refreshUsage($)
1009  playSound($, STEP_SOUND)
1010  $.ui.toast(`${label} window reset: resuming`)
1011  $.ui.invalidate('ui.render')
1012  $.prompt.submit({ text: RESET_PROMPT }).catch(() => {
1013    // The person resumes by hand.
1014  })
1015}
1016
1017/**
1018 * Lifts the pause: the window stays quiet until it resets, and with
1019 * `shouldContinue` Claude is asked to go on when a turn was stopped or a
1020 * checkpoint written.
1021 */
1022async function resumeWork($: EngineInterface, shouldContinue: boolean): Promise<void> {
1023  const lifted = pause
1024
1025  if (lifted === null) {
1026    return
1027  }
1028
1029  acknowledged = { ...acknowledged, [lifted.kind]: lifted.resetsAt ?? 0 }
1030  pause = null
1031  resumeTimer?.cancel()
1032  resumeTimer = null
1033  $.ui.invalidate('ui.render')
1034  await saveGuard($)
1035
1036  if (shouldContinue && (lifted.hasInterrupted || lifted.phase === 'waiting')) {
1037    $.prompt.submit({ text: RESUME_PROMPT }).catch(() => {
1038      // The person goes on by hand.
1039    })
1040  }
1041}
1042
1043/** Reads the store, and asks for the windows, unless this instance of the module already has. */
1044async function ensureLoaded($: EngineInterface): Promise<void> {
1045  if (!hasLoaded) {
1046    await loadPlans($)
1047  }
1048
1049  if (!hasUsage) {
1050    await refreshUsage($)
1051  }
1052}
1053
1054/** The windows the band draws: none while the `usage` option is off. */
1055function shownQuotas(): Quota[] {
1056  return isUsageOn ? quotas : []
1057}
1058
1059/** Asks the engine for the 5-hour and 7-day windows; a session that cannot say keeps what it had. */
1060async function refreshUsage($: EngineInterface): Promise<void> {
1061  hasUsage = true
1062
1063  try {
1064    const usage = await $.session.usage()
1065
1066    quotas = quotasOf(usage.rateLimits)
1067    await checkLimits($)
1068  } catch {
1069    // No reading: the row stays as it was, or absent.
1070  }
1071}
1072
1073/** Redraws once a minute while a window shows, so `resets in 2h 14m` stays true. */
1074function startMinuteTick($: EngineInterface): void {
1075  if (minuteTick !== null) {
1076    return
1077  }
1078
1079  minuteTick = $.clock.every(REFRESH_MS, () => {
1080    void refreshFromStore($)
1081  })
1082}
1083
1084/**
1085 * Re-reads this folder's plans: another conversation in the folder may have
1086 * started, moved, finished or removed one. A plan that moved fills to its
1087 * new share and one that finished flashes, as if reported here; no chime,
1088 * which plays only where the work is done. Redraws when anything changed,
1089 * and in any case while a window's countdown shows.
1090 */
1091async function refreshFromStore($: EngineInterface): Promise<void> {
1092  const before = plans
1093
1094  await loadPlans($)
1095
1096  const now = await $.clock.now()
1097  let hasChanged = before.size !== plans.size
1098
1099  for (const [id, plan] of plans) {
1100    const previous = before.get(id)
1101
1102    if (previous === undefined) {
1103      hasChanged = true
1104      continue
1105    }
1106
1107    if (previous.updatedAt === plan.updatedAt && previous.step === plan.step && previous.total === plan.total) {
1108      continue
1109    }
1110
1111    hasChanged = true
1112
1113    const from = previous.step / previous.total
1114    const to = plan.step / plan.total
1115
1116    if (from !== to && !removing.has(id)) {
1117      fills.set(id, { from, to, startedAt: now })
1118    }
1119
1120    if (isDone(plan) && !isDone(previous)) {
1121      flashes.set(id, now + FILL_MS * 0.7)
1122    }
1123  }
1124
1125  if (hasChanged) {
1126    startLoop($)
1127  }
1128
1129  if (hasChanged || shownQuotas().length > 0) {
1130    $.ui.invalidate('ui.render')
1131  }
1132}
1133
1134/** The session's project folder as the store names it, read afresh: a `/cd` moves it. */
1135async function folderOf($: EngineInterface): Promise<string> {
1136  try {
1137    folder = folderKeyOf(await $.session.root())
1138  } catch {
1139    folder ??= folderKeyOf('')
1140  }
1141
1142  return folder
1143}
1144
1145/**
1146 * Reads this folder's plans from the store, and the legacy ones of no
1147 * folder: a finished legacy plan is dropped, an unfinished one kept for
1148 * adoption. A store that cannot be read leaves the plans as they are.
1149 */
1150async function loadPlans($: EngineInterface): Promise<void> {
1151  let keys: string[]
1152
1153  try {
1154    keys = await $.store.keys()
1155  } catch {
1156    return
1157  }
1158
1159  const mine = await folderOf($)
1160  const now = await $.clock.now()
1161  const loaded = new Map<string, Plan>()
1162  const orphans = new Map<string, Plan>()
1163
1164  for (const key of keys) {
1165    const parsed = parseKey(key)
1166
1167    if (parsed === null || ('folder' in parsed && parsed.folder !== mine)) {
1168      continue
1169    }
1170
1171    const value = await $.store.get(key).catch(() => undefined)
1172
1173    if (!isPlan(value)) {
1174      continue
1175    }
1176
1177    if ('folder' in parsed && isWaiting(value) && now - value.createdAt > WAITING_STALE_MS) {
1178      // A waiting row its session never cleared (it crashed): nothing waits on it any more.
1179      await $.store.delete(key).catch(() => undefined)
1180    } else if ('folder' in parsed) {
1181      loaded.set(value.id, value)
1182    } else if (isDone(value)) {
1183      await $.store.delete(key).catch(() => undefined)
1184    } else {
1185      orphans.set(value.id, value)
1186    }
1187  }
1188
1189  plans = loaded
1190  legacy = orphans
1191  hasLoaded = true
1192}
1193
1194/**
1195 * The ✕: the row comes apart (its LEDs fly off, its chip bursts, a soft
1196 * dissolve sound plays), then the plan leaves the band and the store.
1197 */
1198async function dissolvePlan($: EngineInterface, id: string): Promise<void> {
1199  if (removing.has(id) || !plans.has(id)) {
1200    return

1import type { Quota } from './usage'
2
3/**
4 * The limits the person set, per window: pause the work once that window
5 * has this many percent left or fewer. A window with no entry has no limit.
6 */
7export type Limits = Partial<Record<string, number>>
8
9/** The windows a limit can be set on. */
10export const LIMIT_KINDS = ['five_hour', 'seven_day'] as const
11
12/** The picker's range and step, in percent left, and where it starts when the window has no limit yet. */
13export const LIMIT_MIN = 5
14export const LIMIT_MAX = 90
15export const LIMIT_STEP = 5
16export const LIMIT_START = 25
17
18/** A picker value moved by `delta` steps, kept in range and on the grid. */
19export function nudgedLimit(value: number, delta: number): number {
20  const stepped = Math.round(value / LIMIT_STEP) * LIMIT_STEP + delta * LIMIT_STEP
21
22  return Math.max(LIMIT_MIN, Math.min(LIMIT_MAX, stepped))
23}
24
25/**
26 * The work stopped at a limit: which window, at what level, and where the
27 * pause stands: `alert` waits for the person's choice, `waiting` waits for
28 * the window to reset after a save.
29 */
30export type Pause = {
31  kind: string
32  label: string
33  /** The limit that was reached, in percent left. */
34  limit: number
35  /** What was left of the window when the pause began. */
36  remaining: number
37  /** When the window resets, milliseconds since the epoch, when the engine said. */
38  resetsAt?: number
39  /** When the pause began. */
40  since: number
41  /** Whether a turn was running and got stopped, so resuming has work to pick up. */
42  hasInterrupted: boolean
43  phase: 'alert' | 'waiting'
44}
45
46/** What a folder keeps of the guard between sessions: the pause, and the windows resumed past their limit. */
47export type GuardState = {
48  pause: Pause | null
49  /** Per window, the reset time of the window the person chose to go on in. */
50  acknowledged: Record<string, number>
51}
52
53/** A limit as the person typed it: `20`, `20%`, ` 7 % ` → a whole percent from 1 to 99; anything else null. */
54export function parseLimit(text: string): number | null {
55  const match = /^\s*(\d{1,2}(?:[.,]\d+)?)\s*%?\s*$/.exec(text)
56
57  if (match === null) {
58    return null
59  }
60
61  const value = Math.round(Number((match[1] ?? '').replace(',', '.')))
62
63  return value >= 1 && value <= 99 ? value : null
64}
65
66/** The limits read back from the store: only the two windows, only whole percents from 1 to 99. */
67export function limitsOf(value: unknown): Limits {
68  const limits: Limits = {}
69
70  if (typeof value !== 'object' || value === null) {
71    return limits
72  }
73
74  for (const kind of LIMIT_KINDS) {
75    const limit = (value as Record<string, unknown>)[kind]
76
77    if (typeof limit === 'number' && Number.isInteger(limit) && limit >= 1 && limit <= 99) {
78      limits[kind] = limit
79    }
80  }
81
82  return limits
83}
84
85/** The guard state read back from the store; a missing or damaged one is no pause and nothing acknowledged. */
86export function guardStateOf(value: unknown): GuardState {
87  const state: GuardState = { pause: null, acknowledged: {} }
88
89  if (typeof value !== 'object' || value === null) {
90    return state
91  }
92
93  const record = value as Record<string, unknown>
94  const pause = record.pause as Record<string, unknown> | null | undefined
95
96  if (
97    pause !== null &&
98    typeof pause === 'object' &&
99    typeof pause.kind === 'string' &&
100    typeof pause.label === 'string' &&
101    typeof pause.limit === 'number' &&
102    typeof pause.remaining === 'number' &&
103    typeof pause.since === 'number' &&
104    (pause.phase === 'alert' || pause.phase === 'waiting')
105  ) {
106    state.pause = {
107      kind: pause.kind,
108      label: pause.label,
109      limit: pause.limit,
110      remaining: pause.remaining,
111      since: pause.since,
112      hasInterrupted: pause.hasInterrupted === true,
113      phase: pause.phase,
114      ...(typeof pause.resetsAt === 'number' ? { resetsAt: pause.resetsAt } : {}),
115    }
116  }
117
118  if (typeof record.acknowledged === 'object' && record.acknowledged !== null) {
119    for (const [kind, at] of Object.entries(record.acknowledged as Record<string, unknown>)) {
120      if (typeof at === 'number') {
121        state.acknowledged[kind] = at
122      }
123    }
124  }
125
126  return state
127}
128
129/**
130 * The first window at or past its limit that the person has not chosen to
131 * go on in: a window resumed past its limit stays quiet until it resets
132 * (its reset time changes), then its limit holds again.
133 */
134export function breachOf(quotas: readonly Quota[], limits: Limits, acknowledged: Record<string, number>): (Quota & { limit: number }) | null {
135  for (const quota of quotas) {
136    const limit = limits[quota.kind]
137
138    if (limit === undefined || quota.remaining > limit) {
139      continue
140    }
141
142    if (acknowledged[quota.kind] === (quota.resetsAt ?? 0)) {
143      continue
144    }
145
146    return { ...quota, limit }
147  }
148
149  return null
150}
151
152/** The note the model reads when a tool call meets the pause. */
153export function denialOf(pause: Pause): string {
154  return (
155    `Paused by the progress band: the ${pause.label} usage limit the user set (pause at ${pause.limit}% left) ` +
156    'was reached. Stop here and do not retry; the user will resume the work.'
157  )
158}
159
160/** What the model is asked when the person saves and waits: a checkpoint, no tools. */
161export const CHECKPOINT_PROMPT =
162  'The usage limit the user set was reached, so the work is paused until the window resets. ' +
163  'Do not call any tools. In three short lines, write down where the work stands and the very next step, ' +
164  'so it can resume cleanly after the reset.'
165
166/** What the model is asked when the person resumes a turn the pause stopped. */
167export const RESUME_PROMPT = 'The user resumed the work after the usage-limit pause. Continue exactly where you stopped.'
168
169/** What the model is asked when the window has reset after a save. */
170export const RESET_PROMPT = 'The usage window has reset. Resume the work from the checkpoint you wrote, starting with the next step.'
171

1import { easeOutCubic, spinnerAt, twinkleTick } from './motion'
2import {
3  AMBER_BRIGHT,
4  AMBER_DEEP,
5  AMBER_DIM,
6  DEFAULT_COLOR,
7  EMERALD,
8  EMERALD_DEEP,
9  EMERALD_DIM,
10  INDIGO,
11  INDIGO_BRIGHT,
12  LAVENDER,
13  LAVENDER_DEEP,
14  LAVENDER_DIM,
15  mix,
16  MUTED,
17  noise,
18  DANGER,
19  RULE_FROM,
20  RULE_TO,
21  seedOf,
22  TRACK,
23  WHITE,
24  type Rgb,
25} from './palette'
26import { chipOf, isDone, type Plan } from './plans'
27import { BLANK, cellOf, textCells, type Cell } from './raster'
28
29/** One plan as one frame draws it: where its bar stands and whether it glows. */
30export type PlanFrame = {
31  plan: Plan
32  /** The share of the bar shown now, 0 to 1 (mid-animation, not the target). */
33  share: number
34  /** How far into its completion flash, 0 to 1, or null. */
35  flash: number | null
36  /** The plan Claude reported last among the unfinished ones: it spins and twinkles. */
37  isActive: boolean
38  /** How far the plan's row has come apart since its ✕ was pressed, 0 to 1, or null. */
39  dissolve?: number | null
40  /** The plan just took up a waiting message: its bar sweeps in once. */
41  isIgniting?: boolean
42  /** A waiting message's place in the queue, from 1; absent for a plan. */
43  queue?: number
44}
45
46/** What every row of a frame shares: the instant, whether Claude is working, whether a limit holds the work. */
47export type FrameContext = {
48  now: number
49  isWorking: boolean
50  isPaused?: boolean
51}
52
53/** How wide a meter's bar is, its rounded ends included. */
54export type MeterWidths = {
55  bar: number
56}
57
58const GAP = 2
59const PERCENT_CELLS = 4
60/** The braille cell with no dot: an empty pixel of the dither. */
61const NO_DOTS = 0x2800
62/** The eight dots of a braille cell, as bits of its code point. */
63const DOTS = [0x01, 0x02, 0x04, 0x08, 0x10, 0x20, 0x40, 0x80]
64
65/** Cells across one meter: the bar, a gap, the percent. */
66export function meterWidthOf(widths: MeterWidths): number {
67  return widths.bar + GAP + PERCENT_CELLS
68}
69
70/** The percent a share reads as: 100 only once it is whole, so a bar still filling never says 100%. */
71export function shownPercent(share: number): number {
72  if (share >= 1) {
73    return 100
74  }
75
76  return Math.max(0, Math.min(99, Math.round(share * 100)))
77}
78
79/**
80 * One meter: a rounded track; behind the head a dither of braille pixels,
81 * sparse at the start and dense at the head, that reshuffles while Claude
82 * works; the chip (`Stage 3/5`) riding the head; the percent.
83 */
84export function meterRow(frame: PlanFrame, context: FrameContext, widths: MeterWidths): Cell[] {
85  if (frame.dissolve !== undefined && frame.dissolve !== null) {
86    return dissolvingRow(frame, context, widths, frame.dissolve)
87  }
88
89  if (frame.queue !== undefined) {
90    return waitingRow(frame.queue, context, widths)
91  }
92
93  const { plan } = frame
94  const done = isDone(plan) && frame.share >= 0.999
95  const flash = frame.flash === null ? 0 : 1 - easeOutCubic(frame.flash)
96  const inner = Math.max(4, widths.bar - 2)
97  const paused = context.isPaused === true && !done
98  const chip = chipCellsOf(plan, done, flash, inner, paused)
99  const head = Math.round(Math.max(0, Math.min(1, frame.share)) * inner)
100  const chipEnd = Math.min(inner, Math.max(head, chip.length))
101  const chipStart = chipEnd - chip.length
102  const tick = twinkleTick(context.now, context.isWorking && frame.isActive && !done)
103  const seed = seedOf(plan.id)
104  const cells: Cell[] = [cellOf('▐', TRACK)]
105
106  for (let i = 0; i < inner; i += 1) {
107    if (i >= chipStart && i < chipEnd) {
108      cells.push(chip[i - chipStart] ?? BLANK)
109    } else if (i < chipStart) {
110      cells.push(ditherCell(i, chipStart, seed, tick, done, flash, paused))
111    } else {
112      cells.push(cellOf(' ', TRACK, TRACK))
113    }
114  }
115
116  cells.push(cellOf('▌', TRACK))
117
118  for (let i = 0; i < GAP; i += 1) {
119    cells.push(BLANK)
120  }
121
122  const percentColor = done ? mix(EMERALD, WHITE, flash) : MUTED
123
124  cells.push(...textCells(`${shownPercent(frame.share)}%`.padStart(PERCENT_CELLS), percentColor))
125
126  return cells
127}
128
129/**
130 * A row coming apart after its ✕: the cells nearest the chip go first,
131 * each flaring into a sparkle (`✦`, then `·`) before it goes out; the chip
132 * flashes white and crumbles into sparkles; the track, the percent and the
133 * caps fade away last.
134 */
135/** How long the waiting scanner takes to cross the track and come back. */
136const SCAN_MS = 5200
137
138/**
139 * A waiting message's row on the terminal: an indigo chip `⧗ Waiting #1` at
140 * the start, a dotted track, and a soft glow gliding back and forth along
141 * it; no percent, as nothing has started.
142 */
143function waitingRow(position: number, context: FrameContext, widths: MeterWidths): Cell[] {
144  const inner = Math.max(4, widths.bar - 2)
145  const ground: Rgb = mix(INDIGO, TRACK, 0.55)
146  const text = [...`⧗ Waiting #${position}`].slice(0, Math.max(1, inner - 2))
147  const chip = [cellOf('▐', ground, TRACK), ...text.map(glyph => cellOf(glyph, INDIGO_BRIGHT, ground)), cellOf('▌', ground, TRACK)]
148  const span = Math.max(1, inner - chip.length - 1)
149  const phase = (context.now % SCAN_MS) / SCAN_MS
150  const glide = (1 - Math.cos(phase * 2 * Math.PI)) / 2
151  const centre = chip.length + glide * span
152  const cells: Cell[] = [cellOf('▐', TRACK), ...chip]
153
154  for (let i = chip.length; i < inner; i += 1) {
155    const light = Math.max(0, 1 - Math.abs(i - centre) / 4)
156
157    cells.push(cellOf(light > 0.6 ? '⠶' : light > 0.15 ? '⠤' : '⠂', mix(mix(TRACK, INDIGO, 0.35), INDIGO_BRIGHT, light), TRACK))
158  }
159
160  cells.push(cellOf('▌', TRACK))
161
162  for (let i = 0; i < GAP + PERCENT_CELLS; i += 1) {
163    cells.push(BLANK)
164  }
165
166  return cells
167}
168
169function dissolvingRow(frame: PlanFrame, context: FrameContext, widths: MeterWidths, progress: number): Cell[] {
170  const done = isDone(frame.plan)
171  const living = meterRow({ ...frame, dissolve: null }, context, widths)
172  const inner = Math.max(4, widths.bar - 2)
173  const seed = seedOf(frame.plan.id)
174  const [, bright] = done ? [EMERALD_DIM, EMERALD] : [LAVENDER_DIM, LAVENDER]
175  const p = Math.max(0, Math.min(1, progress))
176  const trackGone = p > 0.82
177
178  return living.map((cell, index) => {
179    if (index === 0 || index === inner + 1) {
180      return trackGone ? BLANK : cell
181    }
182
183    if (index > inner + 1) {
184      return p > 0.45 ? BLANK : cell
185    }
186
187    const i = index - 1
188    const isChip = cell.bg !== TRACK && cell.bg !== DEFAULT_COLOR
189    const order = isChip ? 0.05 + 0.1 * noise(seed, i, 12) : 0.12 + 0.5 * (1 - i / inner) + 0.18 * noise(seed, i, 11)
190    const ground = trackGone ? DEFAULT_COLOR : TRACK
191
192    if (p < order) {
193      return isChip && p > 0.02 ? cellOf(cell.glyph, cell.fg, mix(cell.bg, WHITE, Math.min(1, p / 0.08) * 0.7)) : cell
194    }
195
196    const since = p - order
197
198    if (since < 0.1) {
199      return cellOf('✦', mix(WHITE, bright, since / 0.1), ground)
200    }
201
202    if (since < 0.22) {
203      return cellOf('·', mix(bright, TRACK, (since - 0.1) / 0.12), ground)
204    }
205
206    return trackGone ? BLANK : cellOf(' ', TRACK, TRACK)
207  })
208}
209
210/** One pixel of the dither: dots lit with a chance that grows toward the head. */
211function ditherCell(i: number, span: number, seed: number, tick: number, done: boolean, flash: number, paused: boolean): Cell {
212  const t = span <= 1 ? 1 : (i + 0.5) / span
213  const density = done ? 0.35 + 0.45 * t : 0.06 + 0.74 * t ** 1.6
214  let code = NO_DOTS
215
216  DOTS.forEach((bit, dot) => {
217    if (noise(seed + tick * 7919, i, dot) < density) {
218      code |= bit
219    }
220  })
221
222  const [dim, bright] = done ? [EMERALD_DIM, EMERALD] : paused ? [AMBER_DIM, AMBER_BRIGHT] : [LAVENDER_DIM, LAVENDER]
223  const fg = mix(mix(dim, bright, t ** 1.2), WHITE, flash * 0.8)
224
225  return cellOf(String.fromCodePoint(code), fg, TRACK)
226}
227
228/**
229 * The chip's cells: half-block caps round it, the label in white and the
230 * count a touch softer on lavender (emerald once done); the label is cut,
231 * then dropped, when the bar is too short to hold it.
232 */
233function chipCellsOf(plan: Plan, done: boolean, flash: number, inner: number, paused: boolean): Cell[] {
234  const chip = chipOf(plan)
235  const label = paused ? 'Paused' : chip.label
236  const { count } = chip
237  const ground: Rgb = mix(done ? EMERALD_DEEP : paused ? AMBER_DEEP : LAVENDER_DEEP, WHITE, flash * 0.6)
238  const room = inner - 2
239  let text = `${label} ${count}`
240
241  if ([...text].length > room) {
242    const cut = room - count.length - 2
243    text = cut >= 3 ? `${[...label].slice(0, cut).join('')}… ${count}` : count
244  }
245
246  const labelLength = [...text].length - count.length
247  const body = [...text].map((glyph, index) => cellOf(glyph, index < labelLength ? WHITE : mix(WHITE, ground, 0.25), ground))
248
249  return [cellOf('▐', ground, TRACK), ...body, cellOf('▌', ground, TRACK)]
250}
251
252/** A finished plan's check; the active plan's spinner while Claude works; a dot otherwise; a red ✕ fading as its row goes. */
253export function glyphCell(frame: PlanFrame, context: FrameContext): Cell {
254  if (frame.dissolve !== undefined && frame.dissolve !== null) {
255    return frame.dissolve > 0.6 ? BLANK : cellOf('✕', mix(DANGER, TRACK, frame.dissolve / 0.6))
256  }
257
258  if (frame.queue !== undefined) {
259    return cellOf('◌', mix(INDIGO, TRACK, 0.3 + 0.3 * Math.sin(context.now / 500)))
260  }
261
262  if (isDone(frame.plan)) {
263    const color = frame.flash === null ? EMERALD : mix(WHITE, EMERALD, easeOutCubic(frame.flash))
264
265    return cellOf('✓', color)
266  }
267
268  if (context.isWorking && frame.isActive) {
269    return cellOf(spinnerAt(context.now), LAVENDER)
270  }
271
272  return cellOf('•', LAVENDER)
273}
274
275/** The header's rule: `─` fading from the accent into the background. */
276export function ruleCells(width: number): Cell[] {
277  const cells: Cell[] = []
278
279  for (let i = 0; i < width; i += 1) {
280    const t = width <= 1 ? 0 : i / (width - 1)
281
282    cells.push(cellOf('─', mix(RULE_FROM, RULE_TO, Math.sqrt(t)), DEFAULT_COLOR))
283  }
284
285  return cells
286}
287
288/**
289 * A quota's meter on the terminal: a short rounded track whose braille
290 * pixels fill what is left of the window, in the quota's color.
291 */
292export function quotaCells(remaining: number, color: Rgb, width: number, seed: number): Cell[] {
293  const inner = Math.max(2, width - 2)
294  const lit = Math.round((Math.max(0, Math.min(100, remaining)) / 100) * inner)
295  const cells: Cell[] = [cellOf('▐', TRACK)]
296
297  for (let i = 0; i < inner; i += 1) {
298    if (i >= lit) {
299      cells.push(cellOf(' ', TRACK, TRACK))
300      continue
301    }
302
303    let code = NO_DOTS
304
305    DOTS.forEach((bit, dot) => {
306      if (noise(seed, i, dot) < 0.72) {
307        code |= bit
308      }
309    })
310
311    cells.push(cellOf(String.fromCodePoint(code), mix(color, WHITE, 0.12), TRACK))
312  }
313
314  cells.push(cellOf('▌', TRACK))
315
316  return cells
317}
318
319/**
320 * The terminal alert's wave: braille LEDs in the alert's color, whose dots
321 * gather under a crest that travels left to right without end.
322 */
323export function alertWaveCells(width: number, now: number, color: Rgb, dim: Rgb): Cell[] {
324  const cells: Cell[] = []
325  const period = 2200
326  const crest = ((now % period) / period) * (width + 16) - 8
327
328  for (let i = 0; i < width; i += 1) {
329    const near = Math.exp(-((i - crest) ** 2) / 18)
330    const density = 0.12 + 0.8 * near
331    let code = NO_DOTS
332
333    DOTS.forEach((bit, dot) => {
334      if (noise(41 + Math.floor(now / 160), i, dot) < density) {
335        code |= bit
336      }
337    })
338
339    cells.push(cellOf(String.fromCodePoint(code), mix(dim, color, 0.35 + 0.65 * near)))
340  }
341
342  return cells
343}
344
345/**
346 * The terminal limit dial: the window's braille LEDs in its color, the zone
347 * where the work would pause shaded amber, and an amber knob at the limit.
348 */
349export function limitDialCells(remaining: number, limit: number, color: Rgb, width: number, kind: string): Cell[] {
350  const inner = Math.max(4, width - 2)
351  const lit = Math.round((Math.max(0, Math.min(100, remaining)) / 100) * inner)
352  const knob = Math.min(inner - 1, Math.max(0, Math.round((limit / 100) * inner)))
353  const seed = seedOf(`dial:${kind}`)
354  const cells: Cell[] = [cellOf('▐', TRACK)]
355
356  for (let i = 0; i < inner; i += 1) {
357    if (i === knob) {
358      cells.push(cellOf('◆', AMBER_BRIGHT, TRACK))
359      continue
360    }
361
362    const ground = i < knob ? mix(TRACK, AMBER_DIM, 0.55) : TRACK
363
364    if (i >= lit) {
365      cells.push(cellOf(i < knob ? '╱' : ' ', mix(AMBER_DIM, AMBER_BRIGHT, 0.25), ground))
366      continue
367    }
368
369    let code = NO_DOTS
370
371    DOTS.forEach((bit, dot) => {
372      if (noise(seed, i, dot) < 0.7) {
373        code |= bit
374      }
375    })
376
377    cells.push(cellOf(String.fromCodePoint(code), i < knob ? AMBER_BRIGHT : mix(color, WHITE, 0.12), ground))
378  }
379
380  cells.push(cellOf('▌', TRACK))
381
382  return cells
383}
384
385

1import type { SessionRateLimit } from 'claude-code'
2
3import { DANGER, type Rgb } from './palette'
4
5/** One plan-limit window as the band shows it: what is left of it and when it starts over. */
6export type Quota = {
7  /** `five_hour` or `seven_day`, as the engine names the window. */
8  kind: string
9  /** `5h`, `7d`. */
10  label: string
11  /** The share of the window left, 0 to 100. */
12  remaining: number
13  /** When the window resets, milliseconds since the epoch; absent when the engine did not say. */
14  resetsAt?: number
15}
16
17/** The windows the band shows, in its order, with their labels. */
18const WINDOWS: readonly (readonly [string, string])[] = [
19  ['five_hour', '5h'],
20  ['seven_day', '7d'],
21]
22
23/** Plenty left. */
24export const QUOTA_OK: Rgb = 0x8ab4ff
25/** Under a quarter left. */
26export const QUOTA_LOW: Rgb = 0xfbbf24
27/** Under a tenth left. */
28export const QUOTA_CRITICAL: Rgb = DANGER
29
30/** The 5-hour and 7-day windows among the engine's rate limits, each as a quota; the others left out. */
31export function quotasOf(limits: readonly SessionRateLimit[]): Quota[] {
32  const quotas: Quota[] = []
33
34  for (const [kind, label] of WINDOWS) {
35    const limit = limits.find(each => each.kind === kind)
36
37    if (limit === undefined || !Number.isFinite(limit.percentUsed)) {
38      continue
39    }
40
41    const resetsAt = limit.resetsAt === undefined ? Number.NaN : Date.parse(limit.resetsAt)
42    const quota: Quota = { kind, label, remaining: Math.max(0, Math.min(100, 100 - limit.percentUsed)) }
43
44    if (Number.isFinite(resetsAt)) {
45      quota.resetsAt = resetsAt
46    }
47
48    quotas.push(quota)
49  }
50
51  return quotas
52}
53
54/** The quota's color: blue with plenty left, amber under a quarter, red under a tenth. */
55export function quotaColorOf(remaining: number): Rgb {
56  if (remaining < 10) {
57    return QUOTA_CRITICAL
58  }
59
60  return remaining < 25 ? QUOTA_LOW : QUOTA_OK
61}
62
63/** `62% left`, whole percents, `<1% left` for a sliver. */
64export function remainingTextOf(remaining: number): string {
65  if (remaining > 0 && remaining < 1) {
66    return '<1% left'
67  }
68
69  return `${Math.round(remaining)}% left`
70}
71
72/** `resets in 2h 14m`, `in 4d 6h`, `in 9m`; empty when the reset time is unknown. */
73export function resetTextOf(quota: Quota, now: number): string {
74  if (quota.resetsAt === undefined) {
75    return ''
76  }
77
78  const minutes = Math.max(0, Math.round((quota.resetsAt - now) / 60_000))
79
80  if (minutes < 1) {
81    return 'resets now'
82  }
83
84  if (minutes < 60) {
85    return `resets in ${minutes}m`
86  }
87
88  const hours = Math.floor(minutes / 60)
89
90  if (hours < 24) {
91    return `resets in ${hours}h ${String(minutes % 60).padStart(2, '0')}m`
92  }
93
94  return `resets in ${Math.floor(hours / 24)}d ${hours % 24}h`
95}
96
97/** The quota row's short form of the reset: `↻ 2h 14m`, `↻ 4d 6h`; empty when unknown. */
98export function resetShortOf(quota: Quota, now: number): string {
99  const text = resetTextOf(quota, now)
100
101  return text === '' ? '' : text === 'resets now' ? '↻ now' : text.replace(/^resets in /, '↻ ')
102}
103
104/** The quota row's short form of what is left: `62%`, `<1%`. */
105export function remainingShortOf(remaining: number): string {
106  return remainingTextOf(remaining).replace(/ left$/, '')
107}
108

1/**
2 * Time in the band: how long a fill and a completion flash take, where a
3 * bar stands mid-animation, and what the spinner and the shimmer show at a
4 * given instant. All pure: the clock's reading comes in as `now`.
5 */
6
7/** How long a bar takes to move to its new fill. */
8export const FILL_MS = 900
9/** How long a finished plan's bar glows white before it settles to emerald. */
10export const FLASH_MS = 1100
11/** One sweep of the shimmer across the filled part. */
12export const SHIMMER_MS = 1700
13/** The frame loop's period: 20 frames a second. */
14export const FRAME_MS = 50
15/** How often the dither's pixels reshuffle while Claude works on the plan, and at rest. */
16export const TWINKLE_MS = 140
17export const TWINKLE_IDLE_MS = 420
18
19/** A fill moving from one share to another, started at `startedAt`. */
20export type Fill = {
21  from: number
22  to: number
23  startedAt: number
24}
25
26const SPINNER = ['⣾', '⣽', '⣻', '⢿', '⡿', '⣟', '⣯', '⣷']
27const SPINNER_MS = 80
28
29/** Fast at first, settling at the end. */
30export function easeOutCubic(t: number): number {
31  const k = Math.max(0, Math.min(1, t))
32
33  return 1 - (1 - k) ** 3
34}
35
36/** The share of the bar shown at `now`, `fill`'s target once it is over. */
37export function shownShare(fill: Fill, now: number): number {
38  const t = (now - fill.startedAt) / FILL_MS
39
40  return fill.from + (fill.to - fill.from) * easeOutCubic(t)
41}
42
43export function isFilling(fill: Fill | undefined, now: number): boolean {
44  return fill !== undefined && now - fill.startedAt < FILL_MS
45}
46
47/** How far into its flash a plan is, 0 to 1, or null when it has none running. */
48export function flashProgress(startedAt: number | undefined, now: number): number | null {
49  if (startedAt === undefined) {
50    return null
51  }
52
53  const t = (now - startedAt) / FLASH_MS
54
55  return t >= 0 && t < 1 ? t : null
56}
57
58/** The spinner's glyph at `now`. */
59export function spinnerAt(now: number): string {
60  return SPINNER[Math.floor(now / SPINNER_MS) % SPINNER.length] ?? '⣾'
61}
62
63/**
64 * Where the shimmer's crest is at `now`, in cells, over a filled part
65 * `filled` cells long: it enters from the left and leaves past the head.
66 */
67export function shimmerCrest(now: number, filled: number): number {
68  const lead = 6
69  const t = (now % SHIMMER_MS) / SHIMMER_MS
70
71  return -lead + t * (filled + lead * 2)
72}
73
74/** How bright the shimmer makes a cell `distance` cells from its crest, 0 to 1. */
75export function shimmerGlow(distance: number): number {
76  const spread = 2.4
77
78  return Math.exp(-(distance * distance) / (2 * spread * spread))
79}
80
81/** The dither's frame at `now`: it never stops, and runs faster while Claude works on the plan. */
82export function twinkleTick(now: number, isLive: boolean): number {
83  return Math.floor(now / (isLive ? TWINKLE_MS : TWINKLE_IDLE_MS))
84}
85

1/**
2 * The plans the band draws: one per name, each a count of steps done over a
3 * total, kept as plain JSON so `$.store` holds them as they are.
4 */
5export type Plan = {
6  /** The store's name for the plan: `idOf(name)`. */
7  id: string
8  /** The row's label, as the model reported it. */
9  name: string
10  /** Steps completed so far; never more than `total`. */
11  step: number
12  /** Steps in all; at least 1. */
13  total: number
14  /** What the current step is, when the model said; null when it did not. */
15  note: string | null
16  /** When the plan was first reported, milliseconds since the epoch. */
17  createdAt: number
18  /** When the plan was last reported. */
19  updatedAt: number
20  /**
21   * A message the person sent while Claude was busy, waiting its turn: a row
22   * of its own until Claude takes it up (a report with `queued`) or the turn
23   * ends; `owner` is the session it was sent in, which clears it.
24   */
25  waiting?: { owner: string }
26}
27
28/** What one `report_progress` call asks, once its input is read. */
29export type Report = {
30  name: string
31  step?: number
32  total?: number
33  note?: string
34  isDone: boolean
35  isRemoved: boolean
36  /** The plan takes up the oldest message waiting its turn: that row turns into it. */
37  isQueued: boolean
38}
39
40/** Why a `report_progress` input was refused. */
41export type ReportError = {
42  error: string
43}
44
45/**
46 * Every plan is stored under its own key, `plan:<folder>:<id>`: the store is
47 * shared by every session on the machine, so the folder keeps one project's
48 * plans out of another's band, and the id keeps two plans apart. A key of
49 * the first release, `plan:<id>`, belongs to no folder (a legacy key).
50 */
51export const STORE_PREFIX = 'plan:'
52
53const NAME_MAX = 80
54const NOTE_MAX = 120
55const ID_MAX = 48
56
57/**
58 * The store's name for a plan: the name without its accents, lowercased,
59 * runs of anything but a letter or digit folded to one dash, at most ID_MAX
60 * characters.
61 */
62export function idOf(name: string): string {
63  const slug = name
64    .normalize('NFKD')
65    .replace(/\p{M}/gu, '')
66    .toLowerCase()
67    .replace(/[^a-z0-9]+/g, '-')
68    .replace(/^-+|-+$/g, '')
69    .slice(0, ID_MAX)
70    .replace(/-+$/g, '')
71
72  return slug === '' ? 'plan' : slug
73}
74
75/** The store key of plan `id` in `folder` (a `folderKeyOf`). */
76export function keyOf(folder: string, id: string): string {
77  return `${STORE_PREFIX}${folder}:${id}`
78}
79
80/** The key a plan had before plans were kept per folder. */
81export function legacyKeyOf(id: string): string {
82  return STORE_PREFIX + id
83}
84
85/** What a store key holds: one folder's plan, a legacy plan of no folder, or something else. */
86export function parseKey(key: string): { folder: string; id: string } | { legacy: string } | null {
87  if (!key.startsWith(STORE_PREFIX)) {
88    return null
89  }
90
91  const rest = key.slice(STORE_PREFIX.length)
92  const colon = rest.lastIndexOf(':')
93
94  return colon === -1 ? { legacy: rest } : { folder: rest.slice(0, colon), id: rest.slice(colon + 1) }
95}
96
97/**
98 * A folder's name in the store: its last segment as a slug (readable when
99 * one looks at the file) and a hash of the whole path (two `app` folders
100 * stay apart), as `claudemod-3f9a1c2e`.
101 */
102export function folderKeyOf(path: string): string {
103  const trimmed = path.replace(/[\\/]+$/, '')
104  const base = trimmed.split(/[\\/]/).pop() ?? ''
105  let h = 0x811c9dc5
106
107  for (const char of trimmed) {
108    h = Math.imul(h ^ (char.codePointAt(0) ?? 0), 0x01000193)
109  }
110
111  const slug = idOf(base).slice(0, 24)
112
113  return `${slug}-${(h >>> 0).toString(16).padStart(8, '0')}`
114}
115
116/** True when `value` read back from the store is a plan as `Plan` spells it. */
117export function isPlan(value: unknown): value is Plan {
118  if (typeof value !== 'object' || value === null) {
119    return false
120  }
121
122  const plan = value as Record<string, unknown>
123
124  return (
125    typeof plan.id === 'string' &&
126    typeof plan.name === 'string' &&
127    isCount(plan.step) &&
128    isCount(plan.total) &&
129    plan.total >= 1 &&
130    (plan.note === null || typeof plan.note === 'string') &&
131    typeof plan.createdAt === 'number' &&
132    typeof plan.updatedAt === 'number' &&
133    (plan.waiting === undefined || (typeof plan.waiting === 'object' && plan.waiting !== null && typeof (plan.waiting as { owner?: unknown }).owner === 'string'))
134  )
135}
136
137/** True for a message waiting its turn rather than a plan. */
138export function isWaiting(plan: Pick<Plan, 'waiting'>): boolean {
139  return plan.waiting !== undefined
140}
141
142/** How long a waiting row outlives a session that never cleared it (a crash): then it is dropped on load. */
143export const WAITING_STALE_MS = 6 * 3_600_000
144
145const EXCERPT_MAX = 56
146
147/** A waiting row's name: the message's first line, its spaces folded, cut at EXCERPT_MAX with an ellipsis. */
148export function excerptOf(text: string): string {
149  const line = text.split('\n').map(each => each.trim()).find(each => each !== '') ?? ''
150  const folded = [...line.replace(/\s+/g, ' ')]
151
152  return folded.length > EXCERPT_MAX ? `${folded.slice(0, EXCERPT_MAX - 1).join('').trimEnd()}…` : folded.join('')
153}
154
155function isCount(value: unknown): value is number {
156  return typeof value === 'number' && Number.isInteger(value) && value >= 0
157}
158
159/** The plan's completion, 0 to 100, rounded. */
160export function percentOf(plan: Pick<Plan, 'step' | 'total'>): number {
161  if (plan.total <= 0) {
162    return 0
163  }
164
165  if (plan.step >= plan.total) {
166    return 100
167  }
168
169  return Math.max(0, Math.min(99, Math.round((plan.step / plan.total) * 100)))
170}
171
172export function isDone(plan: Pick<Plan, 'step' | 'total'>): boolean {
173  return plan.step >= plan.total
174}
175
176/**
177 * Reads a `report_progress` call's arguments: the name is required and
178 * bounded, `step` and `total` are integers when given, `done` and `remove`
179 * are booleans when given.
180 */
181export function reportOf(input: Record<string, unknown>): Report | ReportError {
182  const rawName = input.plan
183
184  if (typeof rawName !== 'string' || rawName.trim() === '') {
185    return { error: '"plan" is required: the plan\'s name, a non-empty string' }
186  }
187
188  const name = rawName.trim().replace(/\s+/g, ' ').slice(0, NAME_MAX)
189  const report: Report = {
190    name,
191    isDone: input.done === true,
192    isRemoved: input.remove === true,
193    isQueued: input.queued === true,
194  }
195
196  if (input.step !== undefined) {
197    if (!isCount(input.step)) {
198      return { error: '"step" must be an integer of 0 or more' }
199    }
200
201    report.step = input.step
202  }
203
204  if (input.total !== undefined) {
205    if (!isCount(input.total) || input.total < 1) {
206      return { error: '"total" must be an integer of 1 or more' }
207    }
208
209    report.total = input.total
210  }
211
212  if (input.note !== undefined && input.note !== null) {
213    if (typeof input.note !== 'string') {
214      return { error: '"note" must be a string' }
215    }
216
217    const note = input.note.trim().replace(/\s+/g, ' ').slice(0, NOTE_MAX)
218
219    if (note !== '') {
220      report.note = note
221    }
222  }
223
224  if (input.done !== undefined && typeof input.done !== 'boolean') {
225    return { error: '"done" must be true or false' }
226  }
227
228  if (input.remove !== undefined && typeof input.remove !== 'boolean') {
229    return { error: '"remove" must be true or false' }
230  }
231
232  if (input.queued !== undefined && typeof input.queued !== 'boolean') {
233    return { error: '"queued" must be true or false' }
234  }
235
236  return report
237}
238
239/**
240 * The plan after a report: a new one needs `total`; an existing one keeps
241 * what the report leaves out; `done` sets the step to the total; a step over
242 * the total is clamped; a note of `""` clears the one kept.
243 */
244export function applied(
245  previous: Plan | undefined,
246  report: Report,
247  now: number,
248): Plan | ReportError {
249  const total = report.total ?? previous?.total
250
251  if (total === undefined) {
252    return {
253      error: `"total" is required the first time a plan is reported ("${report.name}" is new)`,
254    }
255  }
256
257  const reportedStep = report.step ?? previous?.step ?? 0
258  const step = report.isDone ? total : Math.min(reportedStep, total)
259  const note = report.isDone ? null : (report.note ?? previous?.note ?? null)
260
261  return {
262    id: previous?.id ?? idOf(report.name),
263    name: report.name,
264    step,
265    total,
266    note,
267    createdAt: previous?.createdAt ?? now,
268    updatedAt: now,
269  }
270}
271
272/** The plans in the order they were first reported. */
273export function sortedPlans(plans: Iterable<Plan>): Plan[] {
274  return [...plans].sort((a, b) => a.createdAt - b.createdAt || a.id.localeCompare(b.id))
275}
276
277/** One line for a plan: `name: 3/5 (60%)`, `done` when finished, the note after; `name: waiting` for a waiting message. */
278export function summaryOf(plan: Plan): string {
279  if (isWaiting(plan)) {
280    return `${plan.name}: waiting`
281  }
282
283  const state = isDone(plan) ? 'done' : `${percentOf(plan)}%`
284  const note = plan.note === null ? '' : ` — ${plan.note}`
285
286  return `${plan.name}: ${plan.step}/${plan.total} (${state})${note}`
287}
288
289/** How many characters of the note the bar's chip shows. */
290export const CHIP_LABEL_MAX = 18
291
292/**
293 * What the chip riding the bar's head says: the current stage (the note,
294 * cut to CHIP_LABEL_MAX) and the step under way, `Done` once finished.
295 * At 2 of 5 done the step under way is the 3rd, so the chip reads `3/5`.
296 */
297export function chipOf(plan: Pick<Plan, 'step' | 'total' | 'note'>): { label: string; count: string } {
298  if (isDone(plan)) {
299    return { label: 'Done', count: `${plan.total}/${plan.total}` }
300  }
301
302  const note = plan.note ?? 'Step'
303  const label = [...note].length > CHIP_LABEL_MAX ? `${[...note].slice(0, CHIP_LABEL_MAX - 1).join('').trimEnd()}…` : note
304
305  return { label, count: `${Math.min(plan.step + 1, plan.total)}/${plan.total}` }
306}
307

1import type {
2  BoxProps,
3  ButtonProps,
4  ClientProps,
5  ElementConstructor,
6  InputProps,
7  RasterProps,
8  RenderElement,
9  SvgProps,
10  TextProps,
11} from 'claude-code'
12
13import {
14  glyphCell,
15  meterRow,
16  meterWidthOf,
17  quotaCells,
18  ruleCells,
19  shownPercent,
20  type FrameContext,
21  type MeterWidths,
22  type PlanFrame,
23} from '../meter'
24import { AMBER, DANGER, EMERALD, hexOf, INDIGO, LAVENDER, MUTED, seedOf, WHITE } from '../palette'
25import { chipOf, isDone, isWaiting } from '../plans'
26import { encodeRows } from '../raster'
27import { quotaColorOf, remainingShortOf, remainingTextOf, resetShortOf, resetTextOf, type Quota } from '../usage'
28import {
29  desktopAlertCard,
30  desktopLimitPicker,
31  capsuleButtonOf,
32  limitFlagOf,
33  limitLabelButton,
34  terminalAlertCard,
35  terminalLimitPicker,
36  type GuardView,
37} from './guard'
38import { burstLayerOf, chipCentreOf, chipGeometryOf, quotaBarOf, ringsOf, RINGS_PX, svgBarOf, waitingBarOf } from './svg-bar'
39
40type Box = ElementConstructor<BoxProps>
41type Text = ElementConstructor<TextProps>
42type Button = ElementConstructor<ButtonProps>
43
44/** The terminal's elements: the shared three and the cell grid. */
45export type TerminalKit = {
46  Box: Box
47  Text: Text
48  Button: Button
49  Input: ElementConstructor<InputProps>
50  Raster: ElementConstructor<RasterProps>
51  Client: ElementConstructor<ClientProps>
52}
53/** The desktop's elements: the shared three and the vector drawing. */
54export type DesktopKit = {
55  Box: Box
56  Text: Text
57  Button: Button
58  Input: ElementConstructor<InputProps>
59  Svg: ElementConstructor<SvgProps>
60  Client: ElementConstructor<ClientProps>
61}
62/** Any other surface's: the shared three. */
63export type PlainKit = { Box: Box; Text: Text; Button: Button }
64
65/** A move under way on the desktop: where the head starts and how long it has left. */
66export type Move = { from: number; durationMs: number }
67
68/** What the band draws: the plans as this instant shows them. */
69export type BandModel = {
70  frames: readonly PlanFrame[]
71  context: FrameContext
72  /** Cells across the band (`e.props.bodyColumns`). */
73  columns: number
74  onRemove: (id: string) => void
75  /** What the mods beneath drew in the band, kept under the rows. */
76  theirs: RenderElement | null
77  /** For the desktop: each moving plan's head, from where and for how long. */
78  moves?: ReadonlyMap<string, Move>
79  /** The 5-hour and 7-day windows, drawn under the plans; empty to draw none. */
80  quotas: readonly Quota[]
81  /** The usage guard: the limits, their editor, the pause and its alert. */
82  guard: GuardView
83  /** Whether the plans are folded into one line, whether the fold just changed (its animation plays), and the toggle. */
84  fold: { isFolded: boolean; isAnimating: boolean; onToggle: () => void }
85}
86
87/** How the terminal band shares its width. */
88export type TerminalLayout = MeterWidths & {
89  name: number
90  meter: number
91}
92
93/** The band's keys: what `$.ui.blit` repaints between renders. */
94export const GLYPHS_KEY = 'glyphs'
95export const METERS_KEY = 'meters'
96
97const TITLE = 'Progress'
98const PADDING = 1
99/** The band's own `[-]` collapse mark, drawn by Claude Code at the header's right end. */
100const COLLAPSE_MARK = 4
101/** CSS pixels per cell on the desktop: an under-estimate, so a row never overflows. */
102const DESKTOP_CELL_PX = 7.2
103/** The desktop bar's thickness, in CSS pixels, and the air above and below it. */
104const DESKTOP_BAR_PX = 26
105const DESKTOP_BAR_GAP_PX = 5
106
107/** The header's right side: how many plans run and how many are done. */
108export function summaryOf(frames: readonly PlanFrame[]): string {
109  const waiting = frames.filter(frame => isWaiting(frame.plan)).length
110  const done = frames.filter(frame => isDone(frame.plan)).length
111  const running = frames.length - done - waiting
112  const queued = waiting === 0 ? '' : ` · ${waiting} waiting`
113
114  if (running === 0 && done > 0) {
115    return (done === 1 ? 'done ✓' : `all ${done} done ✓`) + queued
116  }
117
118  if (running === 0) {
119    return `${waiting} waiting`
120  }
121
122  return (done === 0 ? `${running} running` : `${running} running · ${done} done`) + queued
123}
124
125/** The name column: the longest name, within limits set by the band's width. */
126function nameWidthOf(columns: number, frames: readonly PlanFrame[]): number {
127  const inner = Math.max(20, columns - PADDING * 2)
128  const longest = frames.reduce((most, frame) => Math.max(most, [...frame.plan.name].length), 0)
129
130  return clamp(longest, 6, clamp(Math.floor(inner * 0.28), 10, 30))
131}
132
133/** Shares the terminal band's width: the names, then the bar takes what the percent and the ✕ leave. */
134export function terminalLayoutOf(columns: number, frames: readonly PlanFrame[]): TerminalLayout {
135  const inner = Math.max(20, columns - PADDING * 2)
136  const name = nameWidthOf(columns, frames)
137  const fixed = 1 + 1 + name + 1 + meterWidthOf({ bar: 0 }) + 1 + 1
138  const bar = clamp(inner - fixed, 16, 80)
139
140  return { name, bar, meter: meterWidthOf({ bar }) }
141}
142
143/** The glyph column's cells: one spinner, check or dot per plan. */
144export function glyphsCellsOf(frames: readonly PlanFrame[], context: FrameContext): string {
145  return encodeRows(frames.map(frame => [glyphCell(frame, context)]))
146}
147
148/** The meter column's cells: one bar and percent per plan. */
149export function metersCellsOf(frames: readonly PlanFrame[], context: FrameContext, layout: MeterWidths): string {
150  return encodeRows(frames.map(frame => meterRow(frame, context, layout)))
151}
152
153/**
154 * The terminal band: a header (◆ Progress, a rule fading out, the count),
155 * then the plans in aligned columns. The glyphs and the meters are one
156 * Raster each, so the frame loop repaints them with `$.ui.blit` alone; the
157 * names and the ✕ Buttons light up together under the pointer.
158 */
159export function terminalBandView(ui: TerminalKit, model: BandModel, layout: TerminalLayout): RenderElement {
160  const { Box, Text, Button, Raster } = ui
161  const { frames, context } = model
162  const summary = summaryOf(frames)
163  const inner = Math.max(20, model.columns - PADDING * 2)
164  const rule = inner - (1 + 1 + TITLE.length + 1 + [...summary].length + 1 + [...foldLabelOf(model)].length + 1) - COLLAPSE_MARK
165
166  const pause = model.guard.pause
167
168  return (
169    <Box flexDirection="column" paddingX={PADDING}>
170      {pause === null ? null : terminalAlertCard(ui, model.guard, pause, context.now, alertWaveWidthOf(model.columns))}
171      {frames.length > 0 ? (
172        <Box flexDirection="row" gap={1}>
173          <Text bold color={hexOf(LAVENDER)}>
174            ◆
175          </Text>
176          <Text bold>{TITLE}</Text>
177          {rule >= 3 ? <Raster key="rule" columns={rule} rows={1} cells={encodeRows([ruleCells(rule)])} /> : null}
178          <Text dimColor>{summary}</Text>
179          {foldButton(Button, model, false)}
180        </Box>
181      ) : null}
182      {frames.length > 0 && model.fold.isFolded ? terminalRingsRow(ui, model) : null}
183      {frames.length > 0 && !model.fold.isFolded ? (
184      <Box flexDirection="row" gap={1}>
185        <Raster key={GLYPHS_KEY} columns={1} rows={frames.length} cells={glyphsCellsOf(frames, context)} />
186        <Box flexDirection="column" width={layout.name} flexShrink={0}>
187          {frames.map(frame => (
188            <Text
189              bold={!isDone(frame.plan) && !isGoing(frame) && !isWaiting(frame.plan)}
190              dimColor={isDone(frame.plan) || isGoing(frame) || isWaiting(frame.plan)}
191              italic={isWaiting(frame.plan)}
192              strikethrough={isGoing(frame)}
193              wrap="truncate-end"
194              hover={{ scope: scopeOf(frame), color: hexOf(WHITE), dimColor: false }}
195            >
196              {frame.plan.name}
197            </Text>
198          ))}
199        </Box>
200        <Raster
201          key={METERS_KEY}
202          columns={layout.meter}
203          rows={frames.length}
204          cells={metersCellsOf(frames, context, layout)}
205        />
206        <Box flexDirection="column" flexShrink={0}>
207          {frames.map(frame => (isGoing(frame) ? <Text> </Text> : removeButton(Button, model, frame)))}
208        </Box>
209      </Box>
210      ) : null}
211      {model.quotas.length > 0 ? (editedOf(model) === undefined ? terminalQuotaRow(ui, model) : terminalLimitPicker(ui, model.guard, editedOf(model) as Quota)) : null}
212      {model.theirs}
213    </Box>
214  )
215}
216
217/** Cells of one quota meter on the terminal, its caps included. */
218const QUOTA_CELLS = 12
219
220/**
221 * The terminal's quota row: `◷`, then each window's label, a short braille
222 * meter of what is left in its color, `62% left` and when it resets.
223 */
224function terminalQuotaRow(ui: TerminalKit, model: BandModel): RenderElement {
225  const { Box, Text, Raster } = ui
226
227  return (
228    <Box key="quotas" flexDirection="row" gap={1}>
229      <Text dimColor>◷</Text>
230      {model.quotas.map((quota, index) => {
231        const color = quotaColorOf(quota.remaining)
232        const reset = resetShortOf(quota, model.context.now)
233
234        return (
235          <Box key={`quota:${quota.kind}`} flexDirection="row" gap={1} flexShrink={0} marginLeft={index === 0 ? 0 : 2}>
236            {limitLabelButton(ui.Button, model.guard, quota)}
237            <Raster
238              key={`quota:${quota.kind}`}
239              columns={QUOTA_CELLS}
240              rows={1}
241              cells={encodeRows([quotaCells(quota.remaining, color, QUOTA_CELLS, seedOf(quota.kind))])}
242            />
243            <Text color={hexOf(color)}>{remainingShortOf(quota.remaining)}</Text>
244            {reset === '' ? null : <Text dimColor>{reset}</Text>}
245            {limitFlagOf(ui, model.guard, quota)}
246          </Box>
247        )
248      })}
249    </Box>
250  )
251}
252
253/** The window whose limit picker stands in the quota row's place, if any. */
254function editedOf(model: BandModel): Quota | undefined {
255  return model.quotas.find(each => each.kind === model.guard.editing)
256}
257
258/** The terminal alert wave's width: the band less the frame and its padding. */
259export function alertWaveWidthOf(columns: number): number {
260  return clamp(columns - PADDING * 2 - 4, 10, 200)
261}
262
263/**
264 * The desktop's quota row, under the plans: each window's label, a slim
265 * LED capsule of what is left in its color, `62% left` and when it resets.
266 */
267function desktopQuotaRow(ui: DesktopKit, model: BandModel): RenderElement {
268  const { Box, Text, Svg } = ui
269
270  return (
271    <Box key="quotas" flexDirection="row" gap={1} alignItems="center" marginTop={model.frames.length > 0 ? 1 : 0}>
272      <Text color={hexOf(MUTED)}>◷</Text>
273      {model.quotas.map((quota, index) => {
274        const color = quotaColorOf(quota.remaining)
275        const reset = resetShortOf(quota, model.context.now)
276
277        return (
278          <Box key={`quota:${quota.kind}`} flexDirection="row" gap={1} alignItems="center" flexShrink={0} marginLeft={index === 0 ? 0 : 3}>
279            {limitLabelButton(ui.Button, model.guard, quota)}
280            <Box key={`quota-bar:${quota.kind}`} position="relative" flexShrink={0}>
281              <Svg
282                source={quotaBarOf(
283                  {
284                    kind: quota.kind,
285                    remaining: quota.remaining,
286                    color,
287                    limit: model.guard.limits[quota.kind],
288                    isGrowing: model.guard.justSet !== null,
289                    isLanding: model.guard.justSet === quota.kind,
290                  },
291                  QUOTA_BAR_PX,
292                  10,
293                )}
294                alt={`${quota.label}: ${remainingTextOf(quota.remaining)}`}
295                width={QUOTA_BAR_PX}
296                height={10}
297              />
298              <Box
299                key={`quota-lit:${quota.kind}`}
300                position="absolute"
301                top={0}
302                left={0}
303                display="none"
304                hover={{ scope: `quota:${quota.kind}`, display: 'flex' }}
305              >
306                <Svg
307                  source={quotaBarOf({ kind: quota.kind, remaining: quota.remaining, color, limit: model.guard.limits[quota.kind], isHovered: true }, QUOTA_BAR_PX, 10)}
308                  alt={`Set a ${quota.label} limit`}
309                  width={QUOTA_BAR_PX}
310                  height={10}
311                />
312              </Box>
313              {capsuleButtonOf(ui, model.guard, quota)}
314            </Box>
315            <Text color={hexOf(color)} wrap="truncate-end">
316              {remainingShortOf(quota.remaining)}
317            </Text>
318            {reset === '' ? null : (
319              <Text color={hexOf(MUTED)} wrap="truncate-end">
320                {reset}
321              </Text>
322            )}
323            {limitFlagOf(ui, model.guard, quota)}
324          </Box>
325        )
326      })}
327      {model.frames.length > 0 && !model.fold.isFolded ? (
328        <Box key="band-toggle-box" marginLeft={3} flexShrink={0}>
329          {foldButton(ui.Button, model, true)}
330        </Box>
331      ) : null}
332    </Box>
333  )
334}
335
336/** The desktop quota capsule's width, in CSS pixels. */
337const QUOTA_BAR_PX = 80
338
339/**
340 * The desktop band, after the reference shot: no header, one row per plan
341 * (a dot, the name, the SVG bar with its pixel field and riding
342 * chip, the percent in a quiet grey, the ✕), the bars all one width so the
343 * percents line up, the whole band centred.
344 */
345export function desktopBandView(ui: DesktopKit, model: BandModel): RenderElement {
346  const { Box, Text, Svg } = ui
347  const { frames, context } = model
348  const name = nameWidthOf(model.columns, frames)
349  const fixedCells = PADDING * 2 + 2 + name + 1 + 1 + 5 + 1 + 2
350  const barPx = clamp(Math.floor((model.columns - fixedCells) * DESKTOP_CELL_PX), 160, 960)
351
352  const pause = model.guard.pause
353
354  return (
355    <Box flexDirection="column" alignItems="center" paddingX={PADDING}>
356      {pause === null ? null : desktopAlertCard(ui, model.guard, pause, context.now, clamp(barPx, 160, 520))}
357      {frames.length > 0 && model.fold.isFolded ? desktopRingsRow(ui, model) : null}
358      {(model.fold.isFolded ? [] : frames).map((frame, index) => {
359        const { plan } = frame
360        const done = isDone(plan)
361        const target = done ? 1 : plan.step / plan.total
362        const move = model.moves?.get(plan.id)
363        const chip = chipOf(plan)
364        const isPaused = pause !== null && !done
365        const label = isPaused ? 'Paused' : chip.label
366        const { count } = chip
367        const enterDelay = model.fold.isAnimating ? { enterDelay: index * 0.07 } : frame.isIgniting === true ? { enterDelay: 0 } : {}
368
369        if (frame.queue !== undefined) {
370          return desktopWaitingRow(ui, model, frame, frame.queue, name, barPx, enterDelay)
371        }
372
373        const source = svgBarOf({
374          id: plan.id,
375          width: barPx,
376          height: DESKTOP_BAR_PX,
377          share: target,
378          from: move?.from ?? null,
379          durationMs: move?.durationMs ?? 0,
380          total: plan.total,
381          step: plan.step,
382          label,
383          count,
384          isDone: done,
385          isLive: context.isWorking && frame.isActive,
386          isPaused,
387          padY: DESKTOP_BAR_GAP_PX,
388          isDissolving: isGoing(frame),
389          ...enterDelay,
390        })
391
392        return (
393          <Box key={`row:${plan.id}`} flexDirection="row" gap={1} alignItems="center">
394            <Text color={hexOf(done ? EMERALD : LAVENDER)}>•</Text>
395            <Box width={name} flexShrink={0}>
396              <Text dimColor={done || isGoing(frame)} strikethrough={isGoing(frame)} wrap="truncate-end">
397                {plan.name}
398              </Text>
399            </Box>
400            <Box key={`bar:${plan.id}`} position="relative" flexShrink={0}>
401              <Svg
402                source={source}
403                alt={`${plan.name}: ${label} ${count}, ${shownPercent(target)}%`}
404                width={barPx}
405                height={DESKTOP_BAR_PX + DESKTOP_BAR_GAP_PX * 2}
406              />
407              {isGoing(frame) ? burstOverlayOf(ui, plan.id, barPx, label, count, target, done) : null}
408            </Box>
409            <Box width={5} flexShrink={0}>
410              <Text color={hexOf(done ? EMERALD : MUTED)} dimColor={isGoing(frame)}>
411                {isGoing(frame) ? '' : `${shownPercent(target)}%`.padStart(4)}
412              </Text>
413            </Box>
414            {isGoing(frame) ? <Text> </Text> : removeButton(ui.Button, model, frame)}
415          </Box>
416        )
417      })}
418      {model.quotas.length > 0 ? (
419        editedOf(model) === undefined ? (
420          desktopQuotaRow(ui, model)
421        ) : (
422          desktopLimitPicker(ui, model.guard, editedOf(model) as Quota, frames.length > 0 ? 1 : 0)
423        )
424      ) : frames.length > 0 && !model.fold.isFolded ? (
425        <Box key="quotas" flexDirection="row" marginTop={1}>
426          {foldButton(ui.Button, model, true)}
427        </Box>
428      ) : null}
429      {model.theirs}
430    </Box>
431  )
432}
433
434/** Any other surface: the bar as text, `████░░░░`, and the chip's words. */
435export function plainBandView(ui: PlainKit, model: BandModel): RenderElement {
436  const { Box, Text, Button } = ui
437  const pause = model.guard.pause
438
439  return (
440    <Box flexDirection="column" paddingX={PADDING}>
441      {pause === null ? null : (
442        <Box key="alert" flexDirection="row" gap={1}>
443          <Text bold color={hexOf(pause.phase === 'alert' ? AMBER : INDIGO)}>
444            {pause.phase === 'alert' ? `Paused · ${pause.label} limit reached` : `Saved · waiting for the ${pause.label} reset`}
445          </Text>
446          {pause.phase === 'alert' ? (
447            <Button key="pause:save" variant="primary" onPress={model.guard.onSave}>
448              {'Save & wait'}
449            </Button>
450          ) : null}
451          <Button key="pause:resume" onPress={model.guard.onResume}>
452            {pause.phase === 'alert' ? 'Resume' : 'Resume now'}
453          </Button>
454        </Box>
455      )}
456      {model.frames.map(frame => {
457        if (isWaiting(frame.plan)) {
458          return (
459            <Box key={`row:${frame.plan.id}`} flexDirection="row" gap={1}>
460              <Text color={hexOf(INDIGO)}>◦</Text>
461              <Text italic wrap="truncate-end">
462                {frame.plan.name}
463              </Text>
464              <Text color={hexOf(INDIGO)}>{`Waiting #${frame.queue ?? 1}`}</Text>
465              {removeButton(ui.Button, model, frame)}
466            </Box>
467          )
468        }
469
470        const done = isDone(frame.plan)
471        const target = done ? 1 : frame.plan.step / frame.plan.total
472        const filled = Math.round(target * 20)
473        const { label, count } = chipOf(frame.plan)
474
475        return (
476          <Box key={`row:${frame.plan.id}`} flexDirection="row" gap={1}>
477            <Text color={hexOf(done ? EMERALD : LAVENDER)}>•</Text>
478            <Text wrap="truncate-end">{frame.plan.name}</Text>
479            <Text color={hexOf(done ? EMERALD : LAVENDER)}>{'█'.repeat(filled) + '░'.repeat(20 - filled)}</Text>
480            <Text bold>{`${label} ${count}`}</Text>
481            <Text color={hexOf(MUTED)}>{`${shownPercent(target)}%`}</Text>
482            {removeButton(ui.Button, model, frame)}
483          </Box>
484        )
485      })}
486      {model.quotas.length > 0 ? (
487        <Text color={hexOf(MUTED)}>
488          {model.quotas
489            .map(quota => [quota.label, remainingTextOf(quota.remaining), resetTextOf(quota, model.context.now)].filter(Boolean).join(' '))
490            .join('   ')}
491        </Text>
492      ) : null}
493      {model.theirs}
494    </Box>
495  )
496}
497
498/**
499 * A message waiting its turn on the desktop: a hollow indigo dot, its first
500 * line in italics, the waiting bar (a scanner glow and an hourglass chip with
501 * its place in the queue), no percent, and the ✕.
502 */
503function desktopWaitingRow(
504  ui: DesktopKit,
505  model: BandModel,
506  frame: PlanFrame,
507  position: number,
508  name: number,
509  barPx: number,
510  enterDelay: { enterDelay?: number },
511): RenderElement {
512  const { Box, Text, Svg } = ui
513  const { plan } = frame
514
515  return (
516    <Box key={`row:${plan.id}`} flexDirection="row" gap={1} alignItems="center">
517      <Text color={hexOf(INDIGO)}>◦</Text>
518      <Box width={name} flexShrink={0}>
519        <Text italic dimColor strikethrough={isGoing(frame)} wrap="truncate-end">
520          {plan.name}
521        </Text>
522      </Box>
523      <Box key={`bar:${plan.id}`} position="relative" flexShrink={0}>
524        <Svg
525          source={waitingBarOf({ id: plan.id, width: barPx, height: DESKTOP_BAR_PX, position, padY: DESKTOP_BAR_GAP_PX, ...enterDelay })}
526          alt={`${plan.name}: waiting, #${position} in line`}
527          width={barPx}
528          height={DESKTOP_BAR_PX + DESKTOP_BAR_GAP_PX * 2}
529        />
530      </Box>
531      <Box width={5} flexShrink={0}>
532        <Text> </Text>
533      </Box>
534      {isGoing(frame) ? <Text> </Text> : removeButton(ui.Button, model, frame)}
535    </Box>
536  )
537}
538
539function removeButton(Button: Button, model: BandModel, frame: PlanFrame): RenderElement {
540  return (
541    <Button
542      key={`remove:${frame.plan.id}`}
543      plain
544      dimColor
545      hover={{ scope: scopeOf(frame), color: hexOf(DANGER) }}
546      onPress={() => model.onRemove(frame.plan.id)}
547    >
548      ✕
549    </Button>
550  )
551}
552
553/** How tall and how much wider than its bar the burst layer is: the margins the burst can spill into. */
554const BURST_PX = DESKTOP_BAR_PX + DESKTOP_BAR_GAP_PX * 2 + 96
555const BURST_SPILL_PX = 80
556
557/**
558 * The ✕'s burst on the desktop: a layer laid over the bar and spilling past
559 * it on every side, in front of the rows around it, centred on the bar so
560 * its burst sits on the chip whatever the surface's cell size.
561 */
562function burstOverlayOf(ui: DesktopKit, id: string, barPx: number, label: string, count: string, share: number, done: boolean): RenderElement {
563  const { Box, Svg } = ui
564  const bar = { width: barPx, label, count, share }
565  const { chipW } = chipGeometryOf(bar)
566
567  return (
568    <Box key={`burst:${id}`} position="absolute" top={-3} bottom={-3} left={-12} right={-12} justifyContent="center" alignItems="center">
569      <Svg
570        source={burstLayerOf({ width: barPx + BURST_SPILL_PX * 2, height: BURST_PX, cx: chipCentreOf(bar) + BURST_SPILL_PX, chipW, isDone: done })}
571        alt=""
572        width={barPx + BURST_SPILL_PX * 2}
573        height={BURST_PX}
574      />
575    </Box>
576  )
577}
578
579/** `3 tasks`, `1 task`. */
580function tasksWordOf(frames: readonly PlanFrame[]): string {
581  return frames.length === 1 ? '1 task' : `${frames.length} tasks`
582}
583
584/** What the fold toggle says: `▴ Collapse` over the open list, `▾ 3 tasks` on the folded line. */
585function foldLabelOf(model: BandModel): string {
586  return model.fold.isFolded ? `▾ ${tasksWordOf(model.frames)}` : '▴ Collapse'
587}
588
589/**
590 * The fold toggle, a labelled control rather than a bare mark: a native
591 * secondary button on the desktop (`▴ Collapse`, `▾ 3 tasks`), lit text on
592 * the terminal.
593 */
594function foldButton(Button: Button, model: BandModel, isNative: boolean): RenderElement {
595  return isNative ? (
596    <Button key="band-toggle" variant="secondary" onPress={model.fold.onToggle}>
597      {foldLabelOf(model)}
598    </Button>
599  ) : (
600    <Button key="band-toggle" plain hover={{ scope: 'band-toggle', color: hexOf(LAVENDER) }} onPress={model.fold.onToggle}>
601      {foldLabelOf(model)}
602    </Button>
603  )
604}
605
606/** The folded line's words: the plan under way (or `All done`), its step and how many are done, and the overall percent. */
607function foldedFactsOf(frames: readonly PlanFrame[]): { title: string; detail: string; percent: number; isAllDone: boolean } {
608  const waiting = frames.filter(frame => isWaiting(frame.plan))
609  const plans = frames.filter(frame => !isWaiting(frame.plan))
610  const done = plans.filter(frame => isDone(frame.plan)).length
611  const running = plans.filter(frame => !isDone(frame.plan))
612  const active = running.find(frame => frame.isActive) ?? running.at(-1)
613  const overall = plans.reduce((sum, frame) => sum + (isDone(frame.plan) ? 1 : frame.plan.step / frame.plan.total), 0) / Math.max(1, plans.length)
614  const queued = waiting.length > 0 ? ` · ${waiting.length} waiting` : ''
615
616  if (active === undefined) {
617    return plans.length === 0
618      ? { title: waiting[0]?.plan.name ?? 'Waiting', detail: `${waiting.length} waiting`, percent: 0, isAllDone: false }
619      : { title: 'All done', detail: `${tasksWordOf(plans)}${queued}`, percent: 100, isAllDone: true }
620  }
621
622  const others = running.length > 1 ? ` · ${running.length - 1} more` : ''
623
624  return {
625    title: active.plan.name,
626    detail: `${chipOf(active.plan).count}${done > 0 ? ` · ${done} done` : ''}${others}${queued}`,
627    percent: shownPercent(overall),
628    isAllDone: false,
629  }
630}
631
632/**
633 * The folded list on the desktop, one centred line: a ring per plan (an
634 * emerald check when finished, a lavender arc as far round as its share
635 * while running, a spark circling the one Claude works on), the plan under
636 * way and its step, the overall percent, and `▾ 3 tasks` to open the list.
637 */
638function desktopRingsRow(ui: DesktopKit, model: BandModel): RenderElement {
639  const { Box, Text, Svg } = ui
640  const { frames, context } = model
641  const facts = foldedFactsOf(frames)
642  const rings = ringsOf(
643    frames.map(frame => ({
644      id: frame.plan.id,
645      share: isDone(frame.plan) ? 1 : frame.plan.step / frame.plan.total,
646      isDone: isDone(frame.plan),
647      isLive: context.isWorking && frame.isActive,
648      isWaiting: isWaiting(frame.plan),
649    })),
650    model.fold.isAnimating,
651  )
652
653  return (
654    <Box key="summary" flexDirection="row" gap={1} alignItems="center">
655      <Svg source={rings.source} alt={`${facts.title}, ${facts.detail}`} width={rings.width} height={RINGS_PX} />
656      <Box flexShrink={1}>
657        <Text bold color={facts.isAllDone ? hexOf(EMERALD) : undefined} wrap="truncate-end">
658          {facts.title}
659        </Text>
660      </Box>
661      <Text color={hexOf(MUTED)} wrap="truncate-end">
662        {facts.detail}
663      </Text>
664      <Box width={5} flexShrink={0}>
665        <Text color={hexOf(facts.isAllDone ? EMERALD : MUTED)}>{`${facts.percent}%`.padStart(4)}</Text>
666      </Box>
667      <Box key="band-toggle-box" marginLeft={1} flexShrink={0}>
668        {foldButton(ui.Button, model, true)}
669      </Box>
670    </Box>
671  )
672}
673
674/** A running plan's ring on the terminal, filled as far as its share. */
675function ringGlyphOf(share: number): string {
676  return ['○', '◔', '◑', '◕', '●'][Math.min(4, Math.round(share * 4))] ?? '○'
677}
678
679/** The folded list on the terminal: `✓─✓─◑`, the plan under way and its step, the overall percent. */
680function terminalRingsRow(ui: TerminalKit, model: BandModel): RenderElement {
681  const { Box, Text } = ui
682  const { frames } = model
683  const facts = foldedFactsOf(frames)
684
685  return (
686    <Box key="summary" flexDirection="row" gap={1}>
687      <Box flexDirection="row" flexShrink={0}>
688        {frames.map((frame, index) => (
689          <Box key={`ring:${frame.plan.id}`} flexDirection="row">
690            {index > 0 ? <Text color={hexOf(isDone(frames[index - 1]?.plan ?? frame.plan) ? EMERALD : MUTED)} dimColor>─</Text> : null}
691            <Text bold color={hexOf(isWaiting(frame.plan) ? INDIGO : isDone(frame.plan) ? EMERALD : LAVENDER)}>
692              {isWaiting(frame.plan) ? '◌' : isDone(frame.plan) ? '✓' : ringGlyphOf(frame.plan.step / frame.plan.total)}
693            </Text>
694          </Box>
695        ))}
696      </Box>
697      <Text bold color={facts.isAllDone ? hexOf(EMERALD) : undefined} wrap="truncate-end">
698        {facts.title}
699      </Text>
700      <Text dimColor wrap="truncate-end">
701        {facts.detail}
702      </Text>
703      <Text color={hexOf(facts.isAllDone ? EMERALD : MUTED)}>{`${facts.percent}%`}</Text>
704    </Box>
705  )
706}
707
708/** Whether a plan's row is coming apart after its ✕. */
709function isGoing(frame: PlanFrame): boolean {
710  return frame.dissolve !== undefined && frame.dissolve !== null
711}
712
713/** The hover group of one plan's row: its name and its ✕ light together. */
714function scopeOf(frame: PlanFrame): string {
715  return `row:${frame.plan.id}`.slice(0, 64)
716}
717
718function clamp(value: number, min: number, max: number): number {
719  return Math.max(min, Math.min(max, value))
720}
721

1import { AMBER, AMBER_DEEP, EMERALD, hexOf, INDIGO, INDIGO_BRIGHT, LAVENDER, mix, noise, seedOf, WHITE, type Rgb } from '../palette'
2
3/** What one desktop bar draws: its size, where it stands, how it moves, what its chip says. */
4export type SvgBar = {
5  /** The plan's id: the document's ids and the pixels' grain derive from it. */
6  id: string
7  /** CSS pixels across. */
8  width: number
9  /** CSS pixels down: the track's thickness. */
10  height: number
11  /** The share the bar stands at once any animation is over, 0 to 1. */
12  share: number
13  /** The share the head moves from, while it is moving; null at rest. */
14  from: number | null
15  /** How long the move takes from now, in milliseconds. */
16  durationMs: number
17  /** How many steps the plan has, and how many are done. */
18  total: number
19  step: number
20  /** The chip's stage and its `n/total`. */
21  label: string
22  count: string
23  isDone: boolean
24  /** Claude works on this plan now: the pixels twinkle, a light sweeps, the glow breathes. */
25  isLive: boolean
26  /** A usage limit holds the work: the bar turns amber and only breathes. */
27  isPaused?: boolean
28  /** CSS pixels of air above and below the track, so stacked bars never touch. */
29  padY?: number
30  /** The ✕ was pressed: the bar comes apart, LED by LED, and the chip bursts. */
31  isDissolving?: boolean
32  /** The list just unfolded: the bar sweeps in from the left after this many seconds; absent at rest. */
33  enterDelay?: number
34}
35
36/** How long a dissolving bar takes to come apart, its last LED's delay included. */
37export const DISSOLVE_MS = 1100
38
39/** The colors one state of the bar is drawn in. */
40type Tone = {
41  /** The pixels far from the head, at the head, and the chip. */
42  dim: Rgb
43  bright: Rgb
44  chip: Rgb
45}
46
47const RUNNING: Tone = { dim: 0x4c4766, bright: 0xe6e1ff, chip: LAVENDER }
48const FINISHED: Tone = { dim: 0x24543f, bright: 0xc6f7e2, chip: 0x22b07d }
49const PAUSED: Tone = { dim: 0x4f3c1c, bright: 0xffe2a8, chip: AMBER_DEEP }
50
51const FONT = "-apple-system, BlinkMacSystemFont, 'SF Pro Text', Inter, 'Segoe UI', system-ui, sans-serif"
52const FONT_SIZE = 12
53/** One LED of the matrix, and the pitch between two. */
54const LED = 3
55const PITCH = 4
56/** How far the wash's glow runs on past the head before it is gone. */
57const FEATHER = 28
58const CHIP_PAD = 11
59const COUNT_GAP = 5
60const EASE = '0.22 1 0.36 1'
61/** The opacity steps the LEDs are sorted into: one path each, so the document stays small. */
62const LEVELS = [0.16, 0.3, 0.46, 0.66, 0.86, 1]
63
64/**
65 * The desktop's bar, after the band in the reference shot: a softly domed
66 * track; behind the head a matrix of square LEDs, sparse and dim at the
67 * start, dense and bright at the head, each its own brightness, over a wash
68 * of light that runs on under the chip and fades out past it, with no edge
69 * anywhere; a bloom
70 * of light behind the chip; the chip itself, `Stage 3/5`, a lit gradient
71 * pill riding the head. The LEDs always twinkle one by one, a slow light
72 * crosses the field now and then; while Claude works on the plan both
73 * quicken and the bloom breathes. A move eases it all.
74 * Drawn as an image: no frame, no ground of its own, in either theme.
75 */
76export function svgBarOf(bar: SvgBar): string {
77  const { width: w, height: h } = bar
78  const key = bar.id.replace(/[^a-z0-9]/gi, '').slice(0, 24) || 'p'
79  const isPaused = bar.isPaused === true && !bar.isDone
80  const tone = bar.isDone ? FINISHED : isPaused ? PAUSED : RUNNING
81  const accent = hexOf(bar.isDone ? EMERALD : isPaused ? AMBER : tone.chip)
82  const live = bar.isLive && !bar.isDone && !isPaused
83  const chipH = h - 4
84  const { chipW, headOf } = chipGeometryOf(bar)
85  const head = headOf(bar.share)
86  const from = bar.from === null ? null : headOf(bar.from)
87  const moving = from !== null && Math.abs(from - head) > 0.5 && bar.durationMs > 0
88  const dur = `${Math.max(0.05, bar.durationMs / 1000).toFixed(2)}s`
89  const spline = `dur="${dur}" fill="freeze" calcMode="spline" keyTimes="0;1" keySplines="${EASE}"`
90  const reveal = Math.round(head + FEATHER)
91  const revealFrom = from === null ? reveal : Math.round(from + FEATHER)
92  const chipTo = Math.round(head - chipW)
93  const chipFrom = from === null ? chipTo : Math.round(from - chipW)
94  // Where the field shows its brightest: at the chip's left cap, not under it.
95  const peakOf = (x: number) => Math.max(8, Math.round(x - chipW + chipH / 2))
96  const peak = peakOf(head)
97  const peakFrom = from === null ? peak : peakOf(from)
98  const follow = (attribute: string, a: number, b: number) =>
99    moving ? `<animate attributeName="${attribute}" from="${a}" to="${b}" ${spline}/>` : ''
100
101  const padY = Math.max(0, Math.round(bar.padY ?? 0))
102  const isDissolving = bar.isDissolving === true
103  const enter = bar.enterDelay === undefined ? null : unfoldOf(`u${key}`, w, h, padY, bar.enterDelay)
104
105  return (
106    `<svg xmlns="http://www.w3.org/2000/svg" width="${w}" height="${h + padY * 2}" viewBox="0 ${-padY} ${w} ${h + padY * 2}">` +
107    `<style>` +
108    `@keyframes tw{0%,100%{opacity:.15}50%{opacity:1}}` +
109    `@keyframes tz{0%,100%{opacity:.35}50%{opacity:1}}` +
110    `@keyframes br{0%,100%{opacity:.4}50%{opacity:.85}}` +
111    `.a{animation:tw 1.4s ease-in-out infinite}.b{animation:tw 2.1s ease-in-out .7s infinite}.c{animation:tw 1.1s ease-in-out .35s infinite}` +
112    `.d{animation:tz 3.1s ease-in-out infinite}.e{animation:tz 4.3s ease-in-out 1.4s infinite}.f{animation:tz 2.5s ease-in-out .8s infinite}` +
113    `.br{animation:br 1.9s ease-in-out infinite}` +
114    (bar.isDissolving === true
115      ? `@keyframes fl{0%{transform:translate(0,0);opacity:1}30%{opacity:1;fill:#fff}100%{transform:translate(var(--dx),var(--dy)) scale(.4);opacity:0}}` +
116        `.fl{transform-box:fill-box;transform-origin:center;animation:fl .7s cubic-bezier(.2,.7,.3,1) both}` +
117        `@keyframes fo{to{opacity:0}}.fo{animation:fo .55s ease-out .25s both}` +
118        `@keyframes cp{0%{transform:scale(1)}28%{transform:scale(1.14);opacity:1}100%{transform:scale(.15);opacity:0}}` +
119        `.cp{transform-box:fill-box;transform-origin:center;animation:cp .5s cubic-bezier(.5,0,.75,0) both}`
120      : '') +
121    `</style>` +
122    `<defs>` +
123    `<clipPath id="k${key}"><rect x="0" y="0" width="${w}" height="${h}" rx="${h / 2}"/></clipPath>` +
124    // The LEDs end under the chip's left cap, wherever the chip is on its way.
125    `<clipPath id="r${key}"><rect x="0" y="0" width="${peak + 2}" height="${h}">${follow('width', peakFrom + 2, peak + 2)}</rect></clipPath>` +
126    // The LEDs' ramp: dim at the start, bright at the head.
127    `<linearGradient id="p${key}" gradientUnits="userSpaceOnUse" x1="0" x2="${peak}" y1="0" y2="0">` +
128    `<stop offset="0" stop-color="${hexOf(tone.dim)}"/><stop offset="0.6" stop-color="${hexOf(mix(tone.dim, tone.bright, 0.55))}"/><stop offset="1" stop-color="${hexOf(tone.bright)}"/>` +
129    `${follow('x2', peakFrom, peak)}</linearGradient>` +
130    // The wash: nothing at the start, a glow at the head that runs on and fades past it.
131    `<linearGradient id="w${key}" gradientUnits="userSpaceOnUse" x1="0" x2="${reveal}" y1="0" y2="0">` +
132    `<stop offset="0" stop-color="${accent}" stop-opacity="0"/>` +
133    `<stop offset="${((peak * 0.55) / reveal).toFixed(3)}" stop-color="${accent}" stop-opacity="0.07"/>` +
134    `<stop offset="${(peak / reveal).toFixed(3)}" stop-color="${accent}" stop-opacity="0.36"/>` +
135    `<stop offset="${(head / reveal).toFixed(3)}" stop-color="${accent}" stop-opacity="0.26"/>` +
136    `<stop offset="1" stop-color="${accent}" stop-opacity="0"/>` +
137    `${follow('x2', revealFrom, reveal)}</linearGradient>` +
138    // The track's dome: a breath of light on its upper half.
139    `<linearGradient id="d${key}" x1="0" x2="0" y1="0" y2="1">` +
140    `<stop offset="0" stop-color="#fff" stop-opacity="0.09"/><stop offset="0.5" stop-color="#fff" stop-opacity="0"/><stop offset="1" stop-color="#000" stop-opacity="0.08"/>` +
141    `</linearGradient>` +
142    `<linearGradient id="s${key}" x1="0" x2="1" y1="0" y2="0">` +
143    `<stop offset="0" stop-color="#fff" stop-opacity="0"/><stop offset="0.5" stop-color="#fff" stop-opacity="0.22"/><stop offset="1" stop-color="#fff" stop-opacity="0"/>` +
144    `</linearGradient>` +
145    `<linearGradient id="c${key}" x1="0" x2="0" y1="0" y2="1">` +
146    `<stop offset="0" stop-color="${hexOf(mix(tone.chip, WHITE, 0.22))}"/><stop offset="1" stop-color="${hexOf(tone.chip)}"/>` +
147    `</linearGradient>` +
148    `<filter id="g${key}" x="-60%" y="-120%" width="220%" height="340%"><feGaussianBlur stdDeviation="7"/></filter>` +
149    (enter?.defs ?? '') +
150    `</defs>` +
151    (enter?.open ?? '') +
152    `<g clip-path="url(#k${key})"${isDissolving ? ' class="fo"' : ''}>` +
153    `<rect x="0" y="0" width="${w}" height="${h}" fill="#8e8e96" fill-opacity="0.17"/>` +
154    // The wash needs no clip: its gradient fades to nothing past the head, and moves with it.
155    `<rect x="0" y="0" width="${w}" height="${h}" fill="url(#w${key})"/>` +
156    `<g clip-path="url(#r${key})">` +
157    (isDissolving ? '' : ledsOf(bar, key, head, peak, h, live)) +
158    (live
159      ? `<rect x="-80" y="0" width="80" height="${h}" fill="url(#s${key})" transform="skewX(-18)"><animate attributeName="x" from="-80" to="${w + 40}" dur="2.4s" repeatCount="indefinite"/></rect>`
160      : `<rect x="-80" y="0" width="80" height="${h}" fill="url(#s${key})" opacity="0.55" transform="skewX(-18)"><animate attributeName="x" values="-80;${w + 40};${w + 40}" keyTimes="0;0.55;1" dur="6.5s" repeatCount="indefinite"/></rect>`) +
161    `</g>` +
162    `<rect x="0" y="0" width="${w}" height="${h}" fill="url(#d${key})"/>` +
163    (isDissolving ? flyingLedsOf(bar, key, head, peak, h, tone, chipTo + chipW / 2) : '') +
164    `<g transform="translate(${chipTo} 0)">` +
165    (moving ? `<animateTransform attributeName="transform" type="translate" from="${chipFrom} 0" to="${chipTo} 0" ${spline}/>` : '') +
166    `<ellipse cx="${chipW / 2}" cy="${h / 2}" rx="${Math.round(chipW * 0.62)}" ry="${h}" fill="${accent}" filter="url(#g${key})"${live ? ' class="br"' : ' opacity="0.42"'}/>` +
167    `</g>` +
168    `</g>` +
169    `<g transform="translate(${chipTo} 0)">` +
170    (moving ? `<animateTransform attributeName="transform" type="translate" from="${chipFrom} 0" to="${chipTo} 0" ${spline}/>` : '') +
171    (isDissolving ? `<g class="cp">` : '') +
172    `<rect x="0" y="2" width="${chipW}" height="${chipH}" rx="${chipH / 2}" fill="url(#c${key})"/>` +
173    `<rect x="0.5" y="2.5" width="${chipW - 1}" height="${chipH - 1}" rx="${(chipH - 1) / 2}" fill="none" stroke="#fff" stroke-opacity="0.28"/>` +
174    `<text x="${chipW / 2}" y="${h / 2 + 0.5}" text-anchor="middle" dominant-baseline="central" font-family="${FONT}" font-size="${FONT_SIZE}" fill="#fff">` +
175    `<tspan font-weight="600">${escapeXml(bar.label)}</tspan>` +
176    `<tspan dx="${COUNT_GAP}" font-weight="500" fill-opacity="0.8">${escapeXml(bar.count)}</tspan>` +
177    `</text>` +
178    (isDissolving ? `</g>` : '') +
179    `</g>` +
180    (enter?.close ?? '') +
181    `</svg>`
182  )
183}
184
185/** What a waiting message's bar draws. */
186export type WaitingBar = {
187  id: string
188  width: number
189  height: number
190  /** Its place in the queue, from 1. */
191  position: number
192  padY?: number
193  /** The list just unfolded: the bar sweeps in after this many seconds. */
194  enterDelay?: number
195}
196
197/**
198 * A message waiting its turn: the same track, dark but for a sparse field
199 * of indigo LEDs breathing slowly, a soft glow gliding back and forth
200 * across it like a scanner, and at its start a glassy indigo chip,
201 * `⧗ Waiting #1`, its hourglass turning over now and then. Nothing fills:
202 * nothing has started.
203 */
204export function waitingBarOf(bar: WaitingBar): string {
205  const { width: w, height: h } = bar
206  const key = `q${bar.id.replace(/[^a-z0-9]/gi, '').slice(-20)}`
207  const padY = Math.max(0, Math.round(bar.padY ?? 0))
208  const chipH = h - 4
209  const label = 'Waiting'
210  const count = `#${bar.position}`
211  const icon = 12
212  const chipW = Math.round(icon + 5 + textWidth(label, 600) + COUNT_GAP + textWidth(count, 500) + CHIP_PAD * 2)
213  const seed = seedOf(bar.id)
214  const rows = Math.max(1, Math.floor((h - 4) / PITCH))
215  const top = Math.round((h - rows * PITCH + (PITCH - LED)) / 2)
216  const indigo = hexOf(INDIGO)
217  const enter = bar.enterDelay === undefined ? null : unfoldOf(`u${key}`, w, h, padY, bar.enterDelay)
218  const glide = 'calcMode="spline" keyTimes="0;0.5;1" keySplines="0.45 0 0.55 1;0.45 0 0.55 1"'
219  let leds = ''
220
221  for (let x = chipW + 6, column = 0; x + LED <= w - 4; x += PITCH, column += 1) {
222    for (let row = 0; row < rows; row += 1) {
223      if (noise(seed, column * 31 + row, 1) > 0.17) {
224        continue
225      }
226
227      const phase = ['d', 'e', 'f'][Math.floor(noise(seed, column * 31 + row, 2) * 3)] ?? 'd'
228
229      leds += `<rect x="${x}" y="${top + row * PITCH}" width="${LED}" height="${LED}" rx="0.6" fill="${indigo}" class="${phase}"/>`
230    }
231  }
232
233  const cy = h / 2
234  const hx = CHIP_PAD + icon / 2
235
236  return (
237    `<svg xmlns="http://www.w3.org/2000/svg" width="${w}" height="${h + padY * 2}" viewBox="0 ${-padY} ${w} ${h + padY * 2}">` +
238    `<style>@keyframes tz{0%,100%{opacity:.08}50%{opacity:.32}}` +
239    `.d{animation:tz 3.6s ease-in-out infinite}.e{animation:tz 4.8s ease-in-out 1.2s infinite}.f{animation:tz 4.1s ease-in-out 2.4s infinite}</style>` +
240    `<defs>` +
241    `<clipPath id="k${key}"><rect x="0" y="0" width="${w}" height="${h}" rx="${h / 2}"/></clipPath>` +
242    `<linearGradient id="d${key}" x1="0" x2="0" y1="0" y2="1"><stop offset="0" stop-color="#fff" stop-opacity="0.09"/><stop offset="0.5" stop-color="#fff" stop-opacity="0"/><stop offset="1" stop-color="#000" stop-opacity="0.08"/></linearGradient>` +
243    `<radialGradient id="s${key}"><stop offset="0" stop-color="${hexOf(INDIGO_BRIGHT)}" stop-opacity="0.6"/><stop offset="0.45" stop-color="${indigo}" stop-opacity="0.28"/><stop offset="1" stop-color="${indigo}" stop-opacity="0"/></radialGradient>` +
244    `<linearGradient id="c${key}" x1="0" x2="0" y1="0" y2="1"><stop offset="0" stop-color="${hexOf(mix(INDIGO, 0x1c1c22, 0.35))}"/><stop offset="1" stop-color="${hexOf(mix(INDIGO, 0x1c1c22, 0.6))}"/></linearGradient>` +
245    (enter?.defs ?? '') +
246    `</defs>` +
247    (enter?.open ?? '') +
248    `<g clip-path="url(#k${key})">` +
249    `<rect x="0" y="0" width="${w}" height="${h}" fill="#8e8e96" fill-opacity="0.13"/>` +
250    leds +
251    // The scanner: a soft glow gliding from the chip to the end and back.
252    `<ellipse cx="${chipW}" cy="${cy}" rx="70" ry="${h * 0.9}" fill="url(#s${key})">` +
253    `<animate attributeName="cx" values="${chipW};${w - 30};${chipW}" dur="5.2s" repeatCount="indefinite" ${glide}/>` +
254    `</ellipse>` +
255    `<rect x="0" y="0" width="${w}" height="${h}" fill="url(#d${key})"/>` +
256    `</g>` +
257    `<rect x="0" y="2" width="${chipW}" height="${chipH}" rx="${chipH / 2}" fill="url(#c${key})"/>` +
258    `<rect x="0.5" y="2.5" width="${chipW - 1}" height="${chipH - 1}" rx="${(chipH - 1) / 2}" fill="none" stroke="${indigo}" stroke-opacity="0.75"/>` +
259    // The hourglass, turning over every few seconds.
260    `<g transform="translate(${hx} ${cy})"><g>` +
261    `<animateTransform attributeName="transform" type="rotate" values="0;0;180;180" keyTimes="0;0.72;0.86;1" dur="3s" repeatCount="indefinite"/>` +
262    `<path d="M-4 -5.5h8M-4 5.5h8M-3.2 -5.5c0 3 6.4 3 6.4 5.5s-6.4 2.5-6.4 5.5M3.2 -5.5c0 3-6.4 3-6.4 5.5s6.4 2.5 6.4 5.5" fill="none" stroke="${hexOf(INDIGO_BRIGHT)}" stroke-width="1.3" stroke-linecap="round"/>` +
263    `<path d="M-1.8 3.6h3.6l-1.8-2z" fill="${hexOf(INDIGO_BRIGHT)}"/>` +
264    `</g></g>` +
265    `<text x="${CHIP_PAD + icon + 5}" y="${cy + 0.5}" dominant-baseline="central" font-family="${FONT}" font-size="${FONT_SIZE}" fill="${hexOf(INDIGO_BRIGHT)}">` +
266    `<tspan font-weight="600">${label}</tspan>` +
267    `<tspan dx="${COUNT_GAP}" font-weight="500" fill-opacity="0.75">${count}</tspan>` +
268    `</text>` +
269    (enter?.close ?? '') +
270    `</svg>`
271  )
272}
273
274/**
275 * A bar's unfold, as the list opens: the drawing is revealed left to right
276 * behind a travelling edge of light that flares as it goes and fades out at
277 * the end, each row a beat after the one above.
278 */
279function unfoldOf(id: string, w: number, h: number, padY: number, delay: number): { defs: string; open: string; close: string } {
280  const begin = `${delay.toFixed(2)}s`
281  const spline = `begin="${begin}" dur="0.62s" fill="freeze" calcMode="spline" keyTimes="0;1" keySplines="0.65 0 0.25 1"`
282
283  return {
284    defs:
285      `<clipPath id="${id}"><rect x="-4" y="${-padY}" width="0" height="${h + padY * 2}"><animate attributeName="width" from="0" to="${w + 8}" ${spline}/></rect></clipPath>` +
286      `<linearGradient id="${id}e" x1="0" x2="1"><stop offset="0" stop-color="#fff" stop-opacity="0"/><stop offset="0.7" stop-color="#fff" stop-opacity="0.55"/><stop offset="1" stop-color="#fff" stop-opacity="0"/></linearGradient>`,
287    open: `<g clip-path="url(#${id})">`,
288    close:
289      `</g>` +
290      `<rect x="-40" y="0" width="40" height="${h}" rx="${h / 2}" fill="url(#${id}e)" opacity="0">` +
291      `<animate attributeName="x" from="-40" to="${w - 4}" ${spline}/>` +
292      `<animate attributeName="opacity" values="0;1;1;0" keyTimes="0;0.1;0.8;1" begin="${begin}" dur="0.7s" fill="freeze"/>` +
293      `</rect>`,
294  }
295}
296
297/**
298 * The LED matrix from the start of the track to under the chip: on a
299 * regular grid, each LED lit with a chance that climbs toward the head and
300 * given a brightness of its own, brighter near the head; sorted into a few
301 * paths by brightness and twinkle phase (brisk while Claude works, calm
302 * otherwise, a quarter never twinkling) so a bar
303 * of hundreds of LEDs stays a handful of elements.
304 */
305function ledsOf(bar: SvgBar, key: string, head: number, peak: number, h: number, live: boolean): string {
306  const seed = seedOf(bar.id)
307  const rows = Math.max(1, Math.floor((h - 4) / PITCH))
308  const top = Math.round((h - rows * PITCH + (PITCH - LED)) / 2)
309  const end = head - 4
310  const paths = new Map<string, string>()
311
312  for (let x = 3, column = 0; x + LED <= end; x += PITCH, column += 1) {
313    const t = Math.min(1, x / Math.max(1, peak))
314
315    for (let row = 0; row < rows; row += 1) {
316      const coin = noise(seed, column * 31 + row, 1)
317
318      if (coin > (bar.isDone ? 0.55 + 0.4 * t : 0.38 + 0.6 * t ** 1.2)) {
319        continue
320      }
321
322      const glow = Math.min(1, 0.12 + 0.88 * noise(seed, column * 31 + row, 2) ** 1.3 * (0.3 + 0.95 * t))
323      const level = LEVELS.findIndex(step => glow <= step + 0.001)
324      const phase = (live ? ['', 'a', 'b', 'c'] : ['', 'd', 'e', 'f'])[Math.floor(noise(seed, column * 31 + row, 3) * 4)] ?? ''
325      const bucket = `${level === -1 ? LEVELS.length - 1 : level}:${phase}`
326
327      paths.set(bucket, `${paths.get(bucket) ?? ''}M${x} ${top + row * PITCH}h${LED}v${LED}h-${LED}z`)
328    }
329  }
330
331  let out = ''
332
333  for (const [bucket, d] of paths) {
334    const [level = '0', phase = ''] = bucket.split(':')
335    const opacity = LEVELS[Number(level)] ?? 1
336
337    out += `<path d="${d}" fill="url(#p${key})" fill-opacity="${opacity}"${phase === '' ? '' : ` class="${phase}"`}/>`
338  }
339
340  return out
341}
342
343/** A text's width in the chip's font, from rough per-glyph advances; the chip centres it, so a small error only shifts the padding. */
344function textWidth(text: string, weight: 500 | 600): number {
345  let width = 0
346
347  for (const char of text) {
348    if (/[ilj.,:;'|!]/.test(char)) {
349      width += 3.3
350    } else if (/[ frt/()\-]/.test(char)) {
351      width += 4.4
352    } else if (/[mwMW]/.test(char)) {
353      width += 10
354    } else if (/[A-Z]/.test(char)) {
355      width += 8
356    } else if (/[0-9]/.test(char)) {
357      width += 7
358    } else {
359      width += 6.7
360    }
361  }
362
363  return width * (FONT_SIZE / 12) * (weight === 600 ? 1.04 : 1)
364}
365
366function escapeXml(text: string): string {
367  return text.replace(/&/g, '&amp;').replace(/</g, '&lt;').replace(/>/g, '&gt;').replace(/"/g, '&quot;')
368}
369
370/** What a quota capsule draws, and how it comes in. */
371export type QuotaBar = {
372  kind: string
373  /** What is left of the window, 0 to 100, and its color. */
374  remaining: number
375  color: Rgb
376  /** The limit's notch, in percent left; none when undefined. */
377  limit?: number
378  /** Where the notch slides from, when it just moved. */
379  limitFrom?: number | null
380  /** The capsule grows out of its middle (the quota row coming back, a limit picker opening). */
381  isGrowing?: boolean
382  /** A gleam runs along it and its notch drops in with a ring of amber light. */
383  isLanding?: boolean
384  /** CSS pixels of air above and below the capsule. */
385  padY?: number
386  /** Under the pointer: the whole capsule lights, a lavender rim around it and a sheen running along it. */
387  isHovered?: boolean
388}
389
390/**
391 * A quota's bar on the desktop: a slim capsule whose LEDs fill what is left
392 * of the window, brightest at its end, in the quota's color, calmly
393 * twinkling; the empty part a groove; the limit a white notch in an amber
394 * glow. The limit picker draws the same capsule, wider.
395 *
396 * Growing, it opens out of its middle; landing, a gleam runs along it and
397 * its notch drops in with a ring of amber light. A moved notch slides.
398 */
399export function quotaBarOf(quota: QuotaBar, width: number, height: number): string {
400  const key = `q${quota.kind.replace(/[^a-z0-9]/gi, '')}`
401  const seed = seedOf(quota.kind)
402  const fill = Math.round((Math.max(0, Math.min(100, quota.remaining)) / 100) * width)
403  const color = hexOf(quota.color)
404  const led = 2
405  const pitch = 3
406  const rows = Math.max(1, Math.floor((height - 2) / pitch))
407  const top = Math.round((height - rows * pitch + (pitch - led)) / 2)
408  const paths = new Map<string, string>()
409
410  for (let x = 2, column = 0; x + led <= fill - 1; x += pitch, column += 1) {
411    const t = Math.min(1, x / Math.max(1, fill))
412
413    for (let row = 0; row < rows; row += 1) {
414      if (noise(seed, column * 17 + row, 1) > 0.62 + 0.36 * t) {
415        continue
416      }
417
418      const level = Math.min(2, Math.floor(noise(seed, column * 17 + row, 2) * 3))
419      const phase = ['', 'd', 'e'][Math.floor(noise(seed, column * 17 + row, 3) * 3)] ?? ''
420      const bucket = `${level}:${phase}`
421
422      paths.set(bucket, `${paths.get(bucket) ?? ''}M${x} ${top + row * pitch}h${led}v${led}h-${led}z`)
423    }
424  }
425
426  let leds = ''
427
428  for (const [bucket, d] of paths) {
429    const [level = '0', phase = ''] = bucket.split(':')
430
431    leds += `<path d="${d}" fill="url(#p${key})" fill-opacity="${[0.45, 0.72, 1][Number(level)] ?? 1}"${phase === '' ? '' : ` class="${phase}"`}/>`
432  }
433
434  const returning = quota.isGrowing === true
435  const lit = quota.isLanding === true
436  const padY = quota.padY ?? 0
437  const hovered = quota.isHovered === true
438  // Under the pointer: a lift of light over the whole capsule, a sheen gliding along it, and a lavender rim.
439  const glow = hovered
440    ? `<rect x="0" y="0" width="${width}" height="${height}" fill="#fff" fill-opacity="0.06"/>` +
441      `<rect x="-30" y="0" width="30" height="${height}" fill="url(#h${key})"><animate attributeName="x" from="-30" to="${width}" dur="1.6s" repeatCount="indefinite"/></rect>`
442    : ''
443  const rim = hovered
444    ? `<rect x="0.6" y="0.6" width="${width - 1.2}" height="${height - 1.2}" rx="${(height - 1.2) / 2}" fill="none" stroke="${hexOf(LAVENDER)}" stroke-width="1.2"/>`
445    : ''
446  const ease = 'calcMode="spline" keyTimes="0;1" keySplines="0.16 1 0.3 1"'
447  const grow = returning
448    ? `<animate attributeName="x" from="${width / 2 - 4}" to="0" dur="0.45s" fill="freeze" ${ease}/>` +
449      `<animate attributeName="width" from="8" to="${width}" dur="0.45s" fill="freeze" ${ease}/>`
450    : ''
451  const gleam = lit
452    ? `<rect x="-24" y="0" width="24" height="${height}" fill="url(#g${key})" opacity="0">` +
453      `<animate attributeName="x" from="-24" to="${width}" begin="0.35s" dur="0.6s" fill="freeze" calcMode="spline" keyTimes="0;1" keySplines="0.6 0 0.4 1"/>` +
454      `<animate attributeName="opacity" values="0;1;1;0" keyTimes="0;0.15;0.8;1" begin="0.35s" dur="0.6s" fill="freeze"/>` +
455      `</rect>`
456    : ''
457
458  return (
459    `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${height + padY * 2}" viewBox="0 ${-padY} ${width} ${height + padY * 2}" overflow="visible">` +
460    `<style>@keyframes tz{0%,100%{opacity:.4}50%{opacity:1}}.d{animation:tz 3.4s ease-in-out infinite}.e{animation:tz 2.6s ease-in-out 1.1s infinite}</style>` +
461    `<defs>` +
462    `<clipPath id="k${key}"><rect x="${returning ? width / 2 - 4 : 0}" y="0" width="${returning ? 8 : width}" height="${height}" rx="${height / 2}">${grow}</rect></clipPath>` +
463    (hovered
464      ? `<linearGradient id="h${key}" x1="0" x2="1"><stop offset="0" stop-color="#fff" stop-opacity="0"/><stop offset="0.5" stop-color="#fff" stop-opacity="0.45"/><stop offset="1" stop-color="#fff" stop-opacity="0"/></linearGradient>`
465      : '') +
466    (lit
467      ? `<linearGradient id="g${key}" x1="0" x2="1"><stop offset="0" stop-color="#fff" stop-opacity="0"/><stop offset="0.65" stop-color="#fff" stop-opacity="0.7"/><stop offset="1" stop-color="#fff" stop-opacity="0"/></linearGradient>`
468      : '') +
469    `<linearGradient id="p${key}" gradientUnits="userSpaceOnUse" x1="0" x2="${Math.max(fill, 1)}" y1="0" y2="0">` +
470    `<stop offset="0" stop-color="${hexOf(mix(quota.color, 0x1c1c22, 0.55))}"/><stop offset="1" stop-color="${hexOf(mix(quota.color, WHITE, 0.25))}"/>` +
471    `</linearGradient>` +
472    `<linearGradient id="f${key}" gradientUnits="userSpaceOnUse" x1="0" x2="${Math.max(fill, 1)}" y1="0" y2="0">` +
473    `<stop offset="0" stop-color="${color}" stop-opacity="0.18"/><stop offset="1" stop-color="${color}" stop-opacity="0.62"/>` +
474    `</linearGradient>` +
475    `<linearGradient id="w${key}" gradientUnits="userSpaceOnUse" x1="0" x2="${Math.max(fill, 1) + 14}" y1="0" y2="0">` +
476    `<stop offset="0" stop-color="${color}" stop-opacity="0.04"/><stop offset="${(fill / (fill + 14)).toFixed(3)}" stop-color="${color}" stop-opacity="0.3"/><stop offset="1" stop-color="${color}" stop-opacity="0"/>` +
477    `</linearGradient>` +
478    `</defs>` +
479    `<g clip-path="url(#k${key})">` +
480    `<rect x="0" y="0" width="${width}" height="${height}" fill="#8e8e96" fill-opacity="0.17"/>` +
481    `<rect x="0" y="0" width="${width}" height="${height}" fill="url(#w${key})"/>` +
482    (fill > 0 ? `<rect x="0" y="0" width="${fill}" height="${height}" rx="${height / 2}" fill="url(#f${key})"/>` : '') +
483    leds +
484    gleam +
485    glow +
486    `</g>` +
487    rim +
488    limitMarkOf(quota.limit, width, height, lit, quota.limitFrom ?? null) +
489    `</svg>`
490  )
491}
492
493/** Where a quota's limit sits on its capsule: a bright notch with a soft amber glow. */
494function limitMarkOf(limit: number | undefined, width: number, height: number, isLanding = false, from: number | null = null): string {
495  if (limit === undefined) {
496    return ''
497  }
498
499  const xOf = (percent: number) => Math.max(1.5, Math.min(width - 1.5, (percent / 100) * width))
500  const x = xOf(limit).toFixed(1)
501  const glow = Math.max(4, height * 0.42)
502  const core = Math.max(1.4, height * 0.16)
503  const shift = from === null ? 0 : xOf(from) - xOf(limit)
504  const lines =
505    `<line x1="${x}" x2="${x}" y1="0" y2="${height}" stroke="${hexOf(AMBER)}" stroke-opacity="0.45" stroke-width="${glow.toFixed(1)}" stroke-linecap="round"/>` +
506    `<line x1="${x}" x2="${x}" y1="0.5" y2="${height - 0.5}" stroke="#fff" stroke-width="${core.toFixed(1)}" stroke-linecap="round"/>`
507  // A moved notch slides over from where it stood.
508  const mark =
509    Math.abs(shift) > 0.5
510      ? `<g><animateTransform attributeName="transform" type="translate" from="${shift.toFixed(1)} 0" to="0 0" dur="0.42s" fill="freeze" calcMode="spline" keyTimes="0;1" keySplines="0.22 1 0.36 1"/>${lines}</g>`
511      : lines
512
513  if (!isLanding) {
514    return mark
515  }
516
517  // Just validated: the notch drops in with a bounce, and a ring of amber light spreads from it.
518  return (
519    `<g opacity="0">` +
520    `<animateTransform attributeName="transform" type="translate" values="0 -12;0 1.5;0 -0.5;0 0" keyTimes="0;0.55;0.8;1" begin="0.45s" dur="0.5s" fill="freeze"/>` +
521    `<animate attributeName="opacity" values="0;1" begin="0.45s" dur="0.15s" fill="freeze"/>` +
522    mark +
523    `</g>` +
524    `<ellipse cx="${x}" cy="${height / 2}" rx="1" ry="1" fill="none" stroke="${hexOf(AMBER)}" stroke-width="1.4" opacity="0">` +
525    `<animate attributeName="rx" values="1;${Math.round(height * 1.6)}" begin="0.72s" dur="0.55s" fill="freeze"/>` +
526    `<animate attributeName="ry" values="1;${Math.round(height * 0.9)}" begin="0.72s" dur="0.55s" fill="freeze"/>` +
527    `<animate attributeName="opacity" values="0;0.95;0" keyTimes="0;0.15;1" begin="0.72s" dur="0.55s" fill="freeze"/>` +
528    `</ellipse>`
529  )
530}
531
532/**
533 * A dissolving bar's LEDs: each its own square, flying up and away at its
534 * own angle as it flares white and fades, the ones nearest the chip first.
535 */
536function flyingLedsOf(bar: SvgBar, key: string, head: number, peak: number, h: number, tone: Tone, chipCentre: number): string {
537  const seed = seedOf(bar.id)
538  const rows = Math.max(1, Math.floor((h - 4) / PITCH))
539  const top = Math.round((h - rows * PITCH + (PITCH - LED)) / 2)
540  const end = Math.min(head - 4, peak + 2)
541  let out = ''
542  let count = 0
543
544  for (let x = 3, column = 0; x + LED <= end && count < 900; x += PITCH, column += 1) {
545    const t = Math.min(1, x / Math.max(1, peak))
546
547    for (let row = 0; row < rows; row += 1) {
548      const n = column * 31 + row
549
550      if (noise(seed, n, 1) > (bar.isDone ? 0.55 + 0.4 * t : 0.38 + 0.6 * t ** 1.2)) {
551        continue
552      }
553
554      const dx = ((noise(seed, n, 4) - 0.25) * 30).toFixed(1)
555      const dy = (-(5 + noise(seed, n, 5) * 20) * (noise(seed, n, 6) < 0.18 ? -0.6 : 1)).toFixed(1)
556      const delay = ((1 - t) * 0.38 + noise(seed, n, 7) * 0.08).toFixed(2)
557      const color = hexOf(mix(tone.dim, tone.bright, 0.25 + 0.75 * t))
558
559      out += `<rect class="fl" x="${x}" y="${top + row * PITCH}" width="${LED}" height="${LED}" fill="${color}" style="--dx:${dx}px;--dy:${dy}px;animation-delay:${delay}s"/>`
560      count += 1
561    }
562  }
563
564  void chipCentre
565
566  return out
567}
568
569
570/** Where a bar's chip sits: its width, and the head (its right edge) for a share. */
571export function chipGeometryOf(bar: Pick<SvgBar, 'width' | 'label' | 'count'>): { chipW: number; headOf: (share: number) => number } {
572  const w = bar.width
573  const chipW = Math.round(textWidth(bar.label, 600) + COUNT_GAP + textWidth(bar.count, 500) + CHIP_PAD * 2)
574
575  return { chipW, headOf: (share: number) => Math.min(w - 2, Math.max(chipW + 2, 2 + share * (w - 4))) }
576}
577
578/** The chip's centre in a bar's SVG, in CSS pixels from its left edge. */
579export function chipCentreOf(bar: Pick<SvgBar, 'width' | 'label' | 'count' | 'share'>): number {
580  const { chipW, headOf } = chipGeometryOf(bar)
581
582  return Math.round(headOf(bar.share) - chipW / 2)
583}
584
585/** What the burst layer draws: how big, where the chip was, in which color. */
586export type Burst = {
587  width: number
588  height: number
589  /** The chip's centre, from the layer's left edge, in CSS pixels; the layer is centred on the bar. */
590  cx: number
591  /** The chip's width, which sets the burst's scale. */
592  chipW: number
593  isDone: boolean
594}
595
596/**
597 * The ✕'s burst, drawn on a layer of its own over the band, in front of
598 * everything and taller than the row so nothing cuts it: a radial flash
599 * where the chip pops, a sharp white shockwave and a wide colored one in
600 * its wake, both glowing, a star of spark trails streaking outward, and
601 * glitter drifting down as it all fades. Played once, as the layer mounts.
602 */
603export function burstLayerOf(burst: Burst): string {
604  const { width: w, height: h, cx } = burst
605  const cy = h / 2
606  const accent = hexOf(burst.isDone ? EMERALD : LAVENDER)
607  const bright = hexOf(burst.isDone ? 0xc6f7e2 : 0xe6e1ff)
608  const reach = Math.max(42, Math.min(h / 2 - 4, burst.chipW * 0.62))
609  const once = (attribute: string, values: string, begin: number, dur: number, keyTimes?: string) =>
610    `<animate attributeName="${attribute}" values="${values}" begin="${begin}s" dur="${dur}s" fill="freeze"` +
611    (keyTimes === undefined ? '' : ` keyTimes="${keyTimes}"`) +
612    ` calcMode="${keyTimes === undefined ? 'spline' : 'linear'}"` +
613    (keyTimes === undefined ? ` keyTimes="0;1" keySplines="0.16 1 0.3 1"` : '') +
614    `/>`
615  let trails = ''
616
617  for (let i = 0; i < 18; i += 1) {
618    const angle = (i / 18) * Math.PI * 2 + (noise(23, i, 1) - 0.5) * 0.3
619    const length = reach * (0.75 + noise(23, i, 2) * 0.55) * (1.35 - 0.35 * Math.abs(Math.sin(angle)))
620    const x2 = (cx + Math.cos(angle) * length).toFixed(1)
621    const y2 = (cy + Math.sin(angle) * length * 0.82).toFixed(1)
622    const dash = Math.round(length)
623    const color = i % 3 === 0 ? '#fff' : i % 3 === 1 ? bright : accent
624    const begin = (0.1 + noise(23, i, 3) * 0.08).toFixed(2)
625
626    trails +=
627      `<line x1="${cx}" y1="${cy}" x2="${x2}" y2="${y2}" stroke="${color}" stroke-width="${(1.2 + noise(23, i, 4)).toFixed(1)}" stroke-linecap="round" ` +
628      `stroke-dasharray="${Math.round(dash * 0.32)} ${dash * 2}" stroke-dashoffset="${Math.round(dash * 0.32)}" opacity="0">` +
629      `<animate attributeName="stroke-dashoffset" values="${Math.round(dash * 0.32)};${-Math.round(dash * 0.7)}" begin="${begin}s" dur="0.62s" fill="freeze" calcMode="spline" keyTimes="0;1" keySplines="0.16 1 0.3 1"/>` +
630      `<animate attributeName="opacity" values="0;1;0" keyTimes="0;0.12;1" begin="${begin}s" dur="0.62s" fill="freeze"/>` +
631      `</line>`
632  }
633
634  let glitter = ''
635
636  for (let i = 0; i < 14; i += 1) {
637    const angle = noise(29, i, 1) * Math.PI * 2
638    const r = reach * (0.35 + noise(29, i, 2) * 0.6)
639    const x = (cx + Math.cos(angle) * r).toFixed(1)
640    const y = cy + Math.sin(angle) * r * 0.6
641    const begin = (0.22 + noise(29, i, 3) * 0.2).toFixed(2)
642
643    glitter +=
644      `<circle cx="${x}" cy="${y.toFixed(1)}" r="${(0.9 + noise(29, i, 4) * 0.9).toFixed(1)}" fill="${i % 2 === 0 ? '#fff' : bright}" opacity="0">` +
645      `<animate attributeName="opacity" values="0;1;0.8;0" keyTimes="0;0.15;0.5;1" begin="${begin}s" dur="0.75s" fill="freeze"/>` +
646      `<animate attributeName="cy" values="${y.toFixed(1)};${(y + 10 + noise(29, i, 5) * 8).toFixed(1)}" begin="${begin}s" dur="0.75s" fill="freeze"/>` +
647      `</circle>`
648  }
649
650  return (
651    `<svg xmlns="http://www.w3.org/2000/svg" width="${w}" height="${h}" viewBox="0 0 ${w} ${h}">` +
652    `<defs>` +
653    `<radialGradient id="bf"><stop offset="0" stop-color="#fff" stop-opacity="1"/><stop offset="0.35" stop-color="${bright}" stop-opacity="0.75"/>` +
654    `<stop offset="0.7" stop-color="${accent}" stop-opacity="0.25"/><stop offset="1" stop-color="${accent}" stop-opacity="0"/></radialGradient>` +
655    `<filter id="bg" x="-50%" y="-50%" width="200%" height="200%"><feGaussianBlur stdDeviation="3"/></filter>` +
656    `<filter id="bs" x="-50%" y="-50%" width="200%" height="200%"><feGaussianBlur stdDeviation="1.2"/></filter>` +
657    `</defs>` +
658    // the flash where the chip pops
659    `<ellipse cx="${cx}" cy="${cy}" rx="4" ry="3" fill="url(#bf)" opacity="0">` +
660    once('rx', `4;${Math.round(burst.chipW * 0.7)}`, 0.06, 0.4) +
661    once('ry', `3;${Math.round(reach * 0.55)}`, 0.06, 0.4) +
662    `<animate attributeName="opacity" values="0;1;0" keyTimes="0;0.2;1" begin="0.06s" dur="0.45s" fill="freeze"/>` +
663    `</ellipse>` +
664    // the wide colored shockwave, glowing
665    `<ellipse cx="${cx}" cy="${cy}" rx="6" ry="4" fill="none" stroke="${accent}" stroke-width="5" opacity="0" filter="url(#bg)">` +
666    once('rx', `6;${Math.round(reach * 1.25)}`, 0.12, 0.75) +
667    once('ry', `4;${Math.round(reach * 0.78)}`, 0.12, 0.75) +
668    `<animate attributeName="opacity" values="0;0.9;0" keyTimes="0;0.15;1" begin="0.12s" dur="0.75s" fill="freeze"/>` +
669    `<animate attributeName="stroke-width" values="5;1" begin="0.12s" dur="0.75s" fill="freeze"/>` +
670    `</ellipse>` +
671    // the sharp white shockwave ahead of it
672    `<ellipse cx="${cx}" cy="${cy}" rx="5" ry="3" fill="none" stroke="#fff" stroke-width="1.8" opacity="0" filter="url(#bs)">` +
673    once('rx', `5;${Math.round(reach * 1.05)}`, 0.08, 0.5) +
674    once('ry', `3;${Math.round(reach * 0.62)}`, 0.08, 0.5) +
675    `<animate attributeName="opacity" values="0;1;0" keyTimes="0;0.1;1" begin="0.08s" dur="0.5s" fill="freeze"/>` +
676    `<animate attributeName="stroke-width" values="1.8;0.3" begin="0.08s" dur="0.5s" fill="freeze"/>` +
677    `</ellipse>` +
678    trails +
679    glitter +
680    `</svg>`
681  )
682}
683
684/** One plan as the folded list's rings draw it. */
685export type RingSegment = {
686  id: string
687  /** Its share, 0 to 1. */
688  share: number
689  isDone: boolean
690  /** Claude works on it now: a spark circles its ring. */
691  isLive: boolean
692  /** A message waiting its turn: a dashed indigo ring, slowly turning. */
693  isWaiting?: boolean
694}
695
696/** The rings' height, a ring's diameter and the pitch between two, in CSS pixels. */
697export const RINGS_PX = 24
698const RING_D = 20
699const RING_PITCH = 32
700/** The most rings drawn; older finished plans beyond them fold into a `+n`. */
701const RINGS_MAX = 12
702
703/**
704 * The folded list: one ring per plan, joined by a thread, as a stepper
705 * reads. A finished plan is an emerald disc with its check; a running one a
706 * lavender arc around a grey track, as far round as its share, its core
707 * breathing, and a spark circling it while Claude works on it. More plans
708 * than fit fold their oldest finished ones into `+n`. Just folded, the rings
709 * fade in one after the other.
710 */
711export function ringsOf(segments: readonly RingSegment[], isEntering: boolean): { source: string; width: number } {
712  let shown = [...segments]
713  let hidden = 0
714
715  while (shown.length > RINGS_MAX) {
716    const index = shown.findIndex(segment => segment.isDone)
717
718    shown.splice(index === -1 ? 0 : index, 1)
719    hidden += 1
720  }
721
722  const lead = hidden > 0 ? 26 : 0
723  const width = lead + 2 + RING_D + Math.max(0, shown.length - 1) * RING_PITCH + 2
724  const cy = RINGS_PX / 2
725  const r = RING_D / 2 - 2
726  const circumference = 2 * Math.PI * r
727  const emerald = hexOf(EMERALD)
728  const lavender = hexOf(LAVENDER)
729  let body = hidden > 0 ? `<text x="${lead / 2}" y="${cy}" text-anchor="middle" dominant-baseline="central" font-family="${FONT}" font-size="11" font-weight="600" fill="#9a9aa3">+${hidden}</text>` : ''
730
731  shown.forEach((segment, index) => {
732    const cx = lead + 2 + RING_D / 2 + index * RING_PITCH
733    const enter = isEntering
734      ? ` opacity="0"><animate attributeName="opacity" from="0" to="1" begin="${(index * 0.05).toFixed(2)}s" dur="0.3s" fill="freeze"/>`
735      : '>'
736
737    if (index > 0) {
738      const done = shown[index - 1]?.isDone === true
739
740      body += `<line x1="${cx - RING_PITCH + RING_D / 2 + 3}" x2="${cx - RING_D / 2 - 3}" y1="${cy}" y2="${cy}" stroke="${done ? emerald : '#8e8e96'}" stroke-opacity="${done ? 0.55 : 0.3}" stroke-width="2" stroke-linecap="round"/>`
741    }
742
743    if (segment.isWaiting === true) {
744      body +=
745        `<g${enter}` +
746        `<g class="wt" style="transform-origin:${cx}px ${cy}px"><circle cx="${cx}" cy="${cy}" r="${r}" fill="none" stroke="${hexOf(INDIGO)}" stroke-width="2" stroke-dasharray="3.2 3.2" stroke-linecap="round"/></g>` +
747        `<circle class="br" cx="${cx}" cy="${cy}" r="2.4" fill="${hexOf(INDIGO)}"/>` +
748        `</g>`
749
750      return
751    }
752
753    if (segment.isDone) {
754      body +=
755        `<g${enter}` +
756        `<circle cx="${cx}" cy="${cy}" r="${r + 1.5}" fill="url(#rd)"/>` +
757        `<ellipse cx="${cx}" cy="${cy - r * 0.45}" rx="${r * 0.6}" ry="${r * 0.3}" fill="#fff" fill-opacity="0.22"/>` +
758        `<path d="M${cx - 4.2} ${cy + 0.2}l2.8 2.8 5.4-5.6" fill="none" stroke="#0b3b2a" stroke-width="2.1" stroke-linecap="round" stroke-linejoin="round"/>` +
759        `</g>`
760
761      return
762    }
763
764    const arc = Math.max(0, Math.min(1, segment.share)) * circumference
765
766    body +=
767      `<g${enter}` +
768      `<circle cx="${cx}" cy="${cy}" r="${r}" fill="none" stroke="#8e8e96" stroke-opacity="0.28" stroke-width="2.6"/>` +
769      (arc > 0.5
770        ? `<circle cx="${cx}" cy="${cy}" r="${r}" fill="none" stroke="${lavender}" stroke-opacity="0.35" stroke-width="5" stroke-dasharray="${arc.toFixed(1)} ${circumference.toFixed(1)}" transform="rotate(-90 ${cx} ${cy})" filter="url(#rg)"/>` +
771          `<circle cx="${cx}" cy="${cy}" r="${r}" fill="none" stroke="url(#ra)" stroke-width="2.6" stroke-linecap="round" stroke-dasharray="${arc.toFixed(1)} ${circumference.toFixed(1)}" transform="rotate(-90 ${cx} ${cy})"/>`
772        : '') +
773      `<circle class="br" cx="${cx}" cy="${cy}" r="3" fill="${lavender}"/>` +
774      (segment.isLive
775        ? `<g class="or" style="transform-origin:${cx}px ${cy}px"><circle cx="${cx}" cy="${cy - r}" r="3.2" fill="${lavender}" fill-opacity="0.45" filter="url(#rg)"/><circle cx="${cx}" cy="${cy - r}" r="1.6" fill="#fff"/></g>`
776        : '') +
777      `</g>`
778  })
779
780  return {
781    width,
782    source:
783      `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${RINGS_PX}" viewBox="0 0 ${width} ${RINGS_PX}">` +
784      `<style>@keyframes br{0%,100%{opacity:.45}50%{opacity:1}}.br{animation:br 2.4s ease-in-out infinite}` +
785      `@keyframes or{to{transform:rotate(360deg)}}.or{animation:or 2.4s linear infinite}.wt{animation:or 9s linear infinite}</style>` +
786      `<defs>` +
787      `<linearGradient id="rd" x1="0" x2="0" y1="0" y2="1"><stop offset="0" stop-color="${hexOf(mix(EMERALD, WHITE, 0.25))}"/><stop offset="1" stop-color="#149a6c"/></linearGradient>` +
788      `<linearGradient id="ra" x1="0" x2="1" y1="0" y2="1"><stop offset="0" stop-color="#e6e1ff"/><stop offset="1" stop-color="${lavender}"/></linearGradient>` +
789      `<filter id="rg" x="-50%" y="-50%" width="200%" height="200%"><feGaussianBlur stdDeviation="1.6"/></filter>` +
790      `</defs>` +
791      body +
792      `</svg>`,
793  }
794}
795

1import type { BoxProps, ButtonProps, ClientProps, ElementConstructor, RasterProps, RenderElement, SvgProps, TextProps } from 'claude-code'
2
3import { LIMIT_MAX, LIMIT_MIN, LIMIT_START, LIMIT_STEP, type Limits, type Pause } from '../guard'
4import { alertWaveCells, limitDialCells } from '../meter'
5import { AMBER, AMBER_DIM, hexOf, INDIGO, LAVENDER, MUTED } from '../palette'
6import { encodeRows } from '../raster'
7import { quotaColorOf, remainingTextOf, resetTextOf, type Quota } from '../usage'
8import { alertRingOf, alertWaveOf, confirmMarkOf } from './svg-alert'
9import { quotaBarOf } from './svg-bar'
10
11type Box = ElementConstructor<BoxProps>
12type Text = ElementConstructor<TextProps>
13type Button = ElementConstructor<ButtonProps>
14
15/** What the band needs of the usage guard: the limits, the editor, the pause, and what the buttons do. */
16export type GuardView = {
17  limits: Limits
18  /** The window whose limit picker is open, or null. */
19  editing: string | null
20  /** The limit the picker shows (null while the window has none), and the one its bar slides from after a move. */
21  draft: number | null
22  draftFrom: number | null
23  /** The picker just took the quota row's place: its dial opens out. */
24  isOpening: boolean
25  /** The window whose ✓ was just pressed: the quota row comes back with it lit. */
26  justSet: string | null
27  /** The dial's drag region runs on this surface; where it does not, the track takes clicks instead. */
28  isDragReady: boolean
29  /** Sets the limit where the track was clicked, and slides the bar there. */
30  onPick: (limit: number) => void
31  pause: Pause | null
32  /** Opens a window's picker in the quota row's place, or leaves it unchanged when it is the open one. */
33  onEdit: (kind: string) => void
34  /** Moves the picker's bar by steps of 5%. */
35  onNudge: (delta: number) => void
36  /** The ✓: keeps the limit the picker shows and brings the quota row back. */
37  onConfirm: () => void
38  /** Clears the picker's limit; the ✓ then lifts it. */
39  onClear: () => void
40  onSave: () => void
41  onResume: () => void
42}
43
44/** The Raster key of the terminal alert's wave: what the frame loop repaints. */
45export const ALERT_WAVE_KEY = 'alert-wave'
46
47/** The words of the alert card for a pause, as of `now`. */
48export function alertWordsOf(pause: Pause, now: number): { title: string; subtitle: string } {
49  const reset = pause.resetsAt === undefined ? '' : resetTextOf({ kind: pause.kind, label: pause.label, remaining: 0, resetsAt: pause.resetsAt }, now)
50
51  if (pause.phase === 'waiting') {
52    return {
53      title: `Saved · waiting for the ${pause.label} reset`,
54      subtitle: reset === '' ? 'Resume whenever you are ready' : `Claude picks up on its own when the window ${reset}`,
55    }
56  }
57
58  return {
59    title: `Paused · ${pause.label} limit reached`,
60    subtitle: [remainingTextOf(pause.remaining), `your limit ${pause.limit}%`, reset].filter(Boolean).join(' · '),
61  }
62}
63
64/** The share of the wait already gone, for the waiting ring's arc. */
65function waitedOf(pause: Pause, now: number): number {
66  if (pause.resetsAt === undefined || pause.resetsAt <= pause.since) {
67    return 0
68  }
69
70  return Math.max(0, Math.min(1, (now - pause.since) / (pause.resetsAt - pause.since)))
71}
72
73/**
74 * The desktop alert: the animated emblem, the title and the facts, the
75 * travelling LED wave, and the two ways on (`Save & wait`, `Resume`), or
76 * `Resume now` while waiting for the reset.
77 */
78export function desktopAlertCard(
79  ui: { Box: Box; Text: Text; Button: Button; Svg: ElementConstructor<SvgProps> },
80  guard: GuardView,
81  pause: Pause,
82  now: number,
83  wavePx: number,
84): RenderElement {
85  const { Box, Text, Button, Svg } = ui
86  const { title, subtitle } = alertWordsOf(pause, now)
87  const color = hexOf(pause.phase === 'alert' ? AMBER : INDIGO)
88
89  return (
90    <Box key="alert" flexDirection="row" alignItems="center" gap={1} marginBottom={1}>
91      <Svg source={alertRingOf(pause.phase, 46, waitedOf(pause, now))} alt={title} width={46} height={46} />
92      <Box flexDirection="column" flexGrow={1} flexShrink={1}>
93        <Text bold color={color}>
94          {title}
95        </Text>
96        <Text color={hexOf(MUTED)}>{subtitle}</Text>
97        <Svg source={alertWaveOf(pause.phase, wavePx, 9)} alt="Paused" width={wavePx} height={9} />
98      </Box>
99      {pause.phase === 'alert' ? (
100        <Box flexDirection="row" gap={1}>
101          <Button key="pause:save" variant="primary" hotkey="s" onPress={guard.onSave}>
102            {'Save & wait'}
103          </Button>
104          <Button key="pause:resume" hotkey="r" onPress={guard.onResume}>
105            Resume
106          </Button>
107        </Box>
108      ) : (
109        <Button key="pause:resume" variant="primary" hotkey="r" onPress={guard.onResume}>
110          Resume now
111        </Button>
112      )}
113    </Box>
114  )
115}
116
117/** The cells the terminal alert's wave shows at `now`. */
118export function alertWaveCellsOf(pause: Pause, width: number, now: number): string {
119  const color = pause.phase === 'alert' ? AMBER : INDIGO
120
121  return encodeRows([alertWaveCells(width, now, color, pause.phase === 'alert' ? AMBER_DIM : 0x2d3160)])
122}
123
124/** The terminal alert: a rounded amber (or indigo) frame, the title and facts, the travelling wave, the buttons. */
125export function terminalAlertCard(
126  ui: { Box: Box; Text: Text; Button: Button; Raster: ElementConstructor<RasterProps> },
127  guard: GuardView,
128  pause: Pause,
129  now: number,
130  waveCells: number,
131): RenderElement {
132  const { Box, Text, Button, Raster } = ui
133  const { title, subtitle } = alertWordsOf(pause, now)
134  const color = hexOf(pause.phase === 'alert' ? AMBER : INDIGO)
135
136  return (
137    <Box key="alert" flexDirection="column" borderStyle="round" borderColor={color} paddingX={1}>
138      <Box flexDirection="row" gap={1}>
139        <Text bold color={color}>
140          {pause.phase === 'alert' ? '⏸' : '◷'}
141        </Text>
142        <Text bold color={color}>
143          {title}
144        </Text>
145        <Text dimColor wrap="truncate-end">
146          {subtitle}
147        </Text>
148      </Box>
149      <Raster key={ALERT_WAVE_KEY} columns={waveCells} rows={1} cells={alertWaveCellsOf(pause, waveCells, now)} />
150      <Box flexDirection="row" gap={2}>
151        {pause.phase === 'alert' ? (
152          <Box flexDirection="row" gap={2}>
153            <Button key="pause:save" variant="primary" hotkey="s" onPress={guard.onSave}>
154              {'Save & wait'}
155            </Button>
156            <Button key="pause:resume" hotkey="r" onPress={guard.onResume}>
157              Resume
158            </Button>
159          </Box>
160        ) : (
161          <Button key="pause:resume" variant="primary" hotkey="r" onPress={guard.onResume}>
162            Resume now
163          </Button>
164        )}
165      </Box>
166    </Box>
167  )
168}
169
170/** The label that opens a window's limit editor: `5h`, lit under the pointer. */
171export function limitLabelButton(Button: Button, guard: GuardView, quota: Quota): RenderElement {
172  return (
173    <Button key={`limit:${quota.kind}`} plain hover={{ scope: `quota:${quota.kind}`, color: hexOf(LAVENDER) }} onPress={() => guard.onEdit(quota.kind)}>
174      {quota.label}
175    </Button>
176  )
177}
178
179/** The flag after a window's figures, `⚑ 20%`, while a limit is set; nothing otherwise. */
180export function limitFlagOf(ui: { Box: Box; Text: Text }, guard: GuardView, quota: Quota): RenderElement | null {
181  const { Box, Text } = ui
182  const limit = guard.limits[quota.kind]
183
184  return limit === undefined ? null : (
185    <Box key={`flag:${quota.kind}`} flexShrink={0}>
186      <Text color={hexOf(AMBER)}>{`⚑ ${limit}%`}</Text>
187    </Box>
188  )
189}
190
191/**
192 * The blank label of the button over a quota capsule, wider than the capsule,
193 * and the room it is given, so it is never cut with an ellipsis.
194 */
195const CAPSULE_LABEL = '\u2800'.repeat(14)
196const CAPSULE_ROOM = 24
197
198/**
199 * The invisible button over a quota capsule on the desktop: a click on the
200 * bar opens its limit picker, and the pointer on it lights the capsule and
201 * the window's label. The button is wider and taller than the bar and
202 * clipped to it, so the ground the desktop gives a button under the pointer
203 * covers the bar exactly, never a patch of it, nor past its edges.
204 */
205export function capsuleButtonOf(ui: { Box: Box; Button: Button }, guard: GuardView, quota: Quota): RenderElement {
206  const { Box, Button } = ui
207
208  return (
209    <Box
210      key={`quota-hit:${quota.kind}`}
211      position="absolute"
212      top={0}
213      left={0}
214      right={0}
215      bottom={0}
216      overflow="hidden"
217      flexDirection="row"
218      alignItems="center"
219    >
220      <Box width={CAPSULE_ROOM} flexShrink={0} flexDirection="row">
221        <Button key={`quota-open:${quota.kind}`} plain hover={{ scope: `quota:${quota.kind}`, color: hexOf(LAVENDER) }} onPress={() => guard.onEdit(quota.kind)}>
222          {CAPSULE_LABEL}
223        </Button>
224      </Box>
225    </Box>
226  )
227}
228
229/**
230 * The readout beside the dial: one place where the percent under the
231 * pointer shows, `→ 40%`; each value is its own hidden line, lit by the
232 * hover group of its click target on the track.
233 */
234function hoverReadoutOf(ui: { Box: Box; Text: Text }, quota: Quota): RenderElement {
235  const { Box, Text } = ui
236
237  return (
238    <Box key={`dial-readout:${quota.kind}`} position="relative" width={7} flexShrink={0}>
239      <Text> </Text>
240      {limitSteps().map(value => (
241        <Box
242          key={`dial-readout:${quota.kind}:${value}`}
243          position="absolute"
244          top={0}
245          left={0}
246          display="none"
247          hover={{ scope: stepScopeOf(quota.kind, value), display: 'flex' }}
248        >
249          <Text bold color={hexOf(AMBER)}>{`→ ${value}%`}</Text>
250        </Box>
251      ))}
252    </Box>
253  )
254}
255
256/** The desktop limit dial's width, in CSS pixels. */
257const DIAL_PX = 300
258
259/** A blank label, invisible but not whitespace, so no surface trims it away. */
260const BLANK_LABEL = '\u2800\u2800'
261
262/** The limits the track offers, one per click target: 5% to 90%. */
263function limitSteps(): number[] {
264  const steps: number[] = []
265
266  for (let value = LIMIT_MIN; value <= LIMIT_MAX; value += LIMIT_STEP) {
267    steps.push(value)
268  }
269
270  return steps
271}
272
273/** The hover group tying a click target on the track to its percent in the readout. */
274function stepScopeOf(kind: string, value: number): string {
275  return `dial:${kind}:${value}`
276}
277
278/**
279 * The dial's click layer: one invisible target per 5% laid across the
280 * track, each centred on its value (the spacers before and after keep the
281 * track's own proportions). Nothing it reveals sits on the track: the
282 * percent under the pointer shows in the readout beside the dial, so a fast
283 * sweep never leaves a trail of bubbles behind. A click sets the limit there
284 * and the bar slides to it.
285 */
286function clickLayerOf(ui: { Box: Box; Button: Button }, guard: GuardView, quota: Quota): RenderElement {
287  const { Box, Button } = ui
288
289  return (
290    <Box position="absolute" top={0} left={0} right={0} bottom={0} flexDirection="row" alignItems="stretch">
291      <Box key={`dial-margin:${quota.kind}:start`} width={0} flexGrow={LIMIT_MIN - LIMIT_STEP / 2} />
292      {limitSteps().map(value => (
293        <Box
294          key={`dial-slot:${quota.kind}:${value}`}
295          width={0}
296          flexGrow={LIMIT_STEP}
297          flexDirection="column"
298          justifyContent="flex-end"
299          alignItems="center"
300        >
301          <Button
302            key={`dial-step:${quota.kind}:${value}`}
303            plain
304            hover={{ scope: stepScopeOf(quota.kind, value), color: hexOf(AMBER) }}
305            onPress={() => guard.onPick(value)}
306          >
307            {BLANK_LABEL}
308          </Button>
309        </Box>
310      ))}
311      <Box key={`dial-margin:${quota.kind}:end`} width={0} flexGrow={100 - LIMIT_MAX - LIMIT_STEP / 2} />
312    </Box>
313  )
314}
315
316/** The props the dial's drag region gets: the range, the grid, the value, the track's margins. */
317function dragPropsOf(guard: GuardView, inset: number) {
318  return { min: LIMIT_MIN, max: LIMIT_MAX, step: LIMIT_STEP, value: guard.draft ?? LIMIT_START, inset }
319}
320
321/** The drag region over a dial: an absolute layer spanning it, where the pointer carries the knob. */
322function dragLayerOf(ui: { Box: Box; Client: ElementConstructor<ClientProps> }, guard: GuardView, quota: Quota, inset: number): RenderElement {
323  const { Box, Client } = ui
324
325  return (
326    <Box position="absolute" top={0} left={0} right={0} bottom={0}>
327      <Client key={`dial-drag:${quota.kind}`} module="./dial-drag.tsx" props={dragPropsOf(guard, inset)} width="100%" height="100%" />
328    </Box>
329  )
330}
331
332/** The ✓ disc's size, in CSS pixels. */
333const CONFIRM_PX = 24
334/** The picker's capsule: the quota capsule drawn wide, and the air above and below it for the click layer. */
335const DIAL_TRACK_PX = 12
336const DIAL_PAD_PX = 3
337/** Cells on each side of the picker's capsule, the same both sides, so the capsule stands in the middle. */
338const DIAL_SIDE = 26
339
340/**
341 * A window's limit picker on the desktop, in the quota row's place: the
342 * window's capsule drawn wide and centred, the window on its left and, on
343 * its right, the limit it shows, the percent under the pointer, `Remove`
344 * while a limit shows, and the ✓ that keeps it and brings the two windows
345 * back. A click on the capsule puts the notch there; another moves it.
346 * Opening, the capsule grows out of its middle, a gleam runs along it and
347 * the notch drops in; the ✓ pops in after.
348 */
349export function desktopLimitPicker(
350  ui: { Box: Box; Text: Text; Button: Button; Svg: ElementConstructor<SvgProps> },
351  guard: GuardView,
352  quota: Quota,
353  marginTop: number,
354): RenderElement {
355  const { Box, Text, Button, Svg } = ui
356  const value = guard.draft === null ? 'no limit' : `${guard.draft}%`
357
358  return (
359    <Box key={`editor:${quota.kind}`} flexDirection="row" gap={1} alignItems="center" marginTop={marginTop}>
360      <Box width={DIAL_SIDE} flexShrink={0} flexDirection="row" justifyContent="flex-end">
361        <Text bold color={hexOf(AMBER)}>
362          {`⚑ ${quota.label}`}
363        </Text>
364      </Box>
365      <Box key={`dial:${quota.kind}`} position="relative" flexShrink={0}>
366        <Svg
367          source={quotaBarOf(
368            {
369              kind: quota.kind,
370              remaining: quota.remaining,
371              color: quotaColorOf(quota.remaining),
372              ...(guard.draft === null ? {} : { limit: guard.draft }),
373              limitFrom: guard.draftFrom,
374              isGrowing: guard.isOpening,
375              isLanding: guard.isOpening,
376              padY: DIAL_PAD_PX,
377            },
378            DIAL_PX,
379            DIAL_TRACK_PX,
380          )}
381          alt={`${quota.label}: ${remainingTextOf(quota.remaining)}, ${guard.draft === null ? 'no limit' : `pause at ${guard.draft}% left`}`}
382          width={DIAL_PX}
383          height={DIAL_TRACK_PX + DIAL_PAD_PX * 2}
384        />
385        {clickLayerOf(ui, guard, quota)}
386      </Box>
387      <Box width={DIAL_SIDE} flexShrink={0} flexDirection="row" gap={1} alignItems="center">
388        <Box key={`dial-value:${quota.kind}`} flexShrink={0}>
389          <Text bold color={hexOf(AMBER)}>
390            {value}
391          </Text>
392        </Box>
393        {hoverReadoutOf(ui, quota)}
394        {guard.draft === null ? null : (
395          <Button key={`limit-off:${quota.kind}`} plain dimColor onPress={guard.onClear}>
396            Remove
397          </Button>
398        )}
399        <Box key={`confirm:${quota.kind}`} position="relative" flexShrink={0}>
400          <Svg source={confirmMarkOf(CONFIRM_PX, guard.isOpening)} alt="Validate the limit" width={CONFIRM_PX} height={CONFIRM_PX} />
401          <Box position="absolute" top={0} left={0} right={0} bottom={0} justifyContent="center" alignItems="center">
402            <Button key={`limit-confirm:${quota.kind}`} plain autoFocus onPress={guard.onConfirm}>
403              {BLANK_LABEL}
404            </Button>
405          </Box>
406        </Box>
407      </Box>
408    </Box>
409  )
410}
411
412/** The terminal dial's cells. */
413const DIAL_CELLS = 32
414
415/**
416 * A window's limit picker on the terminal, in the quota row's place: `◀`,
417 * a cell dial with its amber zone and knob (the mouse drags it where the
418 * terminal reports one), `▶`, the value, `Remove`, and the ✓ that keeps it.
419 */
420export function terminalLimitPicker(
421  ui: { Box: Box; Text: Text; Button: Button; Raster: ElementConstructor<RasterProps>; Client: ElementConstructor<ClientProps> },
422  guard: GuardView,
423  quota: Quota,
424): RenderElement {
425  const { Box, Text, Button, Raster } = ui
426
427  return (
428    <Box key={`editor:${quota.kind}`} flexDirection="row" gap={1}>
429      <Text bold color={hexOf(AMBER)}>
430        {`⚑ ${quota.label}`}
431      </Text>
432      <Button key={`nudge:${quota.kind}:down`} plain hotkey="h" onPress={() => guard.onNudge(-1)}>
433        ◀
434      </Button>
435      <Box key={`dial-box:${quota.kind}`} position="relative" flexShrink={0}>
436        <Raster
437          key={`dial:${quota.kind}`}
438          columns={DIAL_CELLS}
439          rows={1}
440          cells={encodeRows([limitDialCells(quota.remaining, guard.draft ?? LIMIT_START, quotaColorOf(quota.remaining), DIAL_CELLS, quota.kind)])}
441        />
442        {dragLayerOf(ui, guard, quota, 1)}
443      </Box>
444      <Button key={`nudge:${quota.kind}:up`} plain hotkey="l" onPress={() => guard.onNudge(1)}>
445        ▶
446      </Button>
447      <Text color={hexOf(AMBER)}>{guard.draft === null ? 'no limit' : `pause at ${guard.draft}%`}</Text>
448      {guard.draft === null ? null : (
449        <Button key={`limit-off:${quota.kind}`} plain dimColor onPress={guard.onClear}>
450          Remove
451        </Button>
452      )}
453      <Button key={`limit-confirm:${quota.kind}`} variant="primary" hotkey="s" autoFocus onPress={guard.onConfirm}>
454        ✓
455      </Button>
456    </Box>
457  )
458}
459

1/**
2 * The band's colors. Raster cells take `0x00RRGGBB` numbers; Text and Svg
3 * take the same colors as `#rrggbb` strings.
4 */
5
6/** A color as a Raster cell takes it: `0x00RRGGBB`. */
7export type Rgb = number
8
9/** The terminal's own color, as a Raster cell spells it. */
10export const DEFAULT_COLOR: Rgb = 0x01000000
11
12/** The lavender of a running plan: its chip, its dot, its brightest pixels. */
13export const LAVENDER: Rgb = 0xa99cf6
14/** The chip's ground on the terminal, a shade deeper so white text reads on it. */
15export const LAVENDER_DEEP: Rgb = 0x8473ea
16/** The faintest pixels of the dither, far from the head. */
17export const LAVENDER_DIM: Rgb = 0x6a6390
18
19/** The amber of a pause at a limit: the alert, and the plans it holds. */
20export const AMBER: Rgb = 0xf5a524
21export const AMBER_BRIGHT: Rgb = 0xffdc9a
22export const AMBER_DEEP: Rgb = 0xc77d0a
23export const AMBER_DIM: Rgb = 0x5c4520
24
25/** The indigo of a pause that waits for the window to reset. */
26export const INDIGO: Rgb = 0x818cf8
27export const INDIGO_BRIGHT: Rgb = 0xd4dafe
28
29/** The emerald of a finished plan. */
30export const EMERALD: Rgb = 0x34d399
31export const EMERALD_DEEP: Rgb = 0x149a6c
32export const EMERALD_DIM: Rgb = 0x2c6b56
33
34/** The track the bar runs in, on the terminal. */
35export const TRACK: Rgb = 0x2c2c33
36/** The percent, the ✕ and the other quiet text. */
37export const MUTED: Rgb = 0x9a9aa3
38
39/** The header's rule, from its bright end to its faded one. */
40export const RULE_FROM: Rgb = 0x7c6cf0
41export const RULE_TO: Rgb = 0x26263a
42
43export const WHITE: Rgb = 0xffffff
44/** What the ✕ turns to under the pointer. */
45export const DANGER: Rgb = 0xf87171
46
47/** `#rrggbb`, as Text and Svg take a color. */
48export function hexOf(color: Rgb): string {
49  return `#${(color & 0xffffff).toString(16).padStart(6, '0')}`
50}
51
52/** The color `t` (0 to 1) of the way from `a` to `b`, channel by channel. */
53export function mix(a: Rgb, b: Rgb, t: number): Rgb {
54  const k = Math.max(0, Math.min(1, t))
55  const channel = (shift: number) => {
56    const from = (a >> shift) & 0xff
57    const to = (b >> shift) & 0xff
58
59    return Math.round(from + (to - from) * k) & 0xff
60  }
61
62  return (channel(16) << 16) | (channel(8) << 8) | channel(0)
63}
64
65/** A stable pseudo-random number in [0, 1) for three integers: the dither's coin. */
66export function noise(a: number, b: number, c: number): number {
67  let h = Math.imul(a ^ 0x9e3779b9, 0x85ebca6b) ^ Math.imul(b + 0x632be59b, 0xc2b2ae35) ^ Math.imul(c + 0x27d4eb2f, 0x165667b1)
68
69  h ^= h >>> 15
70  h = Math.imul(h, 0x2c1b3c6d)
71  h ^= h >>> 12
72  h = Math.imul(h, 0x297a2d39)
73  h ^= h >>> 15
74
75  return (h >>> 0) / 4294967296
76}
77
78/** A small integer seed from a plan's id, so each bar has its own grain. */
79export function seedOf(id: string): number {
80  let h = 0x811c9dc5
81
82  for (const char of id) {
83    h = Math.imul(h ^ (char.codePointAt(0) ?? 0), 0x01000193)
84  }
85
86  return h >>> 0
87}
88

1import { DEFAULT_COLOR, type Rgb } from './palette'
2
3/** One Raster cell: a width-1 glyph, its color and its ground. */
4export type Cell = {
5  glyph: string
6  fg: Rgb
7  bg: Rgb
8}
9
10/** A cell with the terminal's own ground. */
11export function cellOf(glyph: string, fg: Rgb, bg: Rgb = DEFAULT_COLOR): Cell {
12  return { glyph, fg, bg }
13}
14
15/** A blank cell: a space on the terminal's own ground. */
16export const BLANK: Cell = cellOf(' ', DEFAULT_COLOR)
17
18/** `text` as cells, one per character, all in one color and ground. */
19export function textCells(text: string, fg: Rgb, bg: Rgb = DEFAULT_COLOR): Cell[] {
20  return [...text].map(glyph => cellOf(glyph, fg, bg))
21}
22
23/** `cells` cut or padded with blanks to exactly `width`. */
24export function fitted(cells: readonly Cell[], width: number): Cell[] {
25  const out = cells.slice(0, width)
26
27  while (out.length < width) {
28    out.push(BLANK)
29  }
30
31  return out
32}
33
34const ALPHABET = 'ABCDEFGHIJKLMNOPQRSTUVWXYZabcdefghijklmnopqrstuvwxyz0123456789+/'
35
36/** Standard padded base64 of `bytes`. */
37export function base64Of(bytes: Uint8Array): string {
38  let out = ''
39
40  for (let i = 0; i < bytes.length; i += 3) {
41    const a = bytes[i] ?? 0
42    const b = bytes[i + 1] ?? 0
43    const c = bytes[i + 2] ?? 0
44    const n = (a << 16) | (b << 8) | c
45    const left = bytes.length - i
46
47    out += ALPHABET[(n >> 18) & 63]
48    out += ALPHABET[(n >> 12) & 63]
49    out += left > 1 ? ALPHABET[(n >> 6) & 63] : '='
50    out += left > 2 ? ALPHABET[n & 63] : '='
51  }
52
53  return out
54}
55
56/**
57 * The `cells` prop of a Raster for `rows` (row-major, each row as wide as
58 * the first): little-endian u32 triplets `[codePoint, fg, bg]`, base64.
59 */
60export function encodeRows(rows: readonly (readonly Cell[])[]): string {
61  const count = rows.reduce((sum, row) => sum + row.length, 0)
62  const view = new DataView(new ArrayBuffer(count * 12))
63  let offset = 0
64
65  for (const row of rows) {
66    for (const cell of row) {
67      view.setUint32(offset, cell.glyph.codePointAt(0) ?? 0x20, true)
68      view.setUint32(offset + 4, cell.fg >>> 0, true)
69      view.setUint32(offset + 8, cell.bg >>> 0, true)
70      offset += 12
71    }
72  }
73
74  return base64Of(new Uint8Array(view.buffer))
75}
76
77/** The text a Raster's `cells` draw, row by row: what a test reads back. */
78export function decodeText(cells: string, columns: number): string[] {
79  const binary = atobBytes(cells)
80  const view = new DataView(binary.buffer)
81  const rows: string[] = []
82  let row = ''
83
84  for (let offset = 0; offset + 12 <= binary.length; offset += 12) {
85    row += String.fromCodePoint(view.getUint32(offset, true))
86
87    if ([...row].length === columns) {
88      rows.push(row)
89      row = ''
90    }
91  }
92
93  return rows
94}
95
96function atobBytes(text: string): Uint8Array {
97  const clean = text.replace(/=+$/, '')
98  const bytes = new Uint8Array(Math.floor((clean.length * 3) / 4))
99  let bits = 0
100  let value = 0
101  let index = 0
102
103  for (const char of clean) {
104    value = (value << 6) | ALPHABET.indexOf(char)
105    bits += 6
106
107    if (bits >= 8) {
108      bits -= 8
109      bytes[index] = (value >> bits) & 0xff
110      index += 1
111    }
112  }
113
114  return bytes
115}
116

1import { AMBER, AMBER_BRIGHT, AMBER_DIM, EMERALD, EMERALD_DEEP, hexOf, INDIGO, INDIGO_BRIGHT, mix, noise, WHITE, type Rgb } from '../palette'
2
3/** Which pause is drawn: at the limit, waiting for a choice; or saved, waiting for the reset. */
4export type AlertPhase = 'alert' | 'waiting'
5
6/** The two looks of the alert. */
7type Look = { color: Rgb; bright: Rgb; dim: Rgb }
8
9const LOOKS: Record<AlertPhase, Look> = {
10  alert: { color: AMBER, bright: AMBER_BRIGHT, dim: AMBER_DIM },
11  waiting: { color: INDIGO, bright: INDIGO_BRIGHT, dim: 0x2d3160 },
12}
13
14/**
15 * The alert's emblem: a breathing glow, three sonar rings rippling out, a
16 * comet arc circling a dark core, and in the core a pause sign (at the
17 * limit) or a clock whose hand sweeps (waiting for the reset, its arc
18 * then the share of the wait already gone).
19 */
20export function alertRingOf(phase: AlertPhase, size: number, waited: number): string {
21  const look = LOOKS[phase]
22  const c = size / 2
23  const color = hexOf(look.color)
24  const bright = hexOf(look.bright)
25  const track = size * 0.33
26  const circumference = 2 * Math.PI * track
27  const pulses = [0, 0.8, 1.6]
28    .map(
29      begin =>
30        `<circle cx="${c}" cy="${c}" r="${size * 0.2}" fill="none" stroke="${color}" stroke-width="1.5">` +
31        `<animate attributeName="r" values="${size * 0.2};${size * 0.49}" dur="2.4s" begin="${begin}s" repeatCount="indefinite"/>` +
32        `<animate attributeName="stroke-opacity" values="0.8;0" dur="2.4s" begin="${begin}s" repeatCount="indefinite"/>` +
33        `</circle>`,
34    )
35    .join('')
36  const arc =
37    phase === 'waiting'
38      ? `<circle cx="${c}" cy="${c}" r="${track}" fill="none" stroke="url(#ag)" stroke-width="2.6" stroke-linecap="round" ` +
39        `stroke-dasharray="${(circumference * Math.max(0.02, Math.min(1, waited))).toFixed(1)} ${circumference.toFixed(1)}" transform="rotate(-90 ${c} ${c})"/>`
40      : `<g class="sp"><circle cx="${c}" cy="${c}" r="${track}" fill="none" stroke="url(#ag)" stroke-width="2.6" stroke-linecap="round" ` +
41        `stroke-dasharray="${(circumference * 0.28).toFixed(1)} ${circumference.toFixed(1)}"/></g>`
42  const core =
43    phase === 'waiting'
44      ? `<line x1="${c}" y1="${c}" x2="${c}" y2="${c - size * 0.13}" stroke="#fff" stroke-width="2" stroke-linecap="round">` +
45        `<animateTransform attributeName="transform" type="rotate" from="0 ${c} ${c}" to="360 ${c} ${c}" dur="6s" repeatCount="indefinite"/></line>` +
46        `<line x1="${c}" y1="${c}" x2="${c + size * 0.09}" y2="${c}" stroke="#fff" stroke-opacity="0.75" stroke-width="2" stroke-linecap="round"/>` +
47        `<circle cx="${c}" cy="${c}" r="1.6" fill="#fff"/>`
48      : `<rect x="${c - size * 0.1}" y="${c - size * 0.12}" width="${size * 0.07}" height="${size * 0.24}" rx="${size * 0.03}" fill="#fff"/>` +
49        `<rect x="${c + size * 0.03}" y="${c - size * 0.12}" width="${size * 0.07}" height="${size * 0.24}" rx="${size * 0.03}" fill="#fff"/>`
50
51  return (
52    `<svg xmlns="http://www.w3.org/2000/svg" width="${size}" height="${size}" viewBox="0 0 ${size} ${size}">` +
53    `<style>@keyframes sp{to{transform:rotate(360deg)}}.sp{transform-origin:${c}px ${c}px;animation:sp 2.6s linear infinite}` +
54    `@keyframes gl{0%,100%{opacity:.45}50%{opacity:1}}.gl{animation:gl 2.4s ease-in-out infinite}</style>` +
55    `<defs>` +
56    `<radialGradient id="ah"><stop offset="0" stop-color="${color}" stop-opacity="0.55"/><stop offset="1" stop-color="${color}" stop-opacity="0"/></radialGradient>` +
57    `<linearGradient id="ag" x1="0" x2="1" y1="0" y2="1"><stop offset="0" stop-color="${bright}"/><stop offset="1" stop-color="${color}"/></linearGradient>` +
58    `<radialGradient id="ac" cx="0.4" cy="0.35"><stop offset="0" stop-color="${hexOf(mix(look.dim, look.color, 0.45))}"/><stop offset="1" stop-color="${hexOf(look.dim)}"/></radialGradient>` +
59    `</defs>` +
60    `<circle class="gl" cx="${c}" cy="${c}" r="${c}" fill="url(#ah)"/>` +
61    pulses +
62    `<circle cx="${c}" cy="${c}" r="${track}" fill="none" stroke="#fff" stroke-opacity="0.12" stroke-width="2.6"/>` +
63    arc +
64    `<circle cx="${c}" cy="${c}" r="${size * 0.24}" fill="url(#ac)" stroke="#fff" stroke-opacity="0.2"/>` +
65    core +
66    `</svg>`
67  )
68}
69
70/**
71 * The alert's wave: a strip of LEDs where a crest of light travels left to
72 * right without end, each column a beat later than the one before, each
73 * LED its own brightness, over a faint wash.
74 */
75export function alertWaveOf(phase: AlertPhase, width: number, height: number): string {
76  const look = LOOKS[phase]
77  const led = 2
78  const pitch = 3
79  const rows = Math.max(1, Math.floor((height - 1) / pitch))
80  const top = Math.round((height - rows * pitch + (pitch - led)) / 2)
81  const period = phase === 'alert' ? 1.9 : 3.2
82  let columns = ''
83
84  for (let x = 1, column = 0; x + led <= width - 1; x += pitch, column += 1) {
85    let d = ''
86
87    for (let row = 0; row < rows; row += 1) {
88      if (noise(97, column * 13 + row, 1) < 0.78) {
89        d += `M${x} ${top + row * pitch}h${led}v${led}h-${led}z`
90      }
91    }
92
93    if (d === '') {
94      continue
95    }
96
97    const delay = (-(1 - x / width) * period * 2).toFixed(2)
98    const shade = hexOf(mix(look.dim, look.bright, 0.35 + 0.65 * noise(97, column, 2)))
99
100    columns += `<path d="${d}" fill="${shade}" class="w" style="animation-delay:${delay}s"/>`
101  }
102
103  return (
104    `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${height}" viewBox="0 0 ${width} ${height}">` +
105    `<style>@keyframes wv{0%,100%{opacity:.12}50%{opacity:1}}.w{animation:wv ${period * 2}s ease-in-out infinite}</style>` +
106    `<defs><linearGradient id="aw" x1="0" x2="1"><stop offset="0" stop-color="${hexOf(look.color)}" stop-opacity="0"/>` +
107    `<stop offset="0.5" stop-color="${hexOf(look.color)}" stop-opacity="0.16"/><stop offset="1" stop-color="${hexOf(look.color)}" stop-opacity="0"/></linearGradient></defs>` +
108    `<rect x="0" y="0" width="${width}" height="${height}" rx="${height / 2}" fill="url(#aw)"/>` +
109    columns +
110    `</svg>`
111  )
112}
113
114/** An animation that plays once, `begin` seconds in, and holds its end. */
115function once(attribute: string, values: string, begin: number, dur: number, extra = ''): string {
116  return `<animate attributeName="${attribute}" values="${values}" begin="${begin.toFixed(2)}s" dur="${dur.toFixed(2)}s" fill="freeze"${extra}/>`
117}
118
119/**
120 * The picker's validate mark: an emerald disc with a soft breathing halo, a
121 * glass highlight and a white check. Opening, the disc pops in after the
122 * dial and the check draws itself stroke by stroke.
123 */
124export function confirmMarkOf(size: number, isOpening: boolean): string {
125  const c = size / 2
126  const r = size * 0.36
127  const check = `M${(c - r * 0.45).toFixed(1)} ${(c + r * 0.02).toFixed(1)} L${(c - r * 0.1).toFixed(1)} ${(c + r * 0.36).toFixed(1)} L${(c + r * 0.5).toFixed(1)} ${(c - r * 0.34).toFixed(1)}`
128  const length = (r * 1.45).toFixed(1)
129
130  return (
131    `<svg xmlns="http://www.w3.org/2000/svg" width="${size}" height="${size}" viewBox="0 0 ${size} ${size}">` +
132    `<style>@keyframes hb{0%,100%{opacity:.35}50%{opacity:.8}}.hb{animation:hb 2.4s ease-in-out infinite}</style>` +
133    `<defs>` +
134    `<radialGradient id="ch"><stop offset="0" stop-color="${hexOf(EMERALD)}" stop-opacity="0.6"/><stop offset="1" stop-color="${hexOf(EMERALD)}" stop-opacity="0"/></radialGradient>` +
135    `<linearGradient id="cd" x1="0" x2="0" y1="0" y2="1"><stop offset="0" stop-color="${hexOf(mix(EMERALD, WHITE, 0.25))}"/><stop offset="1" stop-color="${hexOf(EMERALD_DEEP)}"/></linearGradient>` +
136    `</defs>` +
137    `<g transform="translate(${c} ${c})"><g${isOpening ? ' transform="scale(0)"' : ''}>` +
138    (isOpening
139      ? `<animateTransform attributeName="transform" type="scale" values="0;1.18;1" keyTimes="0;0.6;1" begin="0.62s" dur="0.42s" fill="freeze"/>`
140      : '') +
141    `<g transform="translate(${-c} ${-c})">` +
142    `<circle class="hb" cx="${c}" cy="${c}" r="${c}" fill="url(#ch)"/>` +
143    `<circle cx="${c}" cy="${c}" r="${r}" fill="url(#cd)"/>` +
144    `<ellipse cx="${c}" cy="${(c - r * 0.45).toFixed(1)}" rx="${(r * 0.62).toFixed(1)}" ry="${(r * 0.32).toFixed(1)}" fill="#fff" fill-opacity="0.22"/>` +
145    `<circle cx="${c}" cy="${c}" r="${(r - 0.5).toFixed(1)}" fill="none" stroke="#fff" stroke-opacity="0.3"/>` +
146    `<path d="${check}" fill="none" stroke="#fff" stroke-width="${(size * 0.09).toFixed(2)}" stroke-linecap="round" stroke-linejoin="round"` +
147    (isOpening
148      ? ` stroke-dasharray="${length}" stroke-dashoffset="${length}">` + once('stroke-dashoffset', `${length};0`, 0.9, 0.32, ' calcMode="spline" keyTimes="0;1" keySplines="0.4 0 0.2 1"') + `</path>`
149      : '/>') +
150    `</g></g></g>` +
151    `</svg>`
152  )
153}
154
