Wavy Usage

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { LogEntry, Reading, Turn } from '../types'
5import type { Lang, Strings } from './i18n'
6import { resolveLang, STRINGS } from './i18n'
7import type { Group, Sample, WindowView } from './model'
8import {
9  addSample,
10  bandLayout,
11  breakdown,
12  cacheState,
13  clockTime,
14  costText,
15  countdown,
16  COUNTDOWN_STEP,
17  ctxDeltaText,
18  fiveDeltaText,
19  dayClock,
20  FIVE_HOURS,
21  forecast,
22  heat,
23  isStaleLog,
24  isUnknown,
25  nudge,
26  nudgeText,
27  parseTtl,
28  percentText,
29  projectName,
30  recentTurns,
31  ringStep,
32  recordTurn,
33  SEVEN_DAYS,
34  SETTLE_MS,
35  settleTurn,
36  syncLog,
37  takeReading,
38  tokens,
39  TTL_1H,
40  TTL_5M,
41  ttlText,
42  turnsSummary,
43  turnTotal,
44  upgradeTurn,
45  windowElapsed,
46  windowStart,
47  windowTotals,
48} from './model'
49import type { JetLevel } from './jet'
50import { jetLevel, jetStrip } from './jet'
51import { COLORS, liquidRing, resetBar, SEGMENTS, ttlColor, turnBar } from './svg'
52import { terminalParts } from './terminal'
53

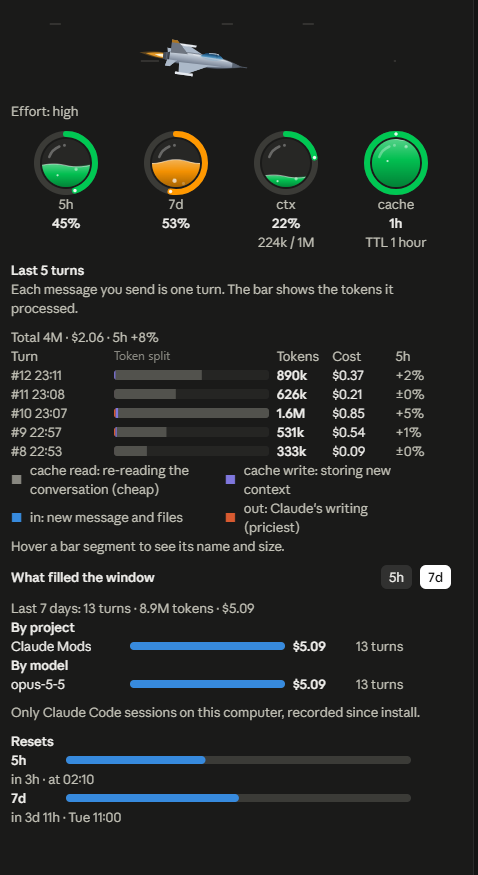

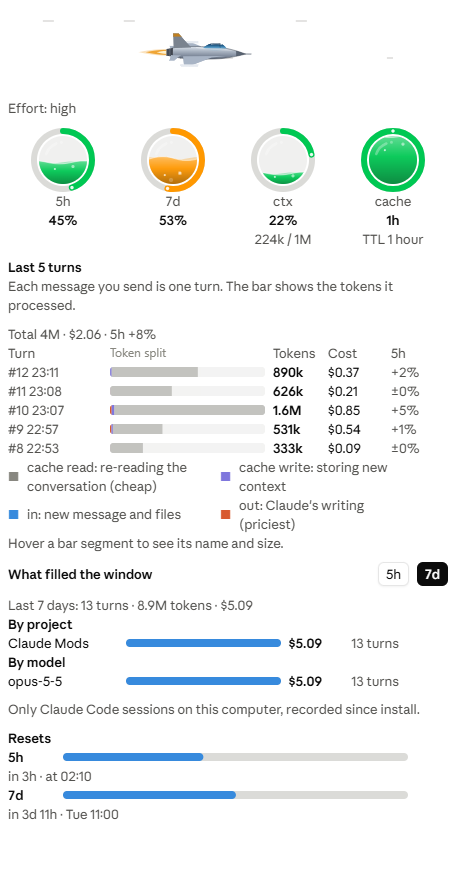

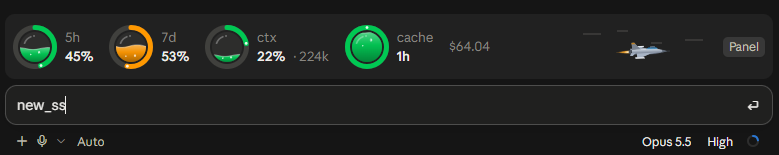

54// Limit windows, context fill, cache warmth and cost: rings above the prompt, detail in a side pane.
55// The figures arrive on session.measure and turn.complete (what the last API response already reported): no extra
56// requests, no tokens. Svg rings and a pane on desktop, a one-line text band in the terminal. Strings live in i18n.ts.
57
58const MOD = 'wavy-usage'
59const PANE = 'wavy-usage'
60const ENABLED_KEY = 'wavy-usage:enabled'
61const TTL_KEY = 'wavy-usage:ttl'
62const LOG_PREFIX = 'wavy-usage:log:'
63const EFFORT_KEY = 'wavy-usage:effort'
64const TICK_MS = 60 * 1000
65// While a long prompt runs, the band and the pane catch up with new measurements at most this often.
66const LIVE_MS = 2 * 60 * 1000
67// Band rings at 2x: the text keeps the app's size (Text has no size prop), the ring grows.
68const BAND_RING = 44
69const BAND_STROKE = 5
70const JET_W = 130
71const JET_H = 44
72const JET_SCALE = 1.25
73const JET_PANE_H = 84
74const JET_PANE_SCALE = 2.6
75// The terminal tag takes the flame's color family.
76const JET_TERMINAL_COLOR: Record<JetLevel, string> = { low: 'magenta', medium: 'red', high: 'yellow', xhigh: 'yellow', max: 'cyan' }
77
78const reading = atom({ plugin: 'wavy-usage', key: 'reading' } as const, null as Reading | null)
79// What the band and the pane draw, published in one piece: once when a prompt finishes (after the measurement that
80// settles it), never on mid-turn or idle measurements. One publish is one redraw; an identical one is skipped.
81type Screen = { reading: Reading | null; turns: Turn[]; lastRequestAt: number | null; log: LogEntry[] }
82const screen = atom({ plugin: 'wavy-usage', key: 'screen' } as const, { reading: null, turns: [], lastRequestAt: null, log: [] } as Screen)
83const history = atom({ plugin: 'wavy-usage', key: 'history' } as const, [] as Turn[])
84const isPaneOpen = atom({ plugin: 'wavy-usage', key: 'isPaneOpen' } as const, false)
85const isEnabled = atom({ plugin: 'wavy-usage', key: 'isEnabled' } as const, true)
86const lastRequestAt = atom({ plugin: 'wavy-usage', key: 'lastRequestAt' } as const, null as number | null)
87const ttlMs = atom({ plugin: 'wavy-usage', key: 'ttlMs' } as const, TTL_1H)
88const log = atom({ plugin: 'wavy-usage', key: 'log' } as const, [] as LogEntry[])
89const others = atom({ plugin: 'wavy-usage', key: 'others' } as const, [] as LogEntry[])
90const windowView = atom({ plugin: 'wavy-usage', key: 'windowView' } as const, '5h' as WindowView)
91// The main loop's effort, from turn.step; the last one seen is kept so a new session shows the jet before its first request.
92const effort = atom({ plugin: 'wavy-usage', key: 'effort' } as const, null as JetLevel | null)
93// The session's cost when it started (0 when new, the restored total when resumed): the first turn's cost counts from it.
94const costBase = atom({ plugin: 'wavy-usage', key: 'costBase' } as const, undefined as number | undefined)
95// The 5-hour percent over the last hour, for the pane's run-out forecast.
96const samples = atom({ plugin: 'wavy-usage', key: 'samples' } as const, [] as Sample[])
97
98let disabled = false
99let nudgedAt = 0
100let hasLoggedRenderError = false
101let lastTurnEnd = 0
102let lastFace = ''
103let lastMeasureAt = 0
104let lastPublishAt = 0
105let awaitingSettle = false
106let sessionId = '?'
107let project = '?'
108let lang: Lang = 'en'
109let t: Strings = STRINGS.en
110
111// Each ring's last move: the liquid slides from `from` to `to`. A redraw at the same level returns the same `from`, so
112// the Svg source stays byte-identical and the desktop keeps its frame instead of reloading it (a reload blinks and
113// restarts the waves). Keys are language-neutral.
114const lastLevel = new Map<string, { from: number; to: number }>()
115
116const levelFrom = (key: string, percent: number | undefined): number => {
117  const to = percent ?? 0
118  const last = lastLevel.get(key)
119  if (last && last.to === to) return last.from
120  const from = last?.to ?? 0
121  lastLevel.set(key, { from, to })
122  return from
123}
124
125const shownName = (name: string): string => (isUnknown(name) ? t.unknown : name)
126
127// CLAUDE_MODS_DISABLE=all, or wavy-usage in its comma list: every hook passes through and no command is registered.
128const readDisabled = async ($: EngineInterface): Promise<boolean> => {
129  const raw = (await $.env.get('CLAUDE_MODS_DISABLE').catch(() => undefined)) ?? ''
130  disabled = raw
131    .split(',')
132    .map(v => v.trim())
133    .some(v => v === 'all' || v === MOD)
134  return disabled
135}
136
137const logRenderError = ($: EngineInterface, err: unknown): void => {
138  if (hasLoggedRenderError) return
139  hasLoggedRenderError = true
140  $.ui.log(`wavy-usage: render failed, fell back to the engine's drawing: ${err}`)
141}
142
143// Other sessions' logs: read once when the pane opens and when the tab changes; stale keys are deleted.
144const loadOthers = async ($: EngineInterface): Promise<void> => {
145  const now = await $.clock.now()
146  const own = LOG_PREFIX + sessionId
147  const keys = (await $.store.keys().catch(() => [] as string[])).filter(k => k.startsWith(LOG_PREFIX) && k !== own)
148  const all: LogEntry[] = []
149  for (const key of keys) {
150    const entries = await $.store.get(key).catch(() => undefined)
151    if (isStaleLog(entries, now)) {
152      await $.store.delete(key).catch(() => undefined)
153      continue
154    }
155    all.push(...(entries as LogEntry[]))
156  }
157  await update($, others, () => all)
158}
159
160// This session's last turn (new, or corrected by a settle) is written to the log and to $.store.
161const syncOwnLog = async ($: EngineInterface): Promise<void> => {
162  const h = await read($, history)
163  const last = h.at(-1)
164  if (!last) return
165  const sessionModel = await $.session.model().catch(() => undefined)
166  const next = syncLog(await read($, log), last, h.at(-2), project, sessionModel, await read($, costBase))
167  await update($, log, () => next)
168  await $.store.set(LOG_PREFIX + sessionId, next).catch(() => undefined)
169}
170
171const openPane = async ($: EngineInterface): Promise<void> => {
172  await $.ui.open({ id: PANE, title: t.paneTitle })
173  await update($, isPaneOpen, () => true)
174  await loadOthers($)
175}
176
177// Always close through $.ui.close: the ui.close hook clears isPaneOpen the same way as when the person closes it.
178// It is cleared here too in case the plugin's own call skips its own hook.
179const closePane = async ($: EngineInterface): Promise<void> => {
180  await $.ui.close({ id: PANE })
181  await update($, isPaneOpen, () => false)
182}
183
184const togglePane = async ($: EngineInterface): Promise<void> =>
185  (await read($, isPaneOpen)) ? closePane($) : openPane($)
186
187const switchWindow = async ($: EngineInterface, view: WindowView): Promise<void> => {
188  await update($, windowView, () => view)
189  await loadOthers($)
190}
191
192const publish = async ($: EngineInterface): Promise<void> => {
193  const next: Screen = {
194    reading: await read($, reading),
195    turns: await read($, history),
196    lastRequestAt: await read($, lastRequestAt),
197    log: await read($, log),
198  }
199  if (JSON.stringify(await read($, screen)) === JSON.stringify(next)) return
200  await update($, screen, () => next)
201  lastPublishAt = await $.clock.now()
202}
203
204// The time-driven figures as drawn now, or null while the band is off.
205const clockFace = async ($: EngineInterface): Promise<string | null> => {
206  if (!(await read($, isEnabled))) return null
207  const now = await $.clock.now()
208  const shownNow = await read($, screen)
209  const cache = cacheState(shownNow.lastRequestAt, await read($, ttlMs), now, t)
210  const parts = [cache === null ? '' : `${ringStep(cache.percent)} ${cache.text}`]
211  if (await read($, isPaneOpen)) {
212    const r = shownNow.reading
213    for (const at of [r?.fiveHourResetsAt, r?.sevenDayResetsAt]) {
214      if (at !== undefined) parts.push(countdown(at - now, t.units, COUNTDOWN_STEP))
215    }
216  }
217  return parts.join('|')
218}
219
220export const register: Register = (on, options) => {
221  on('session.start', async ($, e, next) => {
222    const r = await next(e)
223    // Module variables start clean on every load (and in every test of a file).
224    nudgedAt = 0
225    lastTurnEnd = 0
226    lastFace = ''
227    lastMeasureAt = 0
228    lastPublishAt = 0
229    awaitingSettle = false
230    hasLoggedRenderError = false
231    lastLevel.clear()
232    if (await readDisabled($)) return r
233    // Language: userConfig > Claude Code's language setting > system locale > English.
234    const rows = await $.config.list().catch(() => [])
235    const claudeLanguage = rows.find(row => row.key === 'language')?.value
236    lang = resolveLang(options.language, claudeLanguage, Intl.DateTimeFormat().resolvedOptions().locale)
237    t = STRINGS[lang]
238    const stored = await $.store.get(ENABLED_KEY).catch(() => undefined)
239    await update($, isEnabled, () => stored !== false)
240    // A hot reload keeps $.state: turns from earlier versions with a single cache field are upgraded.
241    await update($, history, h => h.map(turn => upgradeTurn(turn)))
242    // Taken before the first turn only: a hot reload mid-session keeps the base it had.
243    if ((await read($, history)).length === 0) {
244      const startUsd = (await $.session.usage().catch(() => undefined))?.cost?.usd
245      await update($, costBase, () => startUsd)
246    }
247    sessionId = await $.session.id().catch(() => '?')
248    project = projectName((await $.session.cwd().catch(() => undefined)) ?? '')
249    // A restart or a compact starts $.state empty: this session's earlier turns come back from $.store, or the next
250    // turn would overwrite them.
251    if ((await read($, log)).length === 0) {
252      const saved = await $.store.get(LOG_PREFIX + sessionId).catch(() => undefined)
253      if (Array.isArray(saved)) await update($, log, () => saved as LogEntry[])
254    }
255    const ttl = await $.store.get(TTL_KEY).catch(() => undefined)
256    await update($, ttlMs, () => (ttl === TTL_5M ? TTL_5M : TTL_1H))
257    const lastEffort = await $.store.get(EFFORT_KEY).catch(() => undefined)
258    await update($, effort, () => jetLevel(lastEffort))
259    await loadOthers($)
260    await publish($)
261    await $.command
262      .register({
263        name: 'wavy-usage',
264        description: t.cmdDescription,
265        argumentHint: '[on | off | ttl 5m | ttl 1h]',
266        immediate: true,
267      })
268      .catch(err => $.ui.log(`wavy-usage: /wavy-usage not registered: ${err}`))
269    // Once a minute while on: the cache countdown and the pane's reset counters.
270    // Once a minute, redraw only if a time-driven figure on screen would read differently: the cache ring's step and
271    // countdown, and while the pane is open its reset countdowns. An unchanged screen is left alone.
272    $.clock.every(TICK_MS, () => {
273      void (async () => {
274        // A finished prompt whose settling measurement never came is published on the next tick.
275        if (awaitingSettle && (await $.clock.now()) - lastTurnEnd > SETTLE_MS) {
276          awaitingSettle = false
277          await publish($)
278        }
279        // Mid-prompt: newer measurements are drawn once LIVE_MS has passed since the last draw.
280        const now = await $.clock.now()
281        if (!awaitingSettle && now - lastPublishAt >= LIVE_MS) {
282          const shown = (await read($, screen)).reading
283          if (JSON.stringify(shown) !== JSON.stringify(await read($, reading))) await publish($)
284        }
285        return clockFace($)
286      })()
287        .then(face => {
288          if (face === null || face === lastFace) return
289          lastFace = face
290          $.ui.invalidate('ui.render')
291        })
292        .catch(() => undefined)
293    })
294    return r
295  })
296
297  on('session.measure', async ($, e, next) => {
298    const r = await next(e)
299    if (disabled) return r
300    const fresh = takeReading(e)
301    await update($, reading, () => fresh)
302    const at = await $.clock.now()
303    const five = fresh.fiveHour
304    if (five !== undefined) await update($, samples, s => addSample(s, five, at))
305    lastMeasureAt = at
306    const pct = fresh.ctxPercent
307    const ctxChanged = e.changed.includes('context') && pct !== undefined
308    const costChanged = e.changed.includes('cost') && fresh.usd !== undefined
309    const fiveChanged = e.changed.includes('rateLimits') && fresh.fiveHour !== undefined
310    if (ctxChanged || costChanged || fiveChanged) {
311      const now = await $.clock.now()
312      const patch = {
313        ...(ctxChanged && { ctxPercent: pct }),
314        ...(costChanged && { usd: fresh.usd }),
315        ...(fresh.fiveHour !== undefined && { fiveHour: fresh.fiveHour }),
316      }
317      await update($, history, h => settleTurn(h, patch, now))
318      await syncOwnLog($)
319    }
320    // The first reading of a session shows at once; after that only the measurement settling a finished prompt.
321    if ((await read($, screen)).reading === null || (awaitingSettle && at - lastTurnEnd <= SETTLE_MS)) {
322      awaitingSettle = false
323      await publish($)
324    }
325    if (pct === undefined || !ctxChanged) return r
326    const n = nudge(pct, nudgedAt)
327    nudgedAt = n.nudgedAt
328    if (n.shouldToast && (await read($, isEnabled))) $.ui.toast(nudgeText(pct, t), { timeoutMs: 8000 })
329    return r
330  })
331
332  // Subagent turns stay out of the history and do not refresh the main conversation's cache clock.
333  on('turn.complete', async ($, e, next) => {
334    const r = await next(e)
335    if (disabled || e.agentId || !e.usage) return r
336    const usage = e.usage
337    const current = await read($, reading)
338    const now = await $.clock.now()
339    await update($, history, h => recordTurn(h, usage, current?.ctxPercent ?? 0, current?.usd, now, current?.fiveHour))
340    await update($, lastRequestAt, () => now)
341    lastTurnEnd = now
342    await syncOwnLog($)
343    // The settling measurement may already have come (the two arrive in no fixed order): publish now. Otherwise wait
344    // for it, so the prompt's end draws once.
345    if (now - lastMeasureAt <= SETTLE_MS) await publish($)
346    else awaitingSettle = true
347    return r
348  })
349
350  // Every main-loop request names its effort: the jet follows a change on the next request.
351  on('turn.step', async function* ($, e, next) {
352    if (!disabled && !e.agentId) {
353      const level = jetLevel(e.effort)
354      if (level !== (await read($, effort).catch(() => null))) {
355        await update($, effort, () => level).catch(() => undefined)
356        await $.store.set(EFFORT_KEY, level).catch(() => undefined)
357      }
358    }
359    return yield* next(e)
360  })
361
362  on('ui.close', async ($, e, next) => {
363    const r = await next(e)
364    if (e.id === PANE) await update($, isPaneOpen, () => false)
365    return r
366  })
367
368  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e, next) => {
369    if (disabled) return next(e)
370    if (e.surface !== 'desktop') {
371      const { Text } = $.ui.resolve(e)
372      return <Text dimColor>{t.desktopOnlyPane}</Text>
373    }
374    // Closing is the desktop header's own × control; the ui.close hook clears isPaneOpen.
375    try {
376      const { Box, Button, Svg, Text } = $.ui.resolve(e)
377      const shownNow = await read($, screen)
378      const r = shownNow.reading
379      const turns = shownNow.turns
380      const now = await $.clock.now()
381      const width = Math.min(640, Math.max(160, e.props.bodyColumns * 7))
382      const recent = recentTurns(turns, await read($, costBase))
383      const scale = Math.max(0, ...recent.map(({ turn }) => turnTotal(turn)))
384      const barWidth = Math.max(60, width - 230)
385      const view = await read($, windowView)
386      const since = windowStart(view, r, now)
387      const entries = [...(await read($, others)), ...shownNow.log]
388      const totals = windowTotals(entries, since)
389      const shareWidth = Math.max(60, width - 230)
390      const ttl = await read($, ttlMs)
391      const cache = cacheState(shownNow.lastRequestAt, ttl, now, t)
392      const big = (id: string, label: string, percent: number | undefined, extra?: string, value?: string, color?: string) => (
393        <Box key={`big-${id}`} flexDirection="column" alignItems="center">
394          <Svg
395            source={liquidRing(percent, 64, 6, levelFrom(`pane-${id}`, percent), color)}
396            alt={`${label} ${value ?? percentText(percent)}`}
397            width={64}
398            height={64}
399            isInteractive
400          />
401          <Text dimColor>{label}</Text>
402          <Text bold>{value ?? percentText(percent)}</Text>
403          {extra !== undefined && <Text dimColor>{extra}</Text>}
404        </Box>
405      )
406      const resetWidth = Math.max(60, width - 40)
407      const paceSamples = await read($, samples)
408      // Elapsed time on the blue bar, the limit used on a thin bar under it, and where it ends up at this pace.
409      const resetRow = (label: string, at: number, length: number, clock: string, used: number | undefined, fullClock: (ms: number) => string) => {
410        const pace = forecast(used, at, length, now, length === FIVE_HOURS ? paceSamples : [])
411        return (
412          <Box key={`reset-${label}`} flexDirection="column">
413            <Box flexDirection="row" gap={1} alignItems="center">
414              <Box width={6}>
415                <Text bold>{label}</Text>
416              </Box>
417              <Box flexDirection="column">
418                <Svg source={resetBar(windowElapsed(at, now, length), resetWidth)} alt={t.elapsedAlt(label)} width={resetWidth} height={8} />
419                {used !== undefined && (
420                  <Svg source={resetBar(used / 100, resetWidth, COLORS[heat(used)], 4)} alt={t.usedAlt(label)} width={resetWidth} height={4} />
421                )}
422              </Box>
423            </Box>
424            <Text dimColor>{t.inTime(countdown(at - now, t.units, COUNTDOWN_STEP), clock)}</Text>
425            {pace?.fullAt !== undefined ? (
426              <Text color={COLORS.warn}>{t.paceFull(fullClock(pace.fullAt), countdown(at - pace.fullAt, t.units, COUNTDOWN_STEP))}</Text>
427            ) : (
428              pace && <Text dimColor>{t.paceAtReset(Math.round(pace.atReset))}</Text>
429            )}
430          </Box>
431        )
432      }
433      const groupRows = (groups: Group[]) => {
434        const max = Math.max(0, ...groups.map(g => g.usd))
435        return groups.map(g => (
436          <Box key={`g-${g.name}`} flexDirection="row" gap={1} alignItems="center">
437            <Box width={14}>
438              <Text wrap="truncate">{shownName(g.name)}</Text>
439            </Box>
440            <Svg
441              source={resetBar(max > 0 ? g.usd / max : 0, shareWidth)}
442              alt={`${shownName(g.name)}: ${g.usd > 0 ? costText(g.usd) : t.noCost}`}
443              width={shareWidth}
444              height={8}
445            />
446            <Box width={7}>
447              <Text bold>{g.usd > 0 ? costText(g.usd) : '-'}</Text>
448            </Box>
449            <Text dimColor>{t.turns(g.turns)}</Text>
450          </Box>
451        ))
452      }
453      const legend = [
454        ['in', t.legendIn, t.hintIn],
455        ['out', t.legendOut, t.hintOut],
456        ['cacheWrite', t.legendCacheWrite, t.hintCacheWrite],
457        ['cacheRead', t.legendCacheRead, t.hintCacheRead],
458      ] as const
459      const summary = turnsSummary(recent)
460      // Column widths in cells; the bar column's header spans the bar's pixels (about 7 px a cell).
461      const COL_TURN = 12
462      const COL_TOKENS = 6
463      const COL_COST = 7
464      const COL_FIVE = 7
465      // The bar column's header is drawn at the bar's own pixel width so the columns after it line up.
466      const headerCell = (label: string, w: number) =>
467        `<svg xmlns="http://www.w3.org/2000/svg" width="${w}" height="14"><text x="0" y="11" font-family="system-ui, sans-serif" font-size="12" fill="#888780">${label.replace(/&/g, '&amp;').replace(/</g, '&lt;')}</text></svg>`
468      const legendWidth = Math.max(16, Math.floor(width / 7 / 2) - 2)
469      const legendItem = ([k, label, hint]: (typeof legend)[number]) => (
470        <Box key={`legend-${k}`} flexDirection="row" gap={1} width={legendWidth}>
471          <Text color={SEGMENTS[k]}>■</Text>
472          <Text dimColor>{`${label}: ${hint}`}</Text>
473        </Box>
474      )
475      const fiveAt = r?.fiveHourResetsAt
476      const sevenAt = r?.sevenDayResetsAt
477      const level = await read($, effort)
478      return (
479        <Box flexDirection="column" gap={1}>
480          {level !== null && (
481            <Box key="jet" flexDirection="column">
482              <Svg
483                source={jetStrip(level, width, JET_PANE_H, JET_PANE_SCALE, t.effort(level), 'jp')}
484                alt={t.effort(level)}
485                width={width}
486                height={JET_PANE_H}
487                isInteractive
488              />
489              <Text dimColor>{t.effort(level)}</Text>
490            </Box>
491          )}
492          {r === null ? (
493            <Text dimColor>{t.waitingPane}</Text>
494          ) : (
495            <Box flexDirection="row" justifyContent="space-around">
496              {r.fiveHour !== undefined && big('5h', t.win5h, r.fiveHour)}
497              {r.sevenDay !== undefined && big('7d', t.win7d, r.sevenDay)}
498              {big('ctx', t.ctx, r.ctxPercent, r.ctxTokens !== undefined ? `${tokens(r.ctxTokens)} / ${tokens(r.ctxWindow)}` : undefined)}
499              {cache !== null && big('cache', t.cache, ringStep(cache.percent), t.ttl(ttlText(ttl, t)), cache.text, ttlColor(cache.percent))}
500            </Box>
501          )}
502          <Box flexDirection="column">
503            <Text bold>{t.lastTurns}</Text>
504            <Text dimColor>{t.lastTurnsHint}</Text>
505          </Box>
506          {recent.length === 0 ? (
507            <Text dimColor>{t.noTurns}</Text>
508          ) : (
509            <Box flexDirection="column">
510              <Text dimColor>
511                {t.turnsTotal(
512                  tokens(summary.tokens),
513                  summary.cost === null ? '-' : costText(summary.cost),
514                  `${t.win5h} ${summary.five === null ? '-' : fiveDeltaText(summary.five, t.fiveReset)}`,
515                )}
516              </Text>
517              <Box key="turn-head" flexDirection="row" gap={1}>
518                <Box width={COL_TURN}>
519                  <Text dimColor>{t.colTurn}</Text>
520                </Box>
521                <Svg source={headerCell(t.colSplit, barWidth)} alt={t.colSplit} width={barWidth} height={14} />
522                <Box width={COL_TOKENS}>
523                  <Text dimColor>{t.colTokens}</Text>
524                </Box>
525                <Box width={COL_COST}>
526                  <Text dimColor>{t.colCost}</Text>
527                </Box>
528                <Box width={COL_FIVE}>
529                  <Text dimColor>{t.win5h}</Text>
530                </Box>
531              </Box>
532              {recent.map(({ turn, delta, cost, five }) => (
533                <Box key={`turn-${turn.n}`} flexDirection="row" gap={1} alignItems="center">
534                  <Box width={COL_TURN}>
535                    <Text dimColor wrap="truncate">{`#${turn.n} ${clockTime(turn.at)}`}</Text>
536                  </Box>
537                  <Svg
538                    source={turnBar(turn, scale, barWidth, [
539                      `${t.legendIn}: ${tokens(turn.in)}`,
540                      `${t.legendOut}: ${tokens(turn.out)}`,
541                      `${t.legendCacheWrite}: ${tokens(turn.cacheWrite)}`,
542                      `${t.legendCacheRead}: ${tokens(turn.cacheRead)}`,
543                    ])}
544                    alt={`${t.barAlt(turn.n, tokens(turn.in), tokens(turn.out), tokens(turn.cacheWrite), tokens(turn.cacheRead))} · ctx ${ctxDeltaText(delta, turn.ctxPercent)}`}
545                    width={barWidth}
546                    height={10}
547                    isInteractive
548                  />
549                  <Box width={COL_TOKENS}>
550                    <Text bold>{tokens(turnTotal(turn))}</Text>
551                  </Box>
552                  <Box width={COL_COST}>
553                    <Text>{costText(cost)}</Text>
554                  </Box>
555                  <Box width={COL_FIVE}>
556                    <Text dimColor>{fiveDeltaText(five, t.fiveReset)}</Text>
557                  </Box>
558                </Box>
559              ))}
560              <Box flexDirection="row" gap={2}>
561                {legendItem(legend[3])}
562                {legendItem(legend[2])}
563              </Box>
564              <Box flexDirection="row" gap={2}>
565                {legendItem(legend[0])}
566                {legendItem(legend[1])}
567              </Box>
568              <Text dimColor>{t.barHint}</Text>
569            </Box>
570          )}
571          <Box flexDirection="row" gap={1} alignItems="center">
572            <Text bold>{t.filledBy}</Text>
573            <Box flexGrow={1} />
574            <Button key="win-5h" label={t.win5h} variant={view === '5h' ? 'primary' : 'secondary'} onPress={() => switchWindow($, '5h')} />
575            <Button key="win-7d" label={t.win7d} variant={view === '7d' ? 'primary' : 'secondary'} onPress={() => switchWindow($, '7d')} />
576          </Box>
577          {totals.turns === 0 ? (
578            <Text dimColor>{t.noEntries}</Text>
579          ) : (
580            <Box flexDirection="column">
581              <Text dimColor>{t.summary(view, totals.turns, tokens(totals.tokens), costText(totals.usd))}</Text>
582              <Text bold>{t.byProject}</Text>
583              {groupRows(breakdown(entries, since, 'project'))}
584              <Text bold>{t.byModel}</Text>
585              {groupRows(breakdown(entries, since, 'model'))}
586            </Box>
587          )}
588          <Text dimColor>{t.localOnly}</Text>
589          {(fiveAt !== undefined || sevenAt !== undefined) && (
590            <Box flexDirection="column">
591              <Text bold>{t.resets}</Text>
592              {fiveAt !== undefined && resetRow(t.win5h, fiveAt, FIVE_HOURS, t.atClock(clockTime(fiveAt)), r?.fiveHour, ms => clockTime(ms))}
593              {sevenAt !== undefined && resetRow(t.win7d, sevenAt, SEVEN_DAYS, dayClock(sevenAt, lang), r?.sevenDay, ms => dayClock(ms, lang))}
594            </Box>
595          )}
596        </Box>
597      )
598    } catch (err) {
599      logRenderError($, err)
600      return next(e)
601    }
602  })
603
604  // The band: liquid rings and a pane button on desktop, one text line in the terminal. Other plugins' bands stay below.
605  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
606    if (disabled || e.props.hasSurvey) return next(e)
607    if (!(await read($, isEnabled))) return next(e)
608    if (e.surface === 'terminal') {
609      try {
610        const { Box, Text } = $.ui.resolve(e)
611        const shownNow = await read($, screen)
612        const r = shownNow.reading
613        const cache = cacheState(shownNow.lastRequestAt, await read($, ttlMs), await $.clock.now(), t)
614        const rest = await next(e)
615        const level = await read($, effort)
616        const parts = [
617          ...terminalParts(r, cache, e.props.bodyColumns, t),
618          ...(level === null ? [] : [{ text: `  ✈ ${level}`, color: JET_TERMINAL_COLOR[level] }]),
619        ]
620        return (
621          <Box flexDirection="column">
622            <Text wrap="truncate">
623              {parts.map((p, i) => (
624                <Text key={String(i)} color={p.color} dimColor={p.dim} bold={p.bold}>
625                  {p.text}
626                </Text>
627              ))}
628            </Text>
629            {rest}
630          </Box>
631        )
632      } catch (err) {
633        logRenderError($, err)
634        return next(e)
635      }
636    }
637    if (e.surface !== 'desktop') return next(e)
638    try {
639      const { Box, Button, Svg, Text } = $.ui.resolve(e)
640      const shownNow = await read($, screen)
641      const r = shownNow.reading
642      const cache = cacheState(shownNow.lastRequestAt, await read($, ttlMs), await $.clock.now(), t)
643      const rest = await next(e)
644      const layout = bandLayout(e.props.bodyColumns)
645      const level = await read($, effort)
646      const metric = (id: string, label: string, percent: number | undefined, extra?: string, value?: string, color?: string) => (
647        <Box key={`m-${id}`} flexDirection="row" gap={1} alignItems="center">
648          <Svg
649            source={liquidRing(percent, BAND_RING, BAND_STROKE, levelFrom(`band-${id}`, percent), color)}
650            alt={`${label} ${value ?? percentText(percent)}`}
651            width={BAND_RING}
652            height={BAND_RING}
653            isInteractive
654          />
655          <Box flexDirection="column">
656            <Text dimColor>{label}</Text>
657            <Box flexDirection="row" gap={1}>
658              <Text bold>{value ?? percentText(percent)}</Text>
659              {extra !== undefined && <Text dimColor>{`· ${extra}`}</Text>}
660            </Box>
661          </Box>
662        </Box>
663      )
664      // A finished turn means the API answered: the cache ring shows even before a measurement.
665      const cacheMetric = cache !== null && metric('cache', t.cache, ringStep(cache.percent), undefined, cache.text, ttlColor(cache.percent))
666      const metrics =
667        r === null
668          ? [
669              metric('5h', t.win5h, undefined),
670              metric('7d', t.win7d, undefined),
671              metric('ctx', t.ctx, undefined),
672              cacheMetric,
673              <Text dimColor>{t.waitingBand}</Text>,
674            ]
675          : [
676              r.fiveHour !== undefined && metric('5h', t.win5h, r.fiveHour),
677              r.sevenDay !== undefined && metric('7d', t.win7d, r.sevenDay),
678              metric('ctx', t.ctx, r.ctxPercent, layout.showCtxTokens && r.ctxTokens !== undefined ? tokens(r.ctxTokens) : undefined),
679              cacheMetric,
680              layout.showCost && r.usd !== undefined && <Text dimColor>{`$${r.usd.toFixed(2)}`}</Text>,
681            ]
682      return (
683        <Box flexDirection="column">
684          <Box flexDirection="row" gap={2} alignItems="center">
685            {metrics}
686            <Box flexGrow={1} />
687            {level !== null && layout.showJet && (
688              <Svg
689                key="jet"
690                source={jetStrip(level, JET_W, JET_H, JET_SCALE, t.effort(level), 'jb')}
691                alt={t.effort(level)}
692                width={JET_W}
693                height={JET_H}
694                isInteractive
695              />
696            )}
697            <Button key="pane" label={t.panel} dimColor onPress={() => togglePane($)} />
698          </Box>
699          {rest}
700        </Box>
701      )
702    } catch (err) {
703      logRenderError($, err)
704      return next(e)
705    }
706  })
707
708  on('command.run', { command: 'wavy-usage' }, async ($, e) => {
709    const arg = e.args.trim().toLowerCase()
710    if (arg === 'on') {
711      await update($, isEnabled, () => true)
712      await $.store.set(ENABLED_KEY, true).catch(() => undefined)
713      const u = await $.session.usage().catch(() => undefined)
714      if (u) {
715        await update($, reading, () => takeReading(u))
716        await publish($)
717      }
718      return { text: t.turnedOn }
719    }
720    if (arg === 'off') {
721      await update($, isEnabled, () => false)
722      await $.store.set(ENABLED_KEY, false).catch(() => undefined)
723      if (await read($, isPaneOpen)) await closePane($)
724      return { text: t.turnedOff }
725    }
726    const ttl = /^ttl\s+(\S+)$/.exec(arg)
727    if (ttl) {
728      const ms = parseTtl(ttl[1] ?? '')
729      if (ms === undefined) return { text: t.ttlUnknown(ttl[1] ?? '') }
730      await update($, ttlMs, () => ms)
731      await $.store.set(TTL_KEY, ms).catch(() => undefined)
732      return { text: t.ttlSet(ttlText(ms, t)) }
733    }
734    if (arg === '') {
735      if (!(await read($, isEnabled))) return { text: t.turnedOff }
736      const wasOpen = await read($, isPaneOpen)
737      await togglePane($)
738      return { text: wasOpen ? t.paneClosed : t.paneOpened }
739    }
740    return { text: t.argUnknown(arg) }
741  })
742}
743

1// Every string on screen, in eight languages. Stored data is language-neutral; this is display only.
2// Languages: those of the 10 countries with the largest share of Claude.ai use (Anthropic Economic Index, February 2026), plus Turkish.
3
4export type Lang = 'en' | 'tr' | 'fr' | 'de' | 'ja' | 'ko' | 'pt-BR' | 'es'
5
6export const LANGS: readonly Lang[] = ['en', 'tr', 'fr', 'de', 'ja', 'ko', 'pt-BR', 'es']
7
8// numSep: between a number and its unit, partSep: between two parts ("2s 10dk", "2 Std. 10 Min.", "2時間10分").
9export type Units = { m: string; h: string; d: string; numSep: string; partSep: string }
10
11export type Strings = {
12  units: Units
13  win5h: string
14  win7d: string
15  ctx: string
16  cache: string
17  panel: string
18  paneTitle: string
19  waitingBand: string
20  waitingPane: string
21  cold: string
22  lastTurns: string
23  noTurns: string
24  lastTurnsHint: string
25  turnsTotal: (tokens: string, cost: string, five: string) => string
26  colTurn: string
27  colSplit: string
28  colTokens: string
29  colCost: string
30  hintIn: string
31  hintOut: string
32  hintCacheWrite: string
33  hintCacheRead: string
34  barHint: string
35  fiveReset: string
36  legendIn: string
37  legendOut: string
38  legendCacheWrite: string
39  legendCacheRead: string
40  filledBy: string
41  noEntries: string
42  byProject: string
43  byModel: string
44  summary: (view: '5h' | '7d', turns: number, tokens: string, cost: string) => string
45  turns: (n: number) => string
46  localOnly: string
47  resets: string
48  inTime: (duration: string, clock: string) => string
49  atClock: (hhmm: string) => string
50  ttl: (text: string) => string
51  ttl5m: string
52  ttl1h: string
53  unknown: string
54  desktopOnlyPane: string
55  nudge: (pct: number) => string
56  cmdDescription: string
57  turnedOn: string
58  turnedOff: string
59  paneOpened: string
60  paneClosed: string
61  ttlSet: (text: string) => string
62  ttlUnknown: (arg: string) => string
63  argUnknown: (arg: string) => string
64  barAlt: (n: number, inp: string, out: string, write: string, readTokens: string) => string
65  elapsedAlt: (label: string) => string
66  usedAlt: (label: string) => string
67  paceAtReset: (pct: number) => string
68  paceFull: (clock: string, early: string) => string
69  noCost: string
70  effort: (level: string) => string
71}
72
73const USAGE = '[on | off | ttl 5m | ttl 1h]'
74
75const en: Strings = {
76  units: { m: 'm', h: 'h', d: 'd', numSep: '', partSep: ' ' },
77  win5h: '5h',
78  win7d: '7d',
79  ctx: 'ctx',
80  cache: 'cache',
81  panel: 'Panel',
82  paneTitle: 'Usage',
83  waitingBand: 'waiting for the first reply',
84  waitingPane: 'Waiting for the first reply',
85  cold: 'cold',
86  lastTurns: 'Last 5 turns',
87  noTurns: 'No finished turns yet',
88  lastTurnsHint: 'Each message you send is one turn. The bar shows the tokens it processed.',
89  turnsTotal: (tokens, cost, five) => `Total ${tokens} · ${cost} · ${five}`,
90  colTurn: 'Turn',
91  colSplit: 'Token split',
92  colTokens: 'Tokens',
93  colCost: 'Cost',
94  hintIn: 'new message and files',
95  hintOut: "Claude's writing (priciest)",
96  hintCacheWrite: 'storing new context',
97  hintCacheRead: 're-reading the conversation (cheap)',
98  barHint: 'Hover a bar segment to see its name and size.',
99  fiveReset: 'reset',
100  legendIn: 'in',
101  legendOut: 'out',
102  legendCacheWrite: 'cache write',
103  legendCacheRead: 'cache read',
104  filledBy: 'What filled the window',
105  noEntries: 'Nothing recorded in this window',
106  byProject: 'By project',
107  byModel: 'By model',
108  summary: (view, turns, tokens, cost) =>
109    `${view === '5h' ? 'Last 5 hours' : 'Last 7 days'}: ${turns === 1 ? '1 turn' : `${turns} turns`} · ${tokens} tokens · ${cost}`,
110  turns: n => (n === 1 ? '1 turn' : `${n} turns`),
111  localOnly: 'Only Claude Code sessions on this computer, recorded since install.',
112  resets: 'Resets',
113  inTime: (duration, clock) => `in ${duration} · ${clock}`,
114  atClock: hhmm => `at ${hhmm}`,
115  ttl: text => `TTL ${text}`,
116  ttl5m: '5 minutes',
117  ttl1h: '1 hour',
118  unknown: 'unknown',
119  desktopOnlyPane: 'The wavy-usage pane draws on desktop only',
120  nudge: pct => `context ${pct}% · /clear if the next thing is a new task, /compact to keep going`,
121  cmdDescription: 'Usage rings: no argument toggles the pane; on/off; ttl 5m/1h sets the cache lifetime (wavy-usage)',
122  turnedOn: 'wavy-usage on',
123  turnedOff: 'wavy-usage off. Turn it back on with /wavy-usage on',
124  paneOpened: 'Pane opened',
125  paneClosed: 'Pane closed',
126  ttlSet: text => `cache TTL: ${text}`,
127  ttlUnknown: arg => `wavy-usage: "${arg}" not recognized. Usage: /wavy-usage ttl 5m | ttl 1h`,
128  argUnknown: arg => `wavy-usage: "${arg}" not recognized. Usage: /wavy-usage ${USAGE}`,
129  barAlt: (n, inp, out, write, readTokens) => `Turn ${n}: ${inp} in, ${out} out, ${write} cache write, ${readTokens} cache read`,
130  elapsedAlt: label => `Elapsed part of the ${label} window`,
131  usedAlt: label => `Used part of the ${label} limit`,
132  paceAtReset: pct => `at this pace: ${pct}% at reset`,
133  paceFull: (clock, early) => `at this pace: full by ${clock}, ${early} before reset`,
134  noCost: 'no cost',
135  effort: l => `Effort: ${l}`,
136}
137
138const tr: Strings = {
139  units: { m: 'dk', h: 's', d: 'g', numSep: '', partSep: ' ' },
140  win5h: '5s',
141  win7d: '7g',
142  ctx: 'ctx',
143  cache: 'cache',
144  panel: 'Panel',
145  paneTitle: 'Kullanım',
146  waitingBand: 'ilk yanıt bekleniyor',
147  waitingPane: 'İlk yanıt bekleniyor',
148  cold: 'soğuk',
149  lastTurns: 'Son 5 tur',
150  noTurns: 'Henüz tamamlanan tur yok',
151  lastTurnsHint: "Her mesaj bir tur. Çubuk o turda işlenen token'ları gösterir.",
152  turnsTotal: (tokens, cost, five) => `Toplam ${tokens} · ${cost} · ${five}`,
153  colTurn: 'Tur',
154  colSplit: 'Token dağılımı',
155  colTokens: 'Token',
156  colCost: 'Maliyet',
157  hintIn: 'yeni mesaj ve dosyalar',
158  hintOut: "Claude'un yazdıkları (en pahalı)",
159  hintCacheWrite: 'yeni içeriği saklama',
160  hintCacheRead: 'sohbeti yeniden okuma (ucuz)',
161  barHint: 'Adını ve miktarını görmek için çubuk parçalarının üzerine gelin.',
162  fiveReset: 'sıfırlandı',
163  legendIn: 'girdi',
164  legendOut: 'çıktı',
165  legendCacheWrite: 'cache yazma',
166  legendCacheRead: 'cache okuma',
167  filledBy: 'Pencereyi dolduranlar',
168  noEntries: 'Bu pencerede kayıt yok',
169  byProject: 'Projeye göre',
170  byModel: 'Modele göre',
171  summary: (view, turns, tokens, cost) => `Son ${view === '5h' ? '5 saatte' : '7 günde'} ${turns} tur · ${tokens} token · ${cost}`,
172  turns: n => `${n} tur`,
173  localOnly: 'Yalnızca bu bilgisayardaki Claude Code oturumları; kayıt kurulumdan itibaren.',
174  resets: 'Sıfırlamalar',
175  inTime: (duration, clock) => `${duration} sonra · ${clock}`,
176  atClock: hhmm => `saat ${hhmm}`,
177  ttl: text => `TTL ${text}`,
178  ttl5m: '5 dakika',
179  ttl1h: '1 saat',
180  unknown: 'bilinmiyor',
181  desktopOnlyPane: "wavy-usage paneli yalnızca desktop'ta çizilir",
182  nudge: pct => `context %${pct} · yeni iş ise /clear, devam için /compact`,
183  cmdDescription: 'Kullanım halkaları: argümansız paneli açar/kapatır, on/off modu, ttl 5m/1h cache süresini ayarlar (wavy-usage)',
184  turnedOn: 'wavy-usage açık',
185  turnedOff: 'wavy-usage kapalı. Açmak için /wavy-usage on',
186  paneOpened: 'Panel açıldı',
187  paneClosed: 'Panel kapandı',
188  ttlSet: text => `cache TTL: ${text}`,
189  ttlUnknown: arg => `wavy-usage: "${arg}" tanınmadı. Kullanım: /wavy-usage ttl 5m | ttl 1h`,
190  argUnknown: arg => `wavy-usage: "${arg}" tanınmadı. Kullanım: /wavy-usage ${USAGE}`,
191  barAlt: (n, inp, out, write, readTokens) => `Tur ${n}: ${inp} in, ${out} out, ${write} cache yazma, ${readTokens} cache okuma`,
192  elapsedAlt: label => `${label} penceresinin geçen kısmı`,
193  usedAlt: label => `${label} limitinin kullanılan kısmı`,
194  paceAtReset: pct => `bu hızla sıfırlanmada %${pct}`,
195  paceFull: (clock, early) => `bu hızla ${clock} civarı dolar, sıfırlanmadan ${early} önce`,
196  noCost: 'maliyet yok',
197  effort: l => `Efor: ${l}`,
198}
199
200const fr: Strings = {
201  units: { m: 'min', h: 'h', d: 'j', numSep: '', partSep: ' ' },
202  win5h: '5h',
203  win7d: '7j',
204  ctx: 'ctx',
205  cache: 'cache',
206  panel: 'Panneau',
207  paneTitle: 'Utilisation',
208  waitingBand: 'en attente de la première réponse',
209  waitingPane: 'En attente de la première réponse',
210  cold: 'froid',
211  lastTurns: '5 derniers tours',
212  noTurns: 'Aucun tour terminé pour le moment',
213  lastTurnsHint: 'Chaque message envoyé est un tour. La barre montre les tokens traités.',
214  turnsTotal: (tokens, cost, five) => `Total ${tokens} · ${cost} · ${five}`,
215  colTurn: 'Tour',
216  colSplit: 'Répartition des tokens',
217  colTokens: 'Tokens',
218  colCost: 'Coût',
219  hintIn: 'nouveau message et fichiers',
220  hintOut: 'texte écrit par Claude (le plus cher)',
221  hintCacheWrite: 'stockage du nouveau contexte',
222  hintCacheRead: 'relecture de la conversation (bon marché)',
223  barHint: 'Survolez un segment pour voir son nom et sa taille.',
224  fiveReset: 'réinitialisé',
225  legendIn: 'entrée',
226  legendOut: 'sortie',
227  legendCacheWrite: 'écriture cache',
228  legendCacheRead: 'lecture cache',
229  filledBy: 'Ce qui remplit la fenêtre',
230  noEntries: 'Aucun enregistrement dans cette fenêtre',
231  byProject: 'Par projet',
232  byModel: 'Par modèle',
233  summary: (view, turns, tokens, cost) =>
234    `${view === '5h' ? '5 dernières heures' : '7 derniers jours'} : ${turns === 1 ? '1 tour' : `${turns} tours`} · ${tokens} tokens · ${cost}`,
235  turns: n => (n === 1 ? '1 tour' : `${n} tours`),
236  localOnly: "Uniquement les sessions Claude Code de cet ordinateur, enregistrées depuis l'installation.",
237  resets: 'Réinitialisations',
238  inTime: (duration, clock) => `dans ${duration} · ${clock}`,
239  atClock: hhmm => `à ${hhmm}`,
240  ttl: text => `TTL ${text}`,
241  ttl5m: '5 minutes',
242  ttl1h: '1 heure',
243  unknown: 'inconnu',
244  desktopOnlyPane: "Le panneau wavy-usage ne s'affiche que sur desktop",
245  nudge: pct => `contexte ${pct} % · /clear pour une nouvelle tâche, /compact pour continuer`,
246  cmdDescription: "Anneaux d'utilisation : sans argument, ouvre/ferme le panneau ; on/off ; ttl 5m/1h règle la durée du cache (wavy-usage)",
247  turnedOn: 'wavy-usage activé',
248  turnedOff: 'wavy-usage désactivé. Réactivez-le avec /wavy-usage on',
249  paneOpened: 'Panneau ouvert',
250  paneClosed: 'Panneau fermé',
251  ttlSet: text => `TTL du cache : ${text}`,
252  ttlUnknown: arg => `wavy-usage : « ${arg} » non reconnu. Utilisation : /wavy-usage ttl 5m | ttl 1h`,
253  argUnknown: arg => `wavy-usage : « ${arg} » non reconnu. Utilisation : /wavy-usage ${USAGE}`,
254  barAlt: (n, inp, out, write, readTokens) =>
255    `Tour ${n} : ${inp} en entrée, ${out} en sortie, ${write} écrits en cache, ${readTokens} lus en cache`,
256  elapsedAlt: label => `Partie écoulée de la fenêtre ${label}`,
257  usedAlt: label => `Partie utilisée de la limite ${label}`,
258  paceAtReset: pct => `à ce rythme : ${pct} % à la réinitialisation`,
259  paceFull: (clock, early) => `à ce rythme : pleine vers ${clock}, ${early} avant la réinitialisation`,
260  noCost: 'aucun coût',
261  effort: l => `Effort : ${l}`,
262}
263
264const de: Strings = {
265  units: { m: 'Min.', h: 'Std.', d: 'T.', numSep: ' ', partSep: ' ' },
266  win5h: '5h',
267  win7d: '7T',
268  ctx: 'ctx',
269  cache: 'Cache',
270  panel: 'Panel',
271  paneTitle: 'Nutzung',
272  waitingBand: 'warte auf die erste Antwort',
273  waitingPane: 'Warte auf die erste Antwort',
274  cold: 'kalt',
275  lastTurns: 'Letzte 5 Runden',
276  noTurns: 'Noch keine abgeschlossene Runde',
277  lastTurnsHint: 'Jede gesendete Nachricht ist eine Runde. Der Balken zeigt die verarbeiteten Tokens.',
278  turnsTotal: (tokens, cost, five) => `Gesamt ${tokens} · ${cost} · ${five}`,
279  colTurn: 'Runde',
280  colSplit: 'Token-Aufteilung',
281  colTokens: 'Tokens',
282  colCost: 'Kosten',
283  hintIn: 'neue Nachricht und Dateien',
284  hintOut: 'von Claude geschrieben (am teuersten)',
285  hintCacheWrite: 'neuen Kontext speichern',
286  hintCacheRead: 'Unterhaltung erneut lesen (günstig)',
287  barHint: 'Fahre über ein Segment, um Name und Menge zu sehen.',
288  fiveReset: 'zurückgesetzt',
289  legendIn: 'Eingabe',
290  legendOut: 'Ausgabe',
291  legendCacheWrite: 'Cache-Schreiben',
292  legendCacheRead: 'Cache-Lesen',
293  filledBy: 'Was das Fenster füllt',
294  noEntries: 'Keine Einträge in diesem Fenster',
295  byProject: 'Nach Projekt',
296  byModel: 'Nach Modell',
297  summary: (view, turns, tokens, cost) =>
298    `${view === '5h' ? 'Letzte 5 Stunden' : 'Letzte 7 Tage'}: ${turns === 1 ? '1 Runde' : `${turns} Runden`} · ${tokens} Tokens · ${cost}`,
299  turns: n => (n === 1 ? '1 Runde' : `${n} Runden`),
300  localOnly: 'Nur Claude-Code-Sitzungen auf diesem Computer, erfasst seit der Installation.',
301  resets: 'Zurücksetzungen',
302  inTime: (duration, clock) => `in ${duration} · ${clock}`,
303  atClock: hhmm => `um ${hhmm}`,
304  ttl: text => `TTL ${text}`,
305  ttl5m: '5 Minuten',
306  ttl1h: '1 Stunde',
307  unknown: 'unbekannt',
308  desktopOnlyPane: 'Das wavy-usage-Panel wird nur auf dem Desktop gezeichnet',
309  nudge: pct => `Kontext ${pct} % · /clear bei einer neuen Aufgabe, /compact zum Weitermachen`,
310  cmdDescription: 'Nutzungsringe: ohne Argument Panel ein/aus; on/off; ttl 5m/1h setzt die Cache-Dauer (wavy-usage)',
311  turnedOn: 'wavy-usage an',
312  turnedOff: 'wavy-usage aus. Mit /wavy-usage on wieder einschalten',
313  paneOpened: 'Panel geöffnet',
314  paneClosed: 'Panel geschlossen',
315  ttlSet: text => `Cache-TTL: ${text}`,
316  ttlUnknown: arg => `wavy-usage: „${arg}“ nicht erkannt. Verwendung: /wavy-usage ttl 5m | ttl 1h`,
317  argUnknown: arg => `wavy-usage: „${arg}“ nicht erkannt. Verwendung: /wavy-usage ${USAGE}`,
318  barAlt: (n, inp, out, write, readTokens) =>
319    `Runde ${n}: ${inp} Eingabe, ${out} Ausgabe, ${write} Cache-Schreiben, ${readTokens} Cache-Lesen`,
320  elapsedAlt: label => `Verstrichener Teil des ${label}-Fensters`,
321  usedAlt: label => `Genutzter Teil des ${label}-Limits`,
322  paceAtReset: pct => `bei diesem Tempo: ${pct} % beim Zurücksetzen`,
323  paceFull: (clock, early) => `bei diesem Tempo: voll gegen ${clock}, ${early} vor dem Zurücksetzen`,
324  noCost: 'keine Kosten',
325  effort: l => `Aufwand: ${l}`,
326}
327
328const ja: Strings = {
329  units: { m: '分', h: '時間', d: '日', numSep: '', partSep: '' },
330  win5h: '5時間',
331  win7d: '7日',
332  ctx: 'ctx',
333  cache: 'キャッシュ',
334  panel: 'パネル',
335  paneTitle: '使用状況',
336  waitingBand: '最初の応答を待っています',
337  waitingPane: '最初の応答を待っています',
338  cold: '期限切れ',
339  lastTurns: '直近5ターン',
340  noTurns: '完了したターンはまだありません',
341  lastTurnsHint: '送信したメッセージ1件が1ターンです。バーはそのターンで処理したトークンを示します。',
342  turnsTotal: (tokens, cost, five) => `合計 ${tokens} · ${cost} · ${five}`,
343  colTurn: 'ターン',
344  colSplit: 'トークン内訳',
345  colTokens: 'トークン',
346  colCost: 'コスト',
347  hintIn: '新しいメッセージとファイル',
348  hintOut: 'Claudeの出力（最も高価）',
349  hintCacheWrite: '新しいコンテキストの保存',
350  hintCacheRead: '会話の再読み込み（安価）',
351  barHint: 'バーの区間にカーソルを合わせると名前と量が表示されます。',
352  fiveReset: 'リセット',
353  legendIn: '入力',
354  legendOut: '出力',
355  legendCacheWrite: 'キャッシュ書込',
356  legendCacheRead: 'キャッシュ読込',
357  filledBy: 'ウィンドウの内訳',
358  noEntries: 'このウィンドウの記録はありません',
359  byProject: 'プロジェクト別',
360  byModel: 'モデル別',
361  summary: (view, turns, tokens, cost) => `${view === '5h' ? '直近5時間' : '直近7日'}: ${turns}ターン · ${tokens}トークン · ${cost}`,
362  turns: n => `${n}ターン`,
363  localOnly: 'このコンピューター上の Claude Code セッションのみ。インストール以降の記録です。',
364  resets: 'リセット',
365  inTime: (duration, clock) => `${duration}後 · ${clock}`,
366  atClock: hhmm => hhmm,
367  ttl: text => `TTL ${text}`,
368  ttl5m: '5分',
369  ttl1h: '1時間',
370  unknown: '不明',
371  desktopOnlyPane: 'wavy-usage パネルはデスクトップでのみ表示されます',
372  nudge: pct => `コンテキスト ${pct}% · 新しい作業なら /clear、続けるなら /compact`,
373  cmdDescription: '使用状況リング: 引数なしでパネルを開閉、on/off、ttl 5m/1h でキャッシュ期間を設定 (wavy-usage)',
374  turnedOn: 'wavy-usage オン',
375  turnedOff: 'wavy-usage オフ。/wavy-usage on で再開します',
376  paneOpened: 'パネルを開きました',
377  paneClosed: 'パネルを閉じました',
378  ttlSet: text => `キャッシュ TTL: ${text}`,
379  ttlUnknown: arg => `wavy-usage: 「${arg}」は認識できません。使い方: /wavy-usage ttl 5m | ttl 1h`,
380  argUnknown: arg => `wavy-usage: 「${arg}」は認識できません。使い方: /wavy-usage ${USAGE}`,
381  barAlt: (n, inp, out, write, readTokens) => `ターン${n}: 入力 ${inp}、出力 ${out}、キャッシュ書込 ${write}、キャッシュ読込 ${readTokens}`,
382  elapsedAlt: label => `${label}ウィンドウの経過分`,
383  usedAlt: label => `${label}上限の使用分`,
384  paceAtReset: pct => `このペースだとリセット時 ${pct}%`,
385  paceFull: (clock, early) => `このペースだと ${clock} ごろ上限、リセットの ${early} 前`,
386  noCost: 'コストなし',
387  effort: l => `エフォート: ${l}`,
388}
389
390const ko: Strings = {
391  units: { m: '분', h: '시간', d: '일', numSep: '', partSep: ' ' },
392  win5h: '5시간',
393  win7d: '7일',
394  ctx: 'ctx',
395  cache: '캐시',
396  panel: '패널',
397  paneTitle: '사용량',
398  waitingBand: '첫 응답을 기다리는 중',
399  waitingPane: '첫 응답을 기다리는 중',
400  cold: '만료됨',
401  lastTurns: '최근 5턴',
402  noTurns: '아직 완료된 턴이 없습니다',
403  lastTurnsHint: '보낸 메시지 하나가 한 턴입니다. 막대는 그 턴에서 처리한 토큰을 보여줍니다.',
404  turnsTotal: (tokens, cost, five) => `합계 ${tokens} · ${cost} · ${five}`,
405  colTurn: '턴',
406  colSplit: '토큰 구성',
407  colTokens: '토큰',
408  colCost: '비용',
409  hintIn: '새 메시지와 파일',
410  hintOut: 'Claude가 쓴 내용 (가장 비쌈)',
411  hintCacheWrite: '새 컨텍스트 저장',
412  hintCacheRead: '대화 다시 읽기 (저렴)',
413  barHint: '막대 구간에 마우스를 올리면 이름과 양이 보입니다.',
414  fiveReset: '초기화됨',
415  legendIn: '입력',
416  legendOut: '출력',
417  legendCacheWrite: '캐시 쓰기',
418  legendCacheRead: '캐시 읽기',
419  filledBy: '윈도우를 채운 항목',
420  noEntries: '이 윈도우에는 기록이 없습니다',
421  byProject: '프로젝트별',
422  byModel: '모델별',
423  summary: (view, turns, tokens, cost) => `${view === '5h' ? '최근 5시간' : '최근 7일'}: ${turns}턴 · 토큰 ${tokens} · ${cost}`,
424  turns: n => `${n}턴`,
425  localOnly: '이 컴퓨터의 Claude Code 세션만 포함하며, 설치 이후부터 기록됩니다.',
426  resets: '초기화',
427  inTime: (duration, clock) => `${duration} 후 · ${clock}`,
428  atClock: hhmm => hhmm,
429  ttl: text => `TTL ${text}`,
430  ttl5m: '5분',
431  ttl1h: '1시간',
432  unknown: '알 수 없음',
433  desktopOnlyPane: 'wavy-usage 패널은 데스크톱에서만 표시됩니다',
434  nudge: pct => `컨텍스트 ${pct}% · 새 작업이면 /clear, 계속하려면 /compact`,
435  cmdDescription: '사용량 링: 인수 없이 패널 열기/닫기, on/off, ttl 5m/1h로 캐시 유지 시간 설정 (wavy-usage)',
436  turnedOn: 'wavy-usage 켜짐',
437  turnedOff: 'wavy-usage 꺼짐. /wavy-usage on 으로 다시 켭니다',
438  paneOpened: '패널을 열었습니다',
439  paneClosed: '패널을 닫았습니다',
440  ttlSet: text => `캐시 TTL: ${text}`,
441  ttlUnknown: arg => `wavy-usage: "${arg}"을(를) 인식할 수 없습니다. 사용법: /wavy-usage ttl 5m | ttl 1h`,
442  argUnknown: arg => `wavy-usage: "${arg}"을(를) 인식할 수 없습니다. 사용법: /wavy-usage ${USAGE}`,
443  barAlt: (n, inp, out, write, readTokens) => `턴 ${n}: 입력 ${inp}, 출력 ${out}, 캐시 쓰기 ${write}, 캐시 읽기 ${readTokens}`,
444  elapsedAlt: label => `${label} 윈도우의 경과 부분`,
445  usedAlt: label => `${label} 한도의 사용 부분`,
446  paceAtReset: pct => `이 속도면 초기화 시점에 ${pct}%`,
447  paceFull: (clock, early) => `이 속도면 ${clock}쯤 한도 도달, 초기화 ${early} 전`,
448  noCost: '비용 없음',
449  effort: l => `노력 수준: ${l}`,
450}
451
452const ptBR: Strings = {
453  units: { m: 'min', h: 'h', d: 'd', numSep: '', partSep: ' ' },
454  win5h: '5h',
455  win7d: '7d',
456  ctx: 'ctx',
457  cache: 'cache',
458  panel: 'Painel',
459  paneTitle: 'Uso',
460  waitingBand: 'aguardando a primeira resposta',
461  waitingPane: 'Aguardando a primeira resposta',
462  cold: 'frio',
463  lastTurns: 'Últimos 5 turnos',
464  noTurns: 'Nenhum turno concluído ainda',
465  lastTurnsHint: 'Cada mensagem enviada é um turno. A barra mostra os tokens processados.',
466  turnsTotal: (tokens, cost, five) => `Total ${tokens} · ${cost} · ${five}`,
467  colTurn: 'Turno',
468  colSplit: 'Divisão de tokens',
469  colTokens: 'Tokens',
470  colCost: 'Custo',
471  hintIn: 'nova mensagem e arquivos',
472  hintOut: 'texto escrito pelo Claude (o mais caro)',
473  hintCacheWrite: 'armazenar novo contexto',
474  hintCacheRead: 'reler a conversa (barato)',
475  barHint: 'Passe o mouse sobre um segmento para ver nome e quantidade.',
476  fiveReset: 'reiniciado',
477  legendIn: 'entrada',
478  legendOut: 'saída',
479  legendCacheWrite: 'escrita em cache',
480  legendCacheRead: 'leitura de cache',
481  filledBy: 'O que encheu a janela',
482  noEntries: 'Nenhum registro nesta janela',
483  byProject: 'Por projeto',
484  byModel: 'Por modelo',
485  summary: (view, turns, tokens, cost) =>
486    `${view === '5h' ? 'Últimas 5 horas' : 'Últimos 7 dias'}: ${turns === 1 ? '1 turno' : `${turns} turnos`} · ${tokens} tokens · ${cost}`,
487  turns: n => (n === 1 ? '1 turno' : `${n} turnos`),
488  localOnly: 'Apenas sessões do Claude Code neste computador, registradas desde a instalação.',
489  resets: 'Redefinições',
490  inTime: (duration, clock) => `em ${duration} · ${clock}`,
491  atClock: hhmm => `às ${hhmm}`,
492  ttl: text => `TTL ${text}`,
493  ttl5m: '5 minutos',
494  ttl1h: '1 hora',
495  unknown: 'desconhecido',
496  desktopOnlyPane: 'O painel do wavy-usage só é desenhado no desktop',
497  nudge: pct => `contexto ${pct}% · /clear se for uma nova tarefa, /compact para continuar`,
498  cmdDescription: 'Anéis de uso: sem argumento abre/fecha o painel; on/off; ttl 5m/1h define a duração do cache (wavy-usage)',
499  turnedOn: 'wavy-usage ligado',
500  turnedOff: 'wavy-usage desligado. Ligue de novo com /wavy-usage on',
501  paneOpened: 'Painel aberto',
502  paneClosed: 'Painel fechado',
503  ttlSet: text => `TTL do cache: ${text}`,
504  ttlUnknown: arg => `wavy-usage: "${arg}" não reconhecido. Uso: /wavy-usage ttl 5m | ttl 1h`,
505  argUnknown: arg => `wavy-usage: "${arg}" não reconhecido. Uso: /wavy-usage ${USAGE}`,
506  barAlt: (n, inp, out, write, readTokens) =>
507    `Turno ${n}: ${inp} de entrada, ${out} de saída, ${write} escritos em cache, ${readTokens} lidos do cache`,
508  elapsedAlt: label => `Parte decorrida da janela de ${label}`,
509  usedAlt: label => `Parte usada do limite de ${label}`,
510  paceAtReset: pct => `neste ritmo: ${pct}% na redefinição`,
511  paceFull: (clock, early) => `neste ritmo: cheio por volta de ${clock}, ${early} antes da redefinição`,
512  noCost: 'sem custo',
513  effort: l => `Esforço: ${l}`,
514}
515
516const es: Strings = {
517  units: { m: 'min', h: 'h', d: 'd', numSep: '', partSep: ' ' },
518  win5h: '5h',
519  win7d: '7d',
520  ctx: 'ctx',
521  cache: 'caché',
522  panel: 'Panel',
523  paneTitle: 'Uso',
524  waitingBand: 'esperando la primera respuesta',
525  waitingPane: 'Esperando la primera respuesta',
526  cold: 'frío',
527  lastTurns: 'Últimos 5 turnos',
528  noTurns: 'Aún no hay turnos terminados',
529  lastTurnsHint: 'Cada mensaje enviado es un turno. La barra muestra los tokens procesados.',
530  turnsTotal: (tokens, cost, five) => `Total ${tokens} · ${cost} · ${five}`,
531  colTurn: 'Turno',
532  colSplit: 'Reparto de tokens',
533  colTokens: 'Tokens',
534  colCost: 'Costo',
535  hintIn: 'nuevo mensaje y archivos',
536  hintOut: 'texto escrito por Claude (lo más caro)',
537  hintCacheWrite: 'guardar contexto nuevo',
538  hintCacheRead: 'releer la conversación (barato)',
539  barHint: 'Pasa el cursor sobre un segmento para ver su nombre y cantidad.',
540  fiveReset: 'reiniciado',
541  legendIn: 'entrada',
542  legendOut: 'salida',
543  legendCacheWrite: 'escritura de caché',
544  legendCacheRead: 'lectura de caché',
545  filledBy: 'Qué llenó la ventana',
546  noEntries: 'No hay registros en esta ventana',
547  byProject: 'Por proyecto',
548  byModel: 'Por modelo',
549  summary: (view, turns, tokens, cost) =>
550    `${view === '5h' ? 'Últimas 5 horas' : 'Últimos 7 días'}: ${turns === 1 ? '1 turno' : `${turns} turnos`} · ${tokens} tokens · ${cost}`,
551  turns: n => (n === 1 ? '1 turno' : `${n} turnos`),
552  localOnly: 'Solo sesiones de Claude Code en este equipo, registradas desde la instalación.',
553  resets: 'Reinicios',
554  inTime: (duration, clock) => `en ${duration} · ${clock}`,
555  atClock: hhmm => `a las ${hhmm}`,
556  ttl: text => `TTL ${text}`,
557  ttl5m: '5 minutos',
558  ttl1h: '1 hora',
559  unknown: 'desconocido',
560  desktopOnlyPane: 'El panel de wavy-usage solo se dibuja en el escritorio',
561  nudge: pct => `contexto ${pct}% · /clear si es una tarea nueva, /compact para seguir`,
562  cmdDescription: 'Anillos de uso: sin argumento abre/cierra el panel; on/off; ttl 5m/1h fija la duración de la caché (wavy-usage)',
563  turnedOn: 'wavy-usage activado',
564  turnedOff: 'wavy-usage desactivado. Vuelve a activarlo con /wavy-usage on',
565  paneOpened: 'Panel abierto',
566  paneClosed: 'Panel cerrado',
567  ttlSet: text => `TTL de la caché: ${text}`,
568  ttlUnknown: arg => `wavy-usage: "${arg}" no reconocido. Uso: /wavy-usage ttl 5m | ttl 1h`,
569  argUnknown: arg => `wavy-usage: "${arg}" no reconocido. Uso: /wavy-usage ${USAGE}`,
570  barAlt: (n, inp, out, write, readTokens) =>
571    `Turno ${n}: ${inp} de entrada, ${out} de salida, ${write} escritos en caché, ${readTokens} leídos de caché`,
572  elapsedAlt: label => `Parte transcurrida de la ventana de ${label}`,
573  usedAlt: label => `Parte usada del límite de ${label}`,
574  paceAtReset: pct => `a este ritmo: ${pct}% al reiniciar`,
575  paceFull: (clock, early) => `a este ritmo: lleno hacia ${clock}, ${early} antes del reinicio`,
576  noCost: 'sin costo',
577  effort: l => `Esfuerzo: ${l}`,
578}
579
580export const STRINGS: Record<Lang, Strings> = { en, tr, fr, de, ja, ko, 'pt-BR': ptBR, es }
581
582// Claude Code's language setting is free text; English names, native names and language codes all map.
583const NAMES: Record<string, Lang> = {
584  en: 'en', english: 'en',
585  tr: 'tr', turkish: 'tr', türkçe: 'tr', turkce: 'tr',
586  fr: 'fr', french: 'fr', français: 'fr', francais: 'fr',
587  de: 'de', german: 'de', deutsch: 'de',
588  ja: 'ja', japanese: 'ja', 日本語: 'ja',
589  ko: 'ko', korean: 'ko', 한국어: 'ko',
590  pt: 'pt-BR', 'pt-br': 'pt-BR', portuguese: 'pt-BR', português: 'pt-BR', portugues: 'pt-BR', 'brazilian portuguese': 'pt-BR',
591  es: 'es', spanish: 'es', español: 'es', espanol: 'es',
592}
593
594export const langFromText = (text: string | undefined): Lang | undefined => {
595  if (!text) return undefined
596  const s = text.trim().toLowerCase()
597  return NAMES[s] ?? NAMES[s.split(/[-_]/)[0] ?? '']
598}
599
600// Explicit choice (userConfig) > Claude Code's language setting > system locale > English.
601export const resolveLang = (pref: unknown, claudeLanguage: unknown, locale: string | undefined): Lang => {
602  if (typeof pref === 'string' && pref !== 'auto' && (LANGS as readonly string[]).includes(pref)) return pref as Lang
603  return langFromText(typeof claudeLanguage === 'string' ? claudeLanguage : undefined) ?? langFromText(locale) ?? 'en'
604}
605

1import type { SessionMeasureInput } from 'claude-code'
2
3import type { LogEntry, Reading, Turn } from '../types'
4import type { Lang, Strings, Units } from './i18n'
5import { STRINGS } from './i18n'
6
7// Pure data logic: no $, so it is tested on its own.
8
9export const FIVE_HOURS = 5 * 60 * 60 * 1000
10
11export type Heat = 'calm' | 'warn' | 'hot'
12
13export type Measure = Pick<SessionMeasureInput, 'context' | 'rateLimits' | 'cost'>
14
15export const heat = (percent: number): Heat => (percent >= 75 ? 'hot' : percent >= 50 ? 'warn' : 'calm')
16
17export const takeReading = (m: Measure): Reading => {
18  const limit = (kind: string) => m.rateLimits.find(l => l.kind === kind)
19  const resetsAt = (kind: string) => {
20    const at = Date.parse(limit(kind)?.resetsAt ?? '')
21    return Number.isFinite(at) ? at : undefined
22  }
23  return {
24    fiveHour: limit('five_hour')?.percentUsed,
25    fiveHourResetsAt: resetsAt('five_hour'),
26    sevenDay: limit('seven_day')?.percentUsed,
27    sevenDayResetsAt: resetsAt('seven_day'),
28    ctxPercent: m.context.percent,
29    ctxTokens: m.context.tokens,
30    ctxWindow: m.context.window,
31    usd: m.cost?.usd,
32  }
33}
34
35export const tokens = (n: number): string => {
36  if (n >= 1_000_000) return `${Number((n / 1_000_000).toFixed(1))}M`
37  return n >= 1000 ? `${Math.round(n / 1000)}k` : `${n}`
38}
39
40export const percentText = (percent: number | undefined): string =>
41  percent === undefined ? '-' : `${Math.round(percent)}%`
42
43// Under a day: hours and minutes; over a day: days and hours (minutes are noise for the 7-day window).
44// step: minutes are rounded up to it (5 keeps a long countdown from changing, and redrawing, every minute).
45export const countdown = (ms: number, u: Units = STRINGS.tr.units, step = 1): string => {
46  const part = (n: number, unit: string) => `${n}${u.numSep}${unit}`
47  const m = Math.max(0, Math.ceil(ms / 60000 / step) * step)
48  if (m < 60) return part(m, u.m)
49  if (m >= 24 * 60) {
50    const days = Math.floor(m / (24 * 60))
51    const hours = Math.floor((m % (24 * 60)) / 60)
52    return hours === 0 ? part(days, u.d) : `${part(days, u.d)}${u.partSep}${part(hours, u.h)}`
53  }
54  const h = Math.floor(m / 60)
55  const rest = m % 60
56  return rest === 0 ? part(h, u.h) : `${part(h, u.h)}${u.partSep}${part(rest, u.m)}`
57}
58
59// The time in the system locale's own format: 16:20 in Turkey, 4:20 PM in the US.
60// 24-hour locales keep the leading zero (09:05).
61export const clockTime = (ms: number, locale?: string): string => {
62  const cycle = new Intl.DateTimeFormat(locale, { hour: 'numeric' }).resolvedOptions().hourCycle
63  const hour = cycle === 'h23' || cycle === 'h24' ? '2-digit' : 'numeric'
64  return new Intl.DateTimeFormat(locale, { hour, minute: '2-digit' }).format(new Date(ms))
65}
66
67// The weekday comes from Intl in that language (Pzt, Mon, lun., 月 ...).
68export const dayClock = (ms: number, lang: Lang = 'tr'): string =>
69  `${new Intl.DateTimeFormat(lang, { weekday: 'short' }).format(new Date(ms))} ${clockTime(ms)}`
70
71export const windowElapsed = (resetsAt: number, now: number, length = FIVE_HOURS): number =>
72  Math.min(1, Math.max(0, 1 - (resetsAt - now) / length))
73
74// What a narrow band drops: the cost first (under 70 columns), then the ctx token count (under 55).
75// The rings and the percentages are never dropped.
76export const bandLayout = (columns: number): { showJet: boolean; showCost: boolean; showCtxTokens: boolean } => ({
77  showJet: columns >= 85,
78  showCost: columns >= 70,
79  showCtxTokens: columns >= 55,
80})
81
82export const HISTORY_LIMIT = 6
83export const NUDGE_AT = 55
84export const SETTLE_MS = 2000
85
86export type TurnUsage = {
87  input_tokens: number
88  output_tokens: number
89  cache_read_input_tokens: number
90  cache_creation_input_tokens: number
91  model?: string
92}
93
94// turn.complete's usage sums every response of the turn, so the context fill cannot come from it.
95// A turn is recorded with the latest reading's ctx and total cost; settleTurn corrects it with a later measurement.
96export const recordTurn = (
97  history: readonly Turn[],
98  usage: TurnUsage,
99  ctxPercent: number,
100  usd: number | undefined,
101  at: number,
102  fiveHour?: number,
103): Turn[] => {
104  const turn: Turn = {
105    n: (history.at(-1)?.n ?? 0) + 1,
106    at,
107    ctxPercent,
108    ...(usd !== undefined && { usd }),
109    ...(fiveHour !== undefined && { fiveHour }),
110    ...(usage.model !== undefined && { model: usage.model }),
111    in: usage.input_tokens,
112    out: usage.output_tokens,
113    cacheRead: usage.cache_read_input_tokens,
114    cacheWrite: usage.cache_creation_input_tokens,
115  }
116  return [...history, turn].slice(-HISTORY_LIMIT)
117}
118
119// turn.complete and session.measure arrive in no promised order. A measurement within SETTLE_MS of the turn's end
120// belongs to that turn and corrects the fields it carries; a later one is the middle of the next turn.
121export const settleTurn = (
122  history: readonly Turn[],
123  patch: { ctxPercent?: number; usd?: number; fiveHour?: number },
124  now: number,
125): Turn[] => {
126  const last = history.at(-1)
127  if (!last || now - last.at > SETTLE_MS) return [...history]
128  return [
129    ...history.slice(0, -1),
130    {
131      ...last,
132      ...(patch.ctxPercent !== undefined && { ctxPercent: patch.ctxPercent }),
133      ...(patch.usd !== undefined && { usd: patch.usd }),
134      ...(patch.fiveHour !== undefined && { fiveHour: patch.fiveHour }),
135    },
136  ]
137}
138
139// $.state history from v0.4 and earlier carries a single cache field: it counts as reads, writes 0.
140export type LegacyTurn = Omit<Turn, 'cacheRead' | 'cacheWrite'> & { cache?: number; cacheRead?: number; cacheWrite?: number }
141
142export const upgradeTurn = (t: LegacyTurn): Turn => {
143  const { cache, ...rest } = t
144  return { ...rest, cacheRead: t.cacheRead ?? cache ?? 0, cacheWrite: t.cacheWrite ?? 0 }
145}
146
147// Pass the returned nudgedAt to the next call. When the fill drops below nudgedAt (clear, compact) the nudge re-arms.
148export const nudge = (ctxPercent: number, nudgedAt: number): { nudgedAt: number; shouldToast: boolean } => {
149  const armed = ctxPercent < nudgedAt ? 0 : nudgedAt
150  if (ctxPercent >= NUDGE_AT && ctxPercent >= armed + 10) {
151    return { nudgedAt: Math.floor(ctxPercent / 10) * 10, shouldToast: true }
152  }
153  return { nudgedAt: armed, shouldToast: false }
154}
155
156export const nudgeText = (ctxPercent: number, t: Pick<Strings, 'nudge'> = STRINGS.tr): string =>
157  t.nudge(Math.round(ctxPercent))
158
159export const RECENT = 5
160
161export const turnTotal = (t: Turn): number => t.in + t.out + t.cacheRead + t.cacheWrite
162
163// The last RECENT turns, newest first. delta: the turn's ctx minus the previous turn's; cost: the session's total
164// cost at the turn's end minus the previous one's (the engine's own ledger); five: how far the 5-hour window moved
165// over the turn (negative when it reset in between). All null without a previous turn, except the session's first
166// turn's cost, which counts from baseUsd (the session's cost when it started).
167export type RecentTurn = { turn: Turn; delta: number | null; cost: number | null; five: number | null }
168
169// The session's total before the turn is the previous turn's, or for the first turn the cost at session start.
170const turnCost = (turn: Turn, prev: Turn | undefined, baseUsd: number | undefined): number | null => {
171  const before = prev ? prev.usd : turn.n === 1 ? baseUsd : undefined
172  return before !== undefined && turn.usd !== undefined ? turn.usd - before : null
173}
174
175export const recentTurns = (history: readonly Turn[], baseUsd?: number): RecentTurn[] =>
176  history
177    .map((turn, i) => {
178      const prev = i > 0 ? history[i - 1] : undefined
179      return {
180        turn,
181        delta: prev ? turn.ctxPercent - prev.ctxPercent : null,
182        cost: turnCost(turn, prev, baseUsd),
183        five: prev?.fiveHour !== undefined && turn.fiveHour !== undefined ? turn.fiveHour - prev.fiveHour : null,
184      }
185    })
186    .slice(-RECENT)
187    .reverse()
188
189export const ctxDeltaText = (delta: number | null, ctxPercent: number): string => {
190  if (delta === null) return `${Math.round(ctxPercent)}%`
191  const d = Math.round(delta)
192  return d > 0 ? `+${d}%` : d < 0 ? `${d}%` : '±0%'
193}
194
195// The 5-hour window's move over one turn: +0.4%, +1%, ±0%, the reset word when it went down, '' when unknown.
196export const fiveDeltaText = (five: number | null, resetWord: string): string => {
197  if (five === null) return ''
198  if (five < 0) return resetWord
199  const n = Number(five.toFixed(1))
200  return n === 0 ? '±0%' : `+${n}%`
201}
202
203// The section's summary line: tokens, cost and the 5-hour window's growth over the shown turns (resets skipped).
204export const turnsSummary = (rows: readonly RecentTurn[]): { tokens: number; cost: number | null; five: number | null } => {
205  const costs = rows.map(r => r.cost).filter((c): c is number => c !== null)
206  const fives = rows.map(r => r.five).filter((f): f is number => f !== null && f >= 0)
207  return {
208    tokens: rows.reduce((a, r) => a + turnTotal(r.turn), 0),
209    cost: costs.length ? costs.reduce((a, c) => a + c, 0) : null,
210    five: fives.length ? fives.reduce((a, f) => a + f, 0) : null,
211  }
212}
213
214export const costText = (cost: number | null): string => {
215  if (cost === null) return ''
216  return cost < 0.01 ? '<$0.01' : `$${cost.toFixed(2)}`
217}
218
219// The cache ring drains every minute; drawn in 5% steps its Svg changes (and reloads) every few minutes instead.
220export const ringStep = (percent: number): number => Math.round(percent / 5) * 5
221
222export const TTL_1H = 60 * 60 * 1000
223export const TTL_5M = 5 * 60 * 1000
224export const SEVEN_DAYS = 7 * 24 * 60 * 60 * 1000
225export const LOG_KEEP_MS = 8 * 24 * 60 * 60 * 1000
226export const LOG_LIMIT = 2000
227
228export type CacheState = { percent: number; text: string; isWarm: boolean }
229
230// The countdown starts at the turn's end, a little after its last request began, so it is an upper bound.
231export const COUNTDOWN_STEP = 5
232
233export const cacheState = (
234  lastRequestAt: number | null,
235  ttlMs: number,
236  now: number,
237  t: Pick<Strings, 'units' | 'cold'> = STRINGS.tr,
238): CacheState | null => {
239  if (lastRequestAt === null) return null
240  const left = lastRequestAt + ttlMs - now
241  if (left <= 0) return { percent: 0, text: t.cold, isWarm: false }
242  // A long lifetime counts down in 5-minute steps, matching the ring's 5% steps; the 5-minute one by the minute.
243  const step = ttlMs >= 30 * 60 * 1000 ? COUNTDOWN_STEP : 1
244  const text = left < 60_000 ? `<1${t.units.numSep}${t.units.m}` : countdown(left, t.units, step)
245  // The ring drains with the shown countdown, so both change on the same minute.
246  const stepMs = step * 60_000
247  return { percent: Math.min(100, (Math.ceil(left / stepMs) * stepMs * 100) / ttlMs), text, isWarm: true }
248}
249
250export const parseTtl = (arg: string): number | undefined => (arg === '5m' ? TTL_5M : arg === '1h' ? TTL_1H : undefined)
251
252export const ttlText = (ms: number, t: Pick<Strings, 'ttl5m' | 'ttl1h'> = STRINGS.tr): string =>
253  ms === TTL_5M ? t.ttl5m : t.ttl1h
254
255// An unknown project or model is stored as the language-neutral ?; shown as t.unknown. v0.7 logs wrote bilinmiyor.
256export const UNKNOWN = '?'
257const LEGACY_UNKNOWN = 'bilinmiyor'
258export const isUnknown = (name: string): boolean => name === UNKNOWN || name === LEGACY_UNKNOWN
259
260export const projectName = (cwd: string): string => cwd.split(/[\\/]/).filter(Boolean).at(-1) ?? UNKNOWN
261
262export const modelName = (id: string | undefined): string =>
263  id === undefined ? UNKNOWN : id.replace(/^claude-/, '').replace(/\[1m\]$/, '')
264
265// Adds this session's last turn to the log, or updates it under the same id after a settle. When the turn has no
266// model (an interrupted turn, the turn of a hot reload) the session's model is used; earlier unknown rows are fixed too.
267export const syncLog = (
268  log: readonly LogEntry[],
269  turn: Turn,
270  prev: Turn | undefined,
271  project: string,
272  sessionModel?: string,
273  baseUsd?: number,
274): LogEntry[] => {
275  const fallback = sessionModel === undefined ? UNKNOWN : modelName(sessionModel)
276  const usd = turnCost(turn, prev, baseUsd)
277  const entry: LogEntry = {
278    id: String(turn.at),
279    at: turn.at,
280    project,
281    model: turn.model === undefined ? fallback : modelName(turn.model),
282    tokens: turnTotal(turn),
283    ...(usd !== null && { usd }),
284  }
285  const repaired = log.map(e => (isUnknown(e.model) ? { ...e, model: fallback } : e))
286  // The same turn may sit under its older id (the turn number before v1.2.5): its time matches.
287  return [...repaired.filter(e => e.id !== entry.id && e.at !== entry.at), entry].slice(-LOG_LIMIT)
288}
289
290export type WindowView = '5h' | '7d'
291
292export const windowStart = (view: WindowView, r: Reading | null, now: number): number =>
293  view === '5h' ? (r?.fiveHourResetsAt ?? now) - FIVE_HOURS : (r?.sevenDayResetsAt ?? now) - SEVEN_DAYS
294
295export type Group = { name: string; tokens: number; turns: number; usd: number }
296
297export const breakdown = (entries: readonly LogEntry[], since: number, by: 'project' | 'model', limit = 5): Group[] => {
298  const groups = new Map<string, Group>()
299  for (const e of entries) {
300    if (e.at < since) continue
301    const name = isUnknown(e[by]) ? UNKNOWN : e[by]
302    const g = groups.get(name) ?? { name, tokens: 0, turns: 0, usd: 0 }
303    groups.set(name, { name, tokens: g.tokens + e.tokens, turns: g.turns + 1, usd: g.usd + (e.usd ?? 0) })
304  }
305  return [...groups.values()].sort((a, b) => b.usd - a.usd || b.tokens - a.tokens).slice(0, limit)
306}
307
308export const windowTotals = (entries: readonly LogEntry[], since: number): { turns: number; tokens: number; usd: number } =>
309  entries
310    .filter(e => e.at >= since)
311    .reduce((t, e) => ({ turns: t.turns + 1, tokens: t.tokens + e.tokens, usd: t.usd + (e.usd ?? 0) }), { turns: 0, tokens: 0, usd: 0 })
312
313// Another session's log is deleted when it is empty, malformed, or its last turn is older than LOG_KEEP_MS.
314export const isStaleLog = (entries: unknown, now: number): boolean => {
315  if (!Array.isArray(entries) || entries.length === 0) return true
316  const last: unknown = entries.at(-1)
317  const at = typeof last === 'object' && last !== null ? Reflect.get(last, 'at') : undefined
318  return typeof at !== 'number' || at < now - LOG_KEEP_MS
319}
320
321// The 5-hour window's percent at a moment, kept for the run-out forecast's recent pace.
322export type Sample = { at: number; pct: number }
323export const RECENT_MS = 30 * 60 * 1000
324const MIN_SPAN_MS = 5 * 60 * 1000
325
326// Adds a reading when the percent moved; a drop (a new window) starts over, and samples past twice RECENT_MS go.
327export const addSample = (samples: readonly Sample[], pct: number, at: number): Sample[] => {
328  const last = samples.at(-1)
329  if (last && last.pct === pct) return [...samples]
330  const kept = last && pct < last.pct ? [] : samples.filter(s => at - s.at <= 2 * RECENT_MS)
331  return [...kept, { at, pct }]
332}
333
334export type Forecast = { atReset: number; fullAt?: number }
335
336// Where the window ends up at this pace. The pace is the last RECENT_MS of samples when they span at least 5 minutes
337// and moved at least 1 point, otherwise the window's average so far (not before 5% of it has passed). Null when there
338// is not enough to go on, or the window is already full.
339export const forecast = (
340  pct: number | undefined,
341  resetsAt: number | undefined,
342  length: number,
343  now: number,
344  samples: readonly Sample[] = [],
345): Forecast | null => {
346  if (pct === undefined || resetsAt === undefined || resetsAt <= now || pct >= 100) return null
347  const start = resetsAt - length
348  const first = samples.find(s => s.at >= start && now - s.at <= RECENT_MS)
349  const elapsed = now - start
350  const rate =
351    first && now - first.at >= MIN_SPAN_MS && pct - first.pct >= 1
352      ? (pct - first.pct) / (now - first.at)
353      : elapsed >= length * 0.05 && pct >= 1
354        ? pct / elapsed
355        : null
356  if (rate === null) return null
357  const atReset = pct + rate * (resetsAt - now)
358  return atReset > 100 ? { atReset, fullAt: now + (100 - pct) / rate } : { atReset }
359}
360

1// A fighter jet that shows the model's effort. Side view of a small 3D model: the wings,
2// tail and canopy are rolled about the jet's long axis and projected each frame, so banks and rolls show the wings
3// tilting. Pure SMIL, precomputed here: the desktop Svg element runs it without scripts.
4
5import { SCHEME } from './svg'
6
7export type JetLevel = 'low' | 'medium' | 'high' | 'xhigh' | 'max'
8
9type Pace = { period: number; wind: number; flame: number; color: string; lines: number; shock: boolean }
10
11// Lower effort answers faster: low flies fastest (short cycle, fast wind, full afterburner with shock diamonds), max
12// cruises slowest (long cycle, slow wind, a small blue flame) since it thinks longest before answering.
13export const PACE: Record<JetLevel, Pace> = {
14  low: { period: 3.6, wind: 0.35, flame: 12, color: '#7F77DD', lines: 8, shock: true },
15  medium: { period: 4.8, wind: 0.5, flame: 10, color: '#E24B4A', lines: 6, shock: false },
16  high: { period: 6, wind: 0.7, flame: 8, color: '#EF9F27', lines: 5, shock: false },
17  xhigh: { period: 7.2, wind: 0.95, flame: 6, color: '#F2C14E', lines: 4, shock: false },
18  max: { period: 8.4, wind: 1.3, flame: 4, color: '#85B7EB', lines: 3, shock: false },
19}
20
21const LEVELS: readonly JetLevel[] = ['low', 'medium', 'high', 'xhigh', 'max']
22
23// The effort turn.step reports: a level, or an integer thinking budget, flown as max (the slowest). A model without
24// effort reports none: no jet.
25export const jetLevel = (effort: unknown): JetLevel | null => {
26  if (typeof effort === 'number') return 'max'
27  return LEVELS.find(l => l === effort) ?? null
28}
29
30type P3 = readonly [number, number, number]
31type Frame = { phi: number; dx: number; dy: number; pitch: number }
32
33const FRAMES = 96
34const BANK = 24
35const ELEV = (14 * Math.PI) / 180 // the camera looks down a little, so level flight shows the near wing's top
36const WIND = '#888780'
37const GREY = '#9AA5B4'
38const CAM = { y: -Math.sin(ELEV), z: Math.cos(ELEV) }
39const LIGHT = (() => {
40  const m = Math.hypot(0.75, 0.66)
41  return { y: -0.75 / m, z: 0.66 / m }
42})()
43
44// Body frame: x forward, y down, z toward the viewer.
45const FUSELAGE =
46  'M15,0.4 C12,-0.6 9,-1.6 6,-2.0 L-2,-2.3 C-6,-2.4 -9,-2.2 -12,-1.9 L-13.2,-1.6 L-13.2,1.6 L-10,2.2 C-4,2.6 2,2.6 6,2.2 C9,1.9 12,1.2 15,0.4 Z'
47const WING: P3[] = [[7.5, 0.6, 1.4], [2, 0.6, 2.6], [-5.5, 0.6, 8.6], [-8.6, 0.6, 8.6], [-9, 0.6, 2.0]]
48const STAB: P3[] = [[-10, 0.4, 1.6], [-12.4, 0.4, 5.6], [-14.2, 0.4, 5.6], [-13.6, 0.4, 1.5]]
49const FIN: P3[] = [[-6, -2.2, 0], [-10.8, -8.3, 0], [-12.8, -8.3, 0], [-12.6, -1.9, 0]]
50const FLASH: P3[] = [[-9.78, -7, 0], [-10.8, -8.3, 0], [-12.8, -8.3, 0], [-12.76, -7, 0]]
51const MISSILE: P3[] = [[-3.6, 0.6, 9.0], [-9.6, 0.6, 9.0]]
52const UP: P3 = [0, -1, 0]
53const SIDE: P3 = [0, 0, 1]
54
55const mirror = (ps: P3[]): P3[] => ps.map(([x, y, z]) => [x, y, -z] as const)
56const n2 = (n: number): string => String(Number(n.toFixed(2)))
57
58const roll = (y: number, z: number, phi: number) => {
59  const c = Math.cos(phi)
60  const s = Math.sin(phi)
61  return { y: y * c - z * s, z: y * s + z * c }
62}
63
64const project = ([x, y, z]: P3, phi: number) => {
65  const r = roll(y, z, phi)
66  return { x, y: r.y * Math.cos(ELEV) + r.z * Math.sin(ELEV), depth: r.z * Math.cos(ELEV) - r.y * Math.sin(ELEV) }
67}
68
69const shade = (hex: string, b: number): string => {
70  const n = parseInt(hex.slice(1), 16)
71  return `#${[(n >> 16) & 255, (n >> 8) & 255, n & 255]
72    .map(v => Math.min(255, Math.round(v * b)).toString(16).padStart(2, '0'))
73    .join('')}`
74}
75
76const ease = (t: number): number => (1 - Math.cos(Math.PI * t)) / 2
77
78// One cycle: bank right, level, bank left, level, then a full roll while climbing a little (a corkscrew).
79const KEYS: ReadonlyArray<readonly [number, number]> = [
80  [0, 0], [0.12, BANK], [0.24, BANK], [0.36, 0], [0.48, -BANK], [0.6, -BANK], [0.7, 0], [0.72, 0], [0.9, 360], [1, 360],
81]
82
83const rollAt = (u: number): number => {
84  for (let i = 0; i < KEYS.length - 1; i++) {
85    const [a, from] = KEYS[i]
86    const [b, to] = KEYS[i + 1]
87    if (u <= b) return from + (to - from) * ease((u - a) / (b - a))
88  }
89  return 0
90}
91
92const frames = (): Frame[] =>
93  Array.from({ length: FRAMES + 1 }, (_, i) => {
94    const u = i / FRAMES
95    let dy = -2.5 * Math.sin(4 * Math.PI * u)
96    let dx = 0
97    let pitch = -3 * Math.cos(4 * Math.PI * u)
98    if (u > 0.72 && u < 0.9) {
99      const g = (u - 0.72) / 0.18
100      dy += -6 * Math.sin(Math.PI * g)
101      dx += 3 * Math.sin(2 * Math.PI * g)
102      pitch += -9 * Math.sin(2 * Math.PI * g)
103    }
104    return { phi: (rollAt(u) * Math.PI) / 180, dx, dy, pitch }
105  })
106
107const animate = (attr: string, values: string[], period: number, extra = ''): string =>
108  `<animate attributeName="${attr}" values="${values.join(';')}" dur="${period}s" repeatCount="indefinite"${extra}/>`
109
110const DISCRETE = ' calcMode="discrete"'
111
112// A flat part drawn twice: behind the fuselage always, and in front of it (a <use>) while it faces the viewer.
113const part = (id: string, pts: P3[], normal: P3 | null, base: string, fs: Frame[], period: number, stroke?: number) => {
114  const shots = fs.map(f => {
115    const q = pts.map(p => project(p, f.phi))
116    const d = stroke
117      ? `M${n2(q[0].x)},${n2(q[0].y)} L${n2(q[1].x)},${n2(q[1].y)}`
118      : `M${q.map(p => `${n2(p.x)},${n2(p.y)}`).join(' L')} Z`
119    const depth = q.reduce((a, p) => a + p.depth, 0) / q.length
120    let color = base
121    if (normal) {
122      let n = roll(normal[1], normal[2], f.phi)
123      if (n.y * CAM.y + n.z * CAM.z < 0) n = { y: -n.y, z: -n.z }
124      color = shade(base, 0.55 + 0.6 * Math.max(0, n.y * LIGHT.y + n.z * LIGHT.z))
125    }
126    return { d, depth, color }
127  })
128  const paint = stroke ? 'stroke' : 'fill'
129  const extra = stroke ? ` fill="none" stroke-width="${stroke}" stroke-linecap="round"` : ''
130  return {
131    back:
132      `<path id="${id}" d="${shots[0].d}" ${paint}="${shots[0].color}"${extra}>` +
133      animate('d', shots.map(s => s.d), period) +
134      (normal ? animate(paint, shots.map(s => s.color), period) : '') +
135      '</path>',
136    front: `<use href="#${id}" opacity="0">${animate('opacity', shots.map(s => (s.depth > 0 ? '1' : '0')), period, DISCRETE)}</use>`,
137  }
138}
139
140const flame = (pace: Pace): string => {
141  const x = -15.4
142  const shape = (len: number, h: number) =>
143    `M${x},${n2(-h + 0.05)} Q${n2(x - len * 0.45)},${n2(-h)} ${n2(x - len)},0.05 Q${n2(x - len * 0.45)},${n2(h + 0.1)} ${x},${n2(h + 0.05)} Z`
144  const layer = (len: number, h: number, fill: string, opacity: number) => {
145    const a = shape(len, h)
146    const b = shape(len * 0.78, h)
147    return `<path d="${a}" fill="${fill}" opacity="${opacity}"><animate attributeName="d" values="${a};${b};${a}" dur="0.16s" repeatCount="indefinite"/></path>`
148  }
149  let s = layer(pace.flame * 1.35, 1.25, pace.color, 0.3) + layer(pace.flame, 0.95, pace.color, 0.9) + layer(pace.flame * 0.45, 0.55, '#FFF4D6', 0.95)
150  // Shock diamonds in the plume at max.
151  if (pace.shock) {
152    for (const at of [0.35, 0.62]) {
153      const cx = x - pace.flame * at
154      s += `<path d="M${n2(cx + 0.5)},0.05 L${n2(cx)},-0.4 L${n2(cx - 0.5)},0.05 L${n2(cx)},0.5 Z" fill="#FFFFFF"><animate attributeName="opacity" values="0.9;0.35;0.9" dur="0.2s" repeatCount="indefinite"/></path>`
155    }
156  }
157  return s
158}
159
160const jet = (pace: Pace, k: string): { defs: string; body: string } => {
161  const T = pace.period
162  const fs = frames()
163  const wingFar = part(`${k}wf`, mirror(WING), UP, GREY, fs, T)
164  const stabFar = part(`${k}sf`, mirror(STAB), UP, GREY, fs, T)
165  const missileFar = part(`${k}mf`, mirror(MISSILE), null, '#E6EAF0', fs, T, 0.85)
166  const wingNear = part(`${k}wn`, WING, UP, GREY, fs, T)
167  const stabNear = part(`${k}sn`, STAB, UP, GREY, fs, T)
168  const missileNear = part(`${k}mn`, MISSILE, null, '#E6EAF0', fs, T, 0.85)
169  const fin = part(`${k}fn`, FIN, SIDE, '#97A2B1', fs, T)
170  const flash = part(`${k}fl`, FLASH, SIDE, pace.color, fs, T)
171  // The canopy is a dome on the spine: moved to its rolled place and squashed (flipped under) by cos(roll).
172  const base = fs.map(f => project([3.2, -2.0, 0], f.phi))
173  const top = fs.map(f => project([3.2, -2.3, 0], f.phi))
174  const dome =
175    `<g id="${k}cd"><animateTransform attributeName="transform" type="translate" values="${base.map(q => `${n2(q.x)} ${n2(q.y)}`).join(';')}" dur="${T}s" repeatCount="indefinite"/>` +
176    `<g><animateTransform attributeName="transform" type="scale" values="${fs.map(f => `1 ${n2(Math.cos(f.phi))}`).join(';')}" dur="${T}s" repeatCount="indefinite"/>` +
177    `<path d="M4.4,0 C3.6,-1.3 2.2,-2.1 0.4,-2.1 C-1.8,-2.1 -3.4,-1.1 -4.6,0 Z" fill="url(#${k}gg)"/>` +
178    '<path d="M2.6,-1.55 C1.6,-1.85 0,-1.9 -1.4,-1.6" fill="none" stroke="#FFFFFF" stroke-width="0.35" stroke-linecap="round" opacity="0.75"/>' +
179    '<path d="M1.6,-1.95 L2.1,-0.2" stroke="#1B2B3D" stroke-width="0.16" opacity="0.7"/></g></g>'
180  const domeFront = `<use href="#${k}cd" opacity="0">${animate('opacity', base.map(q => (q.depth > -0.2 ? '1' : '0')), T, DISCRETE)}</use>`
181  // Seen from above (rolled toward the viewer) the canopy reads as an oval on the fuselage.
182  const oval =
183    `<ellipse cx="3.2" cy="${n2(top[0].y)}" rx="4.1" ry="1.25" fill="url(#${k}gg)" opacity="0">` +
184    animate('cy', top.map(q => n2(q.y)), T) +
185    animate('opacity', fs.map(f => n2(Math.max(0, -Math.sin(f.phi)) ** 1.5)), T) +
186    '</ellipse>'
187  const fuselage =
188    `<path d="${FUSELAGE}" fill="url(#${k}fg)"/>` +
189    `<g clip-path="url(#${k}cp)"><rect x="11.4" y="-4" width="6" height="8" fill="#5B6573"/>` +
190    '<path d="M-4,-1.9 C0,-1.3 6,-1.1 11,-1.0" fill="none" stroke="#FFFFFF" stroke-width="0.4" opacity="0.35"/></g>' +
191    `<path d="${FUSELAGE}" fill="none" stroke="#3E4652" stroke-width="0.3" stroke-opacity="0.6"/>` +
192    '<line x1="15" y1="0.4" x2="17.2" y2="0.4" stroke="#5B6573" stroke-width="0.3"/>' +
193    '<path d="M-13.2,-1.6 L-15.4,-1.25 L-15.4,1.35 L-13.2,1.6 Z" fill="#454C57"/>' +
194    '<line x1="-14.1" y1="-1.42" x2="-14.1" y2="1.48" stroke="#6B7480" stroke-width="0.25"/>' +
195    '<line x1="-13.2" y1="-1.6" x2="-13.2" y2="1.6" stroke="#2F343C" stroke-width="0.35"/>'
196  const defs =
197    `<linearGradient id="${k}fg" x1="0" y1="0" x2="0" y2="1"><stop offset="0" stop-color="#DCE2EA"/><stop offset="0.3" stop-color="#B3BDCA"/><stop offset="0.7" stop-color="#848FA0"/><stop offset="1" stop-color="#5E6878"/></linearGradient>` +
198    `<linearGradient id="${k}gg" x1="0" y1="0" x2="0" y2="1"><stop offset="0" stop-color="#0E2A47"/><stop offset="0.55" stop-color="#2C6E9E"/><stop offset="1" stop-color="#6FB3DB"/></linearGradient>` +
199    `<clipPath id="${k}cp"><path d="${FUSELAGE}"/></clipPath>`
200  const back = [wingFar, missileFar, stabFar, fin, flash, wingNear, missileNear, stabNear].map(p => p.back).join('')
201  const front = [fin, flash, stabFar, wingFar, missileFar, stabNear, wingNear, missileNear].map(p => p.front).join('')
202  const body =
203    `<g><animateTransform attributeName="transform" type="translate" values="${fs.map(f => `${n2(f.dx)},${n2(f.dy)}`).join(';')}" dur="${T}s" repeatCount="indefinite"/>` +
204    `<g><animateTransform attributeName="transform" type="rotate" values="${fs.map(f => n2(f.pitch)).join(';')}" dur="${T}s" repeatCount="indefinite"/>` +
205    `${flame(pace)}${back}${dome}${fuselage}${front}${domeFront}${oval}</g></g>`
206  return { defs, body }
207}
208
209// Speed lines streaming past: faster wind, more lines at higher effort. The wind moves at the same speed relative to
210// the jet's size on every strip (pace.wind is the time to cross WIND_REF pixels at scale 1.25), so neither the band
211// nor the larger pane looks slower than the other.
212const WIND_REF = 340
213const WIND_SCALE = 1.25
214const wind = (pace: Pace, width: number, height: number, scale: number): string => {
215  const dur = Number(Math.max(0.15, (pace.wind * (width + 40) * WIND_SCALE) / (WIND_REF * scale)).toFixed(2))
216  let s = ''
217  for (let i = 0; i < pace.lines; i++) {
218    const y = 6 + ((i * 37) % Math.max(1, height - 10))
219    const len = 10 + ((i * 7) % 14)
220    const delay = -((i * dur) / pace.lines)
221    s +=
222      `<line x1="0" y1="${y}" x2="${len}" y2="${y}" stroke="${WIND}" stroke-width="1" stroke-linecap="round" opacity="0.45">` +
223      `<animateTransform attributeName="transform" type="translate" values="${width + 10},0;-30,0" dur="${dur}s" begin="${delay.toFixed(2)}s" repeatCount="indefinite"/></line>`
224  }
225  return s
226}
227
228const cache = new Map<string, string>()
229
230const escape = (s: string): string => s.replace(/&/g, '&amp;').replace(/</g, '&lt;')
231
232// The whole strip: wind and the jet centered. Memoized: the frames are the same on every draw.
233export const jetStrip = (level: JetLevel, width: number, height: number, scale: number, title: string, id = 'jet'): string => {
234  const key = `${level}|${width}|${height}|${scale}|${title}|${id}`
235  const hit = cache.get(key)
236  if (hit !== undefined) return hit
237  const pace = PACE[level]
238  const { defs, body } = jet(pace, id)
239  const svg =
240    `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${height}" viewBox="0 0 ${width} ${height}">${SCHEME}` +
241    `<title>${escape(title)}</title><defs>${defs}</defs>${wind(pace, width, height, scale)}` +
242    `<g transform="translate(${n2(width / 2 + 6)},${n2(height / 2 + 2)}) scale(${scale})">${body}</g></svg>`
243  if (cache.size > 24) cache.clear()
244  cache.set(key, svg)
245  return svg
246}
247

1import type { Turn } from '../types'
2import type { Heat } from './model'
3import { heat } from './model'
4
5// Pure SVG builders. The desktop draws an Svg as an isolated image without the theme's variables,
6// so the colors are mid tones that read on light and dark themes. Text goes in Text elements, not the SVG.
7
8export const COLORS: Record<Heat, string> = { calm: '#00C853', warn: '#FF9800', hot: '#FF3D00' }
9export const TRACK = '#888780'
10export const CHART = '#378ADD'
11
12const clamp = (n: number, lo: number, hi: number): number => Math.min(hi, Math.max(lo, n))
13const f = (n: number): string => n.toFixed(2)
14// An interactive Svg is a framed document: without a color scheme it takes the light one and, on a dark theme, the
15// frame is painted white behind it. Following the page's scheme keeps the frame transparent on both.
16export const SCHEME = '<style>:root,svg{color-scheme:light dark}</style>'
17
18const open = (width: number, height: number): string =>
19  `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${height}" viewBox="0 0 ${width} ${height}">${SCHEME}`
20
21// A level change moves the liquid, the arc and its head together: past the target by OVERSHOOT, then back, like a slosh.
22const MOVE = 'keyTimes="0;0.72;1" calcMode="spline" keySplines="0.25 0.8 0.35 1;0.45 0 0.55 1" dur="1.5s" fill="freeze"'
23const OVERSHOOT = 0.07
24
25// The fuller the ring, the faster and higher its waves and the more bubbles rise (fewer on a band-sized ring).
26type Motion = { front: number; back: number; amp: number; bubbles: number; climb: number }
27const MOTION: Record<Heat, Motion> = {
28  calm: { front: 2.6, back: 4, amp: 0.045, bubbles: 2, climb: 3.4 },
29  warn: { front: 1.9, back: 3, amp: 0.06, bubbles: 3, climb: 2.6 },
30  hot: { front: 1.25, back: 2.1, amp: 0.08, bubbles: 5, climb: 1.8 },
31}
32
33const level = (p: number, cy: number, inner: number): number => cy + inner - (2 * inner * p) / 100
34
35// The color moved toward white (255) or black (0) by t.
36const shade = (hex: string, t: number, to: 0 | 255): string => {
37  const n = parseInt(hex.slice(1), 16)
38  return `#${[n >> 16, (n >> 8) & 255, n & 255].map(v => Math.round(v + (to - v) * t).toString(16).padStart(2, '0')).join('')}`
39}
40
41// Seven half waves from the left edge: shifted by ±w, the inner circle stays covered at every moment.
42const crest = (x0: number, y: number, w: number, amp: number): string => {
43  const half = f(w / 2)
44  const rest = Array.from({ length: 6 }, () => ` t${half} 0`).join('')
45  return `M${f(x0)} ${f(y)} q${f(w / 4)} ${f(-amp)} ${half} 0${rest}`
46}
47const wavePath = (x0: number, y: number, w: number, amp: number, bottom: number): string =>
48  `${crest(x0, y, w, amp)} V${f(bottom)} H${f(x0)} Z`
49
50const slide = (from: number, to: number, dur: number): string =>
51  `<animateTransform attributeName="transform" type="translate" from="${f(from)} 0" to="${f(to)} 0" dur="${dur}s" repeatCount="indefinite"/>`
52
53// Bubbles at fixed spots (the same source on every redraw), each rising from the bottom to just under the surface.
54const bubbles = (count: number, h: number, inner: number, y: number, size: number, climb: number): string =>
55  Array.from({ length: count }, (_, i) => {
56    const x = h - inner * 0.55 + inner * 1.1 * ((i * 0.618 + 0.2) % 1)
57    const r = size * (0.016 + 0.008 * (i % 3))
58    const dur = climb + (i % 3) * 0.45
59    const begin = `begin="${f((-i * dur) / count)}s" repeatCount="indefinite"`
60    const y0 = h + inner - r - 1
61    return (
62      `<circle cx="${f(x)}" cy="${f(y0)}" r="${f(r)}" fill="#fff" opacity="0">` +
63      `<animate attributeName="cy" values="${f(y0)};${f(y)}" dur="${f(dur)}s" ${begin}/>` +
64      `<animate attributeName="opacity" values="0;0.7;0.7;0" keyTimes="0;0.15;0.8;1" dur="${f(dur)}s" ${begin}/>` +
65      `<animate attributeName="cx" values="${f(x)};${f(x + r * 1.4)};${f(x - r * 1.4)};${f(x)}" dur="${f(dur * 0.6)}s" repeatCount="indefinite"/></circle>`
66    )
67  }).join('')
68
69const liquid = (p: number, from: number | undefined, h: number, inner: number, size: number, color: string, m: Motion): string => {
70  const w = 2 * inner
71  const y = level(p, h, inner)
72  const amp = Math.max(0.8, size * m.amp)
73  const bottom = h + inner + 1
74  const dy = from === undefined ? 0 : level(from, h, inner) - y
75  const rise =
76    Math.abs(dy) > 0.01
77      ? `<animateTransform attributeName="transform" type="translate" values="0 ${f(dy)};0 ${f(-dy * OVERSHOOT)};0 0" ${MOVE}/>`
78      : ''
79  // Lighter at the surface, deeper at the bottom.
80  const depth = `<linearGradient id="dep" gradientUnits="userSpaceOnUse" x1="0" y1="${f(y - amp)}" x2="0" y2="${f(bottom)}"><stop offset="0" stop-color="${shade(color, 0.4, 255)}"/><stop offset="0.45" stop-color="${color}"/><stop offset="1" stop-color="${shade(color, 0.35, 0)}"/></linearGradient>`
81  const back = `<path d="${wavePath(h - inner - w / 2, y, w, amp * 0.8, bottom)}" fill="${color}" fill-opacity="0.3">${slide(-w, 0, m.back)}</path>`
82  const front = `<path d="${wavePath(h - inner, y, w, amp, bottom)}" fill="url(#dep)" fill-opacity="0.92">${slide(0, -w, m.front)}</path>`
83  const surface = `<path d="${crest(h - inner, y, w, amp)}" fill="none" stroke="#fff" stroke-opacity="0.55" stroke-width="${f(Math.max(0.6, size * 0.014))}">${slide(0, -w, m.front)}</path>`
84  const rising = p > 8 ? bubbles(size < 50 ? Math.ceil(m.bubbles * 0.6) : m.bubbles, h, inner, y + amp * 0.5, size, m.climb) : ''
85  return `<defs><clipPath id="liq"><circle cx="${h}" cy="${h}" r="${f(inner)}"/></clipPath>${depth}</defs><g clip-path="url(#liq)"><g>${rise}${back}${front}${surface}${rising}</g></g>`
86}
87
88// A glass shine on the inner circle's upper left.
89const glass = (h: number, inner: number, size: number): string => {
90  const at = (deg: number): [string, string] => {
91    const a = (deg * Math.PI) / 180
92    return [f(h + inner * 0.74 * Math.cos(a)), f(h + inner * 0.74 * Math.sin(a))]
93  }
94  const [x1, y1] = at(200)
95  const [x2, y2] = at(248)
96  const [dx, dy] = at(265)
97  return (
98    `<path d="M${x1} ${y1} A${f(inner * 0.74)} ${f(inner * 0.74)} 0 0 1 ${x2} ${y2}" fill="none" stroke="#fff" stroke-opacity="0.3" stroke-width="${f(size * 0.04)}" stroke-linecap="round"/>` +
99    `<circle cx="${dx}" cy="${dy}" r="${f(size * 0.022)}" fill="#fff" fill-opacity="0.3"/>`
100  )
101}
102
103// Ring plus liquid: the outer arc shows the percentage, the inner circle fills with waving liquid to the same level.
104// Given a different from, the level, the arc and its head slide from there once; draw it as an isInteractive Svg.
105// Given an override, it replaces the heat color and the motion stays calm (for rings whose meaning is inverted, like
106// the cache TTL ring).
107export const liquidRing = (
108  percent: number | undefined,
109  size: number,
110  stroke: number,
111  from?: number,
112  override?: string,
113): string => {
114  const h = size / 2
115  const r = (size - stroke) / 2
116  const c = 2 * Math.PI * r
117  const inner = r - stroke / 2 - (size < 30 ? 1 : 2)
118  const p = percent === undefined ? 0 : clamp(percent, 0, 100)
119  const start = from === undefined ? undefined : clamp(from, 0, 100)
120  const mood: Heat = override === undefined ? heat(p) : 'calm'
121  const color = override ?? COLORS[heat(p)]
122  const base = `<circle cx="${h}" cy="${h}" r="${f(inner)}" fill="${TRACK}" fill-opacity="0.12"/>`
123  const track = `<circle cx="${h}" cy="${h}" r="${f(r)}" fill="none" stroke="${TRACK}" stroke-opacity="0.3" stroke-width="${stroke}"/>`
124  if (p === 0) return `${open(size, size)}${base}${glass(h, inner, size)}${track}</svg>`
125  const moved = start !== undefined && Math.abs(start - p) > 0.01
126  const past = start !== undefined && moved ? clamp(p + (p - start) * OVERSHOOT, 0, 100) : p
127  const len = (q: number): string => `${f((c * q) / 100)} ${f(c)}`
128  const turn = (q: number): string => `${f(3.6 * q)} ${h} ${h}`
129  const sweep = start !== undefined && moved ? `<animate attributeName="stroke-dasharray" values="${len(start)};${len(past)};${len(p)}" ${MOVE}/>` : ''
130  const arc = `<circle cx="${h}" cy="${h}" r="${f(r)}" fill="none" stroke="${color}" stroke-width="${stroke}" stroke-linecap="round" stroke-dasharray="${len(p)}" transform="rotate(-90 ${h} ${h})">${sweep}</circle>`
131  // The arc's head: a white dot riding its end, with a pulse once the ring runs hot.
132  const follow = start !== undefined && moved ? `<animateTransform attributeName="transform" type="rotate" values="${turn(start)};${turn(past)};${turn(p)}" ${MOVE}/>` : ''
133  const pulse =
134    mood === 'hot'
135      ? `<circle cx="${f(h + r)}" cy="${h}" r="${f(stroke * 0.5)}" fill="${color}"><animate attributeName="r" values="${f(stroke * 0.5)};${f(stroke * 0.9)}" dur="1.3s" repeatCount="indefinite"/><animate attributeName="opacity" values="0.7;0" dur="1.3s" repeatCount="indefinite"/></circle>`
136      : ''
137  const head = `<g transform="rotate(-90 ${h} ${h})"><g transform="rotate(${turn(p)})">${follow}${pulse}<circle cx="${f(h + r)}" cy="${h}" r="${f(stroke * 0.28)}" fill="#fff" fill-opacity="0.9"/></g></g>`
138  const fill = liquid(p, start, h, inner, size, color, MOTION[mood])
139  return `${open(size, size)}${base}${fill}${glass(h, inner, size)}${track}${arc}${head}</svg>`
140}
141
142// Cache TTL ring: calm while plenty is left, the warning color in its last fifth.
143export const ttlColor = (percent: number): string => (percent > 20 ? COLORS.calm : COLORS.warn)
144
145// A rounded progress bar; the pane's reset rows also draw a thinner one for the limit used, in its heat color.
146export const resetBar = (fraction: number, width: number, color = CHART, height = 8): string => {
147  const filled = clamp(fraction, 0, 1) * width
148  const track = `<rect width="${width}" height="${height}" rx="${height / 2}" fill="${TRACK}" fill-opacity="0.3"/>`
149  const bar = filled > 0 ? `<rect width="${f(Math.max(height, filled))}" height="${height}" rx="${height / 2}" fill="${color}"/>` : ''
150  return `${open(width, height)}${track}${bar}</svg>`
151}
152
153export const SEGMENTS = { in: '#378ADD', out: '#D85A30', cacheWrite: '#7F77DD', cacheRead: TRACK } as const
154
155// A turn's stacked in/out/cache write/cache read bar. scale: the largest total among the turns shown.
156// Cache reads are the largest but cheapest part, so they are muted on purpose.
157export const turnBar = (
158  t: Pick<Turn, 'in' | 'out' | 'cacheWrite' | 'cacheRead'>,
159  scale: number,
160  width: number,
161  titles?: readonly [string, string, string, string],
162): string => {
163  const height = 10
164  const unit = scale > 0 ? width / scale : 0
165  const parts: [number, string, string][] = [
166    [t.in, SEGMENTS.in, ''],
167    [t.out, SEGMENTS.out, ''],
168    [t.cacheWrite, SEGMENTS.cacheWrite, ''],
169    [t.cacheRead, SEGMENTS.cacheRead, ' fill-opacity="0.45"'],
170  ]
171  let x = 0
172  // With titles, each segment names itself on hover (the Svg must be interactive).
173  const rects = parts
174    .map(([n, color, opacity], i) => {
175      const w = n * unit
176      const title = titles ? `<title>${titles[i].replace(/&/g, '&amp;').replace(/</g, '&lt;')}</title>` : ''
177      const rect = w > 0 ? `<rect x="${f(x)}" width="${f(w)}" height="${height}" fill="${color}"${opacity}>${title}</rect>` : ''
178      x += w
179      return rect
180    })
181    .join('')
182  return `${open(width, height)}<defs><clipPath id="bar"><rect width="${width}" height="${height}" rx="3"/></clipPath></defs><g clip-path="url(#bar)"><rect width="${width}" height="${height}" fill="${TRACK}" fill-opacity="0.1"/>${rects}</g></svg>`
183}
184

1import type { Reading } from '../types'
2import type { Strings } from './i18n'
3import type { CacheState } from './model'
4import { bandLayout, heat, percentText, tokens } from './model'
5
6// The terminal has no Svg: quarter-circle glyphs instead of rings, one line, text colored by heat.
7
8export type Part = { text: string; color?: string; dim?: boolean; bold?: boolean }
9
10const HEAT_COLOR = { calm: 'green', warn: 'yellow', hot: 'red' } as const
11
12export const glyph = (percent: number | undefined): string => {
13  const p = percent ?? 0
14  return p < 12.5 ? '○' : p < 37.5 ? '◔' : p < 62.5 ? '◑' : p < 87.5 ? '◕' : '●'
15}
16
17const metric = (label: string, percent: number | undefined, value?: string, color?: string, extra?: string): Part[] => {
18  const c = color ?? (percent === undefined ? undefined : HEAT_COLOR[heat(percent)])
19  return [
20    { text: `${glyph(percent)} `, color: c, dim: c === undefined },
21    { text: `${label} `, dim: true },
22    { text: value ?? percentText(percent), bold: true, color: c },
23    ...(extra !== undefined ? [{ text: ` ${extra}`, dim: true }] : []),
24  ]
25}
26
27export const terminalParts = (r: Reading | null, cache: CacheState | null, columns: number, t: Strings): Part[] => {
28  const layout = bandLayout(columns)
29  const cacheParts = cache === null ? [] : [metric(t.cache, cache.percent, cache.text, cache.isWarm ? (cache.percent > 20 ? 'green' : 'yellow') : undefined)]
30  const groups: Part[][] =
31    r === null
32      ? [metric(t.win5h, undefined), metric(t.win7d, undefined), metric(t.ctx, undefined), ...cacheParts, [{ text: t.waitingBand, dim: true }]]
33      : [
34          ...(r.fiveHour !== undefined ? [metric(t.win5h, r.fiveHour)] : []),
35          ...(r.sevenDay !== undefined ? [metric(t.win7d, r.sevenDay)] : []),
36          metric(t.ctx, r.ctxPercent, undefined, undefined, layout.showCtxTokens && r.ctxTokens !== undefined ? tokens(r.ctxTokens) : undefined),
37          ...cacheParts,
38          ...(layout.showCost && r.usd !== undefined ? [[{ text: `$${r.usd.toFixed(2)}`, dim: true }]] : []),
39        ]
40  return groups.flatMap((g, i) => (i === 0 ? g : [{ text: '  ' }, ...g]))
41}
42

1// The part of the latest measurement the mod uses. A field the measurement lacks stays undefined.
2export type Reading = {
3  fiveHour?: number
4  fiveHourResetsAt?: number
5  sevenDay?: number
6  sevenDayResetsAt?: number
7  ctxPercent?: number
8  ctxTokens?: number
9  ctxWindow: number
10  usd?: number
11}
12
13// A main-agent turn: its number, end time, context fill, the session's total cost at its end
14// (absent when unknown) and the turn's summed token counts.
15export type Turn = {
16  n: number
17  at: number
18  ctxPercent: number
19  usd?: number
20  // The 5-hour window's percent used at the turn's end (account-wide).
21  fiveHour?: number
22  model?: string
23  in: number
24  out: number
25  cacheRead: number
26  cacheWrite: number
27}
28
29// A turn for the window breakdown: kept in $.store across sessions.
30export type LogEntry = {
31  id: string
32  at: number
33  project: string
34  model: string
35  tokens: number
36  usd?: number
37}
38
39declare module 'claude-code' {
40  interface PluginState {
41    'wavy-usage': {
42      reading: Reading | null
43      history: Turn[]
44      isPaneOpen: boolean
45      isEnabled: boolean
46      lastRequestAt: number | null
47      ttlMs: number
48      log: LogEntry[]
49      others: LogEntry[]
50      windowView: '5h' | '7d'
51      screen: { reading: Reading | null; turns: Turn[]; lastRequestAt: number | null; log: LogEntry[] }
52      effort: 'low' | 'medium' | 'high' | 'xhigh' | 'max' | null
53    }
54  }
55}
56
