Context Control

1import { atom, read, update } from 'claude-code'
2import type { Elements, EngineInterface, Register, SessionCompactResult, SessionContextUsage, SessionMessage } from 'claude-code'
3
4import { DEFAULTS, TEXT_TONE, TONE, clampPercent, fmt, fmtDelta, fmtWindow, growth, levelOf, limitOf, toBreakdown, turnsLeft } from './model'
5import type { Level } from './model'
6import { snapshotStamp, snapshotText } from './snapshot'
7import { compositionBar, rankBar, sparkline, windowBar } from './svg'
8import type { Breakdown, Compaction, Point, Reading, ControlSettings } from '../types'
9
10const PANE = 'context-control'
11
12const reading = atom({ plugin: 'context-control', key: 'reading' } as const, null)
13const history = atom({ plugin: 'context-control', key: 'history' } as const, [])
14const breakdown = atom({ plugin: 'context-control', key: 'breakdown' } as const, null)
15const compactions = atom({ plugin: 'context-control', key: 'compactions' } as const, [])
16const phase = atom({ plugin: 'context-control', key: 'phase' } as const, 'idle')
17const expanded = atom({ plugin: 'context-control', key: 'expanded' } as const, false)
18const composing = atom({ plugin: 'context-control', key: 'composing' } as const, false)
19const draft = atom({ plugin: 'context-control', key: 'draft' } as const, '')
20const tab = atom({ plugin: 'context-control', key: 'tab' } as const, 'overview')
21const settings = atom({ plugin: 'context-control', key: 'settings' } as const, DEFAULTS)
22const shownFill = atom({ plugin: 'context-control', key: 'shownFill' } as const, 0)
23const isAlerted = atom({ plugin: 'context-control', key: 'isAlerted' } as const, false)
24const error = atom({ plugin: 'context-control', key: 'error' } as const, '')
25
26// Not `$`: the engine and the directory read that name as the capability object.
27type Engine = EngineInterface
28type Els = Elements[keyof Elements]
29
30const message = (err: unknown) => (err instanceof Error ? err.message : String(err))
31
32/** Everything a drawing needs, derived once per draw. */
33type View = {
34  r: Reading
35  tokens?: number
36  pct?: number
37  limit: number
38  limitPct?: number
39  level: Level
40  last?: number
41  avg?: number
42  turns?: number
43  b: Breakdown | null
44  s: ControlSettings
45  from: number
46}
47
48async function viewOf($: Engine): Promise<View | null> {
49  const r = await read($, reading)
50  if (r === null) return null
51  const [b, s, points, from] = await Promise.all([read($, breakdown), read($, settings), read($, history), read($, shownFill)])
52  const limit = limitOf(r, b)
53  const tokens = r.tokens
54  const pct = tokens === undefined ? undefined : (r.percent ?? Math.round((tokens / r.window) * 100))
55  const { last, avg } = growth(points, s.averageOver)
56  return {
57    r,
58    tokens,
59    pct,
60    limit,
61    limitPct: b?.threshold !== undefined ? (b.threshold / r.window) * 100 : undefined,
62    level: tokens === undefined ? 'calm' : levelOf(tokens, limit, s),
63    last,
64    avg,
65    turns: tokens === undefined ? undefined : turnsLeft(tokens, limit, avg),
66    b,
67    s,
68    from,
69  }
70}
71
72async function ingest($: Engine, ctx: SessionContextUsage) {
73  const before = await read($, reading)
74  const next: Reading = { tokens: ctx.tokens, window: ctx.window, percent: ctx.percent }
75  await update($, shownFill, () => (before?.tokens !== undefined ? (before.tokens / before.window) * 100 : 0))
76  await update($, reading, () => next)
77  if (next.tokens === undefined) return
78  const tokens = next.tokens
79
80  const wasCompacted = (await read($, phase)) === 'compacted'
81  if (wasCompacted) await update($, phase, () => 'idle')
82  await update($, history, list => {
83    const lastPoint = list.at(-1)
84    if (!wasCompacted && lastPoint?.tokens === tokens) return list
85    const point: Point = wasCompacted ? { tokens, isCompaction: true } : { tokens }
86    return [...list, point].slice(-300)
87  })
88
89  const [s, b, points] = await Promise.all([read($, settings), read($, breakdown), read($, history)])
90  const limit = limitOf(next, b)
91  const level = levelOf(tokens, limit, s)
92  if (level === 'alert' && !(await read($, isAlerted))) {
93    await update($, isAlerted, () => true)
94    if (s.toastOnAlert) {
95      const turns = turnsLeft(tokens, limit, growth(points, s.averageOver).avg)
96      const pct = next.percent ?? Math.round((tokens / next.window) * 100)
97      $.ui.toast(`Context at ${pct}%${turns !== undefined ? ` — auto-compact in ~${turns} ${turns === 1 ? 'turn' : 'turns'}` : ''}`, { timeoutMs: 6000 })
98    }
99  } else if (level === 'calm') {
100    await update($, isAlerted, () => false)
101  }
102}
103
104async function refresh($: Engine, ctx?: SessionContextUsage) {
105  try {
106    const s = await read($, settings)
107    const usage = await $.session.usage({ breakdown: s.exactCounts ? 'full' : 'summary' })
108    const found = usage.context.breakdown
109    if (found) await update($, breakdown, () => toBreakdown(found, s.exactCounts))
110    await ingest($, ctx ?? usage.context)
111    await update($, error, () => '')
112  } catch (err) {
113    await update($, error, () => message(err))
114  }
115}
116
117async function saveSettings($: Engine, patch: Partial<ControlSettings>) {
118  const next = await update($, settings, s => ({ ...s, ...patch }))
119  await $.store.set('settings', next)
120  if (patch.exactCounts !== undefined || patch.warnAt !== undefined || patch.alertAt !== undefined) void refresh($)
121}
122
123/**
124 * Writes the snapshot; the engine follows `$` only into functions of this file,
125 * so the I/O lives here and snapshot.ts only builds the text.
126 */
127async function writeSnapshot(
128  $: Engine,
129  o: { messages: readonly SessionMessage[]; trigger: string; focus?: string; reading: Reading | null; settings: ControlSettings },
130): Promise<string> {
131  const stamp = snapshotStamp(await $.clock.now())
132  const sessionId = await $.session.id()
133  const model = await $.session.model()
134  const text = snapshotText({ stamp, trigger: o.trigger, sessionId, model, reading: o.reading, focus: o.focus, messages: o.messages })
135  // Fixed paths, relative to the working directory, so the plugin directory can read what is written.
136  await $.fs.write(`.claude/context-snapshots/${stamp}.md`, text)
137  if (o.settings.snapshotGitignore && !(await $.fs.exists('.claude/context-snapshots/.gitignore'))) {
138    await $.fs.write('.claude/context-snapshots/.gitignore', '*\n')
139  }
140  return `.claude/context-snapshots/${stamp}.md`
141}
142
143/**
144 * Snapshot first (when on), run the compaction, record it. Shared by the
145 * session.compact hook and the mod's own button: the engine runs a plugin's
146 * `$.session.compact` past that plugin's own hook, so the button does this itself.
147 */
148async function aroundCompact(
149  $: Engine,
150  o: { trigger: string; focus?: string; messages: readonly SessionMessage[] },
151  run: () => Promise<SessionCompactResult>,
152): Promise<SessionCompactResult> {
153  const s = await read($, settings)
154  const before = await read($, reading)
155  await update($, phase, () => 'compacting')
156  try {
157    let snapshot: string | undefined
158    if (s.snapshot) {
159      try {
160        snapshot = await writeSnapshot($, { messages: o.messages, trigger: o.trigger, focus: o.focus, reading: before, settings: s })
161      } catch (err) {
162        $.ui.toast(`Snapshot not saved: ${message(err)}`)
163      }
164    }
165    const result = await run()
166    if (result.skip !== undefined) {
167      await update($, phase, () => 'idle')
168      return result
169    }
170    const record: Compaction = {
171      at: await $.clock.now(),
172      trigger: o.trigger,
173      before: result.tokensBefore ?? before?.tokens,
174      after: result.tokensAfter,
175      focus: o.focus,
176      snapshot,
177    }
178    await update($, compactions, list => [...list, record].slice(-50))
179    await update($, phase, () => 'compacted')
180    await update($, isAlerted, () => false)
181    return result
182  } catch (err) {
183    await update($, phase, () => 'idle')
184    throw err
185  }
186}
187
188const asMessages = (found: unknown): readonly SessionMessage[] => (Array.isArray(found) ? found : [])
189
190async function compactNow($: Engine, focus: string) {
191  await update($, composing, () => false)
192  await update($, draft, () => '')
193  const text = focus.trim()
194  try {
195    let messages: readonly SessionMessage[] = []
196    try {
197      messages = asMessages(await $.session.messages())
198    } catch {
199      messages = []
200    }
201    const result = await aroundCompact($, { trigger: 'manual', focus: text || undefined, messages }, () =>
202      $.session.compact(text ? { instructions: text } : {}),
203    )
204    if (result.skip !== undefined) $.ui.toast(`Compact skipped: ${result.skip}`)
205  } catch (err) {
206    $.ui.toast(`Couldn't compact: ${message(err)}`)
207  }
208}
209
210function openPane($: Engine) {
211  return $.ui.open({ id: PANE, title: 'Context' })
212}
213
214const textBar = (pct: number, cells: number) => {
215  const filled = Math.round((clampPercent(pct) / 100) * cells)
216  return '█'.repeat(filled) + '░'.repeat(cells - filled)
217}
218
219const share = (part: number, whole: number) => {
220  const p = whole > 0 ? (part / whole) * 100 : 0
221  return p > 0 && p < 1 ? '<1%' : `${Math.round(p)}%`
222}
223
224function windowSvg(els: Els, v: View, o: { width?: number; height: number; compacting: boolean }) {
225  const to = v.tokens === undefined ? 0 : (v.tokens / v.r.window) * 100
226  if (!('Svg' in els)) {
227    const { Text } = els
228    return <Text color={TEXT_TONE[v.level]}>{textBar(to, o.width ? Math.max(6, Math.round(o.width / 8)) : 40)}</Text>
229  }
230  const { Svg } = els
231  const source = windowBar({
232    from: v.from,
233    to,
234    tick: v.limitPct,
235    tone: TONE[v.level],
236    pulse: v.level === 'alert' && !o.compacting,
237    shimmer: o.compacting,
238    width: o.width,
239    height: o.height,
240  })
241  const alt = `${v.pct ?? 0}% of the context window used${v.b?.threshold !== undefined ? `; auto-compact at ${fmt(v.b.threshold)}` : ''}`
242  return o.width !== undefined ? <Svg source={source} alt={alt} width={o.width} height={o.height} /> : <Svg source={source} alt={alt} height={o.height} />
243}
244
245function compositionSvg(els: Els, b: Breakdown) {
246  const total = b.used.reduce((a, c) => a + c.tokens, 0)
247  if (!('Svg' in els)) {
248    const { Box, Text } = els
249    return (
250      <Box flexDirection="row">
251        {b.used.map(c => (
252          <Text color={c.color}>{'█'.repeat(Math.max(1, Math.round((c.tokens / total) * 40)))}</Text>
253        ))}
254      </Box>
255    )
256  }
257  const { Svg } = els
258  return <Svg source={compositionBar(b.used)} alt={`Used context by category: ${b.used.map(c => `${c.name} ${fmt(c.tokens)}`).join(', ')}`} height={8} />
259}
260
261function legend(els: Els, b: Breakdown, columns: 1 | 2) {
262  const { Box, Text } = els
263  const total = b.used.reduce((a, c) => a + c.tokens, 0)
264  return (
265    <Box flexDirection="row" flexWrap="wrap">
266      {b.used.map(c => (
267        <Box flexDirection="row" width={columns === 2 ? '50%' : '100%'} paddingRight={columns === 2 ? 3 : 0}>
268          <Text color={c.color}>■ </Text>
269          <Box flexGrow={1}>
270            <Text wrap="truncate-end">{c.name}</Text>
271          </Box>
272          <Text>{fmt(c.tokens)}</Text>
273          <Box width={6} justifyContent="flex-end">
274            <Text dimColor>{share(c.tokens, total)}</Text>
275          </Box>
276        </Box>
277      ))}
278    </Box>
279  )
280}
281
282export const register: Register = on => {
283  on('session.start', async ($, e, next) => {
284    const stored = (await $.store.get('settings')) as Partial<ControlSettings> | undefined
285    const s: ControlSettings = { ...DEFAULTS, ...(stored ?? {}) }
286    await update($, settings, () => s)
287    await update($, expanded, () => s.startExpanded)
288    await $.command.register({
289      name: 'context-control',
290      description: 'Open the Context Control pane: breakdown, history, compactions and settings',
291    })
292    void refresh($)
293    if (s.openPaneOnStart) void openPane($)
294    return next(e)
295  })
296
297  on('session.end', async ($, e, next) => {
298    if (e.reason === 'clear') {
299      await update($, reading, () => null)
300      await update($, history, () => [])
301      await update($, compactions, () => [])
302      await update($, phase, () => 'idle')
303      await update($, isAlerted, () => false)
304    }
305    return next(e)
306  })
307
308  on('session.measure', async ($, e, next) => {
309    const out = await next(e)
310    if (e.changed.includes('context')) await refresh($, e.context)
311    return out
312  })
313
314  on('session.compact', ($, e, next) => {
315    if (e.agentId !== undefined || e.trigger === 'precompute') return next(e)
316    return aroundCompact($, { trigger: e.trigger, focus: e.instructions, messages: e.messages }, () => next(e))
317  }).catch(($, e, next) => next(e))
318
319  on('command.run', { command: 'context-control' }, async $ => {
320    await openPane($)
321    return { text: 'Opened the Context Control pane.' }
322  })
323
324  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
325    const s = await read($, settings)
326    if (!s.showBand || e.props.hasSurvey) return next(e)
327    const v = await viewOf($)
328    if (v === null) return next(e)
329    const [ph, isOpen, isComposing, text, compacts] = await Promise.all([
330      read($, phase),
331      read($, expanded),
332      read($, composing),
333      read($, draft),
334      read($, compactions),
335    ])
336    const els = $.ui.resolve(e)
337    const { Box, Text, Button } = els
338    const tone = TEXT_TONE[v.level]
339    const win = fmtWindow(v.r.window)
340    const toggle = () => update($, expanded, x => !x)
341    const lastCompaction = compacts.at(-1)
342

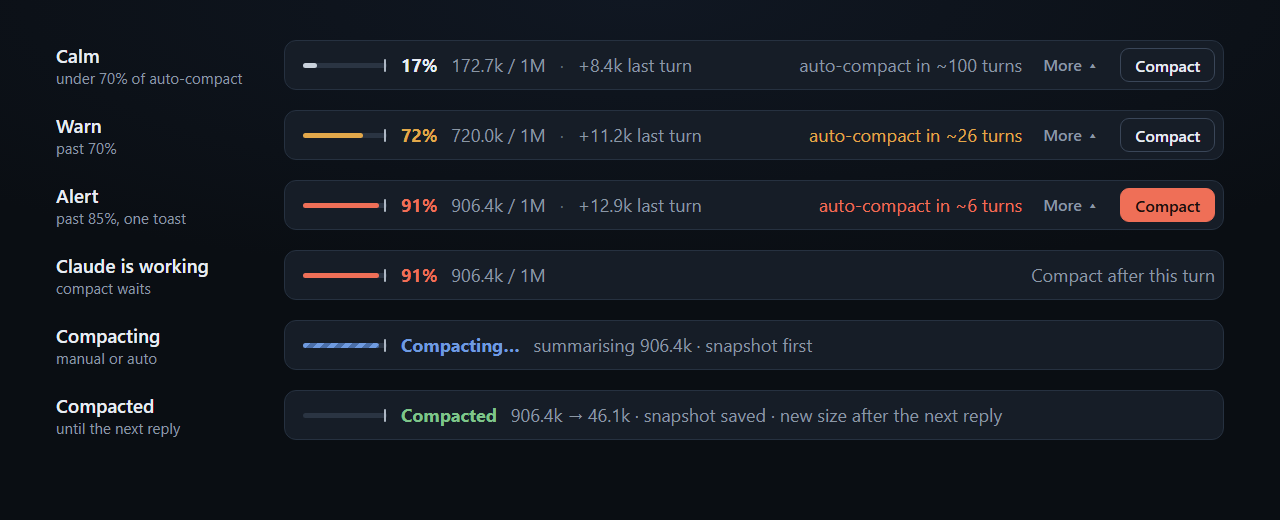

343    let summary
344    if (ph === 'compacting') {
345      summary = (
346        <Text>
347          <Text bold color="claude">Compacting…</Text>
348          <Text dimColor>{v.tokens !== undefined ? `  summarising ${fmt(v.tokens)}` : ''}{s.snapshot ? '  ·  snapshot first' : ''}</Text>
349        </Text>
350      )
351    } else if (ph === 'compacted' || v.tokens === undefined) {
352      const wasCompacted = ph === 'compacted' && lastCompaction !== undefined
353      summary = wasCompacted ? (
354        <Text>
355          <Text bold color="success">Compacted</Text>
356          <Text dimColor>
357            {`  ${lastCompaction.before !== undefined ? fmt(lastCompaction.before) : '?'} → ${lastCompaction.after !== undefined ? fmt(lastCompaction.after) : 'summary'}`}
358            {lastCompaction.snapshot ? '  ·  snapshot saved' : ''}
359            {'  ·  new size after the next reply'}
360          </Text>
361        </Text>
362      ) : (
363        <Text>
364          <Text bold dimColor>Context</Text>
365          <Text dimColor>  measuring — figures appear after the next reply</Text>
366        </Text>
367      )
368    } else {
369      summary = (
370        <Button key="toggle" plain onPress={toggle}>
371          <Text bold color={tone}>{`${v.pct}%`}</Text>
372          <Text dimColor>{`  ${fmt(v.tokens)} / ${win}`}</Text>
373          <Text dimColor>{v.last !== undefined ? `  ·  ${fmtDelta(v.last)} last turn` : ''}</Text>
374        </Button>
375      )
376    }
377
378    const right =
379      v.tokens === undefined || ph !== 'idle'
380        ? ''
381        : v.b?.threshold === undefined
382          ? v.b && !v.b.isAutoCompactEnabled
383            ? 'auto-compact off'
384            : ''
385          : v.turns !== undefined
386            ? `auto-compact in ~${v.turns} ${v.turns === 1 ? 'turn' : 'turns'}`
387            : `auto-compact at ${fmt(v.b.threshold)}`
388
389    let compactControl
390    if (ph === 'compacting') compactControl = null
391    else if (e.props.isWorking) compactControl = <Text dimColor>Compact after this turn</Text>
392    else if (isComposing) compactControl = null
393    else
394      compactControl = (
395        <Button key="compact" label="Compact" variant={v.level === 'alert' ? 'primary' : undefined} onPress={() => update($, composing, () => true)} />
396      )
397
398    const strip = (
399      <Box flexDirection="row" alignItems="center" columnGap={2}>
400        {windowSvg(els, v, { width: 72, height: 10, compacting: ph === 'compacting' })}
401        {summary}
402        <Box flexGrow={1} />
403        {right ? <Text color={v.level === 'calm' ? undefined : tone} dimColor={v.level === 'calm'}>{right}</Text> : null}
404        {v.tokens !== undefined && ph === 'idle' ? <Button key="more" plain dimColor label={isOpen ? 'Less ▾' : 'More ▴'} onPress={toggle} /> : null}
405        {compactControl}
406      </Box>
407    )
408
409    const details =
410      isOpen && v.tokens !== undefined && ph === 'idle' ? (
411        <Box flexDirection="column" rowGap={1} paddingBottom={1}>
412          <Box flexDirection="row" justifyContent="space-between">
413            <Text>
414              <Text bold color={tone}>{`${v.pct}%`}</Text>
415              <Text dimColor>{` of ${win}  ·  ${fmt(v.tokens)} tokens`}</Text>
416            </Text>
417            <Text dimColor>{v.b?.threshold !== undefined ? `auto-compact at ${fmt(v.b.threshold)}` : v.b && !v.b.isAutoCompactEnabled ? 'auto-compact off' : ''}</Text>
418          </Box>
419          {windowSvg(els, v, { height: 12, compacting: false })}
420          {v.b && v.b.used.length > 0 ? (
421            <Box flexDirection="column" rowGap={1}>
422              <Box flexDirection="row" justifyContent="space-between">
423                <Text dimColor>What fills it</Text>
424                <Text dimColor>{v.b.isExact ? 'exact counts' : 'local estimate'}</Text>
425              </Box>
426              {compositionSvg(els, v.b)}
427              {legend(els, v.b, e.props.bodyColumns >= 70 ? 2 : 1)}
428            </Box>
429          ) : null}
430          <Box flexDirection="row" columnGap={4} flexWrap="wrap">
431            <Text dimColor>
432              Last turn <Text bold>{fmtDelta(v.last)}</Text>
433            </Text>
434            <Text dimColor>
435              Avg / turn <Text bold>{v.avg !== undefined ? fmt(v.avg) : '—'}</Text>
436            </Text>
437            <Text dimColor>
438              Auto-compact in <Text bold color={tone}>{v.turns !== undefined ? `~${v.turns} ${v.turns === 1 ? 'turn' : 'turns'}` : '—'}</Text>
439            </Text>
440            <Box flexGrow={1} />
441            <Button key="pane" plain dimColor label="Open pane ↗" onPress={() => openPane($)} />
442          </Box>
443        </Box>
444      ) : null
445
446    const compose =
447      isComposing && ph === 'idle' && !e.props.isWorking ? (
448        <Box flexDirection="column" rowGap={1} paddingBottom={1}>
449          <Text>
450            <Text bold>Compact conversation</Text>
451            <Text dimColor>{v.tokens !== undefined ? `  ·  ${fmt(v.tokens)} now; older messages become a summary, recent ones stay` : ''}</Text>
452          </Text>
453          {'Input' in els ? (
454            <els.Input
455              key="focus"
456              label="Focus (optional)"
457              placeholder="What the summary must keep"
458              value={text}
459              autoFocus
460              submitLabel="Compact"
461              onInput={value => void update($, draft, () => value)}
462              onSubmit={value => void compactNow($, value)}
463            />
464          ) : null}
465          <Box flexDirection="row" columnGap={2} alignItems="center">
466            <Text dimColor>{s.snapshot ? 'Snapshot first → .claude/context-snapshots/' : 'No snapshot · turn it on in the pane’s Settings'}</Text>
467            <Box flexGrow={1} />
468            <Button key="cancel" label="Cancel" onPress={() => update($, composing, () => false)} />
469            <Button key="go" label="Compact" variant="primary" onPress={async () => compactNow($, await read($, draft))} />
470          </Box>
471        </Box>
472      ) : null
473
474    return (
475      <Box flexDirection="column">
476        {compose}
477        {details}
478        {strip}
479      </Box>
480    )
481  })
482
483  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
484    const els = $.ui.resolve(e)
485    const { Box, Text, Button } = els
486    const [current, v, points, compacts, err] = await Promise.all([read($, tab), viewOf($), read($, history), read($, compactions), read($, error)])
487    const tabs = (
488      <Box flexDirection="row" columnGap={2} paddingBottom={1}>
489        <Button key="tab-overview" plain onPress={() => update($, tab, () => 'overview')}>
490          <Text bold={current === 'overview'} dimColor={current !== 'overview'}>Overview</Text>
491        </Button>
492        <Button key="tab-settings" plain onPress={() => update($, tab, () => 'settings')}>
493          <Text bold={current === 'settings'} dimColor={current !== 'settings'}>Settings</Text>
494        </Button>
495      </Box>
496    )
497
498    if (current === 'settings') {
499      const s = await read($, settings)
500      const cwd = await $.session.cwd()
501      const toggleRow = (key: keyof ControlSettings & string, label: string, value: boolean, hint?: string) => (
502        <Box flexDirection="column">
503          <Box flexDirection="row" alignItems="center" columnGap={2}>
504            <Box flexGrow={1}>
505              <Text>{label}</Text>
506            </Box>
507            <Button key={`set-${key}`} label={value ? 'On' : 'Off'} variant={value ? 'primary' : undefined} onPress={() => saveSettings($, { [key]: !value })} />
508          </Box>
509          {hint ? <Text dimColor>{hint}</Text> : null}
510        </Box>
511      )
512      const numberRow = (key: 'warnAt' | 'alertAt' | 'averageOver', label: string, suffix: string, min: number, max: number) =>
513        'Input' in els ? (
514          <Box flexDirection="row" alignItems="center" columnGap={2}>
515            <Box flexGrow={1}>
516              <Text>{label}</Text>
517            </Box>
518            <els.Input
519              key={`set-${key}`}
520              label={label}
521              value={String(s[key])}
522              submitLabel="Set"
523              onSubmit={value => {
524                const n = Math.round(Number(value))
525                if (Number.isFinite(n) && n >= min && n <= max) void saveSettings($, { [key]: n })
526                else $.ui.toast(`${label}: enter ${min}–${max}`)
527              }}
528            />
529            <Text dimColor>{suffix}</Text>
530          </Box>
531        ) : (
532          <Text>{`${label}: ${s[key]} ${suffix}`}</Text>
533        )
534      const heading = (t: string) => <Text bold dimColor>{t.toUpperCase()}</Text>
535
536      return (
537        <Box flexDirection="column" rowGap={1}>
538          {tabs}
539          {heading('Display')}
540          {toggleRow('showBand', 'Band above the prompt', s.showBand)}
541          {'Select' in els ? (
542            <Box flexDirection="row" alignItems="center" columnGap={2}>
543              <Box flexGrow={1}>
544                <Text>Band starts</Text>
545              </Box>
546              <els.Select
547                key="set-startExpanded"
548                options={[{ value: 'collapsed', label: 'Collapsed' }, { value: 'expanded', label: 'Expanded' }]}
549                value={s.startExpanded ? 'expanded' : 'collapsed'}
550                onSelect={value => void saveSettings($, { startExpanded: value === 'expanded' })}
551              />
552            </Box>
553          ) : null}
554          {toggleRow('openPaneOnStart', 'Open this pane when a session starts', s.openPaneOnStart)}
555          {heading('Alerts')}
556          {numberRow('warnAt', 'Warn at', '% of auto-compact', 1, 100)}
557          {numberRow('alertAt', 'Alert at', '% of auto-compact', 1, 100)}
558          {toggleRow('toastOnAlert', 'Toast once when crossing Alert', s.toastOnAlert)}
559          {numberRow('averageOver', 'Turns-left estimate averages', 'turns', 1, 50)}
560          {heading('Breakdown accuracy')}
561          {toggleRow(
562            'exactCounts',
563            'Exact counts',
564            s.exactCounts,
565            s.exactCounts
566              ? 'Calls the token-count API per category after each turn, with your account. Not a model call, but not free of requests.'
567              : 'Off: local estimate from the last reply’s usage. No API calls.',
568          )}
569          {heading('Pre-compact snapshot')}
570          {toggleRow('snapshot', 'Save a snapshot before each compaction', s.snapshot, 'A Markdown handoff built from the transcript (recent prompts, files touched, open tasks). No model calls.')}
571          <Text dimColor>{`Folder: .claude/context-snapshots/ in ${cwd}`}</Text>
572          {toggleRow('snapshotGitignore', 'Keep snapshots out of git', s.snapshotGitignore, 'Writes a one-line .gitignore inside the snapshot folder; the project’s own .gitignore is untouched.')}
573        </Box>
574      )
575    }
576
577    if (v === null || v.tokens === undefined) {
578      return (
579        <Box flexDirection="column" rowGap={1}>
580          {tabs}
581          <Text dimColor>{err ? `Couldn’t read usage: ${err}` : 'Measuring — figures appear after the next reply.'}</Text>
582        </Box>
583      )
584    }
585
586    const tone = TEXT_TONE[v.level]
587    const used = v.b?.used ?? []
588    const usedTotal = used.reduce((a, c) => a + c.tokens, 0)
589    const fixed = v.b?.fixed ?? []
590    const maxFixed = fixed[0]?.tokens ?? 1
591    const hasSvg = 'Svg' in els
592    const section = (title: string, aside?: string) => (
593      <Box flexDirection="row" justifyContent="space-between">
594        <Text bold>{title}</Text>
595        {aside ? <Text dimColor>{aside}</Text> : null}
596      </Box>
597    )
598
599    return (
600      <Box flexDirection="column" rowGap={1}>
601        {tabs}
602        <Text dimColor>{`Context window · ${await $.session.model()}`}</Text>
603        <Text>
604          <Text bold color={tone}>{`${v.pct}%`}</Text>
605          <Text dimColor>{`  ${fmt(v.tokens)} of ${fmtWindow(v.r.window)} tokens`}</Text>
606        </Text>
607        {windowSvg(els, v, { height: 12, compacting: false })}
608        <Text dimColor>{v.b?.threshold !== undefined ? `auto-compact at ${fmt(v.b.threshold)}` : 'auto-compact off'}</Text>
609        <Box flexDirection="row" columnGap={3} flexWrap="wrap">
610          <Text dimColor>
611            Last turn <Text bold>{fmtDelta(v.last)}</Text>
612          </Text>
613          <Text dimColor>
614            Avg <Text bold>{v.avg !== undefined ? fmt(v.avg) : '—'}</Text>
615          </Text>
616          <Text dimColor>
617            Auto-compact in <Text bold color={tone}>{v.turns !== undefined ? `~${v.turns} ${v.turns === 1 ? 'turn' : 'turns'}` : '—'}</Text>
618          </Text>
619        </Box>
620
621        {points.length >= 2 && hasSvg && 'Svg' in els ? (
622          <Box flexDirection="column" rowGap={1} paddingTop={1}>
623            {section('This session', `${points.length} readings`)}
624            <els.Svg
625              source={sparkline(points, v.r.window, v.b?.threshold)}
626              alt={`Context over the session, now ${fmt(v.tokens)}${compacts.length ? `, ${compacts.length} compaction${compacts.length === 1 ? '' : 's'}` : ''}`}
627            />
628            <Text dimColor>- - auto-compact   ● compaction   ○ now</Text>
629          </Box>
630        ) : null}
631
632        {used.length > 0 && v.b ? (
633          <Box flexDirection="column" rowGap={1} paddingTop={1}>
634            {section('What fills it', v.b.isExact ? 'exact counts' : 'local estimate')}
635            {compositionSvg(els, v.b)}
636            {legend(els, v.b, 1)}
637            <Text dimColor>{`${fmt(usedTotal)} counted by category`}</Text>
638          </Box>
639        ) : null}
640
641        {fixed.length > 0 ? (
642          <Box flexDirection="column" rowGap={1} paddingTop={1}>
643            {section('Always loaded')}
644            <Text dimColor>Paid on every turn. Trim these to buy headroom.</Text>
645            {fixed.map(f => (
646              <Box flexDirection="column">
647                <Box flexDirection="row" columnGap={1}>
648                  <Box width={9}>
649                    <Text dimColor>{f.kind}</Text>
650                  </Box>
651                  <Box flexGrow={1}>
652                    <Text wrap="truncate-end">{f.name}</Text>
653                  </Box>
654                  <Text>{fmt(f.tokens)}</Text>
655                </Box>
656                {'Svg' in els ? <els.Svg source={rankBar(f.tokens / maxFixed, f.color)} alt={`${f.name}: ${fmt(f.tokens)}`} height={4} /> : null}
657              </Box>
658            ))}
659          </Box>
660        ) : null}
661
662        <Box flexDirection="column" rowGap={1} paddingTop={1}>
663          {section('Compactions', `${compacts.length} this session`)}
664          {compacts.length === 0 ? <Text dimColor>None yet.</Text> : null}
665          {[...compacts]
666            .reverse()
667            .slice(0, 6)
668            .map(c => {
669              const at = new Date(c.at)
670              const time = `${String(at.getHours()).padStart(2, '0')}:${String(at.getMinutes()).padStart(2, '0')}`
671              return (
672                <Box flexDirection="column" borderStyle="round" borderDimColor paddingX={1}>
673                  <Box flexDirection="row" justifyContent="space-between">
674                    <Text bold>{`${time} · ${c.trigger}`}</Text>
675                    <Text>{`${c.before !== undefined ? fmt(c.before) : '?'} → ${c.after !== undefined ? fmt(c.after) : 'summary'}`}</Text>
676                  </Box>
677                  {c.focus ? <Text dimColor>{`Focus: “${c.focus}”`}</Text> : null}
678                  {c.snapshot ? <Text dimColor wrap="truncate-start">{c.snapshot}</Text> : null}
679                </Box>
680              )
681            })}
682        </Box>
683
684        <Box paddingTop={1}>
685          <Button key="pane-compact" label="Compact…" onPress={() => update($, composing, () => true)} />
686        </Box>
687      </Box>
688    )
689  })
690}
691

1import type { SessionContextBreakdown } from 'claude-code'
2
3import type { Breakdown, Category, FixedCost, Point, Reading, ControlSettings } from '../types'
4
5export const DEFAULTS: ControlSettings = {
6  showBand: true,
7  startExpanded: false,
8  openPaneOnStart: false,
9  warnAt: 70,
10  alertAt: 85,
11  toastOnAlert: true,
12  averageOver: 5,
13  exactCounts: false,
14  snapshot: false,
15  snapshotGitignore: true,
16}
17
18export type Level = 'calm' | 'warn' | 'alert'
19
20export const TONE: Record<Level, string> = { calm: '#9a968c', warn: '#d99a3a', alert: '#e0624a' }
21
22export const TEXT_TONE: Record<Level, string | undefined> = { calm: undefined, warn: 'warning', alert: 'error' }
23
24const CATEGORY_COLORS: Record<string, string> = {
25  Messages: '#6f9be0',
26  'MCP tools': '#3f9a96',
27  'System tools': '#8a99a8',
28  'System prompt': '#77736b',
29  Skills: '#9a86c9',
30  'Custom agents': '#b48ad6',
31  'Memory files': '#c9a24f',
32}
33
34const FALLBACK_COLORS = ['#c77b9b', '#7fb37a', '#d08a5a', '#5aa9c9']
35
36const baseName = (path: string) => path.split(/[\\/]/).pop() ?? path
37
38export function toBreakdown(b: SessionContextBreakdown, isExact: boolean): Breakdown {
39  const used: Category[] = b.categories
40    .filter(c => c.kind === 'used' && c.tokens > 0)
41    .map((c, i) => ({
42      name: c.name,
43      tokens: c.tokens,
44      color: CATEGORY_COLORS[c.name] ?? FALLBACK_COLORS[i % FALLBACK_COLORS.length] ?? '#9a968c',
45    }))
46    .sort((x, y) => y.tokens - x.tokens)
47
48  const fixed: FixedCost[] = []
49  const servers = new Map<string, number>()
50  for (const tool of b.mcpTools) {
51    if (tool.isLoaded) servers.set(tool.serverName, (servers.get(tool.serverName) ?? 0) + tool.tokens)
52  }
53  for (const [name, tokens] of servers) fixed.push({ kind: 'MCP', name, tokens, color: CATEGORY_COLORS['MCP tools']! })
54  for (const file of b.memoryFiles) {
55    fixed.push({ kind: 'Memory', name: `${baseName(file.path)} · ${file.type}`, tokens: file.tokens, color: CATEGORY_COLORS['Memory files']! })
56  }
57  if (b.skills && b.skills.tokens > 0) {
58    fixed.push({ kind: 'Skills', name: `Skill listing · ${b.skills.includedSkills} skills`, tokens: b.skills.tokens, color: CATEGORY_COLORS.Skills! })
59  }
60  const agentTokens = b.agents.reduce((sum, a) => sum + a.tokens, 0)
61  if (agentTokens > 0) {
62    fixed.push({ kind: 'Agents', name: `Custom agents · ${b.agents.length}`, tokens: agentTokens, color: CATEGORY_COLORS['Custom agents']! })
63  }
64  if (b.slashCommands && b.slashCommands.tokens > 0) {
65    fixed.push({ kind: 'Commands', name: `Command listing · ${b.slashCommands.includedCommands}`, tokens: b.slashCommands.tokens, color: '#8a99a8' })
66  }
67  fixed.sort((x, y) => y.tokens - x.tokens)
68
69  return {
70    used,
71    threshold: b.isAutoCompactEnabled ? b.autoCompactThreshold : undefined,
72    isAutoCompactEnabled: b.isAutoCompactEnabled,
73    fixed: fixed.slice(0, 8),
74    isExact,
75  }
76}
77
78export function fmt(n: number): string {
79  if (n >= 1_000_000) return `${(n / 1_000_000).toFixed(2)}M`
80  if (n >= 1000) return `${(n / 1000).toFixed(1)}k`
81  return String(Math.round(n))
82}
83
84export function fmtWindow(n: number): string {
85  if (n % 1_000_000 === 0) return `${n / 1_000_000}M`
86  if (n % 1000 === 0) return `${n / 1000}k`
87  return fmt(n)
88}
89
90export function fmtDelta(n: number | undefined): string {
91  if (n === undefined) return '—'
92  return `${n >= 0 ? '+' : '−'}${fmt(Math.abs(n))}`
93}
94
95export const limitOf = (reading: Reading, breakdown: Breakdown | null) => breakdown?.threshold ?? reading.window
96
97export function levelOf(tokens: number, limit: number, s: ControlSettings): Level {
98  const ratio = (tokens / limit) * 100
99  if (ratio >= s.alertAt) return 'alert'
100  if (ratio >= s.warnAt) return 'warn'
101  return 'calm'
102}
103
104/** Growth per turn since the last compaction: the newest delta and the mean of the last `over`. */
105export function growth(history: readonly Point[], over: number): { last?: number; avg?: number } {
106  const start = history.findLastIndex(p => p.isCompaction === true)
107  const run = history.slice(Math.max(0, start))
108  const deltas: number[] = []
109  for (let i = 1; i < run.length; i++) deltas.push(run[i]!.tokens - run[i - 1]!.tokens)
110  if (deltas.length === 0) return {}
111  const recent = deltas.slice(-Math.max(1, over)).filter(d => d > 0)
112  const avg = recent.length > 0 ? recent.reduce((a, b) => a + b, 0) / recent.length : undefined
113  return { last: deltas.at(-1), avg }
114}
115
116export function turnsLeft(tokens: number, limit: number, avg: number | undefined): number | undefined {
117  if (avg === undefined || avg <= 0) return undefined
118  return Math.max(0, Math.ceil((limit - tokens) / avg))
119}
120
121export function clampPercent(n: number): number {
122  return Math.max(0, Math.min(100, n))
123}
124

1import type { SessionMessage } from 'claude-code'
2
3import { fmt } from './model'
4import type { Reading } from '../types'
5
6const EDITS = new Set(['Edit', 'Write', 'MultiEdit', 'NotebookEdit'])
7const TASK_TOOLS = new Set(['TodoWrite', 'mcp__ccd_turn__update_plan'])
8
9const pad = (n: number) => String(n).padStart(2, '0')
10
11const clean = (text: string) =>
12  text
13    .replace(/<system-reminder>[\s\S]*?<\/system-reminder>/g, '')
14    .replace(/<[a-z-]+-context[^>]*>[\s\S]*?<\/[a-z-]+-context>/g, '')
15    .trim()
16
17function promptsOf(messages: readonly SessionMessage[], count: number): string[] {
18  return messages
19    .filter(m => m.role === 'user' && (m.toolResults?.length ?? 0) === 0)
20    .map(m => clean(m.text))
21    .filter(t => t.length > 0)
22    .slice(-count)
23}
24
25function filesOf(messages: readonly SessionMessage[]): { edited: string[]; read: string[] } {
26  const edited = new Set<string>()
27  const read = new Set<string>()
28  for (const m of messages) {
29    for (const use of m.toolUses) {
30      const path = use.input.file_path ?? use.input.notebook_path
31      if (typeof path !== 'string') continue
32      if (EDITS.has(use.tool)) edited.add(path)
33      else if (use.tool === 'Read') read.add(path)
34    }
35  }
36  for (const p of edited) read.delete(p)
37  return { edited: [...edited], read: [...read] }
38}
39
40function tasksOf(messages: readonly SessionMessage[]): string[] {
41  for (let i = messages.length - 1; i >= 0; i--) {
42    const use = [...messages[i]!.toolUses].reverse().find(u => TASK_TOOLS.has(u.tool) && Array.isArray(u.input.todos ?? u.input.items))
43    if (!use) continue
44    const list = (use.input.todos ?? use.input.items) as { content?: unknown; status?: unknown }[]
45    return list
46      .filter(t => t.status !== 'completed')
47      .map(t => `- [${t.status === 'in_progress' ? '~' : ' '}] ${String(t.content ?? '')}`)
48  }
49  return []
50}
51
52/** The snapshot's file name stamp for a time: `2026-10-15_164705`. */
53export function snapshotStamp(nowMs: number): string {
54  const now = new Date(nowMs)
55  return `${now.getFullYear()}-${pad(now.getMonth() + 1)}-${pad(now.getDate())}_${pad(now.getHours())}${pad(now.getMinutes())}${pad(now.getSeconds())}`
56}
57
58/** The Markdown handoff of the conversation about to be compacted. */
59export function snapshotText(o: {
60  stamp: string
61  trigger: string
62  sessionId: string
63  model: string
64  reading: Reading | null
65  focus?: string
66  messages: readonly SessionMessage[]
67}): string {
68  const r = o.reading
69  const size = r?.tokens !== undefined ? `${fmt(r.tokens)} of ${fmt(r.window)} (${r.percent ?? Math.round((r.tokens / r.window) * 100)}%)` : 'unknown'
70  const files = filesOf(o.messages)
71  const tasks = tasksOf(o.messages)
72  const prompts = promptsOf(o.messages, 10)
73
74  return [
75    `# Context snapshot — ${o.stamp.replace('_', ' ')}`,
76    '',
77    `- Trigger: ${o.trigger}`,
78    `- Session: ${o.sessionId}`,
79    `- Model: ${o.model}`,
80    `- Context before compaction: ${size}`,
81    ...(o.focus ? [`- Focus: ${o.focus}`] : []),
82    '',
83    `## Recent prompts (${prompts.length})`,
84    '',
85    ...prompts.flatMap(p => [p.slice(0, 1200).replace(/^/gm, '> '), '']),
86    '## Files touched',
87    '',
88    ...(files.edited.length ? ['Edited:', ...files.edited.map(f => `- ${f}`), ''] : []),
89    ...(files.read.length ? ['Read:', ...files.read.slice(-40).map(f => `- ${f}`), ''] : []),
90    ...(files.edited.length + files.read.length === 0 ? ['None recorded.', ''] : []),
91    ...(tasks.length ? ['## Open tasks', '', ...tasks, ''] : []),
92  ].join('\n')
93}
94

1import type { Category, Point } from '../types'
2
3const TRACK = 'rgba(128,128,128,0.22)'
4const TICK = '#b8b4aa'
5const EASE = 'calcMode="spline" keyTimes="0;1" keySplines="0.2 0.8 0.2 1"'
6
7const svg = (w: number, h: number, body: string) =>
8  `<svg xmlns="http://www.w3.org/2000/svg" width="${w}" height="${h}" viewBox="0 0 ${w} ${h}" preserveAspectRatio="none">${body}</svg>`
9
10/**
11 * The window as one bar: fill grows from `from` to `to` (percent of the window),
12 * the hatch past `tick` is the auto-compact reserve, `pulse` breathes the fill,
13 * `shimmer` sweeps it while compacting.
14 */
15export function windowBar(o: {
16  from: number
17  to: number
18  tick?: number
19  tone: string
20  pulse?: boolean
21  shimmer?: boolean
22  width?: number
23  height?: number
24}): string {
25  const W = o.width ?? 1600
26  const H = o.height ?? 12
27  const bh = Math.min(6, H - 4)
28  const y = (H - bh) / 2
29  const x = (p: number) => (Math.max(0, Math.min(100, p)) / 100) * W
30  const to = x(o.to)
31  const from = x(o.from)
32  const parts: string[] = [
33    `<defs><pattern id="h" width="5" height="5" patternUnits="userSpaceOnUse" patternTransform="rotate(45)"><rect width="2" height="5" fill="rgba(128,128,128,0.5)"/></pattern>`,
34    `<clipPath id="c"><rect x="0" y="${y}" width="${to}" height="${bh}" rx="${bh / 2}"><animate attributeName="width" from="${from}" to="${to}" dur="0.7s" fill="freeze" ${EASE}/></rect></clipPath>`,
35    `<linearGradient id="s" x1="0" x2="1"><stop offset="0" stop-color="#fff" stop-opacity="0"/><stop offset="0.5" stop-color="#fff" stop-opacity="0.45"/><stop offset="1" stop-color="#fff" stop-opacity="0"/></linearGradient></defs>`,
36    `<rect x="0" y="${y}" width="${W}" height="${bh}" rx="${bh / 2}" fill="${TRACK}"/>`,
37  ]
38  if (o.tick !== undefined && o.tick < 100) {
39    parts.push(`<rect x="${x(o.tick)}" y="${y}" width="${W - x(o.tick)}" height="${bh}" fill="url(#h)"/>`)
40  }
41  const pulse = o.pulse ? `<animate attributeName="opacity" values="1;0.55;1" dur="2.4s" repeatCount="indefinite"/>` : ''
42  parts.push(`<rect x="0" y="${y}" width="${W}" height="${bh}" fill="${o.tone}" clip-path="url(#c)">${pulse}</rect>`)
43  if (o.shimmer) {
44    const sw = Math.max(40, W * 0.15)
45    parts.push(
46      `<rect x="${-sw}" y="${y}" width="${sw}" height="${bh}" fill="url(#s)" clip-path="url(#c)"><animate attributeName="x" from="${-sw}" to="${Math.max(to, sw)}" dur="1.3s" repeatCount="indefinite"/></rect>`,
47    )
48  }
49  if (o.tick !== undefined && o.tick < 100) {
50    parts.push(`<rect x="${x(o.tick) - 1}" y="0" width="2" height="${H}" rx="1" fill="${TICK}"/>`)
51  }
52  return svg(W, H, parts.join(''))
53}
54
55/** What fills the used part, as one stacked bar; segments fade in left to right. */
56export function compositionBar(cats: readonly Category[], width = 1600, height = 8): string {
57  const total = cats.reduce((a, c) => a + c.tokens, 0)
58  if (total <= 0) return svg(width, height, '')
59  const gap = 6
60  const minW = 8
61  const room = width - gap * Math.max(0, cats.length - 1)
62  let x = 0
63  const parts = cats.map((c, i) => {
64    const w = Math.max(minW, (c.tokens / total) * room)
65    const at = Math.min(0.9, i * 0.08).toFixed(2)
66    const rect = `<rect x="${x.toFixed(1)}" y="0" width="${w.toFixed(1)}" height="${height}" rx="2" fill="${c.color}"><animate attributeName="opacity" values="0;0;1" keyTimes="0;${at};1" dur="${(0.5 + Number(at)).toFixed(2)}s" fill="freeze"/></rect>`
67    x += w + gap
68    return rect
69  })
70  return svg(Math.max(width, Math.ceil(x - gap)), height, parts.join(''))
71}
72
73/** Context over the session: area, line drawn in, compaction markers, the auto-compact line. */
74export function sparkline(points: readonly Point[], window: number, limit: number | undefined, width = 360, height = 96): string {
75  if (points.length < 2) return svg(width, height, '')
76  const pad = 4
77  const x = (i: number) => (i / (points.length - 1)) * (width - pad * 2) + pad
78  const y = (t: number) => height - pad - (Math.min(t, window) / window) * (height - pad * 2)
79  const line = points.map((p, i) => `${i === 0 ? 'M' : 'L'}${x(i).toFixed(1)},${y(p.tokens).toFixed(1)}`).join(' ')
80  const area = `${line} L${x(points.length - 1).toFixed(1)},${height - pad} L${pad},${height - pad} Z`
81  const parts: string[] = []
82  if (limit !== undefined) {
83    parts.push(`<line x1="0" x2="${width}" y1="${y(limit).toFixed(1)}" y2="${y(limit).toFixed(1)}" stroke="#a3a097" stroke-width="1" stroke-dasharray="3 3"/>`)
84  }
85  parts.push(`<path d="${area}" fill="#6f9be0" fill-opacity="0.14"><animate attributeName="fill-opacity" values="0;0.14" dur="0.9s" fill="freeze"/></path>`)
86  parts.push(
87    `<path d="${line}" fill="none" stroke="#6f9be0" stroke-width="1.8" stroke-linejoin="round" pathLength="1" stroke-dasharray="1" stroke-dashoffset="0"><animate attributeName="stroke-dashoffset" from="1" to="0" dur="0.9s" fill="freeze" ${EASE}/></path>`,
88  )
89  points.forEach((p, i) => {
90    if (!p.isCompaction || i === 0) return
91    const prev = points[i - 1]!
92    parts.push(`<line x1="${x(i).toFixed(1)}" x2="${x(i).toFixed(1)}" y1="${y(prev.tokens).toFixed(1)}" y2="${height - pad}" stroke="#d97757" stroke-width="1" stroke-dasharray="2 3"/>`)
93    parts.push(`<circle cx="${x(i - 1).toFixed(1)}" cy="${y(prev.tokens).toFixed(1)}" r="3.5" fill="#d97757"/>`)
94  })
95  const last = points[points.length - 1]!
96  parts.push(`<circle cx="${x(points.length - 1).toFixed(1)}" cy="${y(last.tokens).toFixed(1)}" r="3.5" fill="#e8e6dc" stroke="#6f9be0" stroke-width="1.5"/>`)
97  return `<svg xmlns="http://www.w3.org/2000/svg" width="${width}" height="${height}" viewBox="0 0 ${width} ${height}">${parts.join('')}</svg>`
98}
99
100/** A small filled bar for a ranked row: `share` of the row's width. */
101export function rankBar(share: number, color: string, width = 600, height = 4): string {
102  const w = Math.max(4, Math.min(1, share) * width)
103  return svg(
104    width,
105    height,
106    `<rect x="0" y="0" width="${width}" height="${height}" rx="2" fill="${TRACK}"/><rect x="0" y="0" width="${w.toFixed(1)}" height="${height}" rx="2" fill="${color}"><animate attributeName="width" from="0" to="${w.toFixed(1)}" dur="0.6s" fill="freeze" ${EASE}/></rect>`,
107  )
108}
109

1export type Reading = { tokens?: number; window: number; percent?: number }
2
3export type Point = { tokens: number; isCompaction?: true }
4
5export type Category = { name: string; tokens: number; color: string }
6
7export type FixedCost = { kind: string; name: string; tokens: number; color: string }
8
9export type Breakdown = {
10  used: Category[]
11  threshold?: number
12  isAutoCompactEnabled: boolean
13  fixed: FixedCost[]
14  isExact: boolean
15}
16
17export type Compaction = {
18  at: number
19  trigger: string
20  before?: number
21  after?: number
22  focus?: string
23  snapshot?: string
24}
25
26export type Phase = 'idle' | 'compacting' | 'compacted'
27
28export type Tab = 'overview' | 'settings'
29
30export type ControlSettings = {
31  showBand: boolean
32  startExpanded: boolean
33  openPaneOnStart: boolean
34  warnAt: number
35  alertAt: number
36  toastOnAlert: boolean
37  averageOver: number
38  exactCounts: boolean
39  snapshot: boolean
40  snapshotGitignore: boolean
41}
42
43declare module 'claude-code' {
44  interface PluginState {
45    'context-control': {
46      reading: Reading | null
47      history: Point[]
48      breakdown: Breakdown | null
49      compactions: Compaction[]
50      phase: Phase
51      expanded: boolean
52      composing: boolean
53      draft: string
54      tab: Tab
55      settings: ControlSettings
56      shownFill: number
57      isAlerted: boolean
58      error: string
59    }
60  }
61}
62
