villager-hp

1import { atom, read, update } from 'claude-code'
2import type { EngineInterface, Register } from 'claude-code'
3
4import type { Limit } from '../types'
5import { RANKS, backIn, bars, hudSvg, killer, mood } from './hud'
6import type { Rank } from './hud'
7
8const limitsAtom = atom({ plugin: 'villager-hp', key: 'limits' } as const, [] as Limit[])
9const demoAtom = atom({ plugin: 'villager-hp', key: 'demo' } as const, null as number | null)
10const nowAtom = atom({ plugin: 'villager-hp', key: 'now' } as const, 0)
11const rankAtom = atom({ plugin: 'villager-hp', key: 'rank' } as const, 'god' as Rank)
12
13const FACES = { healthy: '(◕‿◕)', hurt: '(•_•)', critical: '(╥﹏╥)', dead: '(x_x)', unknown: '(•‿•)' }
14const SEGMENTS = 20
15// Named by /hp, to tell at a glance which version is loaded.
16const VERSION = '2.5: animated villager; card and HP commands only'
17// AoE-style: green for what's left, red for what's gone.
18const split = (hp: number) => {
19  const full = Math.round((hp / 100) * SEGMENTS)
20  return { green: '█'.repeat(full), red: '█'.repeat(SEGMENTS - full) }
21}
22
23export const register: Register = on => {
24  on('session.start', async ($, e, next) => {
25    const started = await next(e)
26    await $.command.register({
27      name: 'hp',
28      description: "Show Claude's HP, or preview a level: /hp 10, /hp 0 to die, /hp off for real readings",
29      argumentHint: '[0-100 | off]',
30    })
31    await $.command.register({ name: 'die', description: 'Watch Claude die on the health card (same as /hp 0); /revive to undo' })
32    await $.command.register({ name: 'revive', description: 'Bring Claude back to your real health (same as /hp off)' })
33    await $.command.register({
34      name: 'rank',
35      description: 'Change the rank badge on your health card: /rank scout, contributor, innovator, top, god',
36      argumentHint: '[scout | contributor | innovator | top | god]',
37    })
38    // The rank you picked, kept across sessions.
39    const saved = await $.store.get('rank')
40    if (typeof saved === 'string' && saved in RANKS) await update($, rankAtom, () => saved as Rank)
41    const usage = await $.session.usage()
42    await update($, limitsAtom, () => usage.rateLimits)
43    await update($, nowAtom, () => Date.now())
44    // Tick each minute so the reset countdowns move.
45    $.clock.every(60_000, () => {
46      void update($, nowAtom, () => Date.now())
47    })
48    return started
49  })
50
51  on('command.run', { command: 'die' }, async $ => {
52    await update($, demoAtom, () => 0)
53    return { text: 'Claude has been defeated. /revive to bring it back.' }
54  })
55
56  on('command.run', { command: 'revive' }, async $ => {
57    await update($, demoAtom, () => null)
58    return { text: 'Claude is back, at your real health.' }
59  })
60
61  on('command.run', { command: 'rank' }, async ($, e) => {
62    const arg = e.args.trim().toLowerCase().replace(/\s+/g, ' ')
63    const aliases: Record<string, Rank> = { 'top contributor': 'top', 'god mode': 'god', godmode: 'god' }
64    const rank = (arg in RANKS ? arg : aliases[arg]) as Rank | undefined
65    if (!rank) {
66      const current = await read($, rankAtom)
67      const list = (Object.keys(RANKS) as Rank[]).map(r => `${r}${r === current ? ' (yours)' : ''}`).join(', ')
68      return { text: arg ? `No rank called "${arg}". Ranks: ${list}.` : `Your rank: ${RANKS[current].name}. Change it with /rank and one of: ${list}.` }
69    }
70    await $.store.set('rank', rank)
71    await update($, rankAtom, () => rank)
72    return { text: `Your badge is now ${RANKS[rank].name}.` }
73  })
74
75  // Fresh readings arrive after each turn and whenever a window moves a point.
76  on('session.measure', async ($, e, next) => {
77    await update($, limitsAtom, () => e.rateLimits)
78    await update($, nowAtom, () => Date.now())
79    return next(e)
80  })
81
82  on('command.run', { command: 'hp' }, async ($, e) => {
83    const arg = e.args.trim().toLowerCase()
84    if (arg === 'off' || arg === 'real') {
85      await update($, demoAtom, () => null)
86      return { text: 'HP bars show your real limits again.' }
87    }
88    if (arg !== '') {
89      const n = Number(arg)
90      if (!Number.isFinite(n) || n < 0 || n > 100) return { text: 'Give an HP from 0 to 100, or "off".' }
91      await update($, demoAtom, () => Math.round(n))
92      return { text: n <= 0 ? 'Preview: Claude is dead. /hp off to revive.' : `Preview: both bars at ${Math.round(n)} HP. /hp off for real readings.` }
93    }
94    const all = bars(await read($, limitsAtom), await read($, demoAtom), Date.now())
95    return {
96      text: [
97        ...all.map(b => `${b.label}: ${b.hp === null ? 'no reading yet' : `${b.hp}/100 HP${b.respawn ? `, resets in ${b.respawn}` : ''}`}`),
98        `(villager-hp ${VERSION})`,
99      ].join('\n'),
100    }
101  })
102
103  on('ui.render', { component: 'AbovePrompt' }, async ($, e, next) => {
104    const below = await next(e)
105    if (e.props.hasSurvey) return below
106
107    const all = bars(await read($, limitsAtom), await read($, demoAtom), await read($, nowAtom) || Date.now())
108    const m = mood(all)
109    const elements = $.ui.resolve(e)
110
111    // The animated card everywhere but the terminal, which gets the text bars.
112    // Chosen by the surface, not by which elements the table lists: a table can
113    // carry an element its surface draws as nothing.
114    if (e.surface !== 'terminal' && 'Svg' in elements) {
115      const { Box, Svg } = elements
116      const alt = all.map(b => `${b.label} ${b.hp === null ? 'unknown' : `${b.hp} of 100`} HP`).join(', ')
117      return (
118        <Box flexDirection="column">
119          {below}
120          <Svg key={`hp-${m}`} source={hudSvg(all, await read($, rankAtom))} alt={`Claude's health: ${alt}`} />
121        </Box>
122      )
123    }
124
125    const { Box, Text } = elements
126    const dead = killer(all)
127    return (
128      <Box flexDirection="column">
129        {below}
130        {dead !== undefined ? (
131          <Text color="#c9a14a" bold>
132            {`(x_x)  Claude has been defeated.  Out of ${dead.label === 'SESSION' ? 'session' : 'weekly'} hit points · ${backIn(dead.respawn)}`}
133          </Text>
134        ) : (
135          <>
136            {all.map((b, i) => (
137              <Box key={b.label} flexDirection="row">
138                <Text color="#d97757">{i === 0 ? `${FACES[m]} ` : '       '}</Text>
139                <Text bold color="#d4ab52">{b.label.padEnd(8)}</Text>
140                {b.hp === null ? (
141                  <Text dimColor>{'░'.repeat(SEGMENTS)} ??/100</Text>
142                ) : (
143                  <>
144                    <Text color="#3fd23f">{split(b.hp).green}</Text>
145                    <Text color="#a01d14">{split(b.hp).red}</Text>
146                    <Text color="#f1e3c0" bold>{` ${b.hp}/100`}</Text>
147                    <Text color="#cdbb94">{b.respawn ? `  ${b.respawn}` : ''}</Text>
148                  </>
149                )}
150              </Box>
151            ))}
152          </>
153        )}
154      </Box>
155    )
156  })
157}
158

1import type { Limit } from '../types'
2
3// Turns the account's rate-limit windows into two game health bars, and
4// draws them as an SVG HUD for surfaces that draw Svg.
5
6export type Bar = {
7  label: 'SESSION' | 'WEEKLY'
8  hp: number | null // 0 to 100; null before the first reading
9  respawn: string // when the window resets: "2h 50m", "38m" or "Sun 10am"
10}
11
12export type Mood = 'healthy' | 'hurt' | 'critical' | 'dead' | 'unknown'
13
14const KINDS: Record<Bar['label'], string> = { SESSION: 'five_hour', WEEKLY: 'seven_day' }
15const DAYS = ['Sun', 'Mon', 'Tue', 'Wed', 'Thu', 'Fri', 'Sat']
16
17const respawnIn = (resetsAt: string | undefined, now: number) => {
18  if (resetsAt === undefined) return ''
19  const at = Date.parse(resetsAt)
20  if (Number.isNaN(at)) return ''
21  const mins = Math.max(0, Math.round((at - now) / 60000))
22  if (mins < 60) return `${mins}m`
23  if (mins < 24 * 60) return `${Math.floor(mins / 60)}h ${mins % 60}m`
24  const d = new Date(at)
25  const h = d.getHours()
26  const time = `${h % 12 === 0 ? 12 : h % 12}${d.getMinutes() ? `:${String(d.getMinutes()).padStart(2, '0')}` : ''}${h < 12 ? 'am' : 'pm'}`
27  return `${DAYS[d.getDay()]} ${time}`
28}
29
30export const bars = (limits: Limit[], demo: number | null, now: number): Bar[] =>
31  (['SESSION', 'WEEKLY'] as const).map(label => {
32    const limit = limits.find(l => l.kind === KINDS[label])
33    if (demo !== null) return { label, hp: demo, respawn: respawnIn(limit?.resetsAt, now) || '4h 20m' }
34    if (limit === undefined) return { label, hp: null, respawn: '' }
35    return { label, hp: Math.max(0, Math.round(100 - limit.percentUsed)), respawn: respawnIn(limit.resetsAt, now) }
36  })
37
38const lowest = (all: Bar[]) => {
39  const known = all.flatMap(b => (b.hp === null ? [] : [b.hp]))
40  return known.length === 0 ? null : Math.min(...known)
41}
42
43export const mood = (all: Bar[]): Mood => {
44  const low = lowest(all)
45  if (low === null) return 'unknown'
46  return low <= 0 ? 'dead' : low < 25 ? 'critical' : low < 50 ? 'hurt' : 'healthy'
47}
48
49// "back in 2h 50m", "back Sun 10am"
50export const backIn = (respawn: string) => (respawn ? (/^\d/.test(respawn) ? `back in ${respawn}` : `back ${respawn}`) : 'back soon')
51
52export const killer = (all: Bar[]) => all.find(b => b.hp !== null && b.hp <= 0)
53
54// ---- the SVG HUD: a modern status card with the villager, 960 x 64 ----
55
56export const HUD_W = 960
57export const HUD_H = 64
58const AV = { cx: 34, cy: 32, r: 25 } // the avatar circle
59const ICON_X = 74
60const LABEL_X = 92
61const BAR_X = 172
62// The right of the card is kept for the rank badge: a zone as wide as the
63// widest badge, so every rank sits the same distance from the reset times.
64const BADGE_ZONE = 156
65const BADGE_GAP = 24 // between the reset times and the badge zone
66// The bars fill what the badge leaves; hudSvg fits them to the badge it draws.
67let BAR_W = 960 - 16 - BADGE_ZONE - BADGE_GAP - 78 - 66 - 16 - 172
68const BAR_H = 12
69let VALUE_X = BAR_X + BAR_W + 16
70const ROW_CY = [20, 44] // the two rows' centre lines
71const UI = `font-family="'Segoe UI Variable Display', 'Segoe UI', system-ui, -apple-system, sans-serif"`
72
73const T = {
74  text: '#f1f4f8',
75  muted: '#8f9aa7',
76  faint: '#5d6875',
77  track: '#1b2129',
78  trackEdge: '#2b333d',
79  lost: '#3a1c20', // lost HP, a faint red under the track
80  chip: '#1e252e',
81  green: ['#22c55e', '#86efac'],
82  amber: ['#f59e0b', '#fcd34d'],
83  red: ['#ef4444', '#fca5a5'],
84}
85
86const tone = (hp: number) => (hp > 50 ? 'green' : hp > 25 ? 'amber' : 'red') as 'green' | 'amber' | 'red'
87
88// ---- the villager: a vector bust in a brown cap and a blue tunic ----
89
90const SKIN = { base: '#eab98e', shade: '#d39a6c', ear: '#dca57a' }
91const DEAD = { base: '#9a958e', shade: '#7f7a73', ear: '#8c8780' }
92const INK = '#2b1a12'
93
94// A tear that runs from under an eye down the cheek, over and over.
95const tear = (x: number, delay: number) => `
96  <path d="M ${x},35 q 1.3,2.2 0,3 q -1.3,-0.8 0,-3 z" fill="#5ec4ff" opacity="0">
97    <animateTransform attributeName="transform" type="translate" values="0 0; 0 9" dur="1.1s" begin="${delay}s" repeatCount="indefinite"/>
98    <animate attributeName="opacity" values="0.95;0.95;0" keyTimes="0;0.7;1" dur="1.1s" begin="${delay}s" repeatCount="indefinite"/>
99  </path>`
100
101// His face by how much health is left: grinning, flat, frowning, crying, sobbing.
102const face = (hp: number) => {
103  const ry = hp < 25 ? 1.5 : 2
104  const blink = `keyTimes="0;0.9;0.94;0.98;1" dur="4.2s" repeatCount="indefinite"`
105  const eye = (x: number) =>
106    `<ellipse cx="${x}" cy="32.2" rx="1.7" ry="${ry}" fill="${INK}"><animate attributeName="ry" values="${ry};${ry};0.2;${ry};${ry}" ${blink}/></ellipse>` +
107    `<circle cx="${x + 0.6}" cy="31.4" r="0.6" fill="#fff"><animate attributeName="opacity" values="1;1;0;1;1" ${blink}/></circle>`
108  const eyes = eye(29.8) + eye(38.2)
109  const nose = `<path d="M 34,33.5 q 1.2,1.6 0,2.3" fill="none" stroke="${SKIN.shade}" stroke-width="1.1" stroke-linecap="round"/>`
110  const stroke = (d: string) => `<path d="${d}" fill="none" stroke="${INK}" stroke-width="1.4" stroke-linecap="round"/>`
111  const brows = (sad: boolean) =>
112    sad
113      ? stroke('M 27.4,28.6 L 31.4,27.2') + stroke('M 36.6,27.2 L 40.6,28.6')
114      : stroke('M 27.6,27.6 Q 29.8,26.6 32,27.4') + stroke('M 36,27.4 Q 38.2,26.6 40.4,27.6')
115  const blush = `<circle cx="27.2" cy="36" r="2" fill="#f28b82" opacity="0.35"/><circle cx="40.8" cy="36" r="2" fill="#f28b82" opacity="0.35"/>`
116  if (hp >= 75) return brows(false) + eyes + nose + blush + stroke('M 30.4,38.2 Q 34,41.4 37.6,38.2')
117  if (hp >= 50) return brows(false) + eyes + nose + stroke('M 31,39.2 L 37,39.2')
118  if (hp >= 25) return brows(true) + eyes + nose + stroke('M 30.6,40.4 Q 34,37.8 37.4,40.4')
119  if (hp >= 10) return brows(true) + eyes + nose + stroke('M 30.4,40.6 Q 34,37.4 37.6,40.6') + tear(29.4, 0)
120  return (
121    brows(true) +
122    eyes +
123    nose +
124    `<ellipse cx="34" cy="39.8" rx="3" ry="2" fill="#5a1d14"/>` +
125    tear(29.4, 0) +
126    tear(38.6, 0.55) +
127    tear(29.4, 0.55)
128  )
129}
130
131// How the villager moves in each state: his pickaxe, his head, his breathing.
132type Motion = { pick: string; head: string; breathe: number; tremble?: string }
133const motion = (m: Mood, hp: number): Motion => {
134  if (m === 'dead') return { pick: '', head: '', breathe: 0 }
135  // Happy: hard at work, the pickaxe chopping, head bobbing along.
136  if (hp >= 75)
137    return {
138      pick: `values="0 44 62;-24 44 62;6 44 62;0 44 62" keyTimes="0;0.45;0.6;1" dur="1.6s"`,
139      head: `values="0 0;0 -0.9;0 0" dur="0.8s"`,
140      breathe: 2.4,
141    }
142  // Content: a slower, steadier swing.
143  if (hp >= 50)
144    return { pick: `values="0 44 62;-14 44 62;0 44 62" dur="2.6s"`, head: `values="0 0;0 -0.5;0 0" dur="2.6s"`, breathe: 2.8 }
145  // Hurt: the pickaxe barely lifts, his head drooping.
146  if (hp >= 25)
147    return { pick: `values="0 44 62;-5 44 62;0 44 62" dur="3.6s"`, head: `values="0 0;0 0.8;0 0" dur="3.6s"`, breathe: 3.6 }
148  // Crying: the dropped pickaxe drags a little; he sniffles.
149  if (hp >= 10)
150    return { pick: `values="0 46 62;3 46 62;0 46 62" dur="2.2s"`, head: `values="0 0;0 0.7;0 0;0 0.5;0 0" dur="1.1s"`, breathe: 1.4 }
151  // Sobbing: shoulders heaving, the whole villager trembling.
152  return {
153    pick: `values="0 46 62;4 46 62;0 46 62" dur="1.4s"`,
154    head: `values="0 0;0 1;0 0;0 1;0 0" dur="0.7s"`,
155    breathe: 0.7,
156    tremble: `values="0 0;-0.4 0;0.4 0;0 0" dur="0.18s"`,
157  }
158}
159
160const villager = (m: Mood, hp: number) => {
161  const dead = m === 'dead'
162  const skin = dead ? DEAD : SKIN
163  const tunic = dead ? '#5f6470' : '#3b6fe0'
164  const tunicDark = dead ? '#4c505a' : '#2c56b8'
165  const cap = dead ? '#5a554f' : '#7a4a24'
166  const capDark = dead ? '#4a4540' : '#5e3818'
167  const coping = hp >= 25 || dead
168  const mv = motion(m, hp)
169  const spin = (v: string) => (v ? `<animateTransform attributeName="transform" type="rotate" ${v} repeatCount="indefinite"/>` : '')
170  const move = (v: string) => (v ? `<animateTransform attributeName="transform" type="translate" ${v} repeatCount="indefinite"/>` : '')
171
172  // The pickaxe, behind him: on his shoulder while he's coping, dropped once he isn't.
173  const pick = coping
174    ? `<g>${spin(mv.pick)}
175       <path d="M 44,62 L 53,24" stroke="${dead ? '#6a655e' : '#8b5a2b'}" stroke-width="2.6" stroke-linecap="round"/>
176       <path d="M 45.5,24.5 Q 53,19 60,26" fill="none" stroke="${dead ? '#77726b' : '#c7cfd8'}" stroke-width="3" stroke-linecap="round"/></g>`
177    : `<g>${spin(mv.pick)}
178       <path d="M 46,62 L 60,48" stroke="#8b5a2b" stroke-width="2.6" stroke-linecap="round"/>
179       <path d="M 56,44 Q 62,47 61,54" fill="none" stroke="#c7cfd8" stroke-width="3" stroke-linecap="round"/></g>`
180
181  // His body breathes: the tunic rises and settles.
182  const body = `<g>${mv.breathe ? move(`values="0 0;0 -0.7;0 0" dur="${mv.breathe}s"`) : ''}
183    <ellipse cx="34" cy="63" rx="19" ry="14" fill="${tunic}"/>
184    <path d="M 22,55 Q 34,60 46,55 L 46,60 Q 34,65 22,60 Z" fill="${tunicDark}" opacity="0.6"/>
185    <path d="M 29.5,49.5 L 34,55.5 L 38.5,49.5" fill="none" stroke="${tunicDark}" stroke-width="1.6" stroke-linejoin="round"/>
186    <rect x="30.5" y="41" width="7" height="9" rx="2" fill="${skin.shade}"/></g>`
187
188  const head = `
189    <circle cx="23.8" cy="33.5" r="2.4" fill="${skin.ear}"/>
190    <circle cx="44.2" cy="33.5" r="2.4" fill="${skin.ear}"/>
191    <ellipse cx="34" cy="32.5" rx="10.2" ry="11" fill="${skin.base}"/>
192    <path d="M 40,24.5 Q 45.5,32 40.5,42 Q 44.8,33 40,24.5 Z" fill="${skin.shade}" opacity="0.55"/>
193    <path d="M 23.4,30 Q 23,18.6 34,18.2 Q 45,18.6 44.6,30 Q 41,25.2 34,25.6 Q 27,25.2 23.4,30 Z" fill="${cap}"/>
194    <path d="M 23.4,30 Q 27,25.2 34,25.6 Q 41,25.2 44.6,30 Q 41,27.4 34,27.6 Q 27,27.4 23.4,30 Z" fill="${capDark}"/>`
195
196  const bandage =
197    !dead && hp < 50
198      ? `<rect x="25" y="26.2" width="18" height="3.4" rx="1.2" fill="#f3efe6" transform="rotate(-8 34 28)"/><circle cx="38.5" cy="27.4" r="0.9" fill="#d84a4a"/>`
199      : ''
200  const sweat =
201    !dead && hp < 25
202      ? `<path d="M 45.5,24 q 1.6,2.8 0,3.8 q -1.6,-1 0,-3.8 z" fill="#5ec4ff"><animate attributeName="opacity" values="1;0.2;1" dur="0.9s" repeatCount="indefinite"/></path>`
203      : ''
204  // Dead: X eyes and a halo that bobs above him, glinting.
205  const deadFace = dead
206    ? `<path d="M 28.4,30.6 l 3,3 M 31.4,30.6 l -3,3 M 36.6,30.6 l 3,3 M 39.6,30.6 l -3,3" stroke="${INK}" stroke-width="1.4" stroke-linecap="round"/>
207       <path d="M 31,39.4 L 37,39.4" stroke="${INK}" stroke-width="1.4" stroke-linecap="round"/>
208       <path d="M 35,39.4 q 0.6,2.6 2,0" fill="#e57373"/>
209       <g>${move(`values="0 0;0 -1.6;0 0" dur="2.4s"`)}
210         <ellipse cx="34" cy="14.6" rx="8" ry="2.2" fill="none" stroke="#f5d061" stroke-width="1.8">
211           <animate attributeName="stroke-opacity" values="1;0.55;1" dur="2.4s" repeatCount="indefinite"/>
212         </ellipse></g>`
213    : face(hp)
214
215  const headGroup = `<g>${move(mv.head)}${head}${bandage}${deadFace}${sweat}</g>`
216  const all = pick + body + headGroup
217  return mv.tremble ? `<g>${move(mv.tremble)}${all}</g>` : all
218}
219
220// The villager in a round avatar. His ring is coloured by his health, and a
221// bright arc orbits it.
222const avatar = (m: Mood, low: number | null) => {
223  const ring = m === 'dead' ? '#59616d' : low === null ? '#3a4350' : T[tone(low)][0]
224  const pulse =
225    m === 'critical' ? `<animate attributeName="stroke-opacity" values="1;0.3;1" dur="0.9s" repeatCount="indefinite"/>` : ''
226  const orbit =
227    m === 'dead'
228      ? ''
229      : `<circle cx="${AV.cx}" cy="${AV.cy}" r="${AV.r + 3.5}" fill="none" stroke="${ring}" stroke-width="2" stroke-linecap="round" stroke-dasharray="22 160" opacity="0.85" filter="url(#soft)">
230           <animateTransform attributeName="transform" type="rotate" values="0 ${AV.cx} ${AV.cy};360 ${AV.cx} ${AV.cy}" dur="${low !== null && low < 25 ? 1.2 : 3.2}s" repeatCount="indefinite"/>
231         </circle>`
232  return `
233  <circle cx="${AV.cx}" cy="${AV.cy}" r="${AV.r + 5}" fill="${ring}" opacity="0.10"/>
234  ${orbit}
235  <circle cx="${AV.cx}" cy="${AV.cy}" r="${AV.r}" fill="url(#avbg)"/>
236  <g clip-path="url(#avclip)">${villager(m, low ?? 100)}</g>
237  <circle cx="${AV.cx}" cy="${AV.cy}" r="${AV.r}" fill="none" stroke="${ring}" stroke-width="2.5">${pulse}</circle>`
238}
239
240// ---- the bars ----
241
242// A heart that beats, faster the lower the health.
243const heartIcon = (x: number, cy: number, fill: string, hp: number | null) => {
244  const beat = hp === null || hp <= 0 ? '' : `<animateTransform attributeName="transform" type="scale" values="1;1.28;1;1.16;1" keyTimes="0;0.14;0.3;0.44;1" dur="${hp < 25 ? 0.6 : hp < 50 ? 0.9 : 1.3}s" repeatCount="indefinite"/>`
245  return `<g transform="translate(${x + 6} ${cy})"><g>${beat}<path transform="translate(-6.2 -6.6) scale(0.62)" d="M10 18 L2.4 10.4 A5 5 0 0 1 10 3.6 A5 5 0 0 1 17.6 10.4 Z" fill="${fill}"/></g></g>`
246}
247const calendarIcon = (x: number, cy: number, fill: string) =>
248  `<g transform="translate(${x} ${cy - 6})"><rect x="0.5" y="1.5" width="11" height="10" rx="2" fill="none" stroke="${fill}" stroke-width="1.5"/><path d="M 0.5,5 L 11.5,5 M 3.5,0 L 3.5,3 M 8.5,0 L 8.5,3" stroke="${fill}" stroke-width="1.5" stroke-linecap="round"/></g>`
249
250// One row: icon and label, a living bar, the value and a reset chip. The bar
251// sweeps in from empty, energy stripes flow through it, a shine passes along
252// it now and then, and sparks drift off its glowing leading edge.
253// Sci-fi accents, all drawn over the card without moving anything on it.
254const HUD_CYAN = '#5ec4ff'
255
256// Thin targeting brackets at the card's four corners, pulsing gently.
257const cornerBrackets = () => {
258  const L = 14
259  const i = 6
260  const W = HUD_W
261  const H = HUD_H
262  const d = [
263    `M ${i},${i + L} L ${i},${i} L ${i + L},${i}`,
264    `M ${W - i - L},${i} L ${W - i},${i} L ${W - i},${i + L}`,
265    `M ${i},${H - i - L} L ${i},${H - i} L ${i + L},${H - i}`,
266    `M ${W - i - L},${H - i} L ${W - i},${H - i} L ${W - i},${H - i - L}`,
267  ].join(' ')
268  return `<path d="${d}" fill="none" stroke="${HUD_CYAN}" stroke-width="1.4" stroke-linecap="round" opacity="0.45">
269    <animate attributeName="opacity" values="0.25;0.6;0.25" dur="3.6s" repeatCount="indefinite"/>
270  </path>`
271}
272
273// A faint dot grid, and a light band that sweeps across like a hologram scan.
274const hologram = () => `
275  <g clip-path="url(#cardclip)">
276    <rect x="0" y="0" width="${HUD_W}" height="${HUD_H}" fill="url(#dots)"/>
277    <rect x="-120" y="0" width="90" height="${HUD_H}" fill="url(#scanband)">
278      <animate attributeName="x" values="-120;-120;${HUD_W + 30}" keyTimes="0;0.55;1" dur="7s" repeatCount="indefinite"/>
279    </rect>
280  </g>`
281
282// A dashed radar ring with tick marks, turning against the glowing arc.
283const radar = (m: Mood) =>
284  m === 'dead'
285    ? ''
286    : `<g opacity="0.55">
287    <circle cx="${AV.cx}" cy="${AV.cy}" r="${AV.r + 7.5}" fill="none" stroke="${HUD_CYAN}" stroke-width="0.9" stroke-dasharray="2 5">
288      <animateTransform attributeName="transform" type="rotate" values="360 ${AV.cx} ${AV.cy};0 ${AV.cx} ${AV.cy}" dur="12s" repeatCount="indefinite"/>
289    </circle>
290    ${[0, 90, 180, 270].map(a => `<line x1="${AV.cx}" y1="${AV.cy - AV.r - 5}" x2="${AV.cx}" y2="${AV.cy - AV.r - 10}" stroke="${HUD_CYAN}" stroke-width="1.2" transform="rotate(${a} ${AV.cx} ${AV.cy})"/>`).join('')}
291  </g>`
292
293// Electric arcs crackling along a full bar's edges.
294const zigzag = (x0: number, x1: number, y: number, amp: number, seed: number) => {
295  const pts: string[] = []
296  for (let x = x0, k = 0; x <= x1; x += 7, k++) {
297    const jitter = ((Math.sin((k + 1) * 12.9898 + seed * 78.233) * 43758.5453) % 1 + 1) % 1
298    pts.push(`${x.toFixed(1)},${(y + (k % 2 === 0 ? -1 : 1) * amp * (0.4 + jitter)).toFixed(1)}`)
299  }
300  return pts.join(' ')
301}
302const overcharge = (x0: number, x1: number, top: number) => `
303  <g>
304    <polyline points="${zigzag(x0, x1, top - 1, 2.4, 1)}" fill="none" stroke="#e8fbff" stroke-width="1.1" opacity="0">
305      <animate attributeName="opacity" values="0;0.95;0;0;0.8;0" keyTimes="0;0.08;0.16;0.5;0.58;0.66" dur="1.7s" repeatCount="indefinite"/>
306    </polyline>
307    <polyline points="${zigzag(x0, x1, top + BAR_H + 1, 2.4, 2)}" fill="none" stroke="${HUD_CYAN}" stroke-width="1.1" opacity="0">
308      <animate attributeName="opacity" values="0;0;0.9;0;0;0.7;0" keyTimes="0;0.25;0.33;0.41;0.75;0.83;0.91" dur="1.7s" repeatCount="indefinite"/>
309    </polyline>
310  </g>`
311
312// Flashing red chevrons warning that a bar is low.
313const redAlert = (x: number, cy: number) => `
314  <text x="${x}" y="${cy + 5}" ${UI} font-size="13" font-weight="900" letter-spacing="-1" fill="#ff4d5e">❯❯
315    <animate attributeName="opacity" values="1;0.15;1" dur="0.7s" repeatCount="indefinite"/>
316  </text>`
317
318const row = (bar: Bar, cy: number, id: string, delay: number) => {
319  const hp = bar.hp
320  const top = cy - BAR_H / 2
321  const colour = (hp === null ? T.faint : T[tone(hp)][0]) ?? T.faint
322  const light = (hp === null ? T.faint : T[tone(hp)][1]) ?? T.faint
323  const icon = bar.label === 'SESSION' ? heartIcon(ICON_X, cy, colour, hp) : calendarIcon(ICON_X + 1, cy, colour)
324  const label = `<text x="${LABEL_X}" y="${cy + 4}" ${UI} font-size="11.5" font-weight="700" letter-spacing="1.4" fill="${T.muted}">${bar.label}</text>`
325  const track = `<rect x="${BAR_X}" y="${top}" width="${BAR_W}" height="${BAR_H}" rx="${BAR_H / 2}" fill="${hp === null || hp >= 100 ? T.track : T.lost}" stroke="${T.trackEdge}" stroke-width="1"/>`
326  let ticks = ''
327  for (let k = 1; k < 10; k++) {
328    const x = BAR_X + (BAR_W * k) / 10
329    ticks += `<line x1="${x}" y1="${top + 2}" x2="${x}" y2="${top + BAR_H - 2}" stroke="#0b0e12" stroke-opacity="0.4" stroke-width="1.5"/>`
330  }
331  if (hp === null) {
332    return `${icon}${label}${track}${ticks}<text x="${VALUE_X}" y="${cy + 5}" ${UI} font-size="15" font-weight="600" fill="${T.faint}">—</text>`
333  }
334  const w = hp <= 0 ? 0 : Math.max(BAR_H, Math.round((BAR_W * hp) / 100))
335  const sweep = `begin="${delay}s" dur="1.1s" calcMode="spline" keyTimes="0;1" keySplines="0.16 1 0.3 1" fill="freeze"`
336  const pulse = hp < 25 && hp > 0 ? `<animate attributeName="opacity" values="1;0.55;1" dur="0.9s" repeatCount="indefinite"/>` : ''
337  const edge = BAR_X + w - BAR_H / 2
338  const sparks = [0, 1, 2]
339    .map(
340      k => `<circle cx="${edge}" cy="${cy}" r="1.4" fill="${light}" opacity="0">
341        <animate attributeName="cy" values="${cy};${cy - 13}" dur="1.4s" begin="${delay + 1.1 + k * 0.47}s" repeatCount="indefinite"/>
342        <animate attributeName="cx" values="${edge};${edge + (k - 1) * 5}" dur="1.4s" begin="${delay + 1.1 + k * 0.47}s" repeatCount="indefinite"/>
343        <animate attributeName="opacity" values="0;0.9;0" dur="1.4s" begin="${delay + 1.1 + k * 0.47}s" repeatCount="indefinite"/>
344      </circle>`,
345    )
346    .join('')
347  const fill =
348    w > 0
349      ? `<g>${pulse}
350          <clipPath id="clip-${id}"><rect x="${BAR_X}" y="${top - 1}" width="0" height="${BAR_H + 2}" rx="${BAR_H / 2}"><animate attributeName="width" values="0;${w}" ${sweep}/></rect></clipPath>
351          <g clip-path="url(#clip-${id})">
352            <rect x="${BAR_X}" y="${top}" width="${w}" height="${BAR_H}" rx="${BAR_H / 2}" fill="url(#${id})" filter="url(#soft)"/>
353            <rect x="${BAR_X}" y="${top}" width="${w}" height="${BAR_H}" rx="${BAR_H / 2}" fill="url(#stripes)"/>
354            <rect x="${BAR_X + 4}" y="${top + 2}" width="${Math.max(0, w - 10)}" height="3" rx="1.5" fill="#fff" opacity="0.32"/>
355            <rect x="${BAR_X - 60}" y="${top - 2}" width="46" height="${BAR_H + 4}" fill="url(#shine)">
356              <animate attributeName="x" values="${BAR_X - 60};${BAR_X - 60};${BAR_X + w + 10}" keyTimes="0;0.55;1" dur="3.4s" begin="${delay + 1.2}s" repeatCount="indefinite"/>
357            </rect>
358          </g>
359          <circle cx="${BAR_X + BAR_H / 2}" cy="${cy}" r="${BAR_H / 2 + 1.5}" fill="${light}" opacity="0.5" filter="url(#soft)">
360            <animate attributeName="cx" values="${BAR_X + BAR_H / 2};${edge}" ${sweep}/>
361            <animate attributeName="r" values="${BAR_H / 2};${BAR_H / 2 + 2.5};${BAR_H / 2}" dur="1.6s" repeatCount="indefinite"/>
362          </circle>
363          <circle cx="${BAR_X + BAR_H / 2}" cy="${cy}" r="${BAR_H / 2 - 2}" fill="#fff" opacity="0.85">
364            <animate attributeName="cx" values="${BAR_X + BAR_H / 2};${edge}" ${sweep}/>
365          </circle>
366          ${sparks}
367        </g>`
368      : ''
369  const chipText = bar.respawn
370  const isMax = hp >= 90
371  const value = isMax
372    ? `<text x="${VALUE_X}" y="${cy + 5.5}" ${UI} font-size="15" font-weight="800" letter-spacing="1.5" fill="${HUD_CYAN}" filter="url(#soft)">MAX<tspan dx="4" font-size="12" font-weight="600" letter-spacing="0" fill="${T.muted}">${hp}</tspan></text>`
373    : `<text x="${VALUE_X}" y="${cy + 5.5}" ${UI} font-size="17" font-weight="700" fill="${T.text}">${hp}<tspan font-size="12" font-weight="600" fill="${T.muted}">/100</tspan></text>`

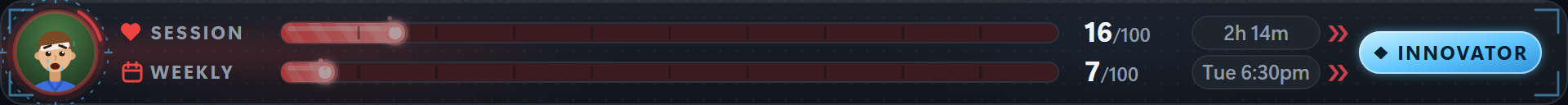

374  const fx = isMax ? overcharge(BAR_X + 4, BAR_X + w - 4, top) : hp > 0 && hp < 25 ? redAlert(VALUE_X + 66 + 78 + 5, cy) : ''
375  const chipX = VALUE_X + 66
376  const CHIP_W = 78 // one width for both rows, so their edges line up
377  const chip = chipText
378    ? `<rect x="${chipX}" y="${cy - 10}" width="${CHIP_W}" height="20" rx="10" fill="${T.chip}" stroke="${T.trackEdge}"/>
379       <text x="${chipX + CHIP_W / 2}" y="${cy + 4.5}" text-anchor="middle" ${UI} font-size="12.5" font-weight="500" fill="${T.muted}">${chipText}</text>`
380    : ''
381  return icon + label + track + fill + ticks + fx + value + chip
382}
383
384// The contributor ranks, lowest first, as the draft rank sheet draws them.
385export type Rank = 'scout' | 'contributor' | 'innovator' | 'top' | 'god'
386type RankLook = { label: string; name: string; stops: [string, string, string]; edge: string; ink: string; glow?: string; shine?: true }
387export const RANKS: Record<Rank, RankLook> = {
388  scout: { label: '◇ SCOUT', name: 'Scout', stops: ['#d9e2ec', '#9aa9b8', '#6c7b8a'], edge: '#f1f5f9', ink: '#1b2430' },
389  contributor: { label: '✦ CONTRIBUTOR', name: 'Contributor', stops: ['#ffd2a8', '#d98a4e', '#a65a26'], edge: '#ffe7d1', ink: '#2e1606' },
390  innovator: { label: '◆ INNOVATOR', name: 'Innovator', stops: ['#c7f0ff', '#5ec4ff', '#2b8fd6'], edge: '#e6f7ff', ink: '#062033', glow: '#5ec4ff' },

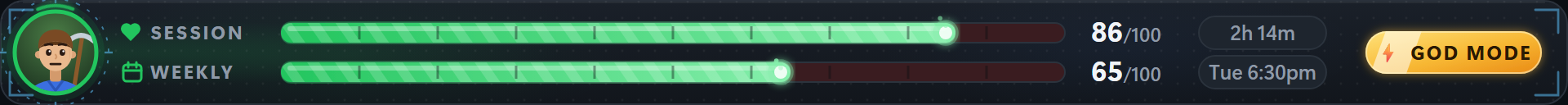

391  top: { label: '★ OPEN', name: 'Top contributor', stops: ['#ffe27a', '#f7b733', '#e98a15'], edge: '#fff3c4', ink: '#2b1a03', glow: '#f7b733', shine: true },
392  god: { label: '⚡ GOD MODE', name: 'GOD MODE', stops: ['#ffe27a', '#f7b733', '#e98a15'], edge: '#fff3c4', ink: '#2b1a03', glow: '#f7b733', shine: true },
393}
394
395// The rank badge at the card's right end, past the reset times: a badge to
396// show, not a control. Its right edge sits 16 in from the card's, as the
397// avatar's left does; long names get a wider pill.
398const BADGE_H = 26
399const BADGE_Y = 19
400const badgeBox = (rank: Rank) => {
401  const w = Math.min(BADGE_ZONE, Math.max(108, Math.round(RANKS[rank].label.length * 7.6 + 28)))
402  return { x: 960 - 16 - w, w }
403}
404const rankBadge = (rank: Rank) => {
405  const look = RANKS[rank]
406  const { x, w } = badgeBox(rank)
407  const pill = `<rect x="${x}" y="${BADGE_Y}" width="${w}" height="${BADGE_H}" rx="${BADGE_H / 2}" fill="url(#badgegrad)"/>`
408  const shine = look.shine
409    ? `<g clip-path="url(#badgeclip)">
410    <rect x="${x - 40}" y="${BADGE_Y - 10}" width="22" height="${BADGE_H + 20}" fill="#fff" opacity="0.55" transform="skewX(-20)">
411      <animate attributeName="x" values="${x - 40};${x - 40};${x + w + 30}" keyTimes="0;0.6;1" dur="3s" repeatCount="indefinite"/>
412    </rect>
413  </g>`
414    : ''
415  return `
416  ${look.glow ? `<g filter="url(#badgeglow)">${pill}</g>` : pill}
417  ${shine}
418  <rect x="${x + 0.5}" y="${BADGE_Y + 0.5}" width="${w - 1}" height="${BADGE_H - 1}" rx="${(BADGE_H - 1) / 2}" fill="none" stroke="${look.edge}" stroke-opacity="0.6"/>
419  <text x="${x + w / 2}" y="${BADGE_Y + 17.5}" text-anchor="middle" ${UI} font-size="${look.label.length > 12 ? 11.5 : 12}" font-weight="800" letter-spacing="${look.label.length > 12 ? 0.9 : 1.2}" fill="${look.ink}">${look.label}</text>`
420}
421
422const badgeDefs = (rank: Rank) => {
423  const look = RANKS[rank]
424  const { x, w } = badgeBox(rank)
425  return `<linearGradient id="badgegrad" x1="0" y1="0" x2="1" y2="1"><stop offset="0" stop-color="${look.stops[0]}"/><stop offset="0.55" stop-color="${look.stops[1]}"/><stop offset="1" stop-color="${look.stops[2]}"/></linearGradient>
426    <clipPath id="badgeclip"><rect x="${x}" y="${BADGE_Y}" width="${w}" height="${BADGE_H}" rx="${BADGE_H / 2}"/></clipPath>
427    <filter id="badgeglow" x="-20%" y="-60%" width="140%" height="220%"><feGaussianBlur in="SourceAlpha" stdDeviation="3" result="b"/><feFlood flood-color="${look.glow ?? '#000'}" flood-opacity="0.55"/><feComposite in2="b" operator="in" result="g"/><feMerge><feMergeNode in="g"/><feMergeNode in="SourceGraphic"/></feMerge></filter>`
428}
429
430const gradient = (id: string, hp: number | null) => {
431  const [a, b] = T[tone(hp ?? 100)]
432  return `<linearGradient id="${id}" x1="0" y1="0" x2="1" y2="0"><stop offset="0" stop-color="${a}"/><stop offset="1" stop-color="${b}"/></linearGradient>`
433}
434
435// Two soft blobs of the health colour drifting slowly behind the card.
436const aurora = (colour: string) => `
437  <g clip-path="url(#cardclip)" opacity="0.5">
438    <ellipse cx="160" cy="34" rx="170" ry="46" fill="url(#aura)">
439      <animate attributeName="cx" values="120;420;120" dur="14s" repeatCount="indefinite"/>
440    </ellipse>
441    <ellipse cx="700" cy="30" rx="150" ry="40" fill="url(#aura2)">
442      <animate attributeName="cx" values="760;460;760" dur="18s" repeatCount="indefinite"/>
443    </ellipse>
444  </g>
445  <radialGradient id="aura"><stop offset="0" stop-color="${colour}" stop-opacity="0.16"/><stop offset="1" stop-color="${colour}" stop-opacity="0"/></radialGradient>
446  <radialGradient id="aura2"><stop offset="0" stop-color="#3b82f6" stop-opacity="0.10"/><stop offset="1" stop-color="#3b82f6" stop-opacity="0"/></radialGradient>`
447
448export const hudSvg = (all: Bar[], rank: Rank = 'god') => {
449  // Fit the bars to this badge, so the gap before it is the same for every rank.
450  BAR_W = 960 - 16 - badgeBox(rank).w - BADGE_GAP - 78 - 66 - 16 - BAR_X
451  VALUE_X = BAR_X + BAR_W + 16
452  const m = mood(all)
453  const dead = killer(all)
454  const known = all.flatMap(b => (b.hp === null ? [] : [b.hp]))
455  const low = known.length === 0 ? null : Math.min(...known)
456  const session = all[0] ?? { label: 'SESSION' as const, hp: null, respawn: '' }
457  const weekly = all[1] ?? { label: 'WEEKLY' as const, hp: null, respawn: '' }
458  const glow = (m === 'dead' ? '#59616d' : low === null ? '#3a4350' : T[tone(low)][0]) ?? '#3a4350'
459

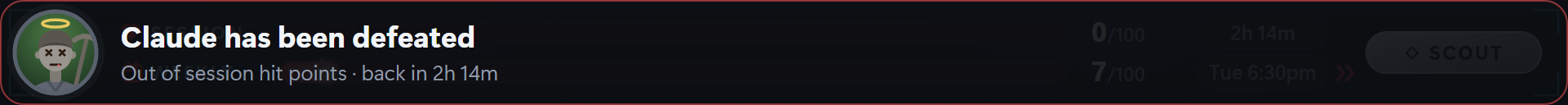

460  const deathScreen = dead
461    ? `<g>
462        <rect x="0.5" y="0.5" width="${HUD_W - 1}" height="${HUD_H - 1}" rx="14" fill="#0b0d11" opacity="0.9"/>
463        <rect x="0.5" y="0.5" width="${HUD_W - 1}" height="${HUD_H - 1}" rx="14" fill="none" stroke="#ef4444" stroke-opacity="0.55"/>
464        ${avatar(m, 0)}
465        <text x="${ICON_X}" y="29" ${UI} font-size="18" font-weight="700" fill="${T.text}">Claude has been defeated<animate attributeName="opacity" values="0;1" dur="0.8s" fill="freeze"/></text>
466        <text x="${ICON_X}" y="49" ${UI} font-size="13" fill="${T.muted}">Out of ${dead.label === 'SESSION' ? 'session' : 'weekly'} hit points · ${backIn(dead.respawn)}</text>
467      </g>`
468    : ''
469
470  return `<svg xmlns="http://www.w3.org/2000/svg" viewBox="0 0 ${HUD_W} ${HUD_H}" width="${HUD_W * 3}" height="${HUD_H * 3}" preserveAspectRatio="xMinYMin meet">
471  <defs>
472    <linearGradient id="card" x1="0" y1="0" x2="0" y2="1"><stop offset="0" stop-color="#1a2029"/><stop offset="1" stop-color="#12161c"/></linearGradient>
473    <clipPath id="cardclip"><rect x="0.5" y="0.5" width="${HUD_W - 1}" height="${HUD_H - 1}" rx="14"/></clipPath>
474    <pattern id="dots" width="10" height="10" patternUnits="userSpaceOnUse"><circle cx="1" cy="1" r="0.7" fill="#ffffff" opacity="0.05"/></pattern>
475    <linearGradient id="scanband" x1="0" y1="0" x2="1" y2="0"><stop offset="0" stop-color="${HUD_CYAN}" stop-opacity="0"/><stop offset="0.5" stop-color="${HUD_CYAN}" stop-opacity="0.09"/><stop offset="1" stop-color="${HUD_CYAN}" stop-opacity="0"/></linearGradient>
476    <radialGradient id="cardglow" cx="0.04" cy="0.5" r="0.32"><stop offset="0" stop-color="${glow}" stop-opacity="0.16"/><stop offset="1" stop-color="${glow}" stop-opacity="0"/></radialGradient>
477    <radialGradient id="avbg" cx="0.5" cy="0.3" r="0.8"><stop offset="0" stop-color="#4b7d46"/><stop offset="0.65" stop-color="#2b4a2c"/><stop offset="1" stop-color="#1b2f1d"/></radialGradient>
478    ${badgeDefs(rank)}
479    <clipPath id="avclip"><circle cx="${AV.cx}" cy="${AV.cy}" r="${AV.r - 1}"/></clipPath>
480    <filter id="soft" x="-5%" y="-80%" width="110%" height="260%"><feGaussianBlur in="SourceGraphic" stdDeviation="2.4" result="b"/><feMerge><feMergeNode in="b"/><feMergeNode in="SourceGraphic"/></feMerge></filter>
481    <pattern id="stripes" x="0" y="0" width="14" height="14" patternUnits="userSpaceOnUse" patternTransform="rotate(-35)">
482      <rect width="6" height="14" fill="#ffffff" opacity="0.16"/>
483      <animate attributeName="x" values="0;14" dur="0.9s" repeatCount="indefinite"/>
484    </pattern>
485    <linearGradient id="shine" x1="0" y1="0" x2="1" y2="0"><stop offset="0" stop-color="#fff" stop-opacity="0"/><stop offset="0.5" stop-color="#fff" stop-opacity="0.55"/><stop offset="1" stop-color="#fff" stop-opacity="0"/></linearGradient>
486    ${gradient('g0', session.hp)}
487    ${gradient('g1', weekly.hp)}
488  </defs>
489  <rect x="0.5" y="0.5" width="${HUD_W - 1}" height="${HUD_H - 1}" rx="14" fill="url(#card)" stroke="#2a313b"/>
490  ${aurora(glow)}
491  <rect x="0.5" y="0.5" width="${HUD_W - 1}" height="${HUD_H - 1}" rx="14" fill="url(#cardglow)"/>
492  <line x1="14" y1="1.5" x2="${HUD_W - 14}" y2="1.5" stroke="#ffffff" stroke-opacity="0.06"/>
493  ${hologram()}
494  ${radar(m)}
495  ${avatar(m, low)}
496  ${row(session, ROW_CY[0] ?? 20, 'g0', 0.15)}
497  ${row(weekly, ROW_CY[1] ?? 44, 'g1', 0.35)}
498  ${rankBadge(rank)}
499  ${cornerBrackets()}
500  ${deathScreen}
501</svg>`
502}
503

1export type Limit = { kind: string; percentUsed: number; resetsAt?: string }
2
3declare module 'claude-code' {
4  interface PluginState {
5    'villager-hp': {
6      limits: Limit[]
7      // /hp <n> pins both bars to n HP to preview; null shows the real readings.
8      demo: number | null
9      // The clock, ticked each minute so the respawn countdowns move.
10      now: number
11      // The rank badge on the card: scout, contributor, innovator, top or god.
12      rank: 'scout' | 'contributor' | 'innovator' | 'top' | 'god'
13    }
14  }
15}
16
