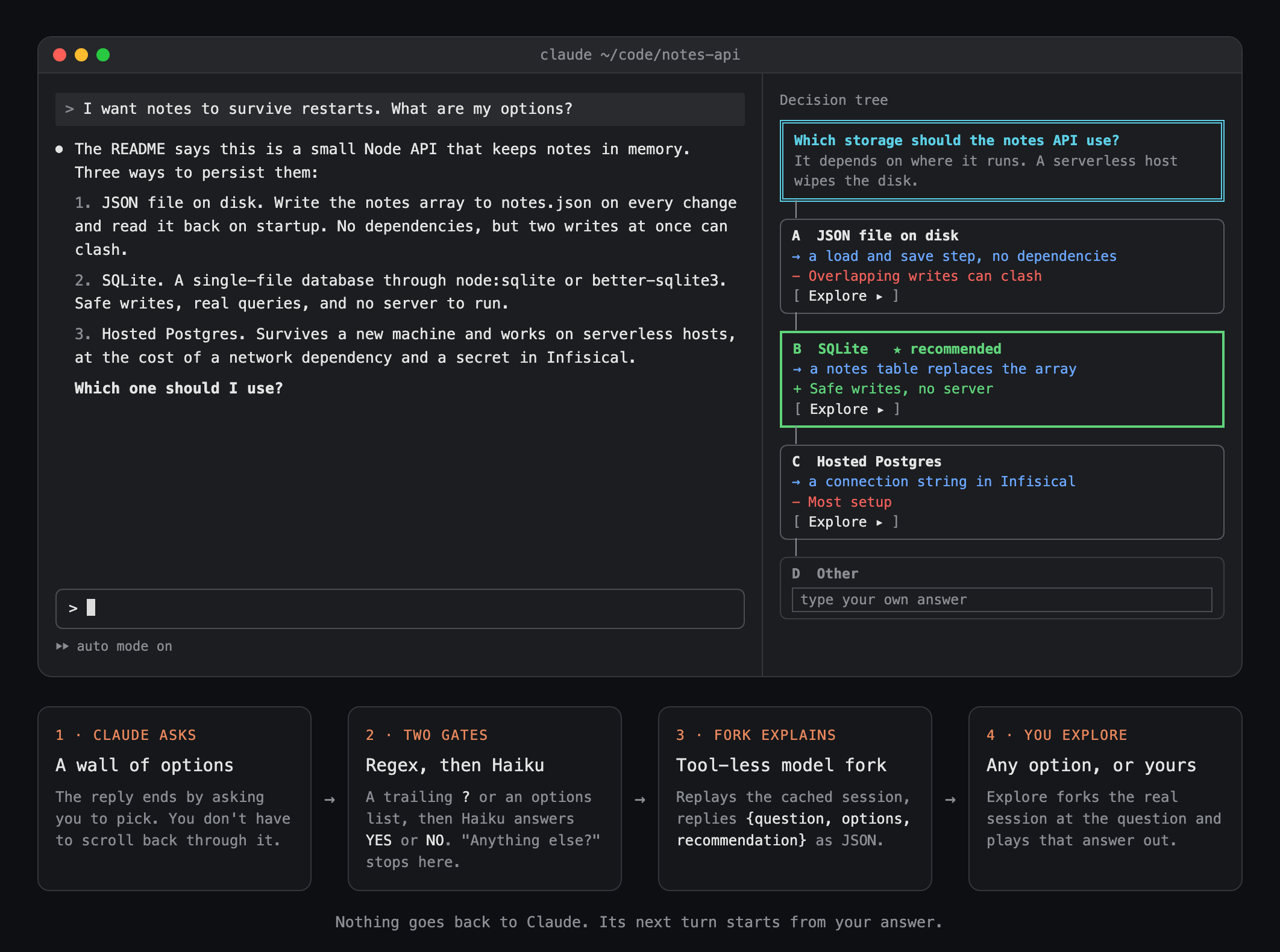

1// decision-tree: when Claude's reply ends by asking you something, a fork of the
2// conversation explains the choice in a side pane. Then you can explore
3// any option: the mod forks the real session at that question, plays the answer out in
4// the fork, and shows the next question. Each branch is its own session, so nothing you
5// explore reaches the main conversation.
6
7const PANE = 'question'
8
9// The answer every explanation is asked for, so the pane can draw it
10const SHAPE = '{"question": "the question in one plain line", ' +
11  '"context": "one or two sentences: what I need to know to decide", ' +
12  '"options": [{"label": "2 to 5 words", "detail": "what it means", ' +
13  '"leadsTo": "what happens next if I pick it", "pros": ["short"], "cons": ["short"]}], ' +
14  '"recommendation": {"label": "the label of one option", "why": "one sentence"}}'
15
16// The tree for the latest question. A node is { sid, msgId, answer, status, data, children }:
17// sid and msgId say which session, cut at which message, a branch below it forks from
18let root = null
19// Option indexes from the root to the node the pane shows
20let path = []
21// What the pane shows: 'node' (one question) or 'map' (the whole tree)
22let view = 'node'
23// Where the session transcripts live, from the Stop hook
24let transcriptPath = ''
25
26// Cheap check, no model: does the end of the reply ask something?
27// A question mark in the last paragraph, or a numbered / lettered / bulleted list of options.
28function looksLikeQuestion(answer) {
29  const tail = answer.trim().slice(-1500)
30  const paragraphs = tail.split(/\n\s*\n/)
31  const last = paragraphs[paragraphs.length - 1] || ''
32  if (/\?\s*(\*\*|_|`)?\s*$/.test(last) || /\?\s*$/m.test(last)) return true
33  const options = tail.match(/^\s*(\d+[.)]|[A-D][.):]|[-*]\s+\*\*Option|Option [A-D1-9])/gm) || []
34  return options.length >= 2 && /\b(which|prefer|choose|pick|want|should I|let me know)\b/i.test(tail)
35}
36
37// The gate: a small model confirms the question needs a real decision from the user
38async function needsDecision($, answer, model) {
39  const r = await $.model.complete({
40    model,
41    system: 'You read the end of an AI coding assistant reply. Answer YES if it ends by asking ' +
42      'the user to decide, choose, or supply something before work can go on. Answer NO for ' +
43      'rhetorical questions, pleasantries such as "anything else?", or a reply that just reports. ' +
44      'Reply with YES or NO only.',
45    prompt: answer.trim().slice(-2000),
46    maxTokens: 5,
47    timeoutMs: 20000,
48  })
49  return r.isAnswered && /^\s*yes/i.test(r.text)
50}
51
52// The first explanation: a model fork replays the conversation and returns the choice as JSON
53async function explainRoot($, answer) {
54  const node = { sid: await $.session.id(), answer, status: 'thinking', children: [] }
55  root = node
56  path = []
57  view = 'node'
58  await openPane($, false)
59  $.ui.invalidate('ui.render')
60
61  const r = await $.model.fork({
62    prompt: 'Your last reply ended by asking me a question. Do not answer it and do not use tools. ' +
63      'Help me answer it. Reply with JSON only, no code fence, in this shape: ' + SHAPE + '. ' +
64      'Use the options you offered; if you offered none, give the 2 to 4 answers I would most ' +
65      'likely pick. At most 2 pros and 2 cons each. No em or en dashes.',
66  })
67  settle(node, r.isAnswered ? r.text : '', r.isAnswered ? 'the fork did not return JSON' : r.reason)
68  if (root !== node) return
69  $.ui.invalidate('ui.render')
70}
71
72// Explore option i of the node the pane shows: fork the real session at that node's
73// question, tell the fork we picked i, and let it play that out with read-only tools.
74// With own, the answer is yours: it joins the question's options first, then is explored
75async function explore($, i, own) {
76  const tree = root
77  const node = nodeAt(path)
78  if (own && node && node.data && node.data.options) {
79    const options = node.data.options
80    i = options.findIndex(o => o.label.toLowerCase() === own.toLowerCase())
81    if (i < 0) i = options.push({ label: own, mine: true }) - 1
82  }
83  const option = node && node.data && node.data.options && node.data.options[i]
84  if (!option) return $.ui.toast('decision-tree: no option ' + String.fromCharCode(65 + i) + ' here')
85  path = [...path, i]
86  view = 'node'
87  $.ui.invalidate('ui.render')
88  if (node.children[i]) return
89
90  const child = { label: option.label, status: 'exploring', children: [], startedAt: Date.now() }
91  node.children[i] = child
92
93  // The message to cut the parent session at: the reply that asked this question
94  if (!node.msgId) node.msgId = await lastAssistantId($, node.sid, node.answer)
95  if (!node.msgId) $.ui.log('decision-tree: message id not found, forking from the latest point')
96  const args = ['claude', '-p', whatIf(option),
97    '--resume', node.sid, '--fork-session', '--output-format', 'json',
98    '--permission-mode', 'default', '--allowedTools=Read,Grep,Glob',
99    '--disallowedTools=Bash,Edit,Write,NotebookEdit']
100  if (node.msgId) args.push('--resume-session-at', node.msgId)
101
102  let out = null
103  try {
104    const run = await $.process.run(args, {
105      cwd: await $.session.cwd(),
106      env: { DECISION_TREE_CHILD: '1' },
107      timeoutMs: 300000,
108    })
109    out = resultOf(run.stdout)
110    if (!out) child.reason = (run.stderr || run.stdout || 'no output').slice(0, 300)
111  } catch (err) {
112    child.reason = String(err)
113  }
114  if (root !== tree) return
115  if (out) {
116    child.sid = out.session_id
117    child.answer = out.result
118    settle(child, out.result || '', 'the branch did not return JSON')
119  } else {
120    child.status = 'failed'
121  }
122  child.ms = Date.now() - child.startedAt
123  $.ui.invalidate('ui.render')
124}
125
126// The prompt a branch gets: our answer, then the same JSON as the root plus what happened
127function whatIf(option) {
128  return 'WHAT-IF BRANCH: this is a forked copy of the session for exploring one answer. ' +
129    'The real session is not affected. My answer to your question: "' + option.label + '"' +
130    (option.detail ? ' (' + option.detail + ')' : '') + '. Carry on as if I picked it, but change no files and run no ' +
131    'commands; you may Read, Grep and Glob to make the plan concrete. Then reply with JSON only, ' +
132    'no code fence, in this shape, plus two more fields: "outcome" (two to four sentences: what ' +
133    'you would do and how things stand after) and "steps" (up to 4 short concrete steps). ' +
134    'The question and options are the NEXT decision you would need from me after this; if there ' +
135    'is none, give an empty question and options []. Shape: ' + SHAPE + '. No em or en dashes.'
136}
137
138// Turn a reply into the node's data, or mark the node failed
139function settle(node, text, reason) {
140  const data = parseJson(text)
141  if (data && Array.isArray(data.options)) {
142    node.data = data
143    node.status = 'ready'
144  } else {
145    node.status = 'failed'
146    node.reason = node.reason || reason
147  }
148}
149
150// claude -p --output-format json prints the result object, or the whole event list
151function resultOf(stdout) {
152  try {
153    const out = JSON.parse(stdout)
154    const res = Array.isArray(out) ? out.find(x => x.type === 'result') : out
155    return res && res.session_id ? res : null
156  } catch {
157    return null
158  }
159}
160
161// Find the id of the assistant message that asked the question, in the session's transcript
162async function lastAssistantId($, sid, answer) {
163  // The Stop hook's transcript path names the folder; without it, rebuild it from the cwd
164  const folder = transcriptPath ? transcriptPath.replace(/\/[^/]+$/, '') :
165    (await $.env.get('HOME')) + '/.claude/projects/' + (await $.session.cwd()).replace(/[^a-zA-Z0-9]/g, '-')
166  const file = folder + '/' + sid + '.jsonl'
167  if (!(await $.fs.exists(file))) return undefined
168  const lines = (await $.fs.read(file)).split('\n')
169  const want = (answer || '').trim().slice(-60)
170  for (let n = lines.length - 1; n >= 0; n--) {
171    let row
172    try { row = JSON.parse(lines[n]) } catch { continue }
173    if (row.type !== 'assistant' || row.isSidechain) continue
174    const text = (row.message.content || []).filter(b => b.type === 'text').map(b => b.text).join('')
175    if (text && text.trim().endsWith(want)) return row.uuid
176  }
177  return undefined
178}
179

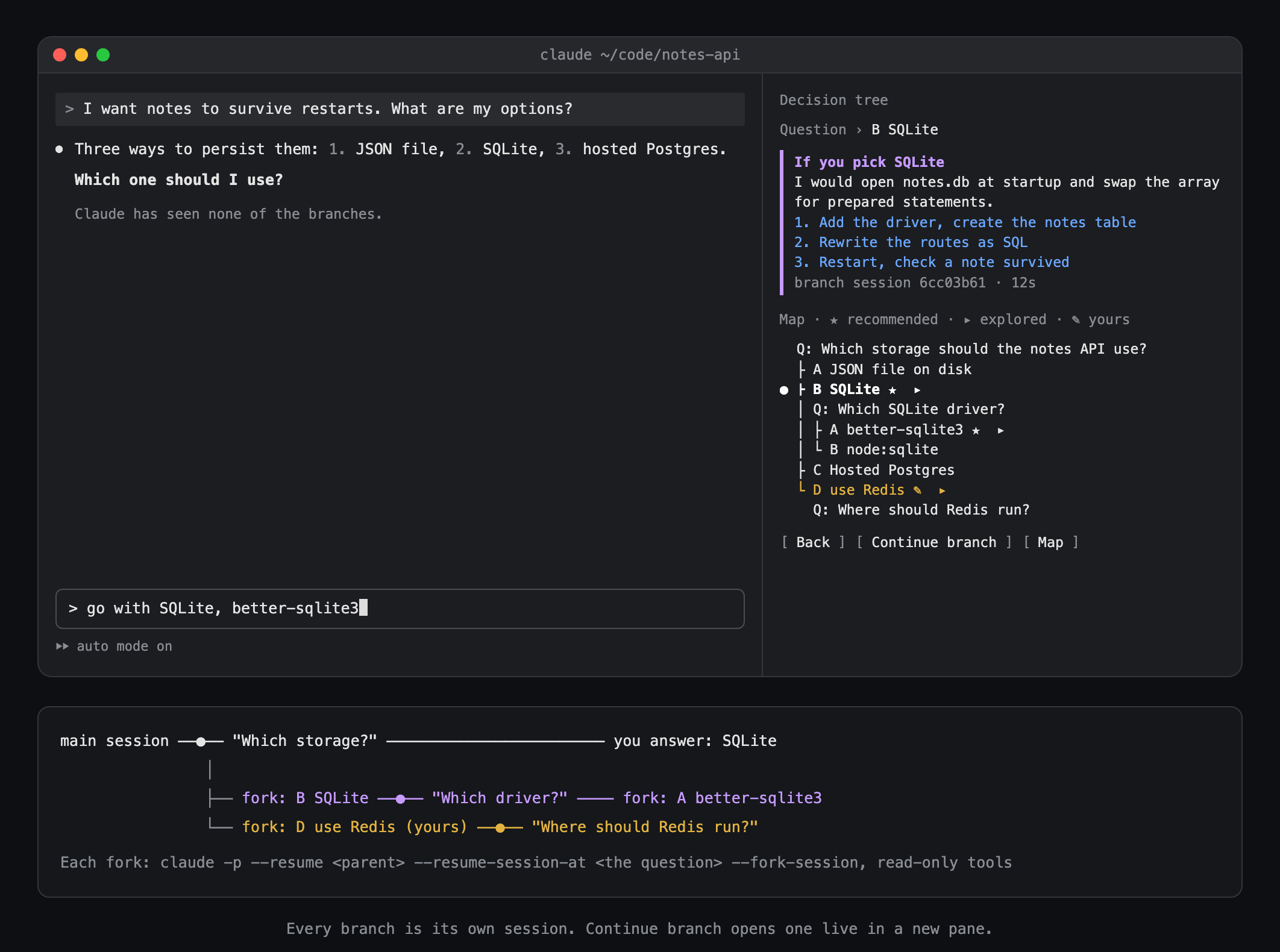

180// The map: one row per question and per option, drawn as a tree with the path to each row
181// Question: Which storage?
182// ├ A JSON file on disk ▸
183// │ └ Q: How should I build it?
184// └ B SQLite ★
185function mapRows(node, p, prefix, rows) {
186  const data = node.data
187  if (!data || !data.question) return rows
188  rows.push({ text: prefix + 'Q: ' + data.question, path: p, kind: 'question' })
189  const pick = (data.recommendation && data.recommendation.label) || ''
190  data.options.forEach((o, i) => {
191    const last = i === data.options.length - 1
192    const child = node.children[i]
193    const mark = !child ? '' : child.status === 'exploring' ? '  ...' : child.status === 'failed' ? '  ✗' : '  ▸'
194    rows.push({
195      text: prefix + (last ? '└ ' : '├ ') + String.fromCharCode(65 + i) + ' ' + o.label + (o.label === pick ? ' ★' : '') + (o.mine ? ' ✎' : '') + mark,
196      path: child ? [...p, i] : null,
197      kind: child ? 'explored' : 'option',
198    })
199    if (child && child.status === 'ready') mapRows(child, [...p, i], prefix + (last ? '  ' : '│ '), rows)
200  })
201  return rows
202}
203
204function nodeAt(p) {
205  let node = root
206  for (const i of p) node = node && node.children[i]
207  return node
208}
209
210// Continue a branch for real: a new Claude session forked from it, in a Herdr pane if there is one
211async function continueBranch($, node) {
212  if (!node || !node.sid) return
213  const command = 'claude --resume ' + node.sid + ' --fork-session'
214  if ((await $.env.get('HERDR_ENV')) === '1') {
215    try {
216      const split = await $.process.run(['herdr', 'pane', 'split', '--current', '--direction', 'down',
217        '--cwd', await $.session.cwd(), '--no-focus'])
218      const id = JSON.parse(split.stdout).result.pane.pane_id
219      await $.process.run(['herdr', 'pane', 'run', id, command])
220      return $.ui.toast('decision-tree: branch opened in pane ' + id)
221    } catch (err) {
222      $.ui.log('could not open a Herdr pane: ' + err)
223    }
224  }
225  await $.ui.copy({ text: command })
226  $.ui.toast('decision-tree: copied ' + command)
227}
228
229// Open the side pane. Unasked, Claude Code only places it on a wide terminal.
230async function openPane($, asked) {
231  // focus takes only true, so leave it out for an unasked open
232  const pane = { id: PANE, title: 'Decision tree' }
233  // Asked from /explain: take the keys, Escape closes it, and ask for room above the prompt
234  const opened = await $.ui.open(asked ? { ...pane, focus: true, closeOnEscape: true, rows: 30 } : pane)
235  if (!opened.isPlaced) $.ui.toast('decision-tree: run /explain to see the pane')
236}
237
238// The fork may wrap its JSON in prose or a fence; take the outermost braces
239function parseJson(text) {
240  const start = text.indexOf('{')
241  const end = text.lastIndexOf('}')
242  if (start < 0 || end <= start) return null
243  try {
244    return JSON.parse(text.slice(start, end + 1))
245  } catch {
246    return null
247  }
248}
249
250export function register(on, options) {
251  on('session.start', async ($, e, next) => {
252    await $.command.register({
253      name: 'explain',
254      description: 'Show the decision tree; A to H explores an option, other <answer> explores your own',
255      argumentHint: '[A-H | other <answer> | map | back | top | continue]',
256      immediate: true,
257    })
258    return next(e)
259  })
260
261  // Remember where transcripts are written, to find message ids to fork at
262  on('classic.Stop', async ($, e, next) => {
263    if (e.transcript_path) transcriptPath = e.transcript_path
264    return next(e)
265  }).catch(($, e, next) => (next.called ? undefined : next(e)))
266
267  // After each of Claude's replies: regex check, then the gate, then the fork
268  on('turn.complete', async ($, e, next) => {
269    const result = await next(e)
270    // A branch's own claude -p run never explains its own replies
271    if ((await $.env.get('DECISION_TREE_CHILD')) === '1') return result
272    if (e.agentId || e.reason !== 'answer' || !looksLikeQuestion(e.answer)) return result
273    if (!(await needsDecision($, e.answer, options.gateModel || 'haiku'))) return result
274    // Run the fork without holding up the prompt; in a -p run, wait so the process lives on
275    const work = explainRoot($, e.answer).catch(err => $.ui.log('decision-tree failed: ' + err))
276    if ((await $.env.get('DECISION_TREE_WAIT')) === '1') await work
277    return result
278  })
279
280  // /explain opens the pane; /explain B explores option B; back, top and continue move around
281  on('command.run', { command: 'explain' }, async ($, e) => {
282    if (!root) return { text: 'No question to explain yet.' }
283    const raw = (e.args || '').trim()
284    const arg = raw.toLowerCase()
285    view = arg === 'map' ? 'map' : 'node'
286    if (arg === 'back') path = path.slice(0, -1)
287    else if (arg === 'top') path = []
288    else if (arg === 'continue') await continueBranch($, nodeAt(path))
289    else if (/^[a-h]$/.test(arg) || /^other\s+\S/.test(arg)) {
290      const own = /^other\s/.test(arg) ? raw.replace(/^other\s+/i, '') : undefined
291      const work = explore($, own ? -1 : arg.charCodeAt(0) - 97, own).catch(err => $.ui.log('explore failed: ' + err))
292      if ((await $.env.get('DECISION_TREE_WAIT')) === '1') await work
293    }
294    $.ui.invalidate('ui.render')
295    await openPane($, true)
296    return {}
297  })
298
299  // The pane: where you are in the tree, what the branch did, then the question and its options
300  on('ui.render', { component: 'Pane', requestId: PANE }, async ($, e) => {
301    const { Box, Text, Button, Input } = $.ui.resolve(e)
302    const width = Math.max(30, (e.props.bodyColumns || 60) - 2)
303    const node = nodeAt(path)
304
305    if (!root || !node) return <Text dimColor>Waiting for Claude to ask you something.</Text>
306
307    // The breadcrumb: Question › B SQLite › A WAL mode
308    const crumbs = ['Question']
309    let walk = root
310    for (const i of path) {
311      crumbs.push(String.fromCharCode(65 + i) + ' ' + walk.children[i].label)
312      walk = walk.children[i]
313    }
314    const nav = (
315      <Box gap={2} marginTop={1}>
316        {path.length ? <Button key="back" label="Back" onPress={() => { path = path.slice(0, -1); $.ui.invalidate('ui.render') }} /> : null}
317        {path.length > 1 ? <Button key="top" label="Top" onPress={() => { path = []; $.ui.invalidate('ui.render') }} /> : null}
318        {node.sid && path.length ? <Button key="cont" label="Continue branch" onPress={() => continueBranch($, node)} /> : null}
319        <Button key="map" label="Map" onPress={() => { view = 'map'; $.ui.invalidate('ui.render') }} />
320        <Button key="close" label="Close" onPress={() => $.ui.close({ id: PANE })} />
321      </Box>
322    )
323
324    if (node.status === 'thinking') return <Text color="yellow">Reading the conversation to explain the question...</Text>
325
326    // The map: the whole tree at once. Press a question or an explored option to open it.
327    if (view === 'map') {
328      const here = path.join('.')
329      return (
330        <Box flexDirection="column" width={width}>
331          <Text bold>Map · ★ recommended · ▸ explored · ✎ yours</Text>
332          <Text>{' '}</Text>
333          {mapRows(root, [], '', []).map((row, n) => {
334            // Mark the option you are on, or the first question when you are at the top
335            const isHere = row.path && row.path.join('.') === here && (row.kind !== 'question' || !row.path.length)
336            const text = (isHere ? '● ' : '  ') + row.text
337            if (!row.path) return <Text key={'r' + n} dimColor>{text}</Text>
338            return <Button key={'r' + n} plain label={text}
339              onPress={() => { path = row.path; view = 'node'; $.ui.invalidate('ui.render') }} />
340          })}
341          <Box gap={2} marginTop={1}>
342            <Button key="node" label="Back to question" onPress={() => { view = 'node'; $.ui.invalidate('ui.render') }} />
343            <Button key="close" label="Close" onPress={() => $.ui.close({ id: PANE })} />
344          </Box>
345        </Box>
346      )
347    }
348    if (node.status === 'exploring') {
349      return (
350        <Box flexDirection="column" width={width}>
351          <Text dimColor>{crumbs.join(' › ')}</Text>
352          <Text color="yellow">{'Forking the session and playing out "' + node.label + '"... (read-only, about 20 to 60s)'}</Text>
353          {nav}
354        </Box>
355      )
356    }
357    if (node.status === 'failed') {
358      return (
359        <Box flexDirection="column" width={width}>
360          <Text dimColor>{crumbs.join(' › ')}</Text>
361          <Text color="red">Could not explain it: {String(node.reason)}</Text>
362          {nav}
363        </Box>
364      )
365    }
366
367    const data = node.data
368    const pick = (data.recommendation && data.recommendation.label) || ''
369    return (
370      <Box flexDirection="column" width={width}>
371        <Text dimColor>{crumbs.join(' › ')}</Text>
372        {path.length ? (
373          <Box borderStyle="quote" borderColor="magenta" paddingLeft={1} flexDirection="column" marginBottom={1}>
374            <Text bold color="magenta">{'If you pick ' + node.label}</Text>
375            {data.outcome ? <Text>{data.outcome}</Text> : null}
376            {(data.steps || []).map((s, j) => <Text key={'s' + j} color="blue">{(j + 1) + '. ' + s}</Text>)}
377            <Text dimColor>{'branch session ' + String(node.sid).slice(0, 8) + (node.ms ? ' · ' + Math.round(node.ms / 1000) + 's' : '')}</Text>
378          </Box>
379        ) : null}
380        {data.question ? (
381          <Box borderStyle="double" borderColor="cyan" paddingX={1} flexDirection="column">
382            <Text bold color="cyan">{data.question}</Text>
383            {data.context ? <Text dimColor>{data.context}</Text> : null}
384          </Box>
385        ) : <Text dimColor>No further decision on this branch.</Text>}
386        {data.options.map((o, i) => {
387          const isPick = o.label === pick && !o.mine
388          const child = node.children[i]
389          const color = isPick ? 'green' : o.mine ? 'yellow' : 'gray'
390          return (
391            <Box key={'opt' + i} flexDirection="column">
392              <Text dimColor>{'  │'}</Text>
393              <Box borderStyle={isPick ? 'bold' : 'round'} borderColor={color} paddingX={1} flexDirection="column">
394                <Text bold color={color === 'gray' ? 'white' : color}>{String.fromCharCode(65 + i) + '  ' + o.label + (isPick ? '   ★ recommended' : '') + (o.mine ? '   ✎ your answer' : '')}</Text>
395                {o.detail ? <Text>{o.detail}</Text> : null}
396                {o.leadsTo ? <Text color="blue">{'→ ' + o.leadsTo}</Text> : null}
397                {(o.pros || []).map((p, j) => <Text key={'p' + j} color="green">{'+ ' + p}</Text>)}
398                {(o.cons || []).map((c, j) => <Text key={'c' + j} color="red">{'- ' + c}</Text>)}
399                <Button key={'x' + i} label={child ? (child.status === 'exploring' ? 'Exploring...' : 'Open branch ▸') : 'Explore ▸'}
400                  onPress={() => explore($, i)} />
401              </Box>
402            </Box>
403          )
404        })}
405        {data.question ? (
406          <Box flexDirection="column">
407            <Text dimColor>{'  │'}</Text>
408            <Box borderStyle="round" borderColor="gray" borderDimColor paddingX={1} flexDirection="column">
409              <Text dimColor bold>{String.fromCharCode(65 + data.options.length) + '  Other'}</Text>
410              <Input key={'other.' + path.join('.')} placeholder="type your own answer" submitLabel="explore"
411                onSubmit={value => { if (value.trim()) explore($, -1, value.trim()) }} />
412            </Box>
413          </Box>
414        ) : null}
415        {pick ? <Text>{' '}</Text> : null}
416        {pick ? <Text color="green">{'★ ' + pick + ': ' + data.recommendation.why}</Text> : null}
417        {nav}
418      </Box>
419    )
420  })
421}
422
